Vinyl and luxury vinyl tile are thin, flexible floor coverings — typically 2 to 6mm — and that thinness is the whole design problem at a stair edge. There is not enough material to form its own nose, the cut edge lifts under traffic, and a covering that peels at the front of a step is both a wear problem and a trip hazard.

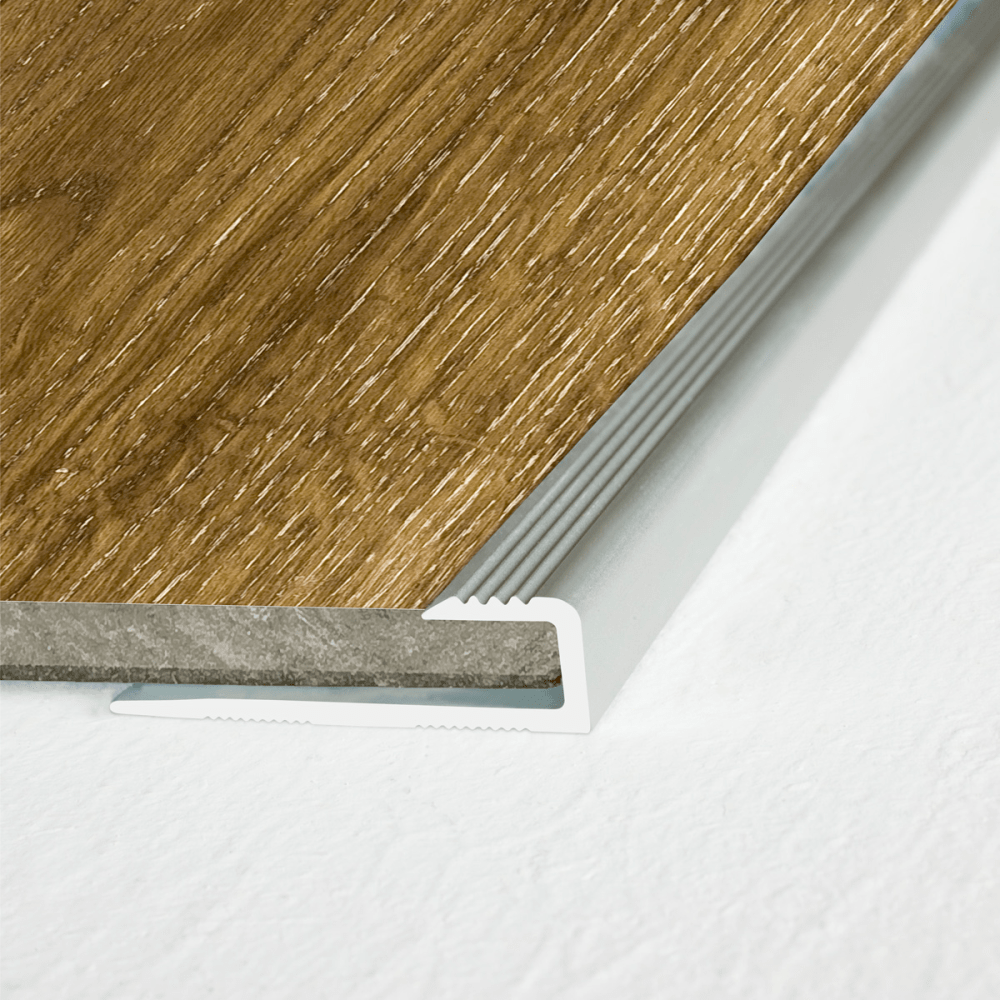

A nosing designed for LVT solves it by capturing the flooring edge inside a channel rather than simply sitting next to it. This guide covers matching a profile to your floor thickness, the profile types available, fixing methods by substrate, and what the regulations require.
Matching the profile to your floor thickness
This is the decision that determines whether the installation looks professional or improvised, and it is where most orders go wrong.
Measure the total build-up, not just the plank. That means the LVT thickness plus any attached backing plus the adhesive bed, typically 1 to 2mm. Order a profile whose channel is around 0.5mm deeper than that total. A channel that is too shallow leaves the LVT edge proud and exposed; one that is too deep leaves a gap that fills with grit.
- 3mm LVT — a compact profile such as the anodised 40 × 26mm for 3mm flooring
- 5mm click LVT — a deeper channel, as on the 2.7m anodised profile for 5mm click
- Sheet vinyl, 2–3mm — usually a flat bar or shallow rebate rather than a deep channel
For width, measure the tread depth and subtract 10 to 15mm to find the widest nosing that still leaves a comfortable walking surface behind it.
Profile types
- Single channel — one groove takes the LVT on the tread. The standard choice where the same covering runs throughout.
- Double channel — two grooves, so a different covering can meet the nosing on tread and riser, or where two floor types of different thickness meet at the edge.
- Ramp back — the rear of the profile is angled rather than square, which lets it sit naturally against the riser and absorb minor irregularities. It removes the need for precise scribing and is the most forgiving option on an uneven stair.
- Bullnose — a rounded leading edge that wears more evenly and feels better underfoot in heavy traffic. See the MorGrip bullnose profile.
- Flexible PVC edging — bends around curved or splayed steps where a rigid extrusion cannot follow the line, such as the 75 × 34mm flexible edging.
Material
Anodised aluminium is the default and suits almost every LVT installation. It holds its shape indefinitely, cuts with ordinary tools, and the anodised finish resists corrosion and cleans easily. Silver works against most vinyl colours; bronze and black suit darker schemes.
Solid brass is for high-end residential and hospitality work, where it develops a patina rather than looking worn. Considerably more expensive — see the 44 × 26mm ribbed brass profile.
Flexible PVC is the cheapest option and the only one that follows a curve. It absorbs impact rather than transmitting it, which reduces cracking around fixings, and it dampens footfall noise. It cannot be painted, so choose the colour at order stage.
Browse the full vinyl and LVT stair nosing range by profile and floor thickness.
Grip
A bare metal nose over vinyl is slippery, particularly on descent in socks or smooth-soled shoes. Two options:
- Insert channels take a PVC or MorGrip strip. Better grip, and the insert is replaceable once the pattern wears flat — which means the stair is renewed rather than refitted.
- Ribbed or machined surfaces cost less and need no separate components, but the grip is fixed for the life of the profile and cannot be restored.
For a commercial LVT stair, specify a slip-rated profile and ask for the pendulum figure — at least 36 PTV in the wet is the HSE benchmark for low slip potential.
Fixing, by substrate
Concrete — mechanical fixing with masonry anchors. Pre-drill to avoid spalling the edge.
Timber — adhesive and countersunk screws together. Clean the edge back to sound timber first.
Steel — self-drilling stainless screws.
Floating floors — the one case that needs thought. A floating LVT floor moves seasonally, so a rigidly bonded nosing will either crack or pull the flooring apart. Use a flexible adhesive or a mounting system that allows movement, and leave the expansion gap intact.
Fixing spacing depends on the profile weight: roughly 150mm centres on a heavy commercial profile fixed to concrete, and 300 to 400mm for a light LVT trim in a domestic setting. Always place a fixing near each end — an unsupported corner is what catches a toe.
Sequence matters
Fit the nosing first, then bring the LVT into the channel while the adhesive is still workable. Trying to slide a nosing over flooring already laid tight to the edge is how installers end up trimming in place and leaving a ragged line.
Leave a small expansion gap where the vinyl meets the nosing. Check adhesive compatibility before you start — some vinyl flooring adhesives bond poorly to aluminium, and porous substrates may need priming first. Allow the full 24-hour cure before foot traffic.
Measure every step individually. Building tolerances mean flight widths vary, and leaving 2 to 3mm clearance at each end allows for thermal movement. Full detail is in our step-by-step installation guide.
Commercial installations
For contract vinyl work, specify a slip-rated metal nosing over the vinyl rather than relying on a moulded vinyl nose. Where the flooring is welded sheet, coved skirtings and welded seams should carry through to the stair for hygiene and cleanability — a nosing detail that breaks the sealed surface undoes the rest of the specification.
What the regulations require
- Approved Document K covers stair geometry, and limits how far a nosing may project over the tread below — 25mm is the figure to work to.
- Approved Document M sets the 55mm × 55mm contrasting band on tread and riser for buildings other than dwellings.
- BS 8300-2:2018 recommends at least 30 points of Light Reflectance Value difference between nosing and tread. It is a standard referenced by Part M, not law in itself.
- Workplace (Health, Safety and Welfare) Regulations 1992, regulation 12 — law, and requires that floors are not slippery so as to expose anyone to risk.
Colour matching is where LVT projects most often fall down on compliance: a nosing chosen to blend with the floor is the opposite of what Part M asks for. Contrast is the requirement.
Maintenance and service life
Sweep or vacuum weekly — grit is abrasive and wears both the nosing and the LVT around it. Clean monthly with mild detergent, avoiding anything abrasive on anodised finishes. Check fixings quarterly in commercial use.
On service life, separate the two components: an anodised aluminium extrusion commonly lasts twenty years or more, while the grip insert is the wear part and is typically replaced every ten to fifteen years, sooner on a heavy public stair. Inspect inserts every twelve to eighteen months in commercial settings and replace them once the pattern is smooth.
Frequently asked questions
What LVT thickness do standard nosing channels take?
Most accommodate 2 to 6mm. Measure the plank plus any backing plus the adhesive bed, and order a channel about 0.5mm deeper than the total.
Can I fit LVT nosing over existing carpet or tiles?
No — lift the old covering first. The nosing needs a flat, stable, solid edge to fix to, and bonding over a soft or loose layer means the whole assembly lifts together.
How do I cut aluminium nosing accurately?
A fine-tooth hacksaw or mitre saw with a metal-cutting blade. Support the profile both sides of the cut to stop it distorting, then file the end smooth.
Will it work with underfloor heating?
Yes. Both aluminium and PVC handle normal underfloor heating temperatures, which should not exceed around 60°C at the floor surface. Use a flexible adhesive so the assembly can move with the floor.
Can vinyl nosing be painted to match my floor?
No. Paint does not adhere well to PVC and wears off quickly under foot traffic. Anodised aluminium can be painted with a metal primer but it undermines the finish. Choose the colour at order stage.
What if a section becomes loose or damaged?
Replace it promptly — individual lengths can usually be removed without disturbing the ones either side. Keep an offcut from the original installation so the colour matches.
Specifying for your project
Four numbers settle most LVT nosing specifications: floor thickness including adhesive, tread depth, whether the floor is floating or bonded, and whether Part M applies. Browse the vinyl and LVT range, or send those four and we will specify against them.
