Heavy duty 3 channel cable protection ramp for busy floors

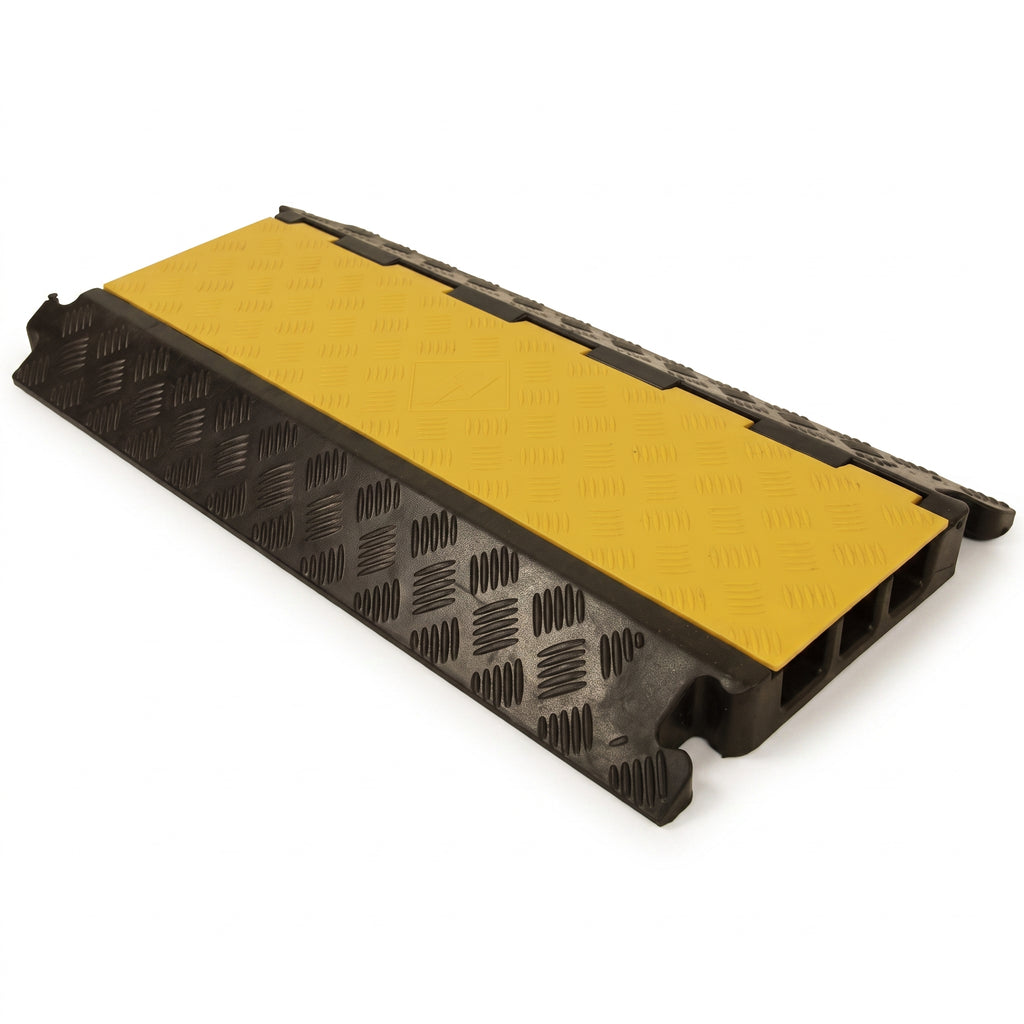

When power, data and hose runs have to cross a floor that vehicles and foot traffic use, a loose cable is both a trip hazard and a maintenance problem waiting to happen. This 3 channel cable protection ramp is built for exactly that job: three separate channels take your cables and hoses off the floor and enclose them under a hinged, high-visibility lid, while a hard rubber body spreads the load of anything that drives over it. It suits warehouses, loading bays, workshops, exhibition halls, live events and building sites where cables need to be protected without closing off the route.

Why it works

The body is moulded from hard-wearing rubber with an anti-slip tread across the ramped sides, so wheels and feet get grip rather than skidding on the approach. The three internal channels keep individual cables separated and supported, which matters when you are running a mix of power and data and want to pull one line out later without disturbing the rest. The hinged yellow PVC lid lifts for loading and closes flush, and the high-visibility colour gives approaching drivers and pedestrians a clear line to slow down for. With a stated 24 tonne load capacity, the ramp is rated for repeated crossings by pallet trucks, vans and larger site vehicles rather than light foot traffic alone. Male and female ends let you join units in a line to bridge a wider doorway or a longer run, so the same product scales from a single doorway to a full cable crossing.

Where it is used

Typical settings include warehouse and distribution doorways, factory gangways, vehicle workshops, outdoor events and festivals, film and broadcast sets, conference and exhibition venues, and construction site welfare routes. Anywhere a temporary or semi-permanent cable run meets a trafficked surface is a candidate.

Specifications

Choosing the right option

Match the ramp to the cables you actually need to cross, not the maximum you might ever run. The three channels here take up to three separate cables or hoses at 45mm deep, so measure your largest connector and cable diameter before ordering. If you routinely run more than three lines, or a single very large bore hose, step up to a five channel ramp instead of forcing cables into a channel that will not close cleanly. For a wider doorway, plan to join two or more units end to end rather than stretching one unit across a gap it was not sized for. If crossings are by heavy plant rather than pallet trucks, confirm the load figure suits your heaviest axle.

Installation, use and care

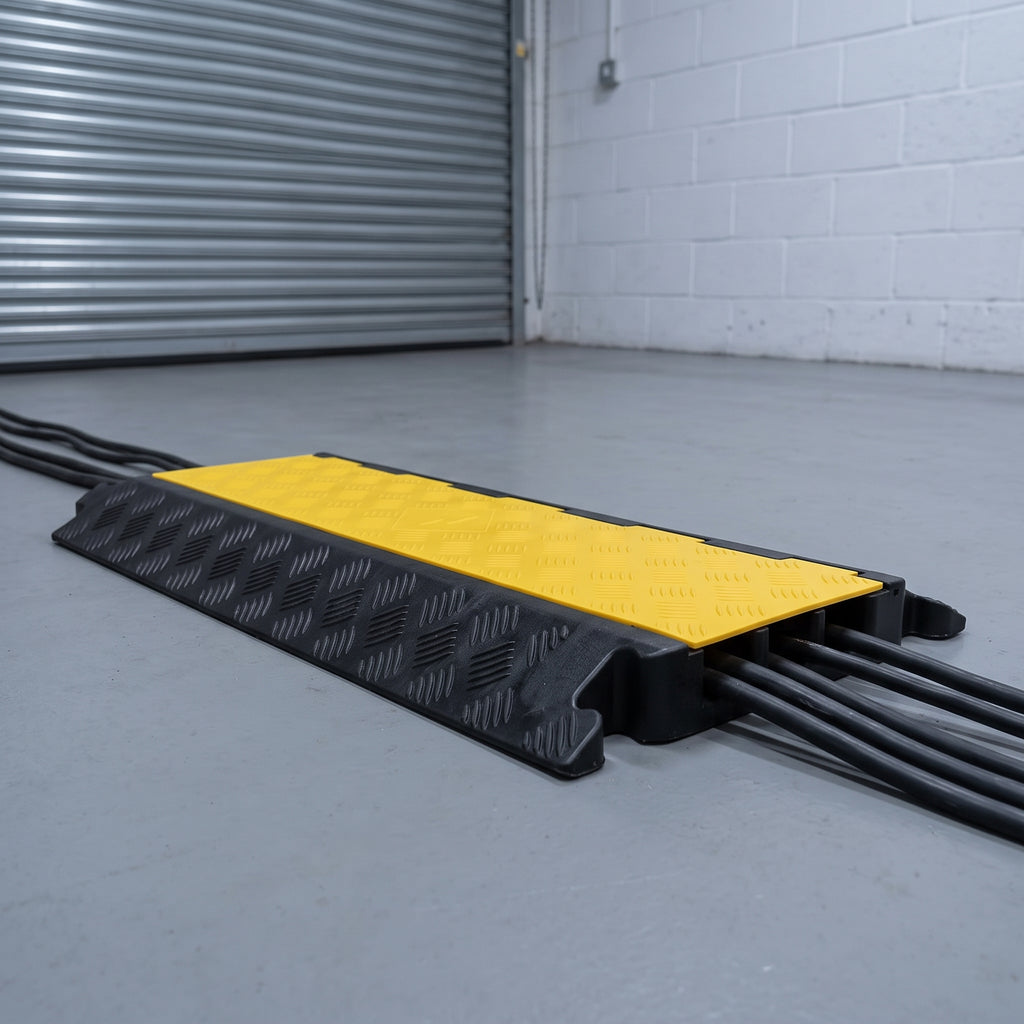

Lay the ramp flat on a clean, dry surface, lift the hinged lid, seat each cable into its channel, then close the lid so it sits flush. Join additional units through the male and female ends to extend the run. Keep the channels clear of grit so the lid closes fully, and hose or wipe the ramp down when it gets muddy on site. Store flat, out of prolonged direct sunlight where possible, to protect the PVC lid over a long service life.

Frequently asked questions

Can vehicles drive over it? Yes. The ramp is rated to a stated 24 tonne capacity for repeated crossings; confirm your heaviest vehicle sits within that figure.

How many cables does it hold? Three, one per channel, each channel 45mm deep.

Can I make it longer? Yes. Units join end to end via male and female connectors to bridge wider openings.

Is it suitable outdoors? It is used at outdoor events and on sites; store it out of prolonged sunlight to extend the life of the lid.

Does it have a formal slip rating? A formal slip rating is not published for this line; the tread provides an anti-slip surface on the ramped sides.

Ordering and delivery

This ramp is made to order. Add it to your basket for current lead time and delivery options, and order additional units where you need to join a longer run. If you need help matching channel count or load rating to your site, get in touch before ordering and we will point you to the right configuration.
