Description
Stair goings are rarely a round number. This is the same 90mm double channel nosing as our 1m and 2m stock bars, cut here to the exact millimetre you specify between 700mm and 3200mm, tolerance plus or minus 5mm.
What it is

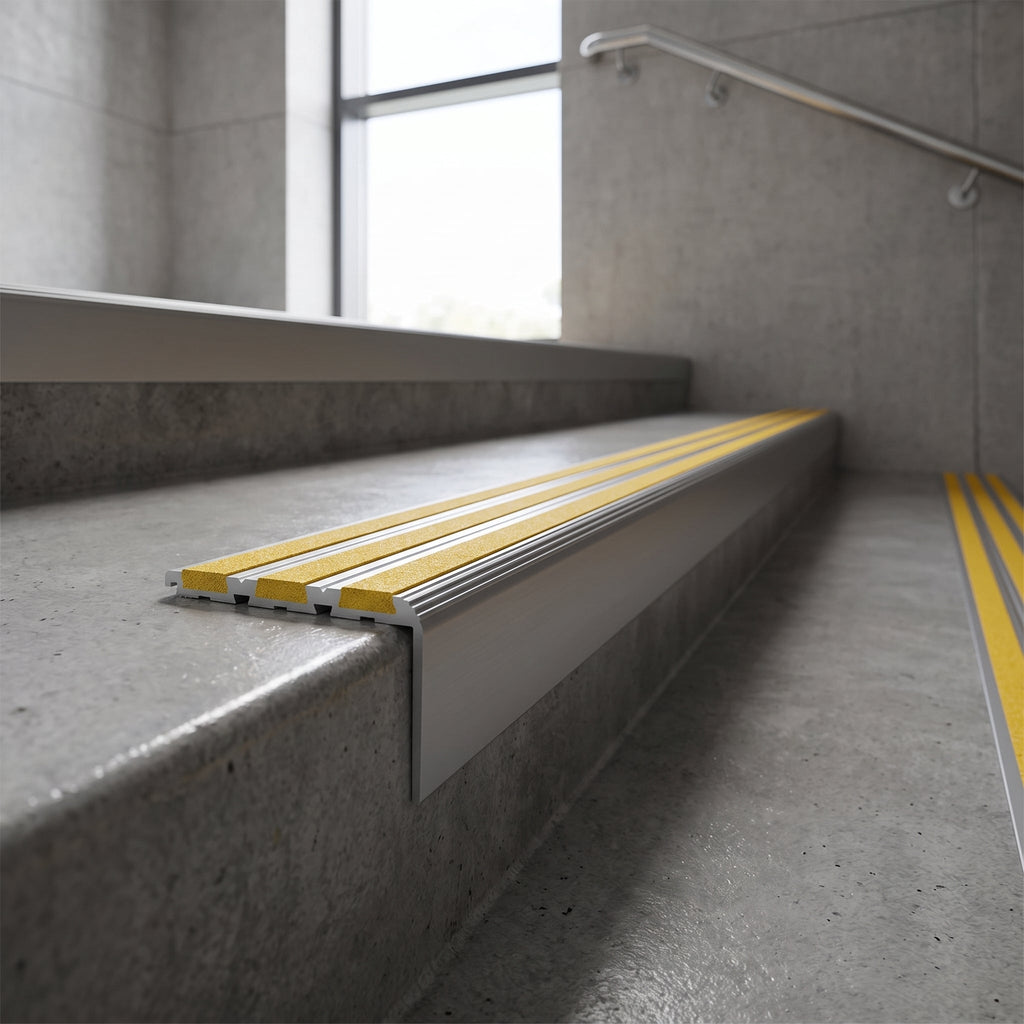

A 5mm gauge aluminium extrusion 90mm across the tread with a shallow 32mm nose, carrying two insert channels rather than one. Two bands of grip across a deep going means the foot lands on an insert wherever it falls, which is the point of the profile: it is specified where a single stripe would leave too much bare metal on a wide tread.
Why cut to size
A 90mm extrusion is heavy to handle and awkward to cut square by hand, and a skewed end shows badly against a wall string. Workshop cutting gives clean square ends and lets you order every step to its own measurement.
Specifications
| Material | Aluminium alloy 6063 T6 |
| Tread width | 90 mm |
| Nose depth | 32 mm |
| Gauge | 5.0 mm |
| Channels | Two insert channels |
| Cut length range | 700 mm to 3200 mm, tolerance +/- 5 mm |
| Finishes | Mill, satin and polished aluminium |
| Infill colours | 17 |
Measuring
Measure the finished going at the front edge of the tread and measure every step. Between two walls take 3mm to 5mm off so the bar drops in without scraping. Custom cut lengths are made to your figures, so they are non-returnable except for faults.
Ordering and delivery
Cut lengths are made to order; allow additional working days over a stock bar. Standard UK mainland delivery is a flat rate. If your treads sit close to 1m or 2m, the stock listing linked above will reach you sooner.
