Heavy Duty Interlocking Rubber Stable Mats - Horse Stall Flooring 17mm

Heavy Duty Interlocking Rubber Stable Mats

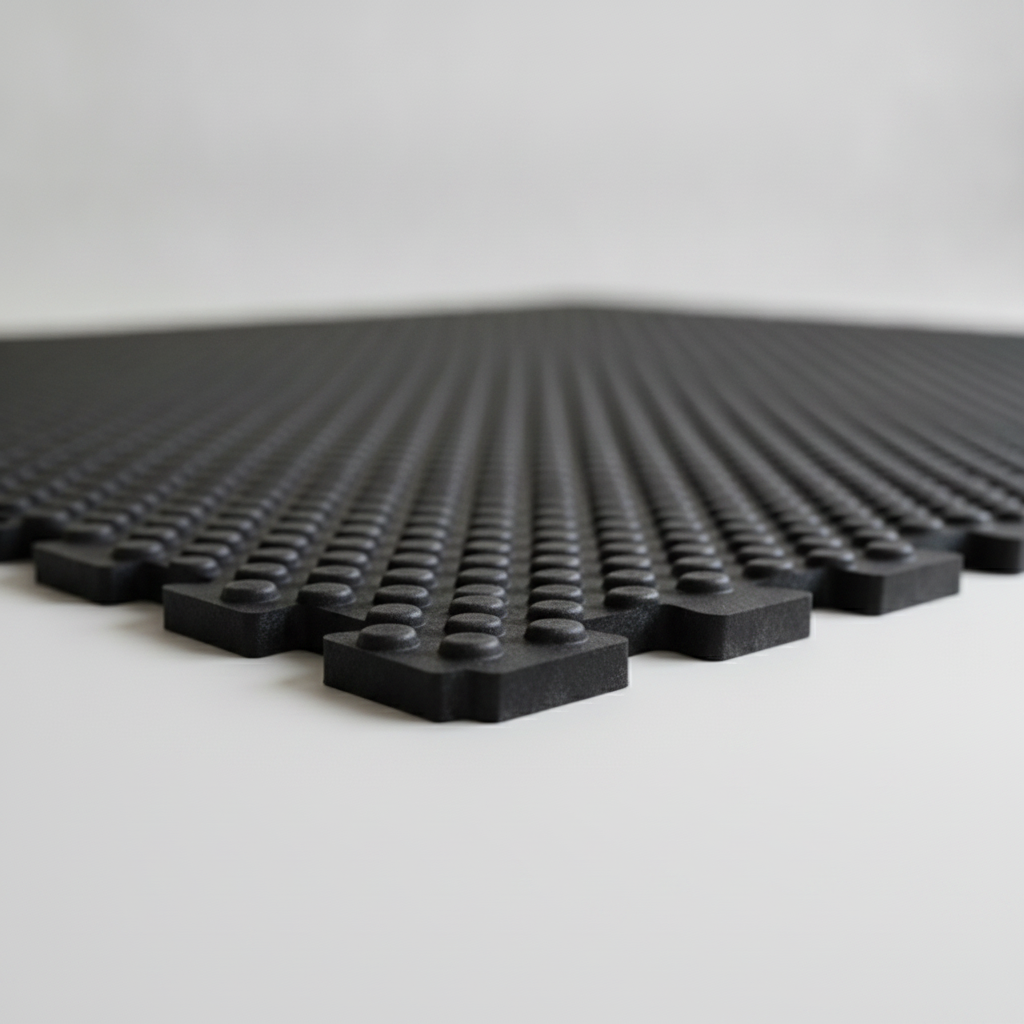

A bare concrete stable floor is hard on a horse's joints, holds the cold, and turns mucking out into a daily fight with wet, sticky bedding. These heavy duty interlocking rubber stable mats give every stall a cushioned, insulated, non-slip base that cuts bedding use, speeds up mucking out and protects hooves and legs from concentrated impact. Made from dense recycled rubber at 18mm thickness with a non-slip bubble-top surface, the mats interlock edge to edge so bedding cannot work its way into gaps, and the range includes ramp and joint sections to finish doorways and mat runs neatly.

Why it works

Standing and moving on bare concrete for hours transmits every bit of impact straight through a horse's hooves and joints; the 18mm rubber layer absorbs a meaningful share of that impact and adds a thermal break against a cold slab, which is why stable matting is standard practice in UK yards. The bubble-pattern top surface keeps grip high even when wet with urine or wash-down water, reducing the risk of a horse slipping when getting up, lying down or turning in a confined stall. Because each mat interlocks with the next via a precision jigsaw edge, the floor behaves as one sealed surface rather than a row of loose mats, so bedding, moisture and hoof debris cannot collect in the joints the way they would with butted, non-interlocking mats.

• Joint and hoof protection – 18mm cushioned rubber reduces impact through legs and joints on a hard base
• Non-slip when wet – bubble-pattern surface keeps grip in urine, wash water or damp bedding
• Cuts bedding costs – insulated, sealed floor needs less bedding to keep a horse warm and dry
• Interlocking seal – jigsaw edges stop bedding and moisture collecting in gaps between mats
• Complete stall kit – matching ramp and joint sections finish doorways and mat runs neatly

Where it's used

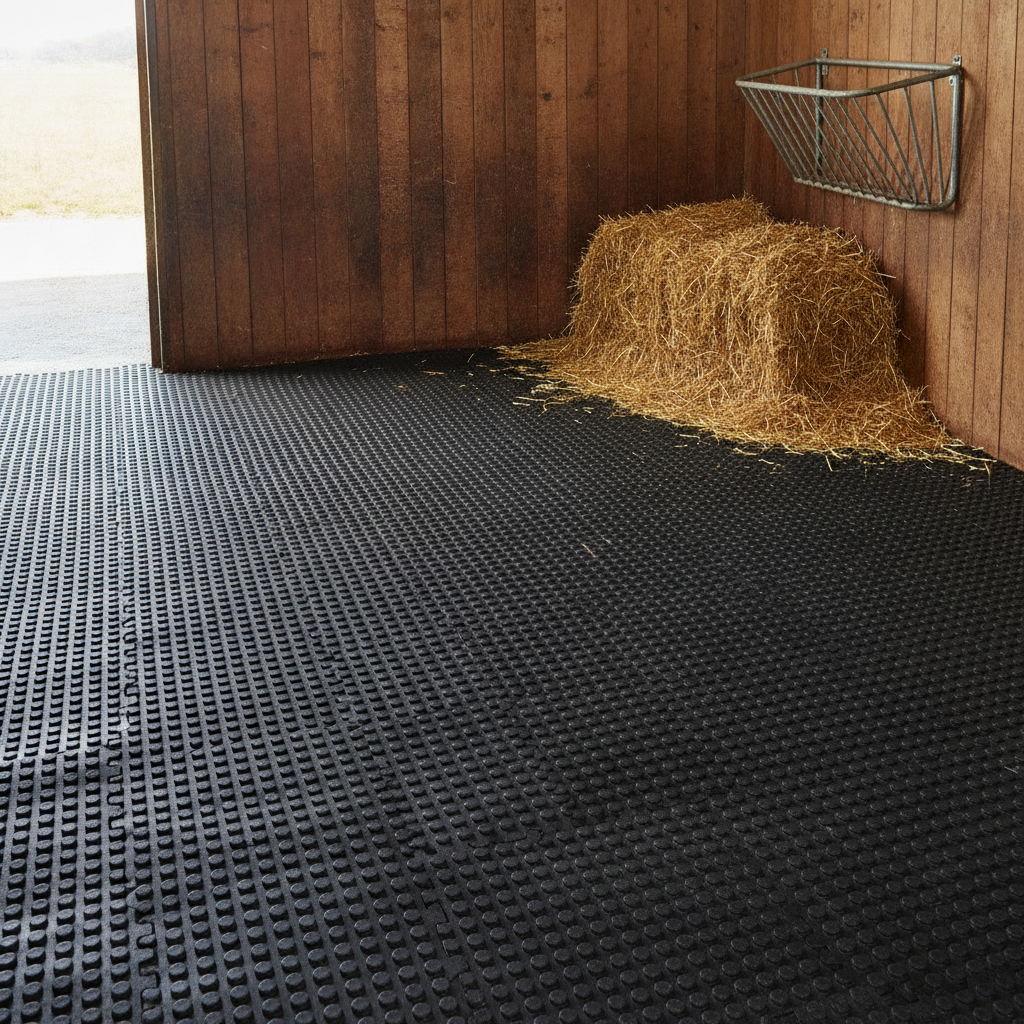

Fitted in loose boxes, standing stalls, wash bays, horse boxes and trailers, field shelters and farriery areas across livery yards, stud farms and racing and training stables. The ramp sections are used at stable doorways and mat run edges to remove a trip step for horses and handlers, while joint and corner sections finish internal edges neatly against walls and partitions.

Specifications

Choosing the right components

Order enough main mats to cover the stall floor area, allowing for the standard 1.8m x 1.2m mat size. Add a Ramp Long Edge or Ramp Short Edge section wherever the matted floor meets a doorway or open edge that a horse or wheelbarrow crosses, choosing the length that matches that edge. Joint sections finish an internal edge where mats meet a wall without a ramp, and Corner sections finish the internal corners of the mat run. A typical 12ft x 12ft loose box needs approximately 6 main mats plus edging components to suit the door position; a 10ft x 10ft stable typically needs around 4 main mats.

Installation, use and care

Lay mats onto a clean, level, well-drained concrete or compacted base, interlocking each mat's jigsaw edge into the next and butting ramp and joint sections against doorways and walls. No adhesive is required for a standard loose-lay stable installation. Sweep or muck out daily as normal; hose down periodically and allow to dry, and check occasionally that interlocked edges have not been lifted by persistent pawing.

Frequently asked questions

Do these mats need adhesive? No. The interlocking edges and the weight of the mats keep a standard stable installation in place without adhesive.

Can they be used outdoors, such as in a field shelter? Yes. The rubber compound is UV-stable and weather-resistant for field shelters and outdoor standing areas.

How many mats does a 12ft x 12ft loose box need? Approximately 6 main mats, plus ramp or joint sections to suit your doorway position.

Will these stop a horse pawing through to the concrete? Yes, for normal use. For chronic pawing, a thicker mat or double layer may be needed for extra impact resistance.

Ordering and delivery

Order main mats to cover your stall floor area, plus the ramp, joint and corner sections needed to finish doorways and edges. Contact us for help planning quantities for a full yard fit-out.
