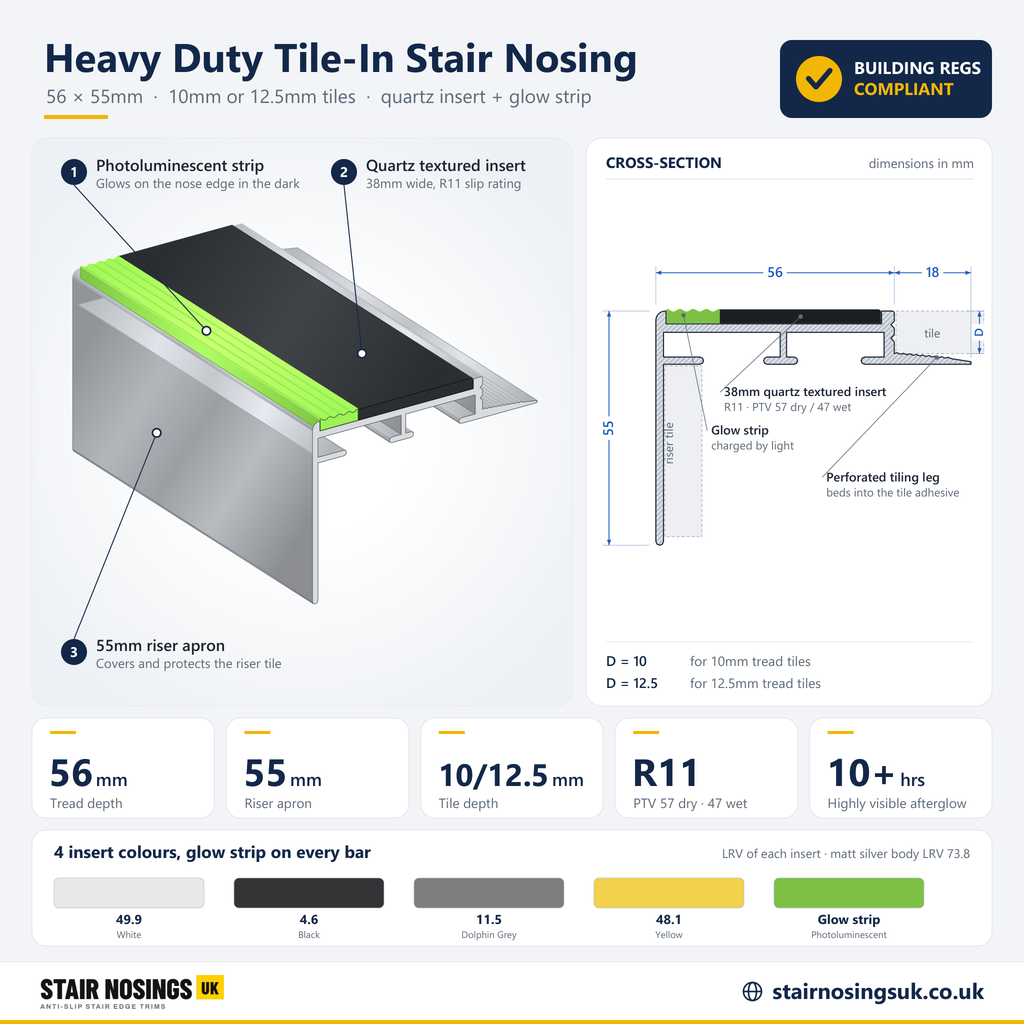

A heavy duty aluminium stair nosing for tiled stairs that stays visible when the lights go out. It is a tile-in profile: the nosing is bedded into the tile adhesive at the edge of each step while the stair is being tiled, and the tile butts up to it, so it sits flush with the tread and there are no visible fixings. A glow strip runs along the nose, with a 38mm quartz textured anti-slip insert behind it.
The front strip is a photoluminescent compound that stores light and releases it as a green glow, measured at 455 mcd/m² ten minutes after charging and staying highly visible for more than 600 minutes. If the lighting fails on an escape stair, each step edge still shows. Behind it, the 38mm quartz textured insert is the walking surface: an external-grade, gritted blend of PVC and silica quartz in a raised pyramid pattern, rated R11 on the DIN 51130 ramp test with pendulum values of 57 dry and 47 wet to BS 7976-2, for grip in wet and dry conditions.
A 6063-T6 aluminium extrusion takes the heel strikes, trolley wheels and dropped tools that would chip the tile edge, the part of a tiled step most likely to chip. Designed for heavy foot traffic, it is braced by a central T-web and three feet, and the 55mm apron protects the riser tile.
Tile adhesive squeezes up through the anchoring holes in the 18mm tiling leg and grips the profile from both sides; a keyed rear wall gives the tread tile a square edge to butt against.
The 56mm x 55mm profile is sized for the 55mm contrasting band Approved Document M asks for on stairs in buildings other than dwellings, and it meets DDA and BS 8300 visual contrast guidance. For a visible step edge the insert should contrast with the tile by at least 30 points of light reflectance value (LRV); every insert LRV is listed below.
Escape stairs where emergency lighting may fail, cinemas and venues with dimmed lighting, hotels, hospitals, offices, schools, stations and outdoor tiled steps.
| Profile | Heavy duty tile-in stair nosing, straight edge |
| Section | 56mm tread x 55mm riser apron, 18mm perforated tiling leg |
| Tile thickness | 10mm or 12.5mm (choose to match your tiles) |
| Inserts | Front photoluminescent glow strip plus 38mm quartz textured anti-slip insert |
| Glow performance | 455 mcd/m² after 10 minutes charging; highly visible afterglow over 600 minutes |
| Slip resistance | R11 (DIN 51130); pendulum PTV 57 dry / 47 wet (BS 7976-2) |
| Insert LRV | White 49.9, Black 4.6, Dolphin Grey 11.5, Yellow 48.1 |
| Material | Extruded aluminium, alloy 6063 T6, matt silver, LRV 73.8 |
| Suitable for | Ceramic, porcelain and stone tiled stairs; can also be used with wood and laminate treads |
| Environment | Indoor and outdoor |
| Fixing method | Tile-in, bedded in tile adhesive |
| Lengths | 1.0m, 1.5m, 2.0m, 3.22m |
| Nosing type | Commercial, heavy duty |
| Compliance | Meets DDA and BS 8300 visual contrast guidance; complies with Building Regulations for stair safety |
Tile thickness first. Measure the tile you are laying and choose 10mm or 12.5mm to match. A thicker tile in the 10mm version sits proud of the nose.
Then insert colour. Use yellow or white on dark tiles and black on light tiles. Check your combination with our LRV calculator.
Then length. Order one nosing per step in the shortest length that covers the width, and cut it back on site.
Fit the nosing as you tile each step. Measure every step individually and cut with a fine-tooth blade, leaving 2 to 3mm clearance at each end. Set it on a solid bed of tile adhesive with the nose tight to the riser, then lay the tread tile up to it so it finishes level with the nosing. Scrub the insert with a bristle brush and warm soapy water; never use solvent cleaners.
No. The tiling leg sits under the tread tile, so the nosing goes down while you tile. For steps that are already tiled, ask us about our retro-fit range.
It is charged by ordinary daylight or artificial light and glows green when the lights go out. Ten minutes of charging gives a highly visible glow for more than 600 minutes. It needs no wiring or power.
It is bedded into the tile adhesive: the adhesive keys through the perforated tiling leg and the tread tile locks it in, so there are no screws on show.
Yes, it is suitable for indoor and outdoor tiled steps, and the insert keeps a pendulum value of 47 when wet. Use frost-resistant tiles and an exterior-grade adhesive outside.
Choose the insert colour, tile thickness and length above; every combination is priced on its own. Stock is held in the UK and dispatched from our UK warehouse.
View our complete range of stair nosing profiles — aluminium, rubber and PVC options for every application.
| Service | Timeframe | Cost |
|---|---|---|
| Standard UK Delivery | 2 working days from dispatch | £9.99 |
Orders placed by 2pm (UK time) on a working day are dispatched the same day. Orders placed after 2pm or on non-working days are dispatched the next working day. Delivery takes 2 working days from dispatch. Working days are Monday to Friday, excluding bank holidays. UK delivery costs £9.99. Contact us for international enquiries.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Overall rating: 5.0 / 5 from 6 reviews.

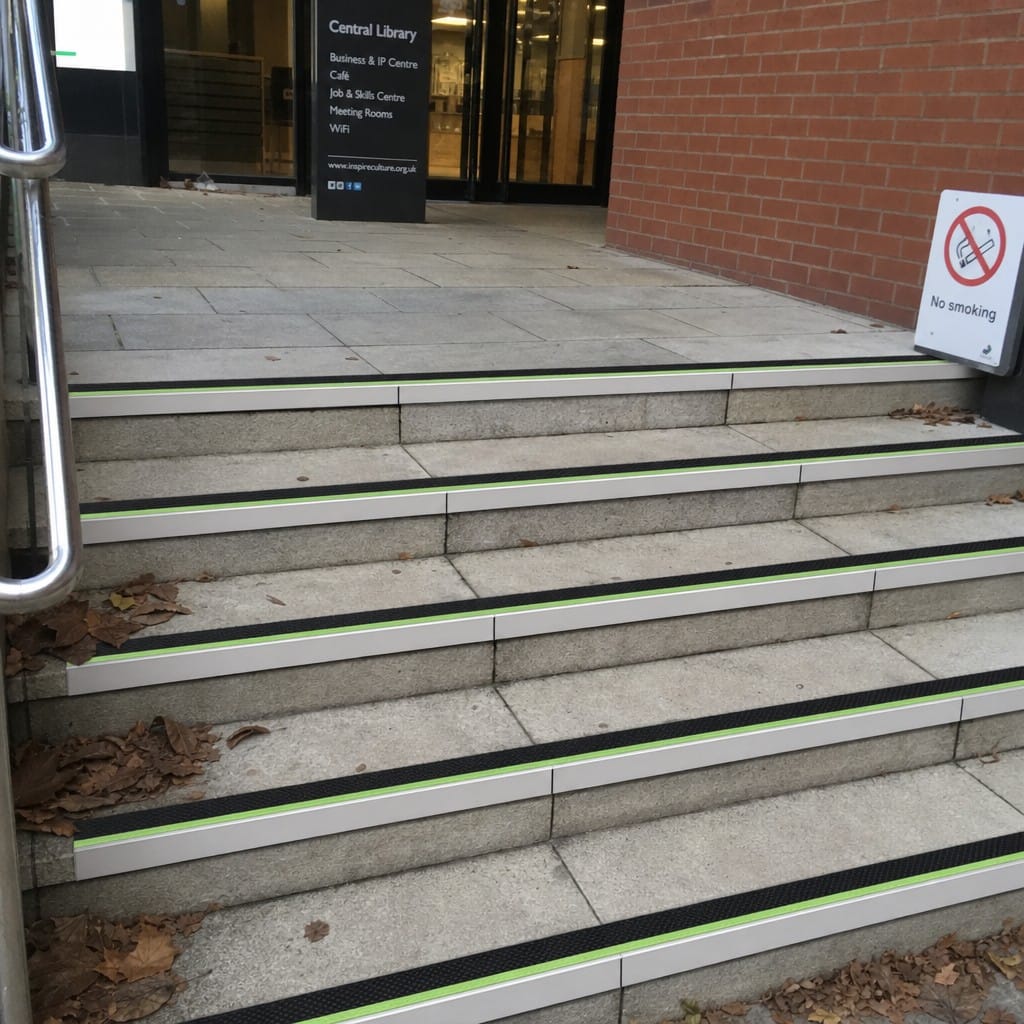

Job done. Fitted the edging on our outdoor tiles leading to the library entrance, and it slots in perfectly without needing any adjustments. It sits discreetly and has been worth every penny compared with more expensive options—brilliant grip even when rubbish weather hits.
Aluminium Surface Fixed Stair Nosing 10mm and 12.5mm Heavy Duty Anti-Slip Insert
Had to get the walkways in our buzzing office sorted quick, and this was just the ticket. Fit brilliantly over the laminate flooring without a hitch, and really feels like it ups the security game for everyone bustling about. Looks top-notch with loads of natural light hitting it from the big windows—just what we needed!
Aluminium Surface Fixed Stair Nosing 10mm and 12.5mm Heavy Duty Anti-Slip Insert

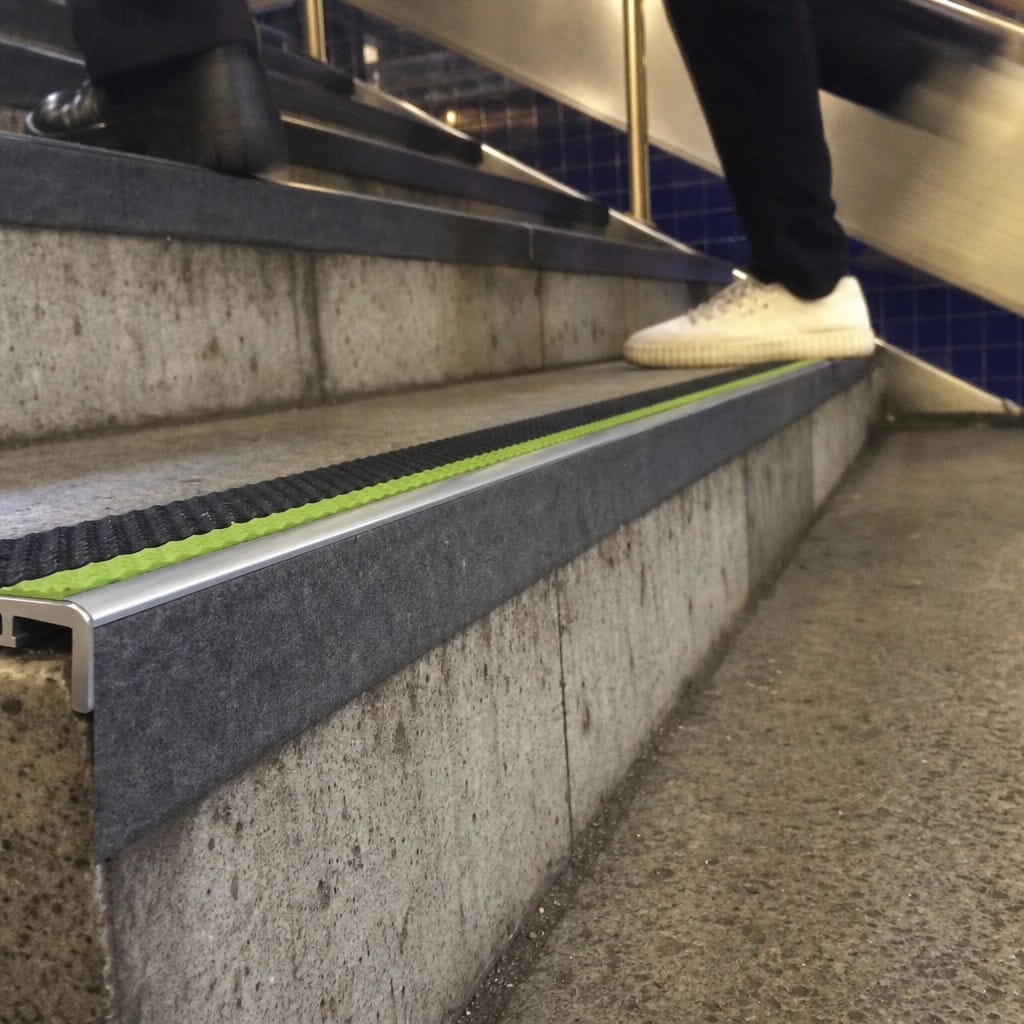

Came securely wrapped and straight away it was ready for a trial run in our local tube station. Underfoot, it absolutely handles the wet footfall like a pro — floors still impeccable despite all the commuter bustle. Honestly, Kens heavy duty stair nosing doesnt just look tidy but performs impressively when you need that extra grip during those slippery peak hours!
Aluminium Surface Fixed Stair Nosing 10mm and 12.5mm Heavy Duty Anti-Slip Insert

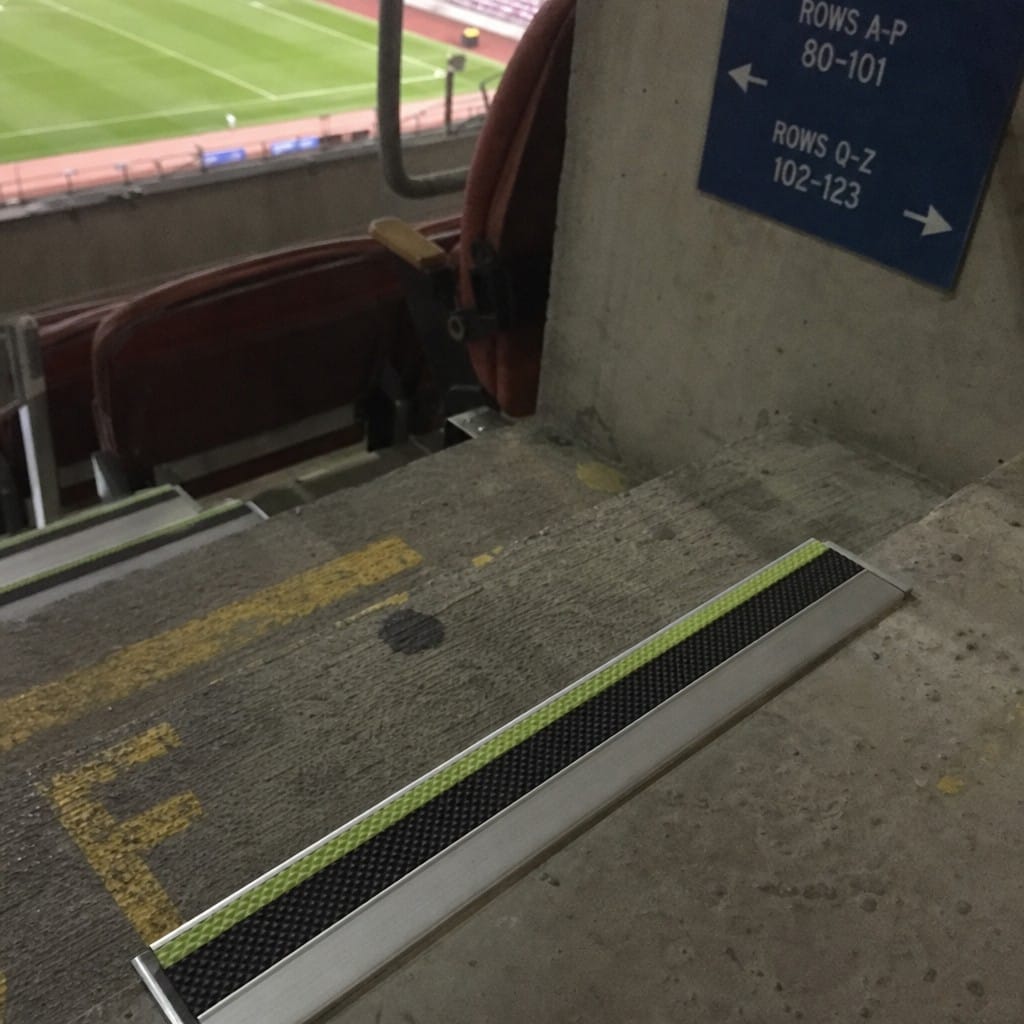

Took a punt on this after seeing it online. The packaging was solid, and all the pieces inside were pristine—always a good sign! Installed these treads at our local stadium where theyre constantly in use, and theyve held up brilliantly through both rain and shine. Got to say, they delivered exactly as promised for those tricky stair nosings weve had trouble with before.
Aluminium Surface Fixed Stair Nosing 10mm and 12.5mm Heavy Duty Anti-Slip Insert

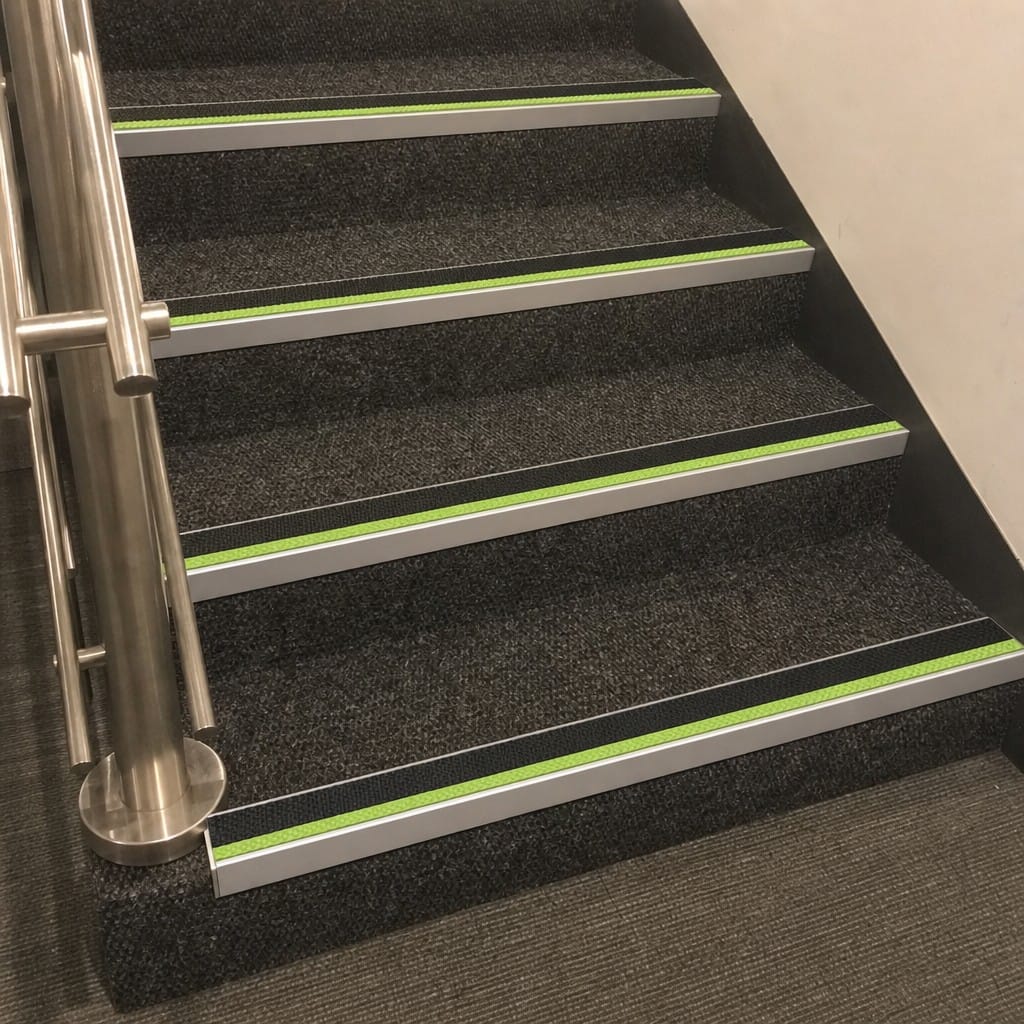

Got this for the staircases in our office building, and it’s given them a sleek, professional finish. The installation was straightforward, fitting seamlessly over our carpeted steps. Quick delivery with minimal fuss made it all the better, and the heavy-duty stair nosing now offers superb safety while complementing the overall modern look.
Aluminium Surface Fixed Stair Nosing 10mm and 12.5mm Heavy Duty Anti-Slip Insert

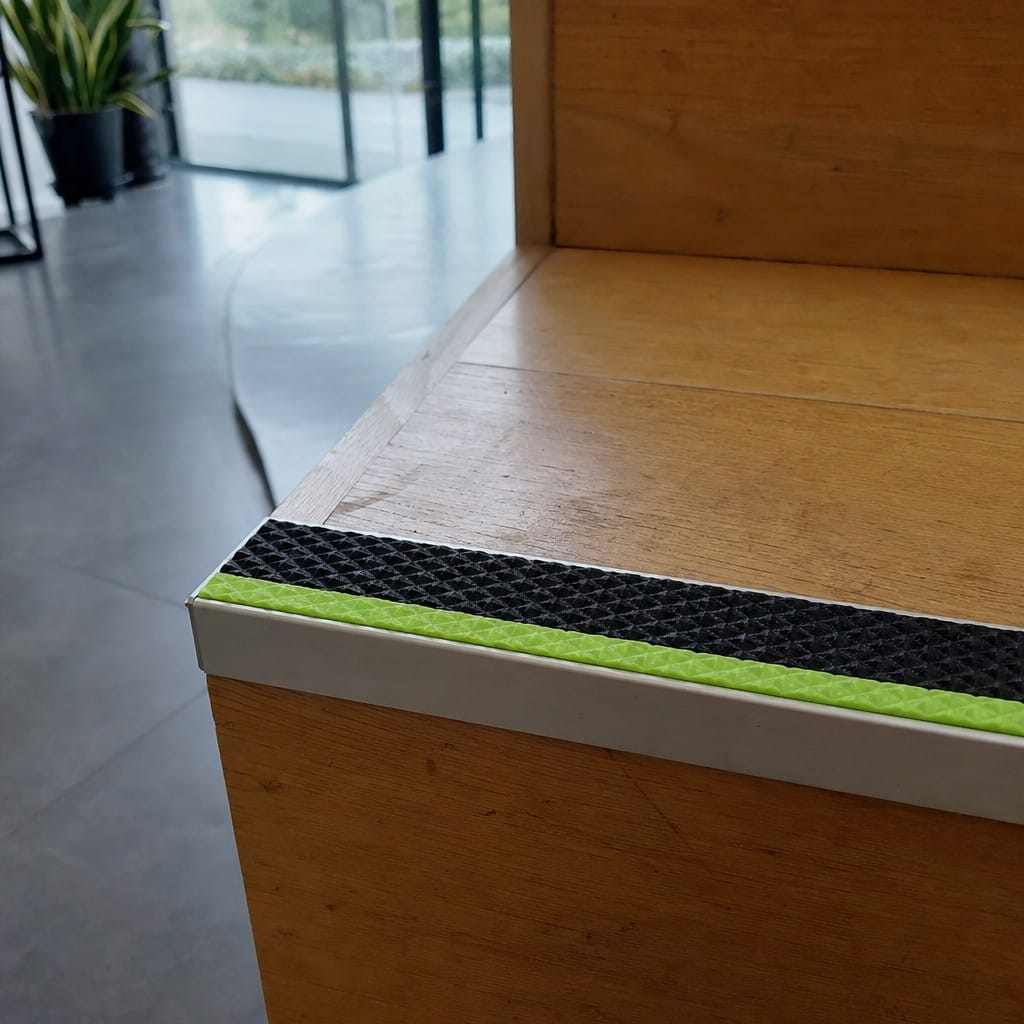

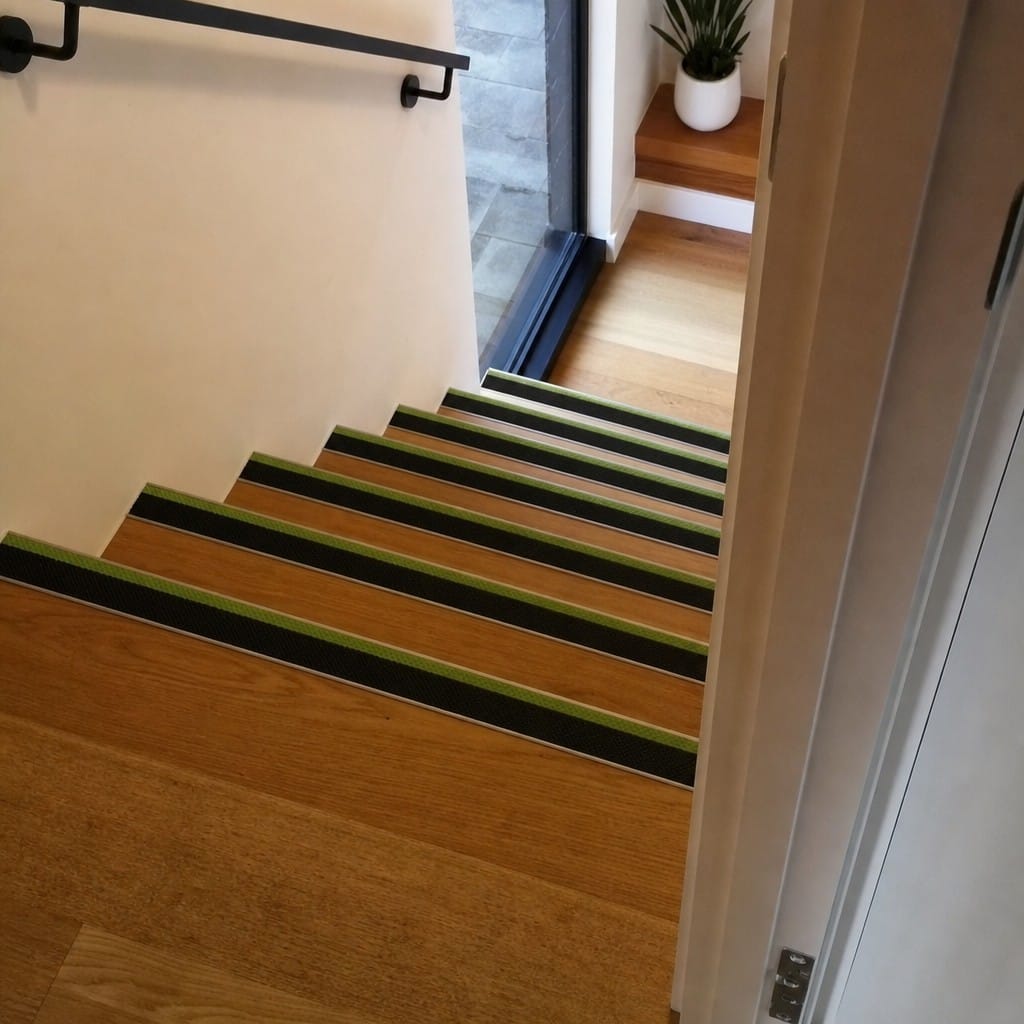

Surprisingly adaptable. Trimming down the heavy duty stair nosing to fit our wooden steps wasnt a hassle with the right tools, and it slotted into place easily. After a steady few weeks of traffic, its kept its modern look without any issues.
