Roll Out Cable Ramp 10m - Flexible Single Channel Rubber Cable Protector

A single power lead or air hose trailing across a floor is the most common trip hazard on any site, and taping it down never survives a shift. This 10 metre roll out cable ramp covers the whole run in one pass: unroll it along the route, push the cable into the slot on top, and the crossing is protected end to end with no sections to line up and no joints to work loose. It takes tyred traffic including HGVs at up to 10mph, so it earns its place in a live yard as readily as an office corridor.

Why it works

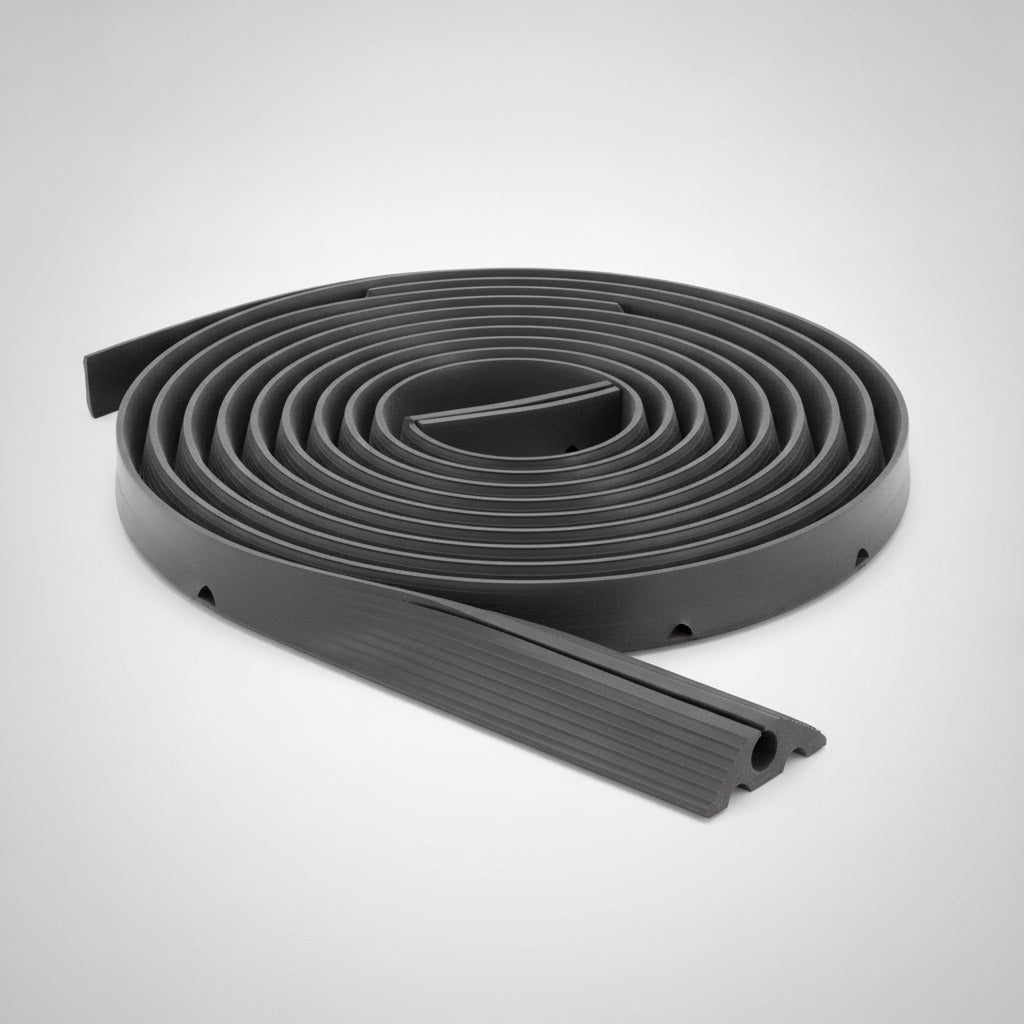

The ramp is a one-piece moulded rubber extrusion, 100mm across the base and only 30mm high. That ratio matters more than it sounds. A 100mm base under a 30mm ridge gives a shallow approach on both sides, so a pallet truck wheel, a trolley castor or a tyre rides over it rather than kicking it sideways, and a pedestrian meets a gentle bump instead of a step. Fine longitudinal ribs on the top face give some grip underfoot in the wet.

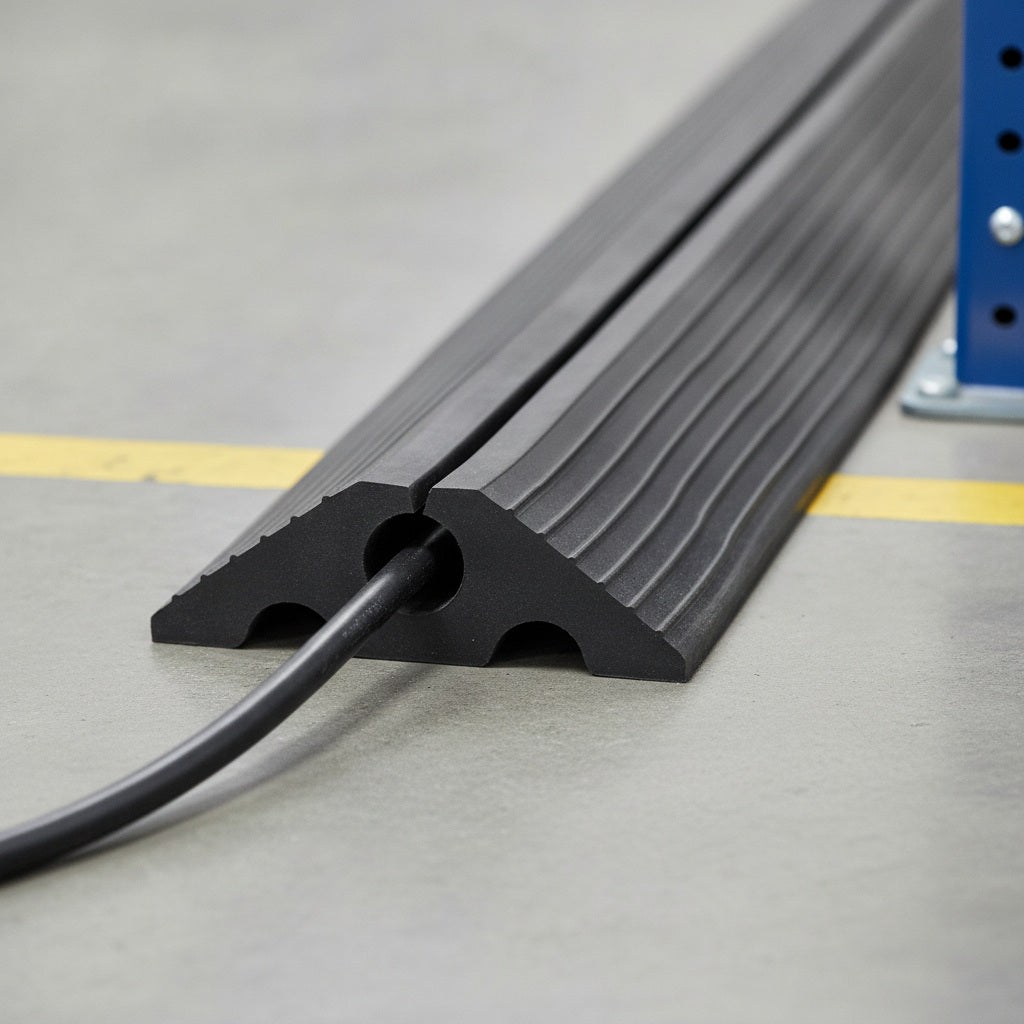

Down the centre runs a single 20mm bore, opened by a narrow slot along the ridge. You press the cable through the slot and the rubber closes behind it, so the cable is held rather than merely covered. Because the ramp is continuous over its full 10 metres there are no interlocking lugs to work apart under repeated loading, which is where modular block ramps fail on a long crossing. Rubber also flexes, so the section follows an uneven or cambered surface and eases round a shallow bend instead of needing a moulded corner unit. Coiled in a box, it stores and travels in a fraction of the space rigid ramps need.

Where it is used

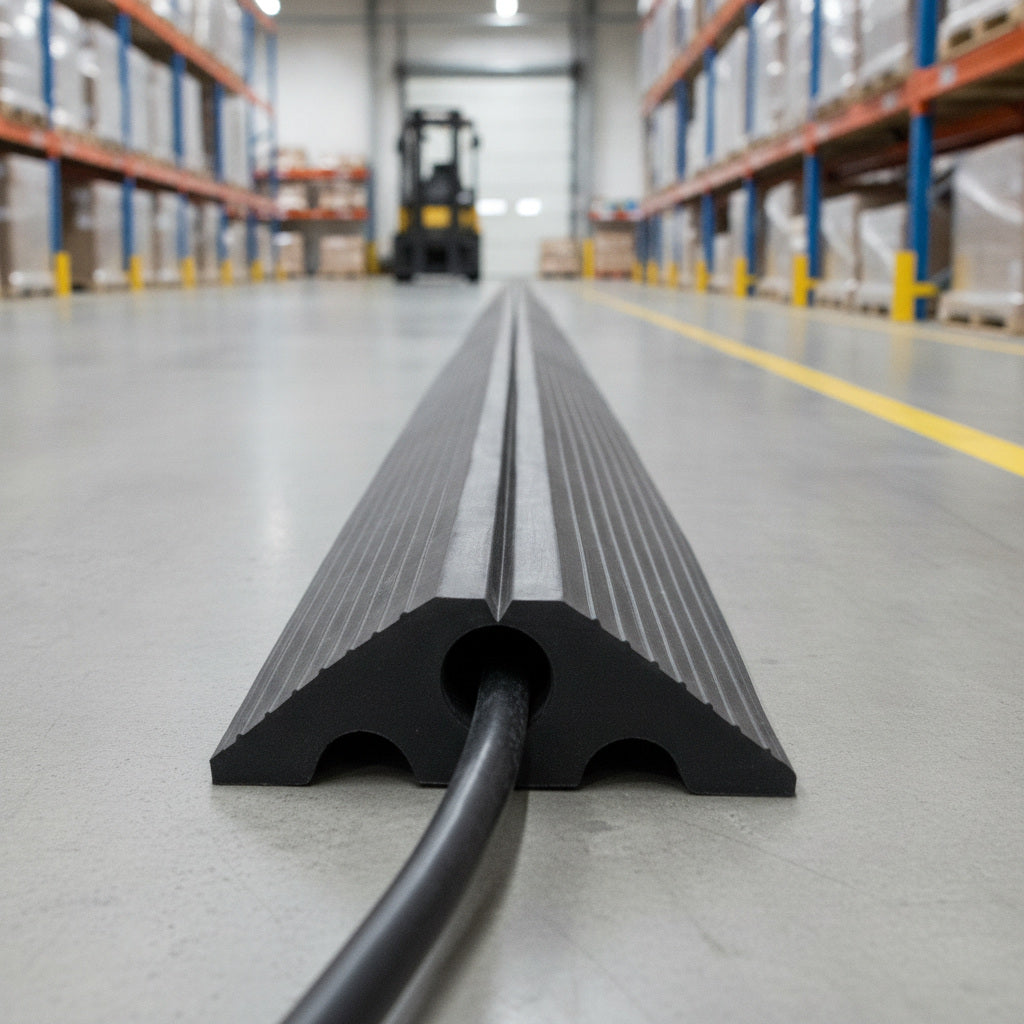

This format suits temporary power and air runs: generator feeds at outdoor events, camera and lighting cables on location, welding leads and air lines across a workshop bay, extension leads crossing a warehouse aisle, and site power on construction jobs. It works indoors too, in exhibition halls and retail fit-outs.

Specifications

Choosing the right option

Start with the cable. Measure the outside diameter of the sheath, not the conductor size: anything up to 20mm drops into the bore, and a 16A extension lead or a standard air line sits well inside that. If you need two or three cables side by side, or the sheath is thicker than 20mm, a multi-channel block ramp is the correct product instead.

Then consider the crossing. Choose this roll out format where the run is long, the route is not perfectly straight or flat, or the ramp has to be lifted and redeployed regularly, because a coil handles all three better than a stack of rigid modules. Choose a modular block ramp where a permanent crossing carries constant heavy plant, or where a load rating has to be stated in tonnes for a method statement, since no axle tonnage is published for this line. Note the 10mph limit and set out speed signage accordingly.

Installation, use and care

Unroll the ramp along the route and let it relax flat for a few minutes; a boxed coil holds some curl in cold weather. Press the cable into the top slot by hand along the length, leaving a little slack at each end so it is not under tension where it exits. Keep the ends clear of doorways and turning circles. Sweep grit off the top face, as trapped stone chips abrade the ribbing under repeated tyre contact, and wash with water and mild detergent. Store it coiled rather than folded, and keep solvents and fuels off it.

Frequently asked questions

Can it be cut to length? Yes. The section cuts cleanly with a sharp knife against a straight edge, so a 10 metre roll can be trimmed into shorter runs. Cut ends have no tapered finish, so keep them out of the main walking line.

Will an HGV damage it? It is stated as suitable for tyred traffic including HGVs at up to 10mph. No axle tonnage is published for this line, so where a rated figure is required, choose a ramp with a published load rating.

Is it suitable for outdoor use? Yes, indoors or out. No UV or temperature range is published for this line, so treat it as temporary equipment rather than a permanent fixture.

Does it need fixing down? Not normally; its own weight and shallow profile hold it. On a polished floor with fast trolley traffic, tape or weight the ends.

Will it take two cables? No. There is one 20mm bore and the slot closes around a single sheath, so a two or three channel ramp is the better answer.

Ordering and delivery

Supplied as a single 10 metre coil, boxed, at £214.90 including VAT, or £21.49 per metre. Stock rolls are dispatched for UK mainland delivery in a few working days. For several rolls, send us your quantity and postcode and we will confirm lead time and carriage.
