Slimline Raked Back Stair Nosing 59x30mm, Bronze & Black

A slimline raked back stair nosing in aluminium, 59mm across the tread and 30mm down the nose, supplied in 1m and 2m bars. It is the profile to specify when a stair needs a proper anti-slip step edge trim but the detail should stay quiet — a fine 2.5mm edge line rather than the heavy industrial band most nosings give you.

Why fitters choose this profile

The raked back is what makes it sit down. The rear of the tread plate is angled rather than square, so the nosing beds down onto the going instead of standing proud of it. There is no lip to catch a mop, a heel or a vacuum head, and on a refurbishment over an existing floor it closes the joint rather than advertising it. That single detail is why this profile gets specified for occupied buildings where the floor is staying put.

A fine edge line, and an honest limit. At 2.5mm gauge this is a lighter extrusion than a heavy-duty nosing, which is exactly what keeps the sightline slim. The trade-off is real and we would rather you heard it from us: it is made for low to medium traffic, and sustained heavy footfall or impact can wear the surface finish back to bare aluminium. Offices, apartment blocks, shops, homes — yes. School corridors and station stairs — specify something heavier and we will point you at it.

Anti-slip performance you can quote in a spec. The insert does the gripping, and the manufacturer publishes pendulum figures for each one: castellated PVC at SRV 76 wet, Olympic Grip at 71 wet, smooth textured at 56 wet. Those are insert test figures rather than a test of your finished stair, but they are real numbers you can put in front of a specifier.

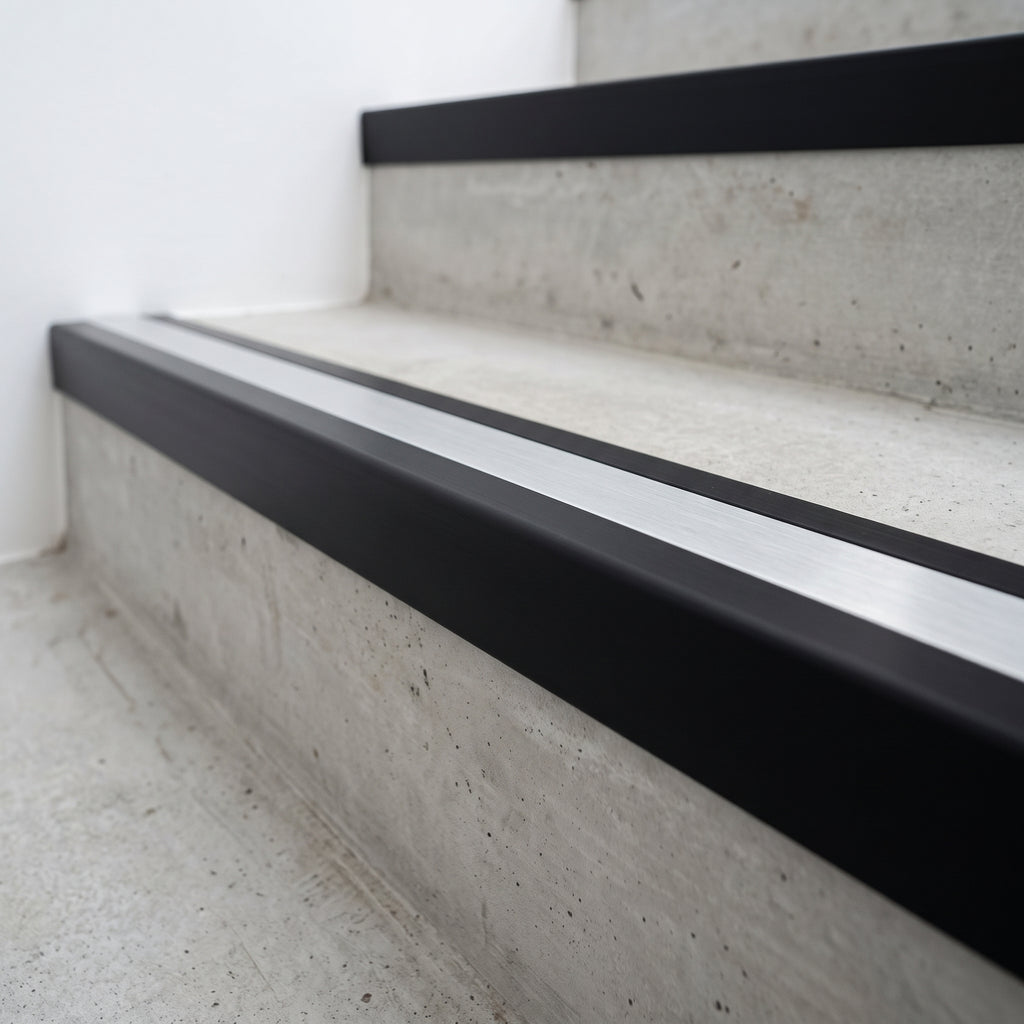

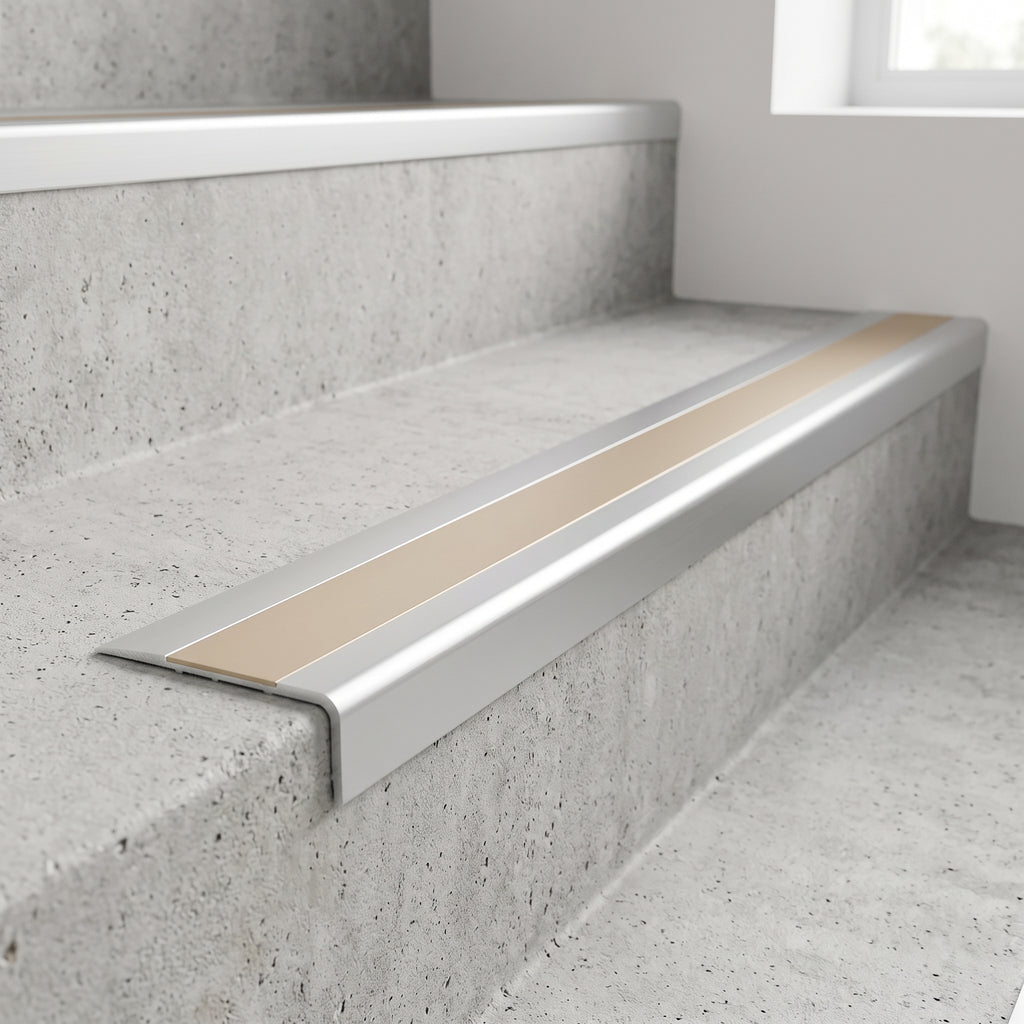

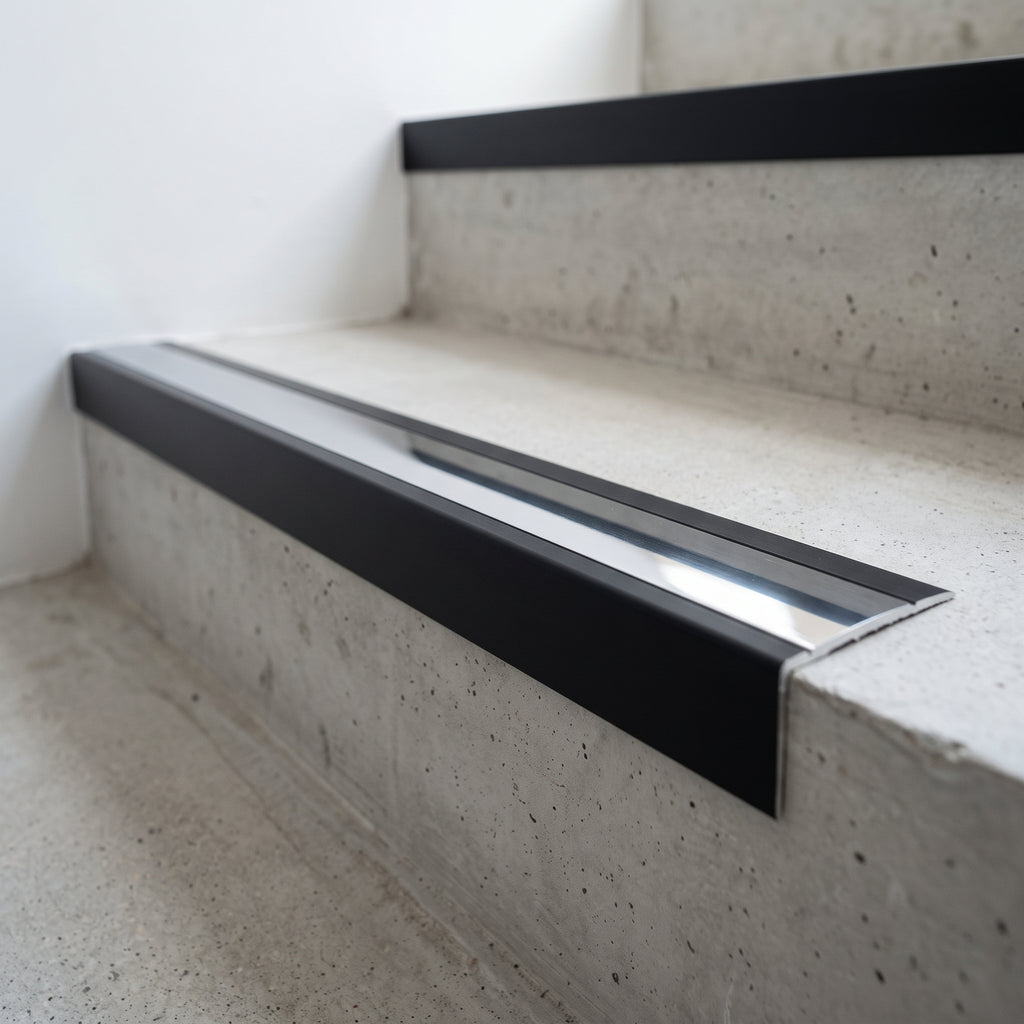

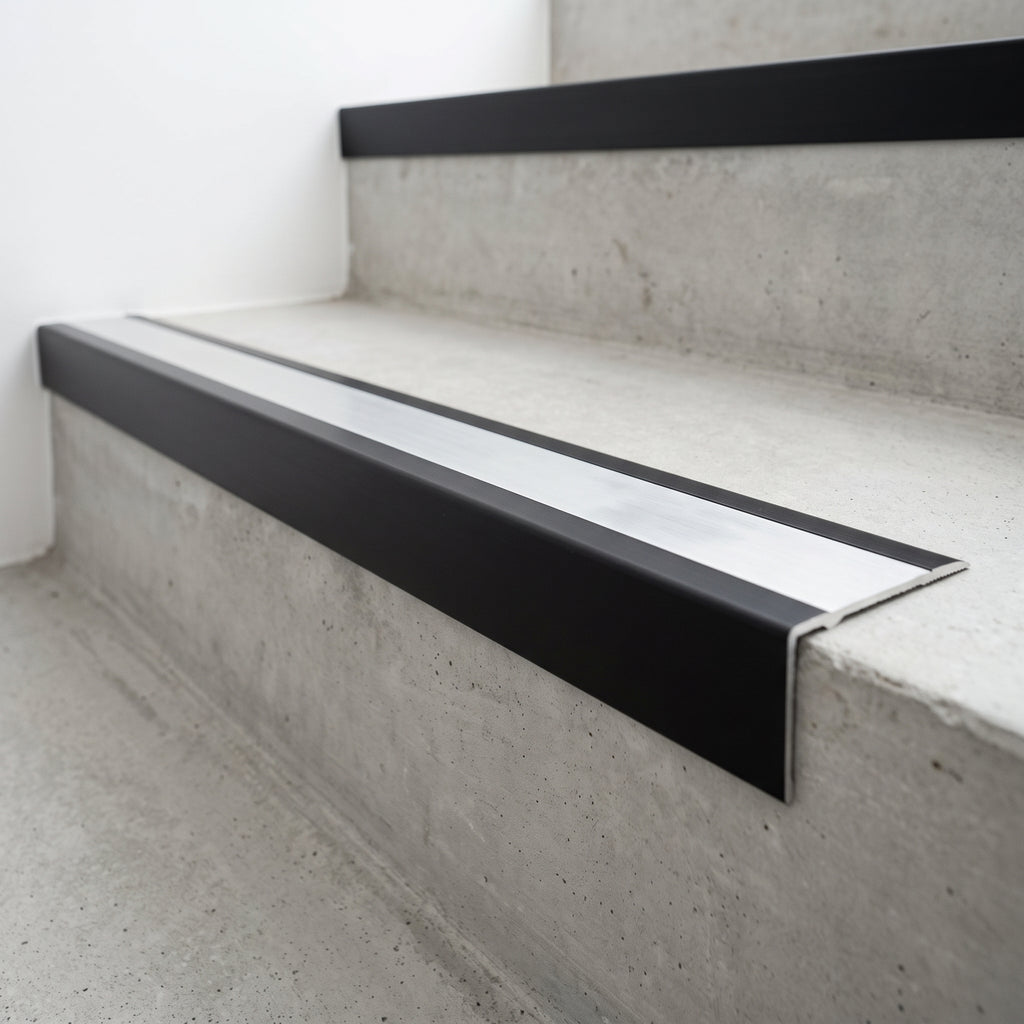

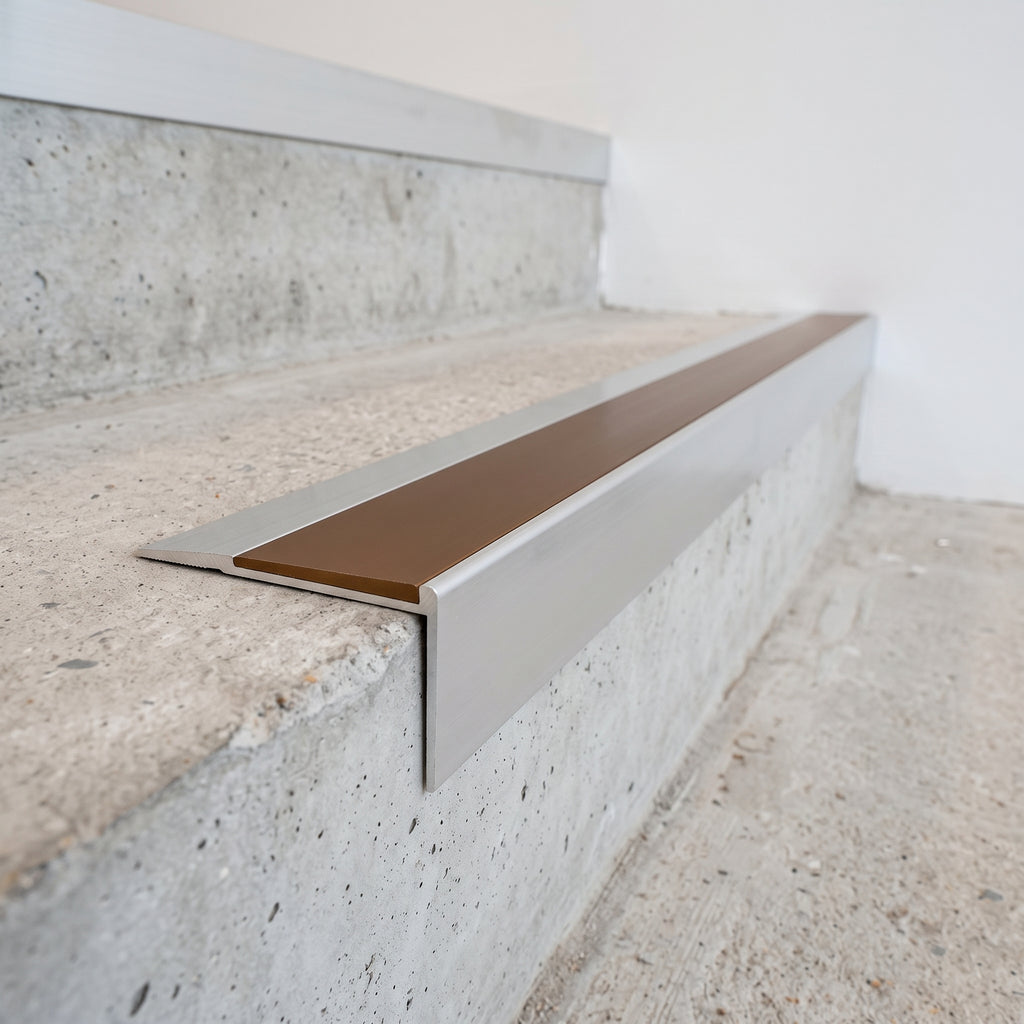

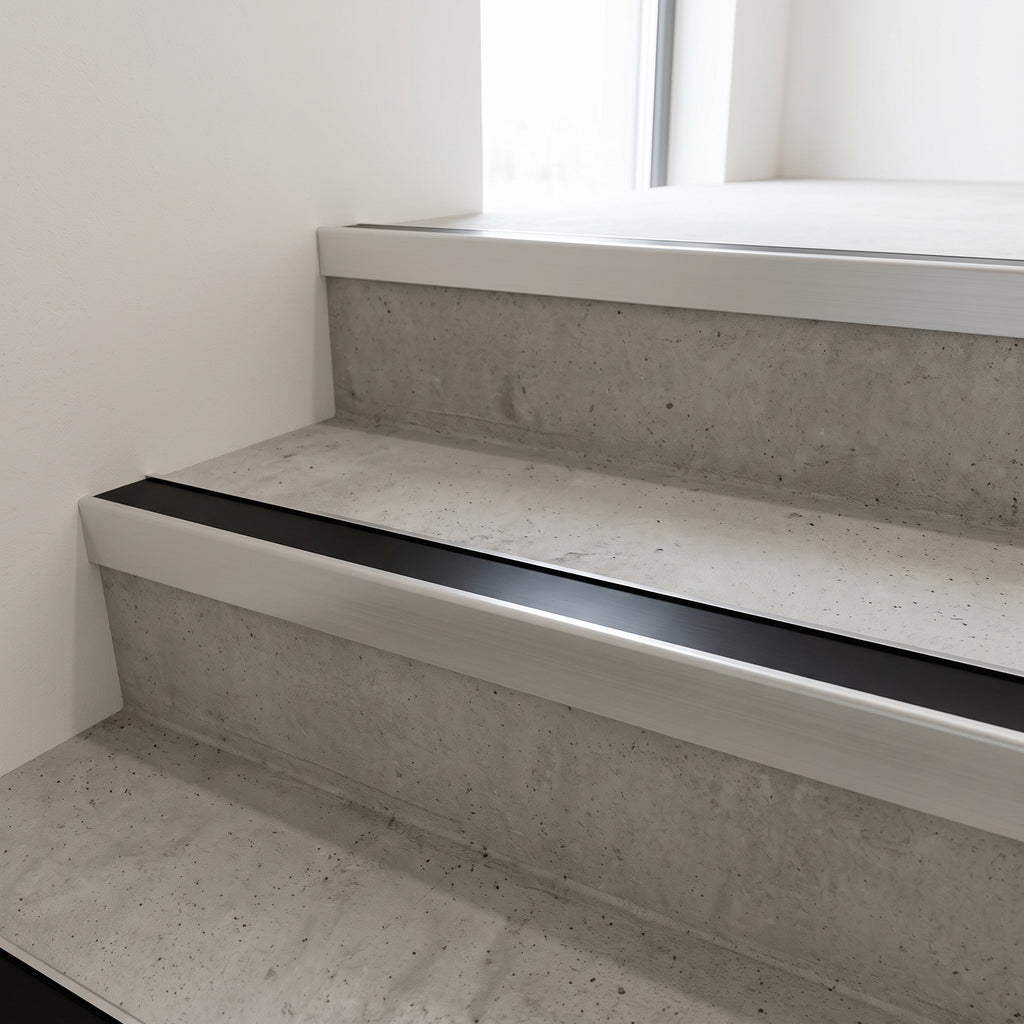

Six carrier finishes, thirty-two insert colours. Mill, satin and polished cover the usual silvers. Black anodised, bronze and light bronze come from the designer range — the bronzes read as aged brass at a fraction of brass money, and they are the reason this profile turns up in hotel and residential work as often as commercial.

Where it is used

LVT and vinyl stairs in offices, apartment buildings and lighter commercial interiors, and timber stairs where the nosing is rebated in to finish flush. It abuts click vinyl and LVT cleanly at the nose. For external steps or heavy commercial traffic the manufacturer builds the same profile in mill aluminium with a glass-fibre reinforced (GRP) insert — we do not stock it, but we can quote it.

Specifications

Choosing the right option

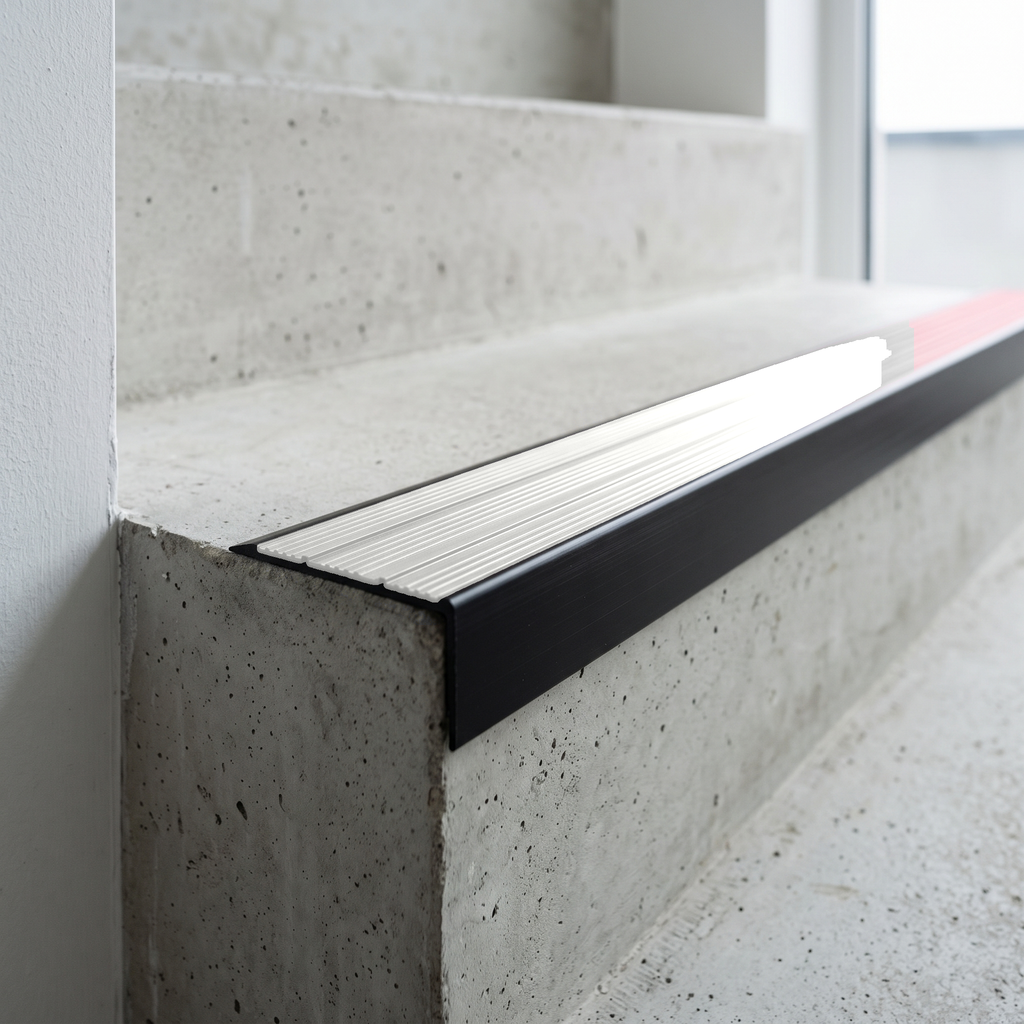

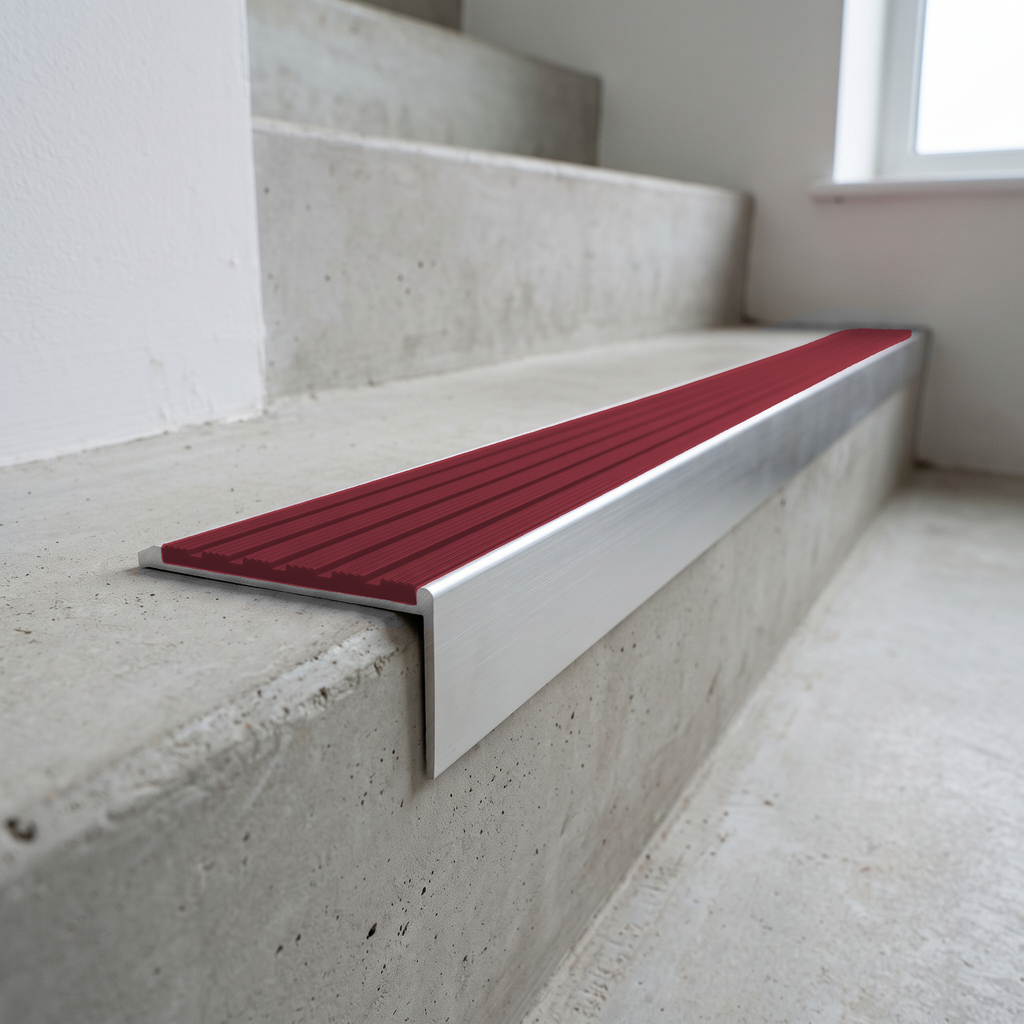

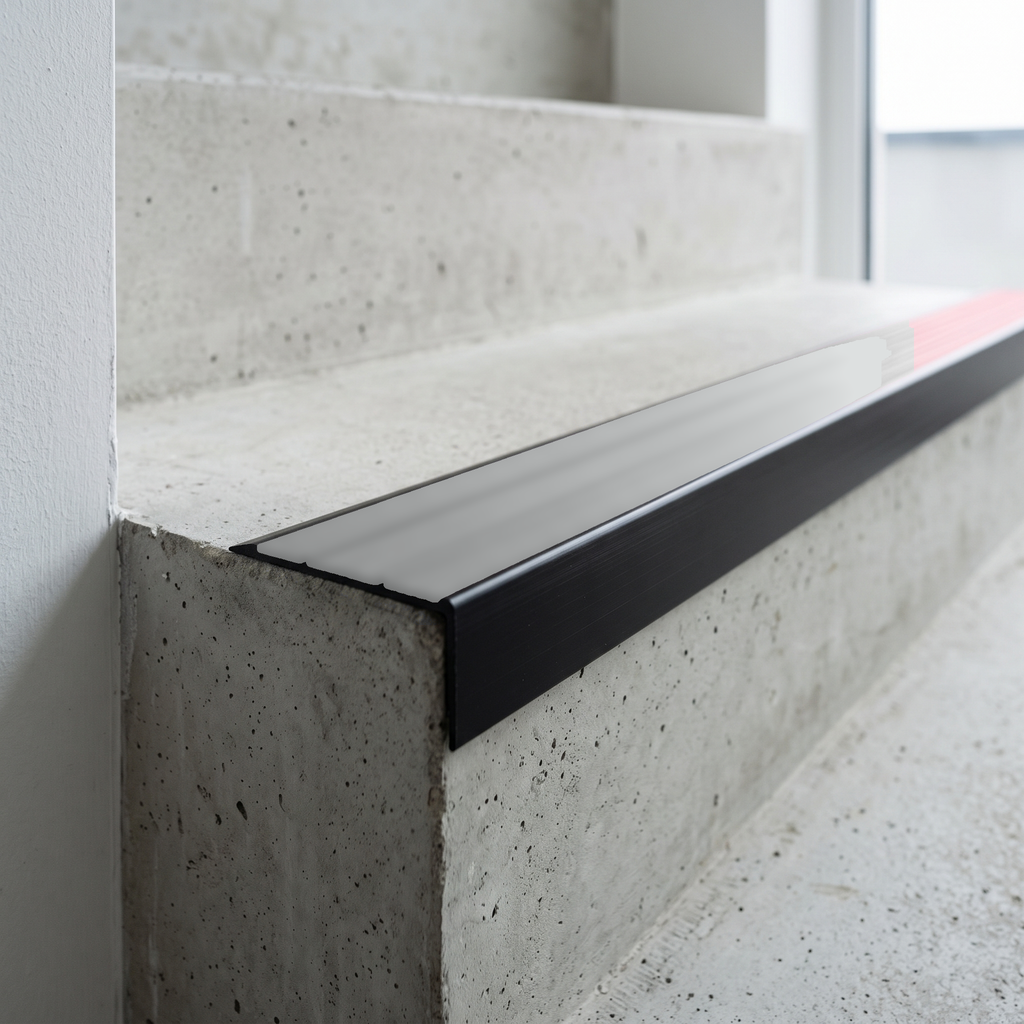

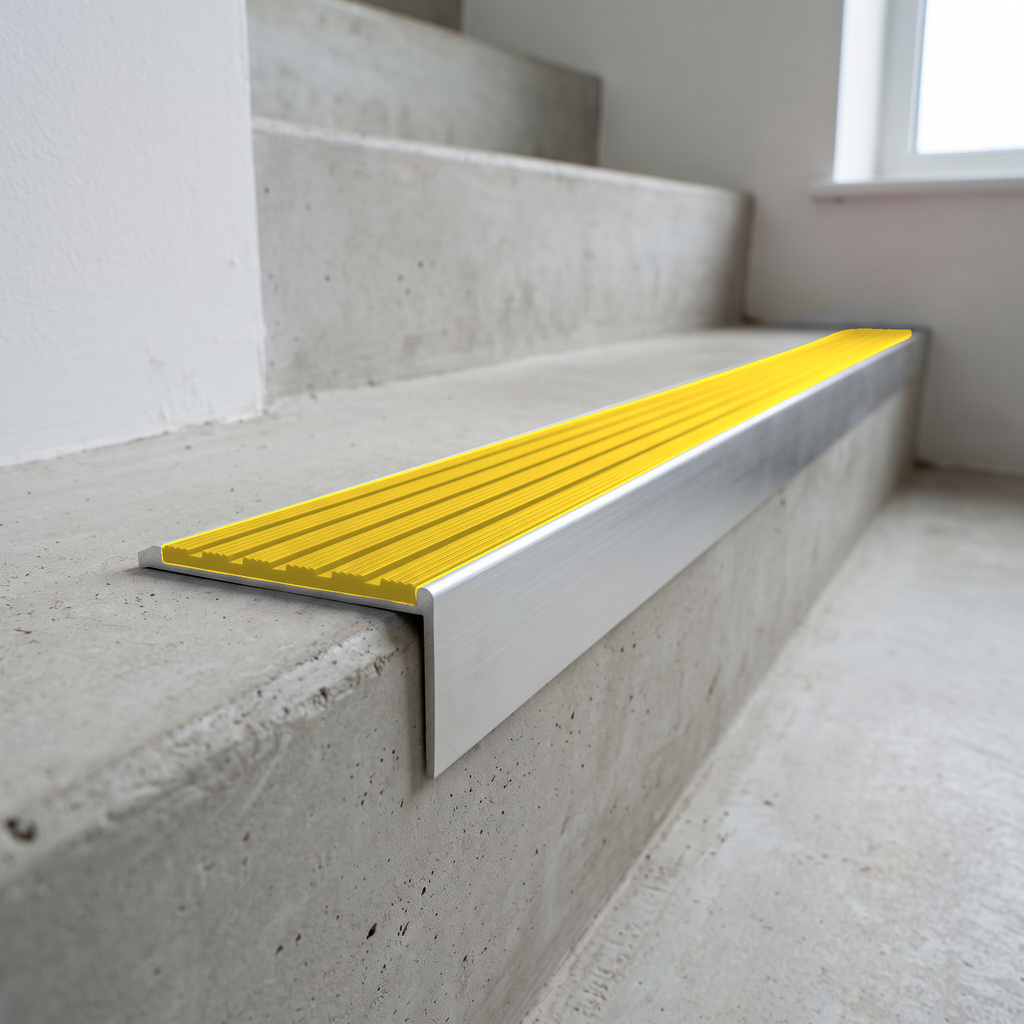

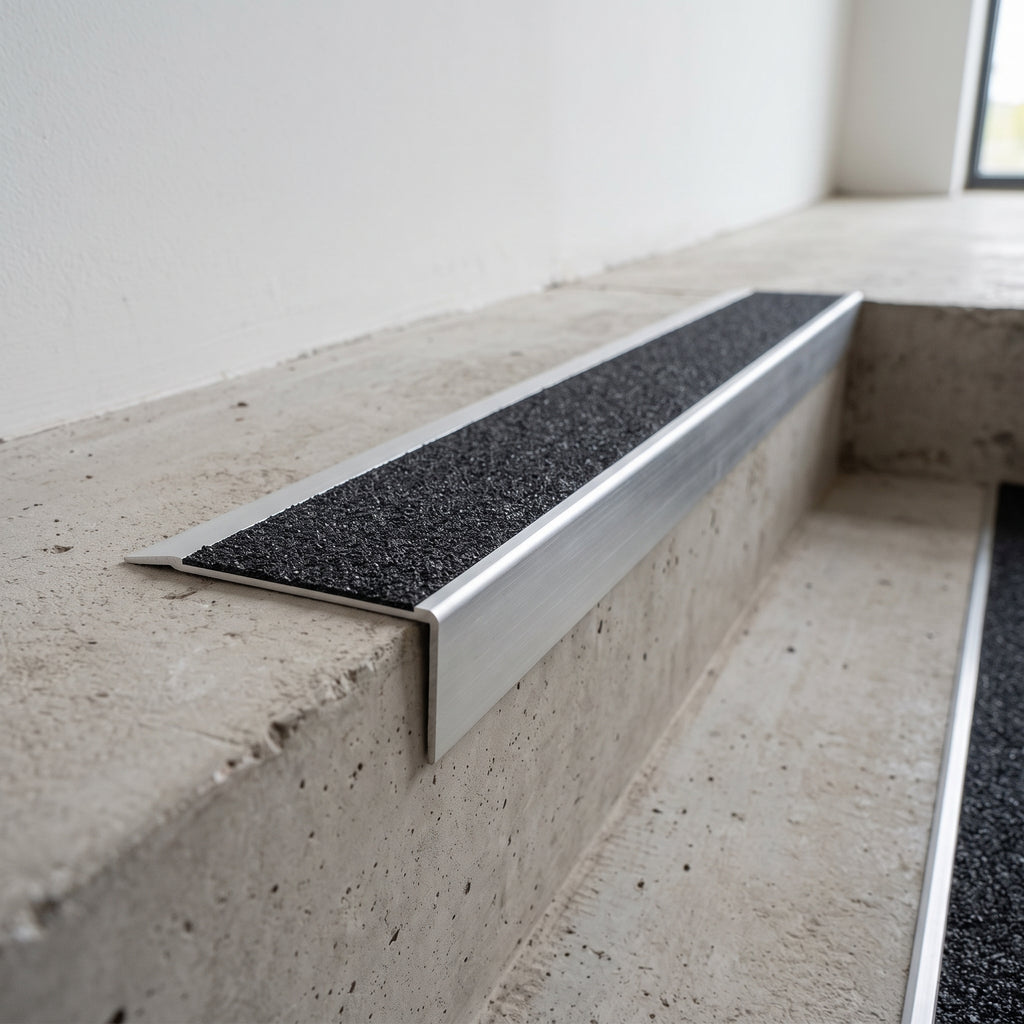

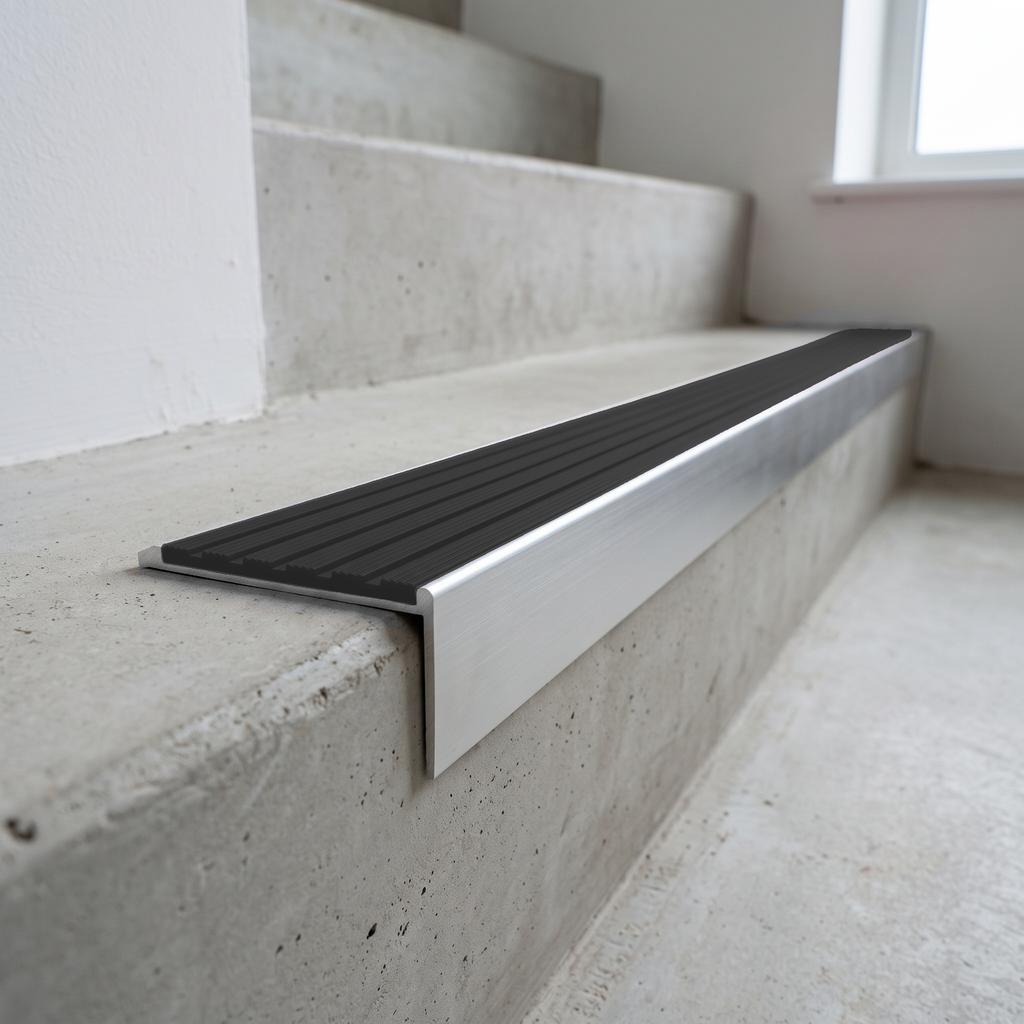

Insert first, because it decides both grip and colour. Castellated PVC is the default and the one most jobs end up with: highest wet figure, widest colour range. Smooth textured trades a little grip for a surface that mops clean, which matters in food and healthcare settings. Olympic Grip is an aluminium-oxide surface for the hardest-worked stairs on this profile and costs more accordingly. The aluminium inserts are a design decision, not a grip decision — specify them when you want the whole nosing to read as one piece of metal.

Then the carrier finish. Match it to the ironmongery, not to the floor — that is what makes a stair look designed rather than patched.

Then length and drilling. No Drilling ships a plain bar for adhesive fixing or for drilling on site to your own centres. Drilled Hidden Fix is pre-drilled and countersunk by us so the fixings disappear under the insert — a clean top face, no screw heads, and a job that takes half as long on site. It adds 10%.

Visual contrast. Approved Document M asks for the step edge to be visually distinguishable. Set a light insert against a dark floor, or the reverse, and check the two materials together in daylight rather than on a screen — order free samples if there is any doubt.

Installation, use and care

Fix mechanically with size 6 screws. We do not supply screws and plugs because the right ones depend on your substrate — concrete, timber and screed all want something different. If you ordered undrilled bar, pre-drill and countersink before fixing. The profile can be rebated into timber steps to finish flush, and is designed to abut LVT or vinyl at the nose. Cut with a chop saw and a non-ferrous blade, then deburr the cut end. Clean with warm water and a neutral detergent; keep abrasive pads away from anodised finishes, which cut through faster on a light gauge than on a heavy one.

Frequently asked questions

Is this suitable for a busy commercial stair?

No. It is specified for low to medium traffic, and the manufacturer warns that heavy impact or constant footfall can wear through the finish. For a stair that takes real punishment, choose a thicker-gauge profile — ask us and we will recommend one.

What does Drilled Hidden Fix actually mean?

We pre-drill and countersink the tread plate so the screw heads sit below the surface and are covered by the insert strip. You get a clean top face with no visible fixings, and you save the site time of drilling each bar. It adds 10% to the price.

Raked back or square back?

Raked back angles down onto an existing floor and closes the joint, which suits refurbishment over a floor that is staying. Square back butts against a covering laid up to it, which is neater when the going is being relaid at the same time.

Can I get a length other than 1m or 2m?

Yes — use our cut-to-size listing and specify the exact millimetre you need between 700mm and 3200mm.

Will it work outside?

Not this version. There is a GRP-insert build of the same profile for external and wet areas; ask us and we will quote it.

Ordering and delivery

Choose finish, insert colour, then bar length with or without drilling. Need an exact size? Use our cut-to-size slimline raked back stair nosing, priced per centimetre from 700mm to 3200mm. Free samples are available so you can hold the insert colour against your floor before you commit. UK mainland delivery is a flat rate shown at checkout.
