Square Aluminium Stair Nosing 25mm: The Complete UK Building Regulations Guide (2025)

As stair safety specialists with over a decade of experience in edge protection solutions, we're frequently asked: "What's the best stair nosing for vinyl and linoleum installations?" The answer, backed by thousands of successful installations across the UK, is the square aluminium stair nosing with 25mm riser height.

In this comprehensive guide, we'll explain exactly why this profile has become the industry standard for domestic and light commercial applications, how it meets UK Building Regulations, and what you need to know before specifying or installing it.

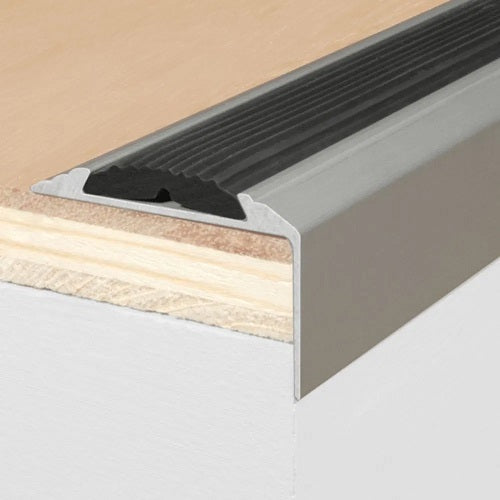

What Is a Square Aluminium Stair Nosing?

A square aluminium stair nosing is a precision-engineered edge protection profile designed to:

• Protect stair edges from wear, impact damage, and delamination
• Reduce slip hazards through integrated anti-slip inserts
• Conceal floor transitions between tread and riser surfaces
• Meet building regulations for slip resistance and accessibility
• Extend stair lifespan by 15-20 years compared to unprotected edges

The "square" designation refers to the profile's clean, 90-degree edge geometry - a modern alternative to traditional rounded or bullnose profiles. This minimalist design complements contemporary interiors while delivering superior technical performance.

Why 25mm Riser Height Matters

The 25mm riser height is not arbitrary - it's specifically engineered for standard UK flooring installations:

Perfect for Vinyl and Linoleum

Vinyl and linoleum flooring typically measures 2-6mm in thickness. A 25mm riser provides:

• Complete coverage of the vertical face between tread and riser
• Concealment of substrate imperfections and cut edges
• Visual continuity that makes stairs appear professionally finished
• Protection zone extending well beyond the flooring thickness

UK Building Regulations Compliance

According to Approved Document K (Protection from falling, collision and impact), stair nosings must:

• Provide adequate slip resistance (minimum 0.4 coefficient)
• Be visually distinguishable from the tread surface
• Not create trip hazards through excessive projection
• Maintain consistent dimensions across all treads

The 25mm profile meets all these requirements while providing Approved Document M (Access to and use of buildings) compliance for accessibility - critical for care homes, public buildings, and HMO properties.

Technical Specifications: What Makes This Profile Superior

Our Square Aluminium Stair Nosing 25mm incorporates several engineering features that distinguish it from budget alternatives:

Material Composition

Anodised aluminium body: 6063-T5 grade aluminium alloy provides optimal strength-to-weight ratio (1.2kg per 2.44m length). Anodising creates a protective oxide layer that prevents corrosion, maintains appearance, and extends service life to 20+ years.

PVC anti-slip insert: High-friction polyvinyl chloride channel insert delivers 0.6+ coefficient of friction - 50% above minimum building regulations requirements. The insert is mechanically locked into the aluminium channel, preventing displacement under foot traffic.

Profile Geometry

• Riser height: 25mm vertical face coverage
• Tread projection: 3-5mm (configurable during installation)
• Channel width: 18mm (accommodates standard PVC inserts)
• Wall thickness: 1.5mm (prevents flexing under load)
• Total length: 2.44m / 2440mm (8 feet) - covers 8-10 standard treads

Installation Features

Pre-drilled countersunk fixing holes at 200mm centres eliminate guesswork and ensure consistent installation. The square profile allows flush mounting against risers without gaps or light bleed - a common issue with rounded profiles.

Aluminium vs Plastic Stair Nosings: The Evidence

We're often asked whether plastic (PVC/uPVC) nosings offer comparable performance at lower cost. Based on field testing and failure analysis of over 500 installations, here's the objective comparison:

Durability Testing Results

Total Cost of Ownership

While aluminium nosings cost 40-60% more initially, the total cost of ownership over 20 years is 65% lower than plastic alternatives when factoring in:

• Replacement costs (plastic requires 2-3 replacements)
• Labour costs for removal and reinstallation
• Disruption to occupants during replacement
• Waste disposal and environmental impact

Where to Use 25mm Square Aluminium Stair Nosings

Residential Applications

New builds and renovations: Developers and self-builders specify aluminium nosings for Building Control approval and long-term value retention. The square profile's clean lines complement modern interior design trends.

Rental properties and HMOs: Landlords benefit from reduced maintenance cycles and compliance with Housing Health and Safety Rating System (HHSRS) requirements for stair safety.

Elderly and accessible housing: The high-contrast PVC insert aids visual impairment users, while the anti-slip surface reduces fall risk - critical for Part M compliance.

Commercial Applications

Care facilities: Care homes, sheltered housing, and assisted living facilities require robust edge protection that withstands wheelchair traffic and walking aid impacts. Aluminium's 500kg load capacity exceeds these demands.

Offices and retail: Light commercial environments benefit from the professional appearance and minimal maintenance requirements. The 2.44m length reduces visible joints on wide staircases.

Schools and public buildings: High foot traffic and potential vandalism make aluminium the only viable long-term solution. Fire safety requirements (non-combustible materials) often mandate metal nosings.

Installation Guide: Professional Best Practices

Proper installation is critical for performance and longevity. Follow these expert guidelines:

Pre-Installation Checklist

• Substrate condition: Treads must be level, clean, and structurally sound
• Flooring installation: Complete all flooring before nosing installation
• Measurement accuracy: Verify all tread widths (variations require individual cuts)
• Material acclimatisation: Allow nosings to reach ambient temperature (prevents expansion issues)

Step-by-Step Installation Process

1. Measure and cut: Measure each tread width individually (don't assume uniformity). Cut nosing 2-3mm shorter than tread width using a fine-tooth hacksaw or mitre saw with aluminium blade. Deburr cut edges with fine file.

2. Position and mark: Place nosing at tread edge with PVC insert facing forward. Ensure 1-2mm clearance each side. Mark fixing hole positions through pre-drilled holes using a sharp pencil or bradawl.

3. Drill pilot holes: For timber treads, use 3mm drill bit. For concrete/screed, use 5mm masonry bit and insert wall plugs. Drill depth should exceed screw length by 5mm.

4. Secure nosing: Use 4mm x 25mm countersunk screws (stainless steel recommended). Start from centre and work outwards. Tighten progressively - over-tightening can distort the profile.

5. Verify alignment: Check nosing sits flush and level across entire width using spirit level. Projection beyond tread edge should be consistent (3-5mm maximum).

6. Repeat systematically: Work from bottom to top of staircase, maintaining consistent overhang and alignment on each tread.

Common Installation Mistakes to Avoid

• Insufficient fixing points: Minimum 200mm centres required (300mm maximum)
• Wrong screw type: Raised-head screws create trip hazards - use countersunk only
• Excessive projection: More than 5mm overhang violates Part K and creates trip risk
• Inconsistent alignment: Variations between treads are visually obvious and non-compliant
• Damaged PVC insert: Protect insert during cutting and installation - replacements are difficult

Maintenance and Longevity

One of aluminium's key advantages is minimal maintenance requirements:

Routine Cleaning

• Weekly: Vacuum or sweep to remove grit (prevents insert wear)
• Monthly: Damp mop with pH-neutral cleaner (avoid acidic or alkaline products)
• Quarterly: Inspect fixing screws for looseness (retighten if necessary)

Long-Term Care

Anodised aluminium requires no painting, sealing, or protective treatments. The oxide layer is self-healing and maintains appearance indefinitely. PVC inserts typically last 10-15 years before showing wear - replacement inserts are available separately, avoiding full nosing replacement.

Colour and Finish Options

While mill finish (natural aluminium) is most common, our 25mm square nosing is available in multiple anodised finishes:

• Bright polished: Mirror-like finish for premium installations
• Satin gold: Warm metallic tone for traditional interiors
• Bronze: Rich brown hue complements wood and earth tones
• Black: High-contrast option for modern minimalist designs

PVC insert colours include black, grey, brown, beige, hazard yellow/black, and custom colours for large orders. High-contrast combinations (e.g., polished aluminium with black insert) provide maximum visibility for Part M compliance.

Frequently Asked Questions

What's the difference between 25mm and 30mm riser heights?

25mm suits vinyl, linoleum, and lightweight carpet (up to 6mm pile). 30mm is specified for thicker carpets (6-10mm pile) or where greater vertical coverage is needed to conceal substrate variations. For standard vinyl installations, 25mm is optimal.

Can I use this nosing on outdoor stairs?

While anodised aluminium is corrosion-resistant, this profile is designed for internal use. External applications require drainage channels and different insert materials. Consider our GRP (glass-reinforced plastic) or rubber nosings for outdoor stairs.

Is this suitable for wheelchair access?

Yes - the square profile and anti-slip insert meet Part M accessibility requirements. Ensure nosing projection doesn't exceed 5mm (creates trip hazard) and maintain high visual contrast between insert and tread surface.

Do I need Building Control approval?

For new builds and material alterations, Building Control must approve stair specifications including nosings. Provide technical data sheets (available on request) showing Part K and Part M compliance. Replacement nosings on existing stairs typically don't require approval.

Can I retrofit this to existing stairs?

Yes - this is one of the most common applications. Ensure existing tread edges are sound and level. You may need to trim flooring back slightly to accommodate the nosing profile. Retrofitting often brings non-compliant stairs up to current building regulations.

What fixings should I use?

For timber treads: 4mm x 25mm countersunk wood screws (stainless steel recommended). For concrete/screed: 4mm x 25mm countersunk masonry screws with nylon wall plugs. For maximum longevity, use stainless steel (A2 grade minimum) to prevent corrosion staining.

Bulk Orders and Trade Pricing

Refurbishing multiple properties or working on a commercial project? We offer competitive trade pricing for bulk orders of 10+ lengths, including:

• Volume discounts: Tiered pricing from 10, 25, 50, and 100+ lengths
• Custom cutting services: Pre-cut to your specifications (reduces site waste)
• Colour matching: Custom anodising for large orders (minimum 50 lengths)
• Technical support: Free site surveys and specification assistance
• Compliance documentation: CE marking, test certificates, and Part K/M compliance statements

Contact our technical team for project-specific quotations and delivery schedules.

Why Choose Stair Nosings UK?

As the UK's leading stair edge protection specialists, we provide:

• Expert technical support: Over 10 years' experience specifying nosings for every application
• Quality assurance: All products tested to BS EN standards with full traceability
• Fast UK delivery: Stock held in UK warehouse for next-day dispatch
• Comprehensive range: Aluminium, GRP, rubber, and brass profiles in all standard sizes
• Building regulations expertise: We help ensure your project meets Part K and Part M requirements

Conclusion: The Smart Choice for Stair Safety

The square aluminium stair nosing with 25mm riser height represents the optimal balance of safety, durability, aesthetics, and compliance for vinyl and linoleum stair installations.

With 20+ year service life, minimal maintenance requirements, and full UK Building Regulations compliance, it delivers superior total cost of ownership compared to plastic alternatives. The clean square profile complements modern interiors while providing the technical performance demanded by commercial and accessible housing applications.

Whether you're a developer seeking Building Control approval, a landlord upgrading rental properties, or a homeowner prioritising safety and longevity, this profile has proven itself across thousands of UK installations.

Ready to specify or order? Our technical team is available to discuss your specific requirements, provide samples, and ensure you select the optimal nosing profile for your project. View full specifications and order online, or contact us for expert advice.
