How to Install Floor Carpet Underlay: Complete Guide

To install floor carpet underlay, first prepare the subfloor by cleaning and checking for levelness. Roll out the underlay with the correct side facing up, butt joints tightly together without overlapping, and secure with staples every 6-8 inches along edges and seams.

What Tools and Materials Do You Need?

Before you start installing carpet underlay, gather the right tools and materials. This preparation saves time and ensures a professional finish.

Essential tools include a sharp utility knife, heavy-duty staple gun with 10mm staples, tape measure, and knee pads for comfort. You'll also need duct tape for sealing joints and a hammer for any loose floorboards.

Choose your underlay material based on foot traffic and carpet type. Rubber underlay offers excellent durability for high-traffic areas. Foam underlay provides good comfort for bedrooms. Felt underlay works well under heavy carpets.

Measure your room accurately and add 10% extra material for wastage. Most underlay comes in 1.37m wide rolls, so calculate how many strips you need to cover your floor area.

How Do You Prepare the Subfloor?

Proper subfloor preparation determines how well your carpet underlay performs over time. A level, clean surface prevents premature wear and carpet problems.

Start by removing all old flooring materials, nails, and staples. Vacuum thoroughly to eliminate dust and debris that could create bumps under the underlay.

Check the subfloor for squeaks, loose boards, or protruding nails. Secure any loose floorboards with screws rather than nails for a quieter floor. Sand down any high spots and fill gaps larger than 6mm.

Inspect for moisture issues, especially in basements or ground floors. Address any dampness before installing underlay to prevent mold growth. The subfloor should be completely dry and structurally sound.

What's the Correct Installation Technique?

Installing carpet underlay requires attention to direction, positioning, and securing methods. Follow these steps for professional results.

Roll out the first strip with the correct side facing up. Most underlay has a paper or film backing that should face down against the subfloor. Check manufacturer markings to confirm orientation.

Position the underlay to stop 6mm short of skirting boards on all sides. This gap prevents the underlay from riding up the walls and creating bumps under the carpet.

For subsequent strips, butt the edges tightly together without overlapping. Overlapping creates ridges that show through the carpet. Use duct tape to seal all joints completely.

Stapling Pattern and Spacing

Secure the underlay with staples every 6-8 inches around the perimeter and along all seams. Use 10mm staples for most subfloors, or 6mm staples for thinner floors.

Drive staples flush with the underlay surface. Protruding staples will damage carpet backing during installation. Replace any bent or partially driven staples immediately.

Work systematically across the room, ensuring each section lies flat before moving to the next area.

How Do You Handle Doorways and Transitions?

Doorways and room transitions require special attention during underlay installation. These areas experience high foot traffic and need proper finishing.

Stop the underlay at the door threshold rather than continuing into the next room. Each room should have its own underlay installation to prevent movement between spaces.

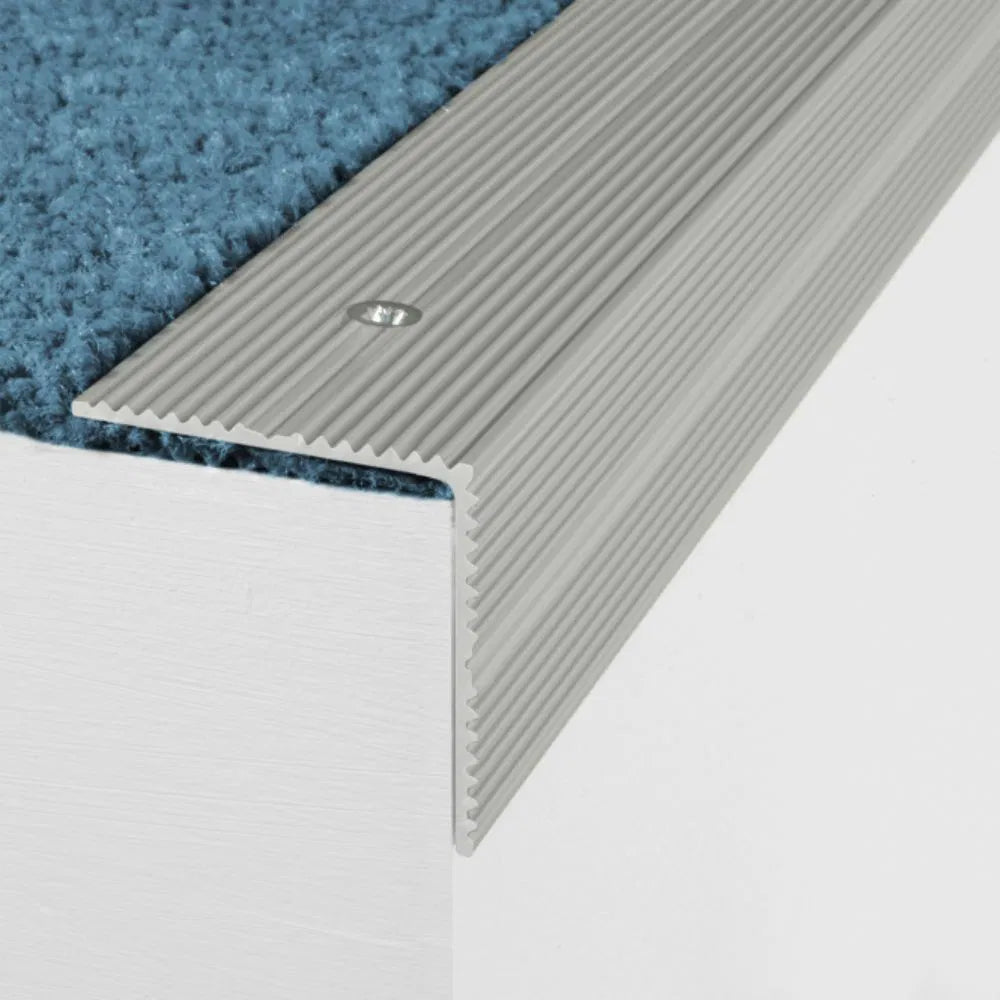

For carpet-to-hard floor transitions, install appropriate transition strips after the carpet fitting. A Carpet to Hard Floor Aluminium Transition Strip provides a clean, professional finish between different flooring types.

Where carpet meets stairs, ensure the underlay extends right to the edge but doesn't overhang. This positioning allows proper carpet stretching while maintaining a neat appearance.

Underlay Comparison Table

| Underlay Type | Thickness | Durability | Best For | Lifespan | |---------------|-----------|------------|----------|-----------| | Rubber | 8-10mm | Excellent | High traffic areas | 15-20 years | | PU Foam | 8-12mm | Good | Bedrooms, lounges | 8-12 years | | Felt | 6-8mm | Very Good | Under heavy carpets | 12-15 years | | Crumb Rubber | 7-9mm | Excellent | Commercial use | 20+ years |

What Common Mistakes Should You Avoid?

Avoiding installation mistakes prevents carpet problems and extends underlay life. These errors occur frequently in DIY installations.

Never overlap underlay seams, even slightly. Overlapping creates permanent ridges that show through the carpet and cause premature wear patterns.

Don't use insufficient staples or wrong staple sizes. Under-secured underlay moves during carpet installation and creates wrinkles. Too-long staples can penetrate floor heating pipes or cables.

Avoid installing underlay with the wrong side up. The smooth side should face up toward the carpet, with any backing material against the subfloor.

Don't ignore moisture issues in the subfloor. Installing underlay over damp surfaces leads to mold, odors, and premature failure of both underlay and carpet.

For areas requiring Carpet Ramp floor protection, plan the installation before laying underlay to ensure proper integration.

Frequently Asked Questions

Which side of carpet underlay goes down on the floor? The backing side (usually paper or film) goes down against the subfloor, while the smooth or textured side faces up toward the carpet. Check manufacturer markings if unsure.

Can you install carpet underlay over existing underlay? No, always remove old underlay completely before installing new material. Double layers create excessive cushioning that prevents proper carpet stretching and causes premature wear.

How close to the wall should carpet underlay go? Stop underlay 6mm short of all skirting boards and walls. This gap prevents the underlay from riding up walls and creating visible bumps under the carpet edges.

What happens if you don't tape underlay seams? Unsealed seams allow air gaps that reduce insulation and create noise. They also let dirt and moisture penetrate between layers, reducing underlay performance and lifespan.

How many staples do you need for carpet underlay? Use staples every 6-8 inches around the perimeter and along all seams. A typical 12x12 foot room requires approximately 200-300 staples for proper installation.

Bottom Line

Installing floor carpet underlay correctly involves proper subfloor preparation, correct orientation, tight seams, and adequate stapling every 6-8 inches. Professional finishing requires quality transition strips for carpet edges and attention to detail at doorways. Take time with preparation and installation for results that last decades.
