Stair treads are rarely a round number, and an insert cut a few millimetres short leaves a gap that fills with grit and lifts at the end. This is the same 50mm carborundum insert as our 1m, 1.5m and 2m stock lengths, cut here to the exact millimetre you specify between 250mm and 2000mm, tolerance plus or minus 5mm, in any of twelve infill colours.
What it is

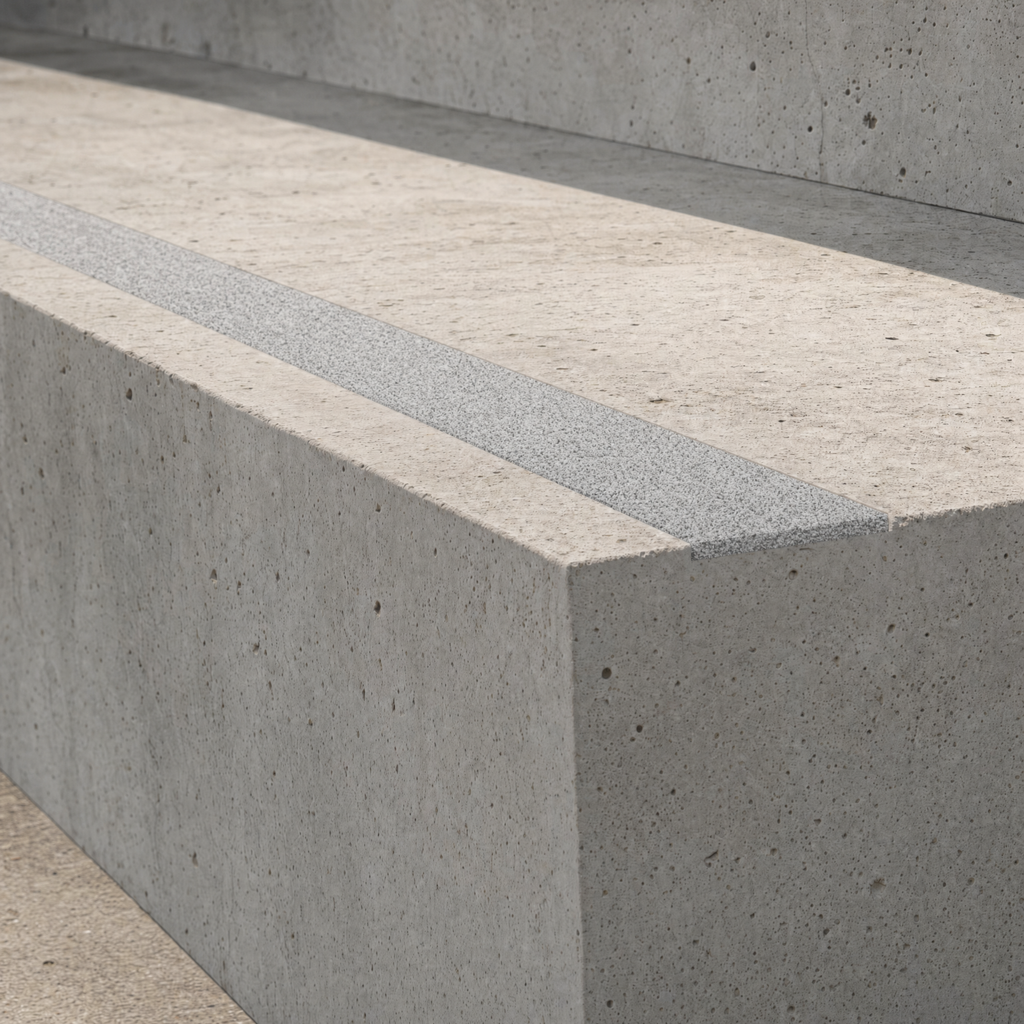

A 50mm-wide band of aluminium oxide grit bonded into a resin matrix, bedded into a routed groove or fixed to the tread surface. Carborundum is the hardest of the common anti-slip infills: it does not burnish out under footfall the way a soft PVC insert eventually does, which is why it is specified for entrances, plant rooms, external steps and any stair walked on in wet boots. The manufacturer states a pendulum test value of 92 dry and 86 wet, and guarantees the insert for 10 years against premature wear.
At 50mm this is a full-width grip band rather than a line. It is what gets specified on deep goings, on transport and stadium stairs, and where a risk assessment has asked for the largest practical contact area on each tread.
Why cut to size
Cutting carborundum on site is slow and unpleasant: the grit destroys a fine-toothed blade and the dust is abrasive, and a 50mm section is heavy going with a hand tool. Cutting in a workshop keeps the ends square and the grit intact right to the end of the strip, so it beds cleanly instead of rocking on a burr.
Specifications
| Insert width |
50 mm |
| Thickness |
8 mm |
| Anti-slip infill |
Carborundum (aluminium oxide grit in resin) |
| Infill colours |
Twelve, listed under Choosing your infill colour |
| Carrier |
UV-stable rigid PVC, black |
| Slip resistance |
PTV 92 dry, PTV 86 wet - manufacturer stated |
| Cut length range |
250 mm to 2000 mm, tolerance +/- 5 mm |
| Weight |
0.81 kg per metre |
| Fixing |
Bedded in adhesive into a routed groove, or screw fixed |
| Application |
Internal or external |
| Guarantee |
10 years against premature wear - manufacturer stated |
| Manufactured |
United Kingdom |
Choosing your infill colour
All twelve infills cost the same and carry the same grit, so the choice is about visual contrast rather than performance. The manufacturer publishes an average light reflectance value for each colour, and guidance on stair visibility generally looks for roughly a 30-point LRV difference between the grip band and the tread around it, so these figures are the quickest way to sense-check a combination before you order. The carrier behind the grit is black on every colour.

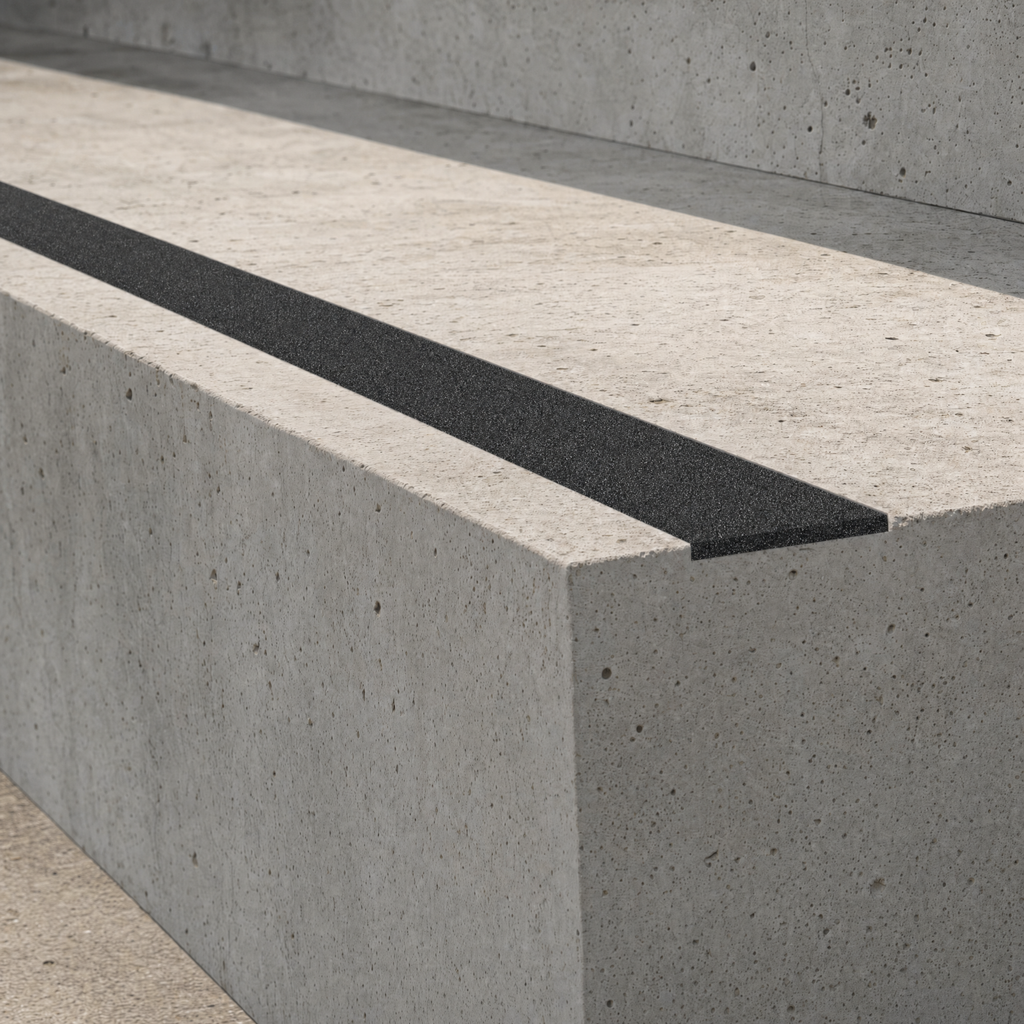

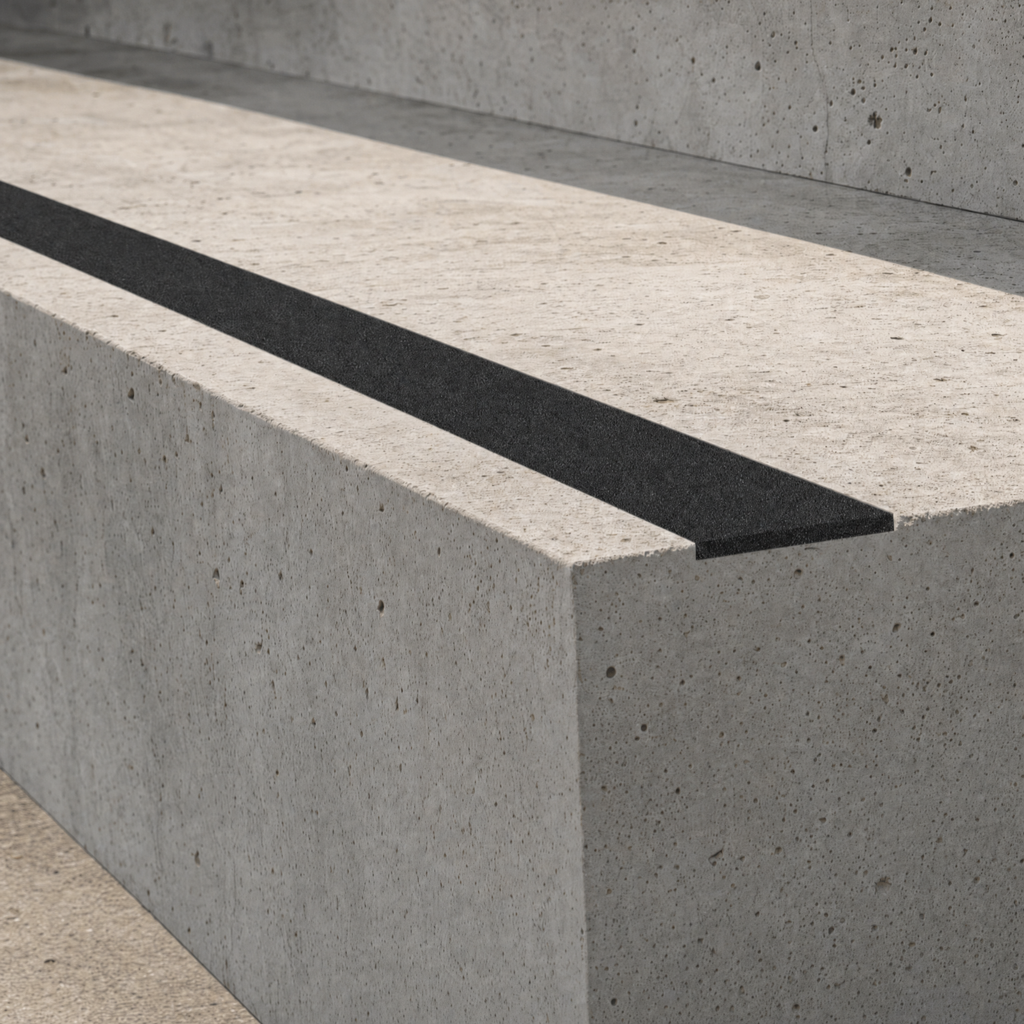

| Obsidian |
LRV 1.74 |

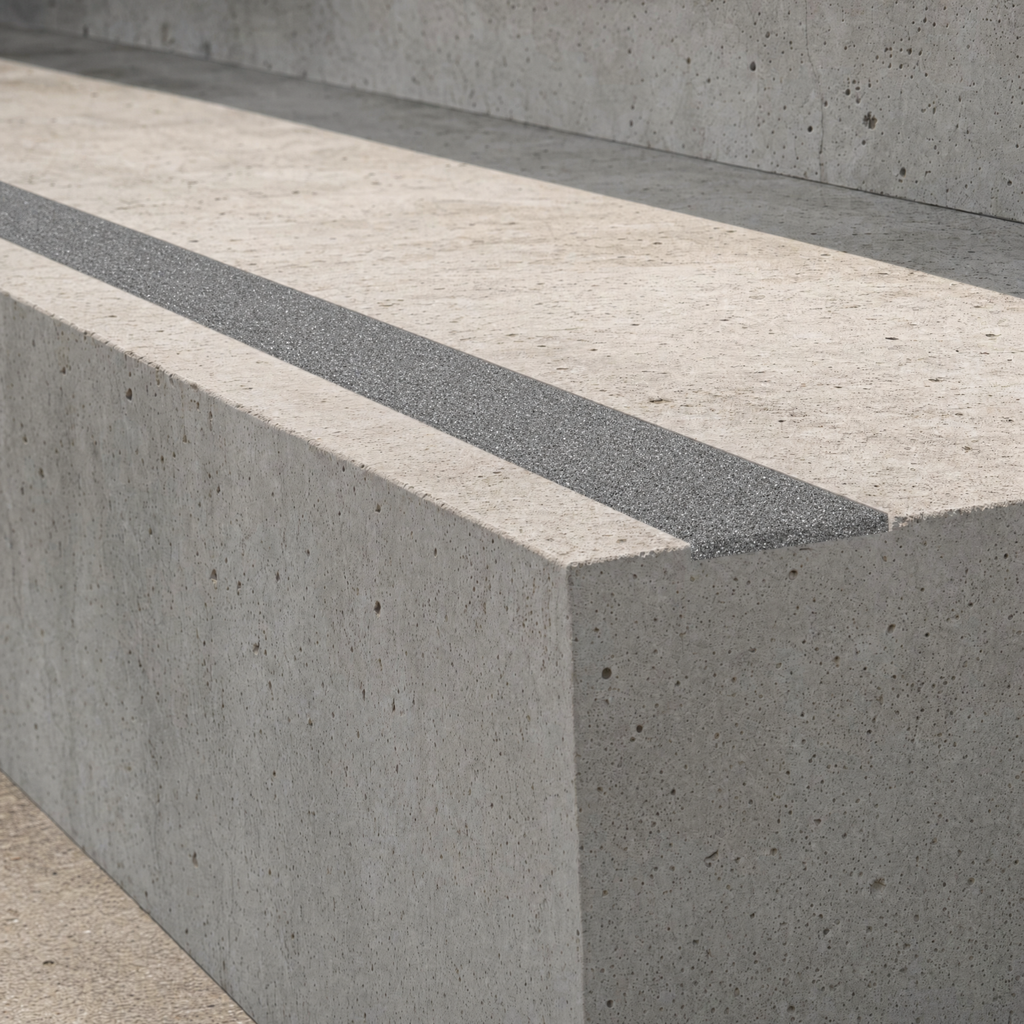

| Graphite |
LRV 4.44 |

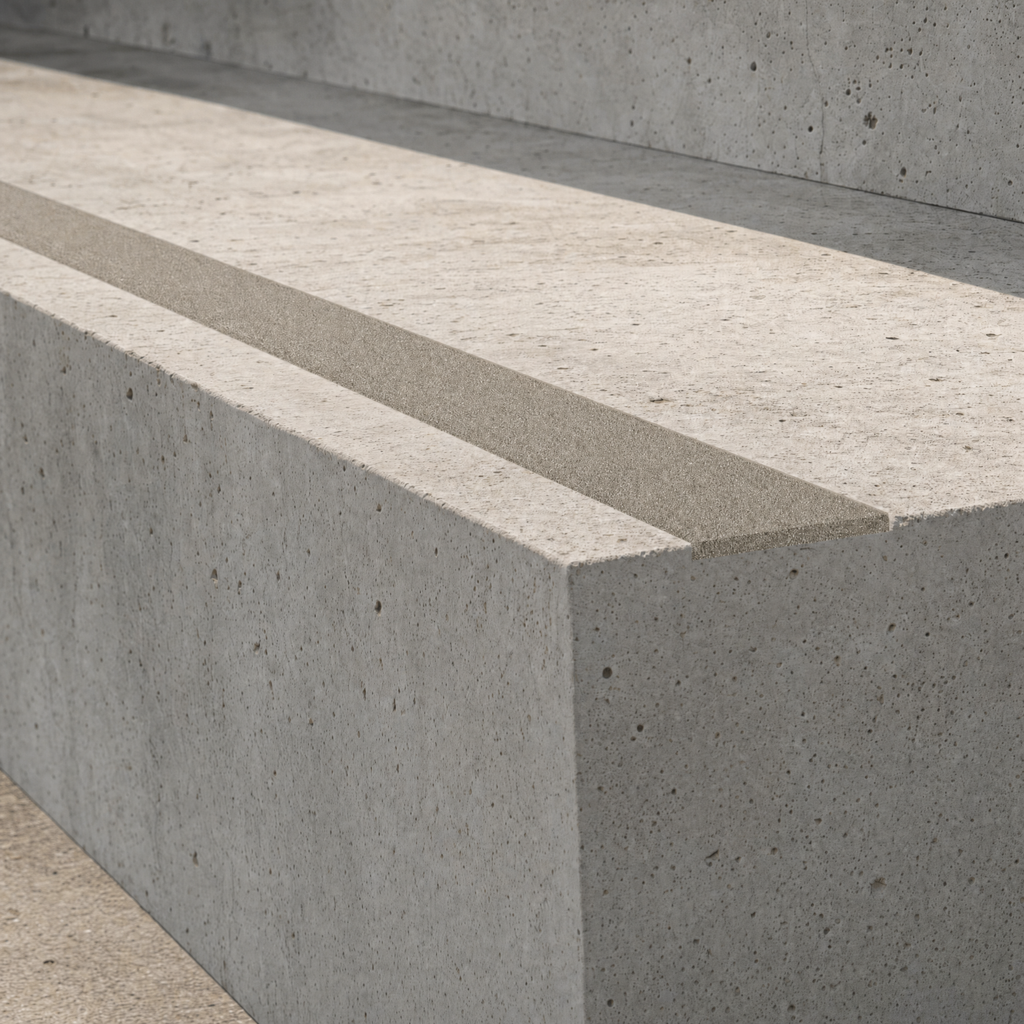

| Pebble |
LRV 7.17 |

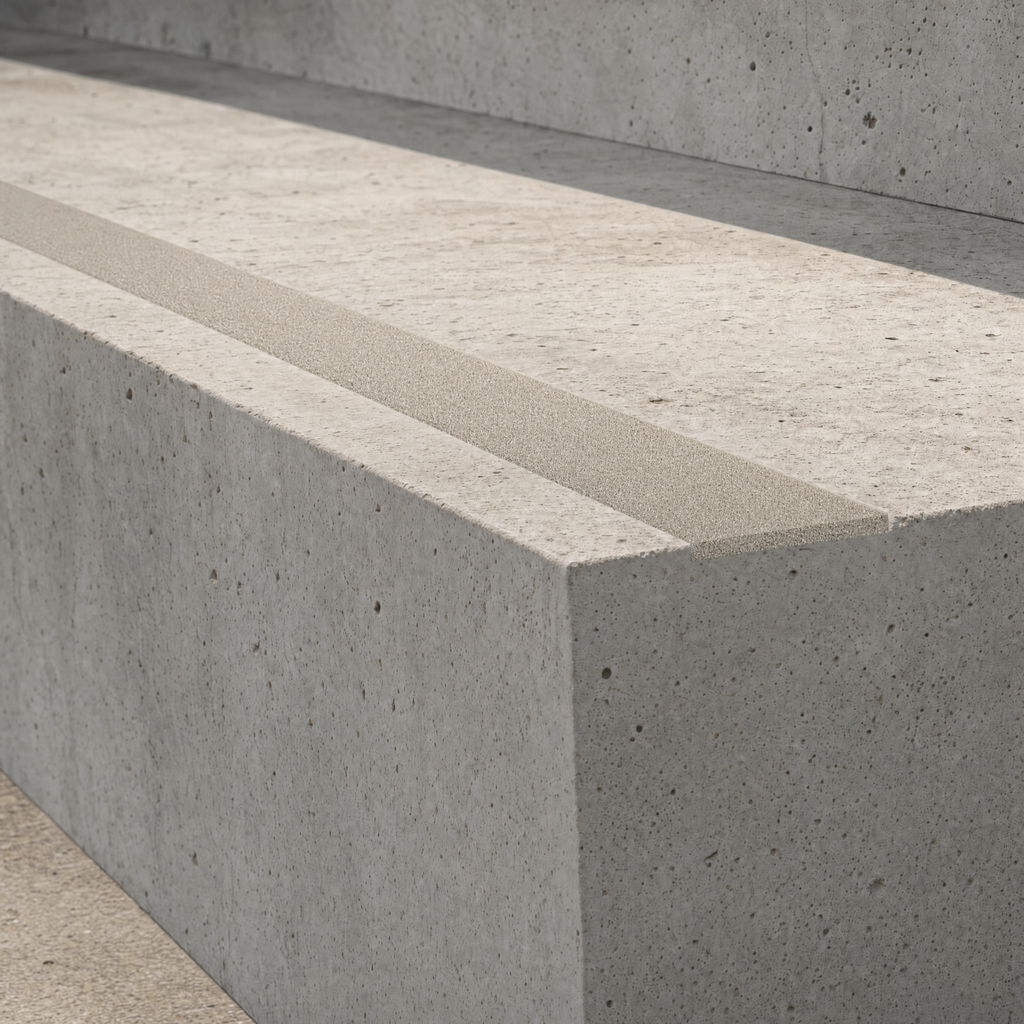

| Portland Stone |
LRV 31.61 |
| Chalk |
LRV 40.18 |

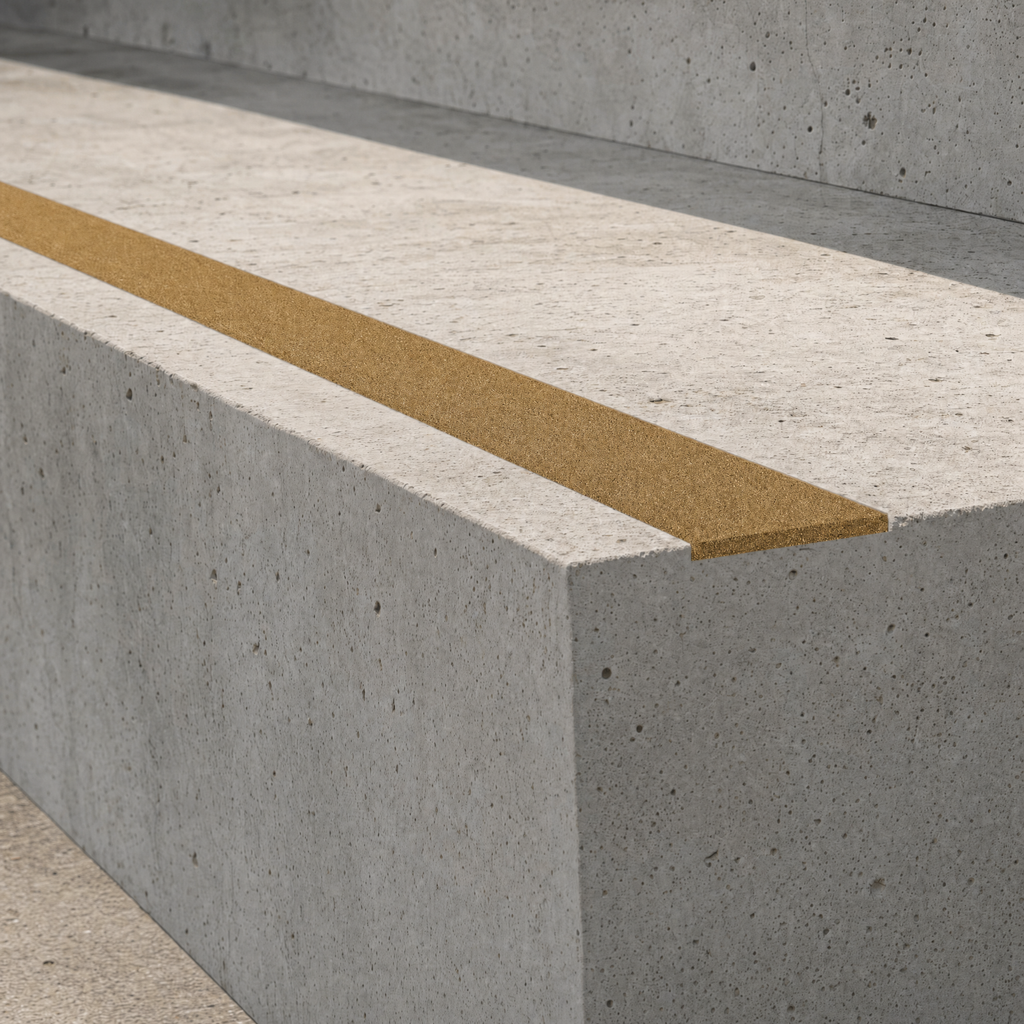

| Amber |
LRV 31.68 |
| Hazelnut |
LRV 9.13 |

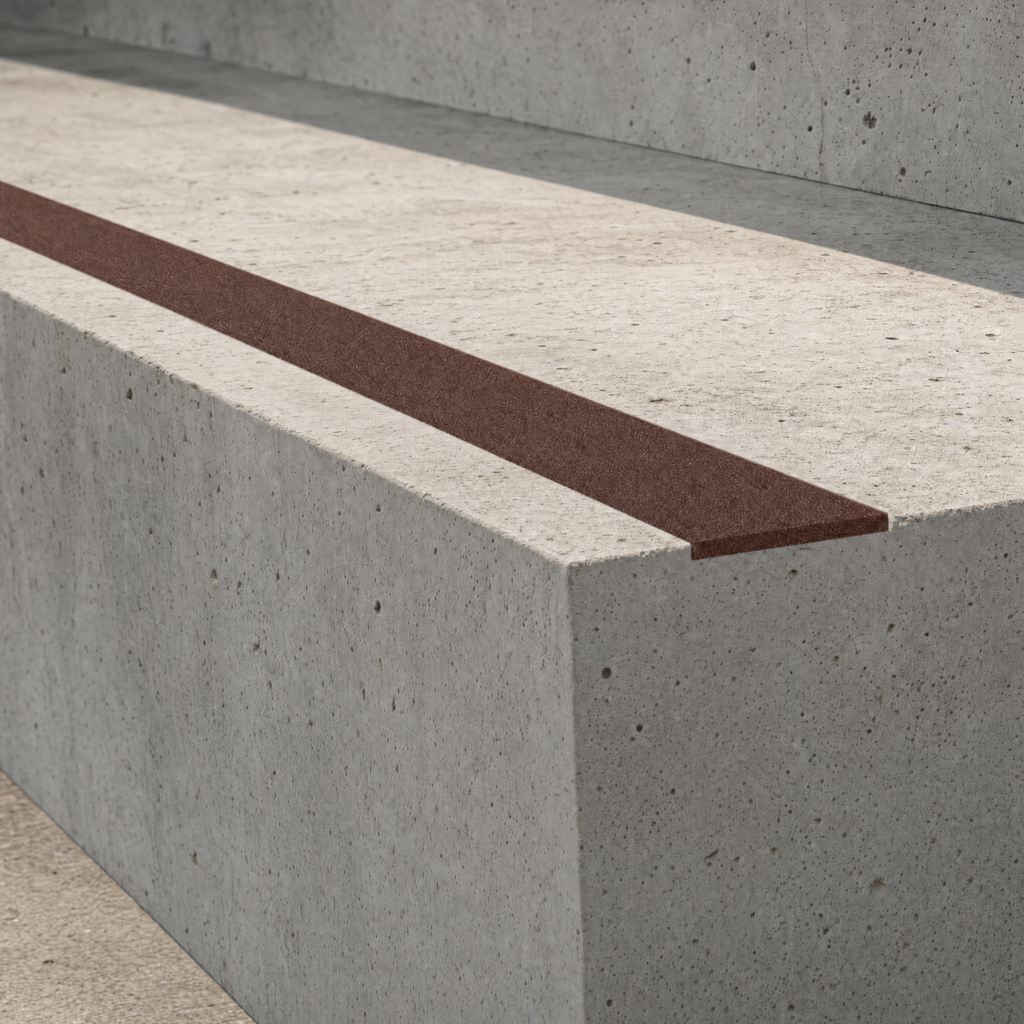

| Chestnut |
LRV 6.54 |
| Speckled Obsidian |
LRV 1.44 |

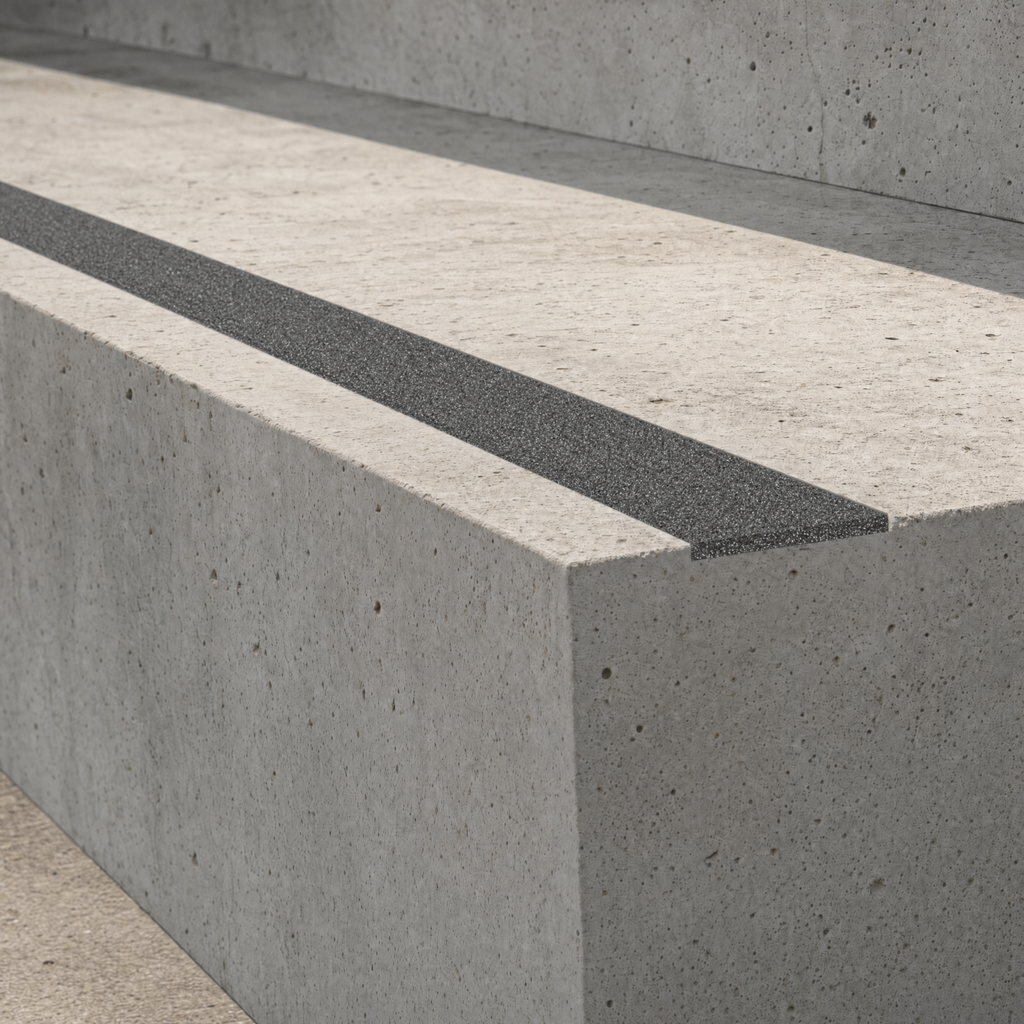

| Speckled Graphite |
LRV 4.35 |
| Speckled Pebble |
LRV 9.52 |
| Italian Marble |
LRV 32.74 |
The speckled and stone-effect infills read as a textured finish rather than a solid band, which sits better on stone and terrazzo refurbishment; Chalk and Amber are the usual picks where a genuinely light, high-visibility band is wanted against a dark tread. All LRV figures are the manufacturer's published averages and vary a little between batches, so ask us for a sample if the contrast is critical to a specification.
Measuring and fixing
Measure each tread individually rather than assuming a flight is consistent, and take 3mm to 5mm off a wall-to-wall measurement so the strip drops in without scraping. Set the band back at least 15mm from the front arris so the nose edge stays intact, and check the tread thickness before routing a groove this wide. The manufacturer notes that section size varies slightly between batches, so take a sample before you cut or cast your channels. The substrate must be clean, dry and free of laitance; bed in an exterior-grade adhesive worked well into the groove and weight the strip until cured. Custom lengths are made to your figures, so they are non-returnable except for faults.
Ordering and delivery
Choose your infill colour, then enter the length you need in millimetres. Cut lengths are made to order; allow additional working days over a stock length and we will confirm a dispatch date. Standard UK mainland delivery is a flat rate. If your treads sit close to 1m, 1.5m or 2m, the stock listing linked above will reach you sooner.
