Not every staircase has a square riser. On a great many older concrete and timber flights the riser leans back under the tread, and a straight-backed nosing fitted to a stair like that will rock on its heel and never sit down properly. This is the profile for those stairs. It is a heavy duty aluminium stair nosing, 60mm across the tread and 32mm down the riser, extruded in a 5mm gauge, with the rear face angled back so it beds against a sloping riser instead of fighting it. A replaceable anti-slip PVC insert clips into the single channel in a choice of eleven colours, and it comes in six lengths from 1.0m up to the 3.22m stock bar.
Check your stair before you order, because this is the one thing that decides which profile you need. Stand at the side of a step and look at where the riser meets the tread. If that joint is a right angle, you want the straight-backed version. If the riser slopes back, so the tread overhangs it, you want this one. Fit the wrong profile and it will sit proud at the back, flex every time it is stepped on, and work its fixings loose. Fit the right one and the whole underside of the nosing is supported.
Nosings rarely fail in the material; they fail at the fixing. A thin extrusion deflects each time weight lands on the overhang, and that small repeated movement is what walks screws loose until the nosing lifts and becomes the hazard it was fitted to prevent. At 5mm this section does not meaningfully deflect underfoot, so the fixings stay tight and the floorcovering stays trapped under the flange. The same gauge gives the depth to bring contract carpet or a thick vinyl up to the nosing without leaving a lip.
The PVC insert takes all the abrasion because it is the part being walked on. It clips into the channel and can be replaced while the aluminium stays screwed to the tread, so a worn stairwell can be brought back to specification without lifting the floorcovering or re-drilling. The contrast colour is not a permanent decision either.
The manufacturer states that the standard PVC insert achieves category R11 on the DIN 51130:2010 inclined platform test at a measured angle of 22.9 degrees, and pendulum values under BS 7976-2:2002 of PTV 66 dry and PTV 54 wet. The UK Slip Resistance Group classes a PTV of 36 or above as low slip potential. The insert is described as a REACH-compliant flexible PVC extrusion grade developed for non-scuff stair nosing use. These are the manufacturer's published figures for the insert, carried across here rather than tested by us.

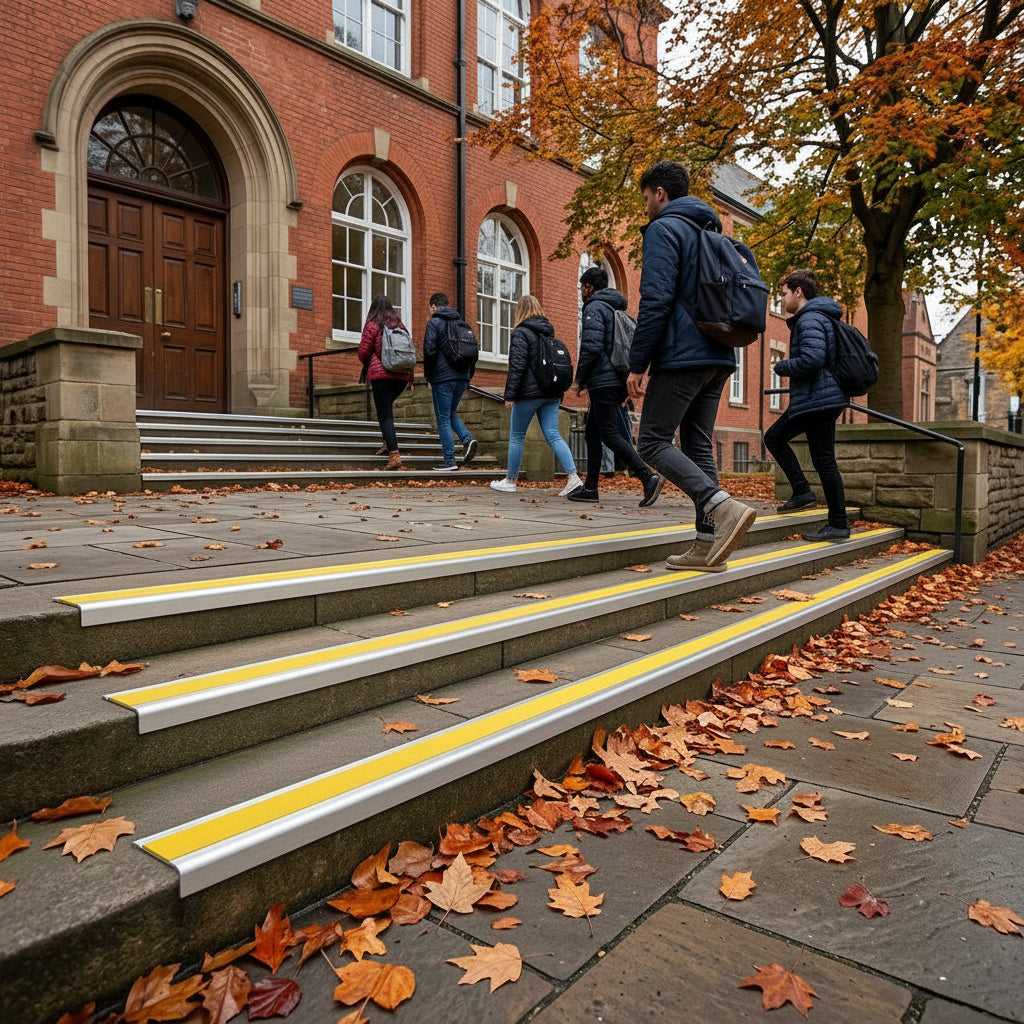

Refurbishment work above all, because sloping risers are far more common on existing stairs than on new build. Schools and colleges with original concrete flights. Local authority and housing association blocks. Hospitals and health centres. Office and retail back-of-house stairs. Anywhere a survey has come back showing the risers are raked and the standard square profile will not sit.
| Attribute | Detail |
|---|---|
| Profile | Rakeback, single channel — angled rear face for a sloping riser |
| Tread depth | 60mm |
| Riser height | 32mm |
| Gauge | 5mm |
| Material | Aluminium extrusion, alloy 6063; chemical composition in accordance with BS EN 573-3:2003 and manufacturing tolerance to BS EN 755 — manufacturer stated |
| Channel finish | Mill as standard (LRV 78.9). Bright Brass and Black channel finishes, anodising and powder coating are offered by the manufacturer to order |
| Insert | Replaceable clip-in PVC anti-slip insert, eleven colours |
| Slip resistance | R11 to DIN 51130:2010 at 22.9°; PTV 66 dry / PTV 54 wet to BS 7976-2:2002 — manufacturer stated for the standard PVC insert |
| Insert LRV | White 79.9 · Yellow 55.7 · Canvas 53.2 · Ice Grey 42.1 · Beige 41.1 · Dolphin Grey 27.6 · Midnight Grey 12.8 · Red 10.6 · Cobalt Blue 9.2 · Brown 9.1 · Black 4.5 — manufacturer stated |
| Lengths | 1.0m, 1.5m, 2.0m, 2.46m, 2.77m and 3.22m. The manufacturer's stock lengths are 2.46m, 2.77m and 3.22m; the shorter bars are cut from stock |
| Fixing | Adhesive bed plus mechanical fixing through the tread flange |
| Suitable floorcoverings | Carpet, laminate, LVT and vinyl, tile |
| Use | Internal. For external and wet locations the manufacturer supplies a Tredsafe insert version instead |
| Cut to length | Available from the manufacturer to order, with drilling on request |
Confirm the rake first. Hold a set square against the riser and the tread: if there is a visible gap at the bottom, the riser slopes and this is your profile. Then take the length. Measure the full width of the tread and order the next bar up, because a nosing can be cut down on site but not extended. The 2.46m, 2.77m and 3.22m bars are the manufacturer's stock lengths and cover most commercial flights in one piece; the 1.0m, 1.5m and 2.0m bars suit landings and short runs.

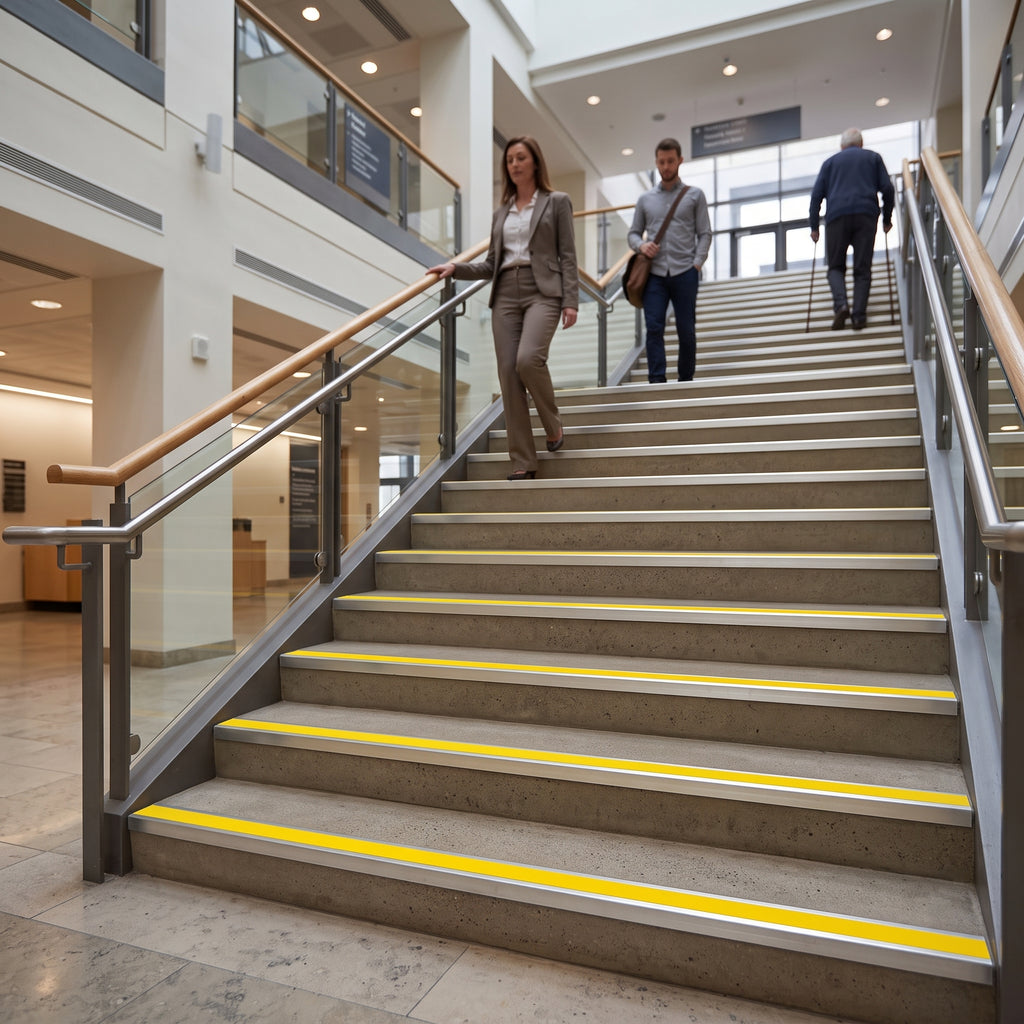

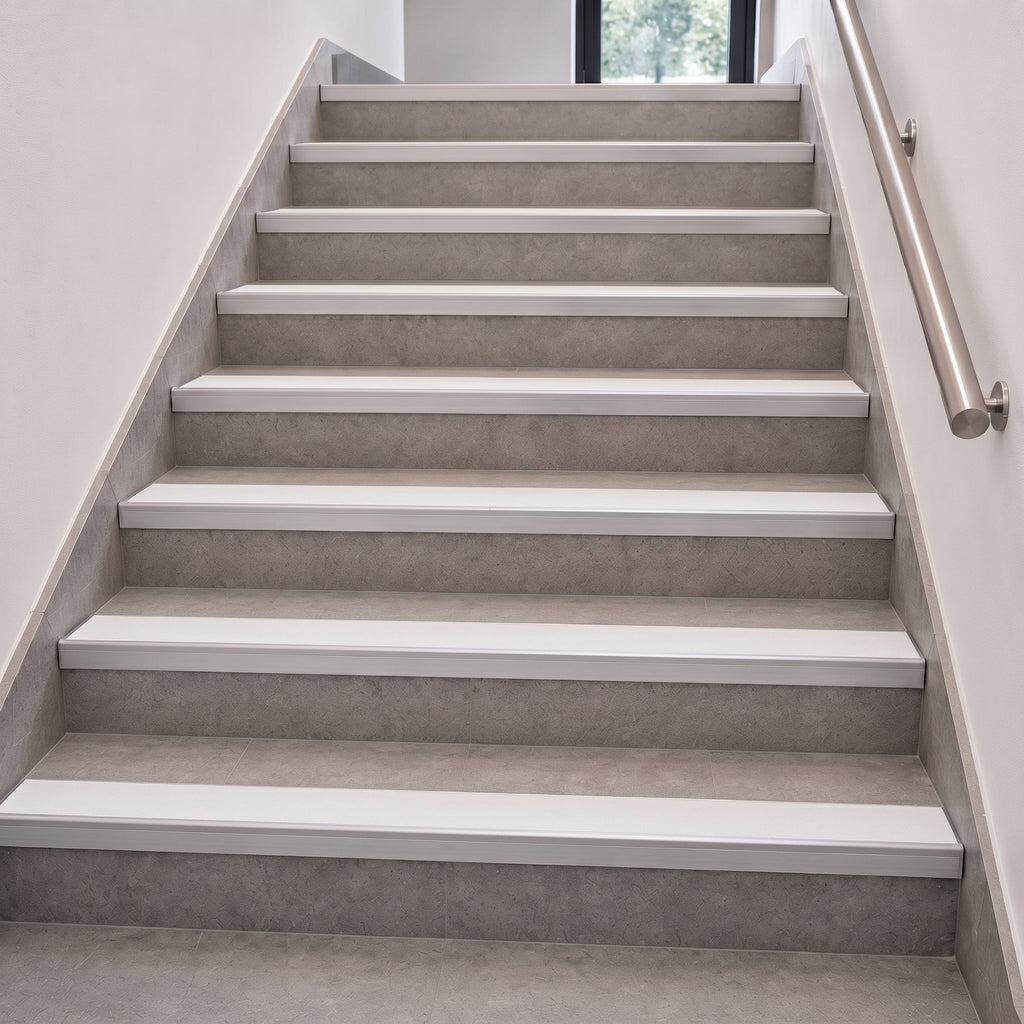

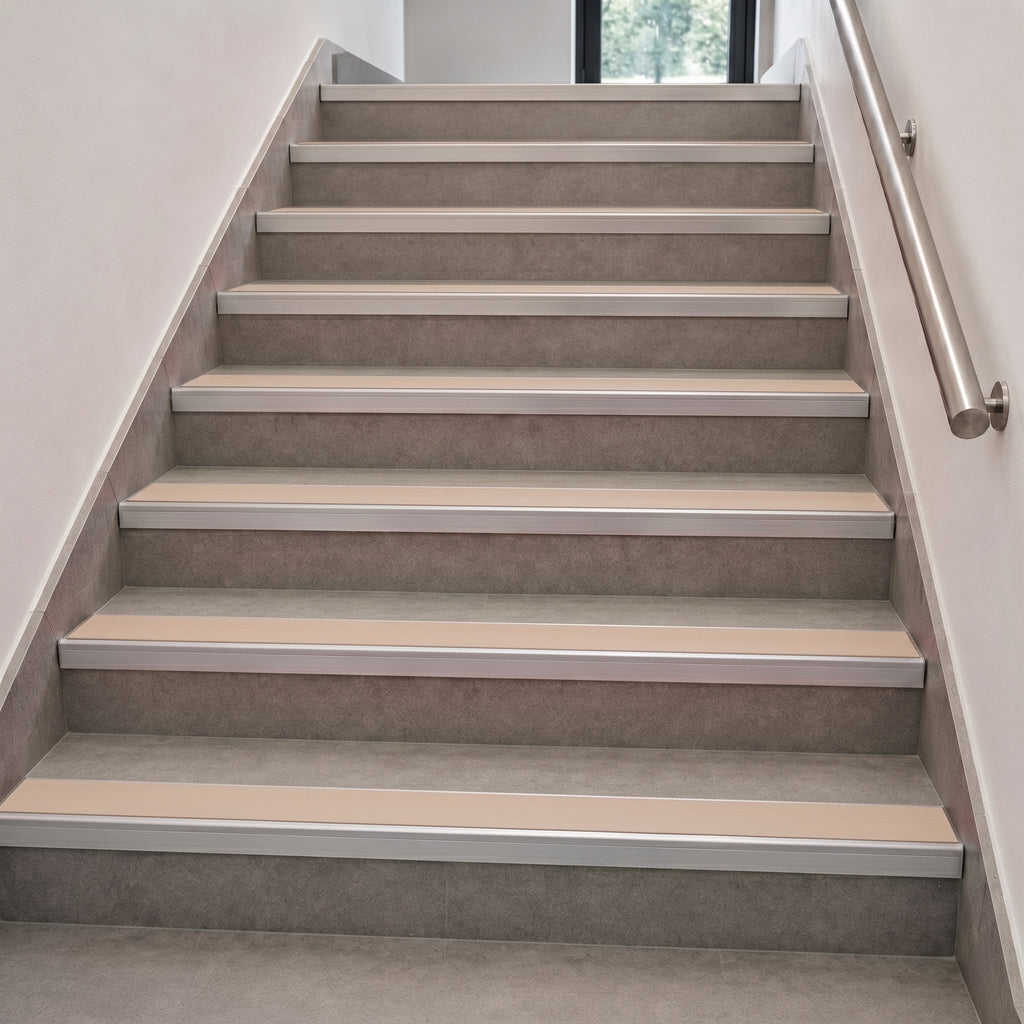

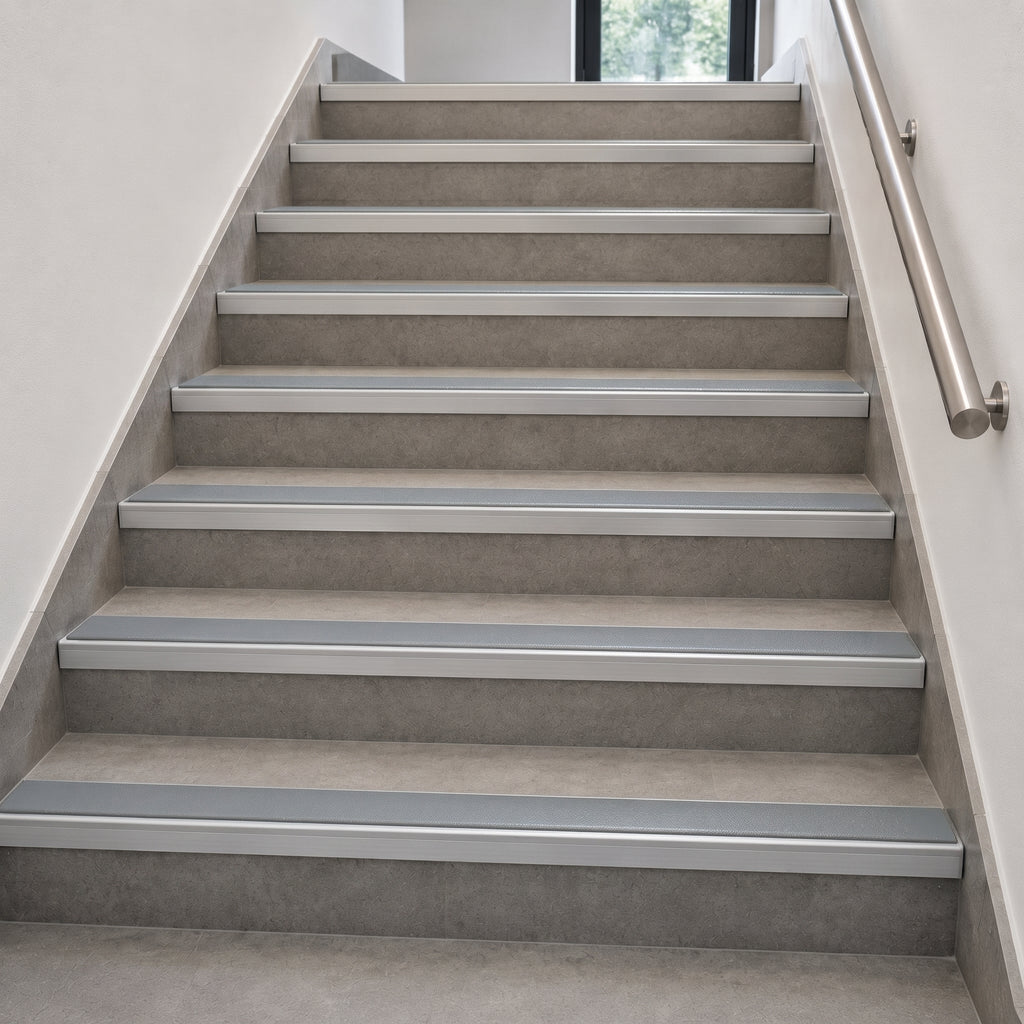

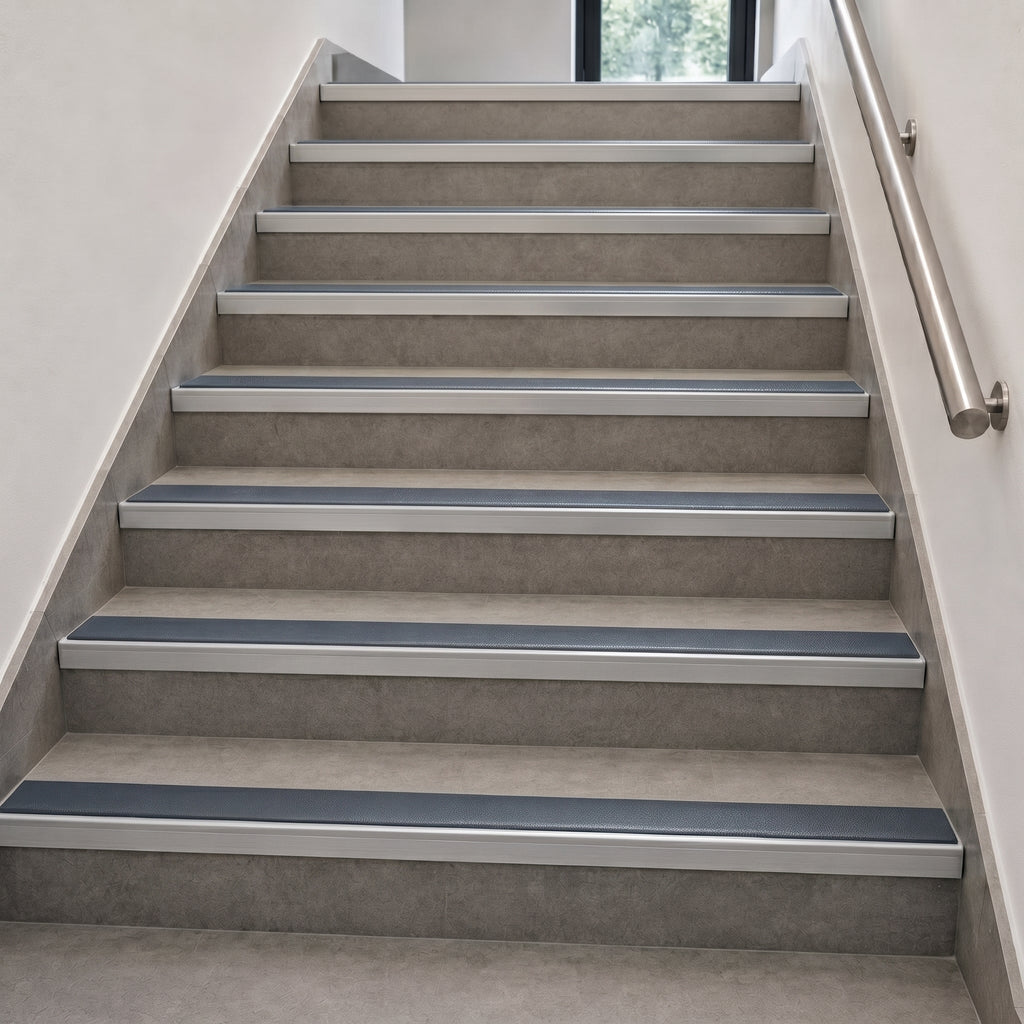

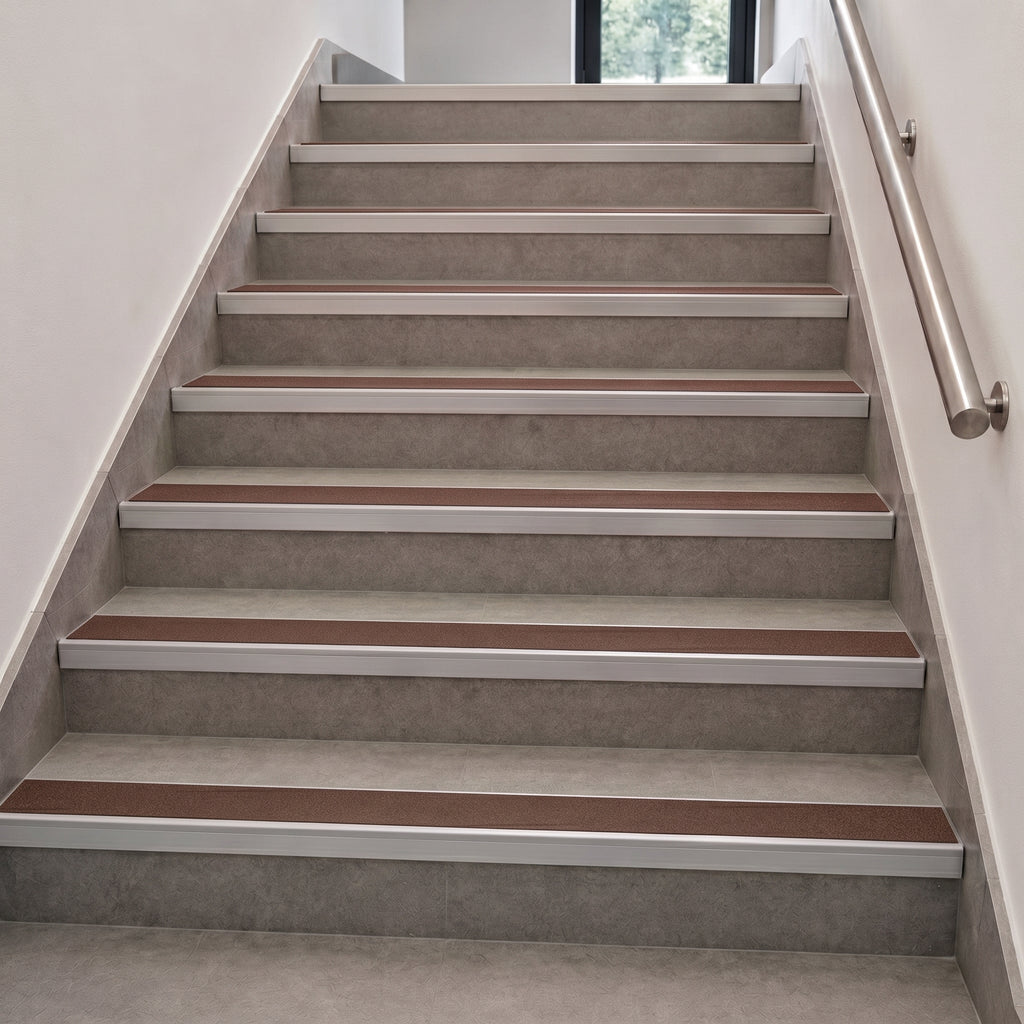

Choose the insert colour by contrast rather than preference. What matters is the difference in light reflectance value between the insert and the tread covering seen from the top of the flight, and the figures for all eleven inserts are in the table above. Yellow at 55.7 is the usual specification in education and healthcare. White at 79.9 reads against dark floors; Black at 4.5, Brown at 9.1 and Cobalt Blue at 9.2 read against pale ones. Dolphin Grey and Ice Grey are the quieter choices.
The manufacturer's method is: make sure the steps are dry, clean, level and free of debris; mark and drill the fixing positions, plugging where required; apply a suitable adhesive to the underside of the nosing; screw down with appropriately sized screws; then fit the insert, which covers the screw heads. On a raked riser, check the nosing beds down along its full length before you drill. Do not overtighten into soft substrates.
For cleaning, the manufacturer specifies a neutral detergent on the inserts, rinsed with clean water and dried before foot traffic returns. The aluminium channel can be brought back with steel wool or a cloth. The manufacturer states that solvent cleaners should under no circumstances be used on its aluminium products.
Look at the side of a step. If the riser meets the tread at a right angle you need the straight-backed profile; if the riser leans back under the tread, you need this one. If you are unsure, send us a photo taken square-on from the side of the flight and we will tell you which it is.
The standard PVC insert is specified for internal use. For external steps and wet areas the manufacturer supplies a Tredsafe insert version made for wet and dry conditions — contact us if the stair is exposed to weather.
Yes. The insert clips in and lifts out while the aluminium stays screwed to the stair, so a worn stairwell can be refreshed without lifting carpet or re-drilling treads.
Contrast at the step edge is what those documents are concerned with, and it is achieved by choosing an insert colour with a suitable LRV difference from the tread covering — the figures are in the specification table. Note that the manufacturer badges certain other profiles in this range as DDA Compliant and does not apply that badge to this one, so if your specification calls for a DDA-marked profile, ask us before ordering.
Screws are not included. The right fixing depends on your substrate — timber, concrete or screed all want something different — so buy them to suit the stair, and pre-drill and plug masonry.
All eleven insert colours and all six lengths are ordered from this page — choose colour and length above and the price updates for that combination. Orders are dispatched from UK stock. For a Bright Brass or Black channel finish, an anodised or powder-coated channel, an insert colour from the manufacturer's wider range, or a made-to-measure length, contact us and we will quote it.
View our complete range of stair nosing profiles — aluminium, rubber and PVC options for every application.
| Service | Timeframe | Cost |
|---|---|---|
| Standard UK Delivery | 2 working days from dispatch | £9.99 |
Orders placed by 2pm (UK time) on a working day are dispatched the same day. Orders placed after 2pm or on non-working days are dispatched the next working day. Delivery takes 2 working days from dispatch. Working days are Monday to Friday, excluding bank holidays. UK delivery costs £9.99. Contact us for international enquiries.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Overall rating: 5.0 / 5 from 8 reviews.

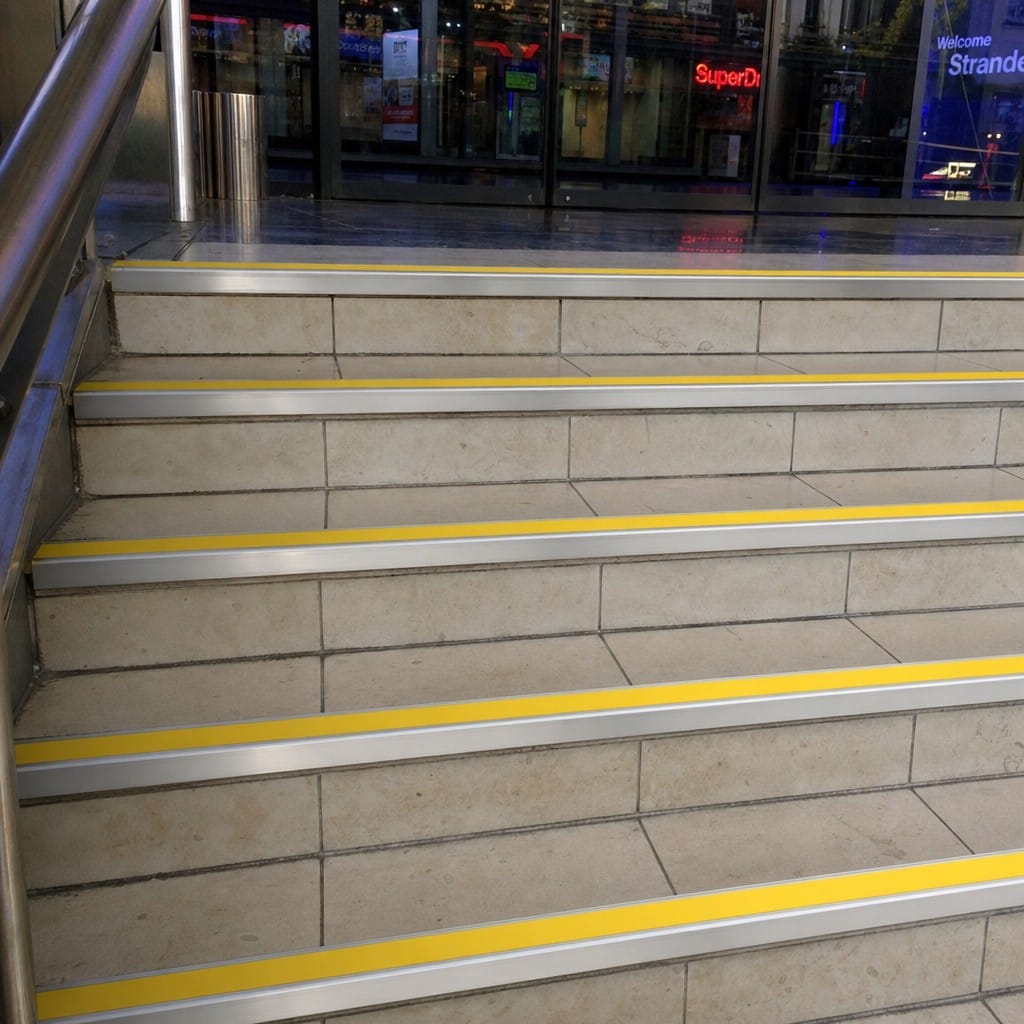

At this price, the fit against the tiles turned out to be much better than predicted. The heavy-duty stair nosing nestled smoothly with our entrances existing tiling and hasnt budged an inch despite constant footfall over it.
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours
Works a treat for tricky jobs where other options fall short. The stair nosing was used in our office building, and it fits seamlessly along the sloped risers. Feels solid under foot with its aluminium build, and much better value compared to similar products Ive tried before. Definitely worth every bit for its reliability in high-traffic areas.
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

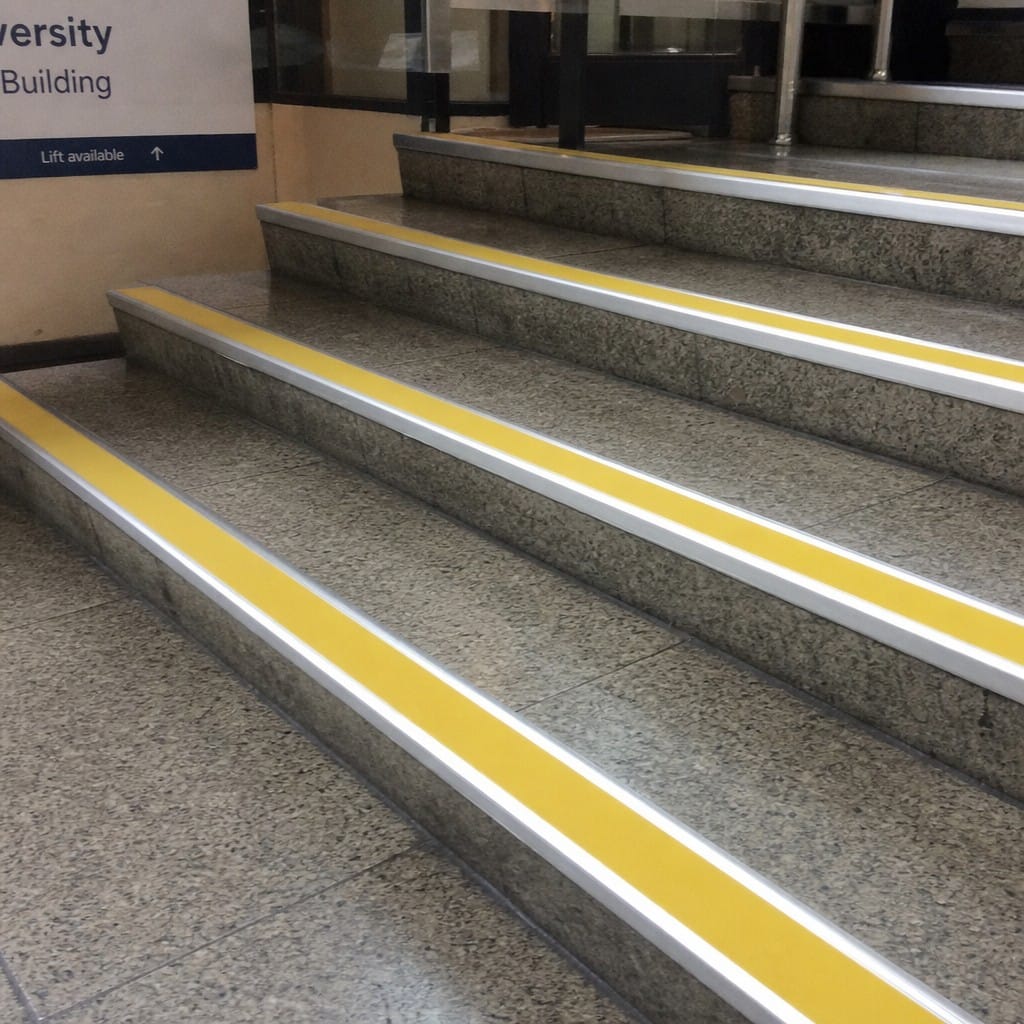

Was tasked with finding a solution for the entrance stairs at our university, which are rather historic and beautifully uneven. Upon arrival, this nosing seemed like it was custom-made for tricky architecture. Its ingenious design snugly fits the non-linear angles right away. Over the past few weeks, its stayed in place reliably despite considerable foot traffic and miserable weather, blending functionality and subtlety impressively.
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

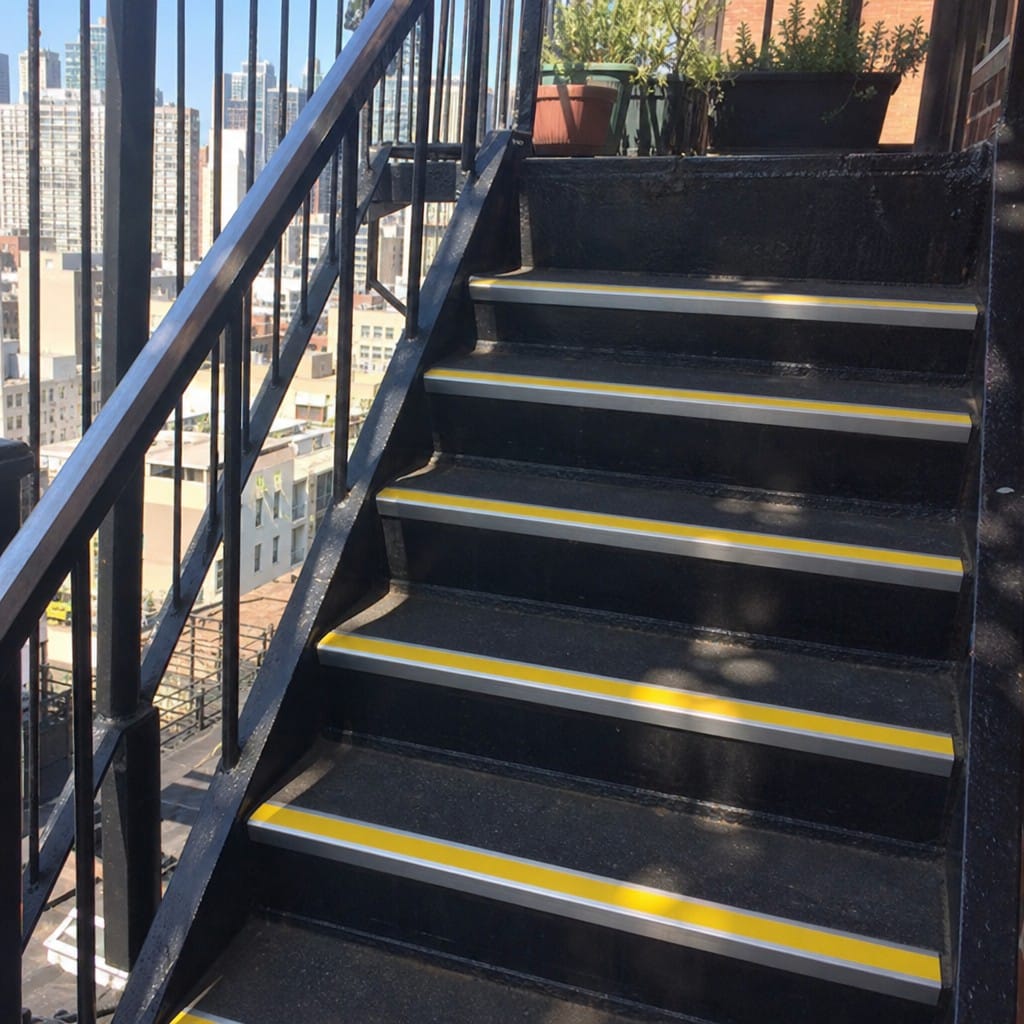

Arrived swiftly, but it’s the best bargain for those old rain-soaked steps in our building. Expected less for the price, yet this strip really stands its ground when its all slick underfoot. So far, this heavy duty stair nosing hasn’t budged even during busy Monday mornings – ideal for hustling up to the flat without slipping.
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

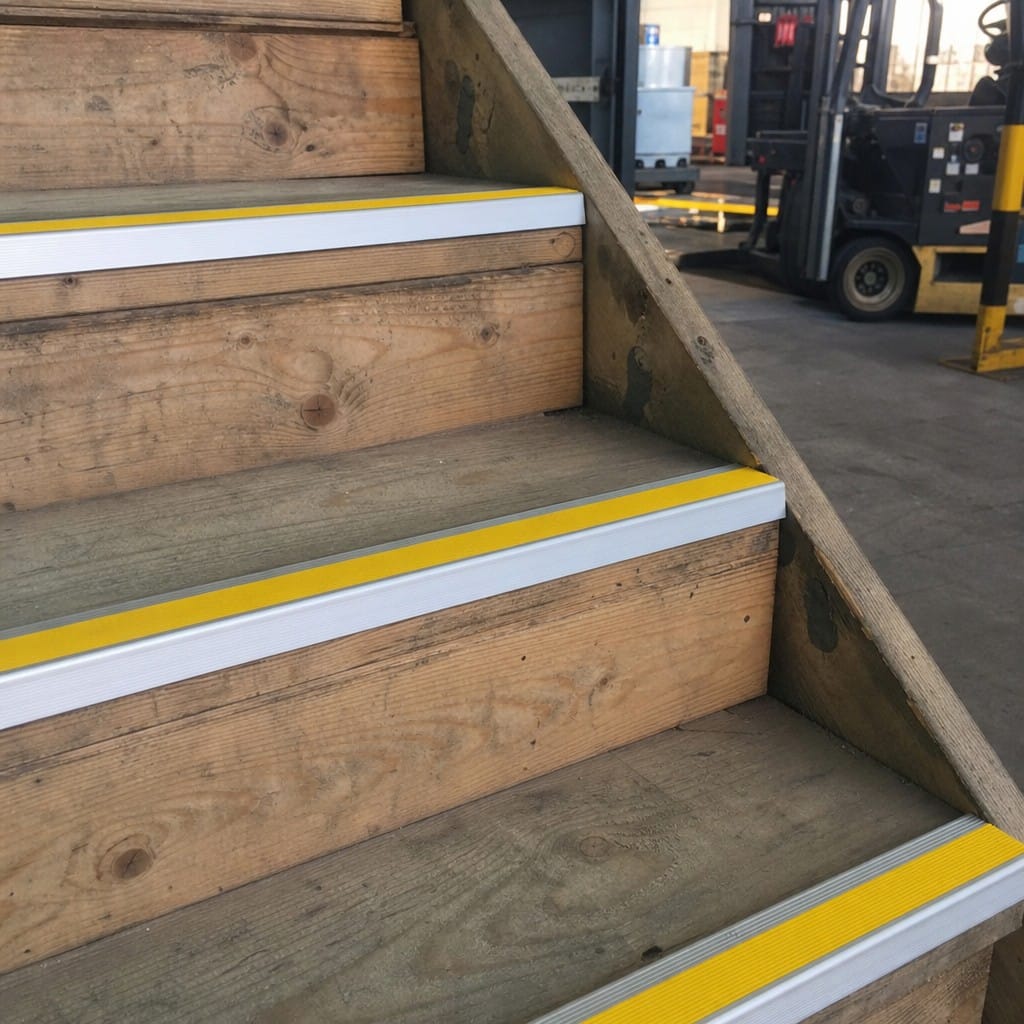

Took a punt on this as the warehouse needed something sturdy for those old wooden steps. To my surprise, the quality actually matched the price, which doesnt happen often these days! The stair nosing arrived well-packaged and installation was straightforward. Even with all that machinery around, Im impressed how its held up with workers stomping around in their heavy boots—great value if you ask me!
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

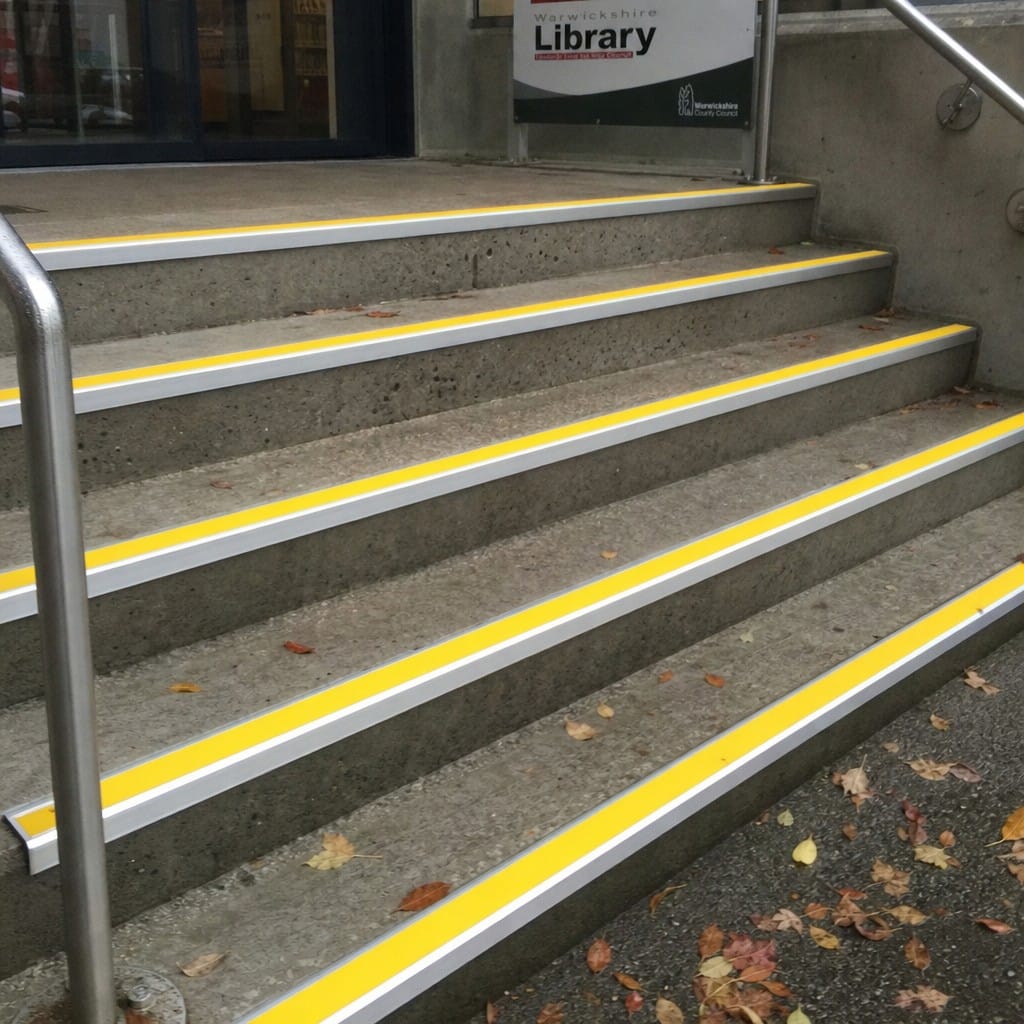

Put it in at the library, mate, and its still holding up brilliantly after a solid few months! This things really taken the foot traffic in stride, feels great underfoot every step of the way.
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

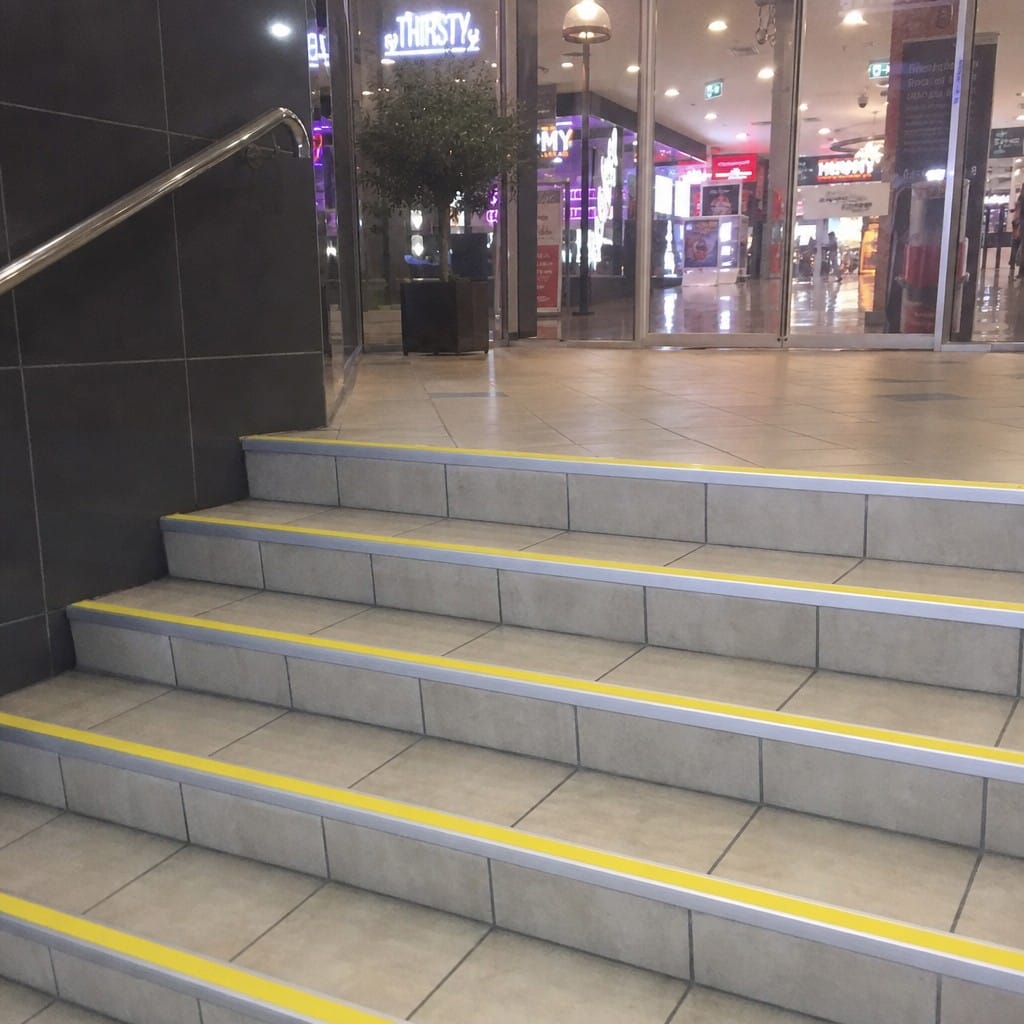

Got this for the shopping mall steps, mate. The first thing youll notice about this stair nosing is how slick it looks. With everything being so open and visible, it adds a neat finish to each step that really makes them stand out without being too flashy. The heavy duty aluminium stair nosing just feels rock solid and fits smoothly onto those older-style wonky risers. Cant complain; its both tough and tidy – does its job perfectly!
Aluminium Stair Nosing 60x32mm Heavy Duty Rakeback, 11 Colours

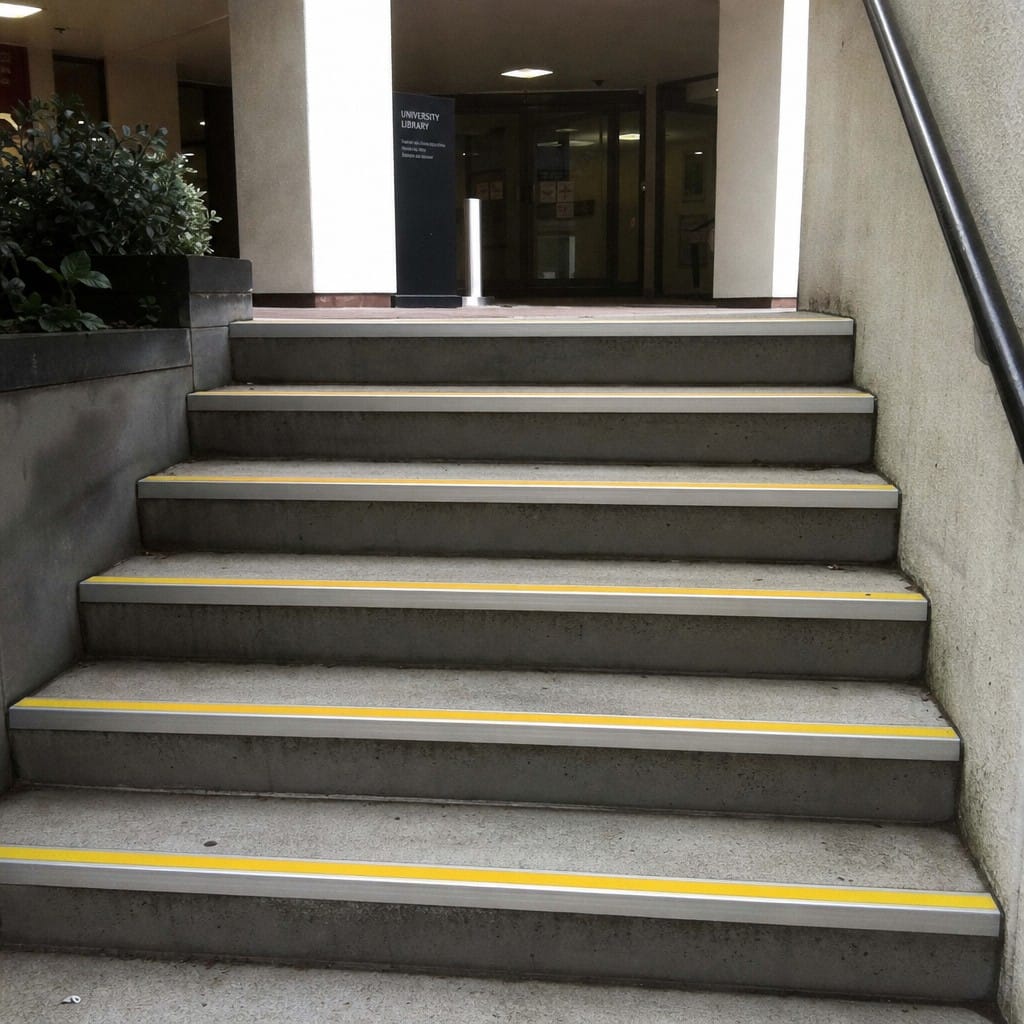

Brilliantly sturdy. These have a solid weight to them and fit snugly over the edges of my stone steps at the university entrance. Cutting the heavy duty aluminium stair nosing to the right length was straightforward, ensuring it moulded perfectly to our slightly raked stairs. It’s held strong even with constant foot traffic during term time, giving peace of mind knowing its built to last.
