Aluminium Stair Nosing 62x32mm Square Edge Cut to Any Size

This is the cut-to-size version of the AN51 single-channel square-edge stair nosing: the same 62mm tread plate, straight 32mm front leg and 5.0mm gauge aluminium alloy 6063 T6 extrusion, cut to whatever length your flight actually needs rather than to a stock bar. Enter the length in millimetres, anywhere from 700mm to 3200mm, and each piece is cut to that measurement with a cutting tolerance of ±5mm. Pricing is per metre, so you pay for the length you order.

If your going is close to a standard 1m or 2m bar, the stock-length version of this nosing is usually the simpler order. Custom cut lengths are non-returnable except where there is a fault; this does not affect your statutory rights.

Why it works

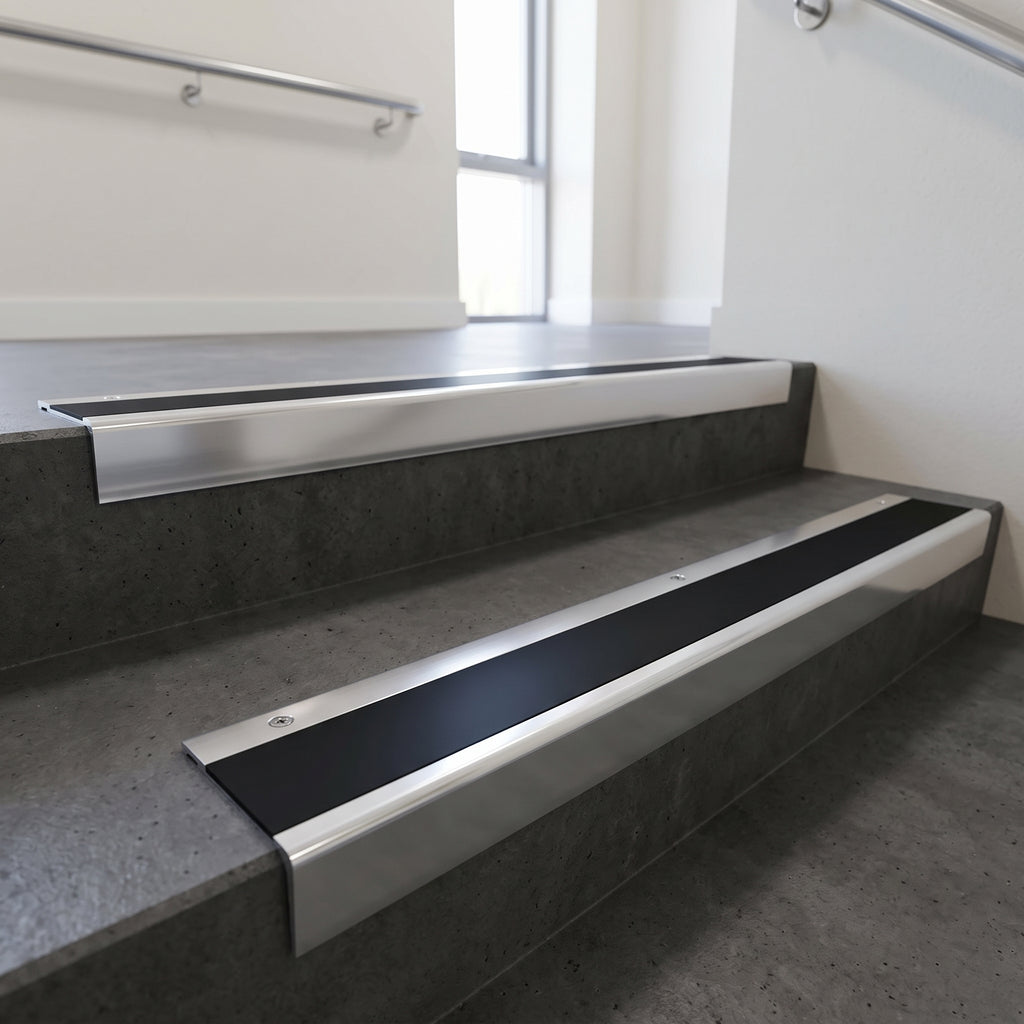

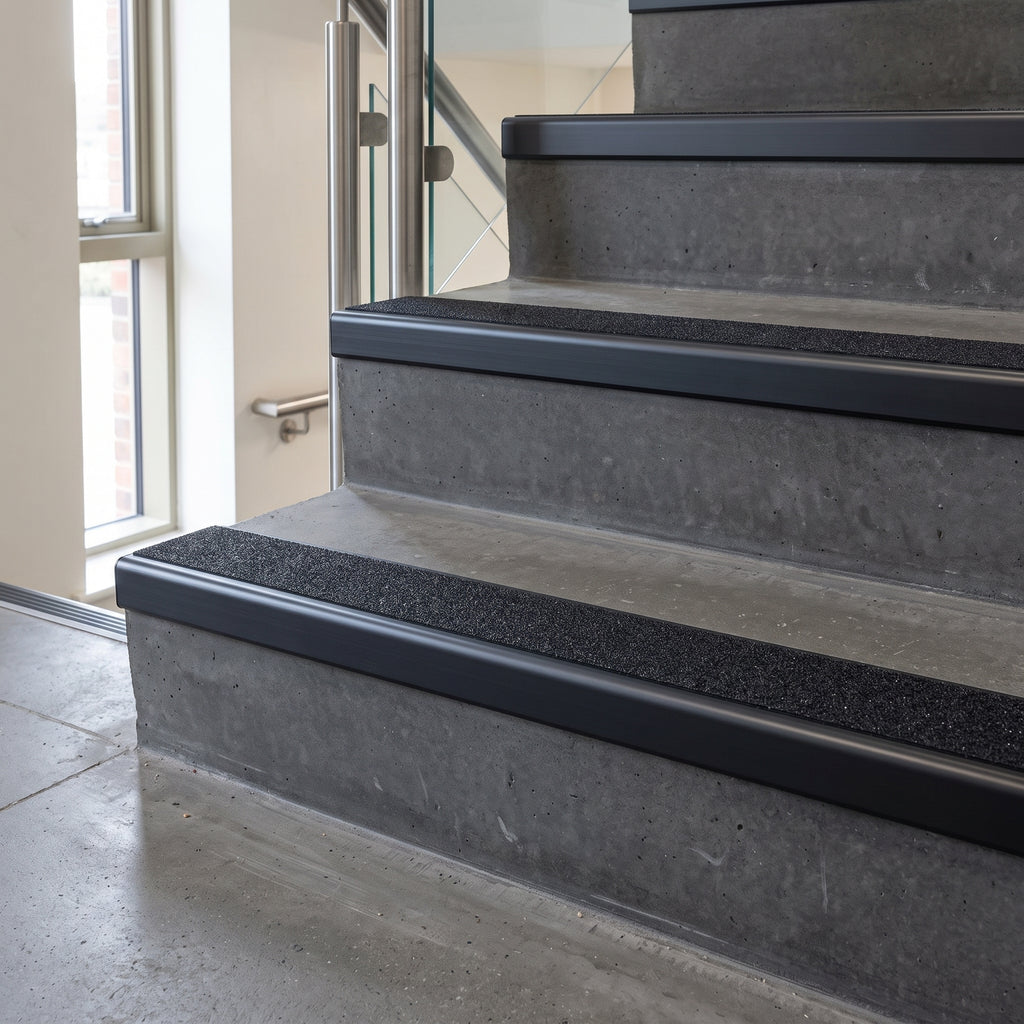

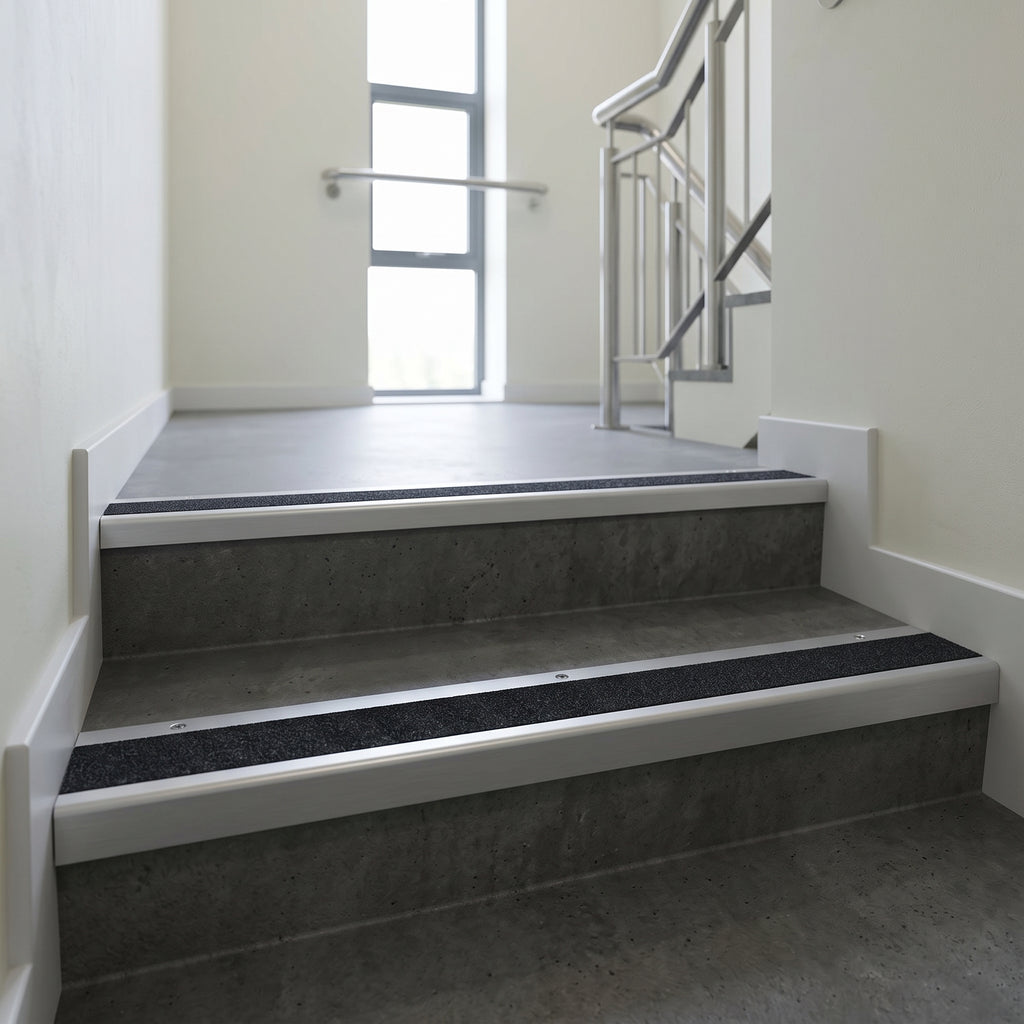

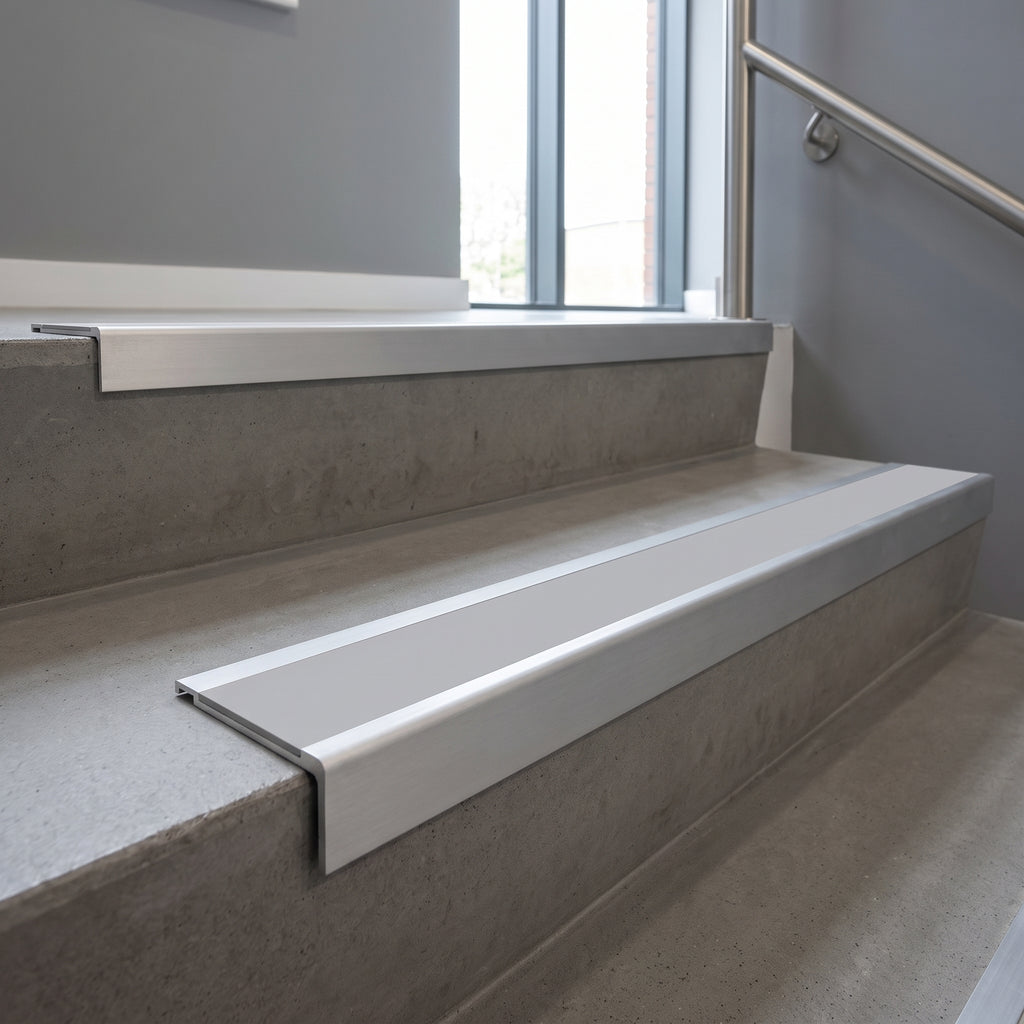

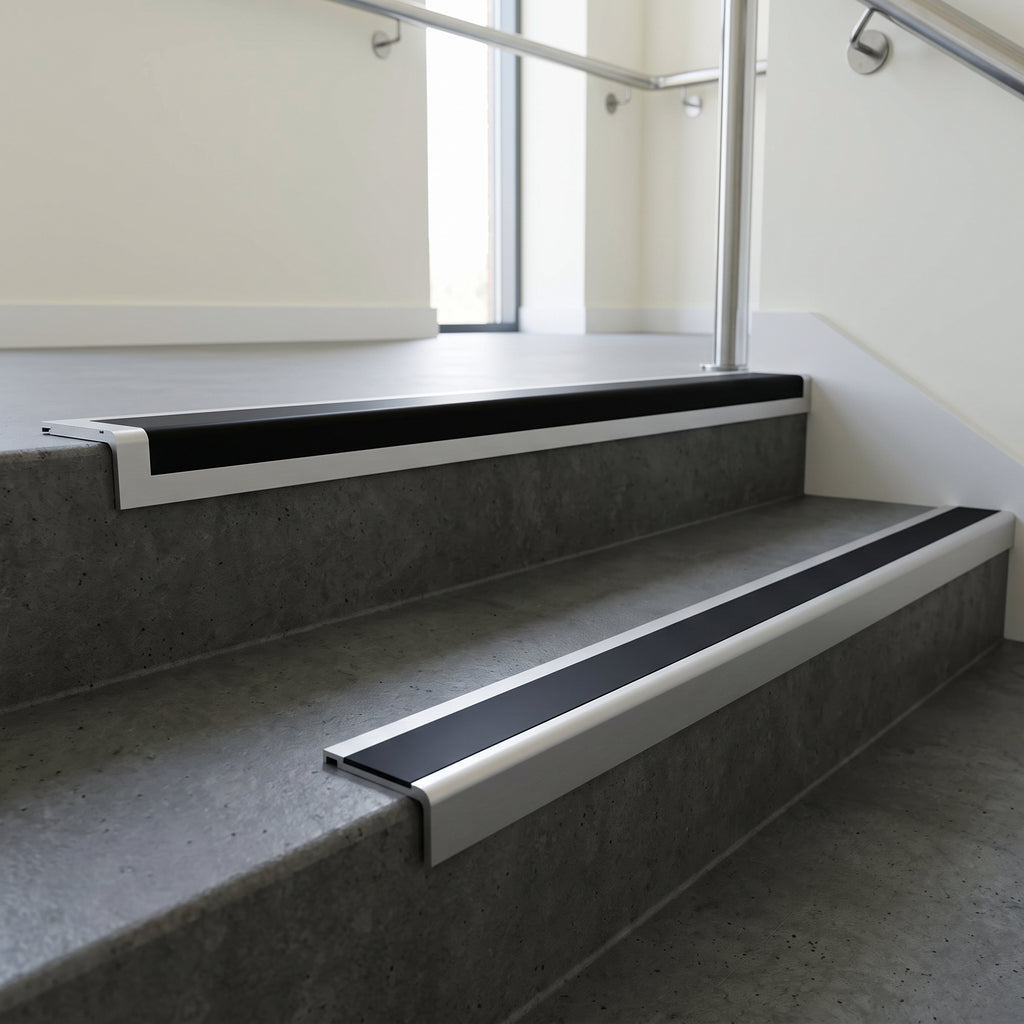

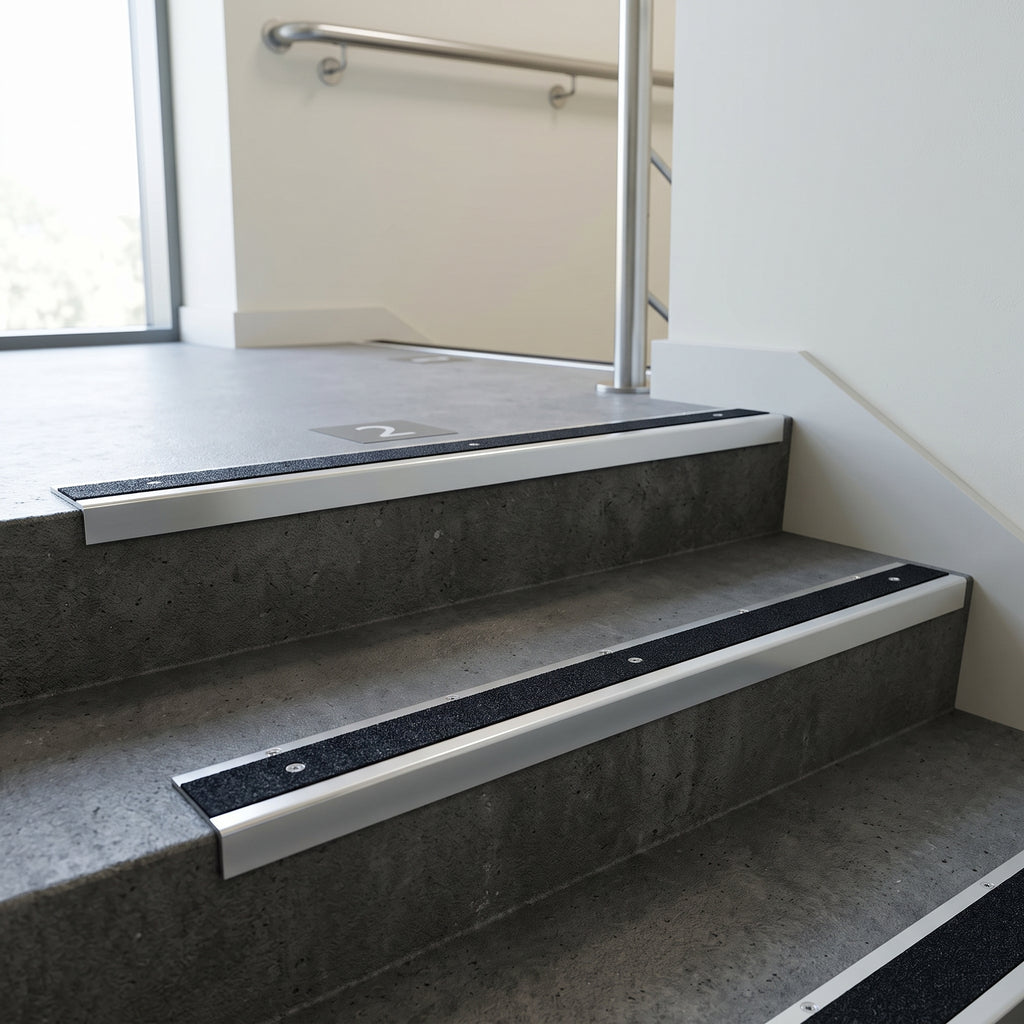

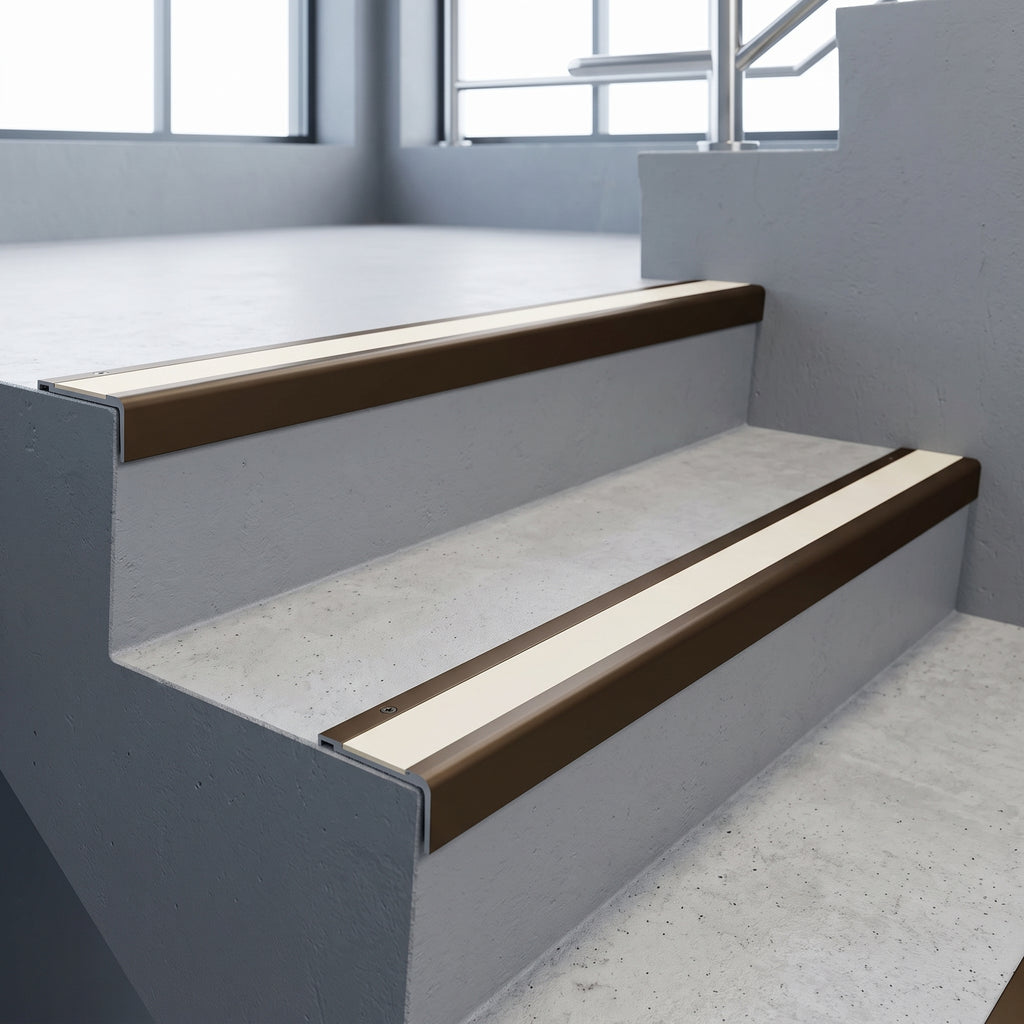

The tread plate is recessed to take a full-width infill that sits proud of the metal, which is what your foot lands on. The manufacturer publishes slip resistance values (SRV) by infill family: castellated PVC at 76 wet and 85 dry; Olympic Grip at 71 wet and 102 dry; smooth textured PVC at 56 wet and 65 dry; and ATI49.5 aluminium at 54 wet and 82 dry. These are the manufacturer's stated figures for the infill materials, not our own test results.

At 5.0mm gauge the extrusion stays flat under load rather than dishing between fixings. The front leg is straight and vertical, meeting the tread in a crisp square corner, so the profile sits tight against a step whose going and riser already meet at a sharp arris. The manufacturer specifies it for interior stairs with low to medium traffic volumes; it is part of their Designer Collection, which is why it comes in six carrier finishes rather than the usual three.

Specifications

Choosing the right option

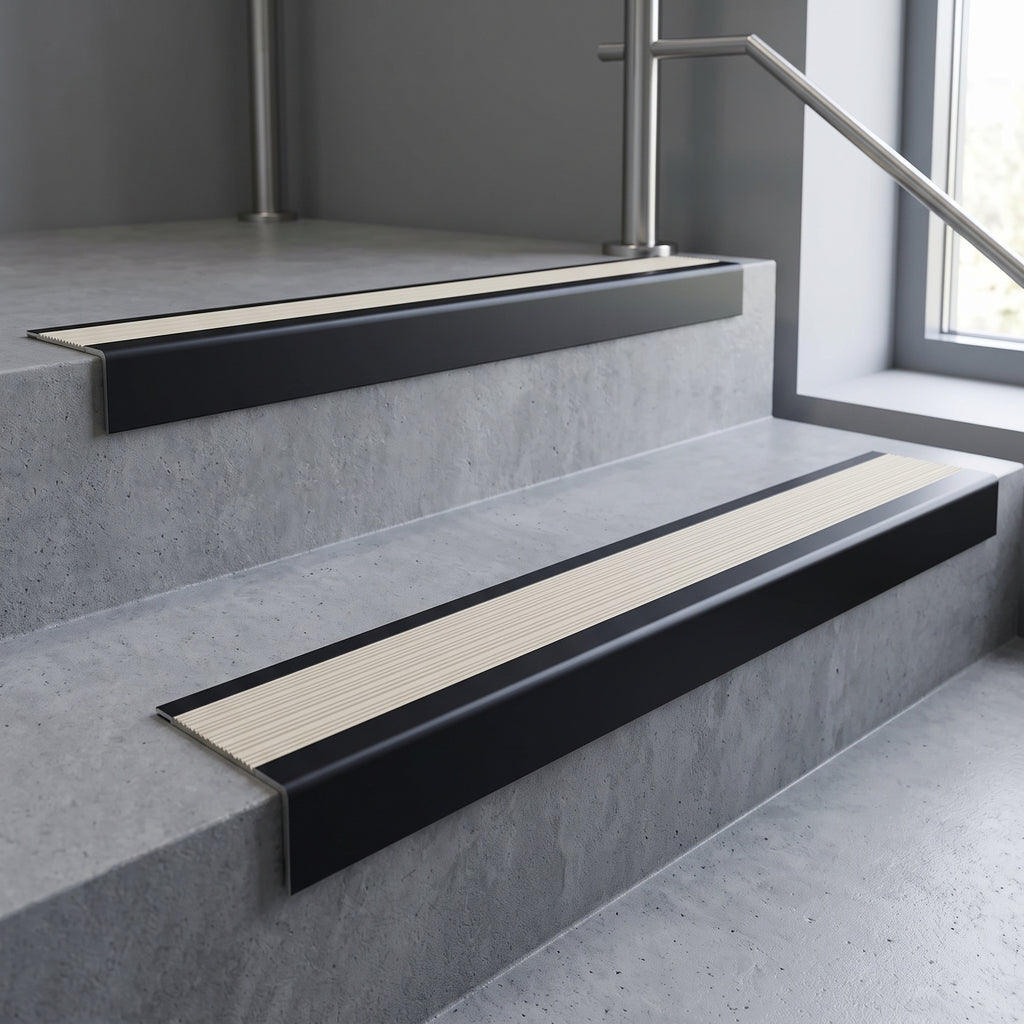

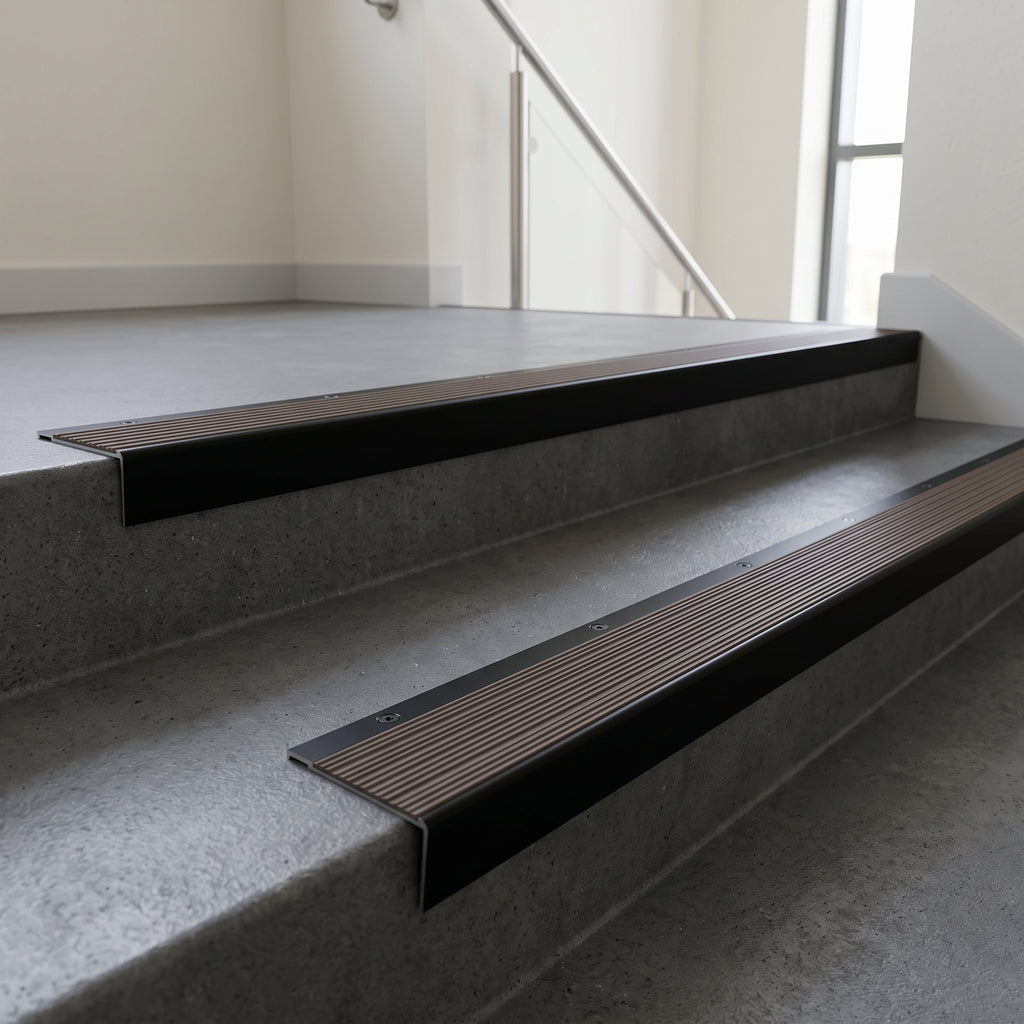

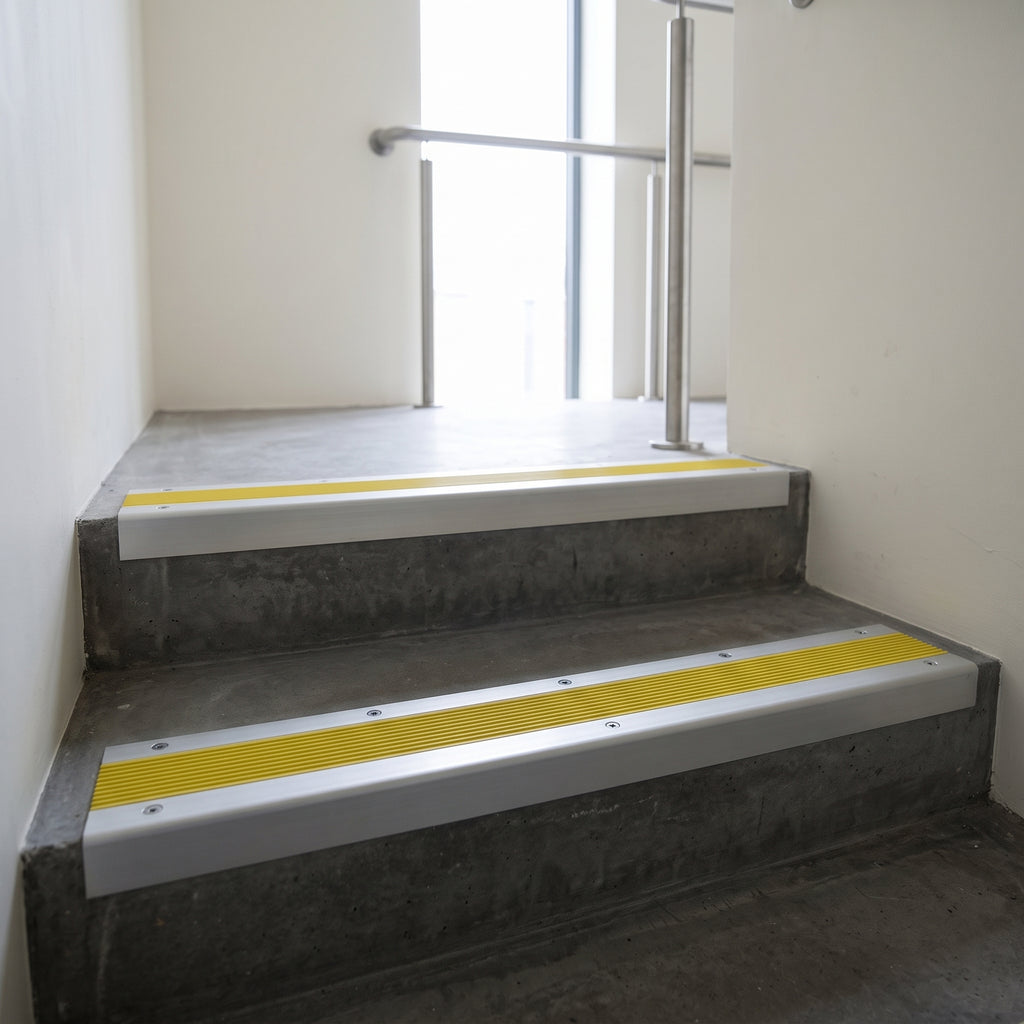

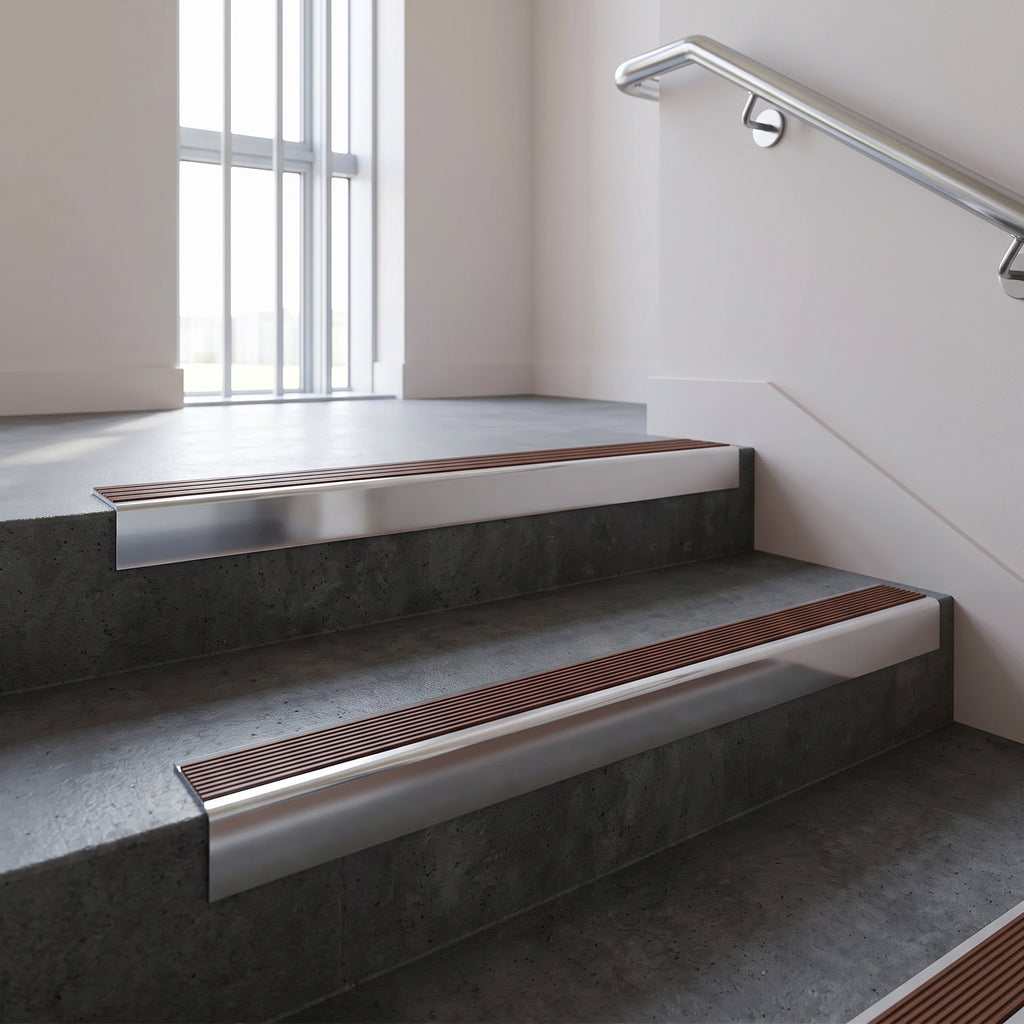

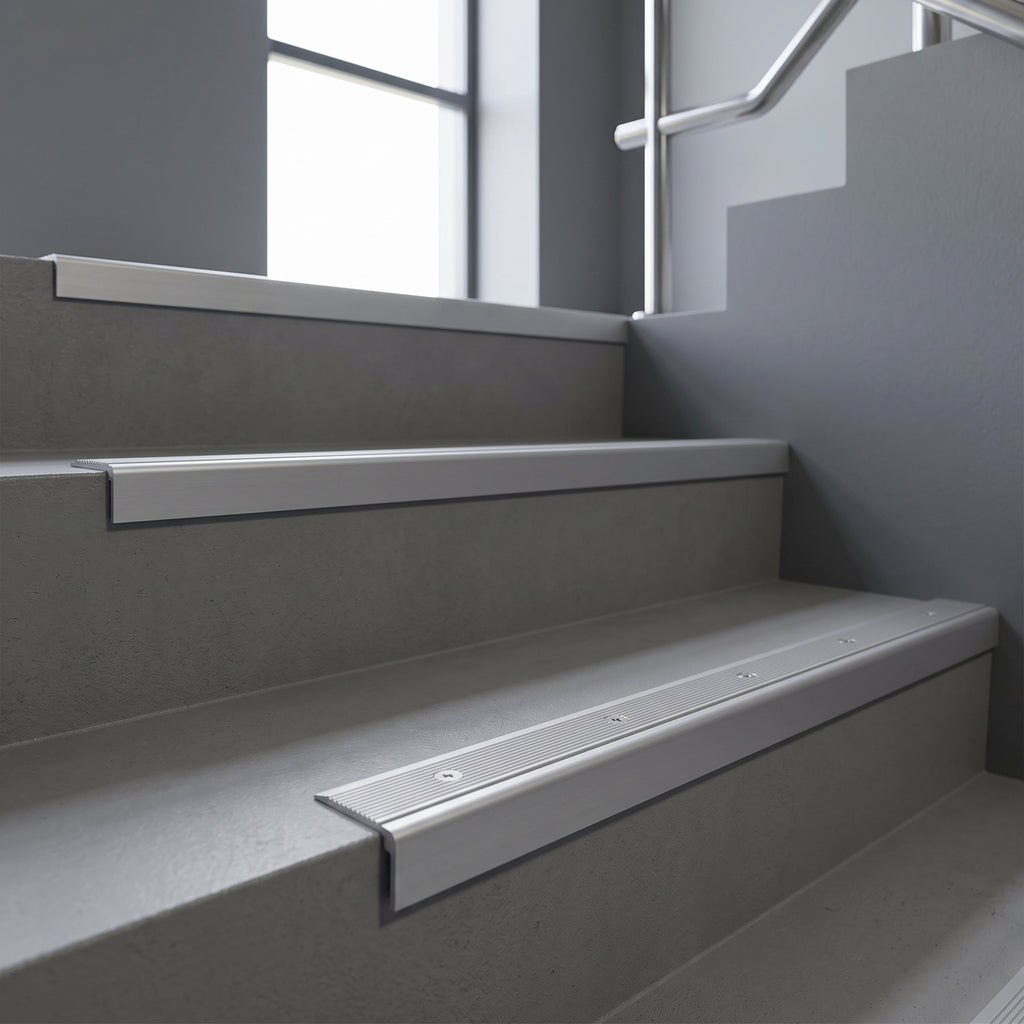

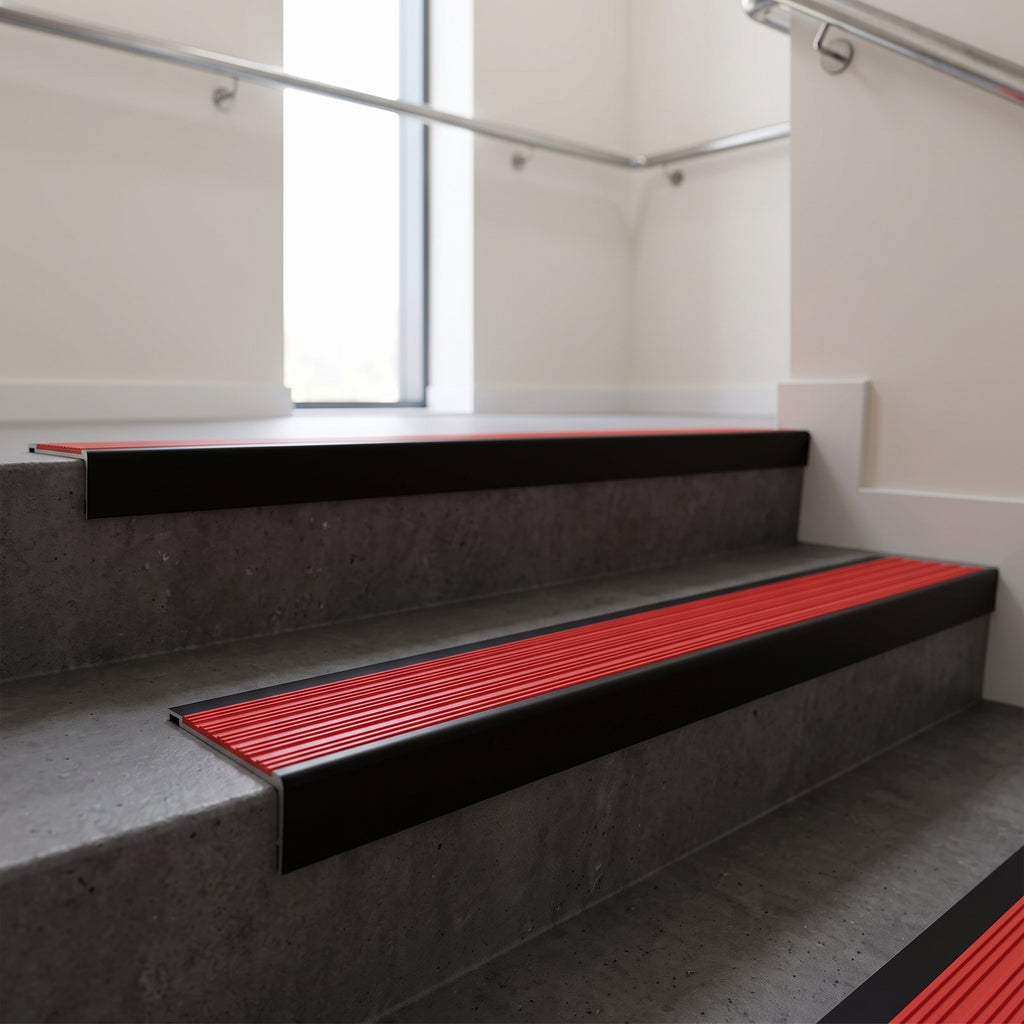

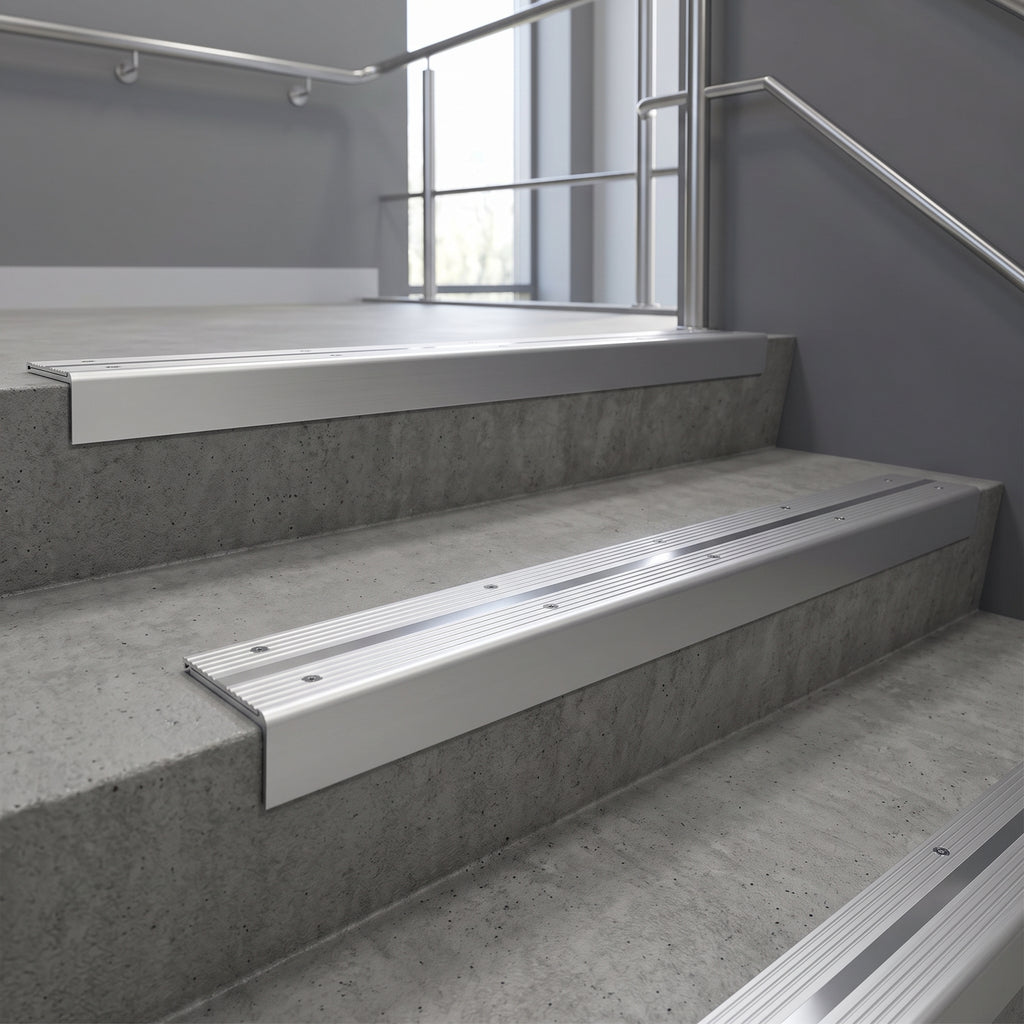

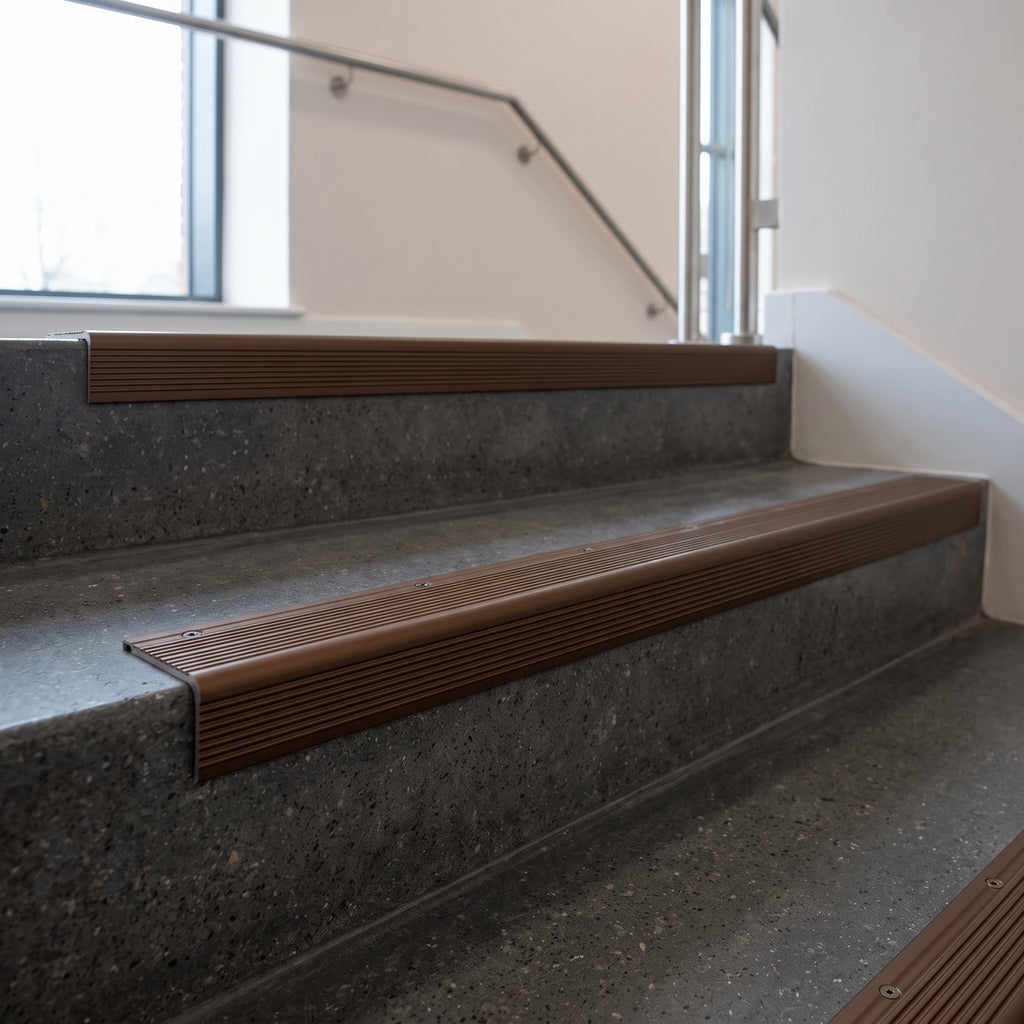

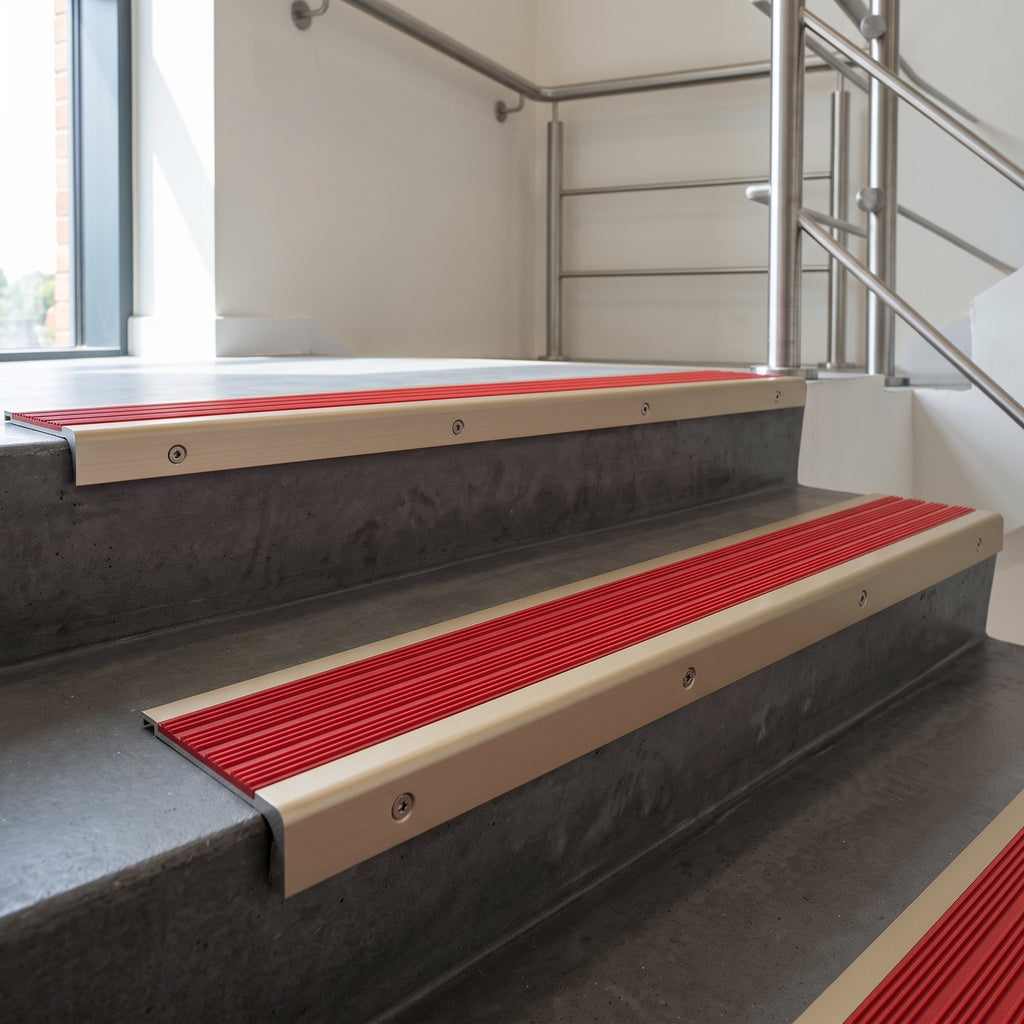

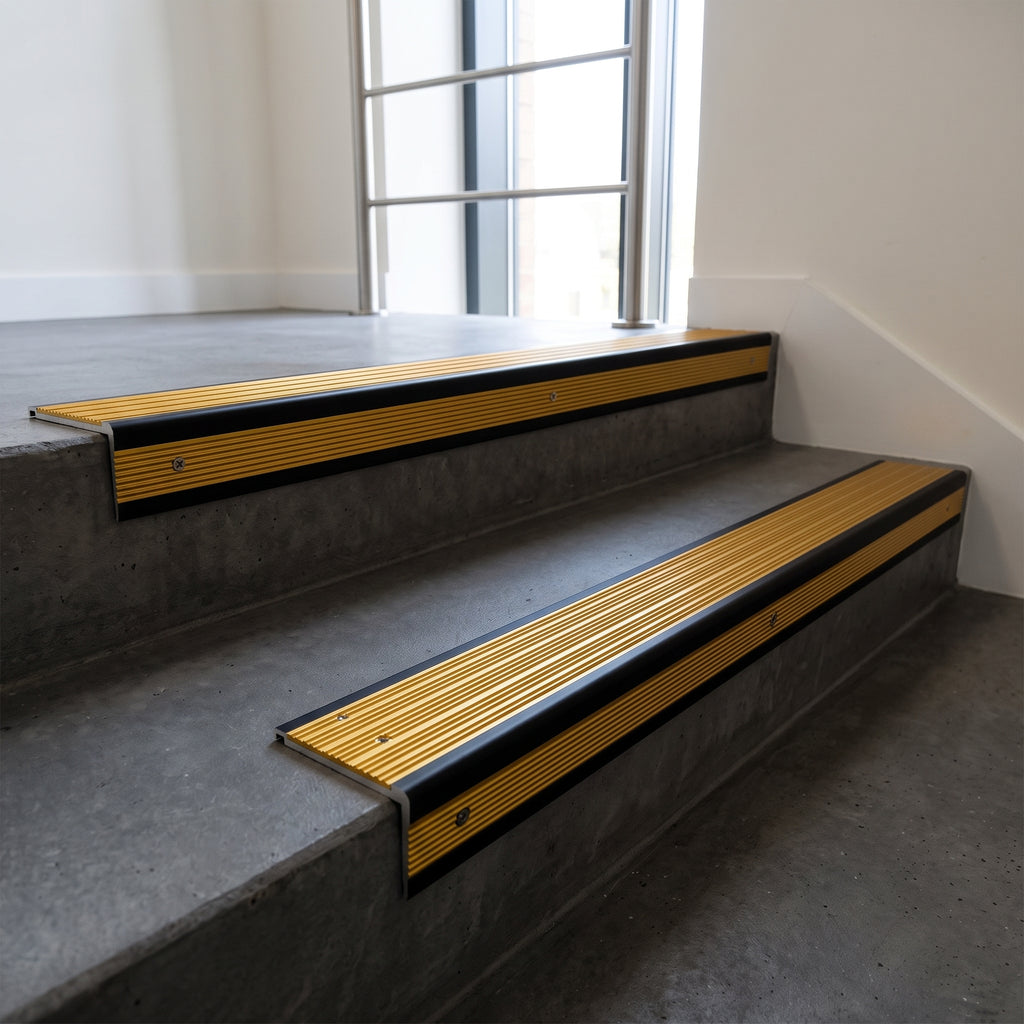

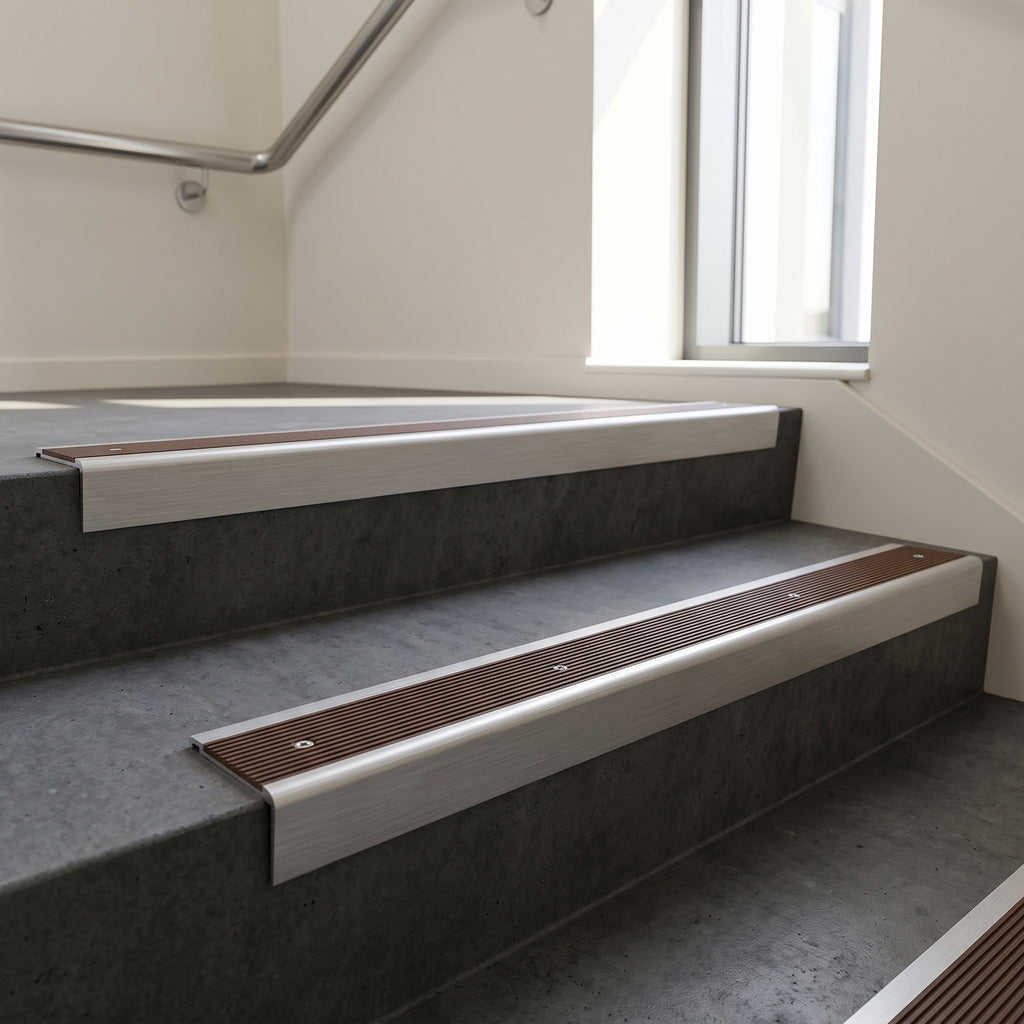

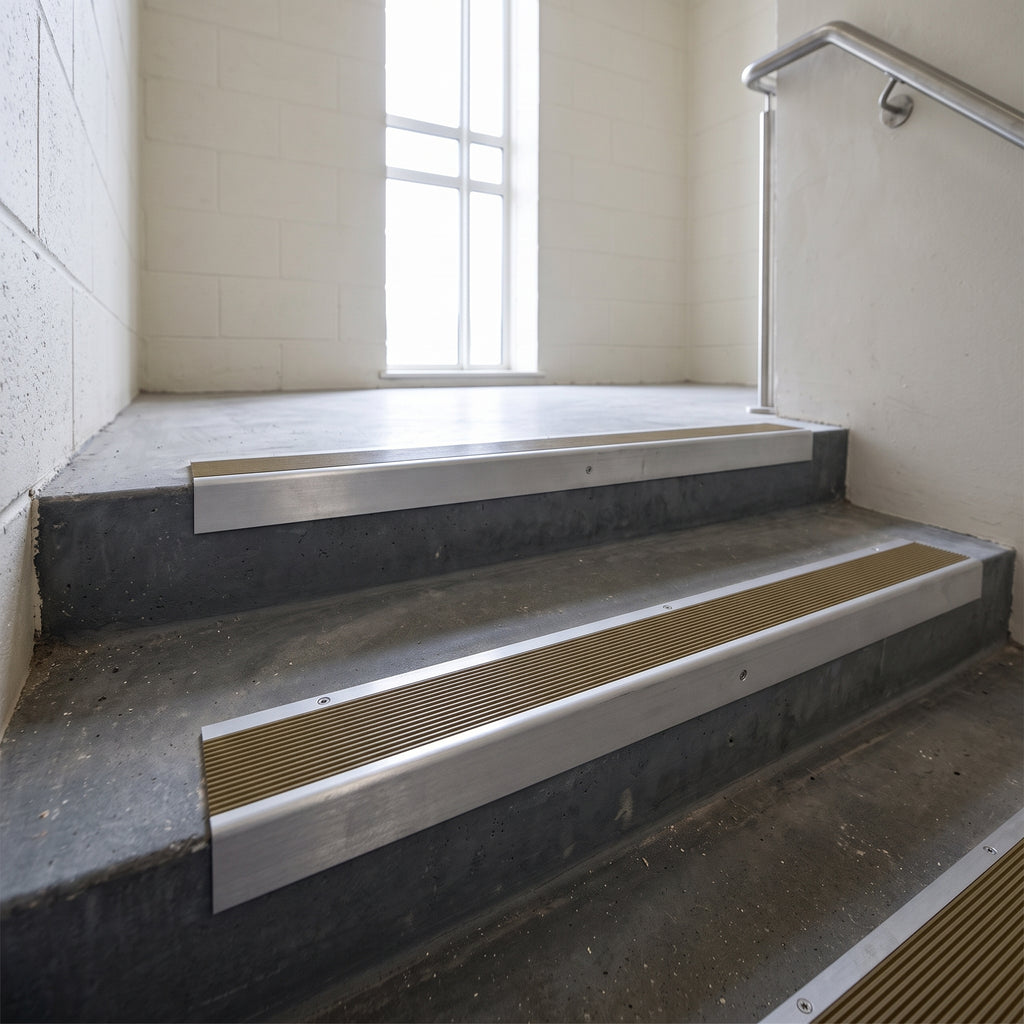

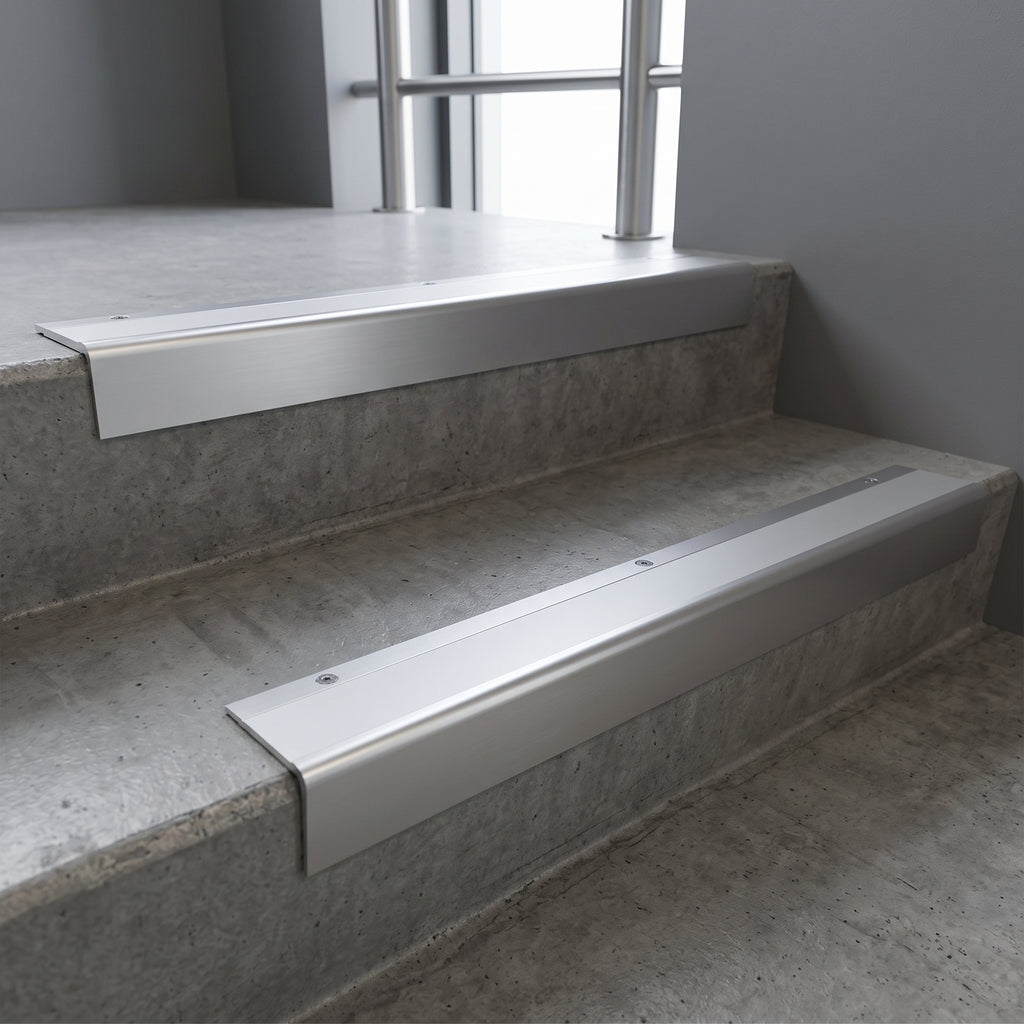

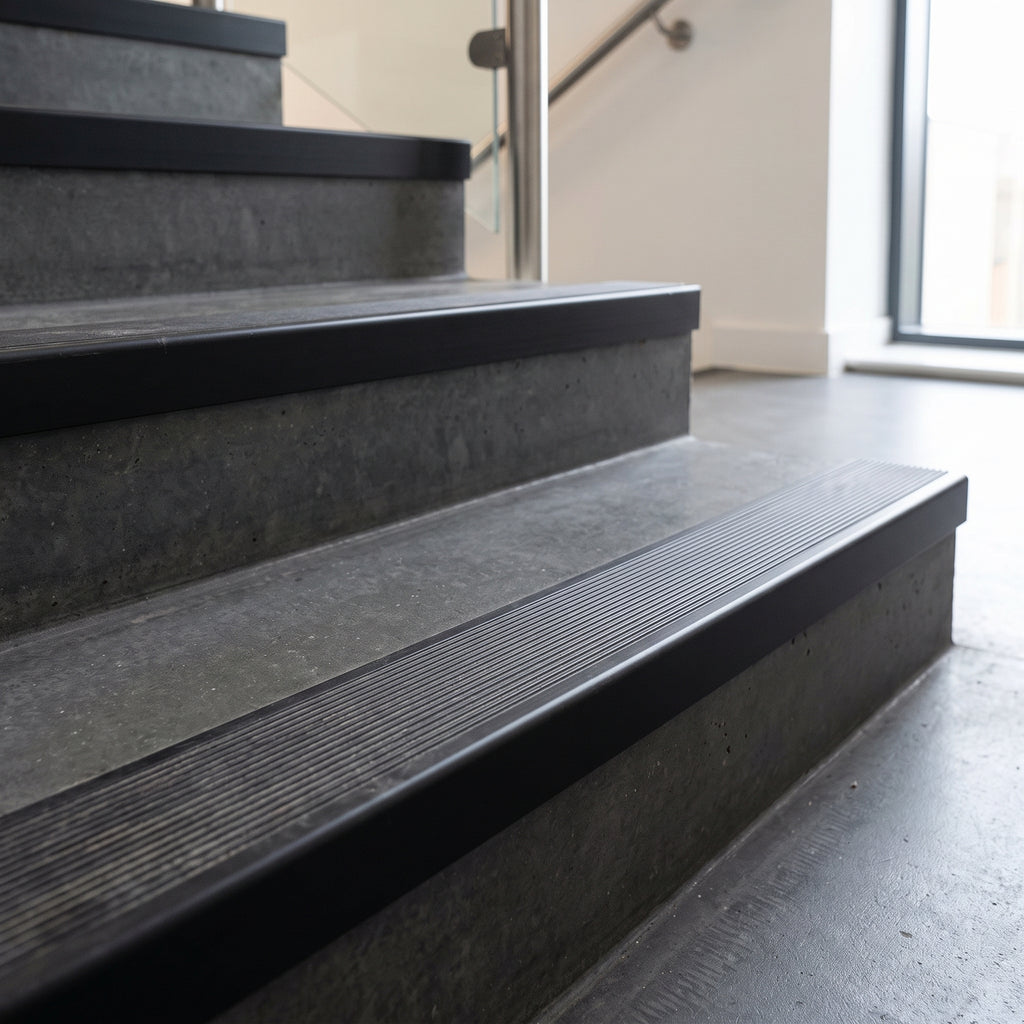

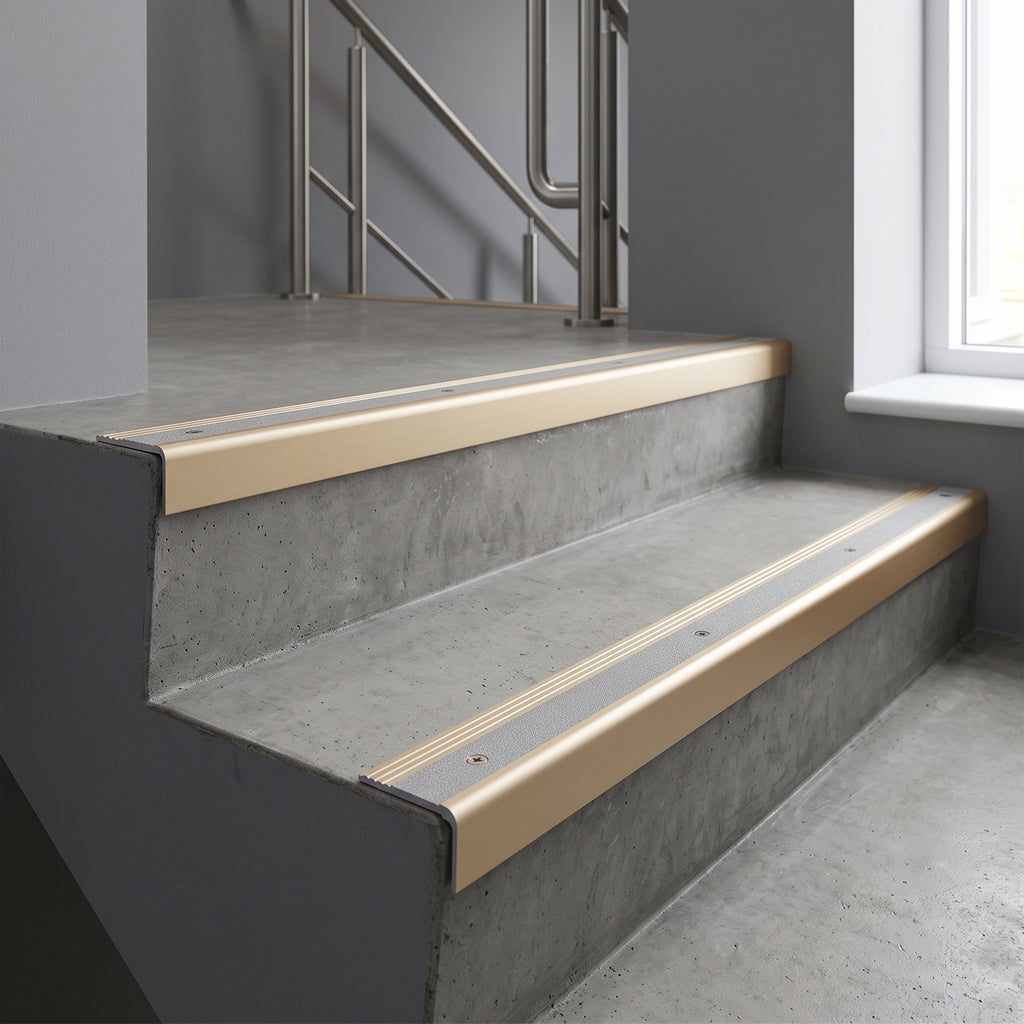

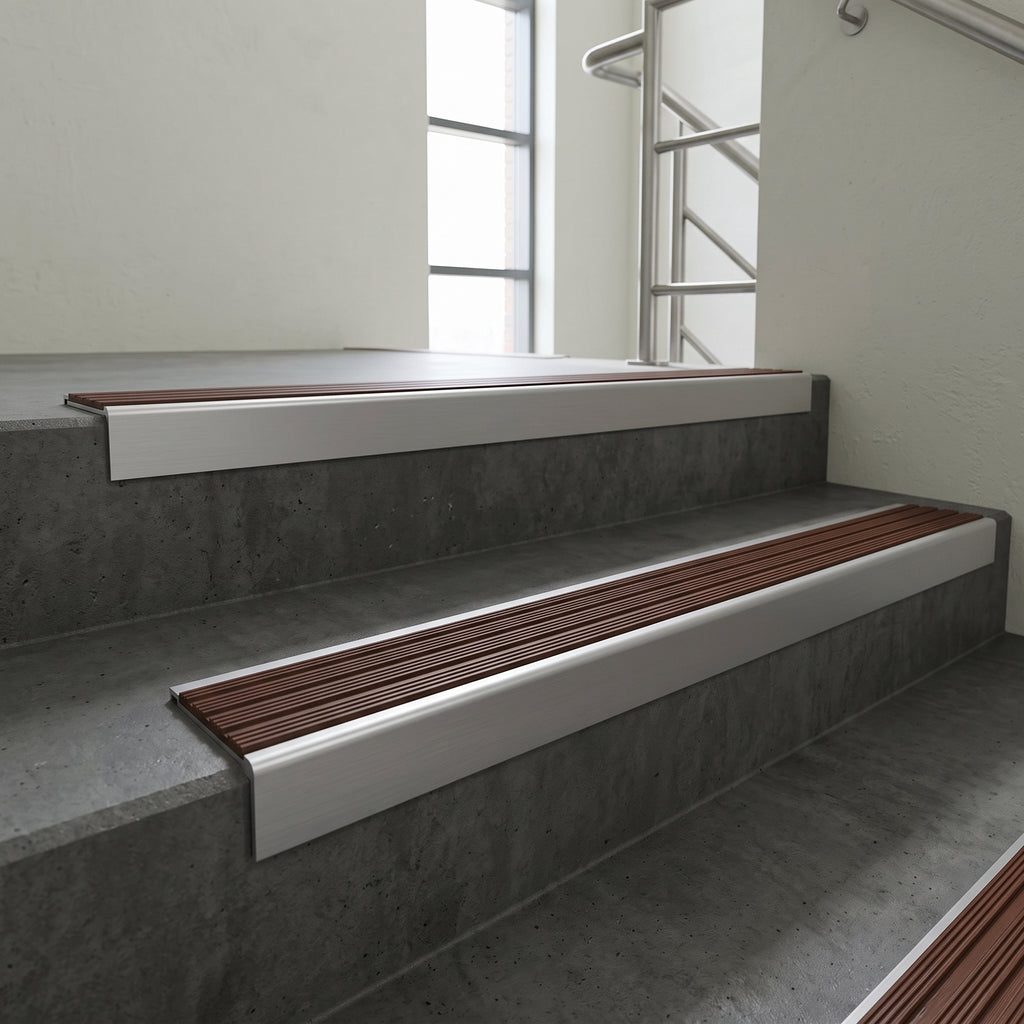

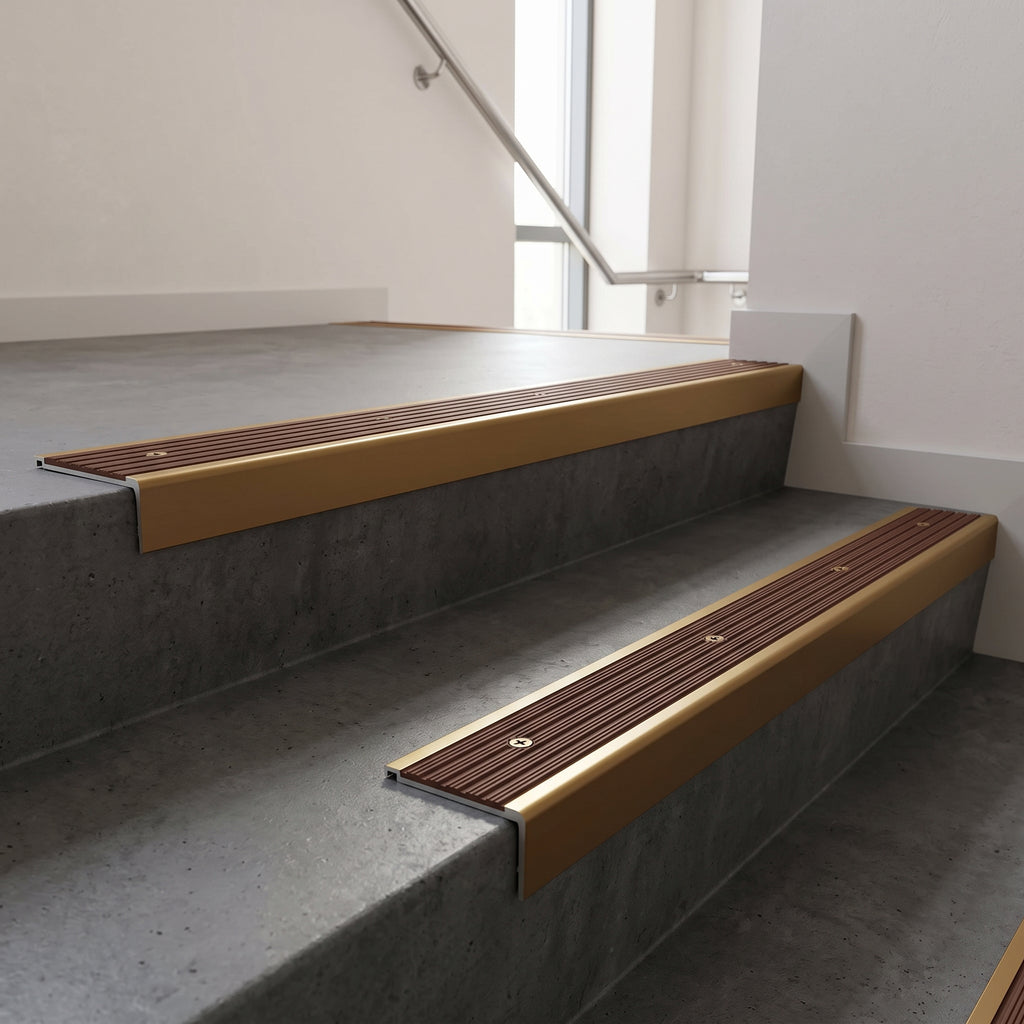

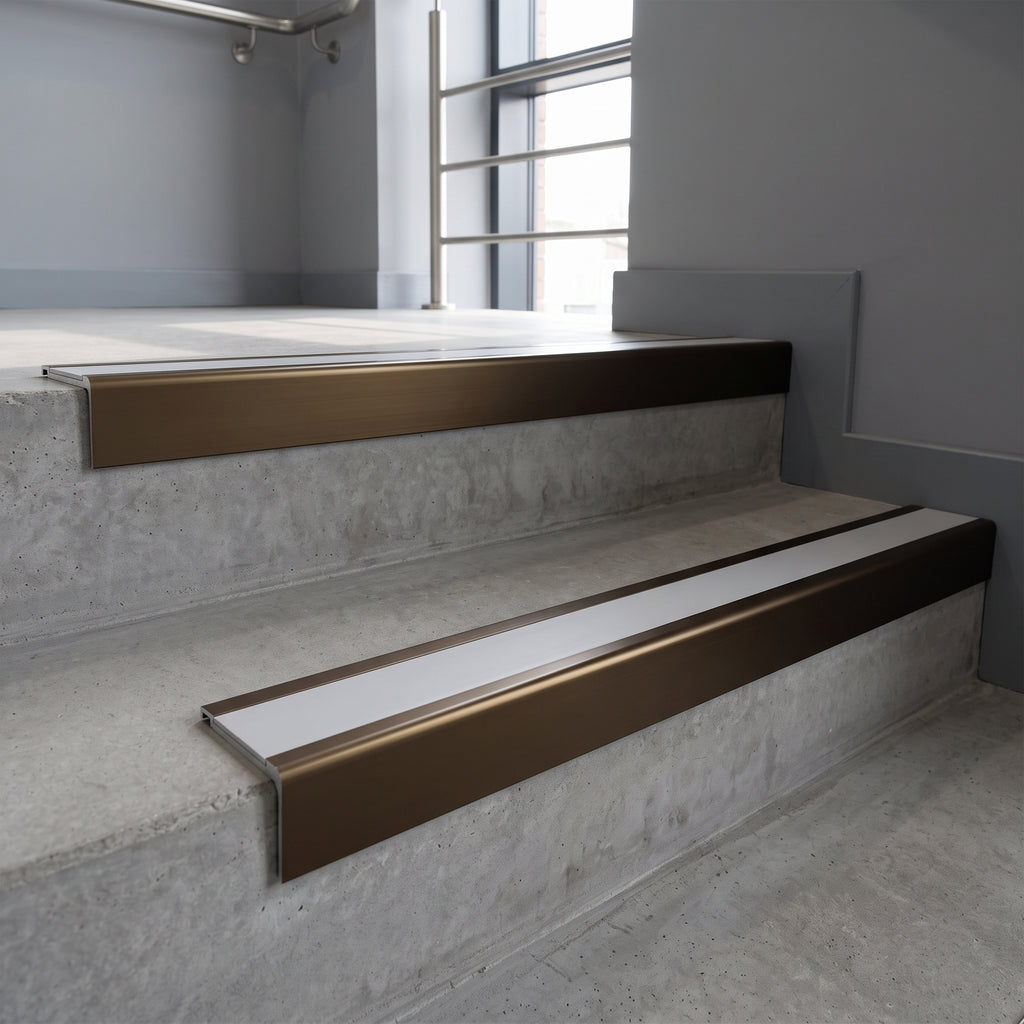

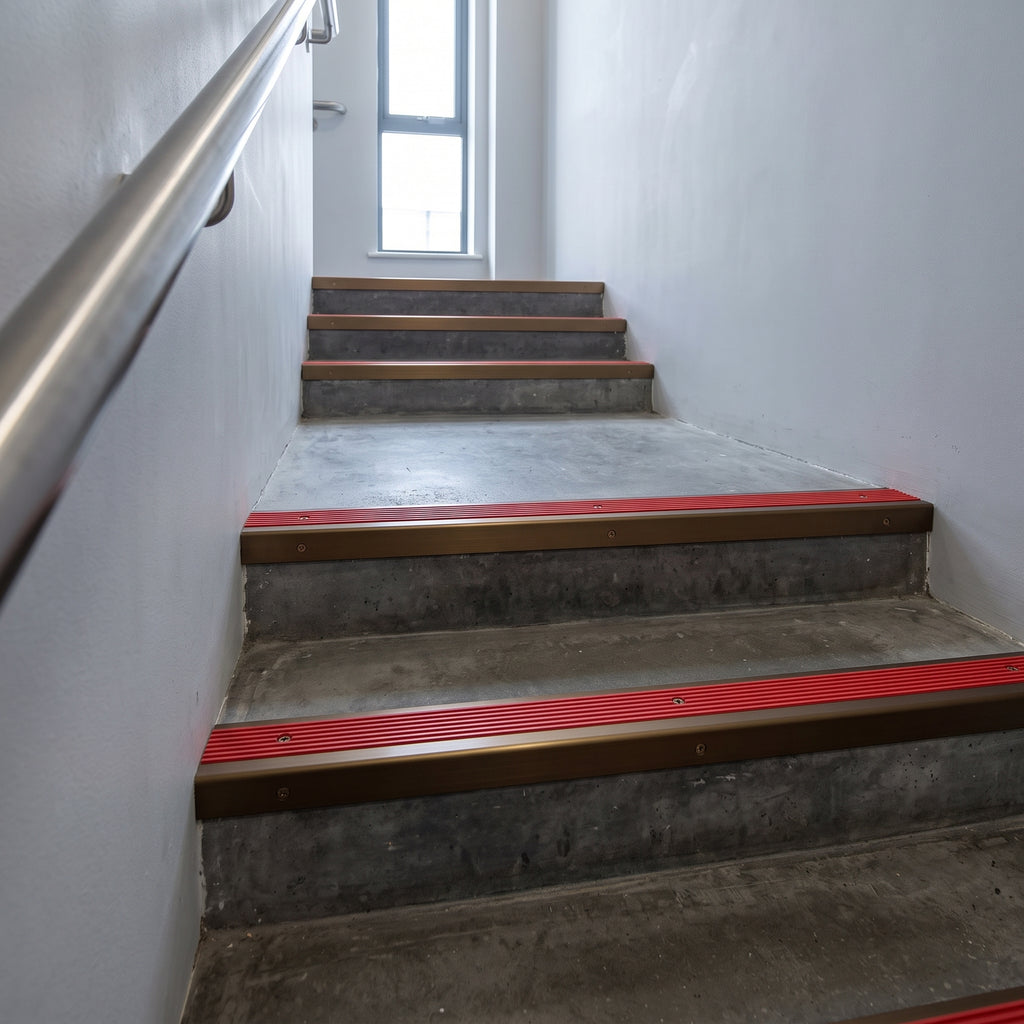

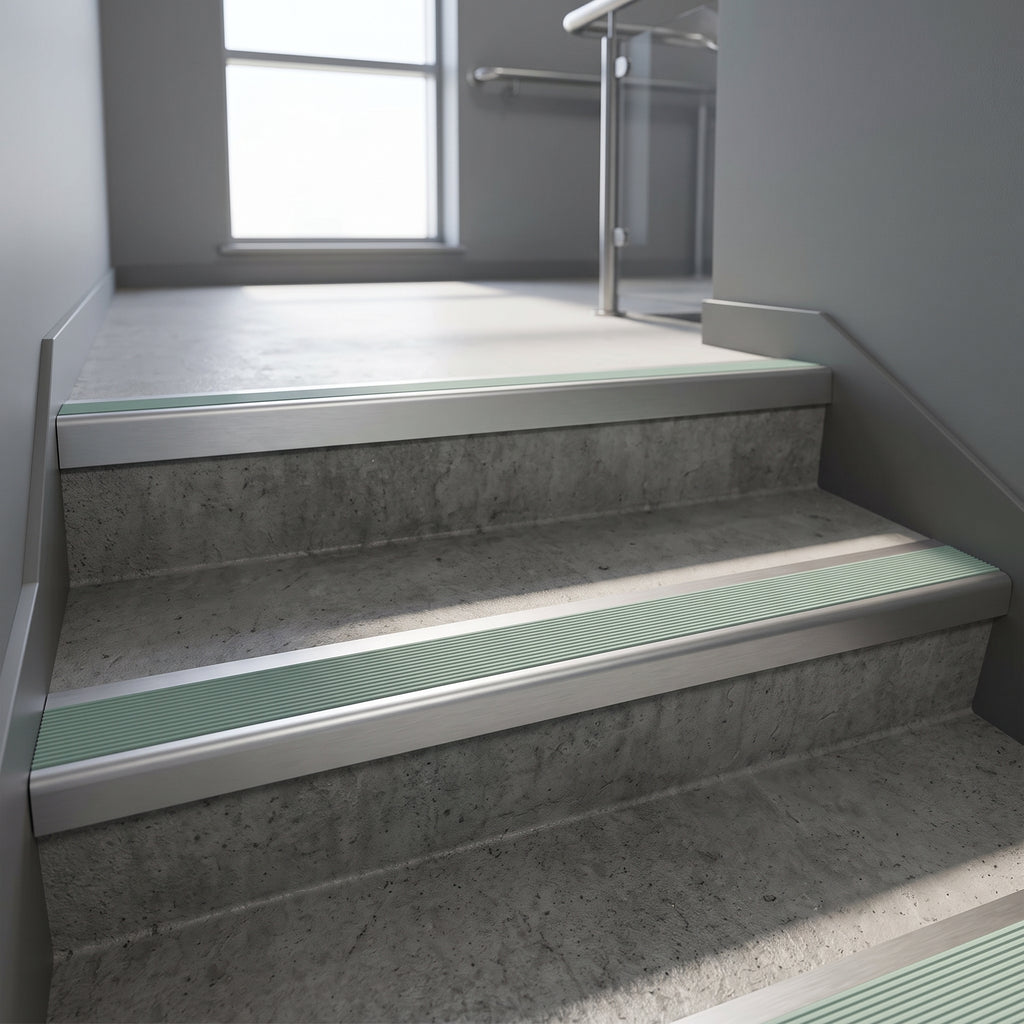

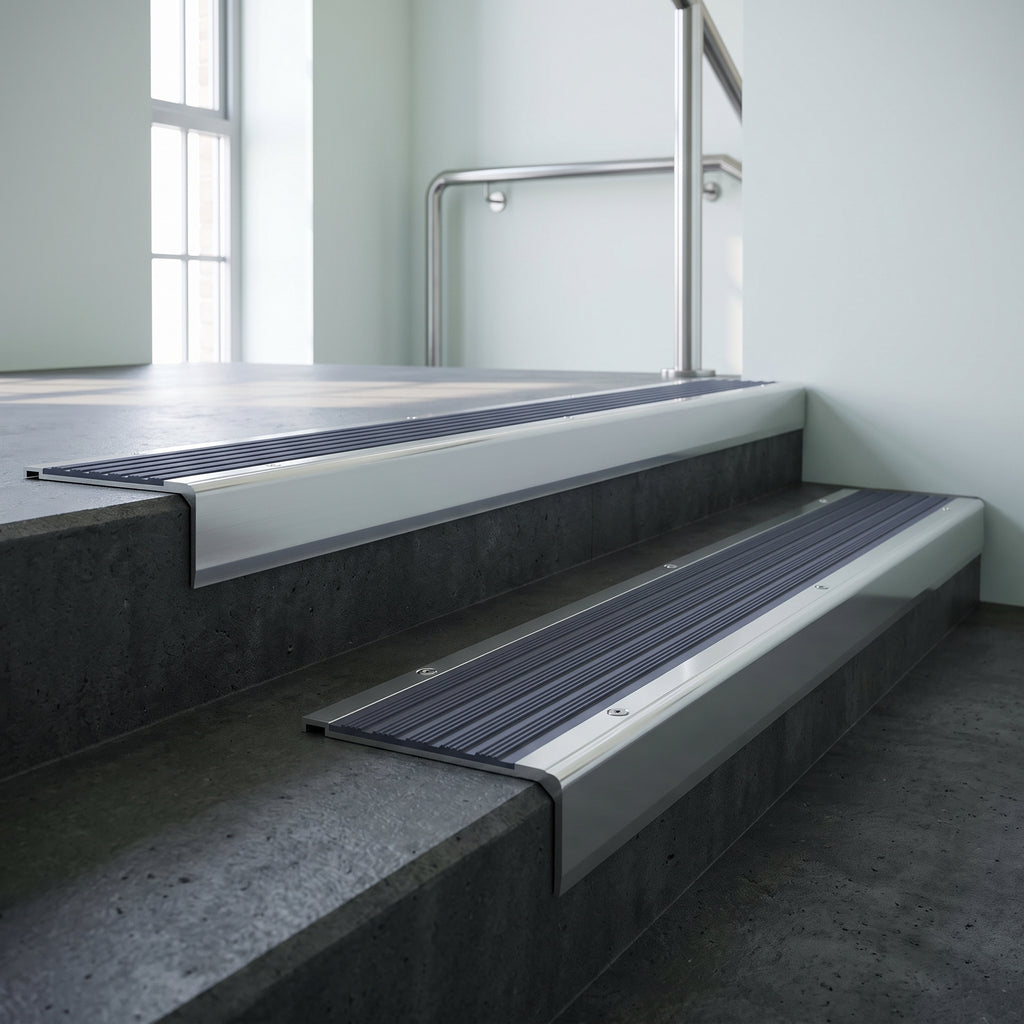

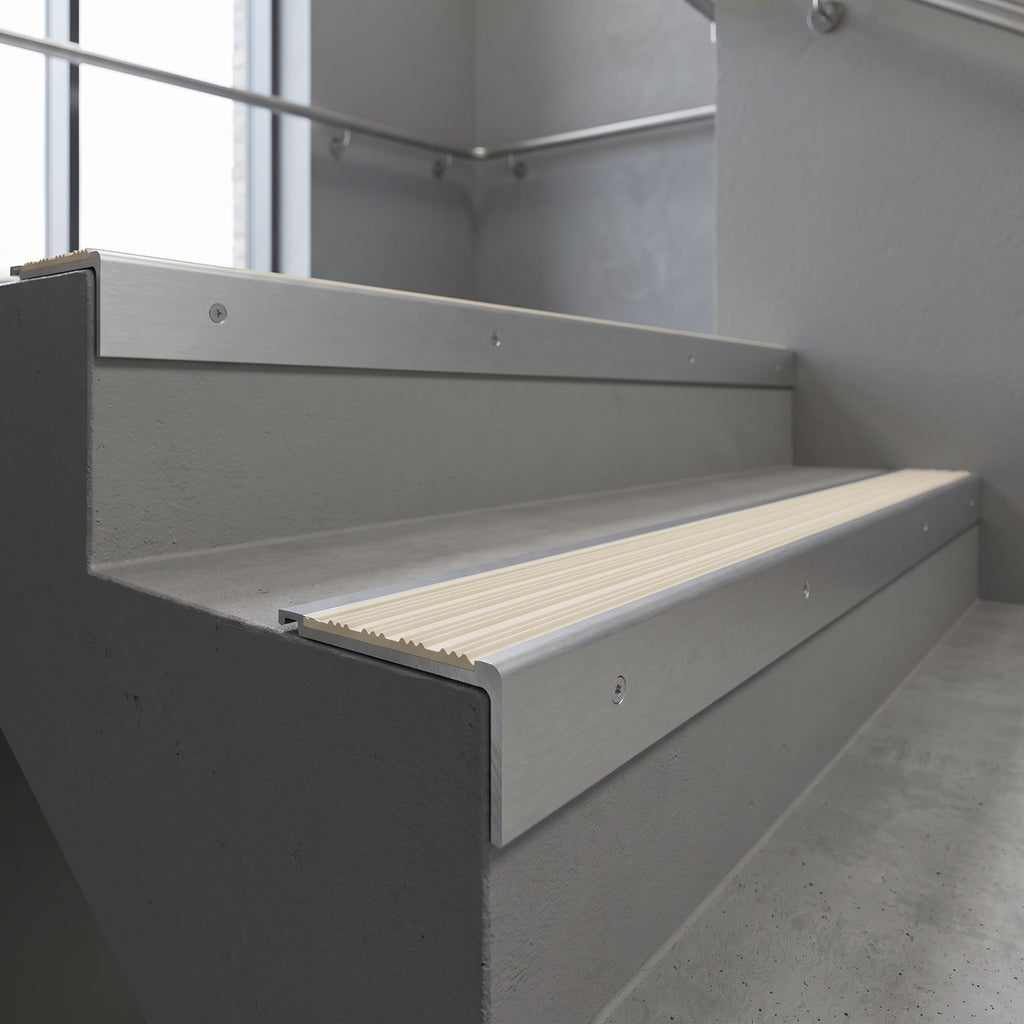

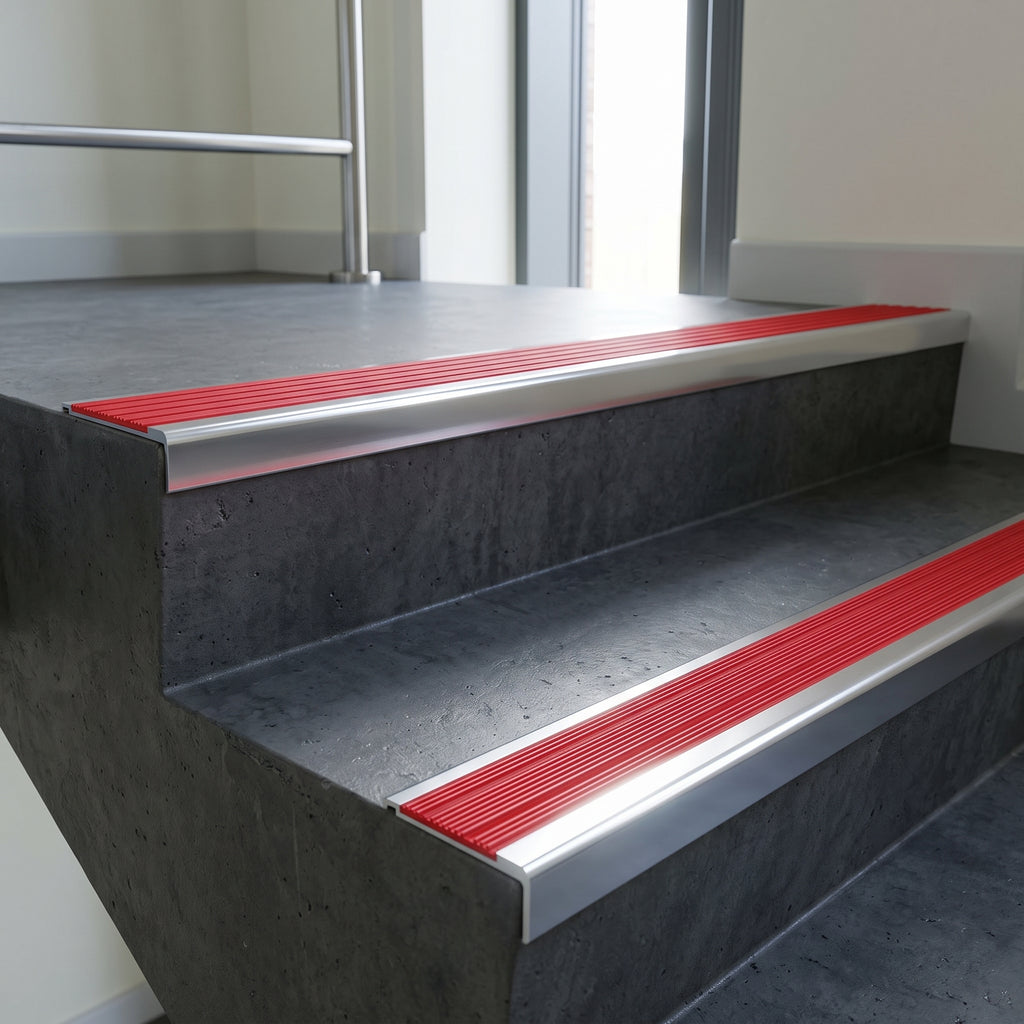

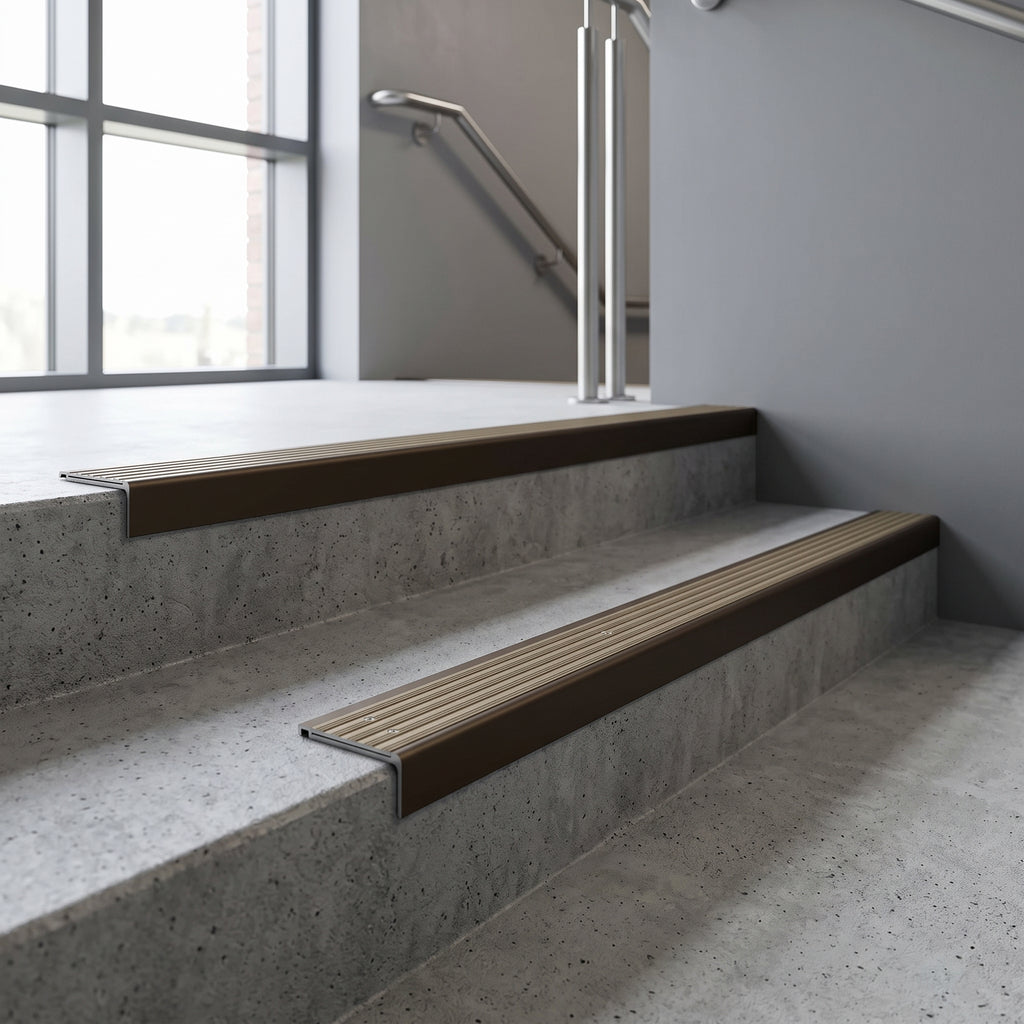

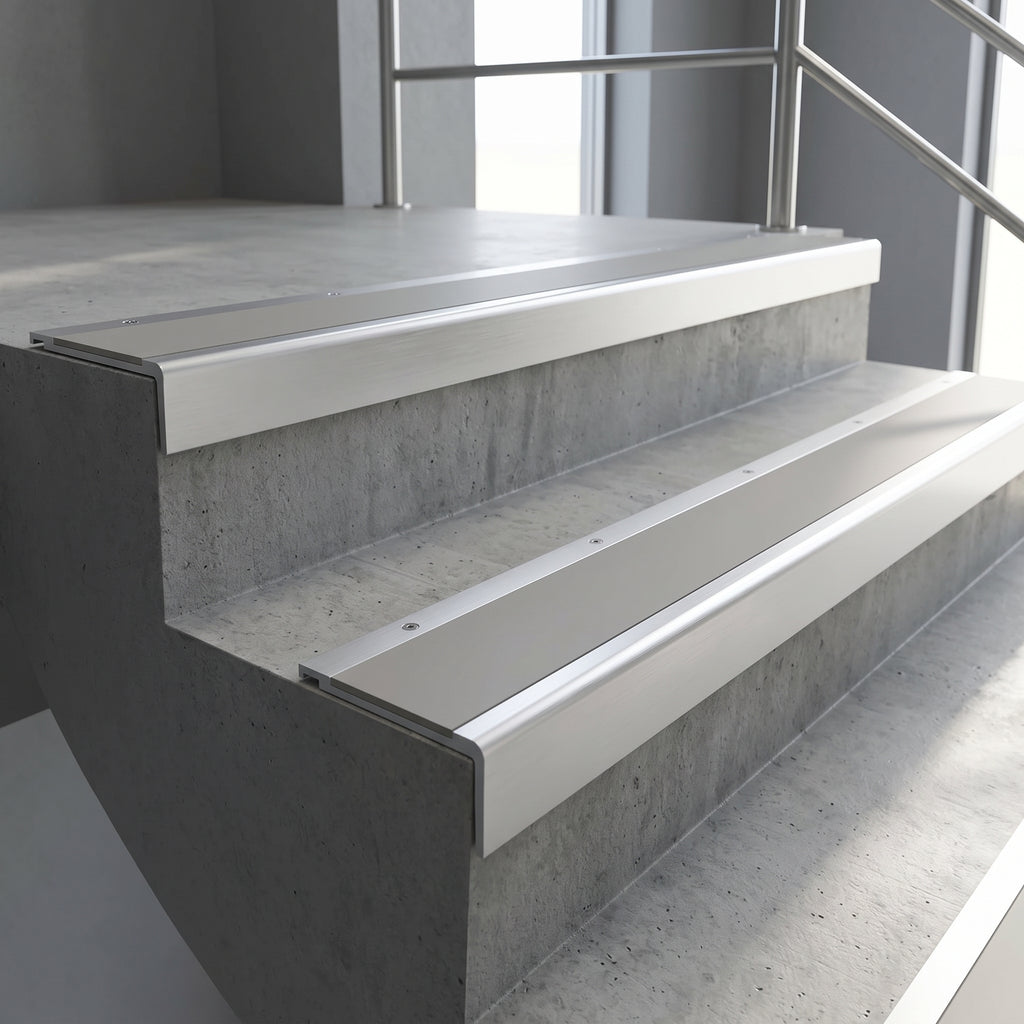

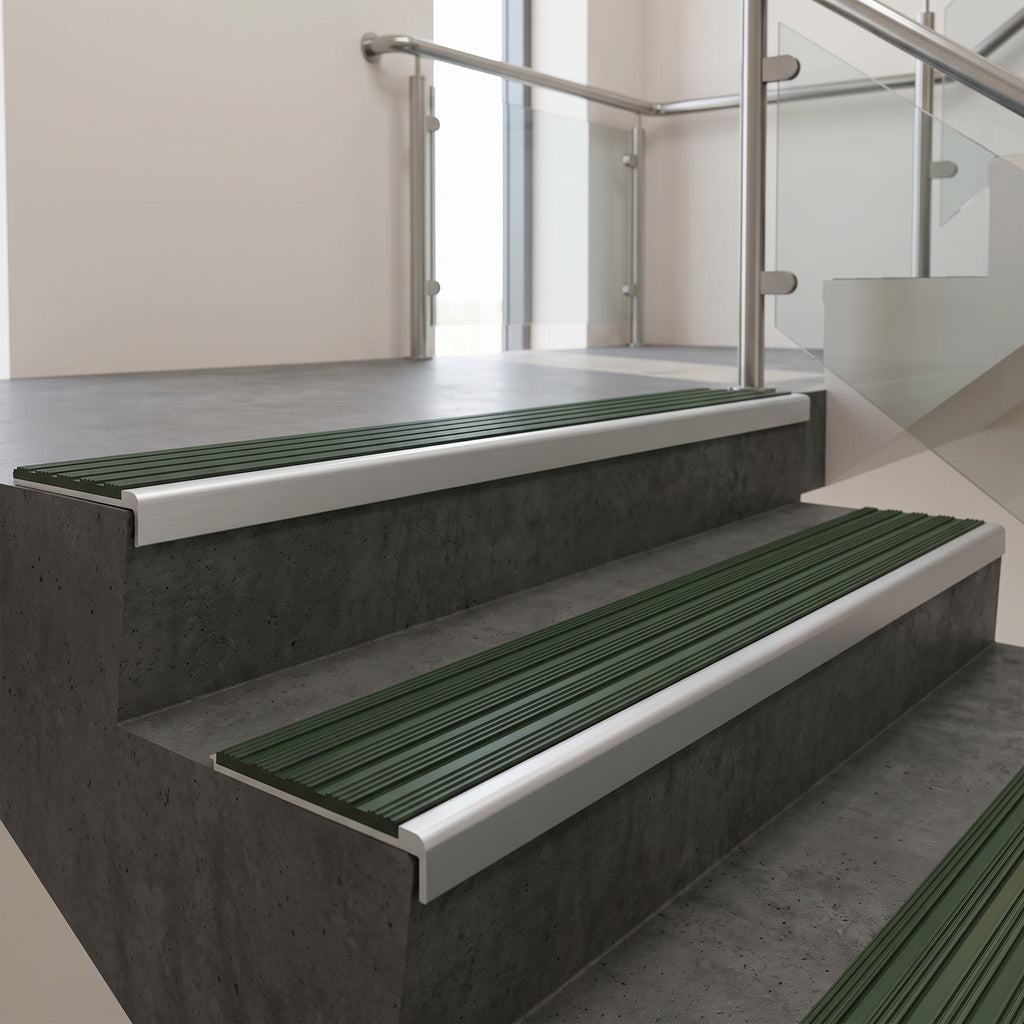

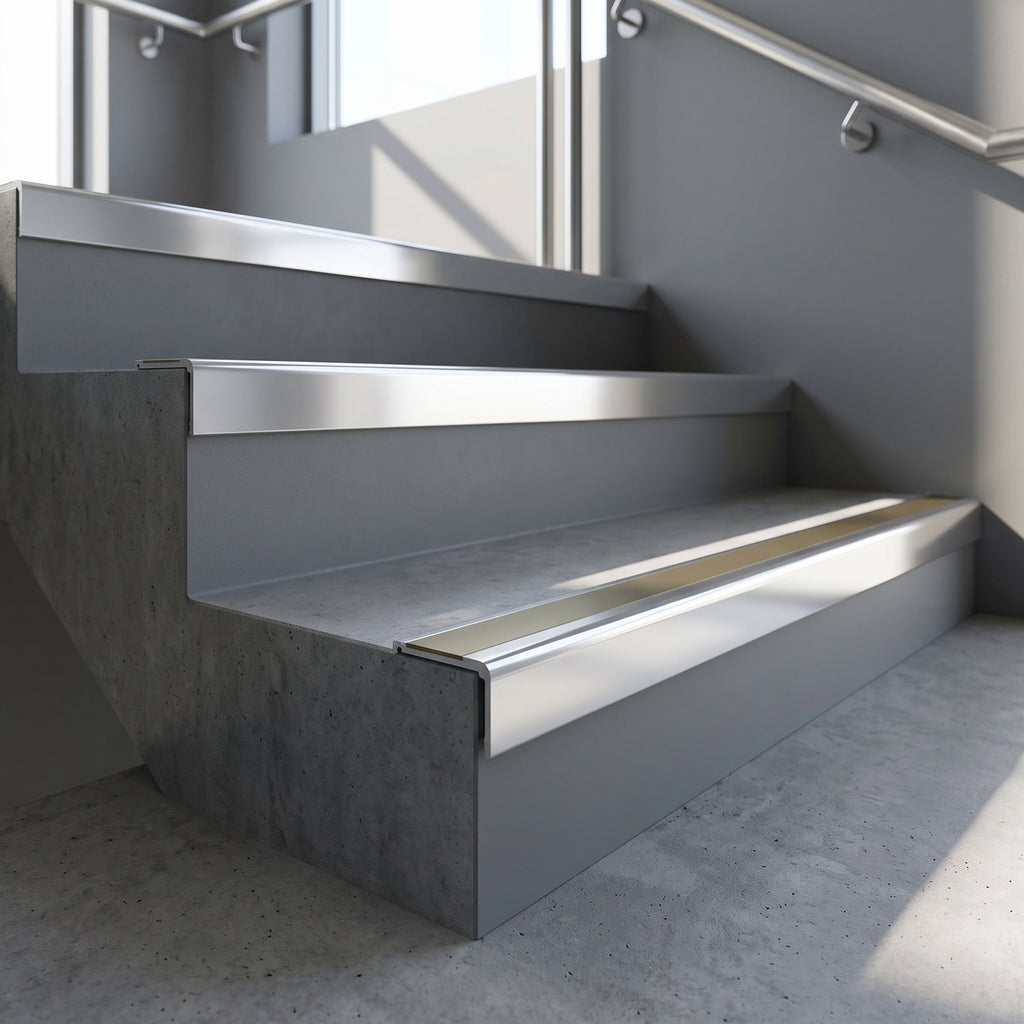

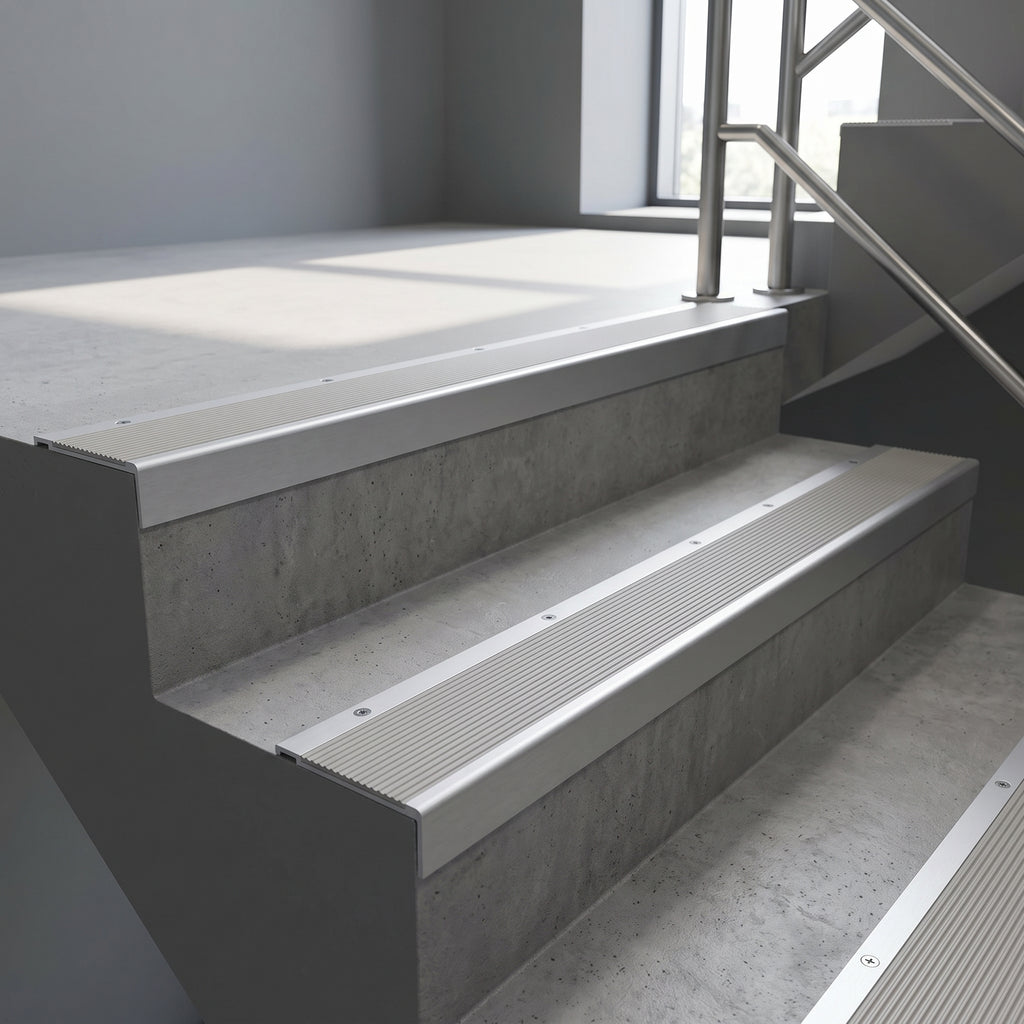

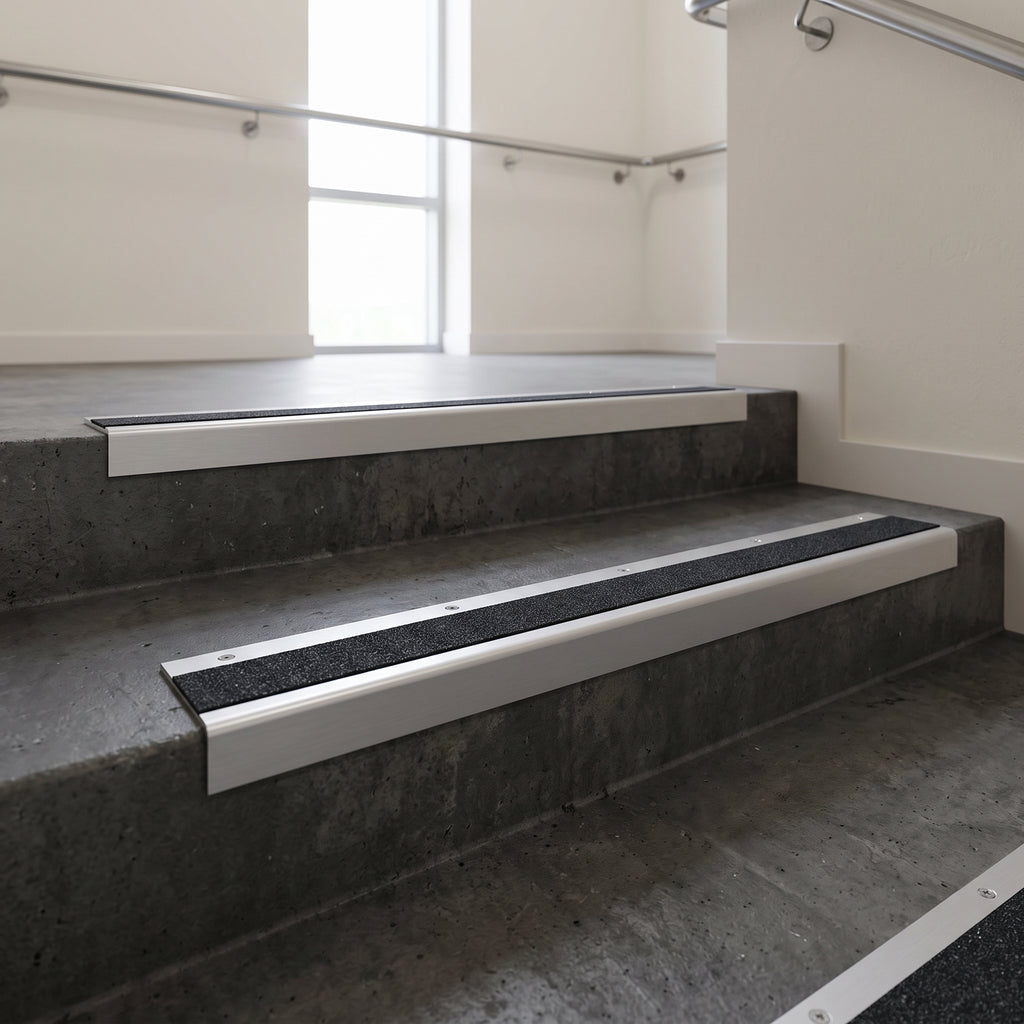

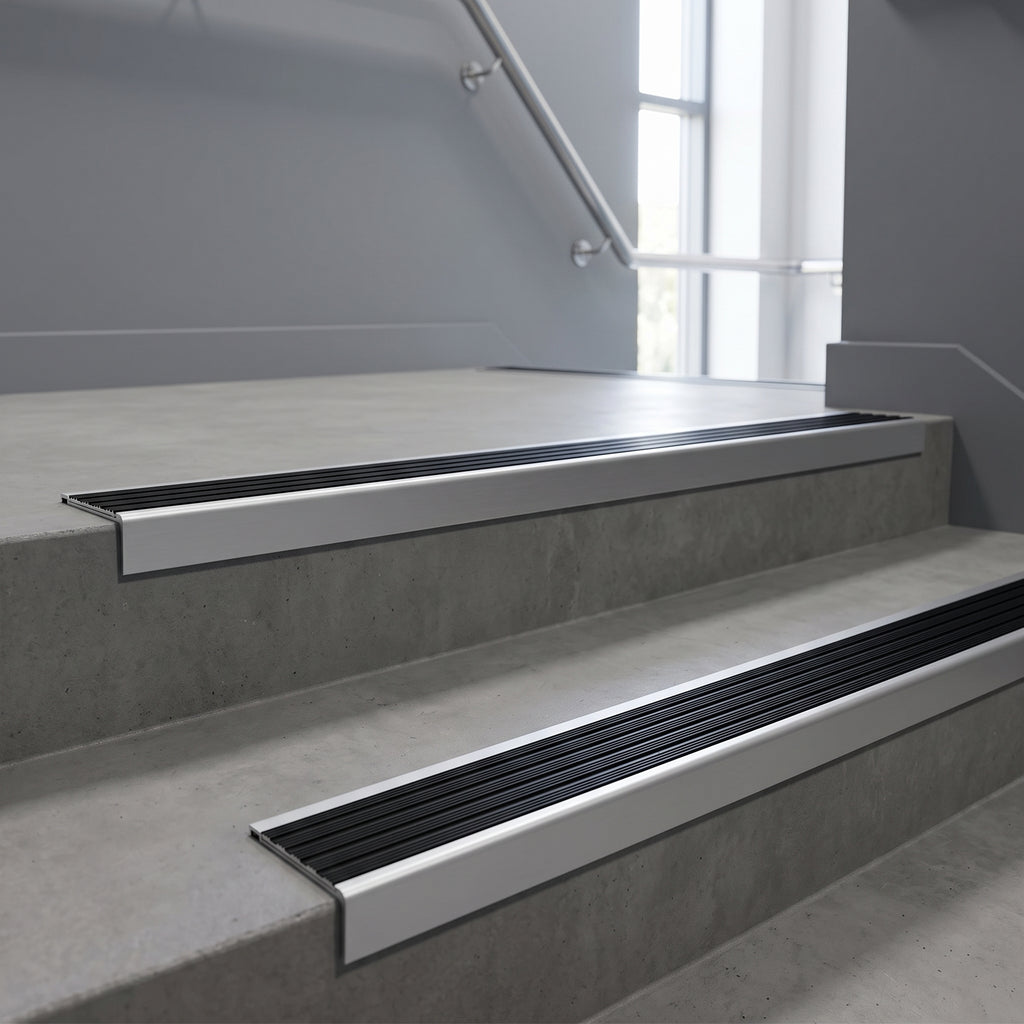

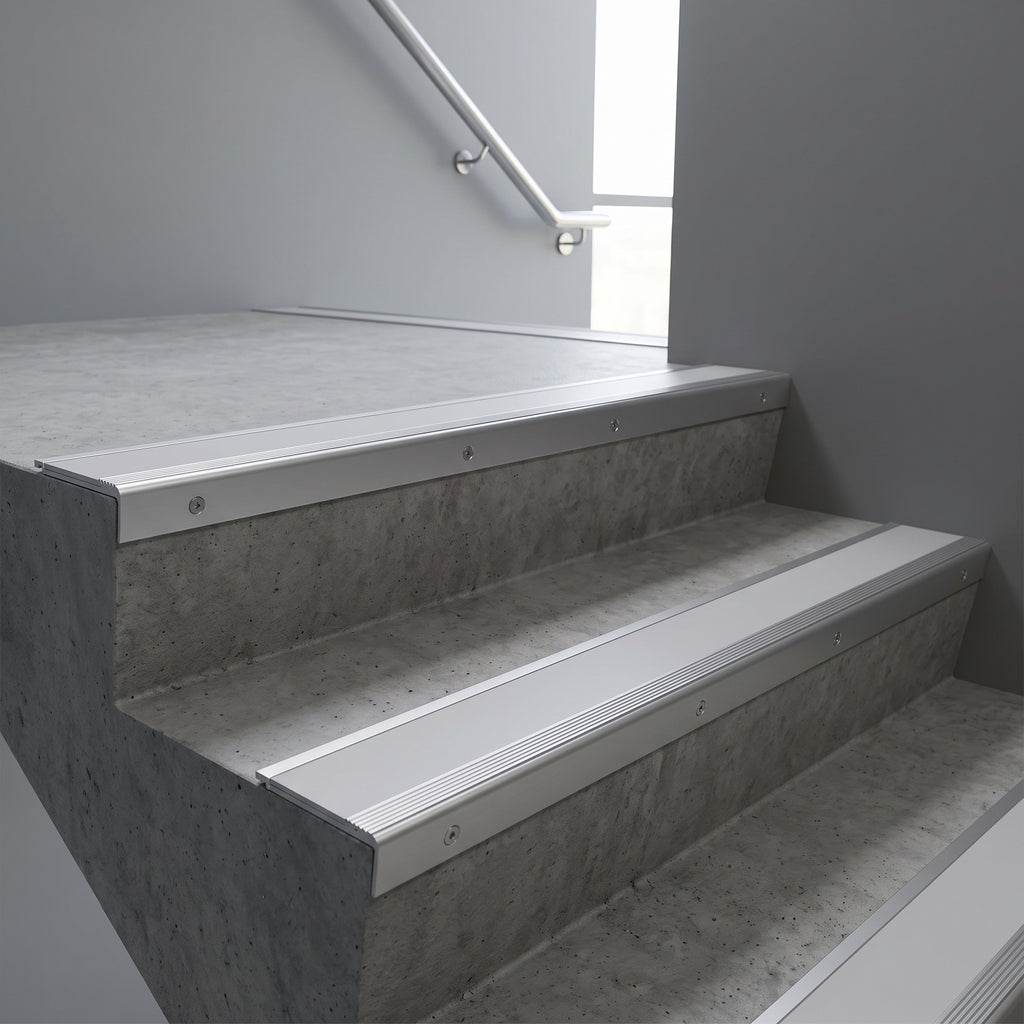

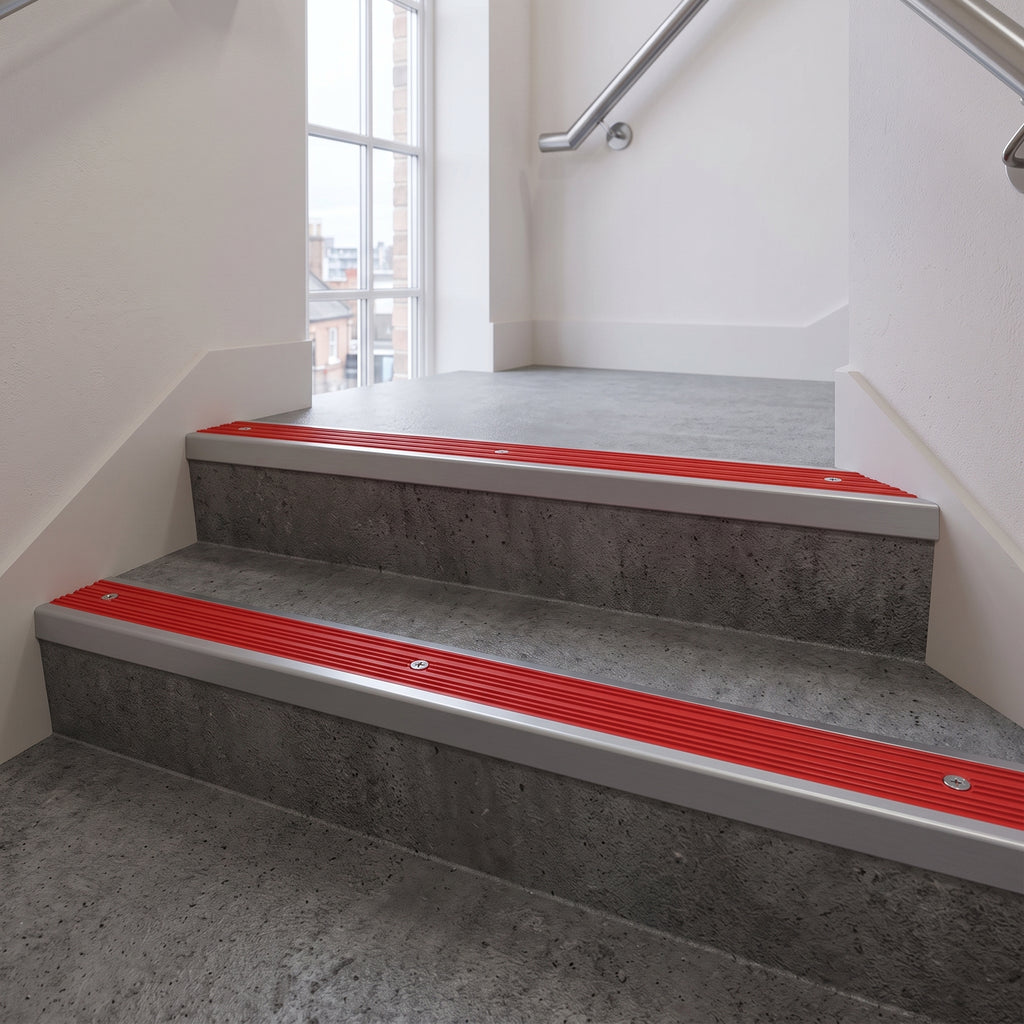

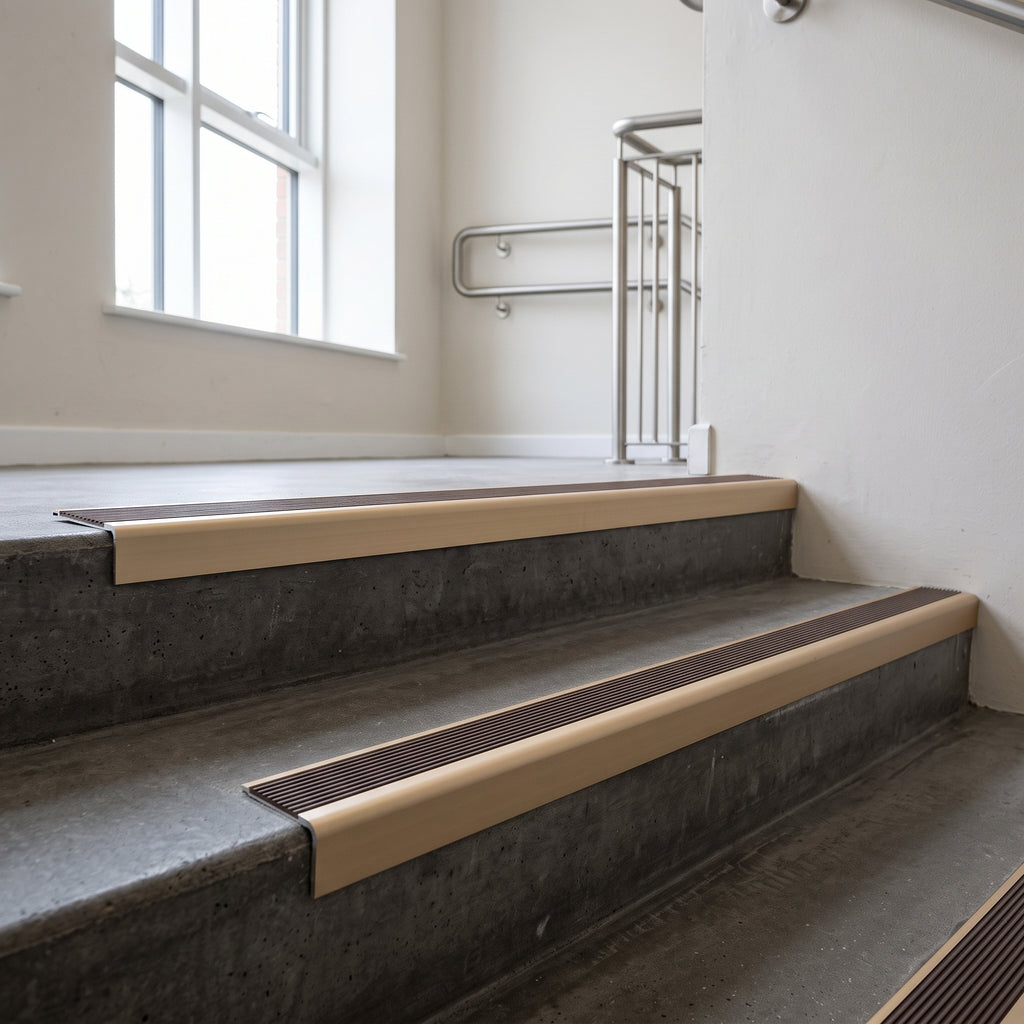

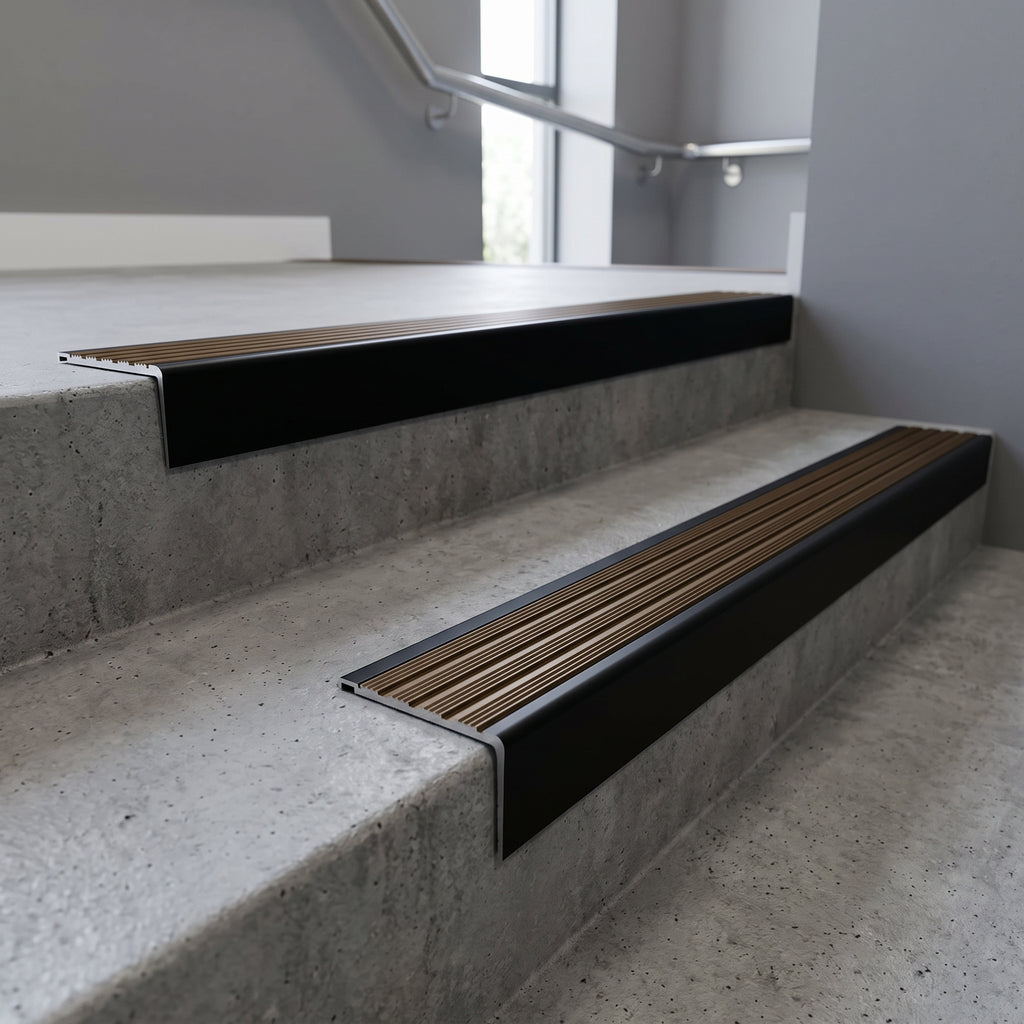

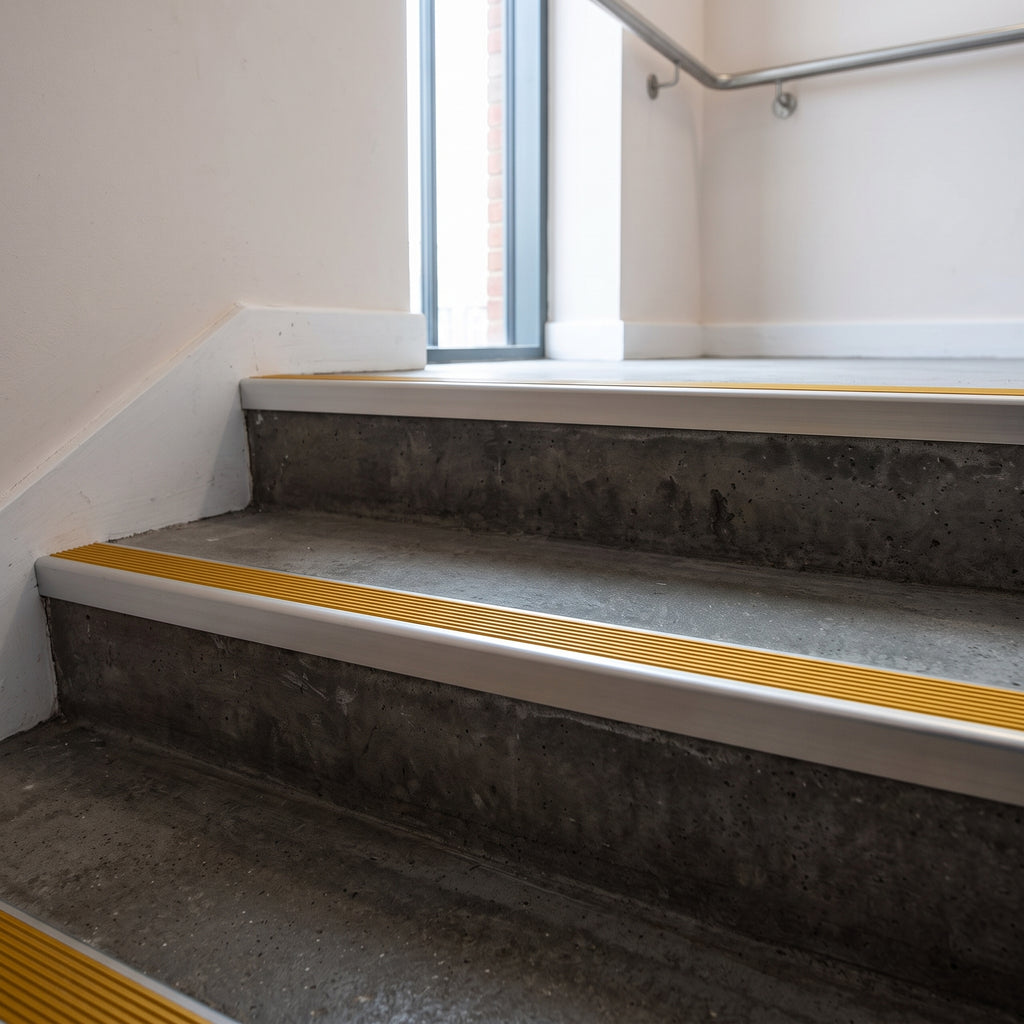

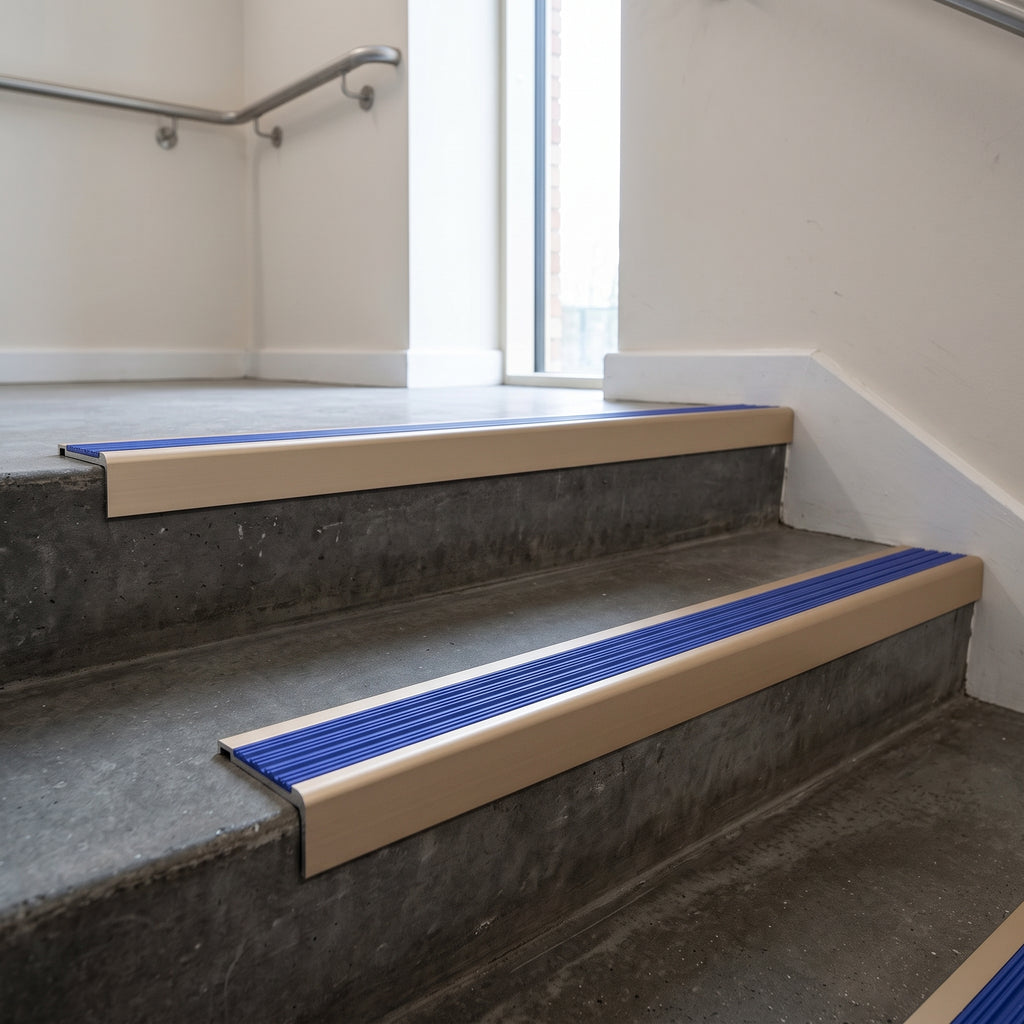

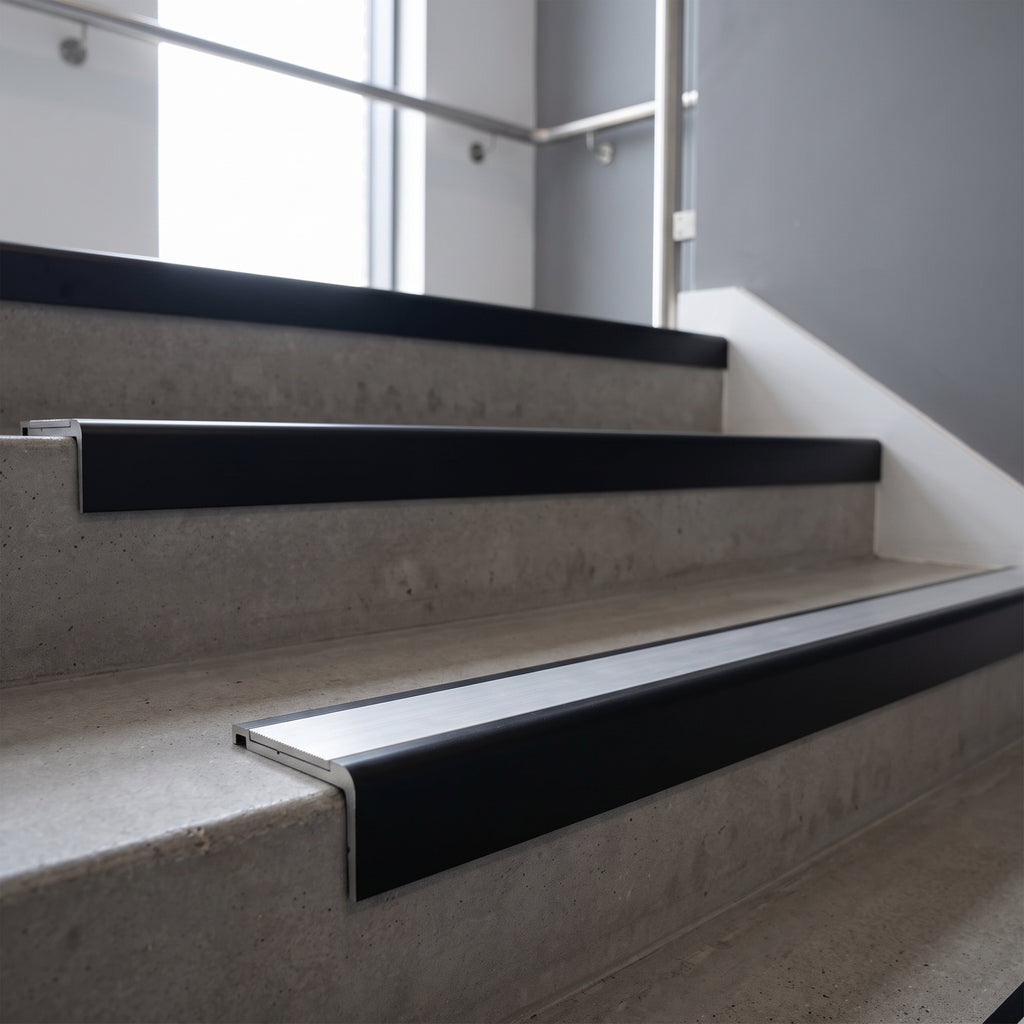

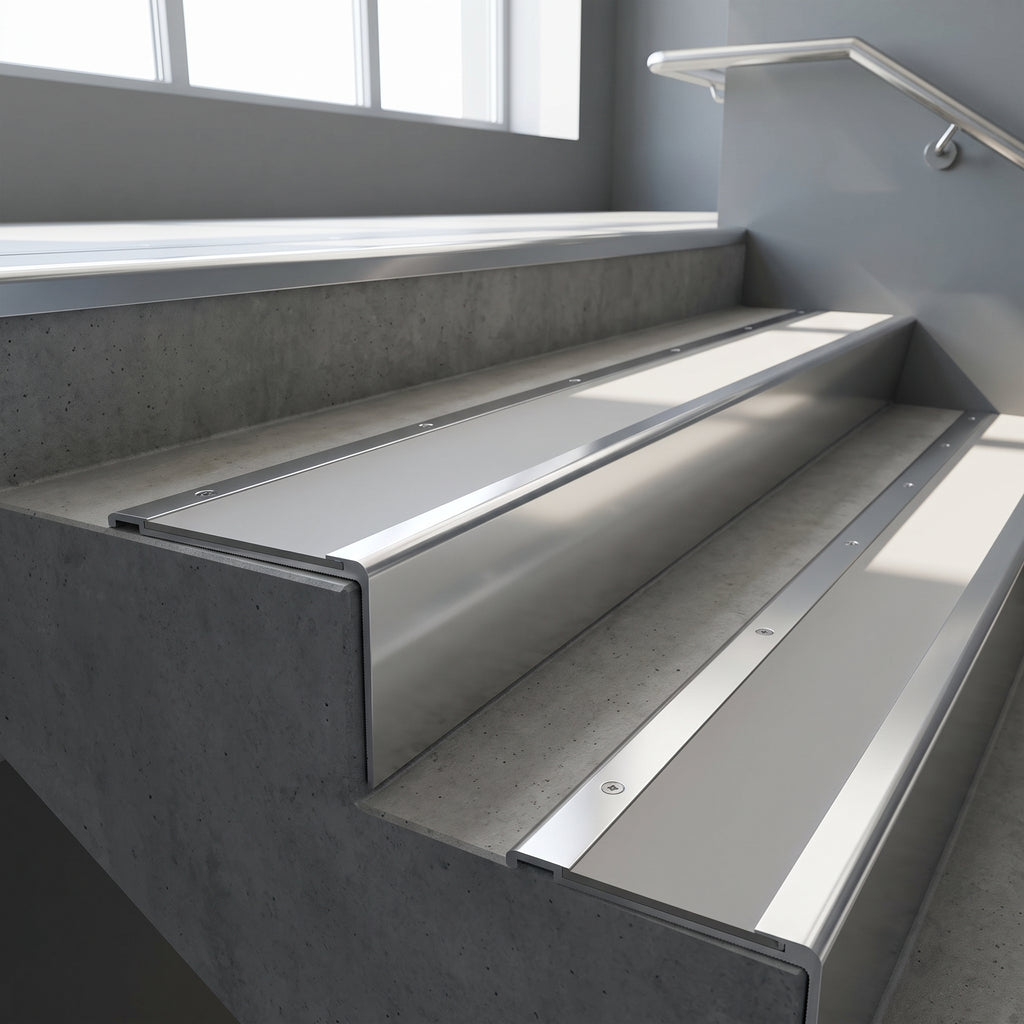

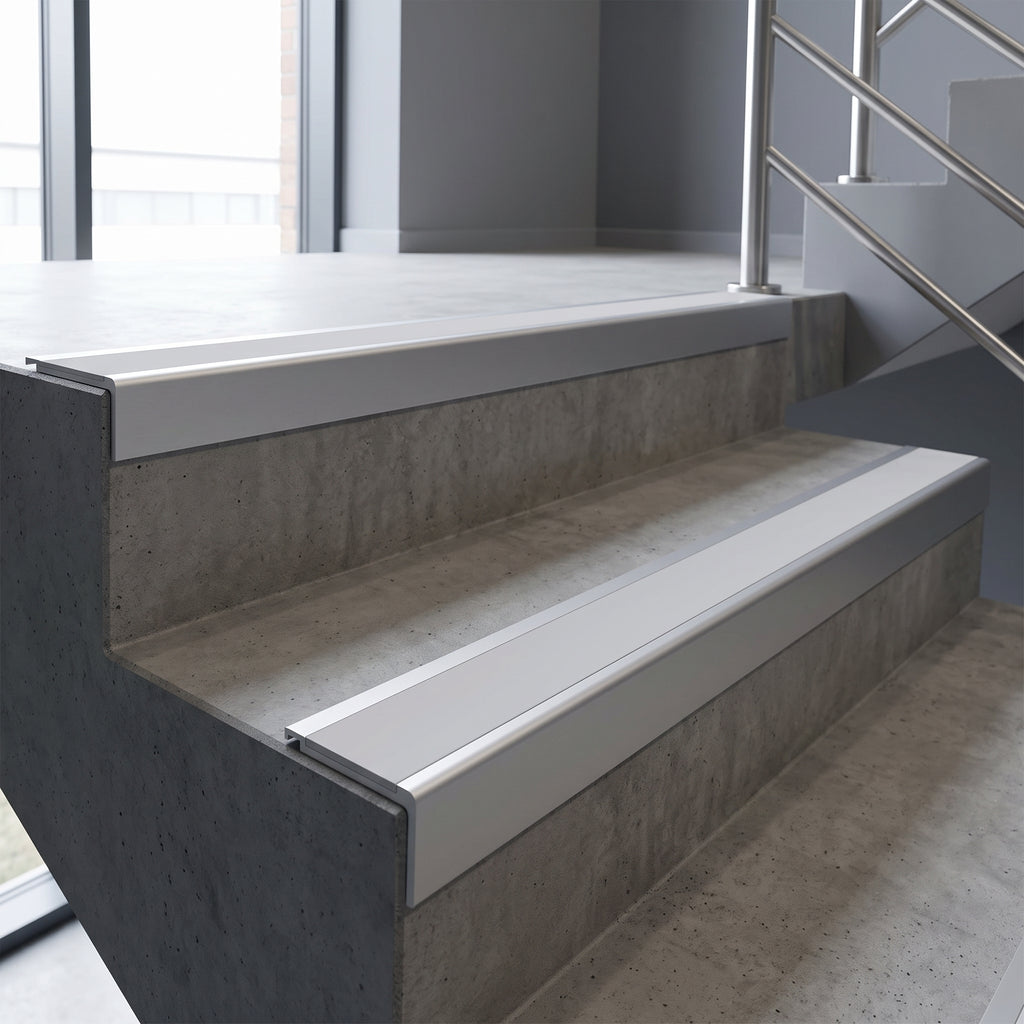

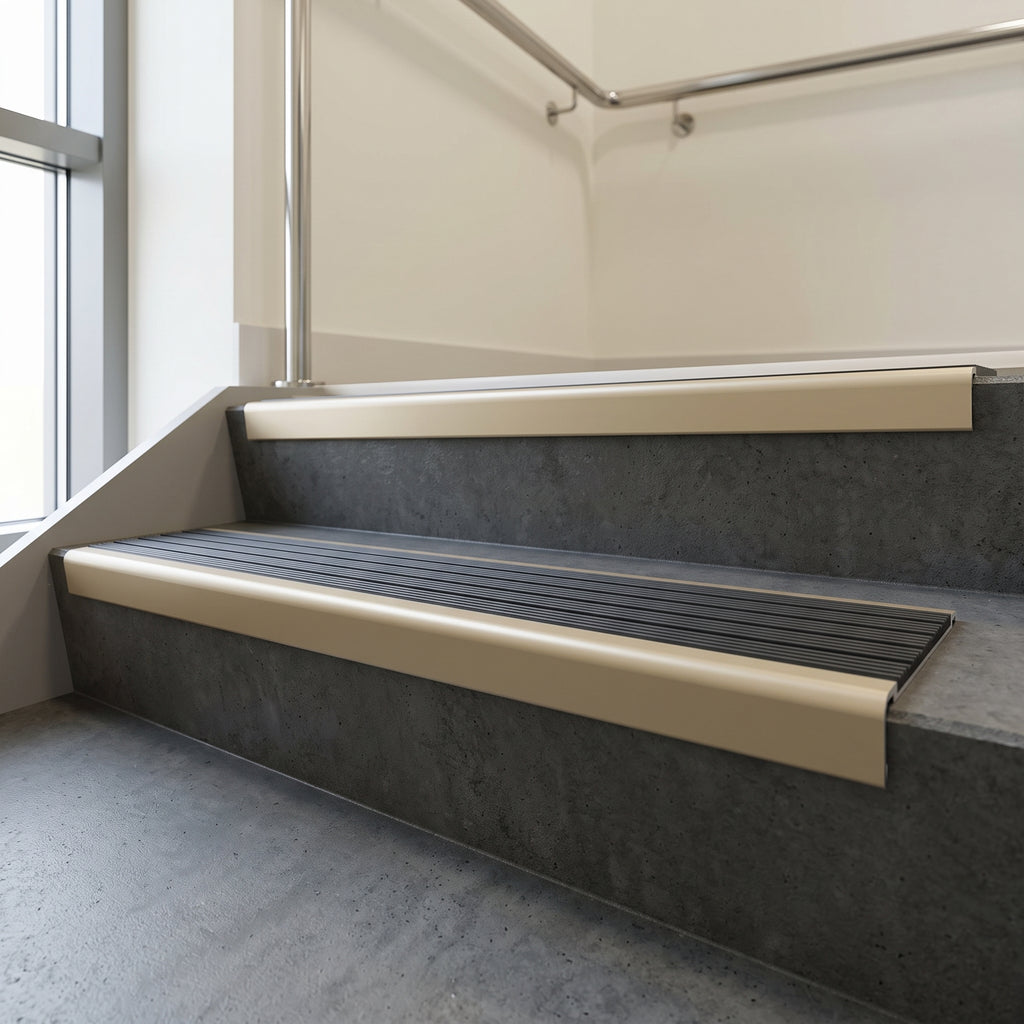

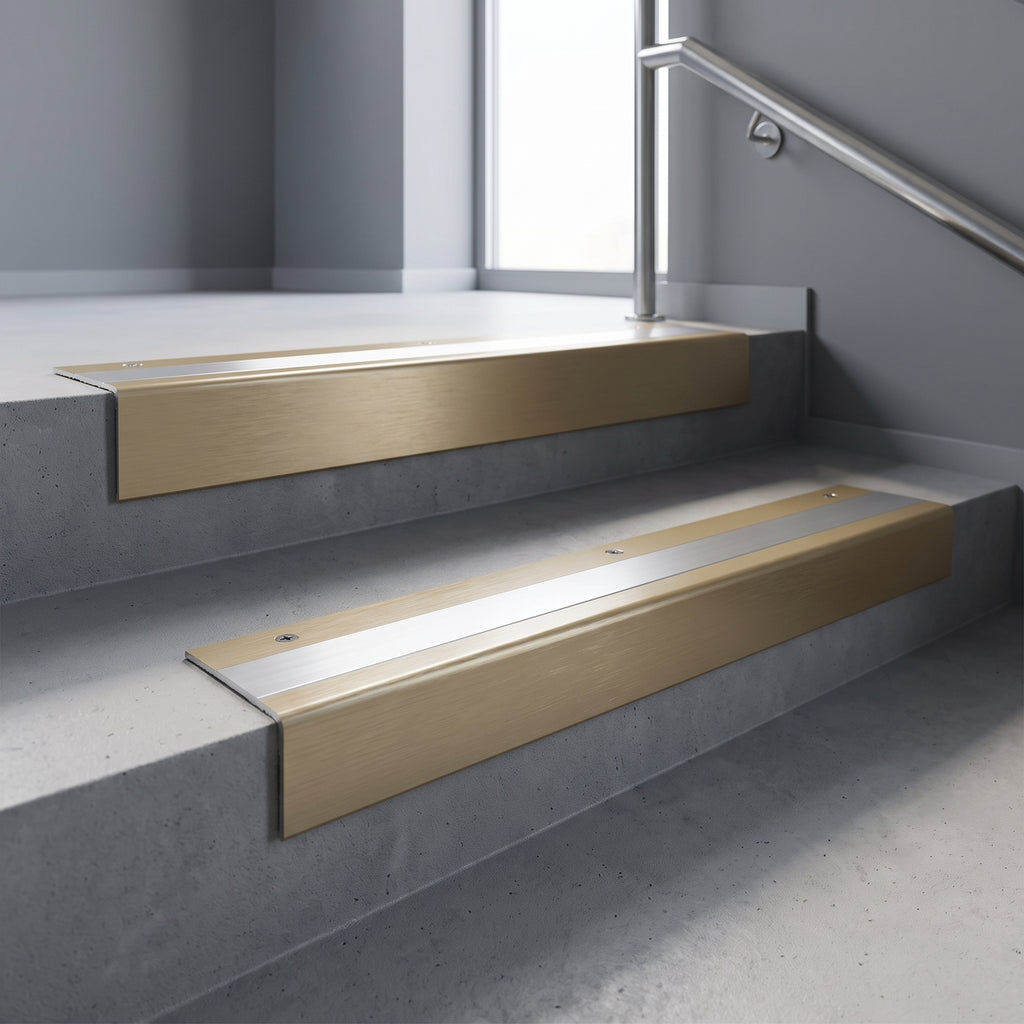

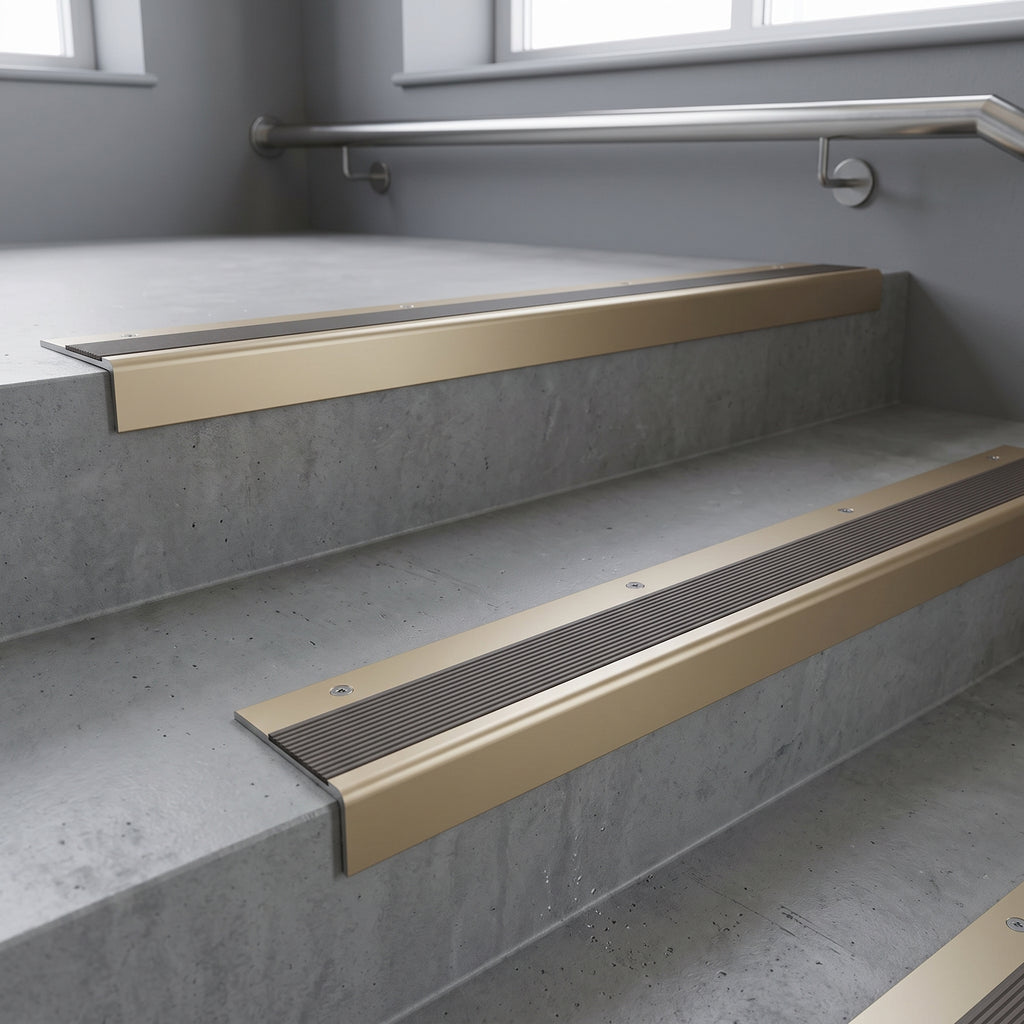

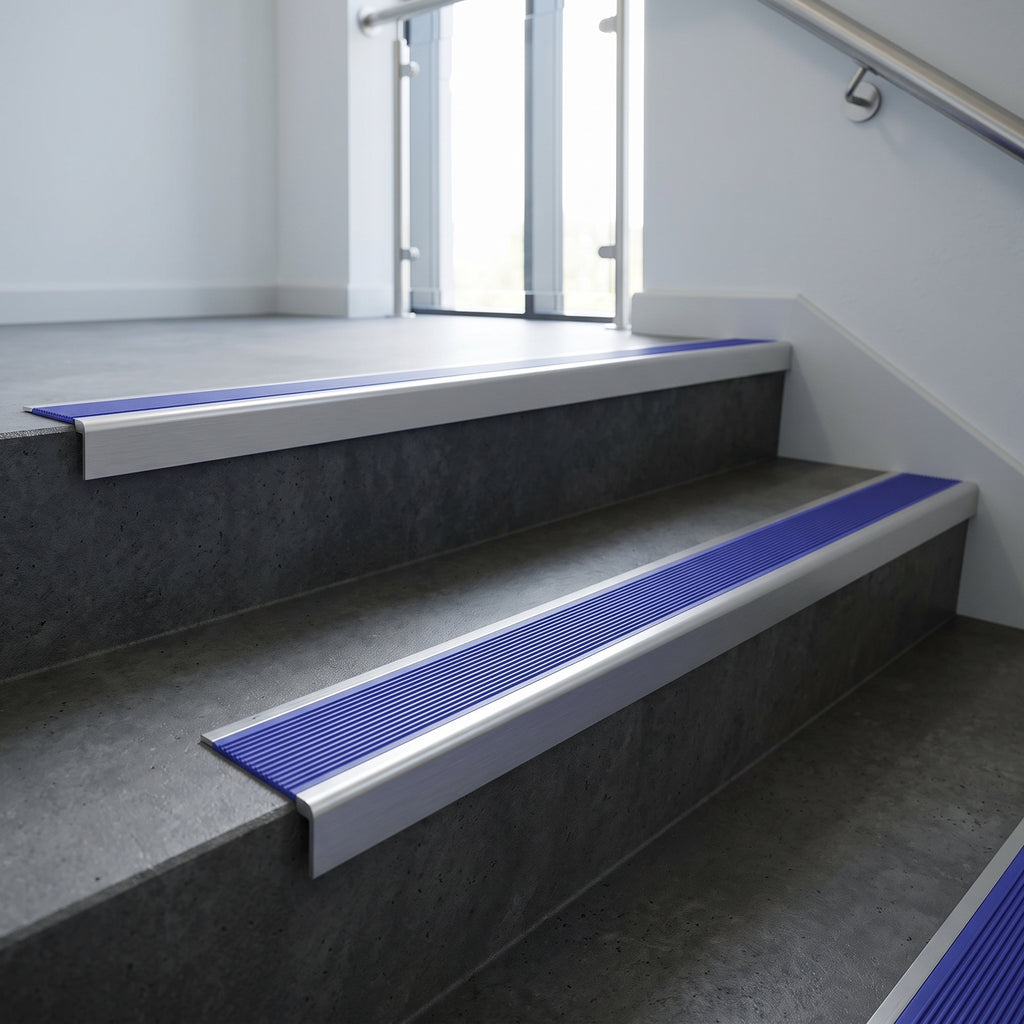

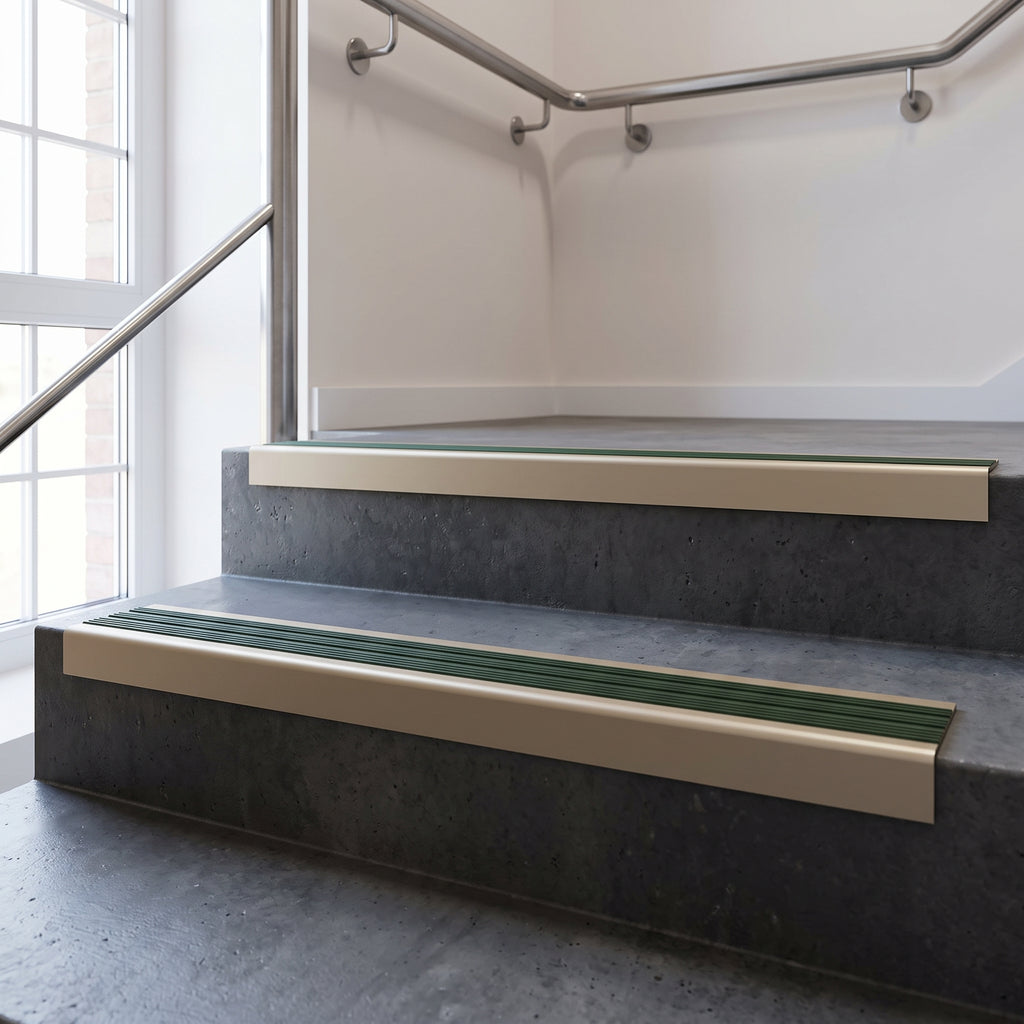

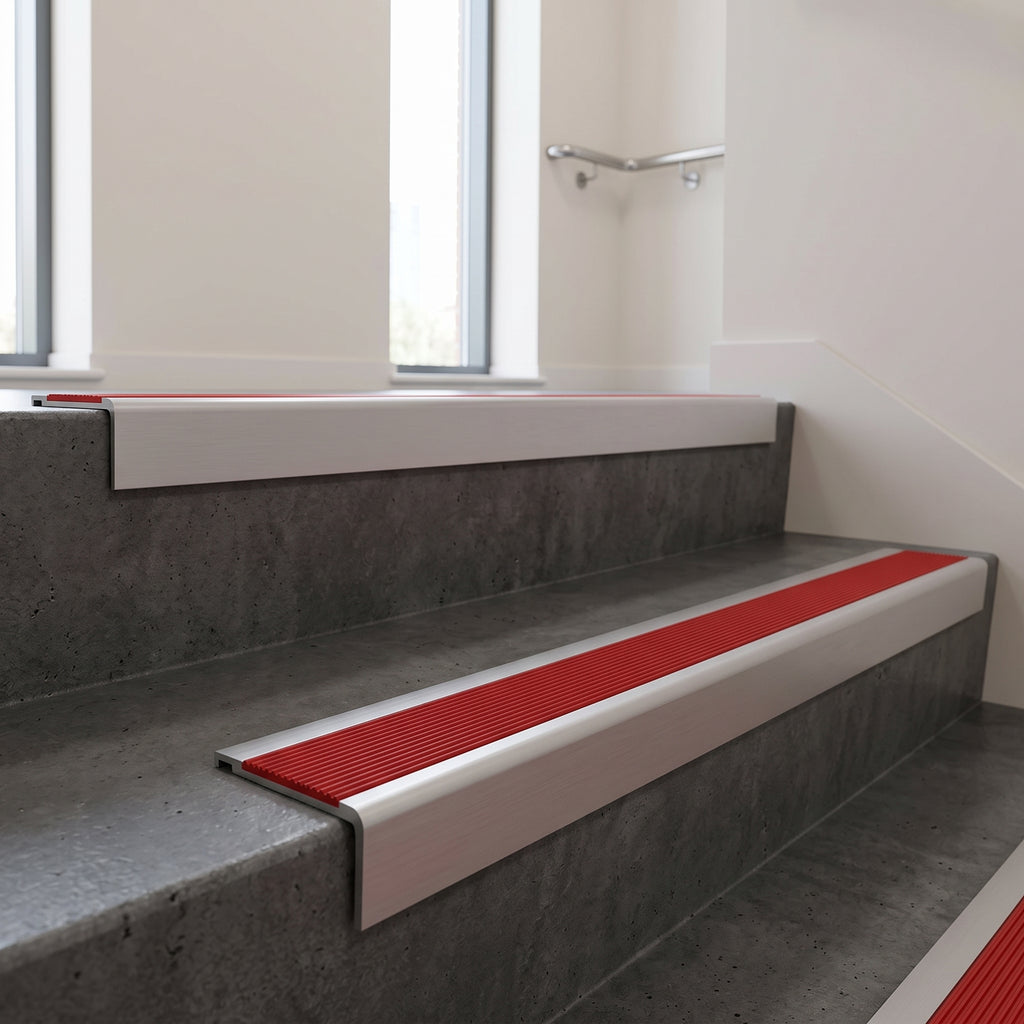

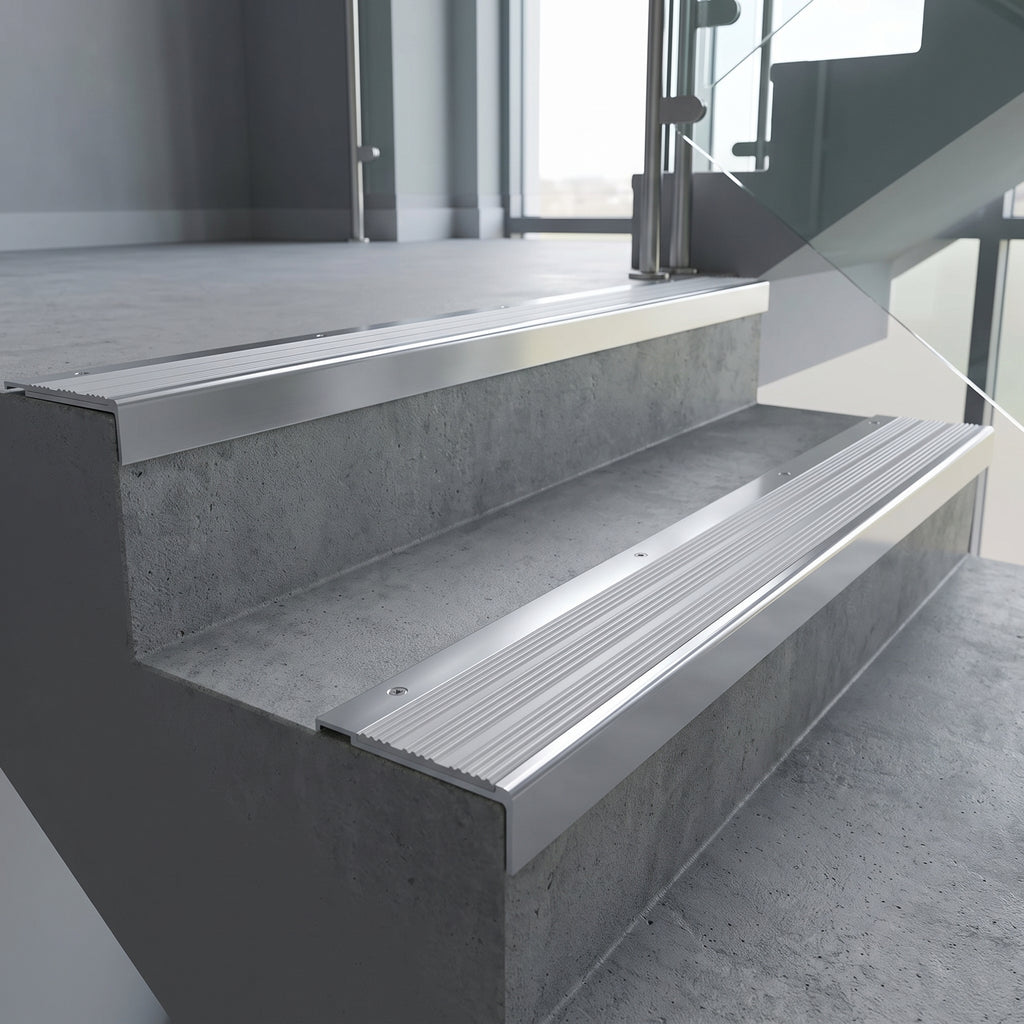

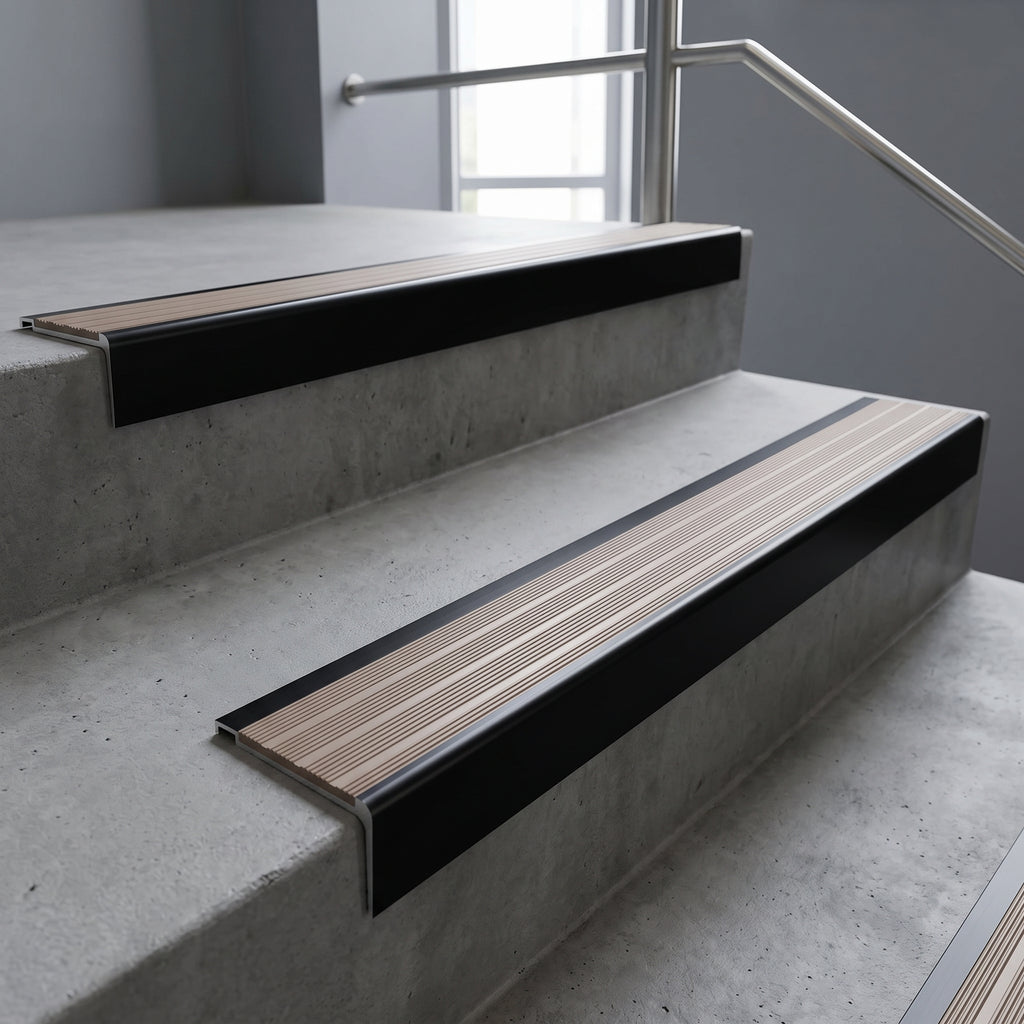

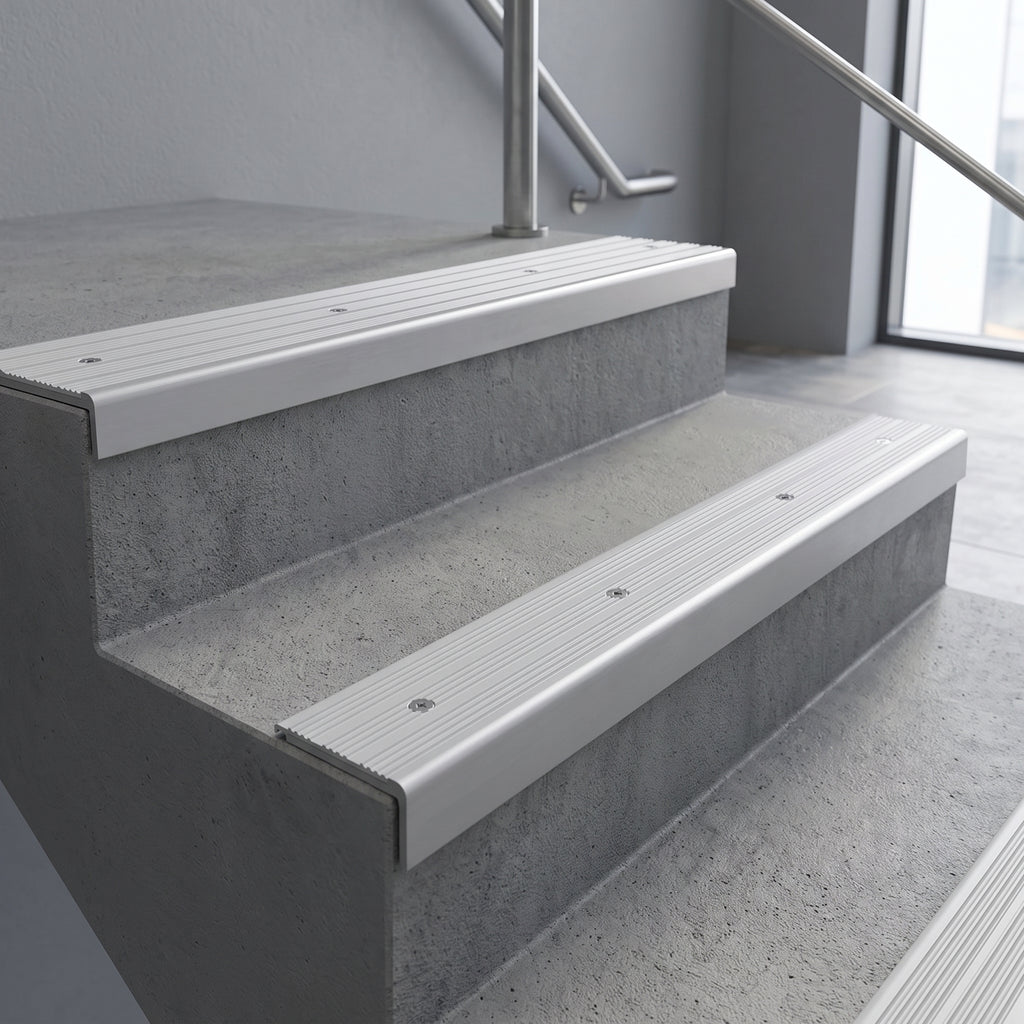

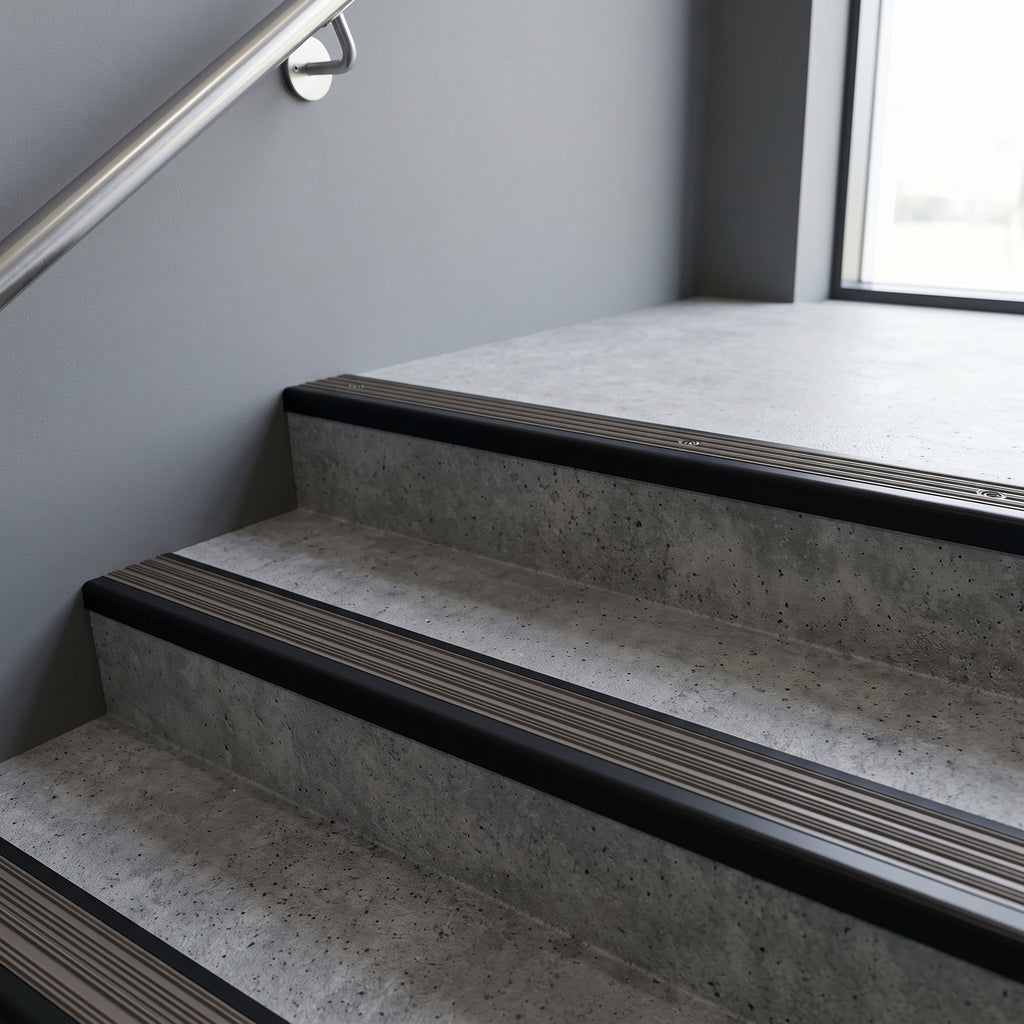

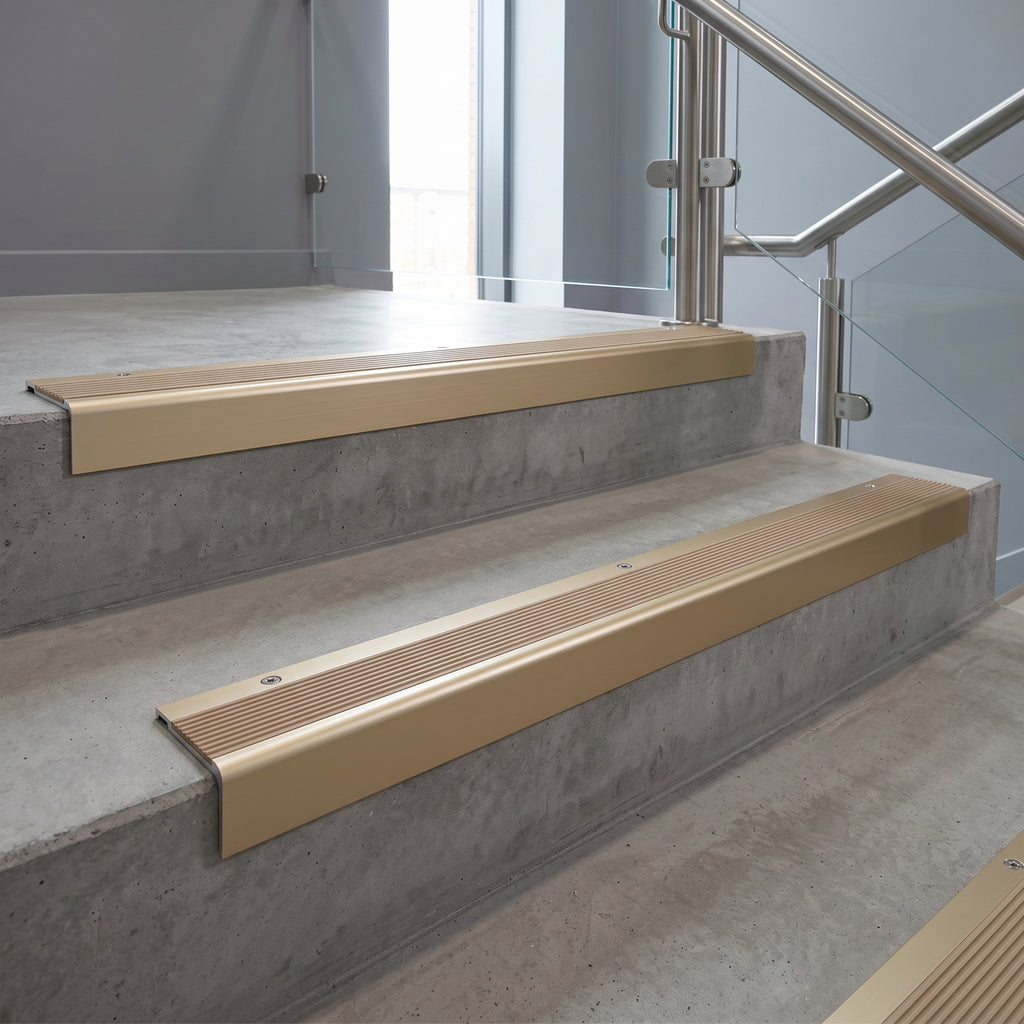

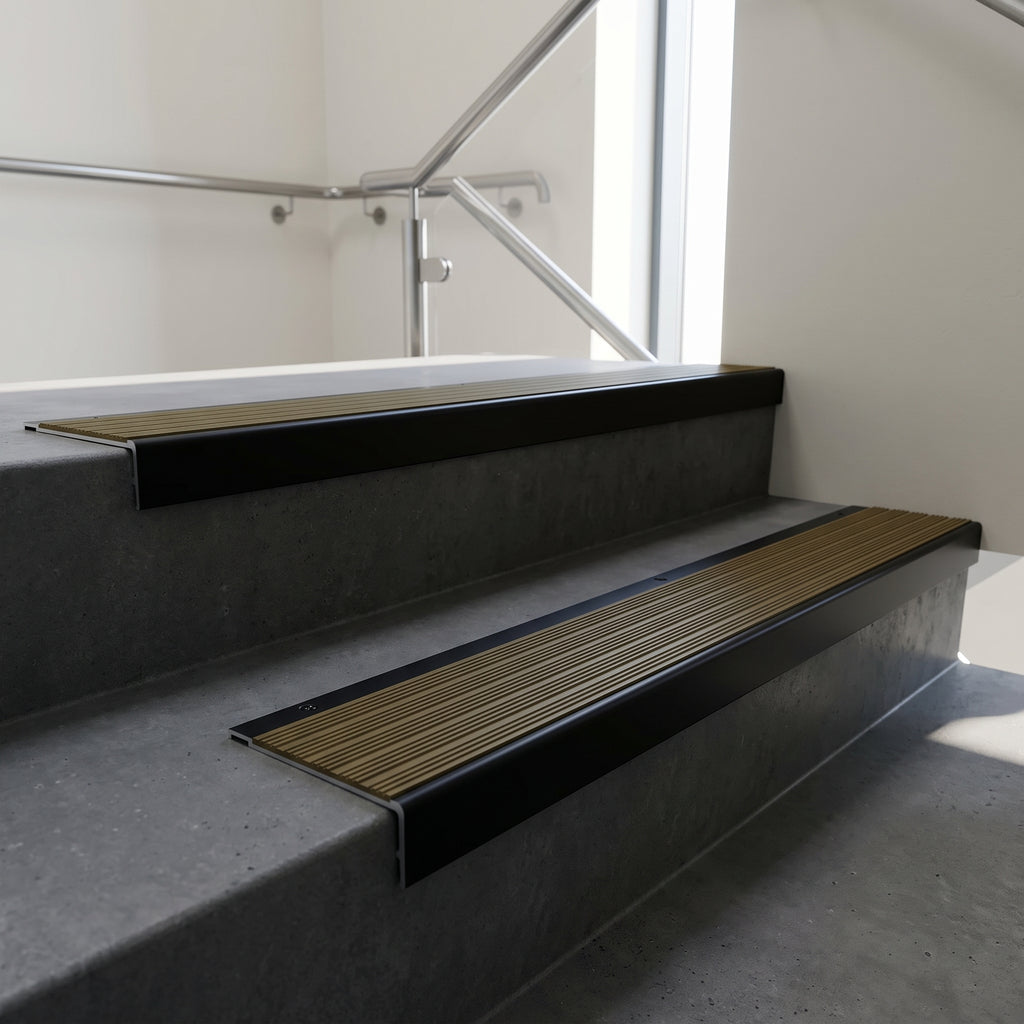

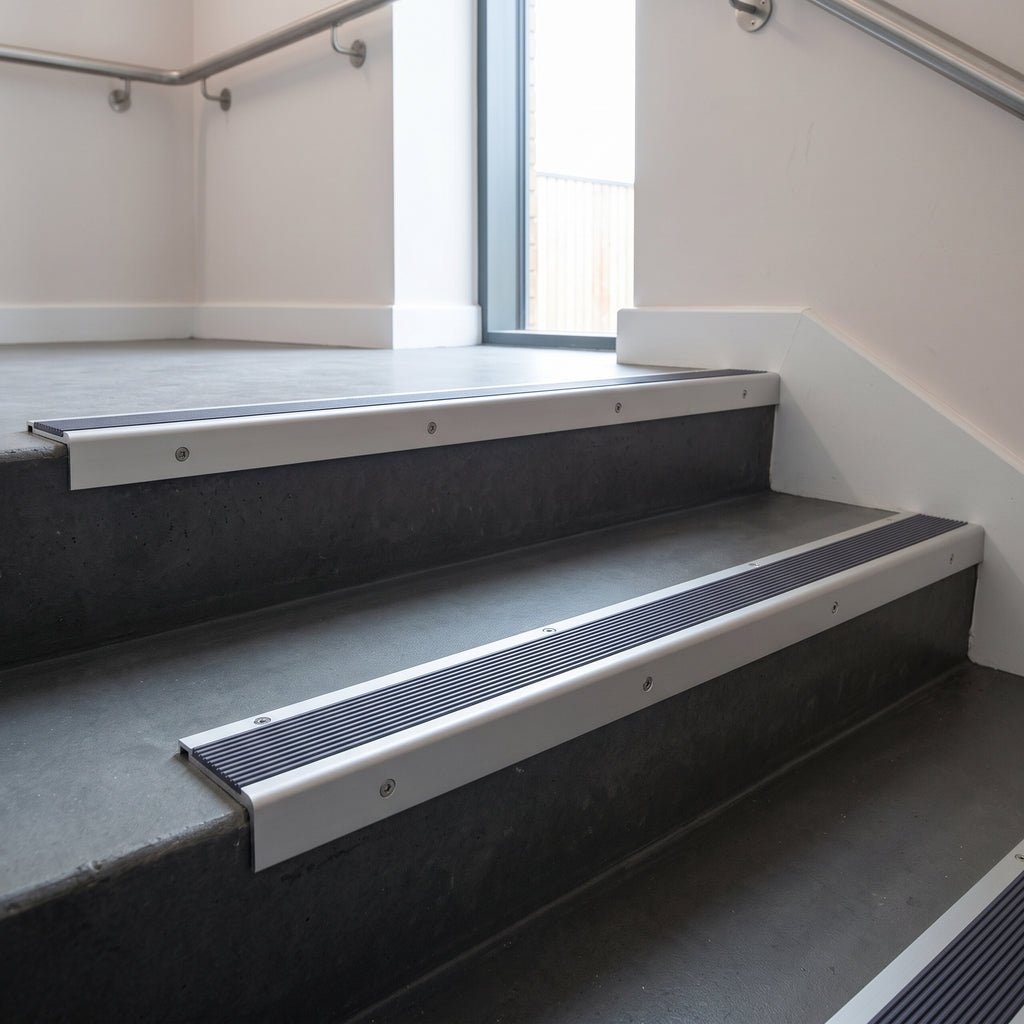

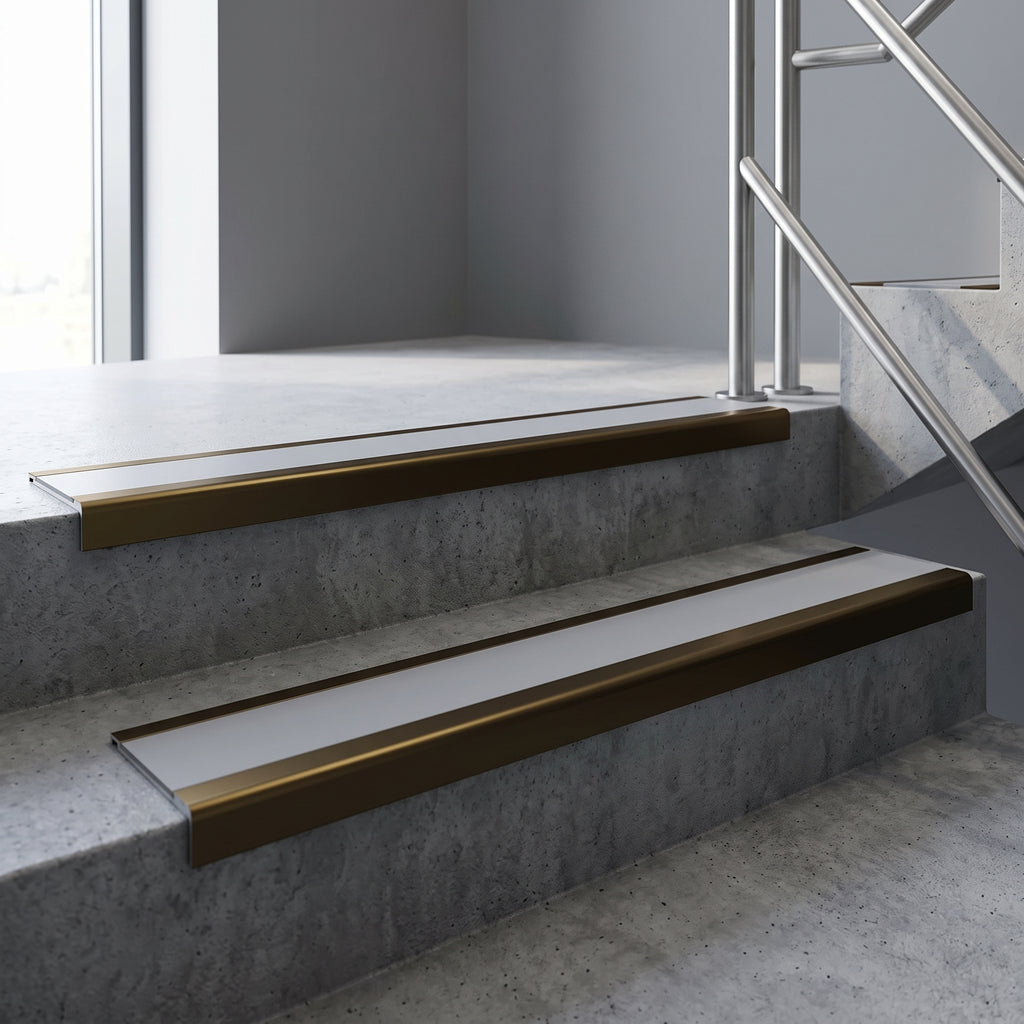

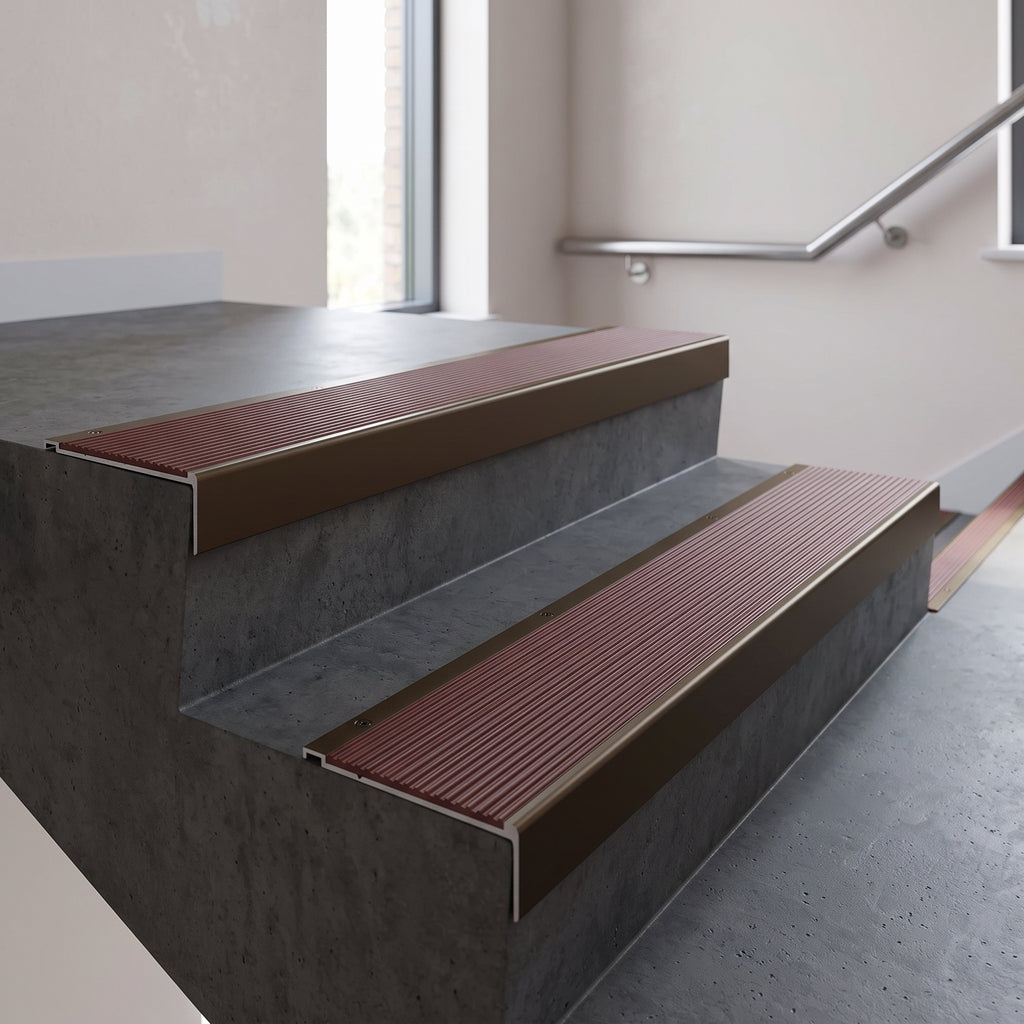

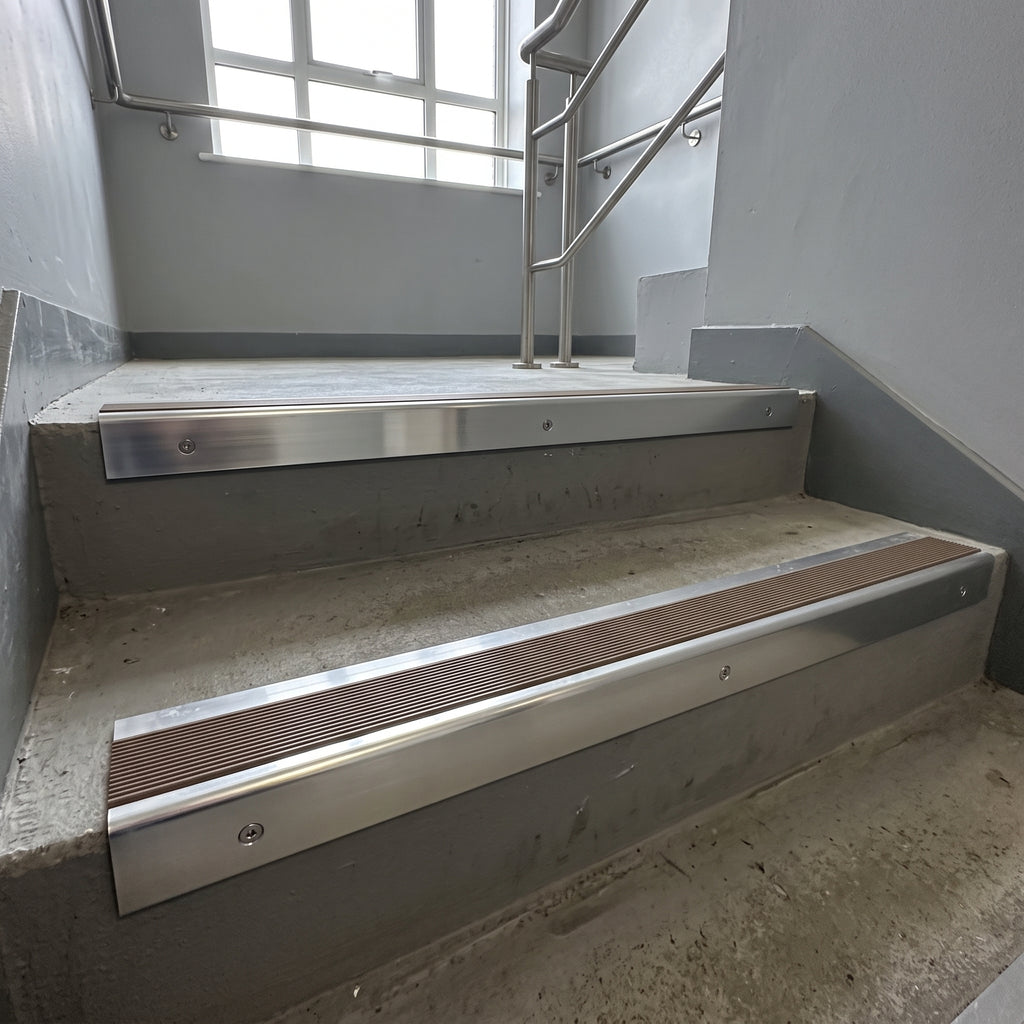

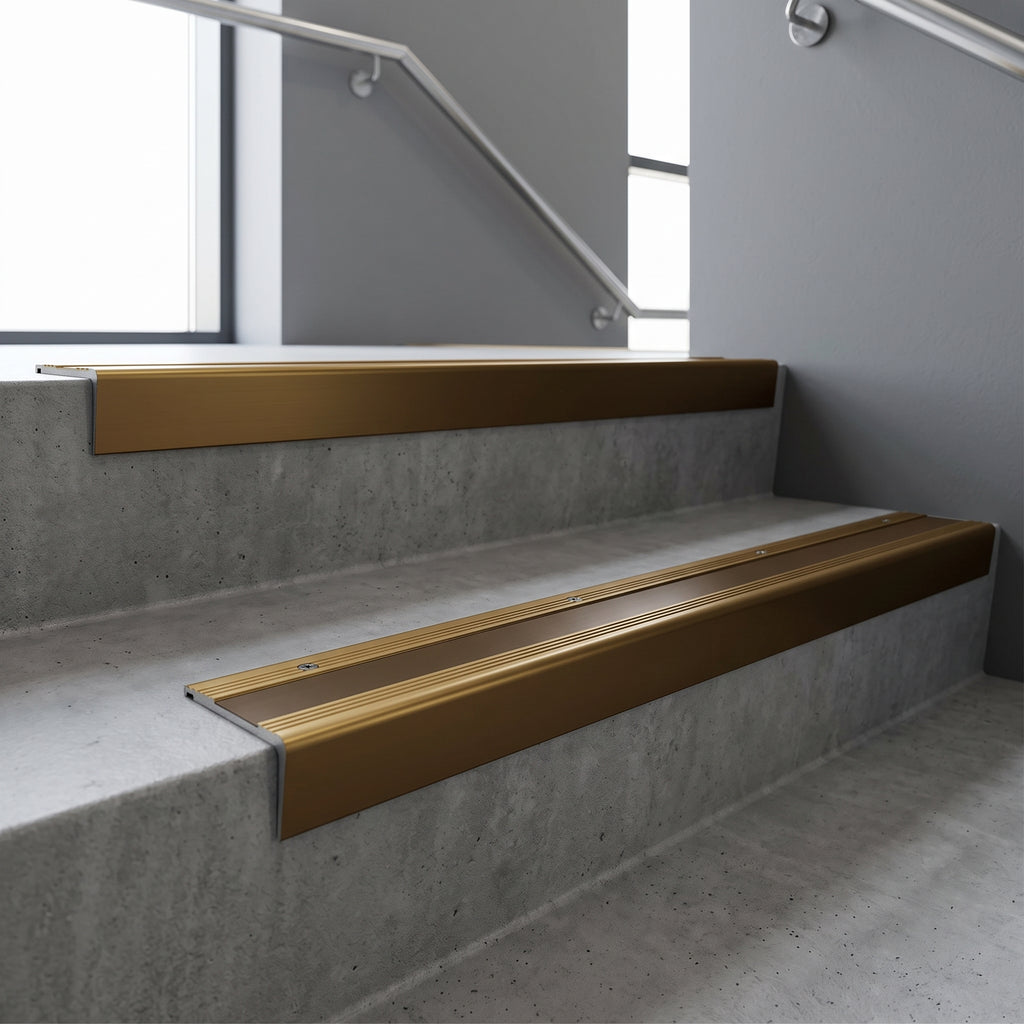

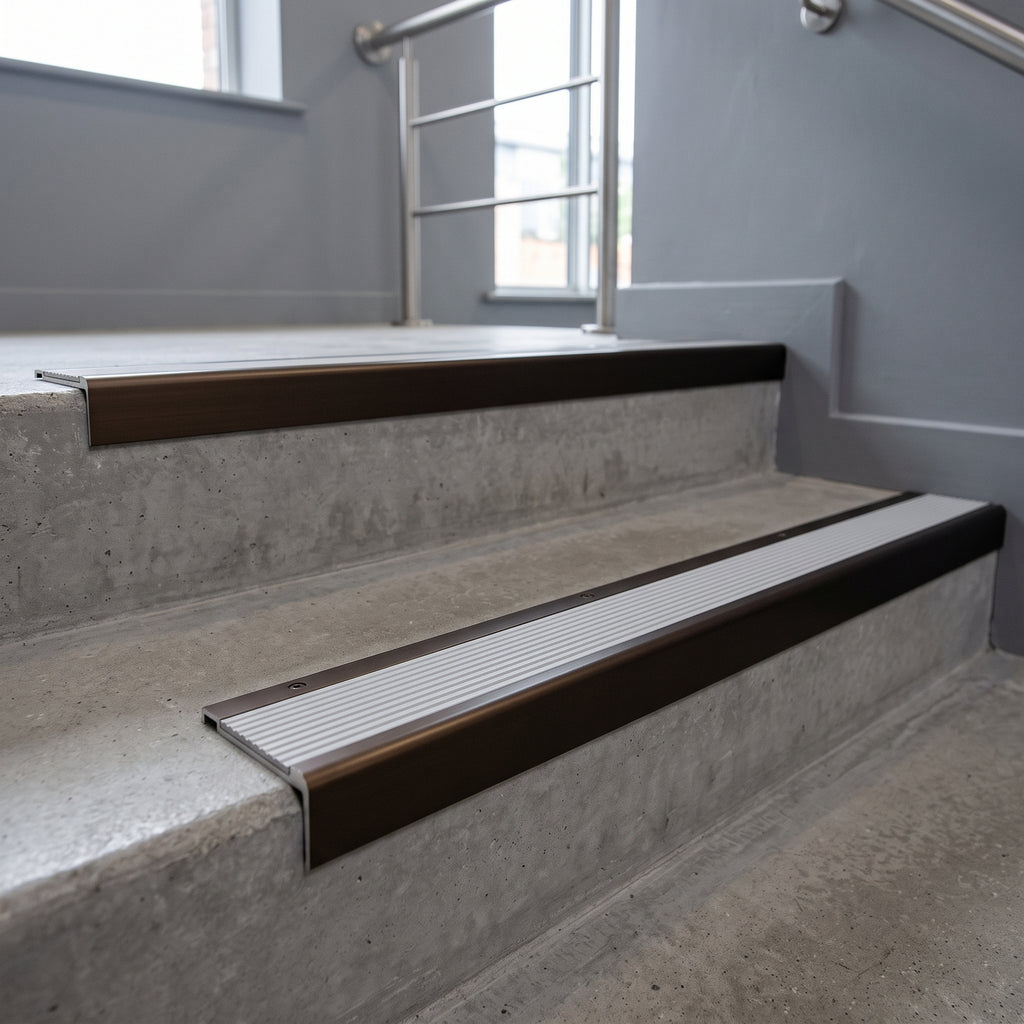

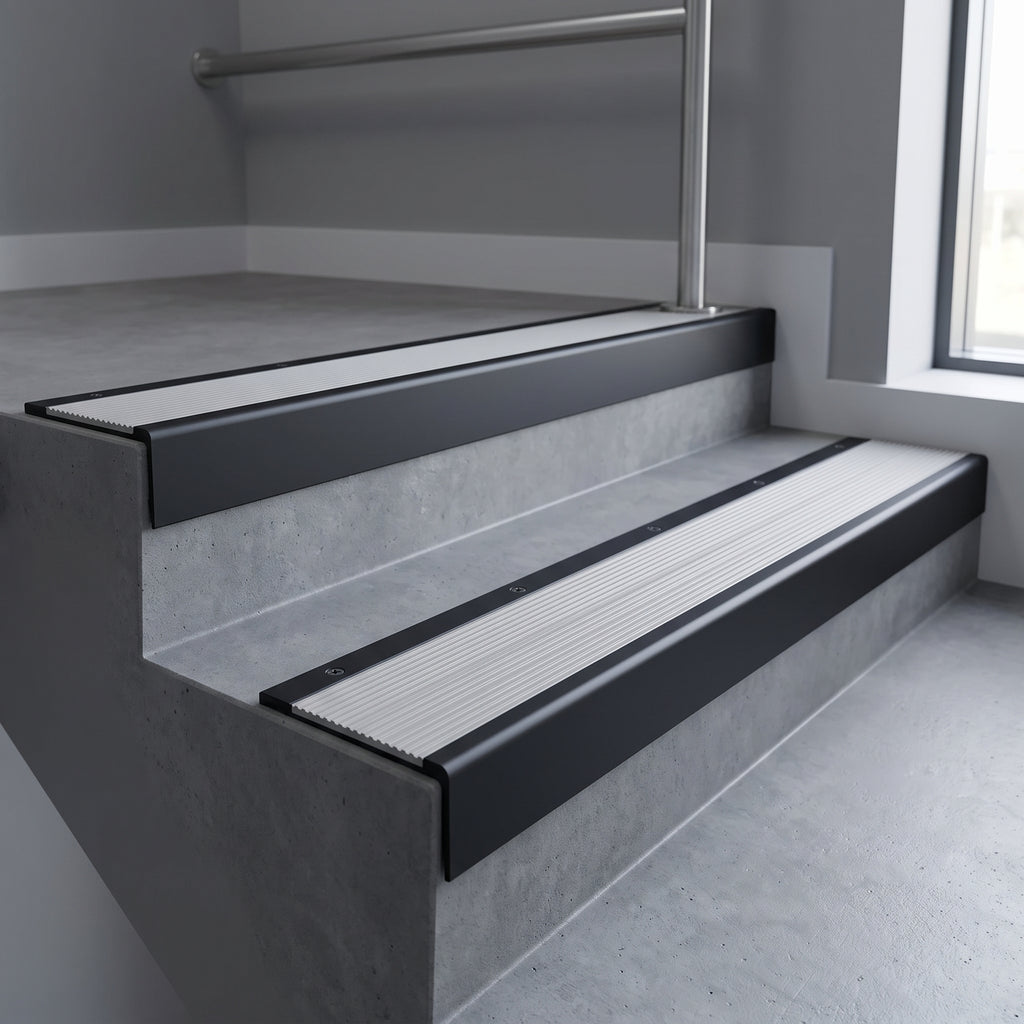

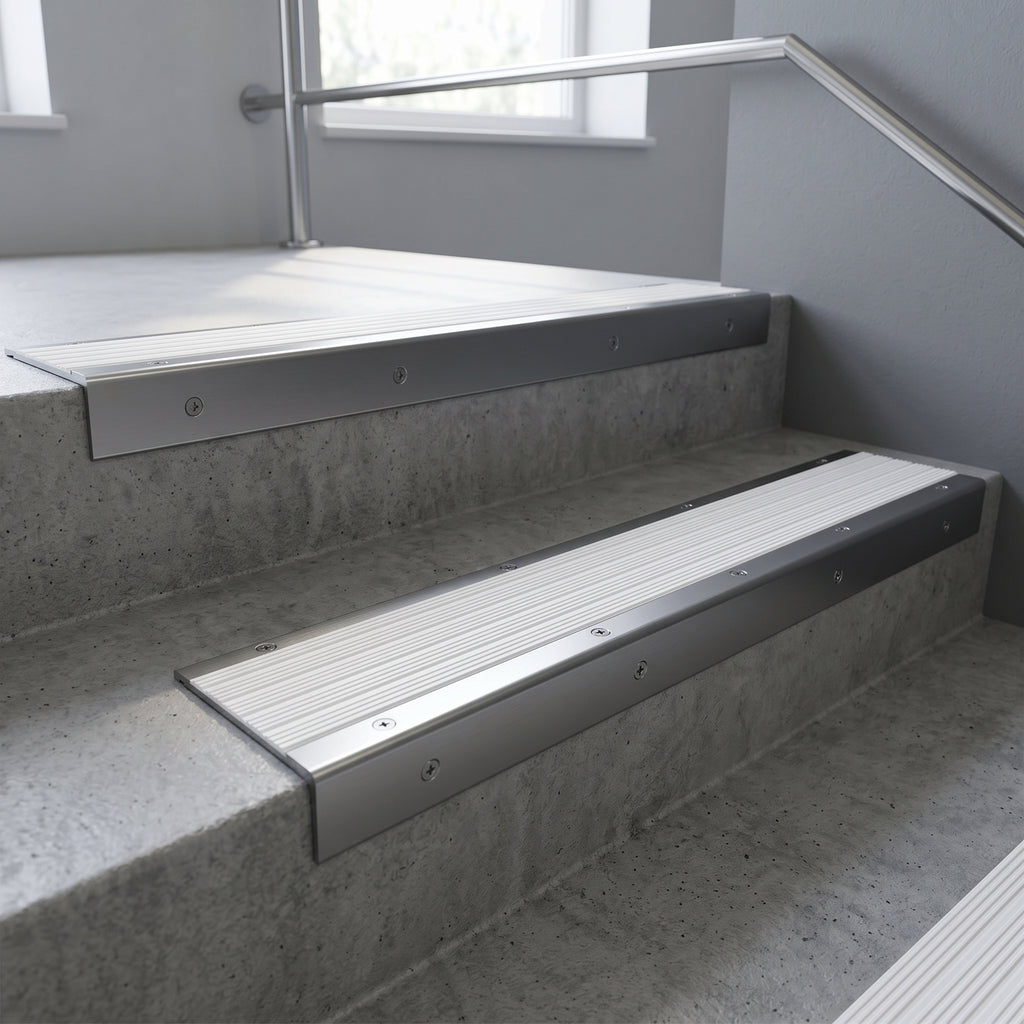

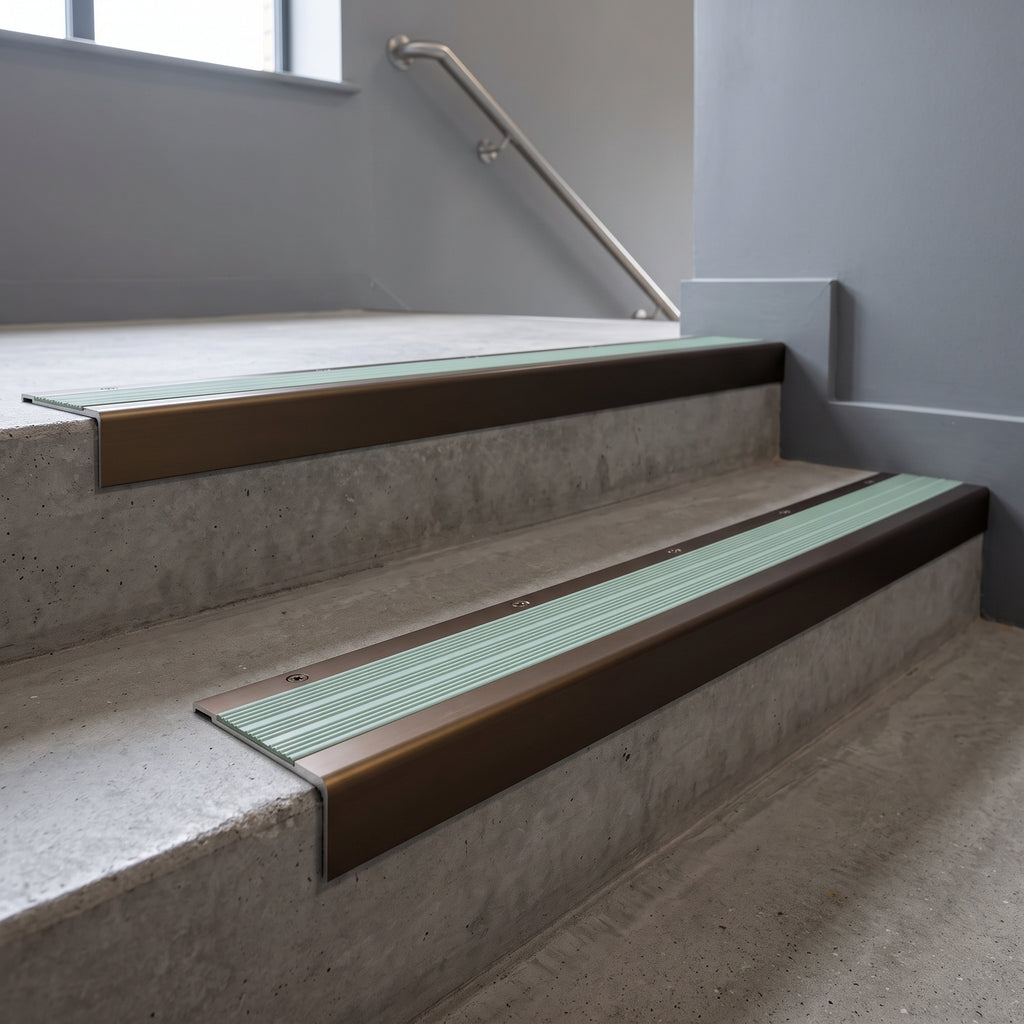

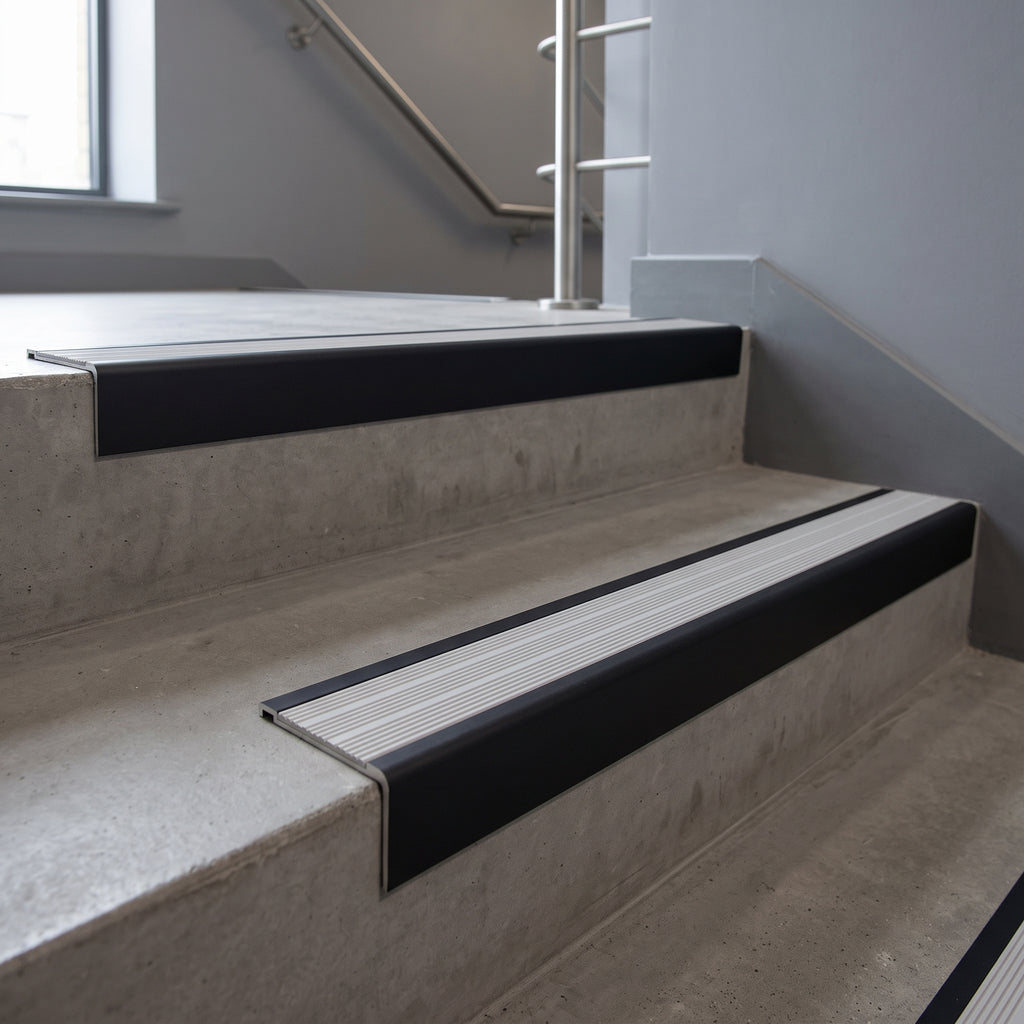

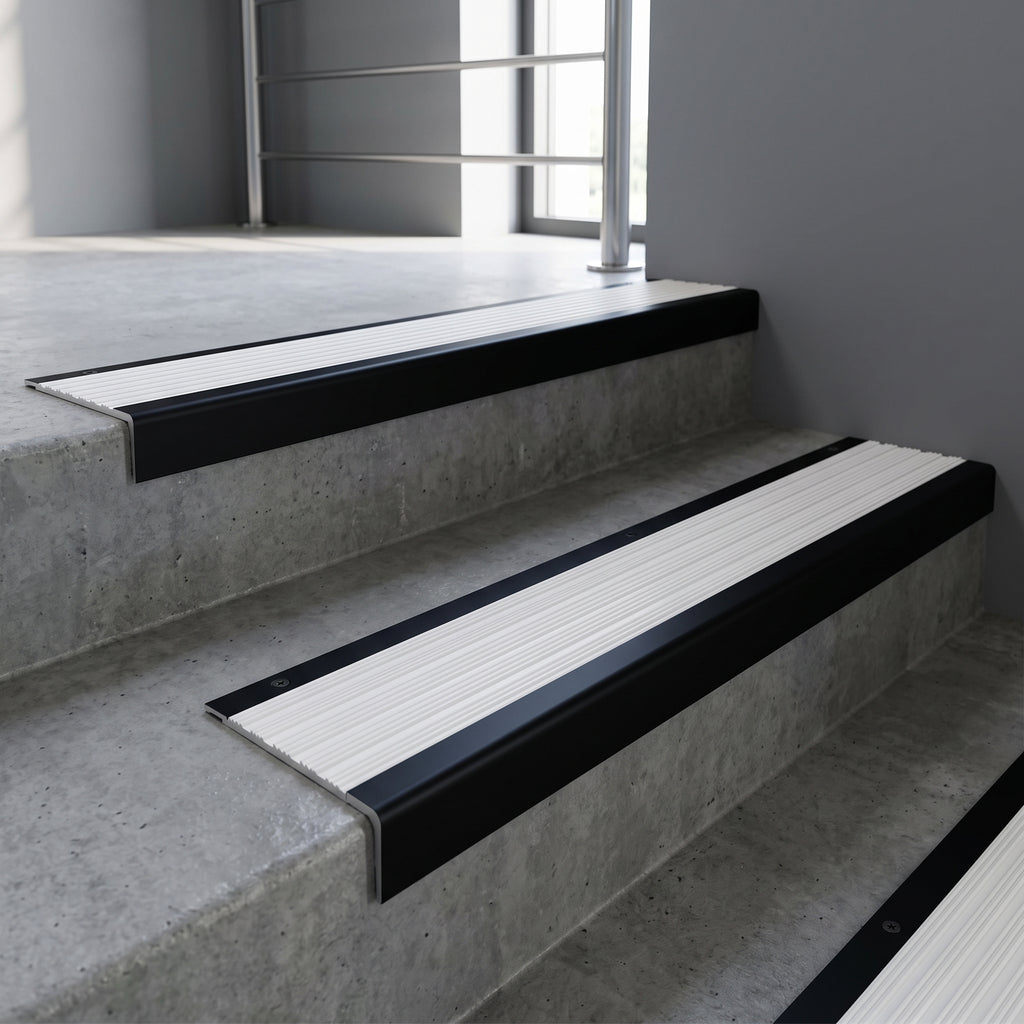

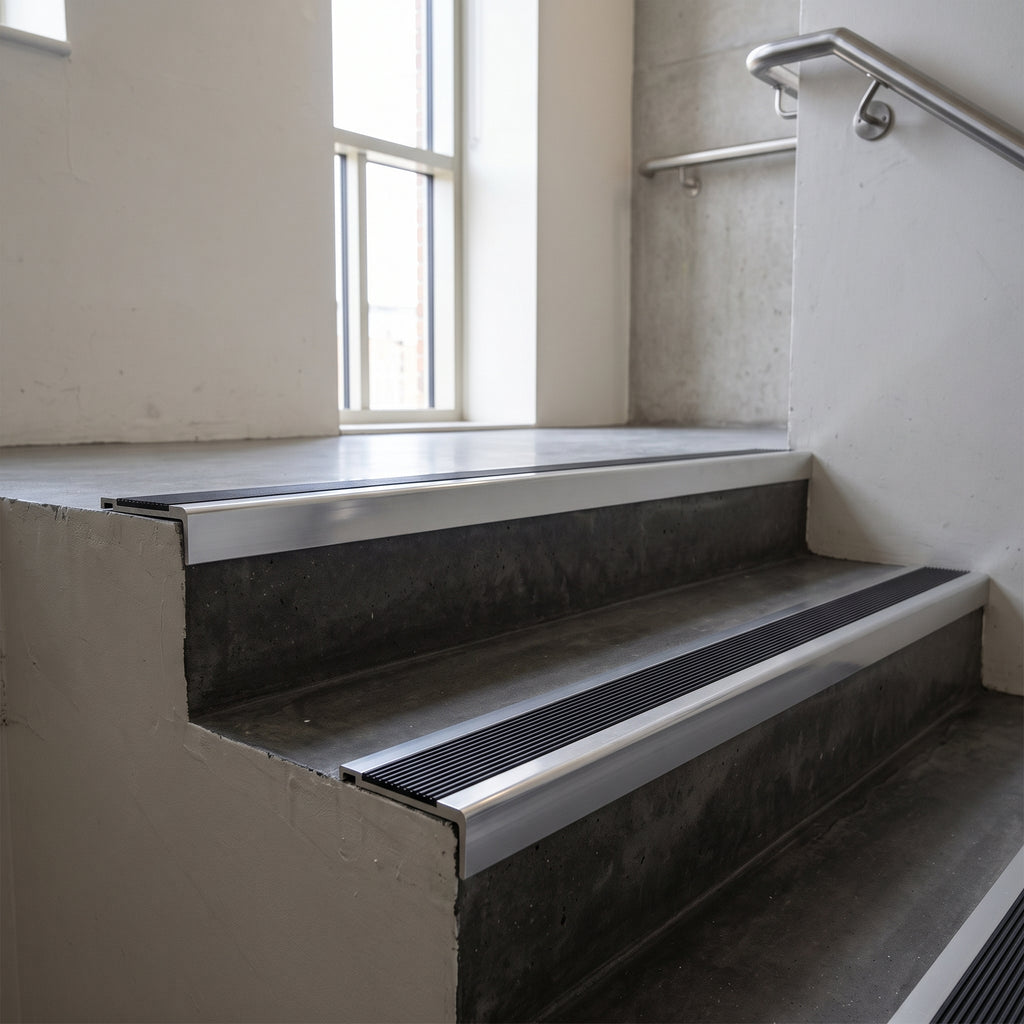

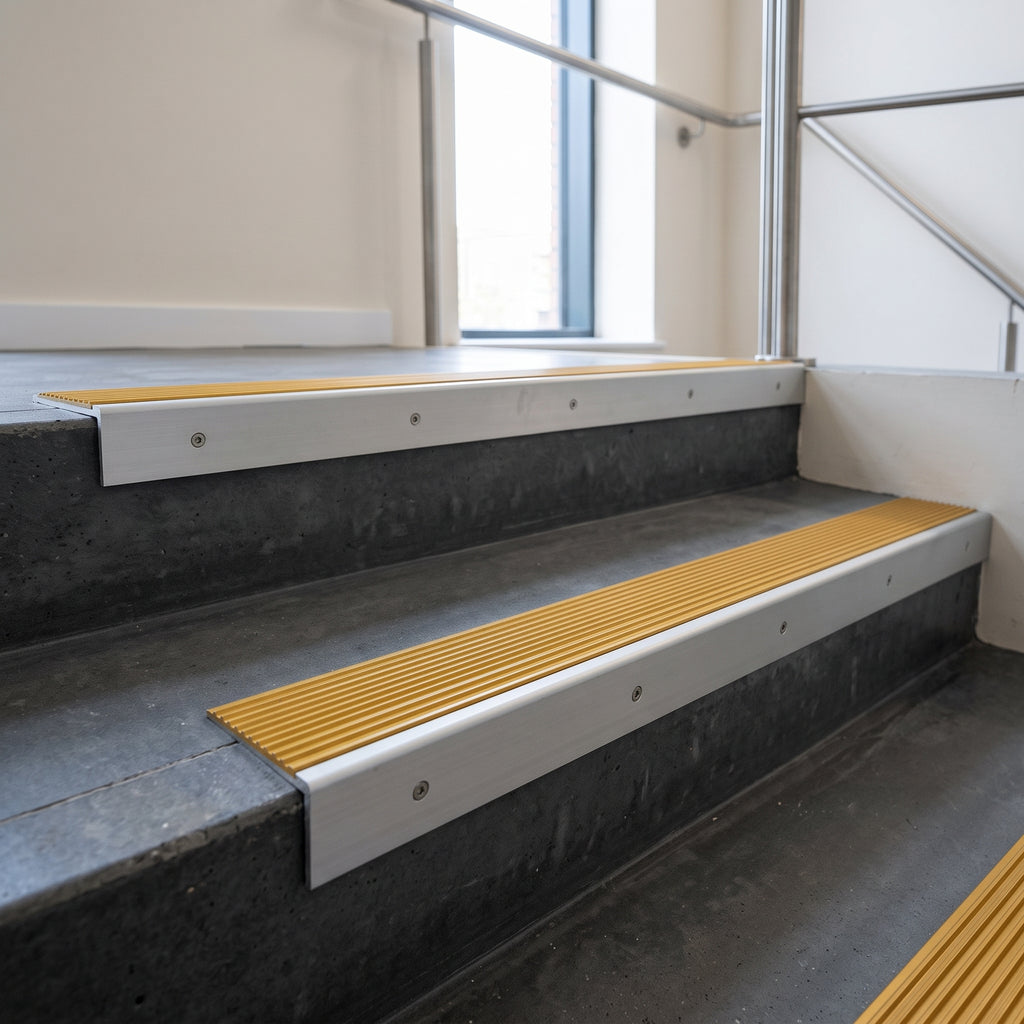

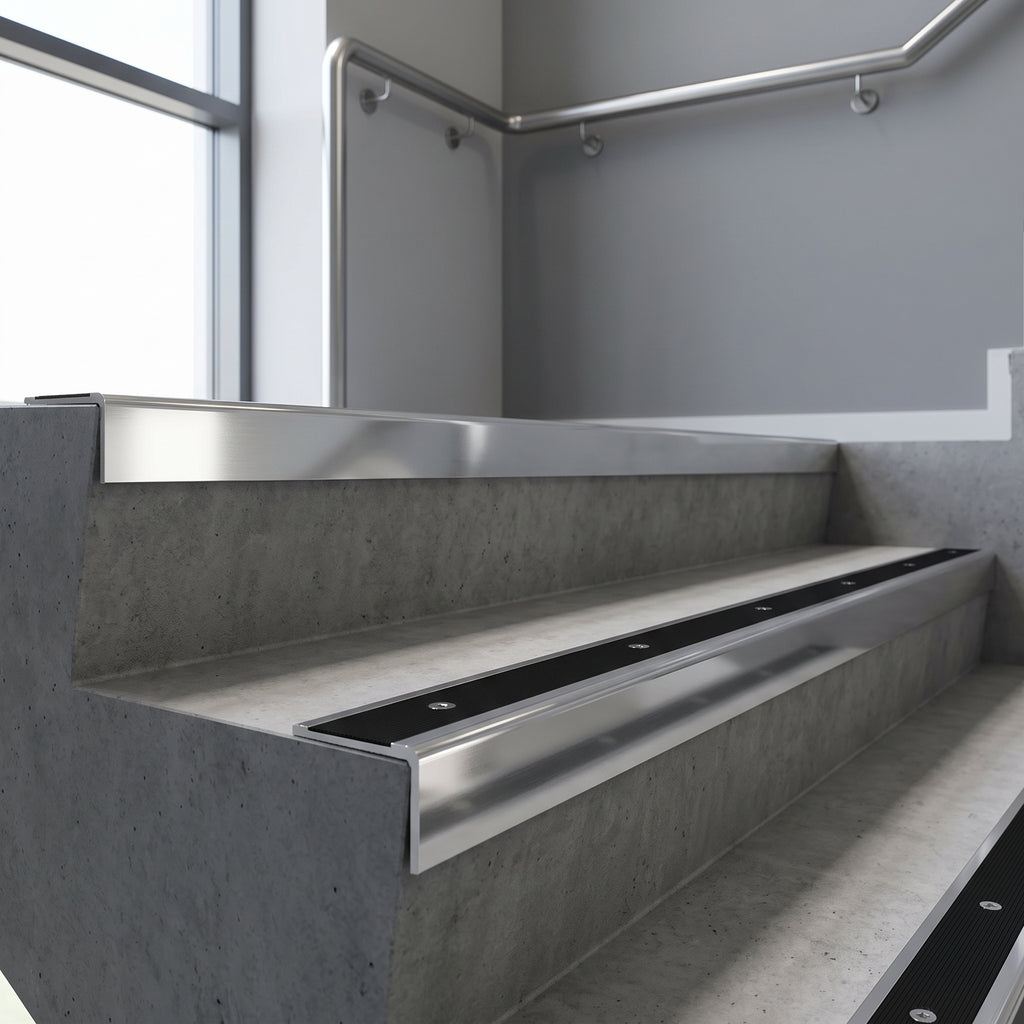

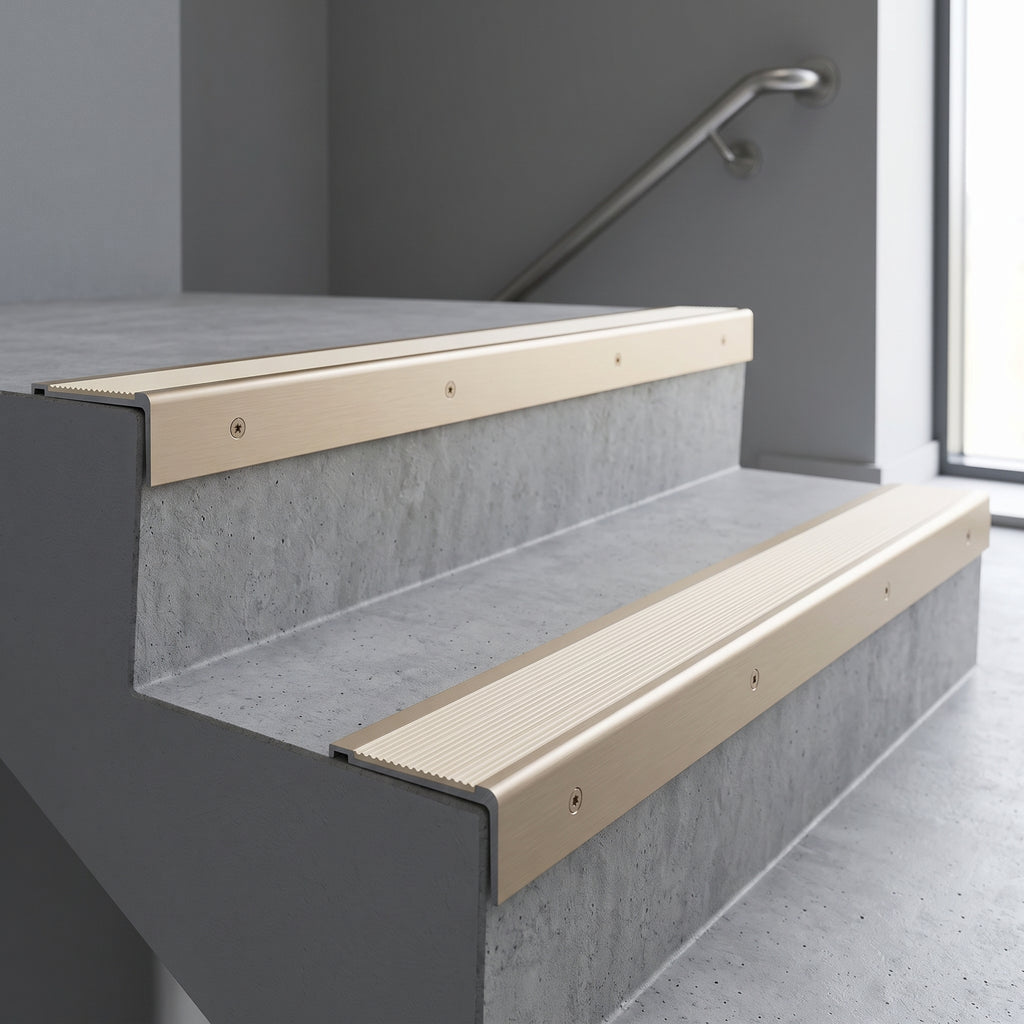

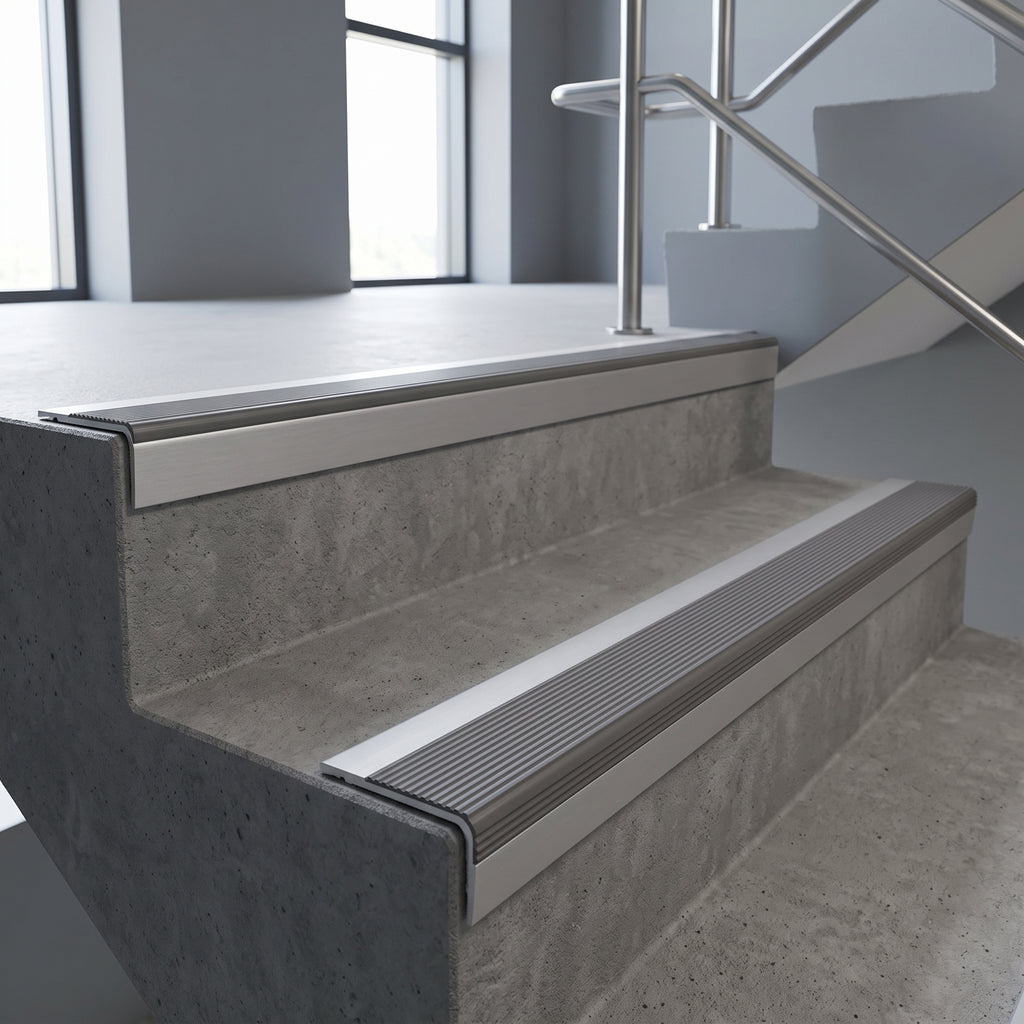

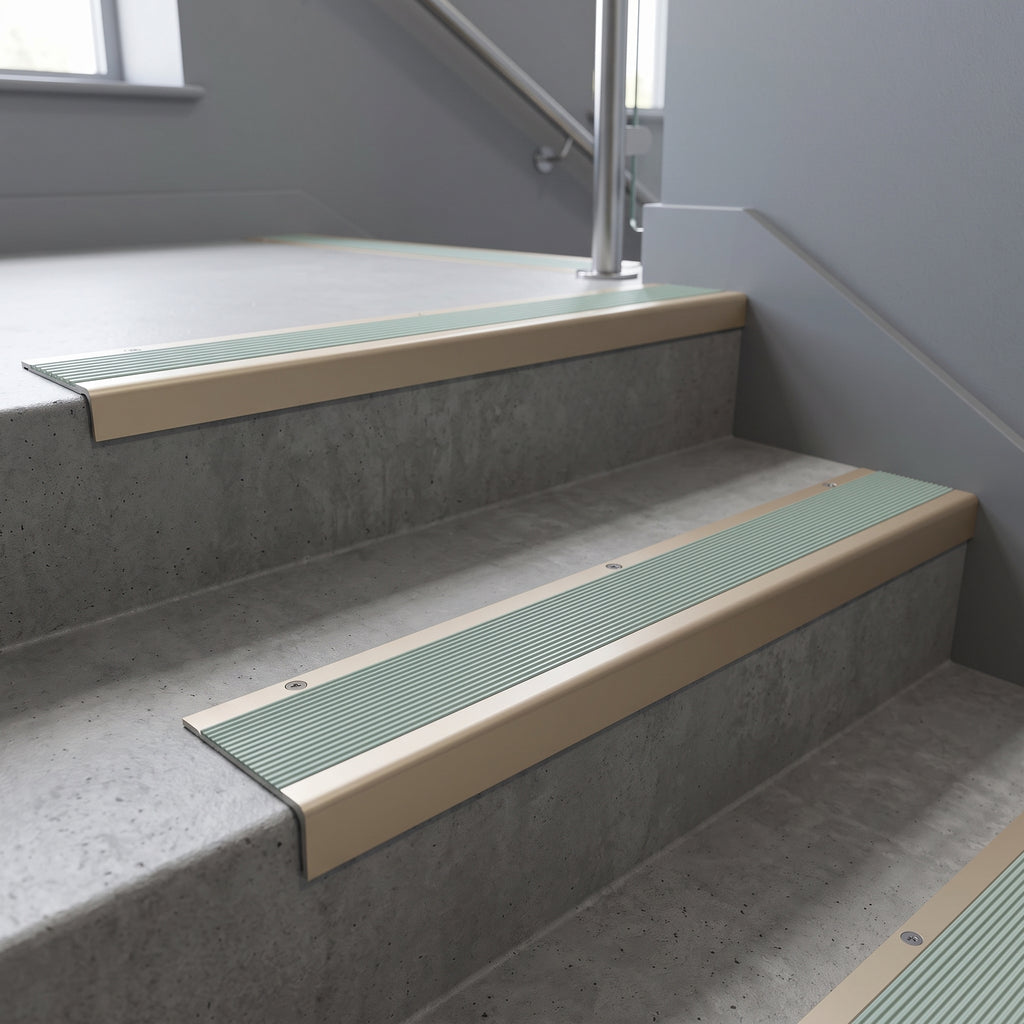

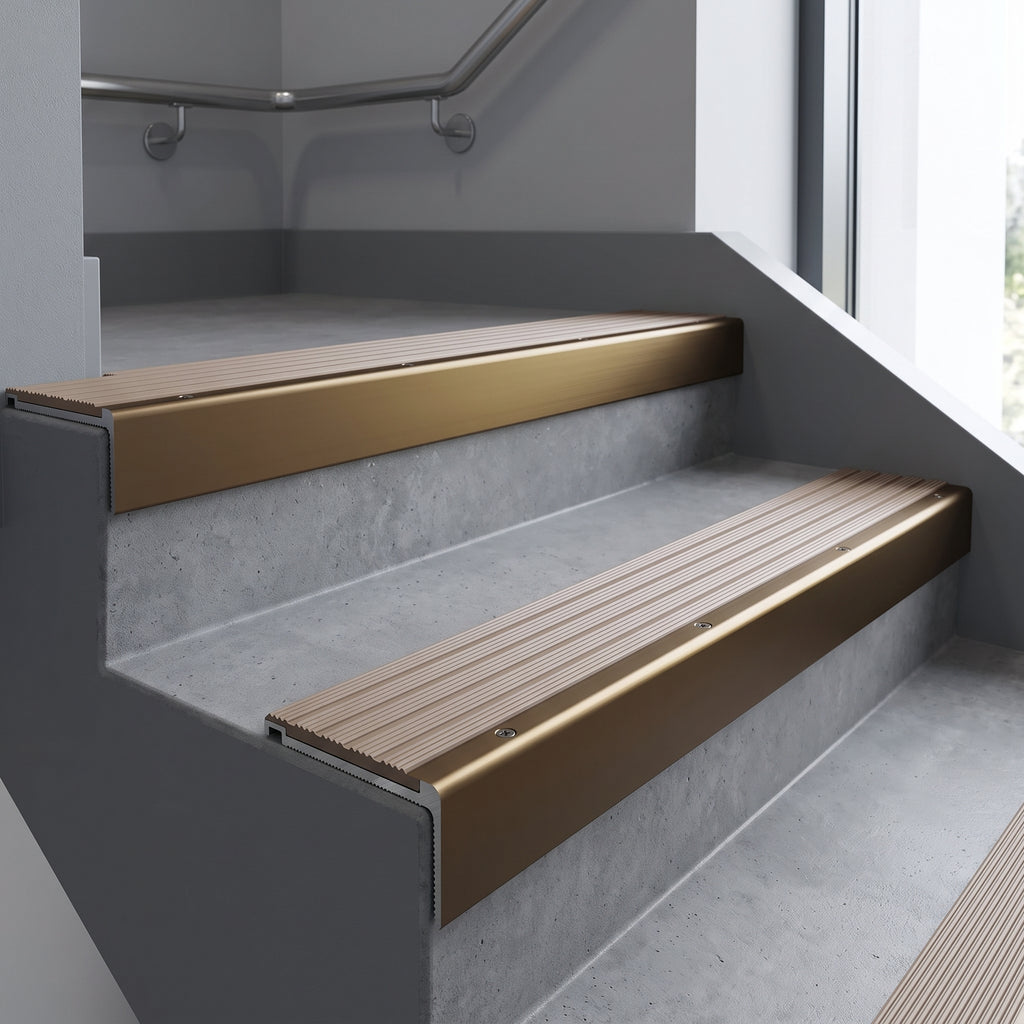

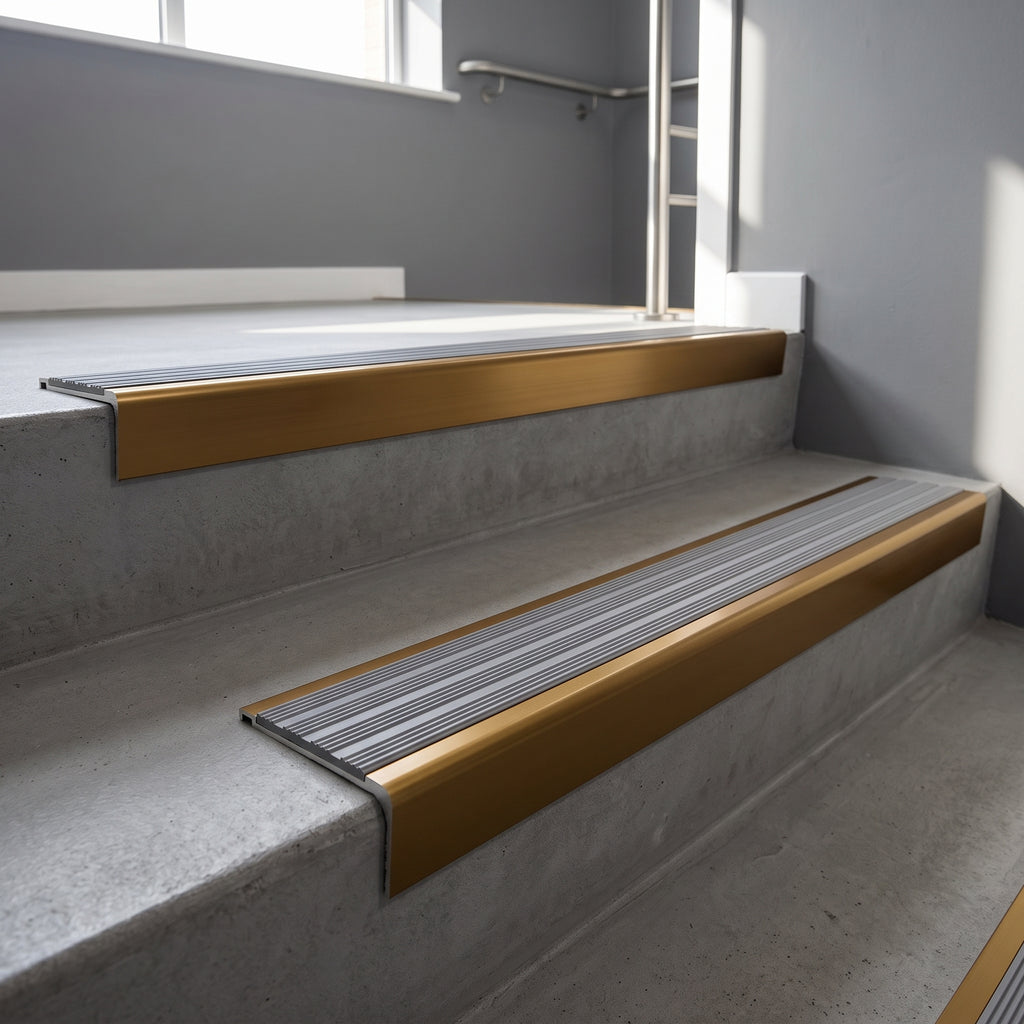

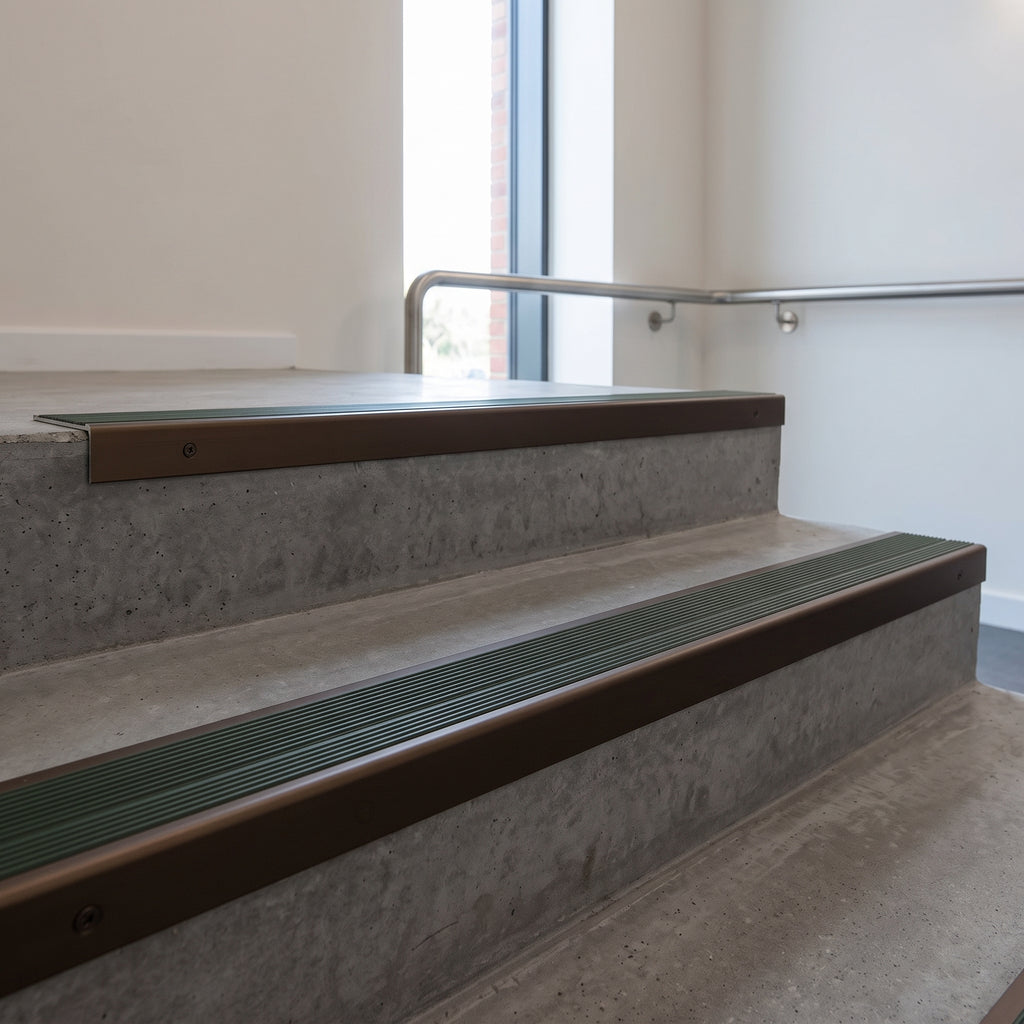

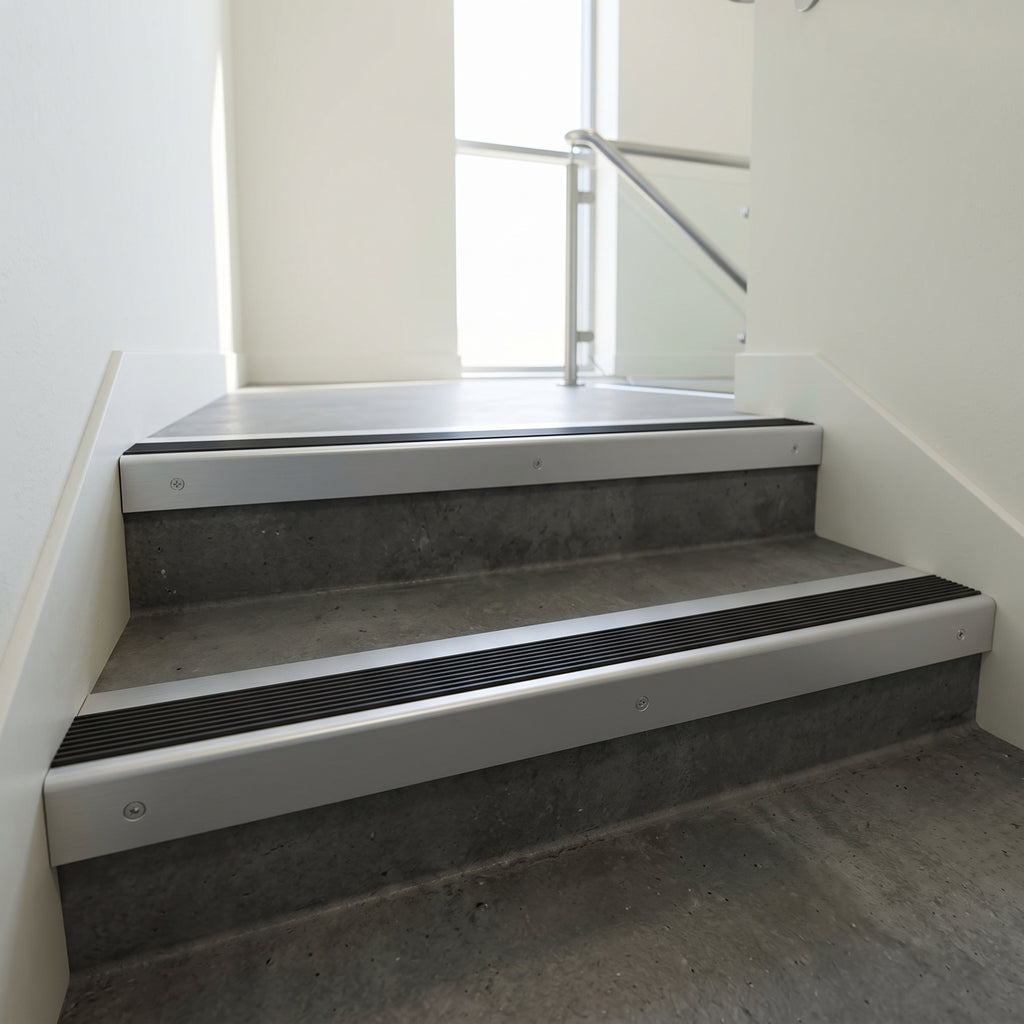

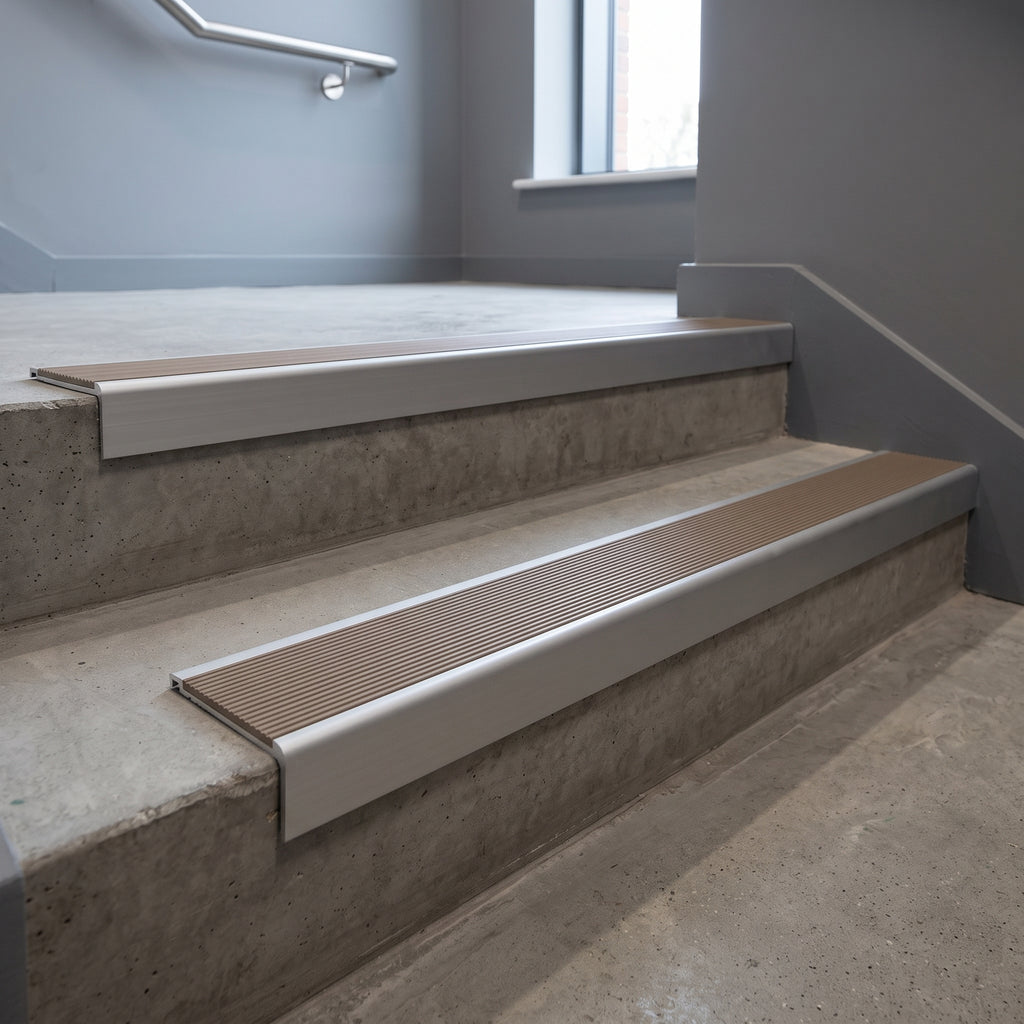

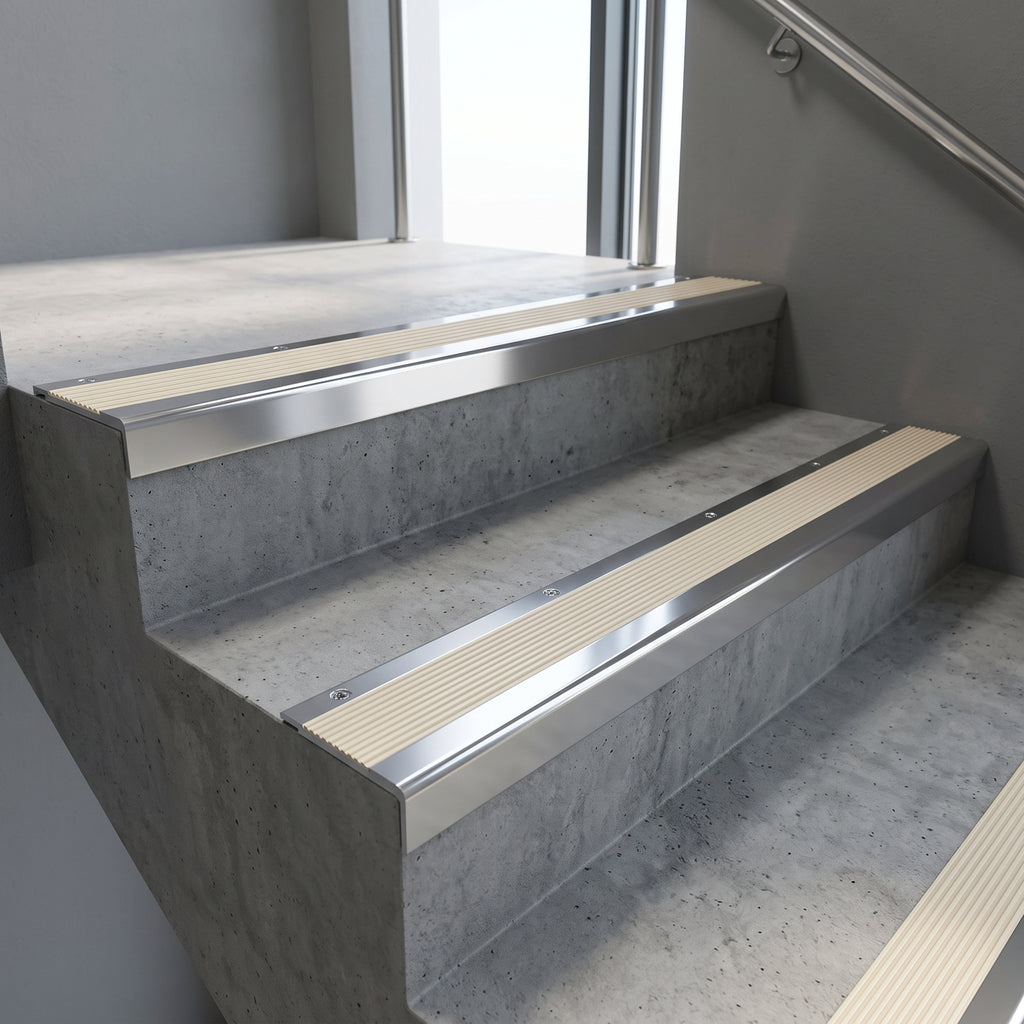

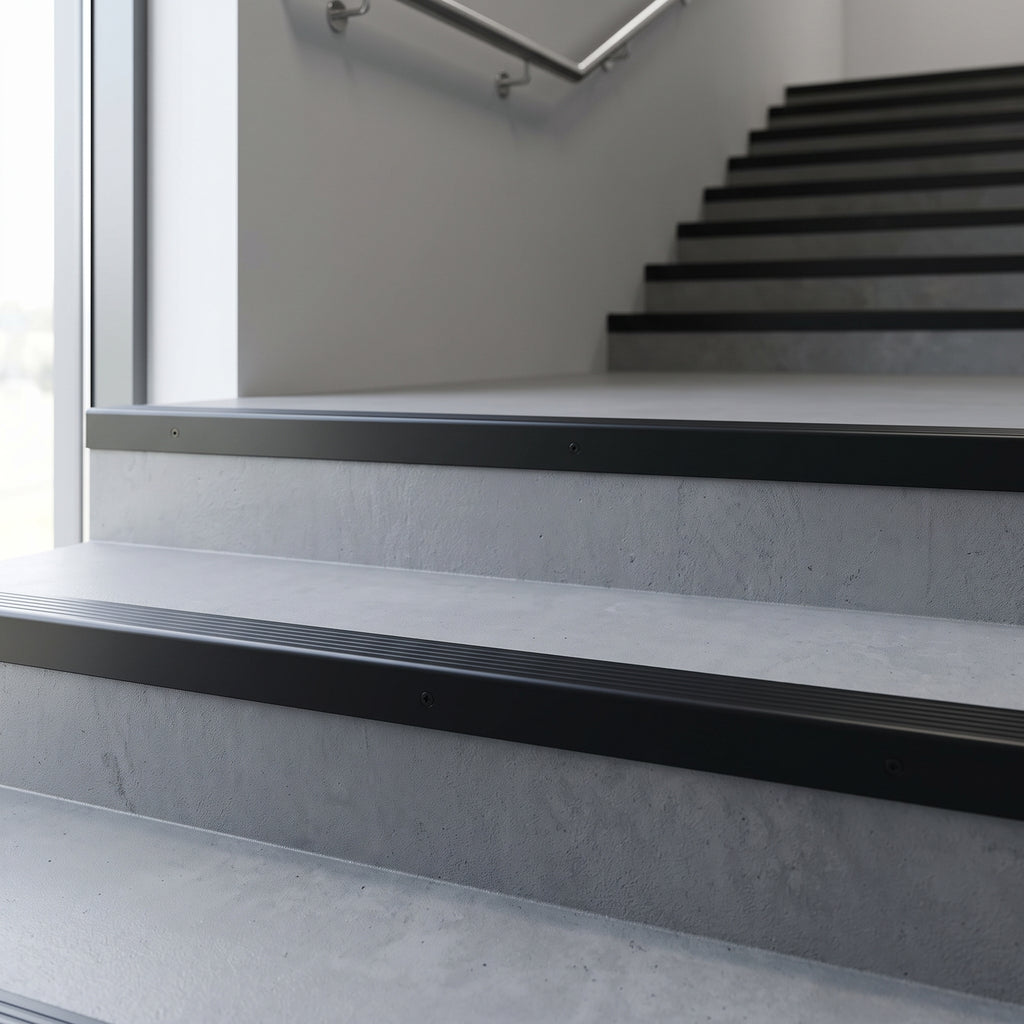

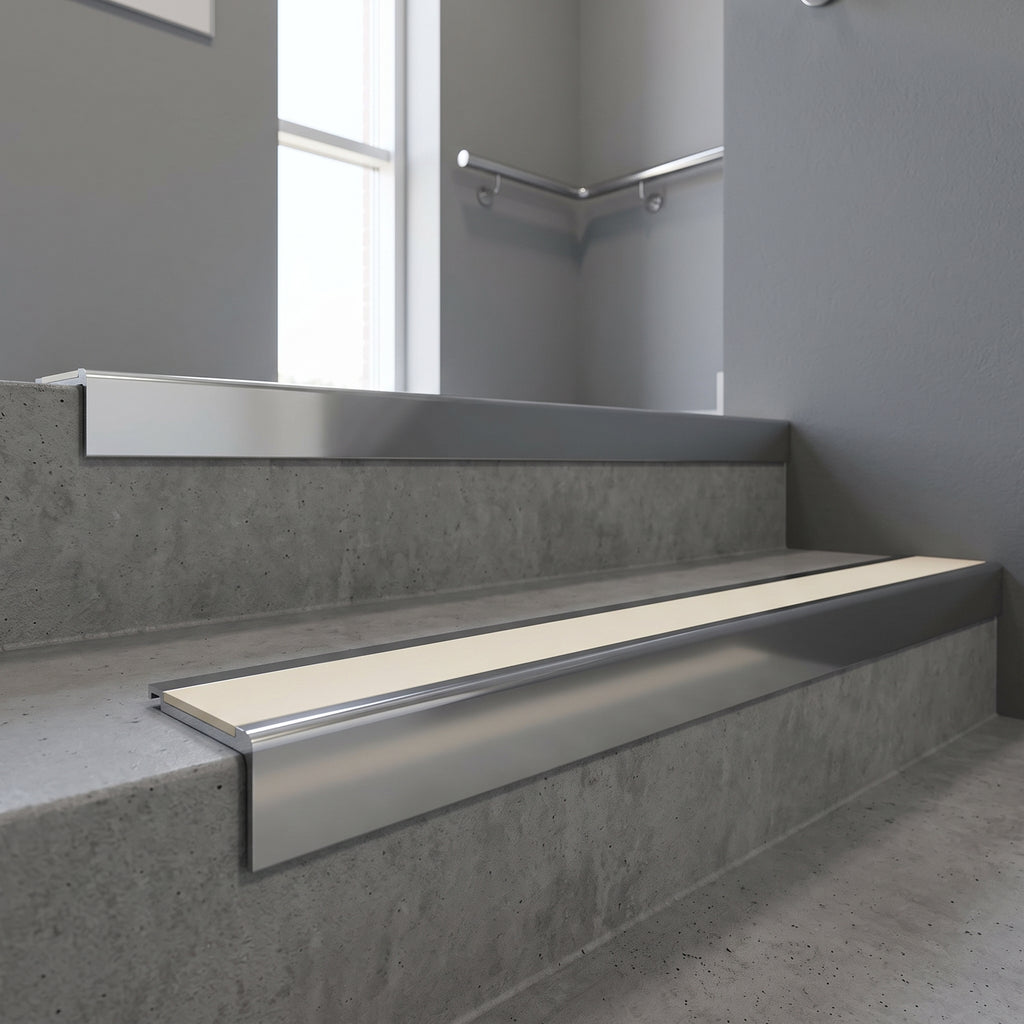

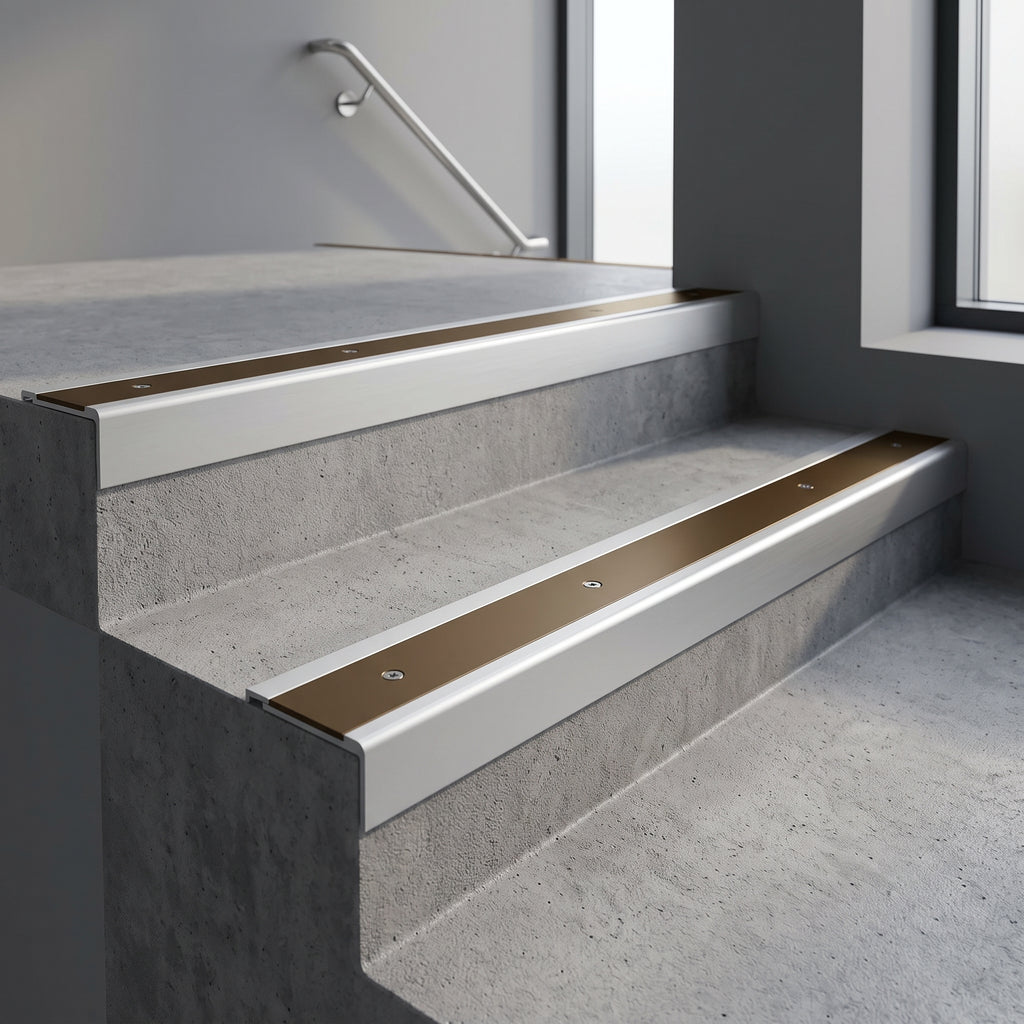

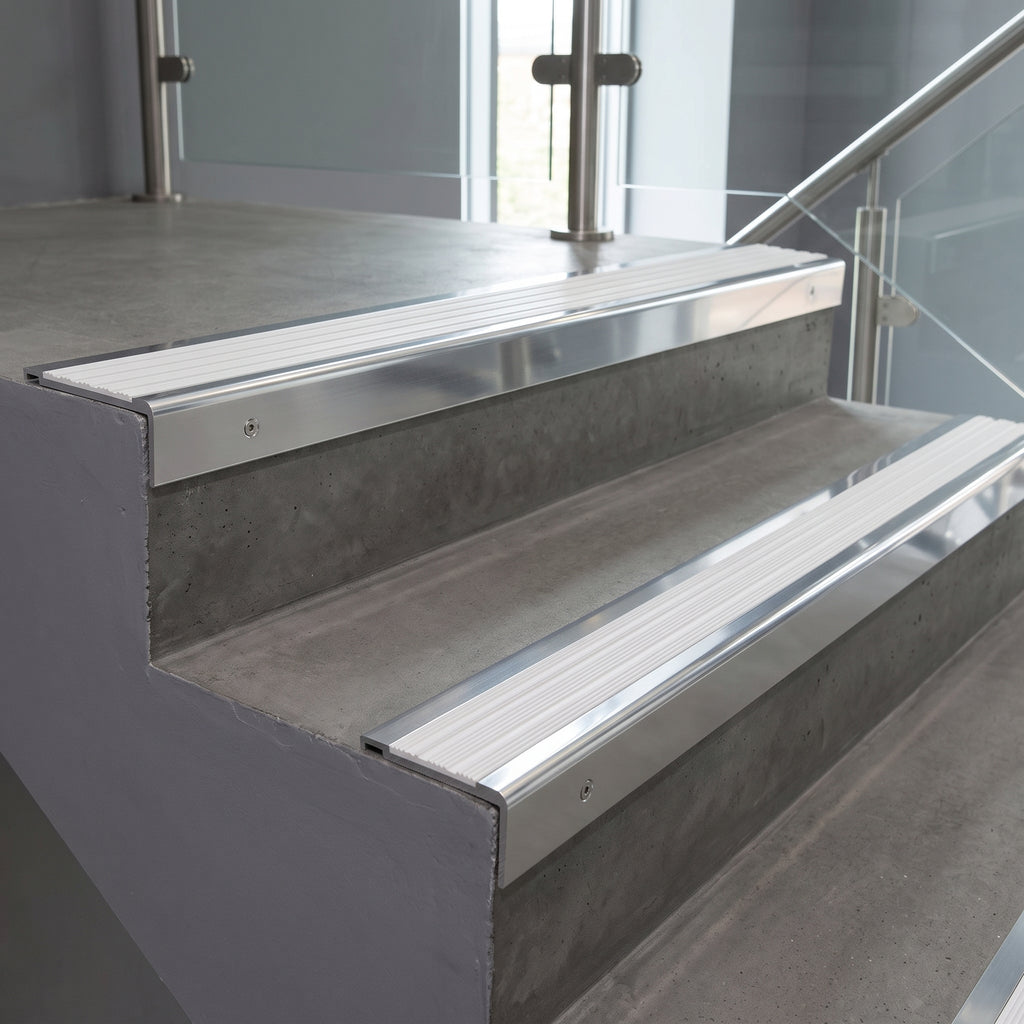

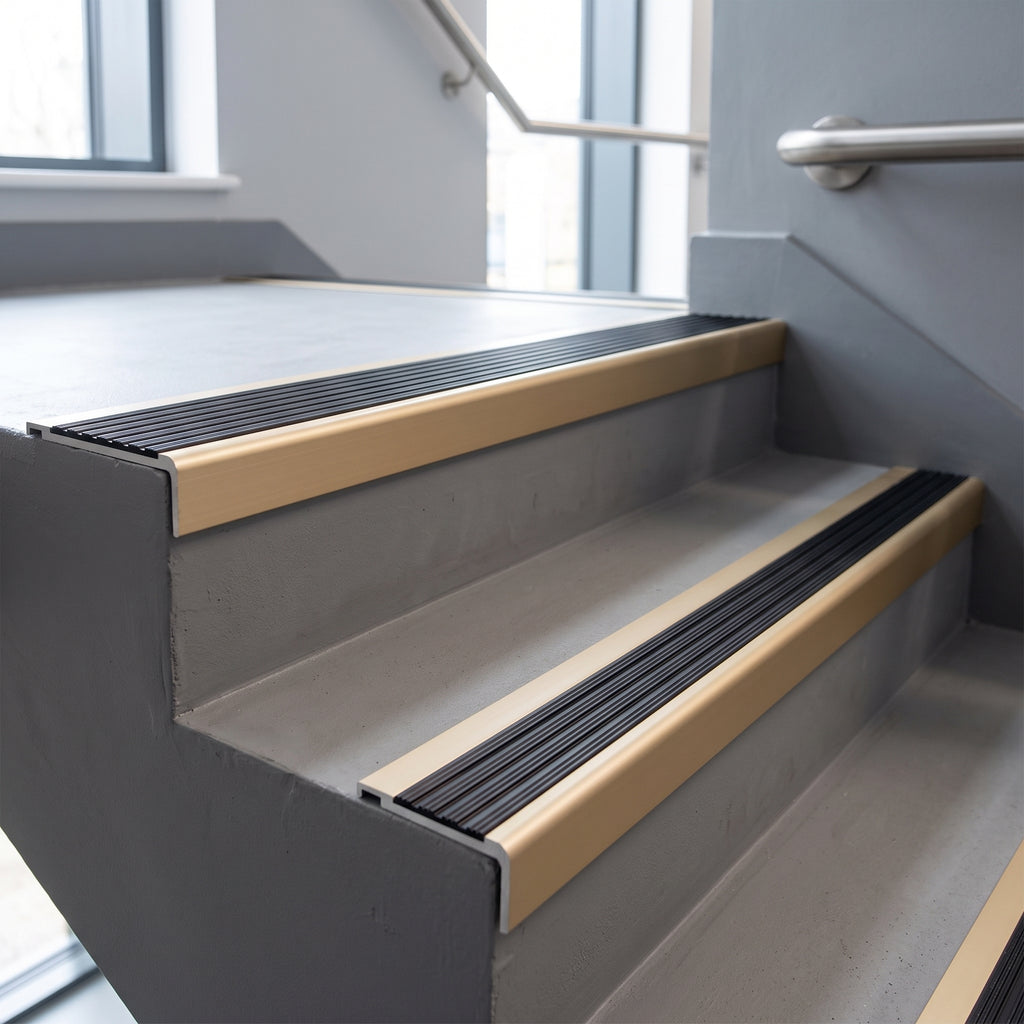

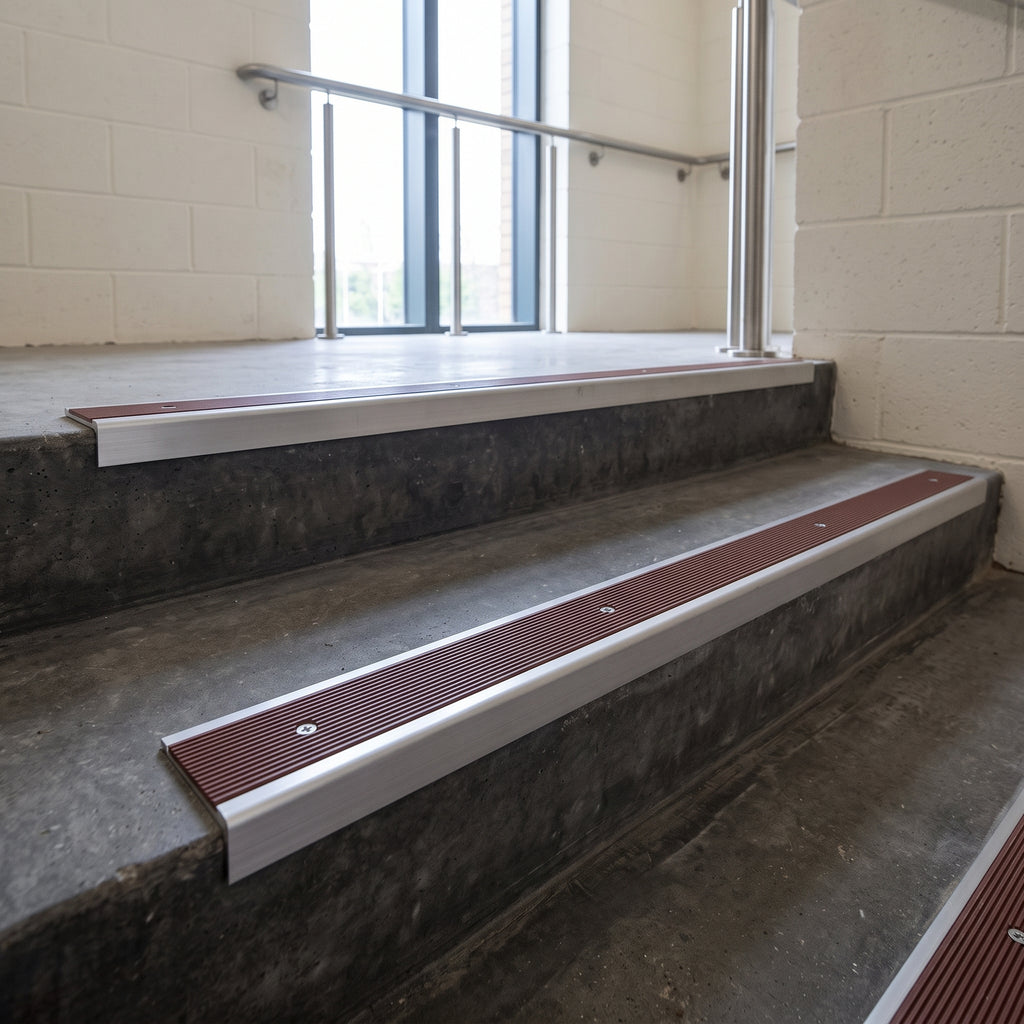

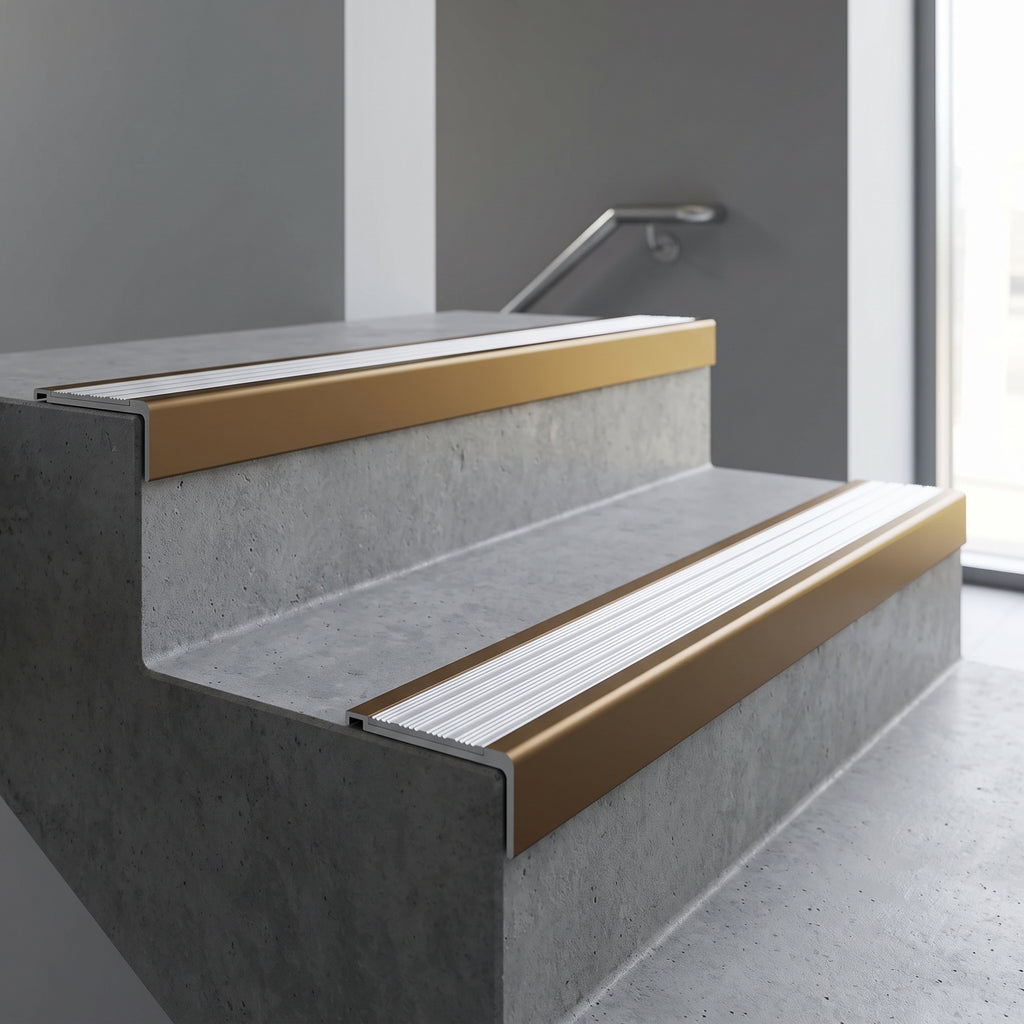

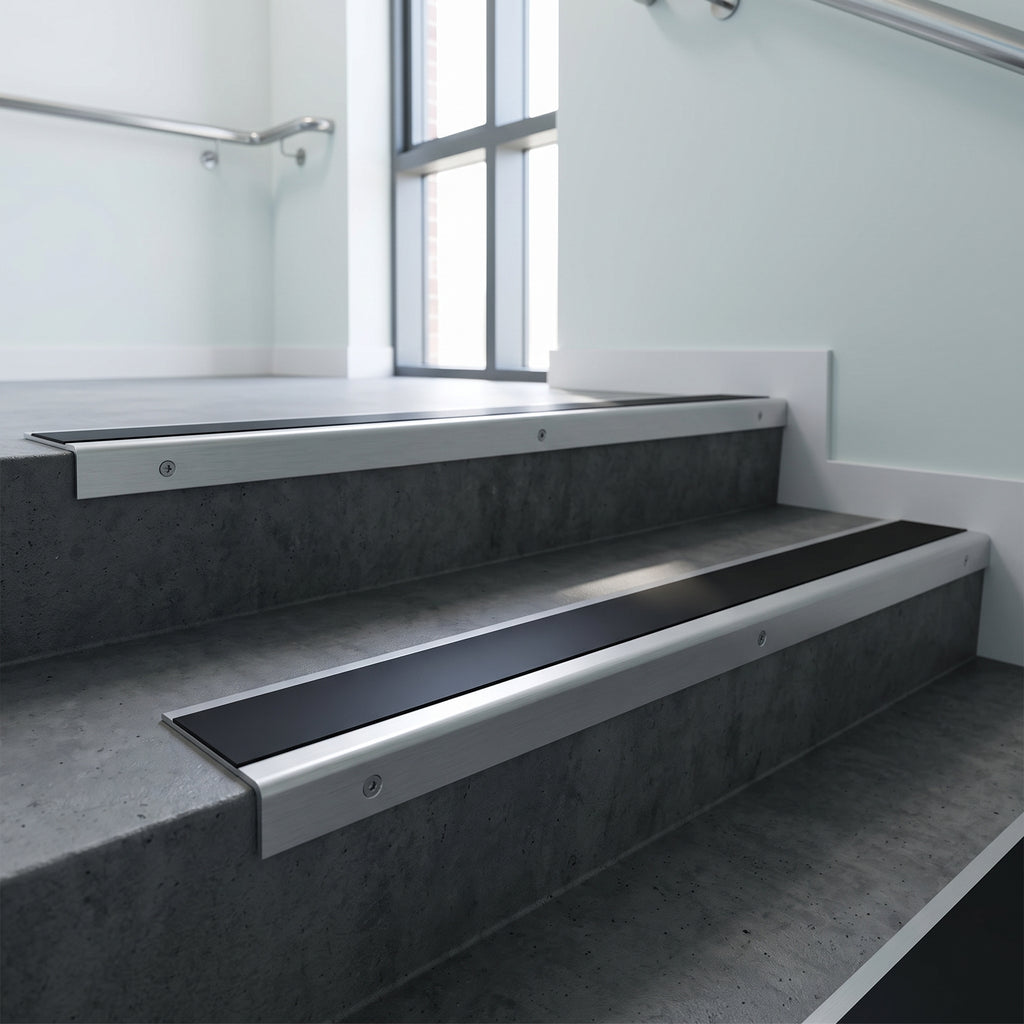

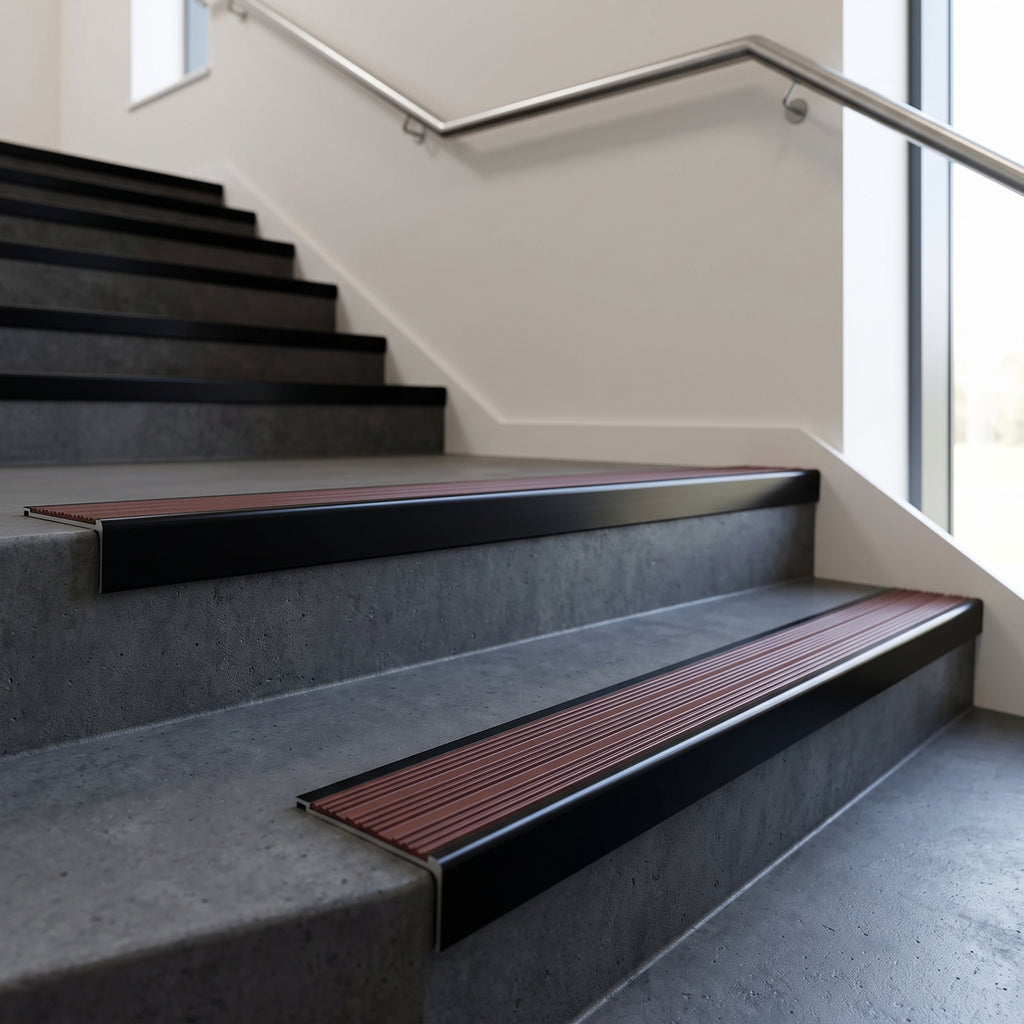

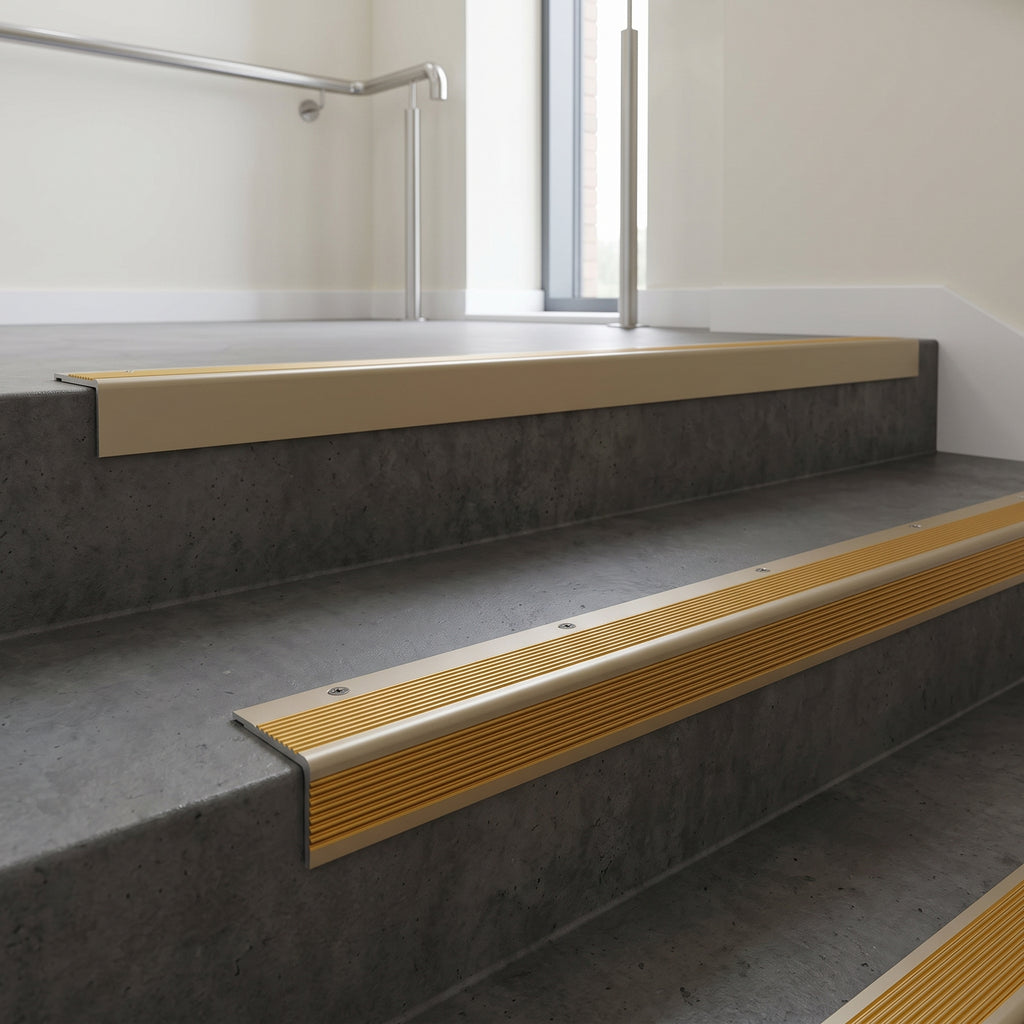

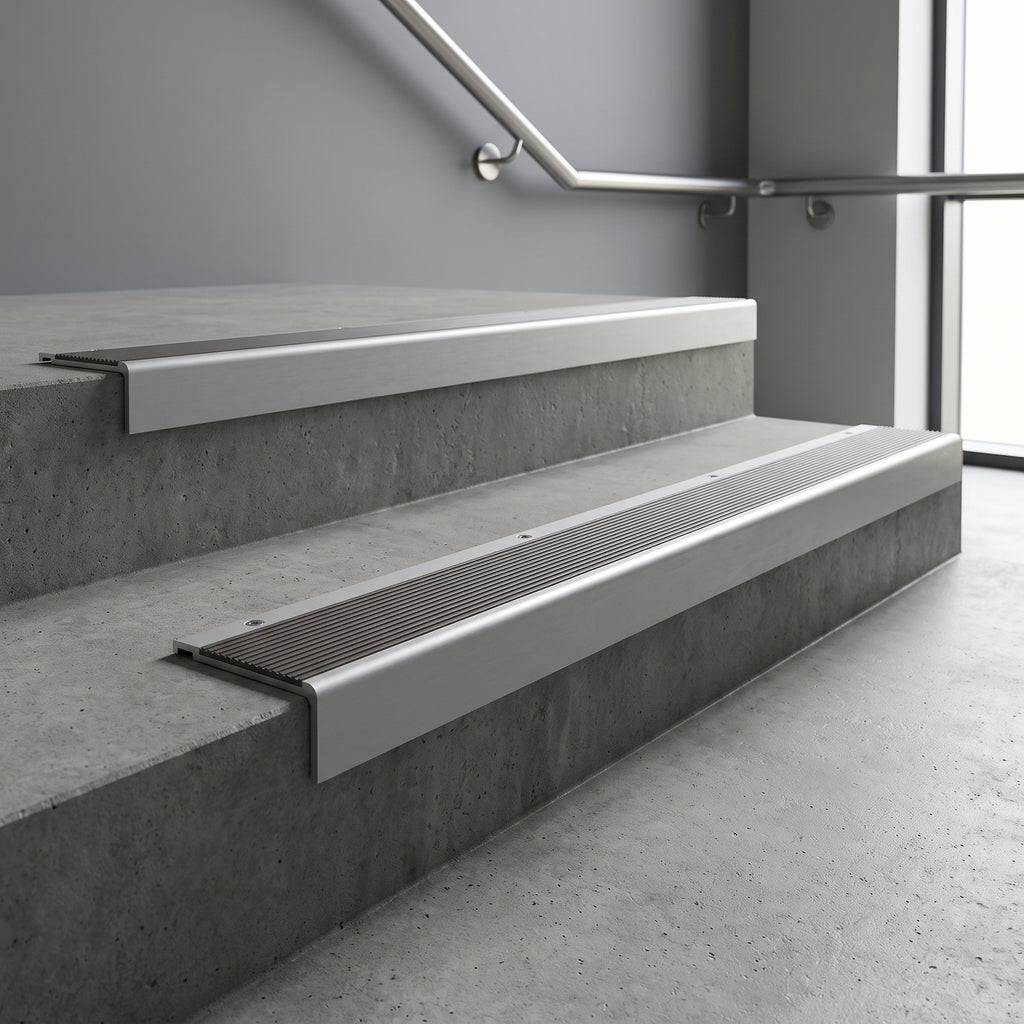

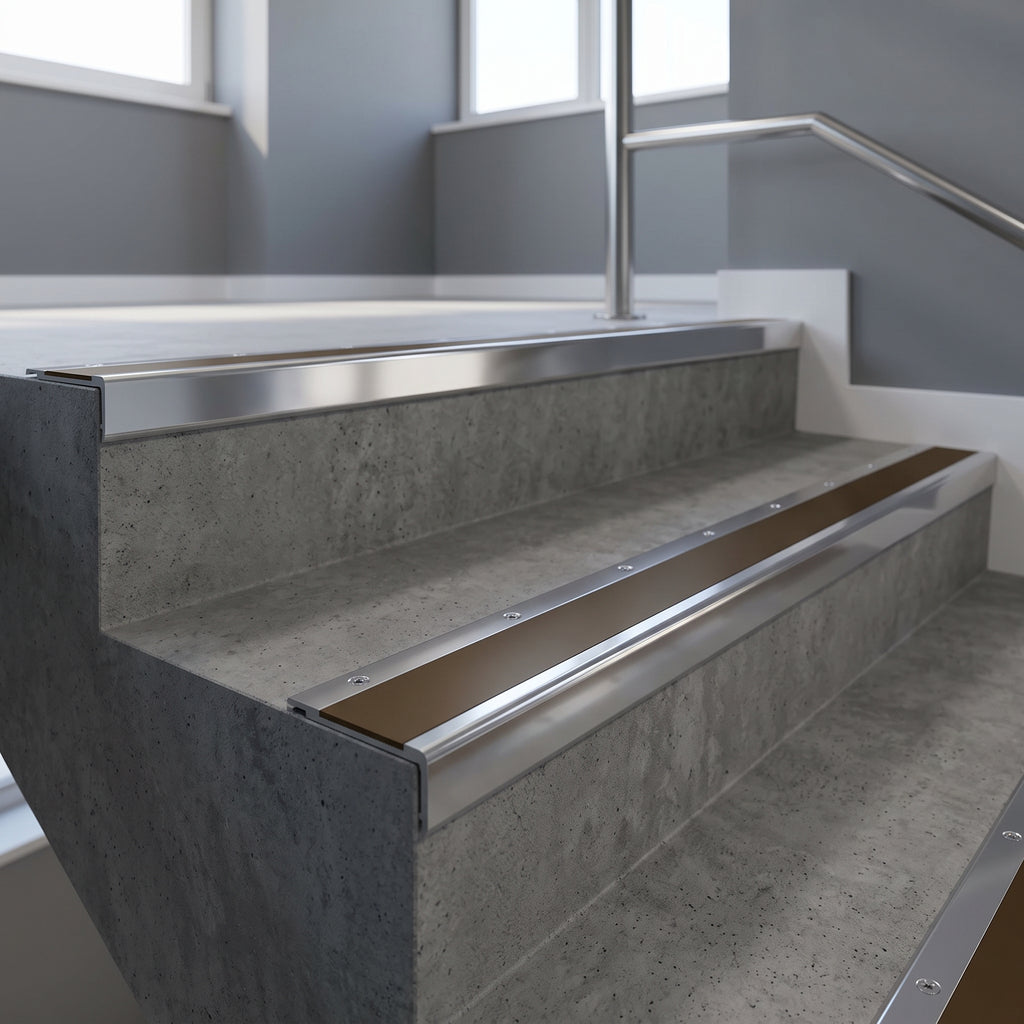

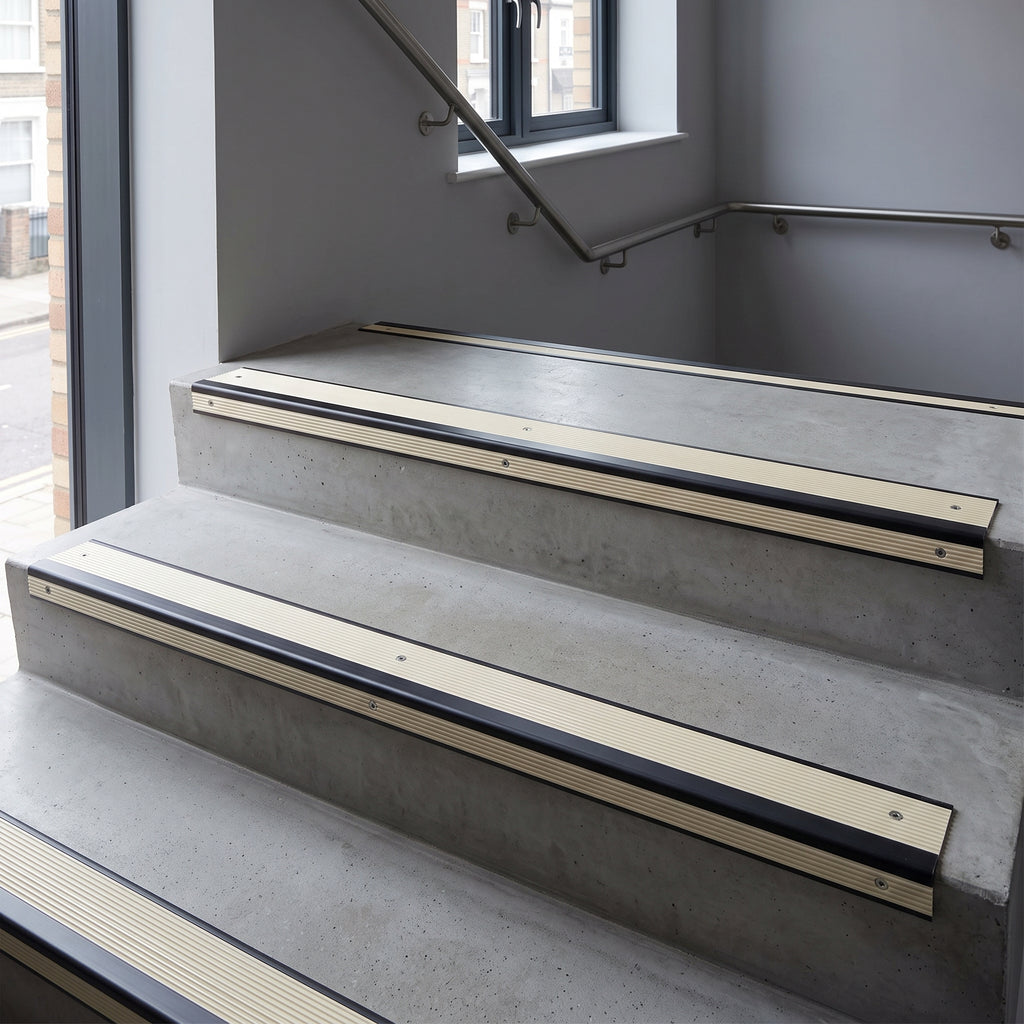

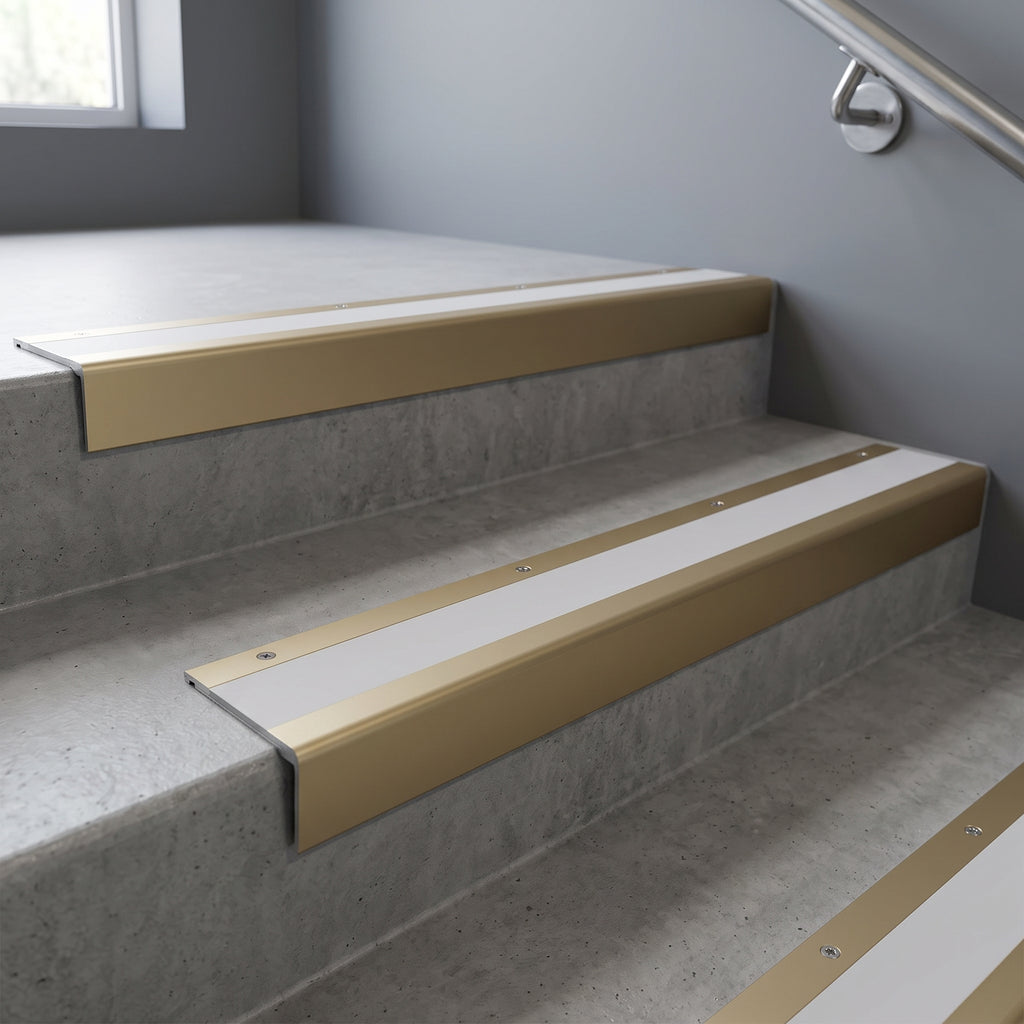

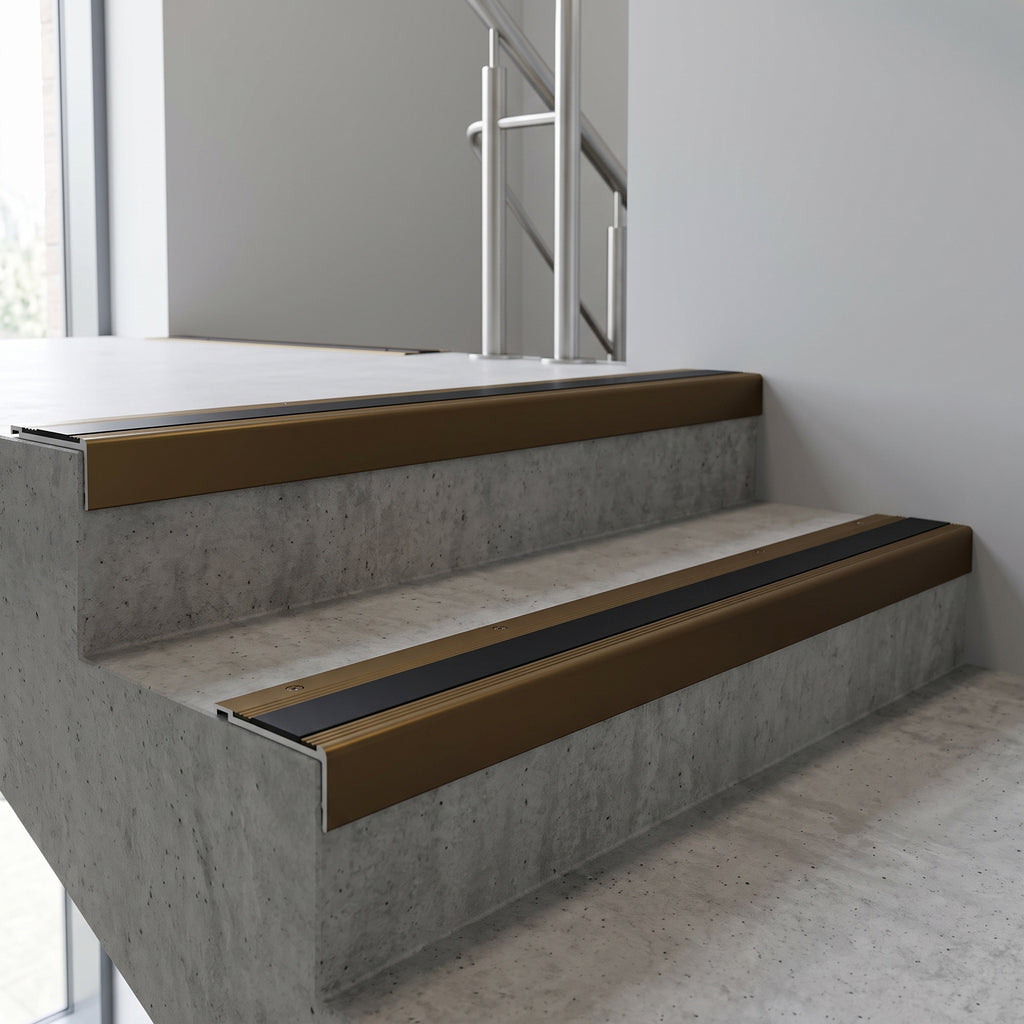

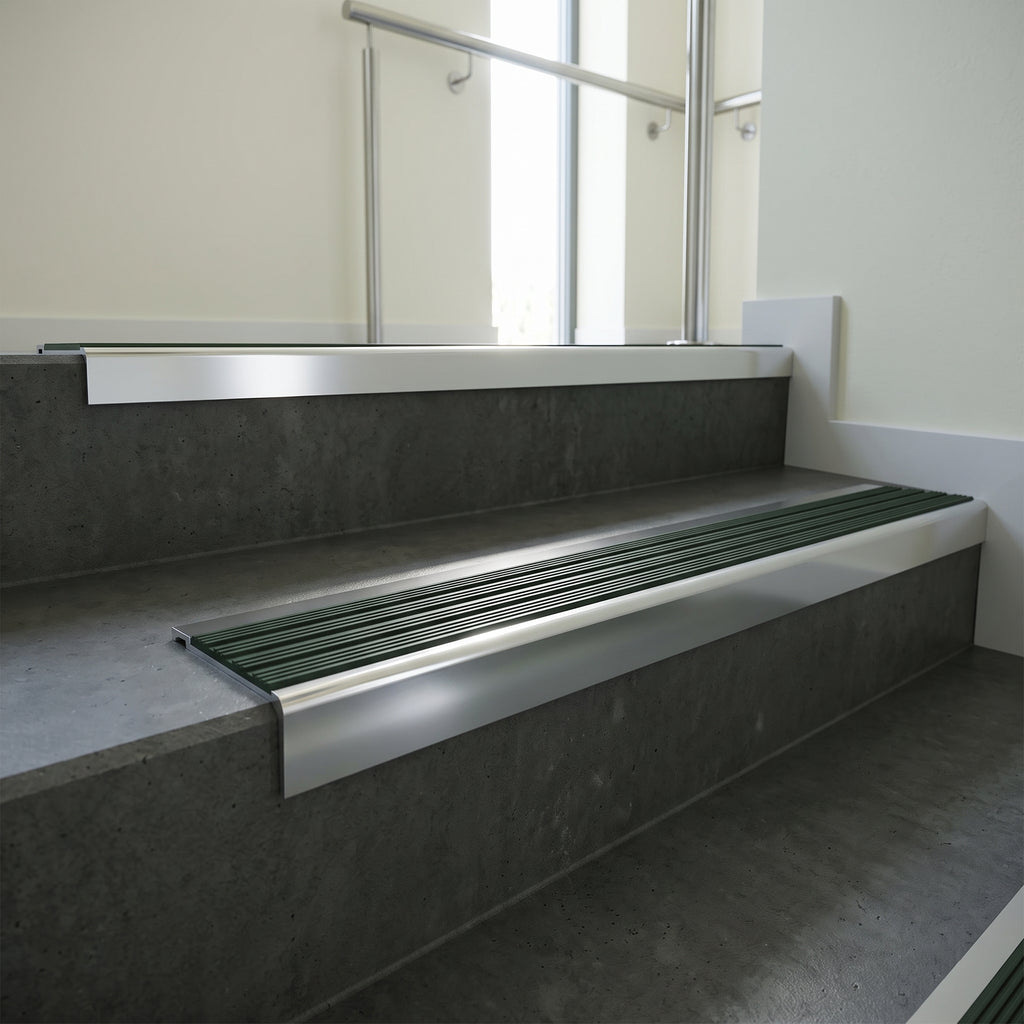

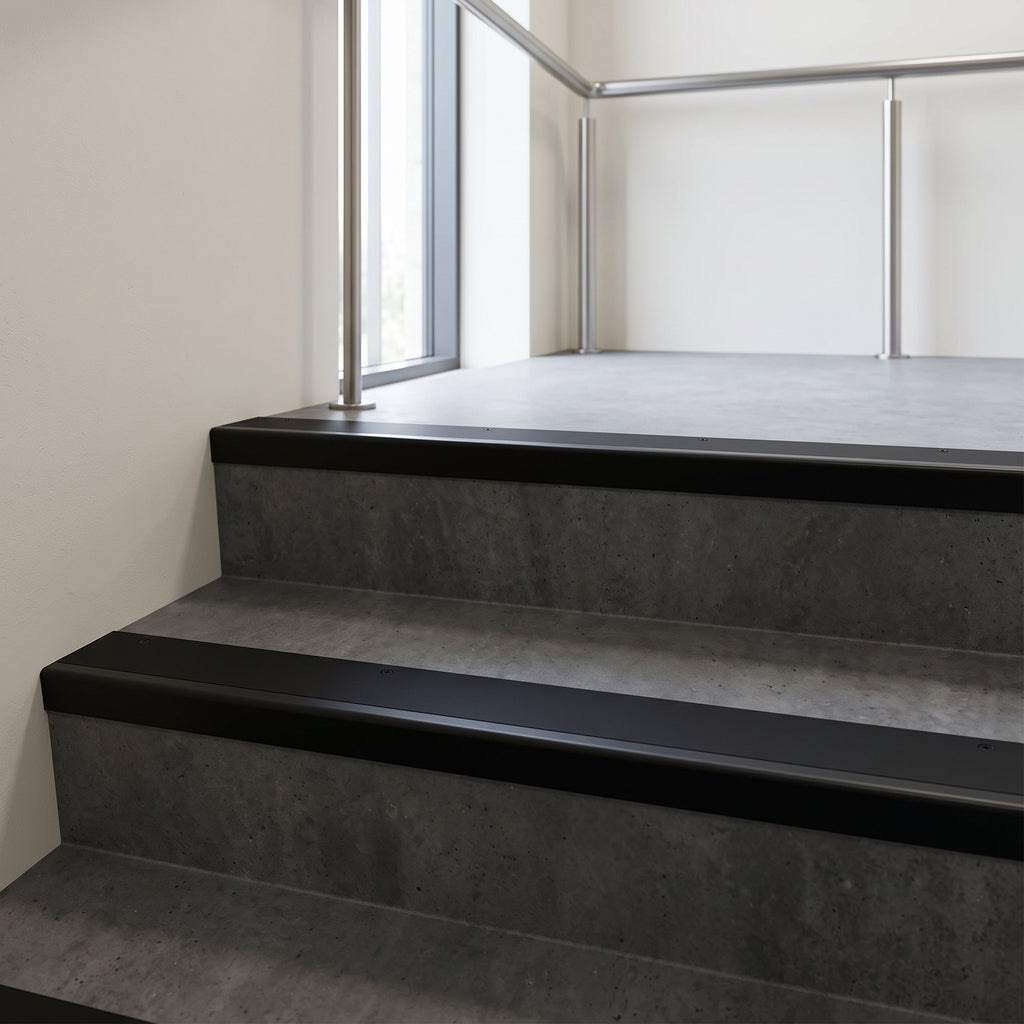

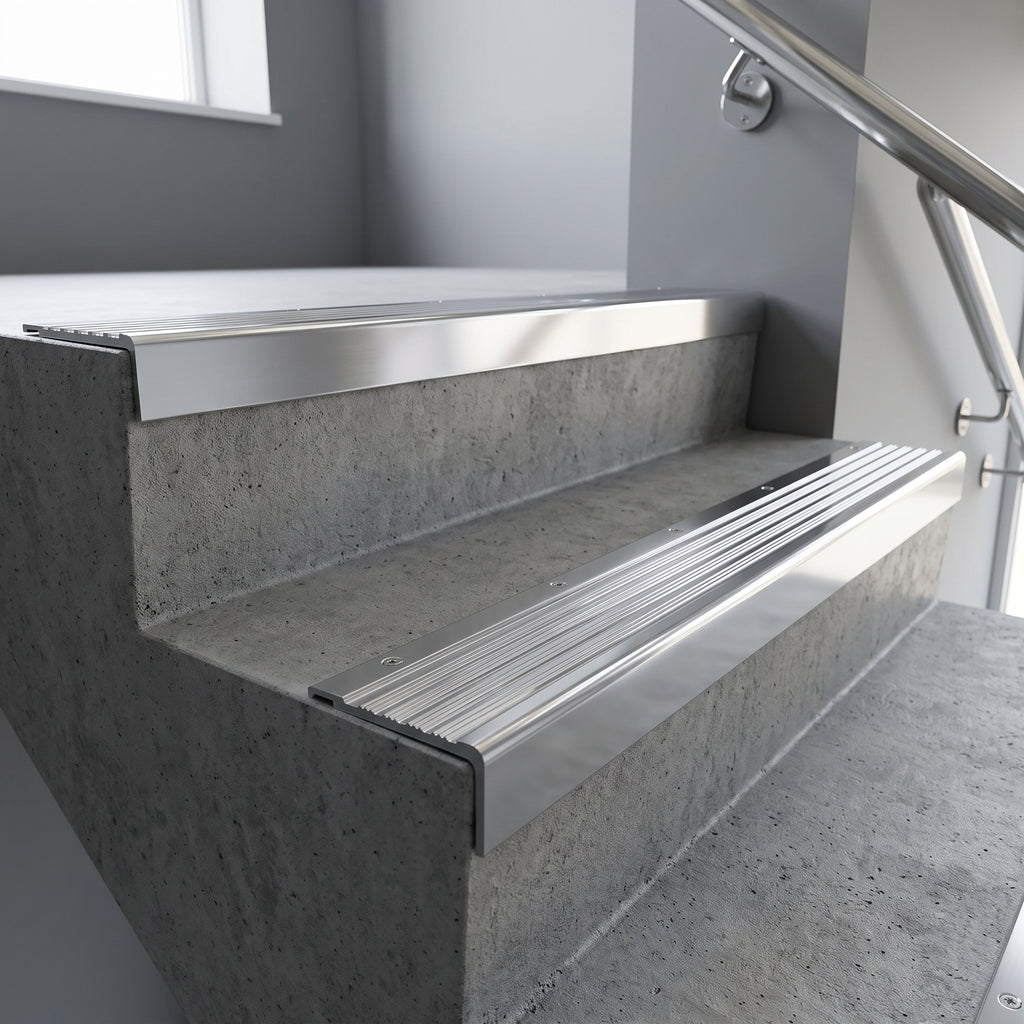

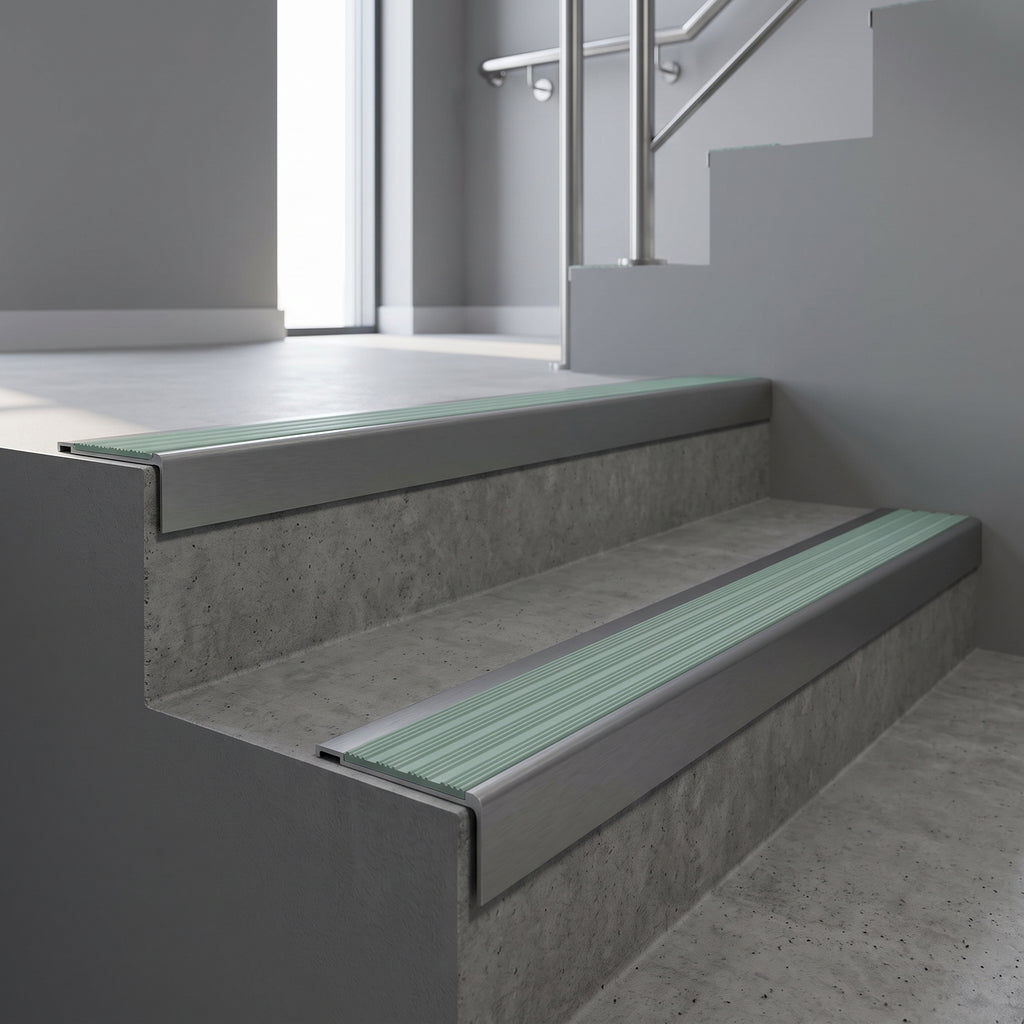

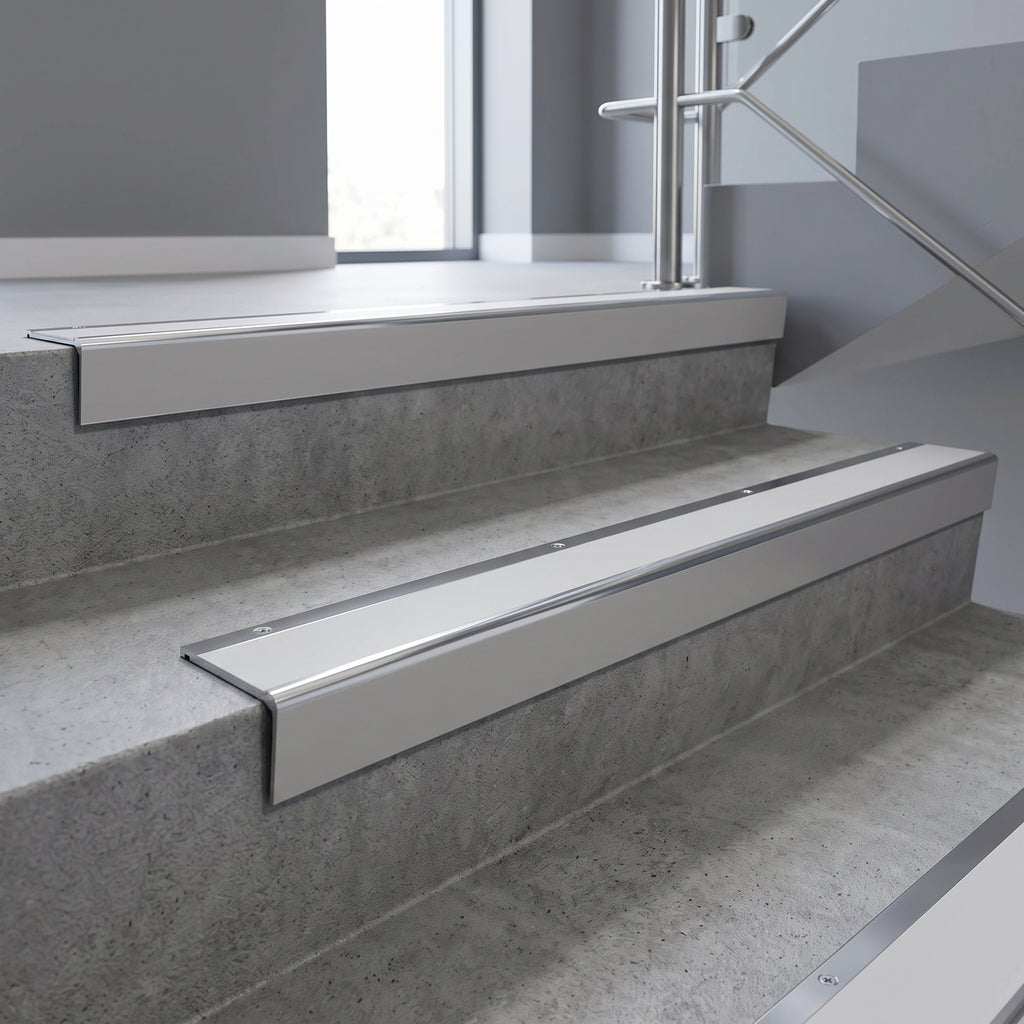

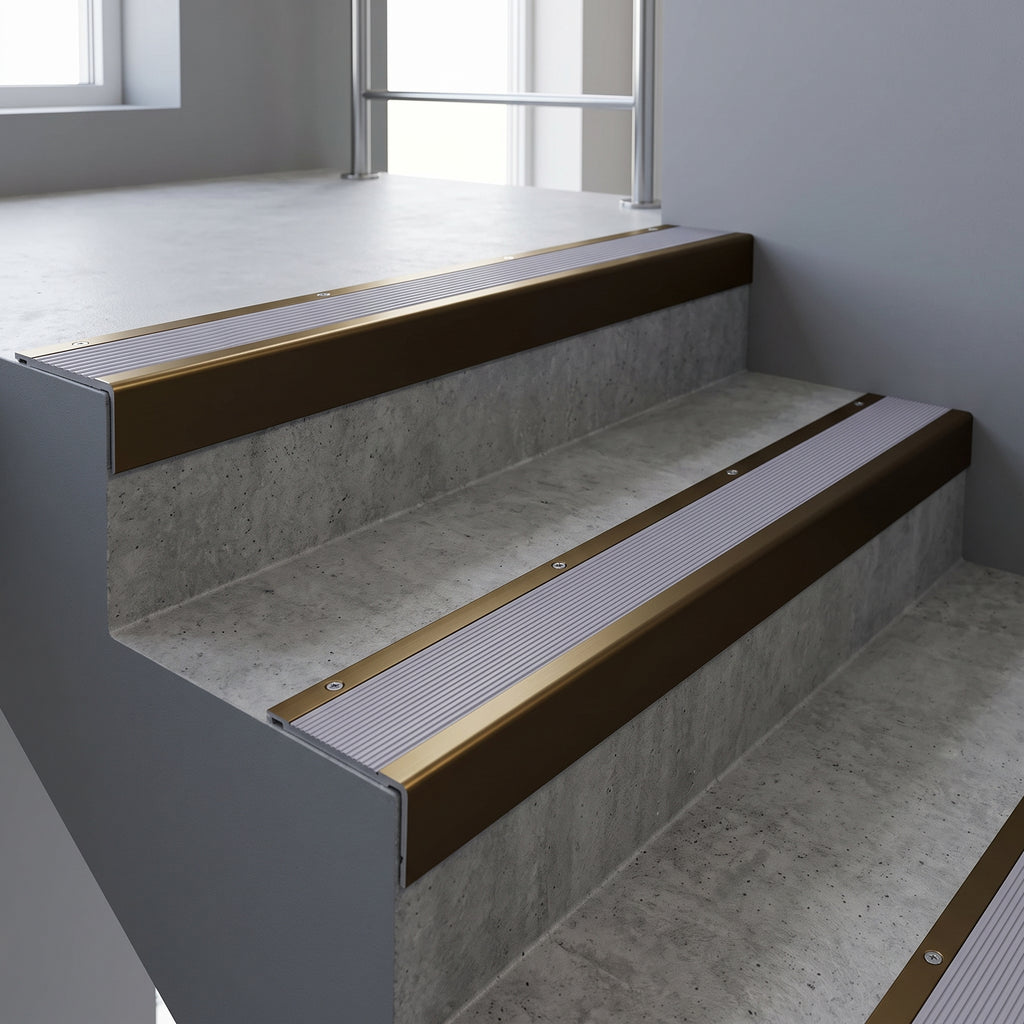

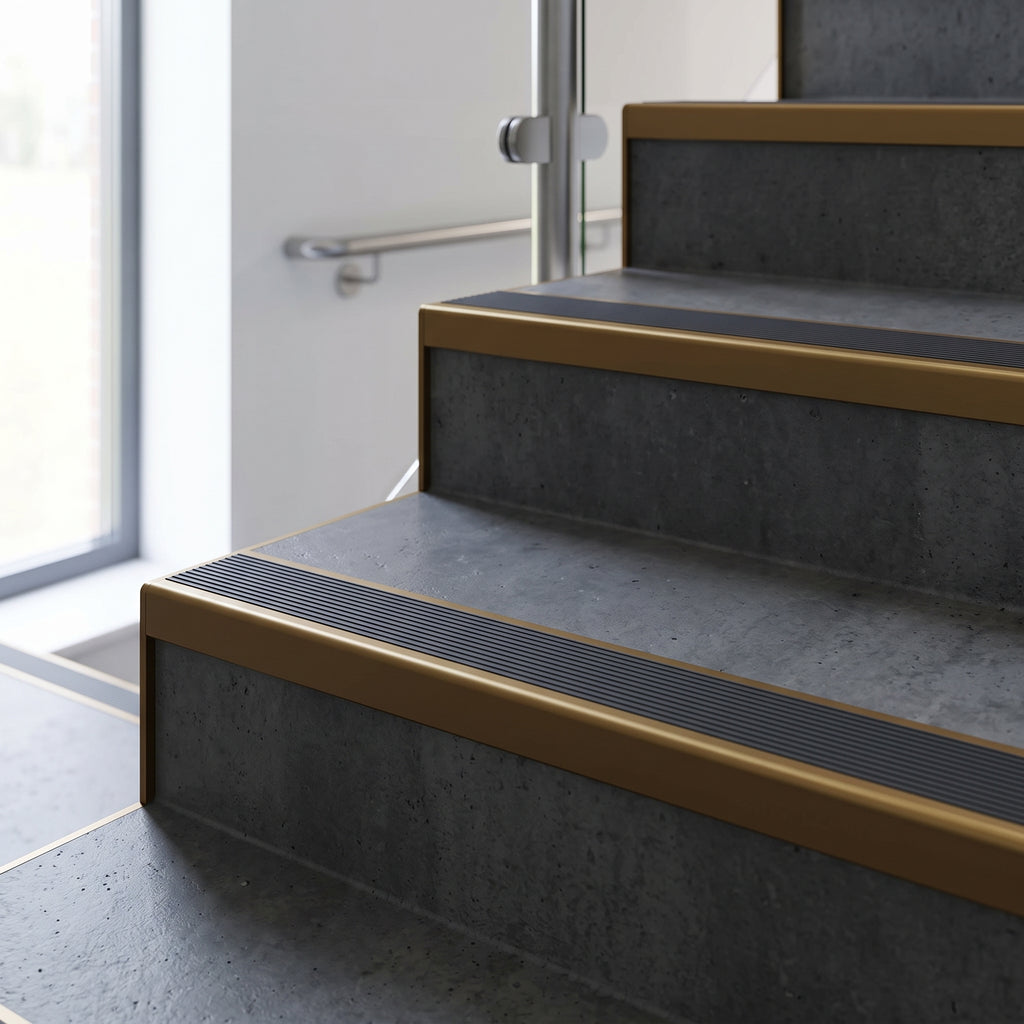

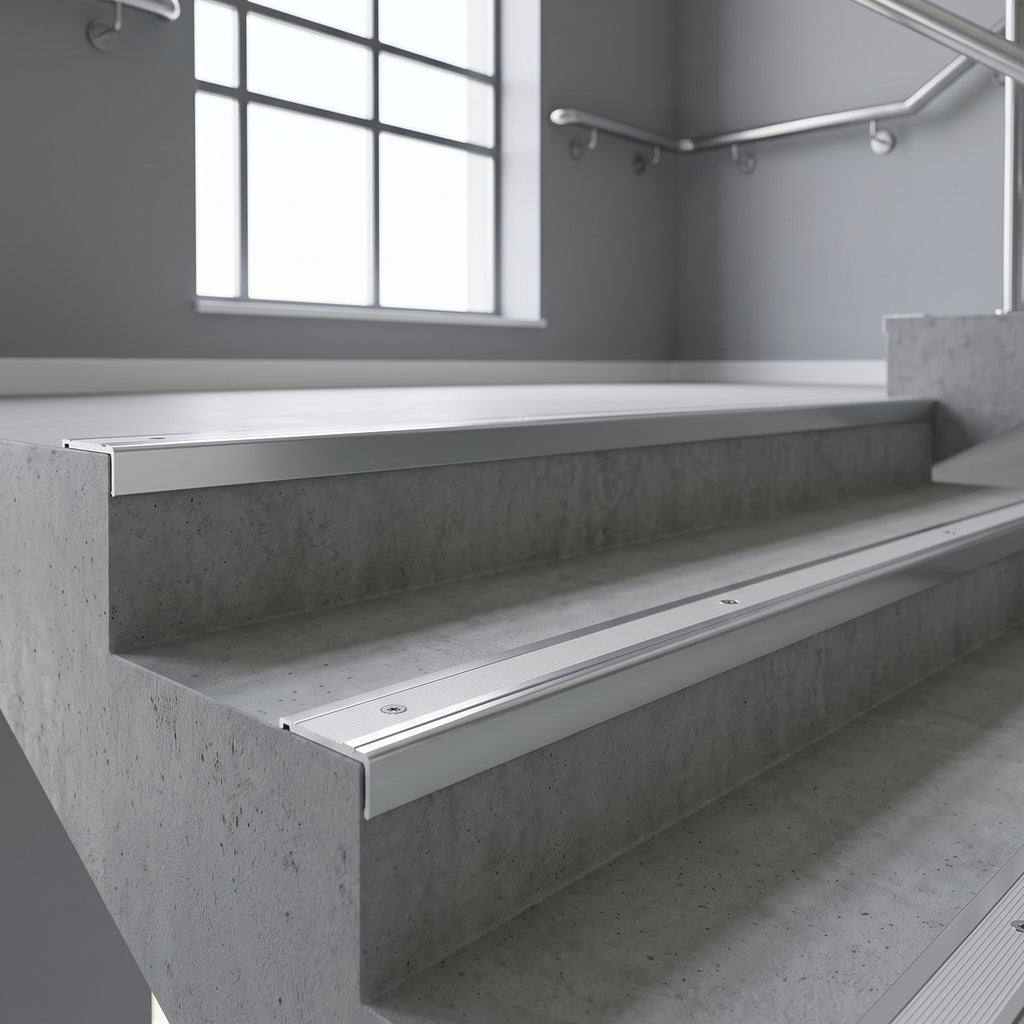

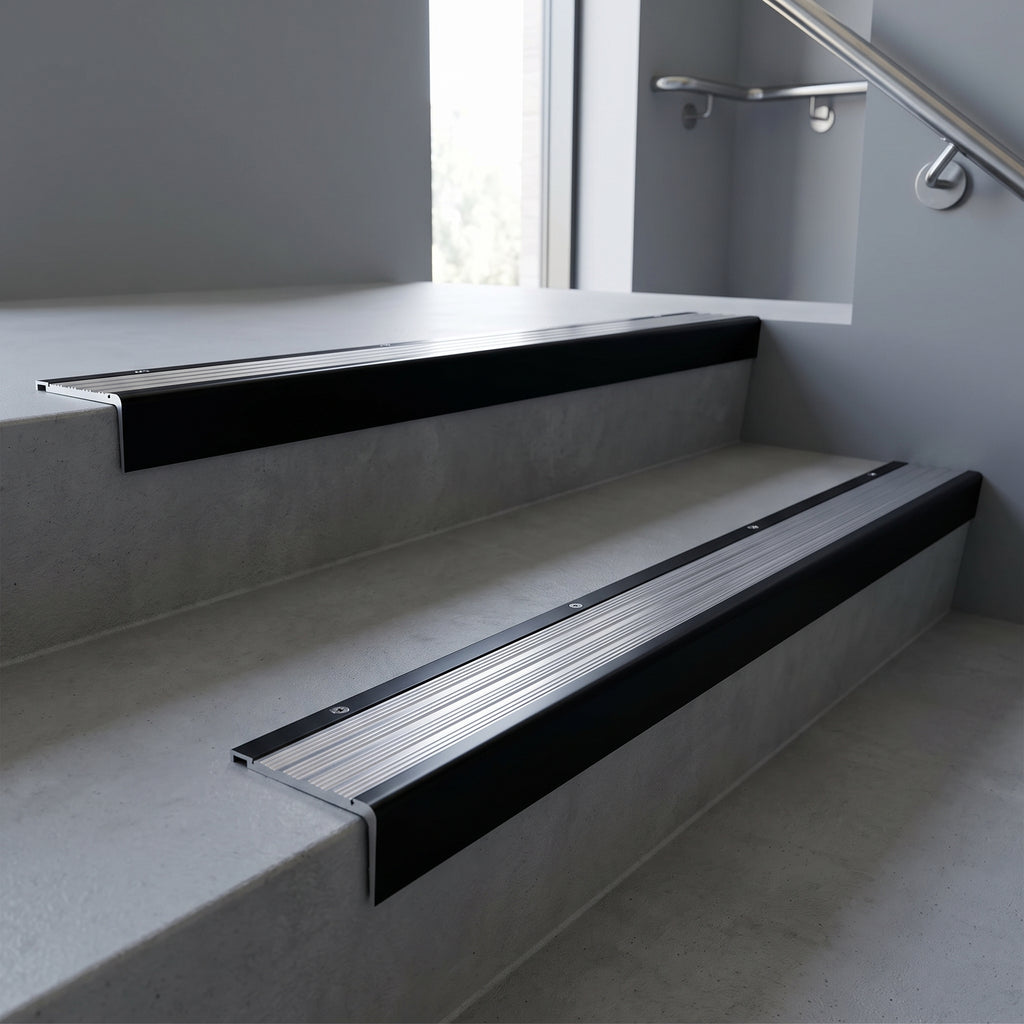

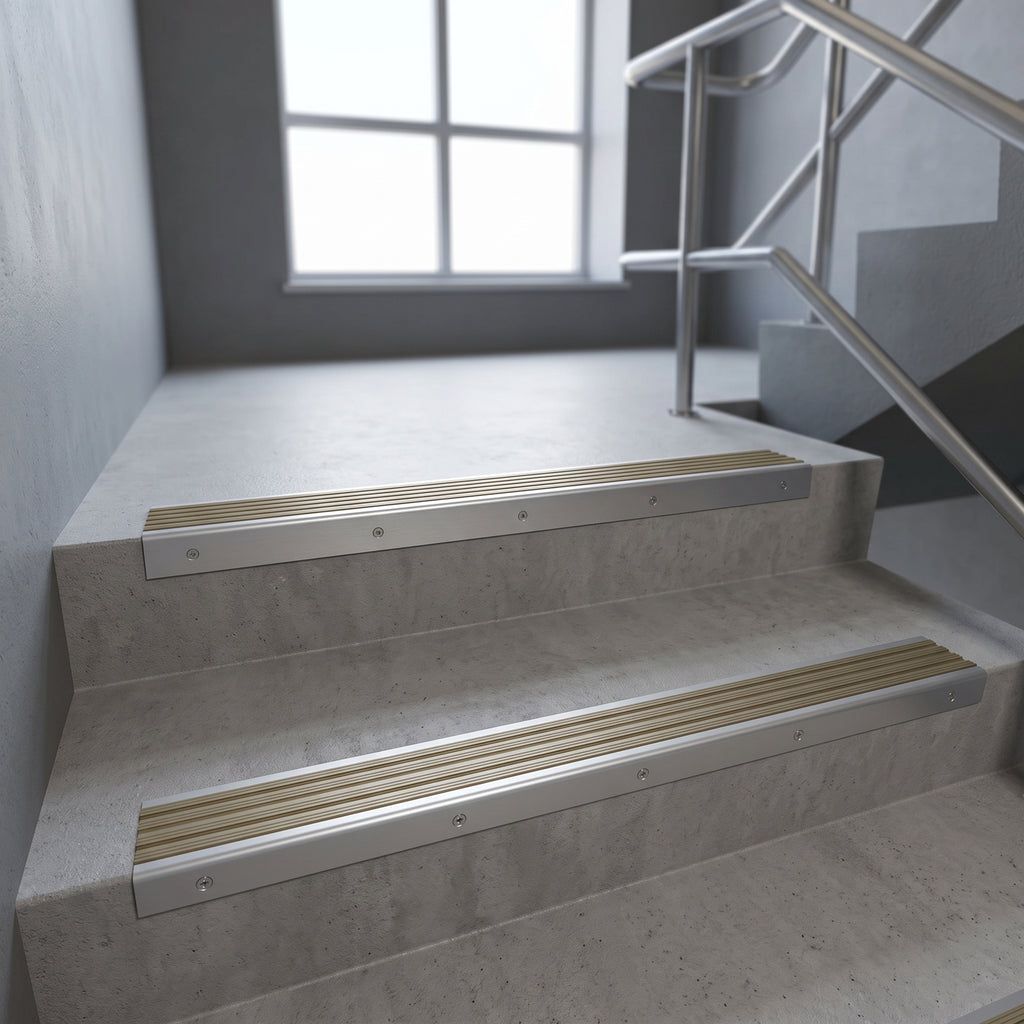

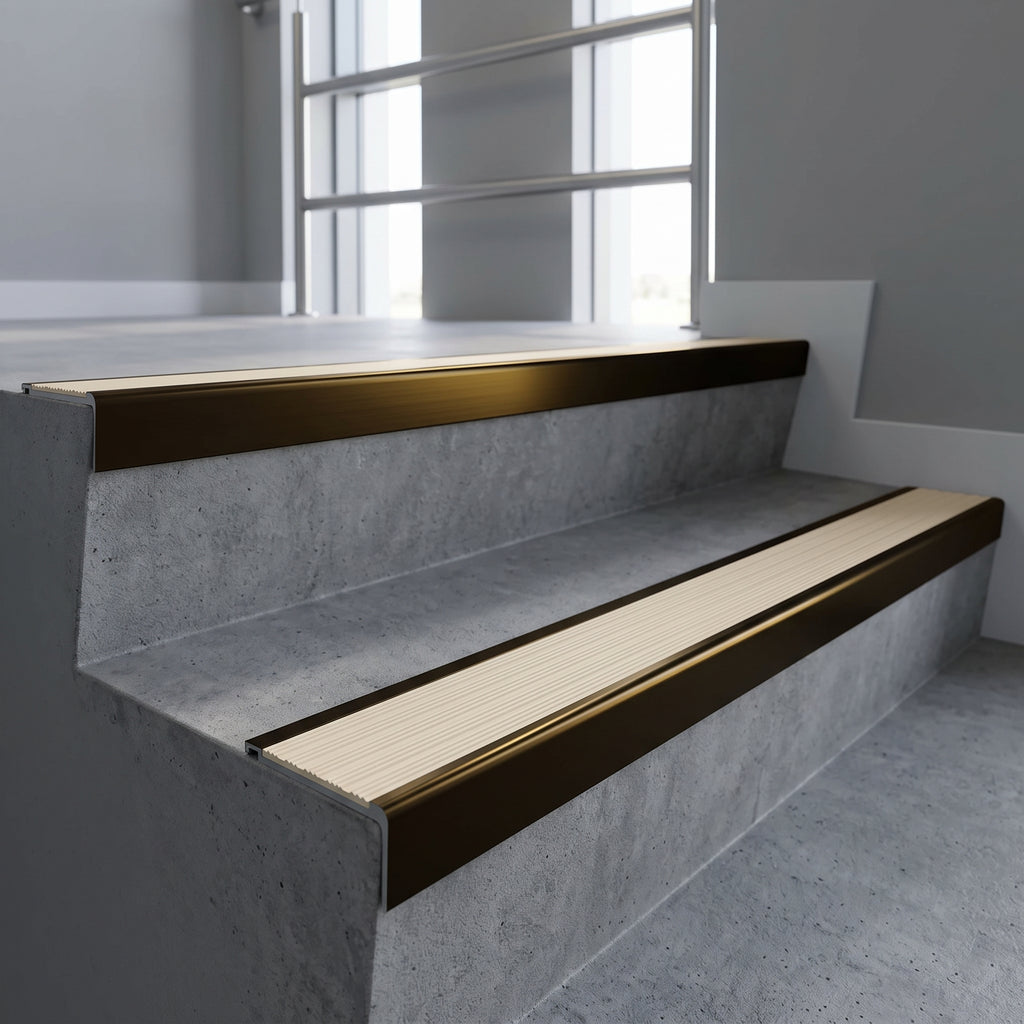

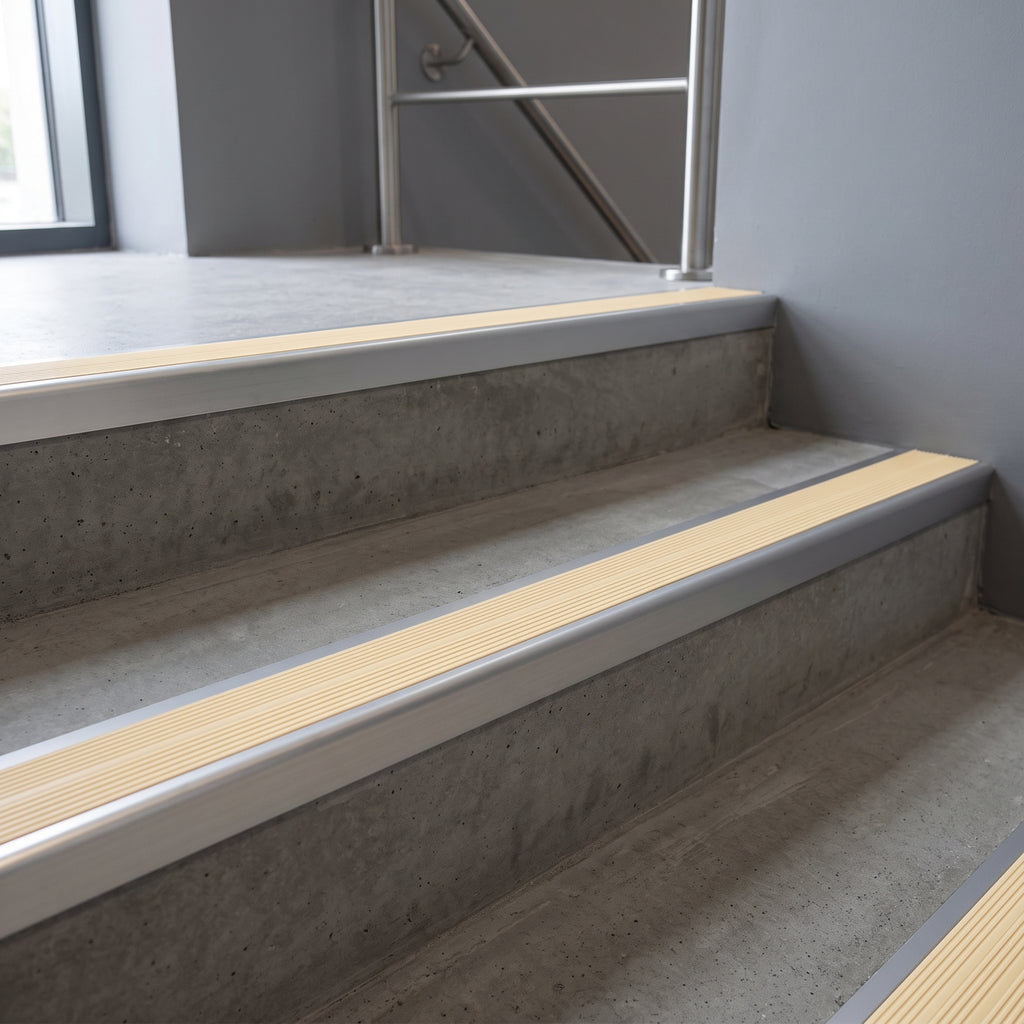

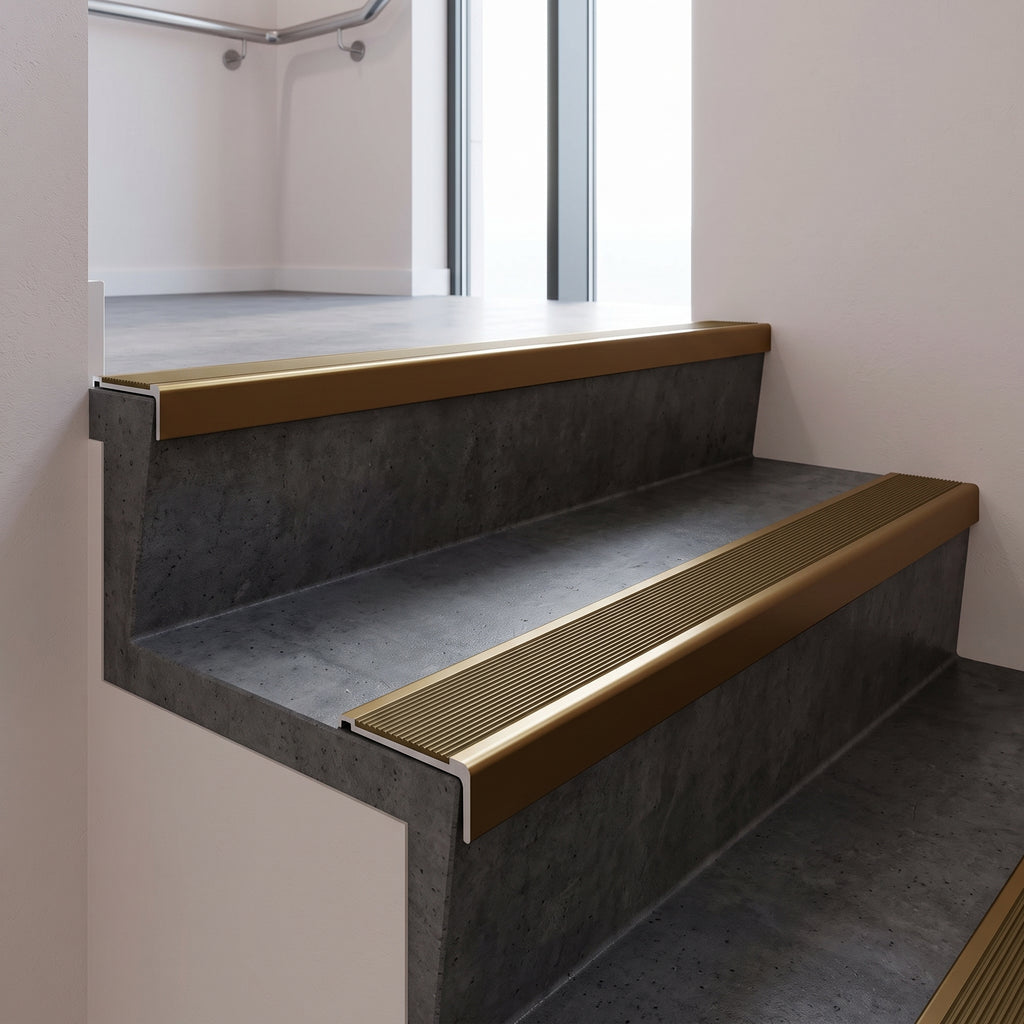

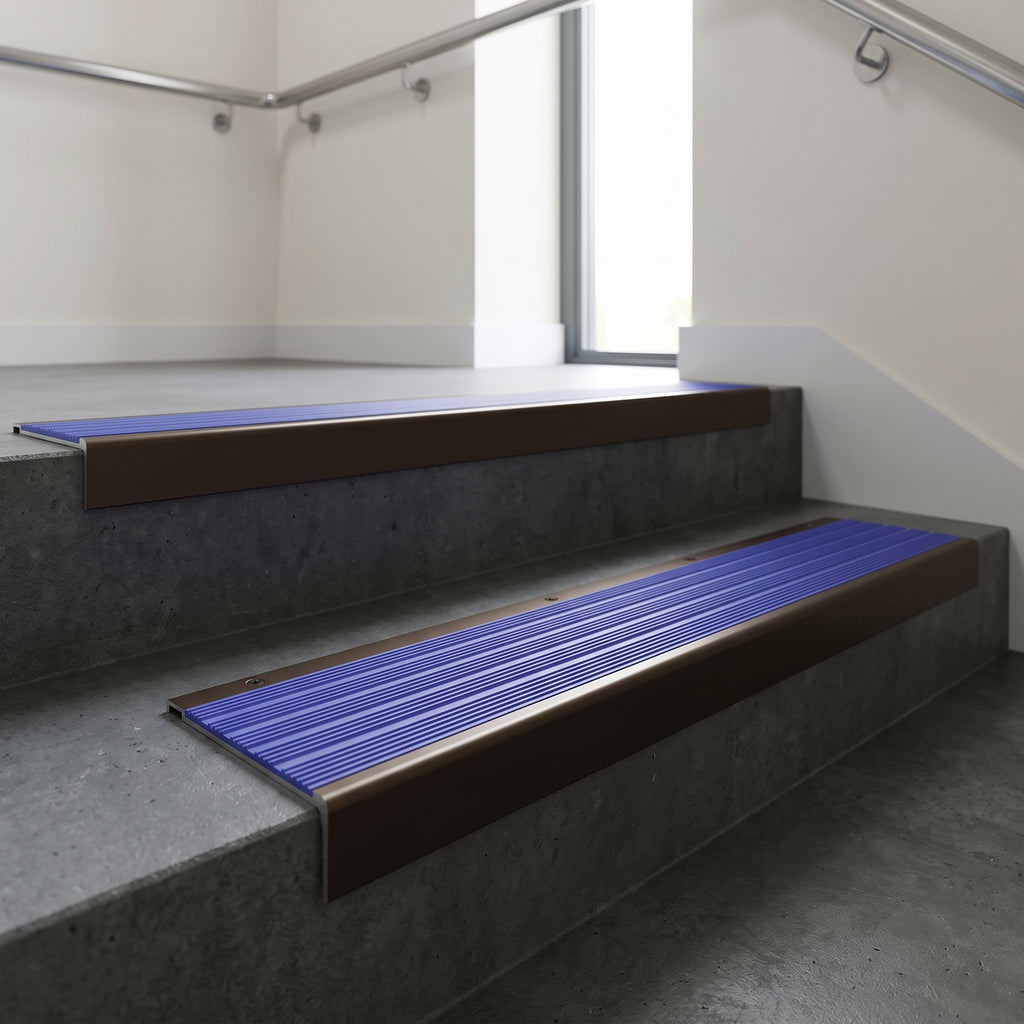

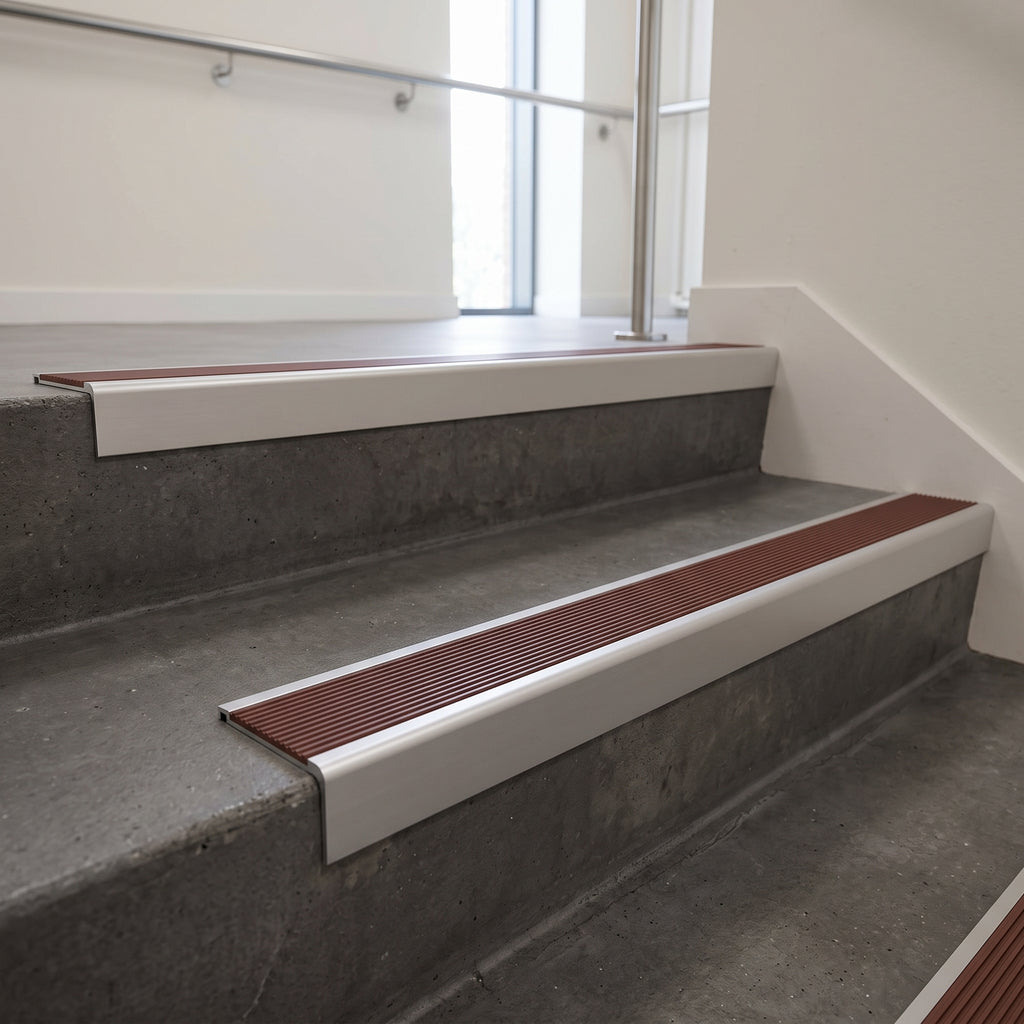

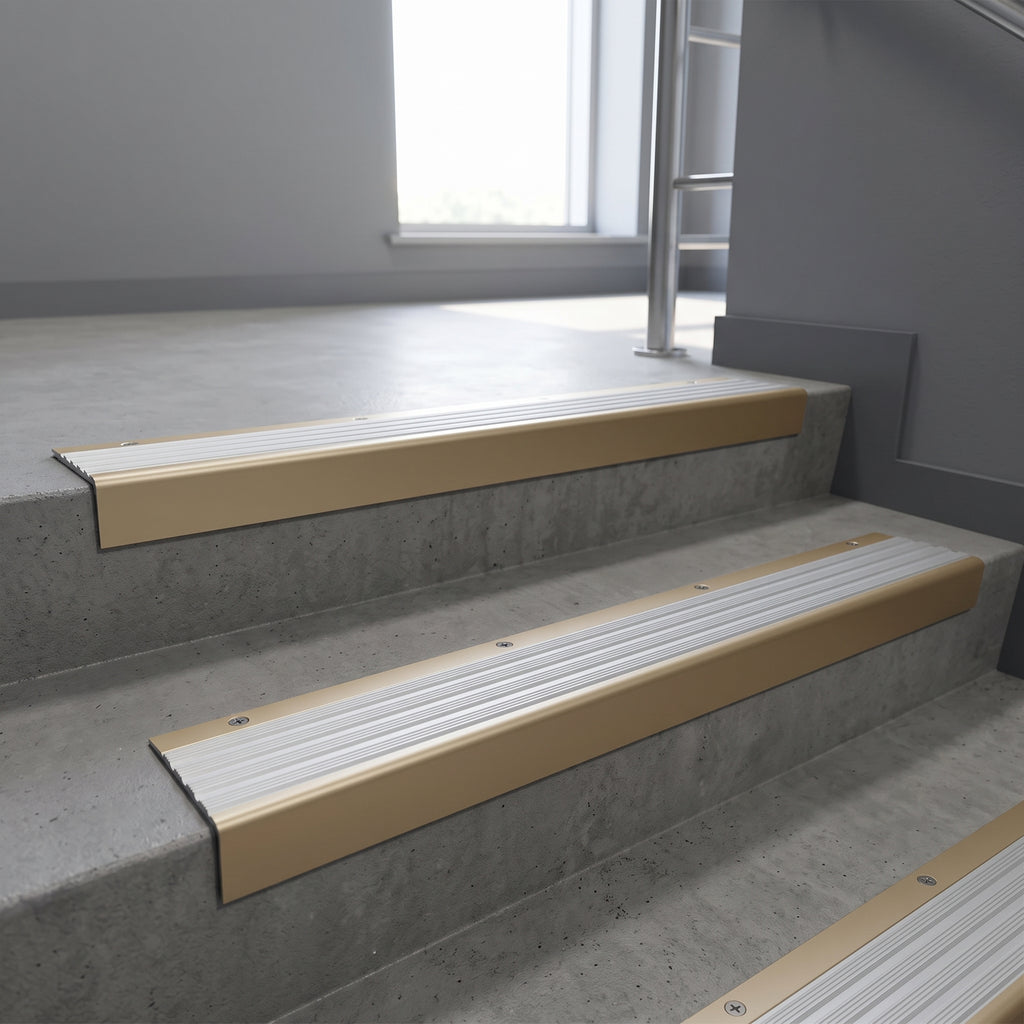

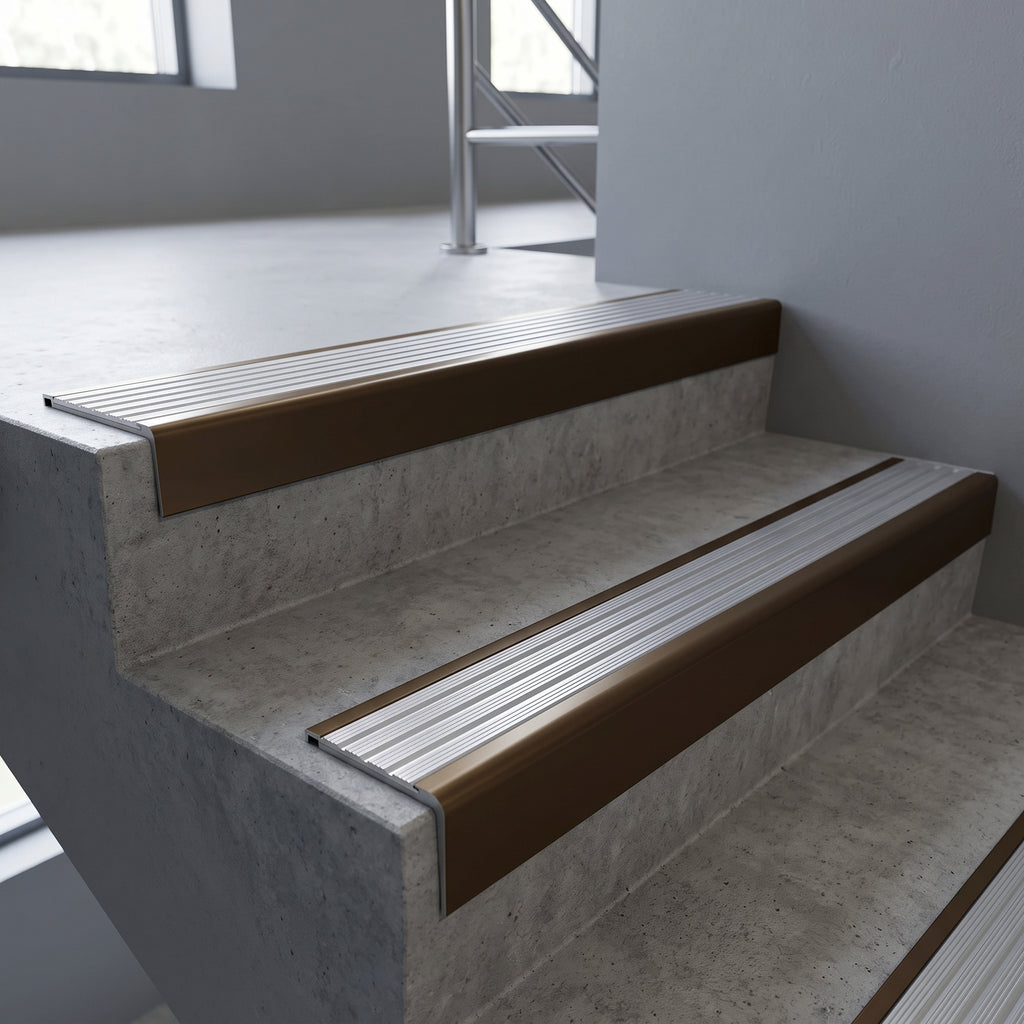

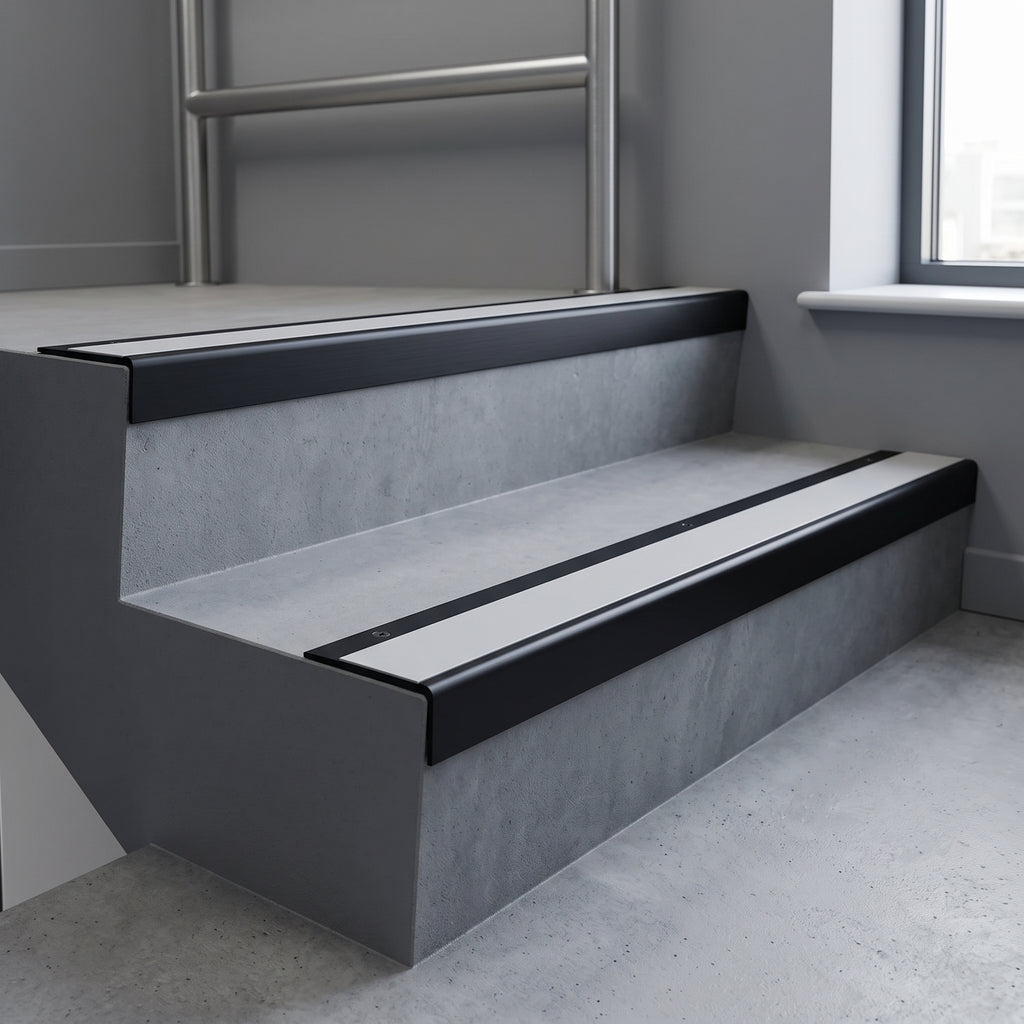

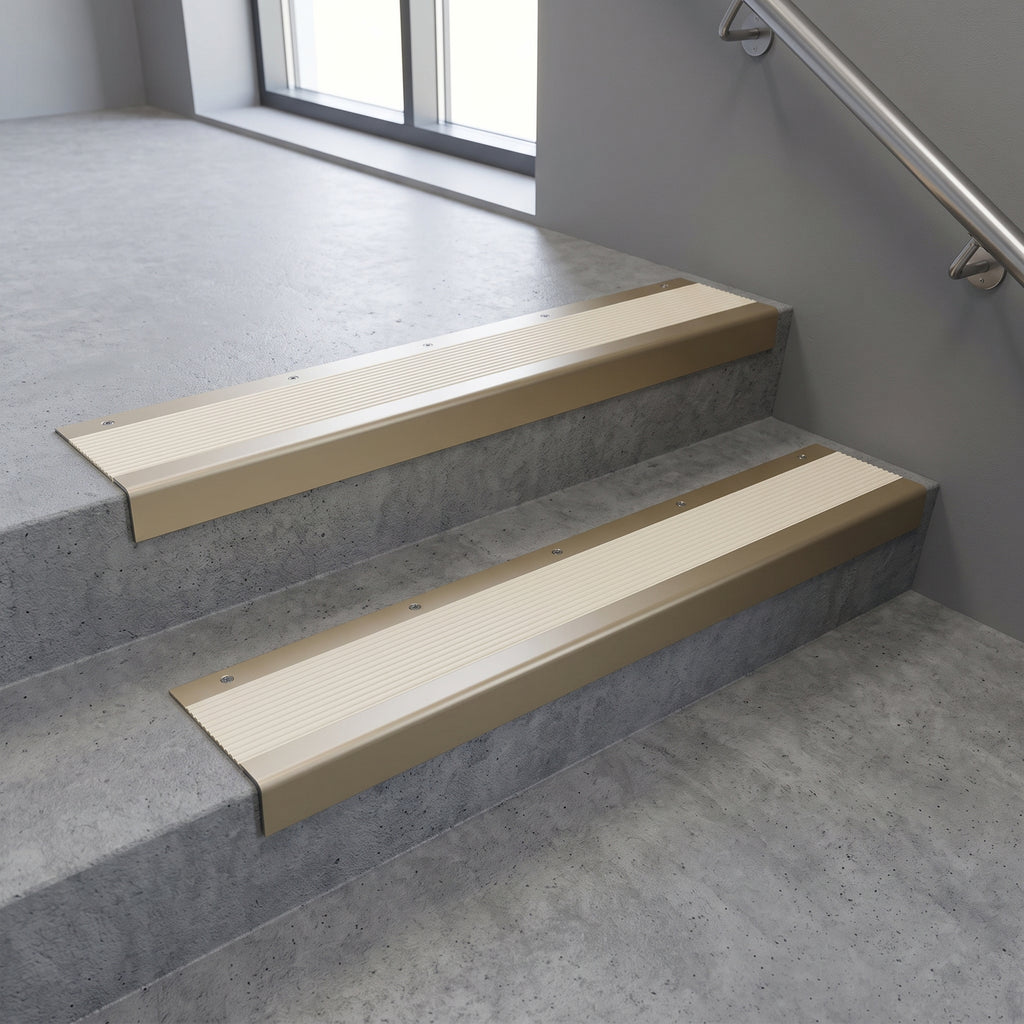

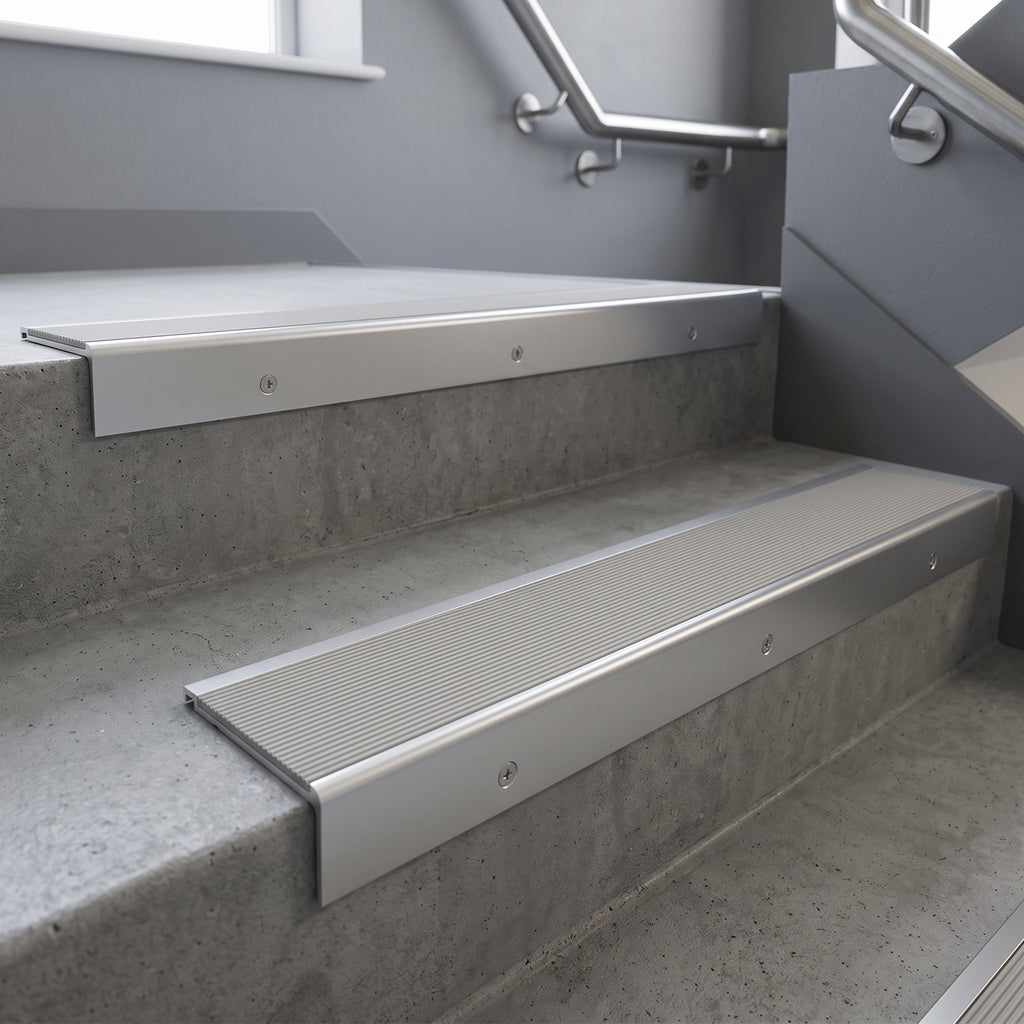

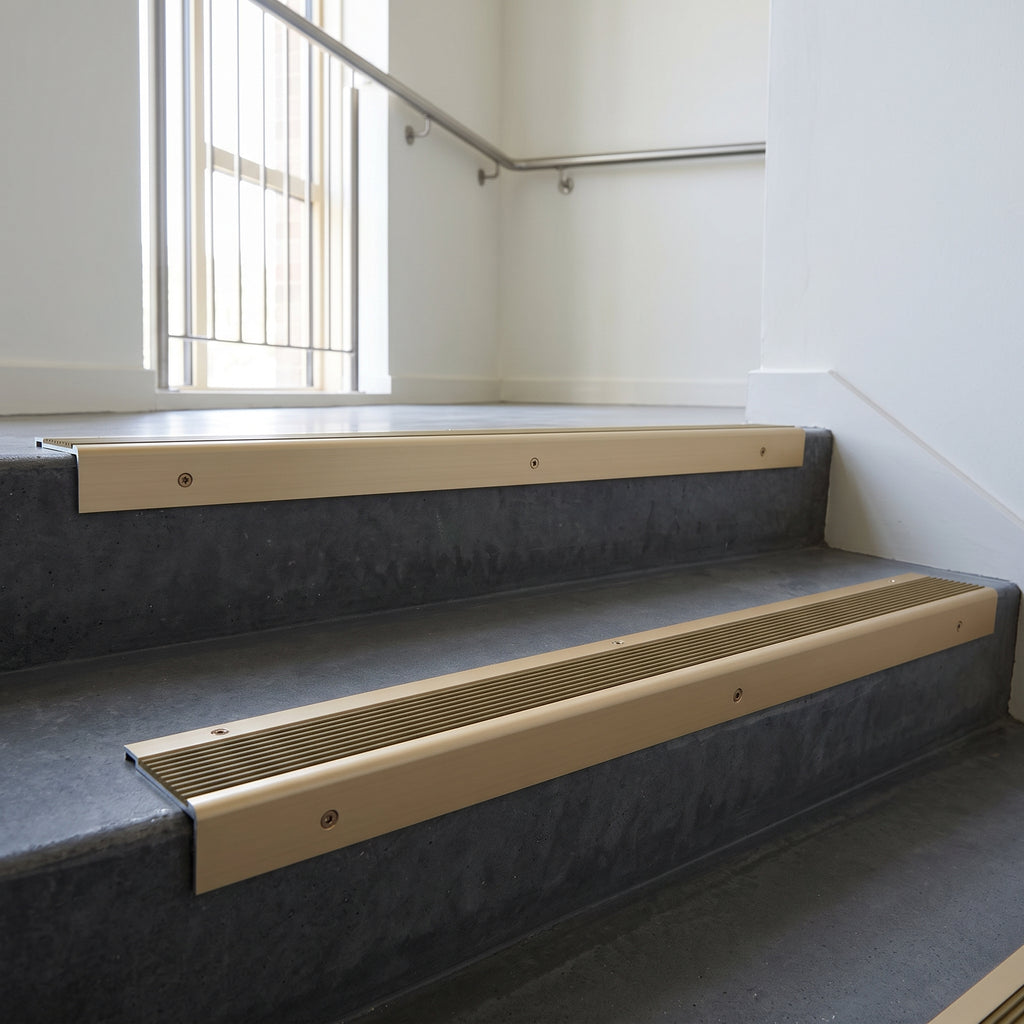

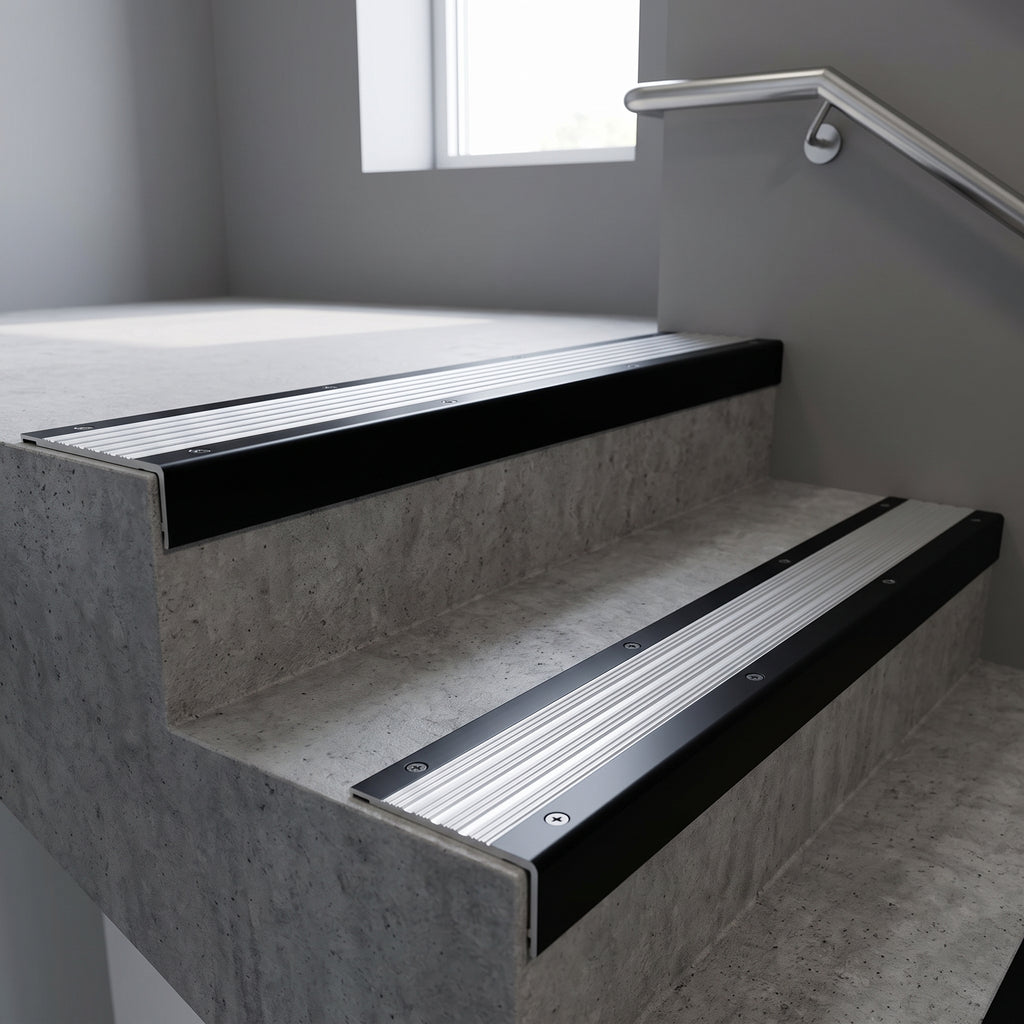

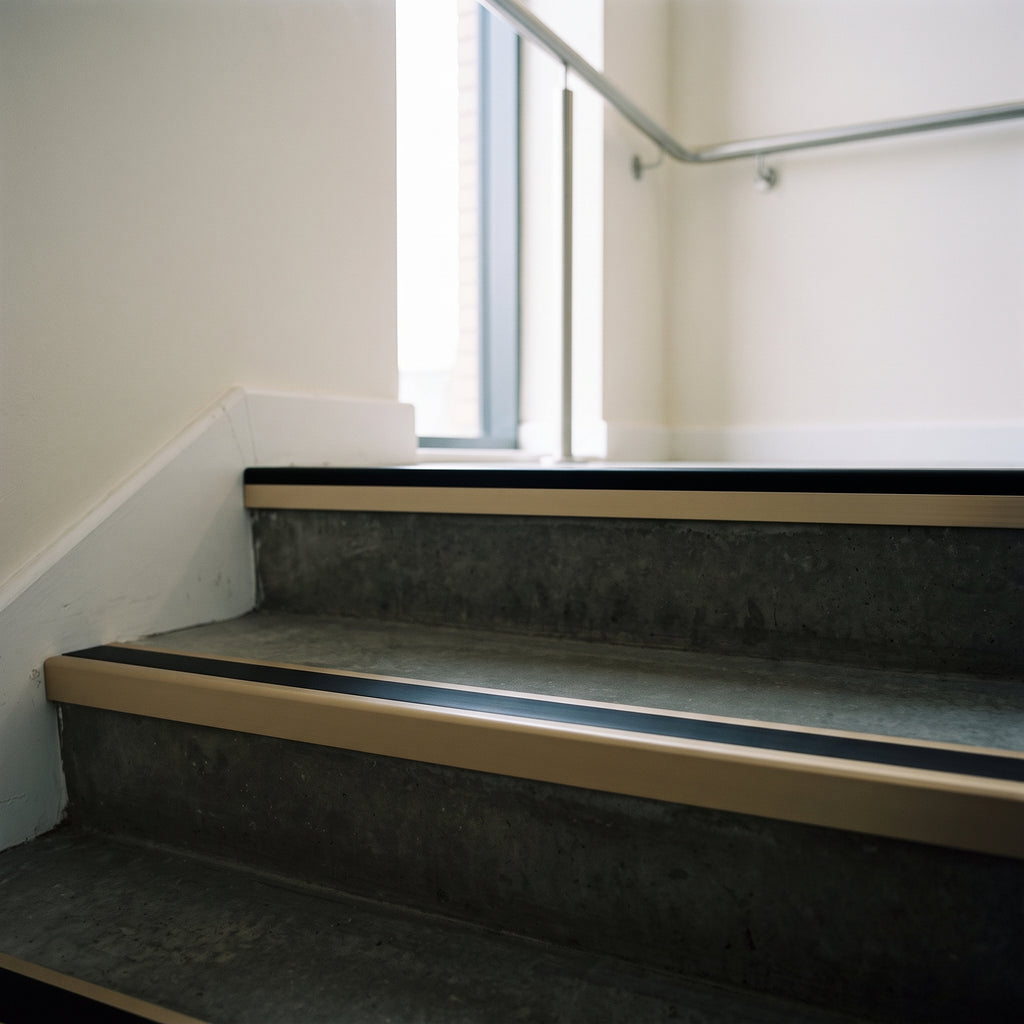

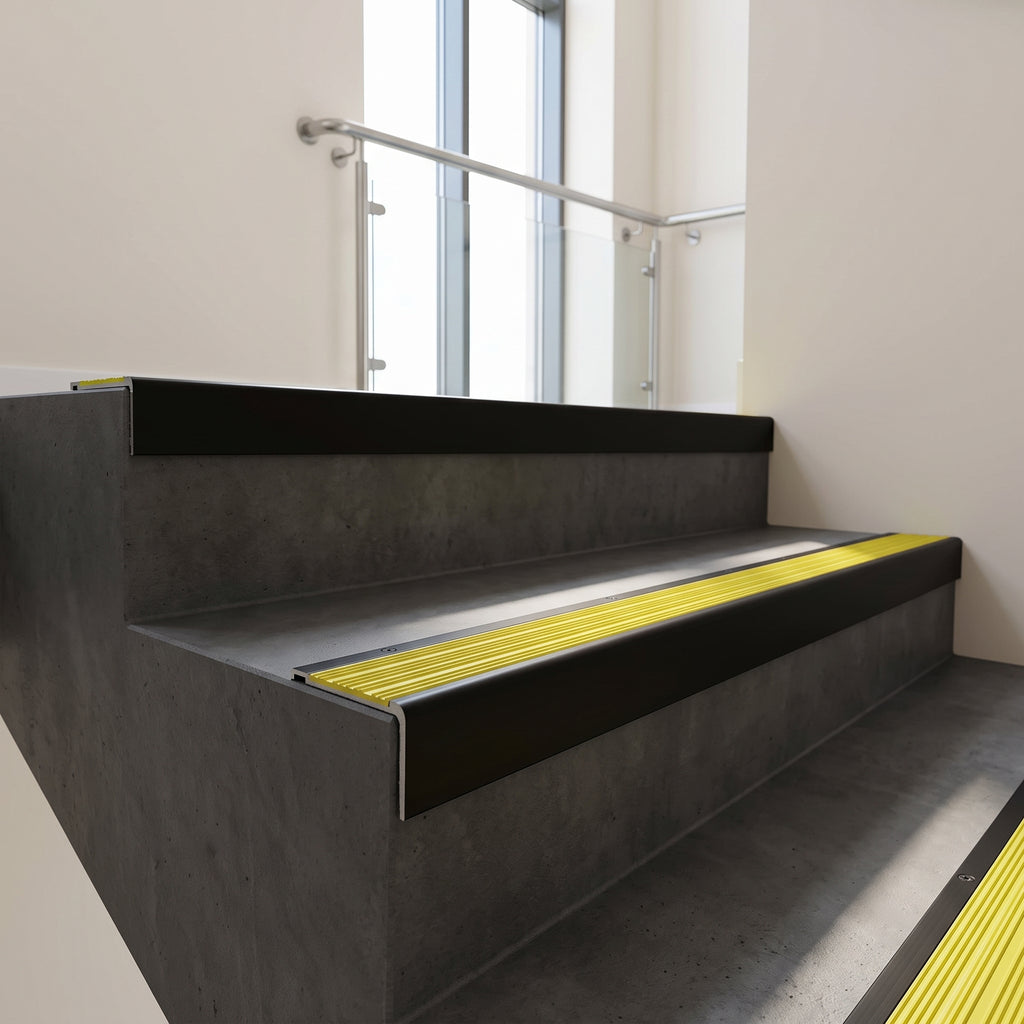

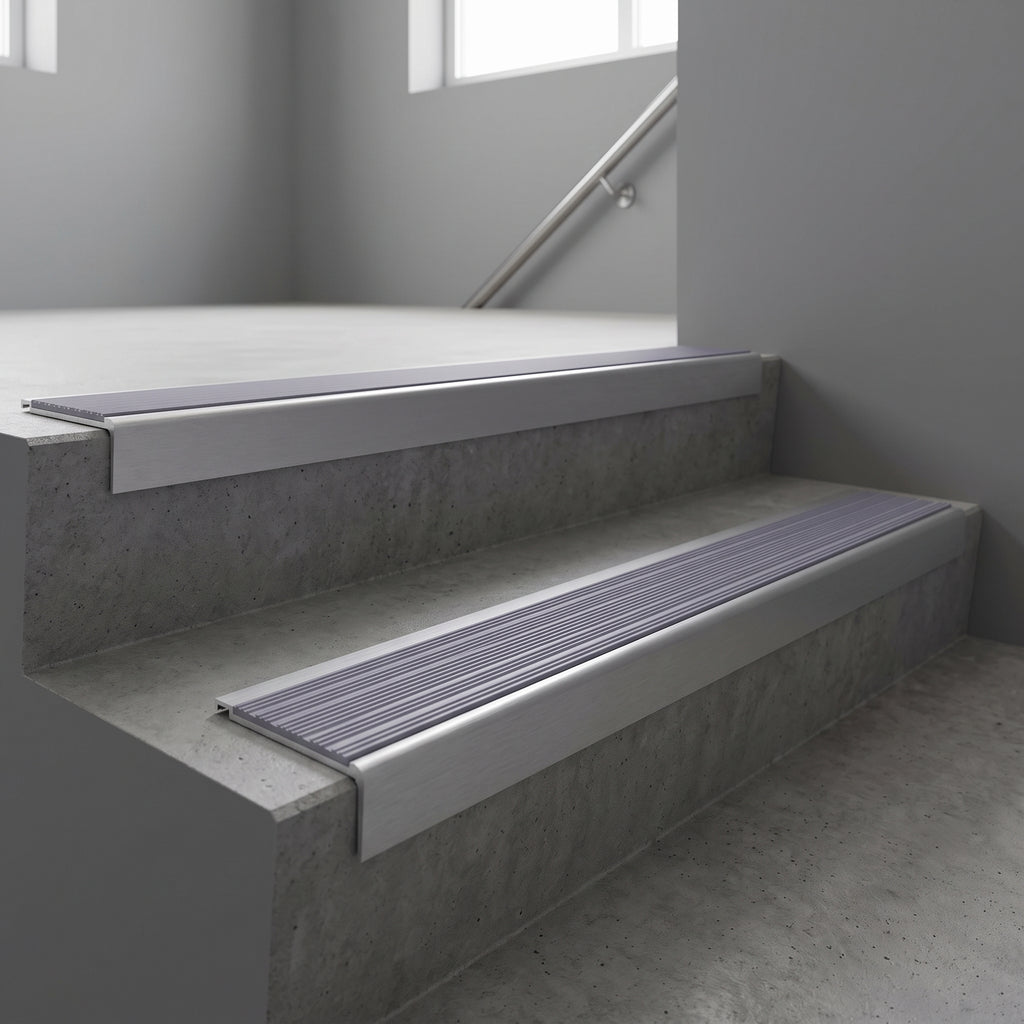

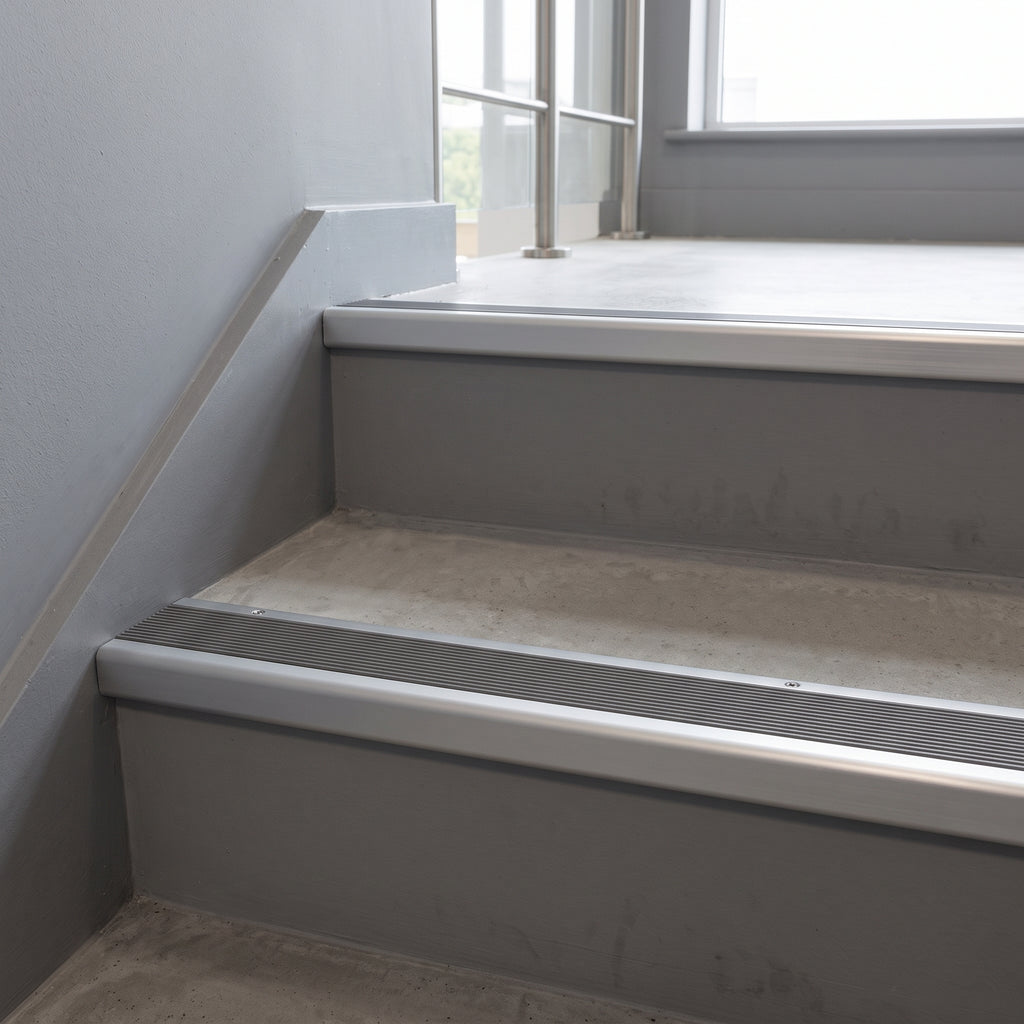

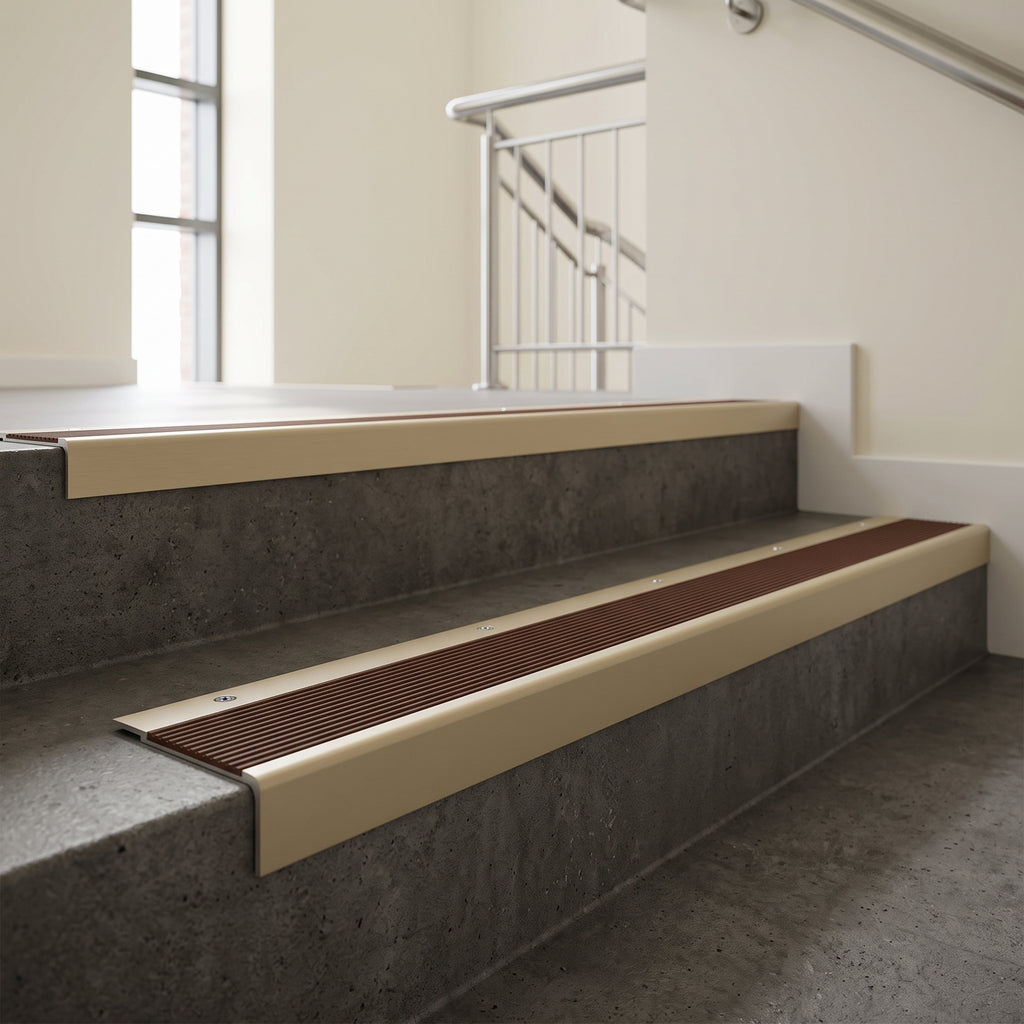

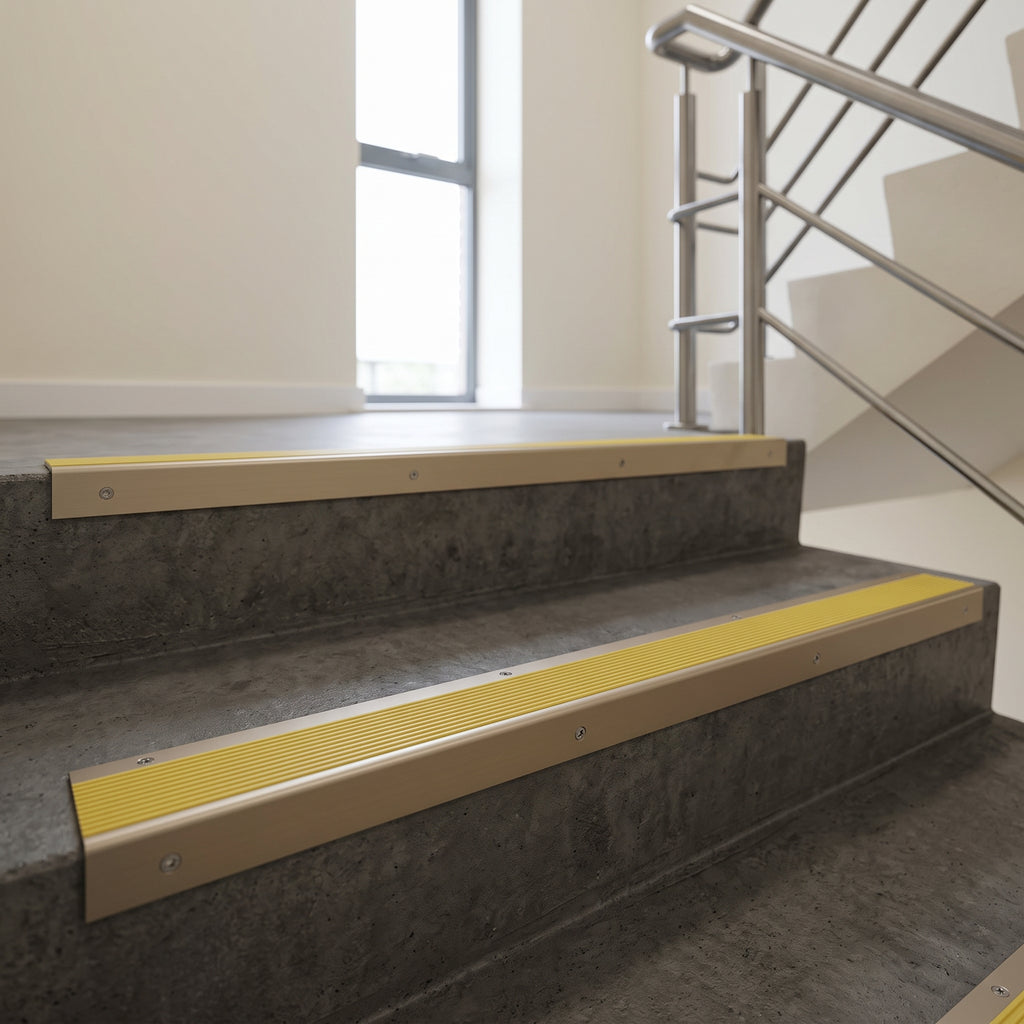

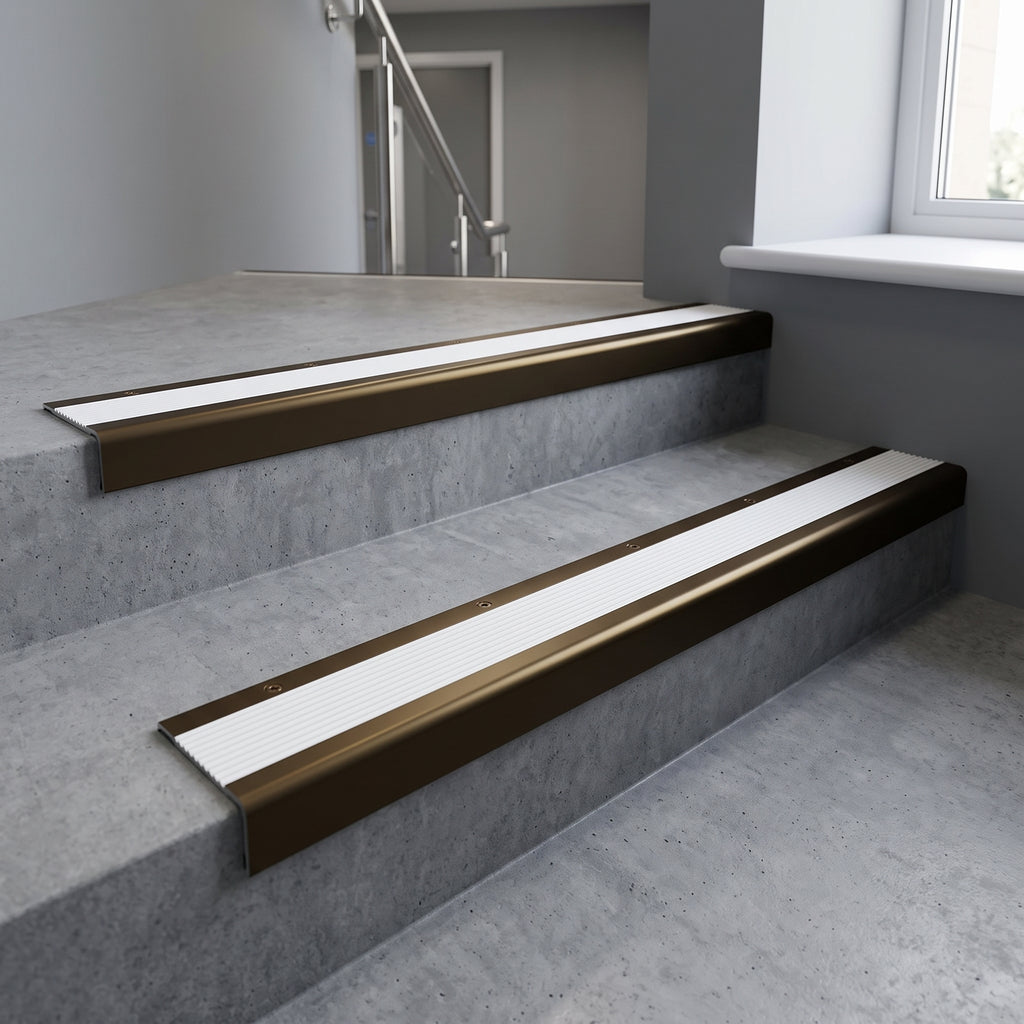

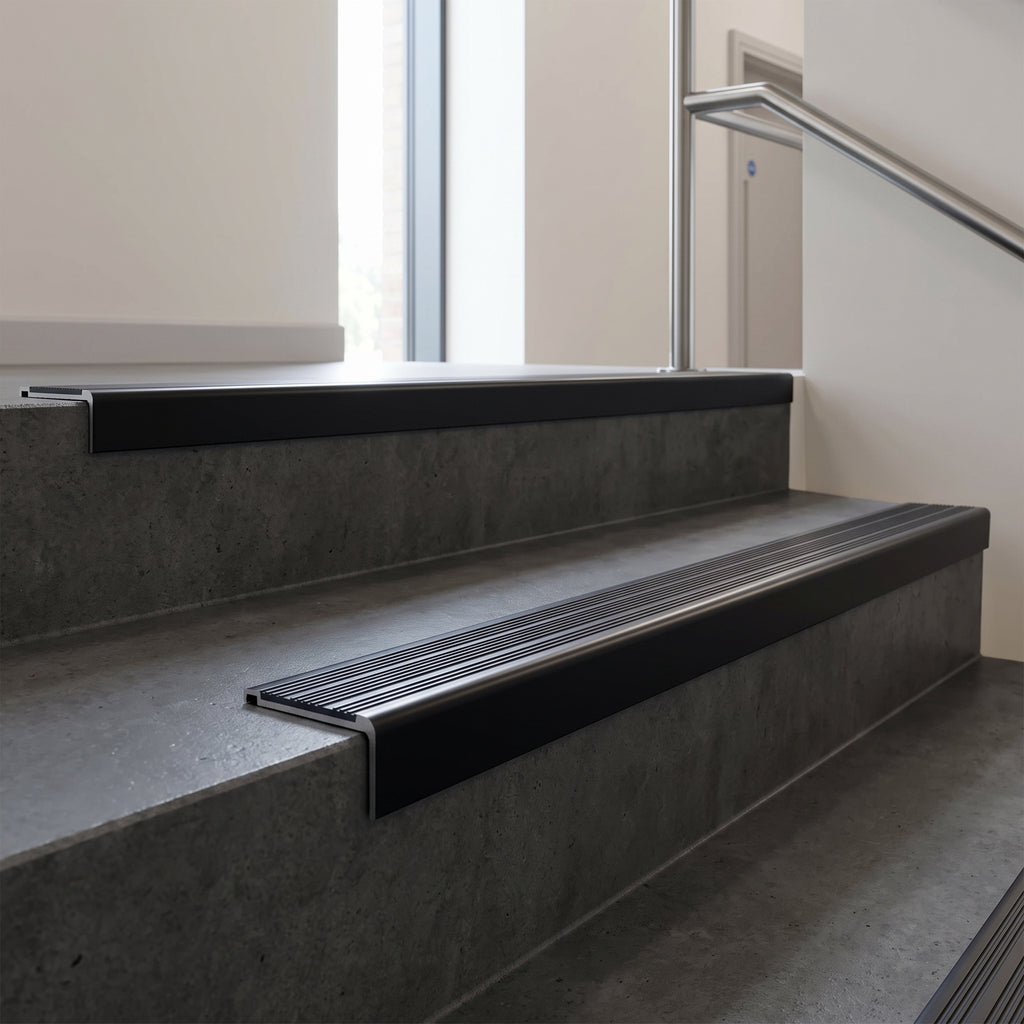

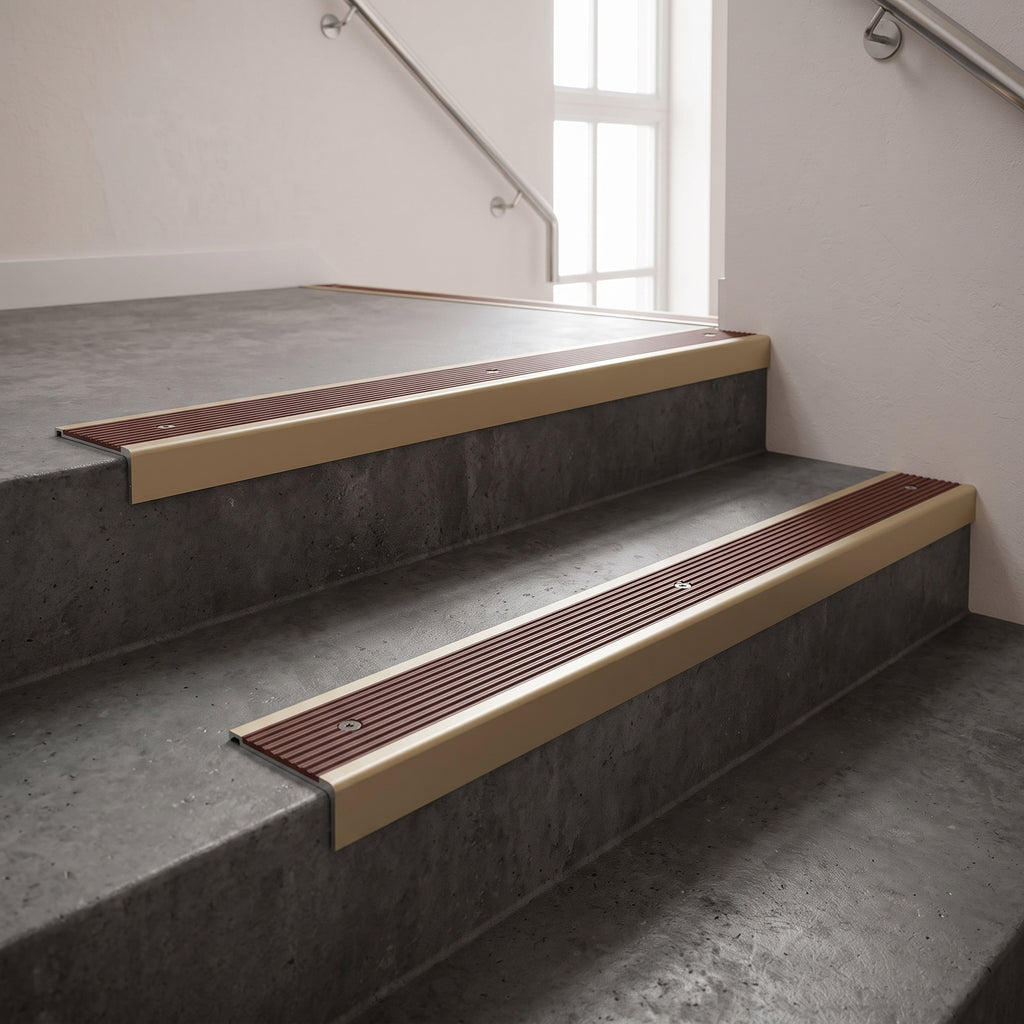

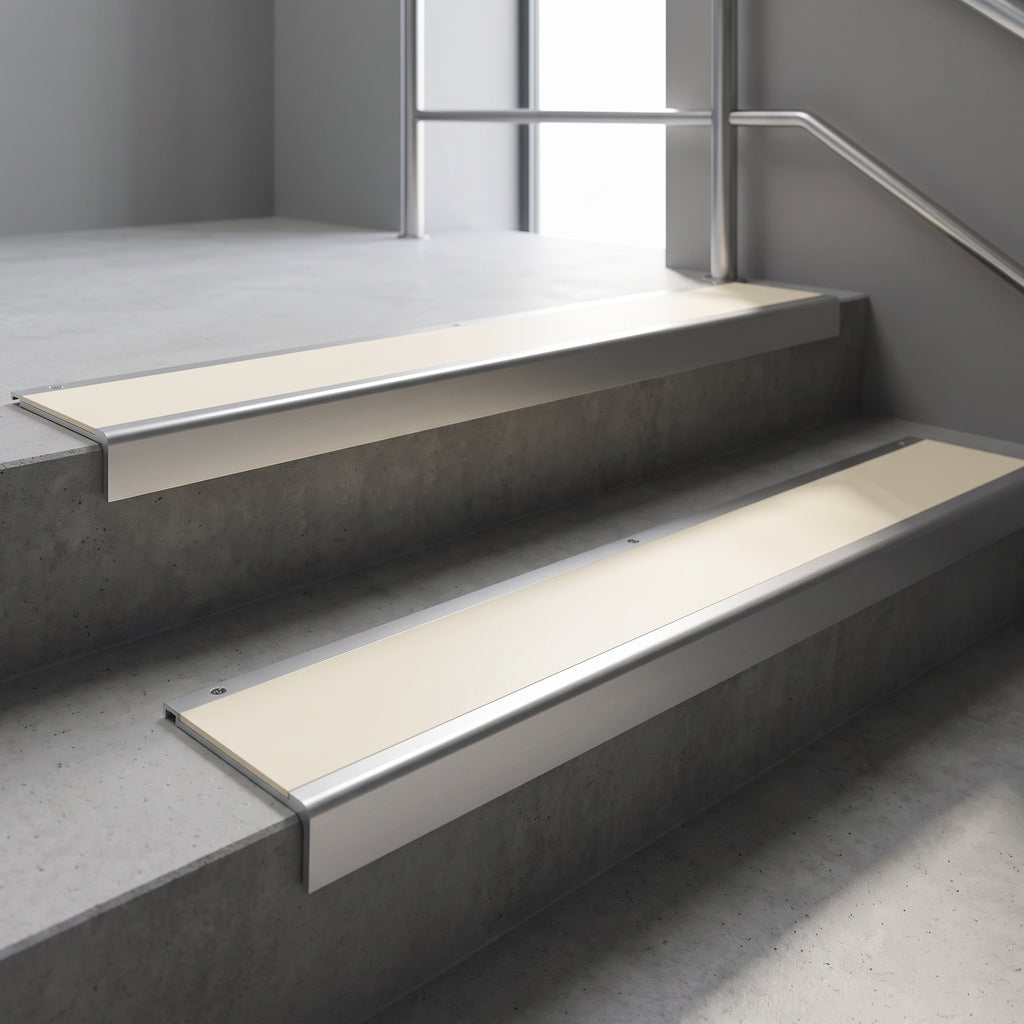

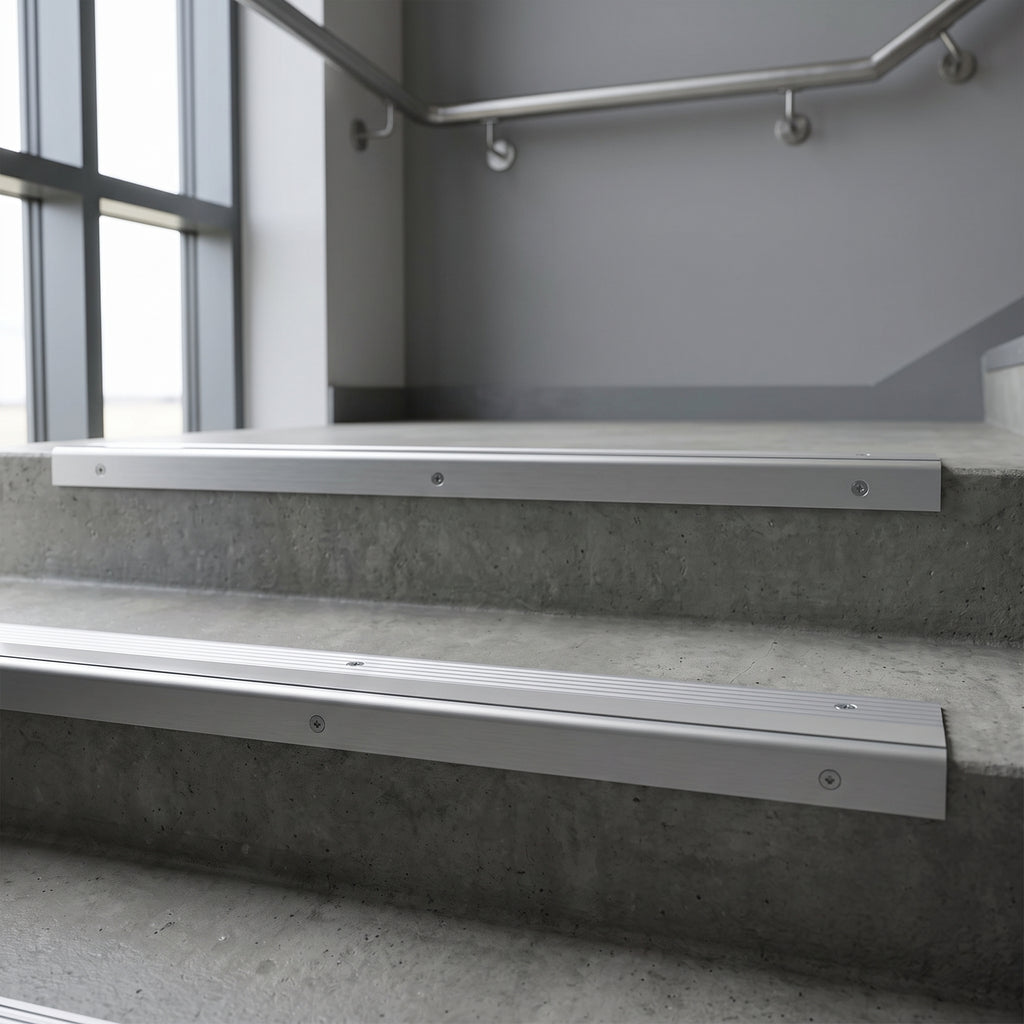

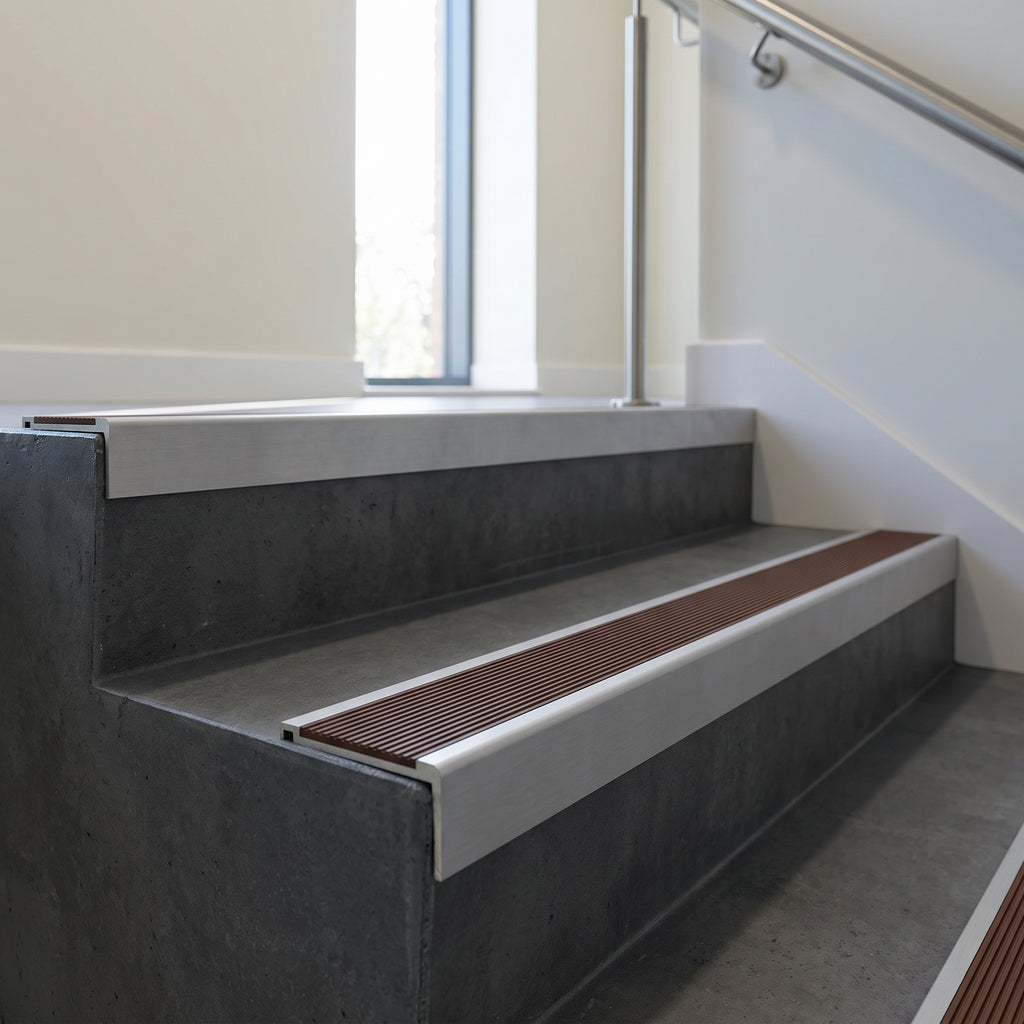

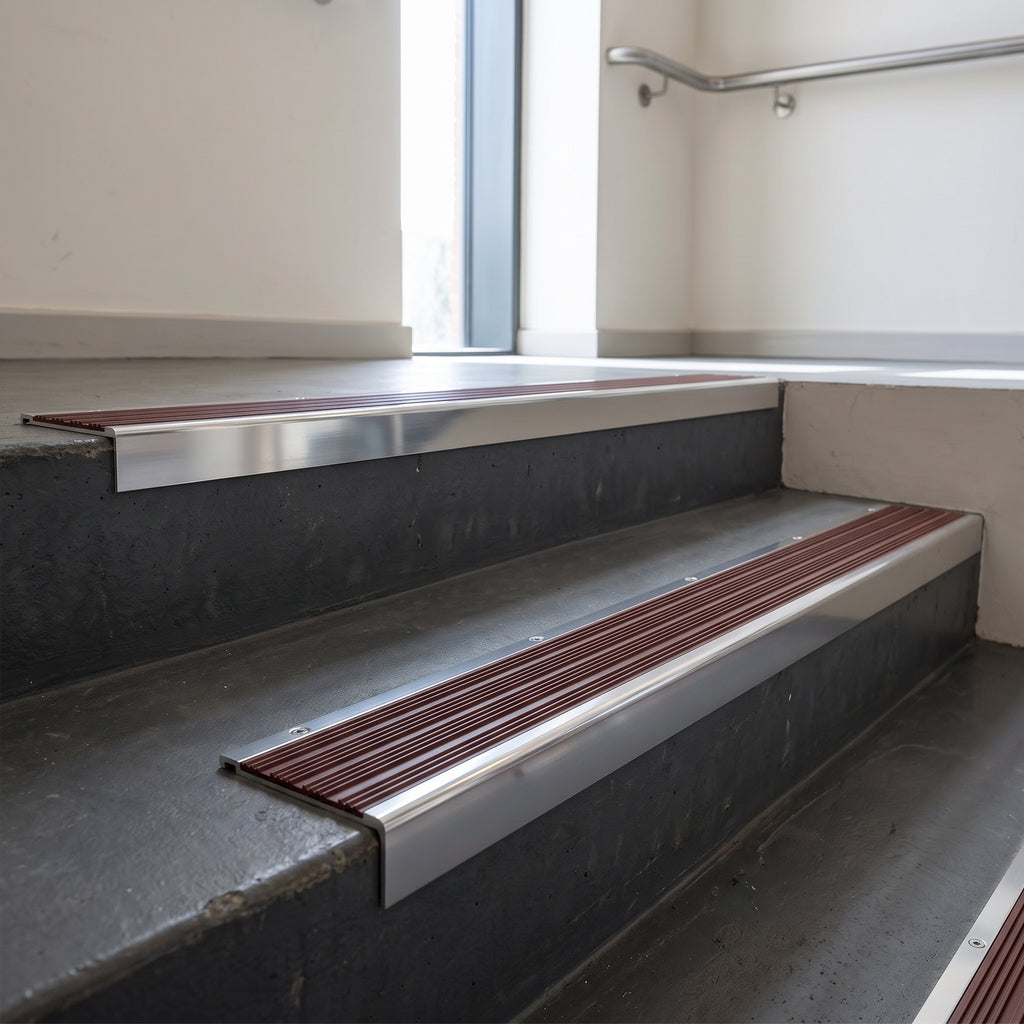

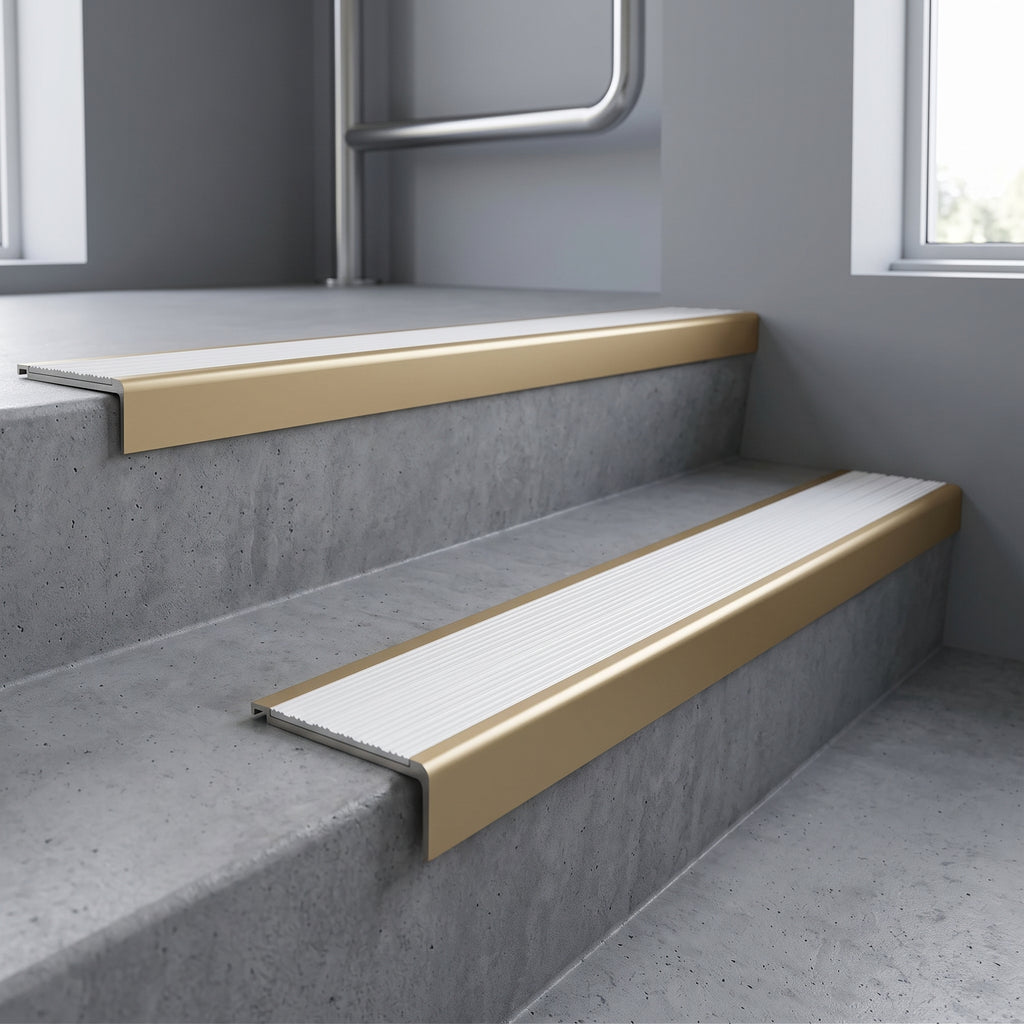

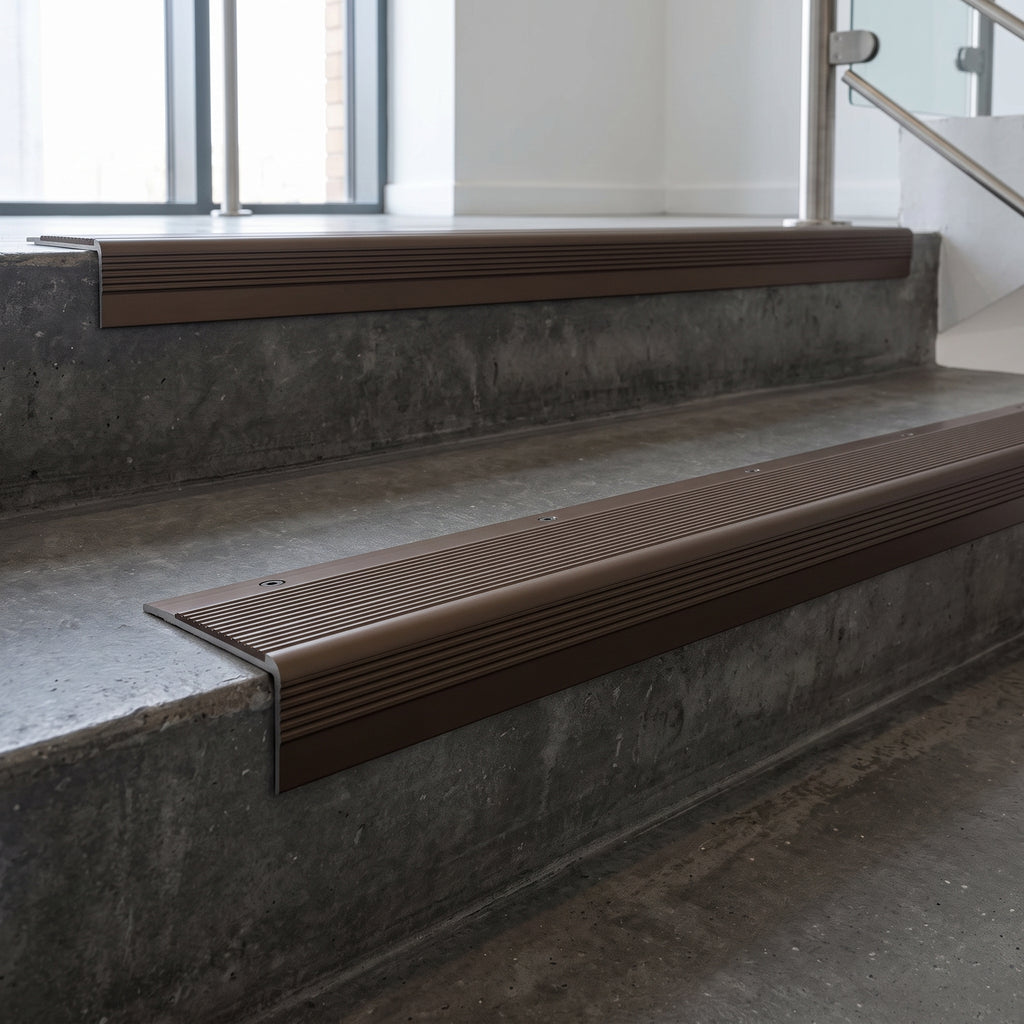

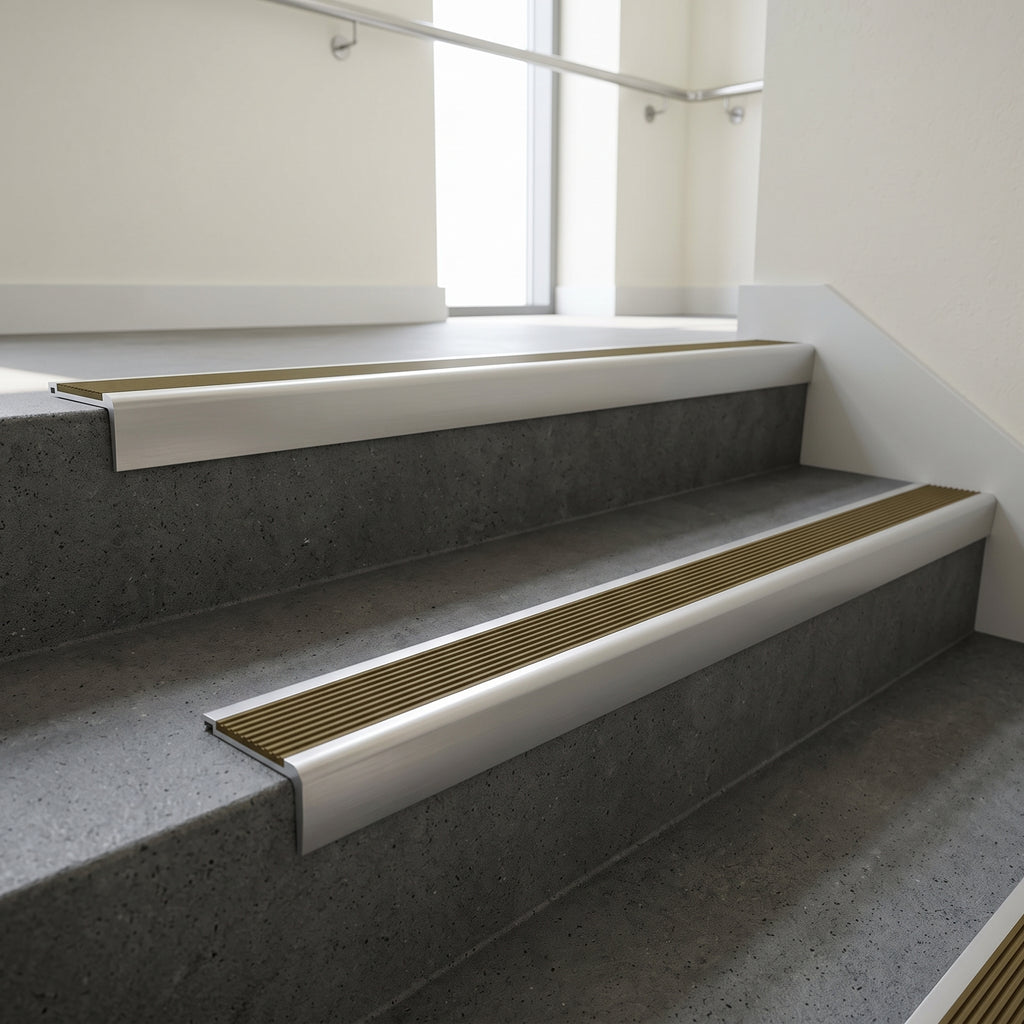

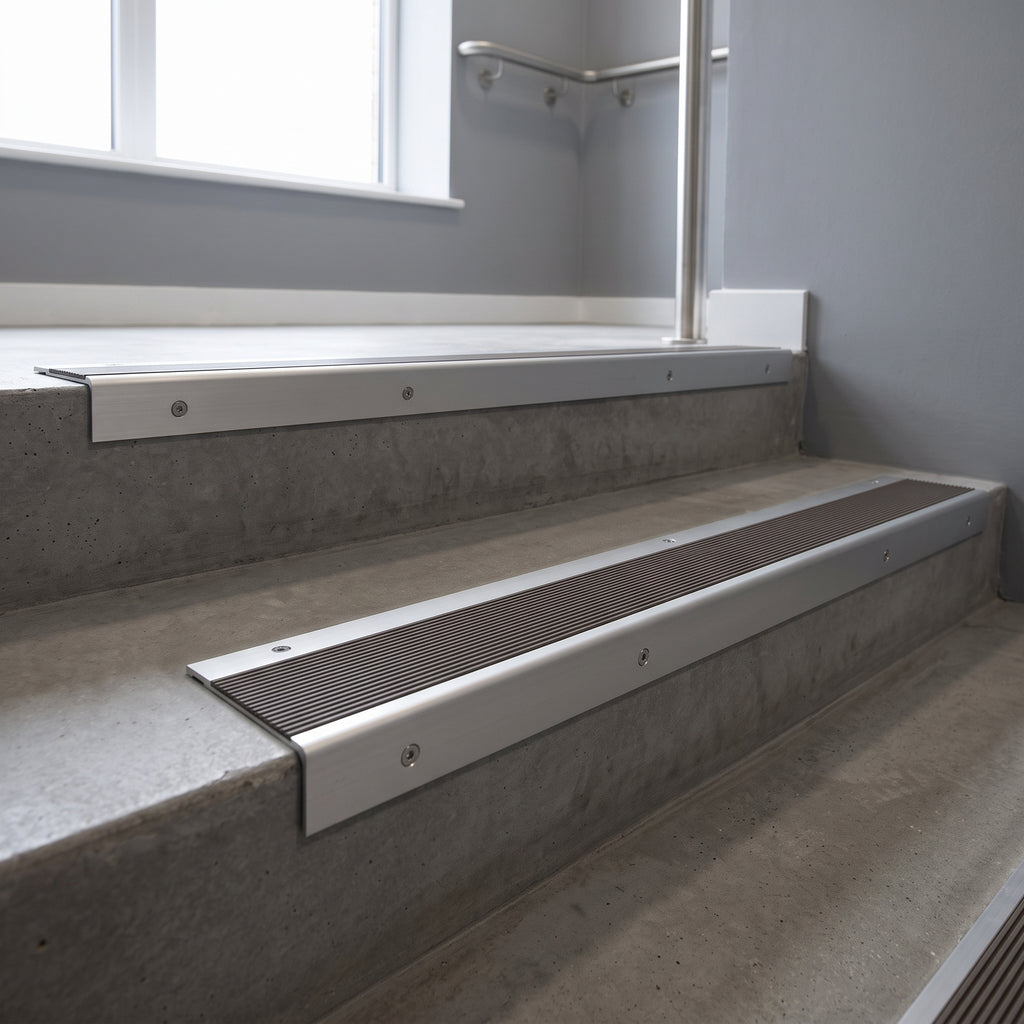

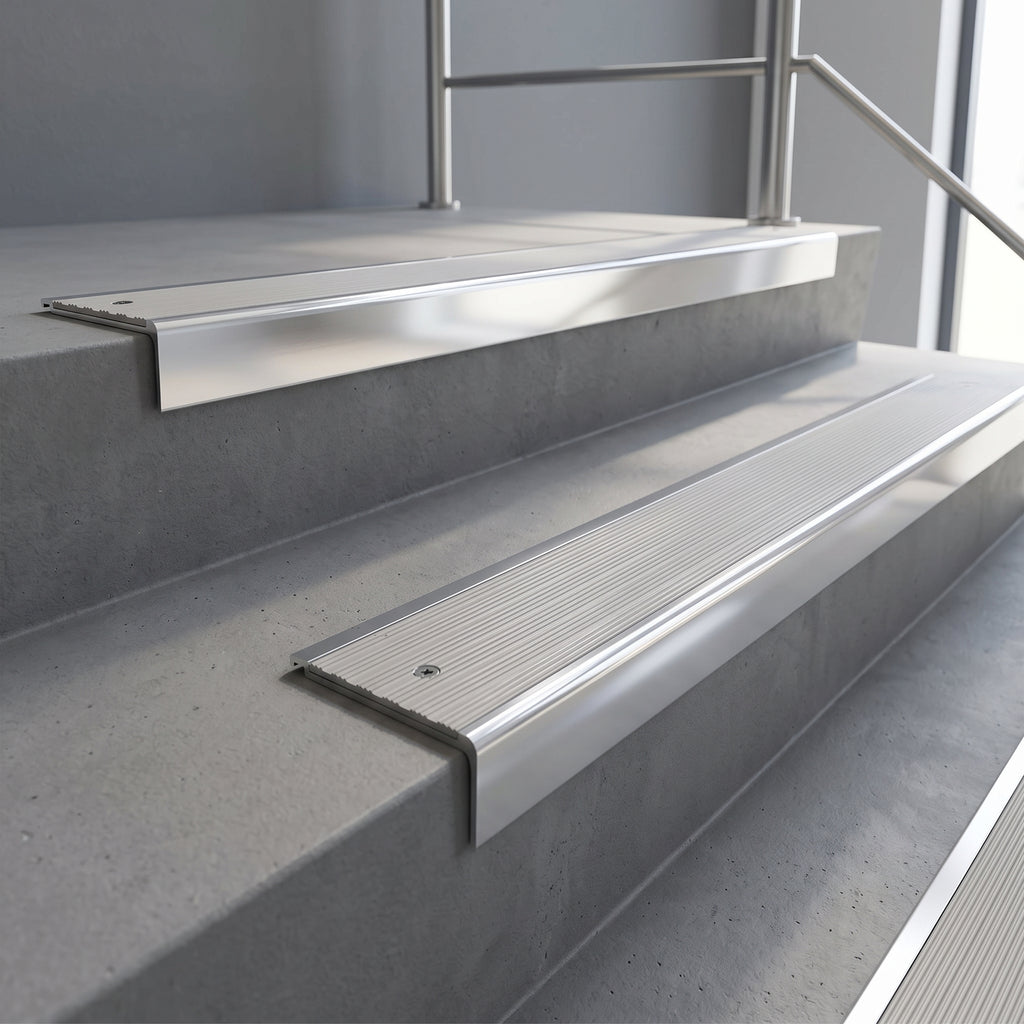

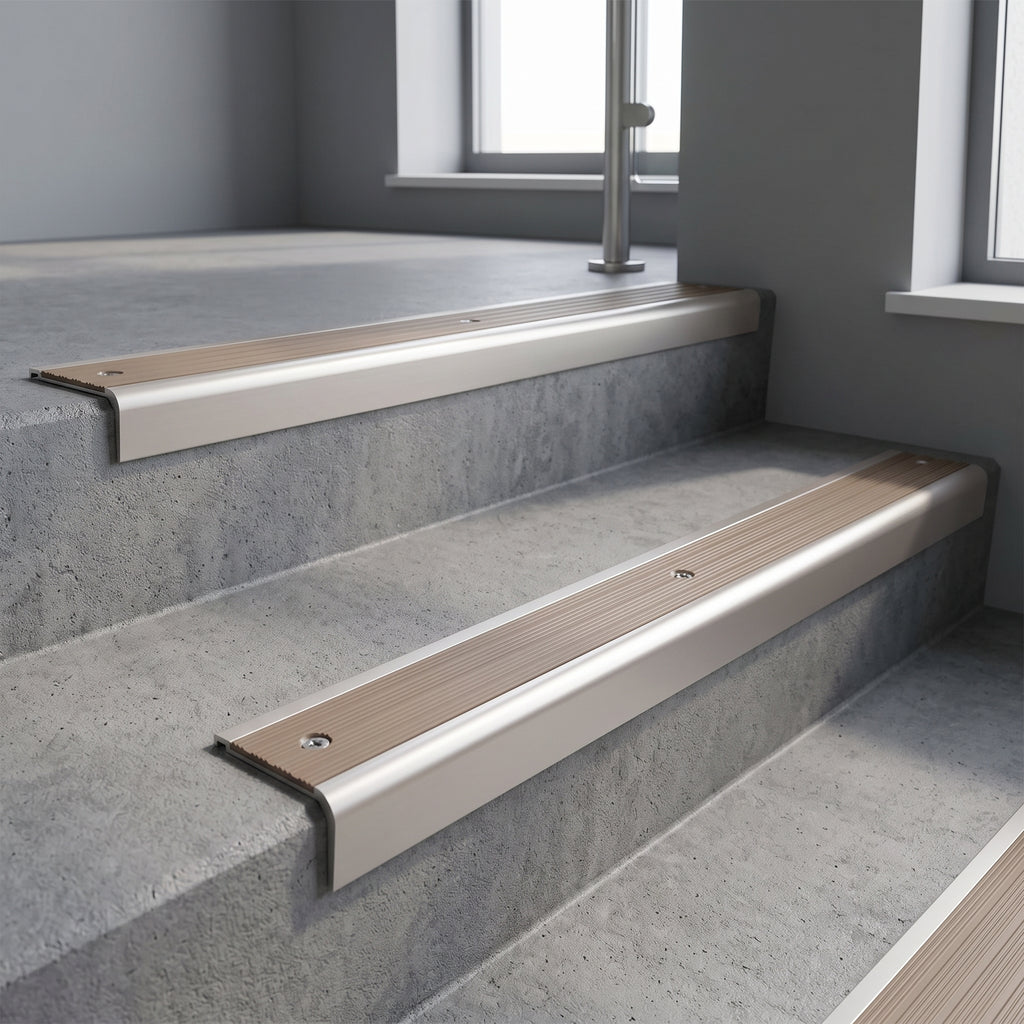

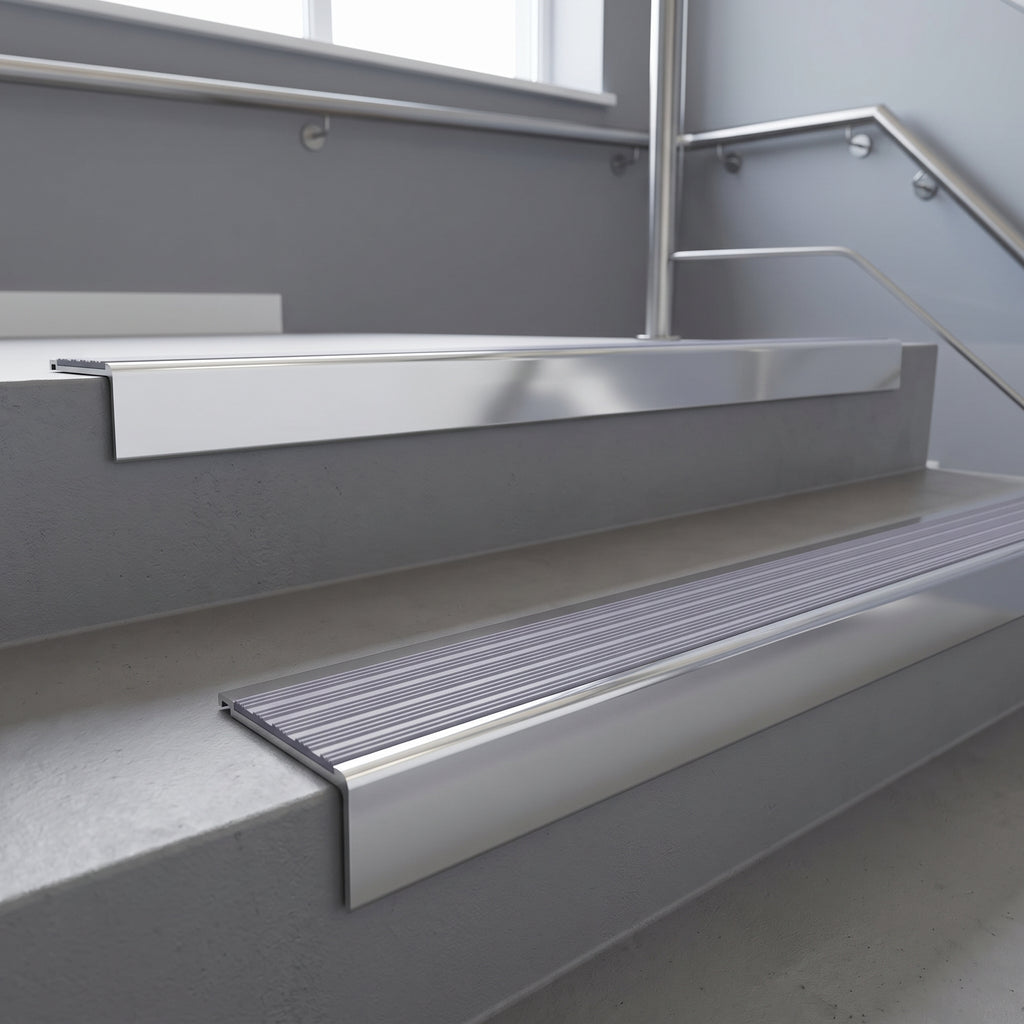

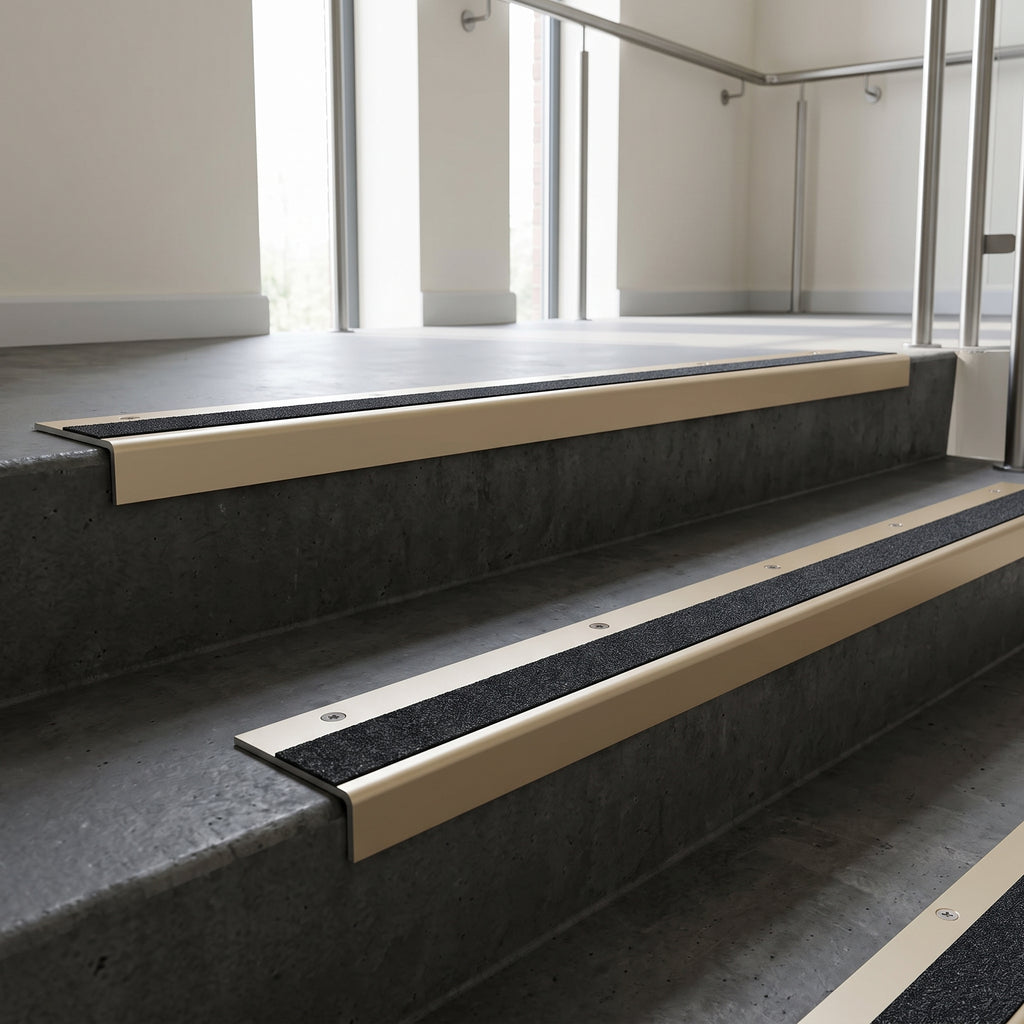

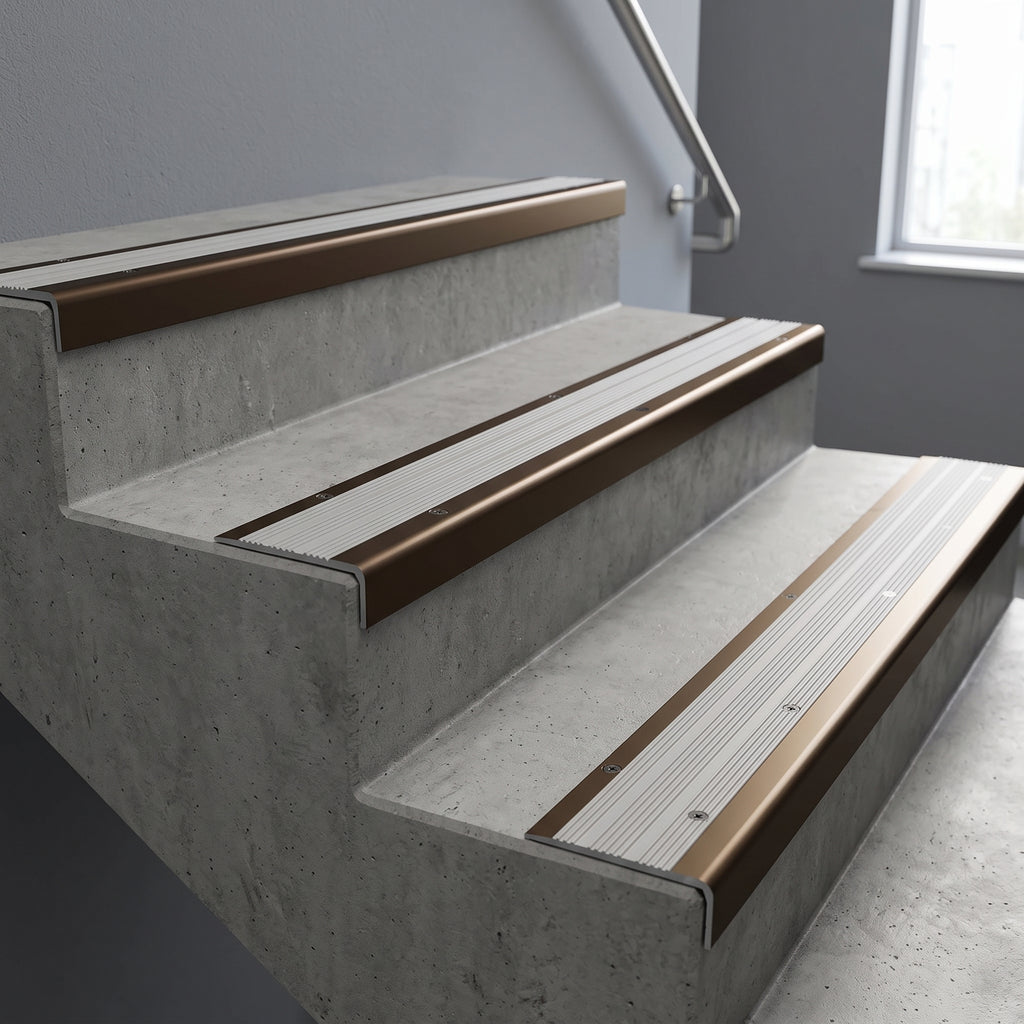

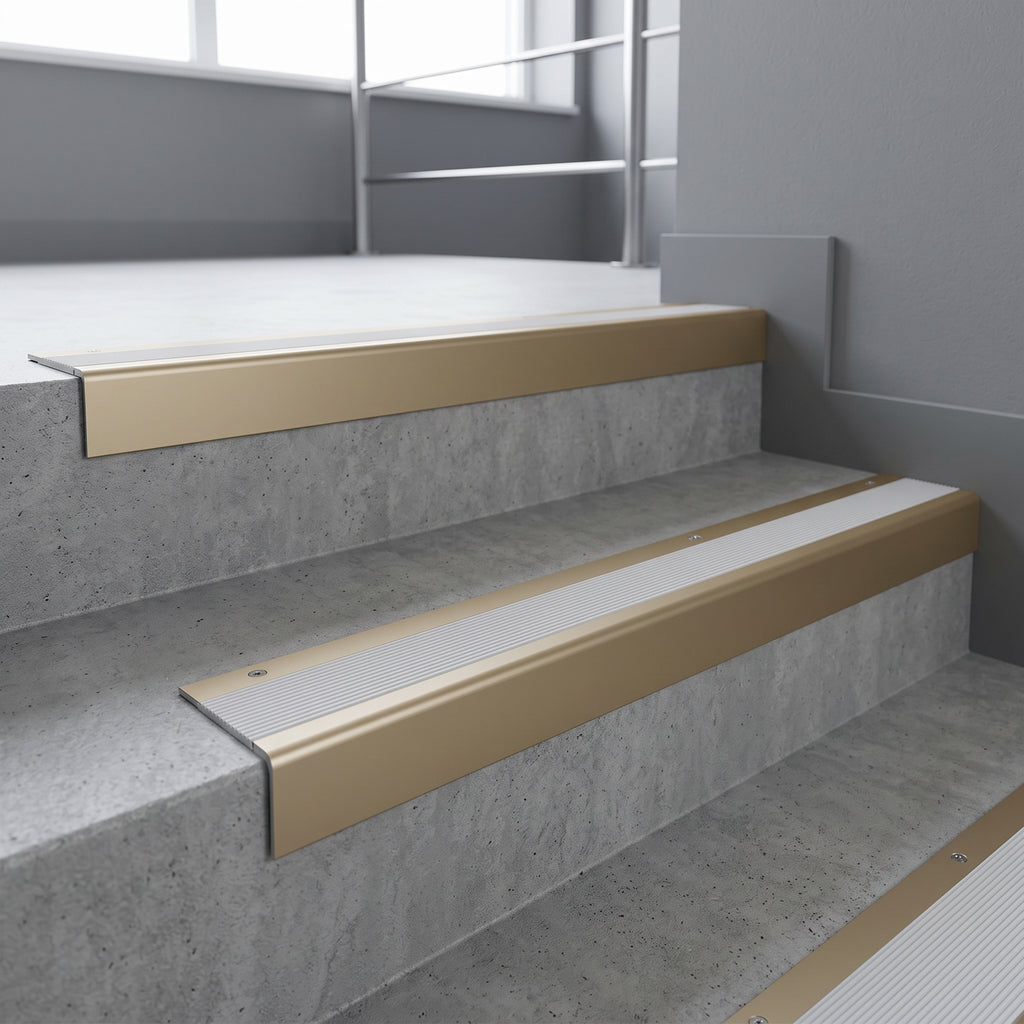

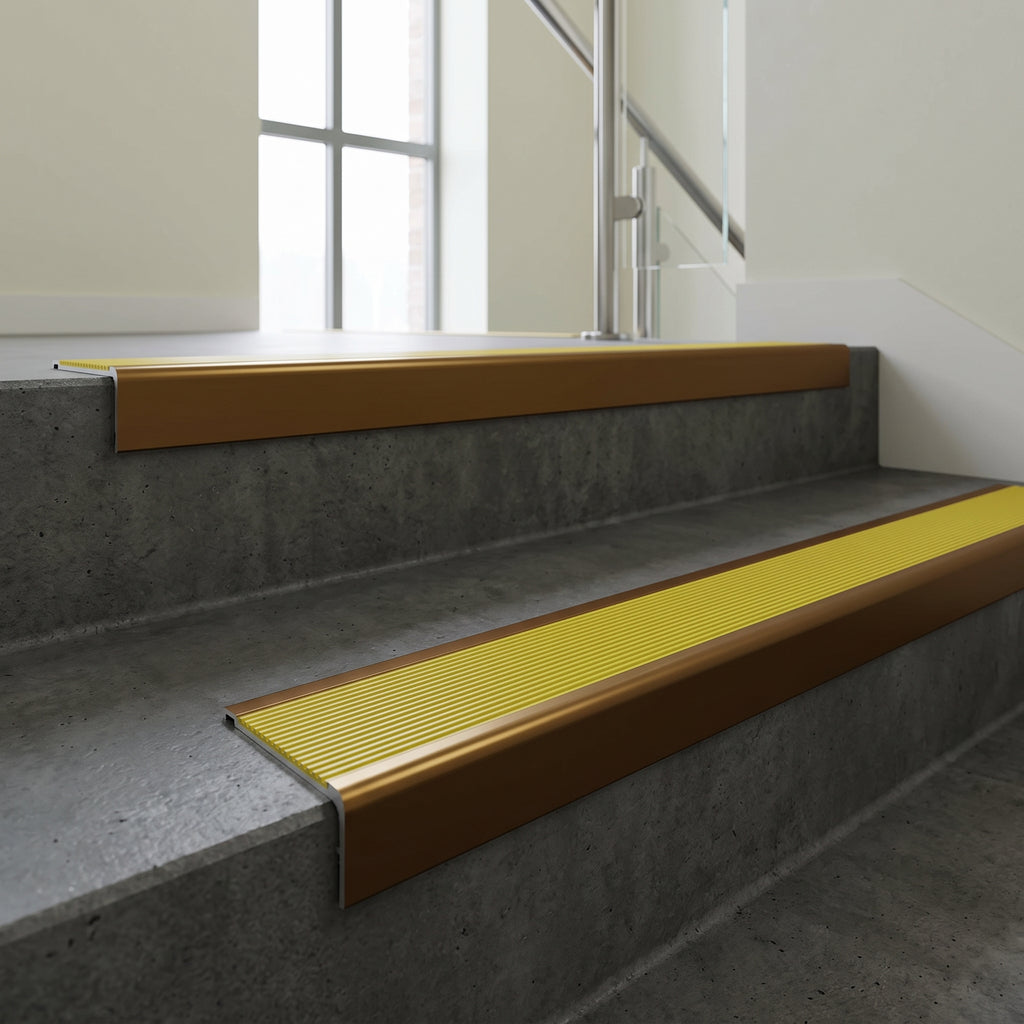

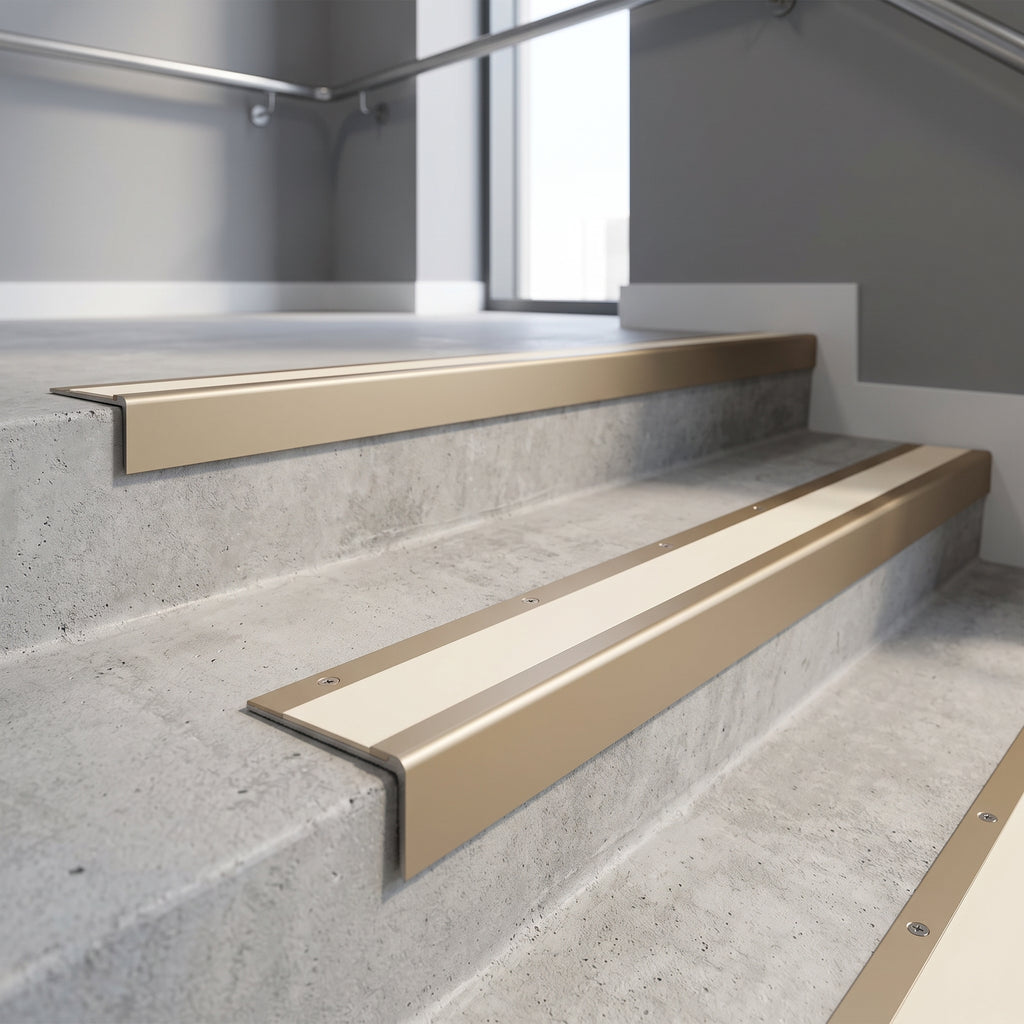

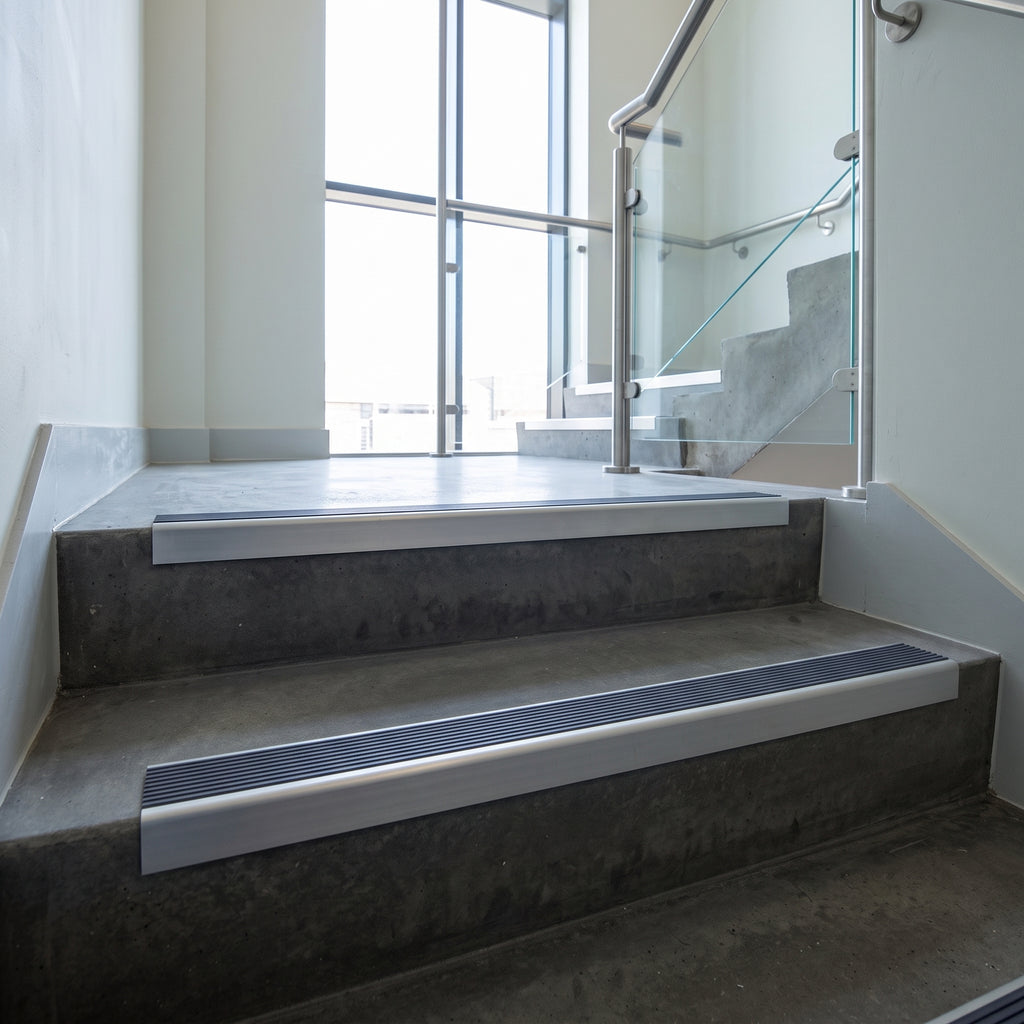

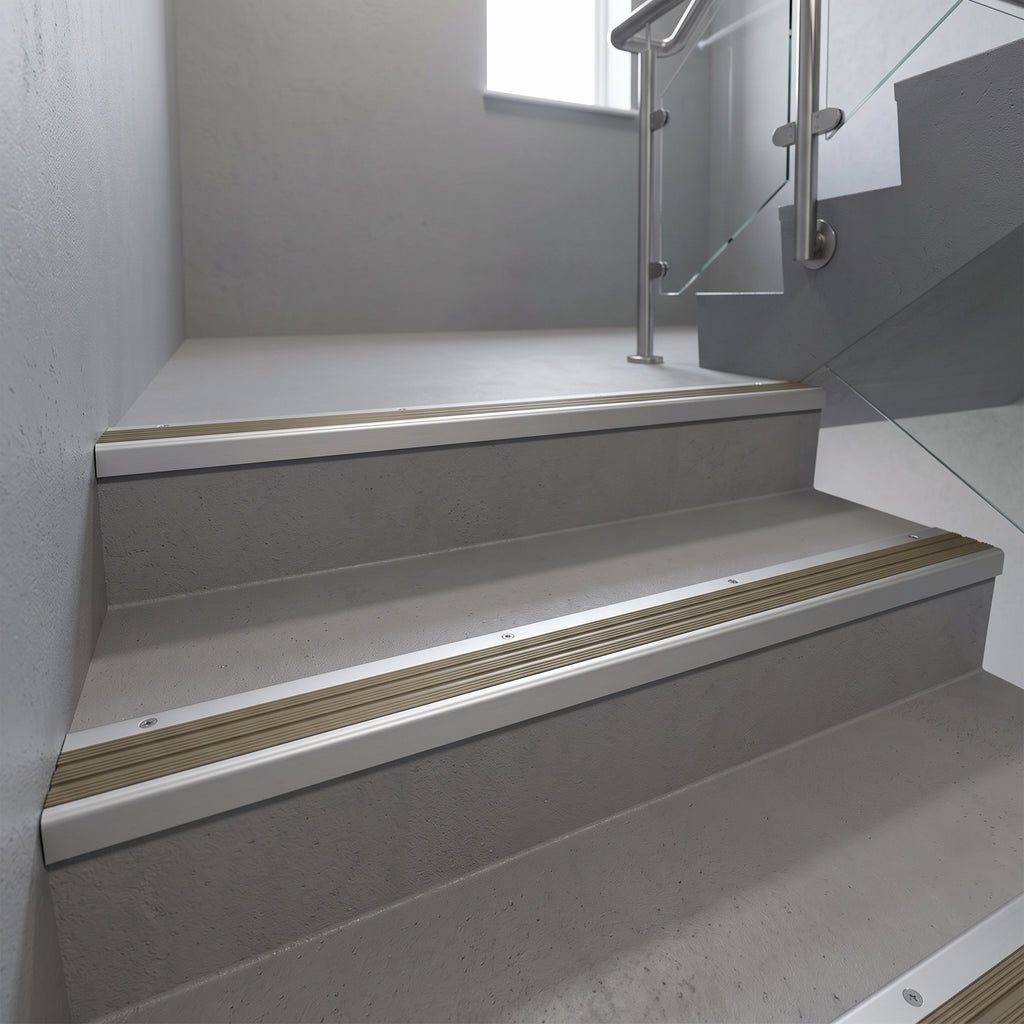

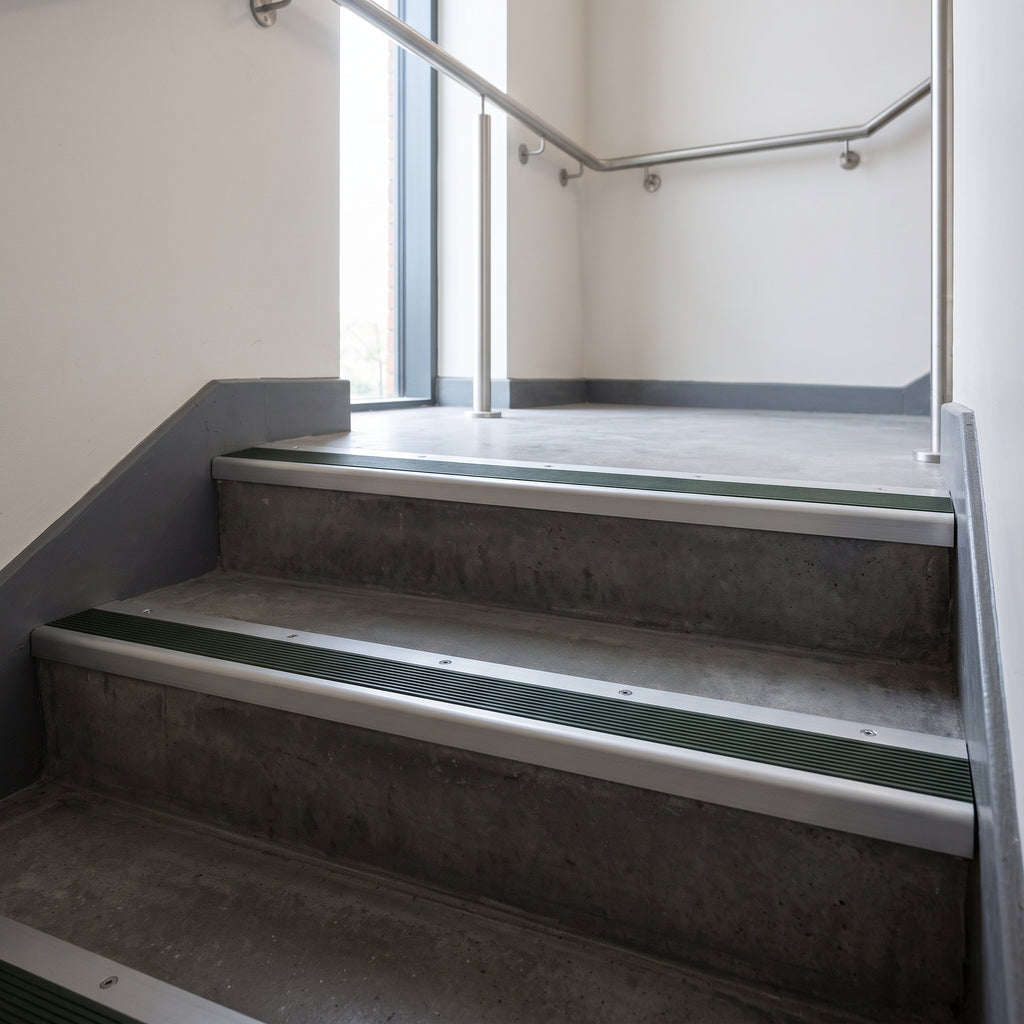

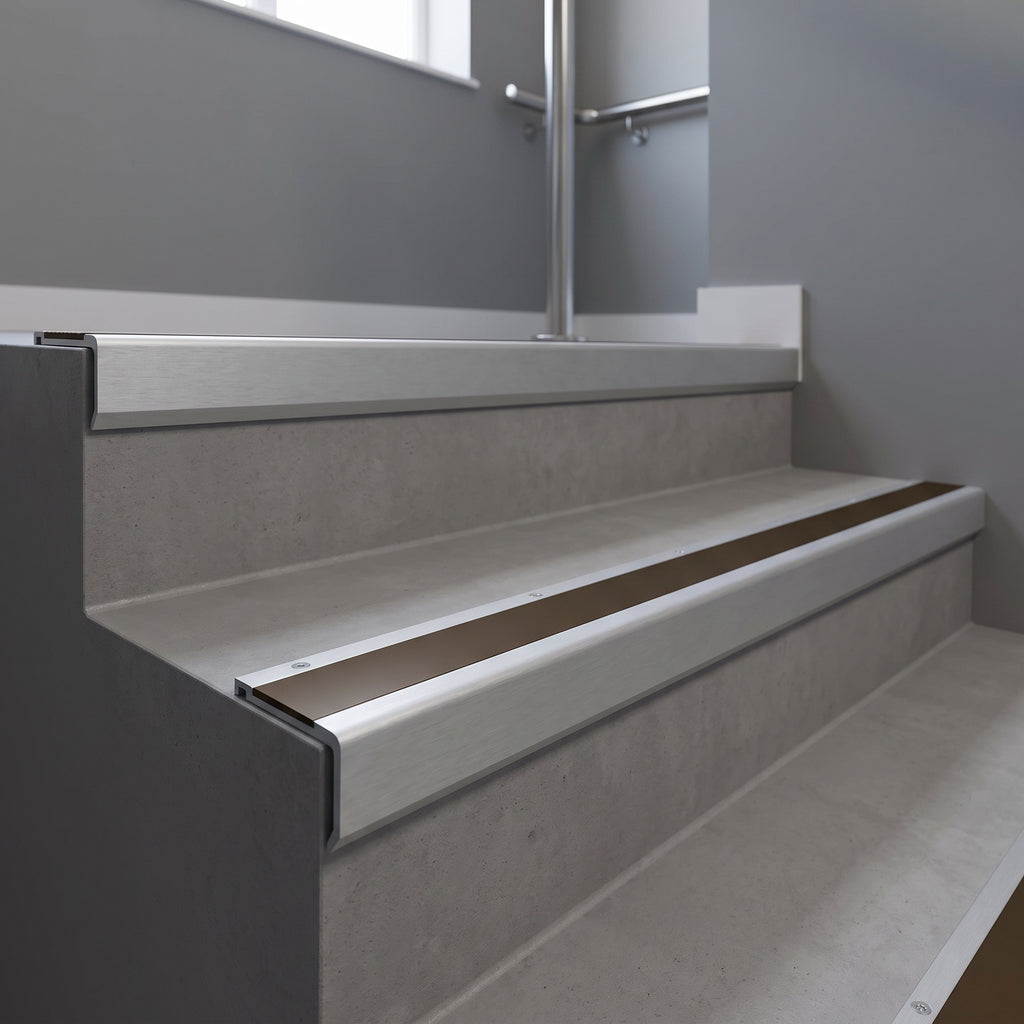

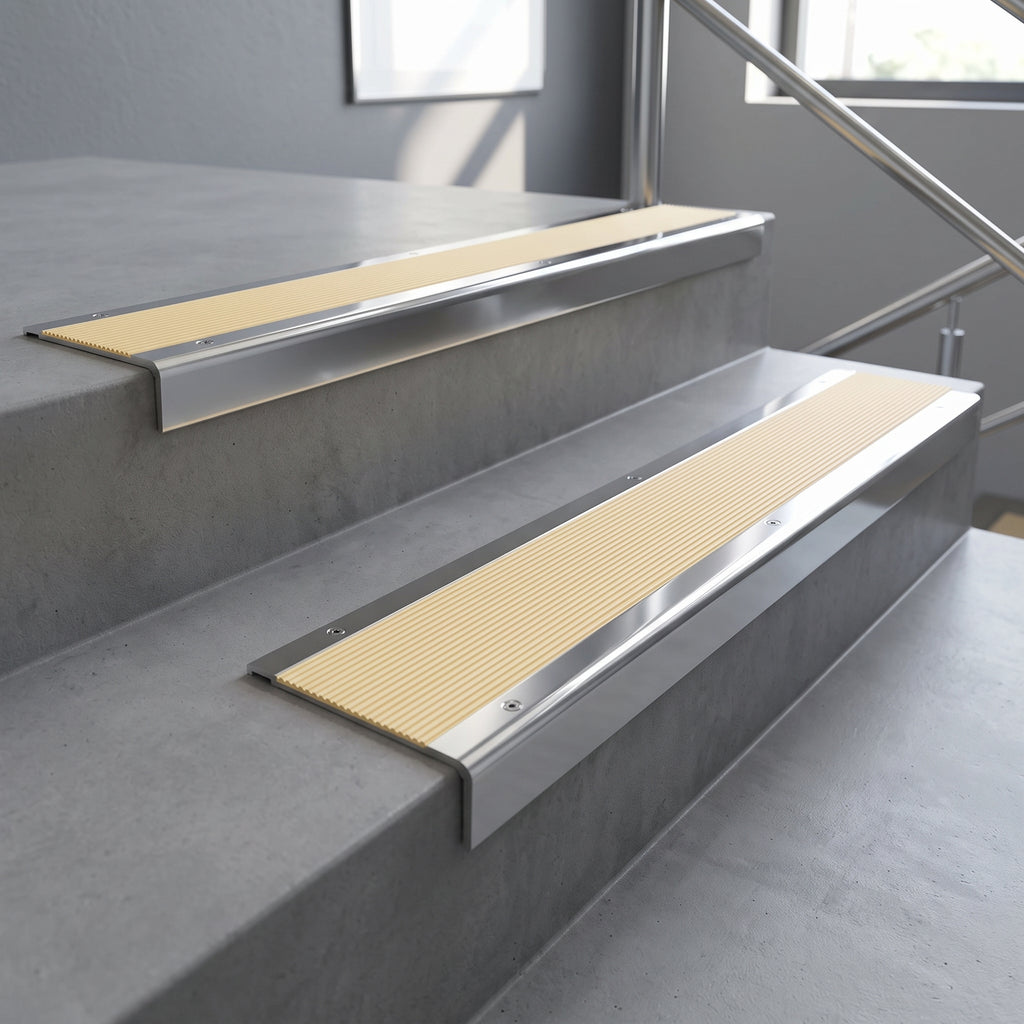

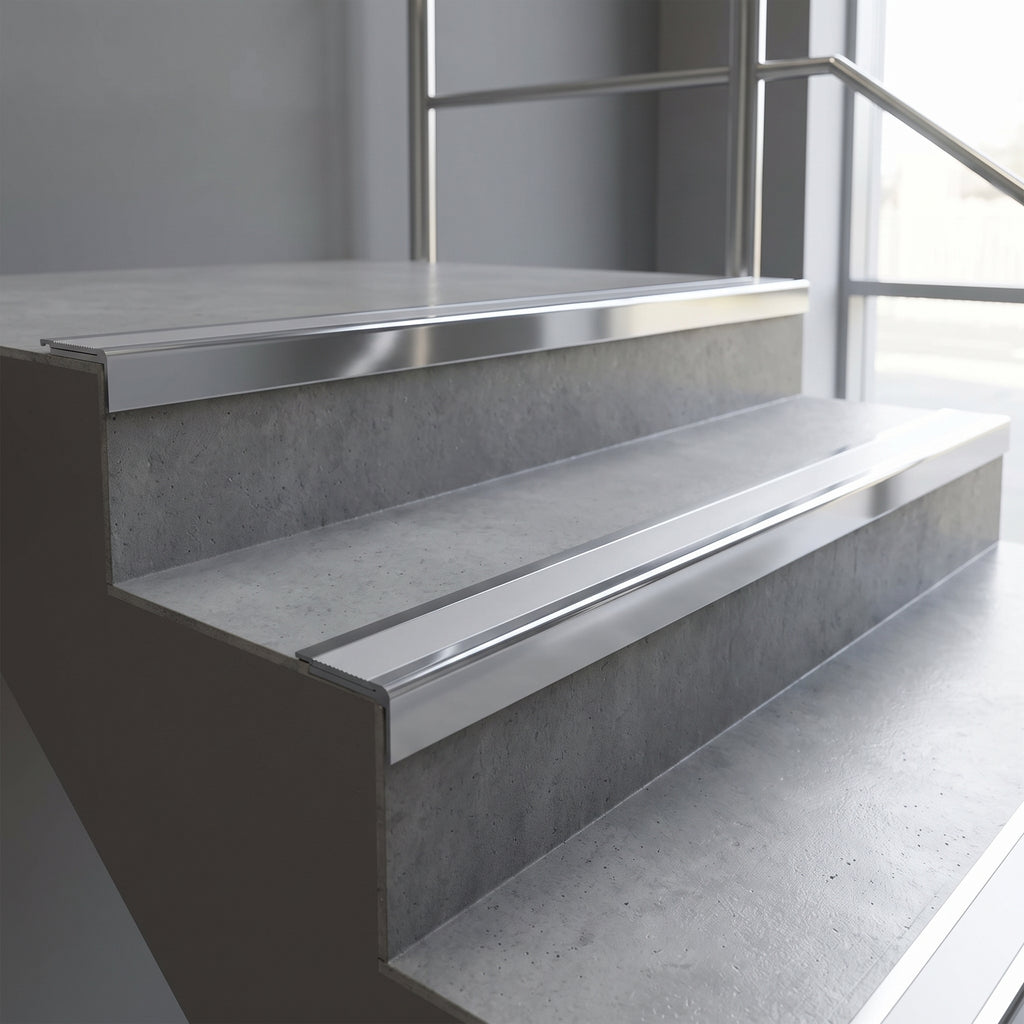

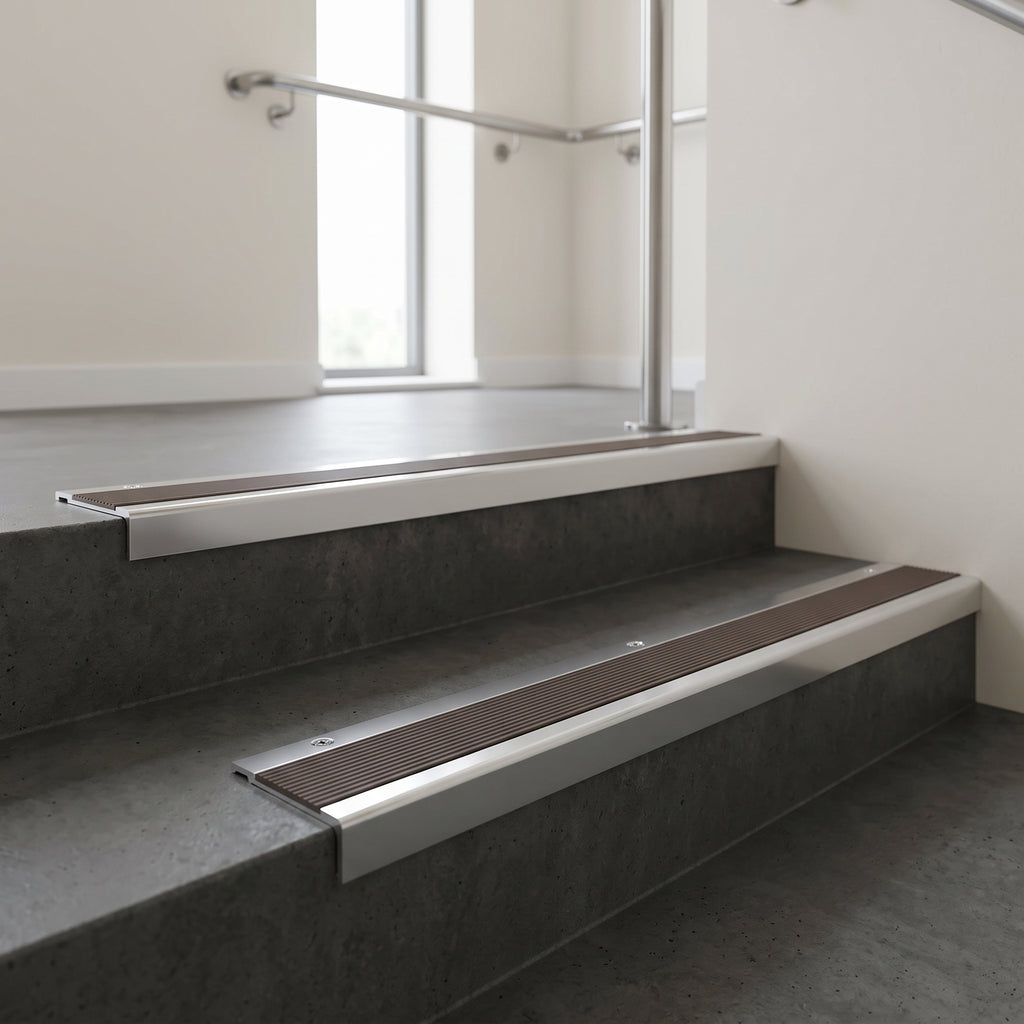

Finish is the aluminium carrier — the metal around the infill and down the front leg. Colour is the infill that sits in the channel, which is why some combinations read as two aluminium names. Mill aluminium is the untreated extrusion and the cheapest of the six; satin and polished are anodised and hold their appearance better in a shared stairwell; black anodised, bronze and light bronze exist for appearance rather than performance. Castellated PVC is the default infill and carries the highest wet figure of the four families, so keep smooth textured away from entrance flights. If the stair is external, or takes heavy traffic and impact, this is the wrong profile — the manufacturer produces a separate AN51 GRP version in mill aluminium with a glass-fibre reinforced anti-slip insert for those conditions.

Installation, use and care

Measure each going before ordering and allow for the ±5mm cutting tolerance. The tread plate is drilled and screw-fixed to the substrate using size 8 screws at regular centres; on timber steps the profile can be rebated so the plate finishes flush with the going. Fit the nosing before the floor covering is dressed up to the back edge, then trim the covering to abut the profile. Clean with a neutral floor cleaner and a damp mop; avoid abrasive pads and solvent cleaners, which cut through anodised and bronze coatings and expose the aluminium beneath.

Ordering and delivery

Select your finish and infill colour, enter the length in millimetres and set how many lengths you need — the price updates as you type. Cut pieces are made to your measurement, so check your going before ordering. UK mainland delivery is a single flat rate at checkout. For matching ANRE25 ramp extensions, ANEXT tread extenders or the ANE nap detail for broadloom carpet, contact us and we will quote them alongside your nosings.
