Aluminium Stair Nosing | Single Channel Ramp Back Profile | Slip-Resistant PVC Inserts | 70mm Tread


Price
Sale price £239.65 (Inc. VAT)
➜ Need help? Call us on 01282 270 010

In stock, ready to ship

Description

Aluminium Stair Nosing — Single Channel Ramp Back Profile with Slip-Resistant PVC Inserts

A precision-engineered aluminium stair nosing with a single channel ramp back (rakeback) profile, designed to protect and define the leading edge of stair treads in both residential and commercial environments. Fitted with high-performance exterior grip PVC inserts, this 70mm tread profile delivers reliable slip resistance on indoor and outdoor staircases, access ramps, landings, and high-footfall circulation routes. Available in six premium aluminium finishes and three contrasting insert colours, it is equally suited to new-build installations and refurbishment projects on concrete, timber, tile, vinyl, and LVT floor surfaces.

Technical Specifications

Profile Material Aluminium Alloy
Insert Material Polyvinylchloride (PVC)
Insert Type Exterior Grip
No. of Insert Channels Single
Stair Profile Requirement Rakeback (Ramp Back)
Fixing Method Mechanical fixing through pre-drilled or site-drilled holes (screw fixed)
Suitable Floor Finishes Vinyl, LVT, wood, laminate, tile, and other hard flooring
Tread 70mm
Riser 32mm
Gauge 3.5mm
Stock Lengths 2.44 m (2440mm)  |  2.75 m (2750mm)  |  3.22 m (3220mm)
Suitable Locations Internal and external stairs, landings, access ramps, fire escapes, entrance steps, corridors

Aluminium Finishes

  • Bright Polished
  • Dark Bronze

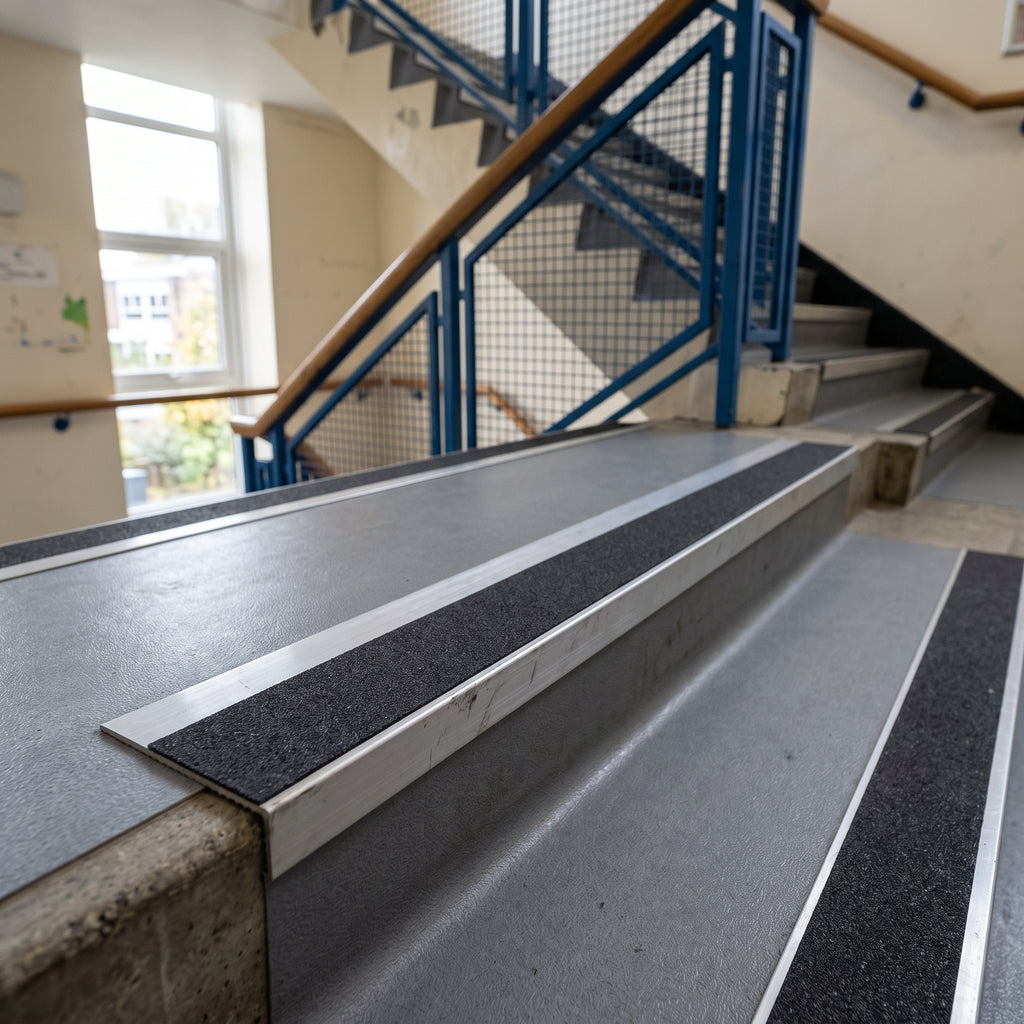

  • Mill Finish

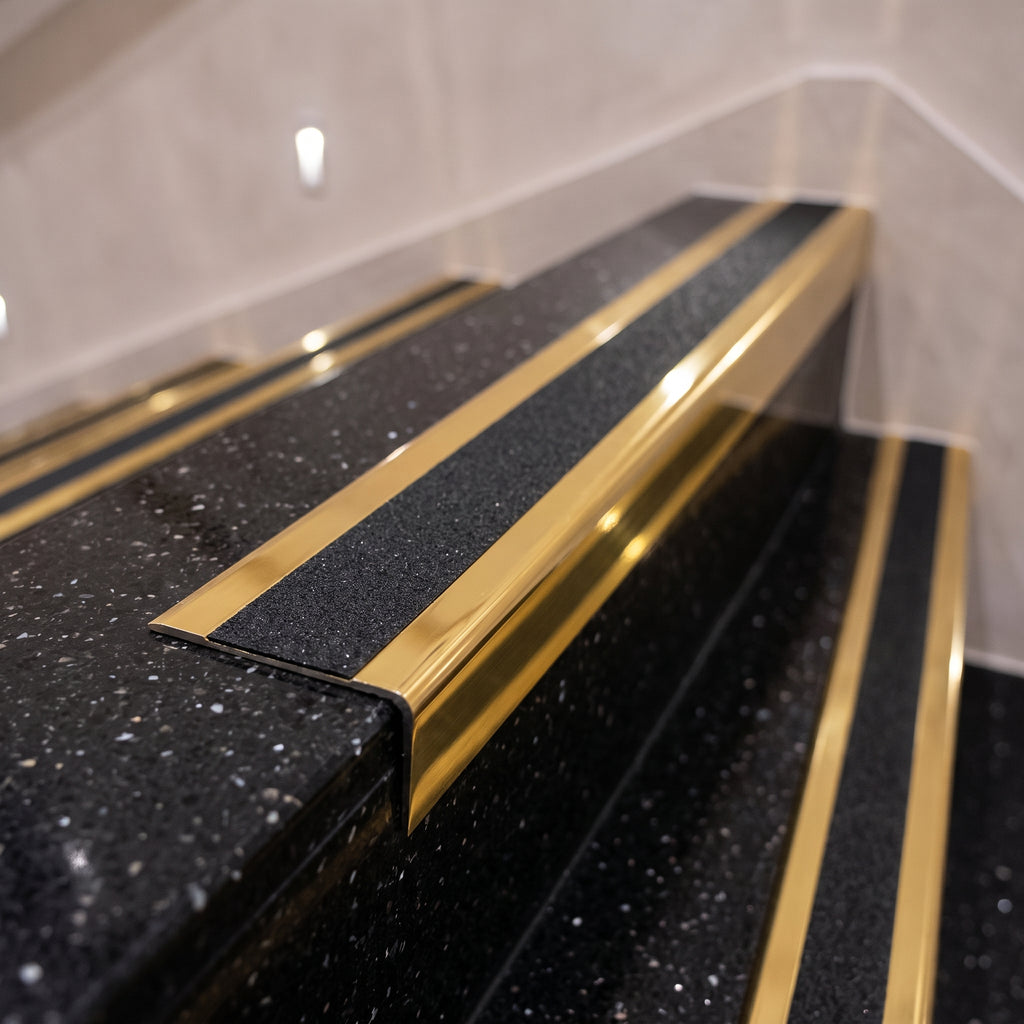

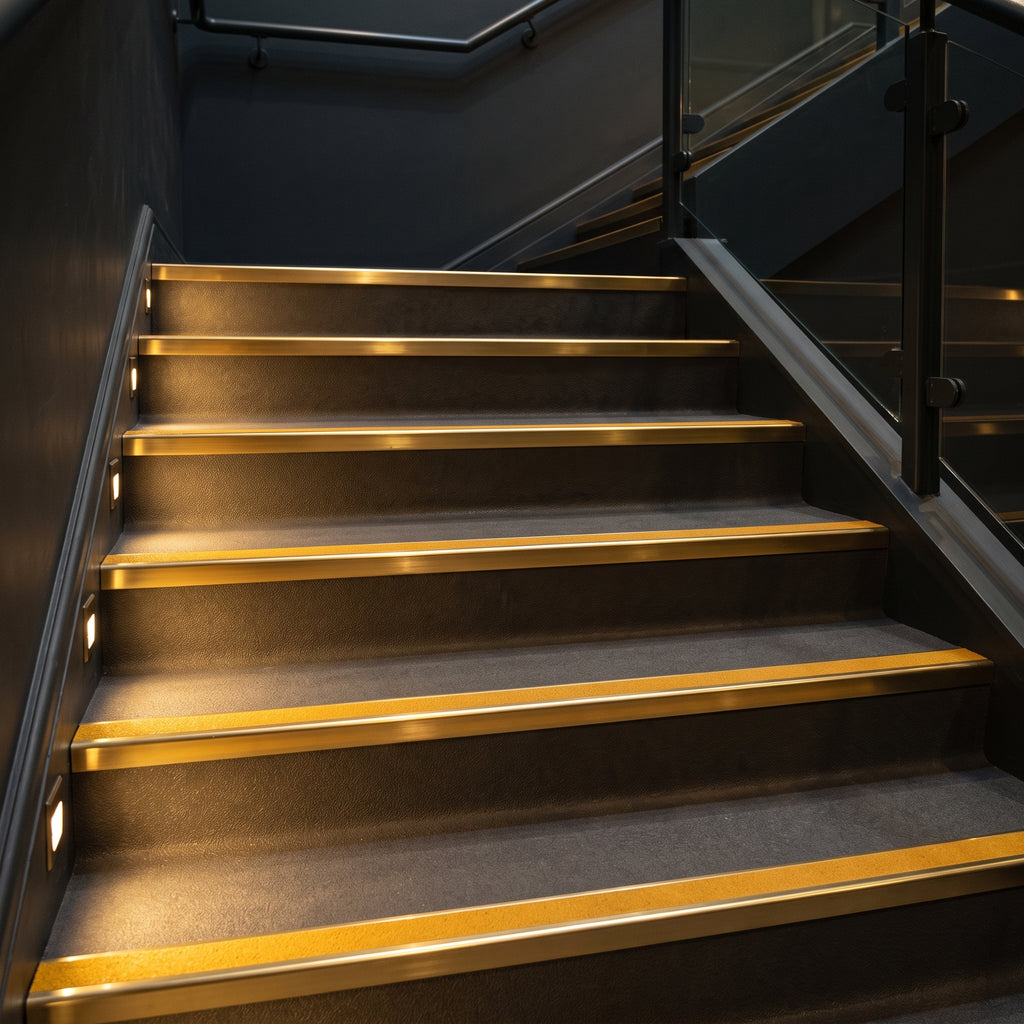

  • Mirrorflect Gold
  • Satin Black

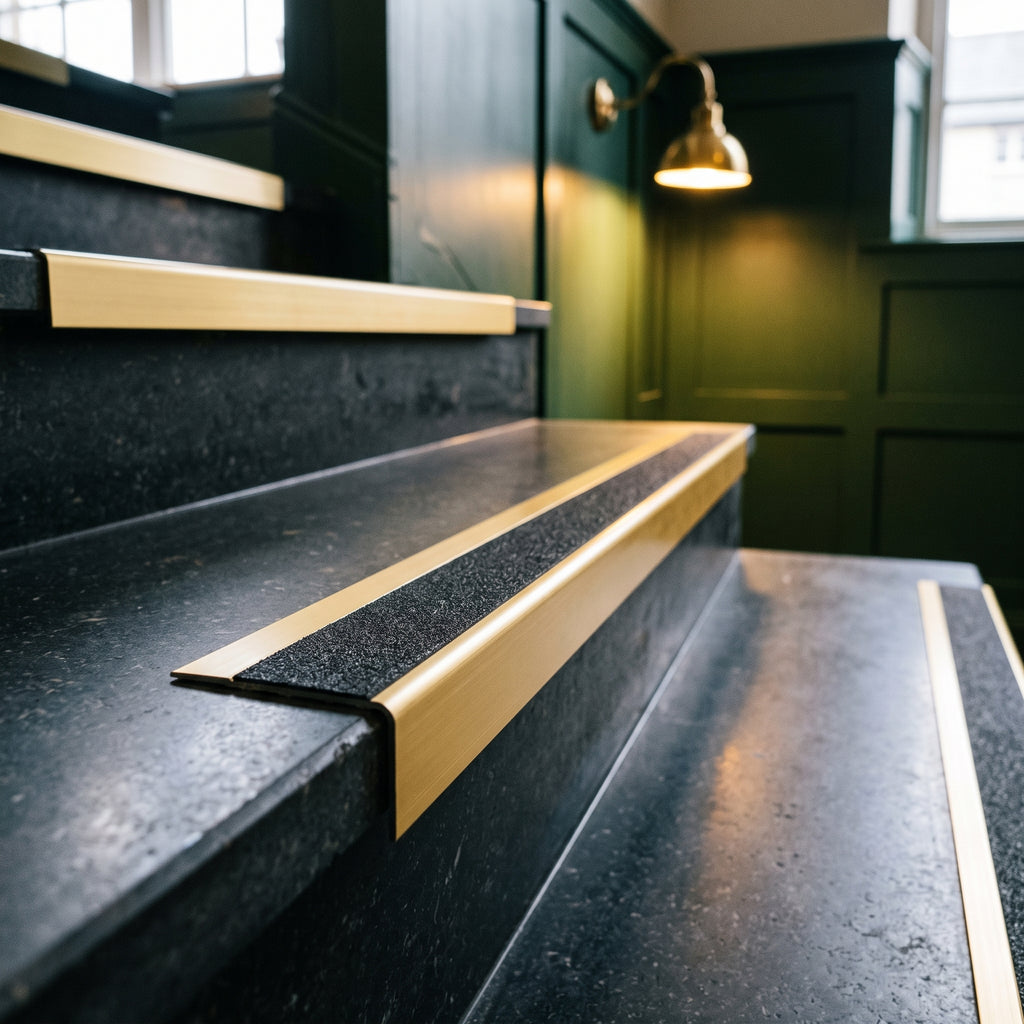

  • Satin Gold

Insert Colours — Exterior Grip PVC

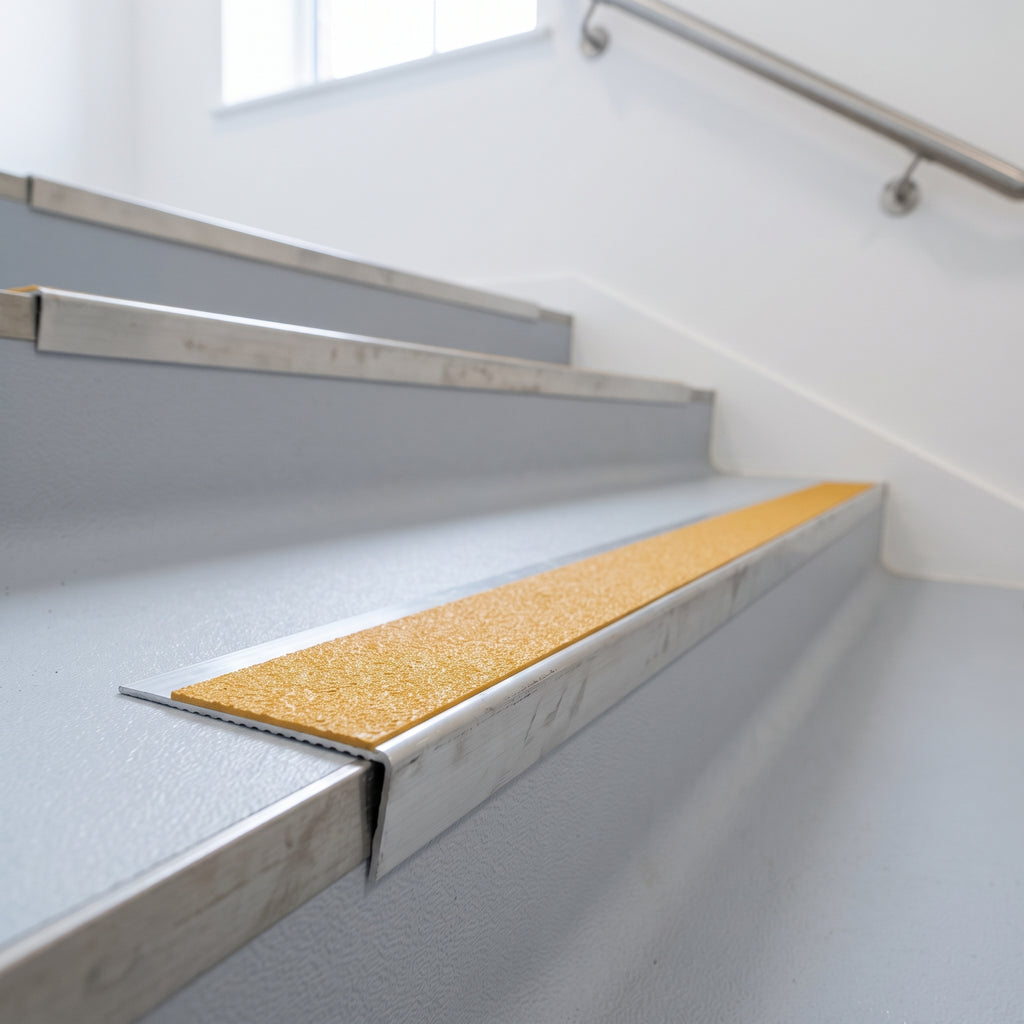

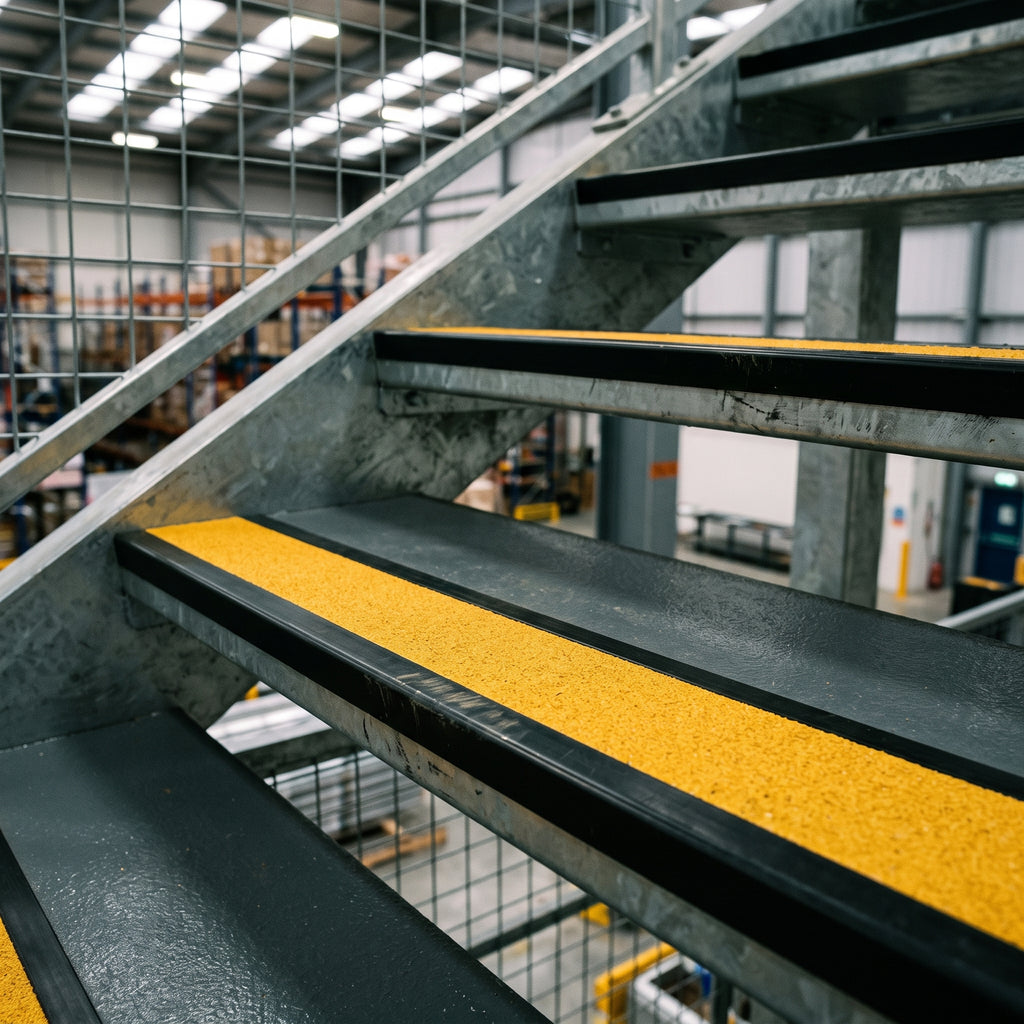

  • Brimstone — Exterior Grip

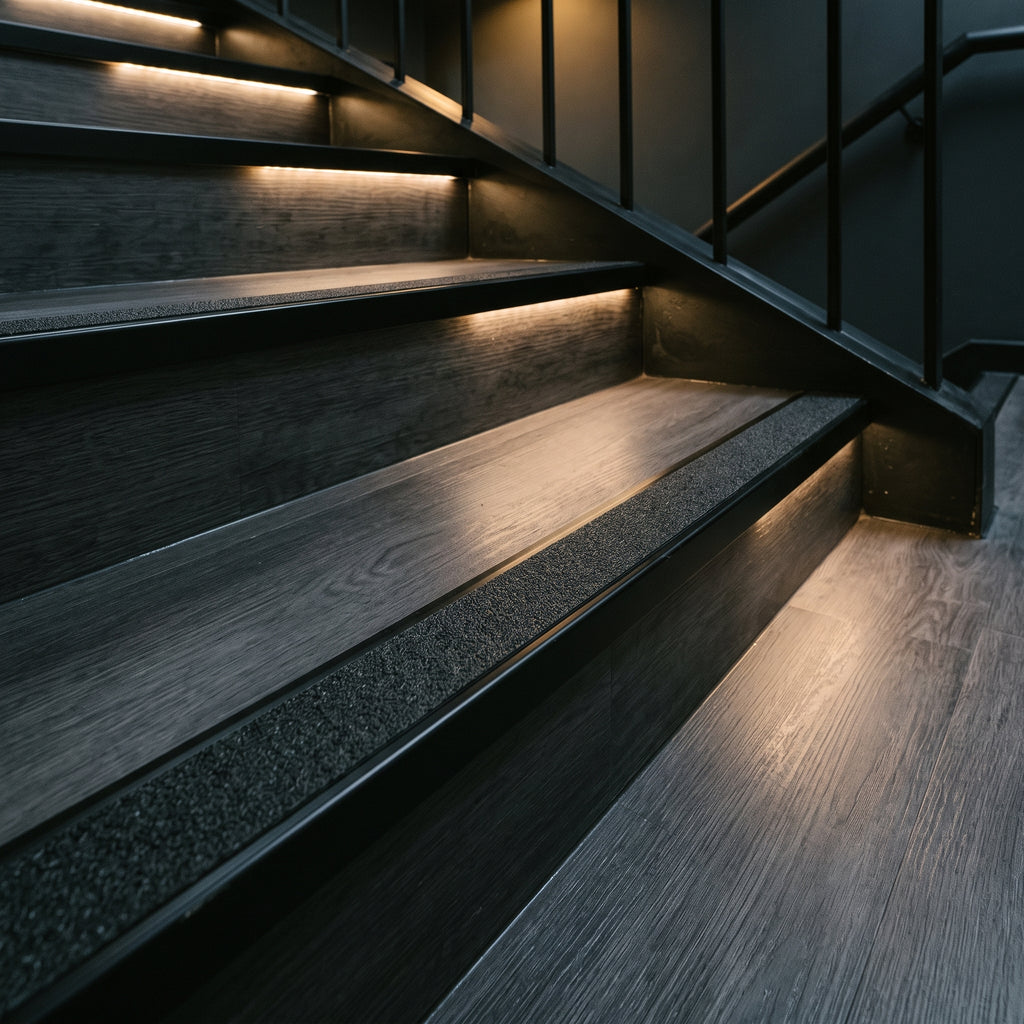

  • Coal — Exterior Grip

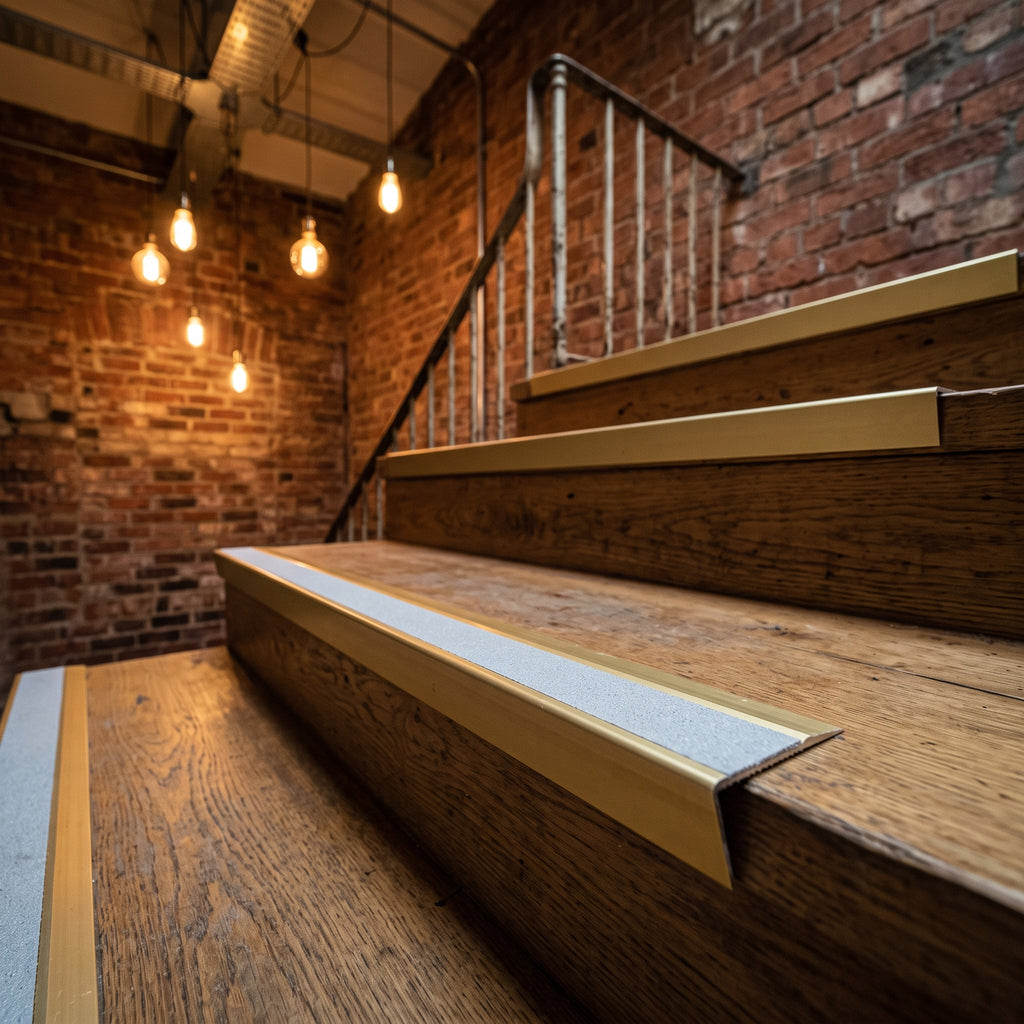

  • Everest — Exterior Grip

Product Features

  • Single channel ramp back (rakeback) aluminium profile with a 70mm tread, 32mm riser, and 3.5mm gauge for precise stair-edge coverage.
  • Exterior Grip PVC inserts provide reliable slip resistance in both dry and wet underfoot conditions, indoors and outdoors.
  • Six aluminium finish options — Bright Polished, Dark Bronze, Mill Finish, Mirrorflect Gold, Satin Black, and Satin Gold — to coordinate with surrounding floor and wall finishes.
  • Three contrasting insert colour options (Brimstone, Coal, Everest) to clearly define the stair edge and support visibility guidance.
  • Three stock lengths — 2.44 m, 2.75 m, and 3.22 m — to accommodate a wide range of stair widths without unnecessary cutting waste.
  • Ramp back profile design sits neatly over floor finishes such as vinyl, LVT, laminate, and tile, creating a smooth, trip-free transition.
  • Screw-fixed installation through pre-drilled or site-drilled holes for a secure, long-term fixing on concrete, timber, and tile substrates.
  • Hard-wearing aluminium alloy construction delivers low-maintenance performance in high-footfall commercial and public-access environments.

Key Benefits

  • Reduces the risk of slips and trips by providing a textured, high-grip surface at the most vulnerable point of each step.
  • Contrasting insert colours visually define the stair edge, supporting accessibility and visibility requirements in public and commercial buildings.
  • Ramp back profile eliminates abrupt edges between the nosing and adjacent floor covering, reducing trip hazards at the stair transition.
  • Consistent finish and insert options across the full range allow a uniform appearance throughout an entire building or project.
  • Suitable for both interior and exterior applications when fitted with the Exterior Grip insert, offering a single product solution across mixed environments.
  • Aluminium construction and high-performance PVC inserts deliver a durable, low-maintenance stair-edge solution with long service life.

Applications & Suitable Locations

  • Commercial office staircases
  • Schools & educational buildings
  • Healthcare facilities
  • Public buildings & civic spaces
  • Retail & hospitality environments
  • Entrance steps & external stairways
  • Fire escapes & access ramps
  • Residential staircases & landings
  • Refurbishment of worn stair edges
  • Mixed indoor & outdoor circulation routes

Specifications at a Glance

Specification Detail
Profile Type Single channel, ramp back (rakeback) aluminium stair nosing
Profile Material Aluminium Alloy
Insert Material Polyvinylchloride (PVC)
Insert Type Exterior Grip
No. of Insert Channels Single
Tread 70mm
Riser 32mm
Gauge 3.5mm
Fixing Method Screw fixed (mechanical fixing)
Stair Profile Requirement Rakeback
Suitable Floor Finishes Vinyl, LVT, wood, laminate, tile, and other hard flooring
Suitable Locations Internal and external stairs, landings, access ramps, fire escapes, entrance steps, corridors
Stock Lengths 2.44 m (2440mm)  |  2.75 m (2750mm)  |  3.22 m (3220mm)
Aluminium Finishes Bright Polished, Dark Bronze, Mill Finish, Mirrorflect Gold, Satin Black, Satin Gold
Insert Colours Brimstone — Exterior Grip, Coal — Exterior Grip, Everest — Exterior Grip

Frequently Asked Questions

What is a ramp back (rakeback) stair nosing and where is it used?

A ramp back or rakeback profile has an angled rear edge that sits flush over the surface of the floor covering rather than dropping vertically. This makes it ideal for use on stairs where vinyl, LVT, laminate, wood, or tile finishes run up to the stair edge, creating a smooth, trip-free transition between the nosing and the floor.

Can this stair nosing be used outdoors?

Yes. When fitted with the Exterior Grip PVC insert, this profile is suitable for external staircases, entrance steps, access ramps, and fire escapes. The Exterior Grip insert is specifically designed to maintain slip resistance in wet and exposed conditions.

What stock lengths are available and can the nosing be cut to size?

This profile is available in three stock lengths: 2.44 m (2440mm), 2.75 m (2750mm), and 3.22 m (3220mm). All lengths can be cut on site to the exact stair width required using standard aluminium cutting tools.

How is this stair nosing fixed to the stair?

The profile is mechanically fixed using screws through pre-drilled or site-drilled holes in the base of the nosing. It is suitable for fixing to concrete, timber, and tile substrates. Appropriate fixings should be selected based on the substrate type.

Select your preferred aluminium finish, insert colour, and stock length using the options above. All profiles are supplied ready for on-site cutting and installation. For project quantities or specification enquiries, please contact us directly.

Delivery Information

ServiceTimeframeCost
Standard UK Delivery2–4 business days£9.99

Orders placed before 12pm Mon–Fri are typically dispatched same day. Delivery to all UK addresses. Contact us for international enquiries.

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

Recently viewed

Frequently Asked Questions

Find answers to common questions about our stair nosings

Stair nosings are protective edge strips fitted to the front of stair treads. They serve multiple purposes: preventing slip accidents, protecting stairs from wear, meeting building regulations, and improving visibility for those with impaired vision. They're essential for both safety compliance and extending the life of your stairs.

Yes, all our products are designed to meet UK Building Regulations, including:

  • Part K – Protection from falling and collision
  • Part M – Access to and use of buildings
  • BS 8300 – Design for disabled access

Our contrasting nosings meet the requirements for visually impaired users.

We offer stair nosings in multiple materials:

  • Aluminium – Lightweight, durable, ideal for most applications
  • GRP/Fibreglass – Heavy-duty, excellent for external and industrial use
  • Rubber/PVC – Flexible, great for refurbishment projects
  • Brass – Premium finish for high-end residential

Yes! We offer a cut-to-length service for most of our stair nosing products. Simply provide the measurements you need when ordering, or contact our team for assistance. This ensures a perfect fit with minimal on-site cutting required.

Installation varies by product type but typically involves:

  • Screw-fixed – Drill, countersink and screw into substrate
  • Adhesive-fixed – Use high-strength adhesive for bonding
  • Channel systems – Insert nosing into pre-installed track

We provide detailed PDF installation guides and video tutorials for every product range.

We offer fast UK delivery on all orders:

  • Standard Delivery – 2-3 working days
  • Express Delivery – Next working day (order before 2pm)
  • Free Delivery – On orders over £100

Large or bulk orders may require pallet delivery – contact us for details.

Yes, we offer trade accounts for contractors, architects, and facilities managers. Benefits include:

  • Competitive bulk pricing
  • 30-day payment terms (subject to approval)
  • Dedicated account manager
  • Priority technical support

Contact us to apply for a trade account.

Ramp/Angled – Gradual slope, best for high-traffic areas and wheelchair access
Bullnose/Round – Curved edge, traditional look, good for residential stairs
Pencil Edge – Minimal profile, sleek modern appearance

Choose based on your aesthetic preference and the level of protection required.
