Medium Duty Bullnose Aluminium Stair Nosing 3.22m Double Channel


Price
Sale price £276.37 (Inc. VAT)
➜ Need help? Call us on 01282 270 010

In stock, ready to ship

Description

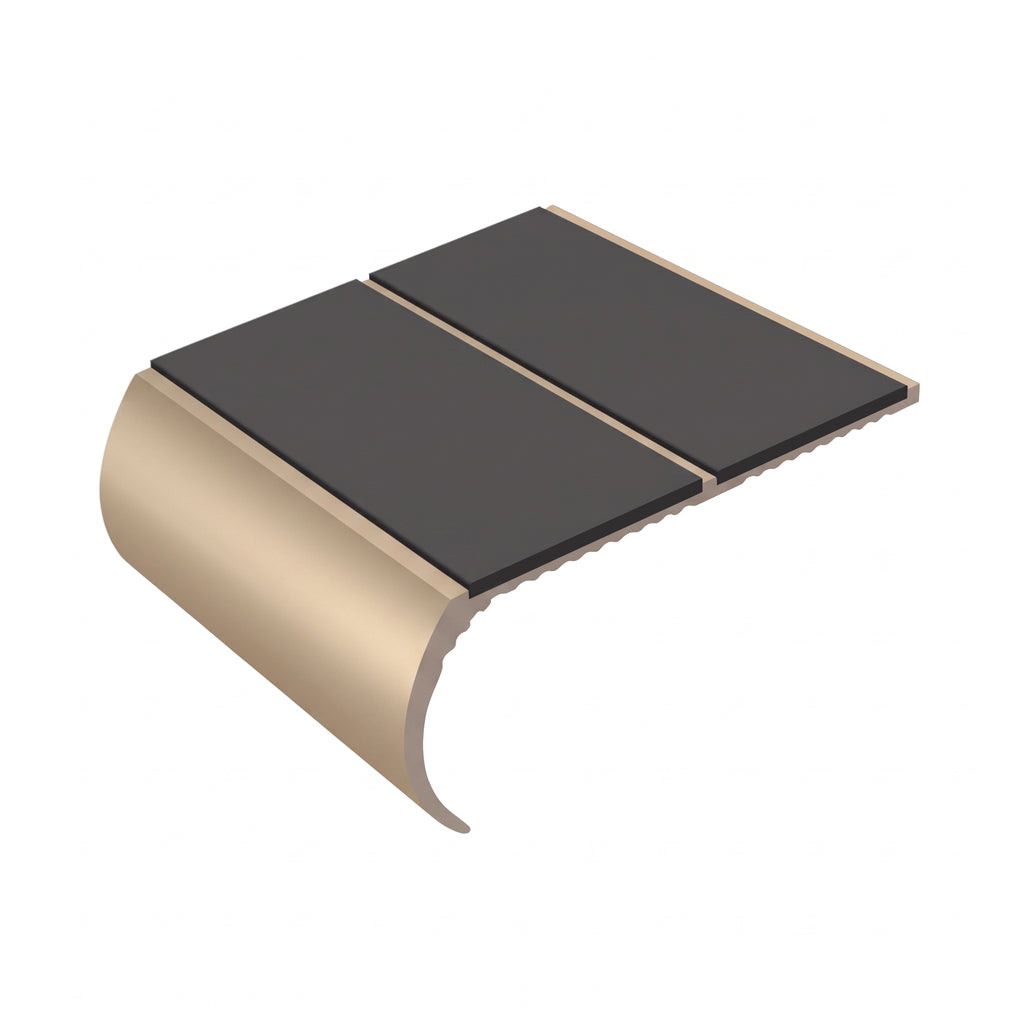

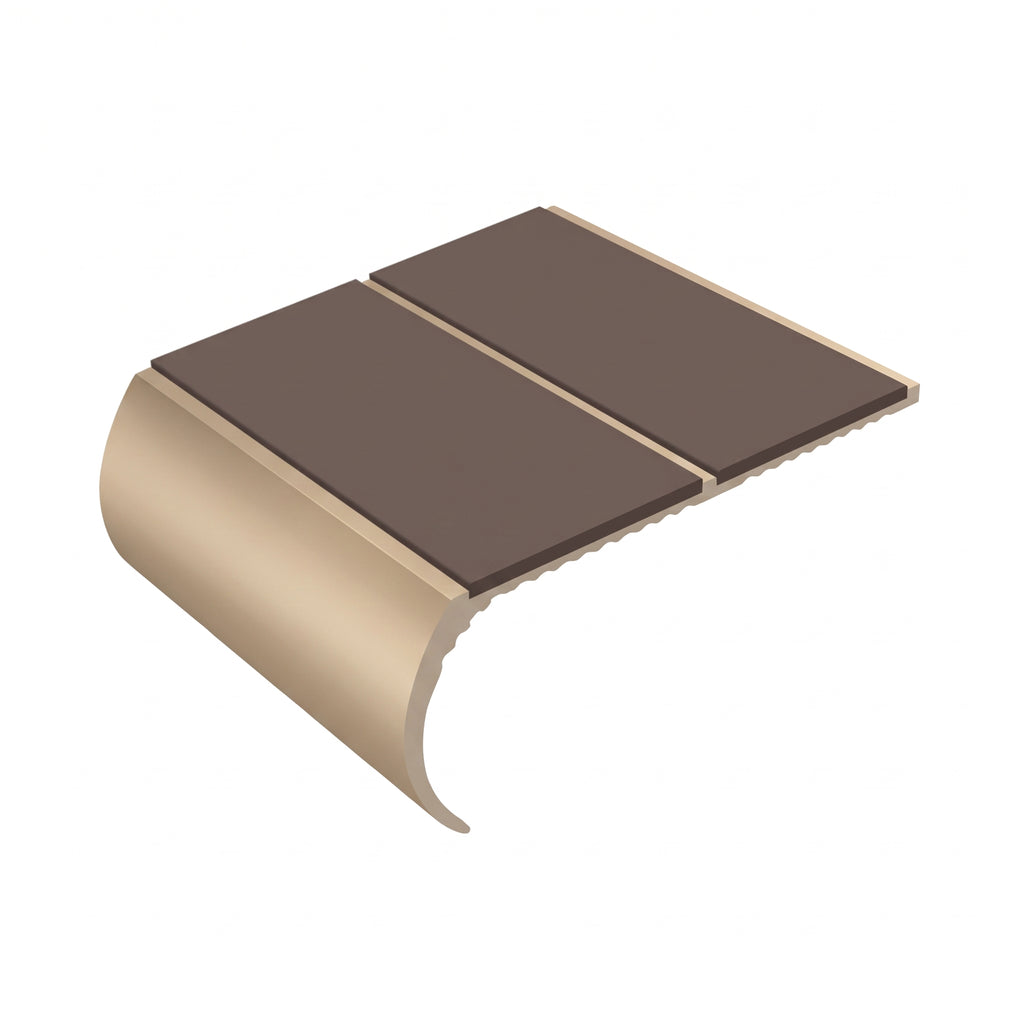

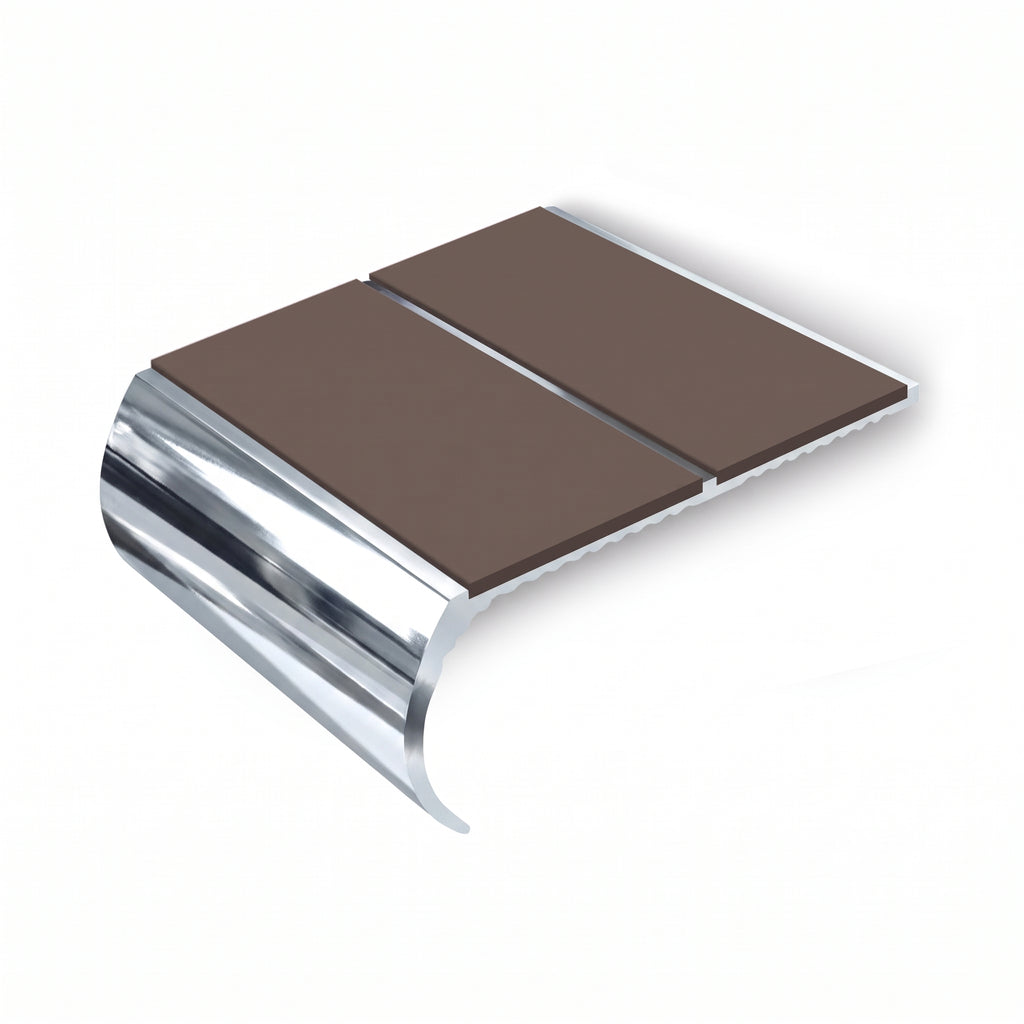

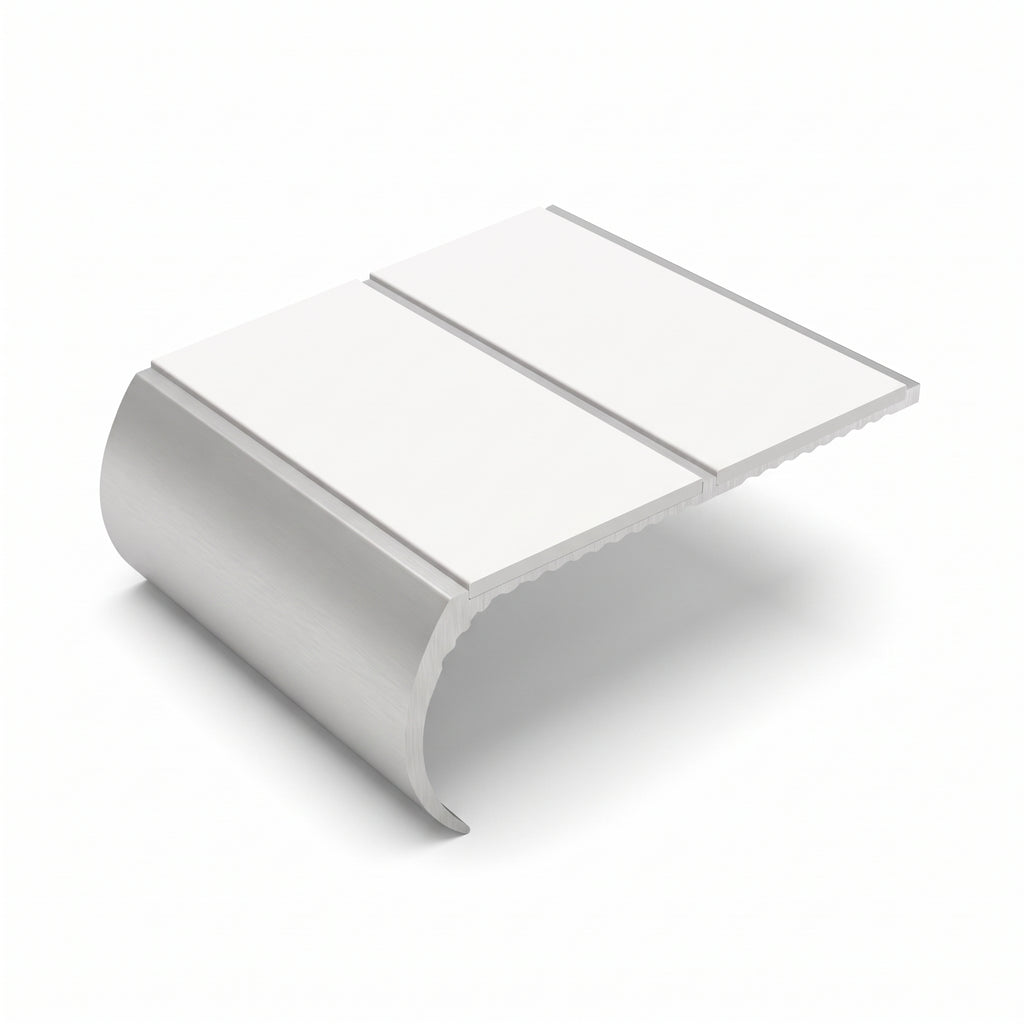

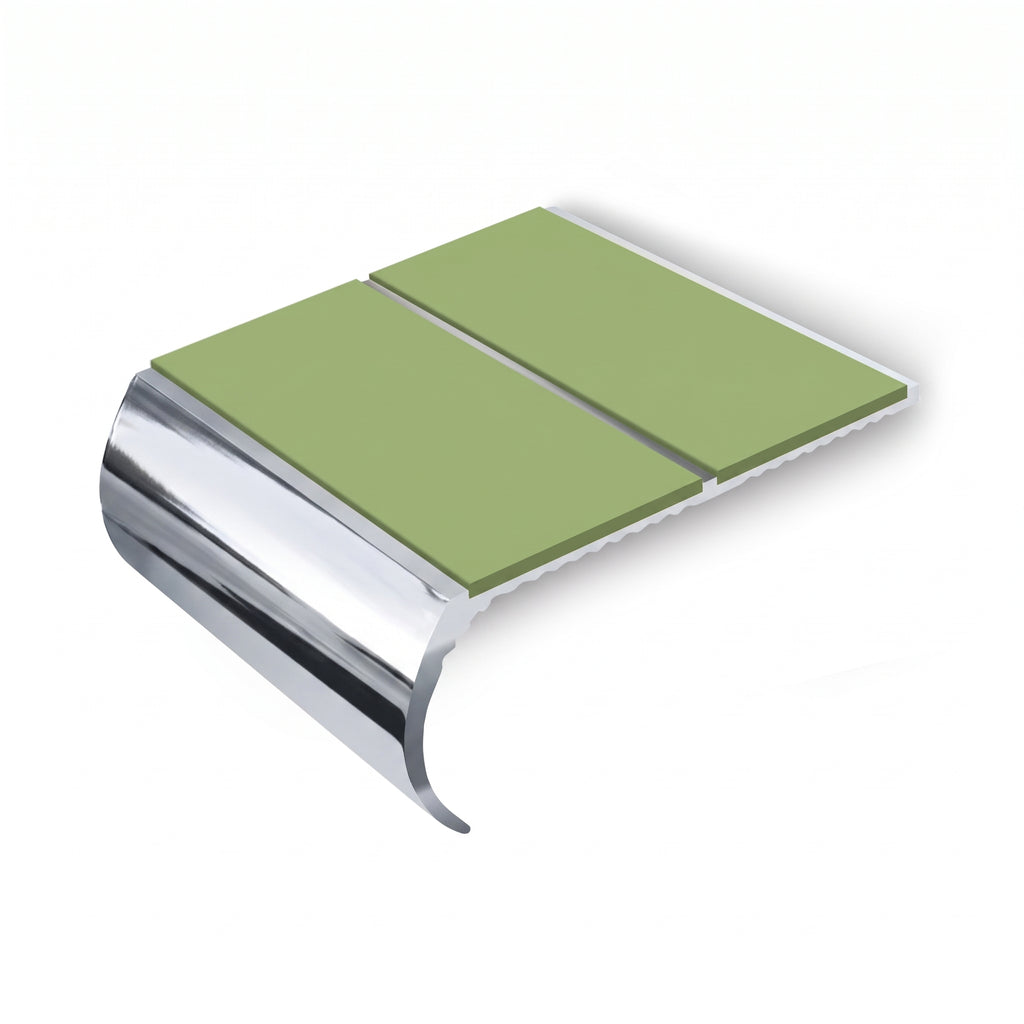

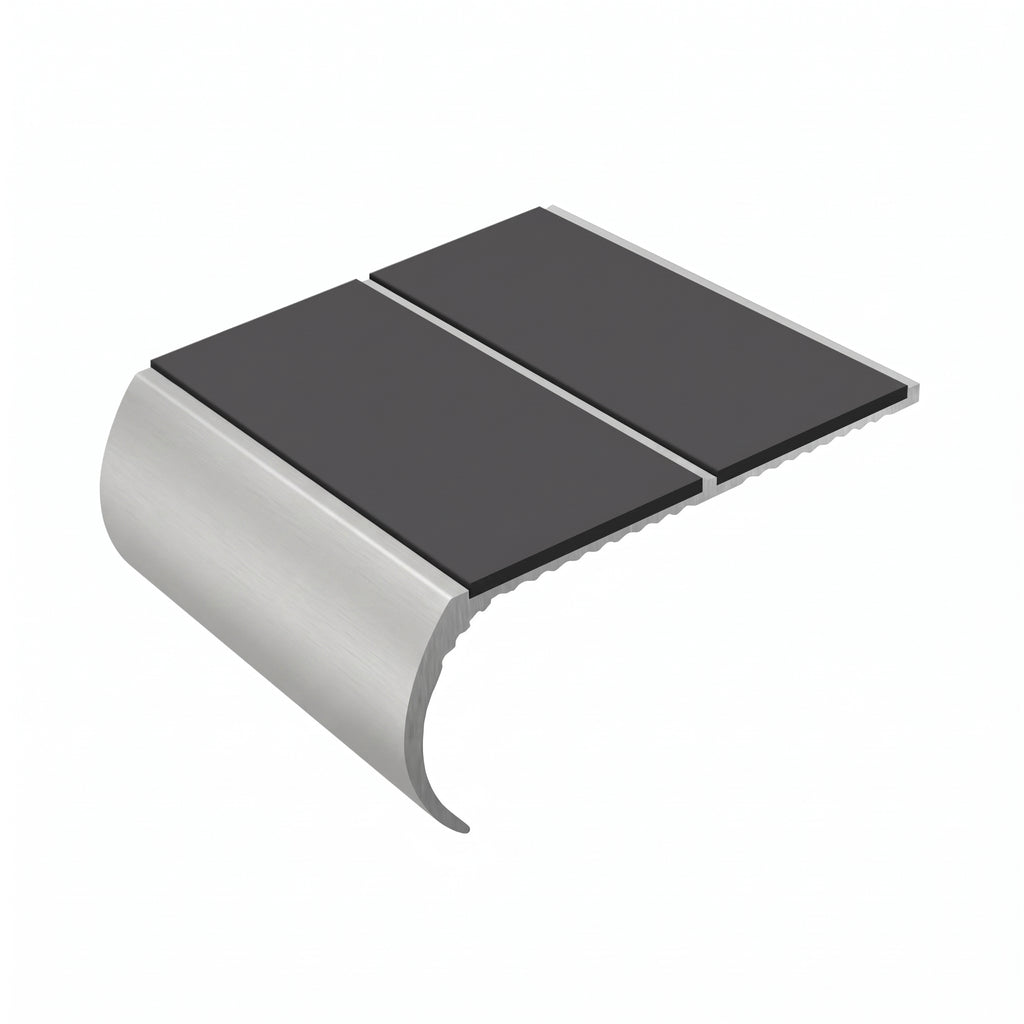

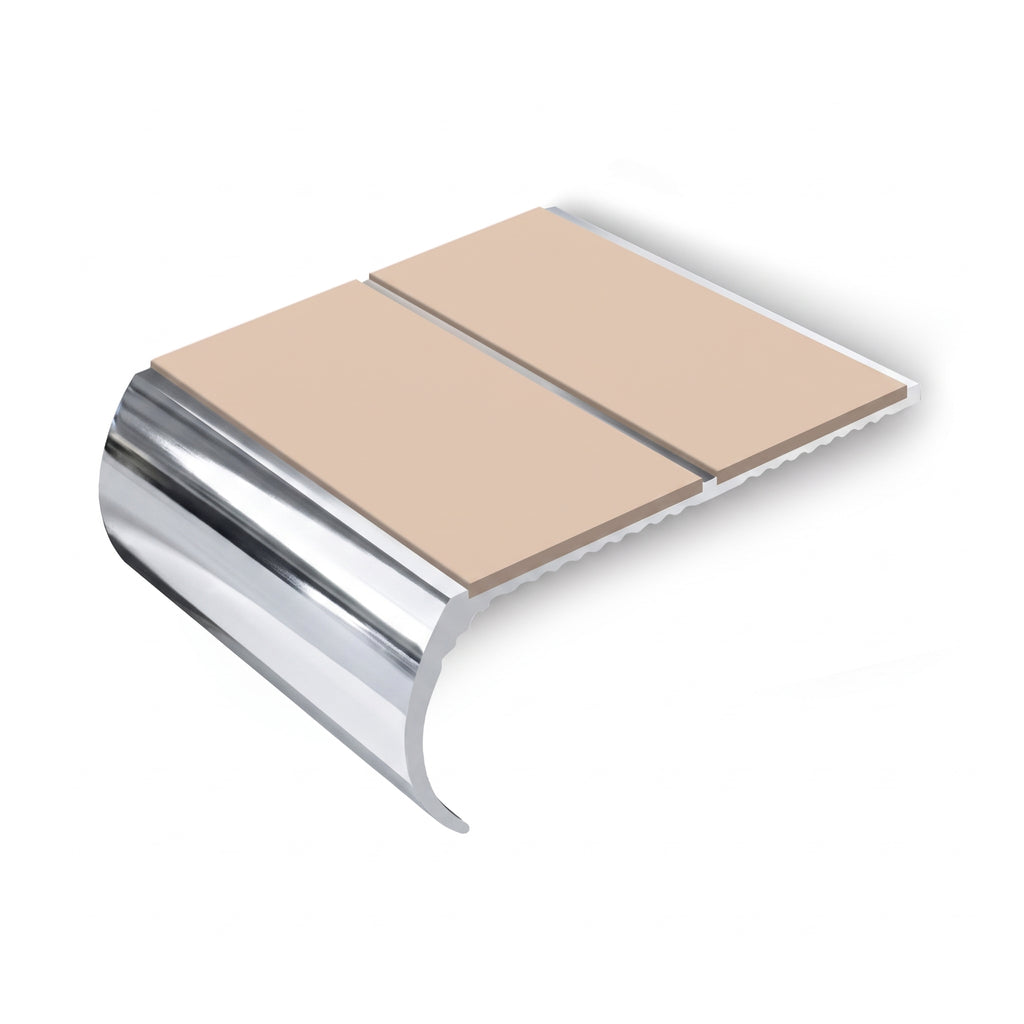

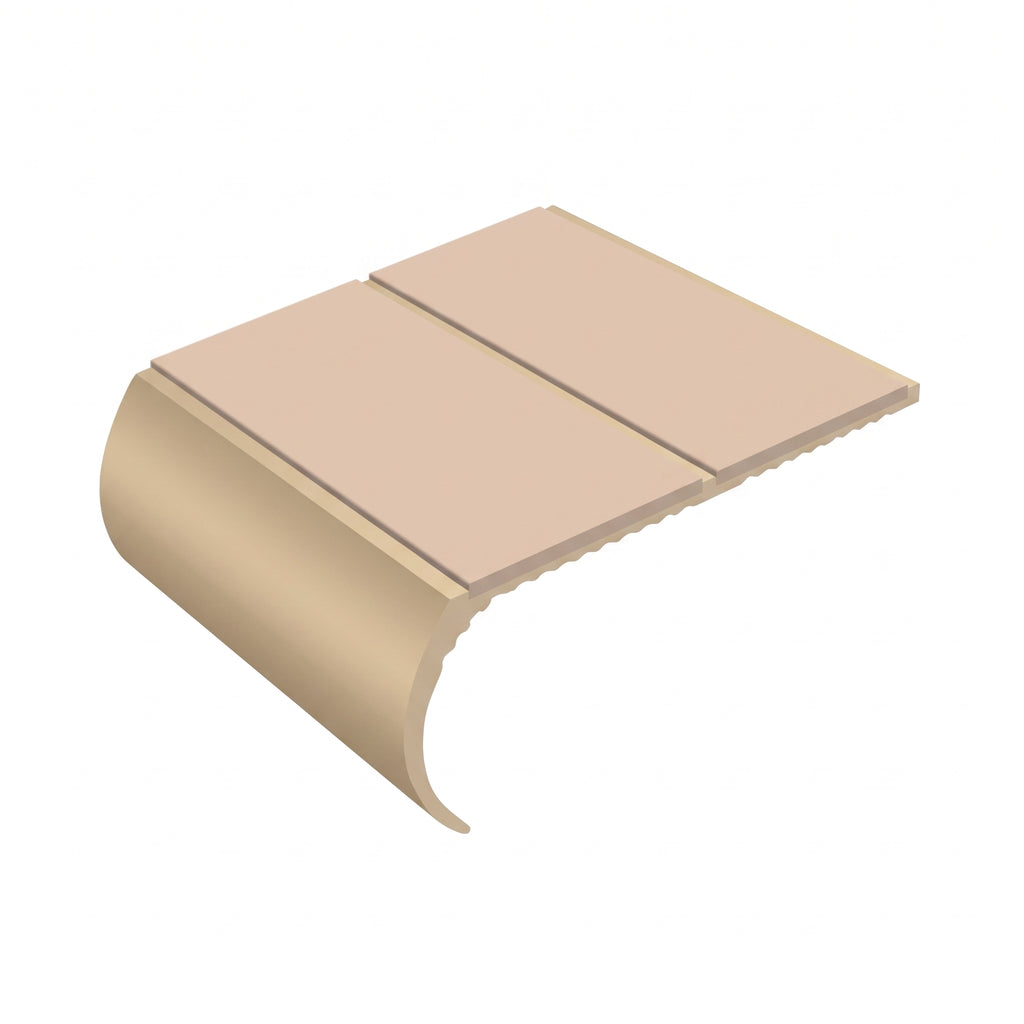

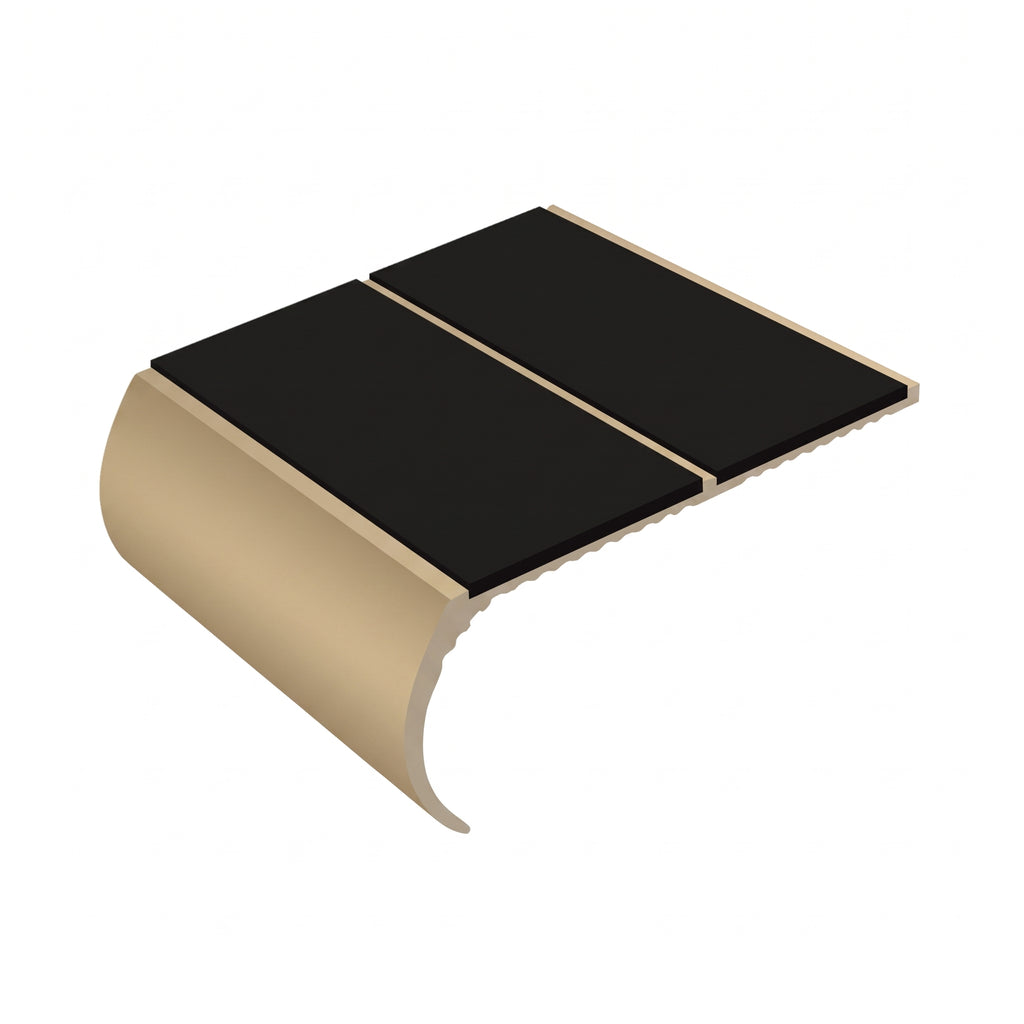

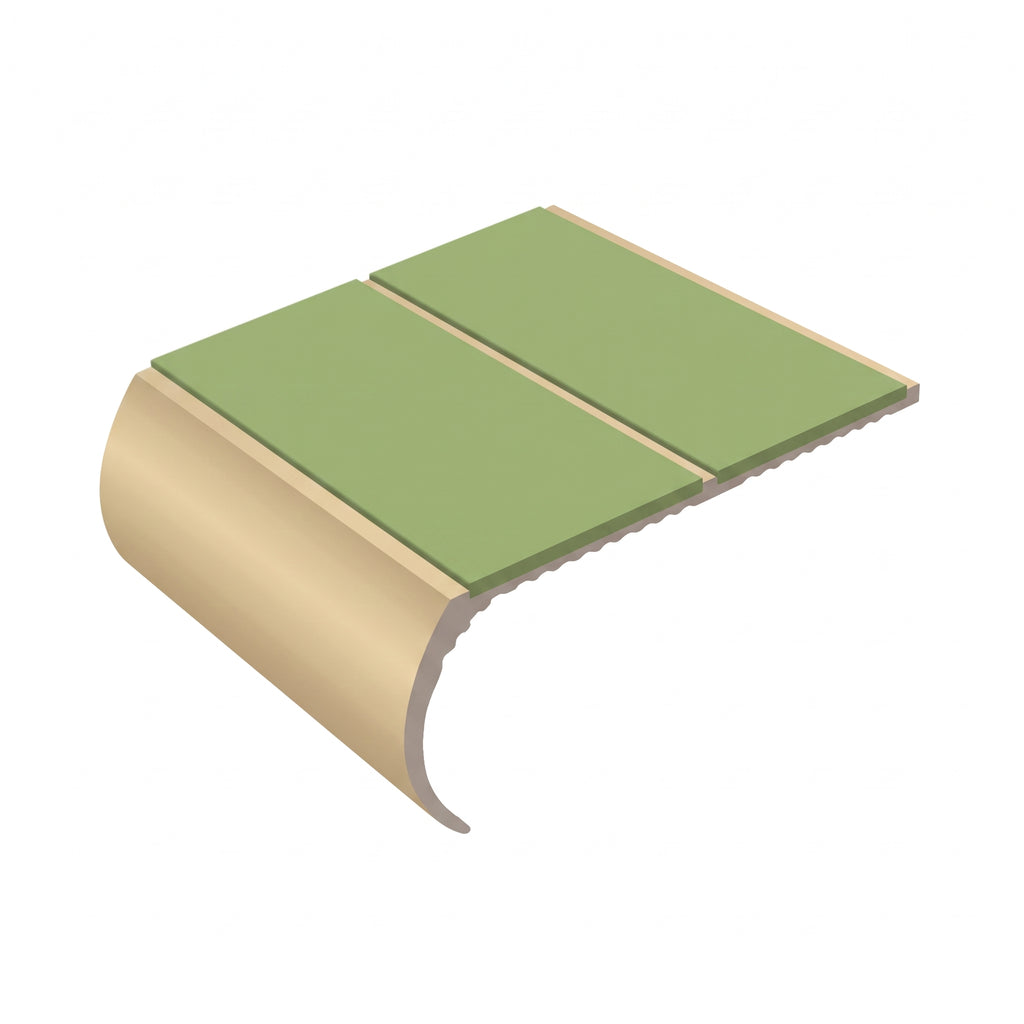

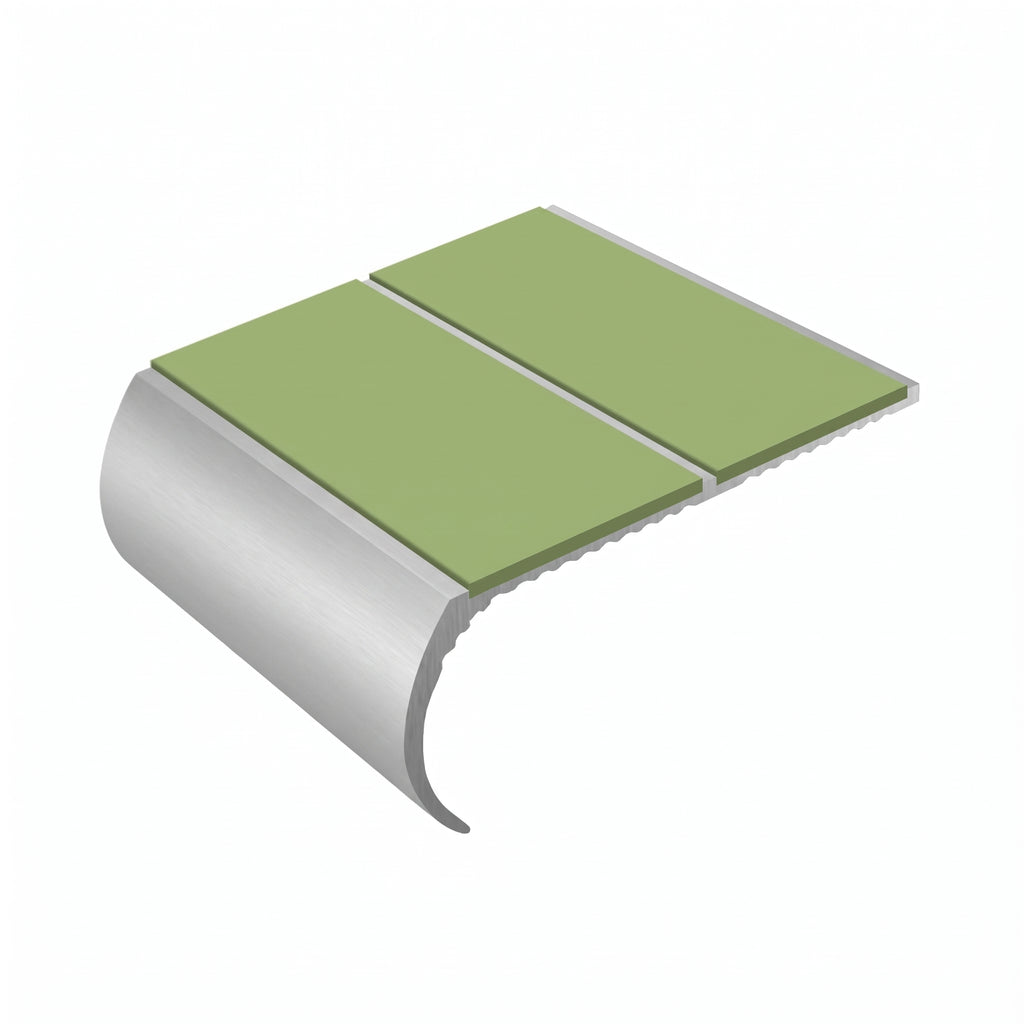

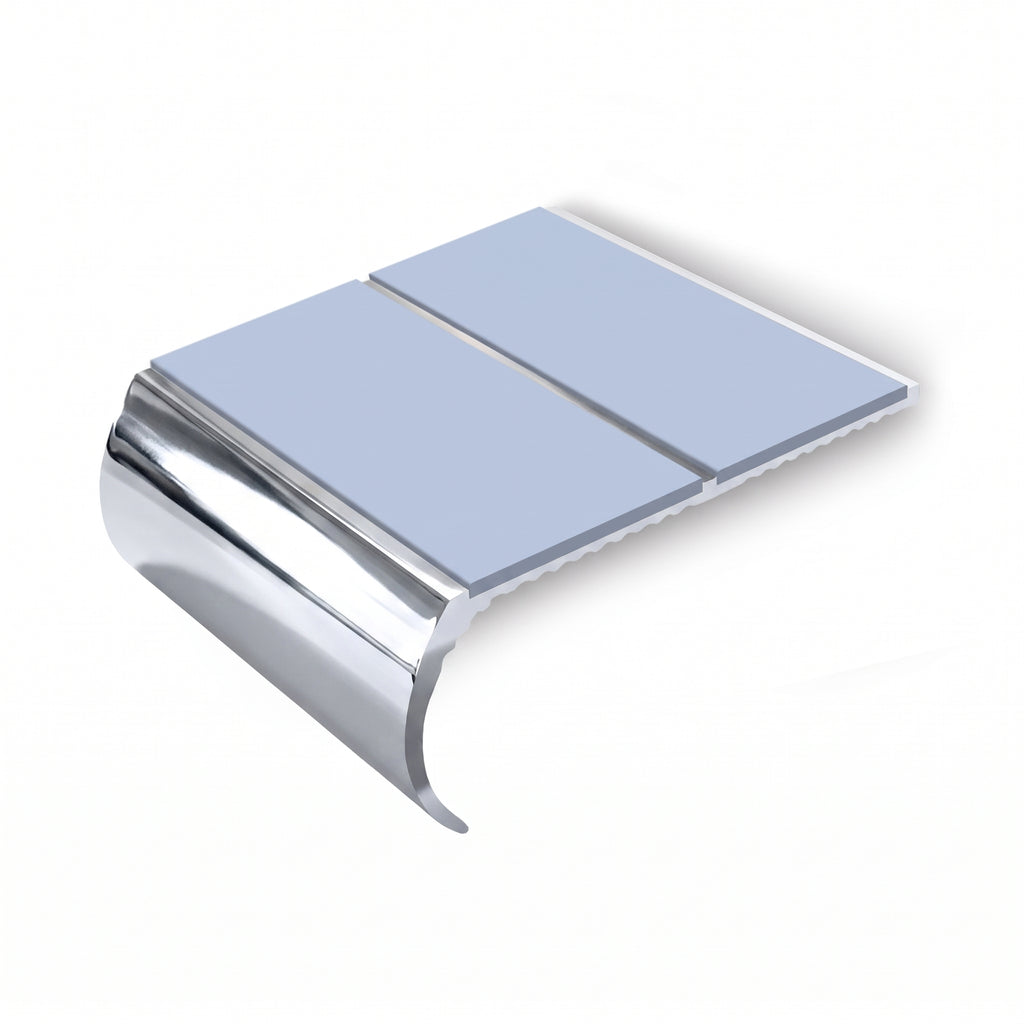

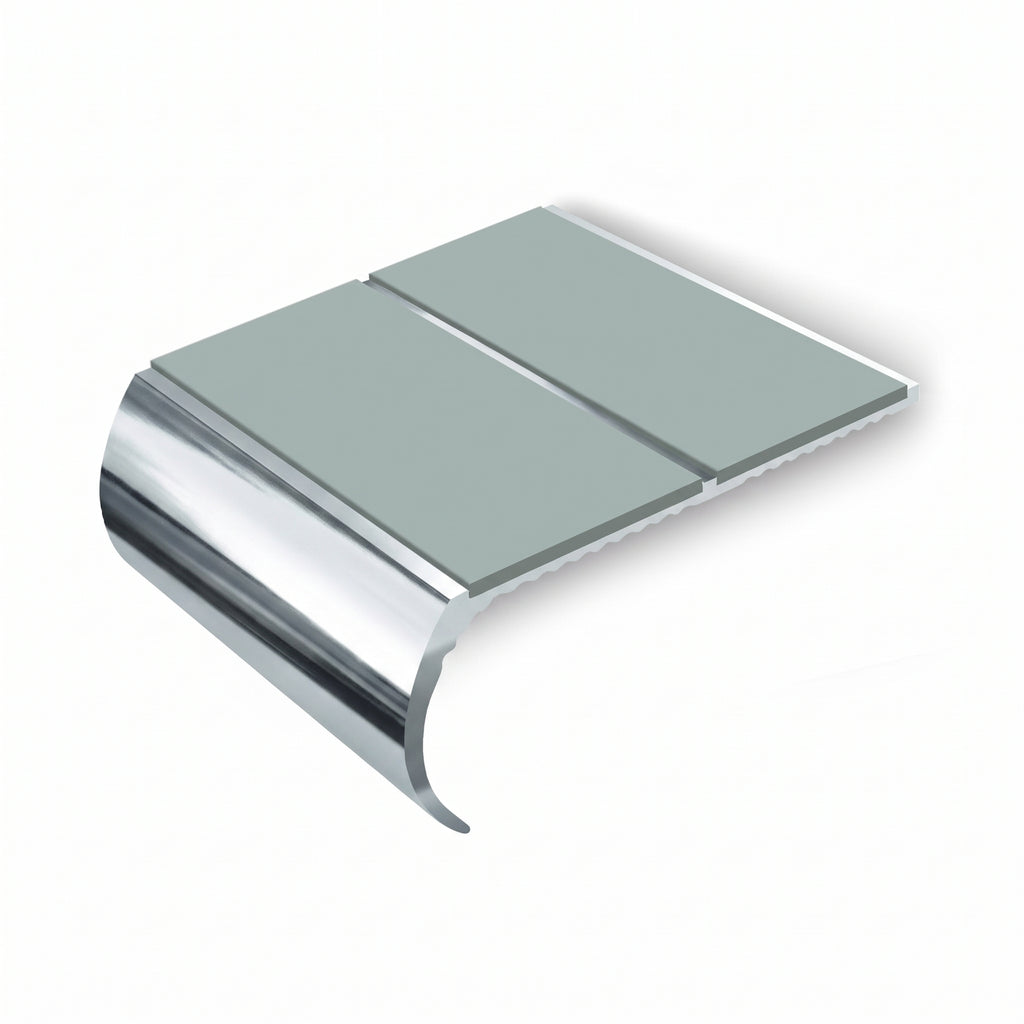

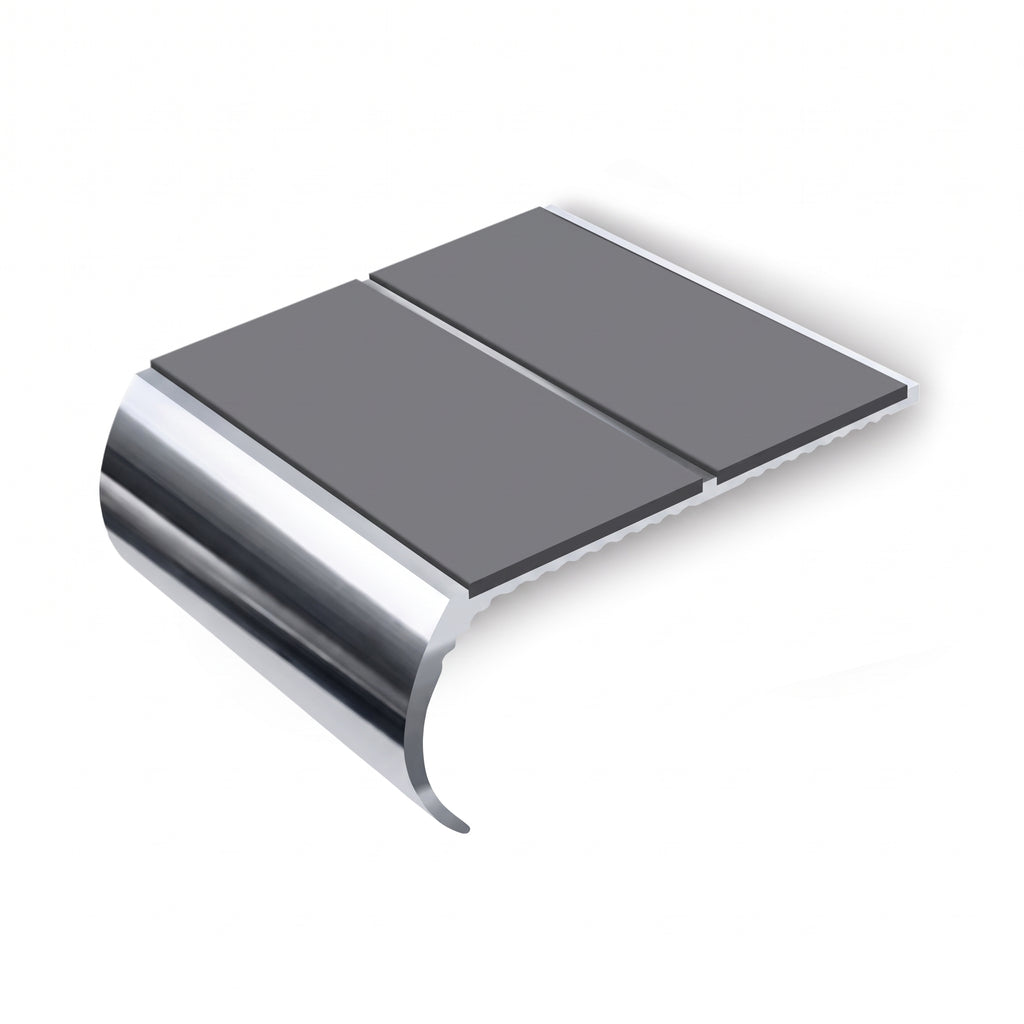

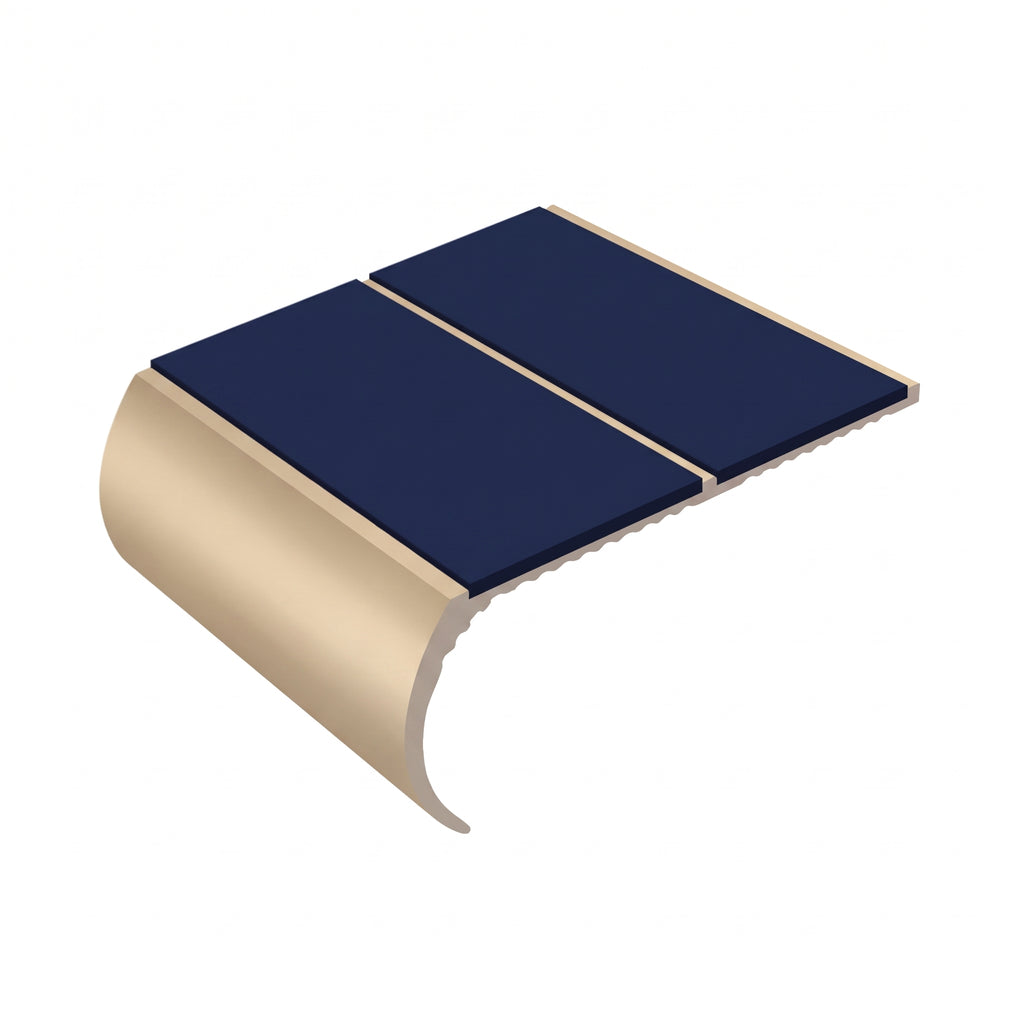

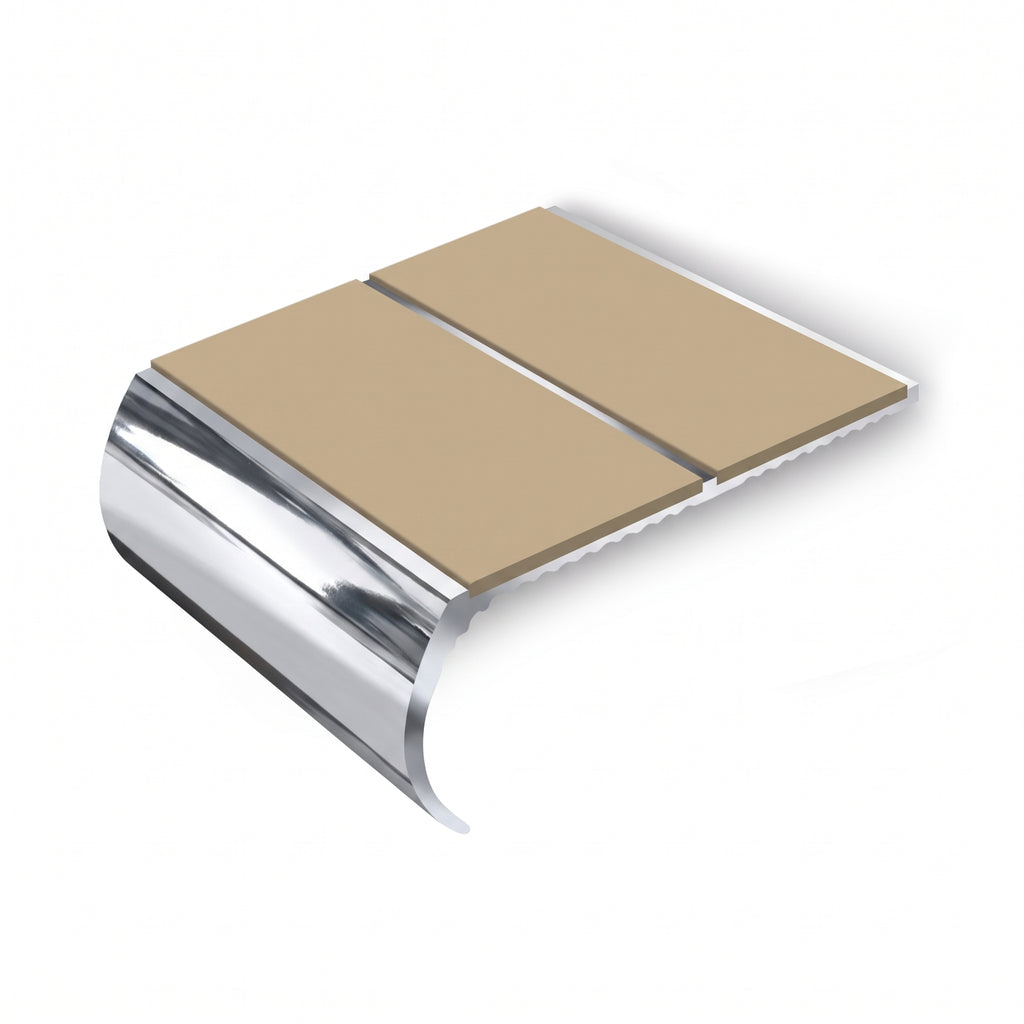

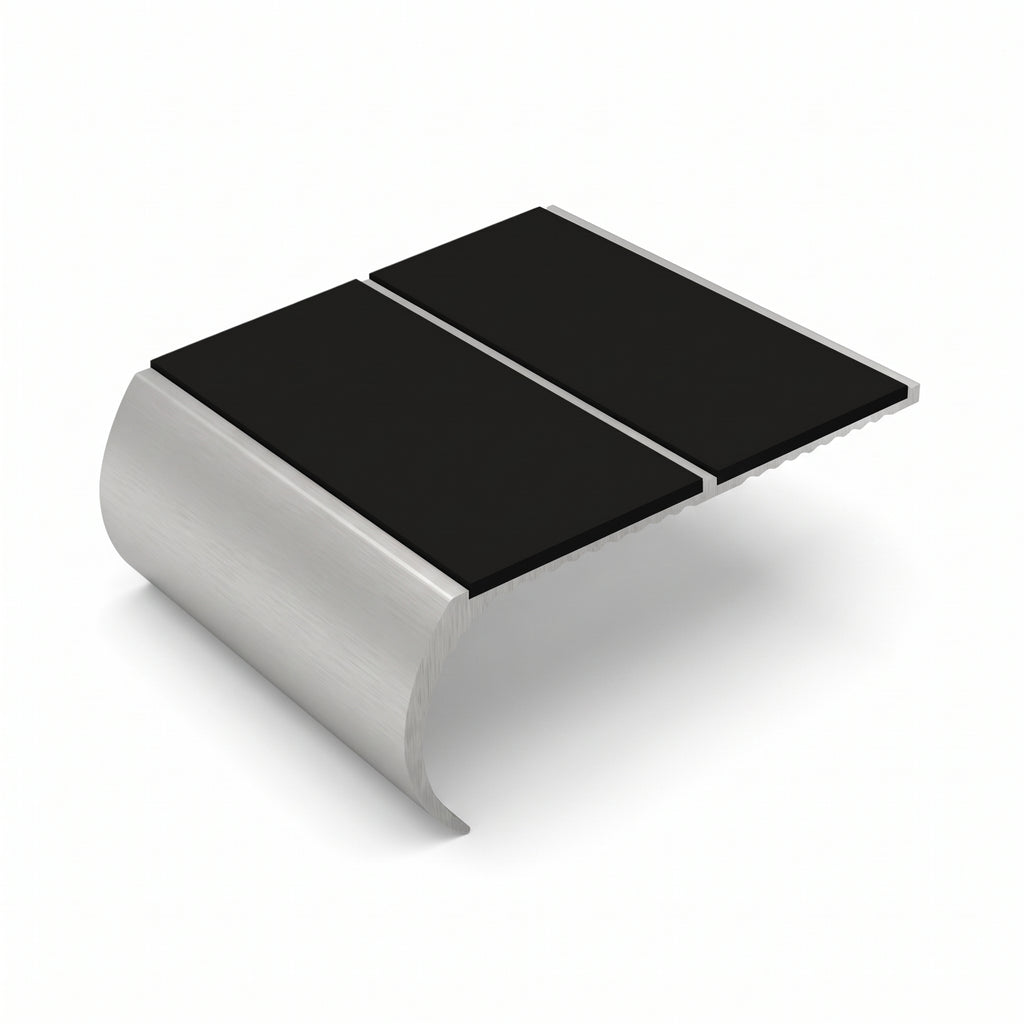

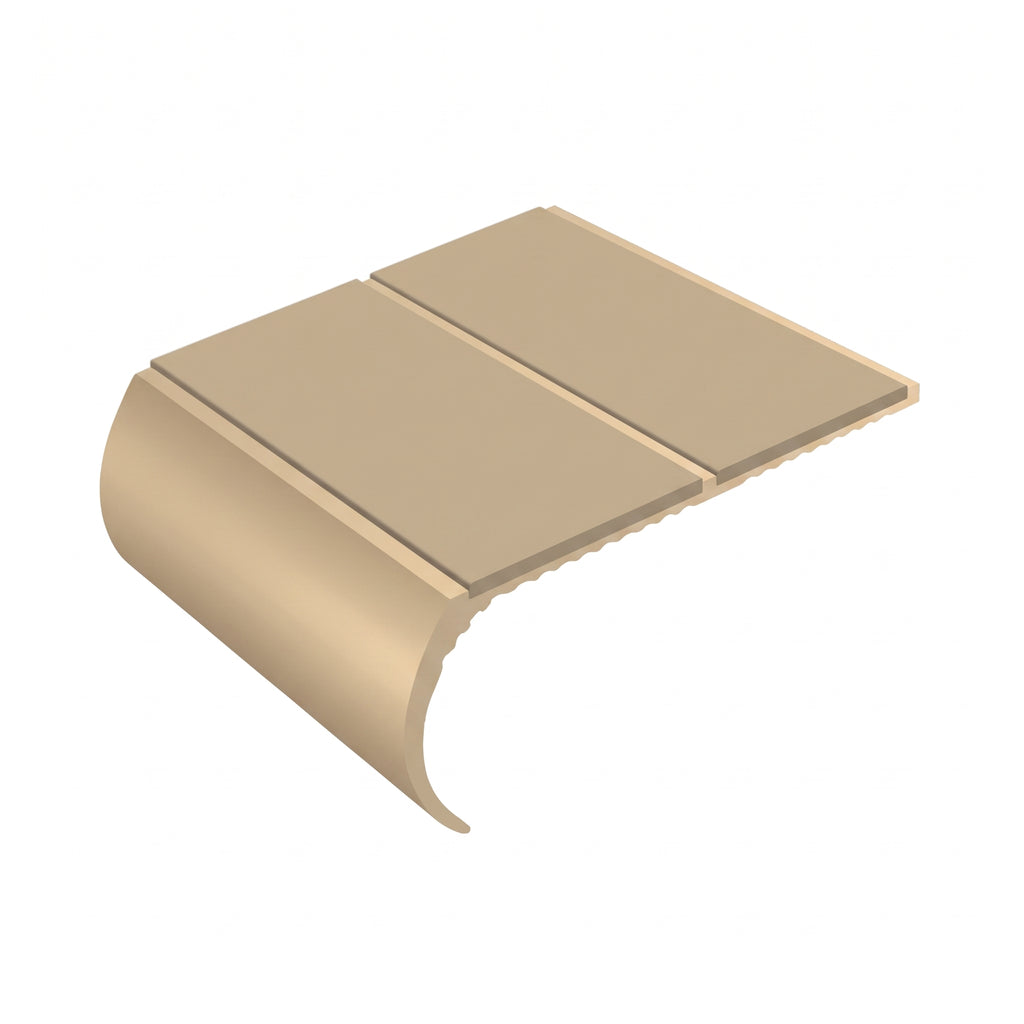

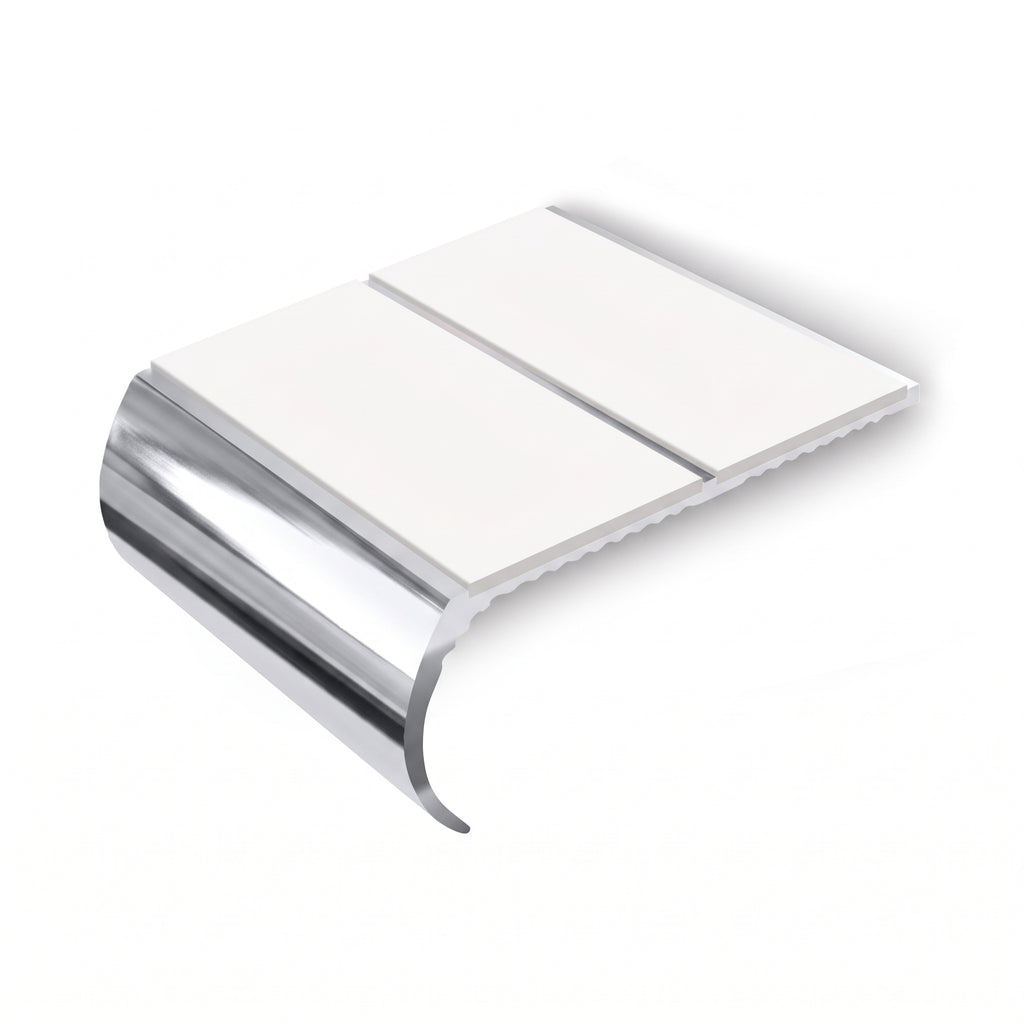

Medium Duty Bullnose Aluminium Stair Nosing — 3.22m Double Channel

A robust, rounded-edge stair nosing profile designed to protect and finish the leading edge of steps in medium-traffic environments. Supplied as a 3.22m stock length with a double-channel recess that accepts a wide range of coloured slip-resistant PVC inserts, this nosing delivers both underfoot safety and a clean, professional appearance on staircases covered with vinyl, lino, or lightweight carpet.

Technical Specifications

Profile Material Extruded Aluminium
Insert Material PVC (Polyvinyl Chloride)
Profile Shape Bullnose (Rounded Leading Edge)
Duty Rating Medium Duty
Gauge (Wall Thickness) 3.5 mm
Tread Width 84 mm
Riser Height 37 mm
Number of Insert Channels 2 (Double Channel)
Stock Length 3.22 m (3220 mm)
Stair Profile Requirement Bullnose / Rounded Nose Step
Suitable Floor Coverings Vinyl, Linoleum (Lino), Lightweight Carpet
Substrate Compatibility Concrete, Timber, Steel
Fixing Method Screw-down (countersunk fixing holes)
Available Finishes Mill Finish, Bright Polished, Satin Gold, Dark Bronze, Satin Black, Mirrorflect Gold
Available Insert Colours 15 colours — see Insert Colour section below
Supply Format Full stock length (cut to size on site)

Key Features

Rounded Bullnose ProfileSmooth, curved leading edge that wraps neatly around the front of the step — ideal for staircases with a rounded nose, providing a flush, professional finish.
Double Channel Insert RecessTwo parallel channels accept PVC slip-resistant inserts side by side, maximising the anti-slip surface area across the tread width.
3.5 mm Gauge ConstructionMedium-duty wall thickness provides reliable rigidity and edge protection for moderate foot traffic in commercial, public, and residential settings.
3.22 m Stock LengthA single length covers multiple steps when cut to size on site, reducing waste and simplifying installation across a full staircase run.
Wide Finish SelectionSix aluminium finishes — from understated Mill Finish to striking Mirrorflect Gold — allow the nosing to complement any interior scheme or specification requirement.
15 Insert Colour OptionsA broad palette of PVC insert colours supports both decorative coordination and high-visibility safety applications, including Hazard (yellow/black).
Suitable for Soft Floor CoveringsThe 84 mm tread and 37 mm riser dimensions are optimised for use with vinyl, lino, and lightweight carpet, ensuring a neat transition at the step edge.
Screw-Down FixingCountersunk fixing holes allow secure mechanical fastening directly to concrete, timber, or steel substrates without adhesive dependency.

Available Aluminium Finishes

Mill Finish Bright Polished Satin Gold Dark Bronze Satin Black Mirrorflect Gold

Available Insert Colours

Apple Green Aura Beige Brown Dark Blue Dark Green Dark Grey Hazard Mid Grey Premium Black Red Sage Green Sahara White Yellow

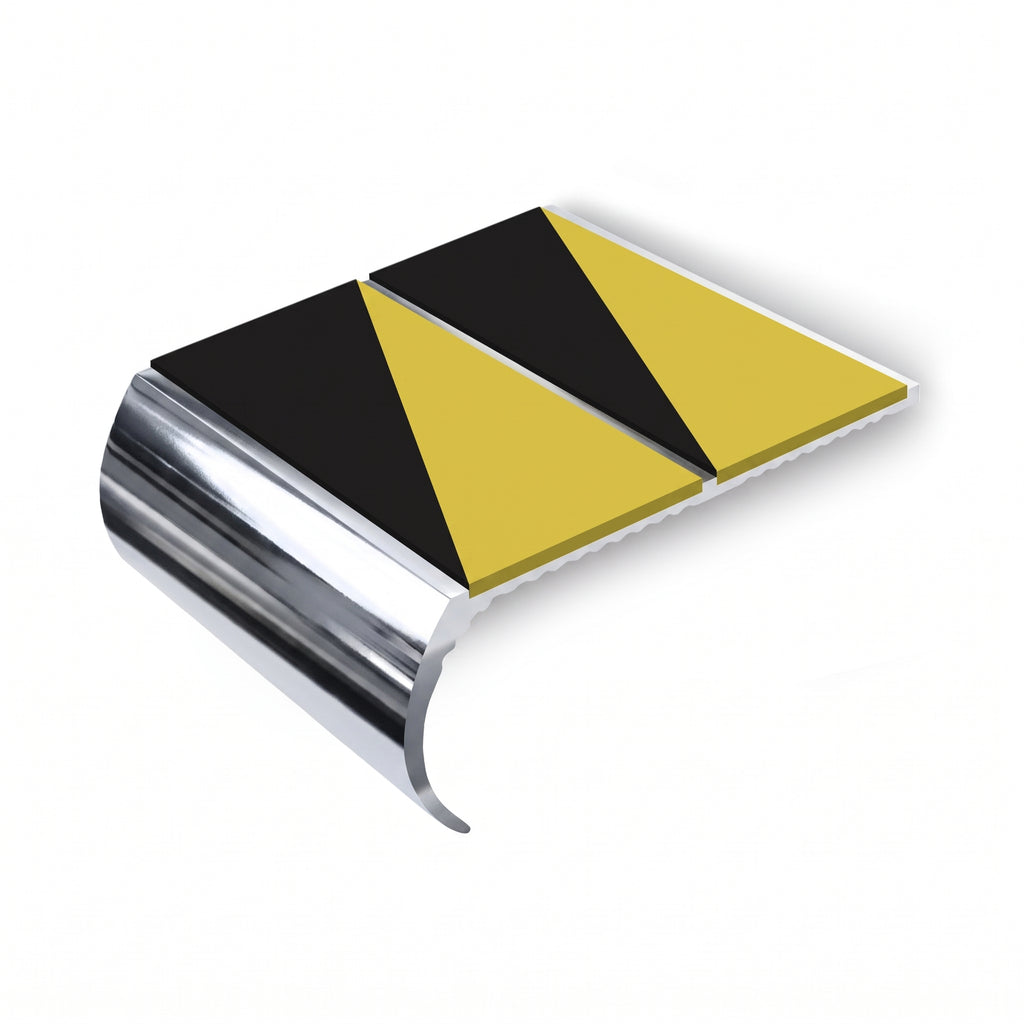

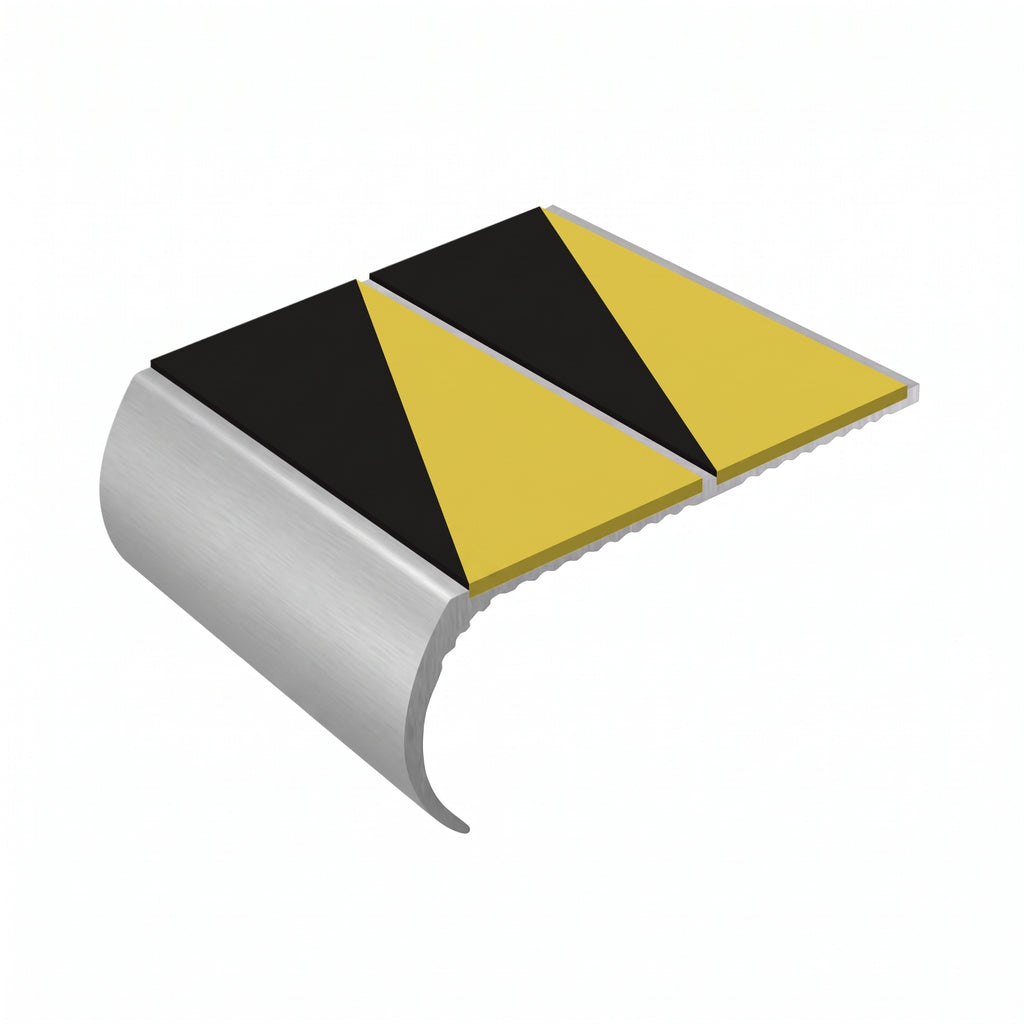

* Hazard insert features a high-visibility yellow and black pattern, suitable where step-edge visibility is a priority.

Typical Applications

  • Commercial office buildings and reception staircases
  • Retail premises, shopping centres, and department stores
  • Hotels, hospitality venues, and leisure facilities
  • Public buildings including schools, libraries, and civic centres
  • Residential properties — private homes and apartment blocks
  • Healthcare facilities with moderate pedestrian flow
  • Refurbishment projects where existing bullnose steps require edge protection

Installation Notes

This nosing is supplied as a full 3.22 m (3220 mm) stock length and is intended to be cut to the required tread width on site using a fine-tooth metal saw or mitre saw. Fix mechanically through the countersunk holes in the base of the profile using appropriate fixings for the substrate — masonry anchors for concrete, wood screws for timber, or self-tapping screws for steel. PVC inserts are pressed into the channels after fixing and can be replaced independently if worn. Ensure the step surface is clean, level, and free from debris before installation. For best results on carpet-covered stairs, trim the carpet flush with the riser face before fitting.

Frequently Asked Questions

What does "double channel" mean on a stair nosing?
Double channel refers to the two parallel recessed grooves machined into the top face of the nosing profile. Each channel holds a PVC slip-resistant insert. Having two channels side by side increases the total anti-slip surface area across the tread, providing greater grip underfoot compared to a single-channel profile.
What floor coverings is this nosing compatible with?
This profile is designed for use with vinyl, linoleum (lino), and lightweight carpet. The 84 mm tread width and 37 mm riser height are sized to accommodate these softer floor coverings neatly at the step edge. It is not recommended for heavy-duty carpet or thick rubber flooring, for which a deeper or wider profile would be more appropriate.
Can I cut the 3.22 m length to fit my stair width?
Yes. The 3.22 m stock length is supplied specifically so it can be cut to the exact tread width required on site. A fine-tooth metal-cutting saw or mitre saw is recommended for a clean, accurate cut. One length will typically cover multiple steps on a standard domestic or commercial staircase.
How is the nosing fixed to the step?
The profile is fixed mechanically using countersunk screws through pre-formed fixing holes in the base of the aluminium section. The appropriate fixing type depends on the substrate: masonry anchors for concrete steps, wood screws for timber, and self-tapping screws for steel. No adhesive is required, though a compatible sealant can be used in addition for extra security in wet environments.
Can the PVC inserts be replaced once fitted?
Yes. The PVC inserts are pressed into the channels and can be removed and replaced independently without disturbing the aluminium base profile. This makes maintenance straightforward — if an insert becomes worn or damaged over time, it can be swapped out quickly without the need to remove and refit the entire nosing.
Which aluminium finish should I choose?
The right finish depends on your interior scheme and budget. Mill Finish is the most cost-effective option and suits utilitarian or industrial settings. Bright Polished offers a classic, reflective look suited to traditional interiors. Satin Black and Dark Bronze work well in contemporary or hospitality environments. Satin Gold and Mirrorflect Gold are premium decorative finishes ideal for high-specification or luxury projects where the nosing is a visible design feature.
Supplied as a 3.22 m stock length ready for on-site cutting. Select your preferred aluminium finish and insert colour using the options above. All lengths are dispatched in full — no part-lengths are available for this product. If you require a custom cut length or a larger project quantity, please contact us before ordering.

Stair Nosing Technical & Installation Data Sheet

View complete specifications, safety information, installation guidance and fitting details.

Download Technical Data Sheet

Delivery Information

ServiceTimeframeCost
Standard UK Delivery2–4 business days£9.99

Orders placed before 12pm Mon–Fri are typically dispatched same day. Delivery to all UK addresses. Contact us for international enquiries.

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

Recently viewed

Frequently Asked Questions

Find answers to common questions about our stair nosings

Stair nosings are protective edge strips fitted to the front of stair treads. They serve multiple purposes: preventing slip accidents, protecting stairs from wear, meeting building regulations, and improving visibility for those with impaired vision. They're essential for both safety compliance and extending the life of your stairs.

Yes, all our products are designed to meet UK Building Regulations, including:

  • Part K – Protection from falling and collision
  • Part M – Access to and use of buildings
  • BS 8300 – Design for disabled access

Our contrasting nosings meet the requirements for visually impaired users.

We offer stair nosings in multiple materials:

  • Aluminium – Lightweight, durable, ideal for most applications
  • GRP/Fibreglass – Heavy-duty, excellent for external and industrial use
  • Rubber/PVC – Flexible, great for refurbishment projects
  • Brass – Premium finish for high-end residential

Yes! We offer a cut-to-length service for most of our stair nosing products. Simply provide the measurements you need when ordering, or contact our team for assistance. This ensures a perfect fit with minimal on-site cutting required.

Installation varies by product type but typically involves:

  • Screw-fixed – Drill, countersink and screw into substrate
  • Adhesive-fixed – Use high-strength adhesive for bonding
  • Channel systems – Insert nosing into pre-installed track

We provide detailed PDF installation guides and video tutorials for every product range.

We offer fast UK delivery on all orders:

  • Standard Delivery – 2-3 working days
  • Express Delivery – Next working day (order before 2pm)
  • Free Delivery – On orders over £100

Large or bulk orders may require pallet delivery – contact us for details.

Yes, we offer trade accounts for contractors, architects, and facilities managers. Benefits include:

  • Competitive bulk pricing
  • 30-day payment terms (subject to approval)
  • Dedicated account manager
  • Priority technical support

Contact us to apply for a trade account.

Ramp/Angled – Gradual slope, best for high-traffic areas and wheelchair access
Bullnose/Round – Curved edge, traditional look, good for residential stairs
Pencil Edge – Minimal profile, sleek modern appearance

Choose based on your aesthetic preference and the level of protection required.
