What is a Tile-In Stair Nosing?

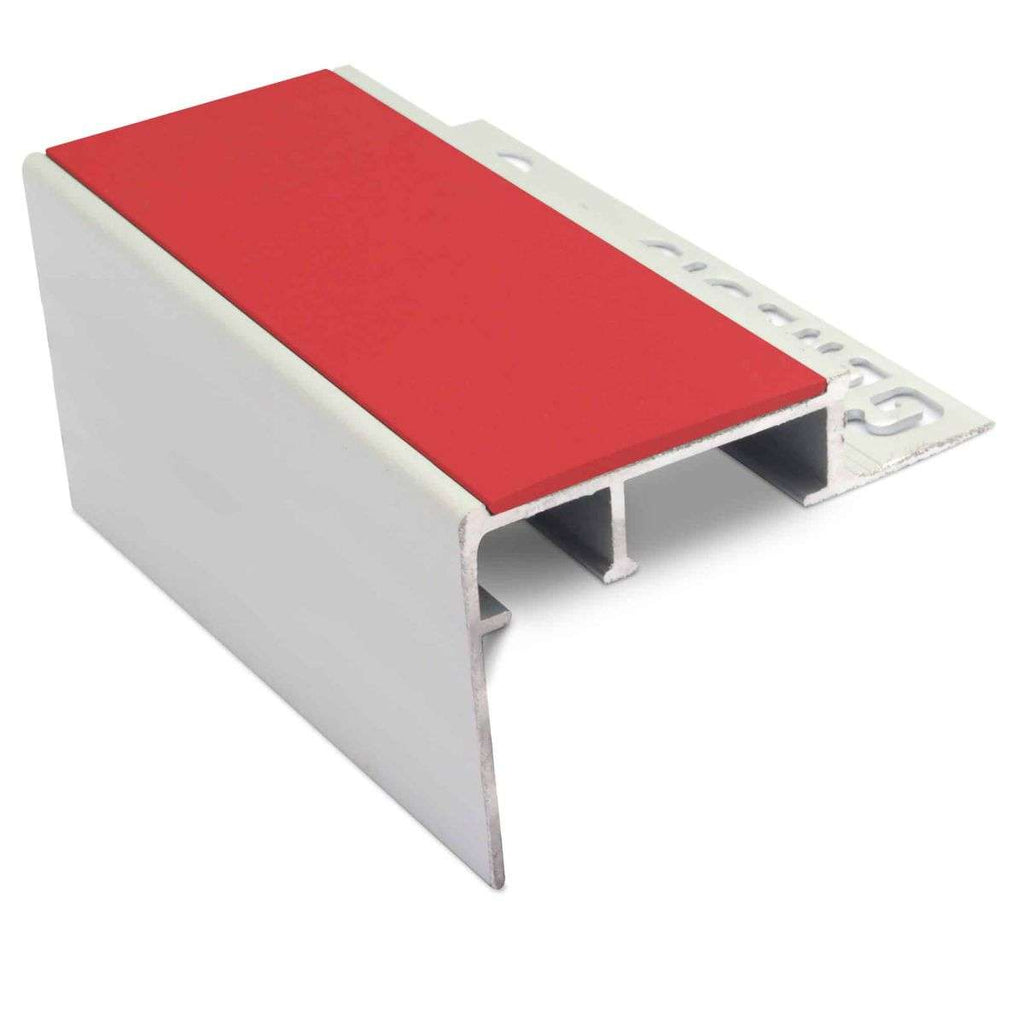

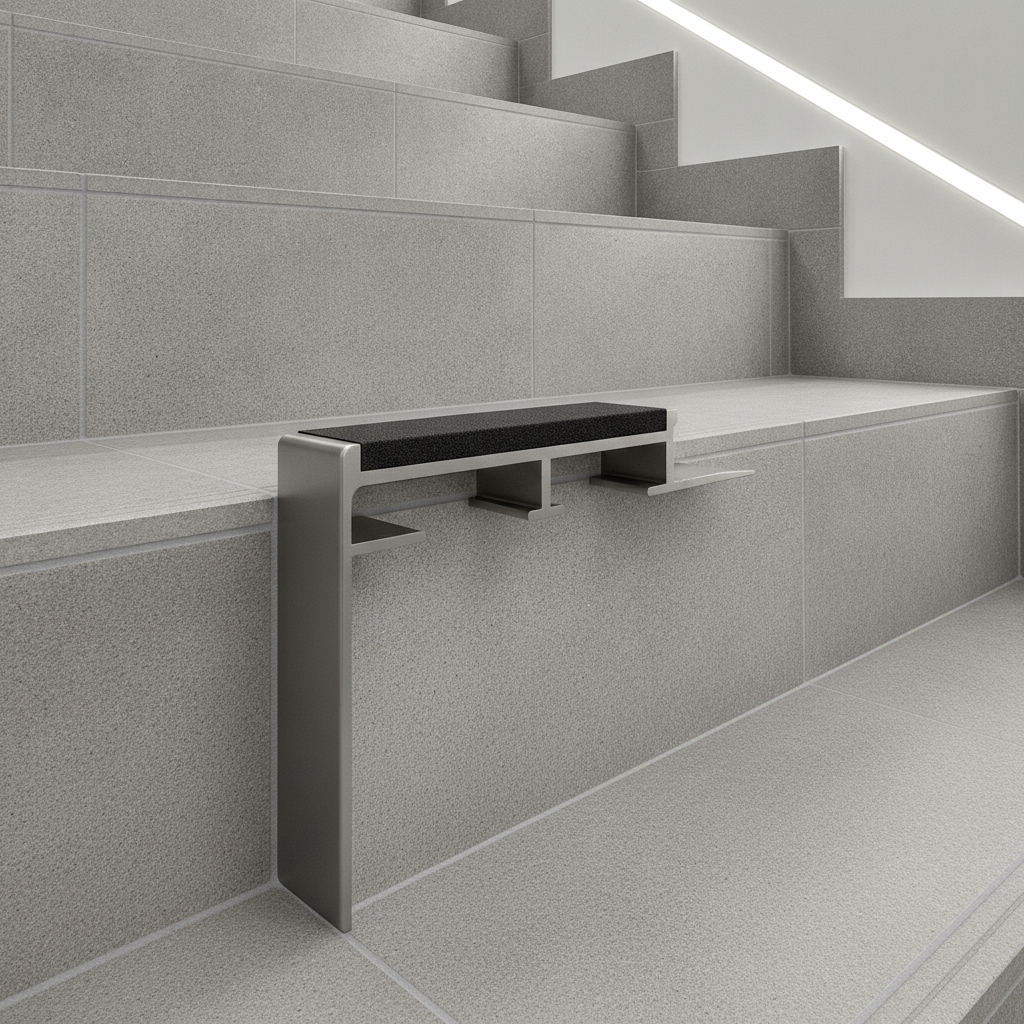

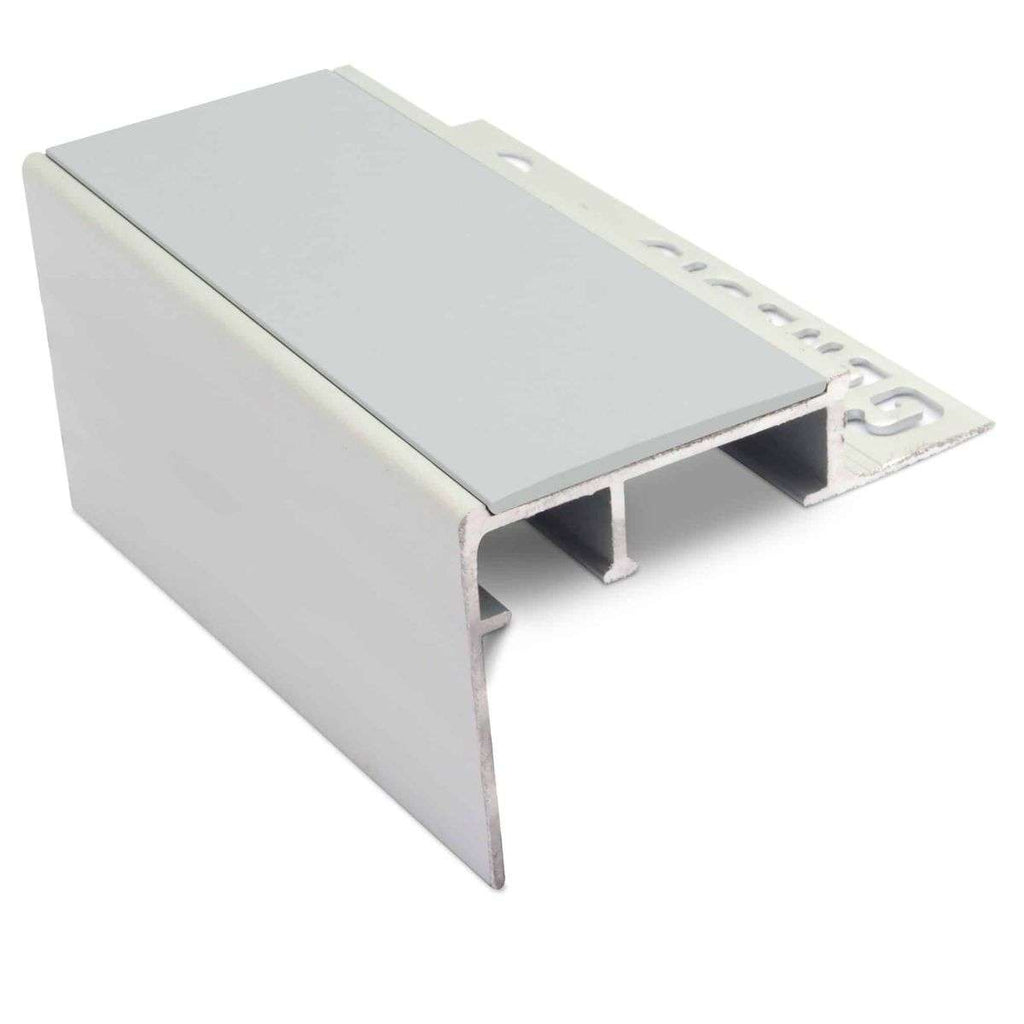

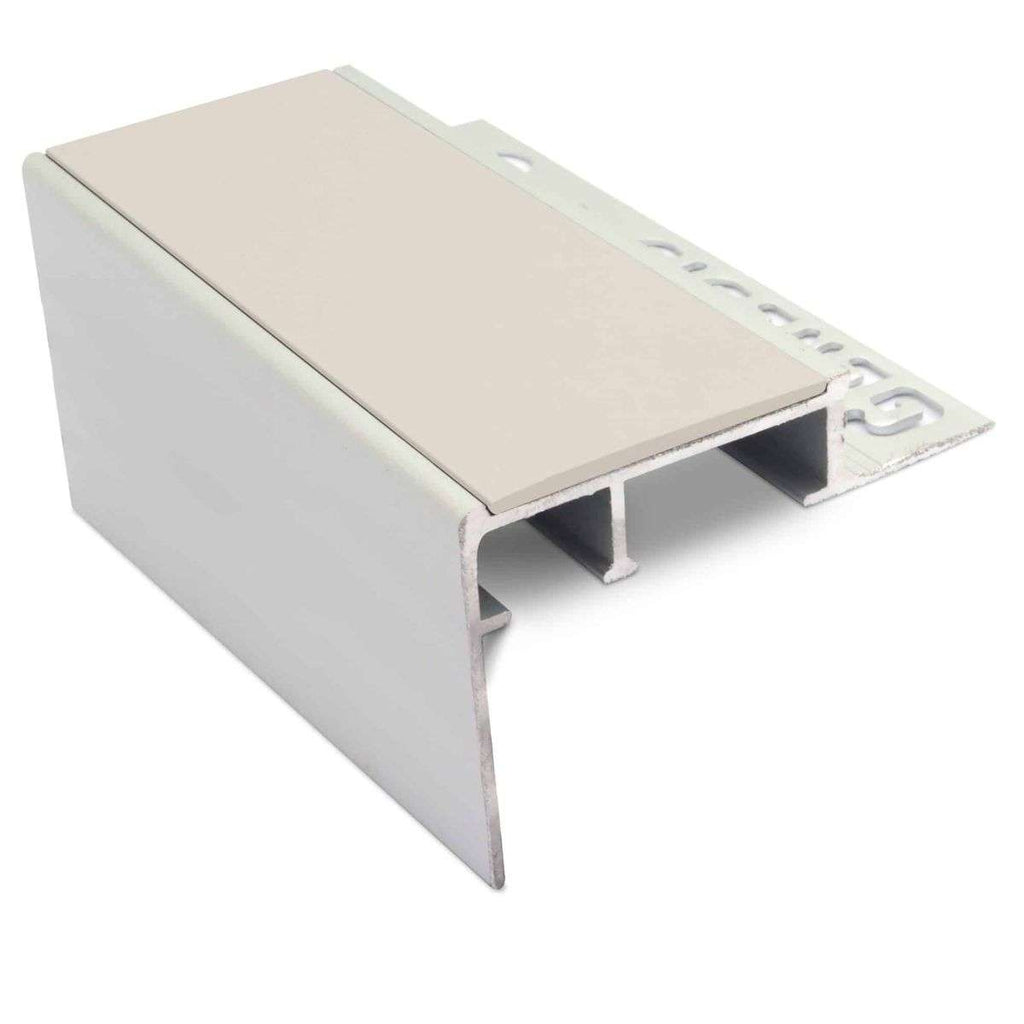

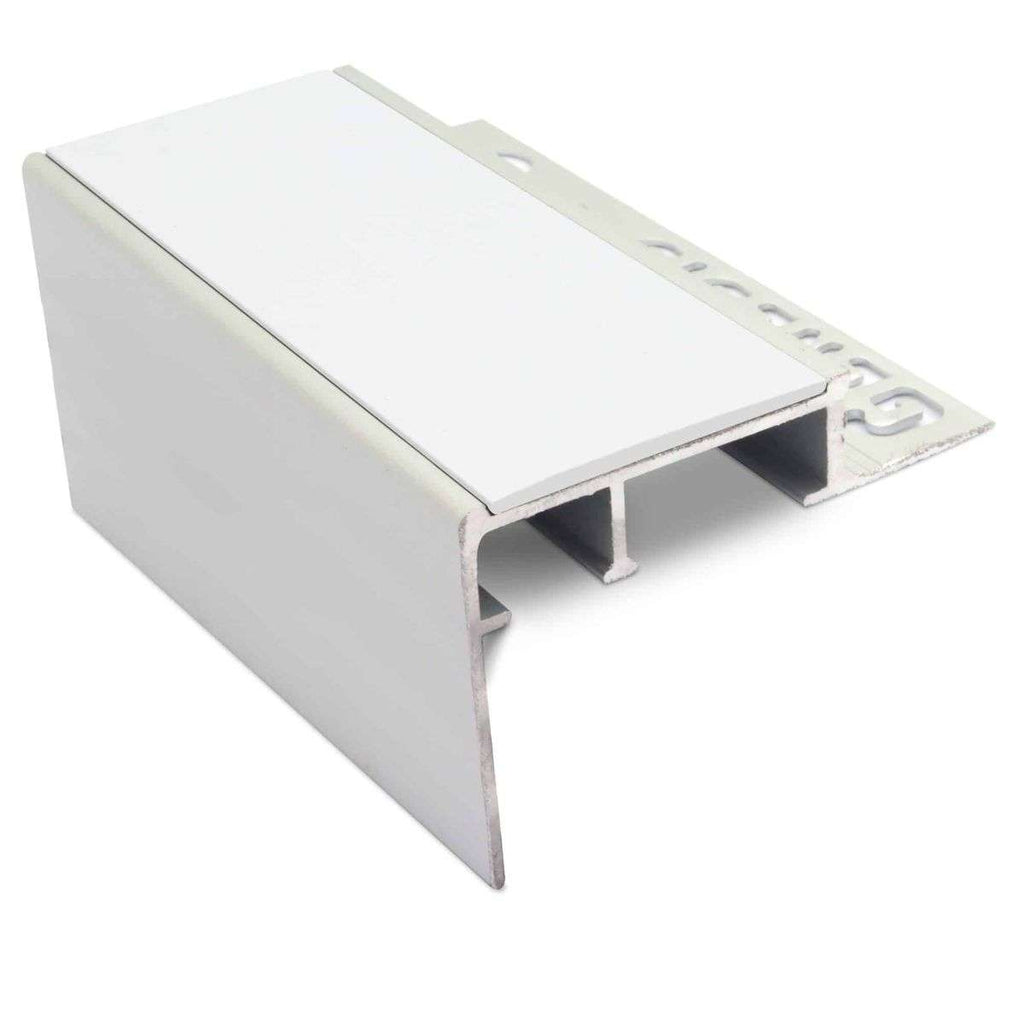

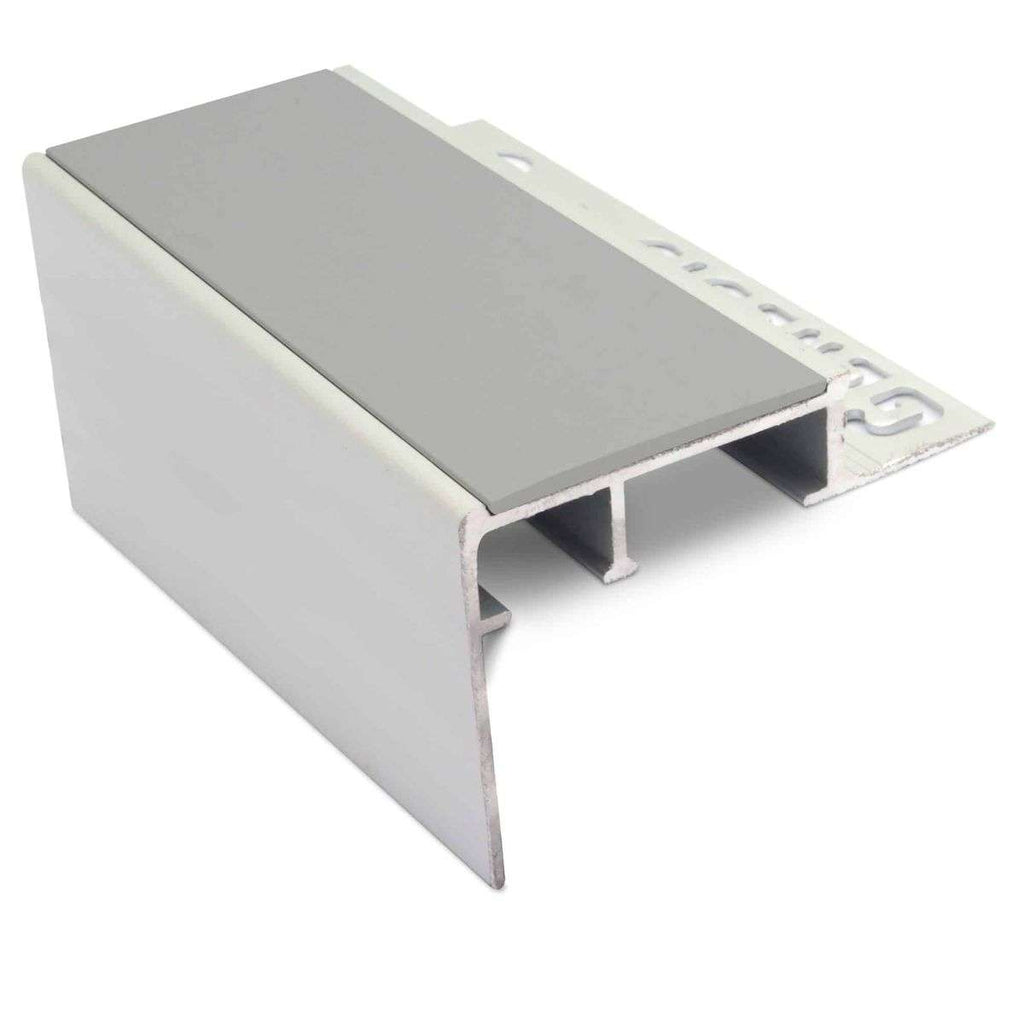

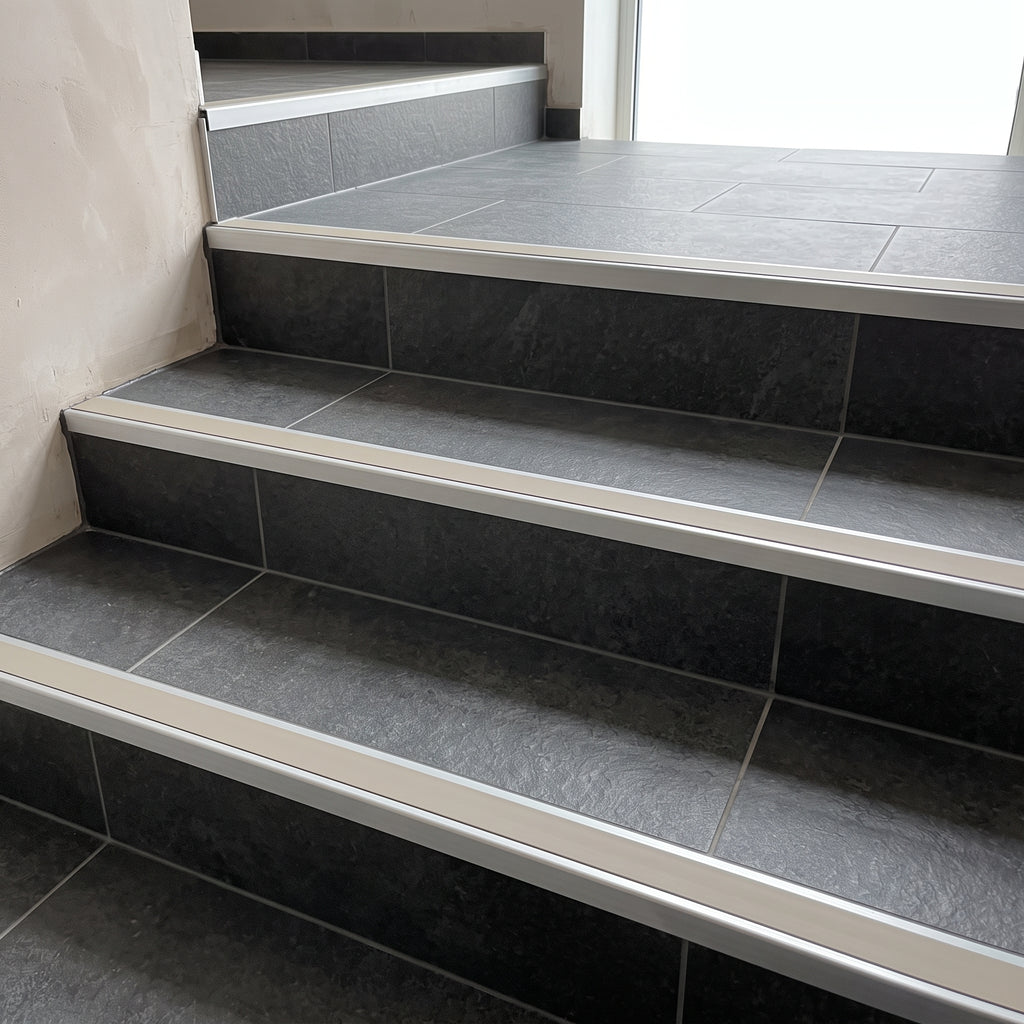

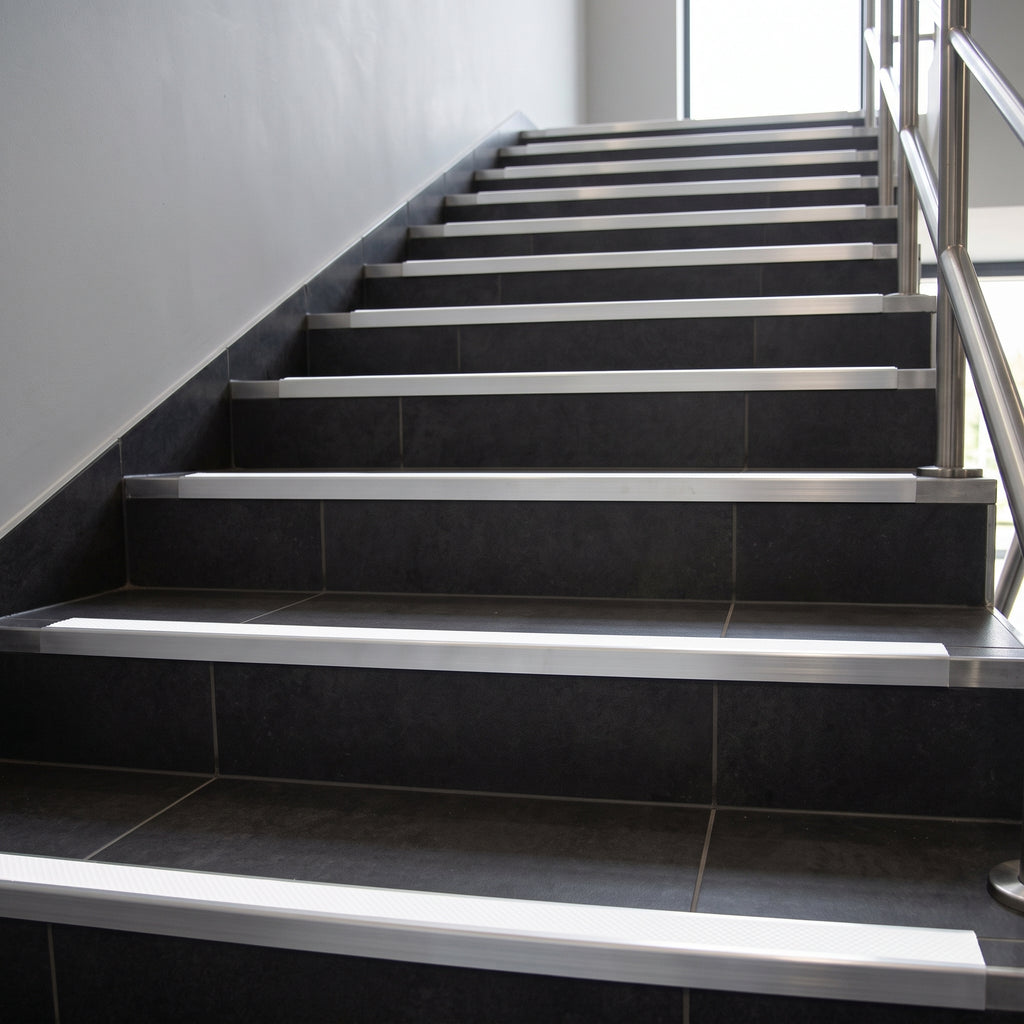

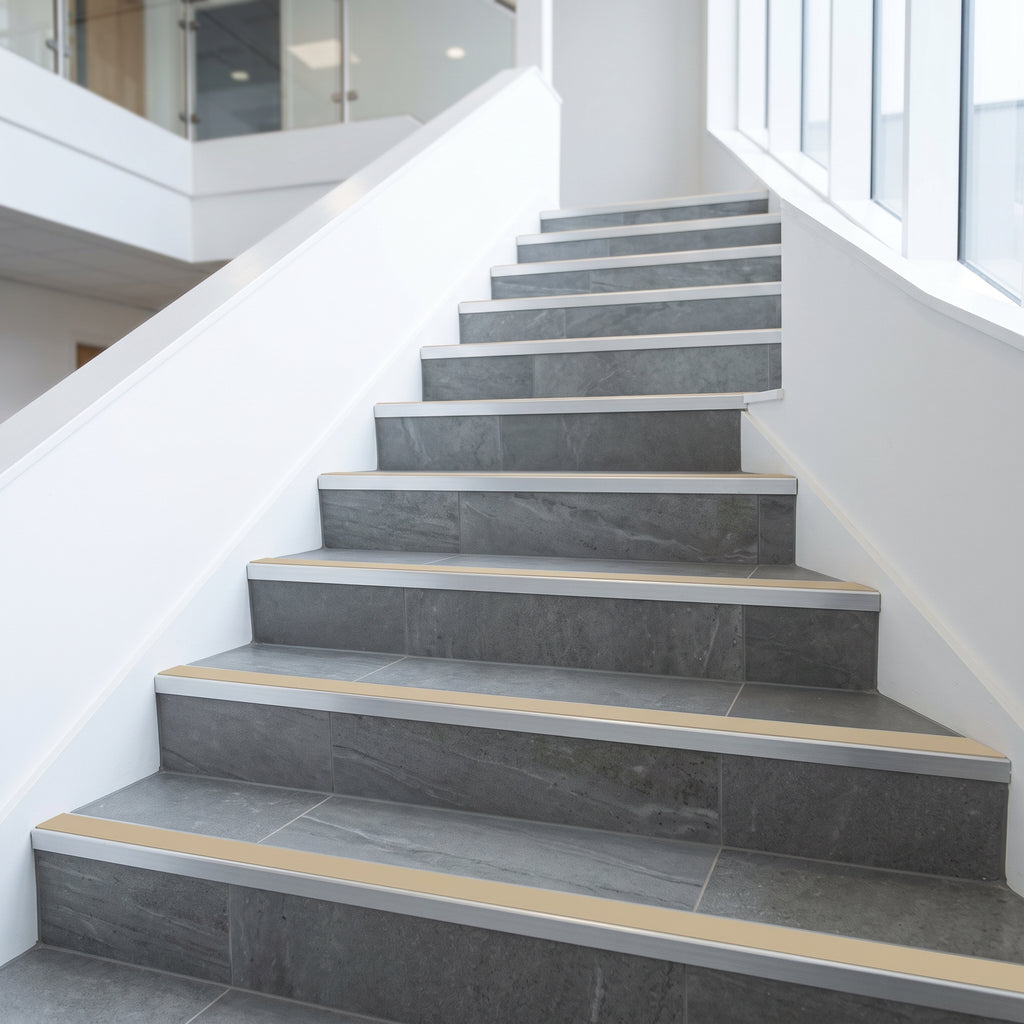

A tile-in stair nosing is an aluminium profile that is installed during the tiling process, embedded directly into the tile bed at the front nose of each stair tread. Unlike surface-mount nosings that sit on top of tiles, the tile-in design allows ceramic, porcelain, or stone tiles to be fitted flush up to the profile on both sides — creating a seamless, professional finish with no visible gaps or step downs. The anti-slip insert sits at the stair edge, providing high-traction safety exactly where it is needed.

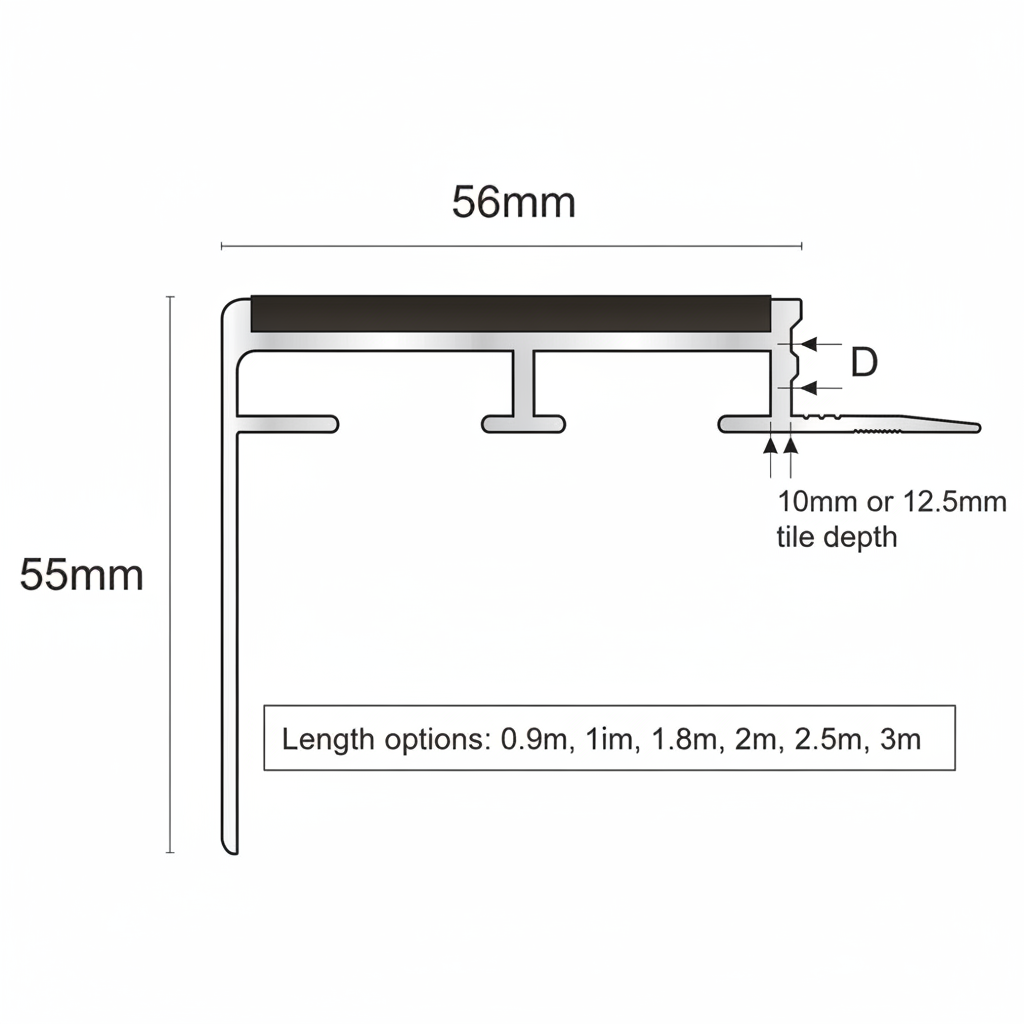

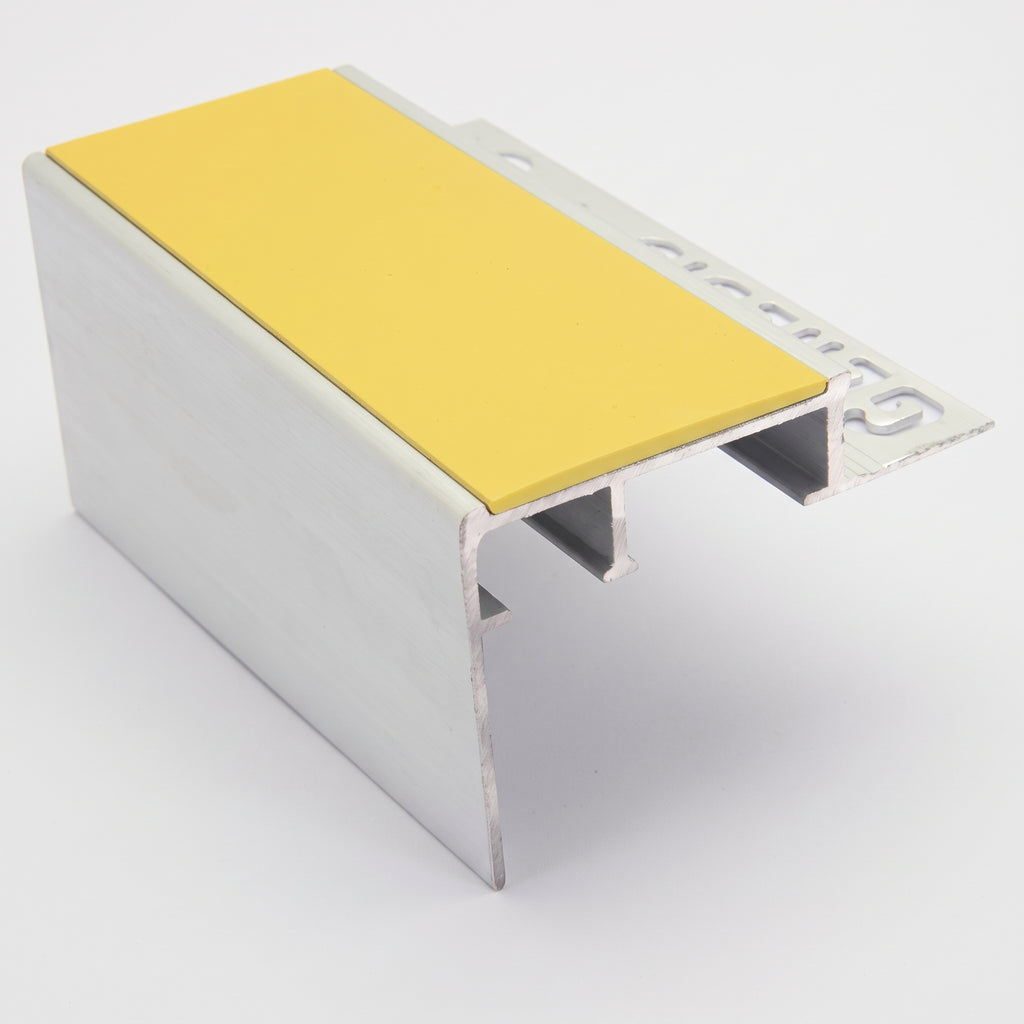

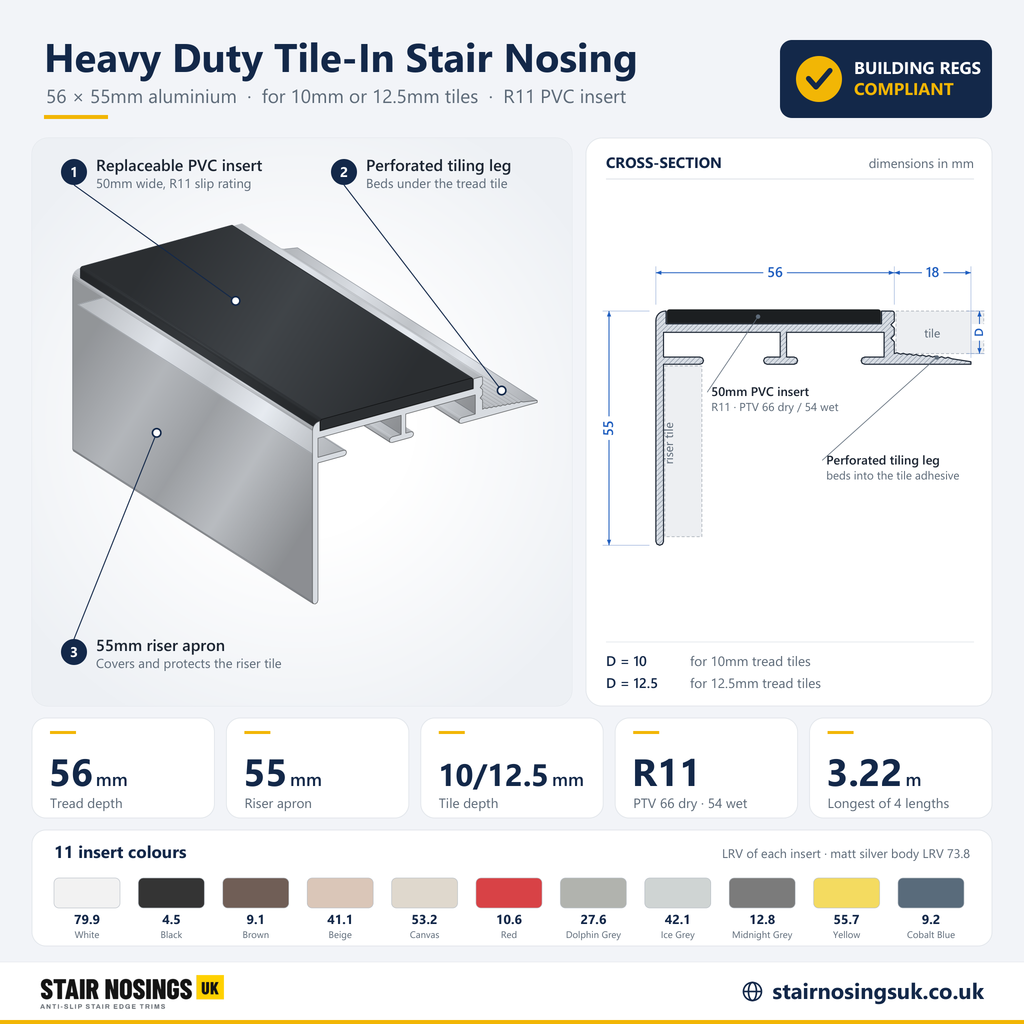

This heavy duty version features a 56mm x 55mm aluminium body engineered to handle the demands of both residential staircases and high foot-traffic commercial environments such as offices, schools, retail units, hotels, and public buildings.

Technical Specifications

Choosing Your Size

Colour Selection Guide

Key Features and Benefits

• Tile-in flush design — tiles fit directly up to the profile on both sides, eliminating visible transitions or edge gaps. The finished result looks like a purpose-built tiled staircase, not a retrofit.
• Heavy duty aluminium body — 56mm × 55mm profile engineered for structural durability. Resists bending, deformation, and damage under heavy or sustained foot traffic loads.

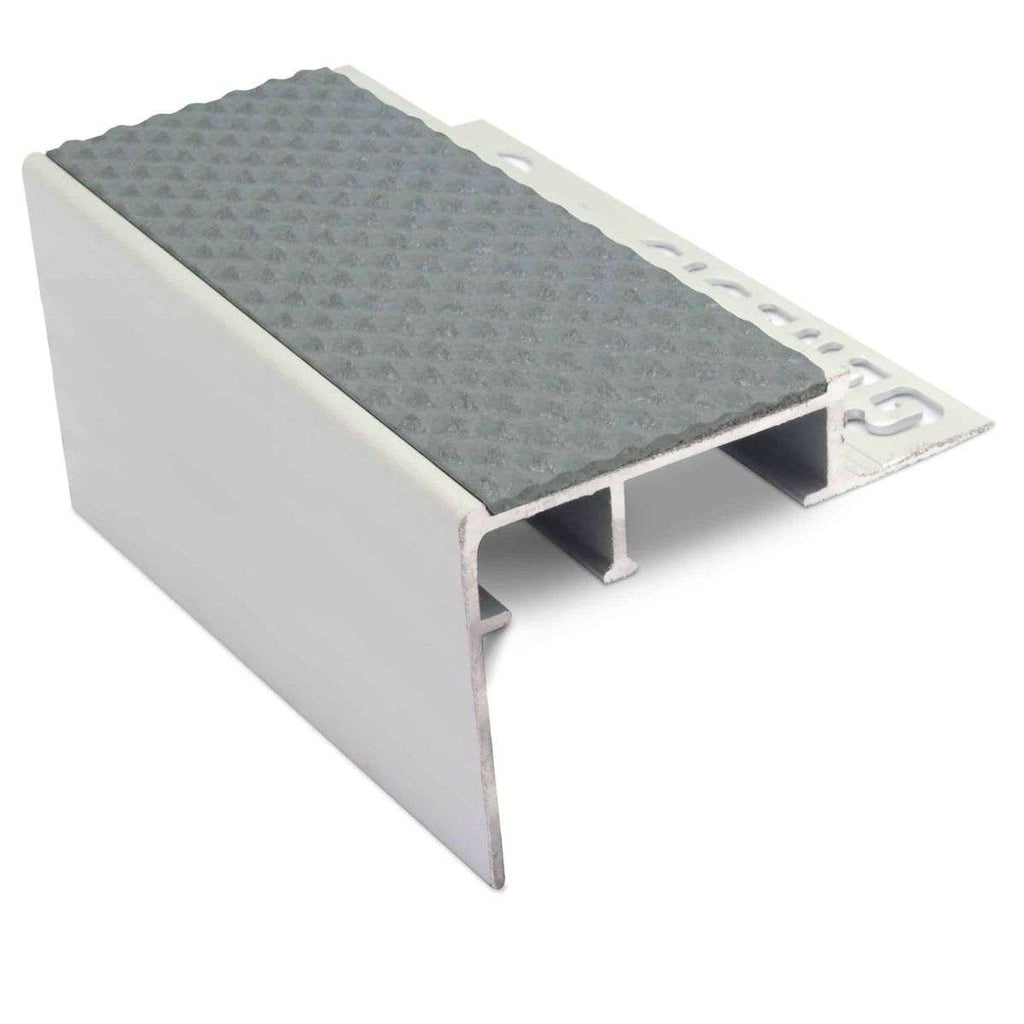

• High-traction anti-slip insert — positioned at the exact stair nose where slips are most likely. Provides grip in both wet and dry conditions.

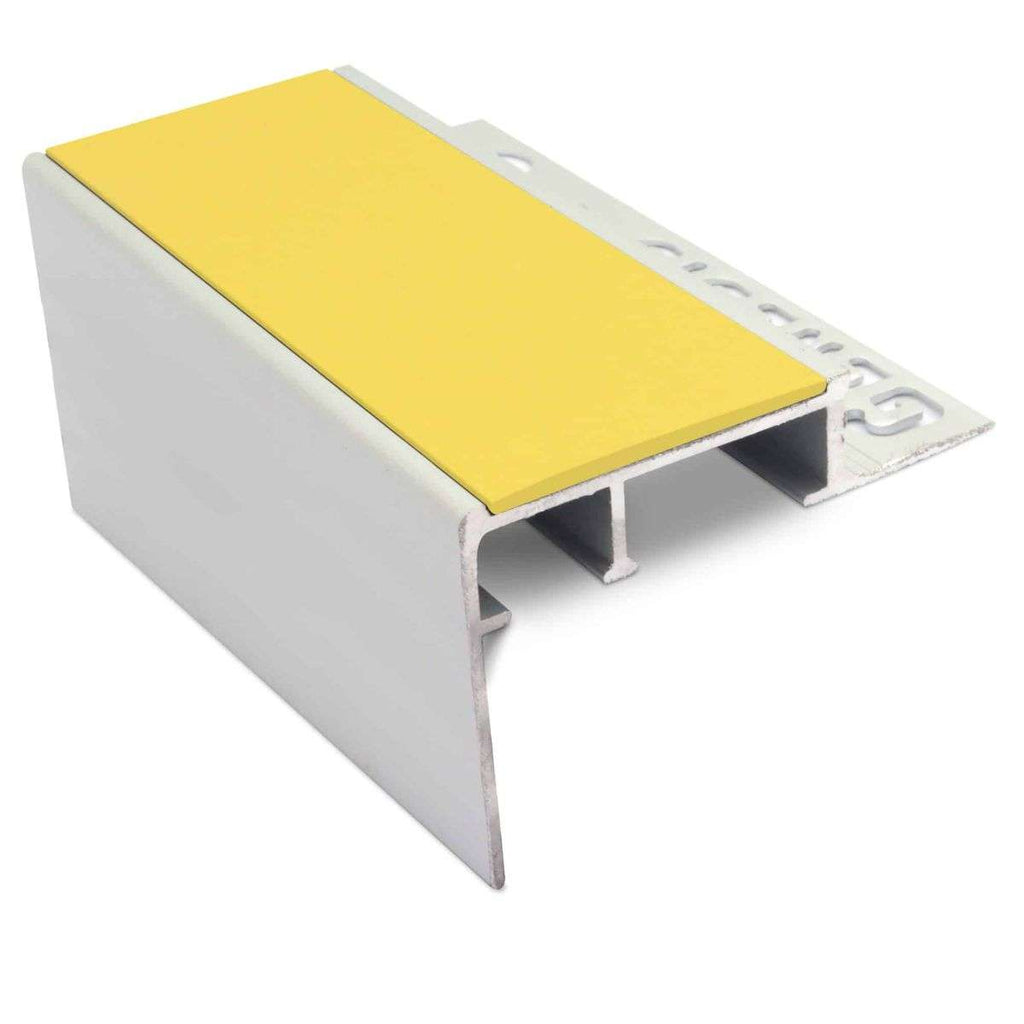

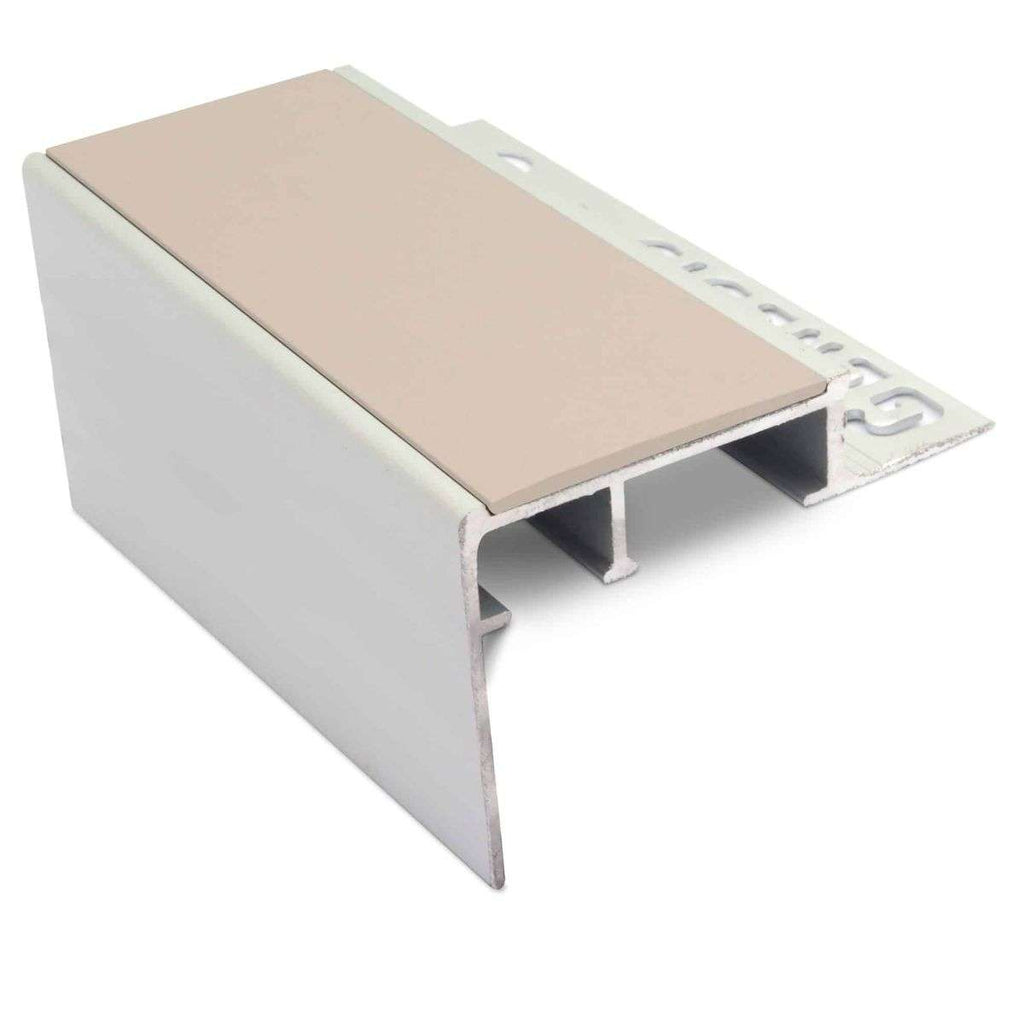

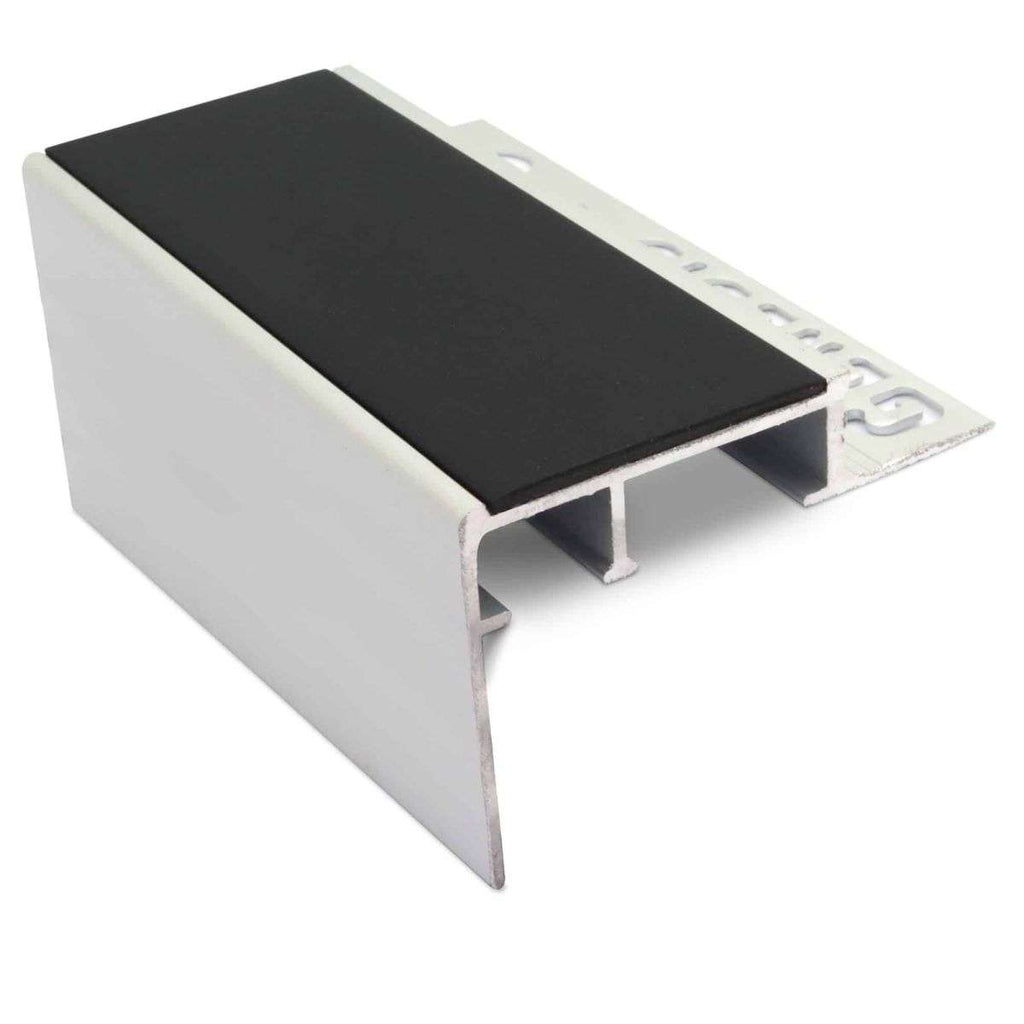

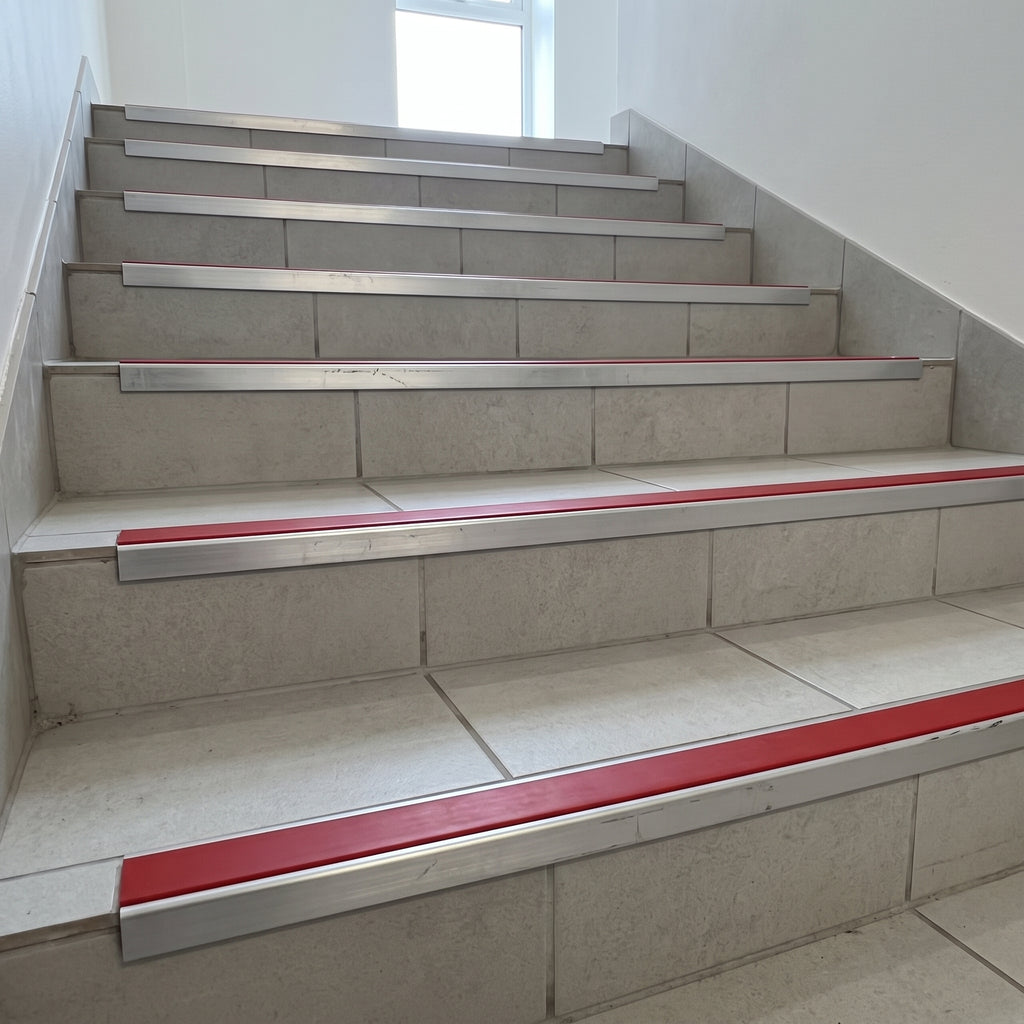

• 11 colour options — match your tile or grout colour for a seamless look, or choose a high-visibility colour (Red, Yellow) for safety compliance.
• 4 lengths — 1.0m to 3.22m covers all staircase widths from domestic to large commercial without unnecessary joins.

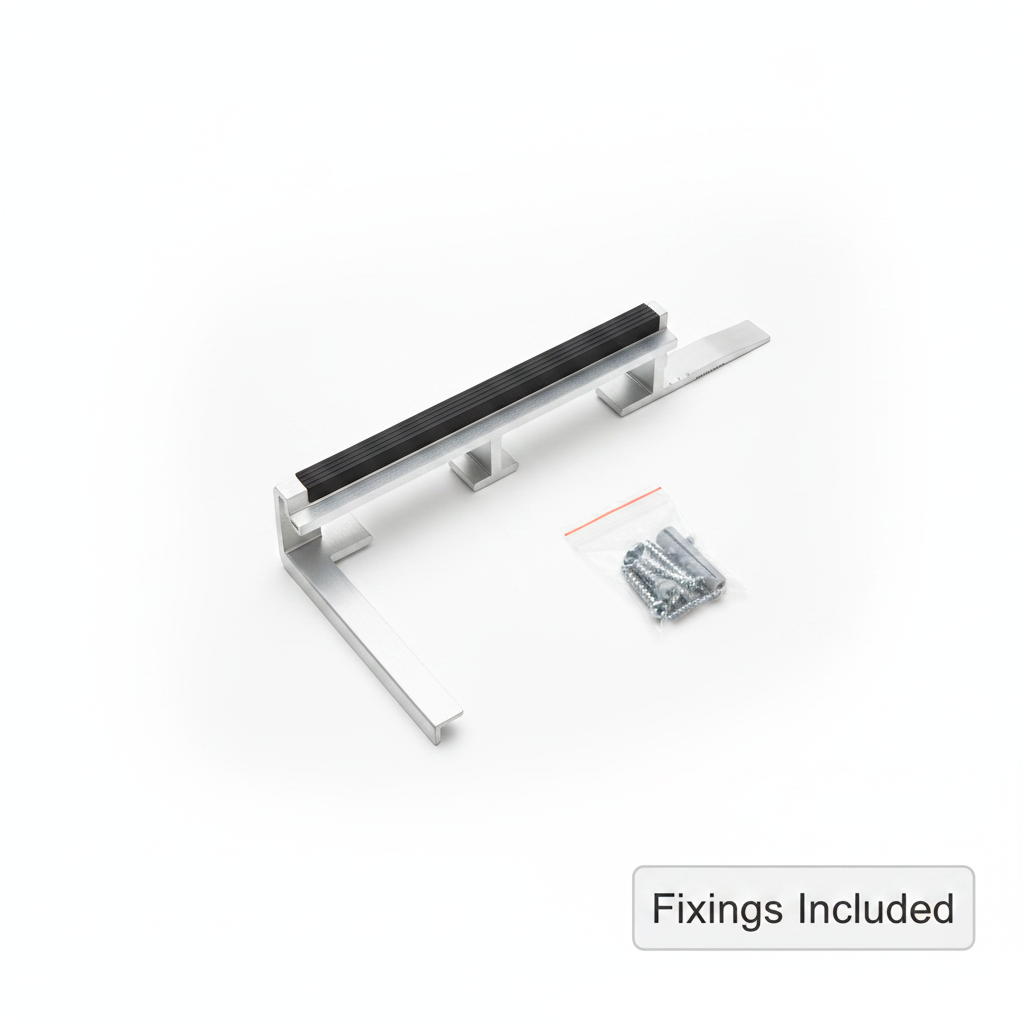

• Pre-drilled fixing holes — fixings included. Position during tile-laying for a permanent, embedded installation.
• Suits 10mm and 12.5mm tiles — correct channel depth for both standard floor tiles and thicker formats.

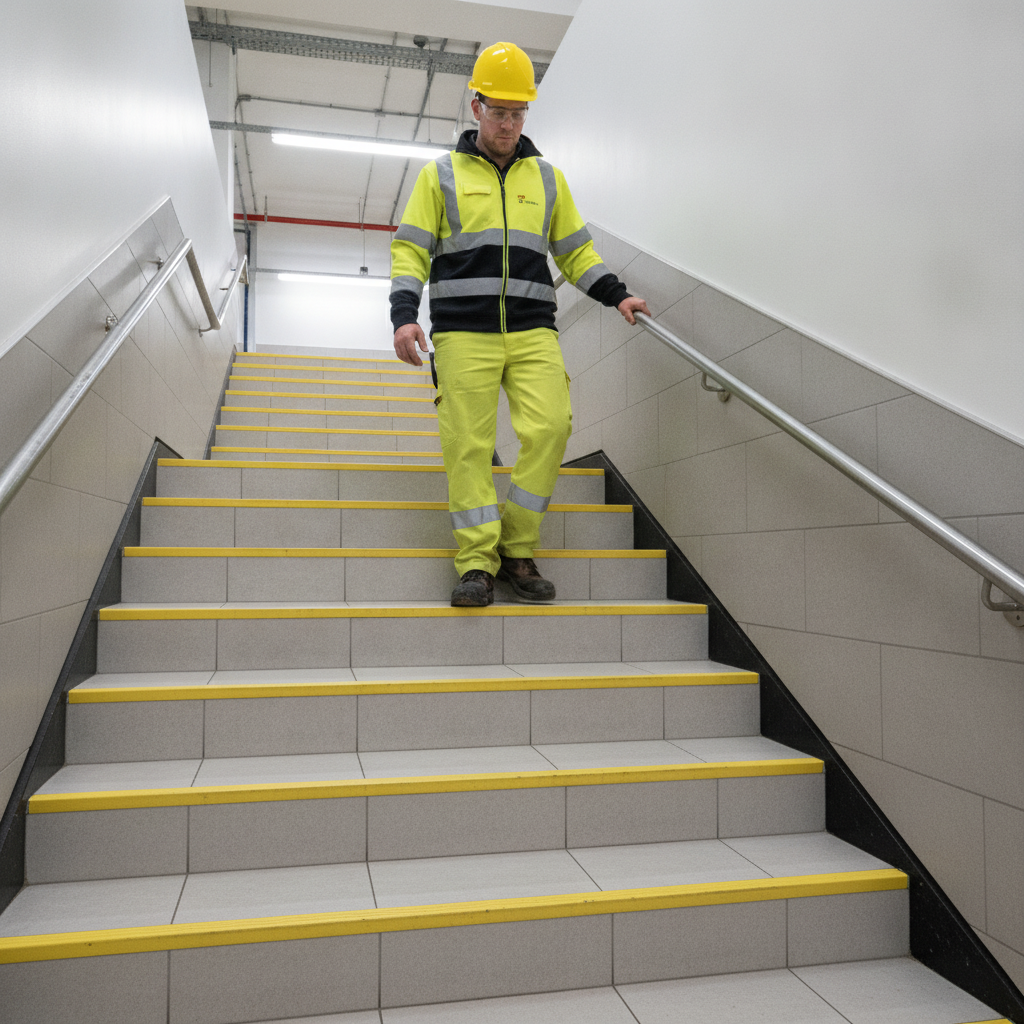

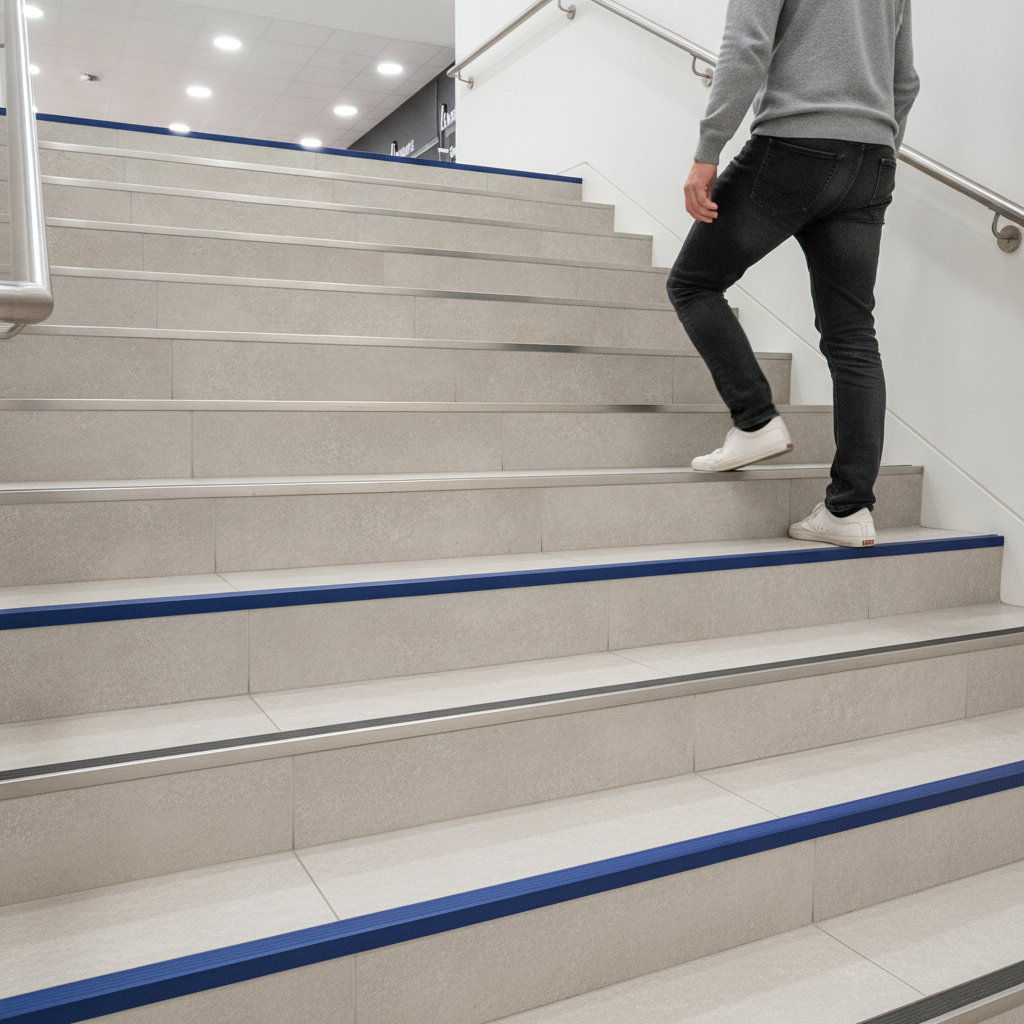

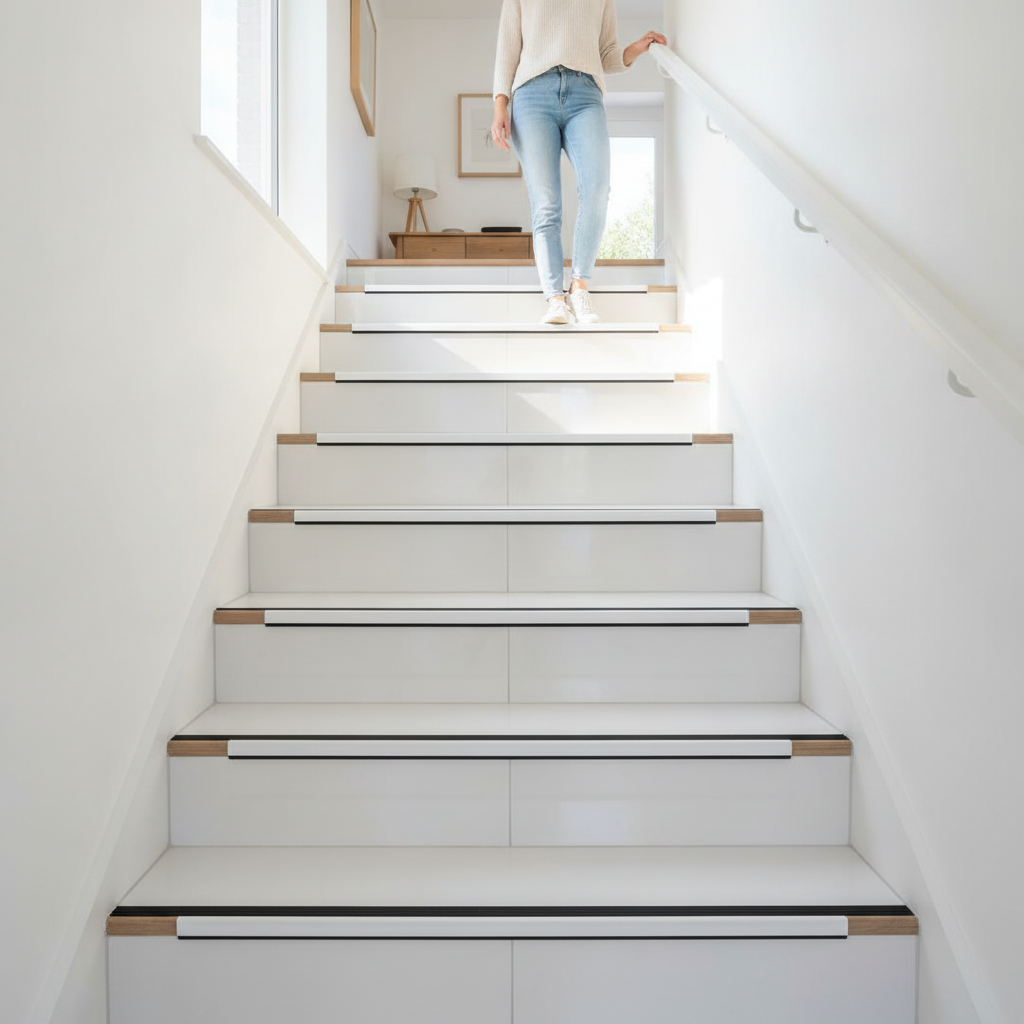

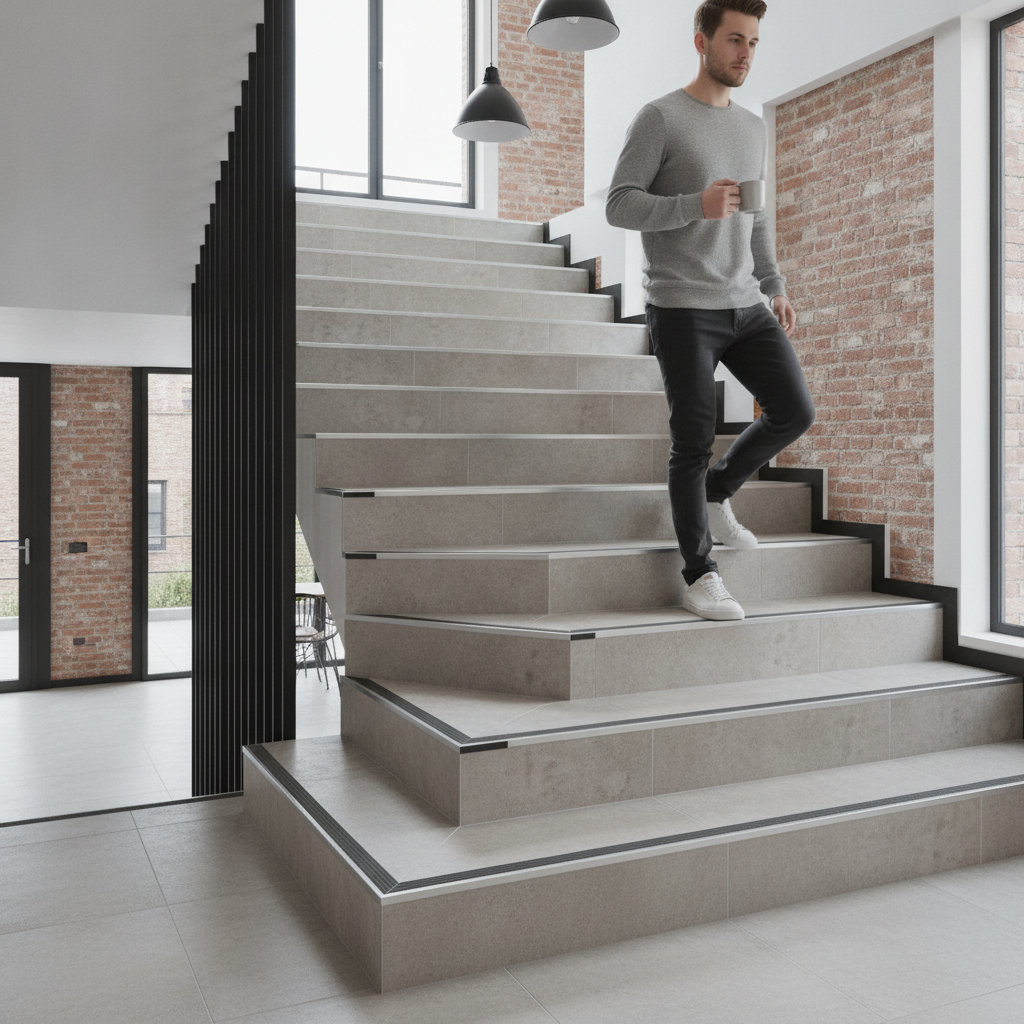

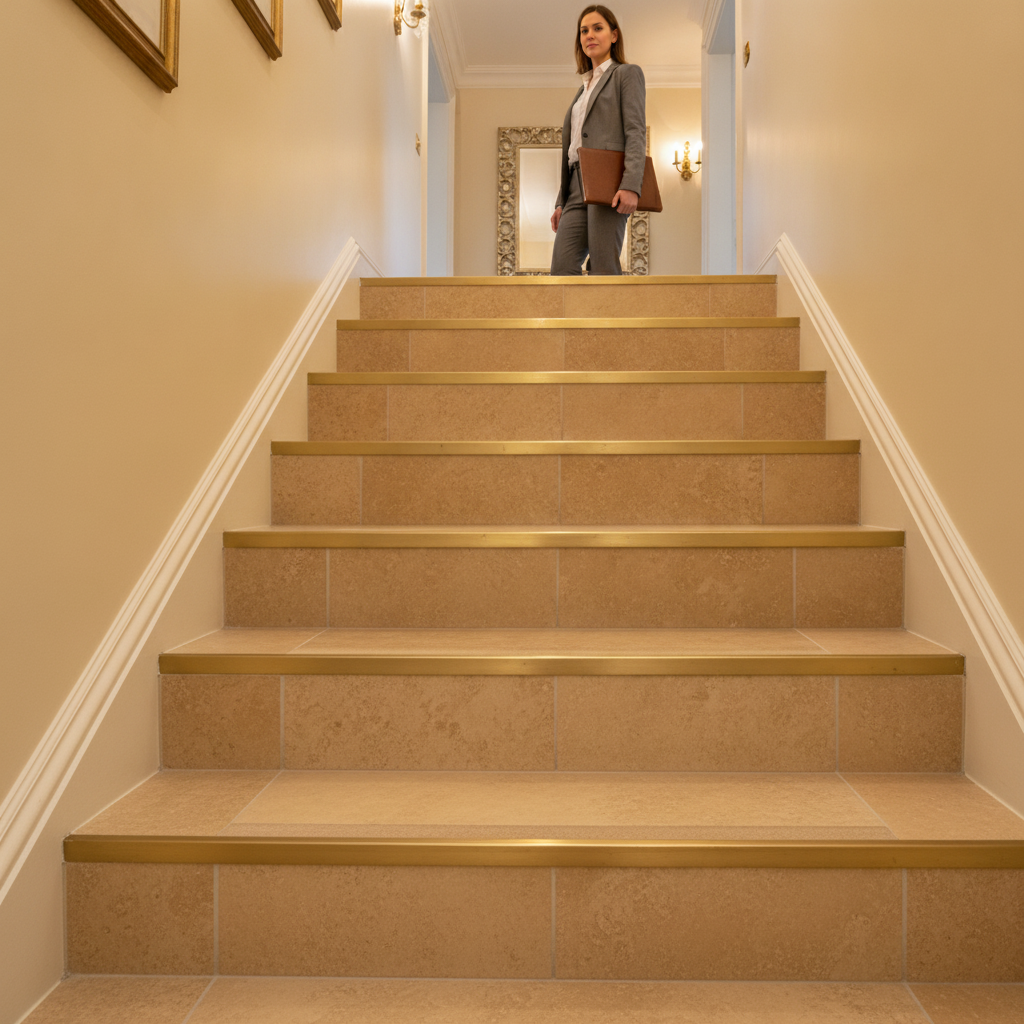

Where to Use Tile-In Stair Nosings

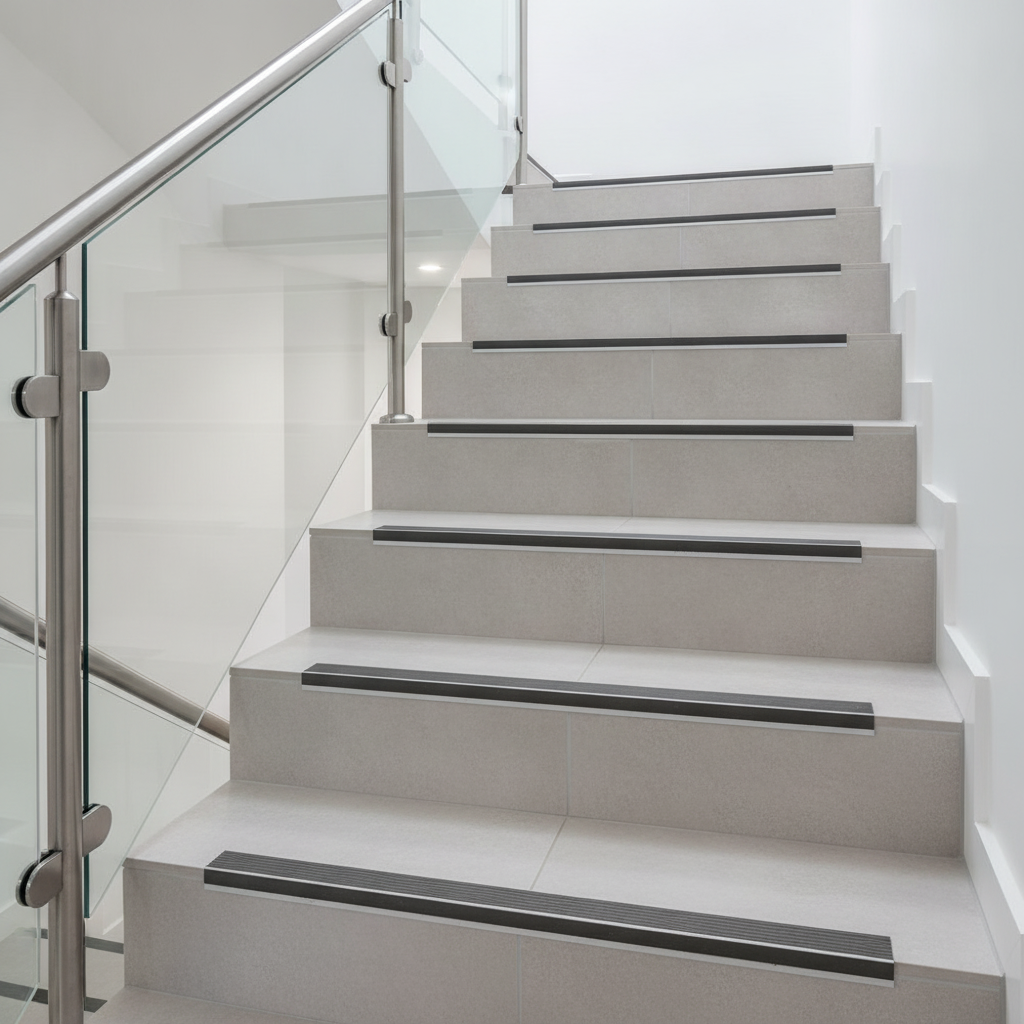

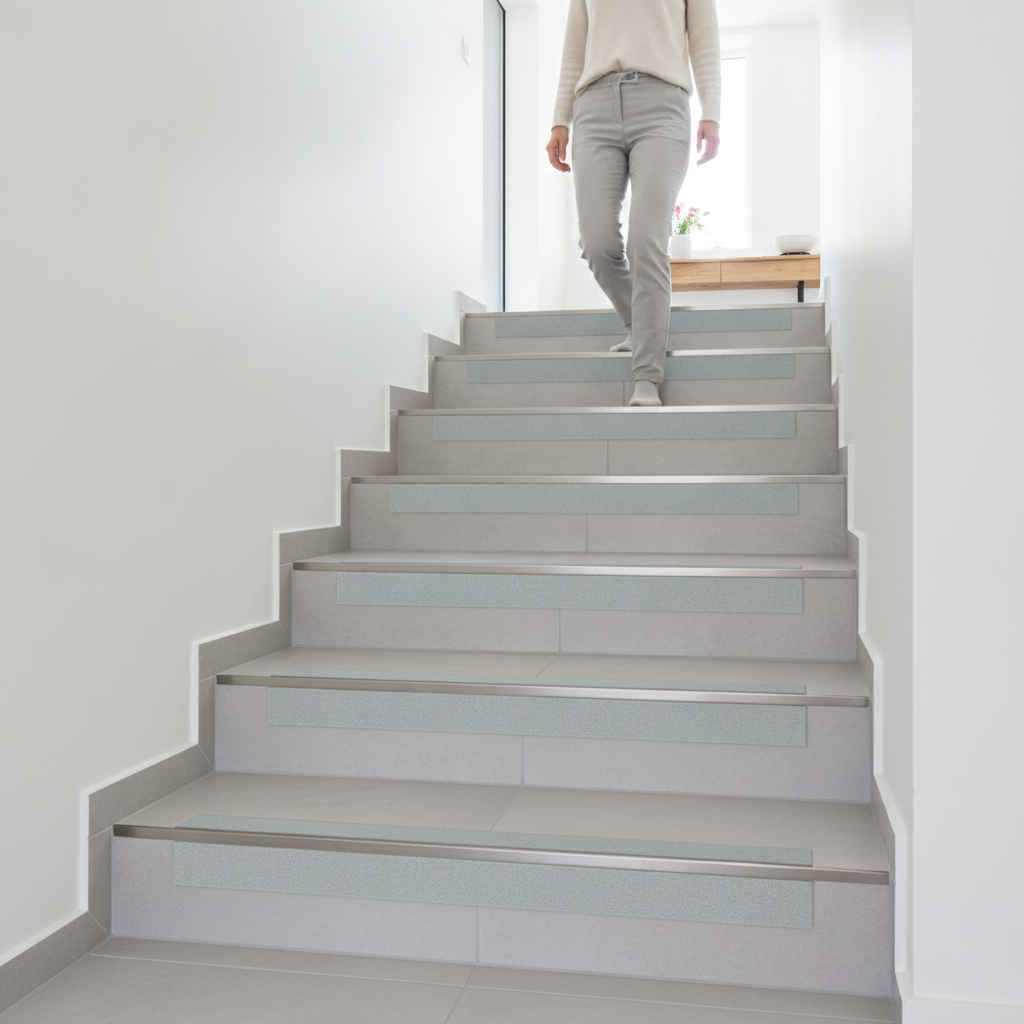

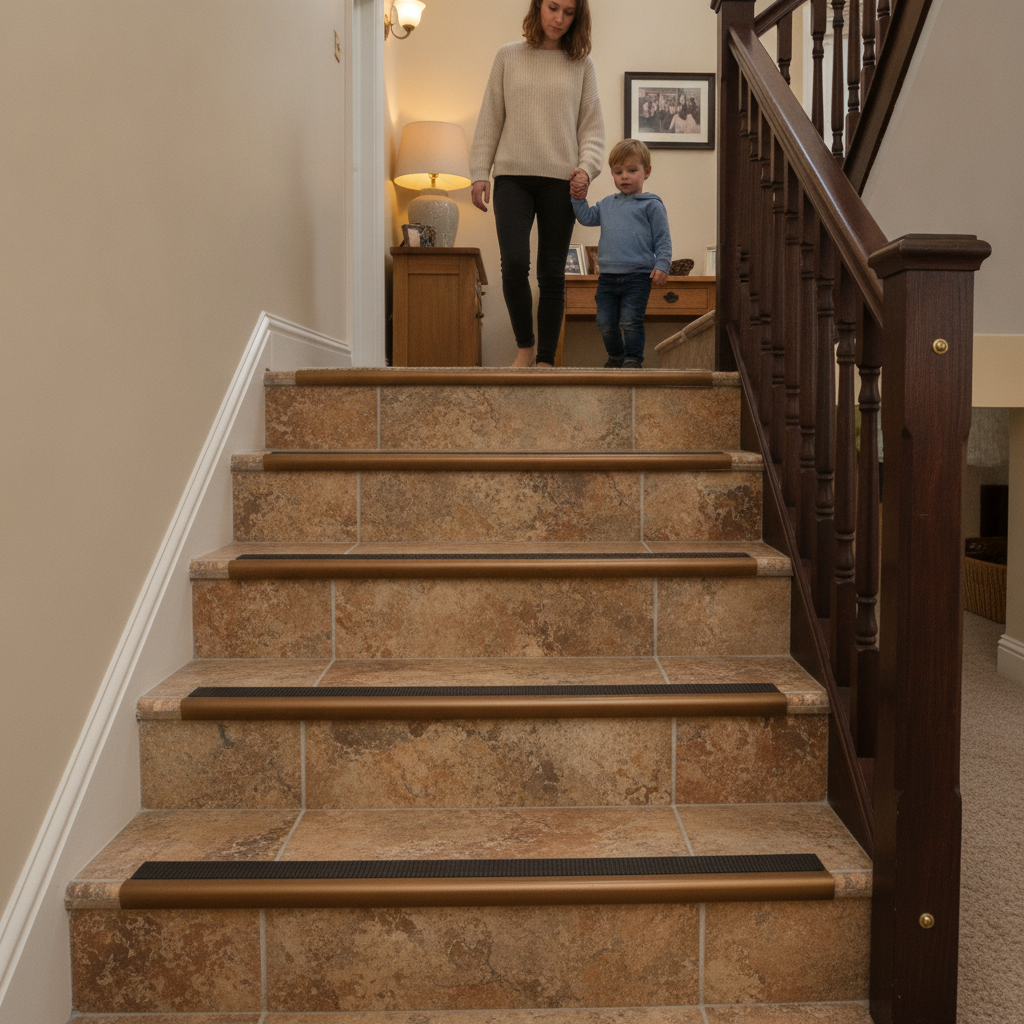

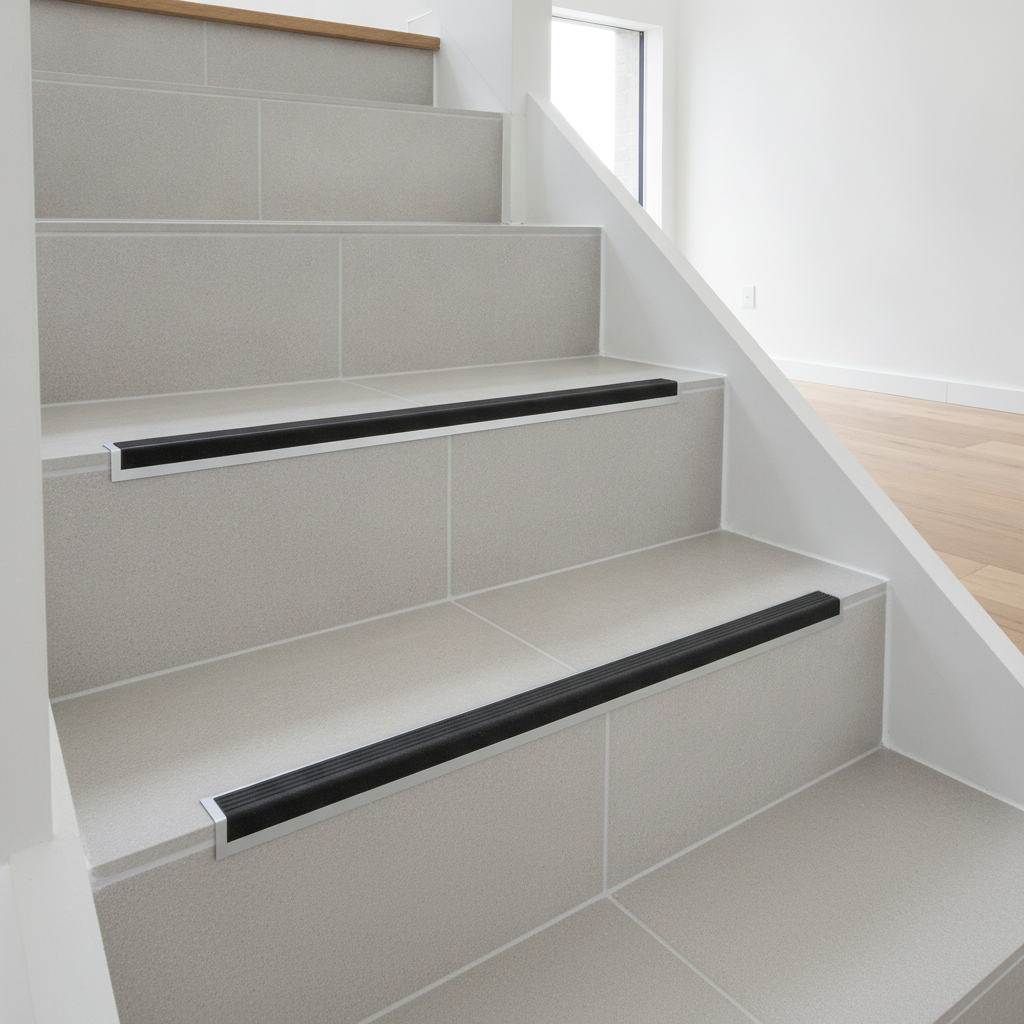

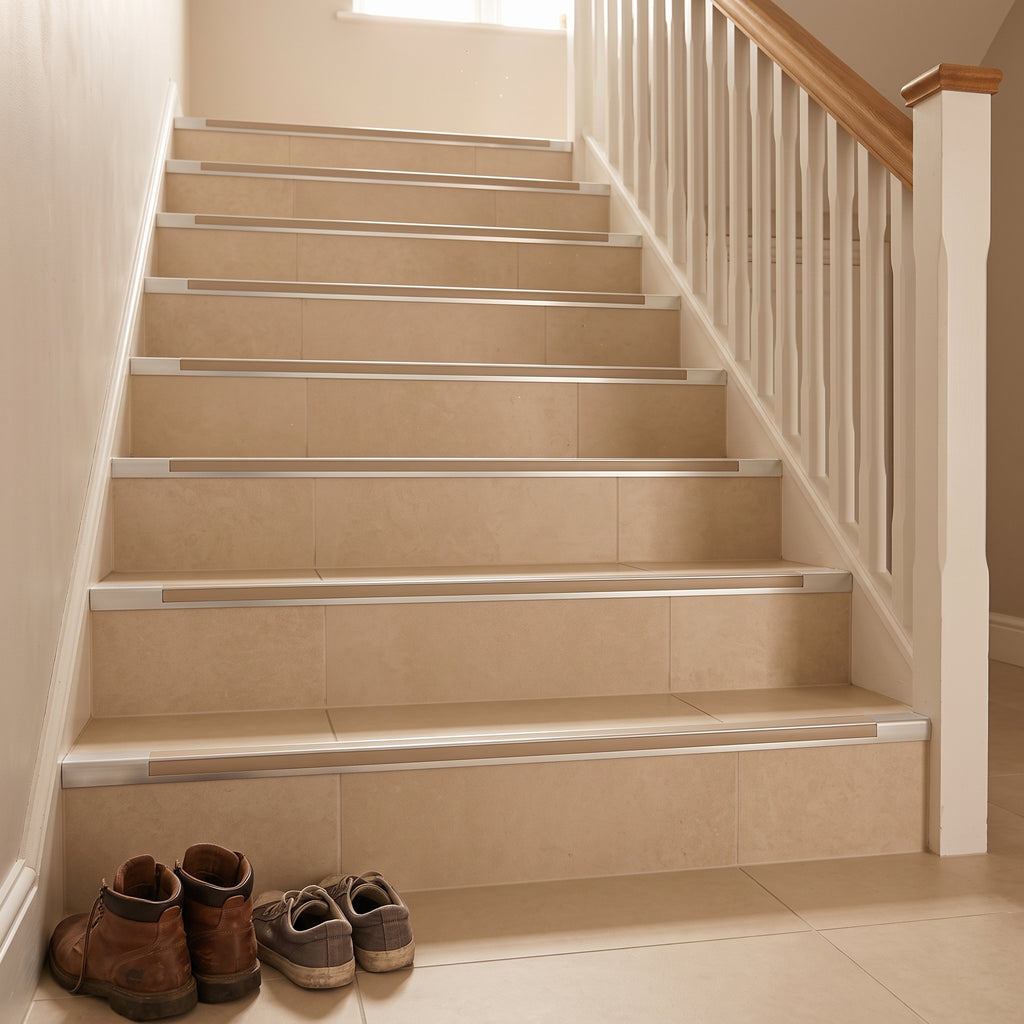

• Domestic ceramic or porcelain tiled staircases

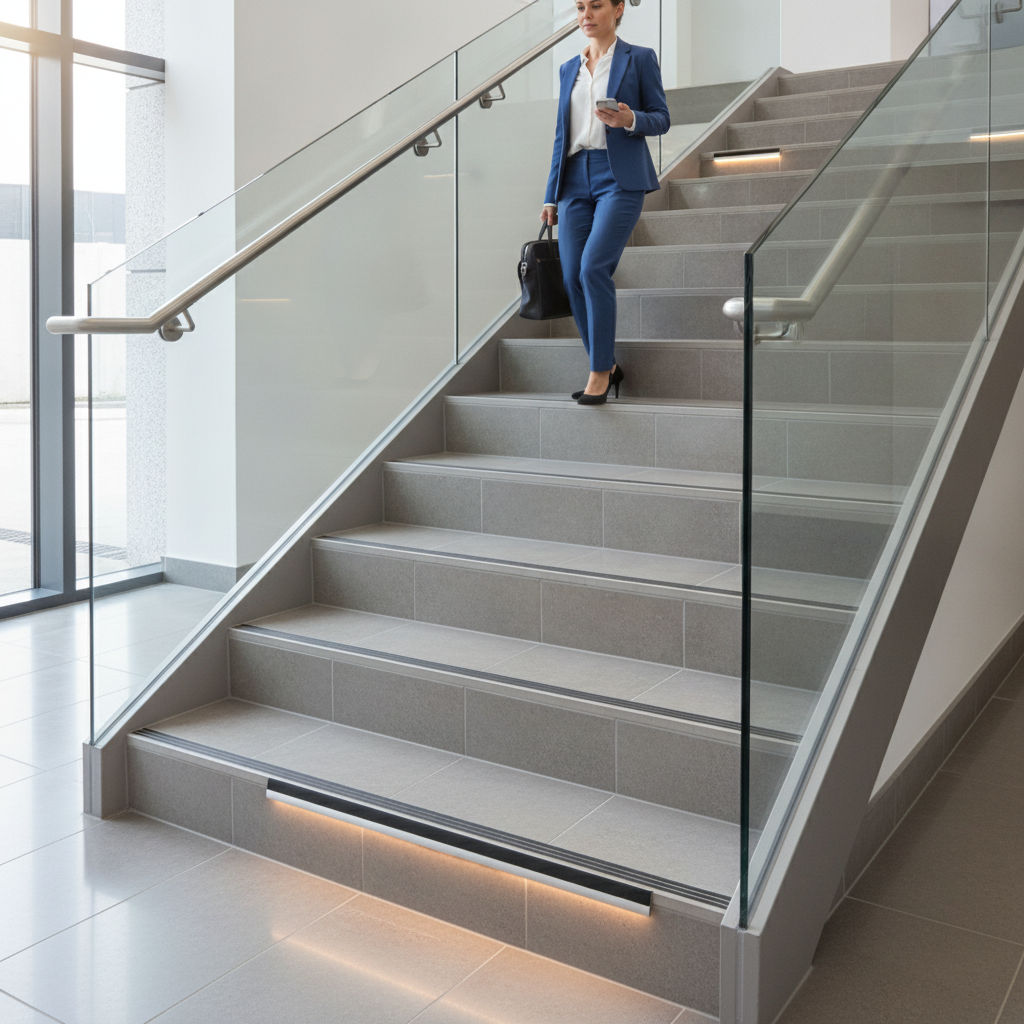

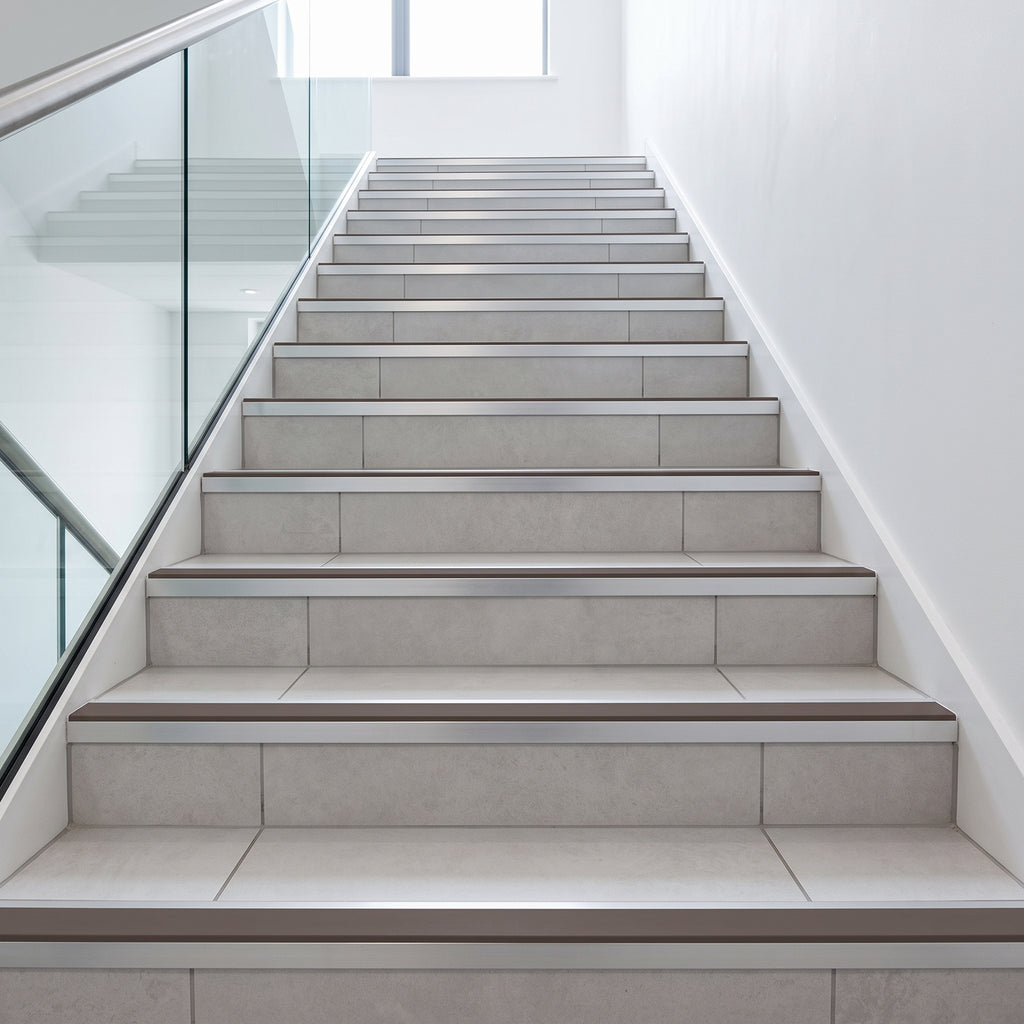

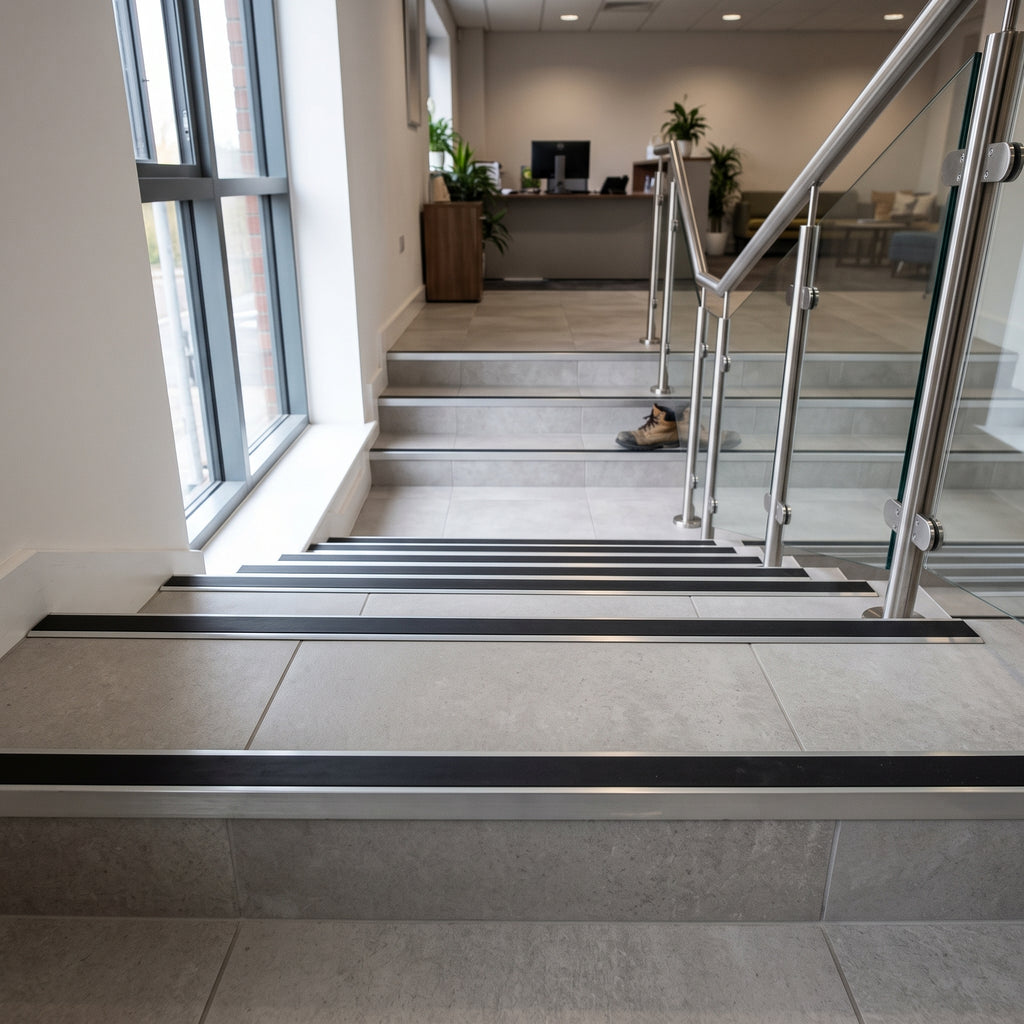

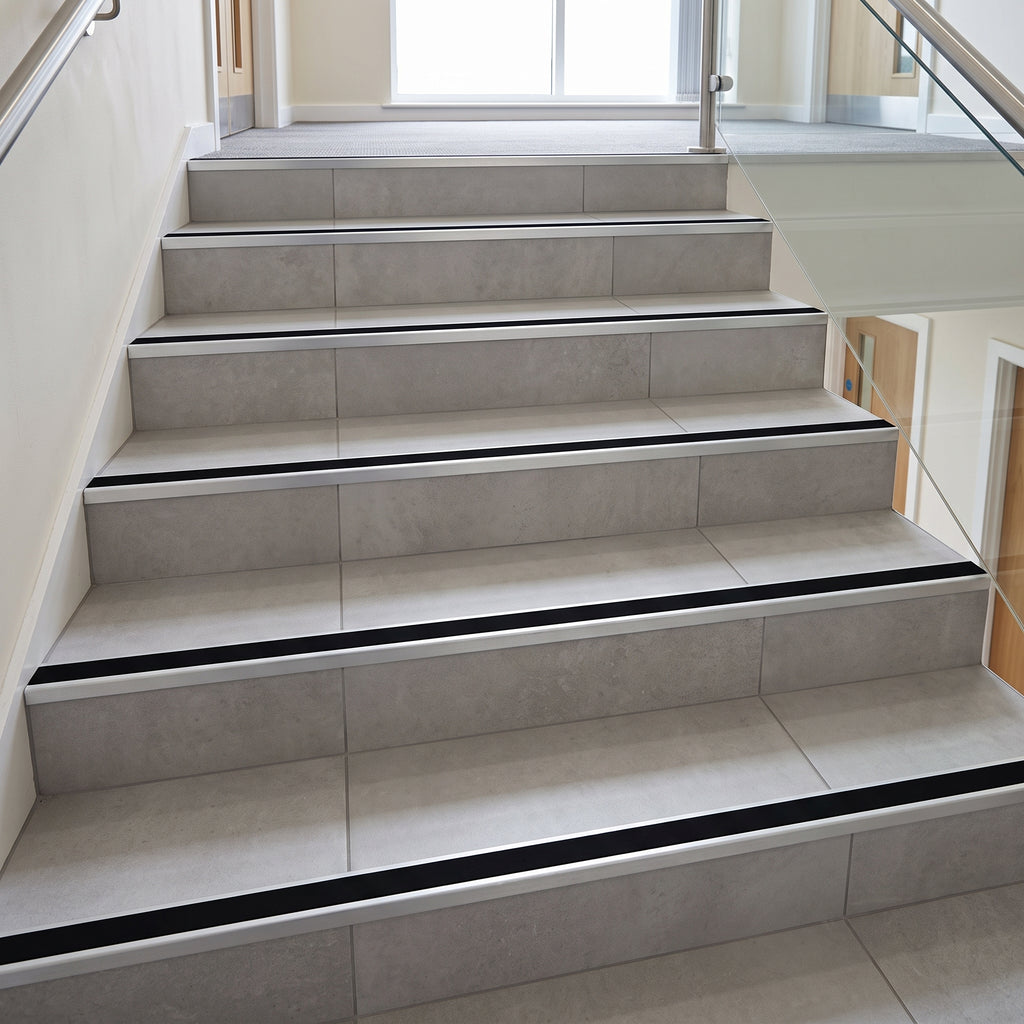

• Office buildings and commercial staircases
• Schools, universities, and educational facilities
• Hotels, restaurants, and hospitality venues
• Retail units and shopping centres

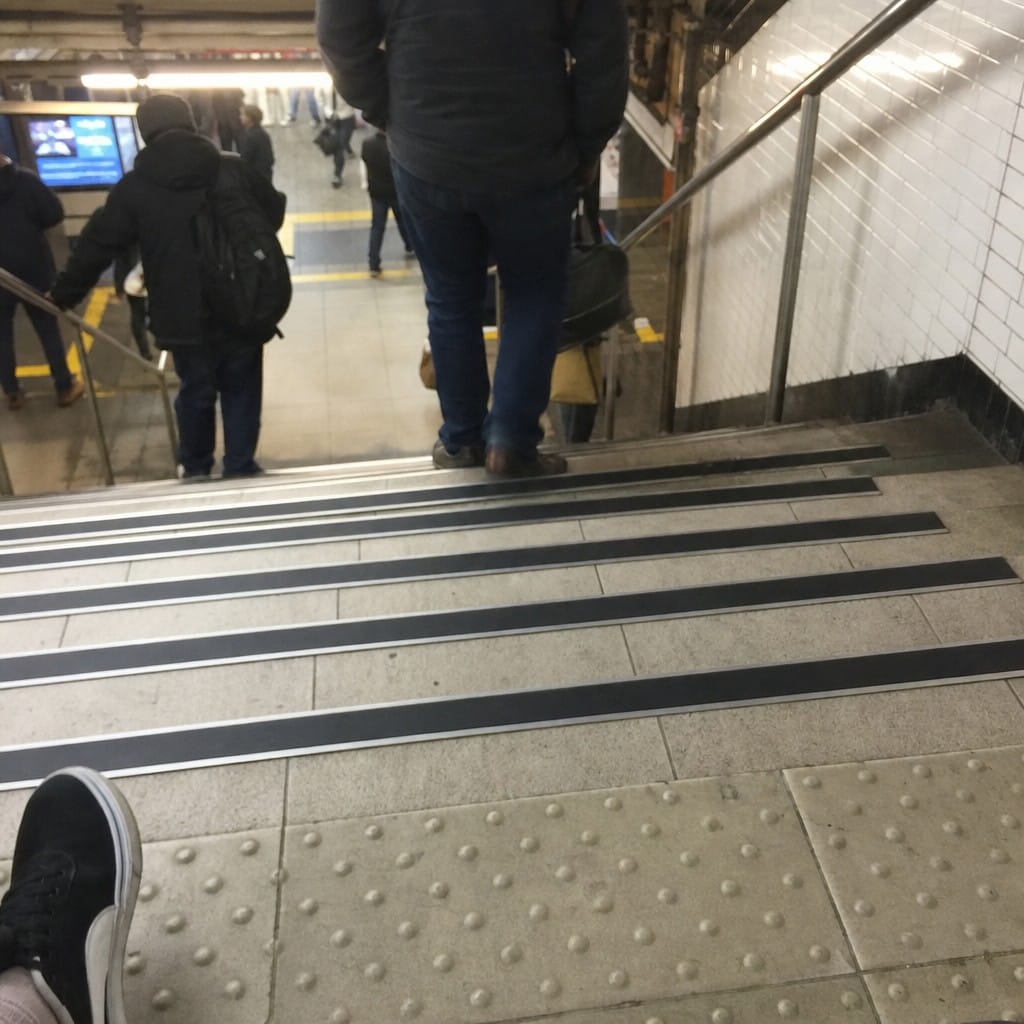

• Public buildings requiring DDA-compliant stair safety
• Swimming pool surrounds and wet-area tiled steps

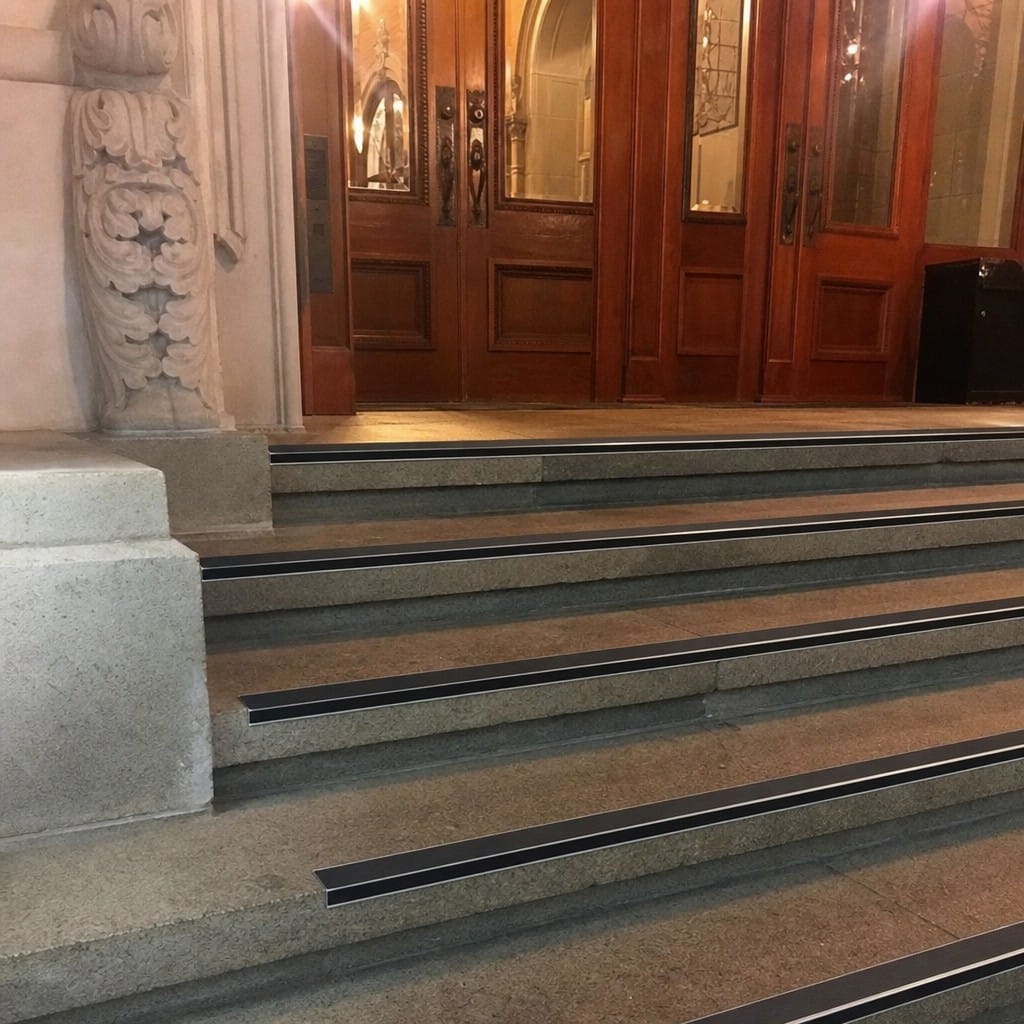

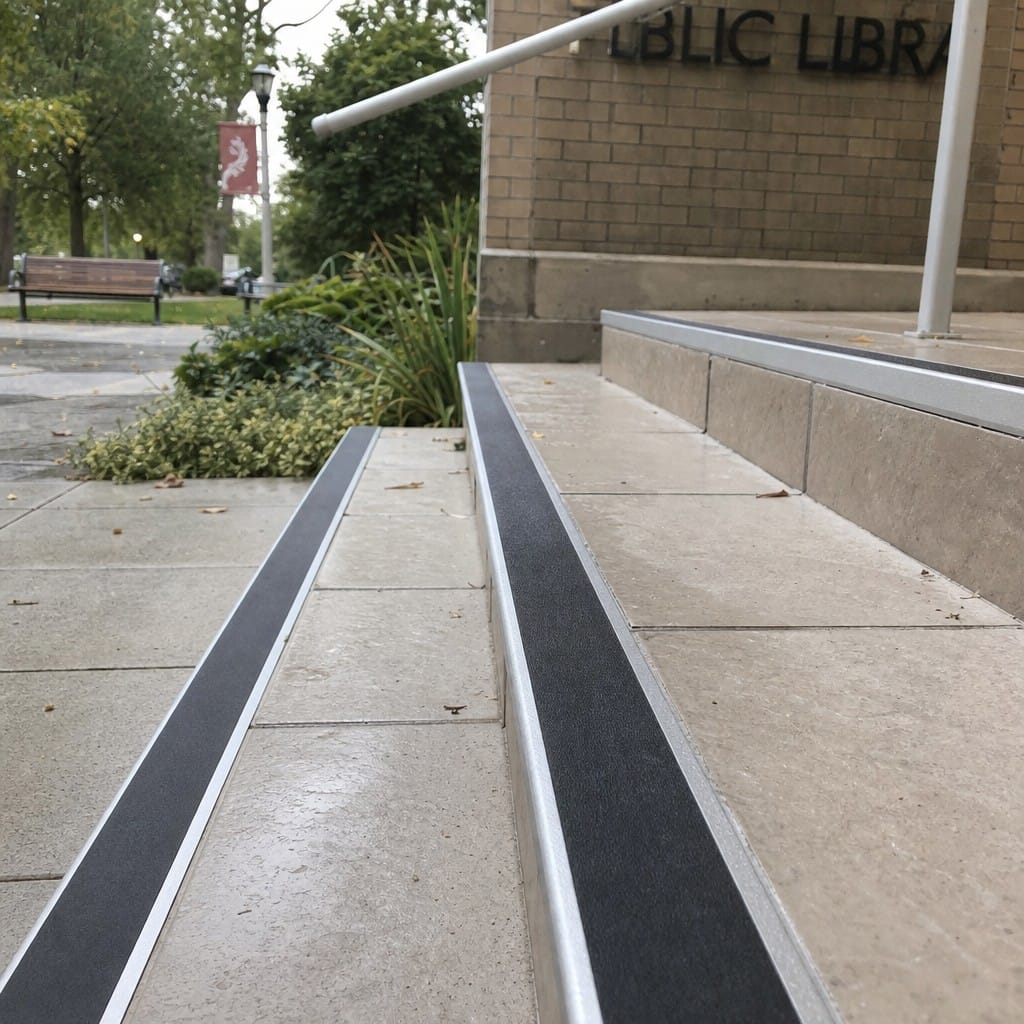

• External tiled steps with appropriate fixings

⚠️ Important: This is a tile-in profile — it must be installed during the tiling process, not retrofitted on top of existing tiles. If tiles are already laid, a surface-mount stair nosing is required instead.

How to Install a Tile-In Stair Nosing

1. Prepare the stair tread — ensure the substrate is clean, level, and ready for tiling.
2. Position the nosing profile at the front nose of the stair tread, aligned with the step edge.
3. Mark and drill fixing holes through the pre-drilled positions into the substrate.
4. Screw down the nosing using the supplied fixings — secure but not overtightened.

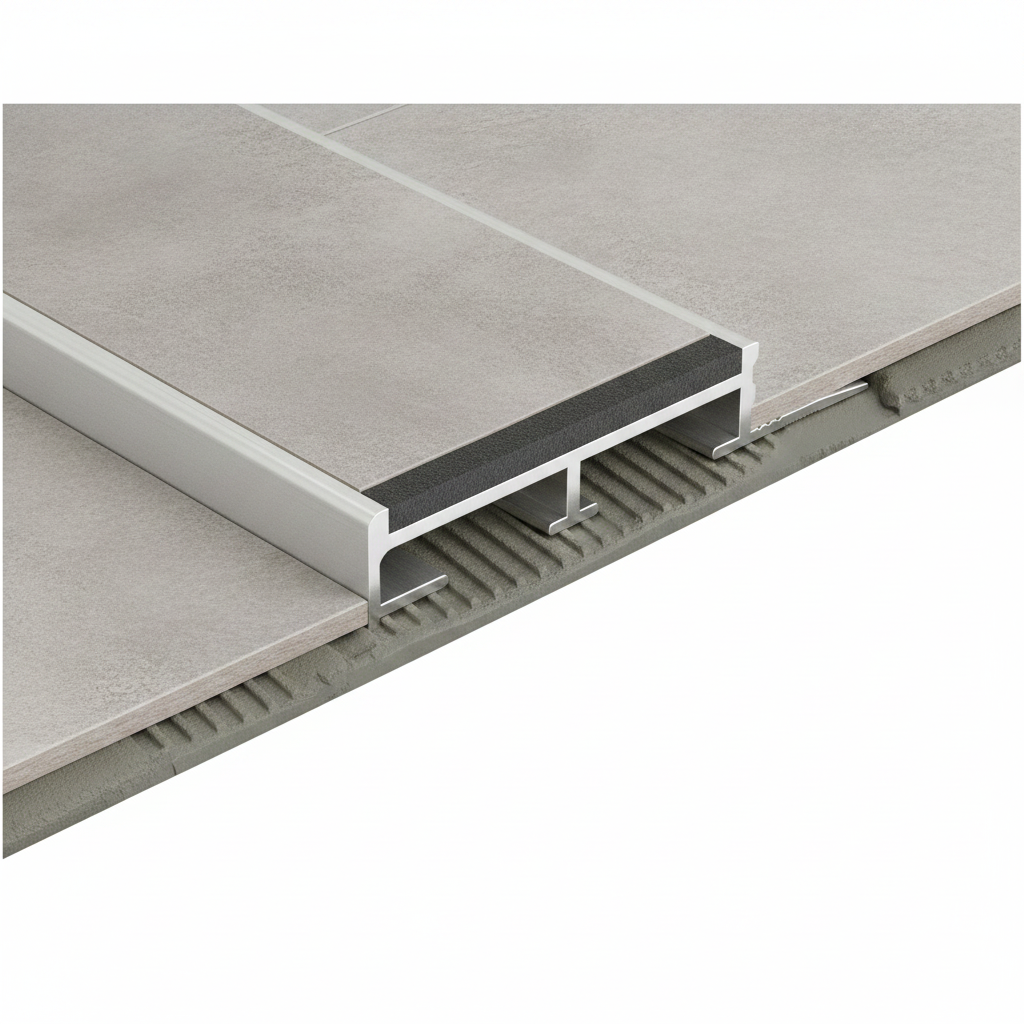

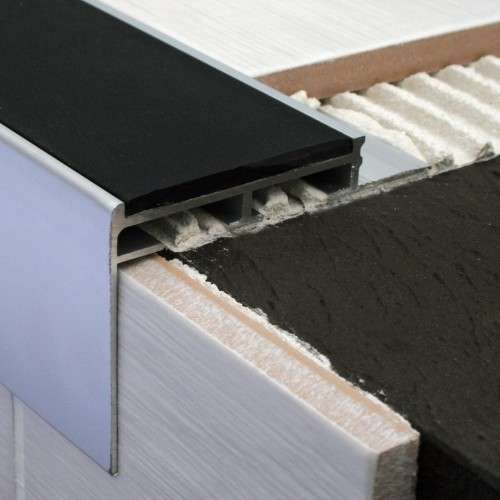

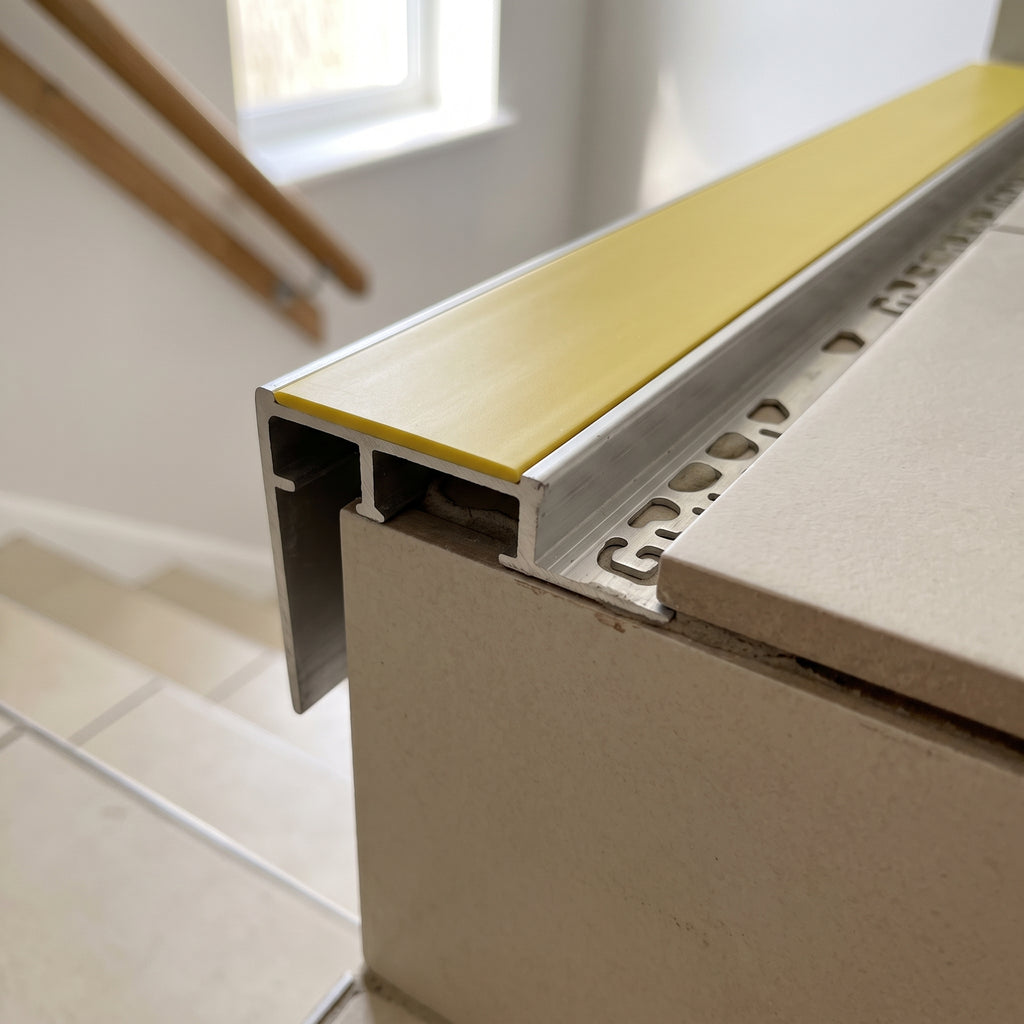

5. Apply tile adhesive and lay tiles up to the profile on both the tread and riser, fitting snugly into the tile-in channel on both sides.
6. Grout the tiles to the edge of the profile — colour-match grout to the nosing insert for a seamless finish.
7. Allow to cure fully before use (follow tile adhesive manufacturer's instructions).

Frequently Asked Questions

What is the difference between a tile-in nosing and a surface-mount nosing?

A tile-in nosing is installed before tiling — tiles are laid up to the profile on both sides, creating a flush, seamless finish. A surface-mount nosing is fitted on top of existing tiles and sits slightly raised. Tile-in nosings give a more professional, purpose-built appearance but must be fitted during the tiling process.

Can I fit this onto existing tiles?

No. This is a tile-in profile that must be installed during the tiling process before tiles are laid. If your tiles are already fitted, you need a surface-mount stair nosing instead.

What tile thickness does this nosing fit?

This profile is available in two sizes: 10mm for standard 10mm ceramic or porcelain tiles, and 12.5mm for 12.5mm thick tile formats. Measure your tile thickness carefully before ordering.

Is this suitable for outdoor use?

The aluminium body is corrosion-resistant and suitable for covered external steps. For fully exposed outdoor installations subject to standing water, ensure appropriate weather-resistant fixings and sealant are used around the profile edges.

Does this meet DDA or Building Regulations requirements?

The high-visibility colour options (Red, Yellow) and anti-slip insert help meet stair safety guidance under the Disability Discrimination Act (DDA) and Building Regulations Part K. For specific compliance requirements, consult the relevant regulations or your building control officer.

Can this profile be cut to a shorter length?

Yes. All lengths can be cut using a metal-cutting saw or angle grinder. File cut edges smooth before installation. Always cut from the plain end.

What colours are best for high-visibility safety compliance?

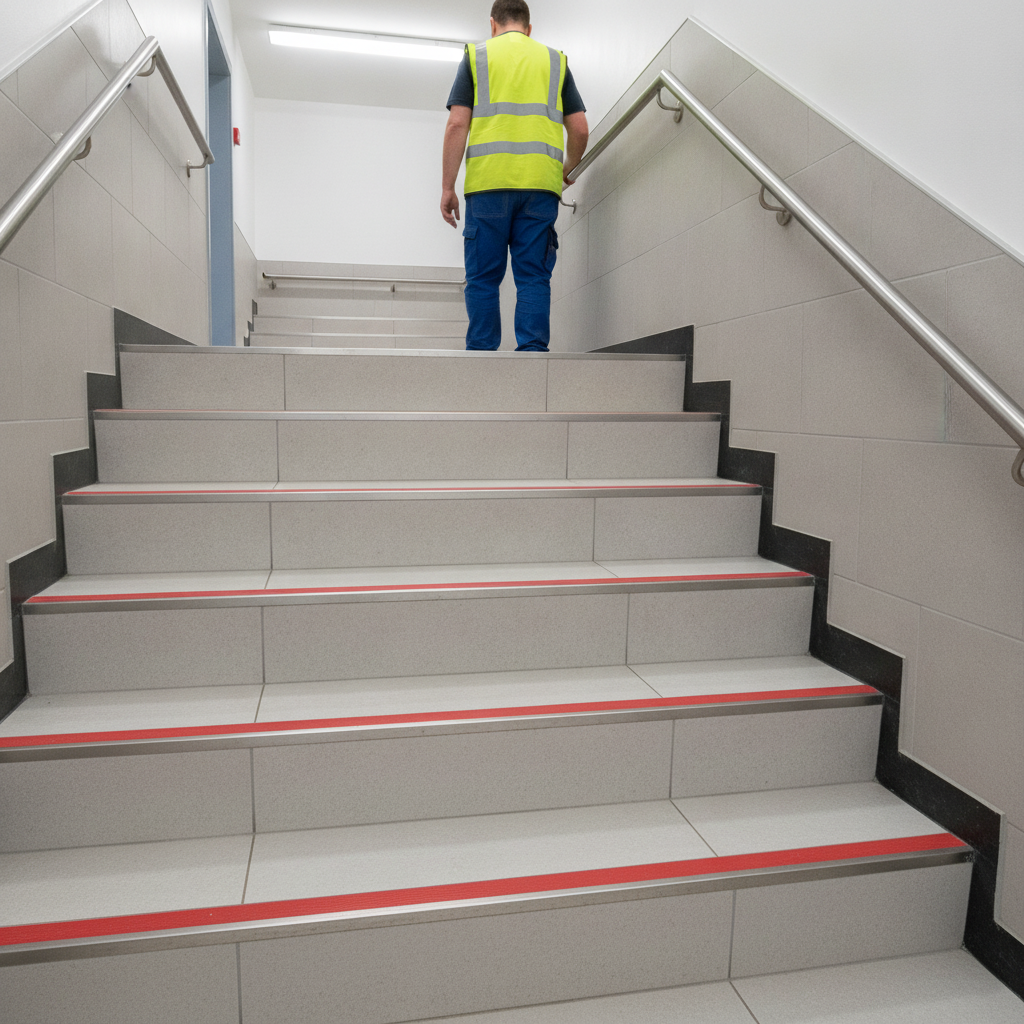

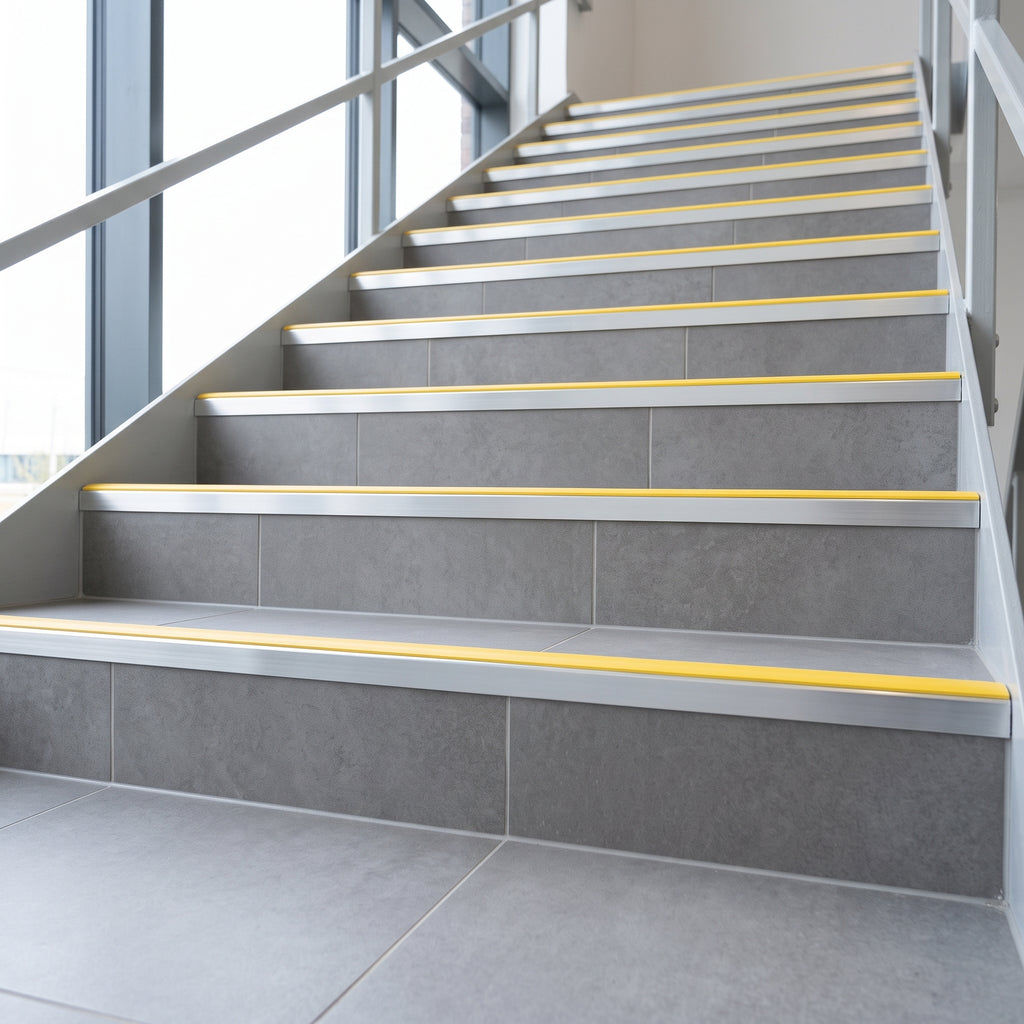

Red and Yellow are the standard high-visibility colours used for safety stair nosings in public buildings, workplaces, and DDA-compliant installations. These provide maximum contrast against floor tiles and are easily visible to all users including those with visual impairments.

How many nosings do I need?

One nosing per stair tread. Count the number of steps in your staircase and order one profile per step at the appropriate length. Choose the length closest to (but not shorter than) your staircase width, then cut to exact size.

Why Buy From Stair Nosings UK?

• ✅ UK stock — fast dispatch, no overseas delays
• ✅ Stair nosing specialists — this is exactly what we do
• ✅ Complete kit — fixings included in every pack
• ✅ 11 colours, 4 lengths, 2 tile sizes — the right combination for every project
• ✅ Trade and DIY — used by tilers, contractors, and homeowners across the UK
• ✅ Secure checkout — major payment methods accepted

Available in 11 colours, 4 lengths (1.0m–3.22m) and 2 tile depths (10mm & 12.5mm). Fixings included. Select your options above.
