Single Channel Aluminium Stair Nosing 2.44m PVC Insert


Price
Sale price £137.76 (Inc. VAT)
➜ Need help? Call us on 01282 270 010

In stock, ready to ship

Description

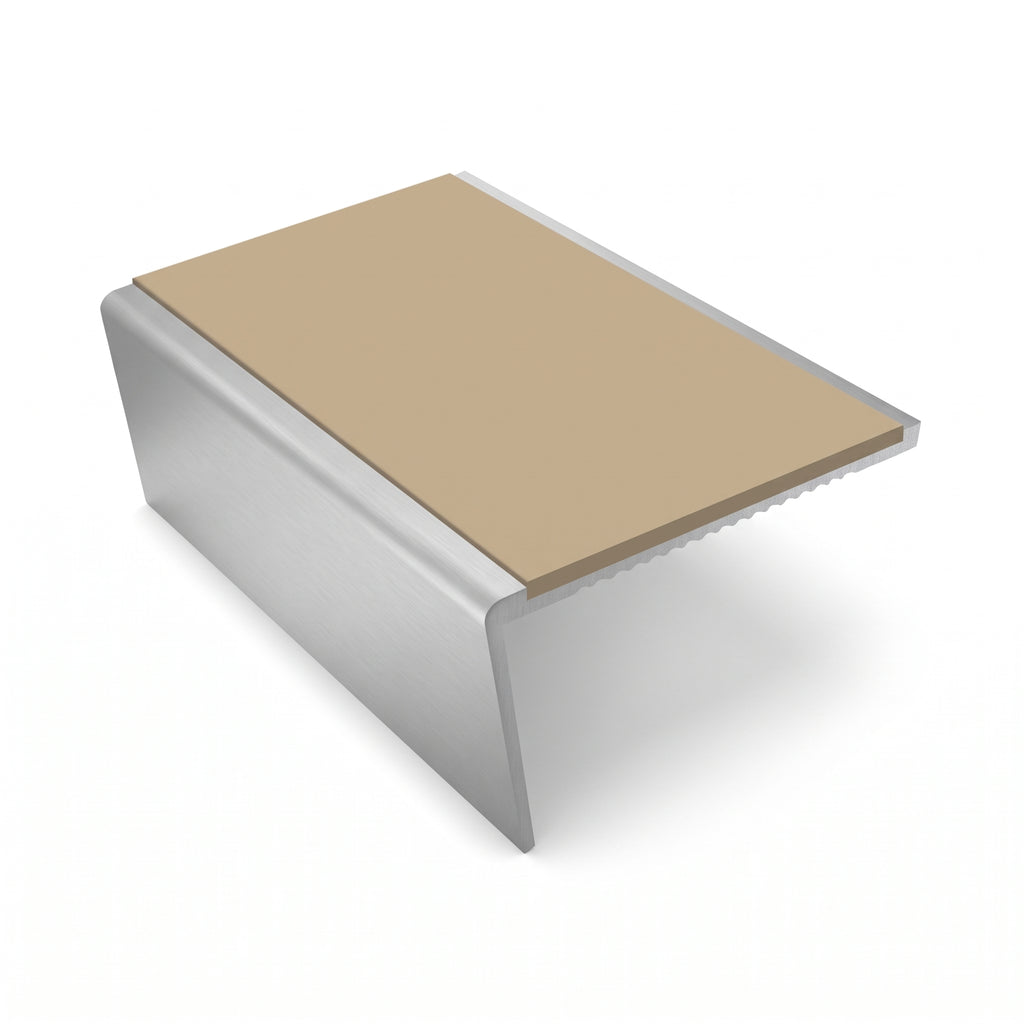

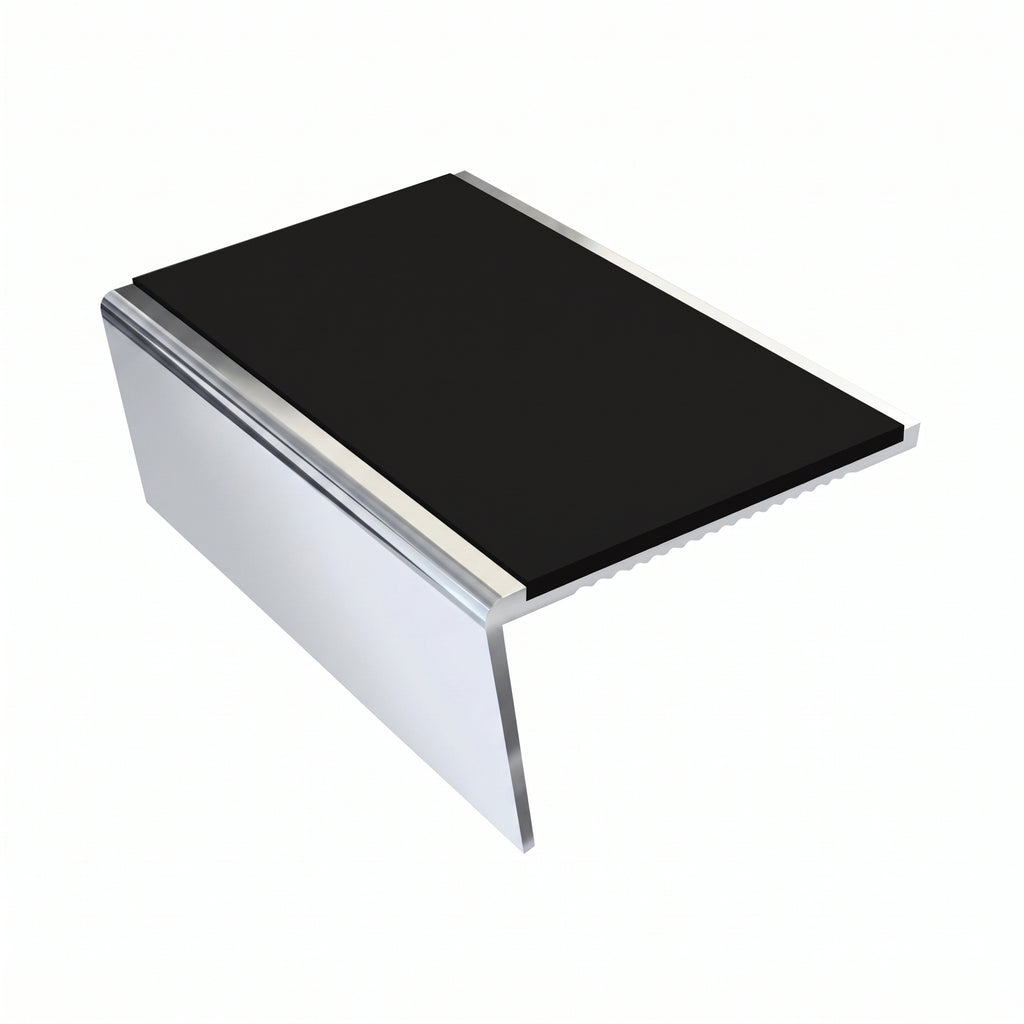

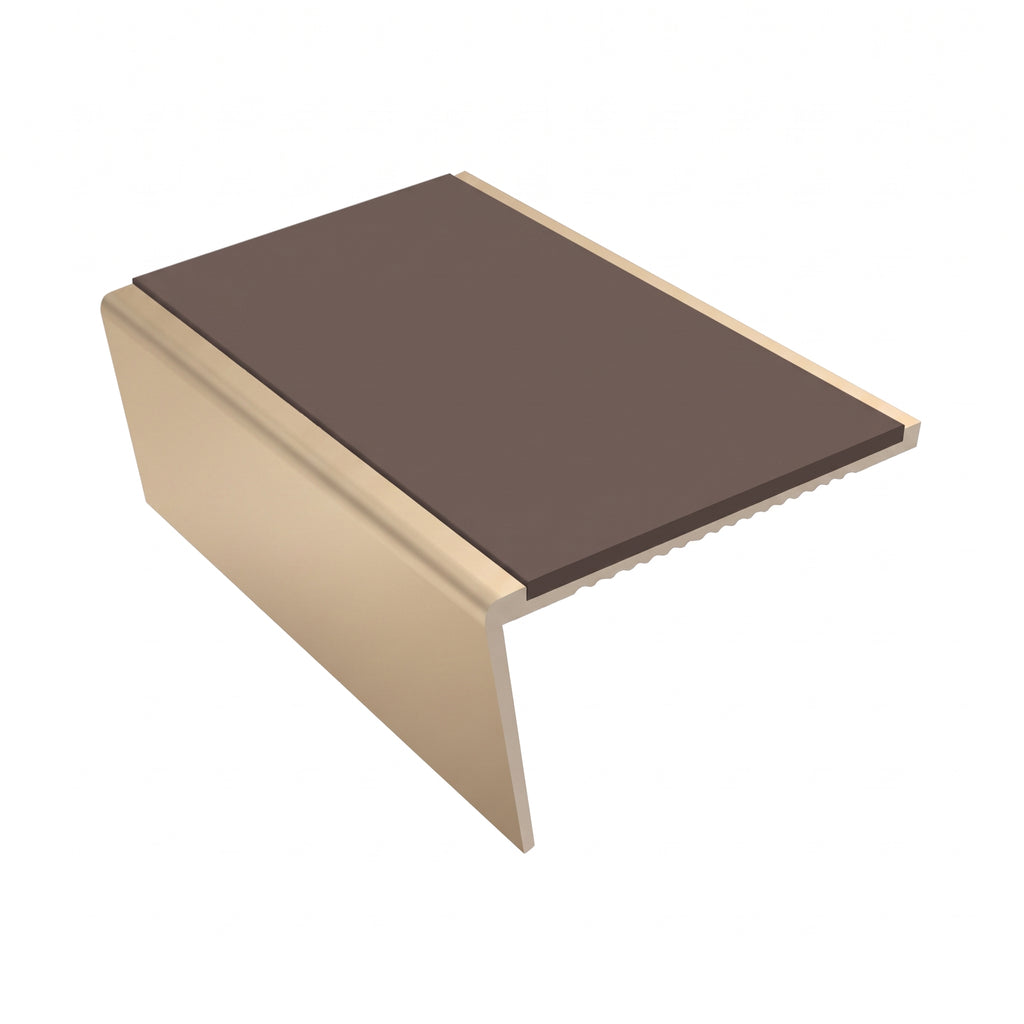

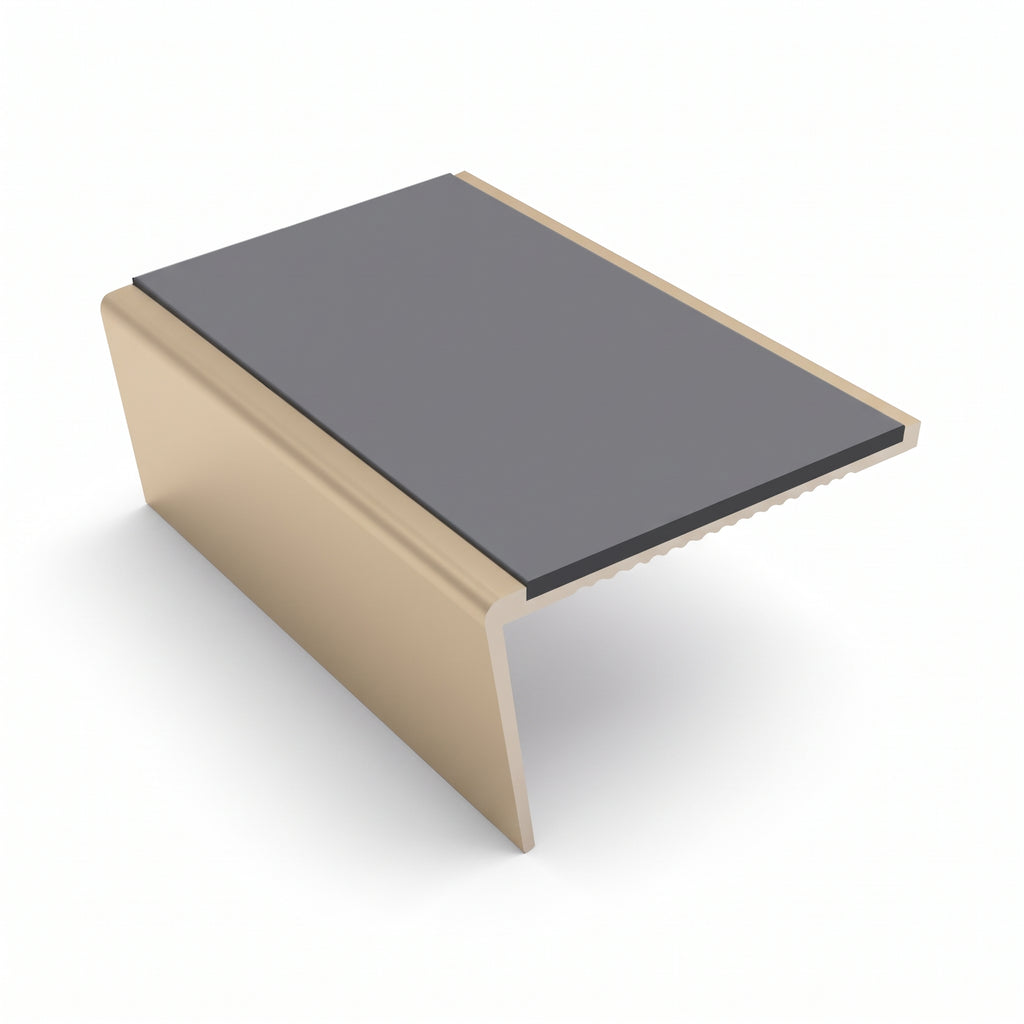

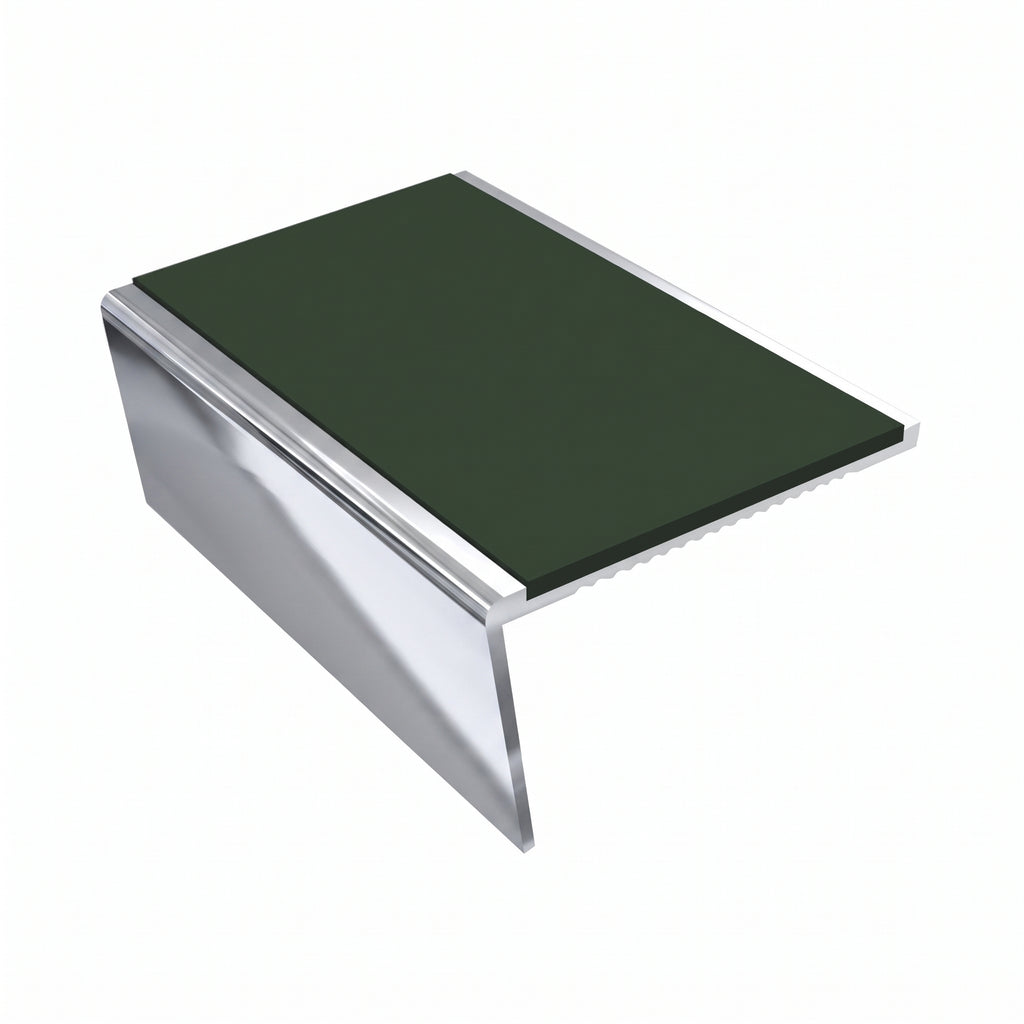

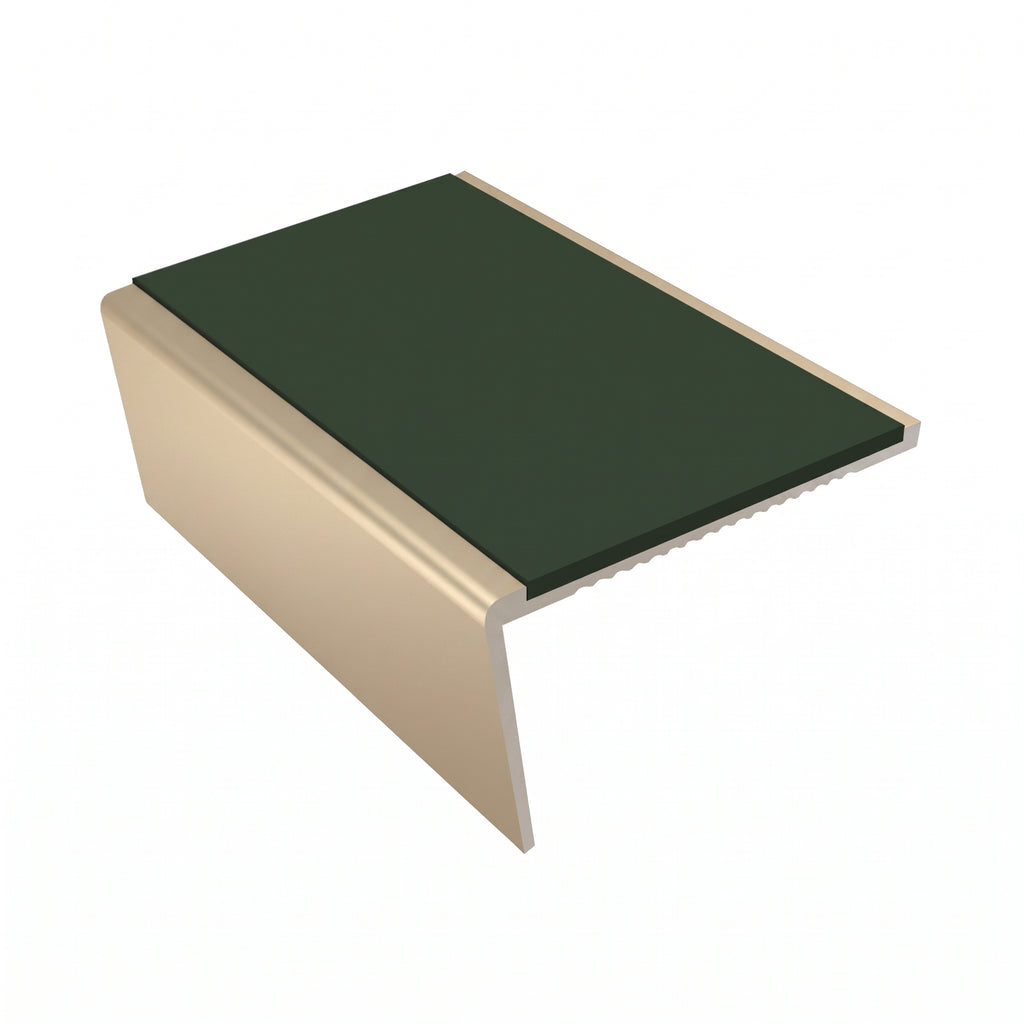

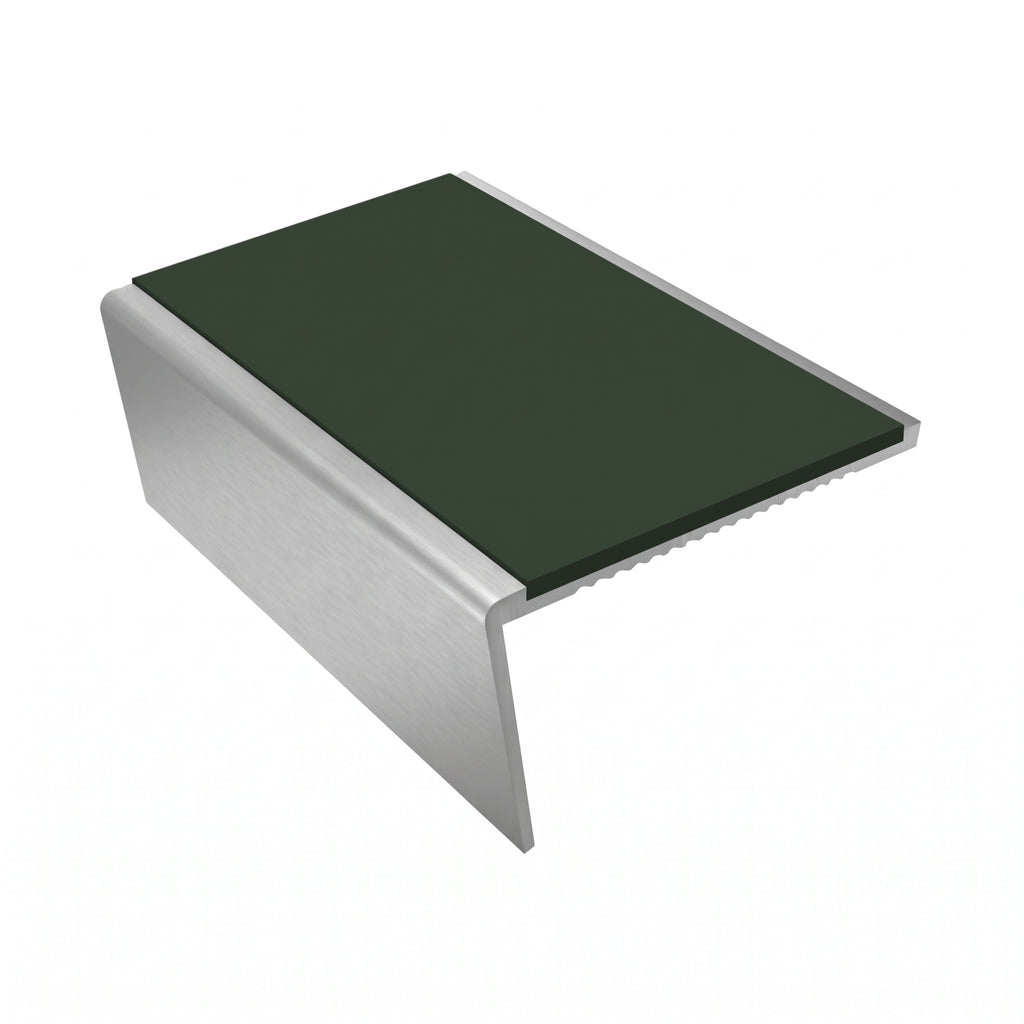

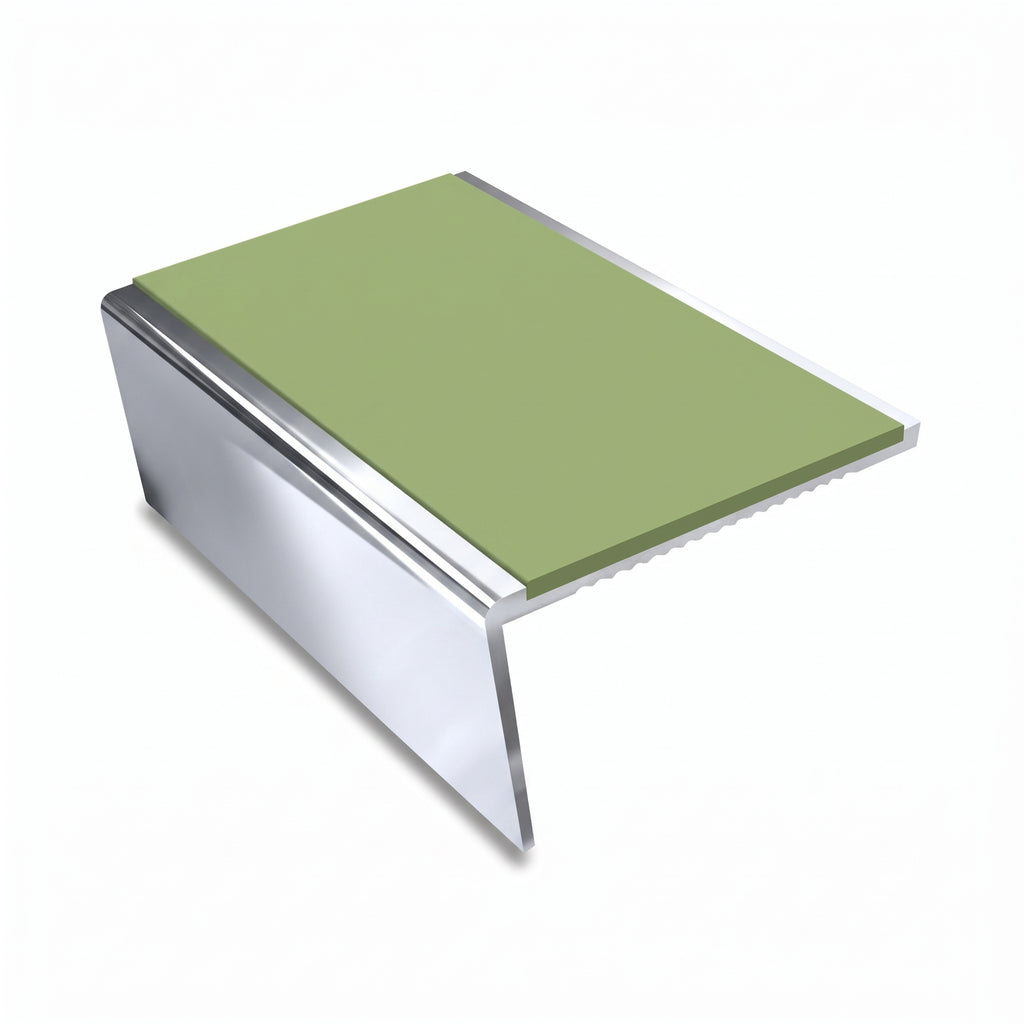

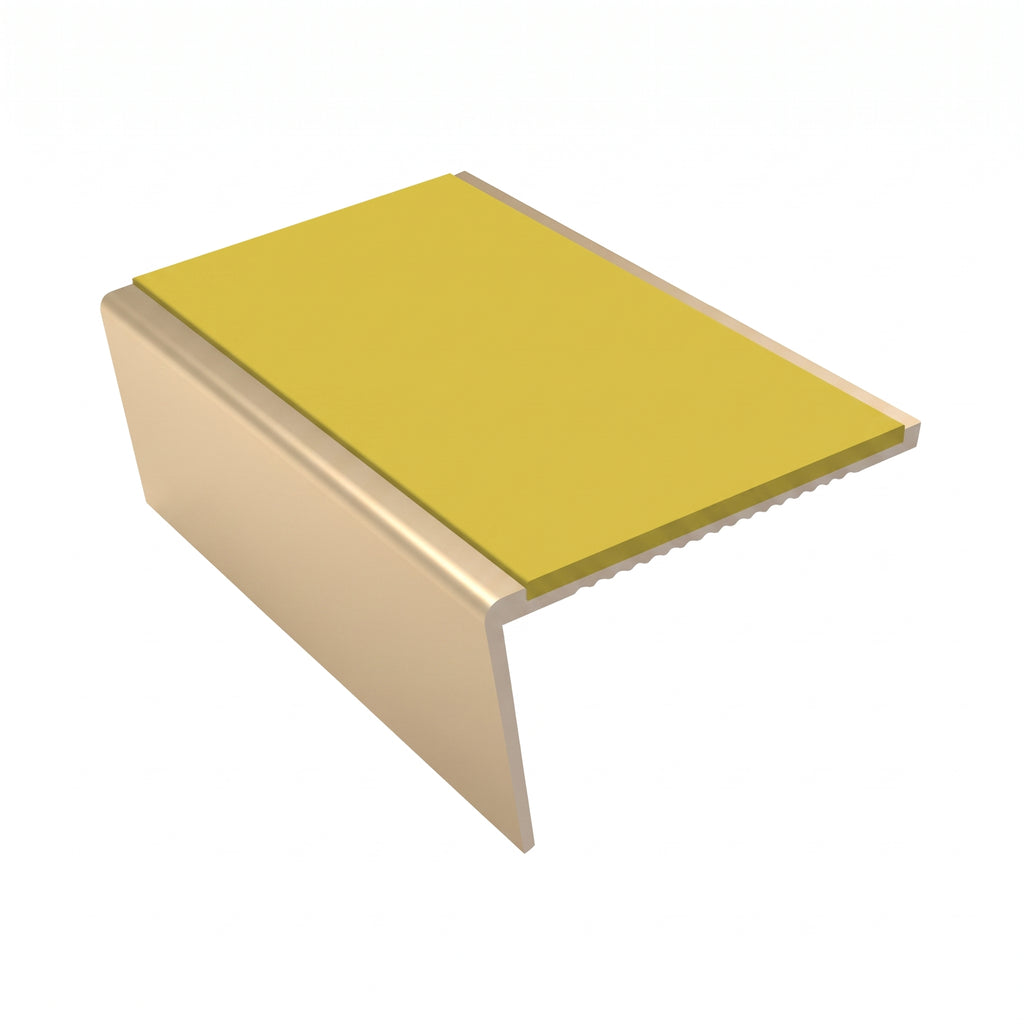

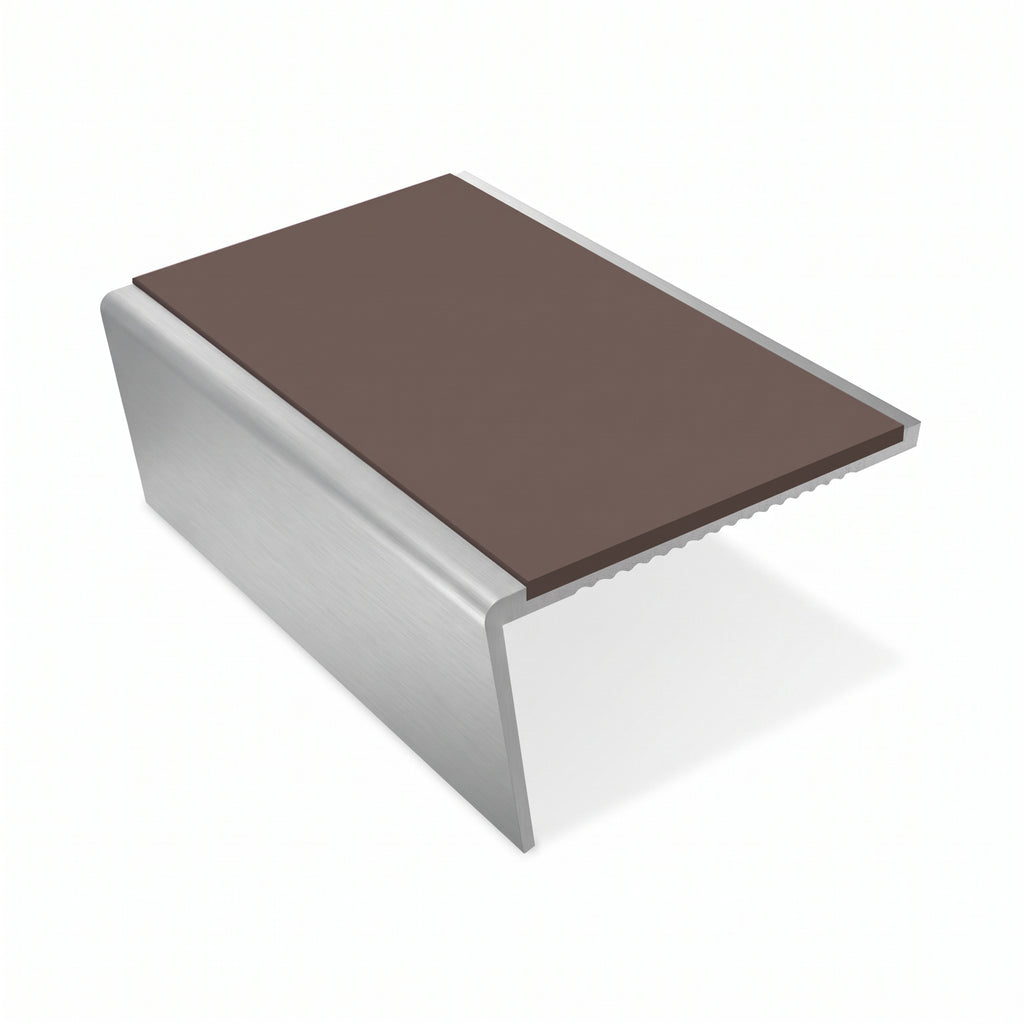

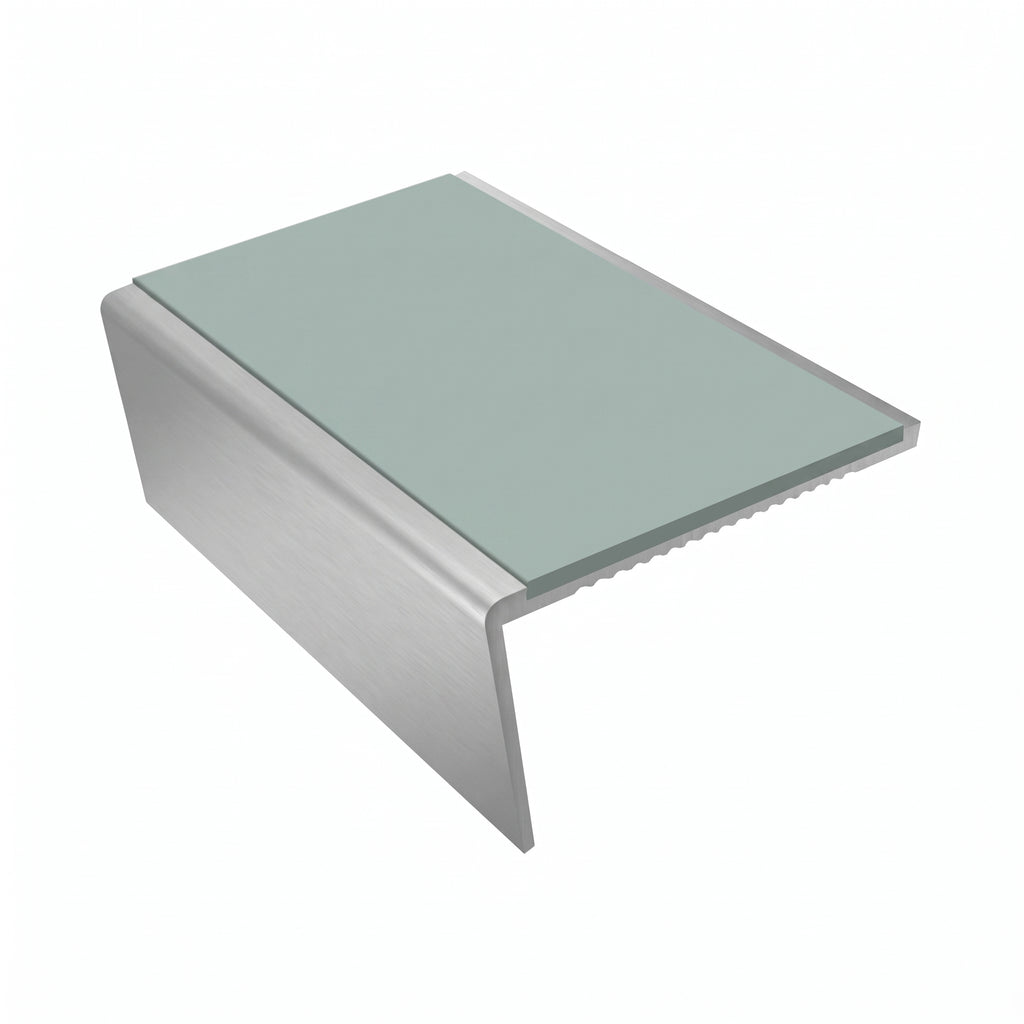

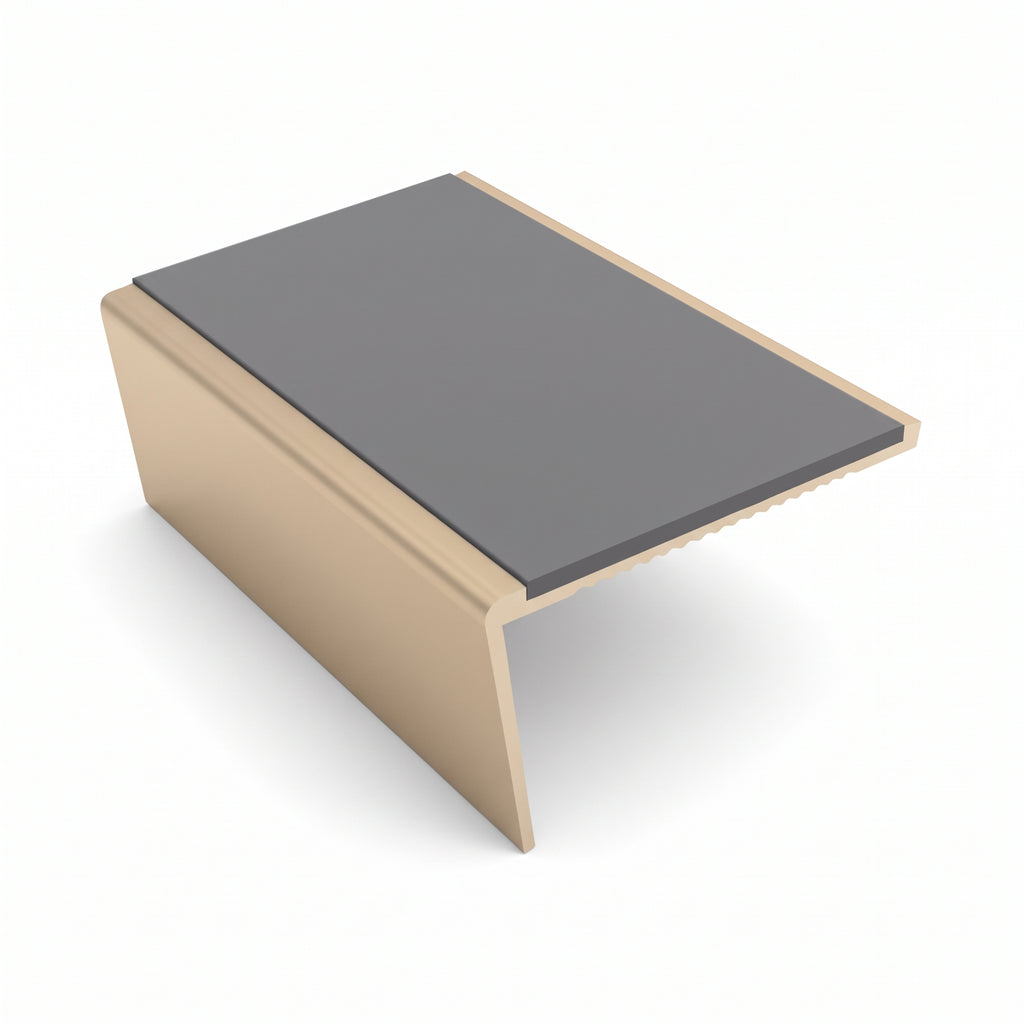

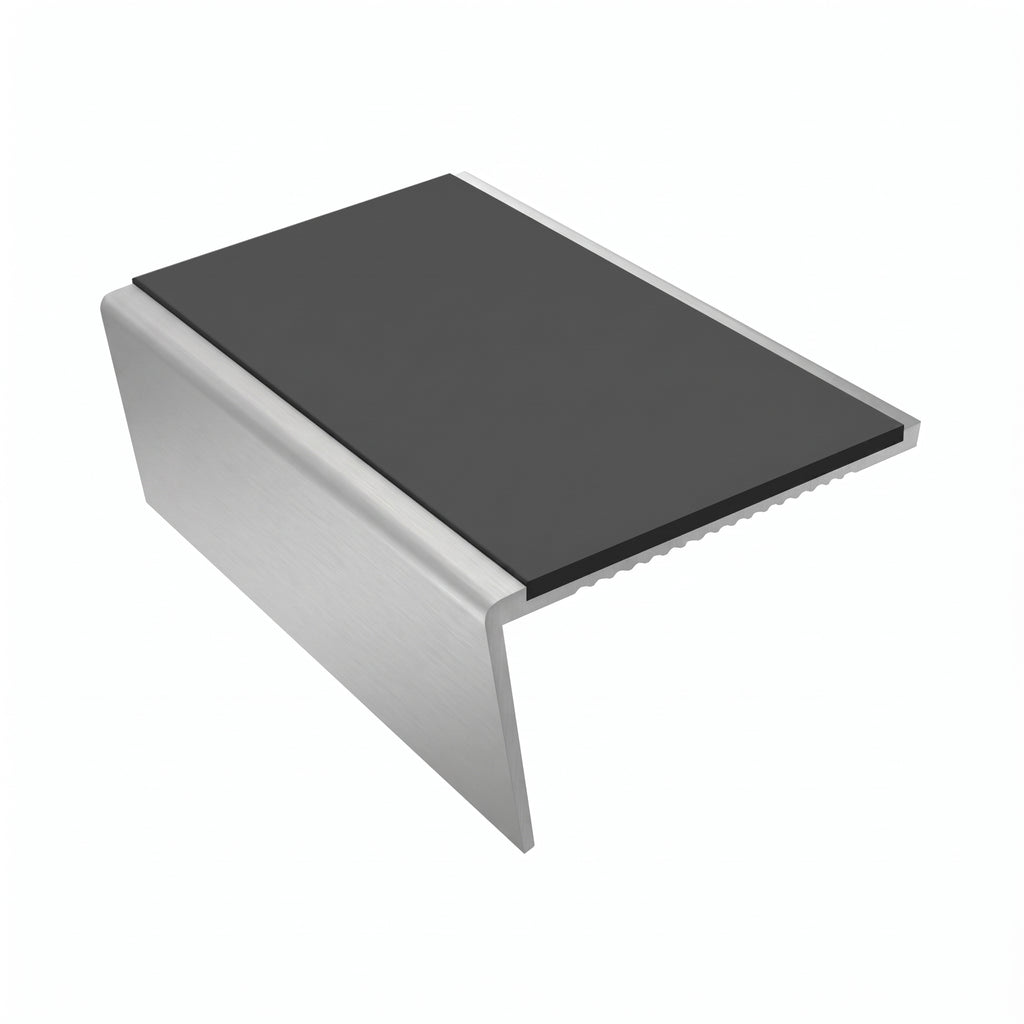

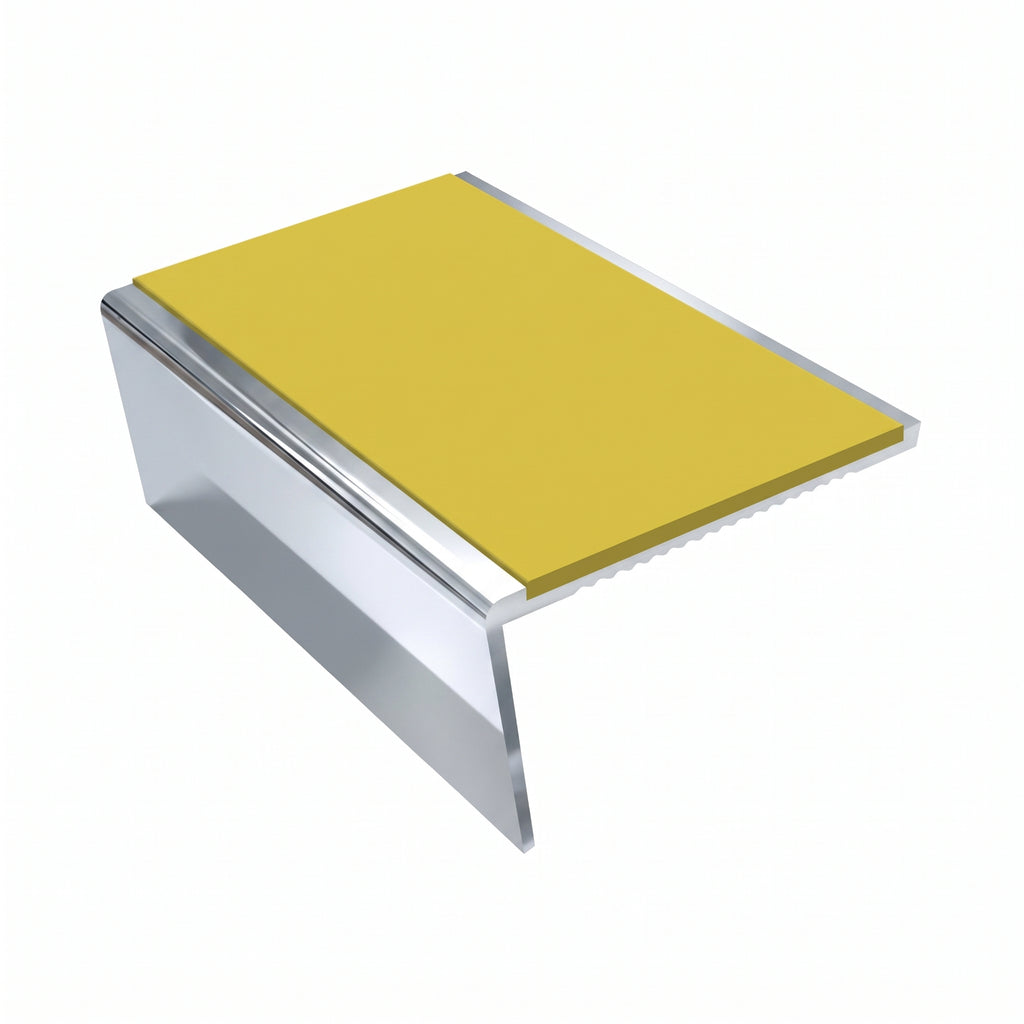

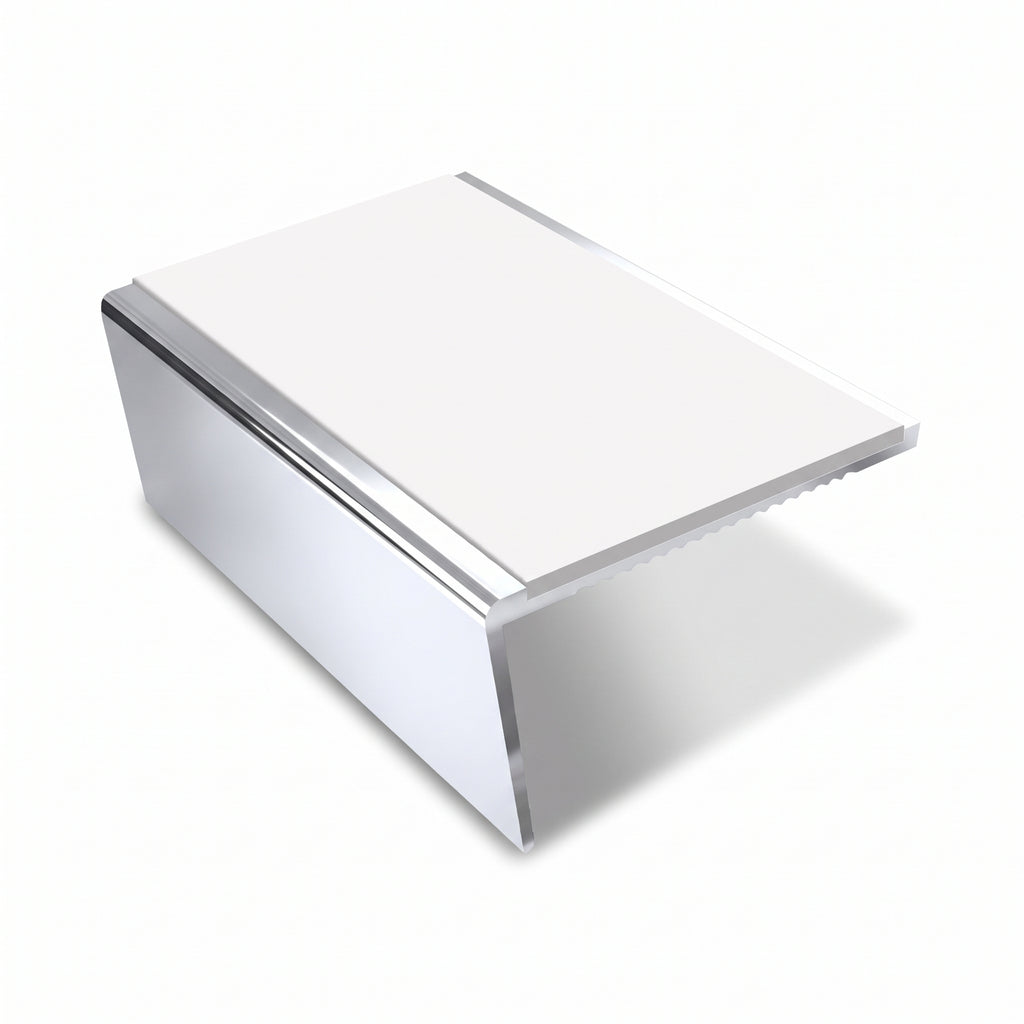

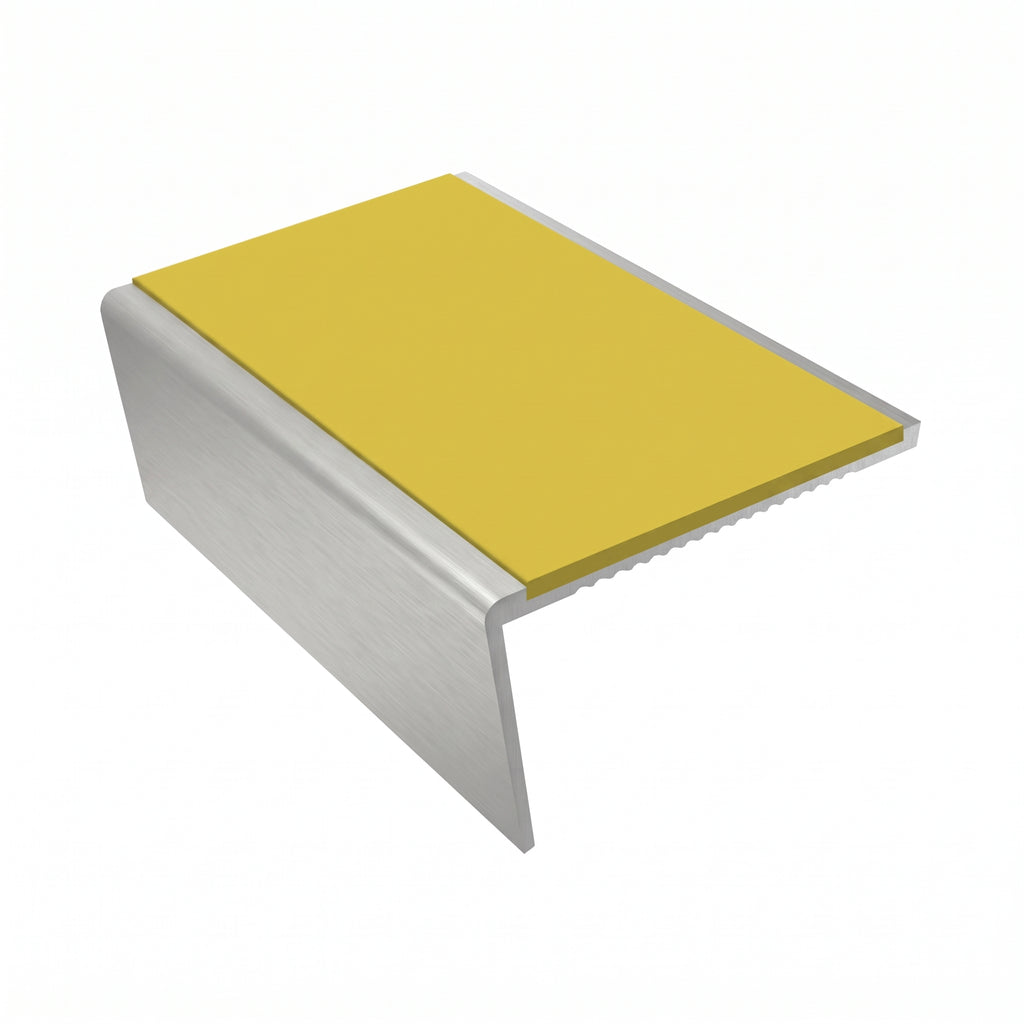

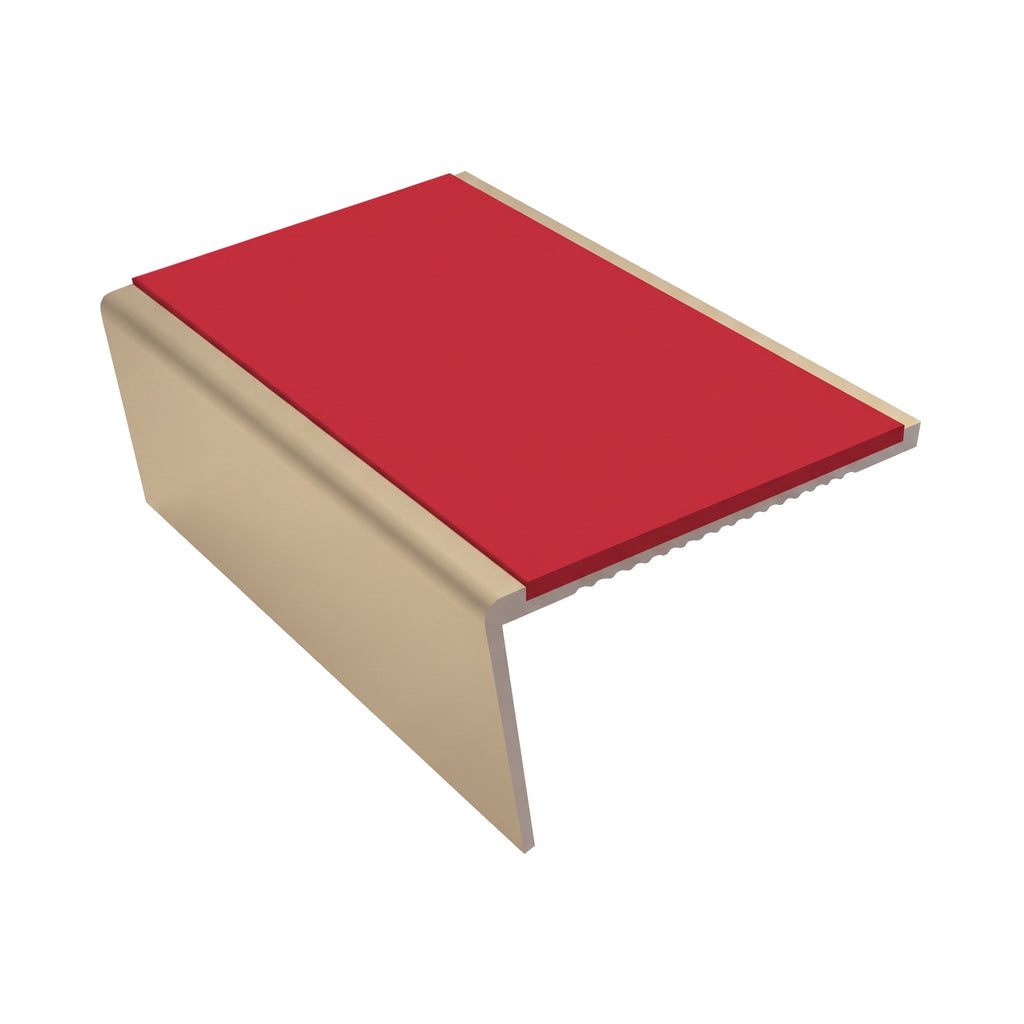

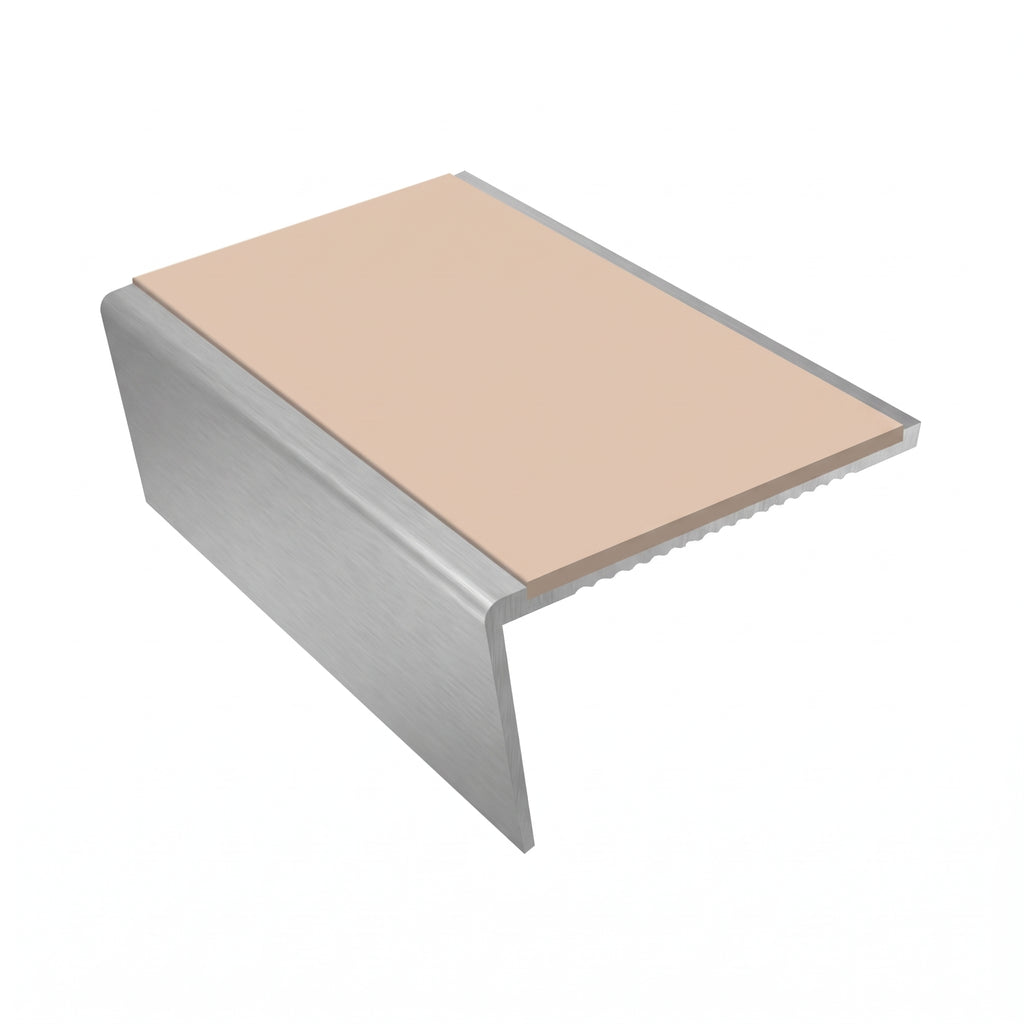

Single Channel Aluminium Stair Nosing — 2.44m Stock Length with Interchangeable PVC Insert

This single-channel aluminium stair nosing is a precision-engineered edge-protection profile designed to define, protect, and visually highlight the leading edge of interior stair treads. Supplied in a 2.44 m (2440 mm) stock length with a rake-back underside profile, it is fixed directly to the step front and accepts a replaceable slip-resistant PVC insert. Suitable for use on stairs finished with vinyl, linoleum, or lightweight carpet, it is an established choice for commercial, public-sector, and residential staircases where durability, safety, and a clean finish are equally important.

Product Specifications

Specification Detail
Profile Material Extruded aluminium
Insert Material PVC (polyvinyl chloride)
No. of Insert Channels 1 (single channel)
Stair Profile Requirement Rake-back (angled underside) — suitable for standard square-edge step fronts
Suitable Floor Coverings Vinyl, linoleum, lightweight carpet (3.5 mm gauge)
Stock Length 2.44 m (2440 mm)
Gauge / Thickness 3.5 mm
Tread 56 mm
Riser 32 mm
Insert Type Slip-resistant, interchangeable PVC insert
Fixing Method Surface-fixed (screw-down) to step tread front
Available Aluminium Finishes Mill Finish, Bright Polished, Satin Gold, Dark Bronze, Satin Black, Mirrorflect Gold

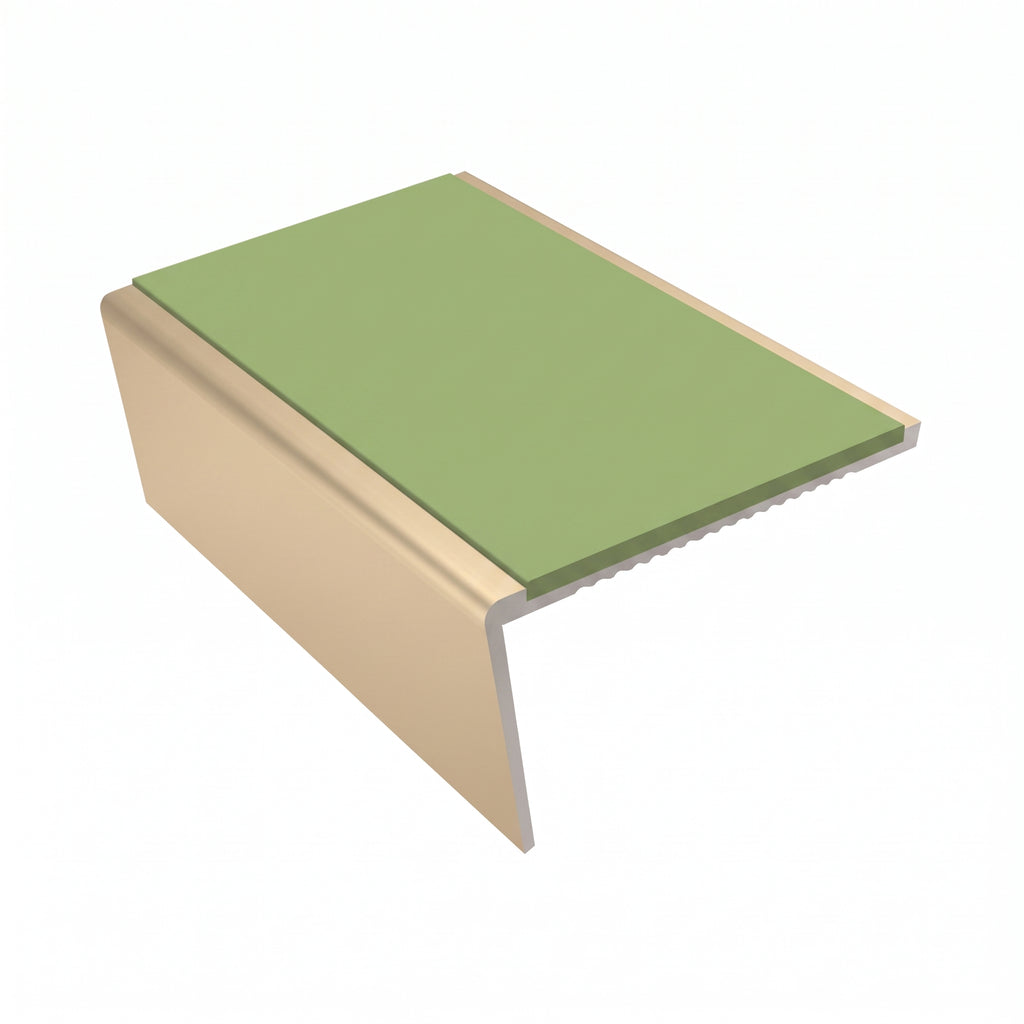

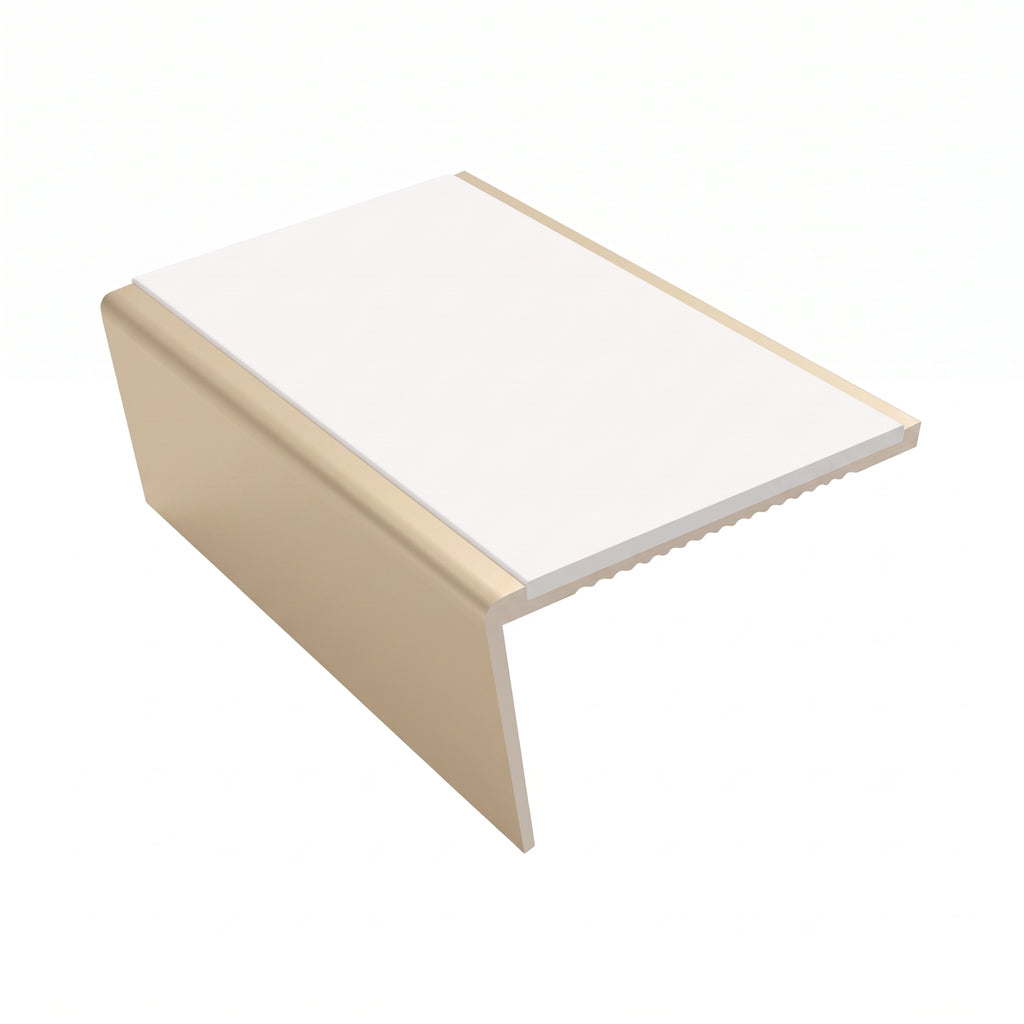

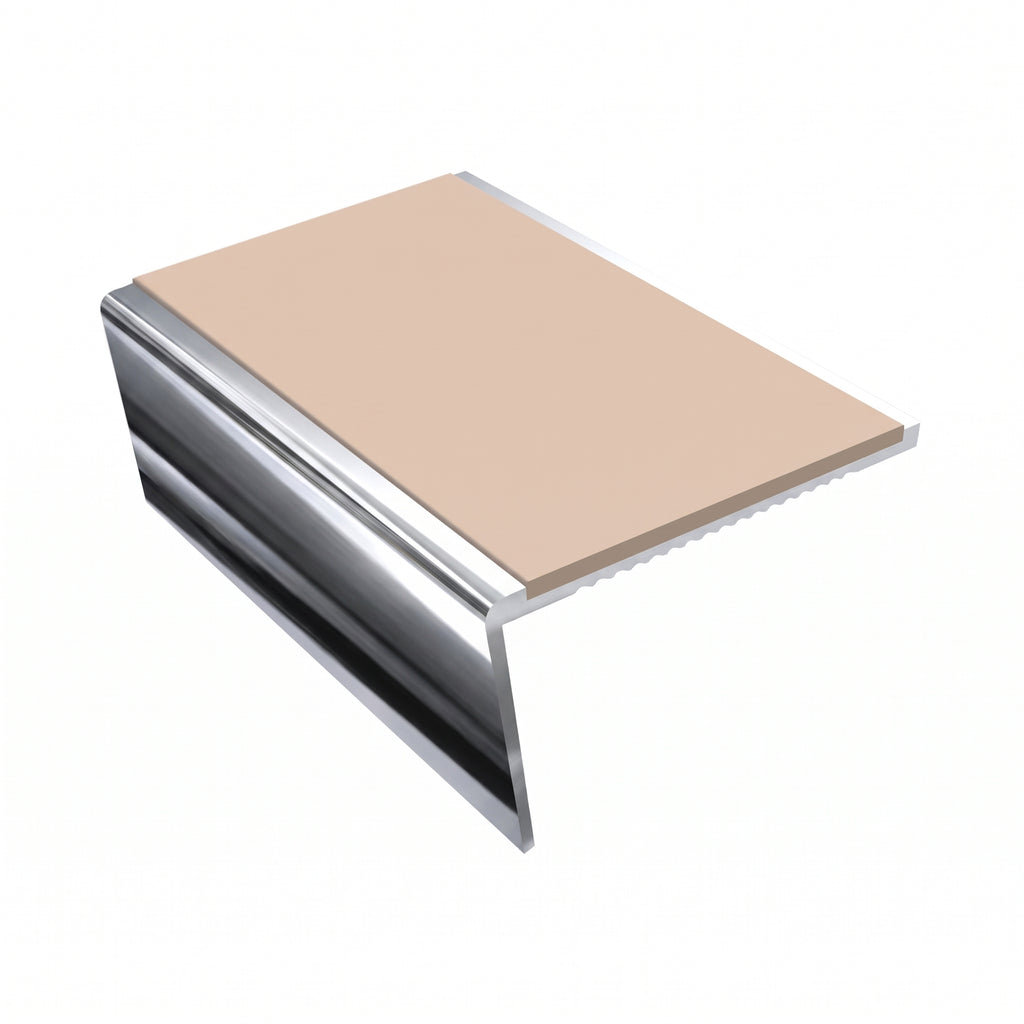

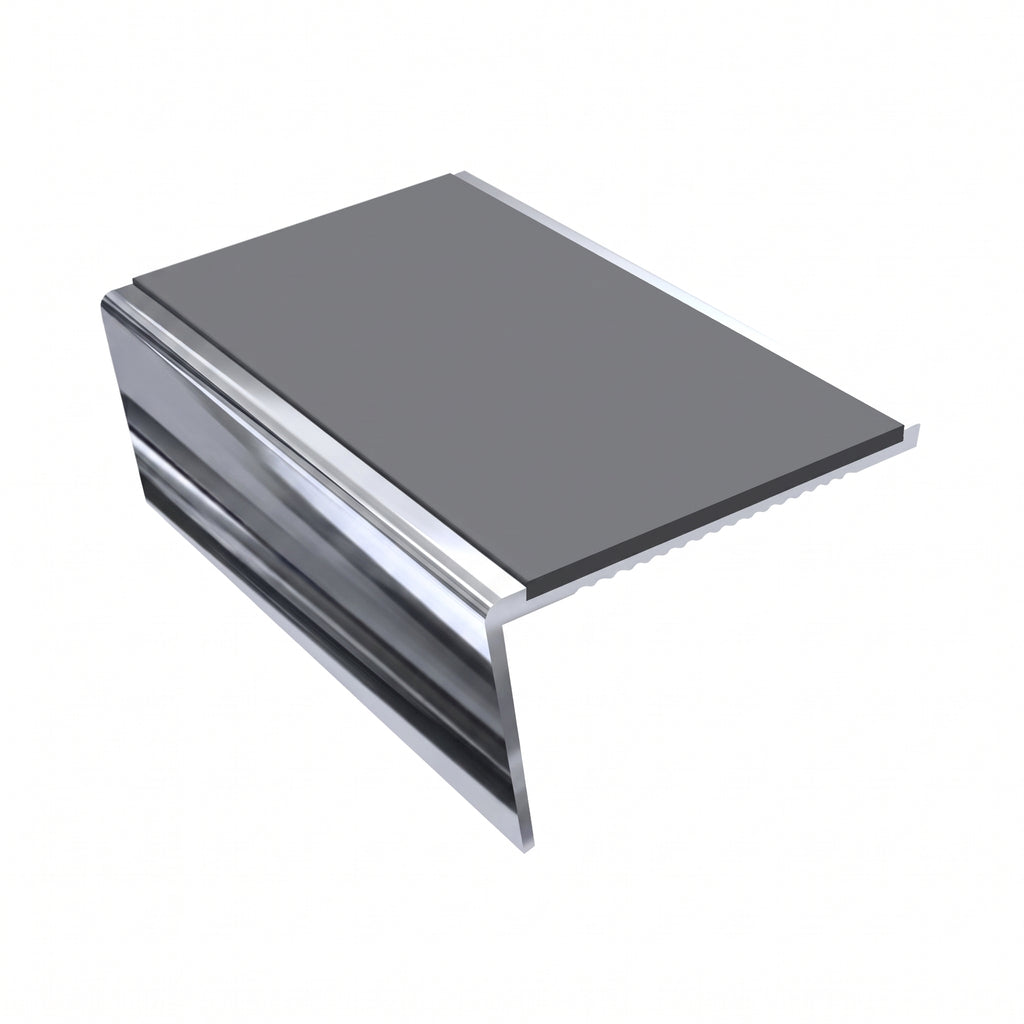

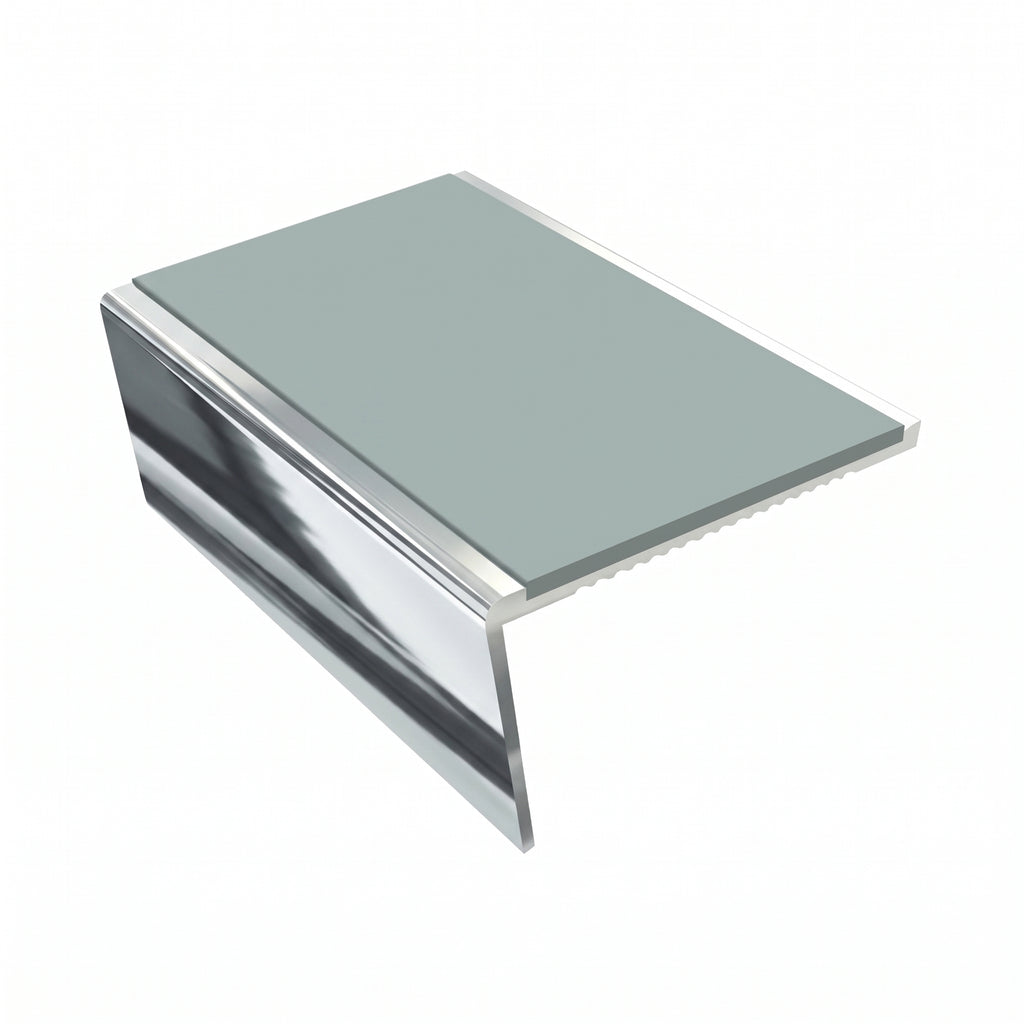

Available Insert Colours Apple Green, Aura, Beige, Brown, Dark Blue, Dark Green, Dark Grey, Hazard, Mid Grey, Premium Black, Red, Sage Green, Sahara, White, Yellow
Number of Insert Colour Options 15
Number of Finish Options 6
Application Internal staircases — commercial, public sector, residential
Insert Replaceability Yes — insert can be replaced independently without removing the aluminium base profile

Aluminium Finishes

Six aluminium finishes are available to complement or contrast with your interior scheme:

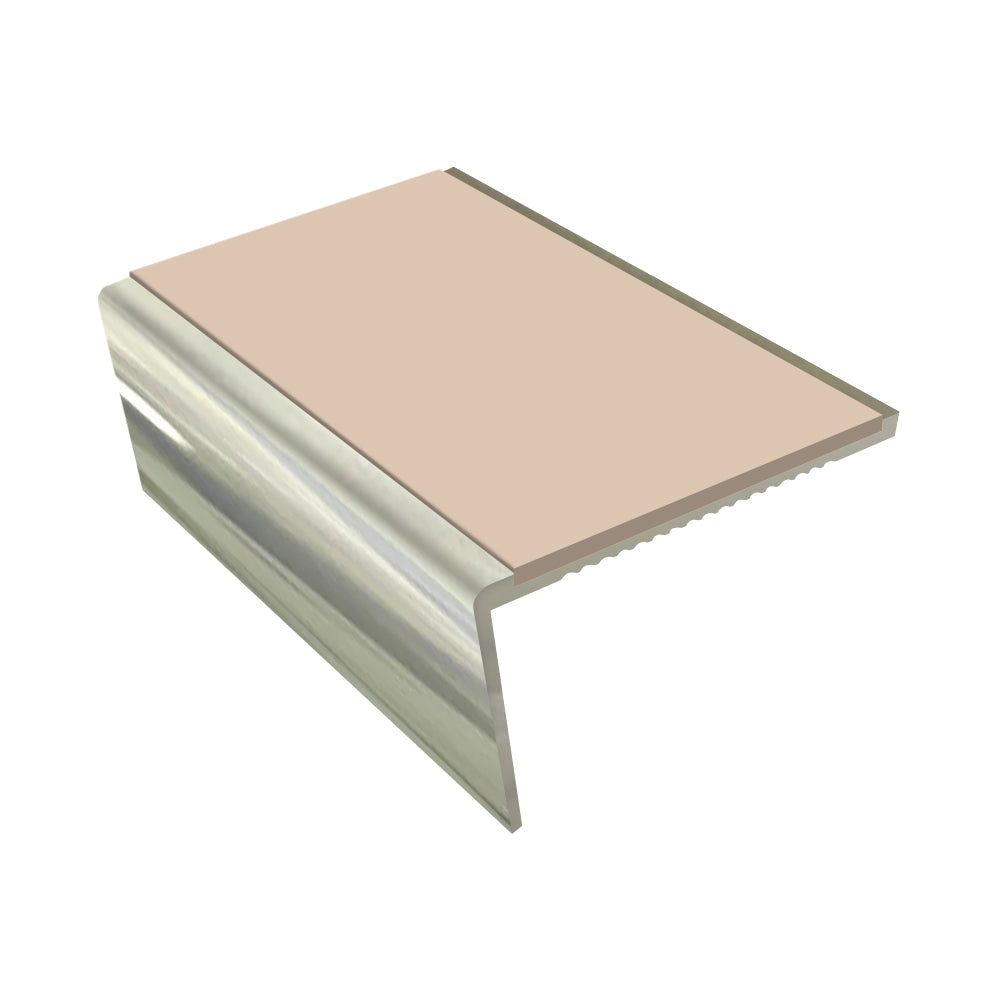

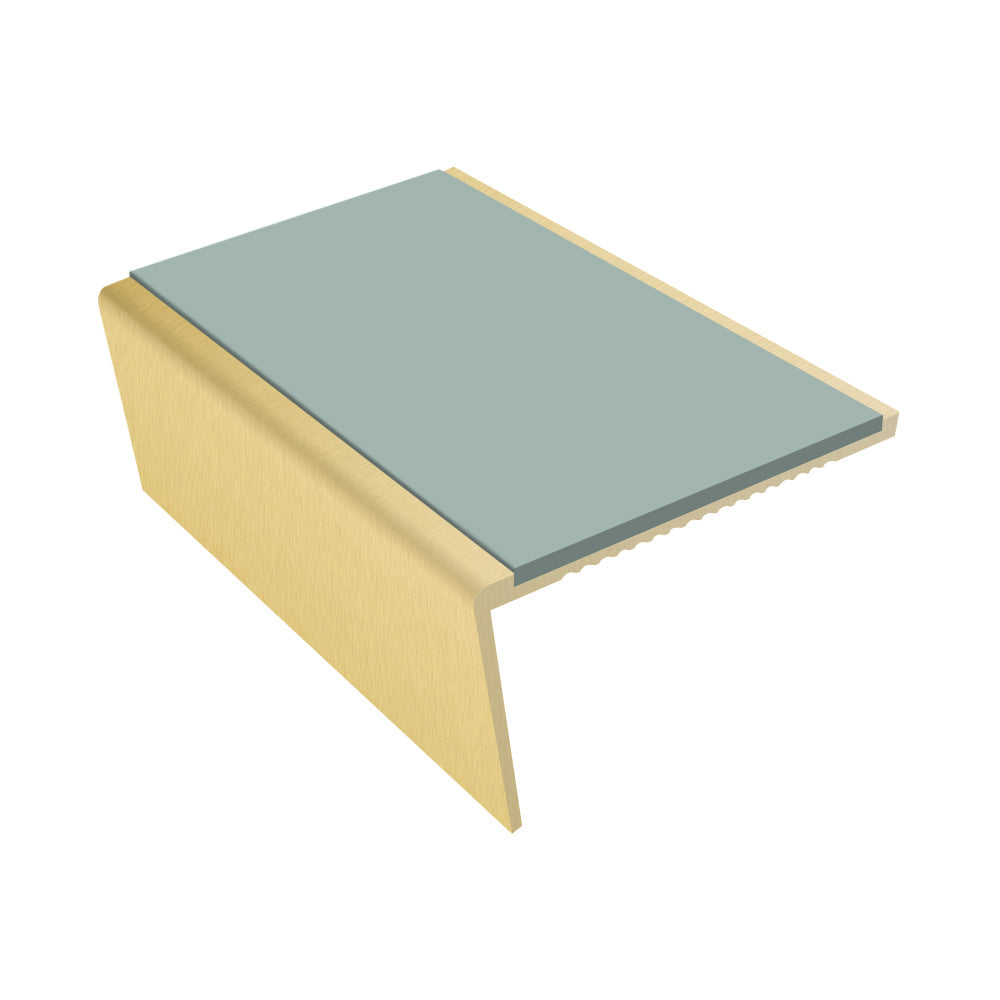

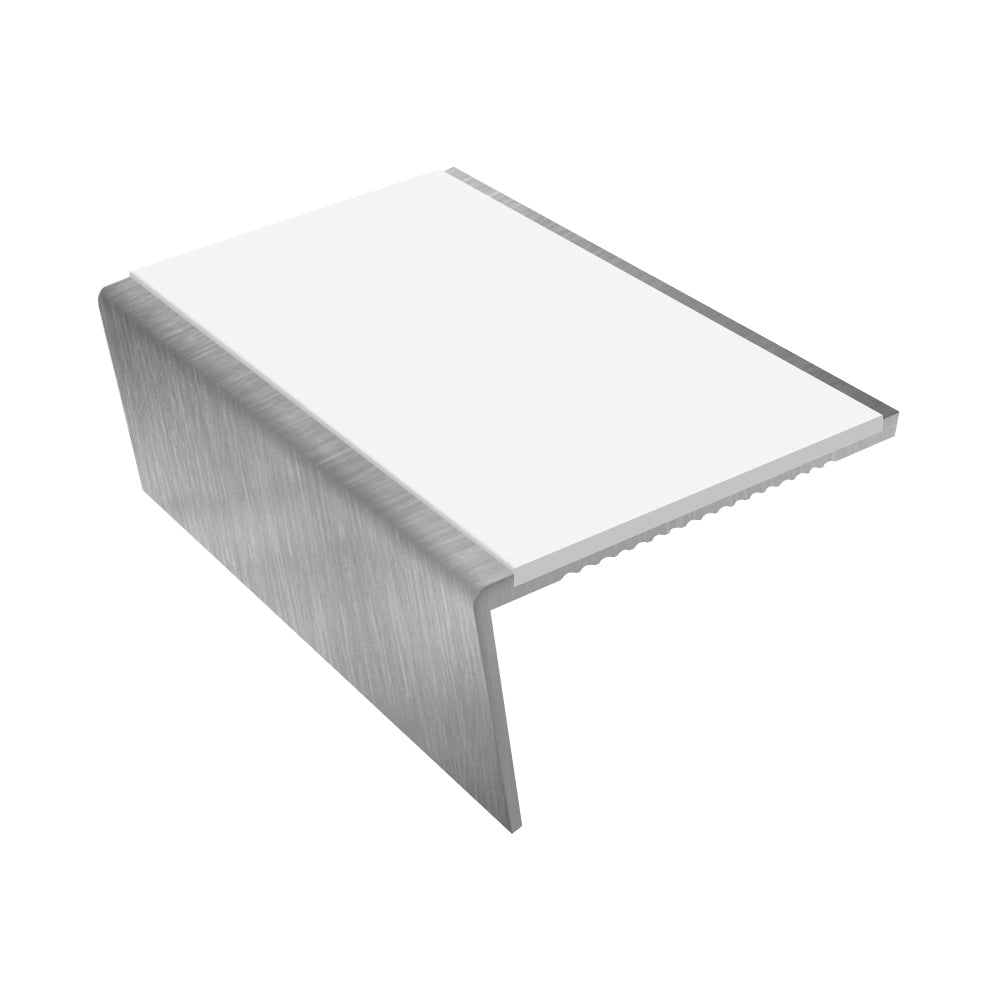

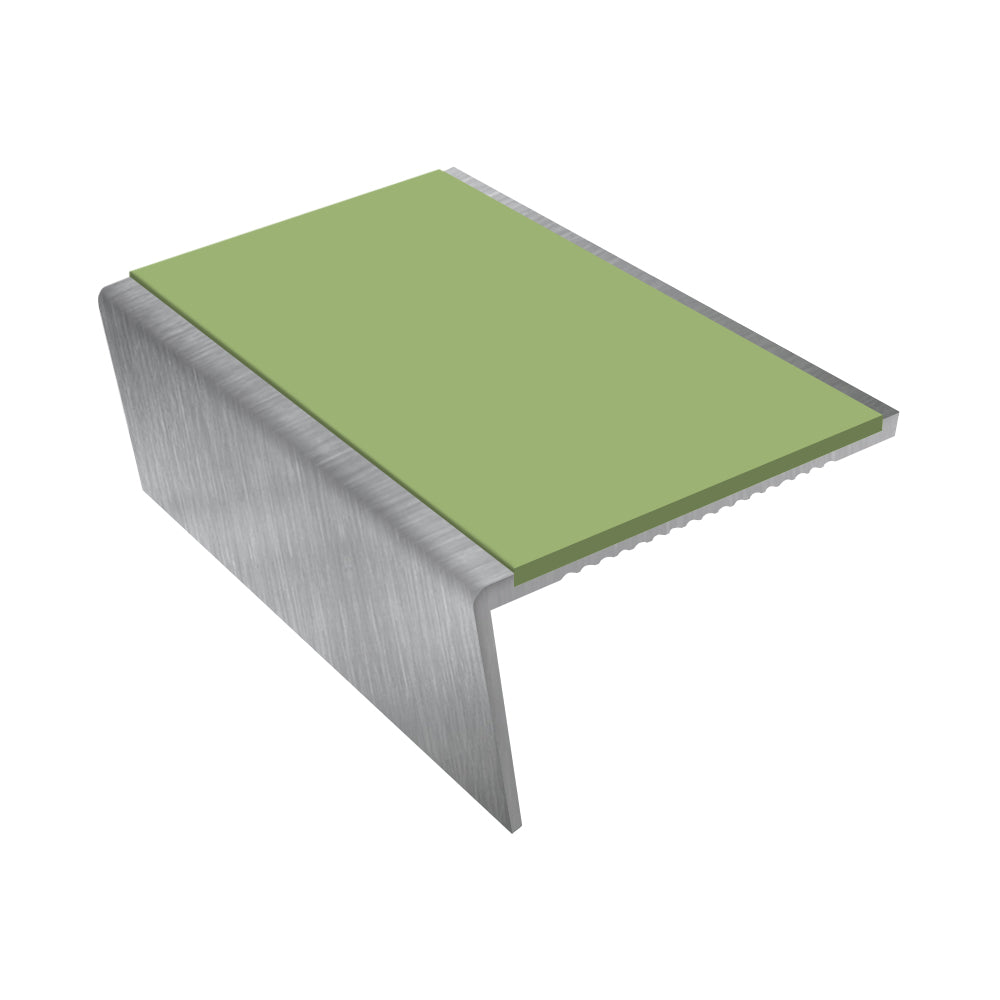

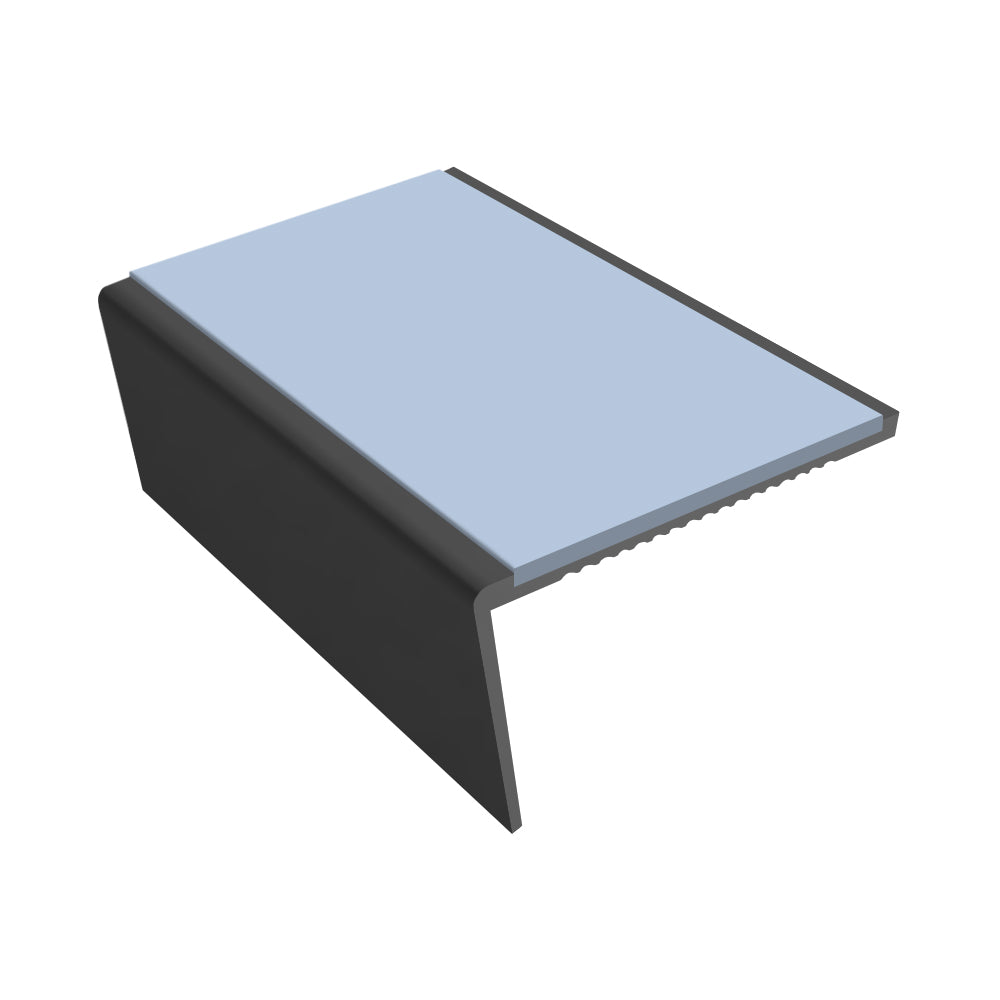

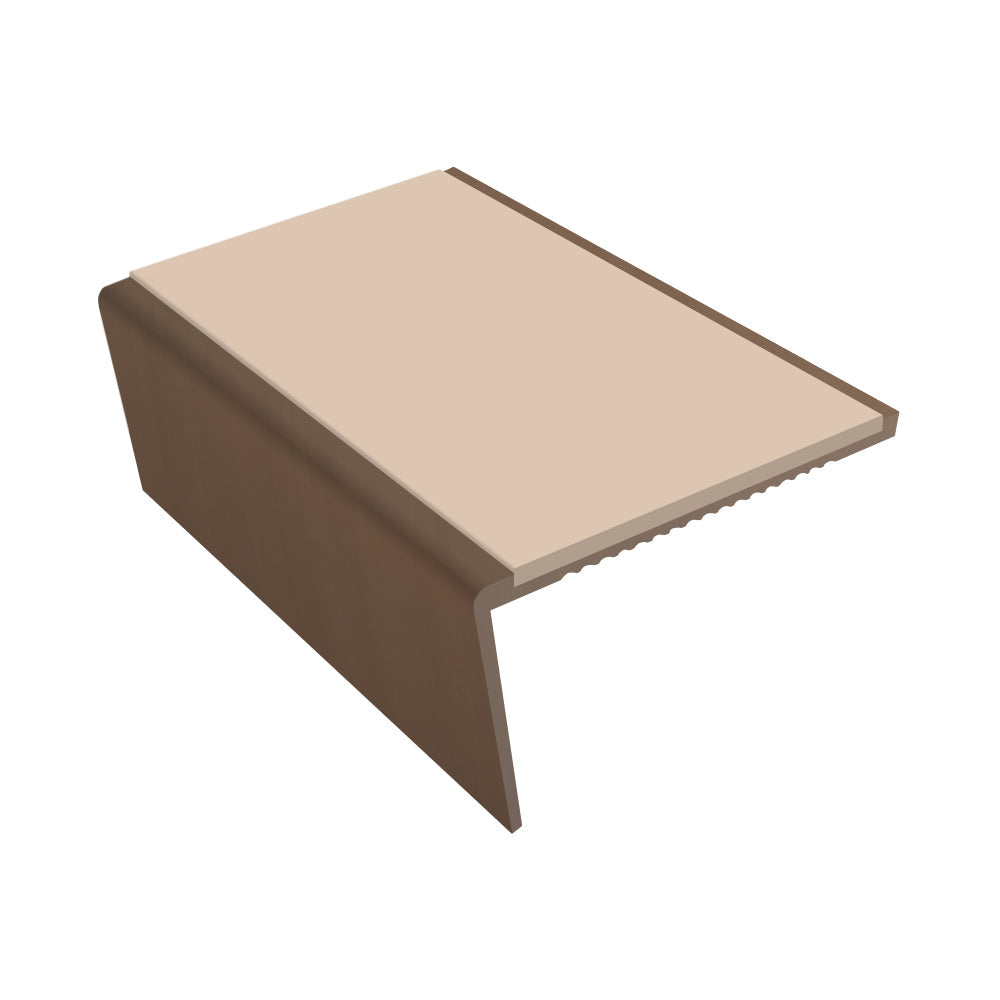

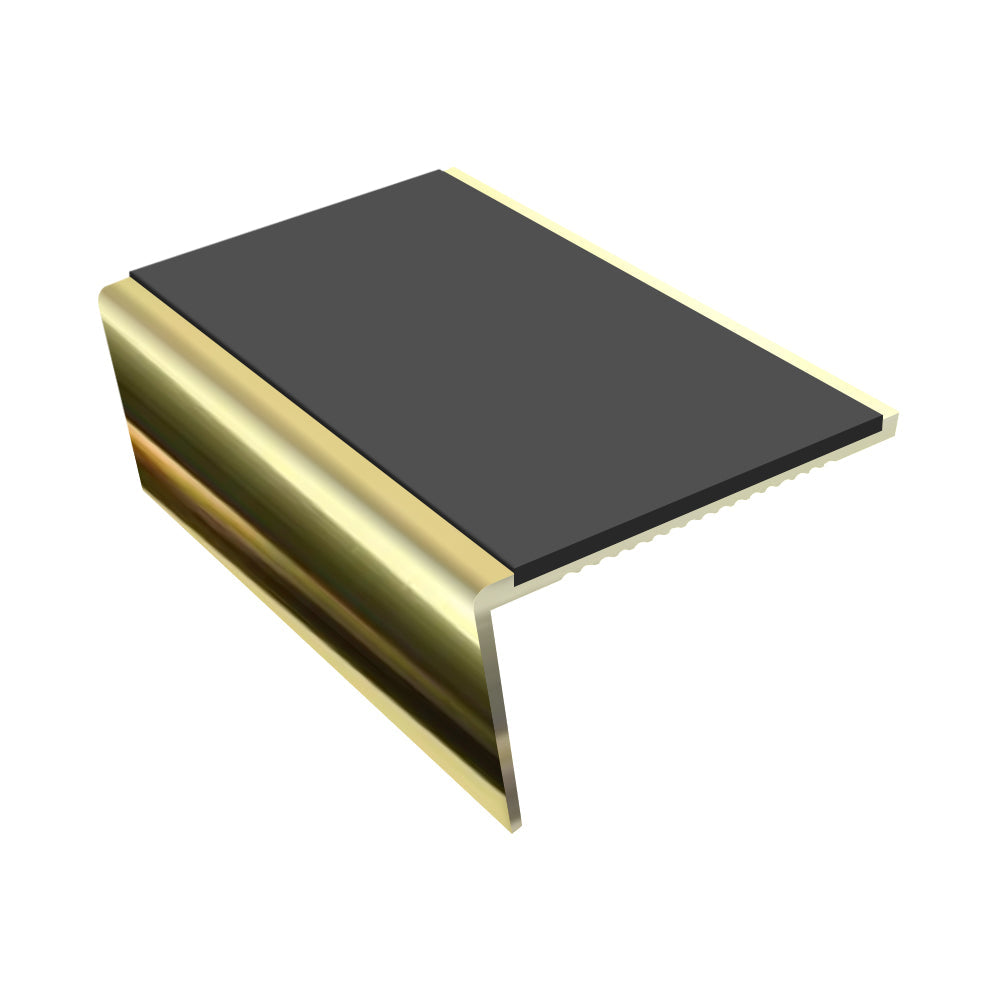

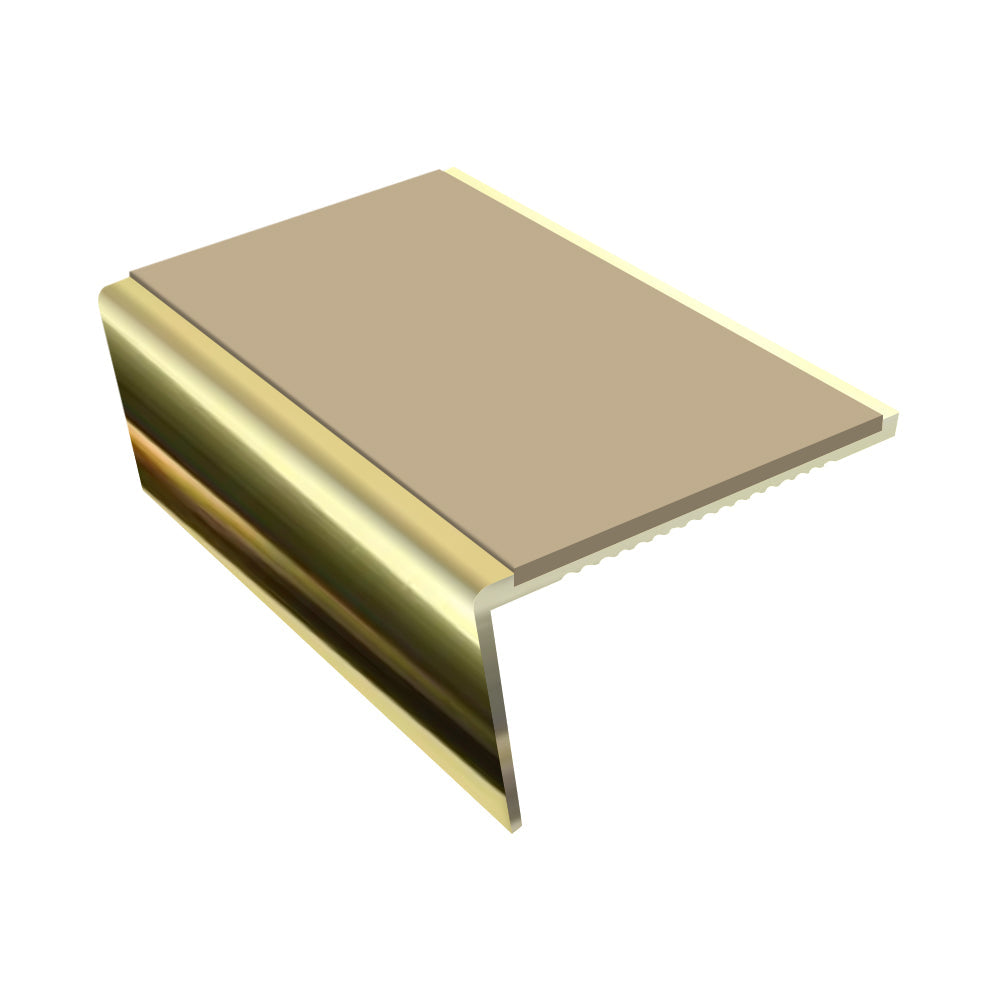

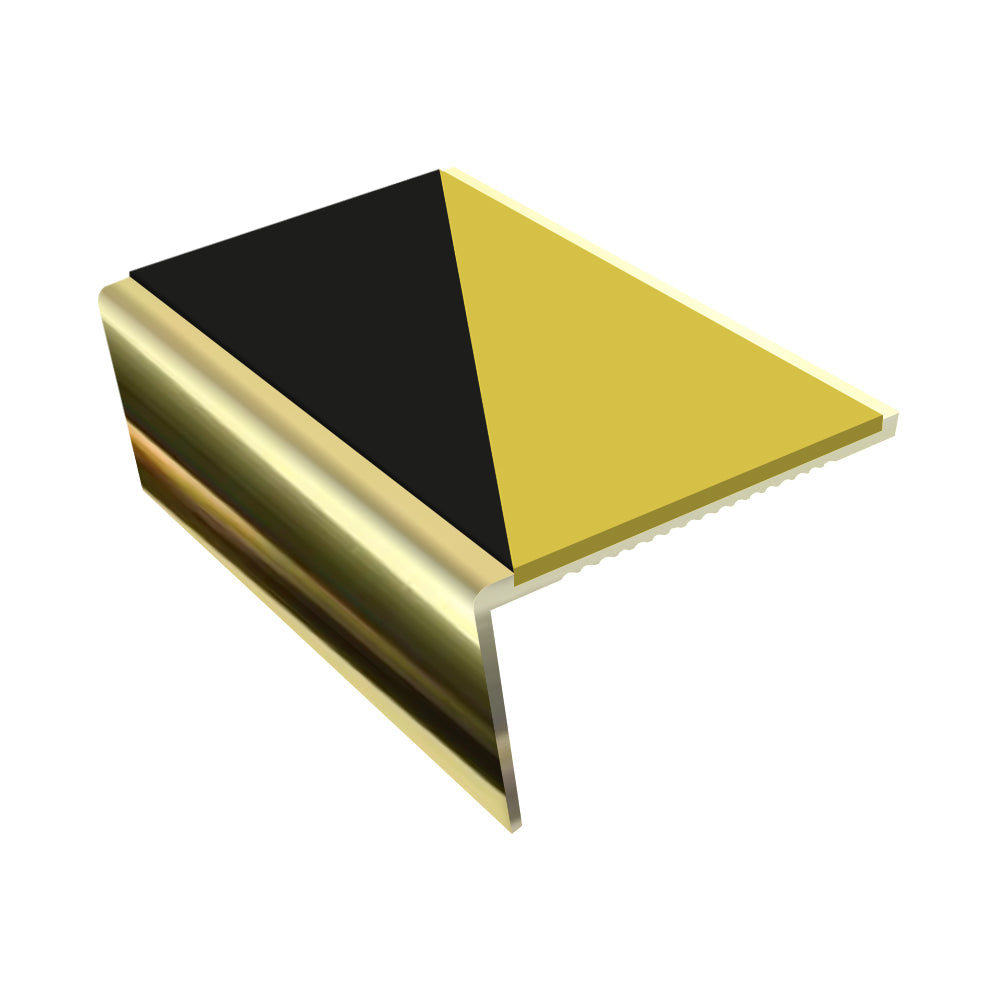

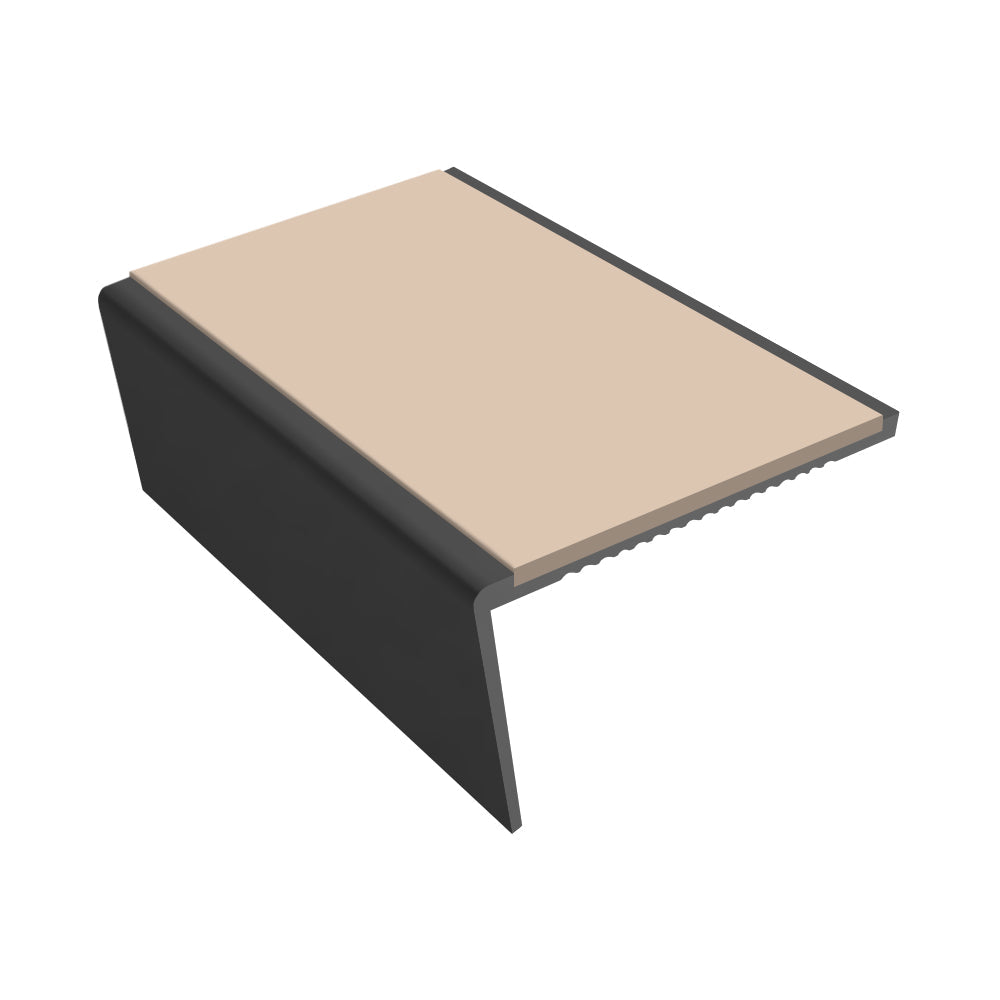

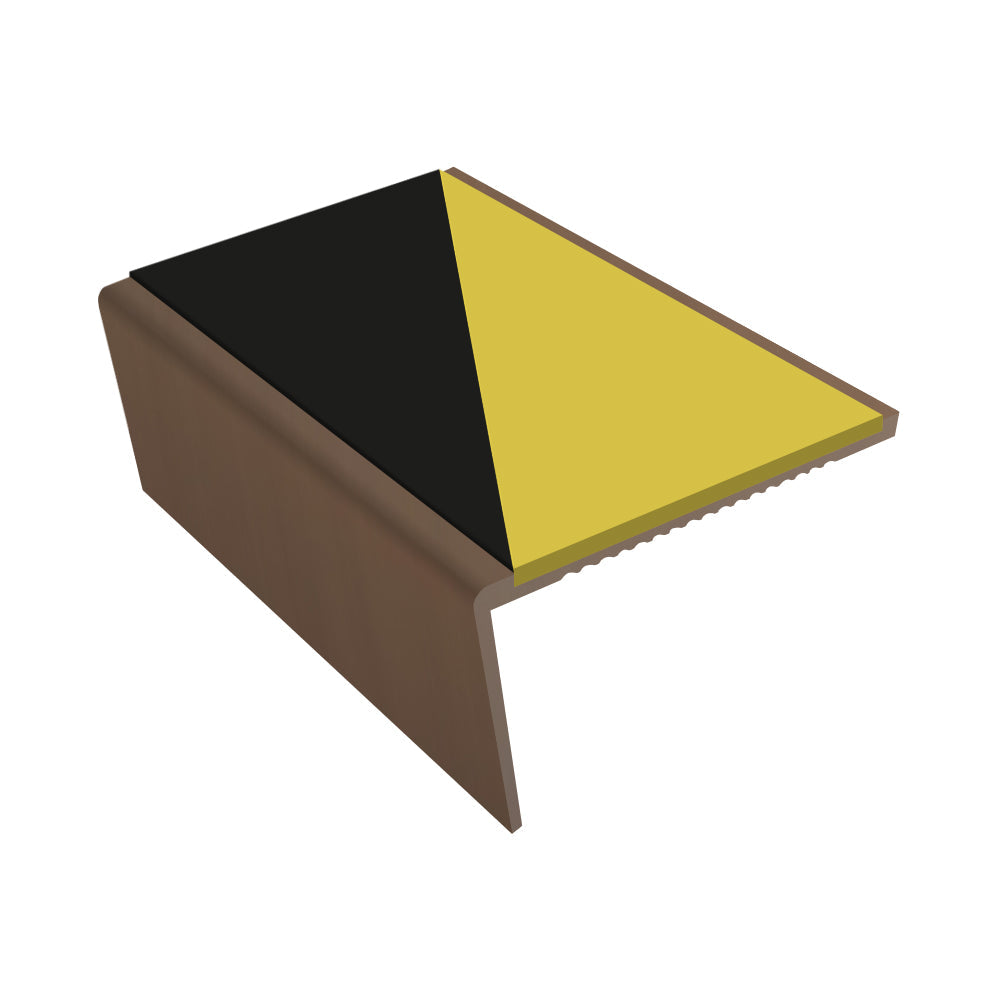

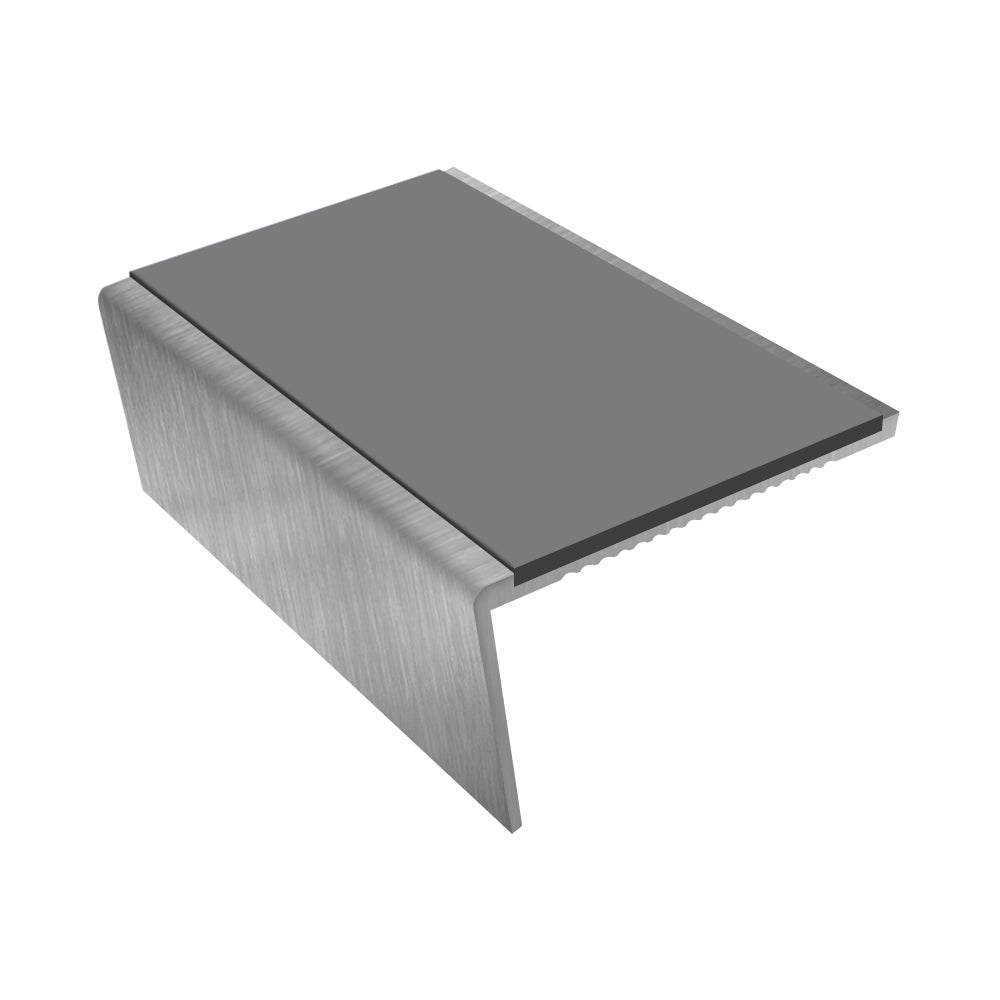

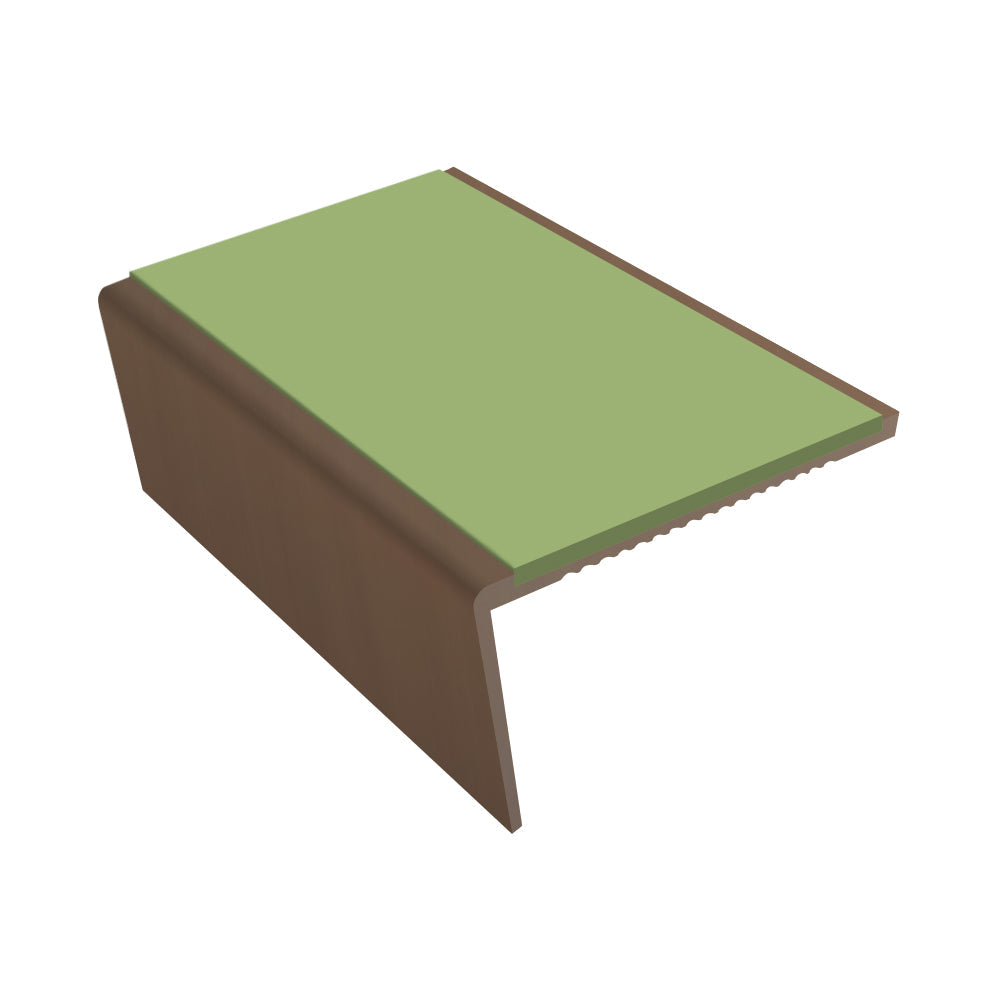

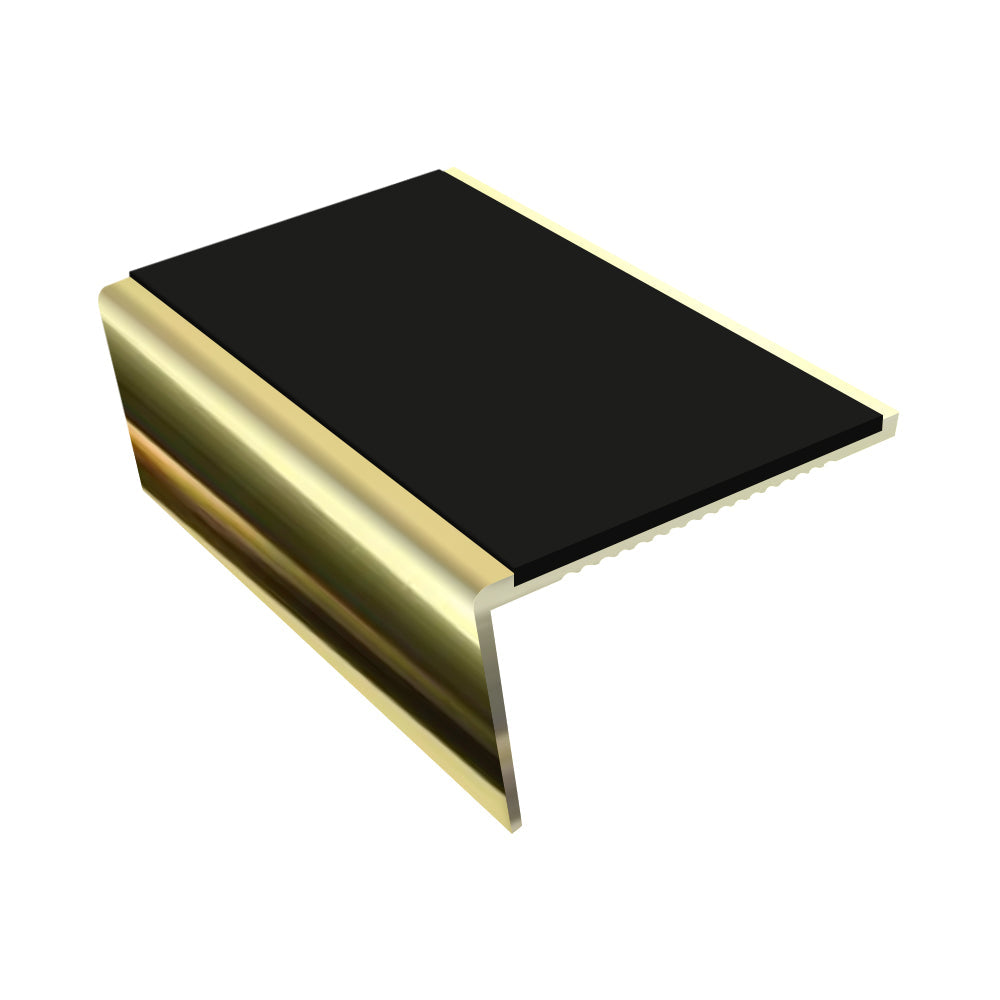

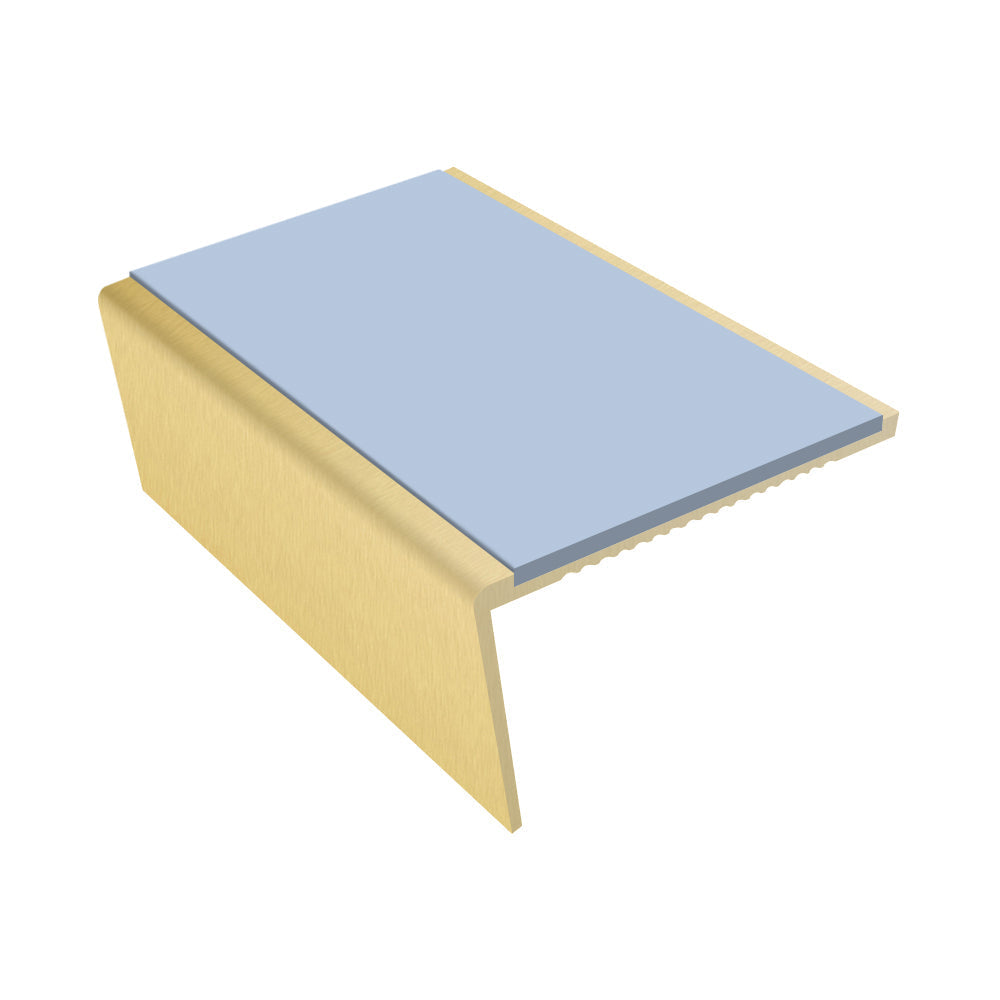

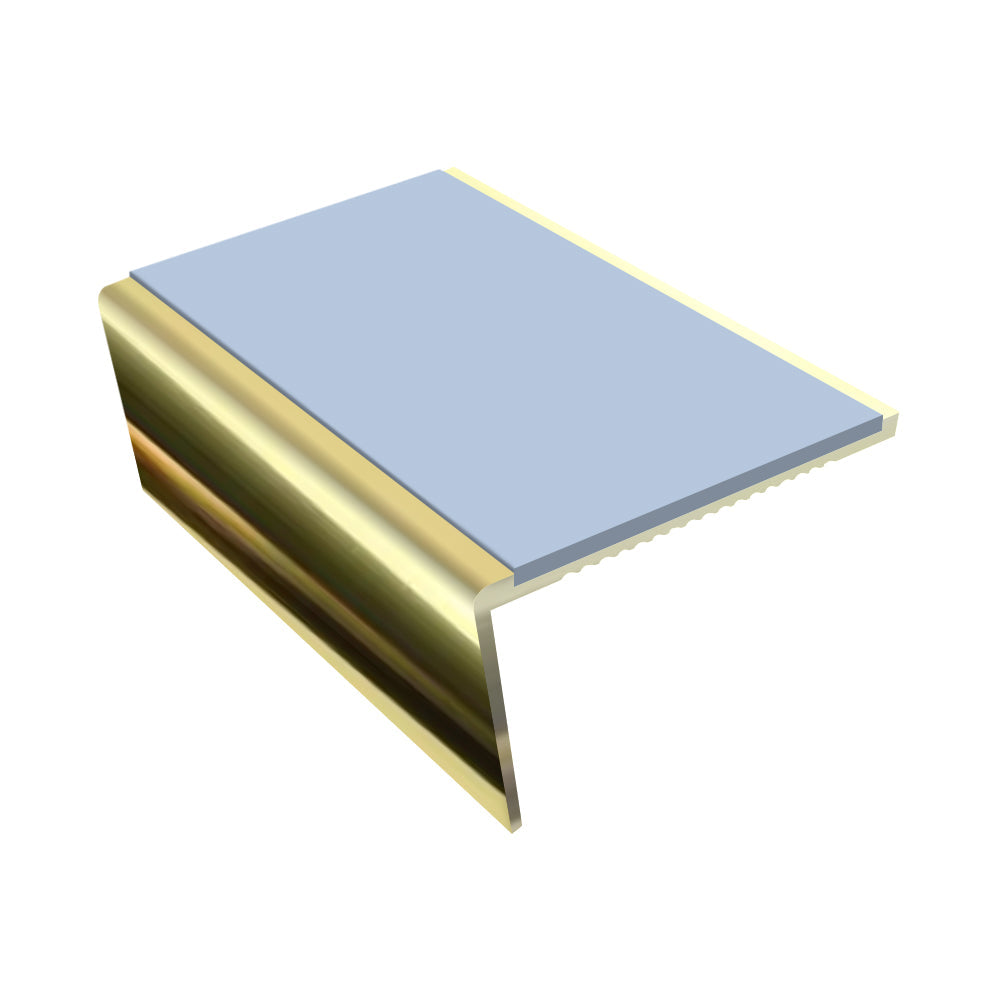

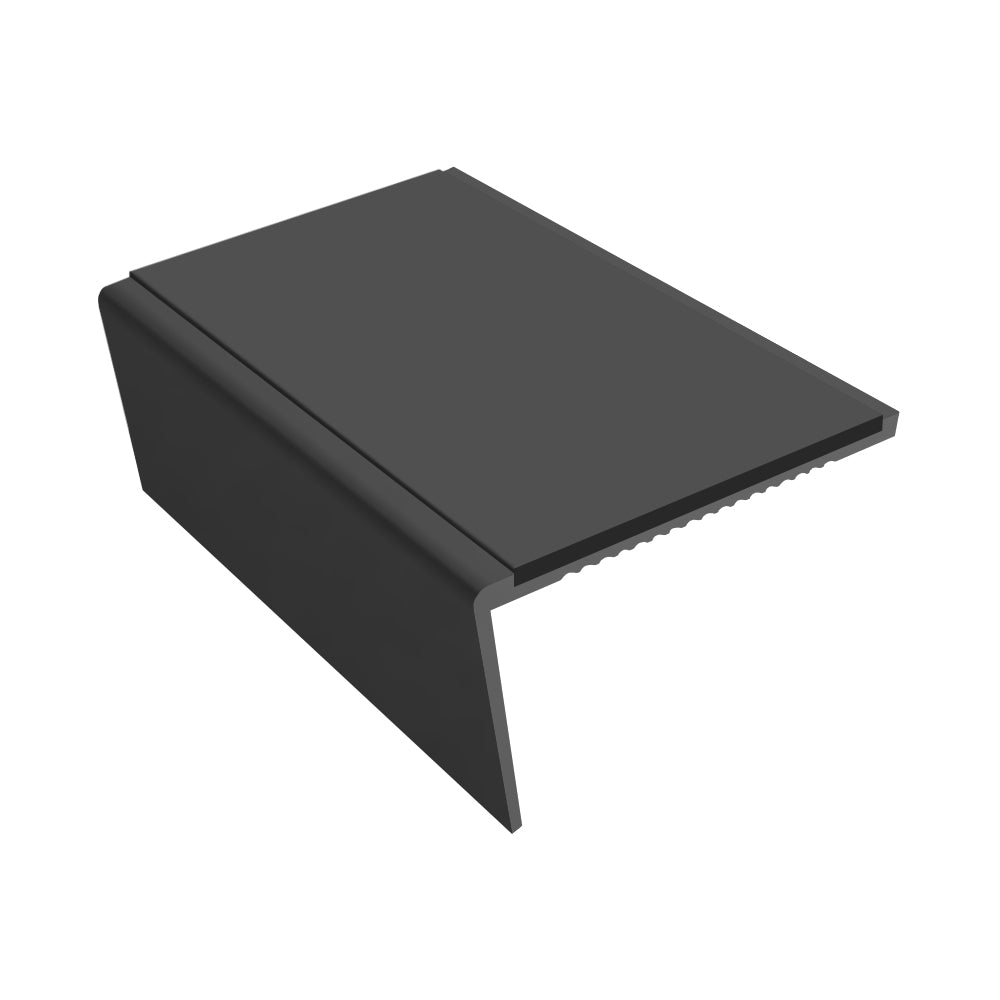

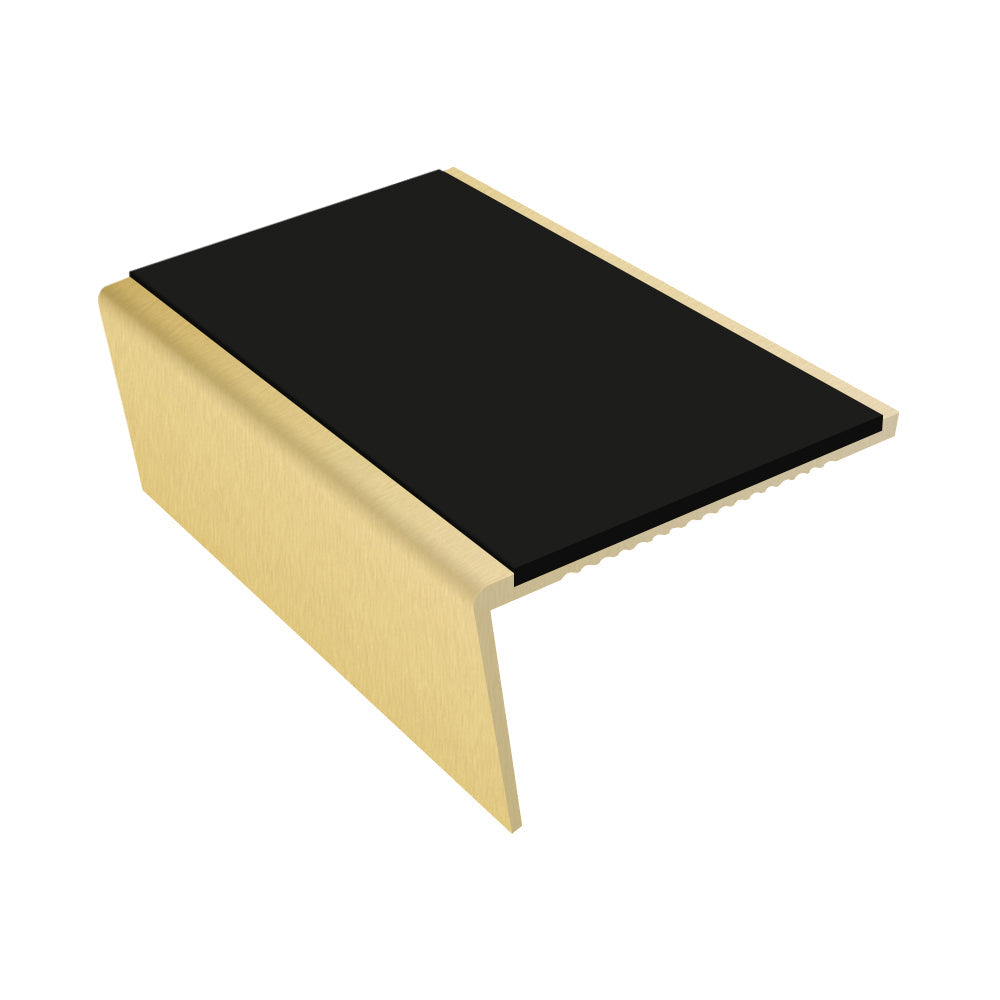

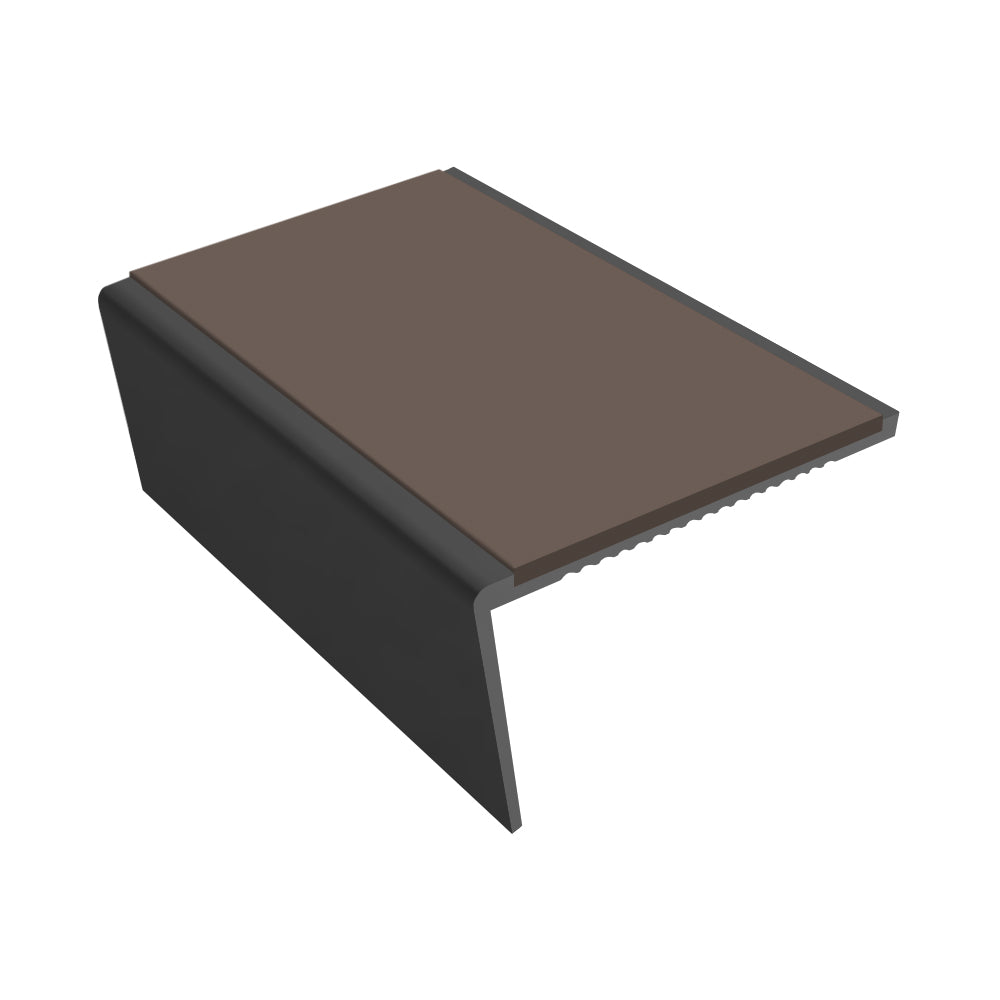

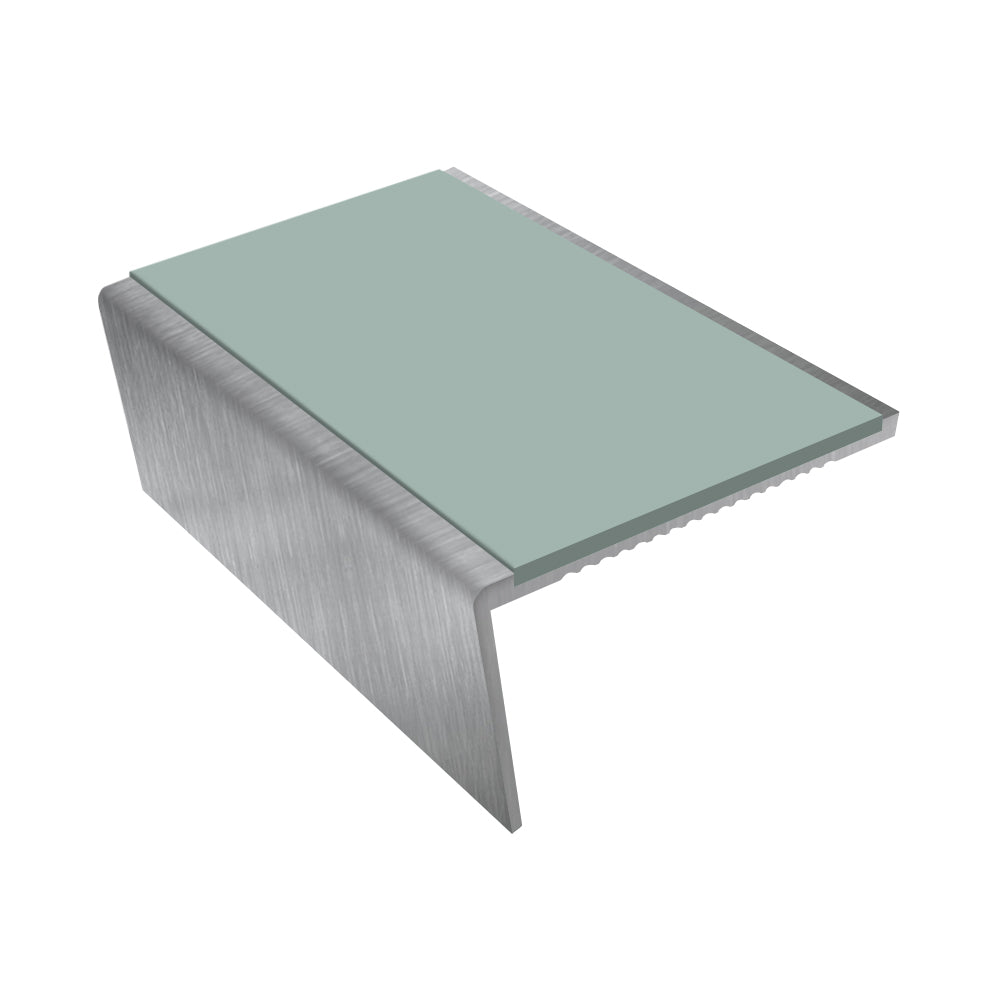

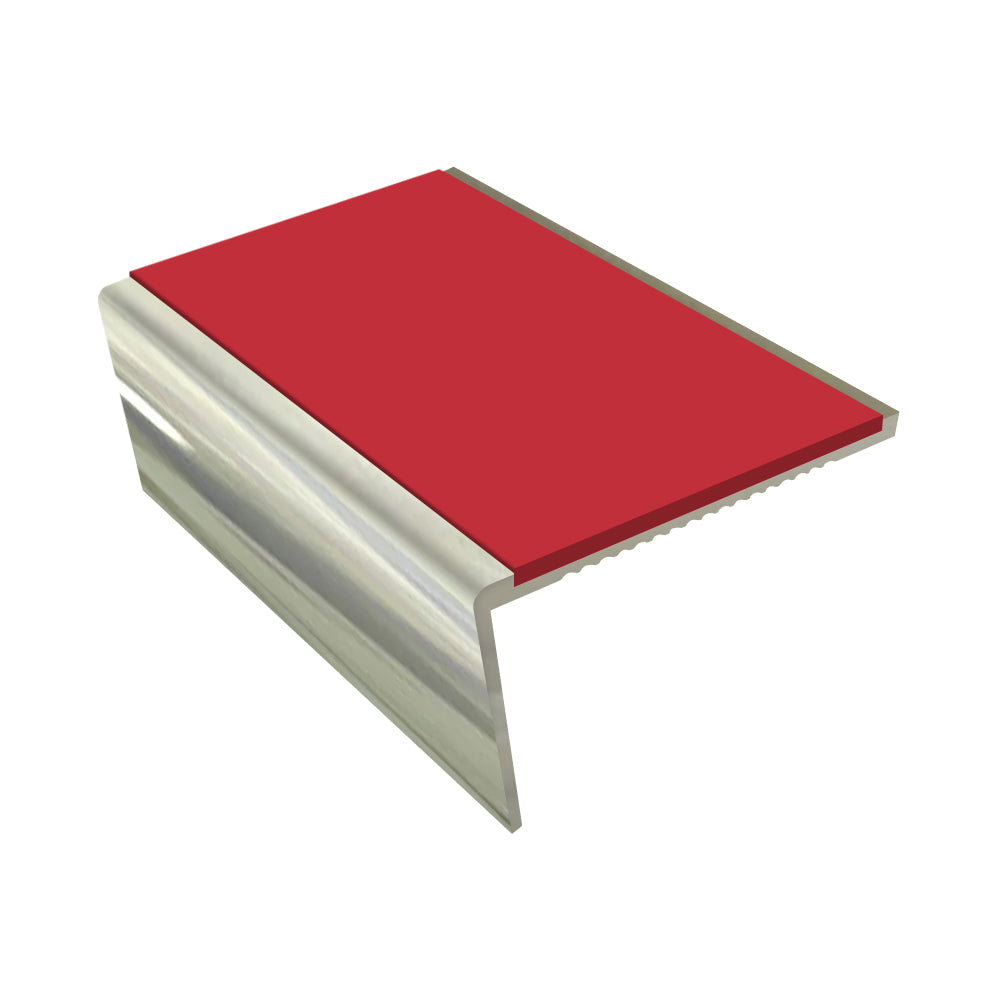

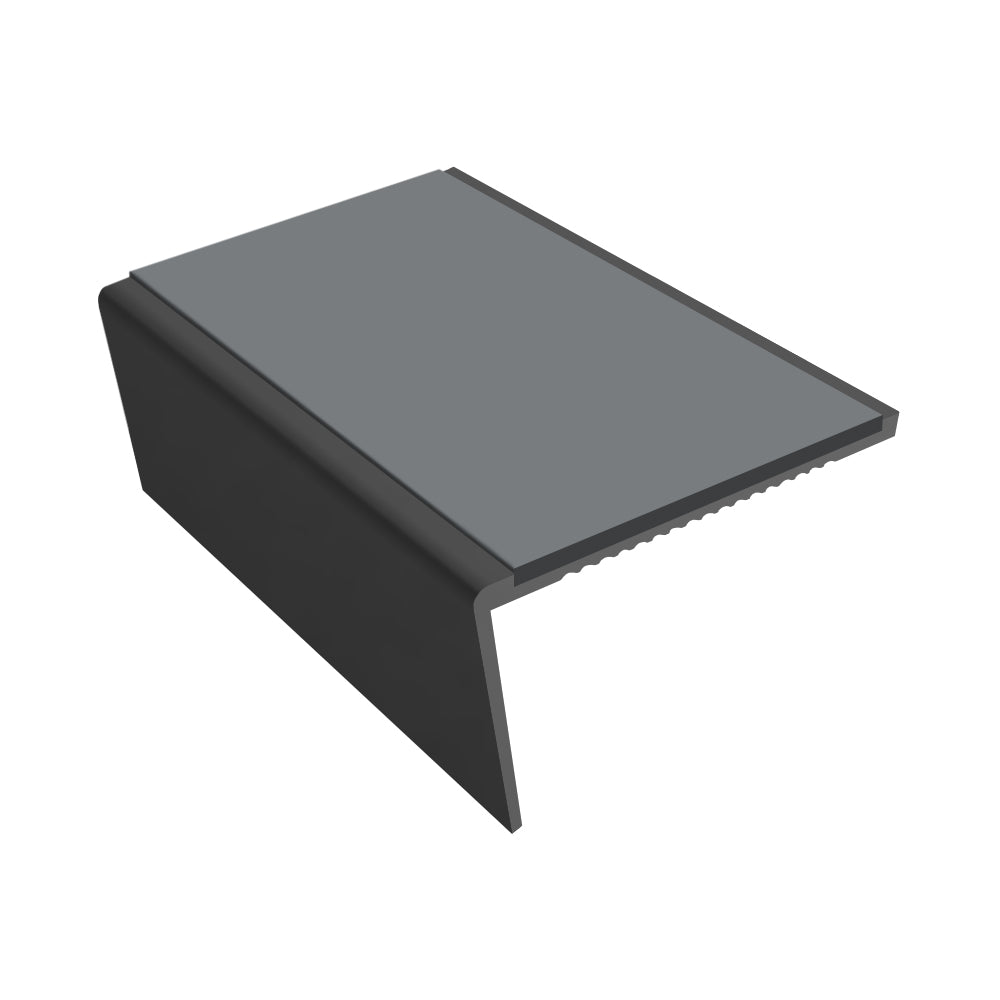

Mill Finish Bright Polished Satin Gold Dark Bronze Satin Black Mirrorflect Gold

PVC Insert Colours

Fifteen insert colours allow precise coordination with floor finishes or high-visibility contrast for step-edge safety:

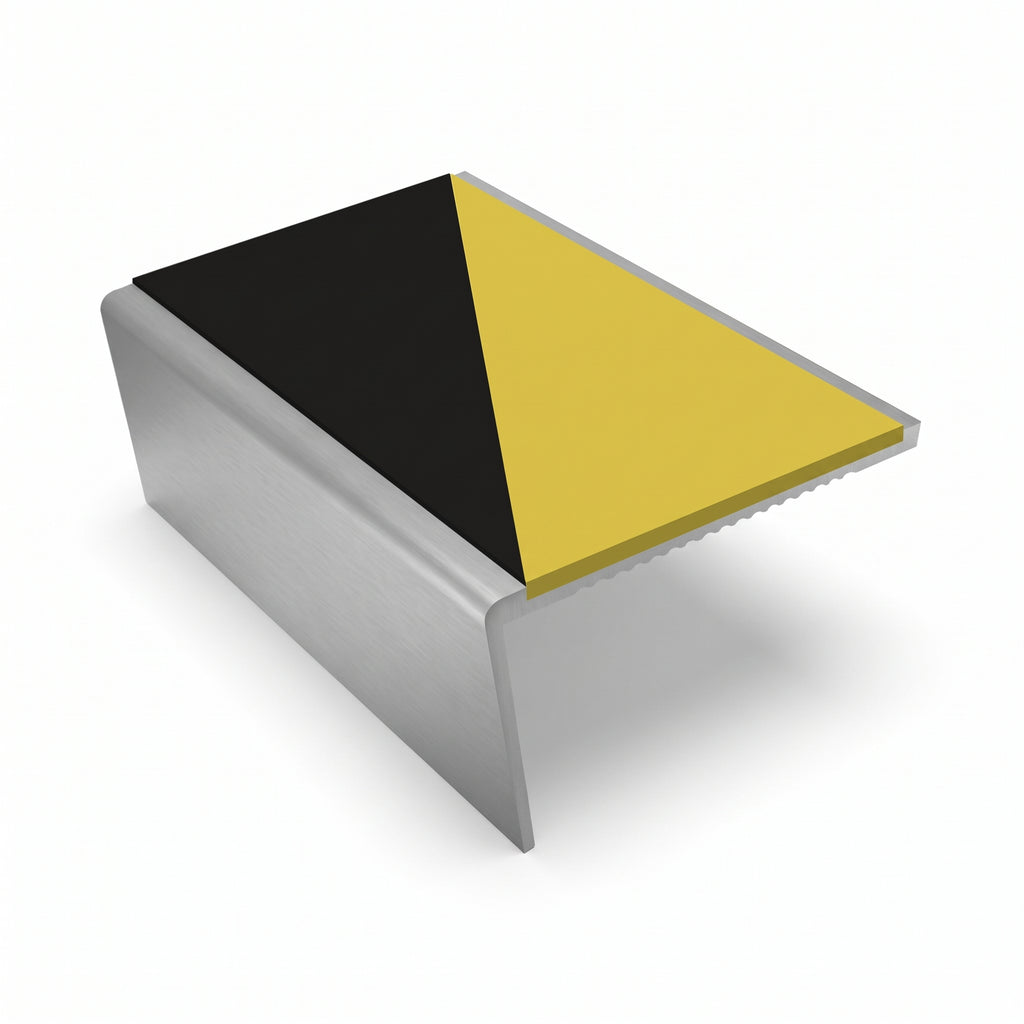

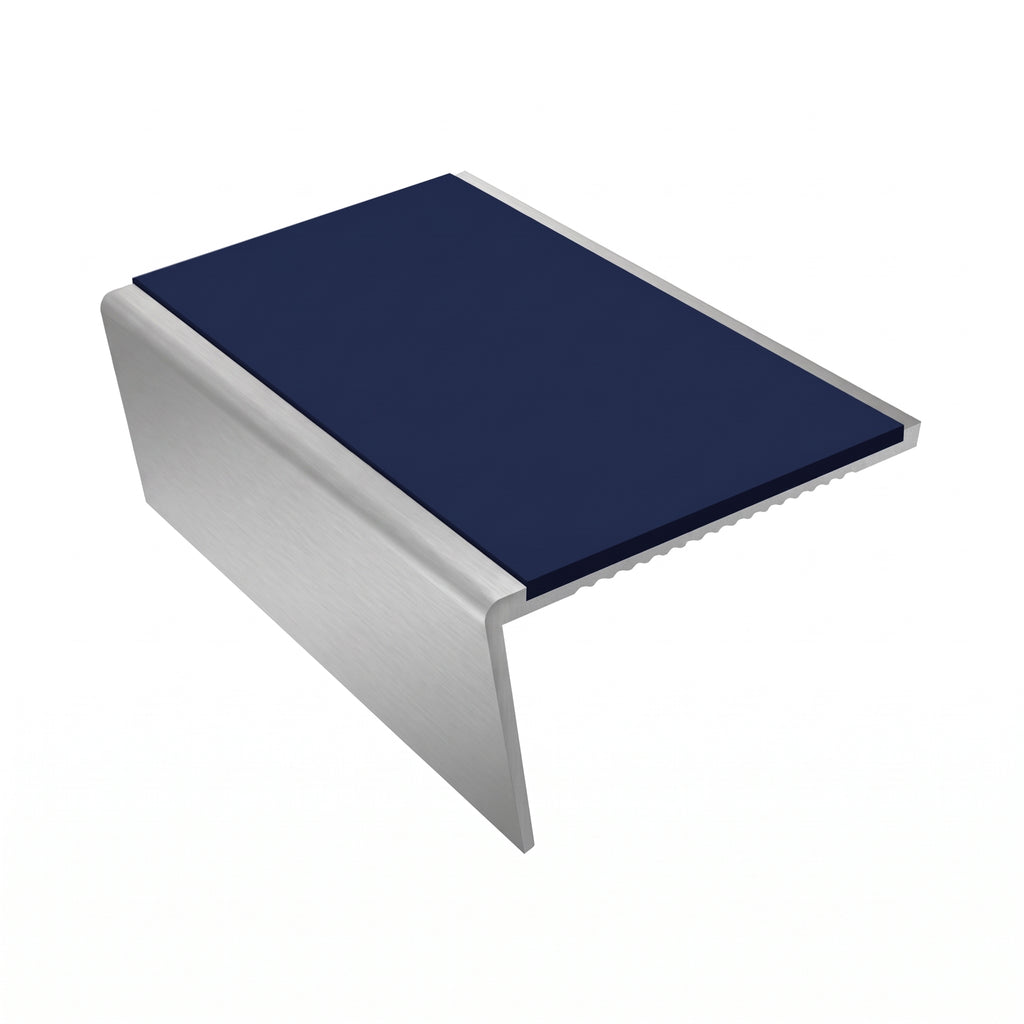

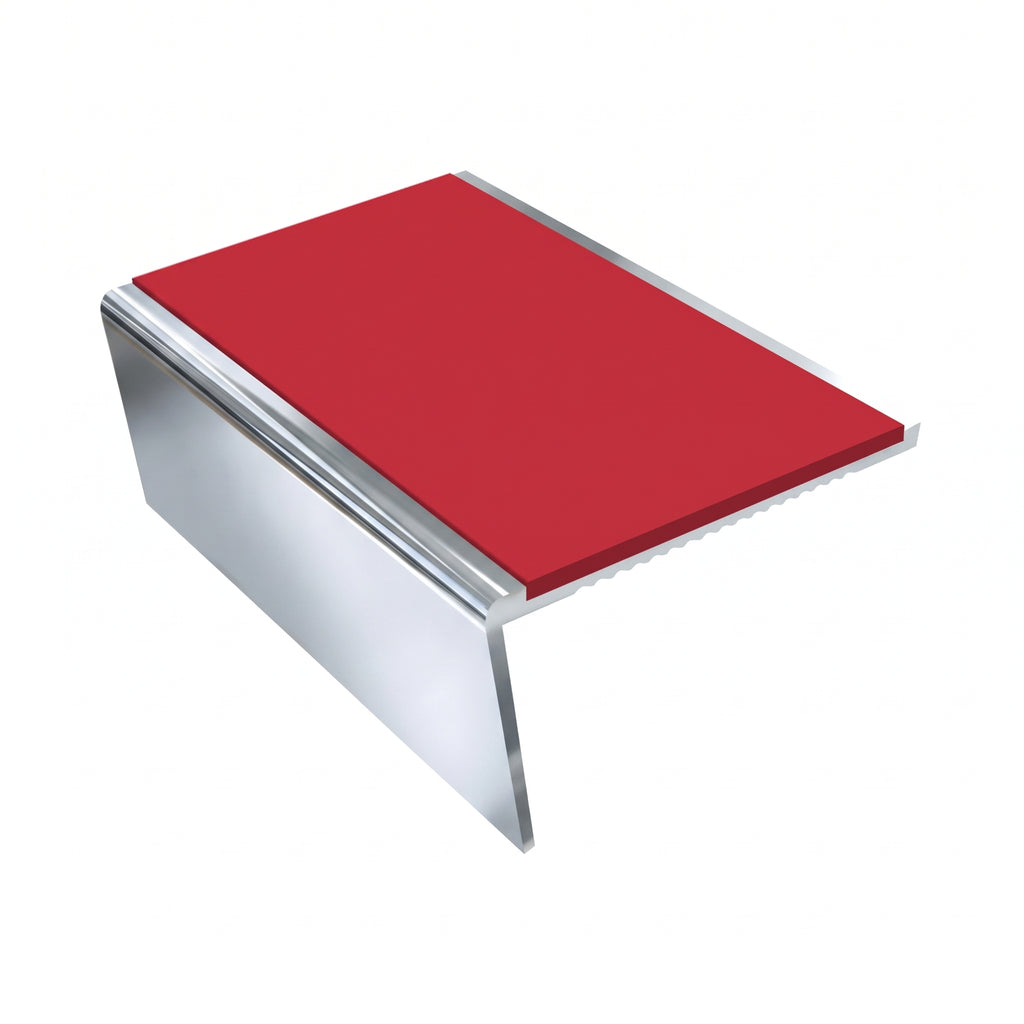

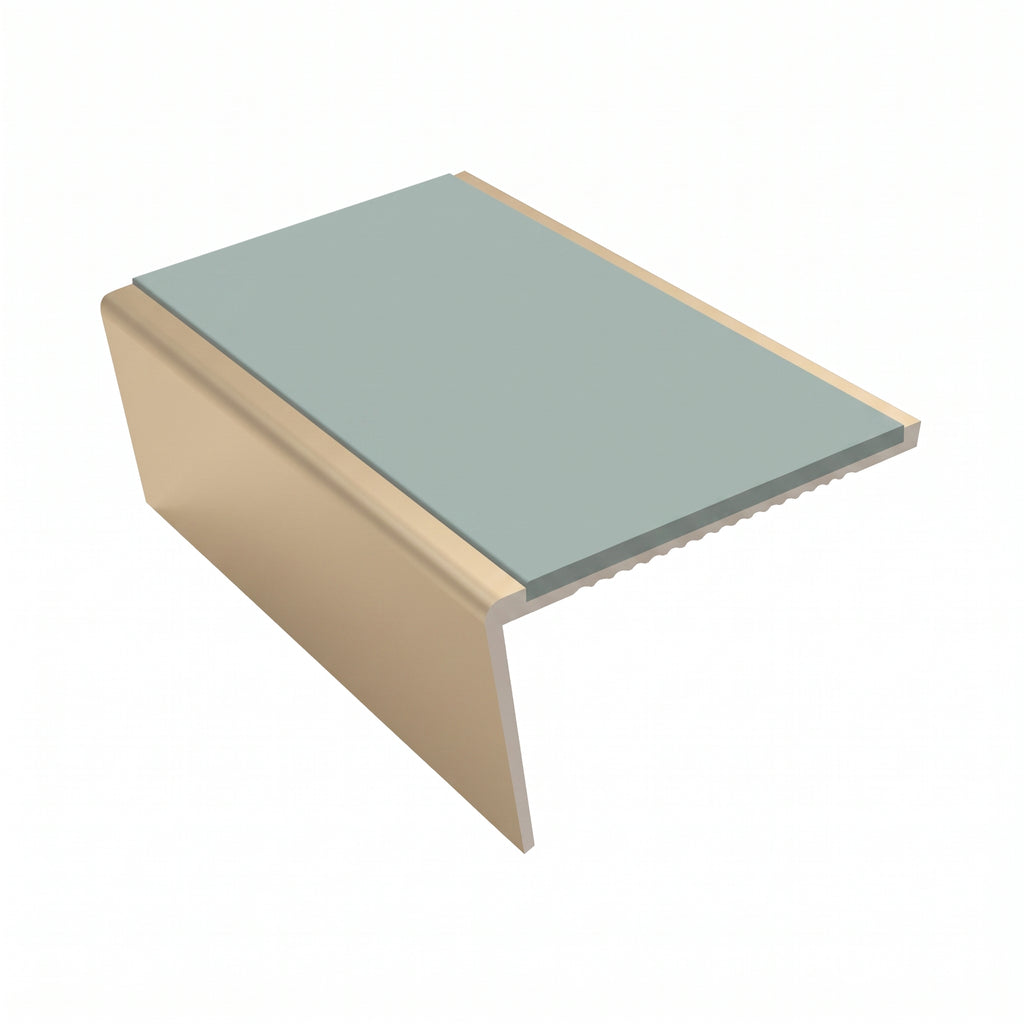

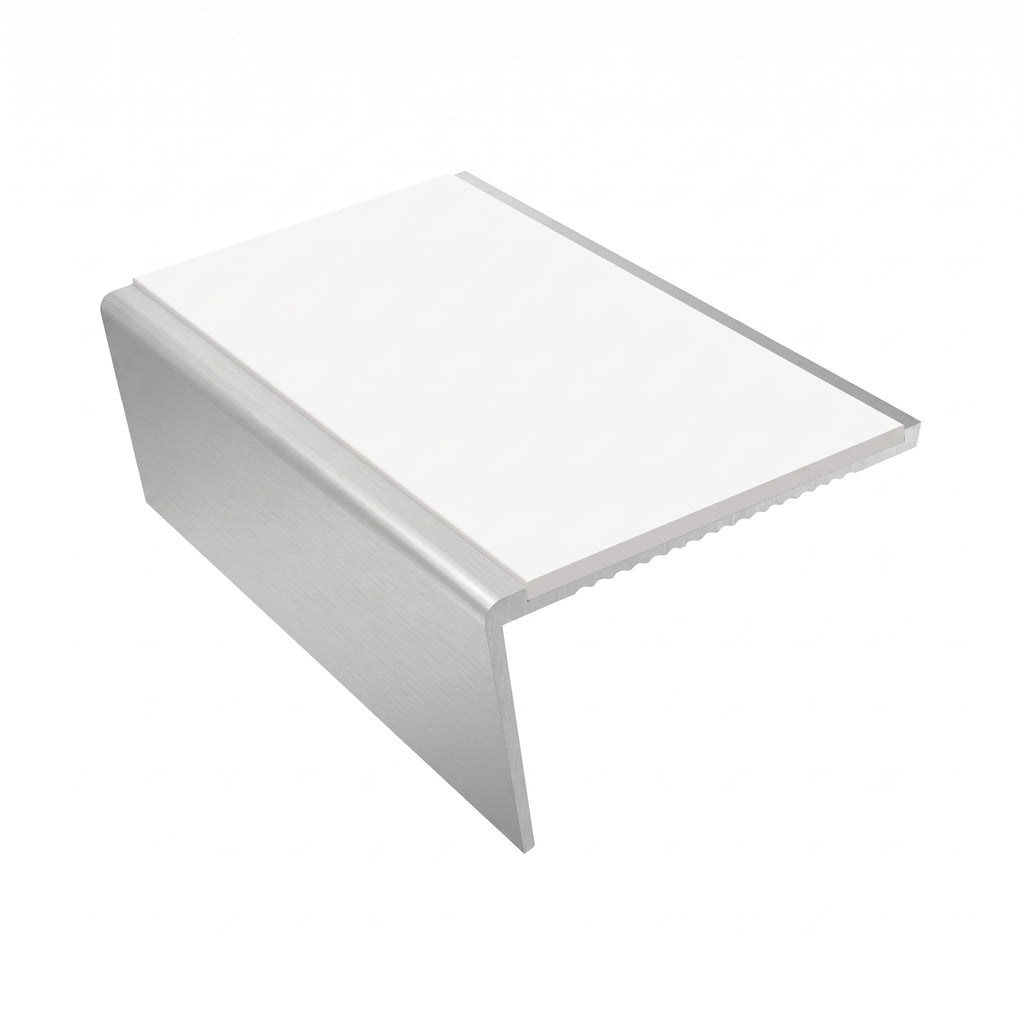

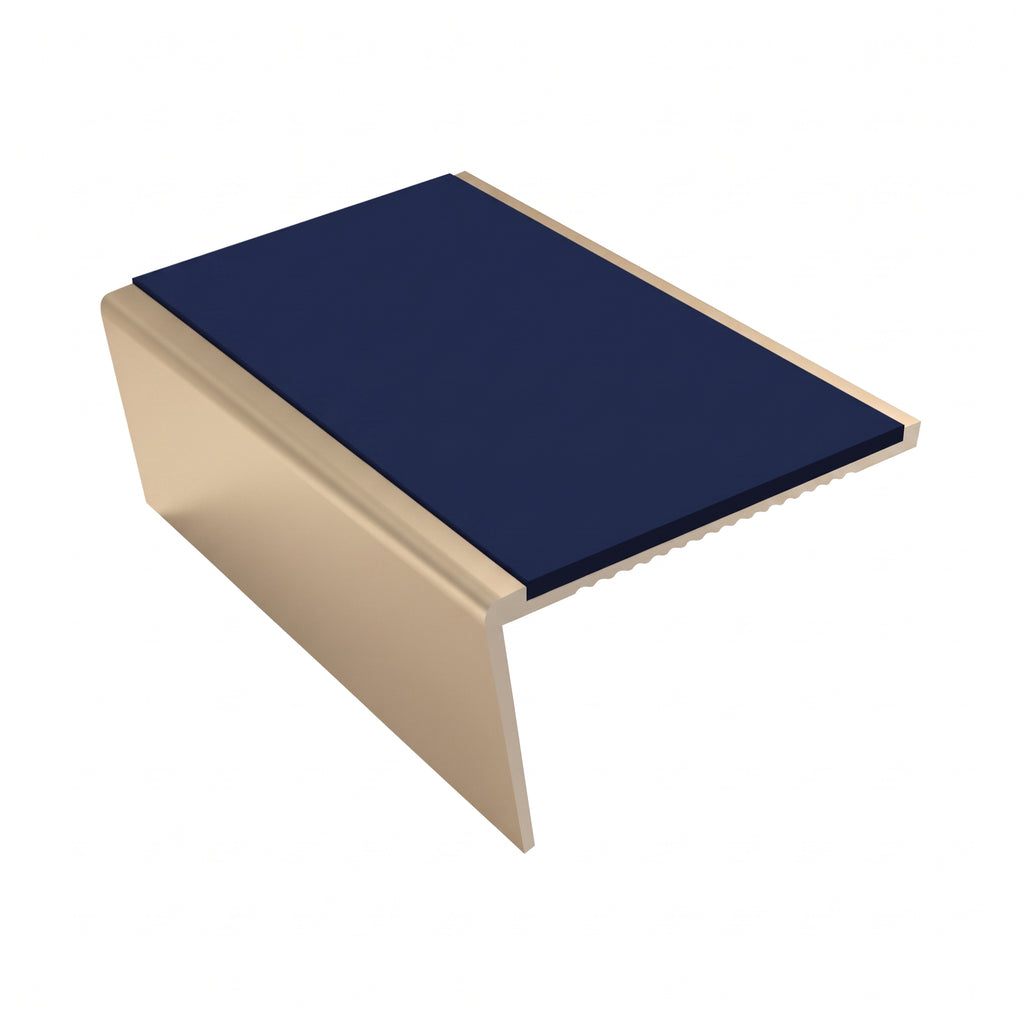

Apple Green Aura Beige Brown Dark Blue Dark Green Dark Grey Hazard Mid Grey Premium Black Red Sage Green Sahara White Yellow

Key Features & Benefits

  • Extruded aluminium construction — resistant to impact, heavy foot traffic, and everyday wear on busy staircases
  • Rake-back underside profile ensures a flush, secure fit against the vertical riser face of the step
  • Single-channel design accepts a 3.5 mm PVC insert — correctly gauged for vinyl, lino, and lightweight carpet installations
  • Slip-resistant PVC insert provides a tactile, high-grip surface at the most vulnerable point of each step
  • Interchangeable insert — the PVC can be replaced independently when worn, extending the service life of the aluminium base profile

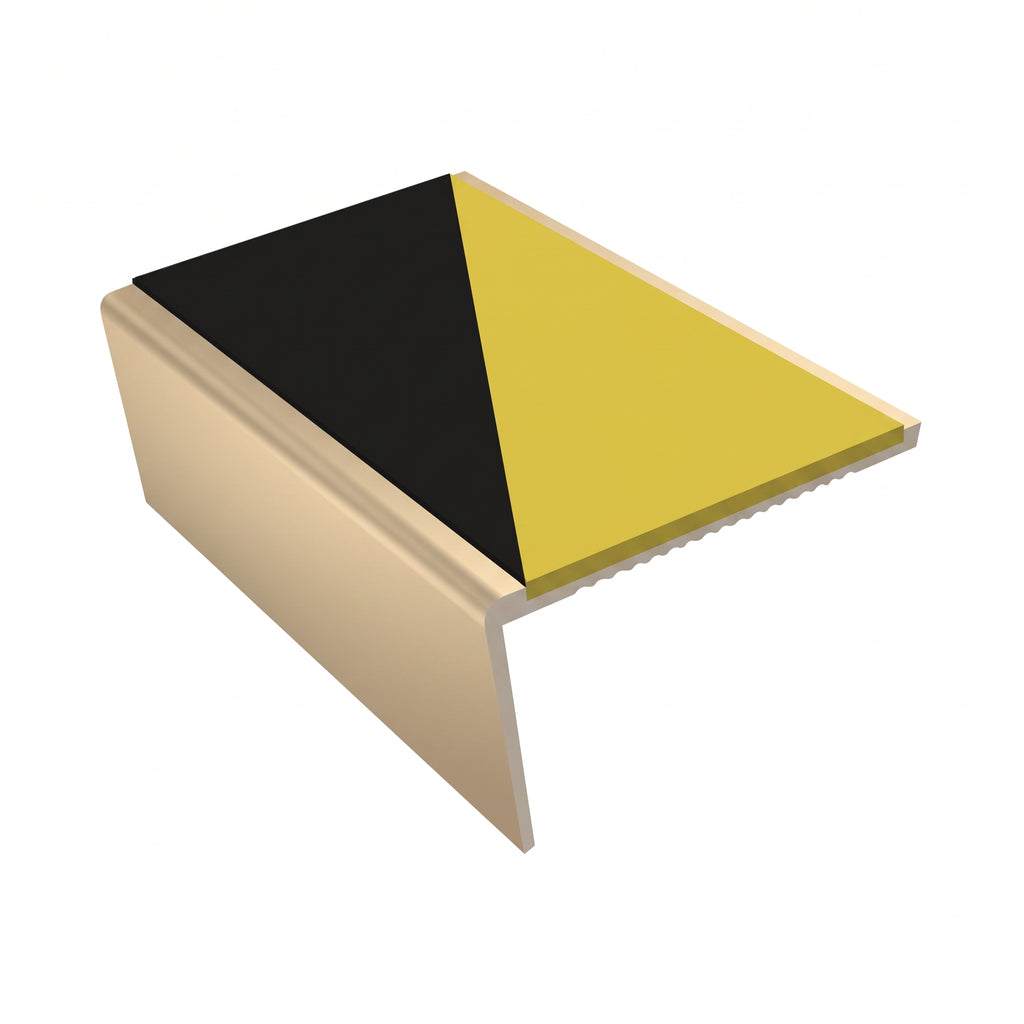

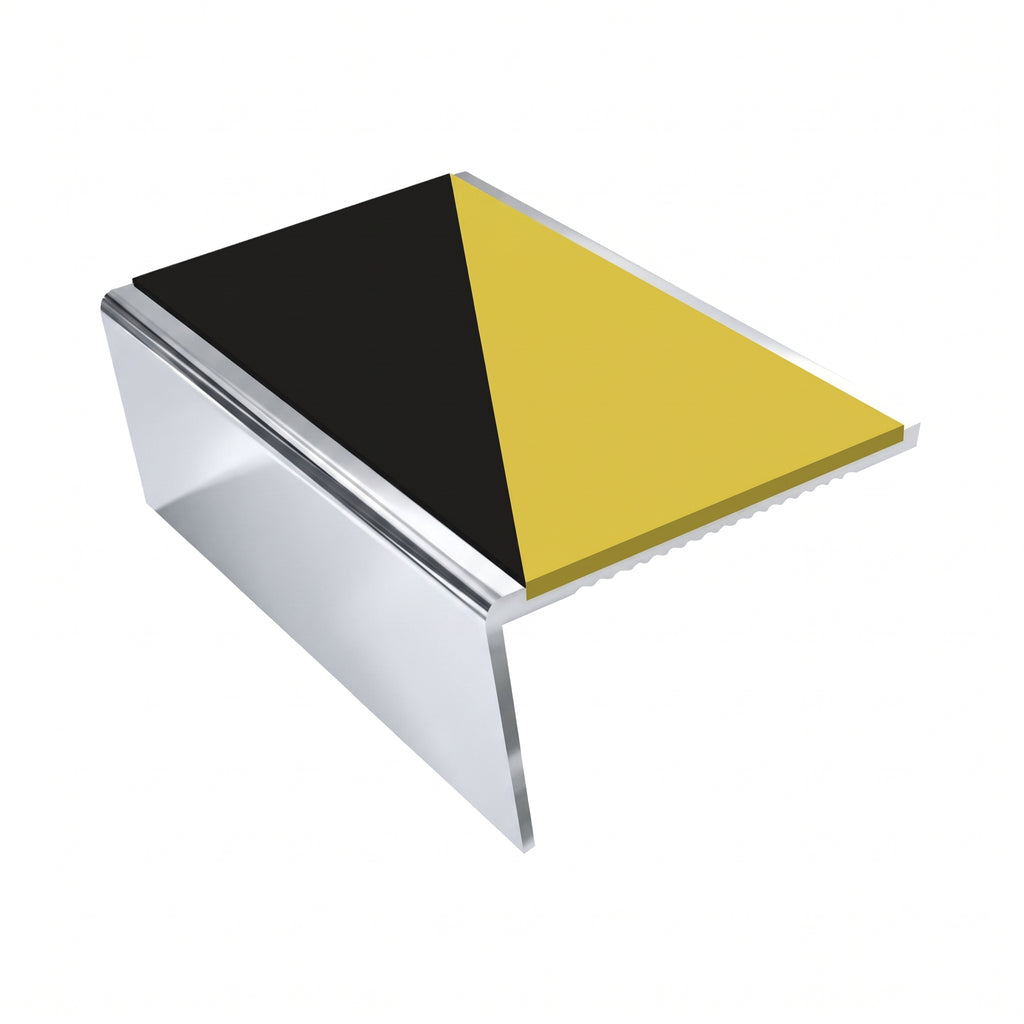

  • 15 insert colours available, including high-visibility Hazard and Yellow options for compliance with safety and accessibility guidelines
  • 6 aluminium finishes available — from understated Mill Finish to premium Mirrorflect Gold — to suit any interior specification
  • 2.44 m (2440 mm) stock length — a standard architectural length that minimises waste and simplifies installation on most stair widths
  • Suitable for commercial offices, retail environments, public buildings, schools, healthcare facilities, and residential properties
  • Clean, low-profile design that protects floor coverings at the step edge and reduces trip hazards without visual intrusion

Ideal Applications

Setting Why It Works
Commercial offices Durable aluminium withstands high daily footfall; premium finishes maintain a professional appearance
Retail & hospitality Wide colour range allows coordination with brand palettes and interior design schemes
Public sector & education High-visibility insert colours support accessibility requirements and step-edge demarcation
Healthcare facilities Smooth, cleanable aluminium surface; replaceable insert reduces long-term maintenance costs
Residential staircases Neat, low-profile finish suits both contemporary and traditional interiors; easy DIY installation
Refurbishment projects Standard 2.44 m length cuts cleanly to width; rake-back profile suits existing square-edge steps

Installation Note: This nosing is designed for surface fixing to the step tread front. The rake-back underside profile sits flush against the riser face. Fix through the aluminium base using appropriate screws for your substrate, then press the PVC insert into the channel. Cut to length using a fine-tooth metal saw or mitre saw. Always wear appropriate PPE when cutting aluminium profiles.


Frequently Asked Questions

What does "single channel" mean on a stair nosing?
A single-channel stair nosing has one recessed groove running along its length, designed to hold one PVC insert strip. This is the correct choice for stairs covered with a single floor finish such as vinyl, linoleum, or a lightweight carpet, where one continuous insert provides the required slip resistance and step-edge definition.
What is a rake-back profile and do I need it?
A rake-back profile has an angled or stepped underside that allows the nosing to sit flush against the vertical face of the stair riser as well as the horizontal tread. This is the standard requirement for most interior staircases with a square-edge step front. If your steps have a bullnose or rounded edge, a different profile type would be required.
What floor coverings is the 3.5 mm insert gauge suitable for?
The 3.5 mm gauge PVC insert is designed for use with vinyl, linoleum, and lightweight carpet. The insert thickness is matched to the depth of these floor coverings so that the nosing sits level with the finished floor surface. For thicker carpets or other floor finishes, a different gauge or profile may be more appropriate.
Can the PVC insert be replaced without removing the aluminium profile?
Yes. The PVC insert clips into the channel of the aluminium base profile and can be removed and replaced independently. This means that when the insert becomes worn or you wish to change the colour, you do not need to unfix and refit the entire nosing — only the insert needs to be replaced, which significantly reduces maintenance time and cost.
How do I cut the nosing to the correct width for my staircase?
The 2.44 m (2440 mm) stock length can be cut to your required stair width using a fine-tooth metal-cutting saw or a mitre saw fitted with an appropriate blade. Mark your cut line clearly, secure the profile before cutting, and always wear appropriate personal protective equipment including eye protection and gloves when cutting aluminium.
Which insert colour should I choose for maximum step-edge visibility?
For maximum step-edge visibility and compliance with safety and accessibility guidelines, the Hazard and Yellow insert colours provide the strongest contrast against most stair tread finishes. These are commonly specified in public buildings, schools, and healthcare environments. For a more discreet finish that still defines the step edge, Mid Grey, Premium Black, or a colour matched to your floor covering are popular choices.

Stair Nosing Technical & Installation Data Sheet

View complete specifications, safety information, installation guidance and fitting details.

Download Technical Data Sheet
