Aluminium Rake Back Stair Nosing 2.44m, 2.75m Single Channel Ramp


Price
Sale price £146.15 (Inc. VAT)
➜ Need help? Call us on 01282 270 010

In stock, ready to ship

Description

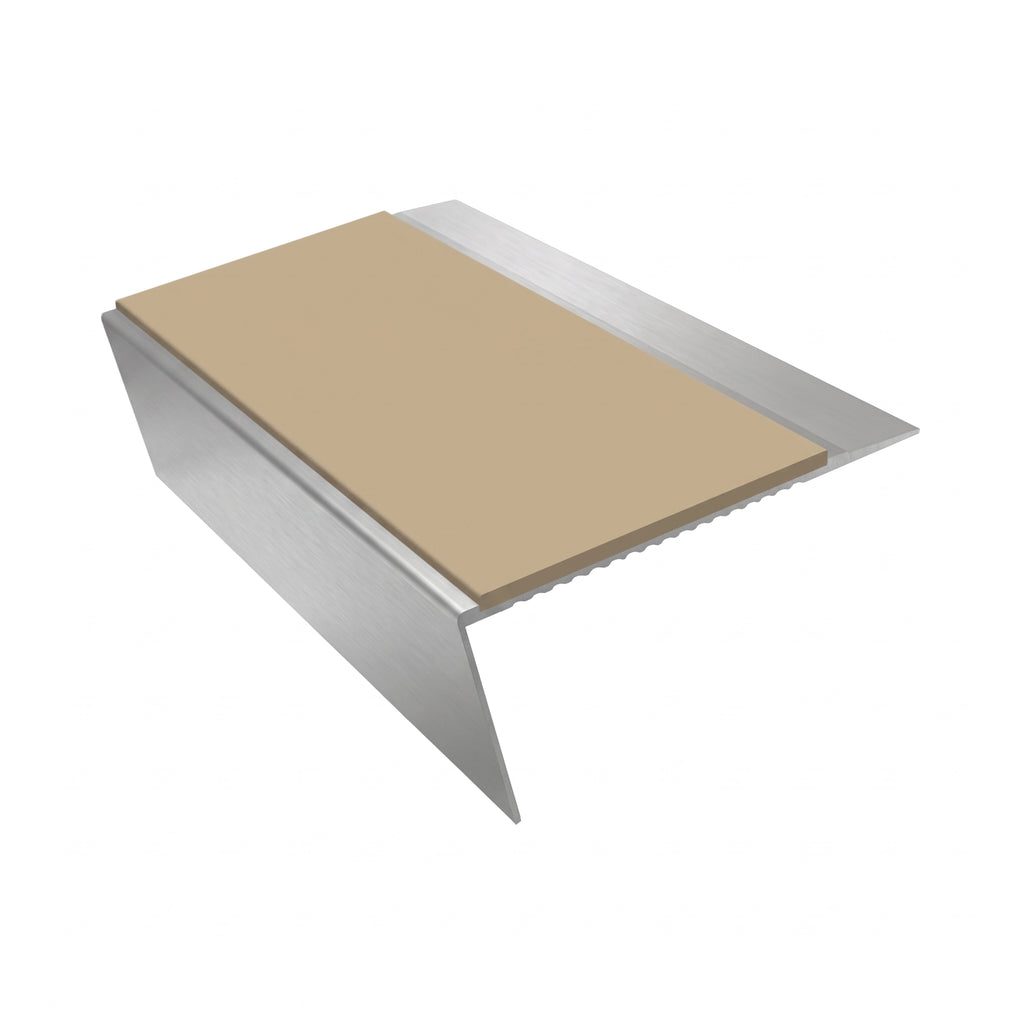

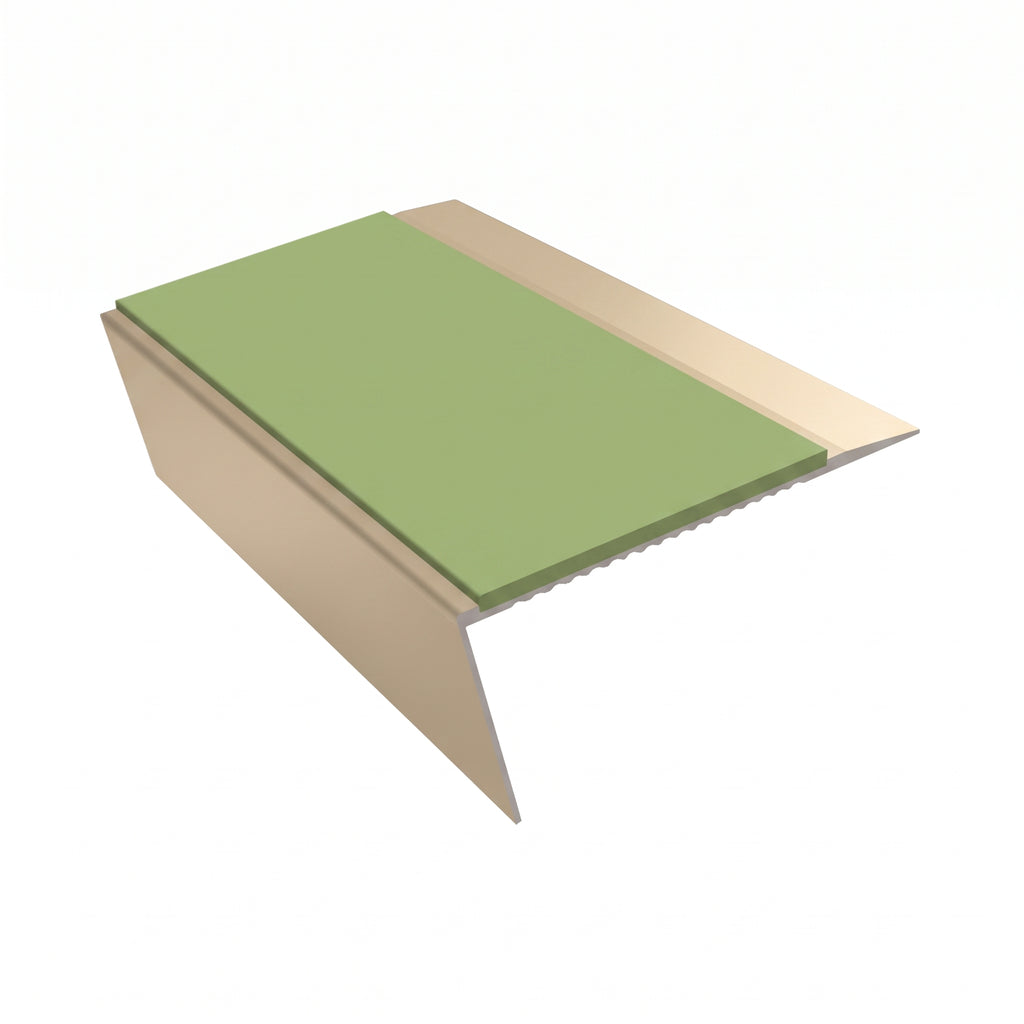

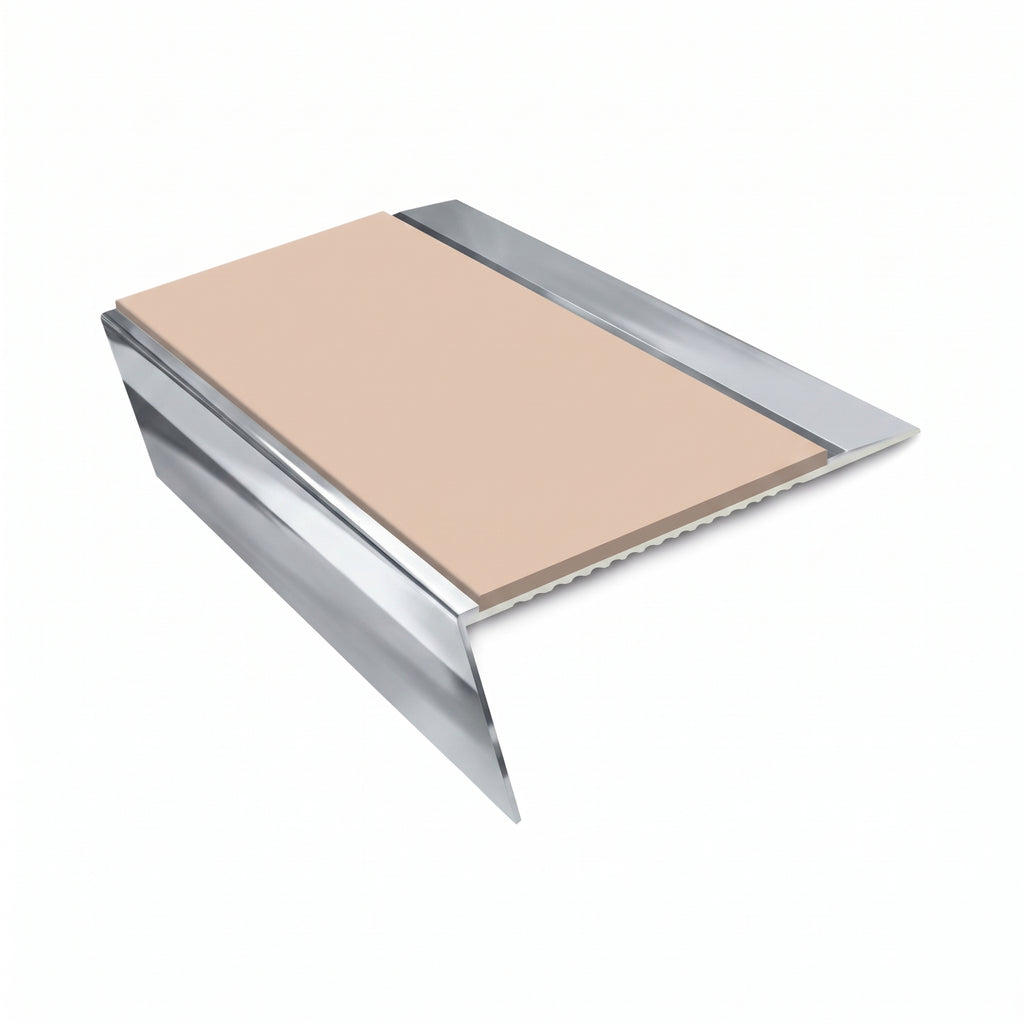

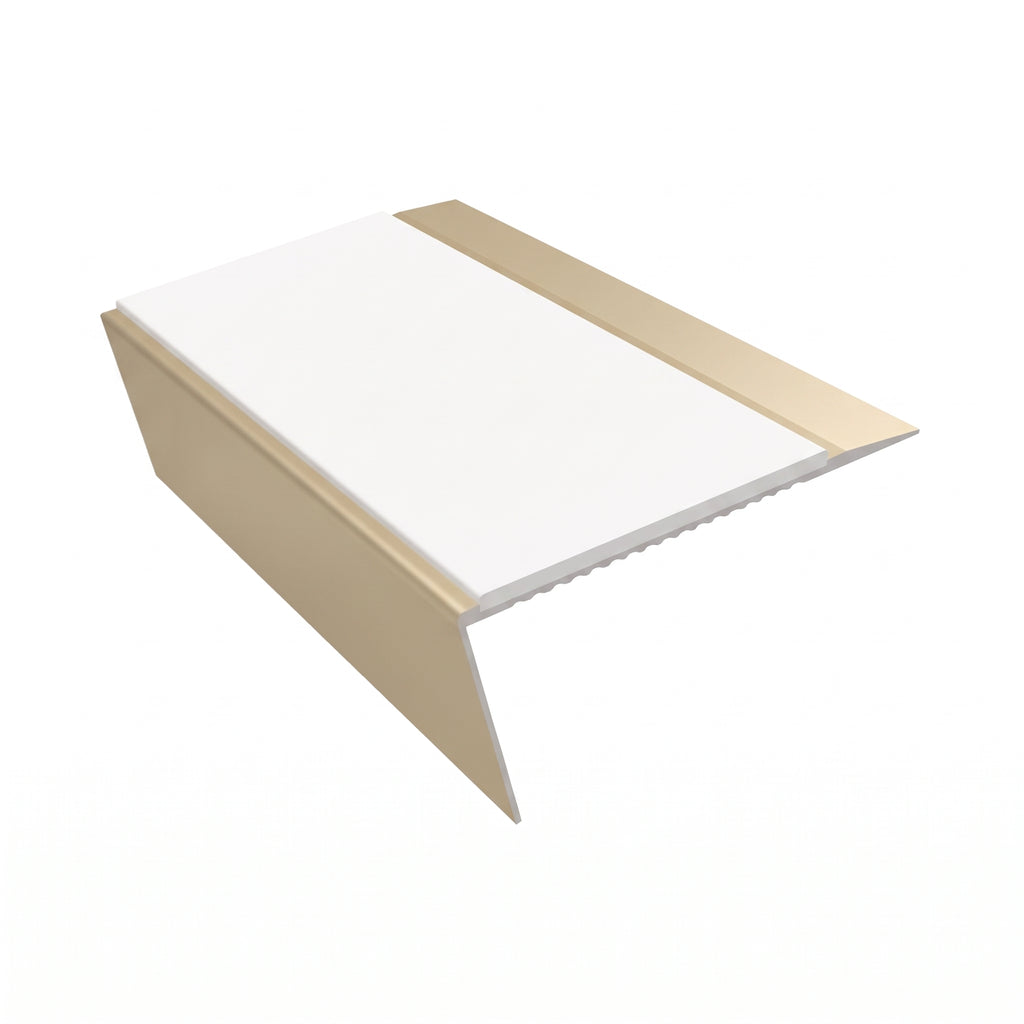

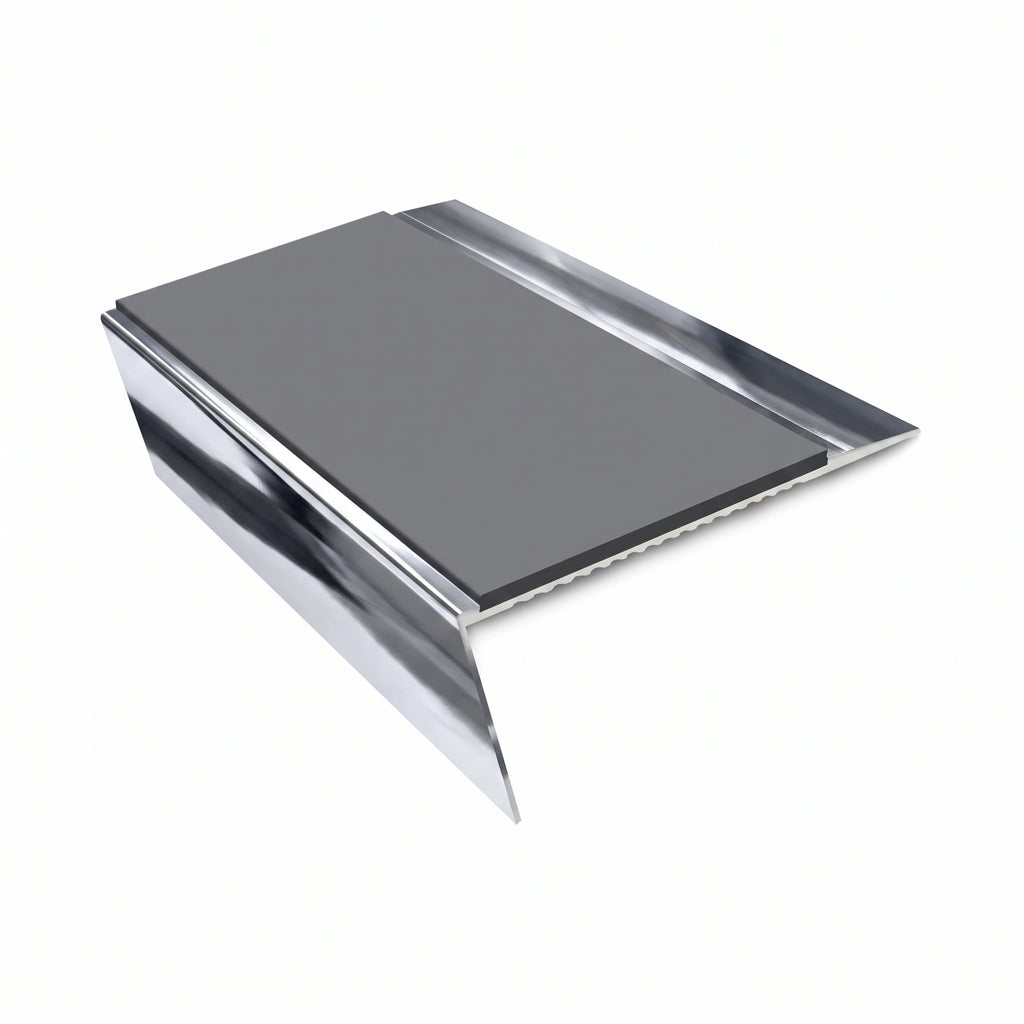

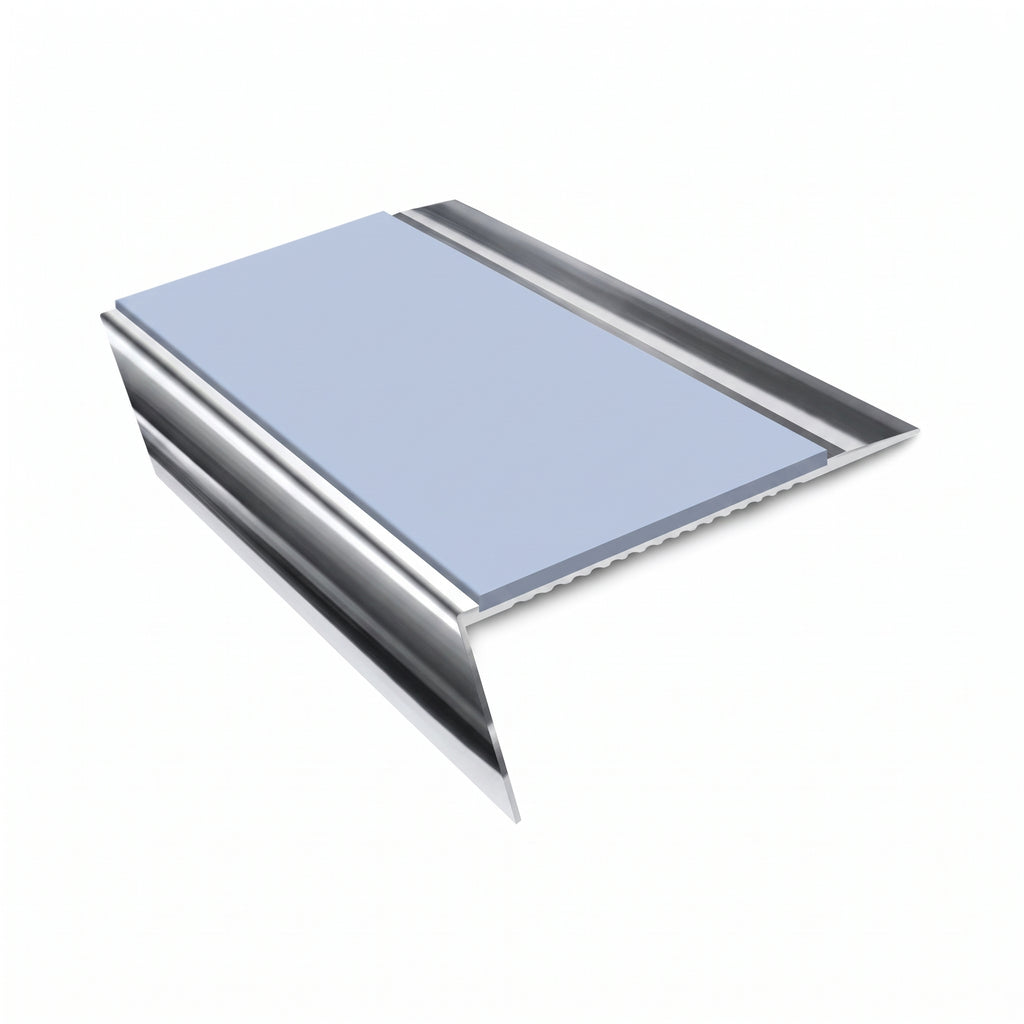

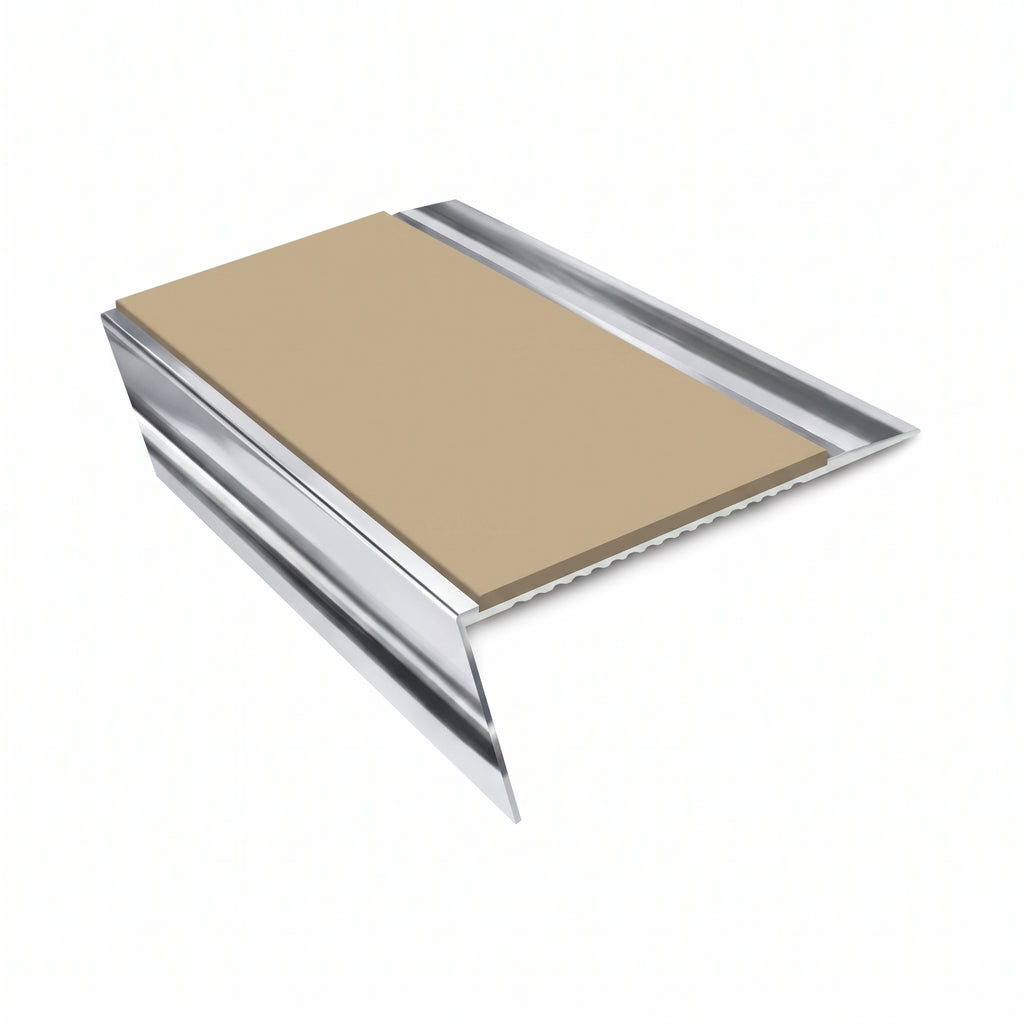

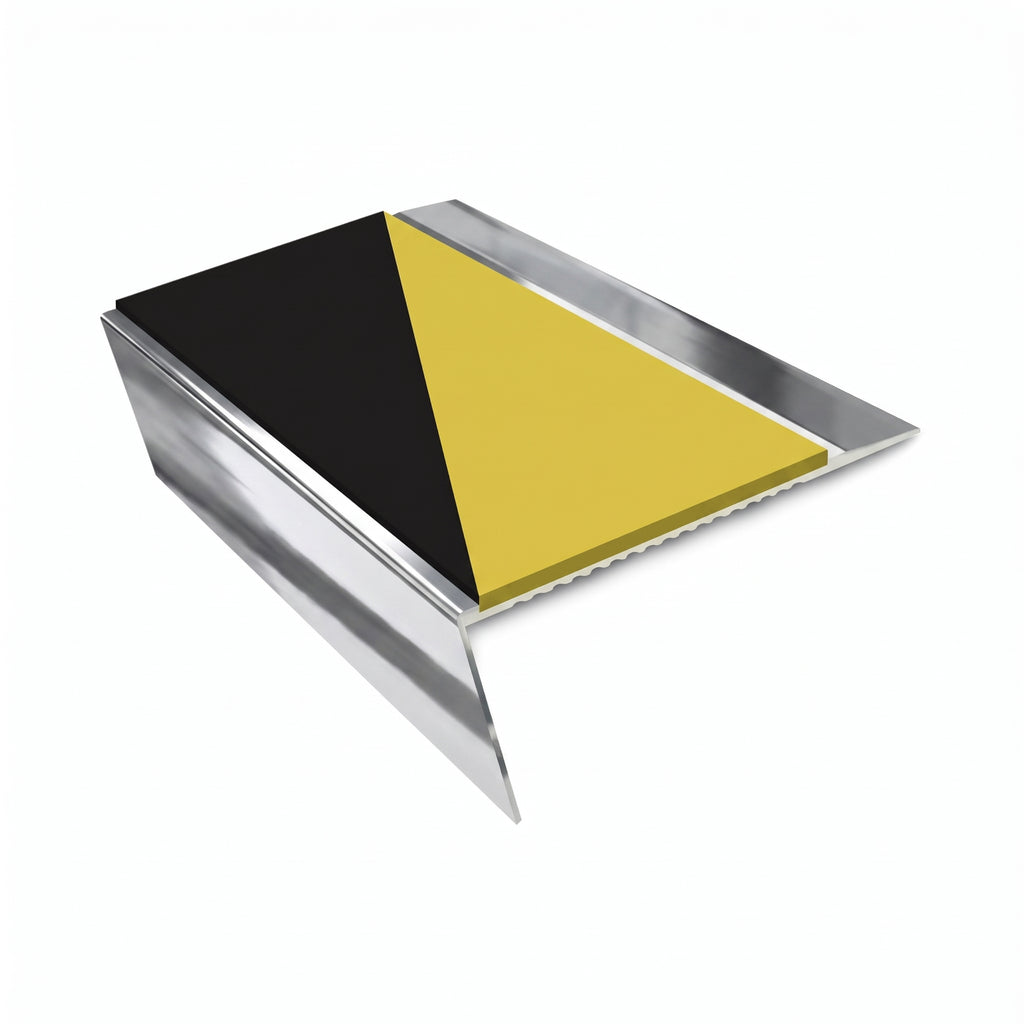

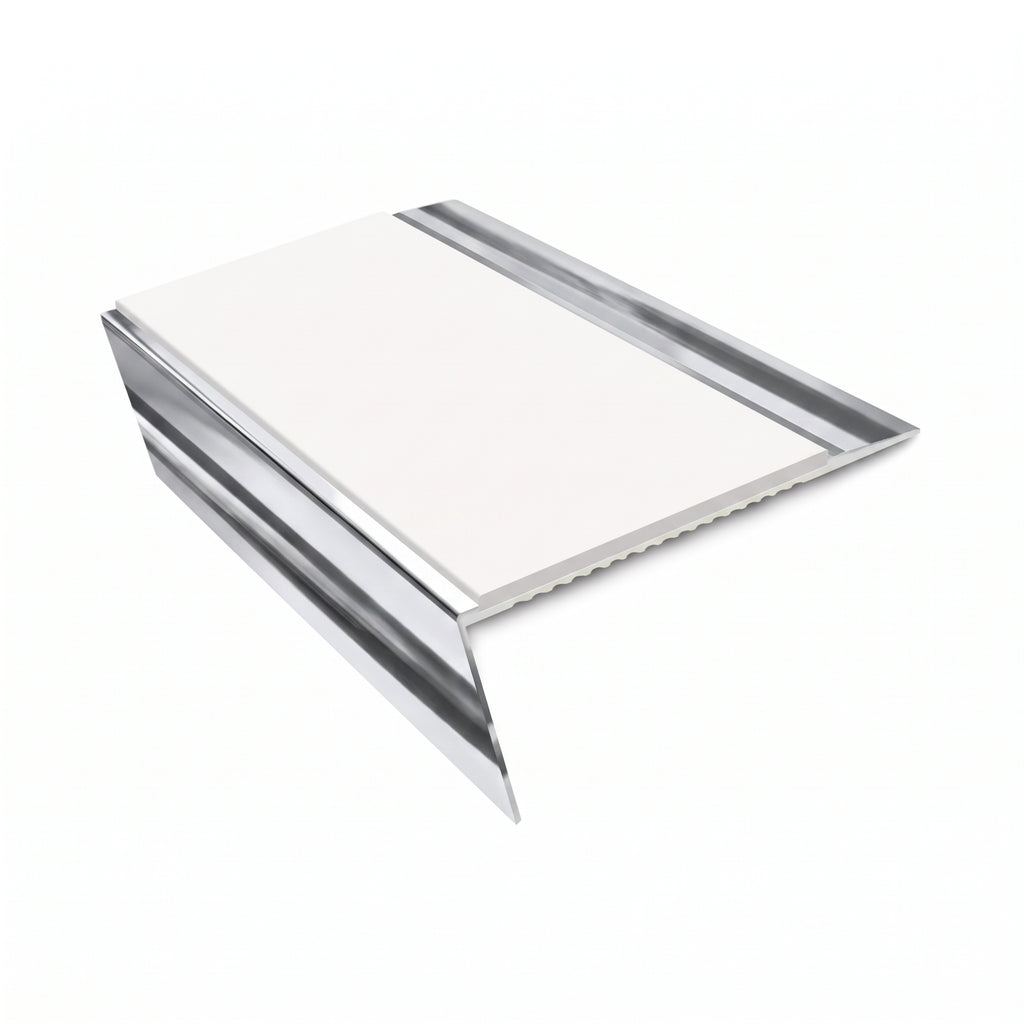

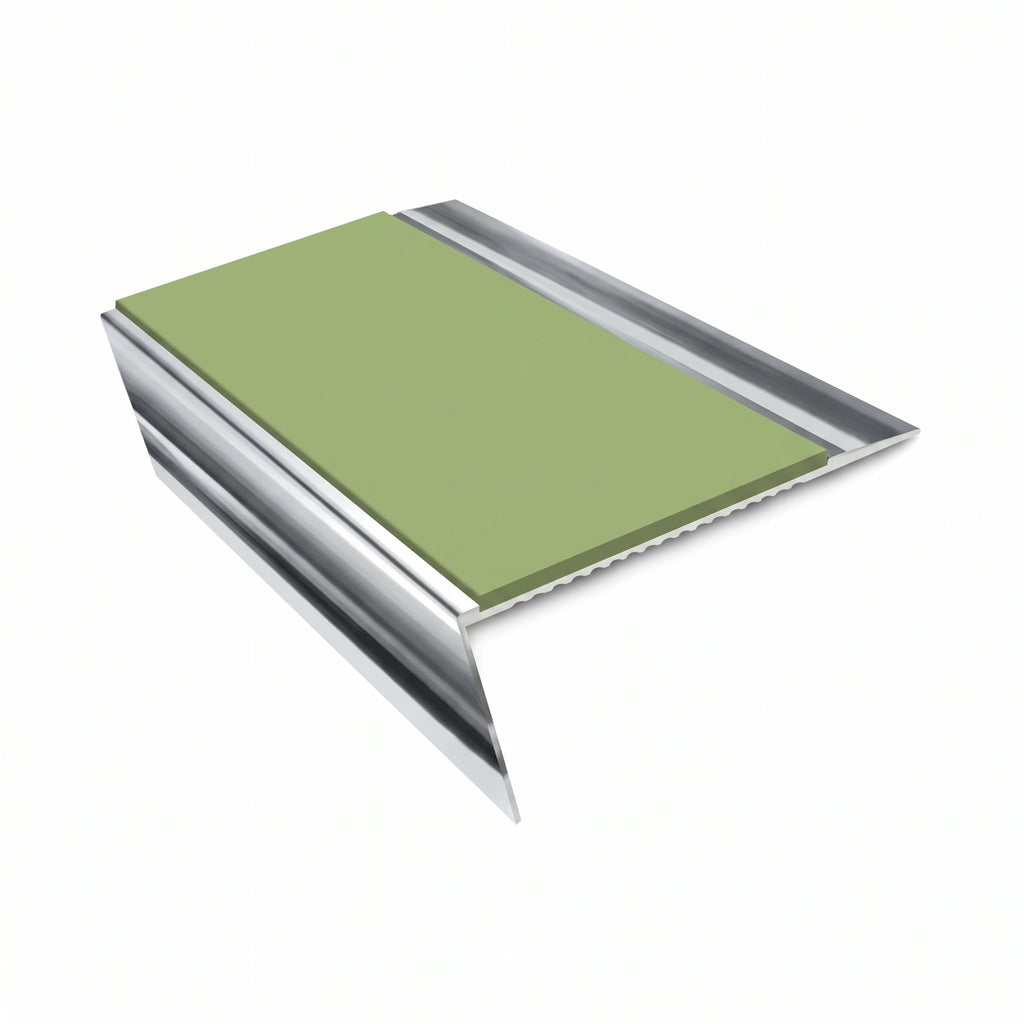

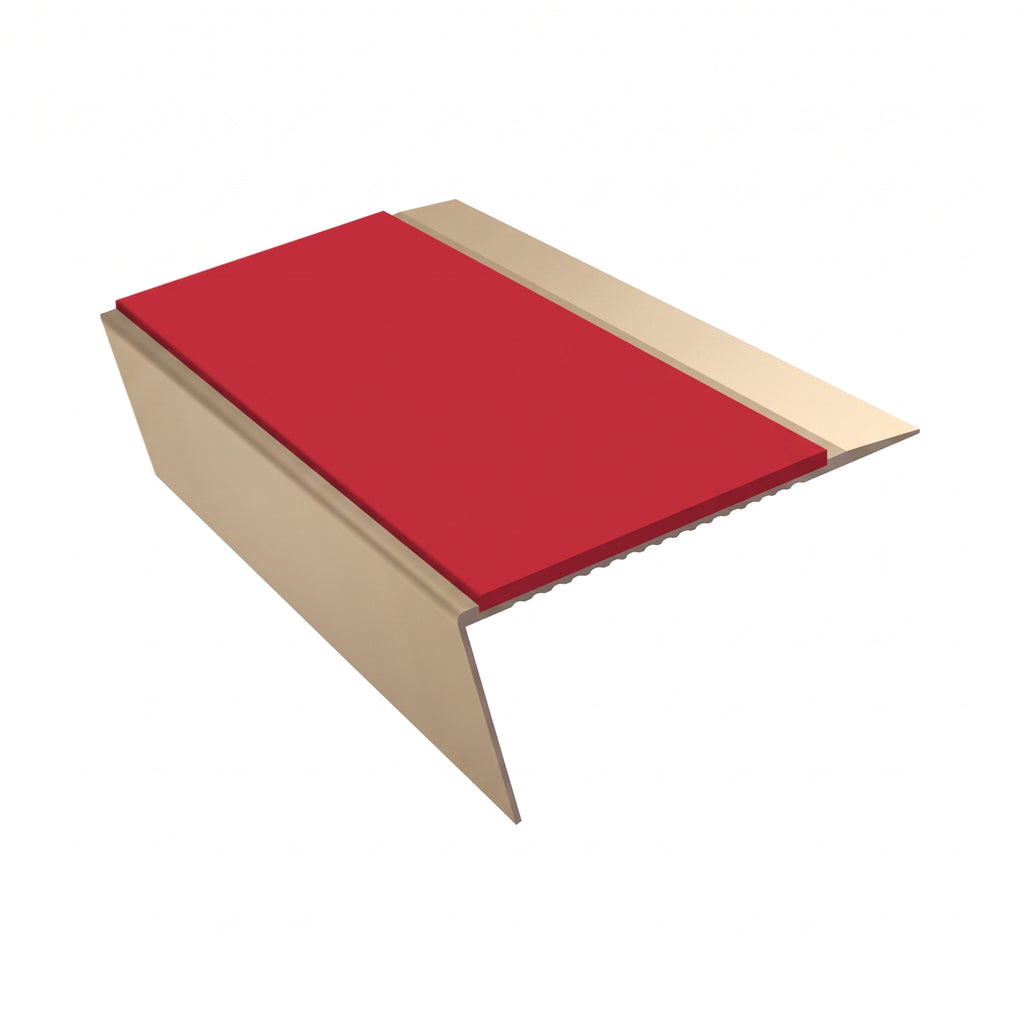

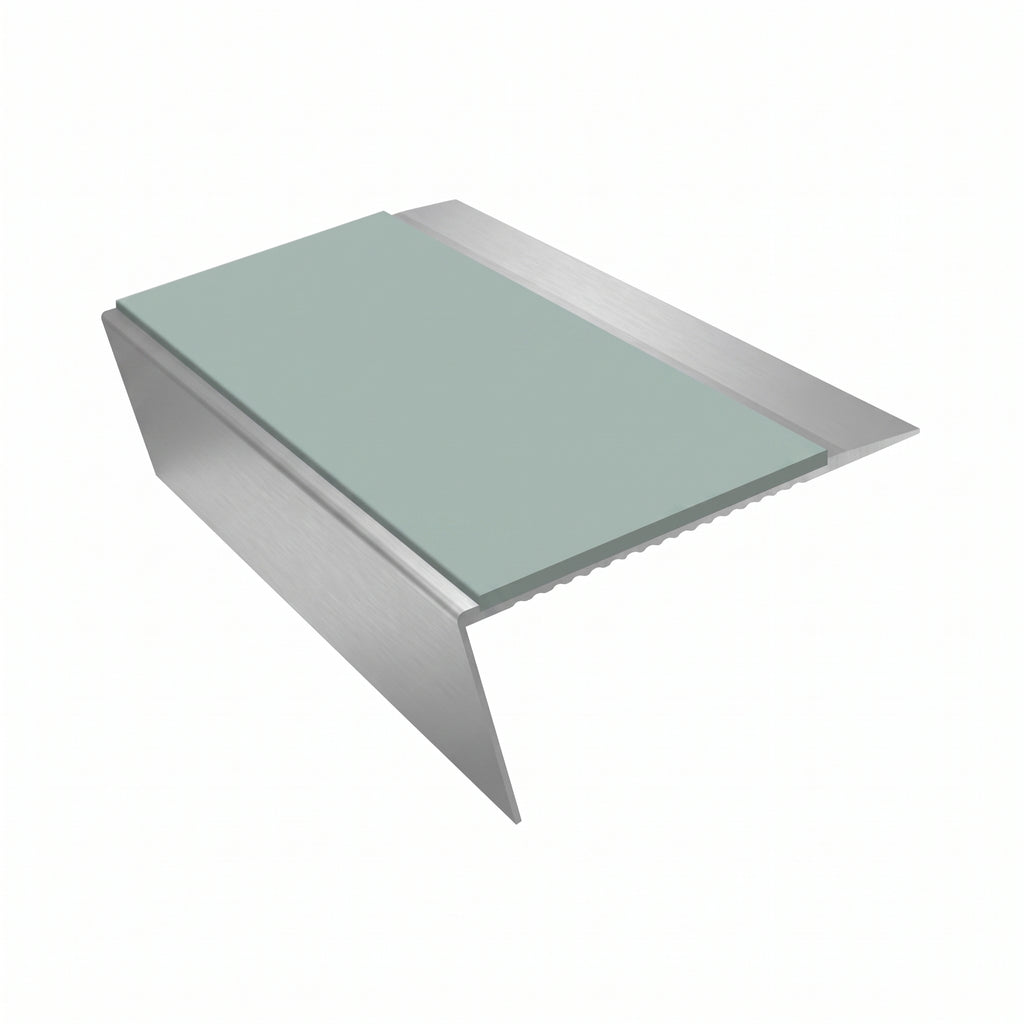

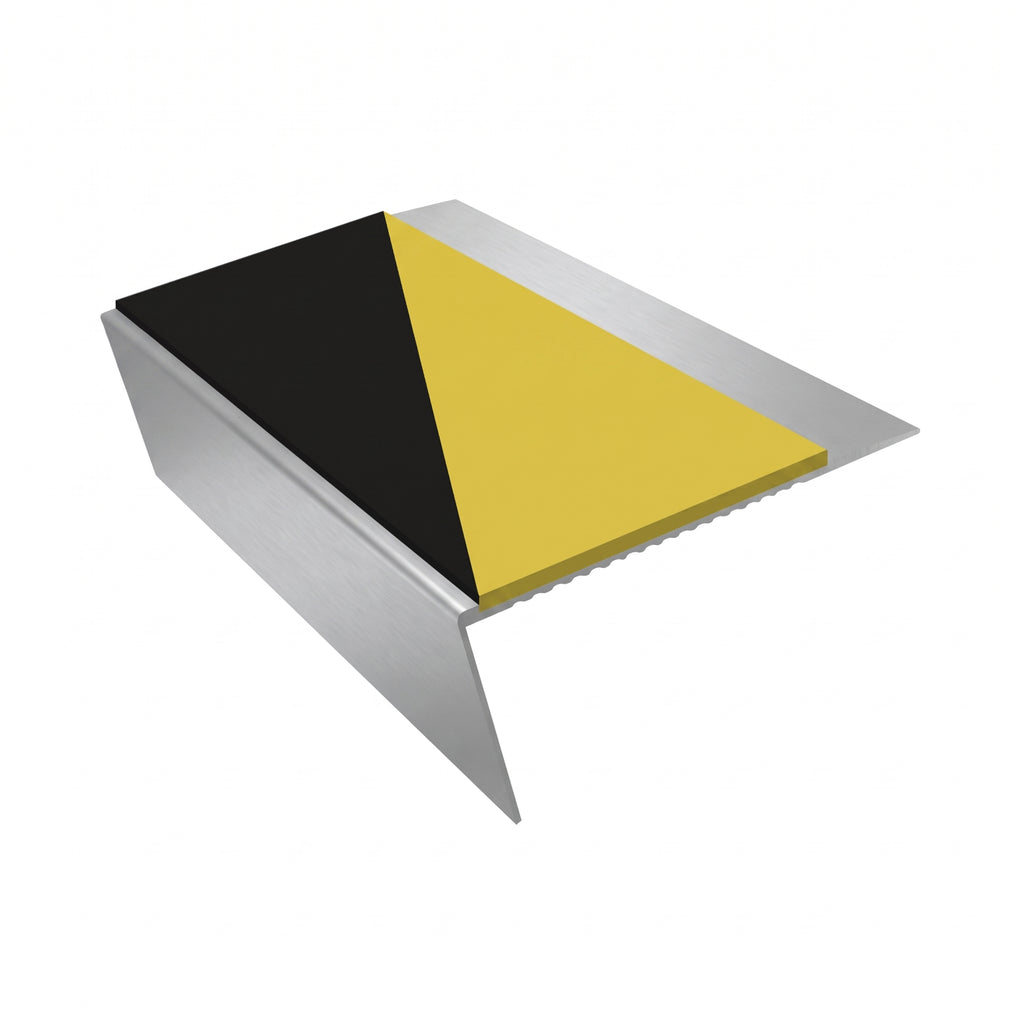

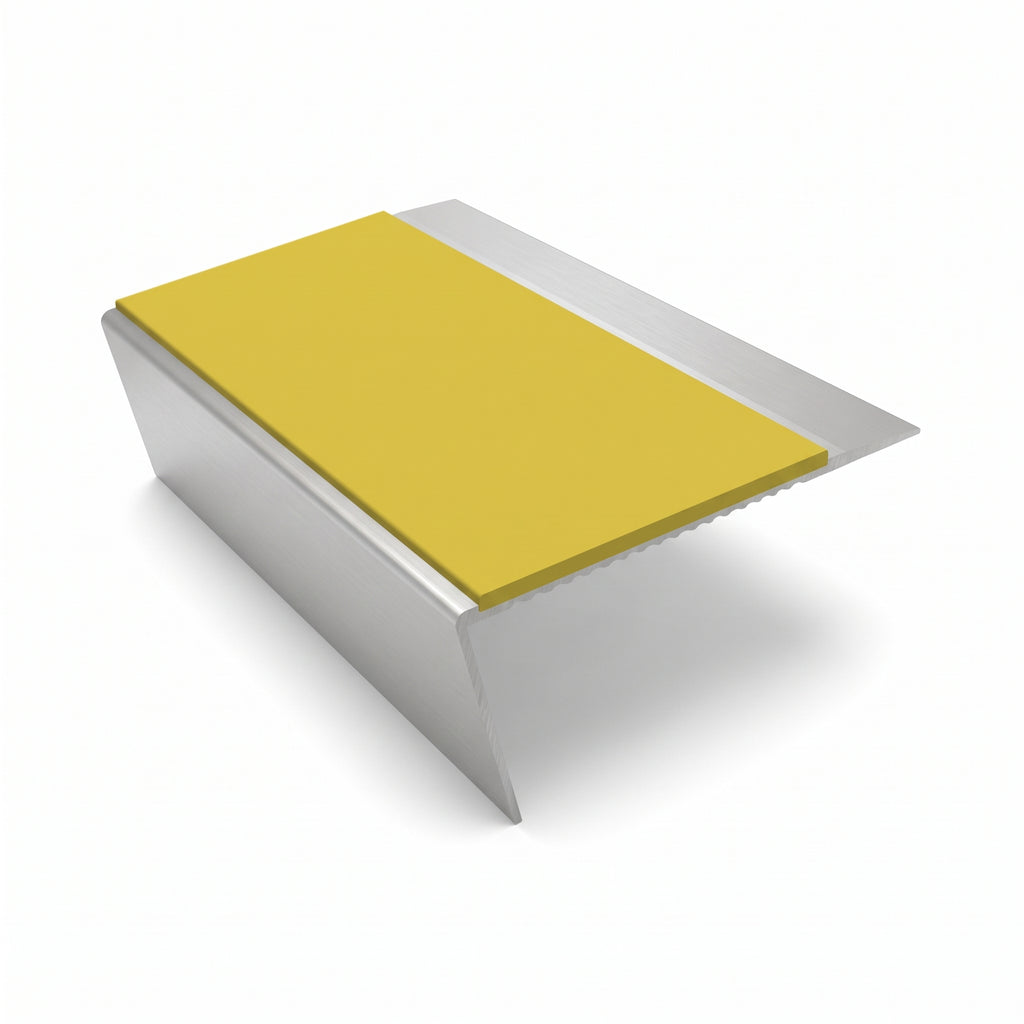

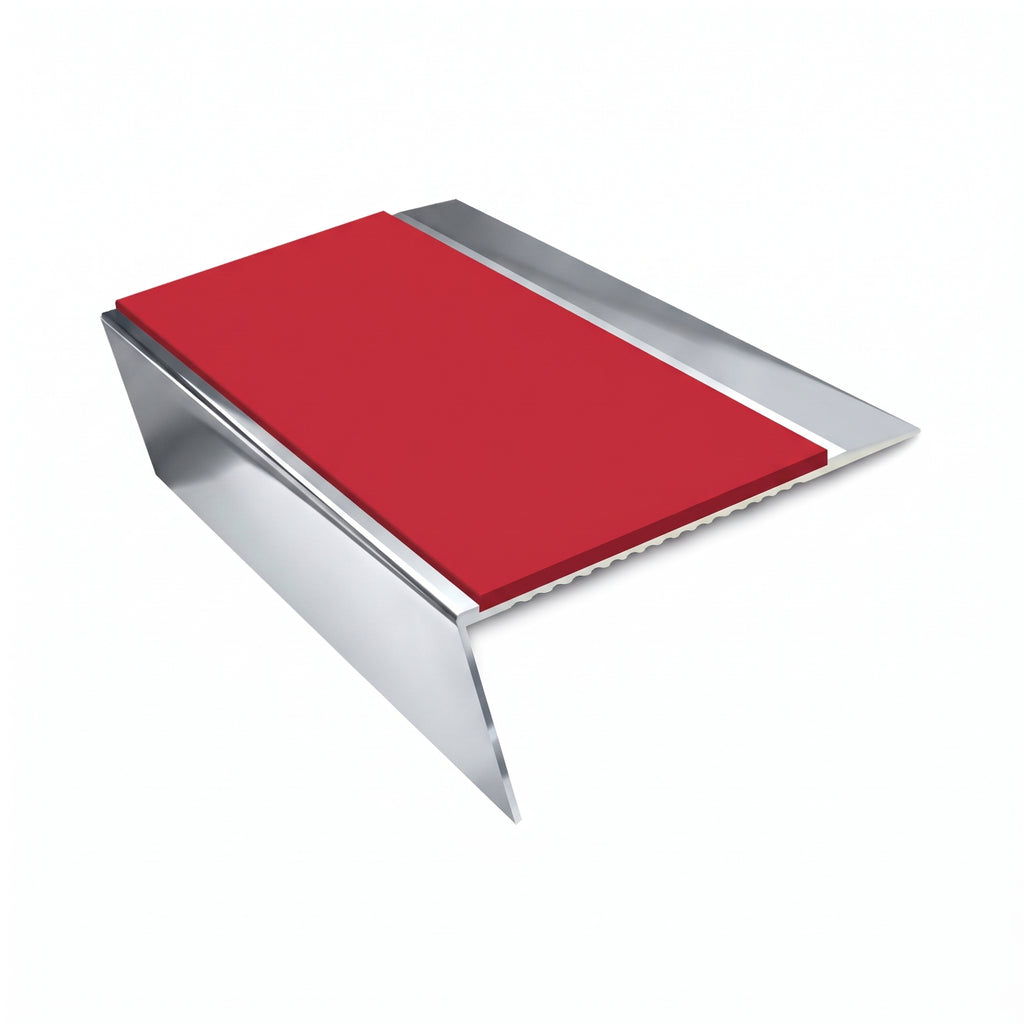

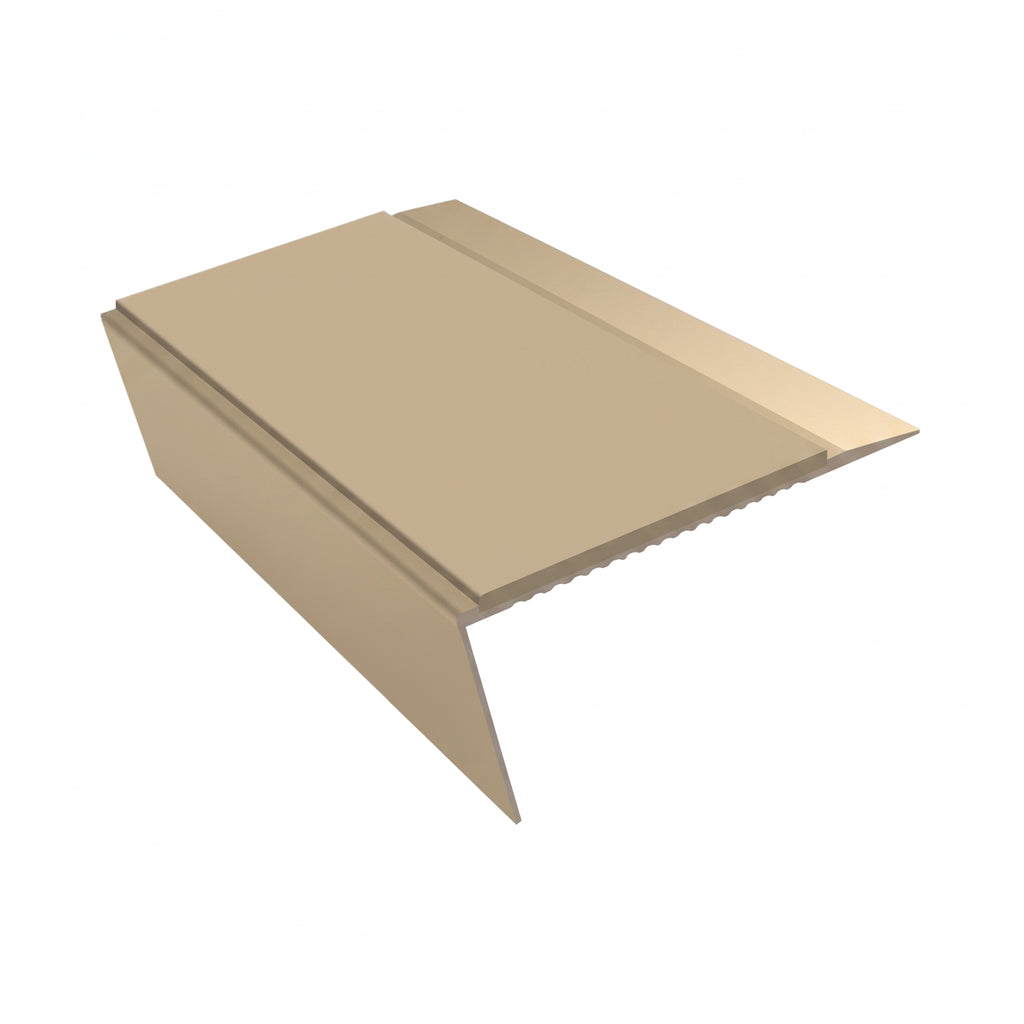

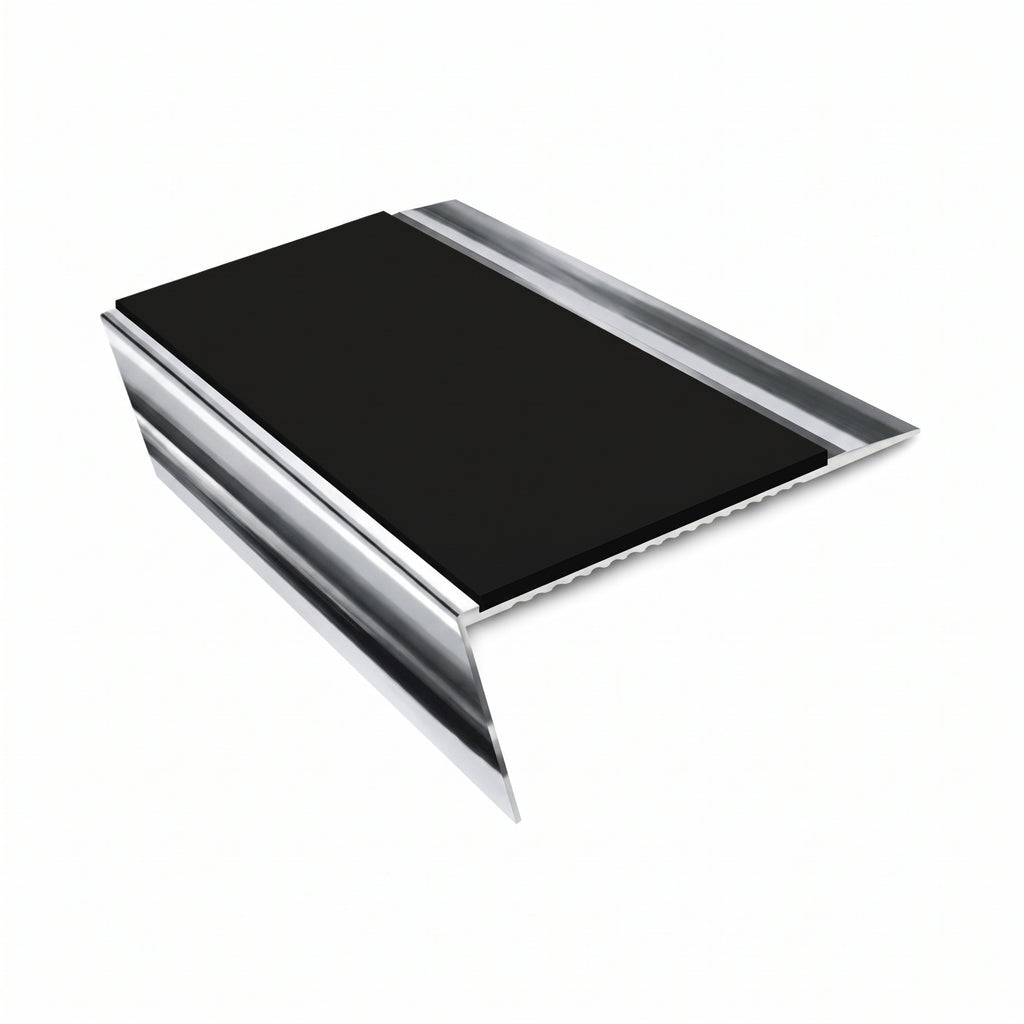

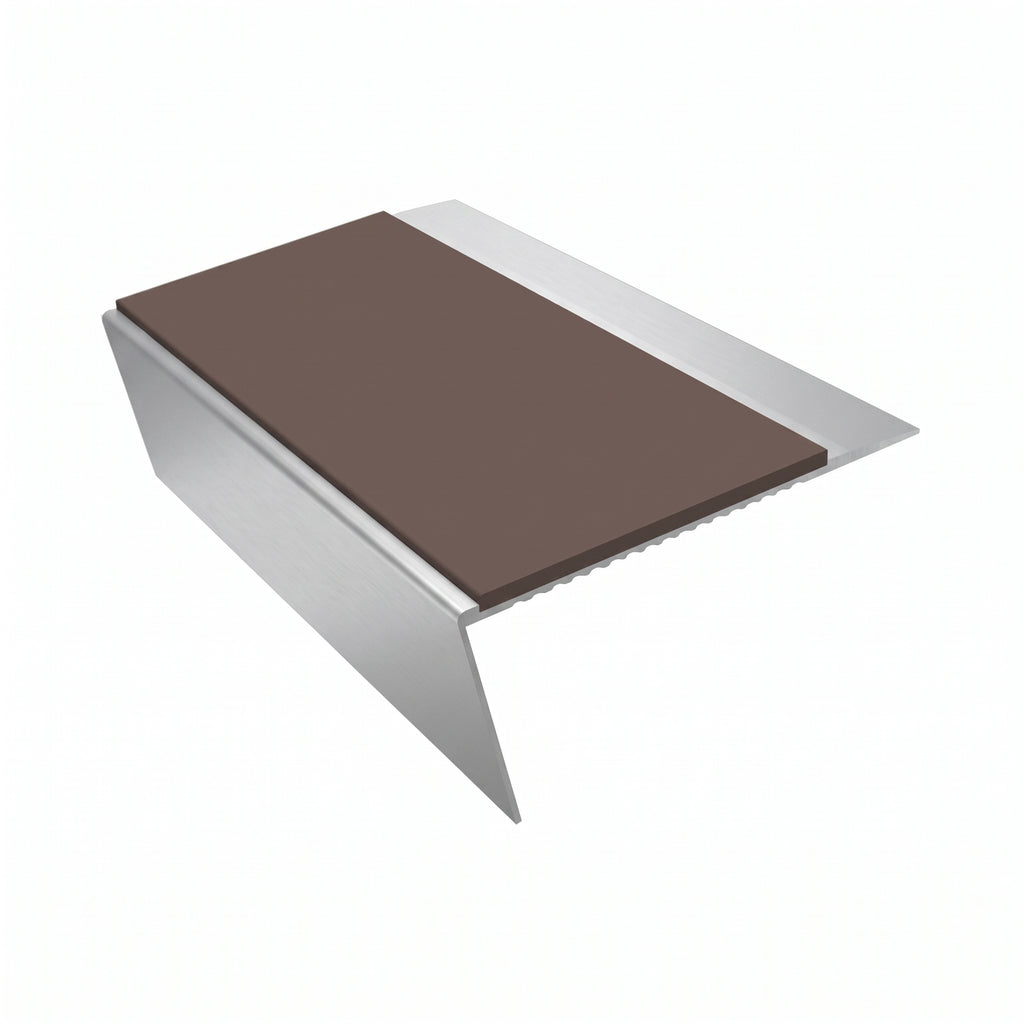

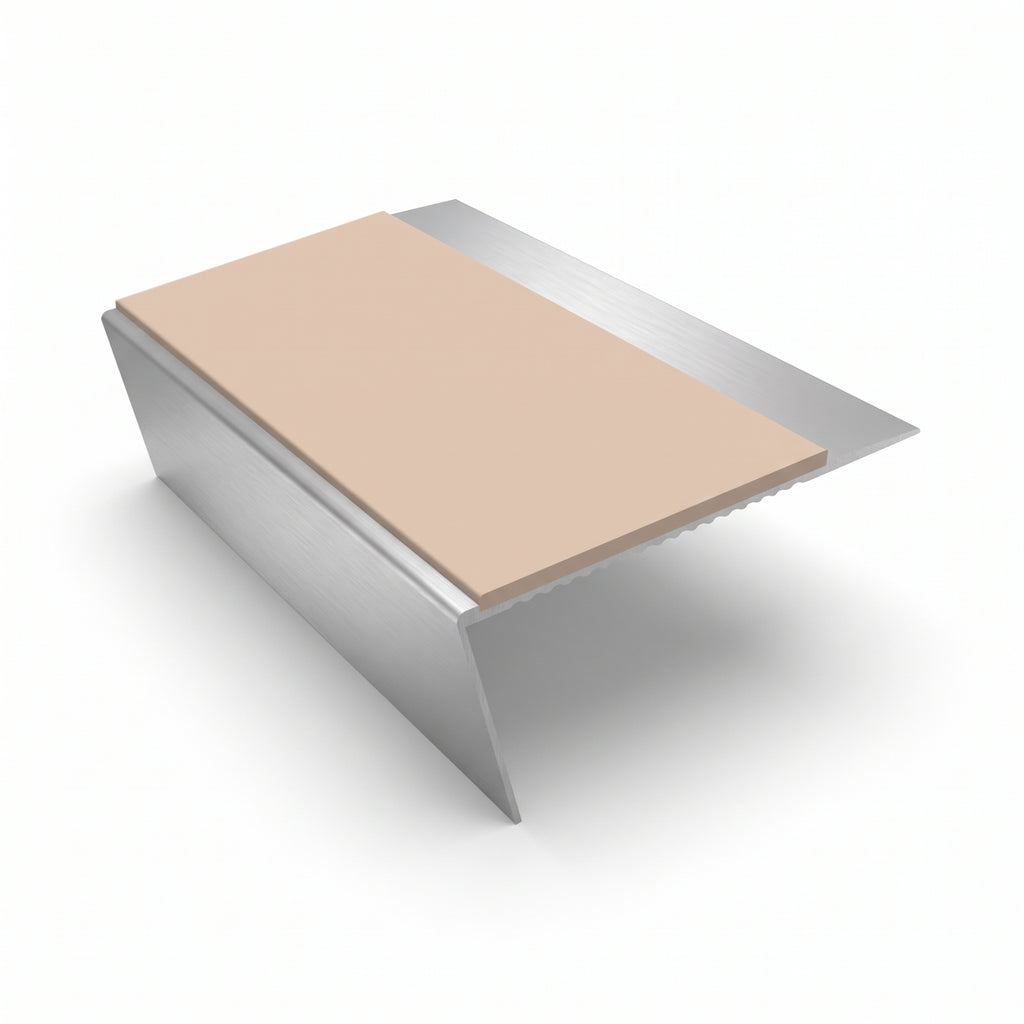

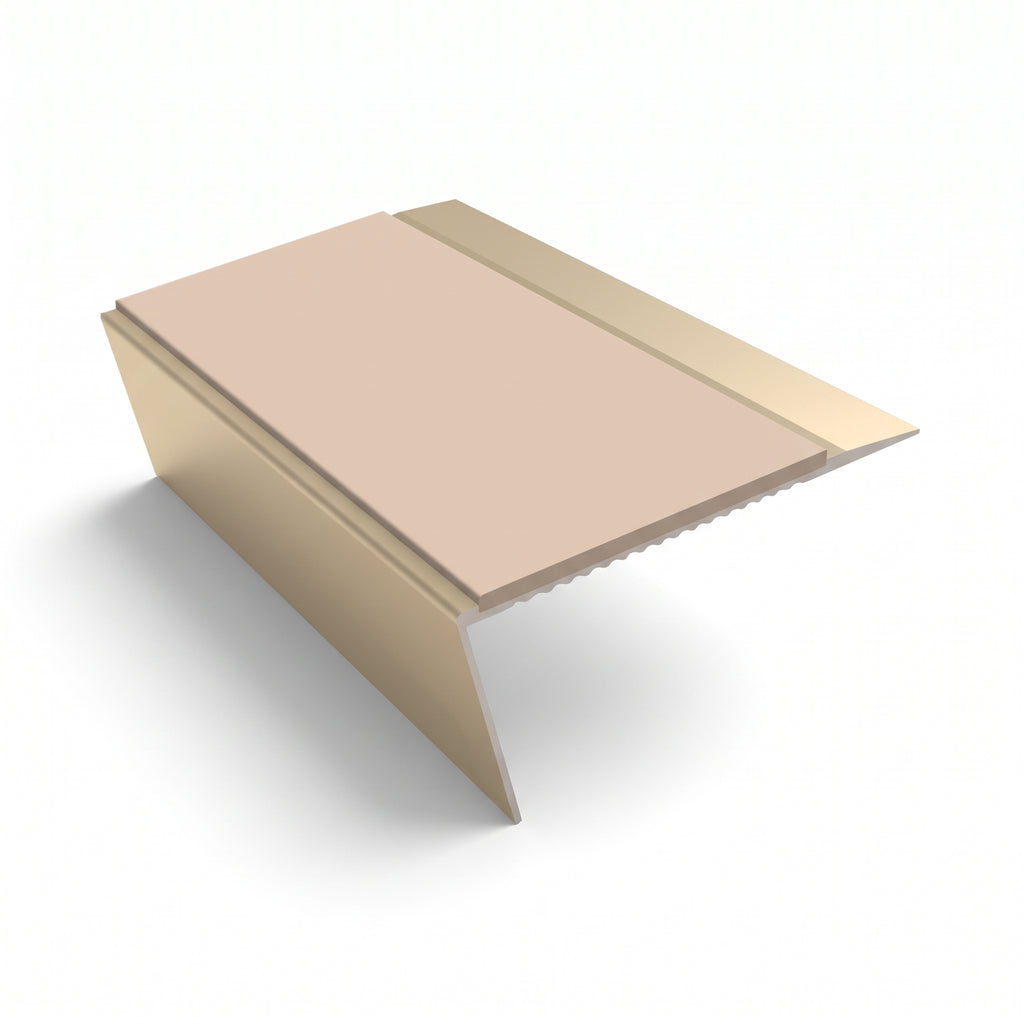

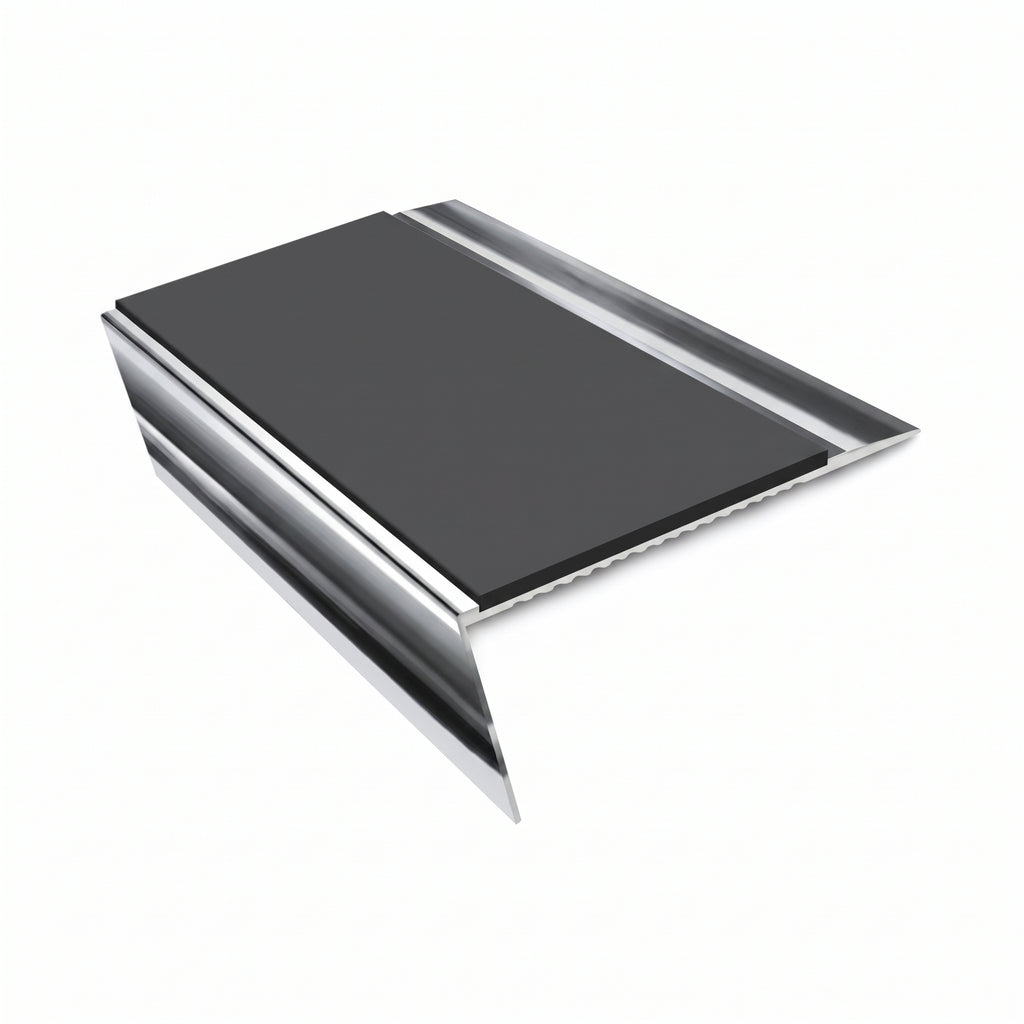

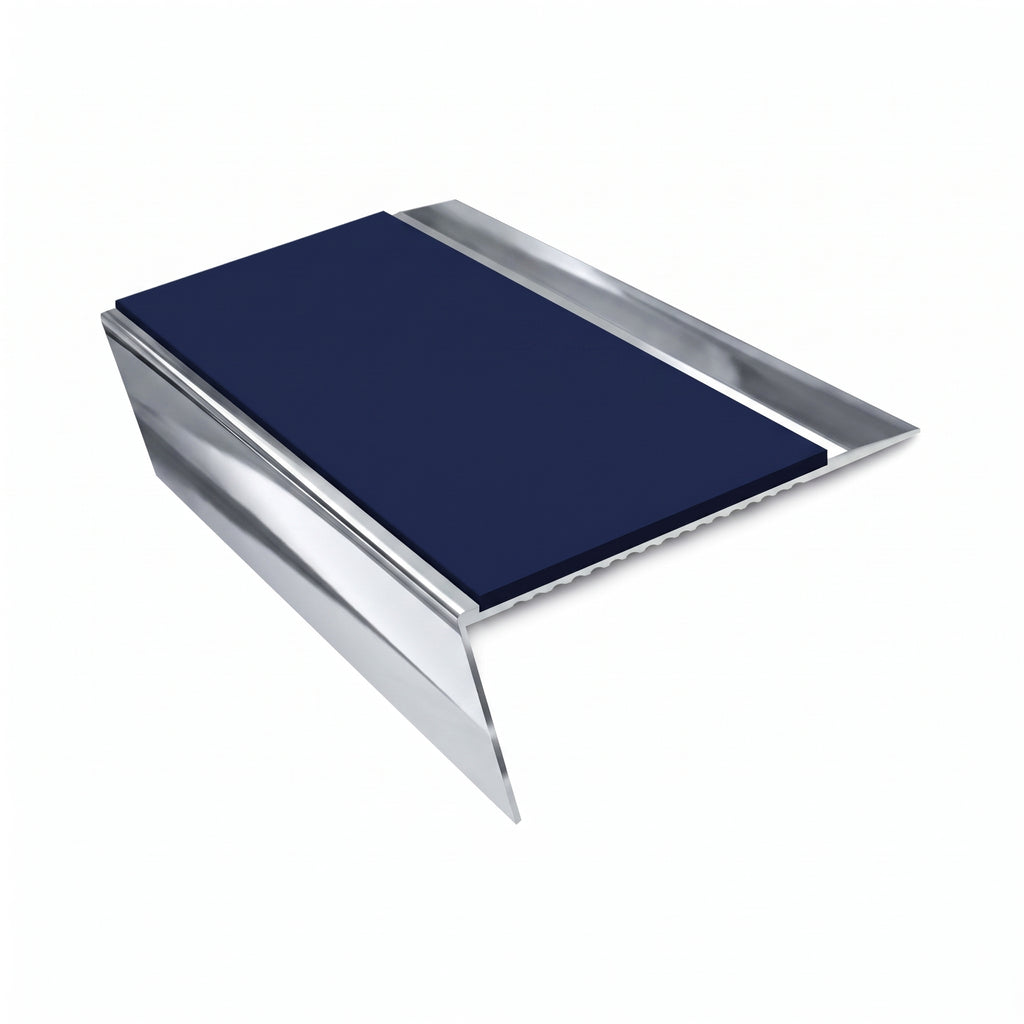

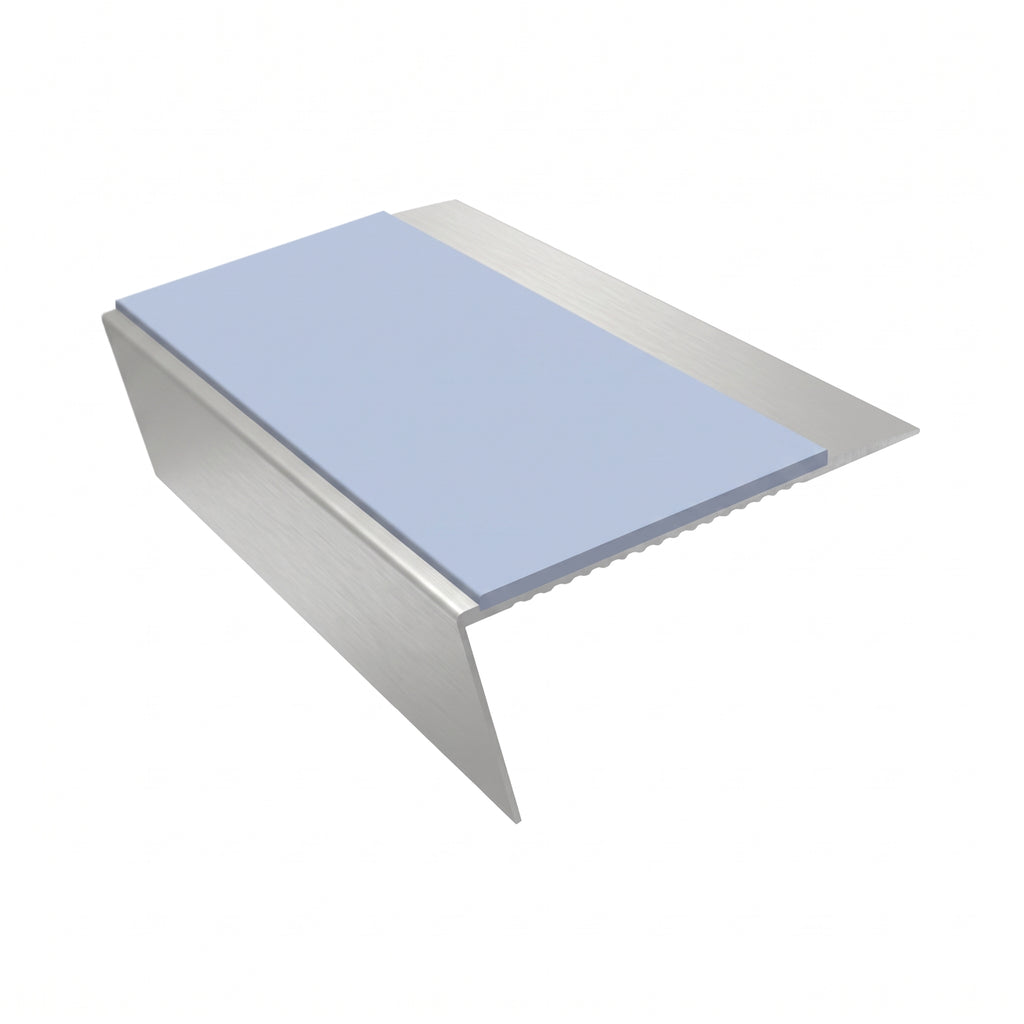

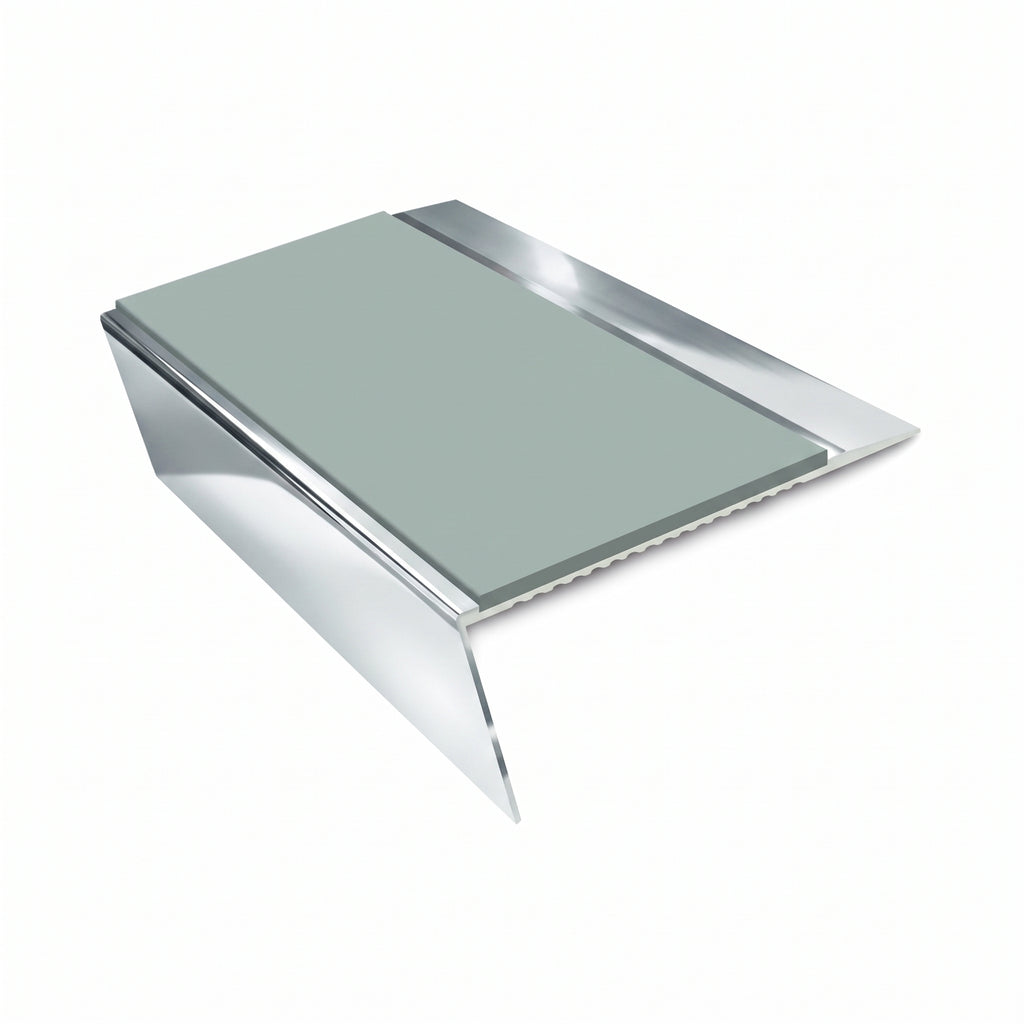

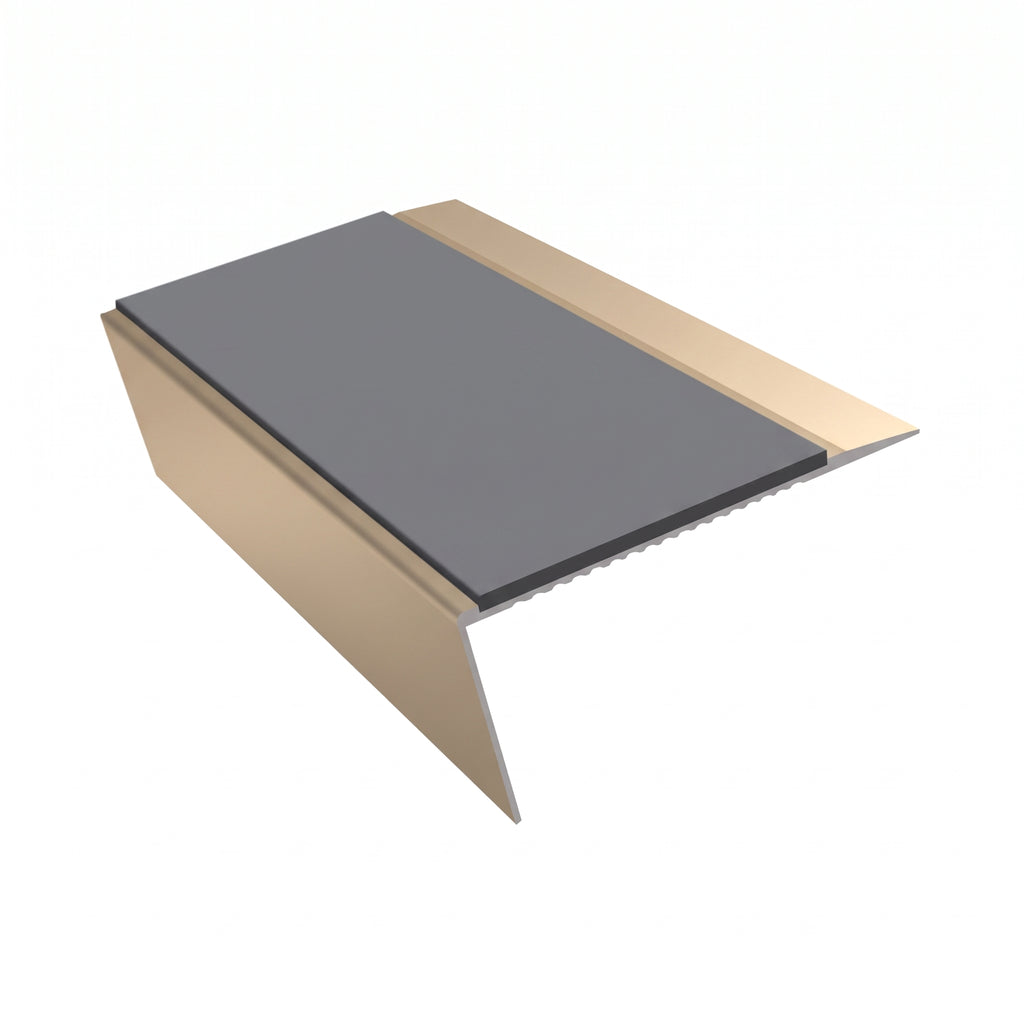

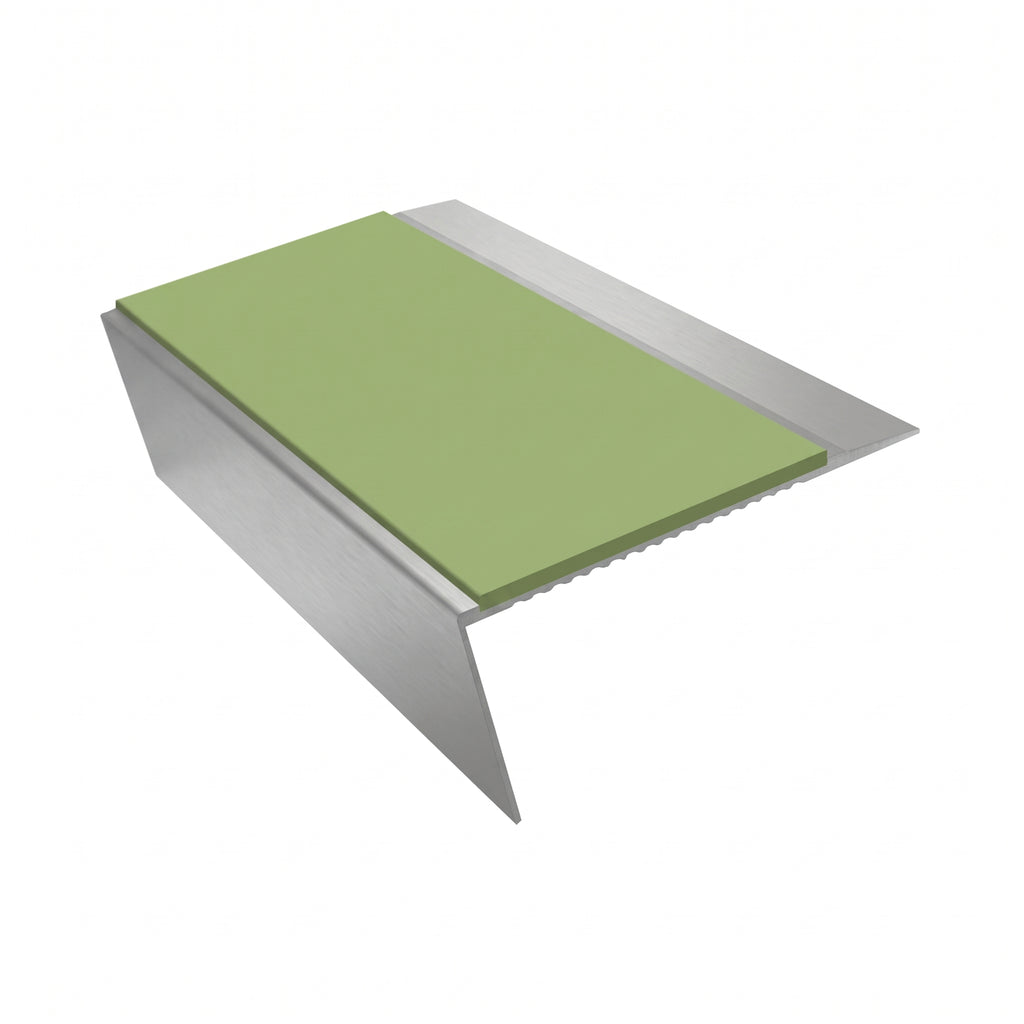

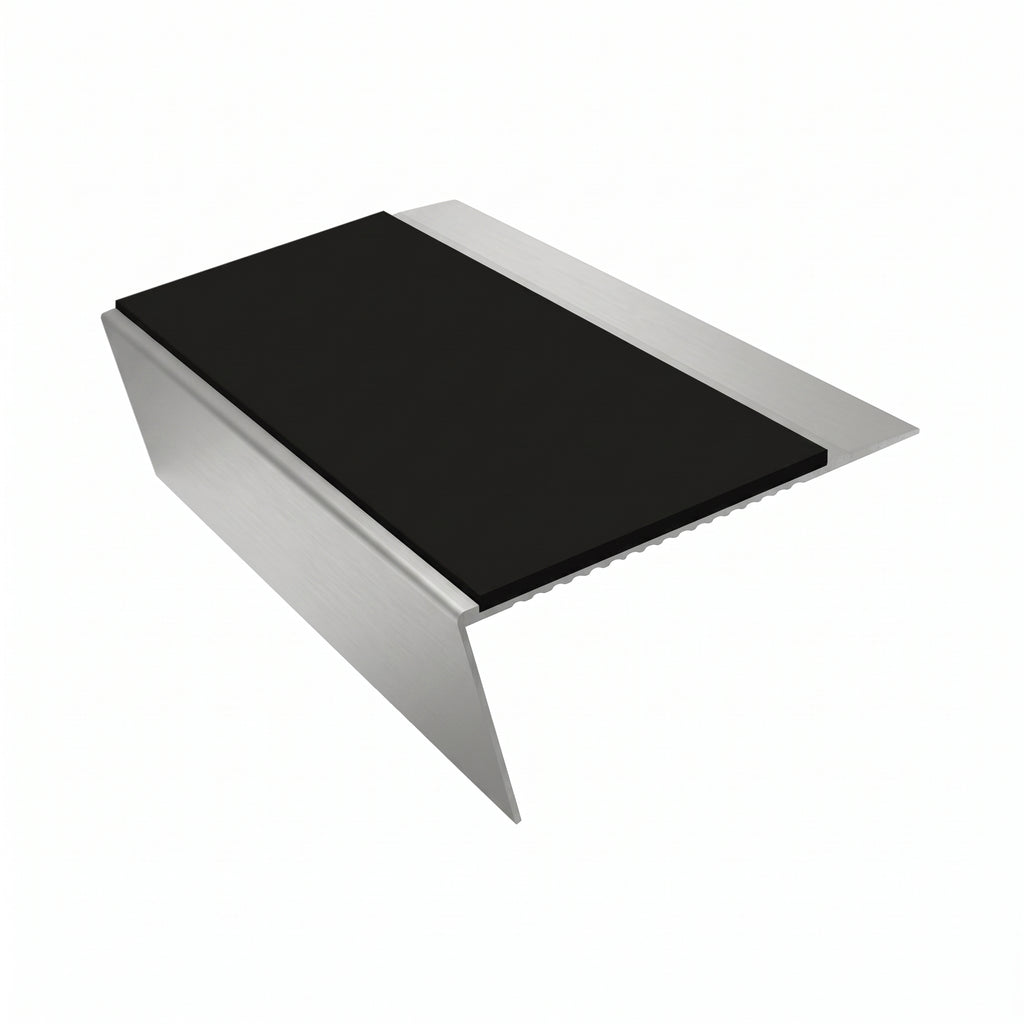

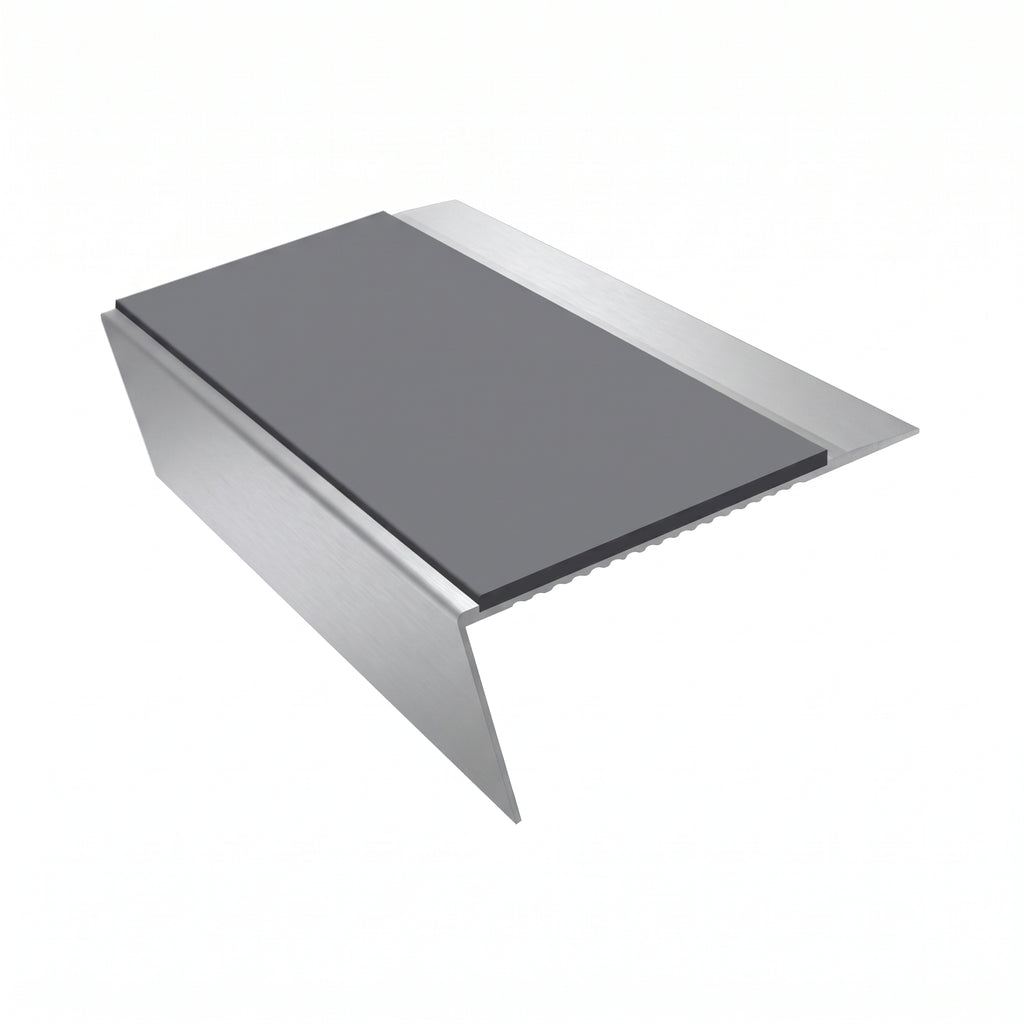

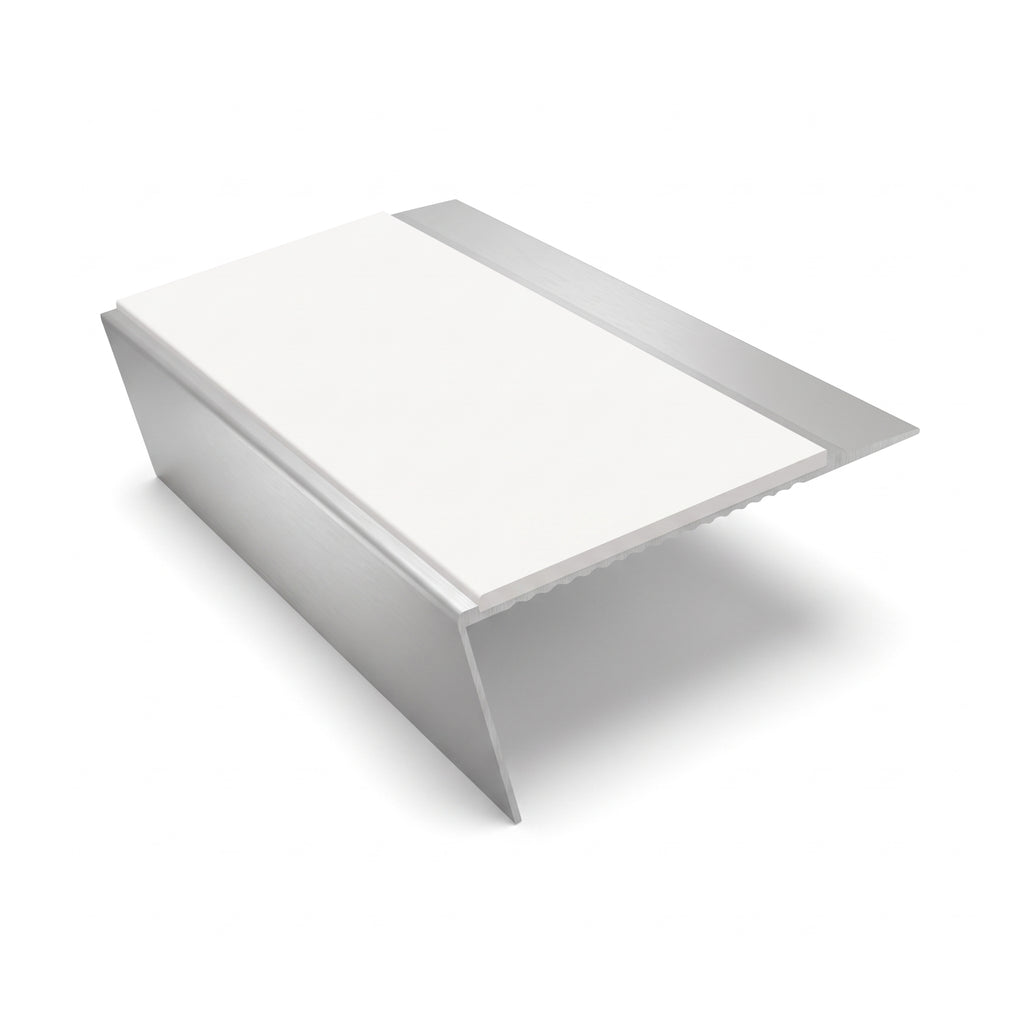

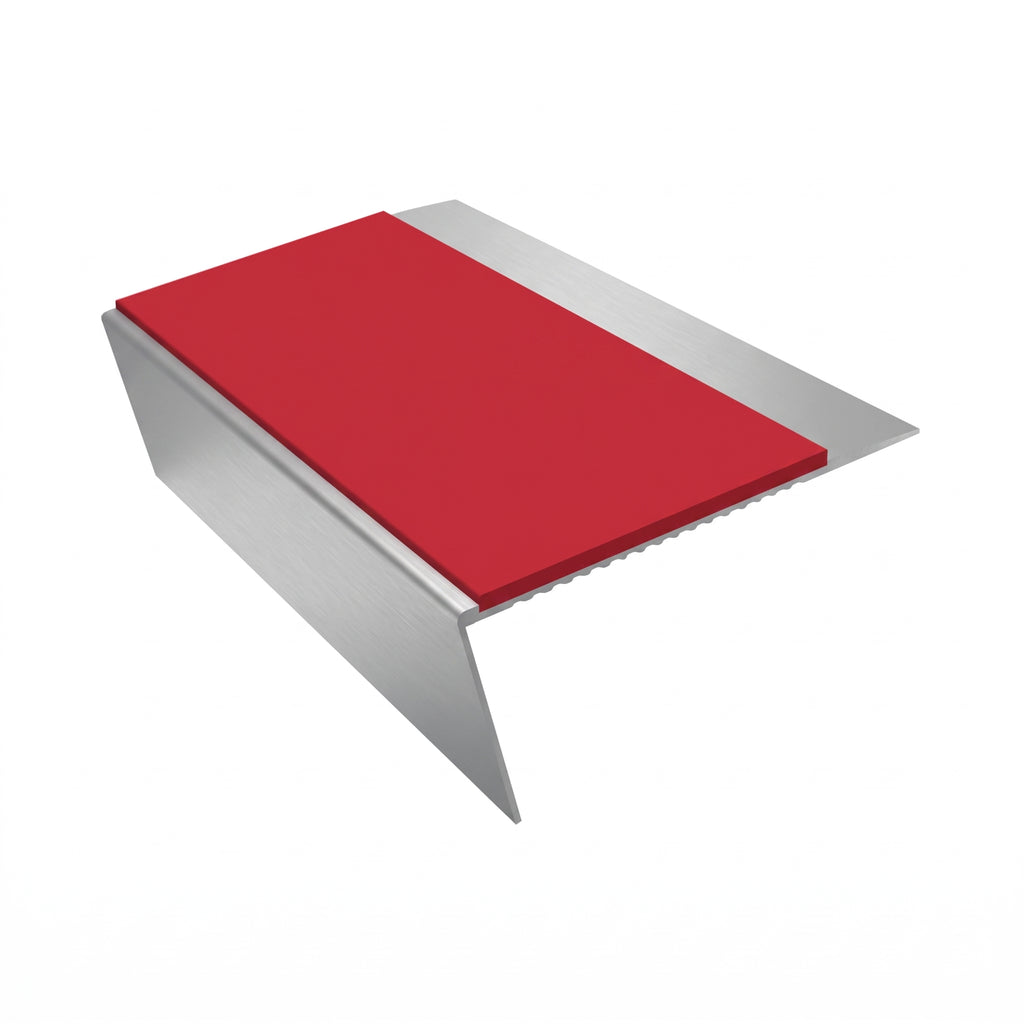

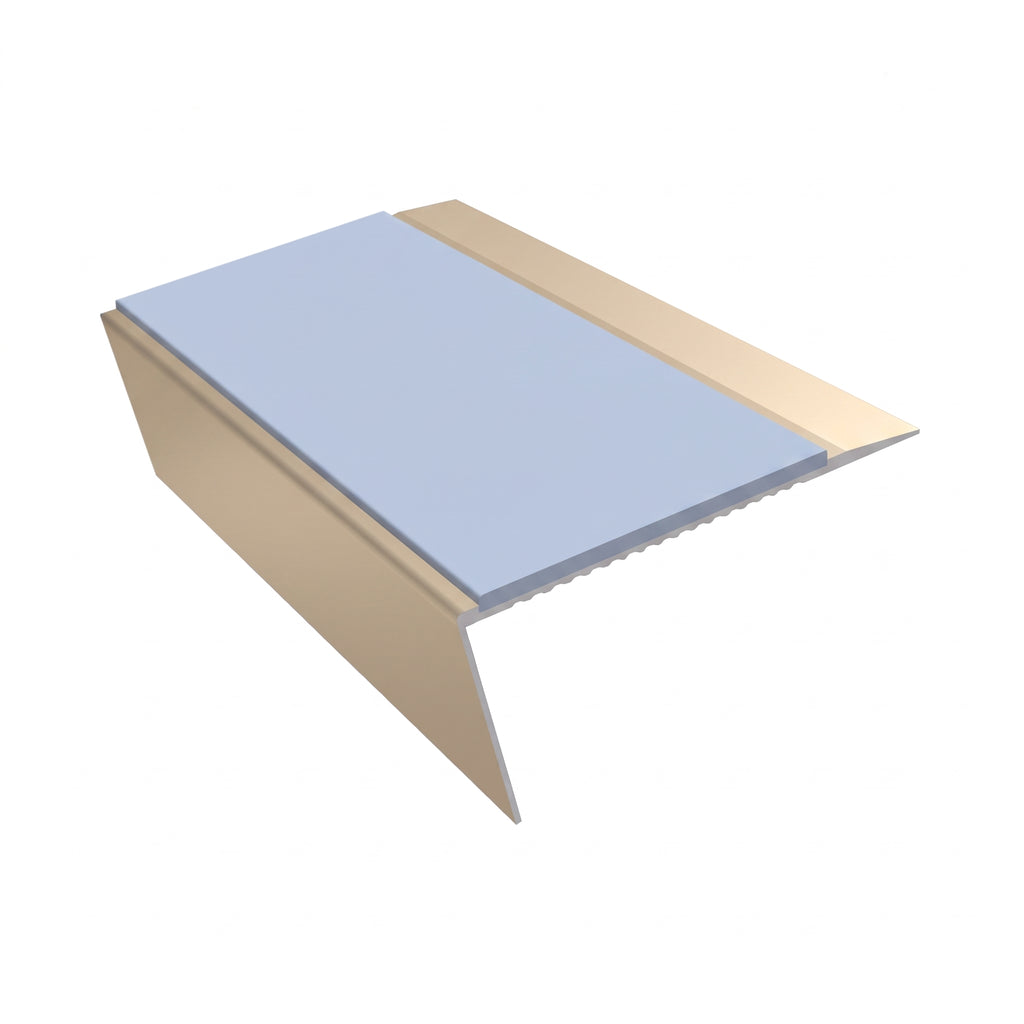

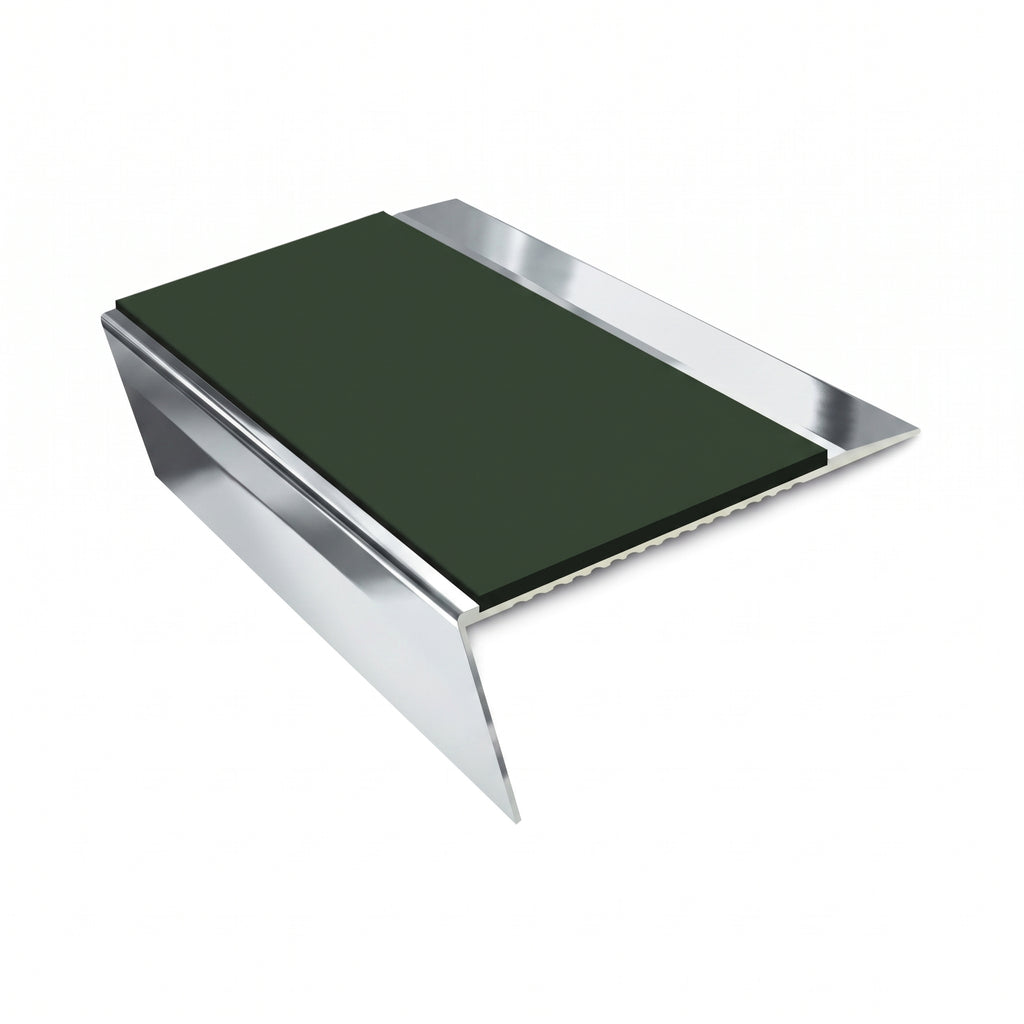

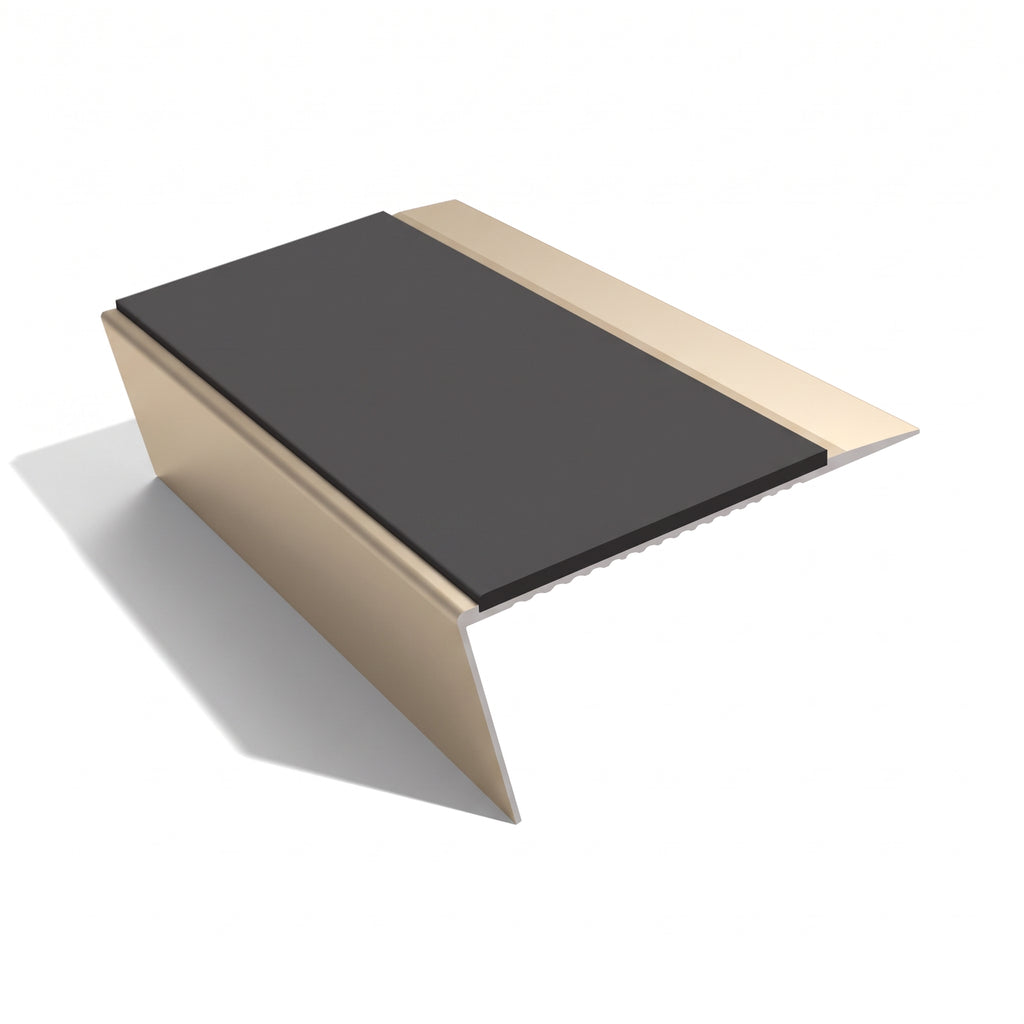

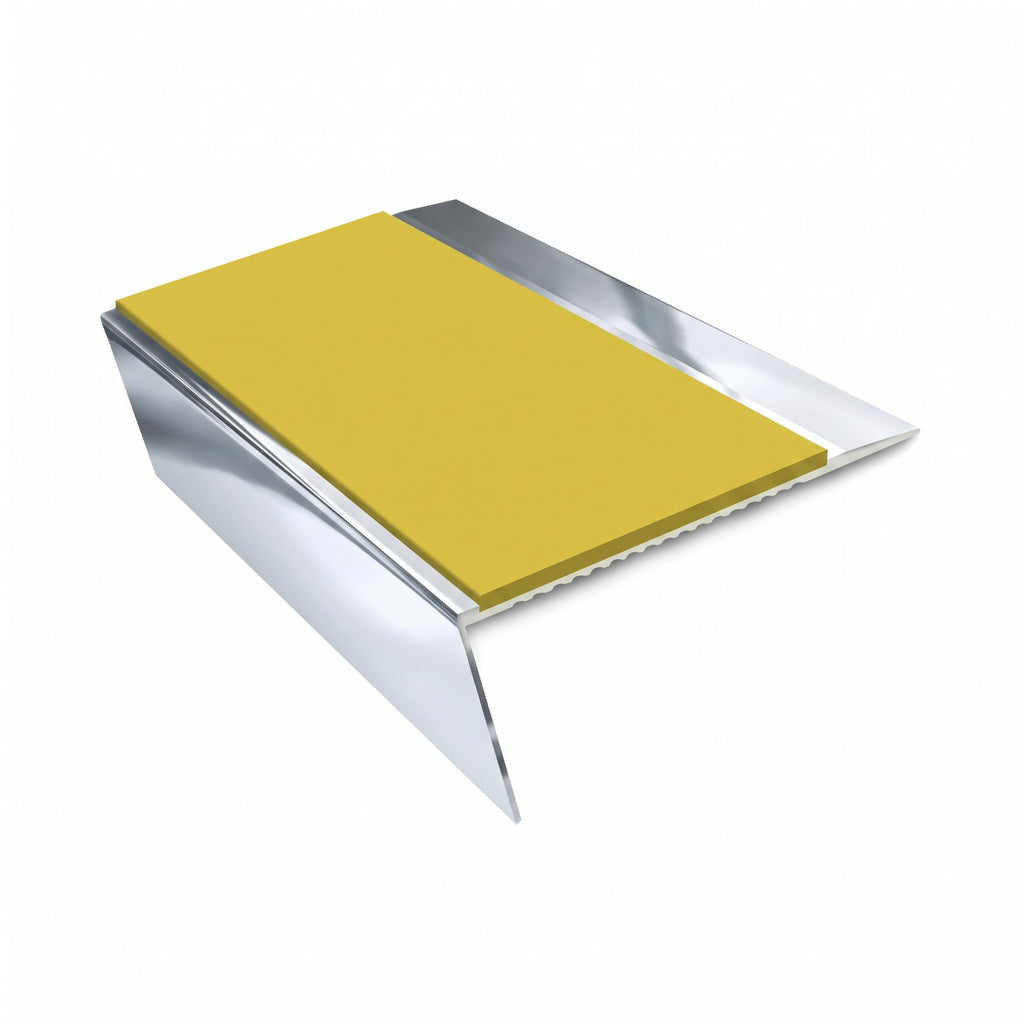

Aluminium Rake Back Stair Nosing — Single Channel Ramp Profile

A precision-engineered aluminium stair nosing with a rake back, ramp-return profile and a single slip-resistant PVC insert channel. Designed to protect and define the leading edge of internal stair treads, this nosing provides a clean, durable transition between stepped floor finishes and adjoining surfaces. Available in stock lengths of 2.44 metres (2440mm) and 2.75 metres (2750mm), it is suitable for vinyl, LVT, timber and other hard floor coverings in both commercial and residential settings.

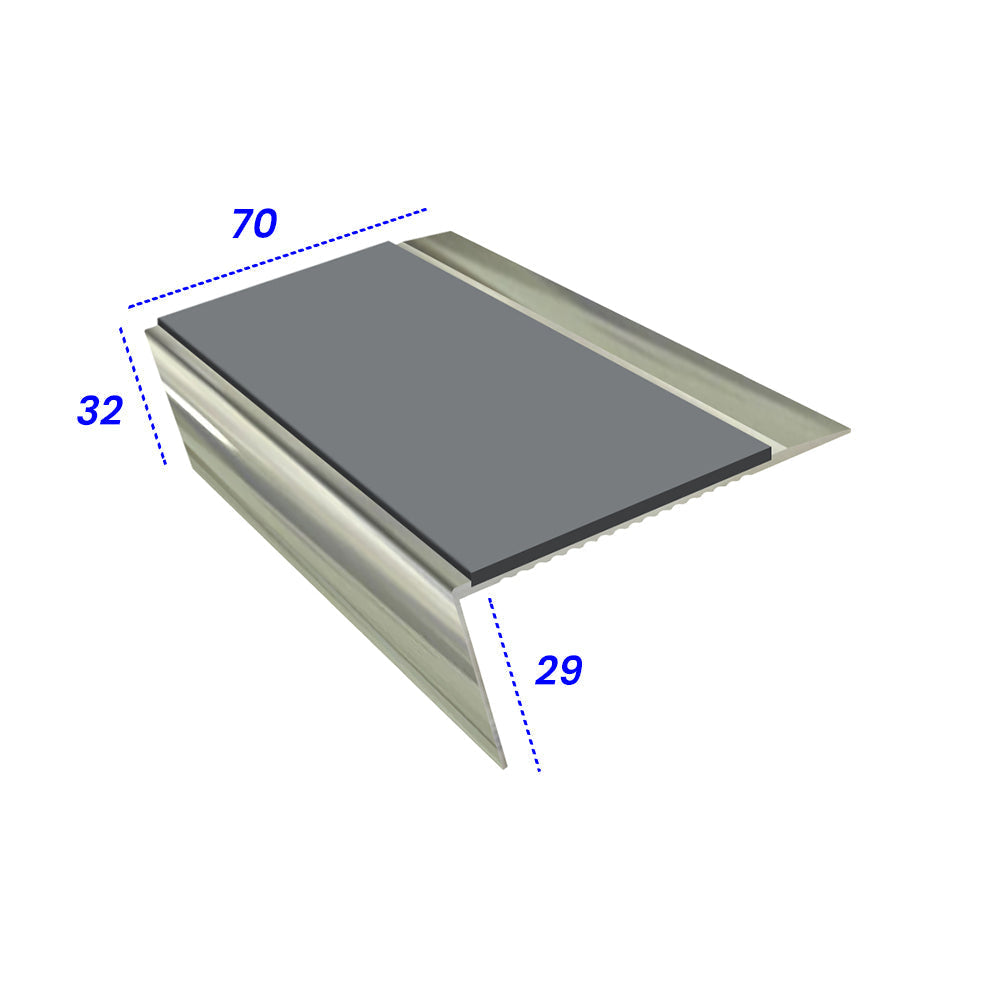

Profile Type: Rake Back  |  Channels: Single  |  Insert: PVC  |  Gauge: 3.5mm  |  Tread: 70mm  |  Riser: 32mm

Technical Specifications

Specification Detail
Profile Material Aluminium Alloy
Insert Material Polyvinylchloride (PVC)
No. of Insert Channels Single (1 channel)
Insert Type Slip-resistant PVC strip
Stair Profile Requirement Rake Back (Ramp Back)
Fixing Method Mechanical fixing (screws) and / or adhesive, to suit substrate
Suitable Floor Coverings Vinyl, LVT, timber, laminate and other hard floor finishes
Stock Lengths 2.44 Metre (2440mm)  |  2.75 Metre (2750mm)
Tread (horizontal face) 70mm
Riser (vertical face) 32mm
Gauge (material thickness) 3.5mm
Application Internal staircases — commercial and residential
Typical Substrates Concrete, timber and metal stair structures

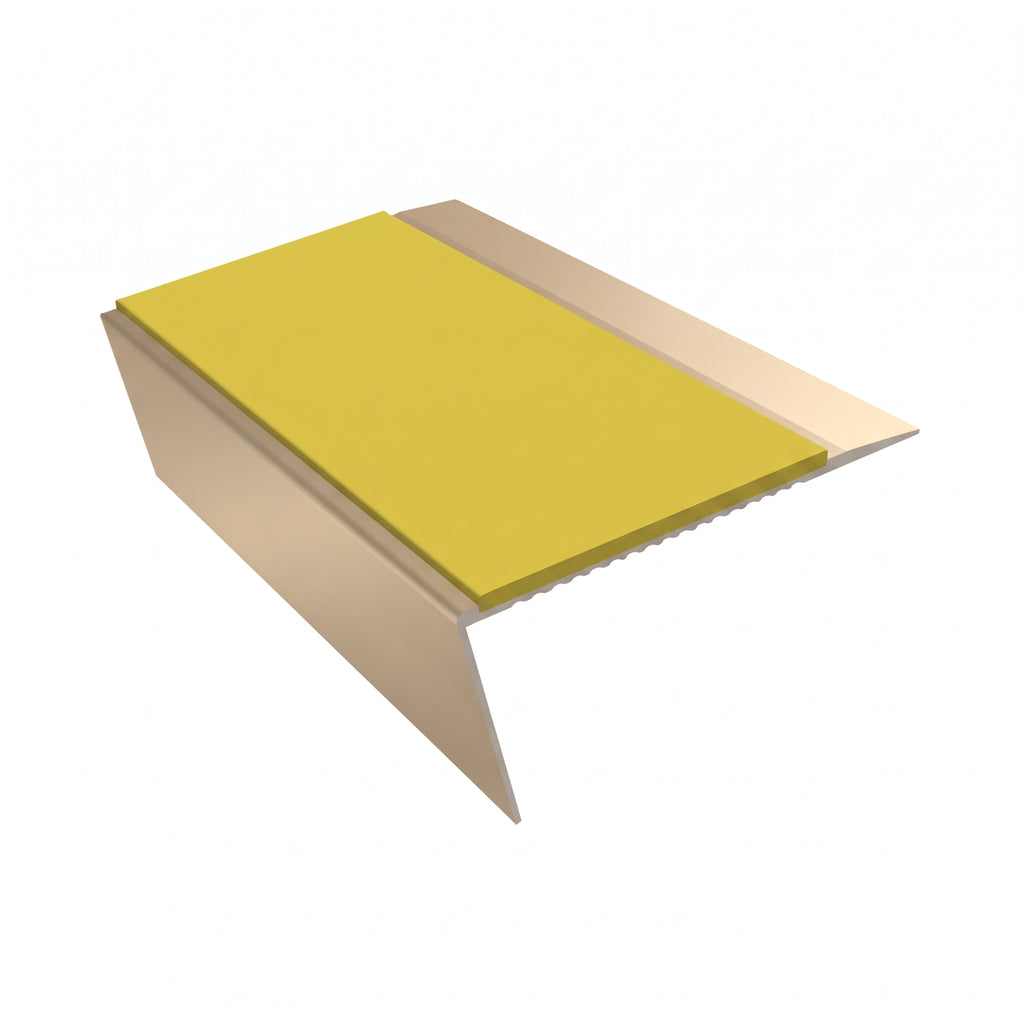

Available Aluminium Finishes

Six surface finishes are available to suit a range of interior schemes, from understated to high-impact:

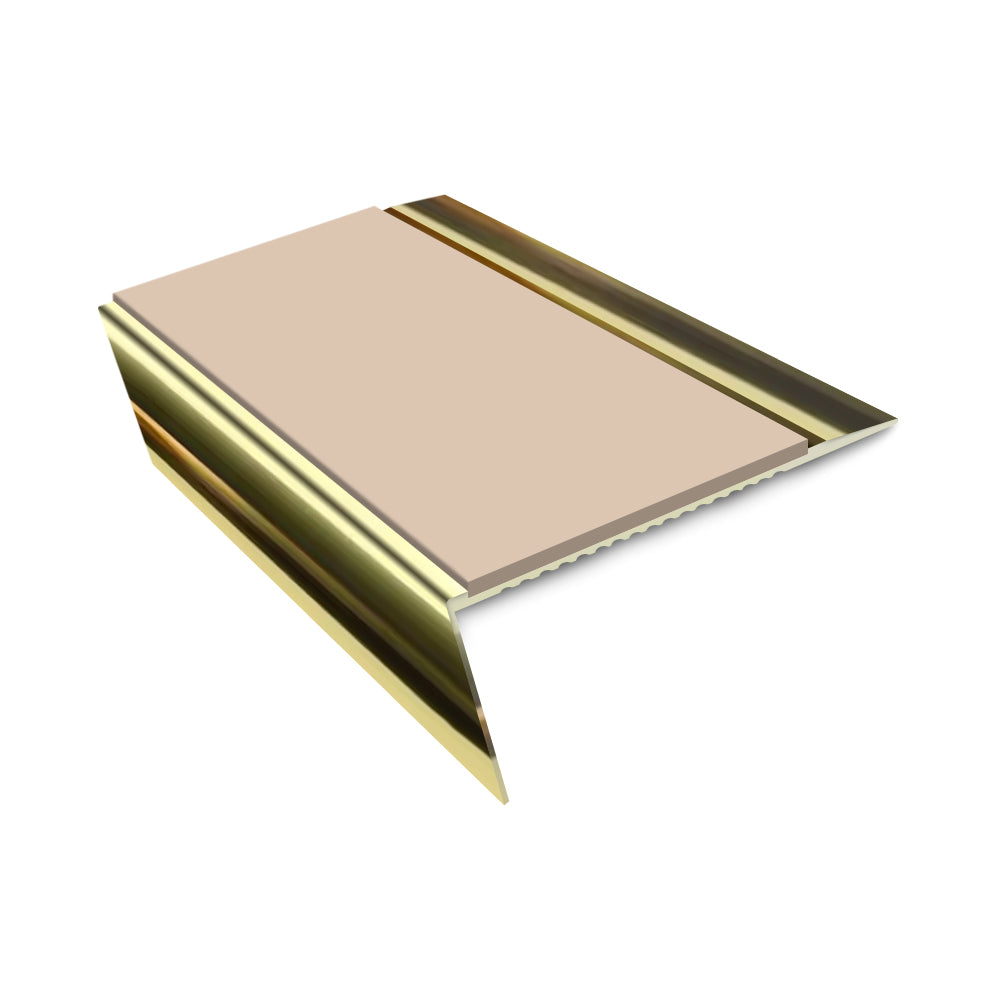

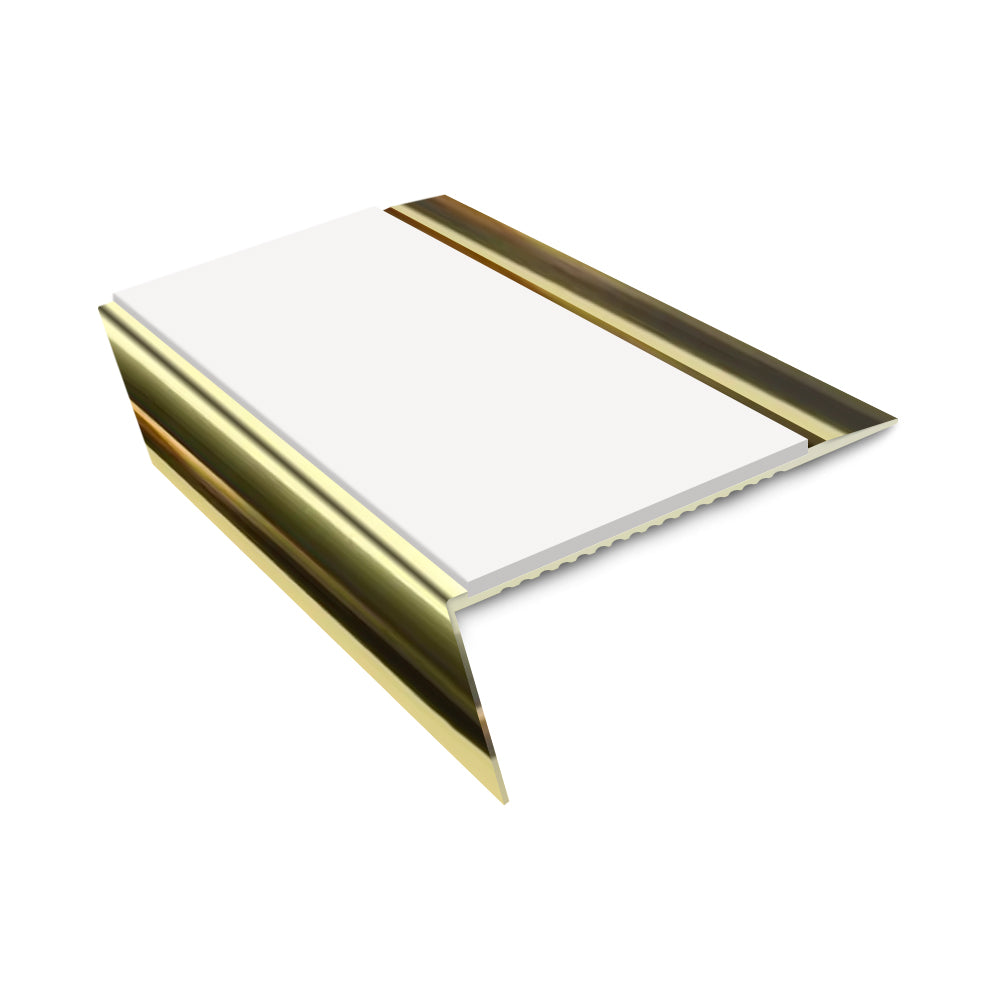

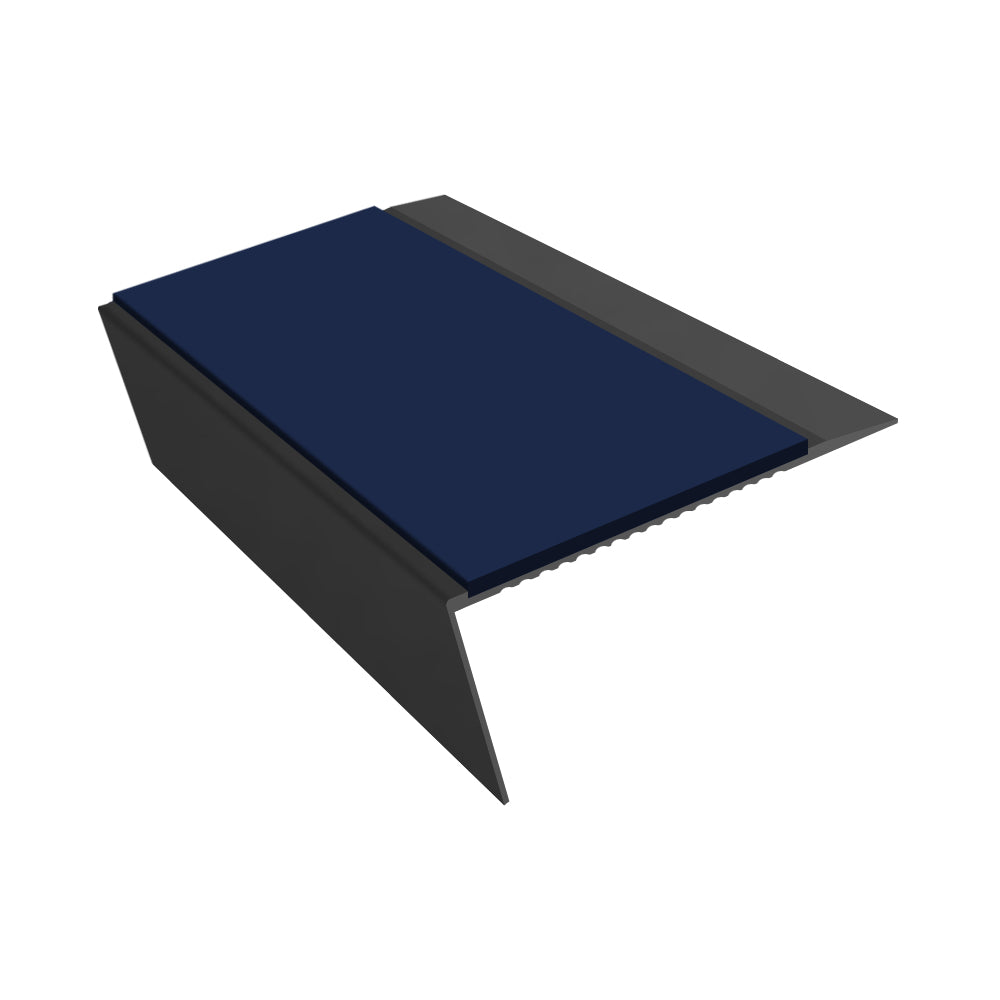

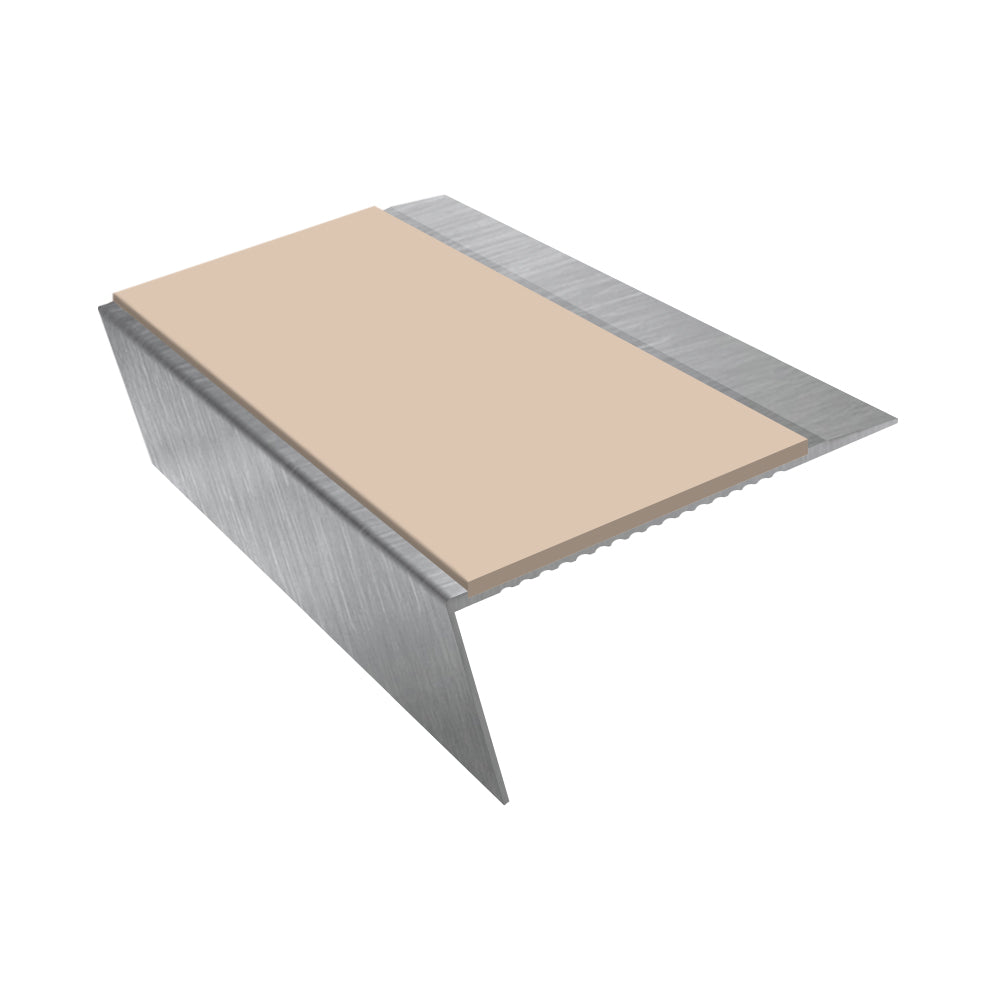

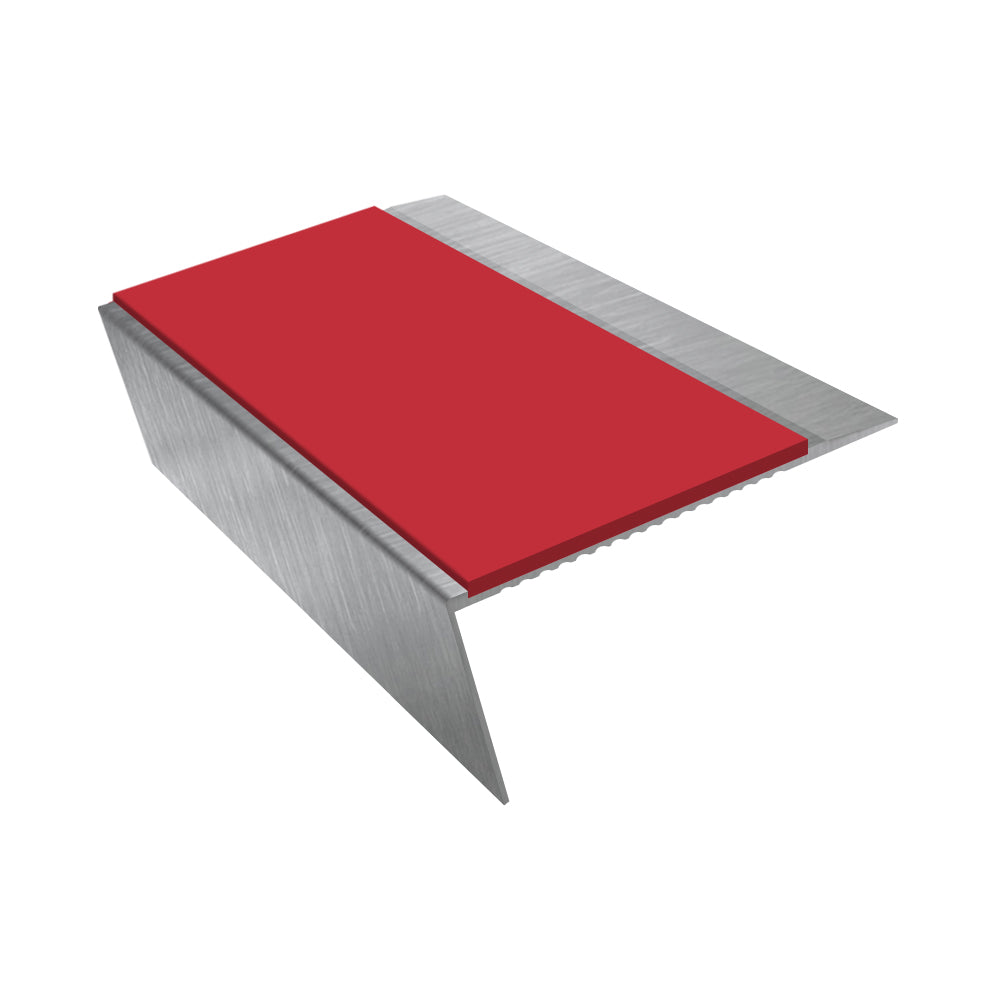

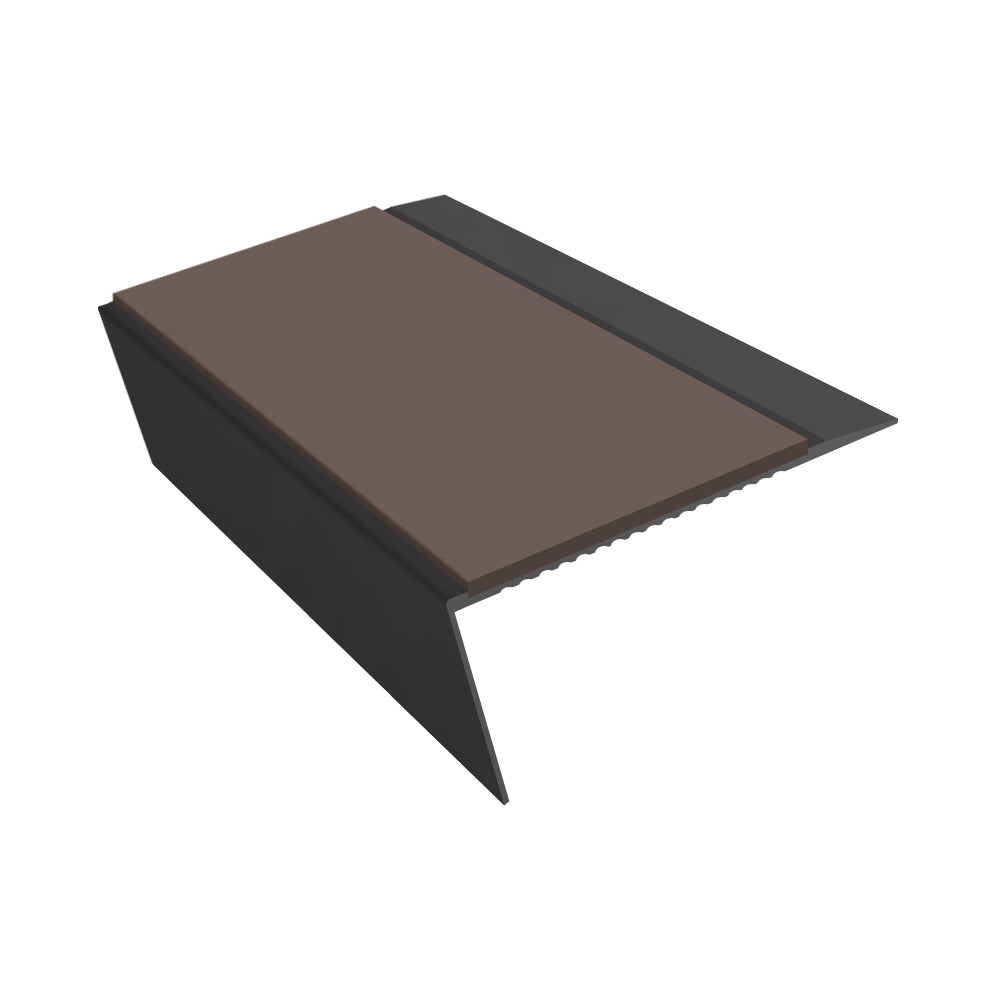

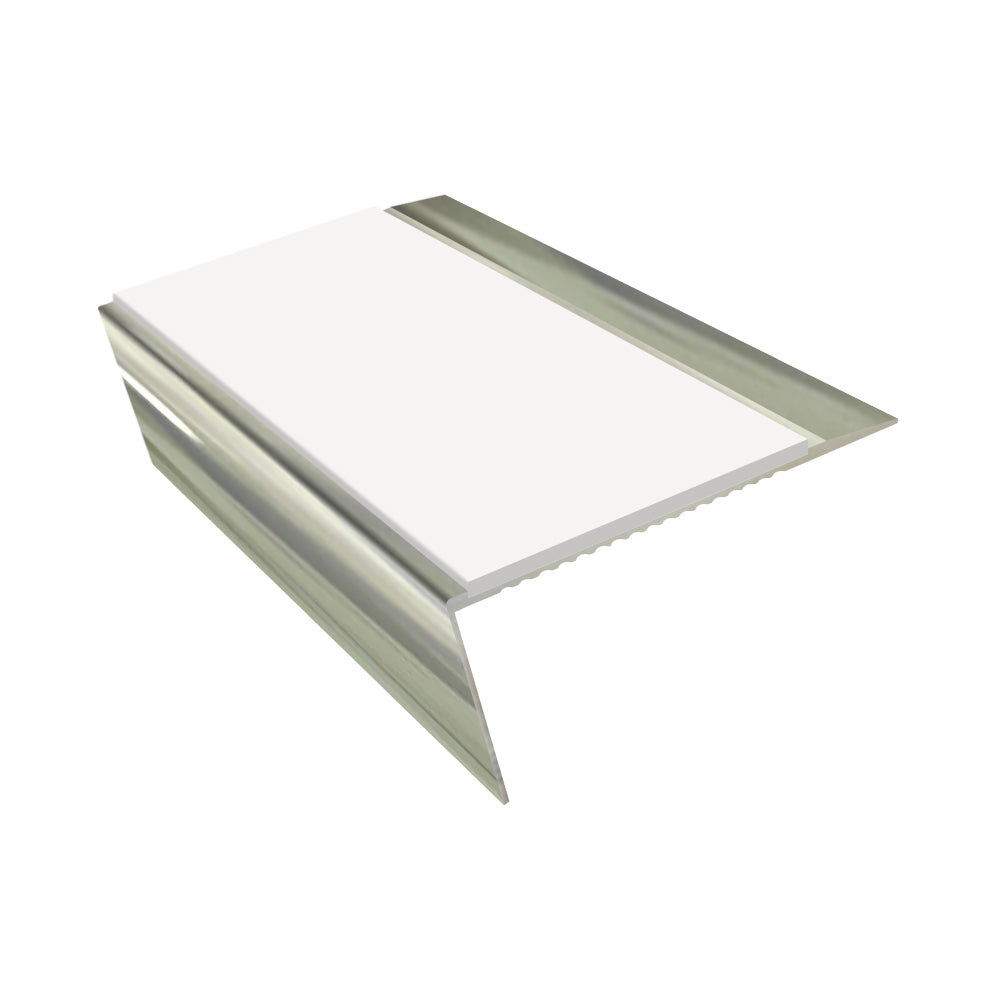

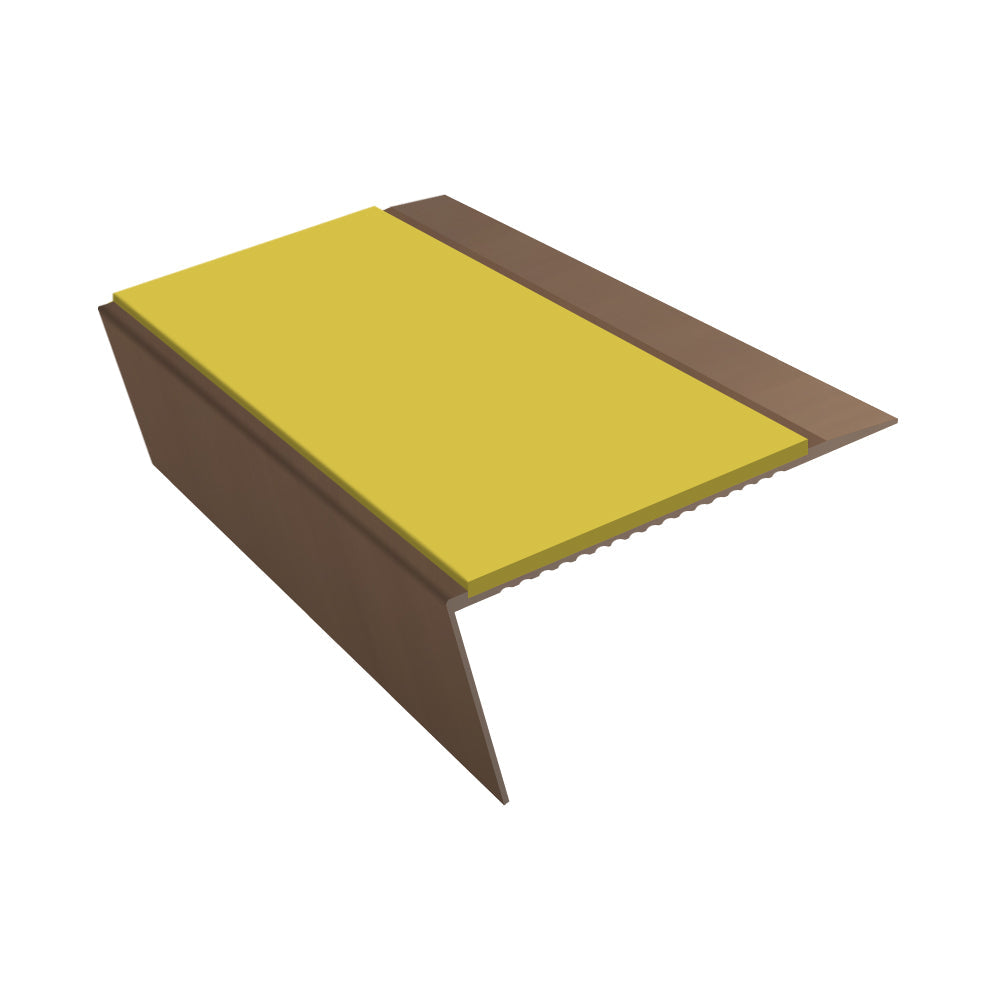

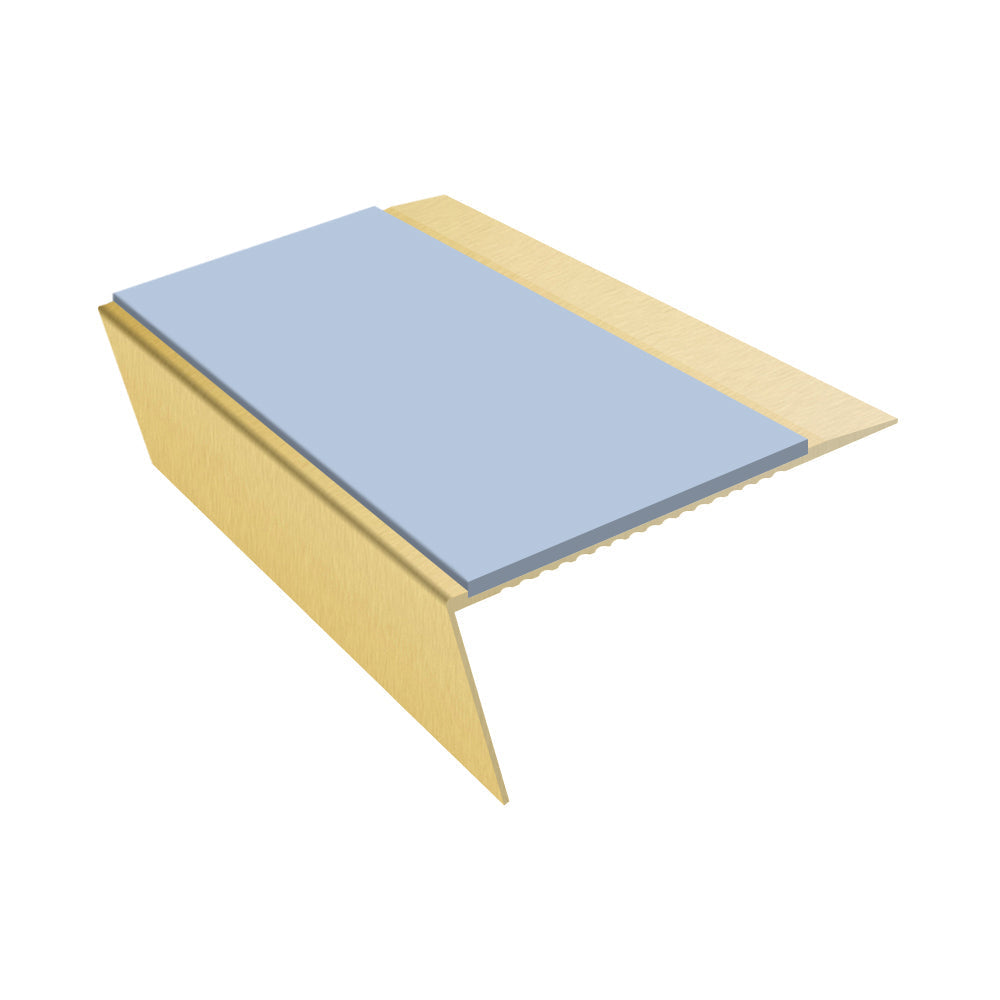

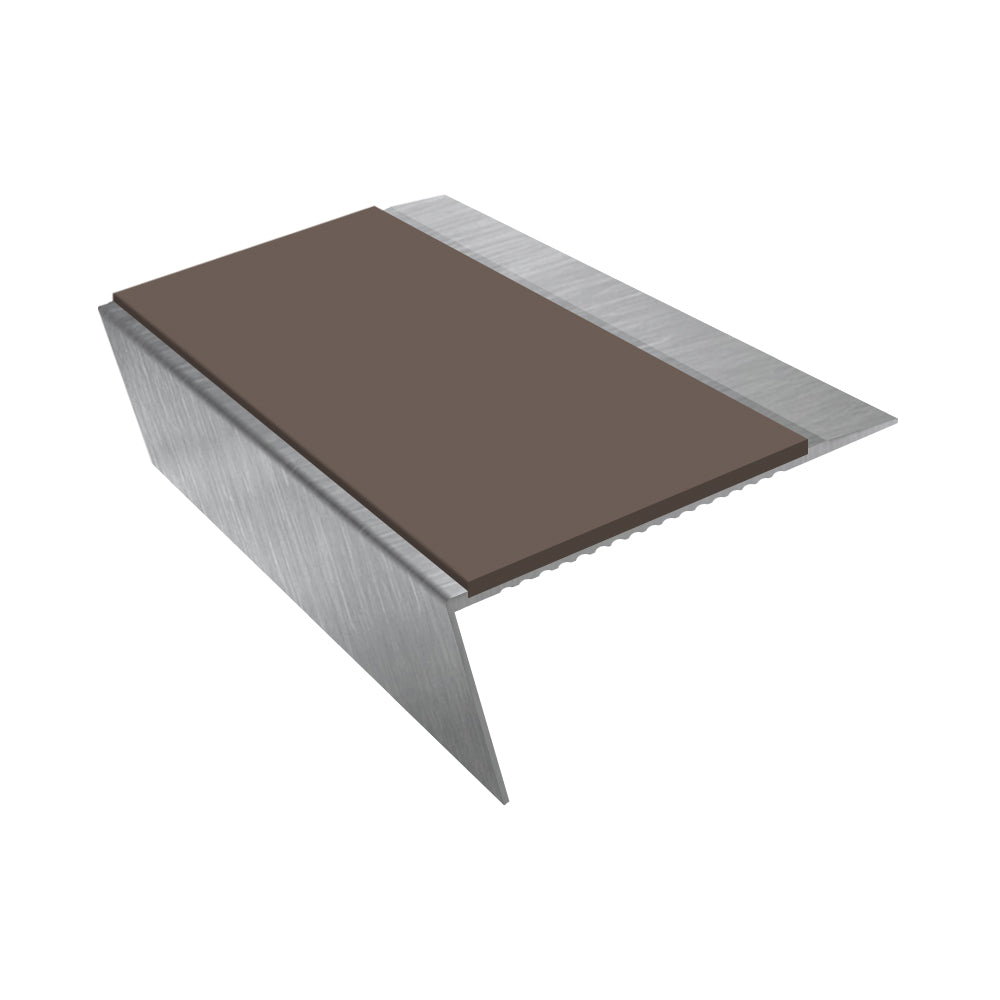

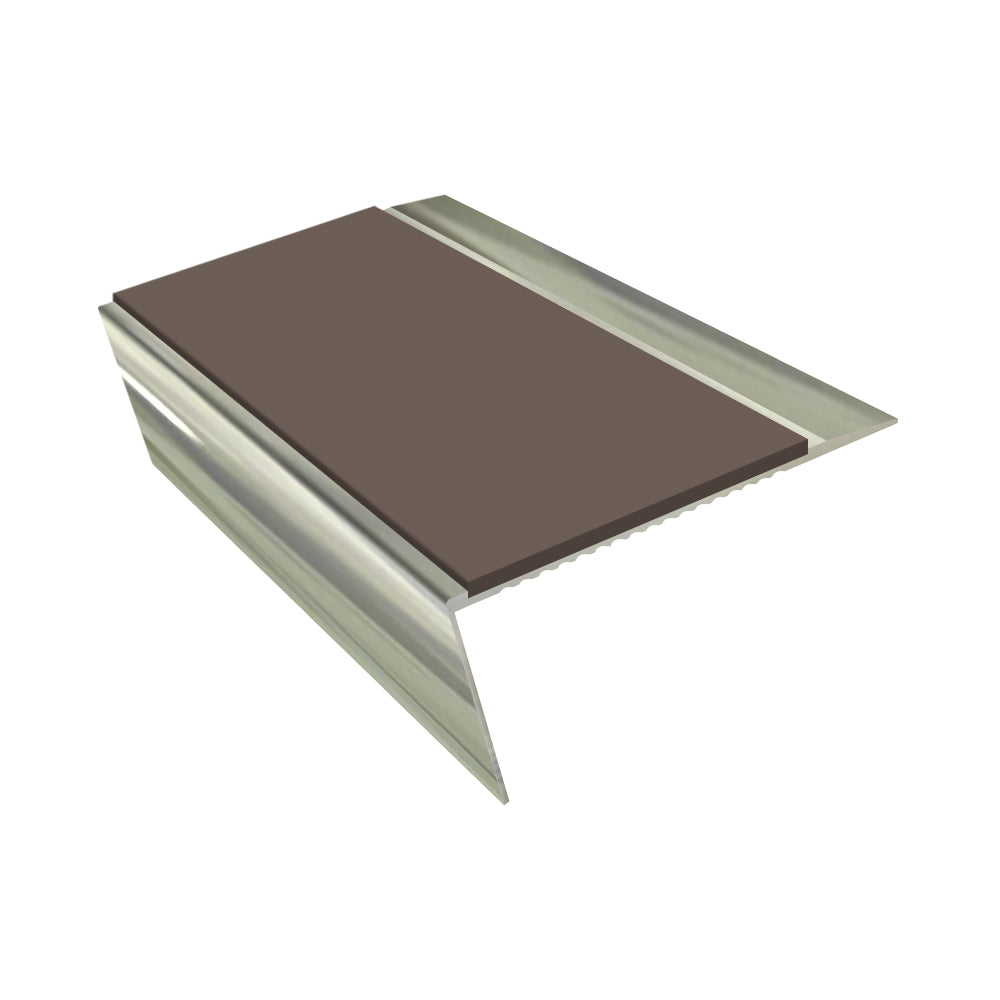

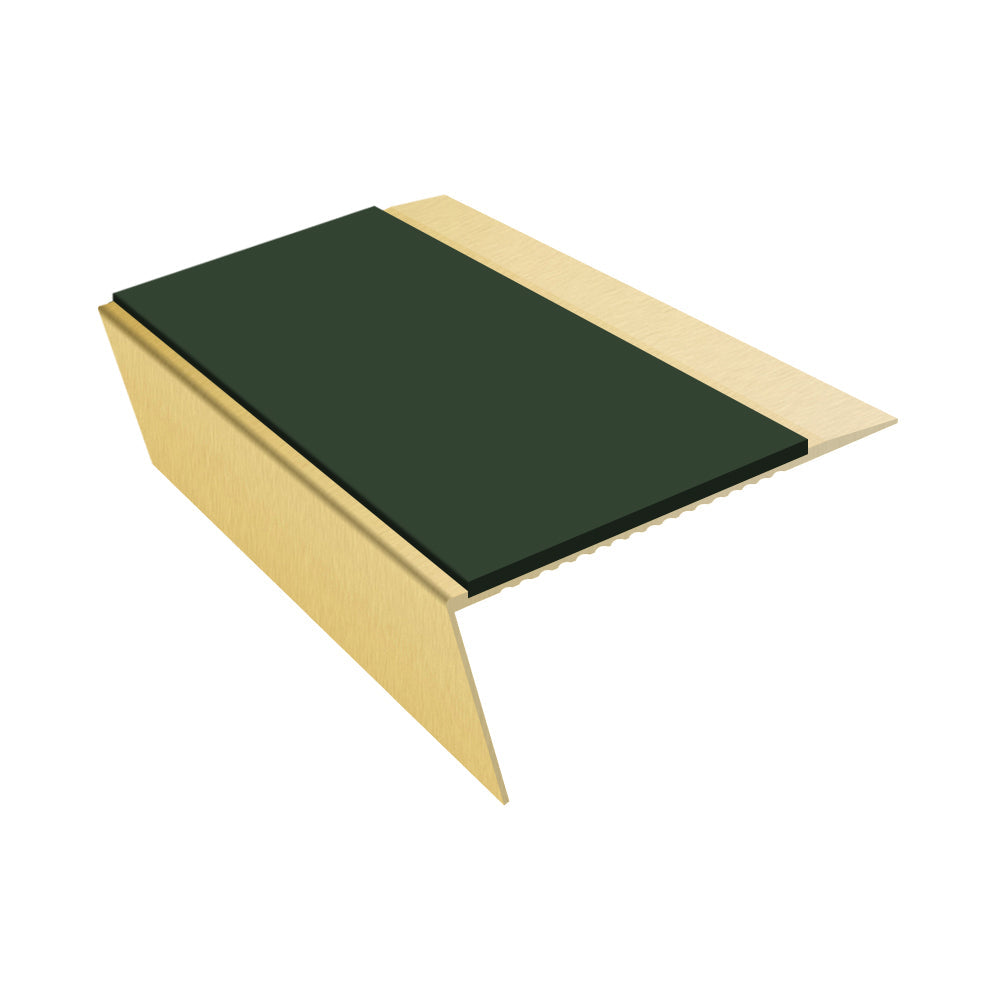

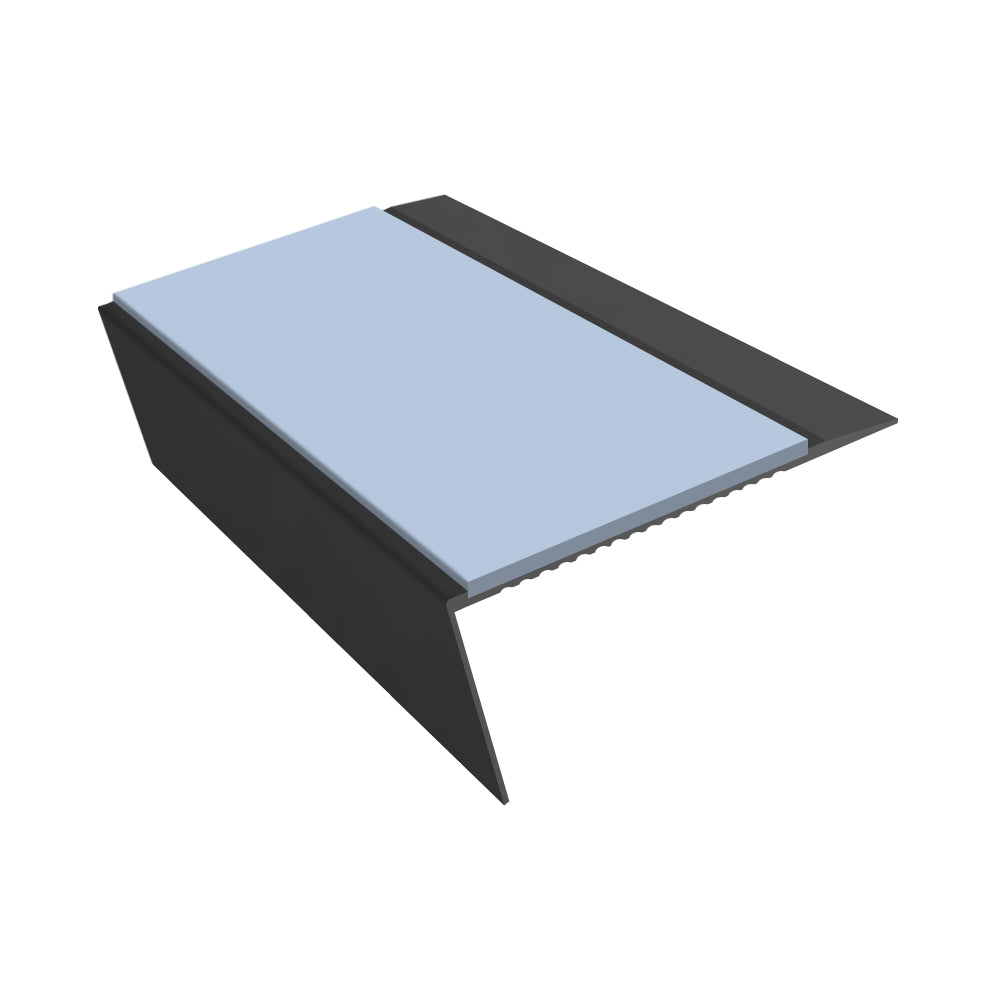

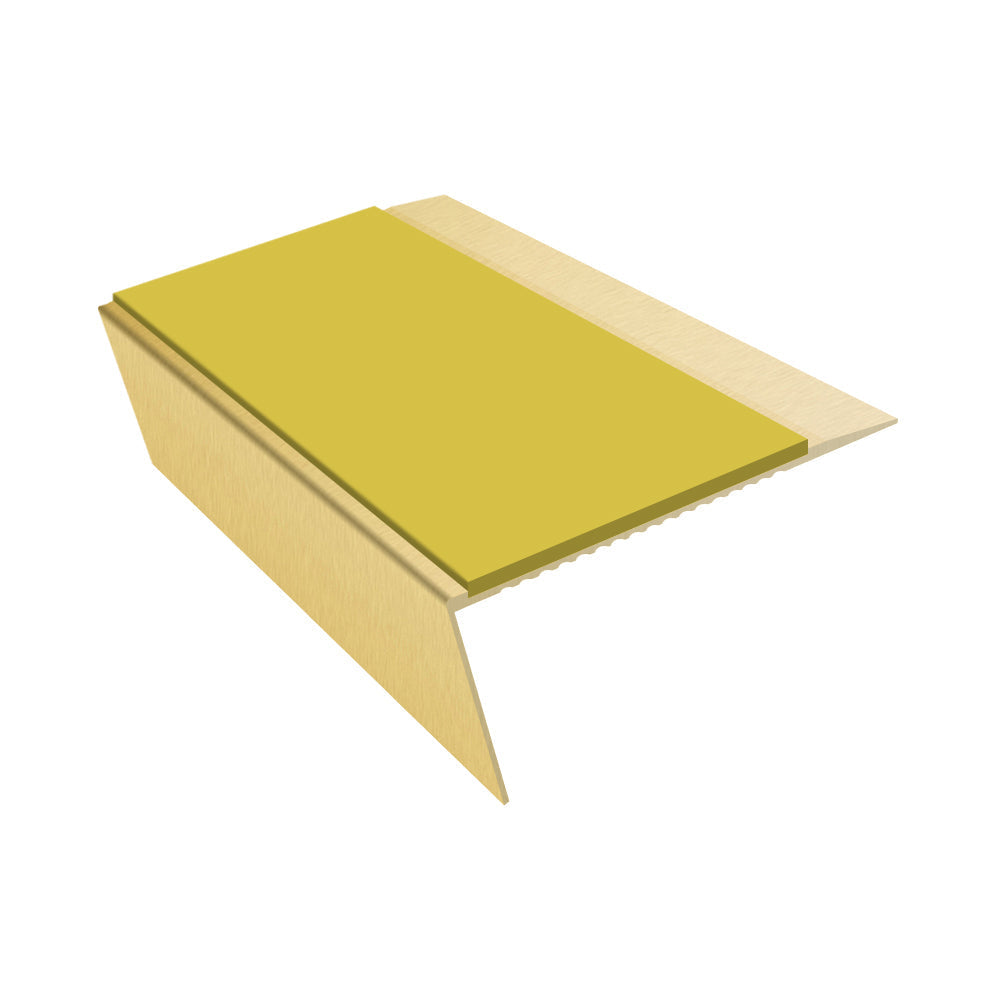

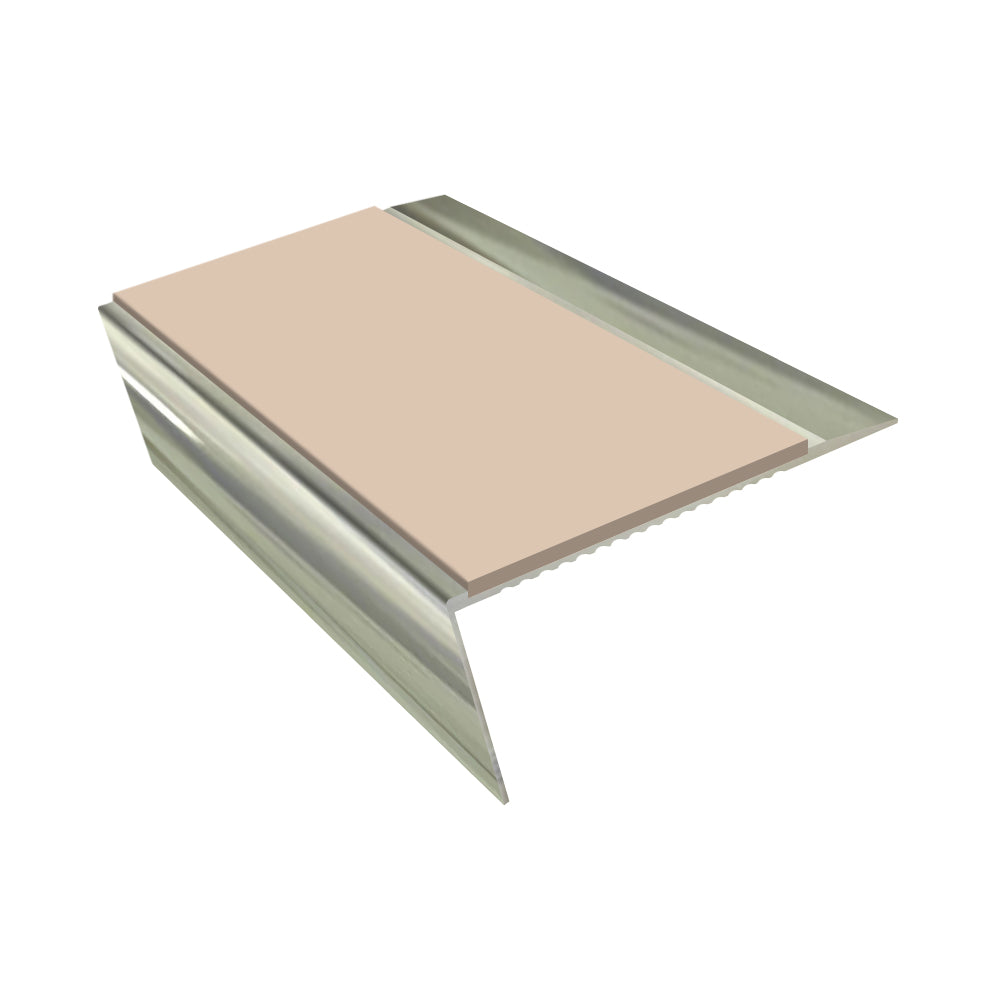

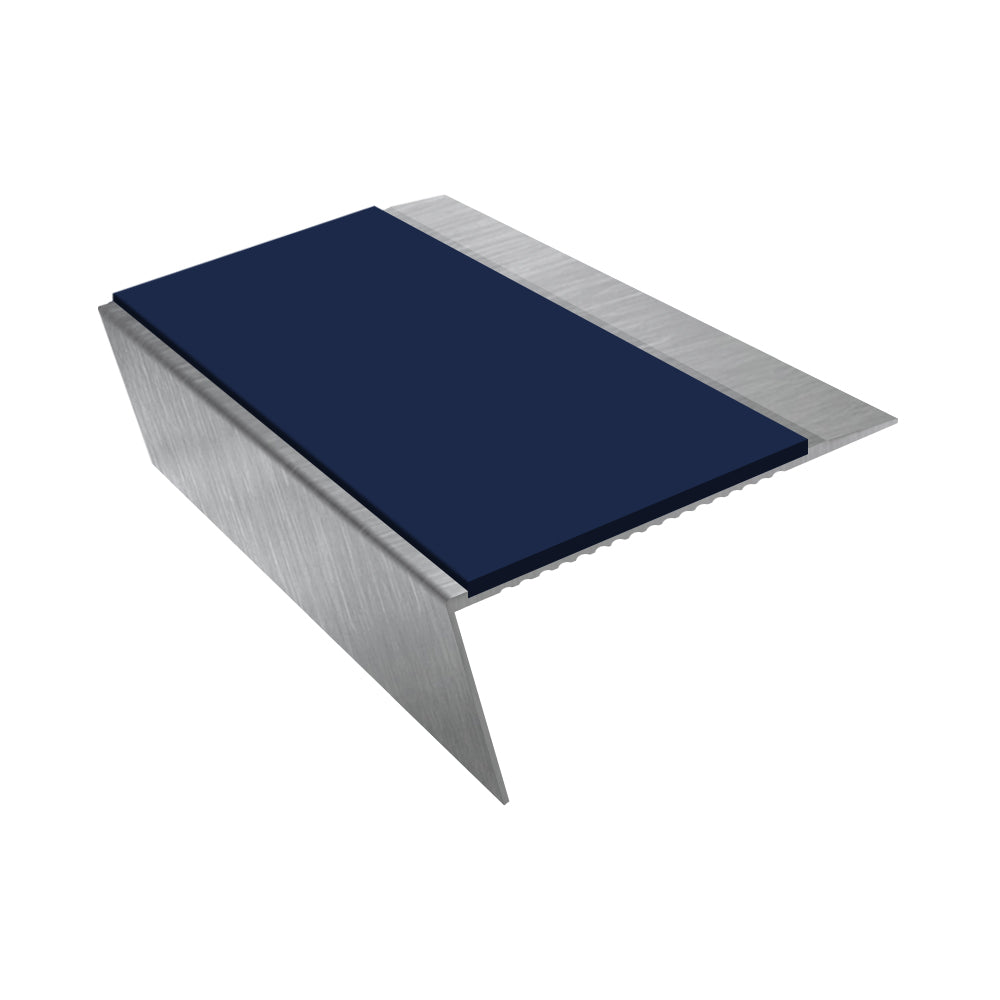

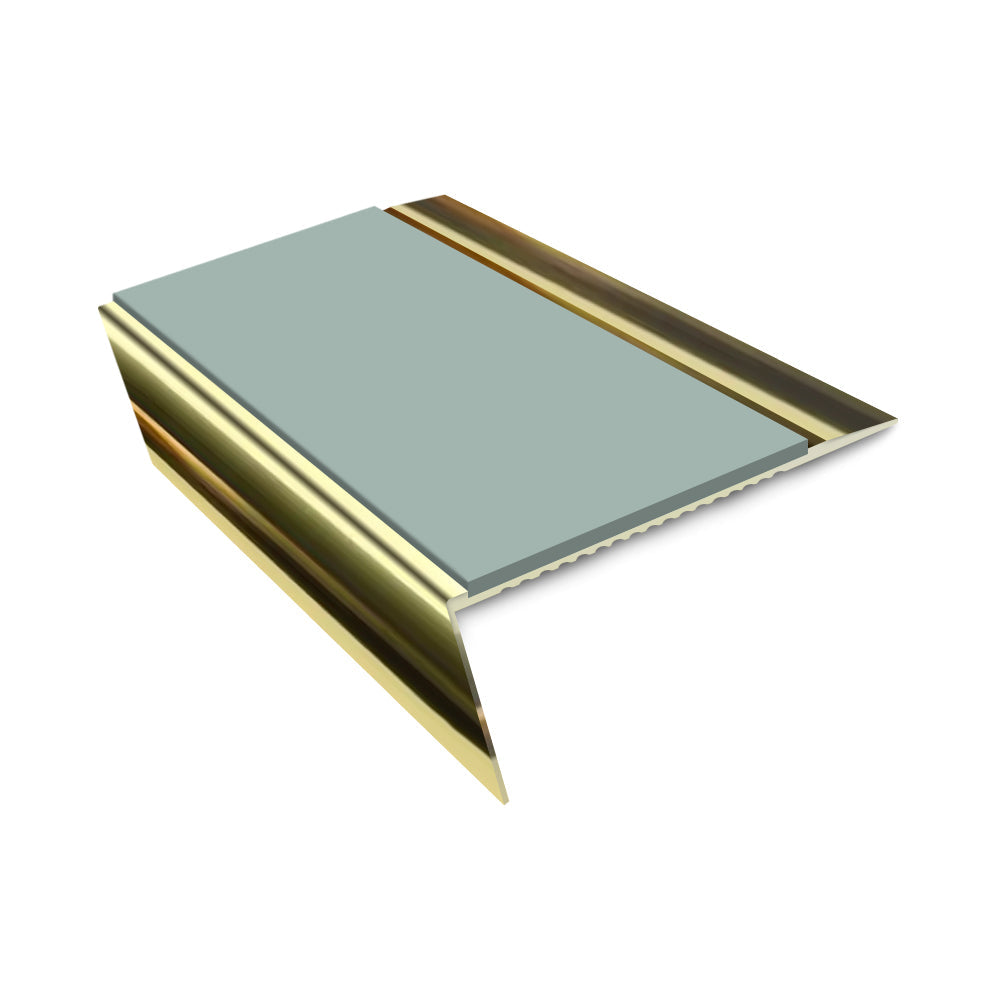

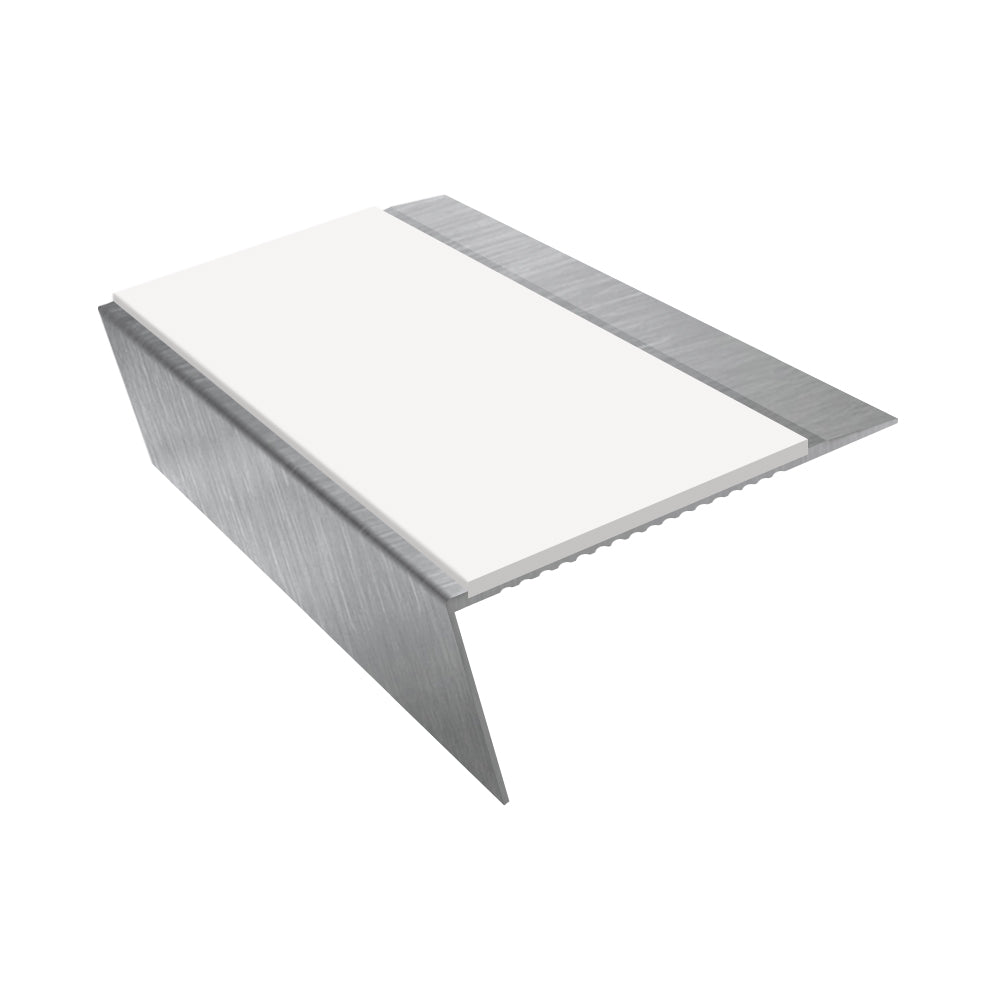

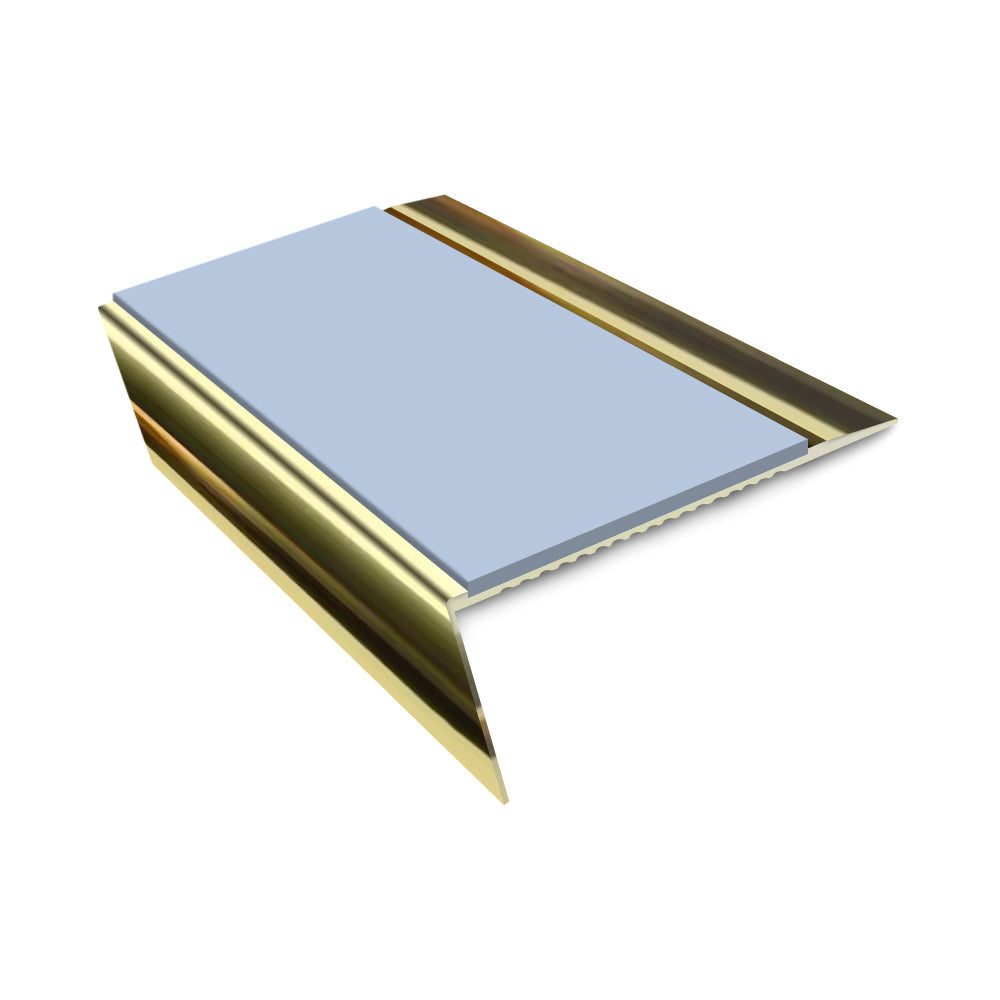

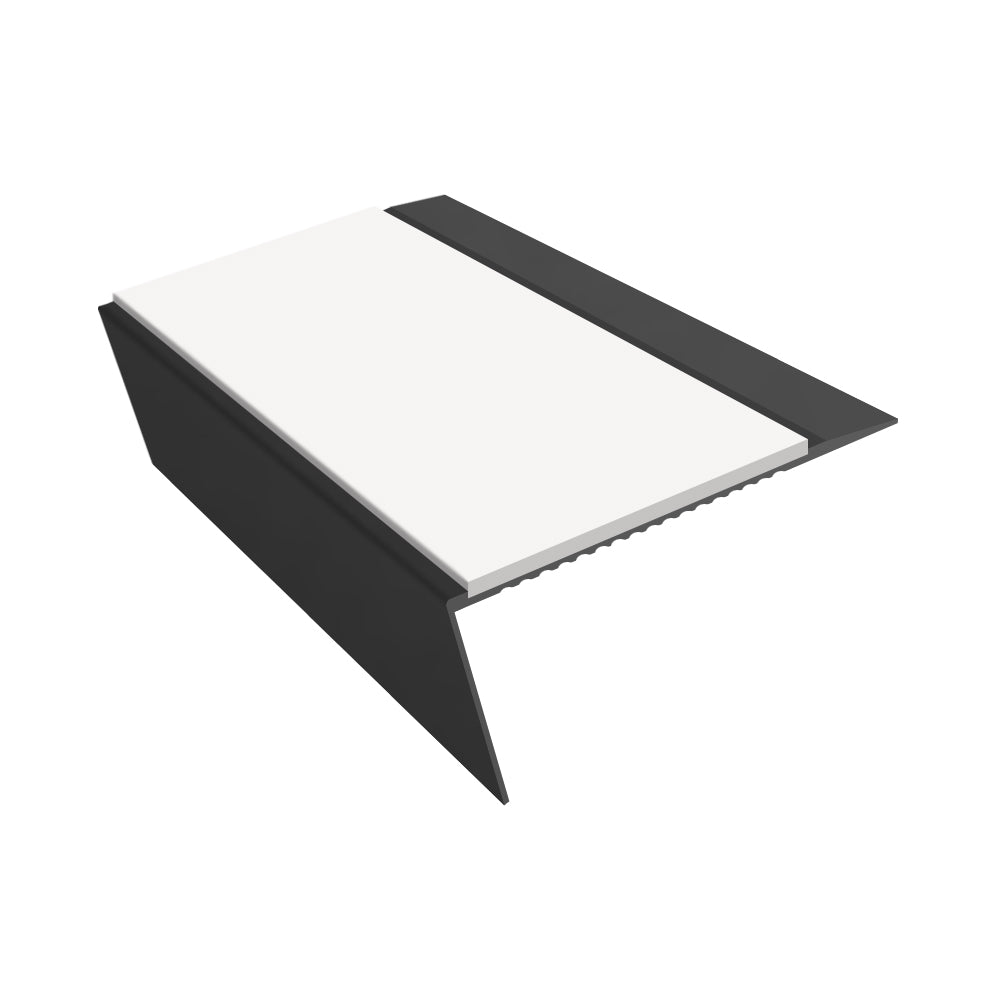

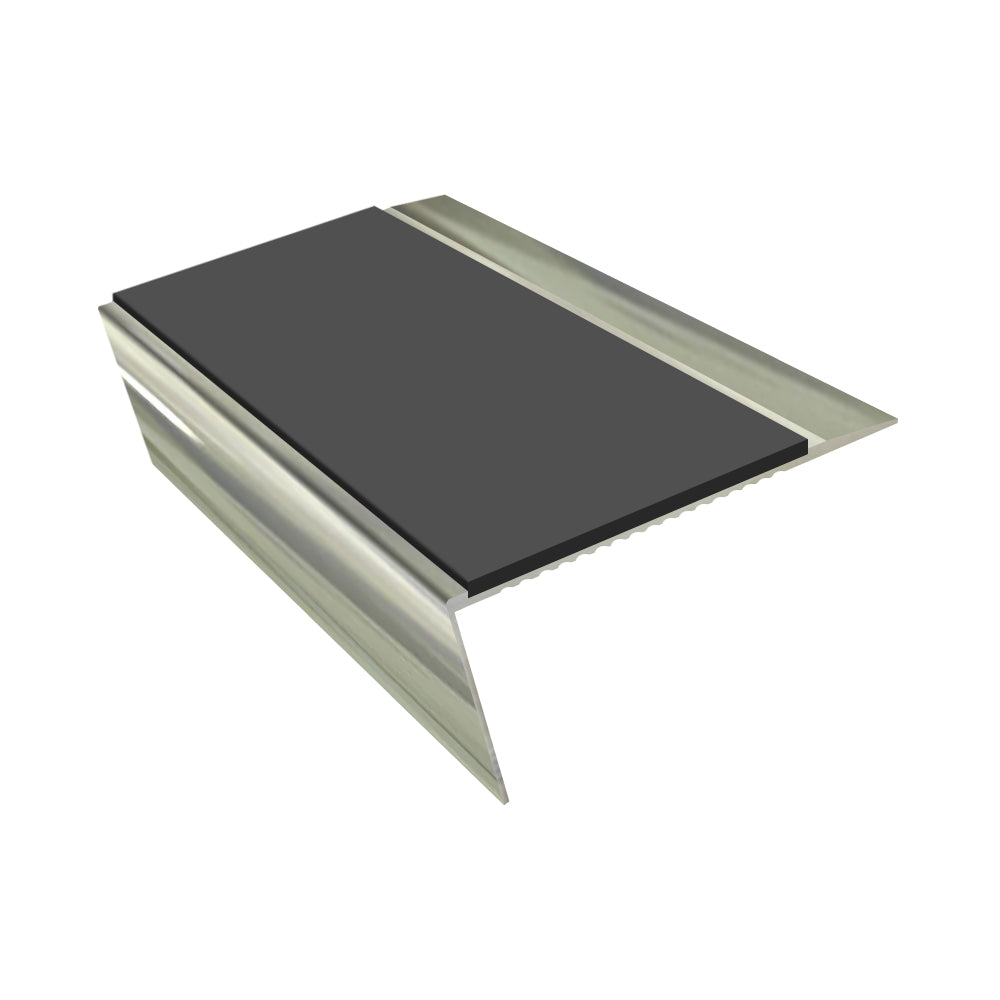

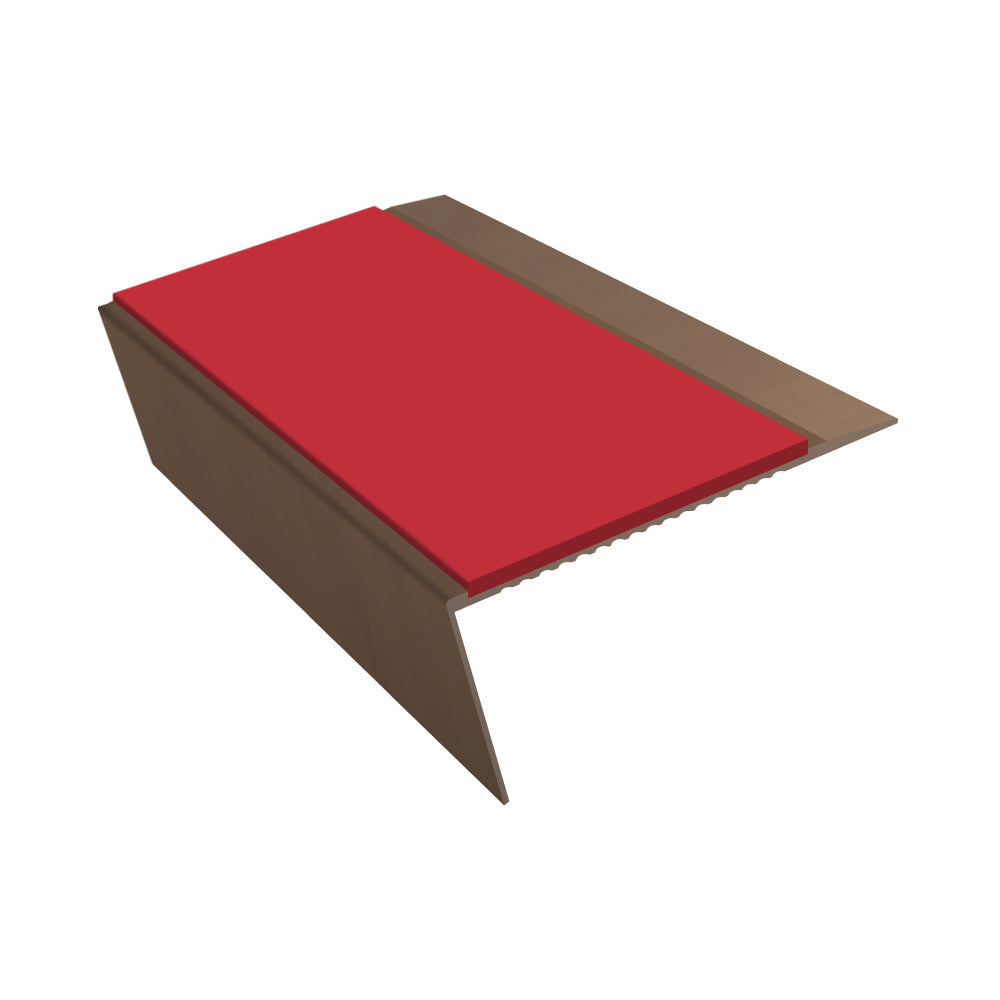

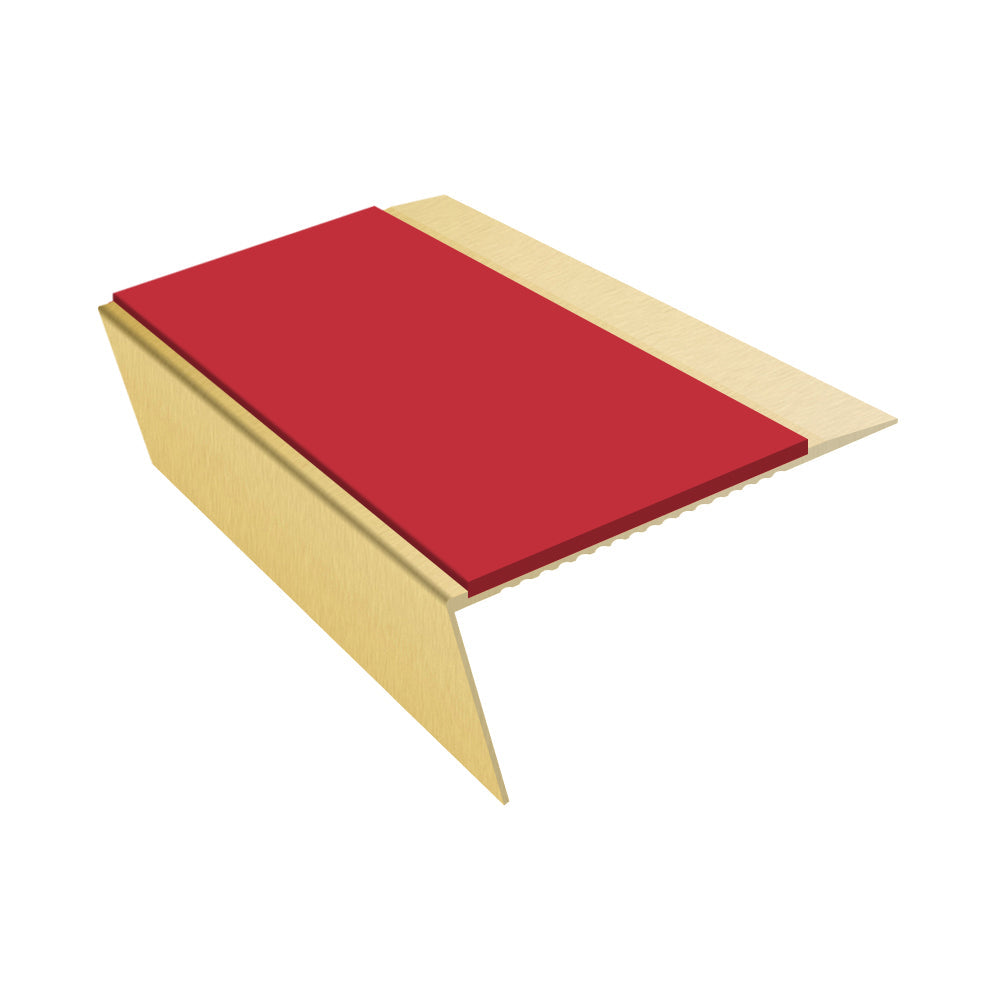

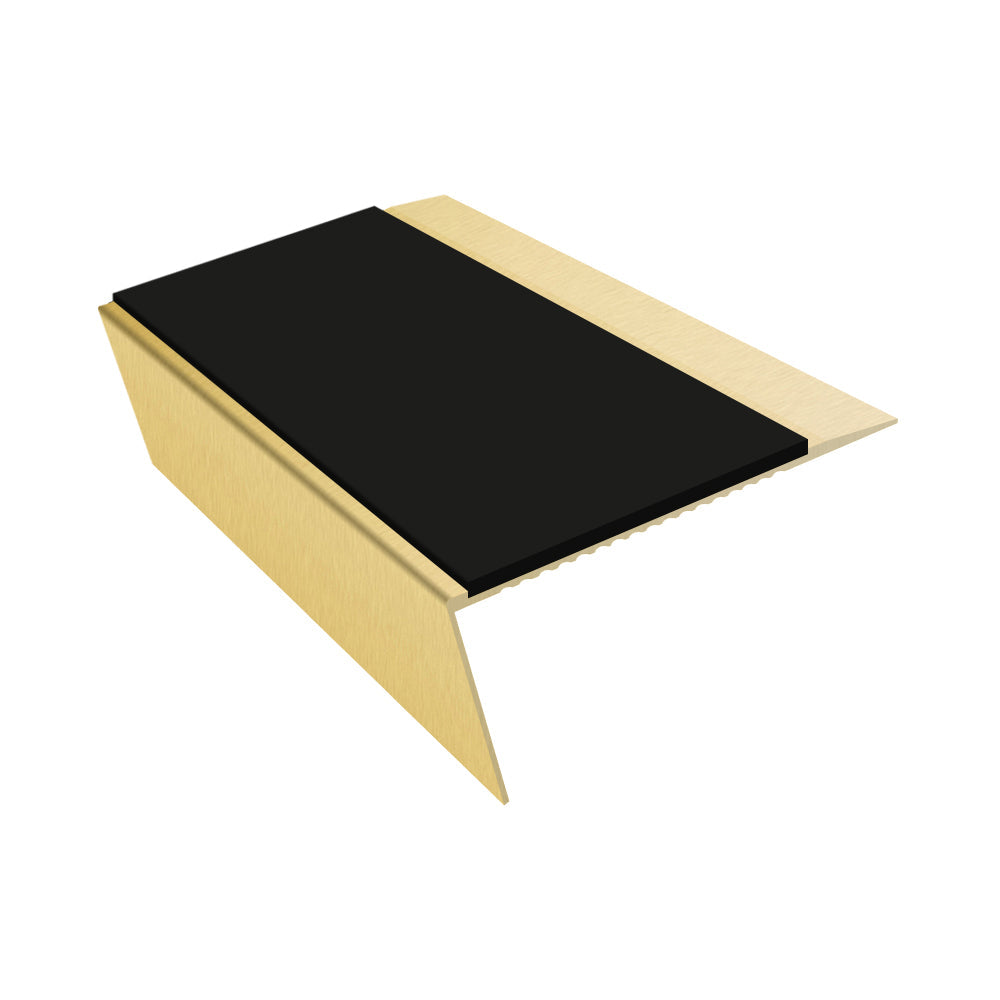

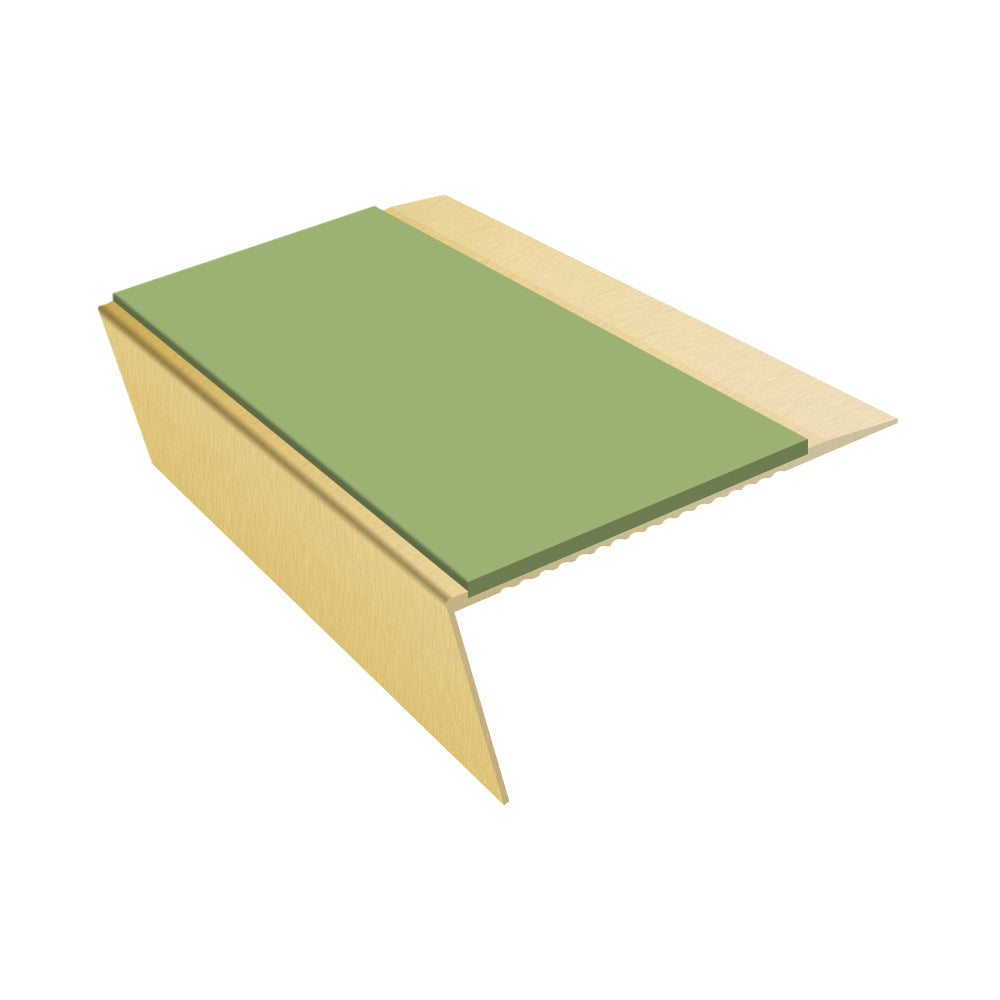

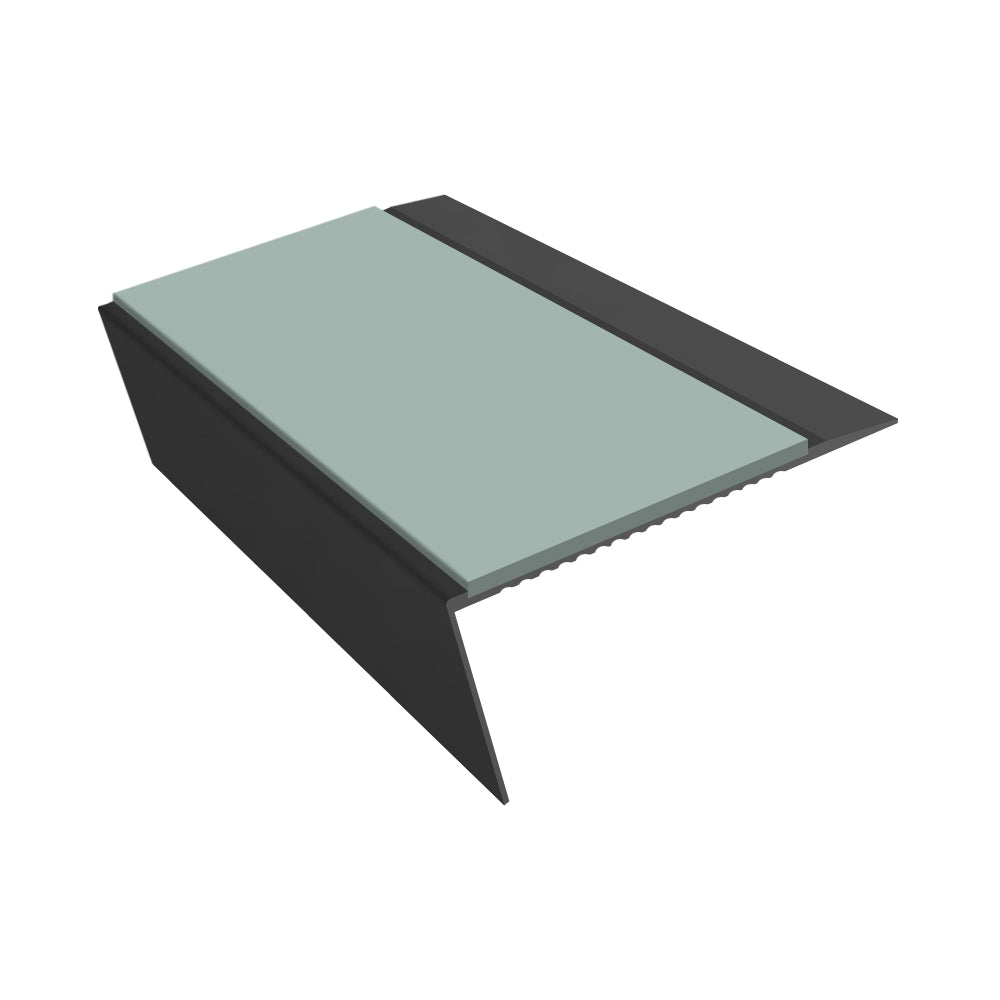

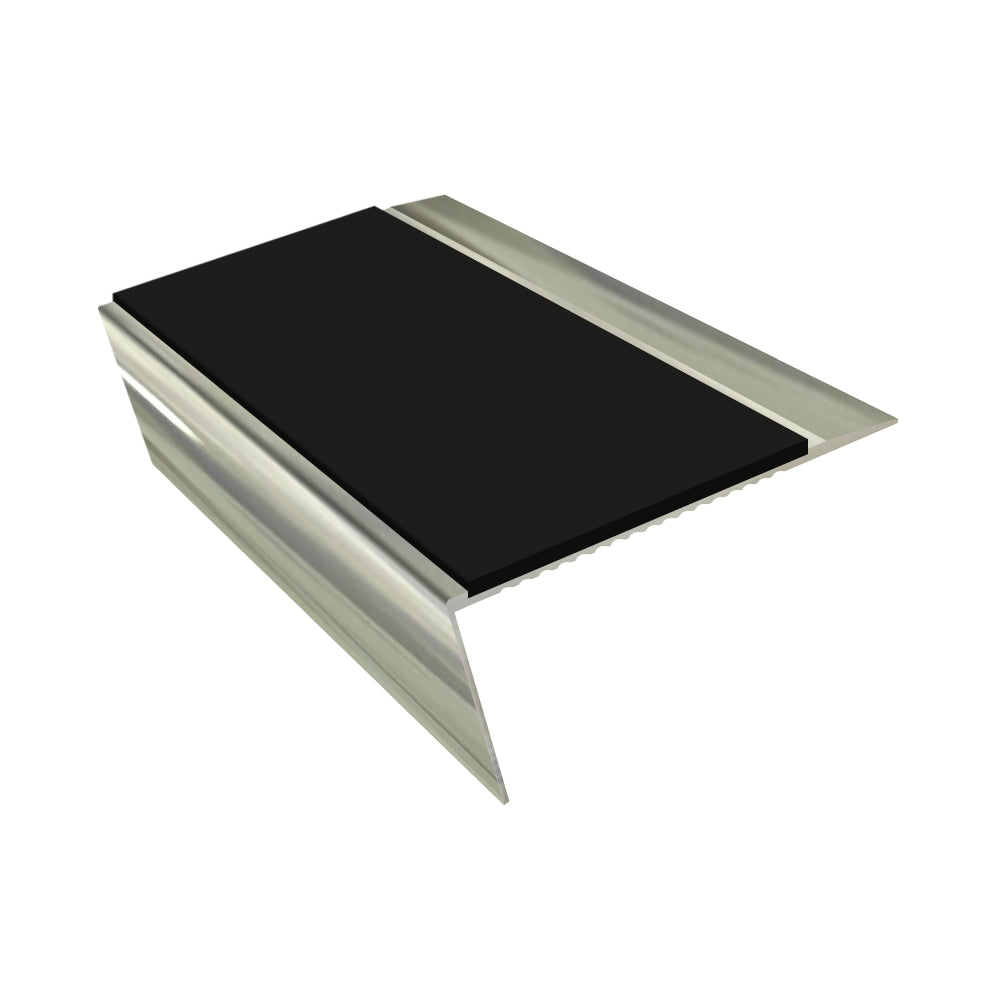

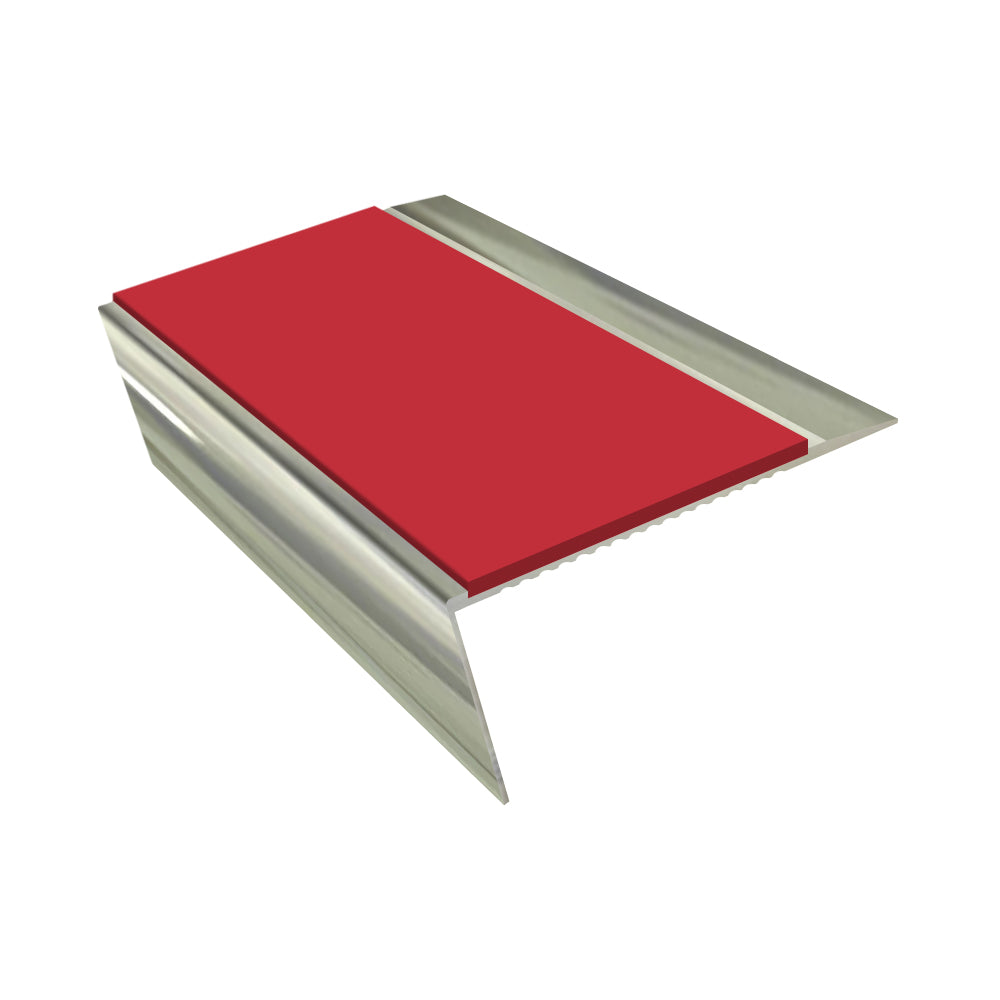

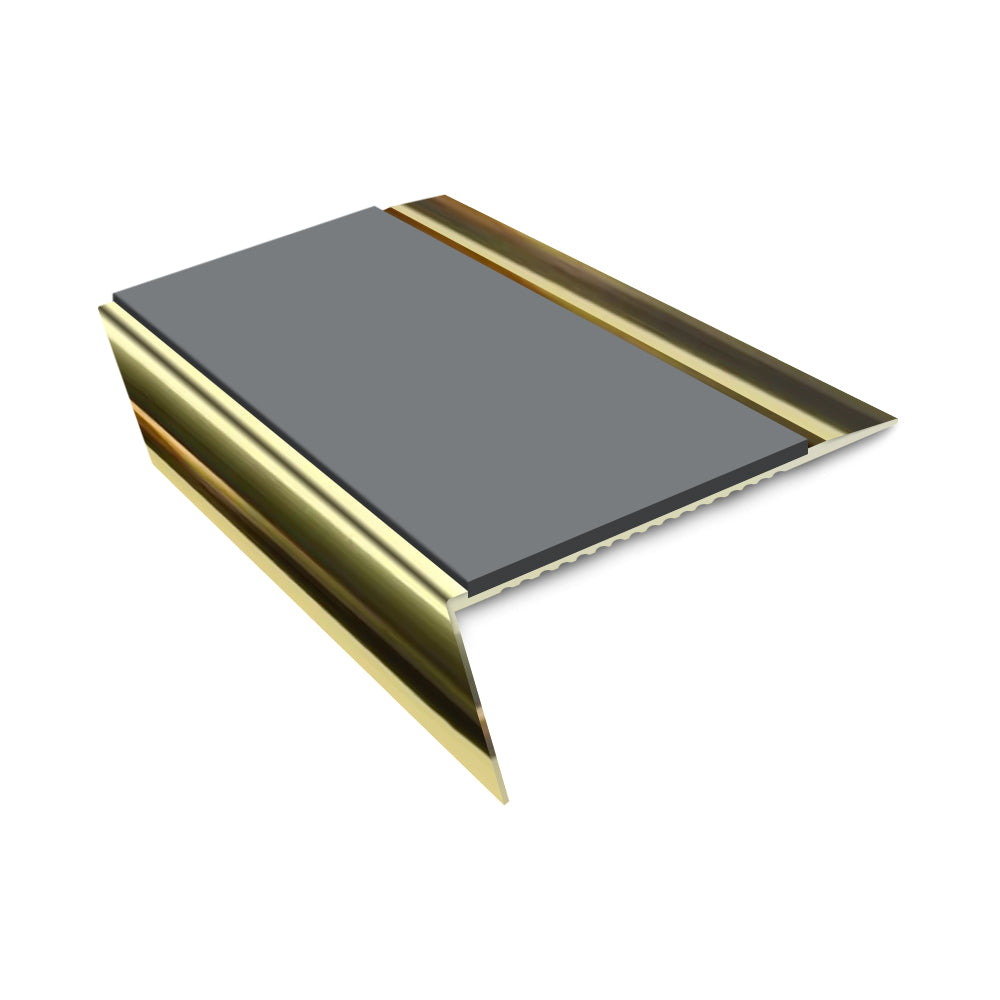

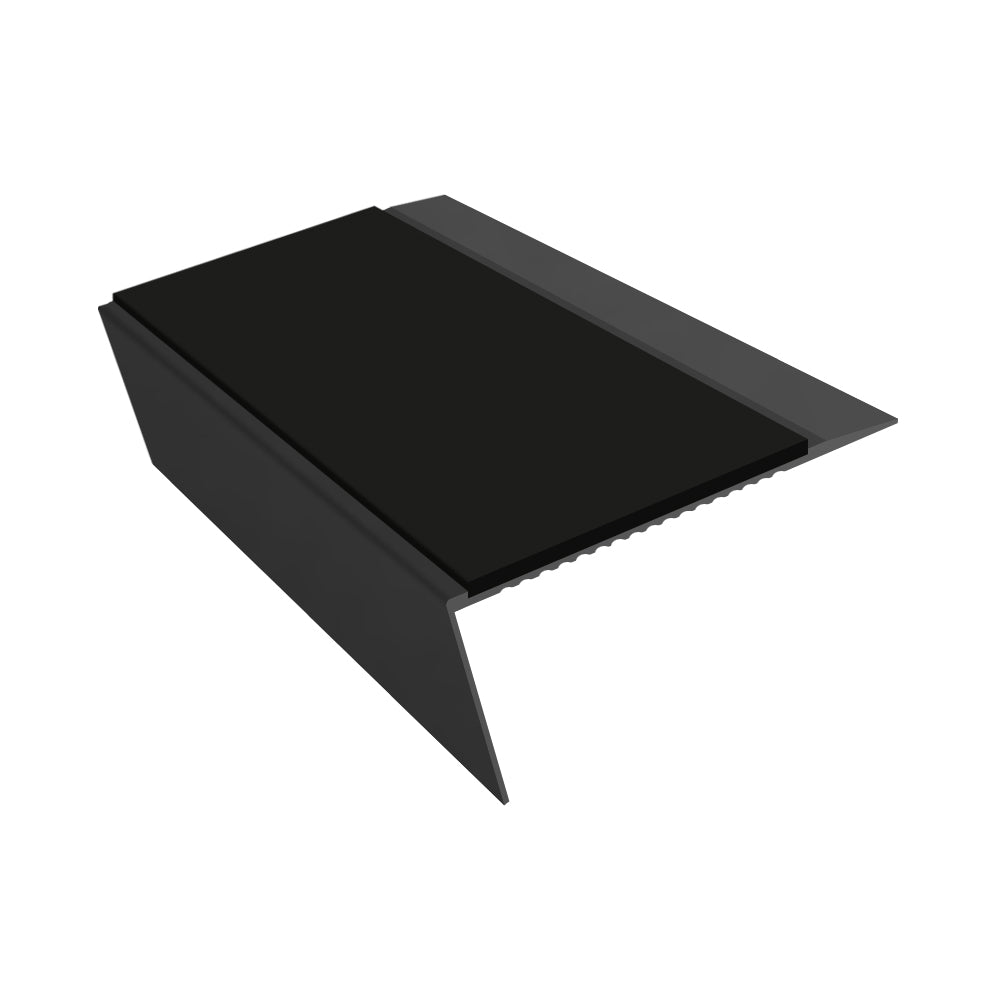

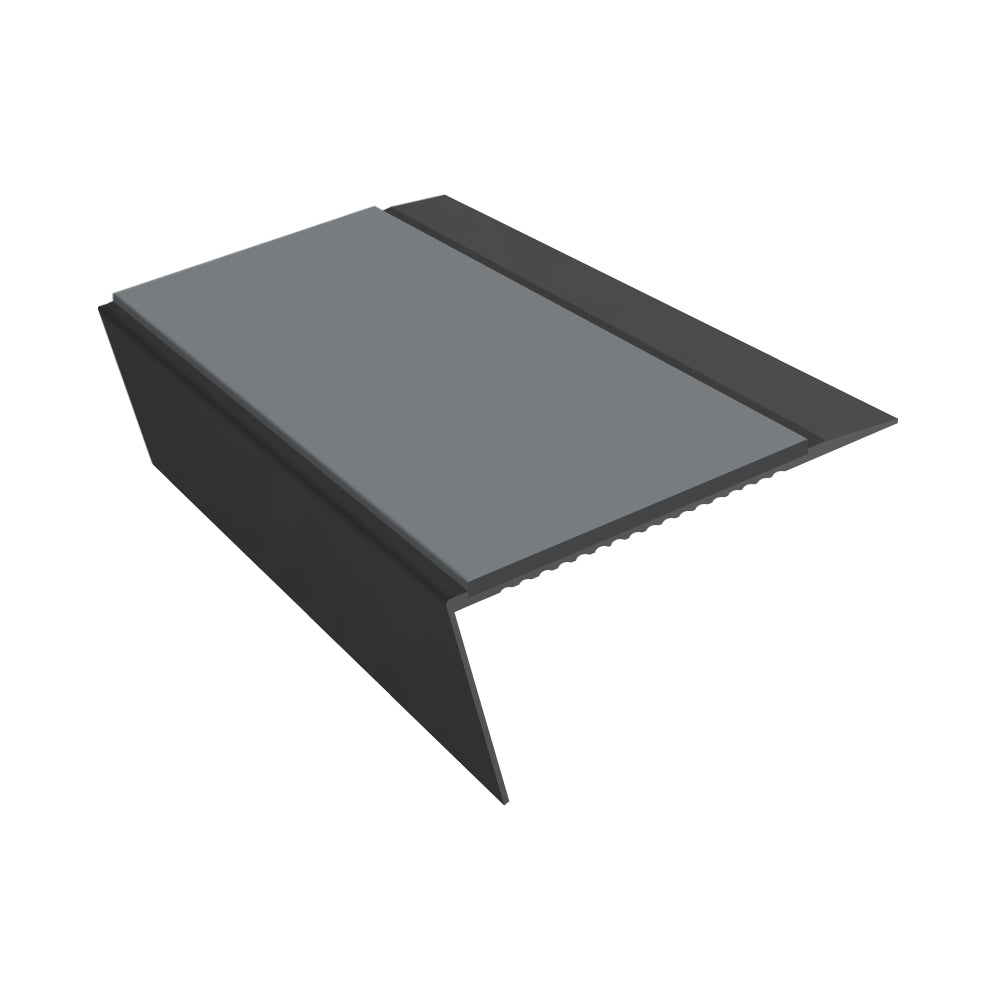

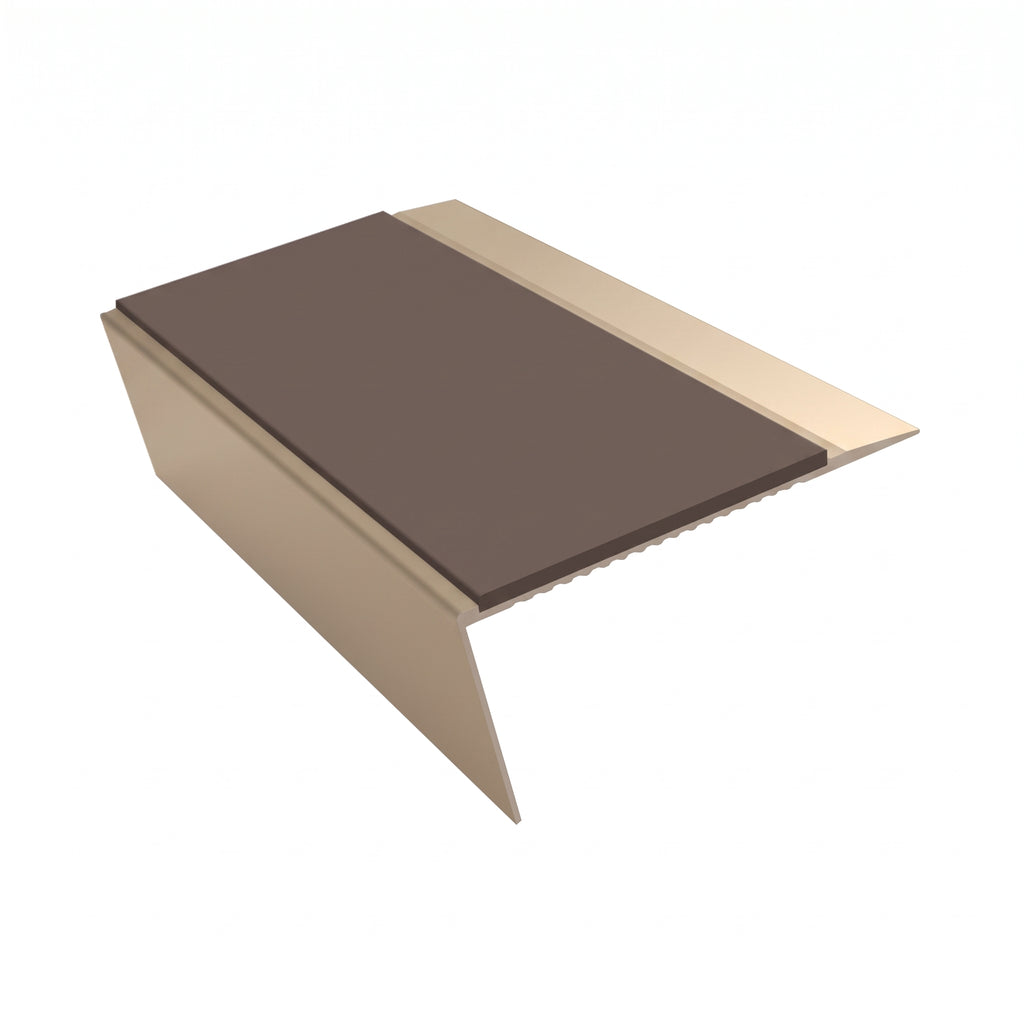

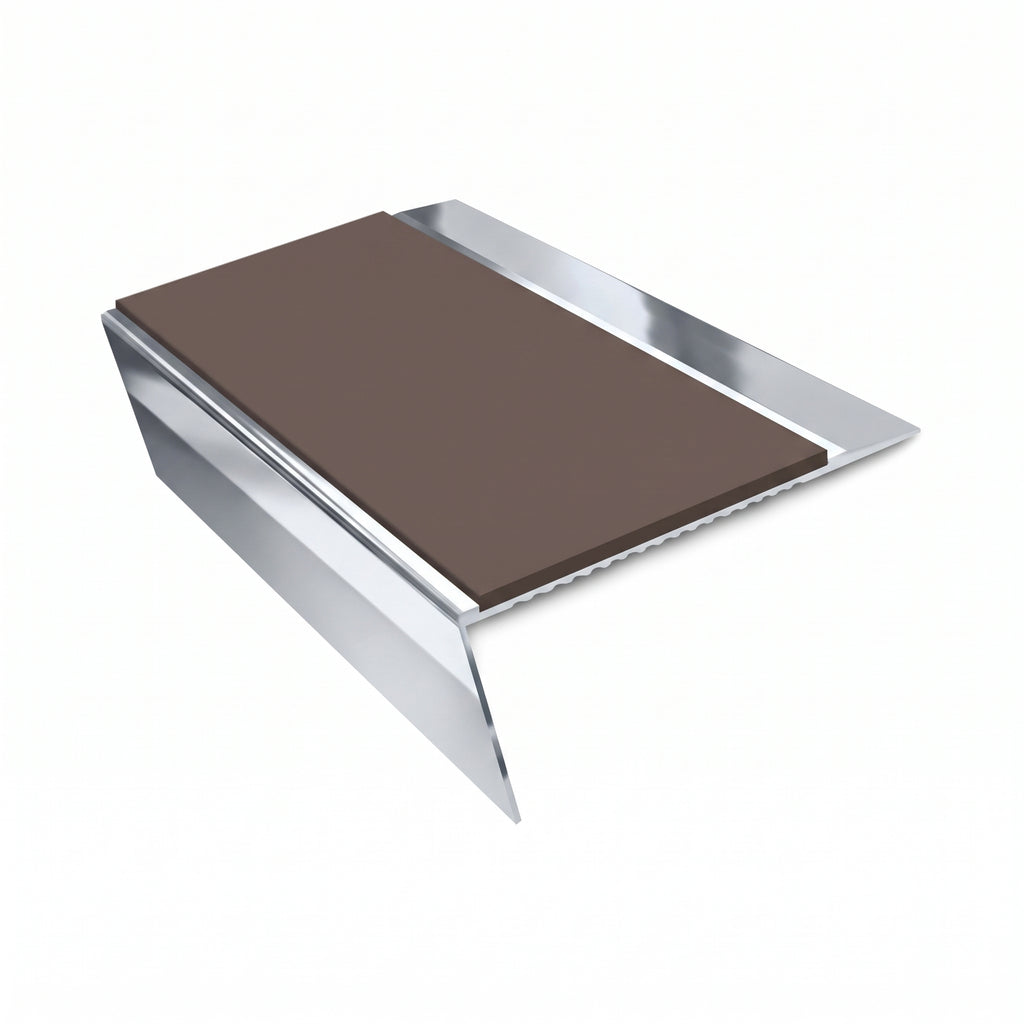

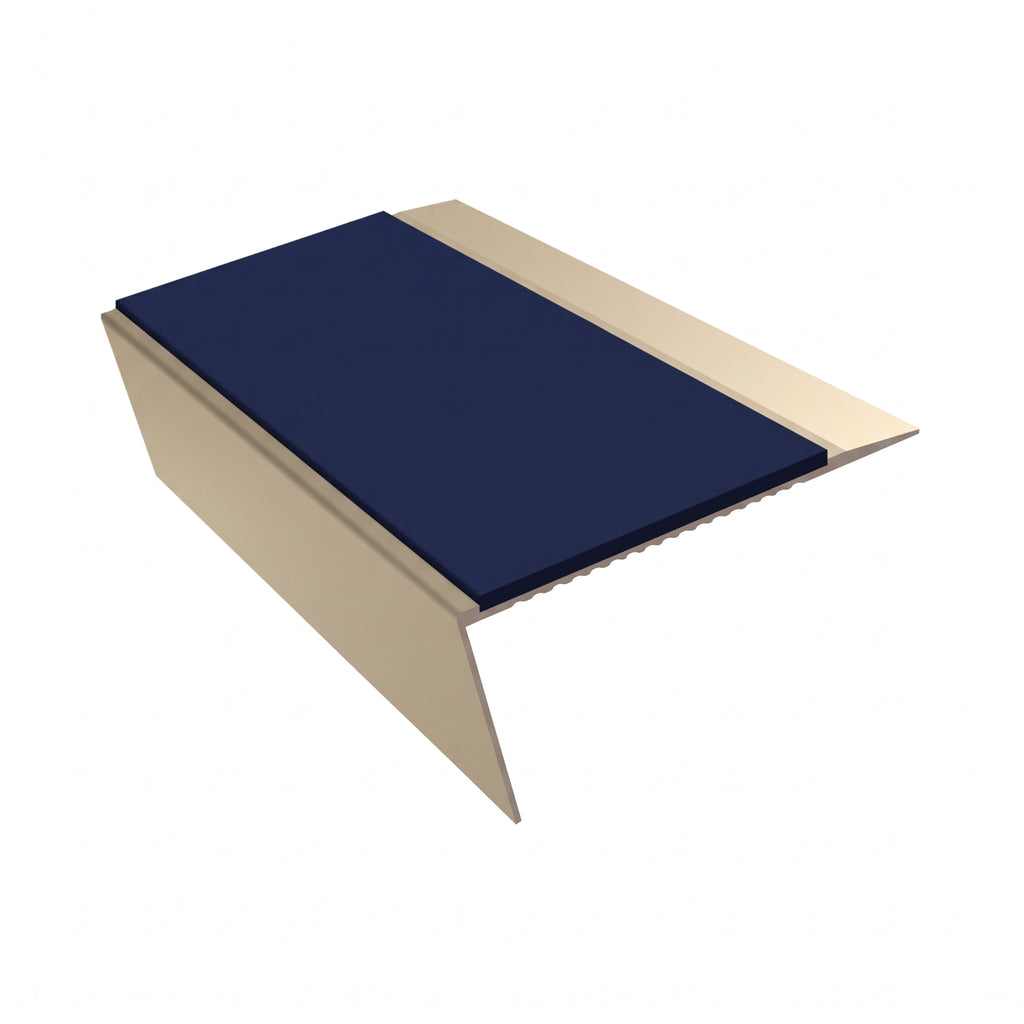

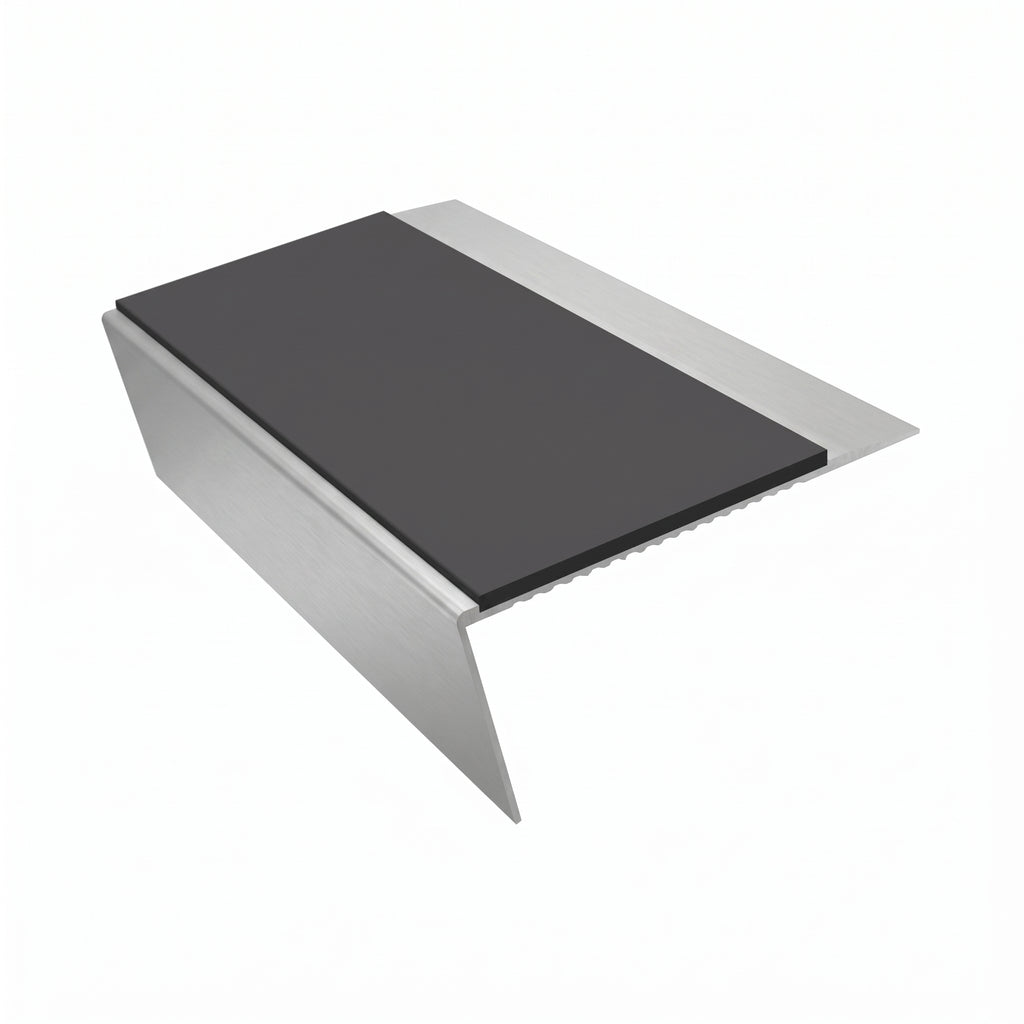

Bright Polished Dark Bronze Mill Finish Mirrorflect Gold Satin Black Satin Gold

Available Insert Colours

Fifteen PVC insert colours allow the nosing to blend with surrounding flooring or provide a clearly visible contrast line at the stair edge:

Apple Green Aura Beige Brown Dark Blue Dark Green Dark Grey Hazard Mid Grey Premium Black Red Sage Green Sahara White Yellow

Product Features & Benefits

  • Rake back, ramp-return profile creates a smooth, low-profile transition between the stair tread and the adjoining floor covering, reducing trip risk at the nosing edge.
  • Single PVC insert channel delivers targeted slip resistance precisely where foot traffic is concentrated on the leading edge of each step.
  • 3.5mm aluminium alloy gauge provides a robust, impact-resistant profile capable of withstanding sustained commercial foot traffic without deforming.
  • 70mm tread face and 32mm riser face give generous coverage of the stair edge, protecting floor coverings from fraying, chipping and premature wear.
  • Stock lengths of 2.44m and 2.75m can be cut to exact stair widths on site, minimising waste and simplifying installation across multiple steps.
  • Six aluminium finishes — including Bright Polished, Satin Black, Dark Bronze and Mirrorflect Gold — allow the nosing to complement or contrast with surrounding interior finishes.

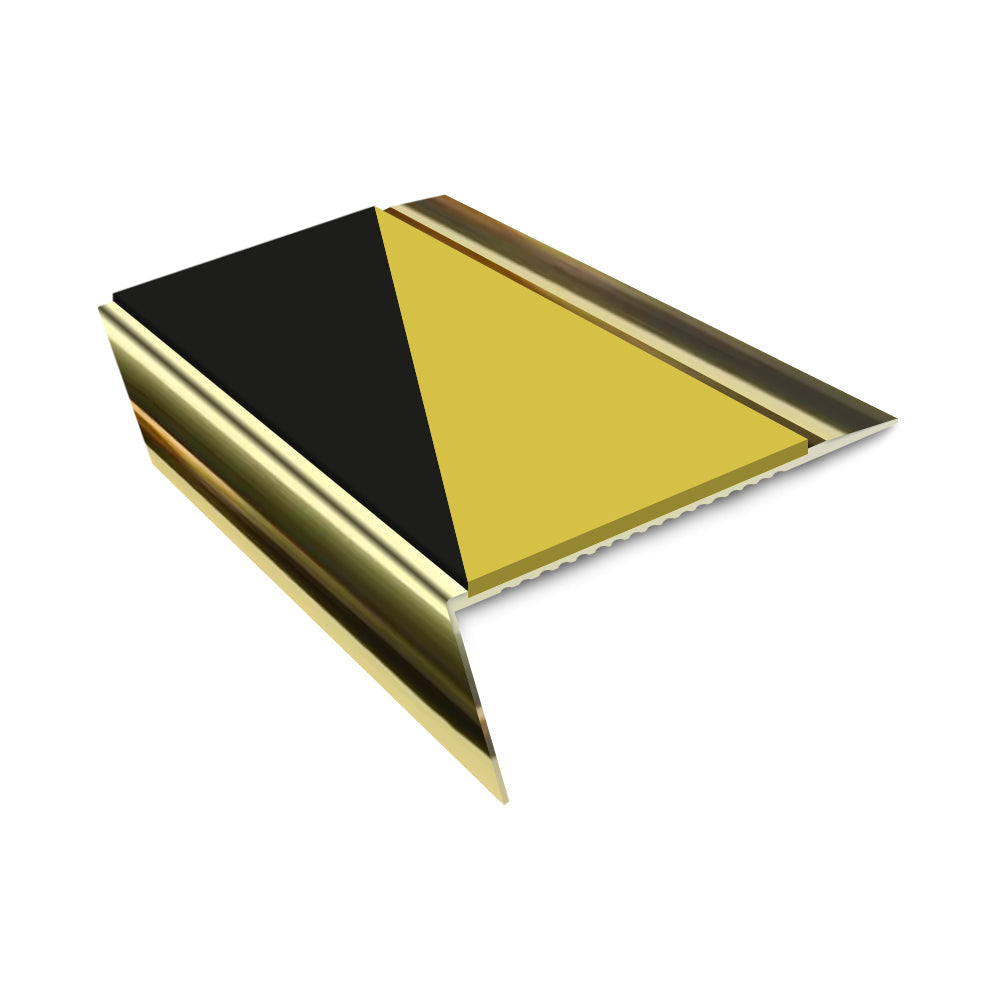

  • Fifteen insert colours, including high-visibility Hazard and Yellow options, support both aesthetic coordination and safety-marking requirements.
  • Compatible with mechanical fixing (screws) and adhesive installation methods, suitable for concrete, timber and metal stair substrates.
  • Clean, low-profile appearance enhances the overall finish of staircases in offices, retail environments, hospitality venues and residential properties.

Applications & Ideal Uses

This rake back stair nosing is well suited to any internal staircase where a neat, durable edge detail is required alongside a surface-applied floor covering. Typical applications include:

  • Office buildings, corporate headquarters and commercial premises with vinyl or LVT stair finishes.
  • Retail stores, shopping centres and hospitality venues requiring clearly defined, slip-resistant step edges for public use.
  • Apartment blocks, shared entrances and communal stairwells where a long-lasting, low-maintenance solution is needed.
  • Educational institutions, healthcare facilities and public sector buildings with high daily footfall.
  • Domestic stair refurbishments where improved edge protection and a professional finish are priorities.
  • New-build and refurbishment projects specifying aluminium stair nosings for timber, LVT or hard floor stair treads.

Frequently Asked Questions

What is a rake back stair nosing and why is it used?

A rake back nosing has an angled or ramped return on the underside of the profile. This allows the nosing to sit flush against the riser of the step while accommodating the thickness of the floor covering beneath it, giving a neat, gap-free finish at the stair edge.

Can this nosing be cut to a shorter length on site?

Yes. Both the 2.44m and 2.75m stock lengths are designed to be cut to the exact width of each stair tread using a standard mitre saw or aluminium-rated cutting blade. The PVC insert can be trimmed separately with a sharp knife or scissors.

Which floor coverings is this nosing compatible with?

This profile is suitable for use with vinyl, luxury vinyl tile (LVT), timber, laminate and other hard floor finishes. The rake back profile accommodates the thickness of the floor covering at the stair edge, ensuring a flush, secure fit.

How is this stair nosing fixed to the stair?

The nosing can be secured using countersunk screws through the pre-drilled or site-drilled fixing holes in the profile, or with a suitable construction adhesive, or a combination of both. The appropriate fixing method will depend on the substrate material — concrete, timber or metal — and the specific site conditions.

Delivery Information

ServiceTimeframeCost
Standard UK Delivery2–4 business days£9.99

Orders placed before 12pm Mon–Fri are typically dispatched same day. Delivery to all UK addresses. Contact us for international enquiries.

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

Recently viewed

Frequently Asked Questions

Find answers to common questions about our stair nosings

Stair nosings are protective edge strips fitted to the front of stair treads. They serve multiple purposes: preventing slip accidents, protecting stairs from wear, meeting building regulations, and improving visibility for those with impaired vision. They're essential for both safety compliance and extending the life of your stairs.

Yes, all our products are designed to meet UK Building Regulations, including:

  • Part K – Protection from falling and collision
  • Part M – Access to and use of buildings
  • BS 8300 – Design for disabled access

Our contrasting nosings meet the requirements for visually impaired users.

We offer stair nosings in multiple materials:

  • Aluminium – Lightweight, durable, ideal for most applications
  • GRP/Fibreglass – Heavy-duty, excellent for external and industrial use
  • Rubber/PVC – Flexible, great for refurbishment projects
  • Brass – Premium finish for high-end residential

Yes! We offer a cut-to-length service for most of our stair nosing products. Simply provide the measurements you need when ordering, or contact our team for assistance. This ensures a perfect fit with minimal on-site cutting required.

Installation varies by product type but typically involves:

  • Screw-fixed – Drill, countersink and screw into substrate
  • Adhesive-fixed – Use high-strength adhesive for bonding
  • Channel systems – Insert nosing into pre-installed track

We provide detailed PDF installation guides and video tutorials for every product range.

We offer fast UK delivery on all orders:

  • Standard Delivery – 2-3 working days
  • Express Delivery – Next working day (order before 2pm)
  • Free Delivery – On orders over £100

Large or bulk orders may require pallet delivery – contact us for details.

Yes, we offer trade accounts for contractors, architects, and facilities managers. Benefits include:

  • Competitive bulk pricing
  • 30-day payment terms (subject to approval)
  • Dedicated account manager
  • Priority technical support

Contact us to apply for a trade account.

Ramp/Angled – Gradual slope, best for high-traffic areas and wheelchair access
Bullnose/Round – Curved edge, traditional look, good for residential stairs
Pencil Edge – Minimal profile, sleek modern appearance

Choose based on your aesthetic preference and the level of protection required.
