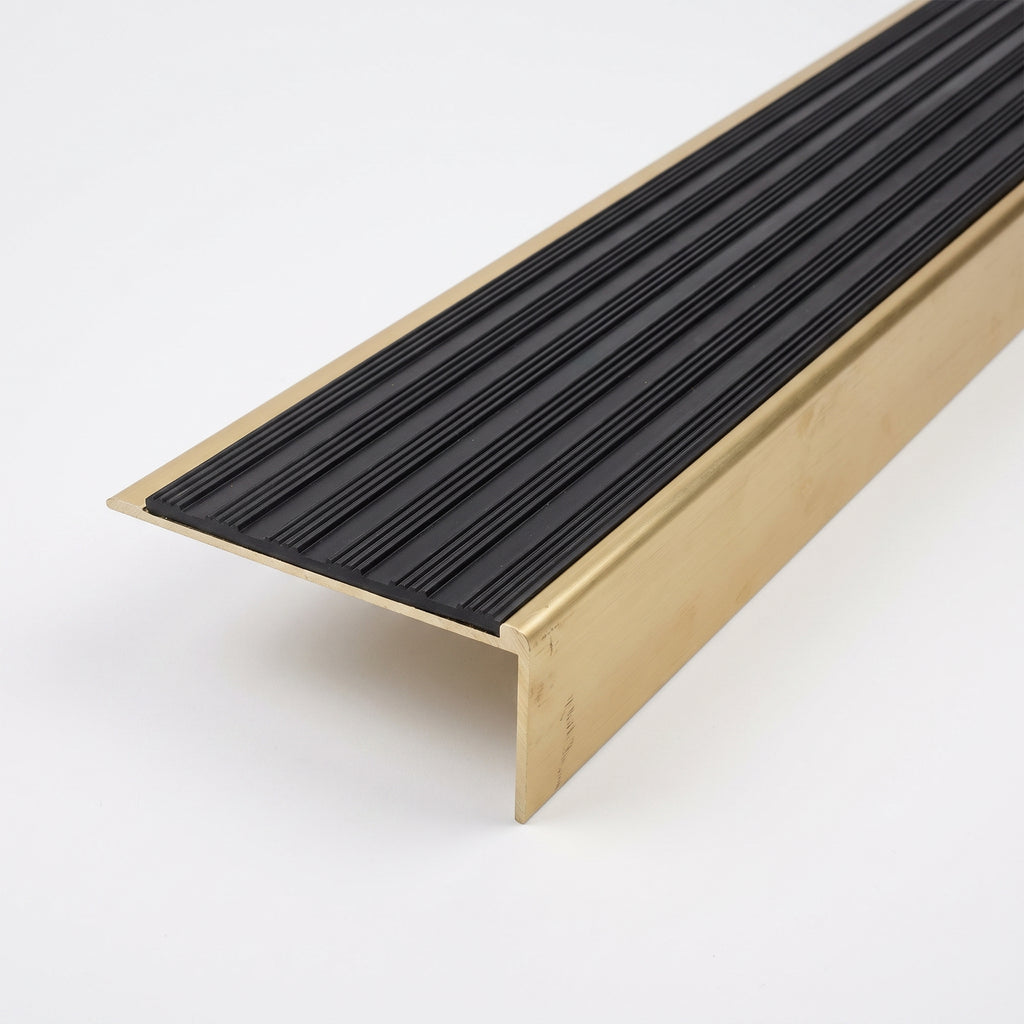

Solid Brass Stair Nosing 59mm Raked Back Slimline, Single Channel Insert

59mm tread × 30mm riserRake BackSolid BrassCut to Size 700-2500mm


Castellated (22)

Smooth Textured (4)

High Grip (1)

Metal (4)

Cut to your exact size — enter the length you need in millimetres, allowing a cutting tolerance of +/- 5mm.The price updates as you type.

Price
Sale price £142.10 (Inc. VAT)

£203.00 (Inc. VAT) / 1 m

VAT included. UK delivery £9.99 per order

UK delivery £9.99 per order · 2 working days from dispatch. Order by 2pm (UK time) on a working day for same-day dispatch. Delivery info

In stock, ready to ship

Trustpilot five-star badge

Need help choosing?

Talk to our team about sizes, finishes and fixing.

Description

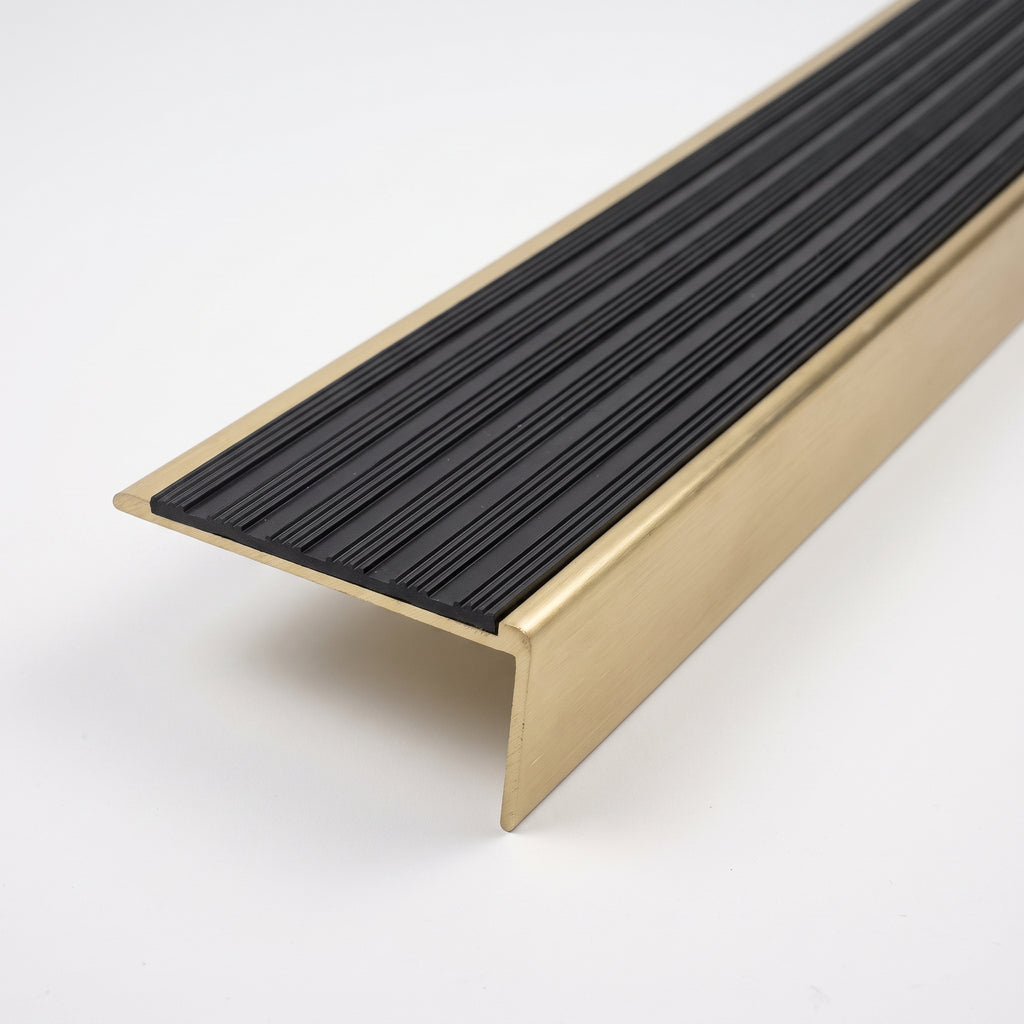

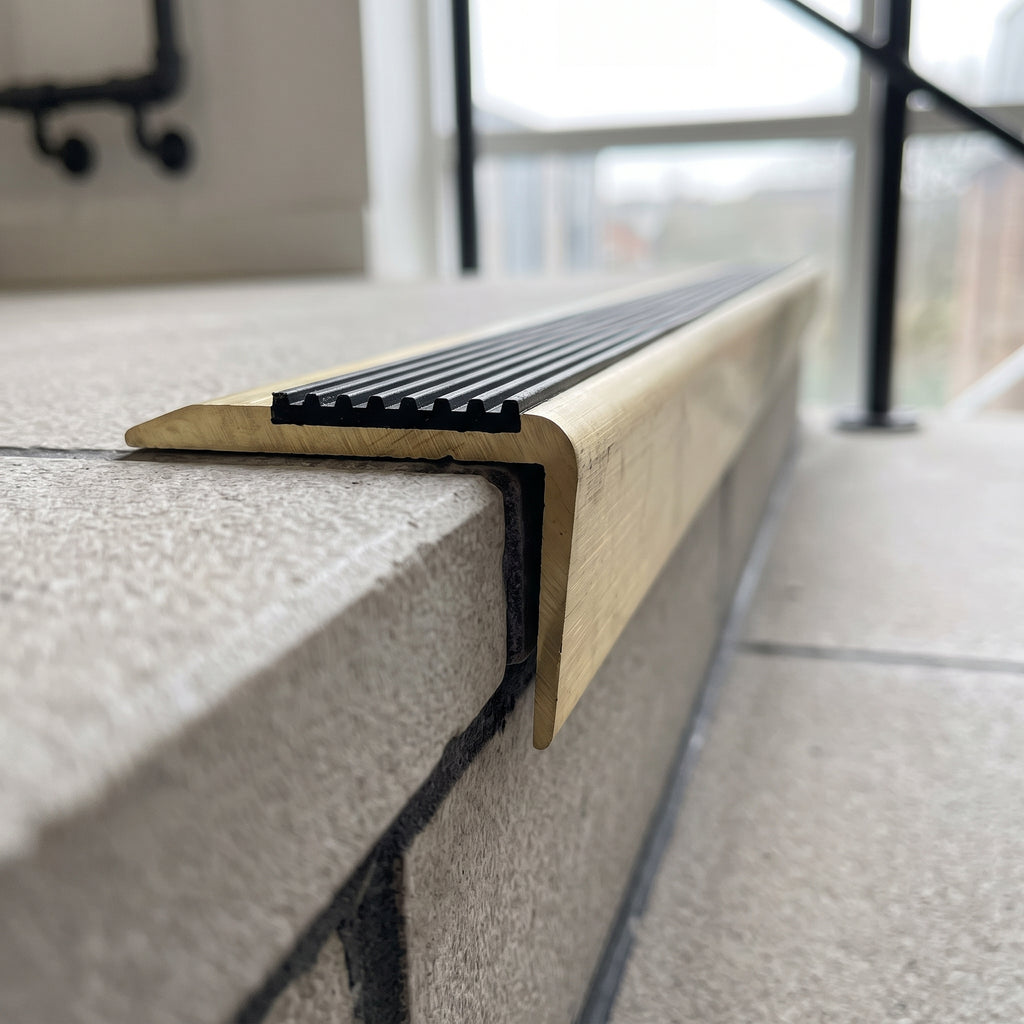

A stair edge that has to look right in a hotel lobby or a refurbished period stairwell, and still be serviceable after a decade of traffic, is where a solid brass nosing earns its place. This slimline profile gives you a 59mm tread face and a 30mm nose in CZ108 brass, with the riser leg raked back at 83 degrees and a single 49.5mm channel carrying the anti-slip insert of your choice. Cut to your length from 700mm to 2500mm, it patinates rather than wearing through, and the insert is the part you replace.

Technical drawing of the 59 x 30mm solid brass raked back slimline stair nosing with cross-section dimensions, finish LRVs and insert slip values
59 x 30mm section, riser leg raked back at 83 degrees.

Why it works

The body outlasts the wear surface. Solid brass to BS EN 12164:2016 takes the impact at the step edge and holds the insert flat. The anti-slip insert sits in a replaceable channel, so a worn stair is renewed by pressing in new inserts, without lifting the nosing.

The raked back suits a raked riser. The riser leg drops 26mm below the tread plate at 83 degrees rather than square, closing the joint a square-back profile leaves open on an undercut riser.

One channel keeps the section slim. A single 49.5mm channel means less brass across the tread than a twin-channel nosing, so it reads as a trim rather than a safety fitting. The 2.5mm tail at the back gives laminate, LVT, vinyl and lino a clean edge to butt up to.

The grip is measured. Every insert has a published slip resistance value (SRV): castellated PVC 85 dry / 76 wet, Black High Grip 102 dry / 71 wet, smooth textured PVC 65 dry / 56 wet and the brass insert 82 dry / 54 wet. All sit well above the 36 the UK Slip Resistance Group rates as low slip potential.

Where it is used

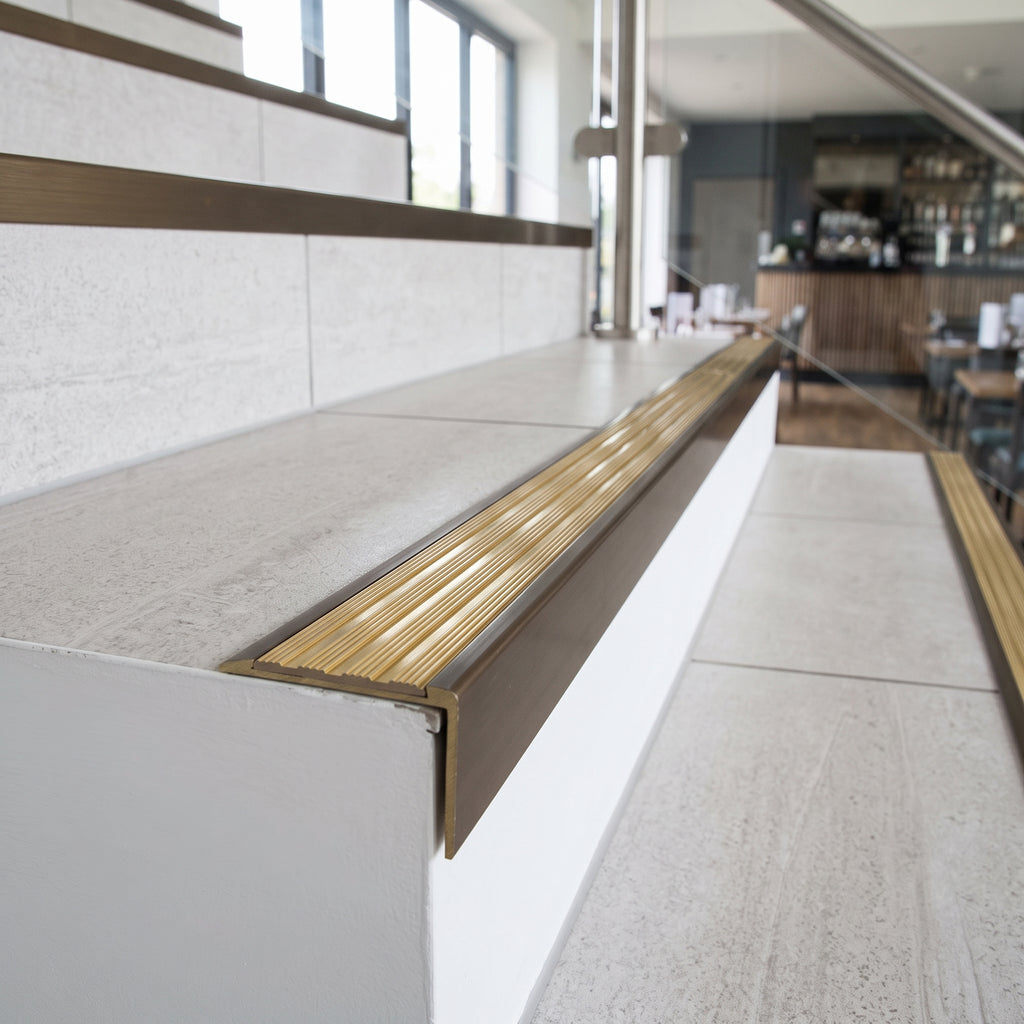

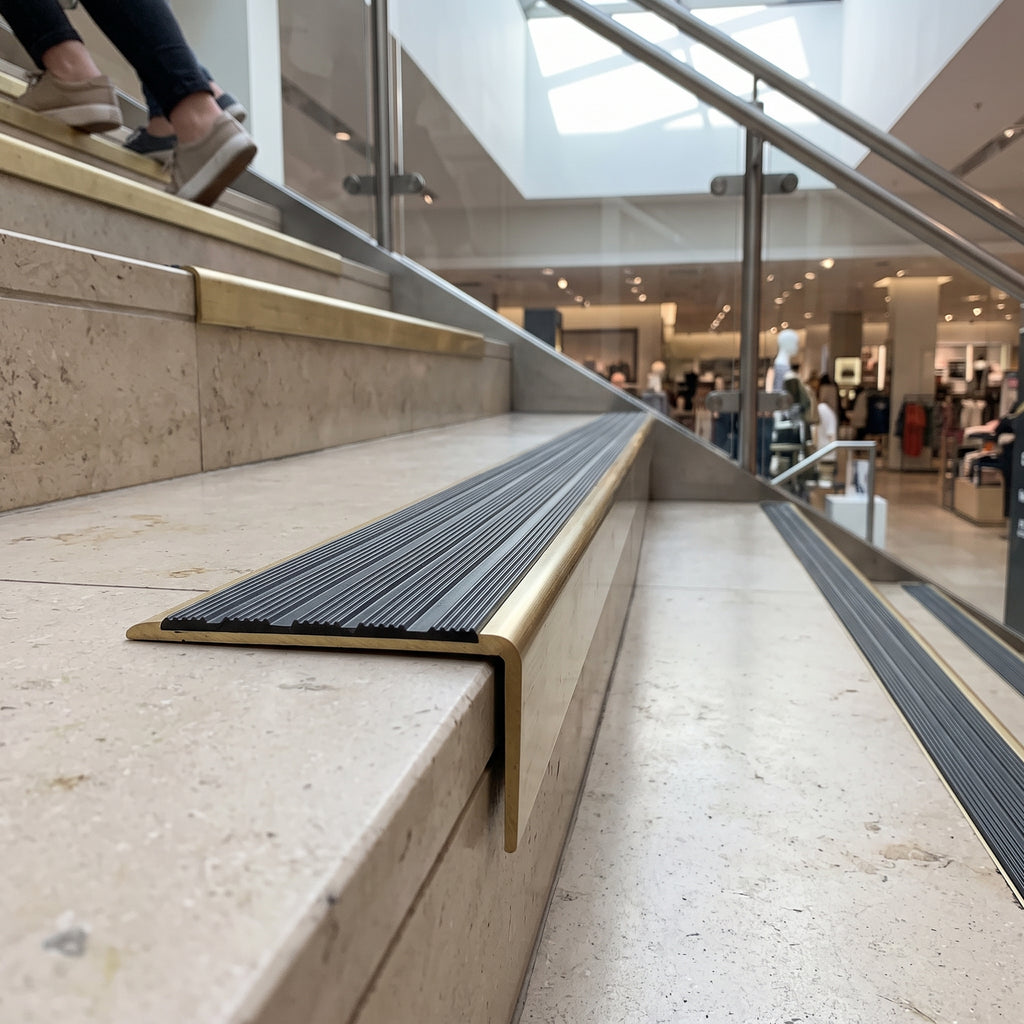

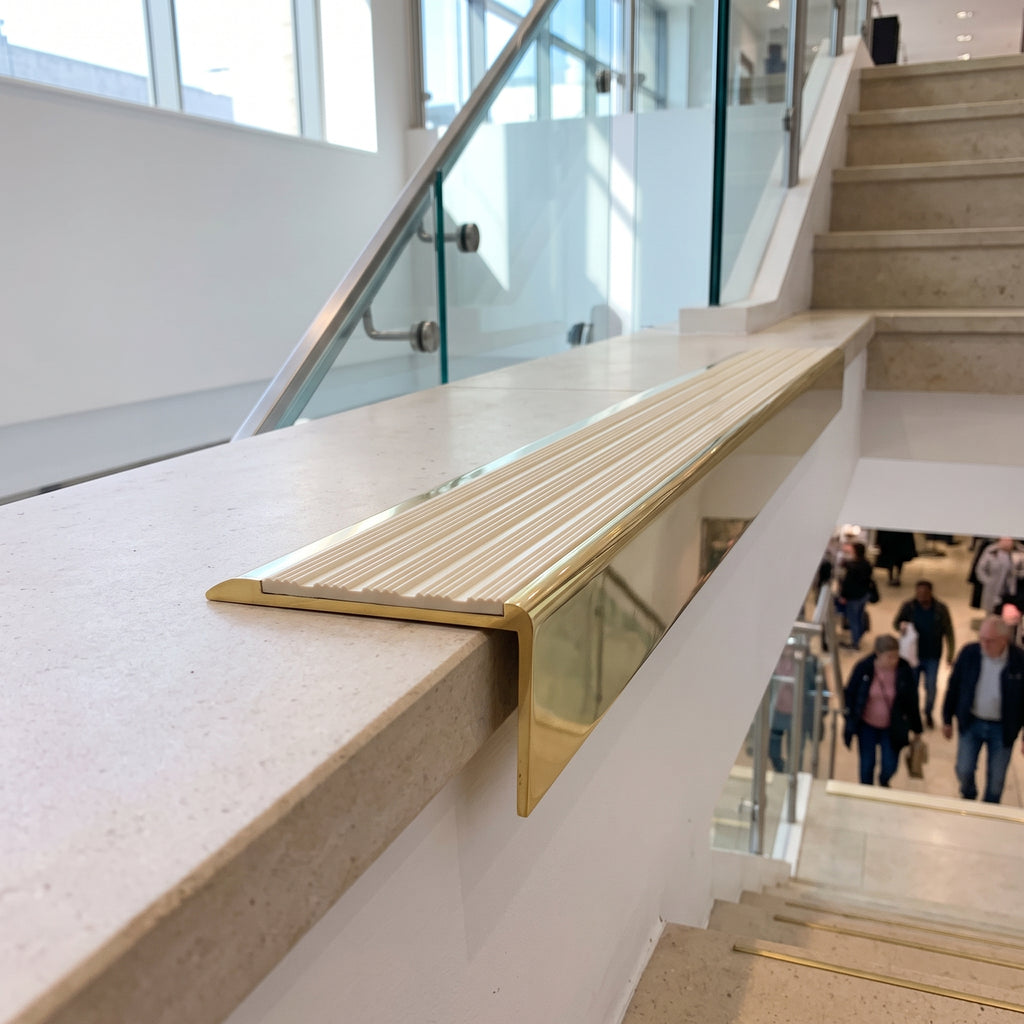

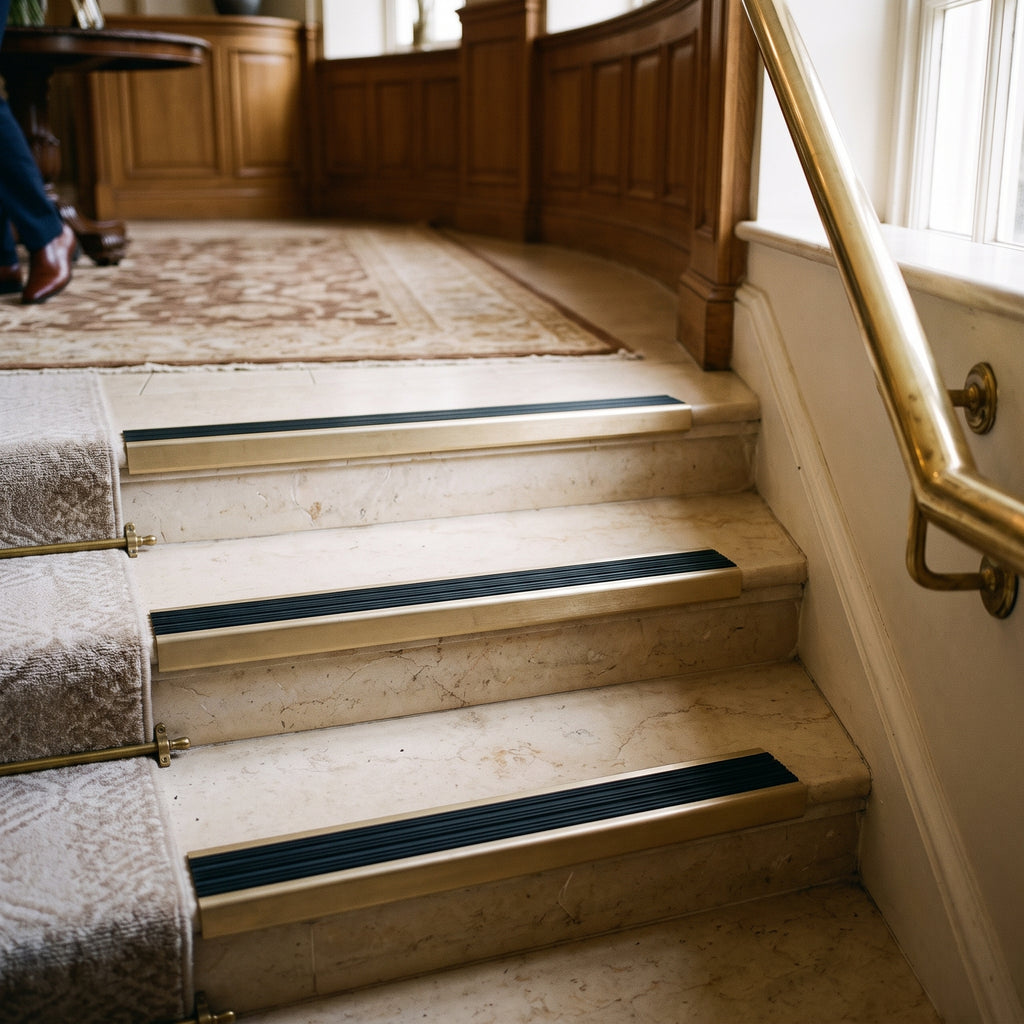

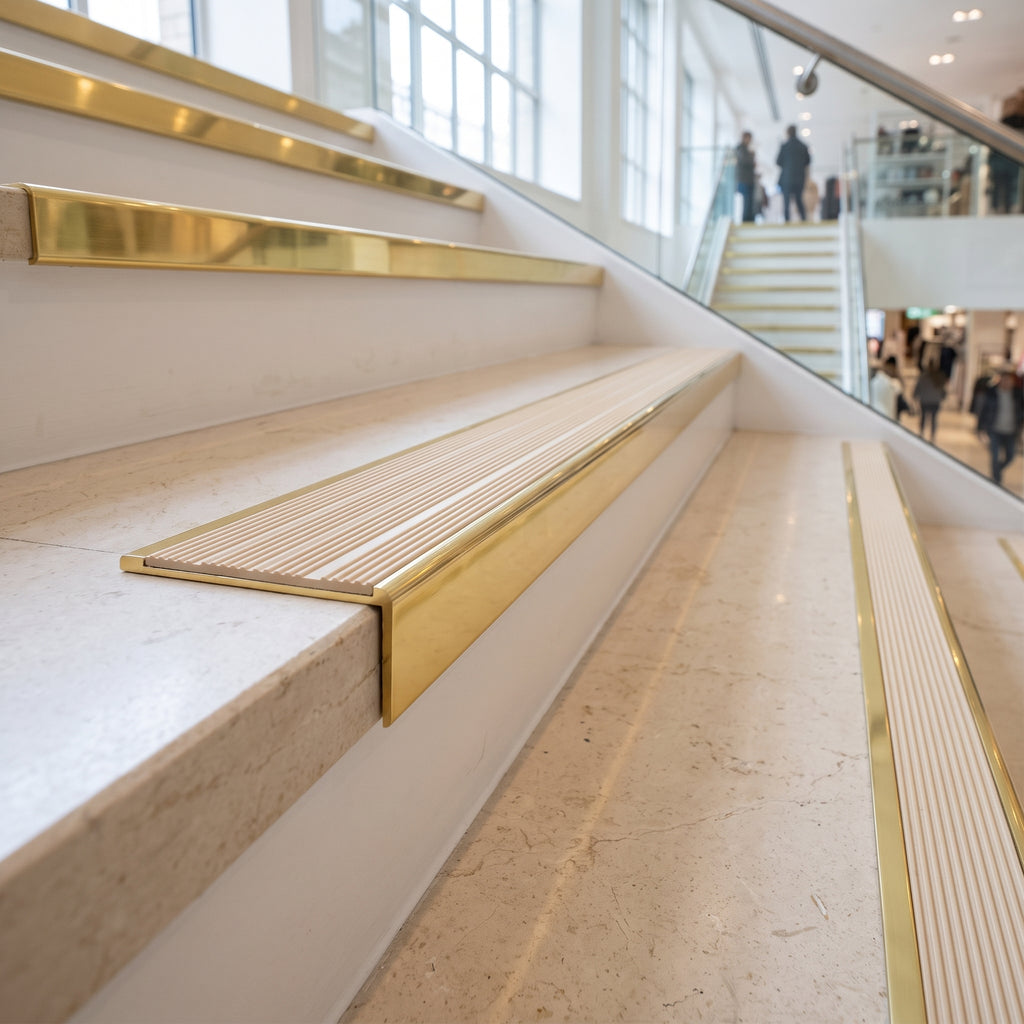

Rated for medium to heavy traffic on interior stairs: hotels, pubs, clubs and cafes, shops and showrooms, schools, commercial offices and apartment buildings. It suits heritage buildings where aluminium would look wrong. Fit it directly to a concrete or timber step, or with resilient floor coverings such as LVT, vinyl, lino, rubber and woven vinyl butted up to the tail.

Specifications

Material Solid brass, grade H/H CZ108 to BS EN 12164:2016
Nosing construction Slimline raked back, single channel with anti-slip insert
Tread dimension 59 mm
Nose dimension 30 mm overall
Riser leg 26 mm below the tread plate, raked back at 83 degrees
Gauge 2.5 mm
Insert channel 49.5 mm wide
Body finishes and LRV Polished Brass 71.45, Satin Brass 59.55, Antique Brass 29.55, Antique Bronze 9.15
Insert options 31: 22 castellated PVC colours, 4 smooth textured PVC, Black High Grip (aluminium oxide) and 4 solid brass inserts
Insert LRV From 4.25 (Black Castellated) to 84.22 (White Castellated); every colour is listed in the datasheet
Slip resistance (SRV dry / wet) Castellated PVC 85 / 76; Black High Grip 102 / 71; smooth textured PVC 65 / 56; brass insert 82 / 54
Cut to size range 700 mm to 2500 mm in all four finishes, cut to your specified length
Manufacturing tolerance Dimensions may vary by up to +/- 5 mm
Fixing No. 6 screws through the channel, bonded adhesive, or both
Suitability Medium to heavy foot traffic, interior stairs
Recyclability 100% recyclable at suitable disposal centres

Choosing the right option

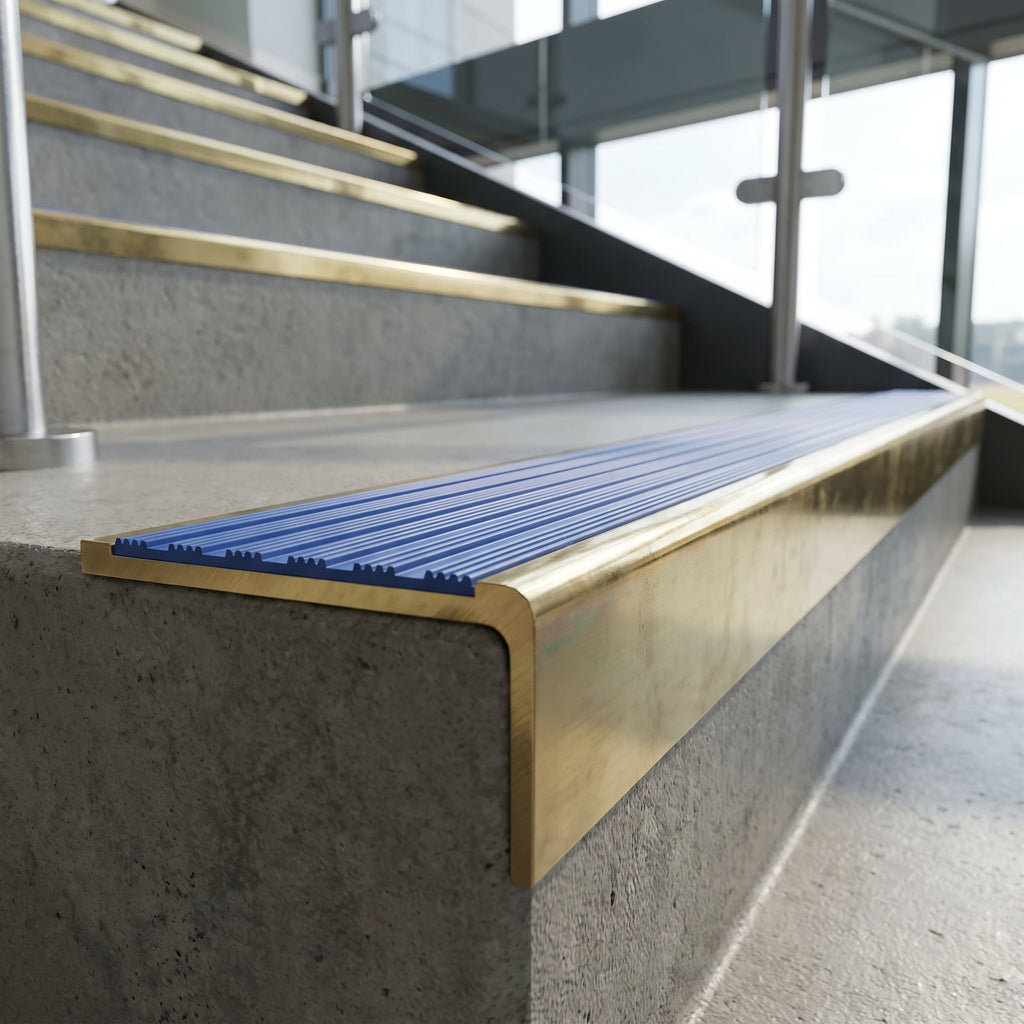

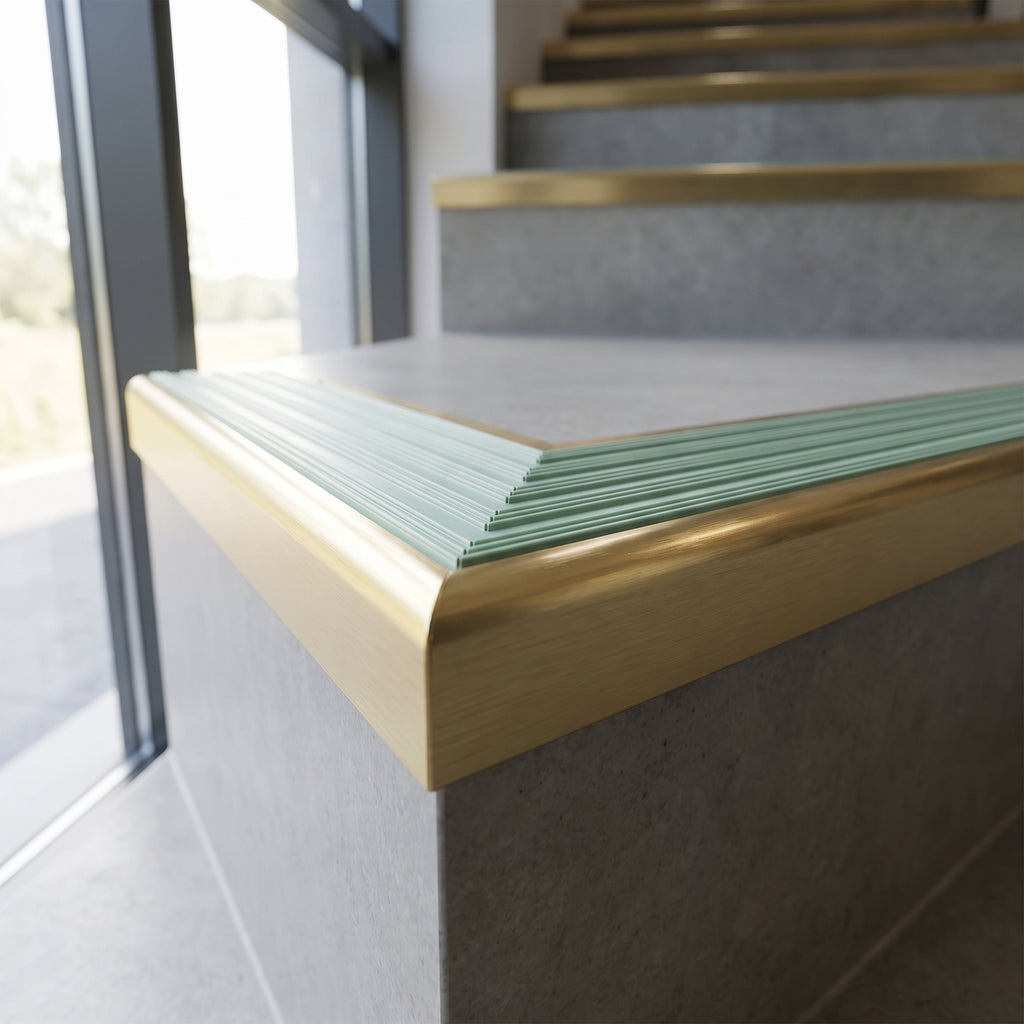

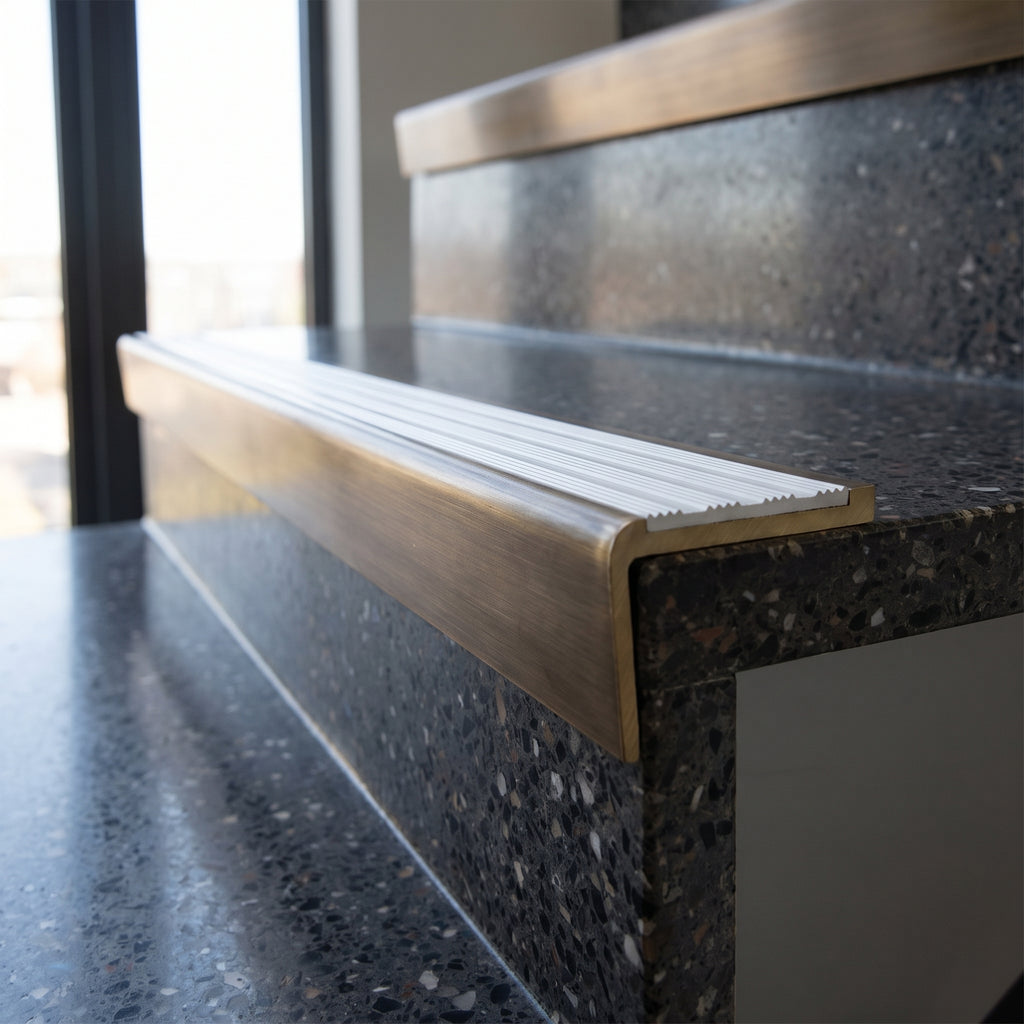

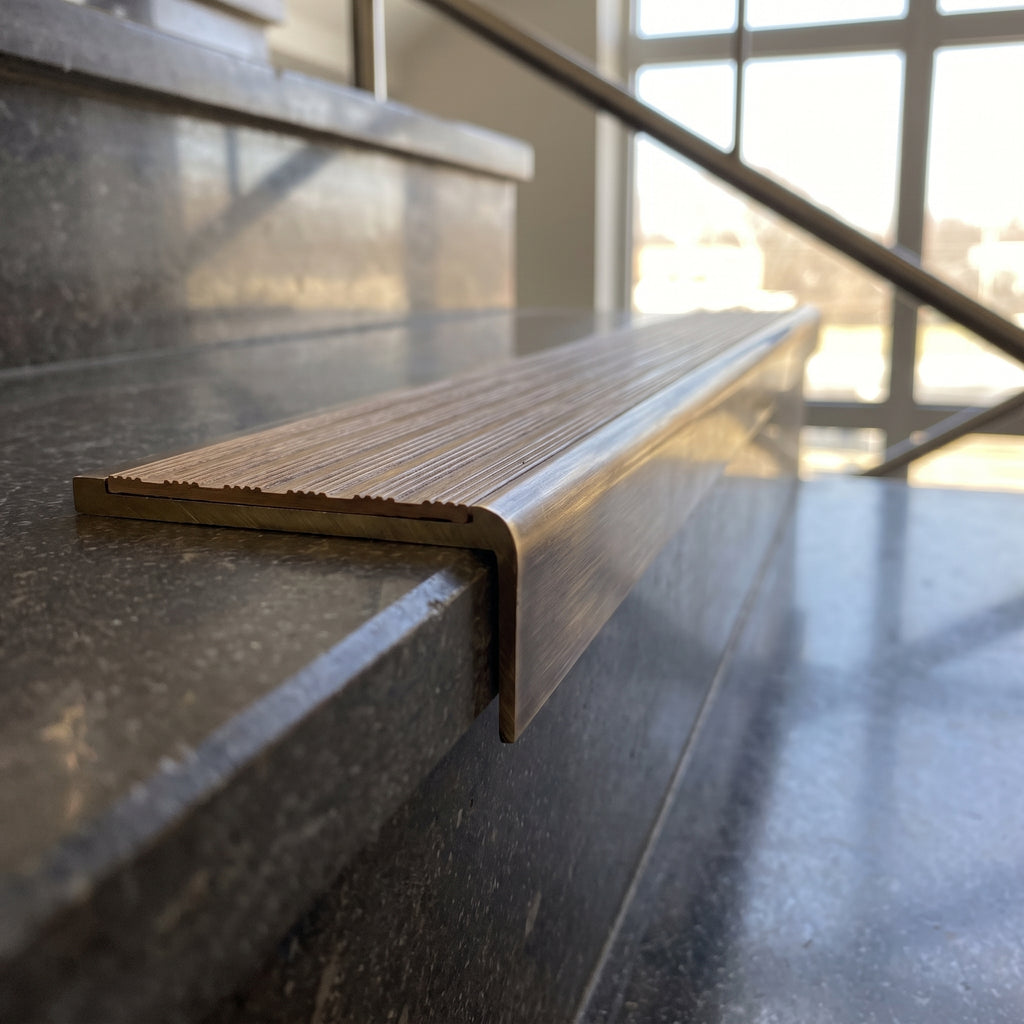

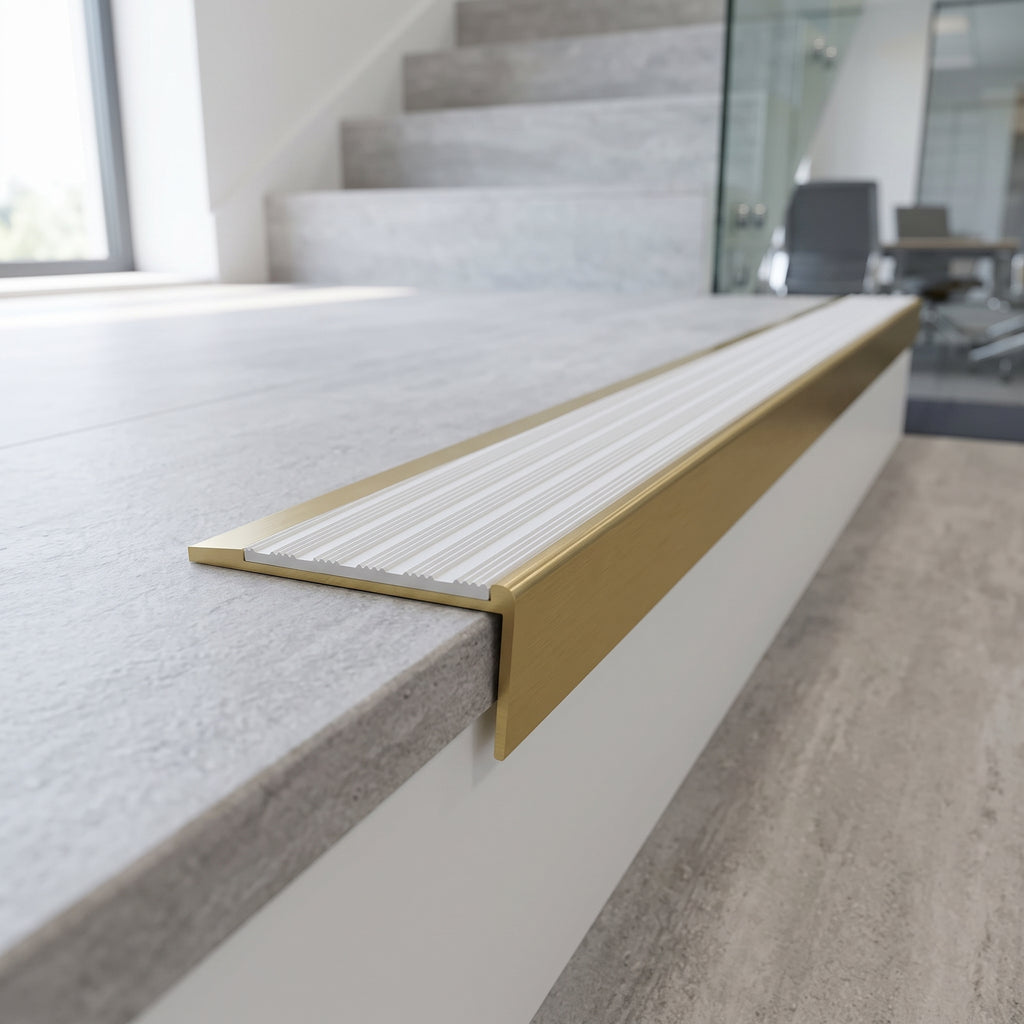

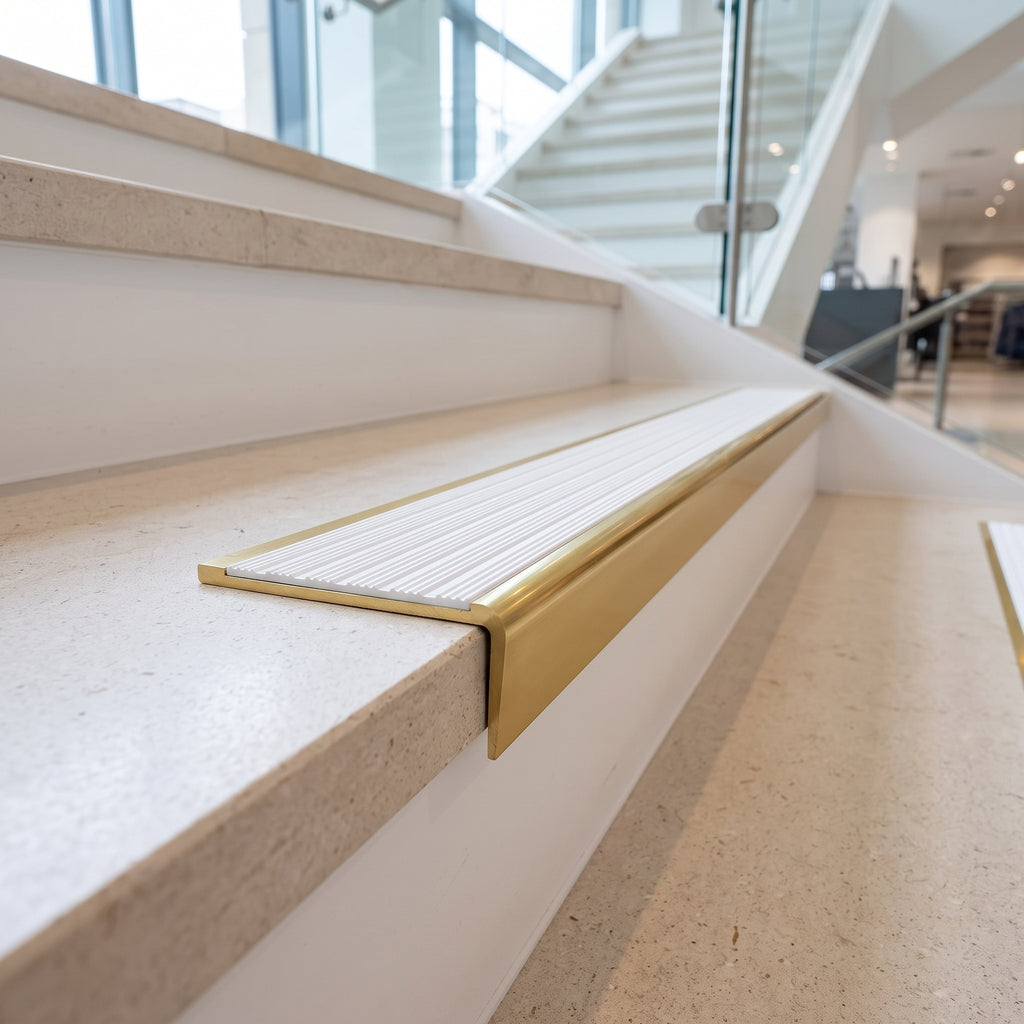

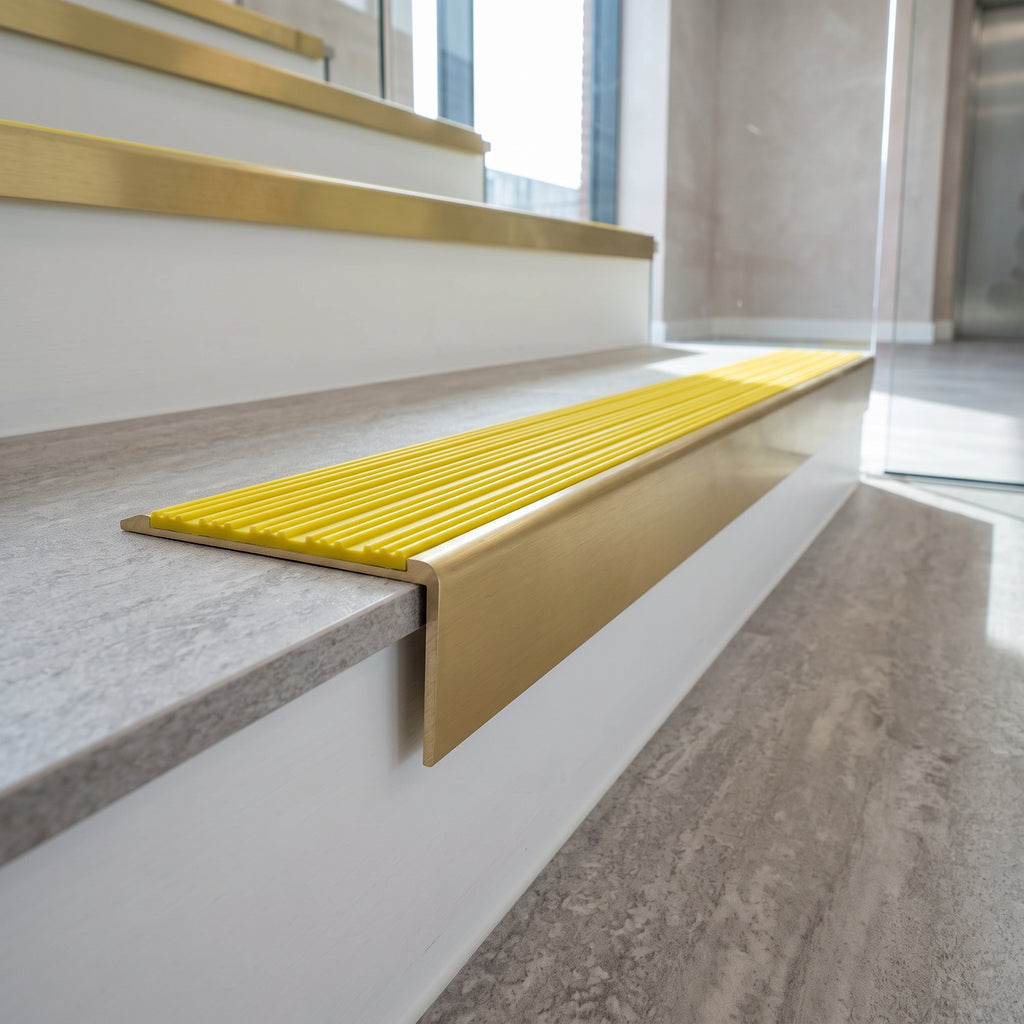

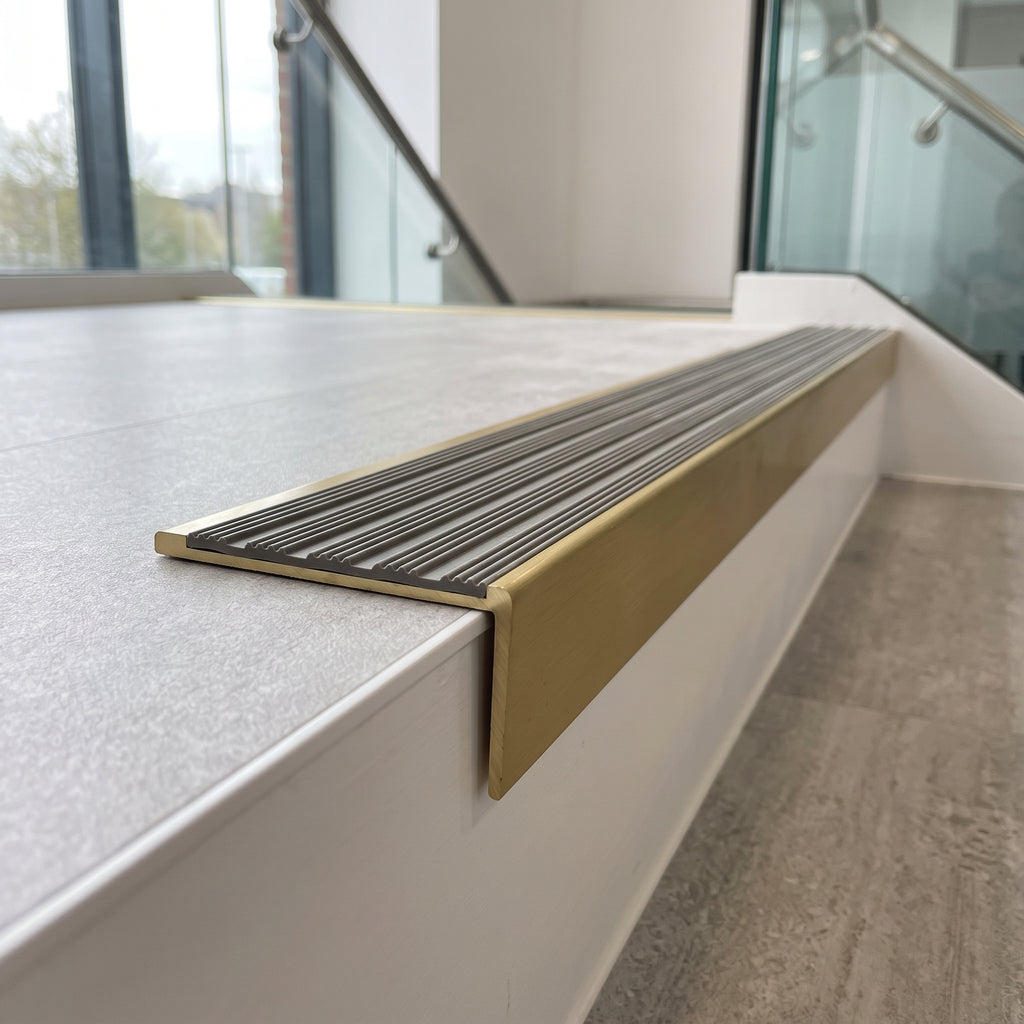

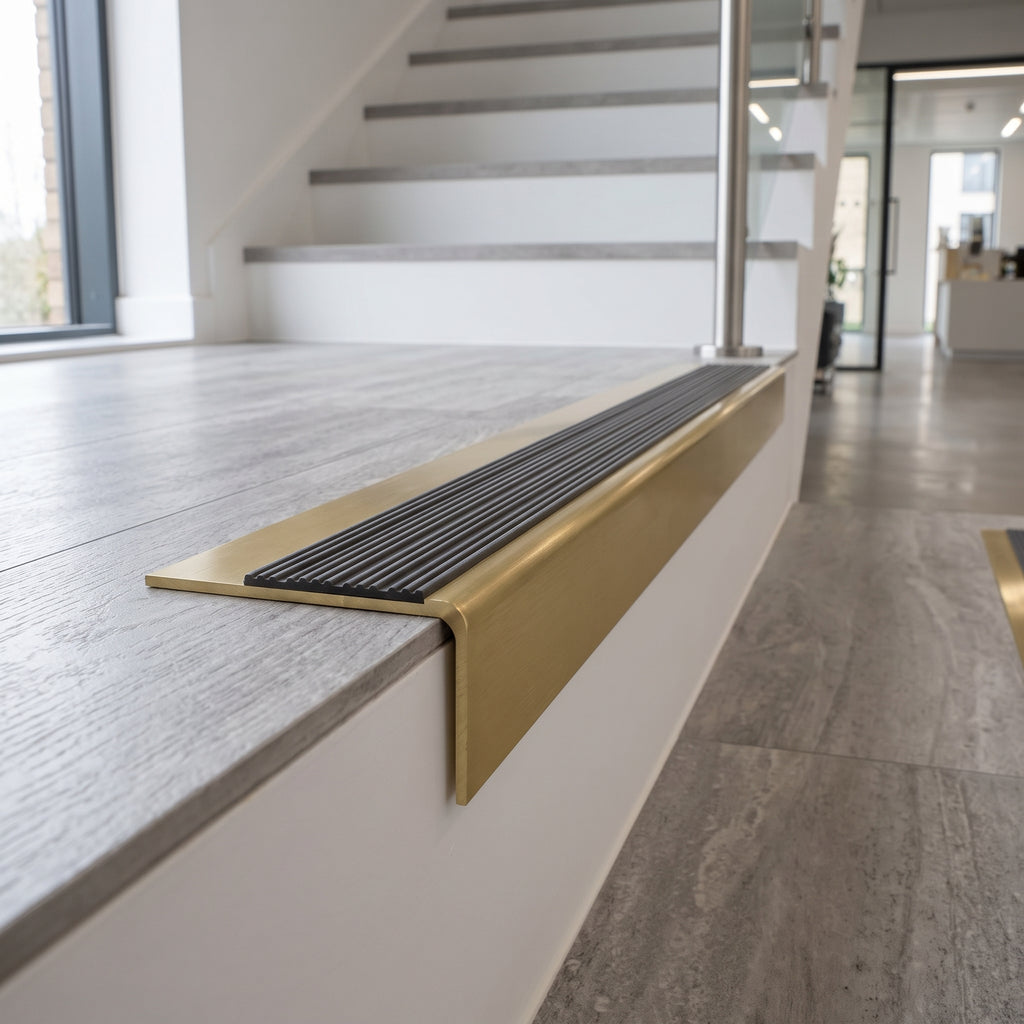

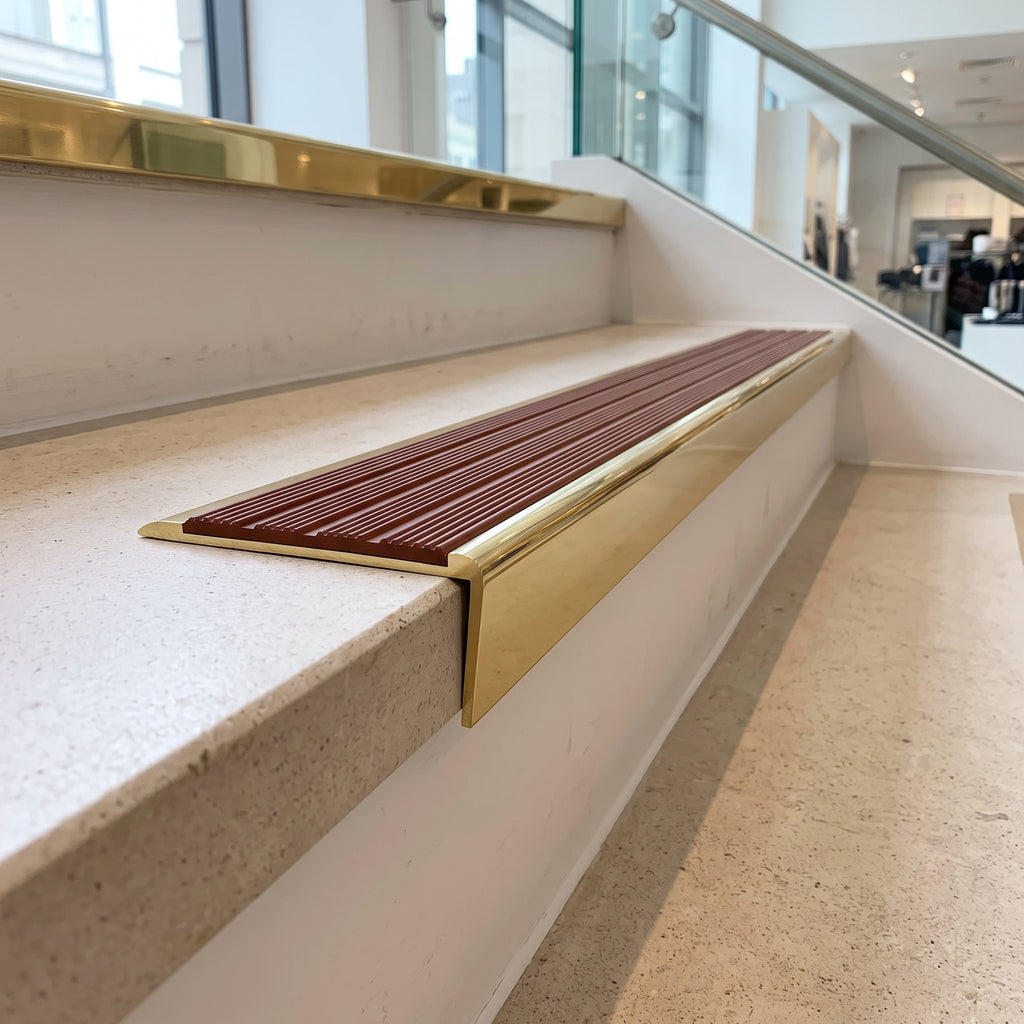

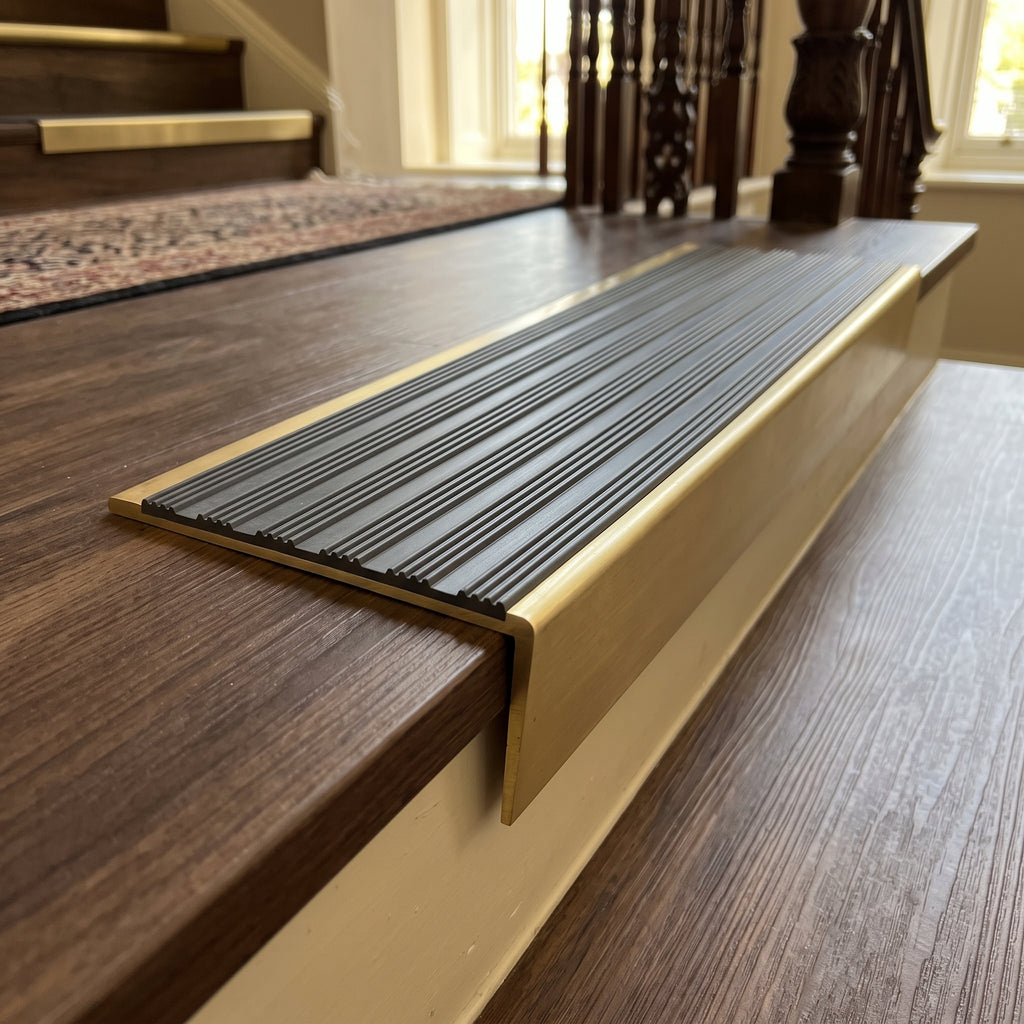

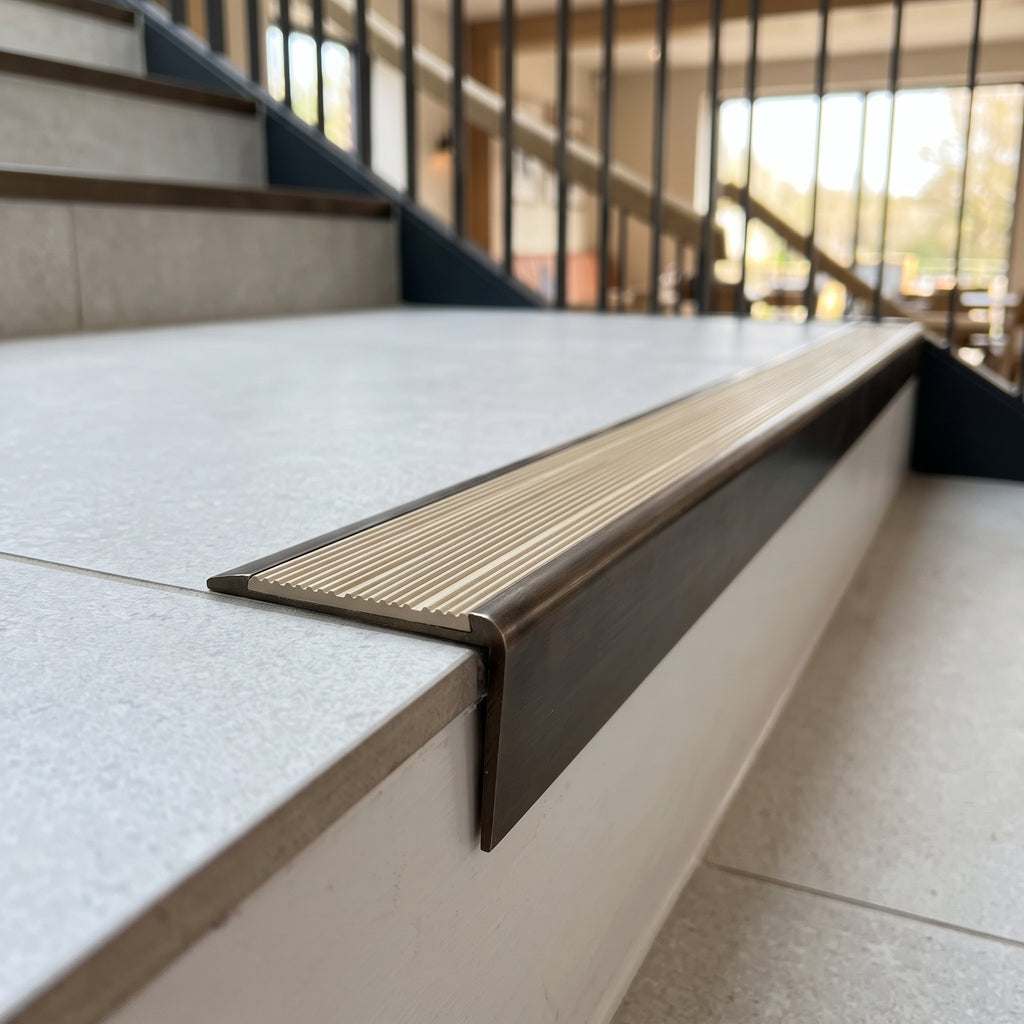

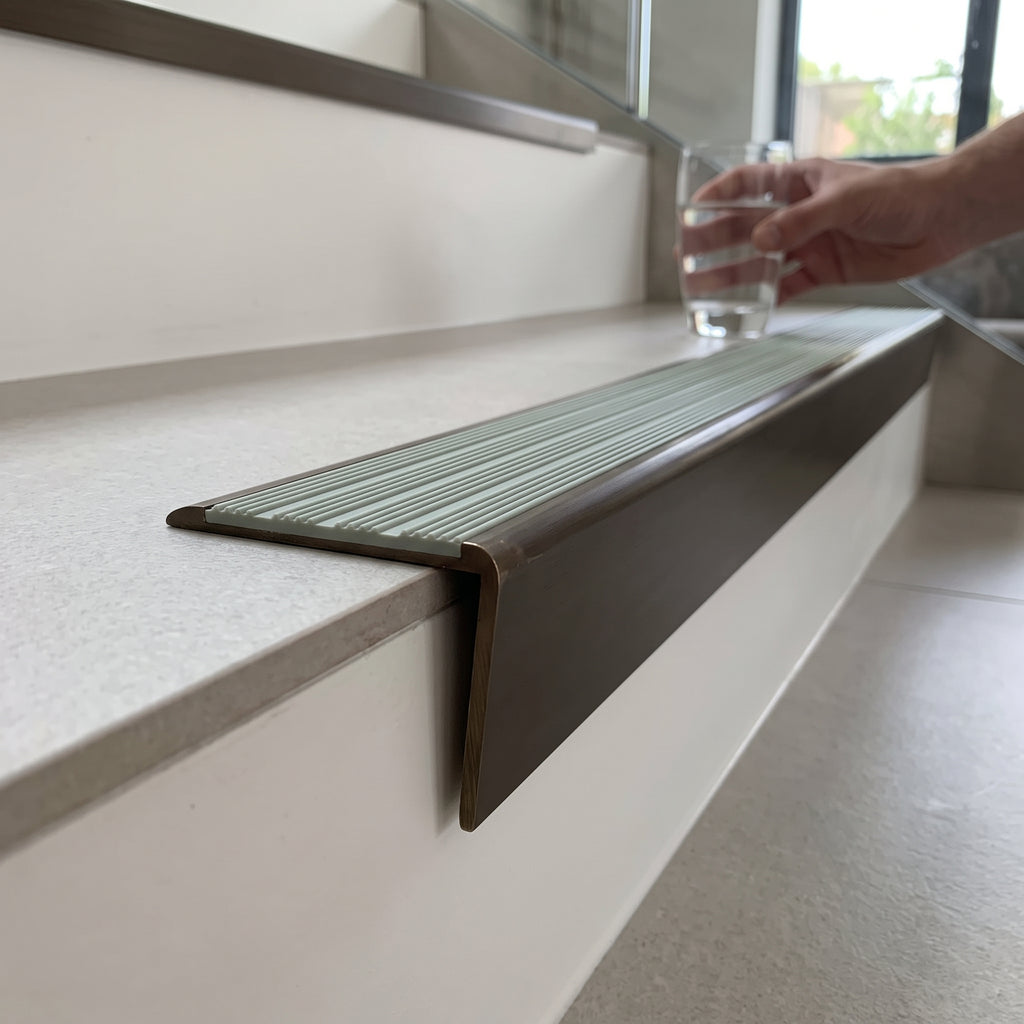

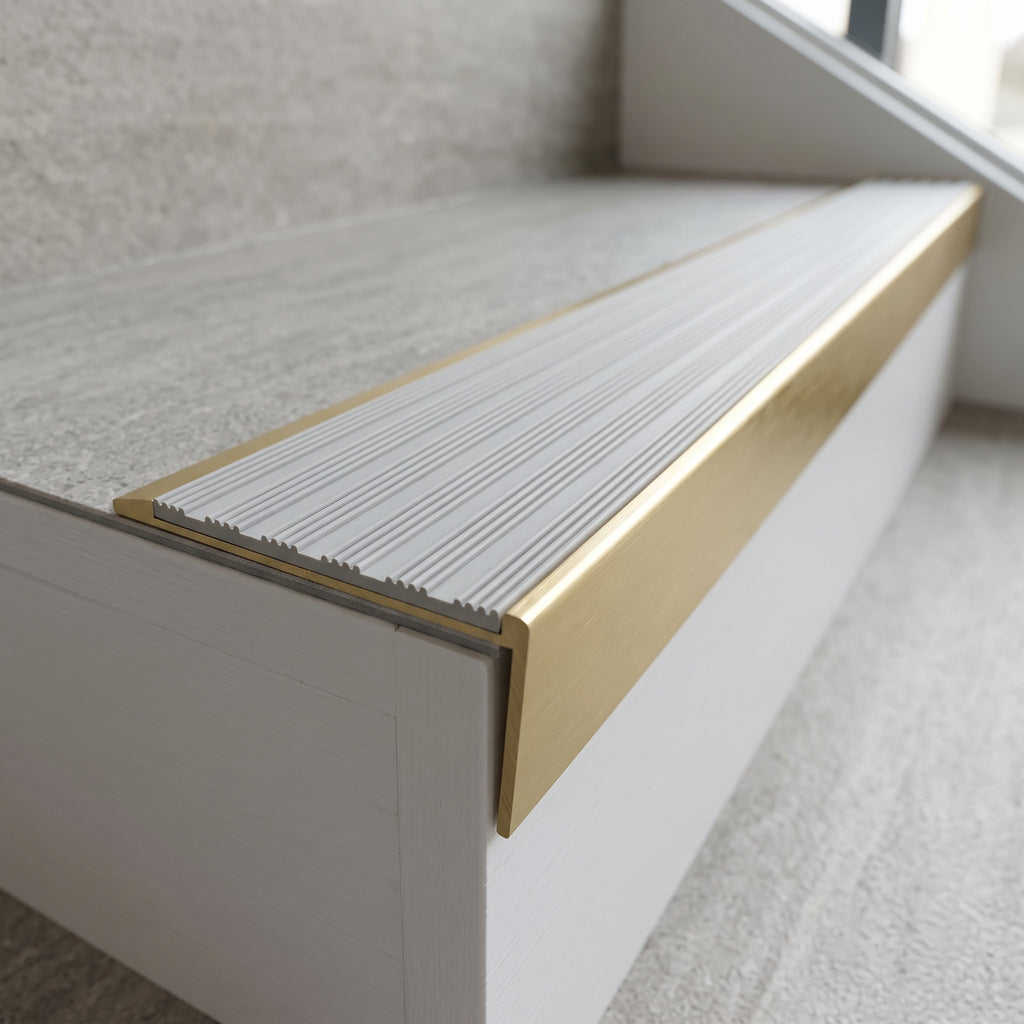

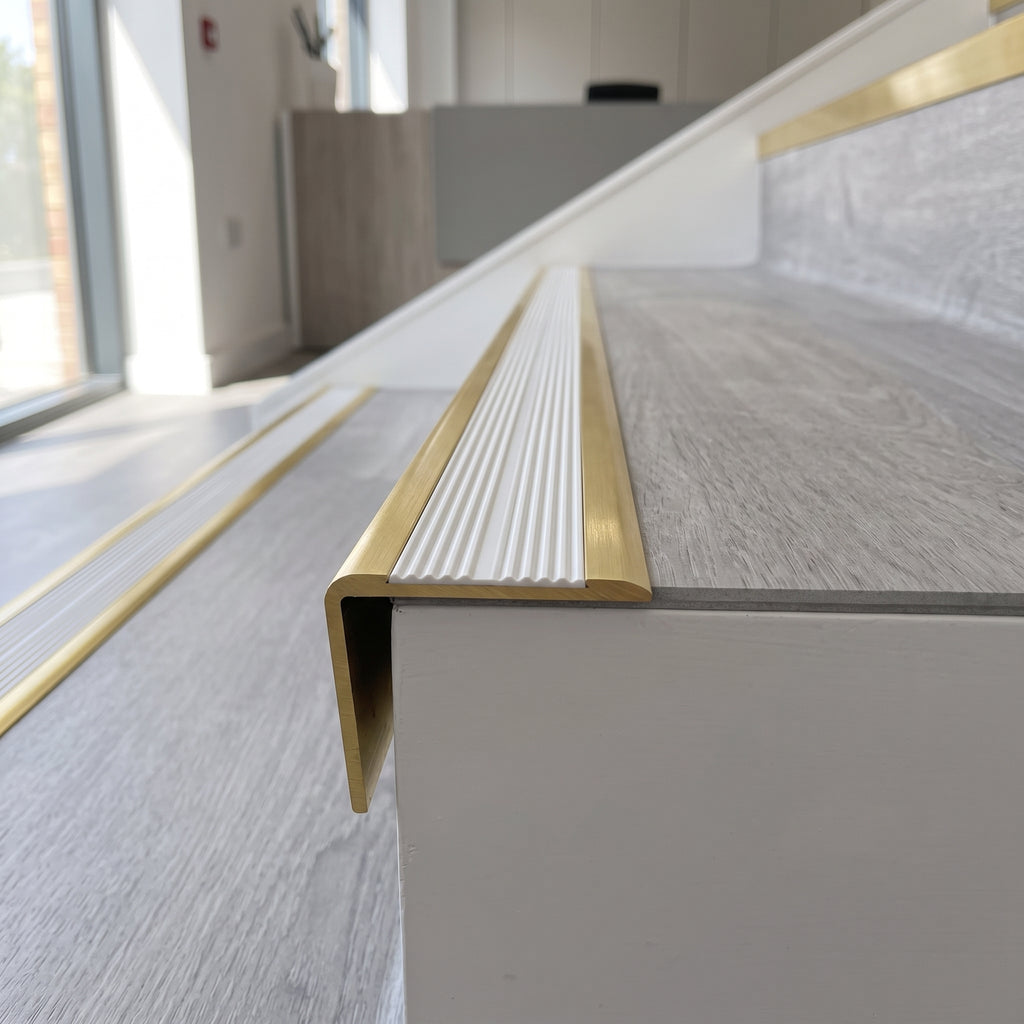

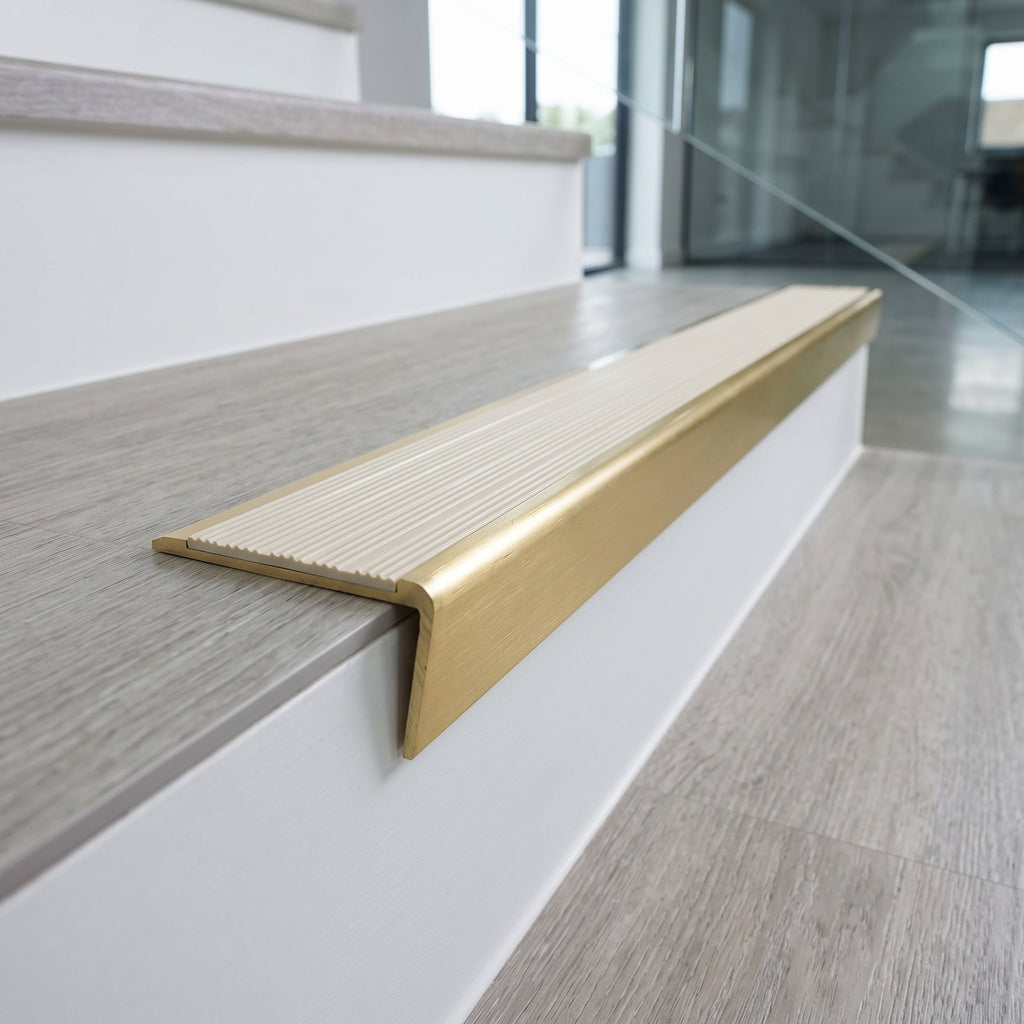

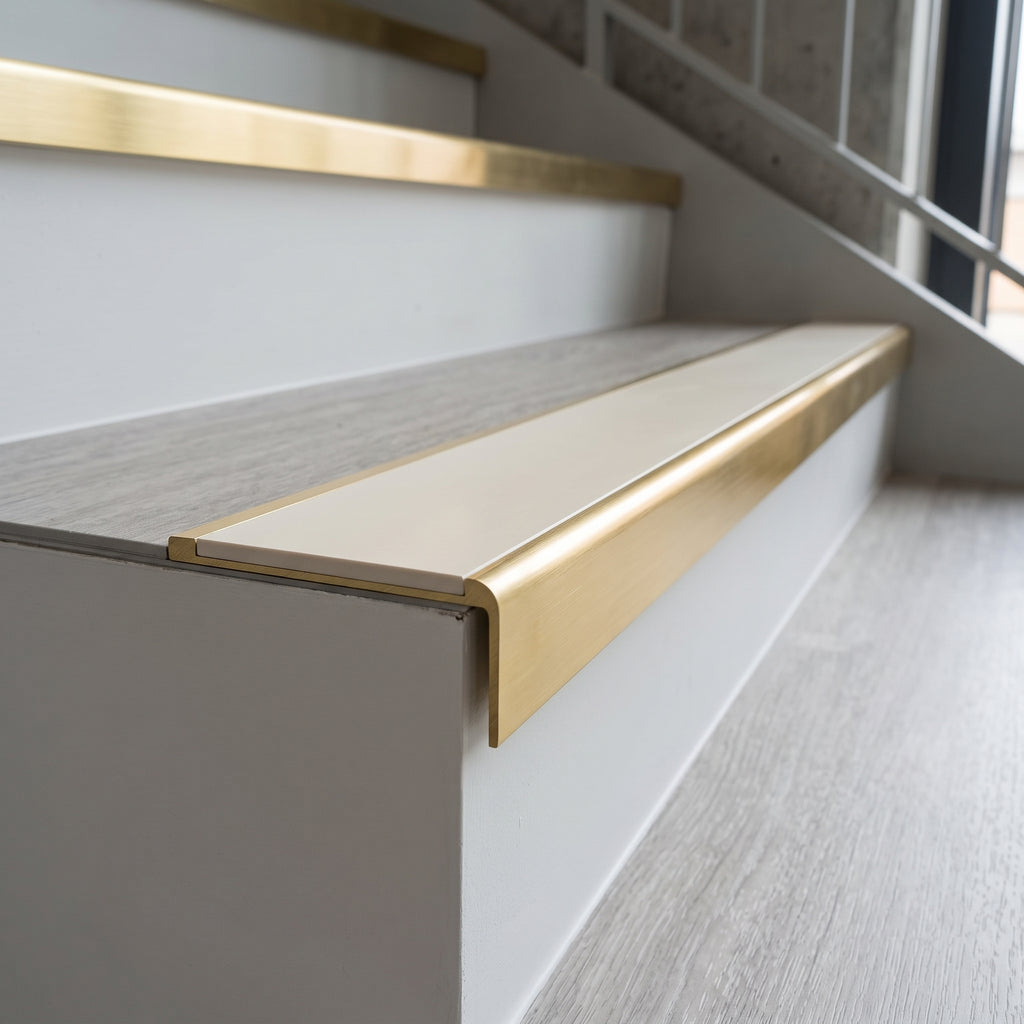

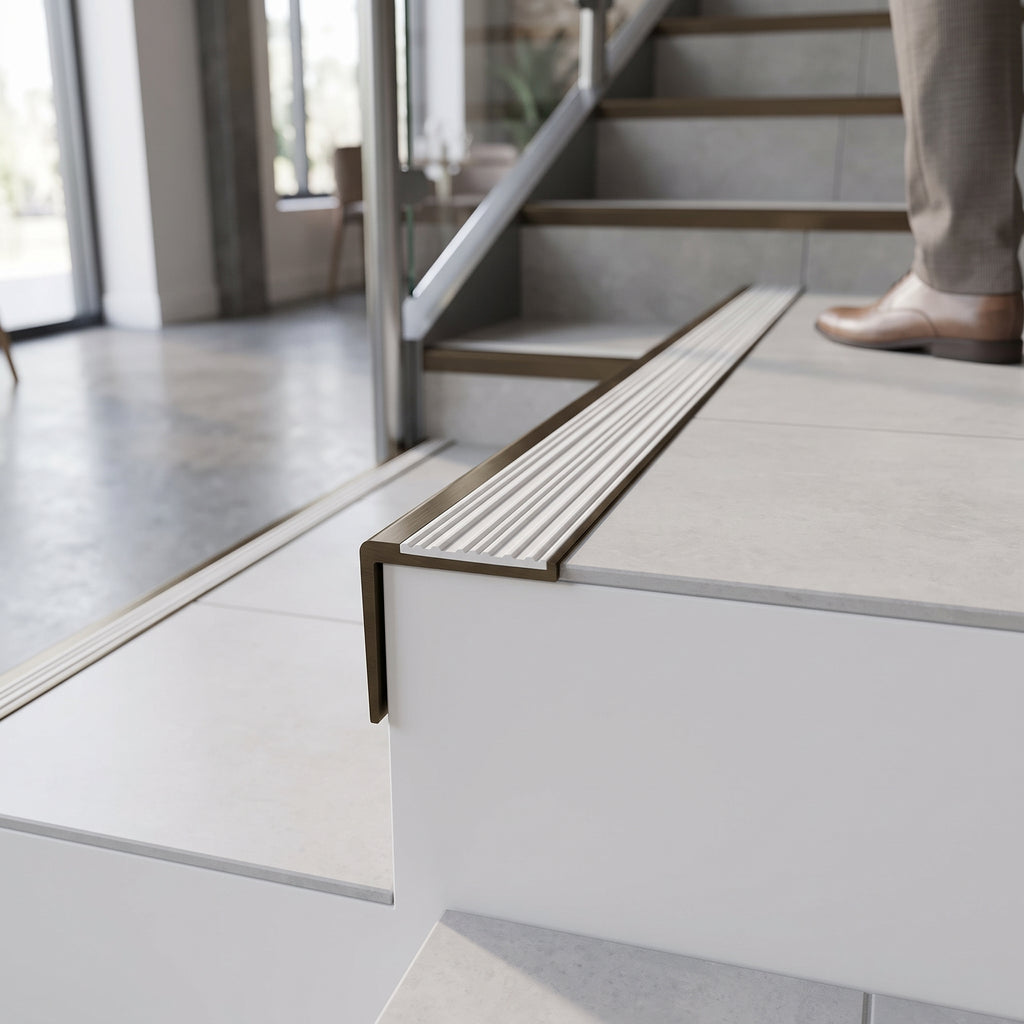

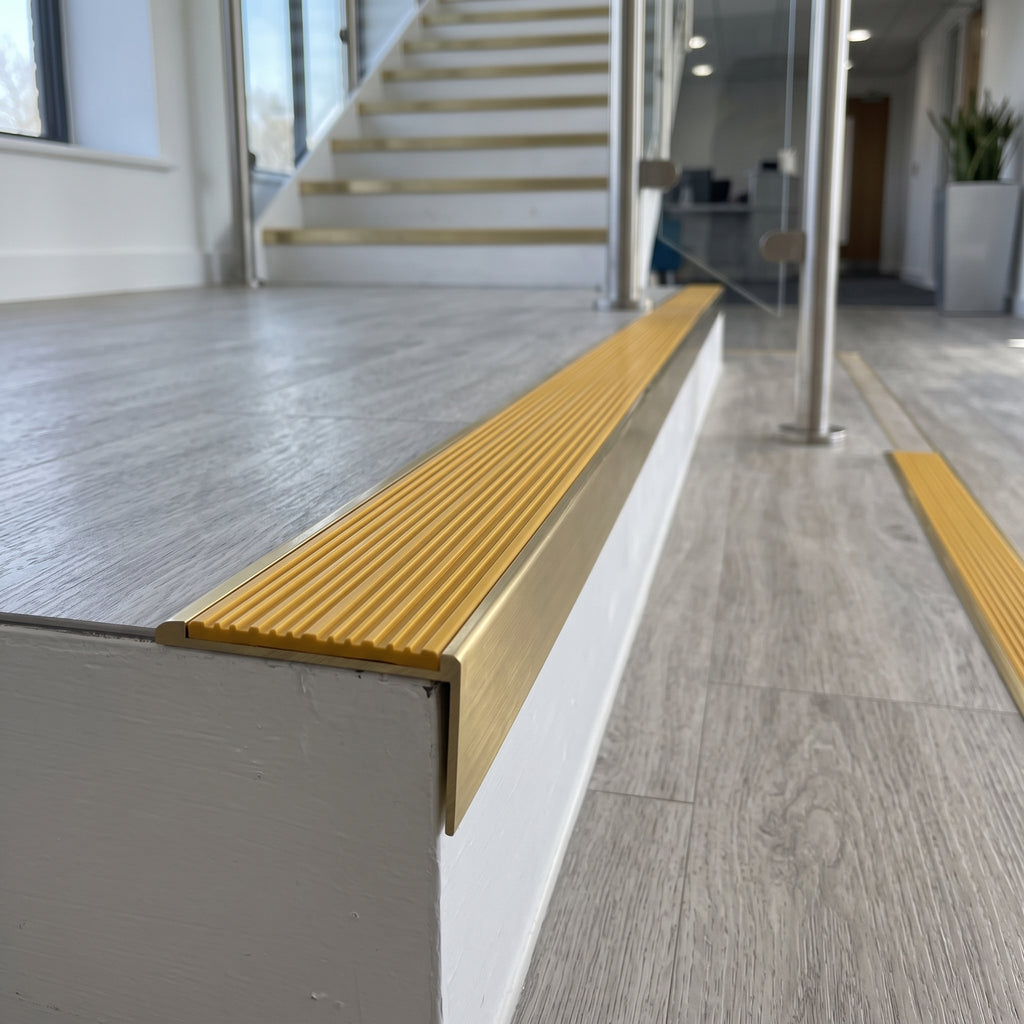

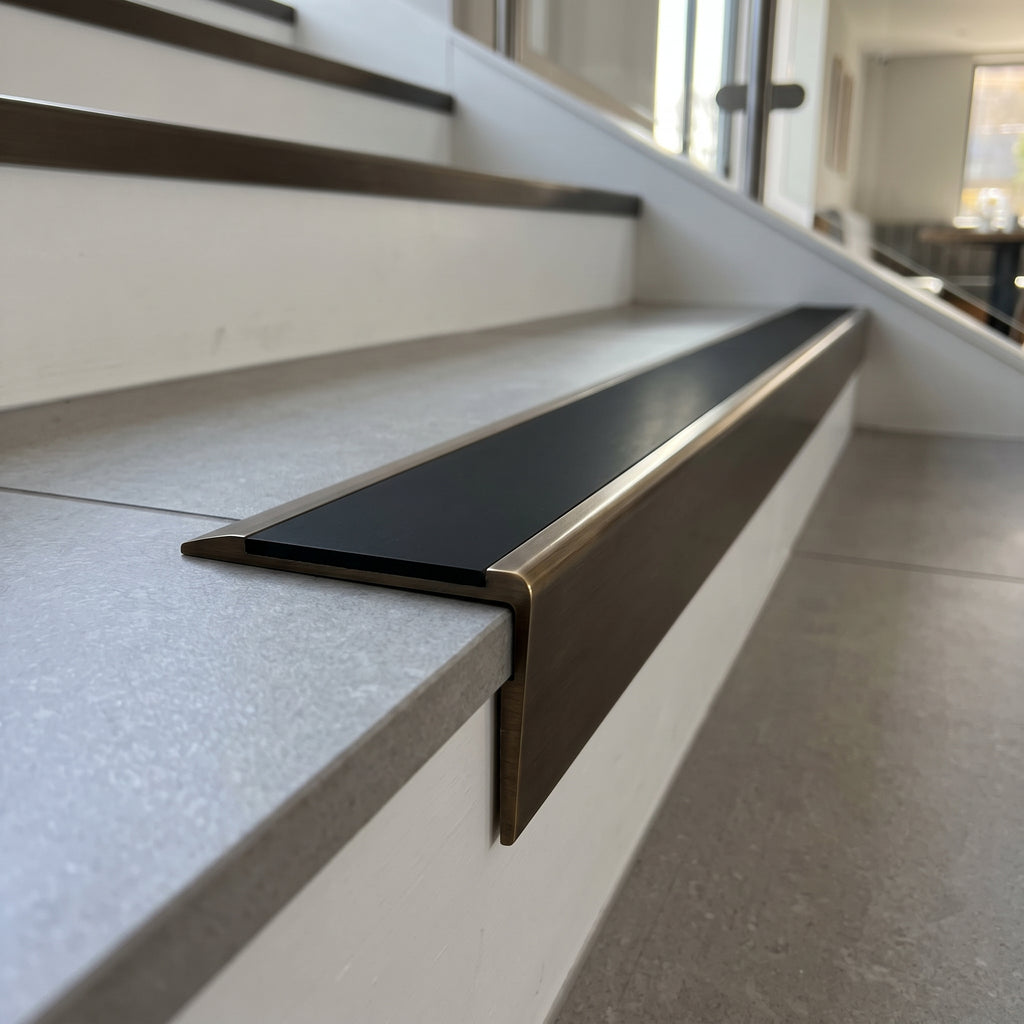

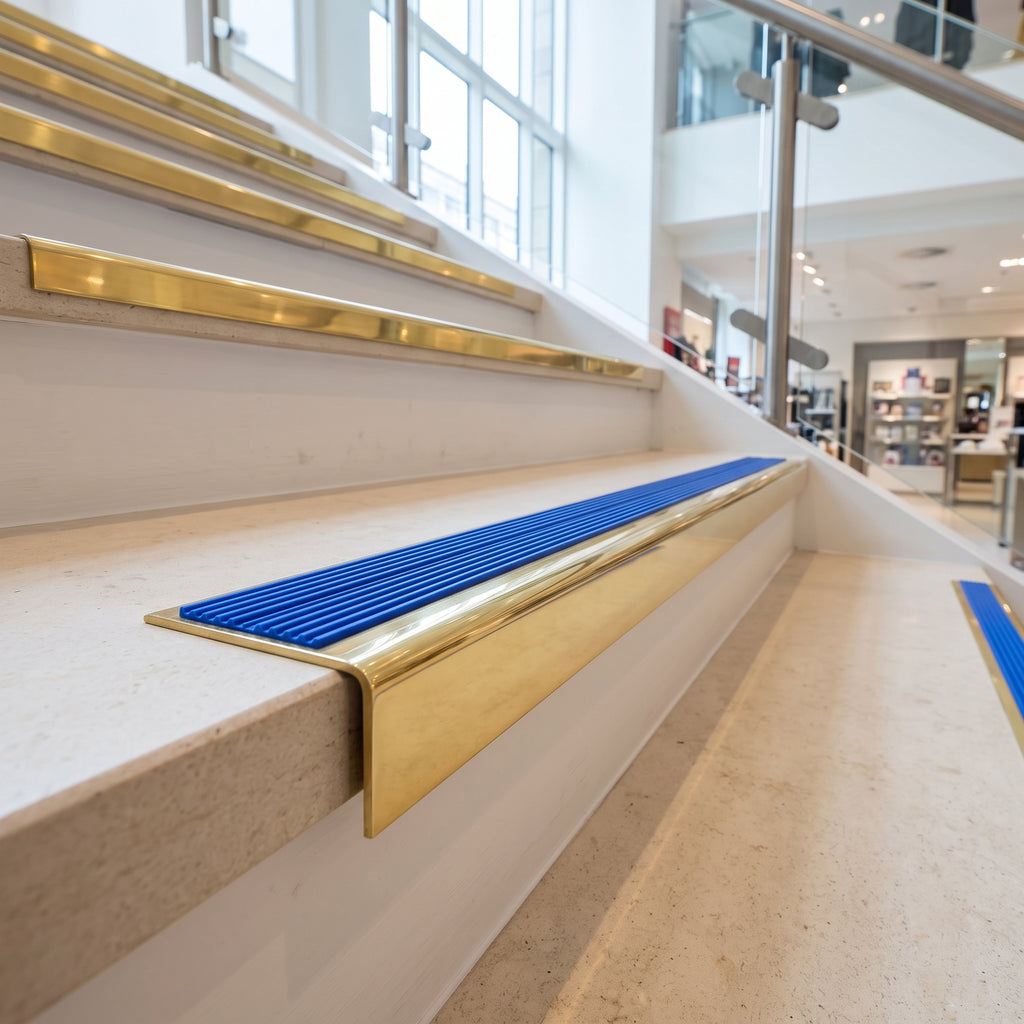

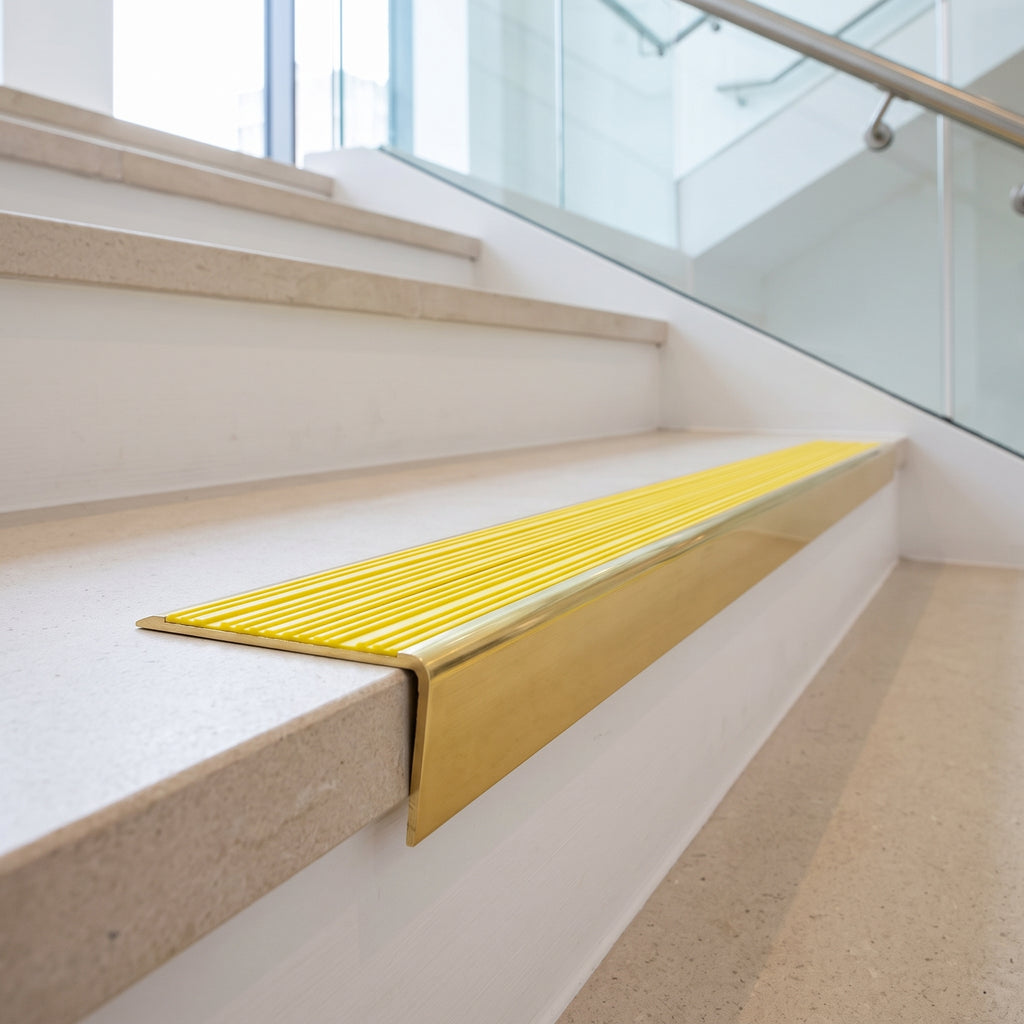

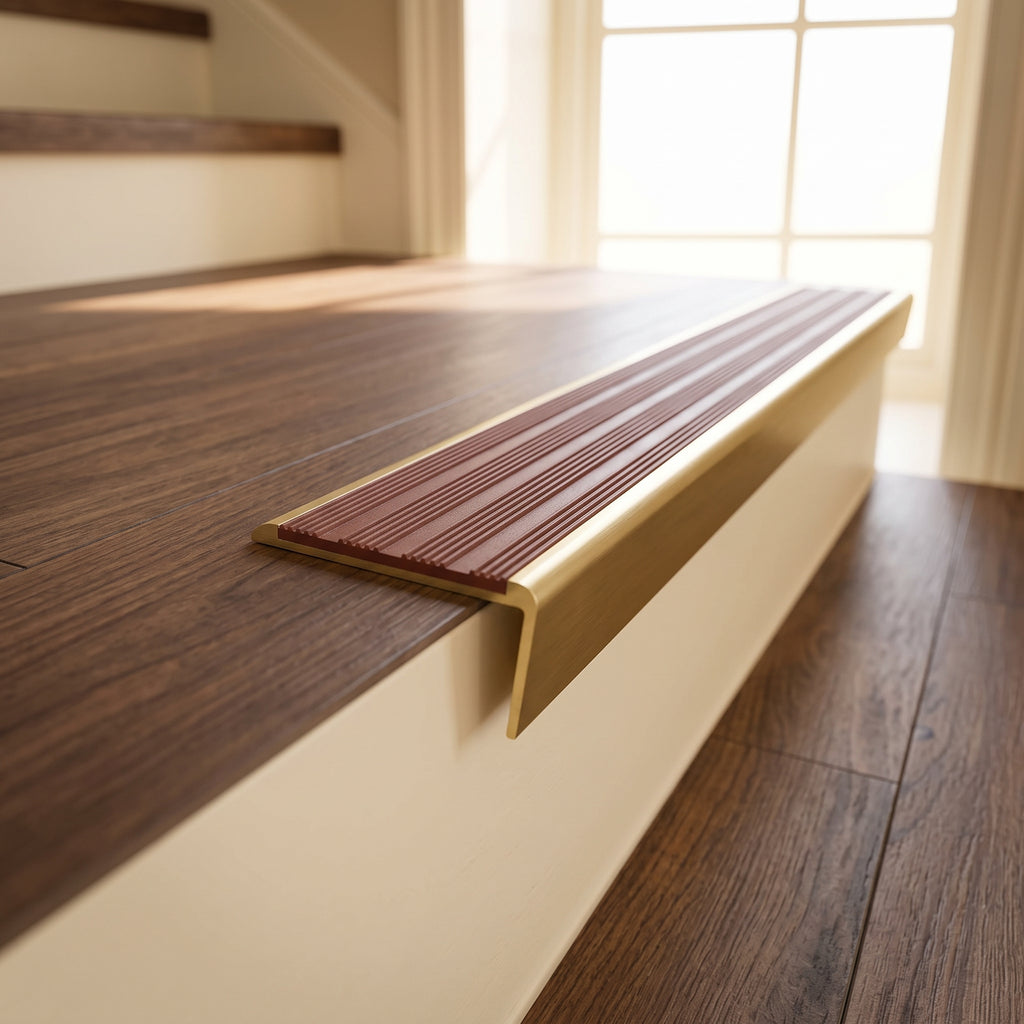

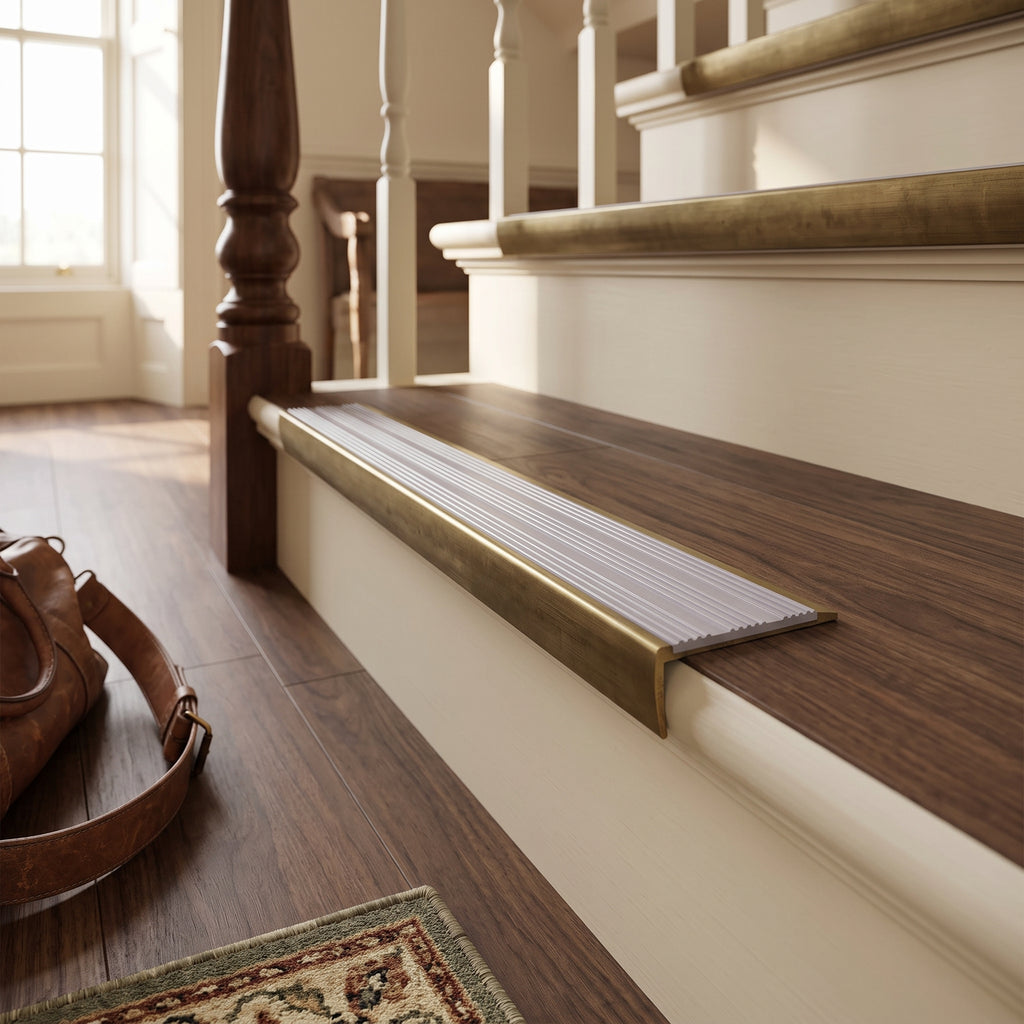

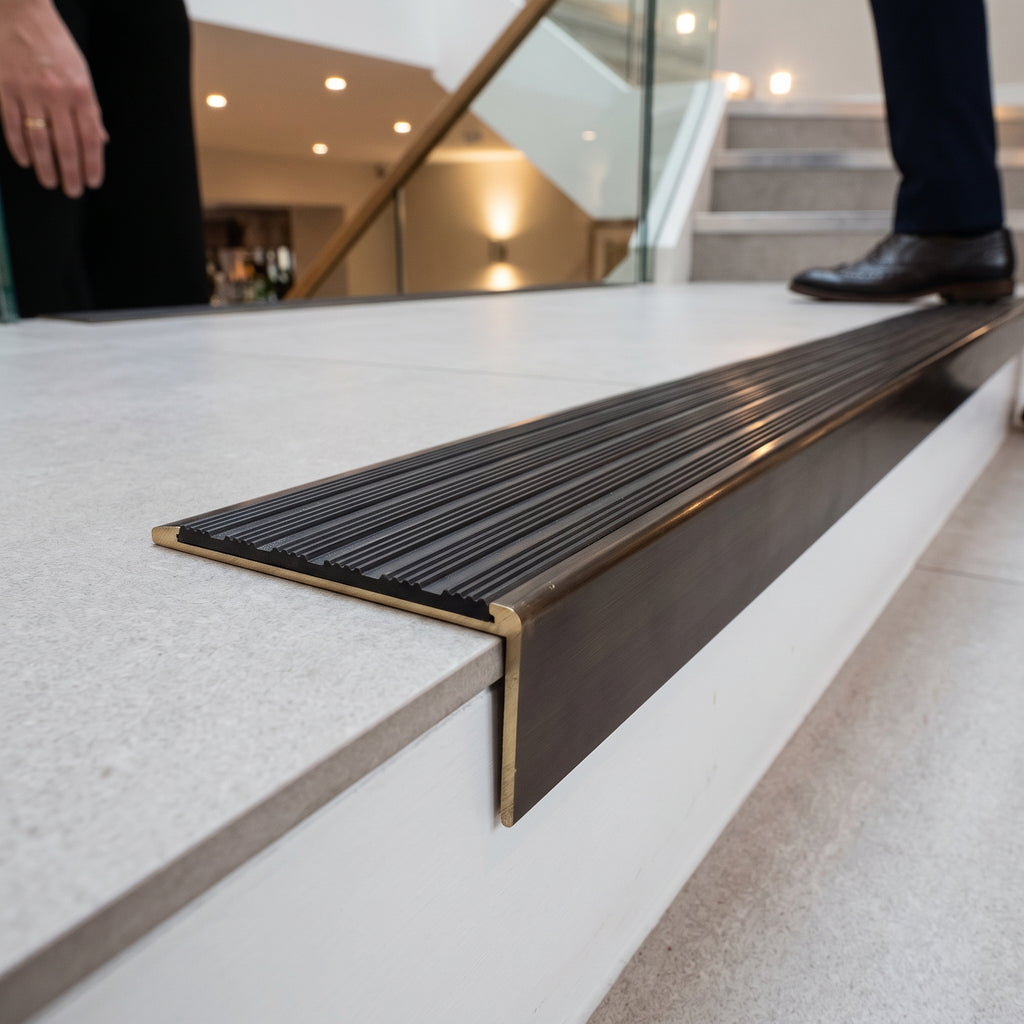

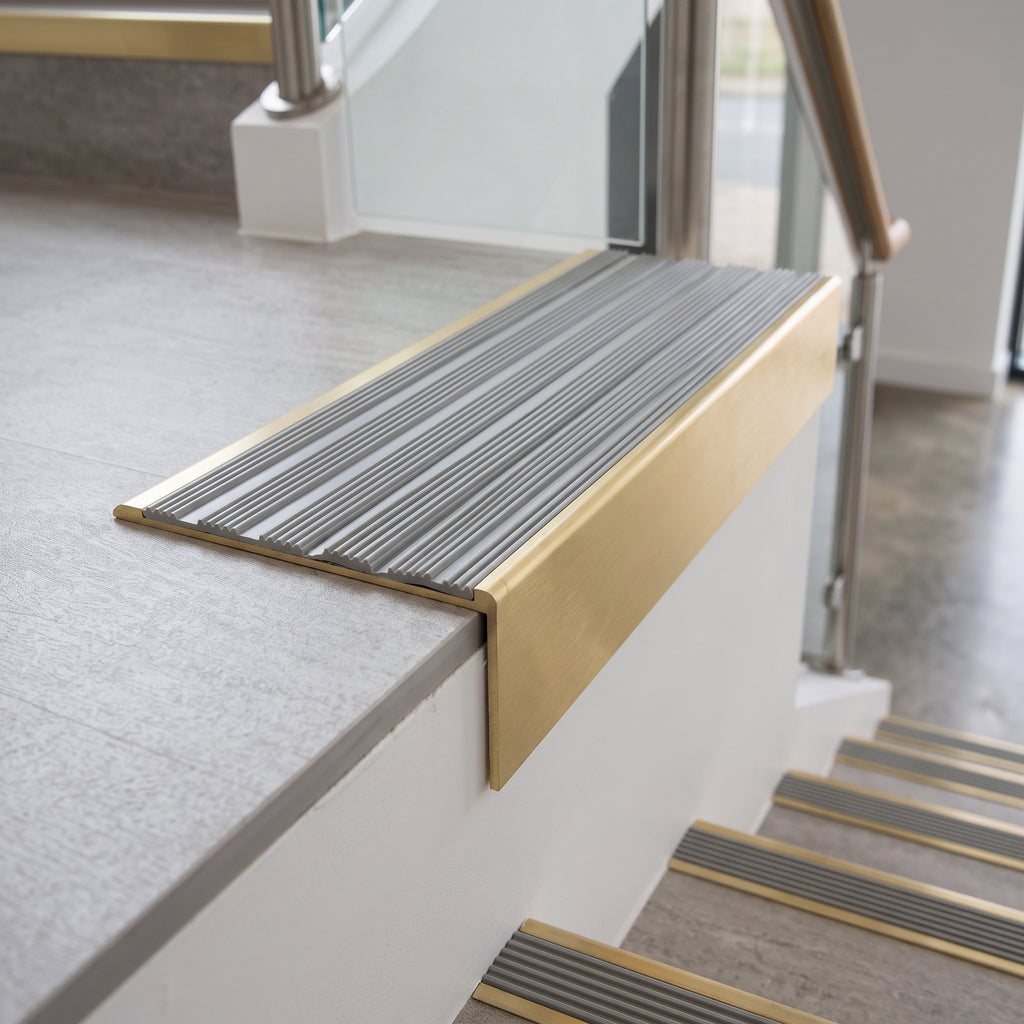

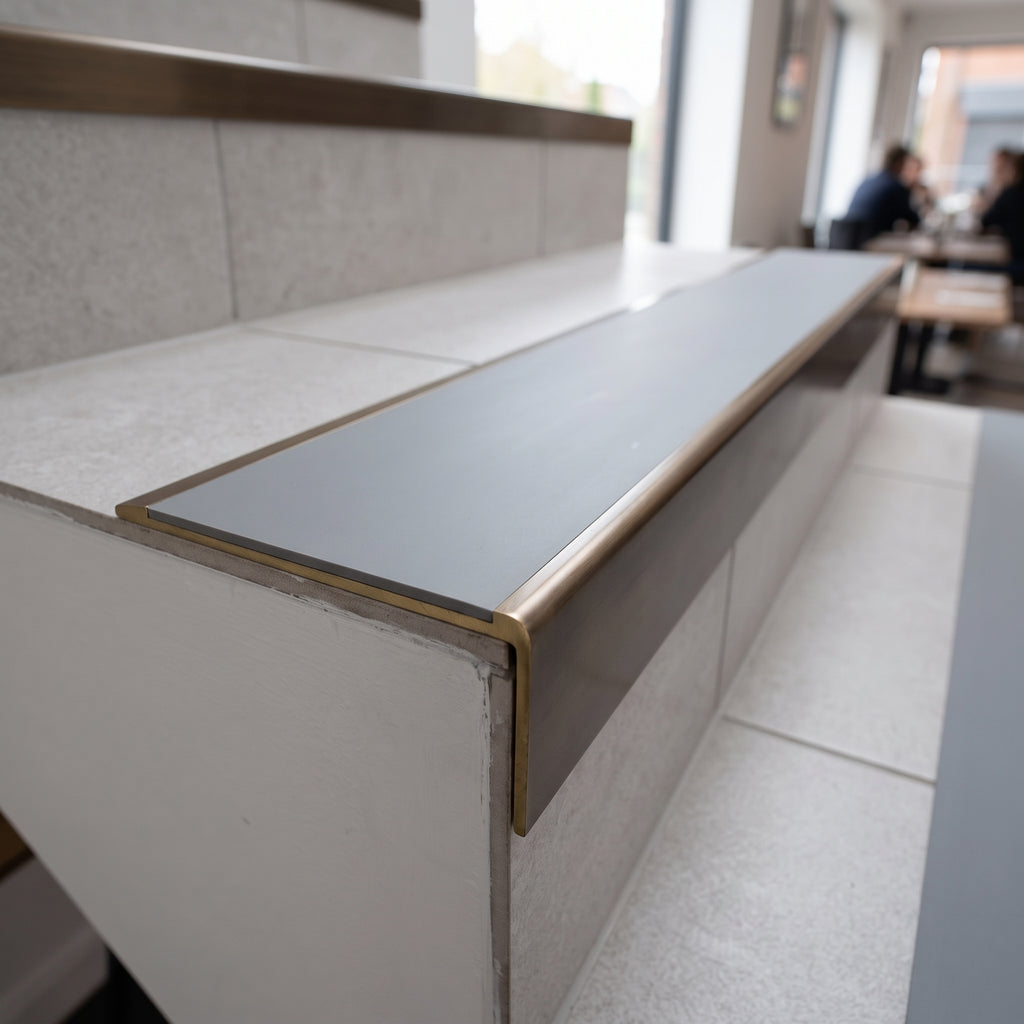

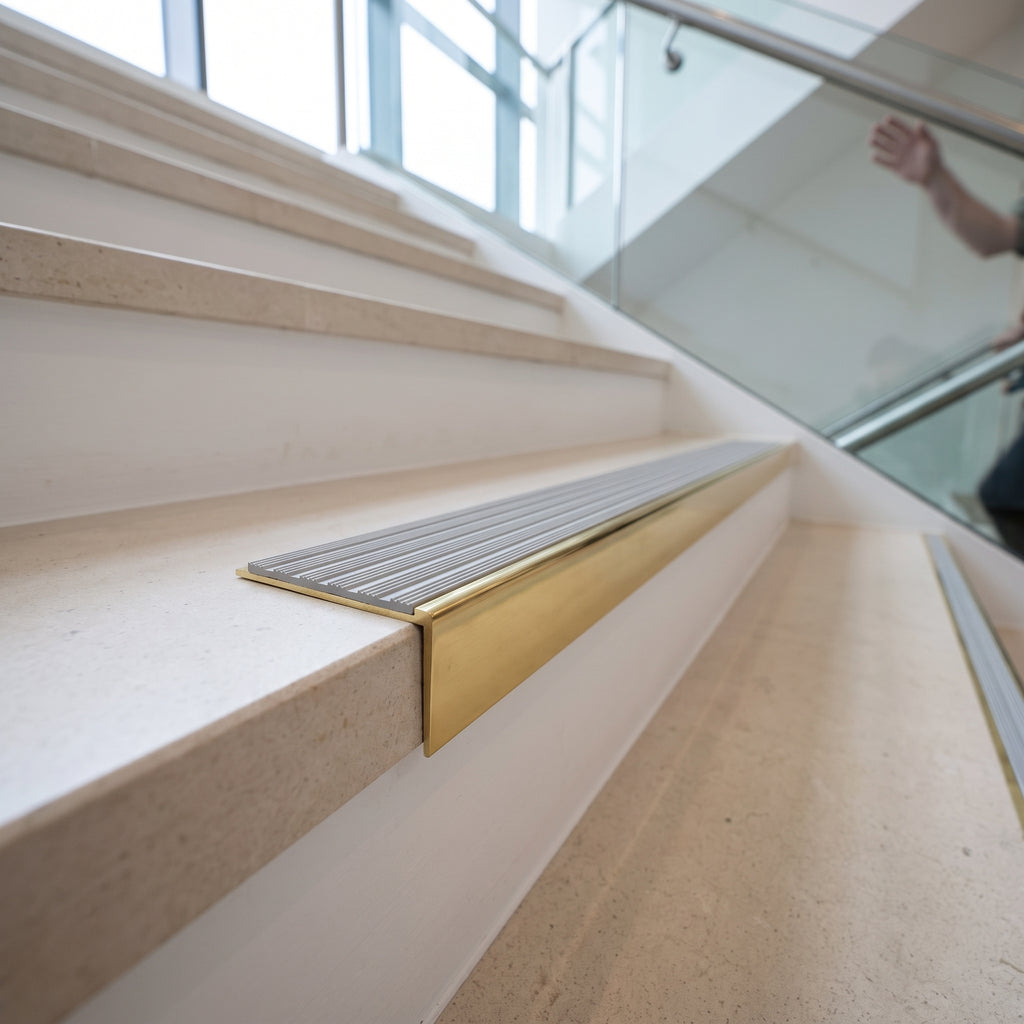

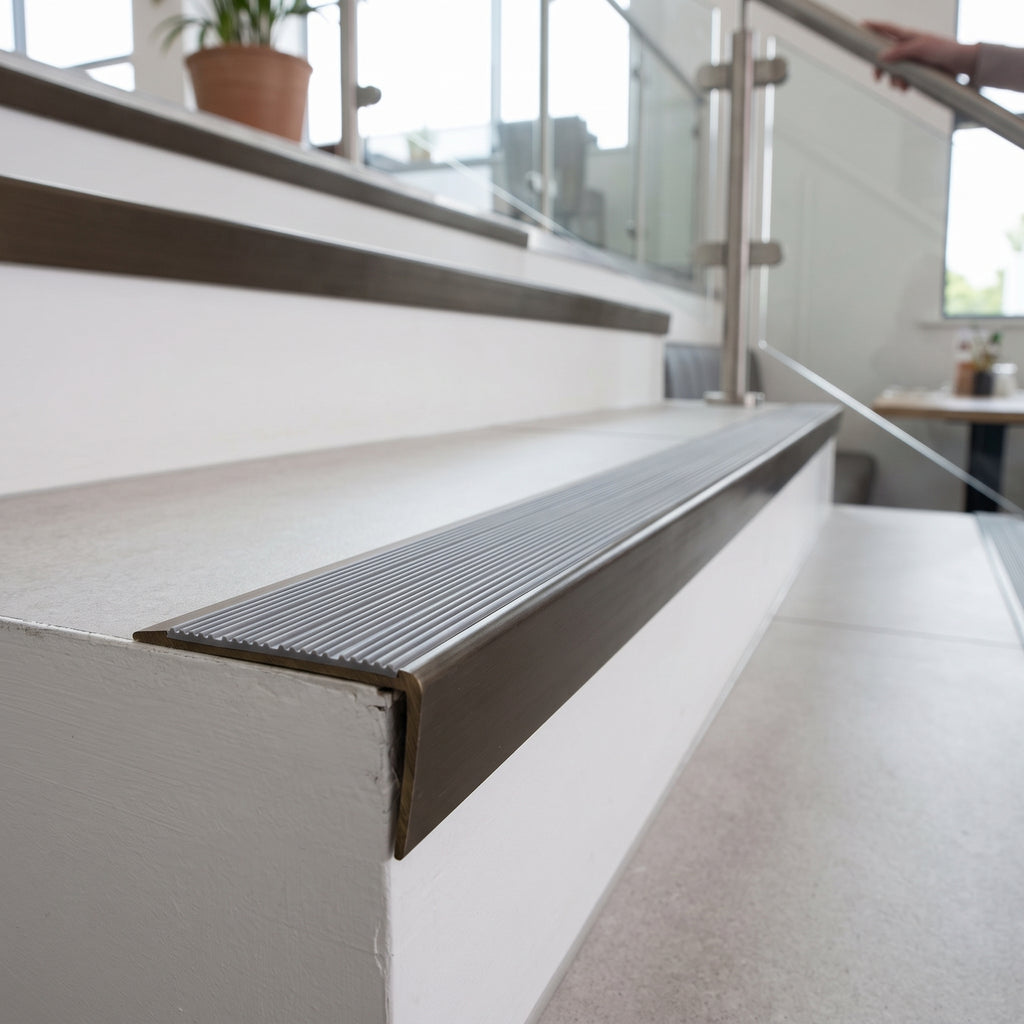

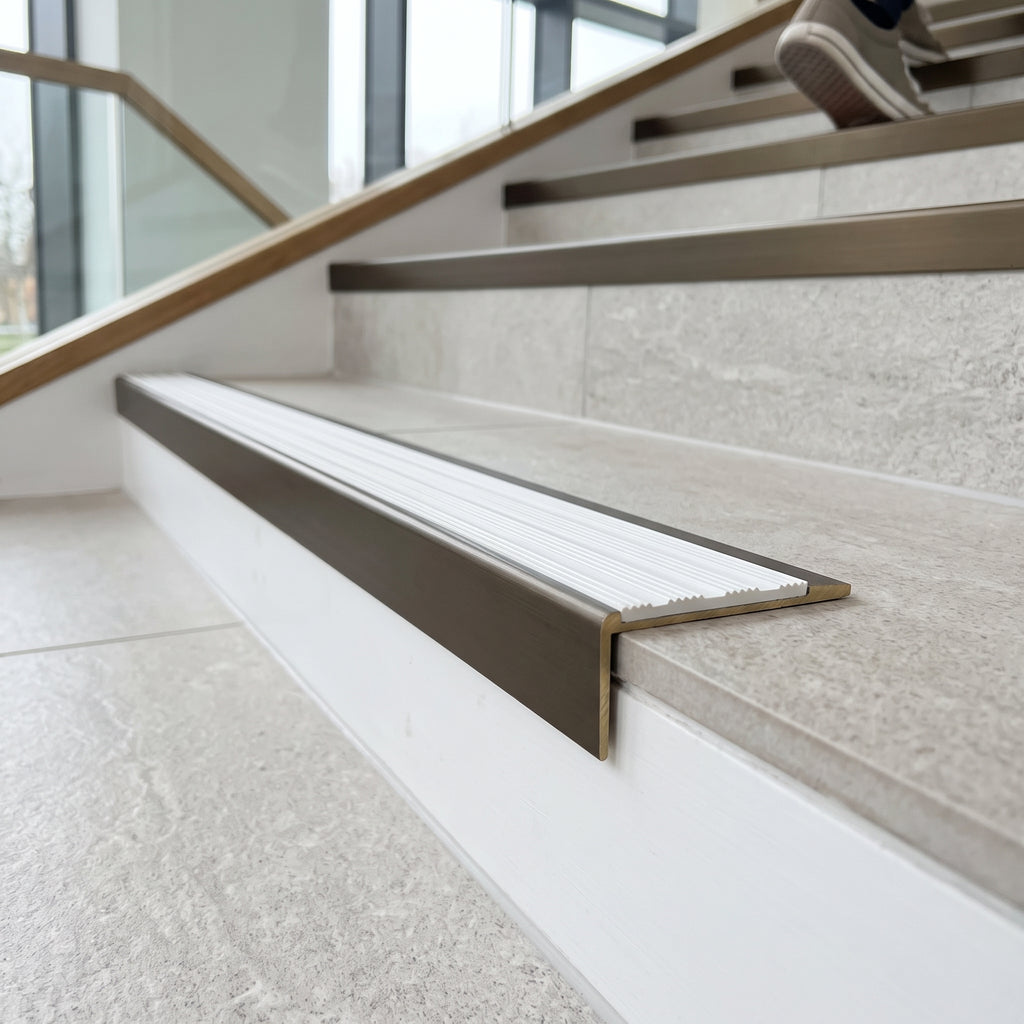

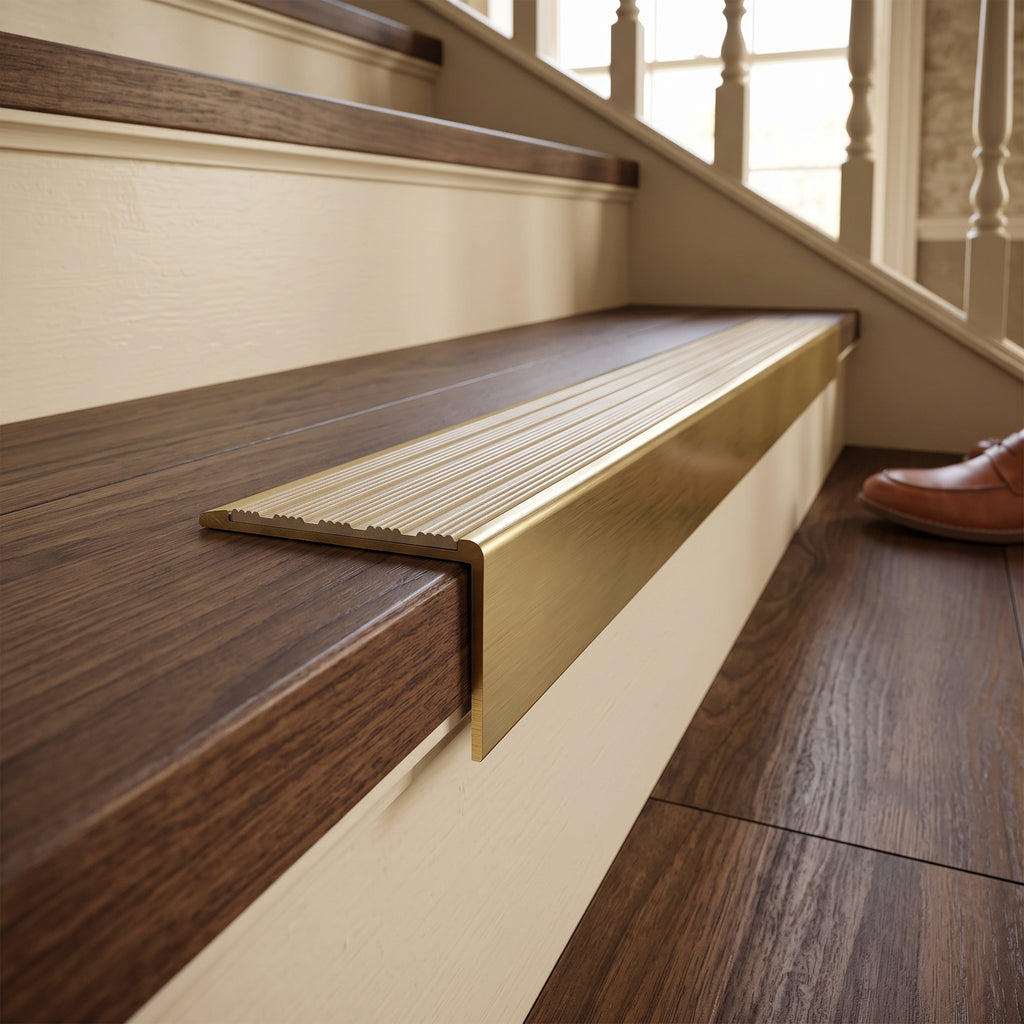

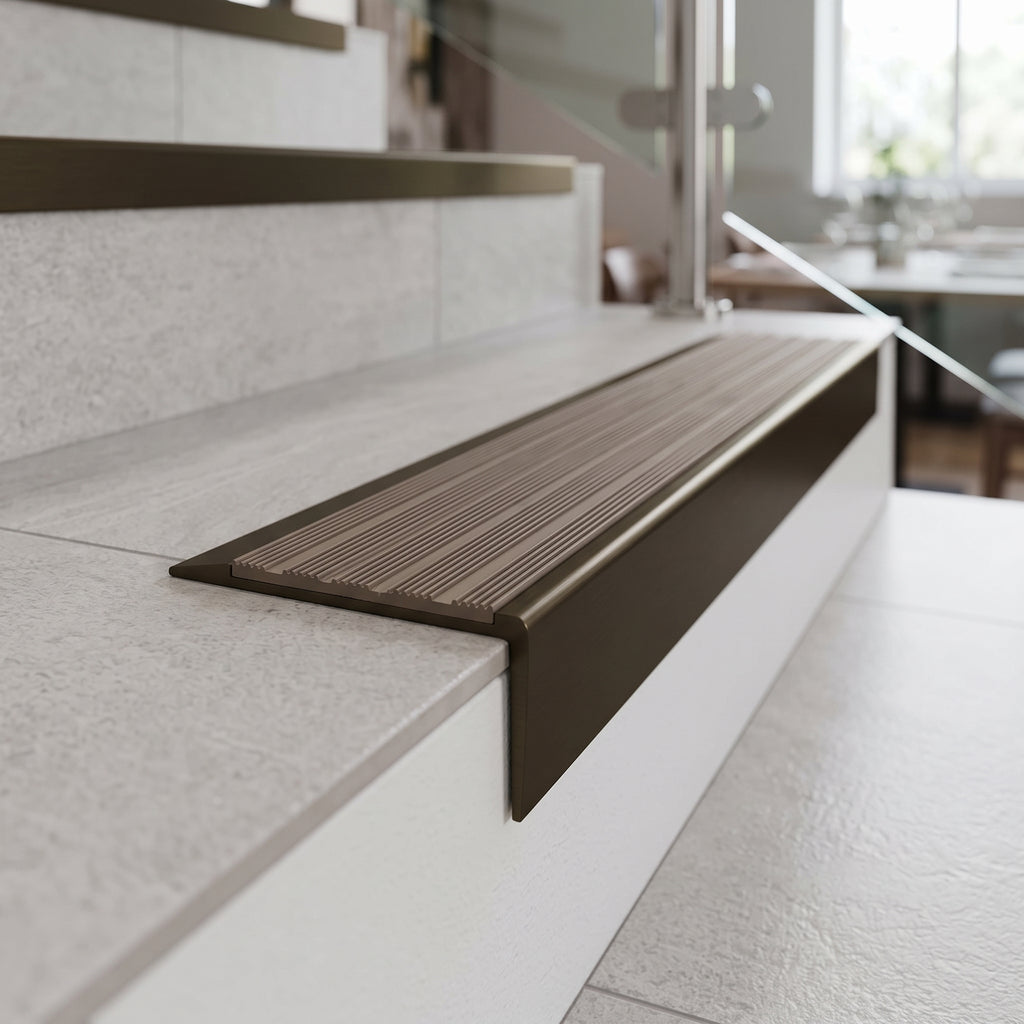

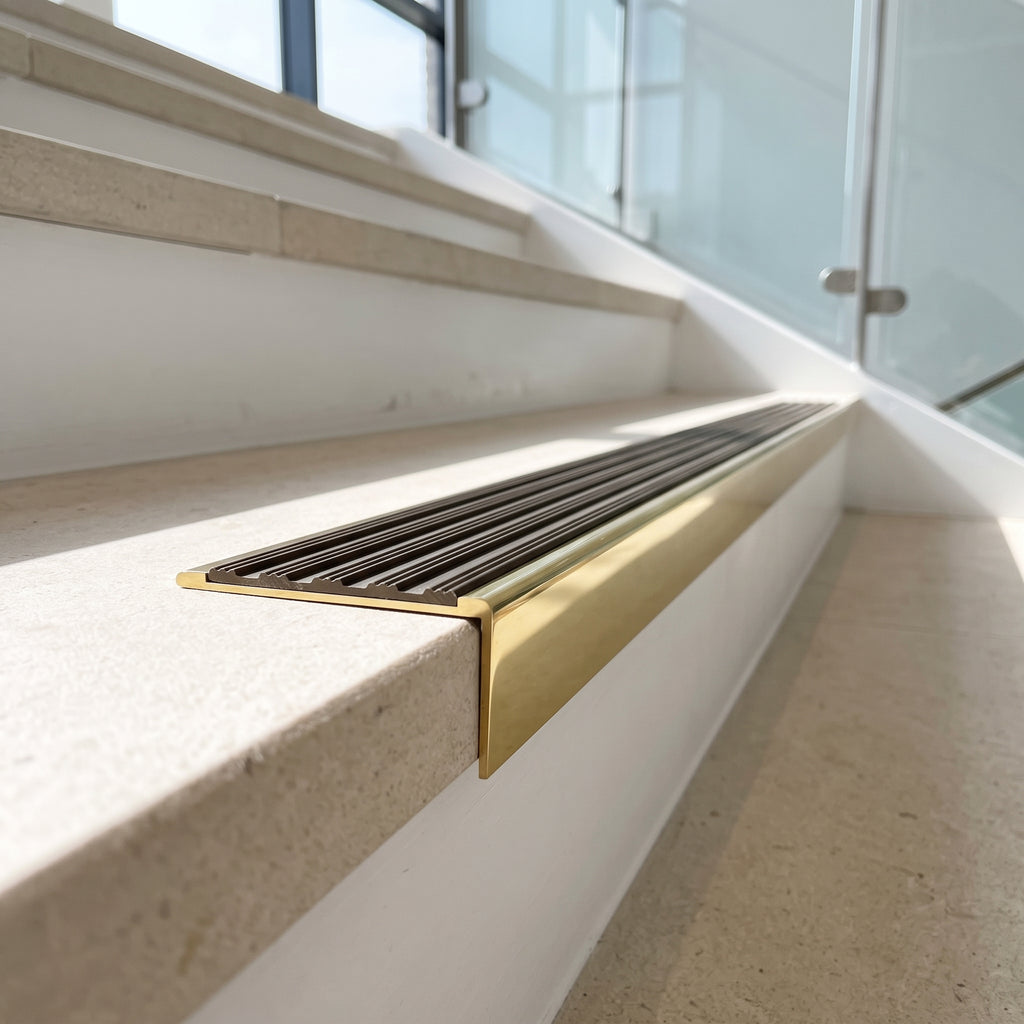

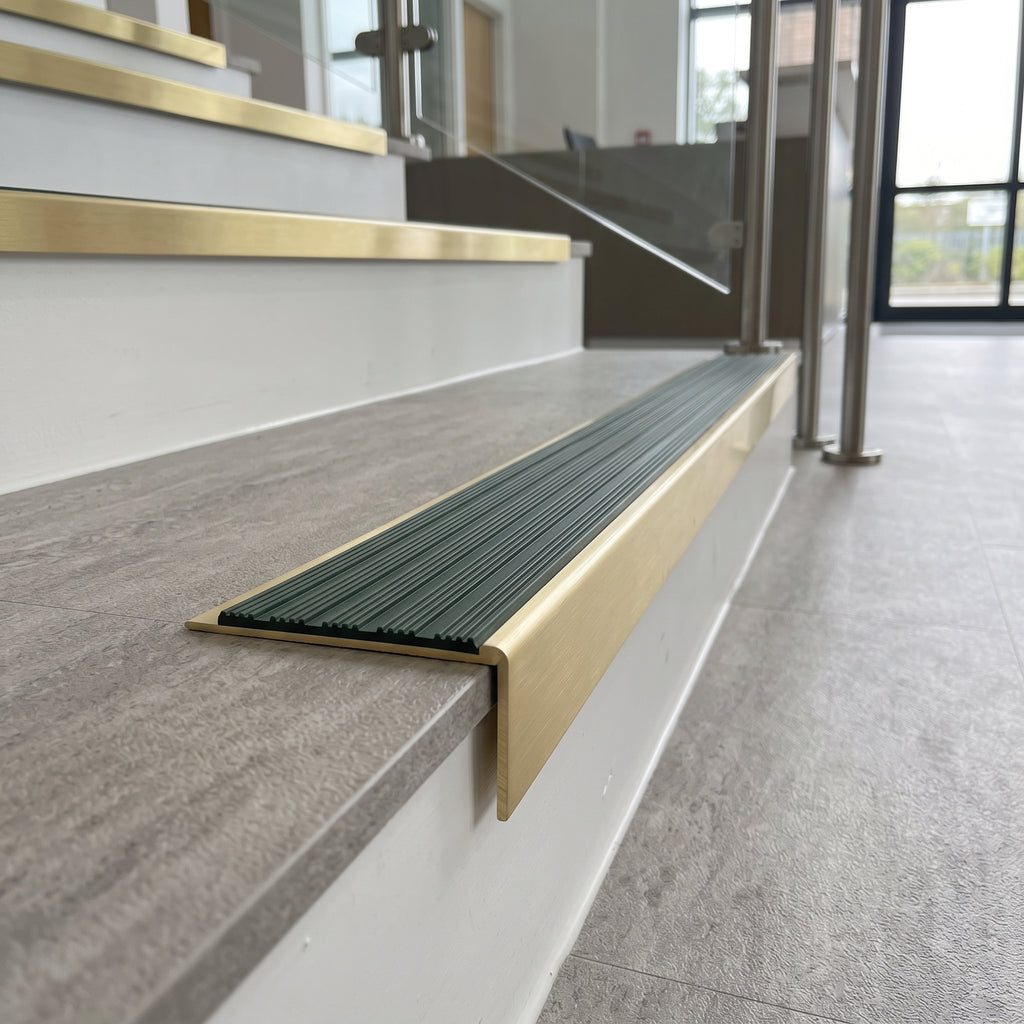

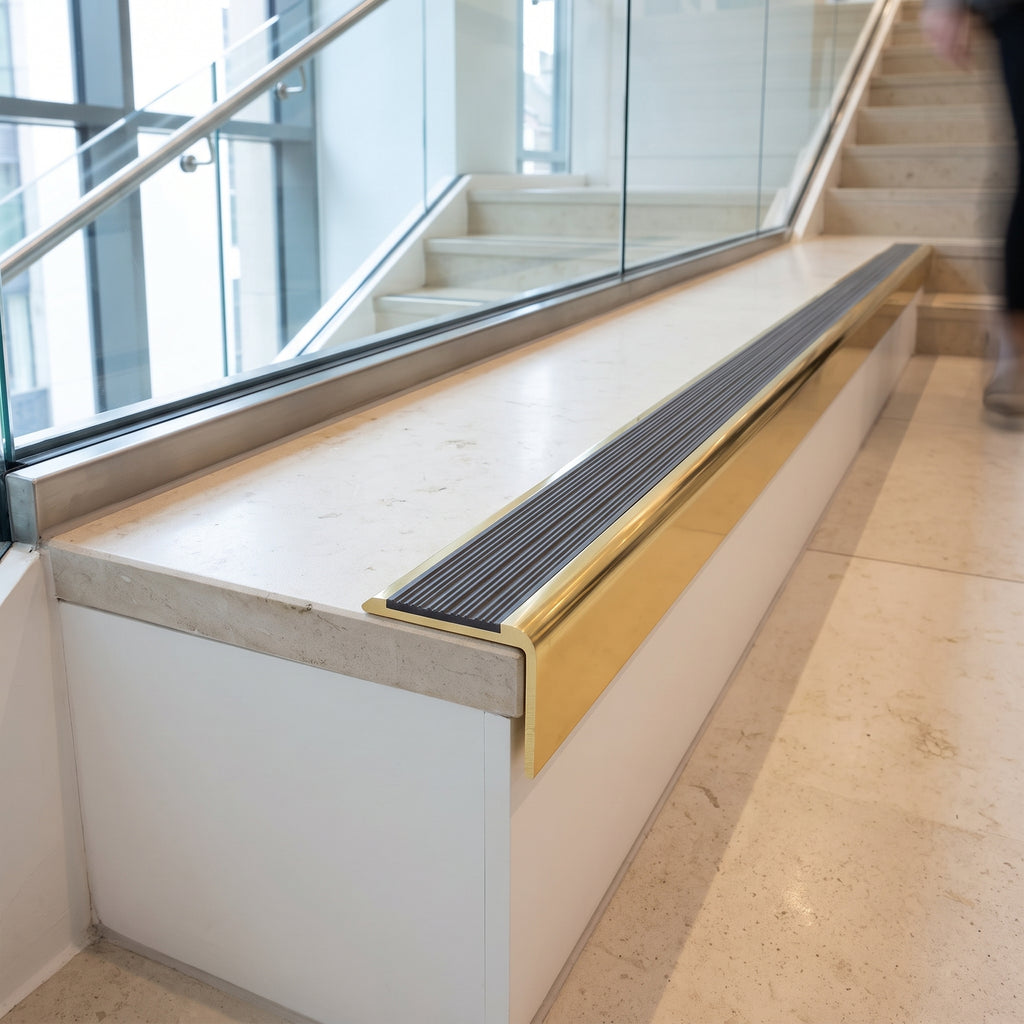

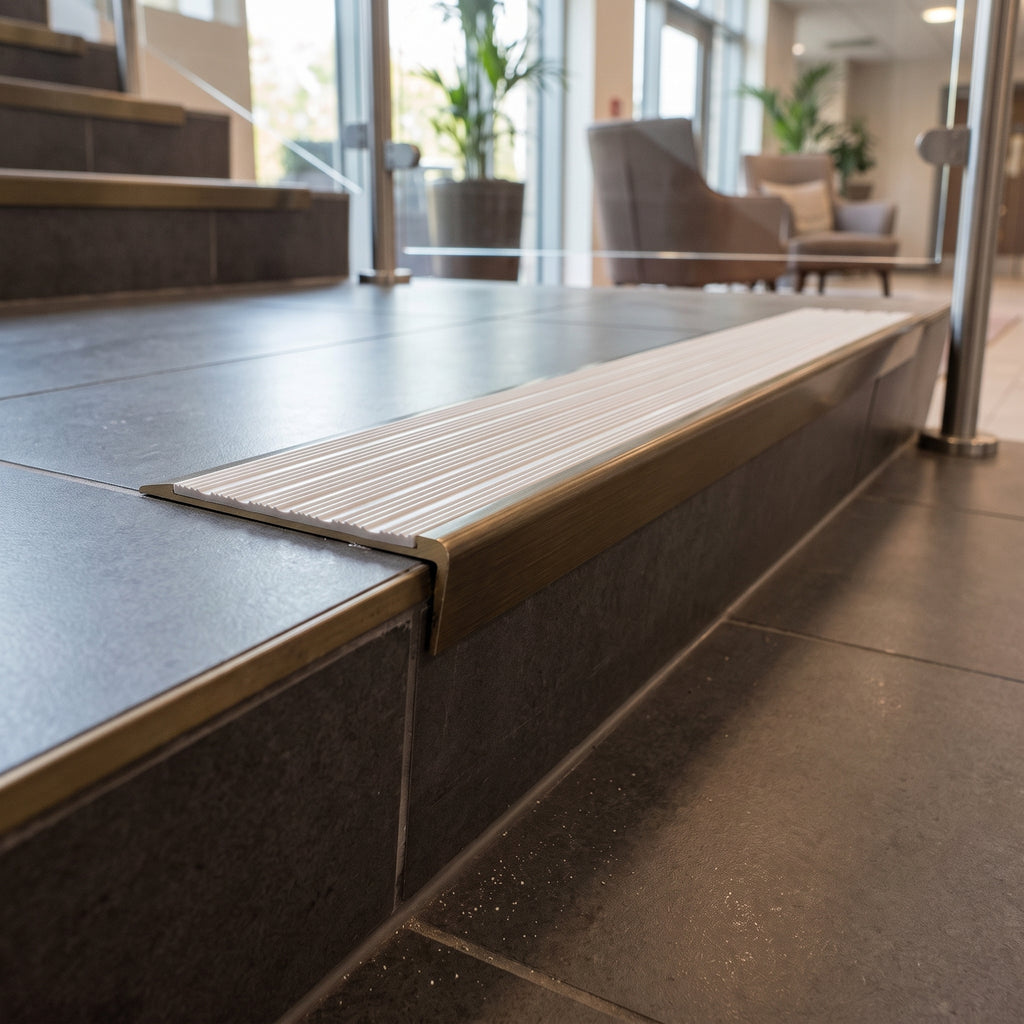

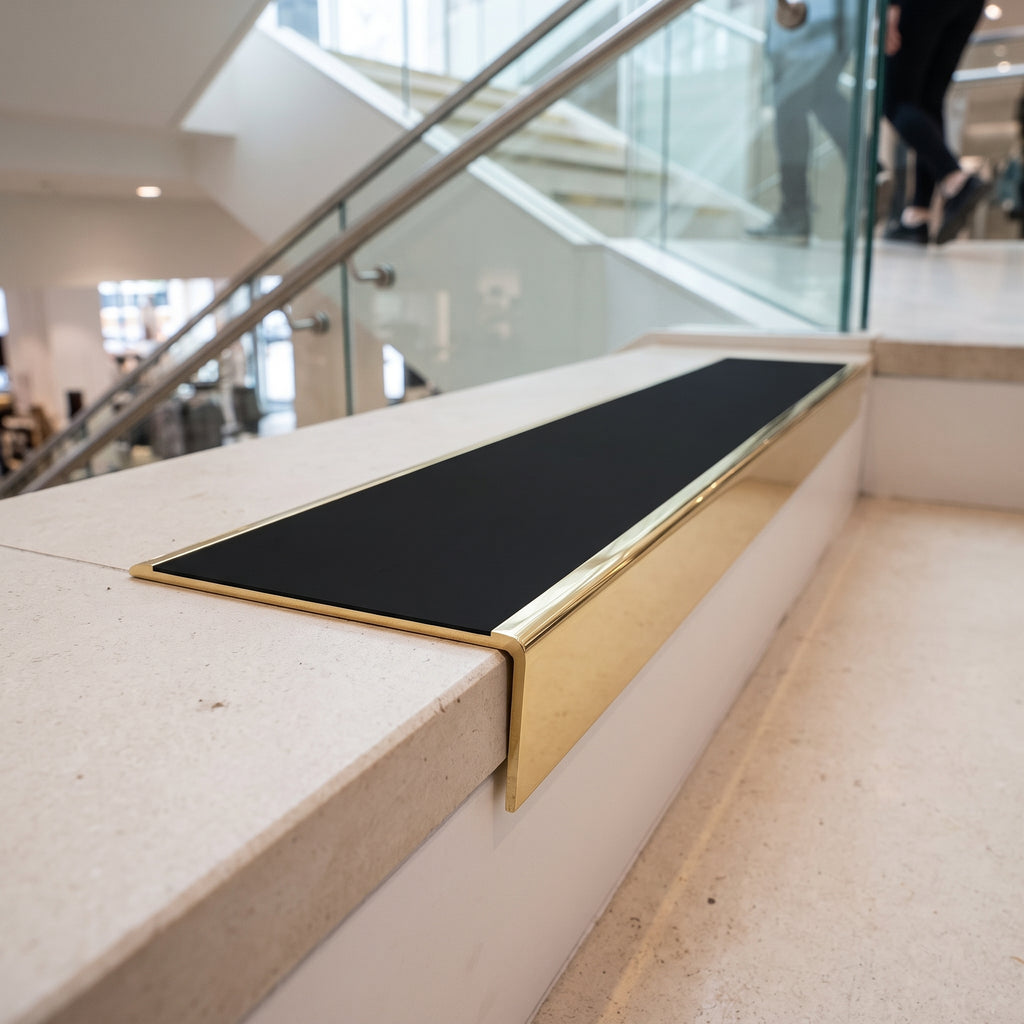

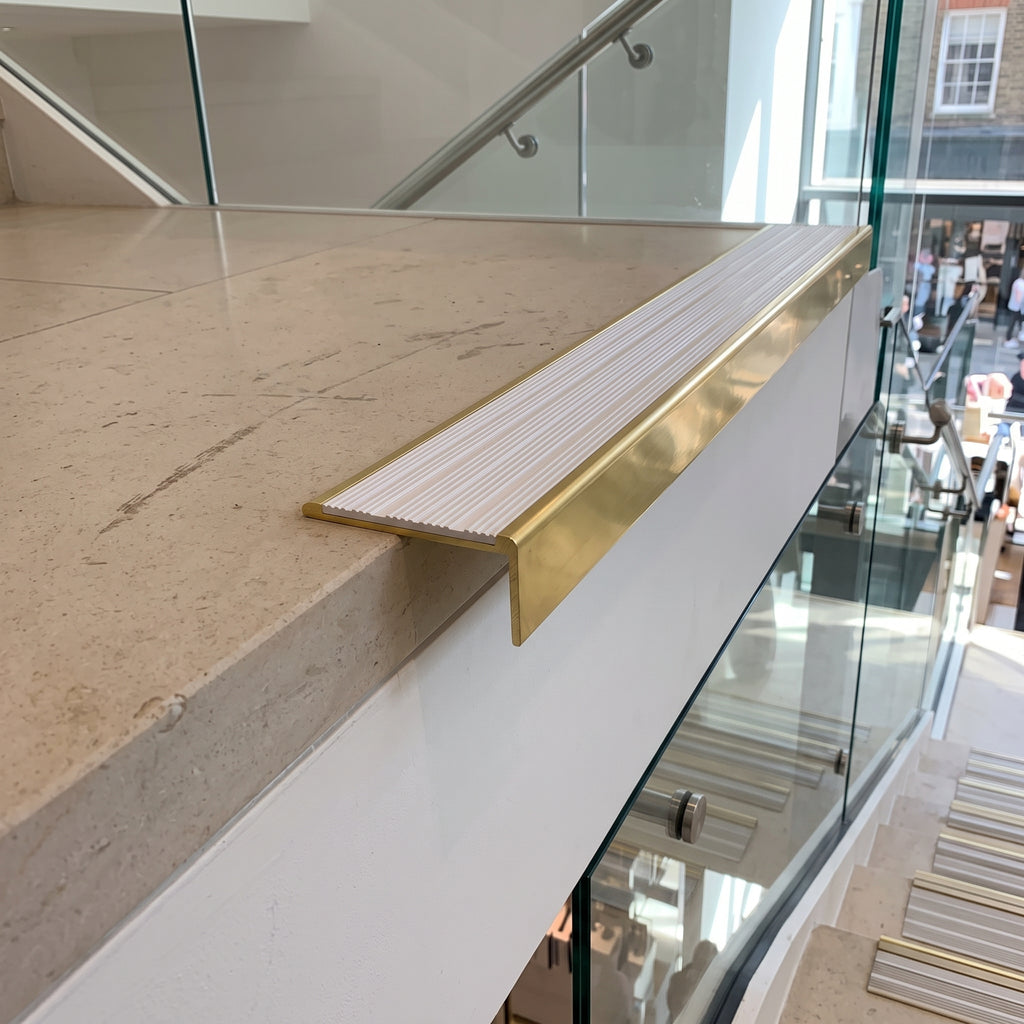

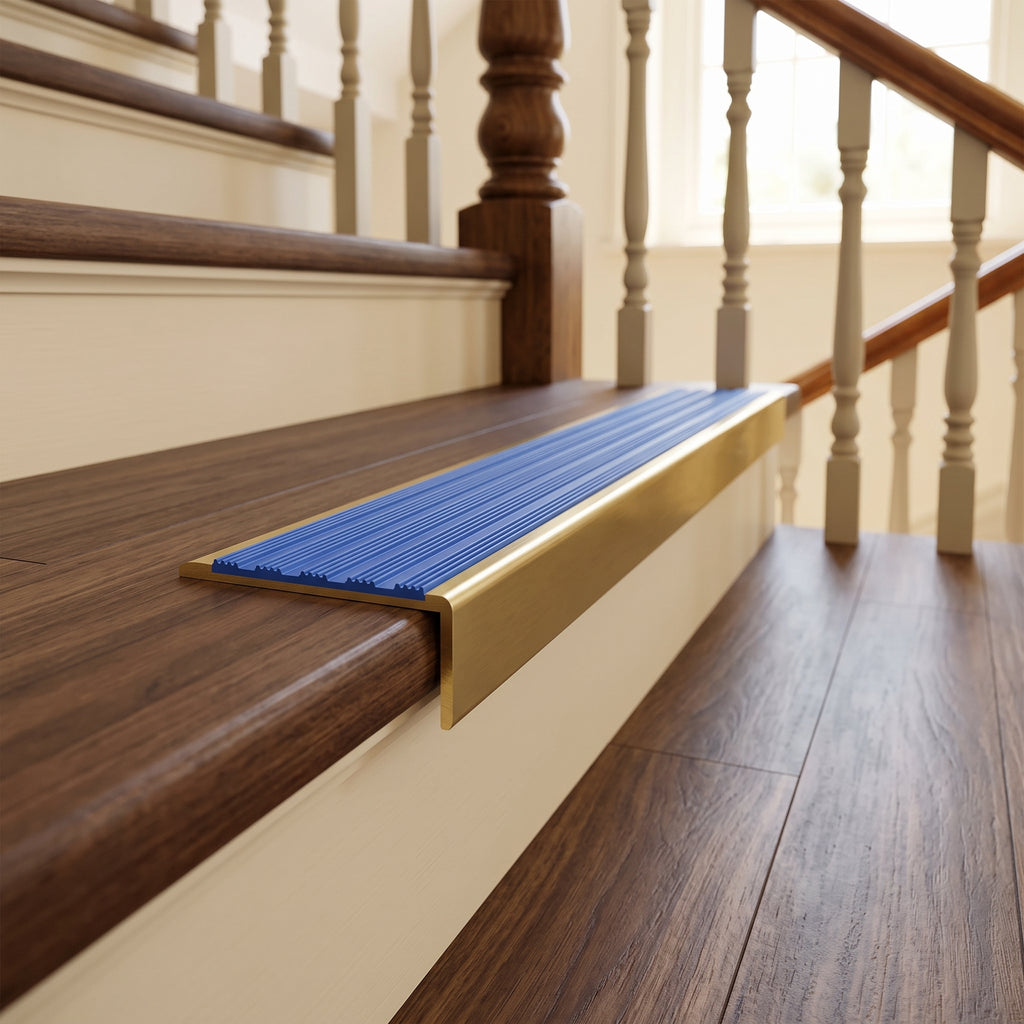

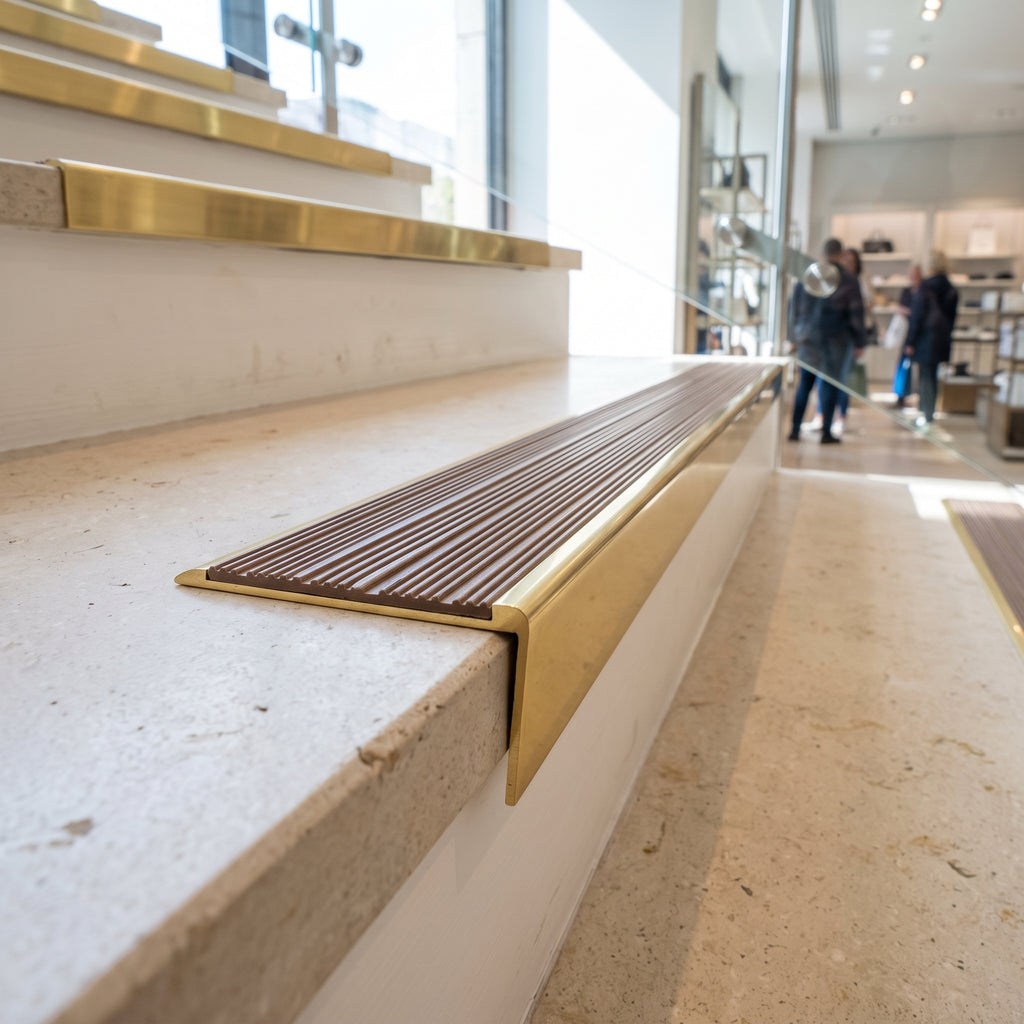

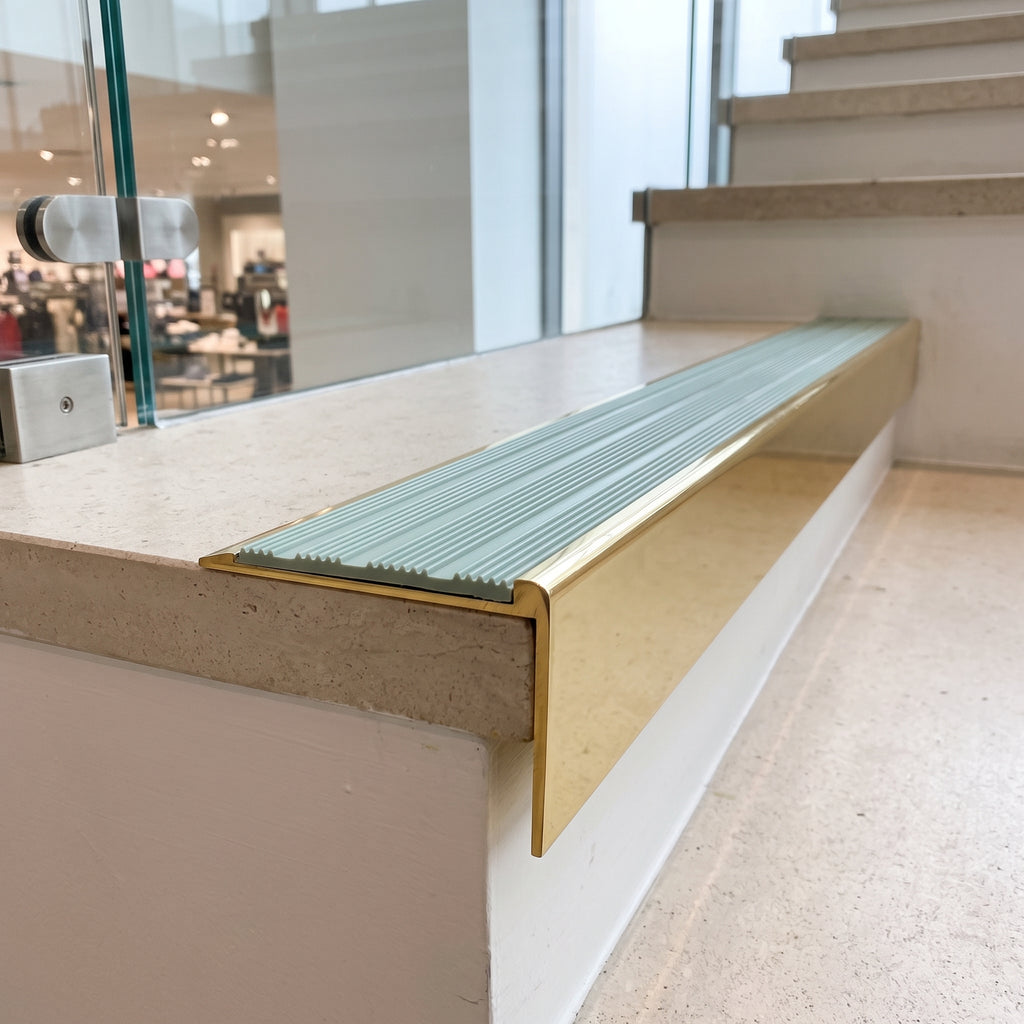

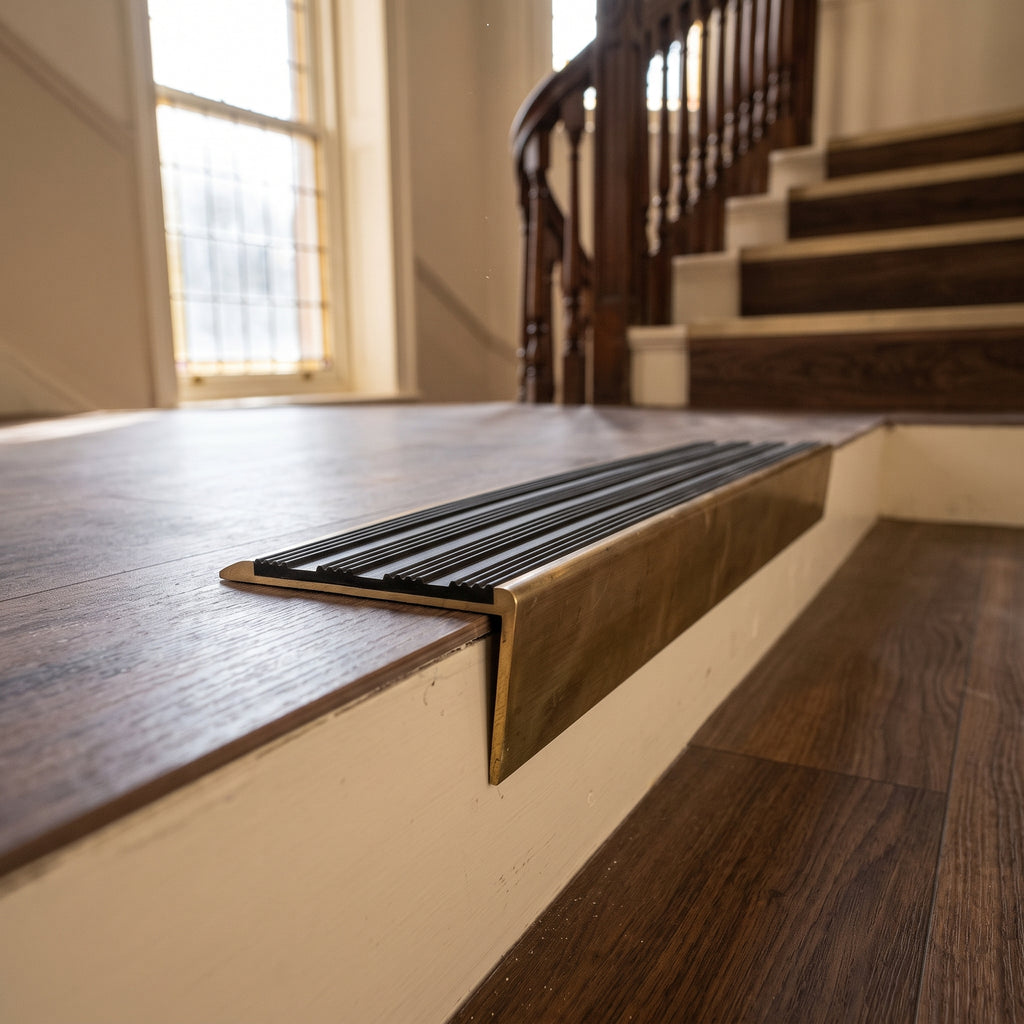

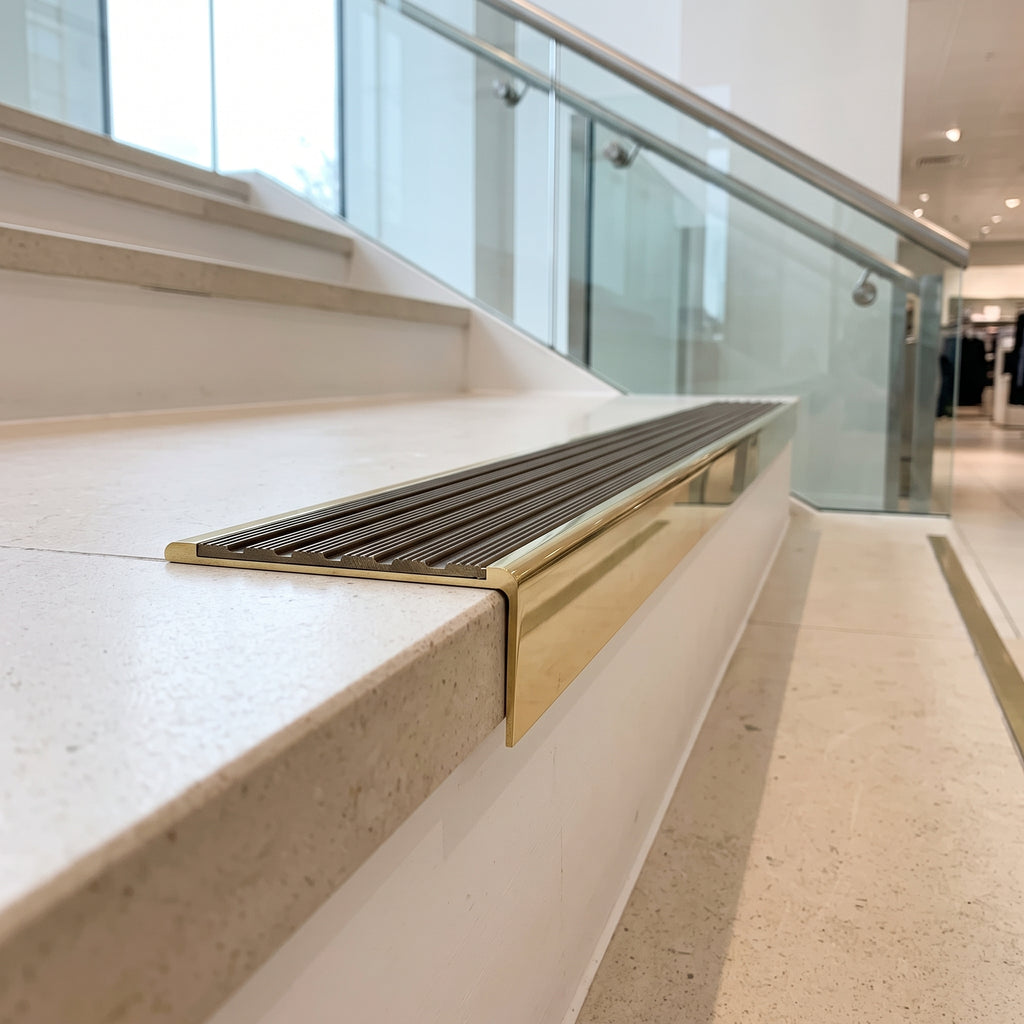

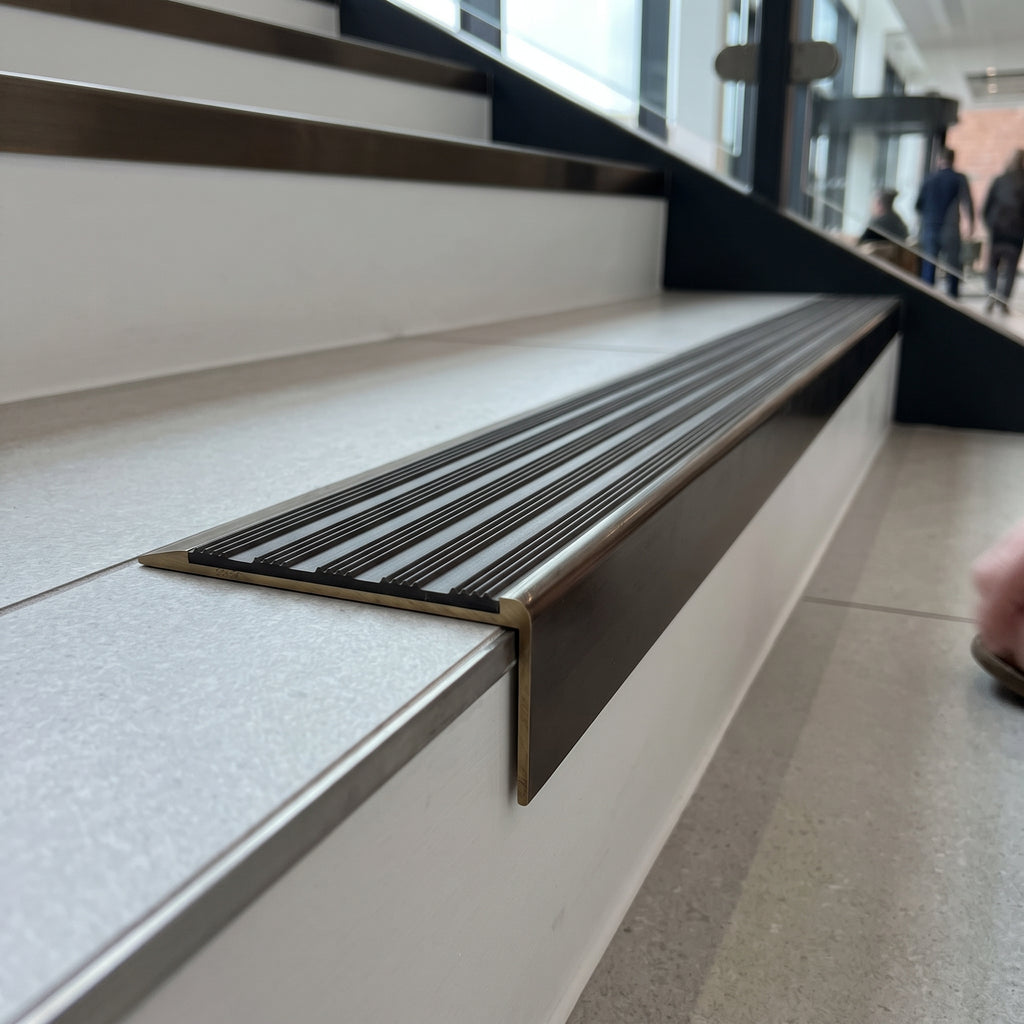

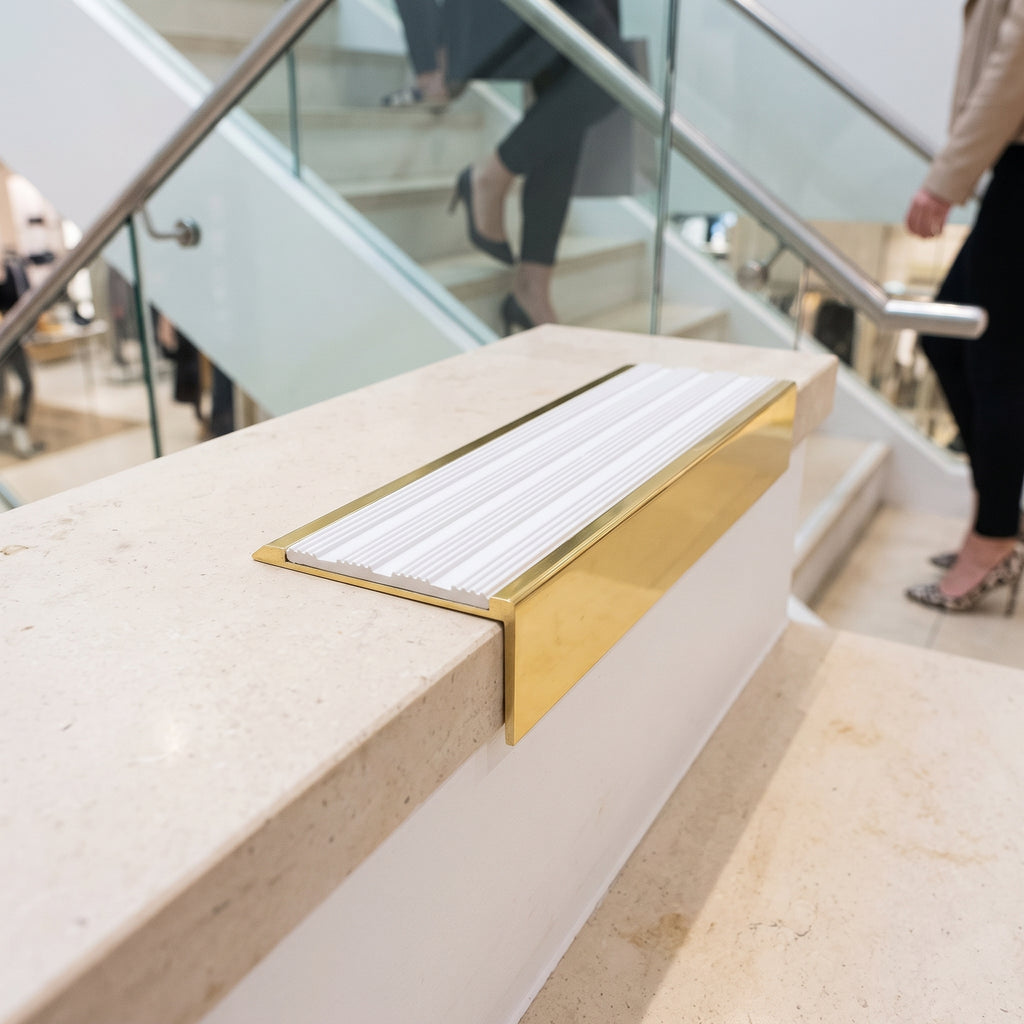

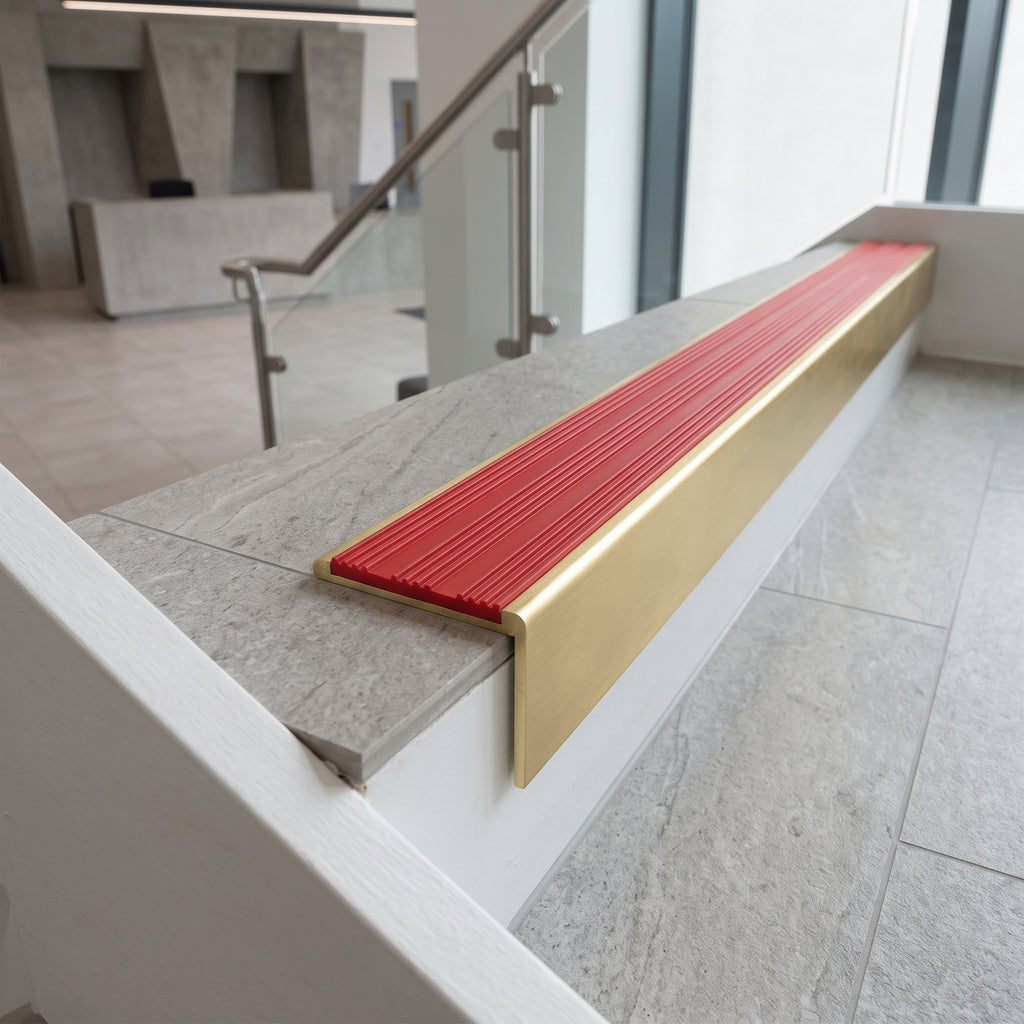

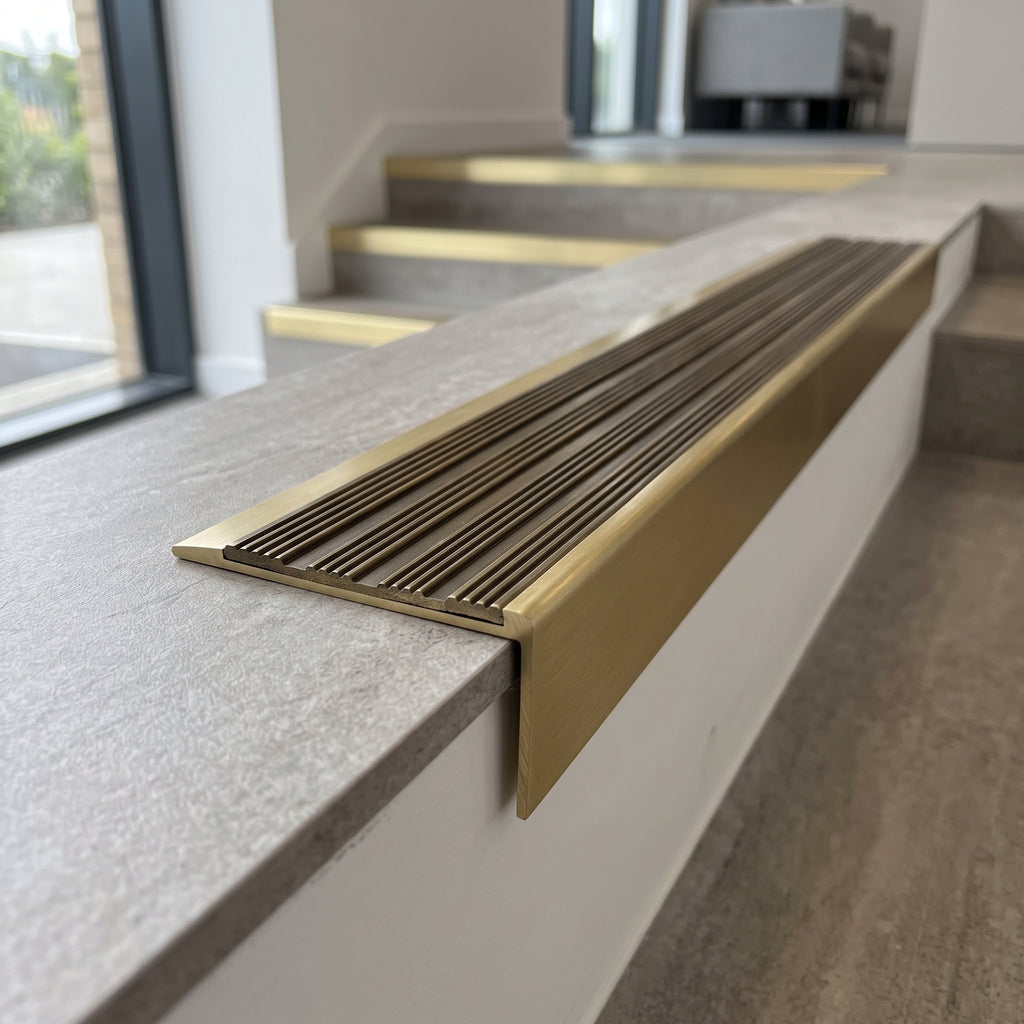

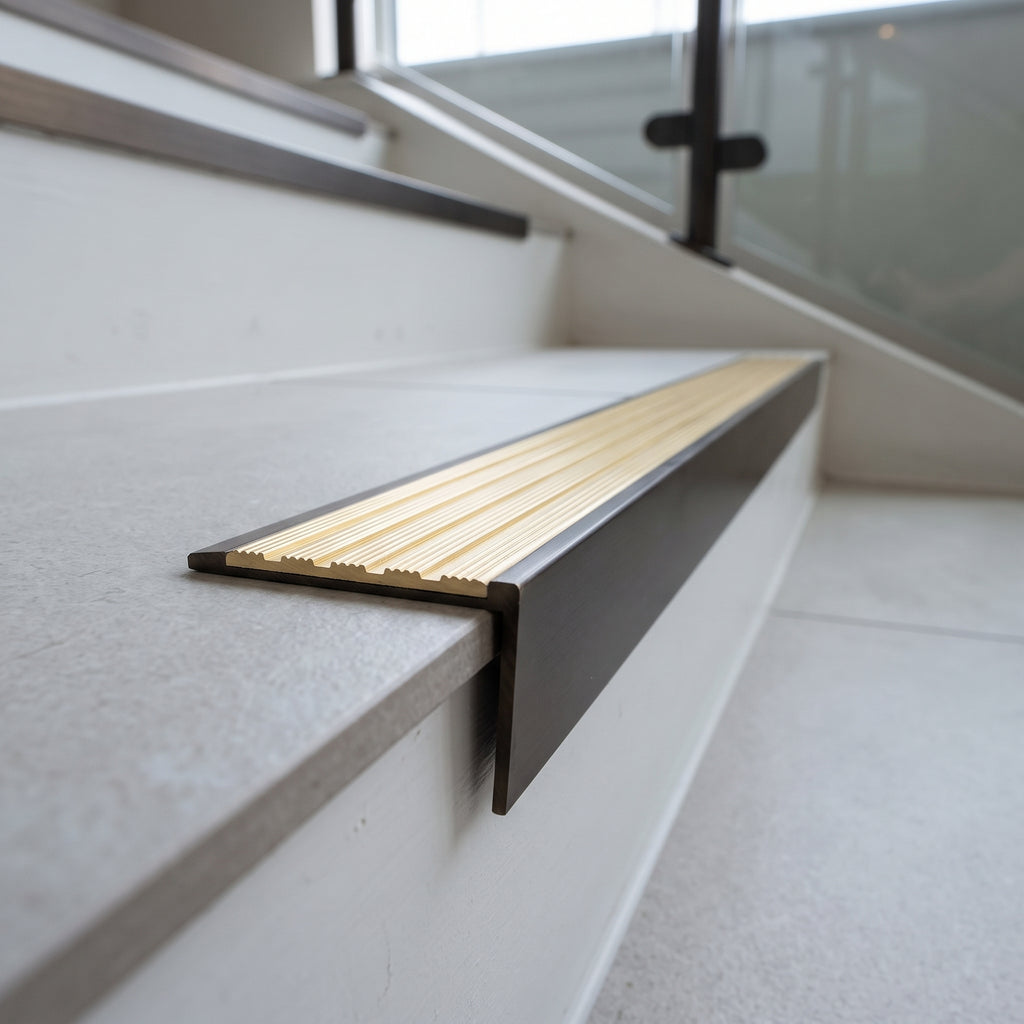

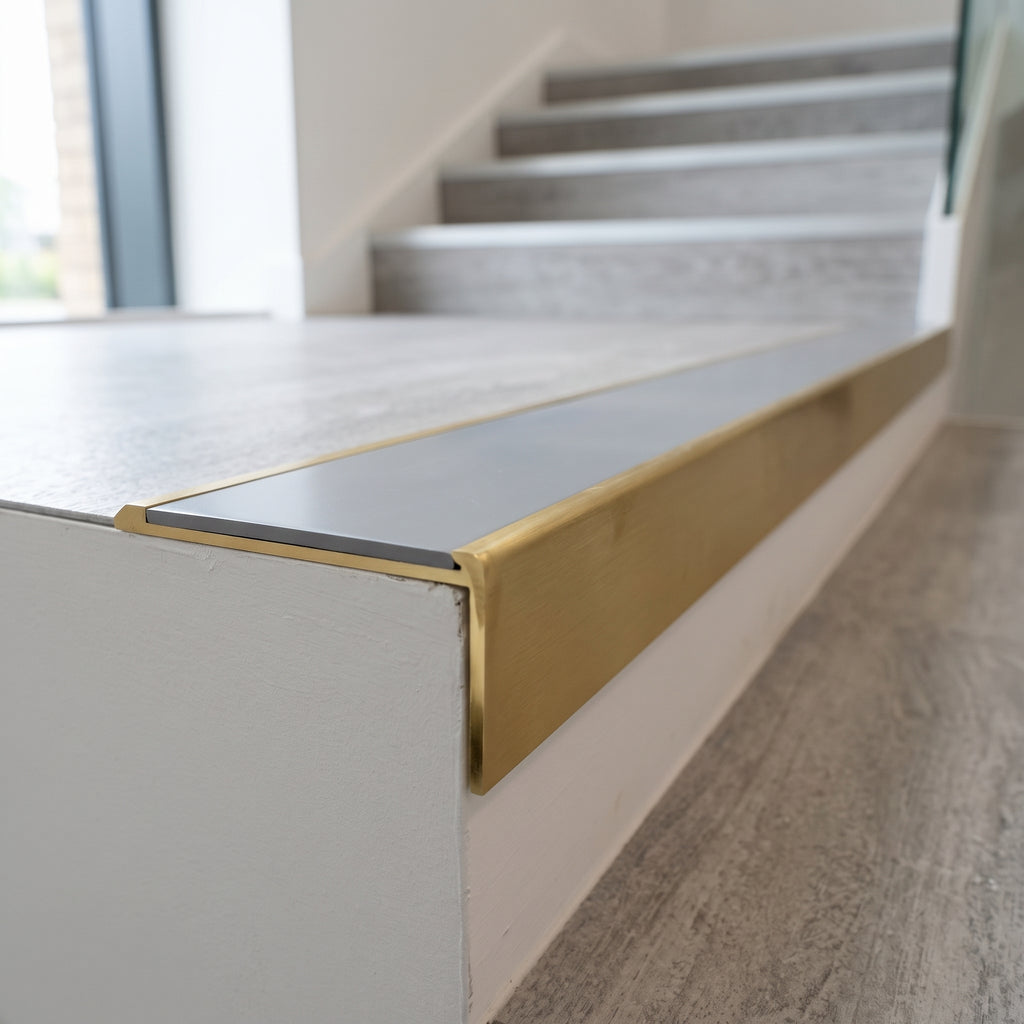

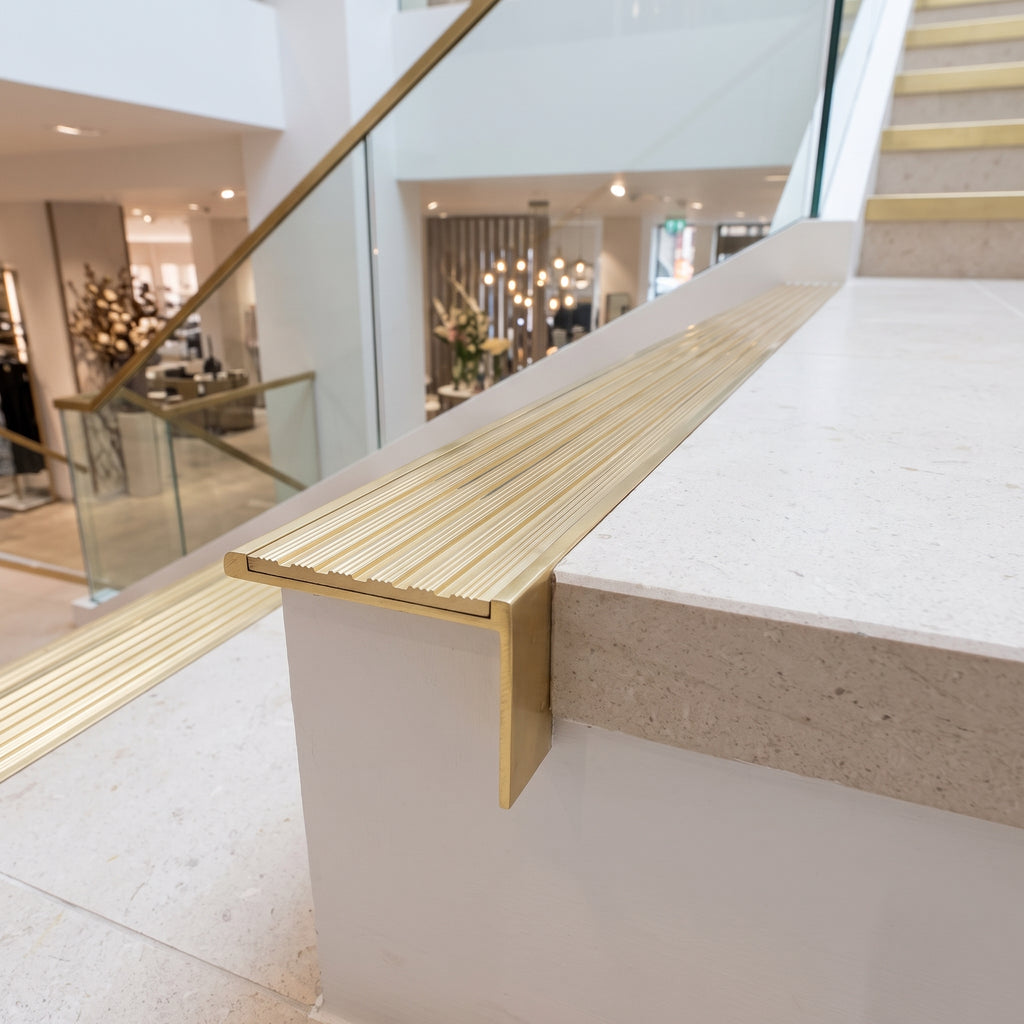

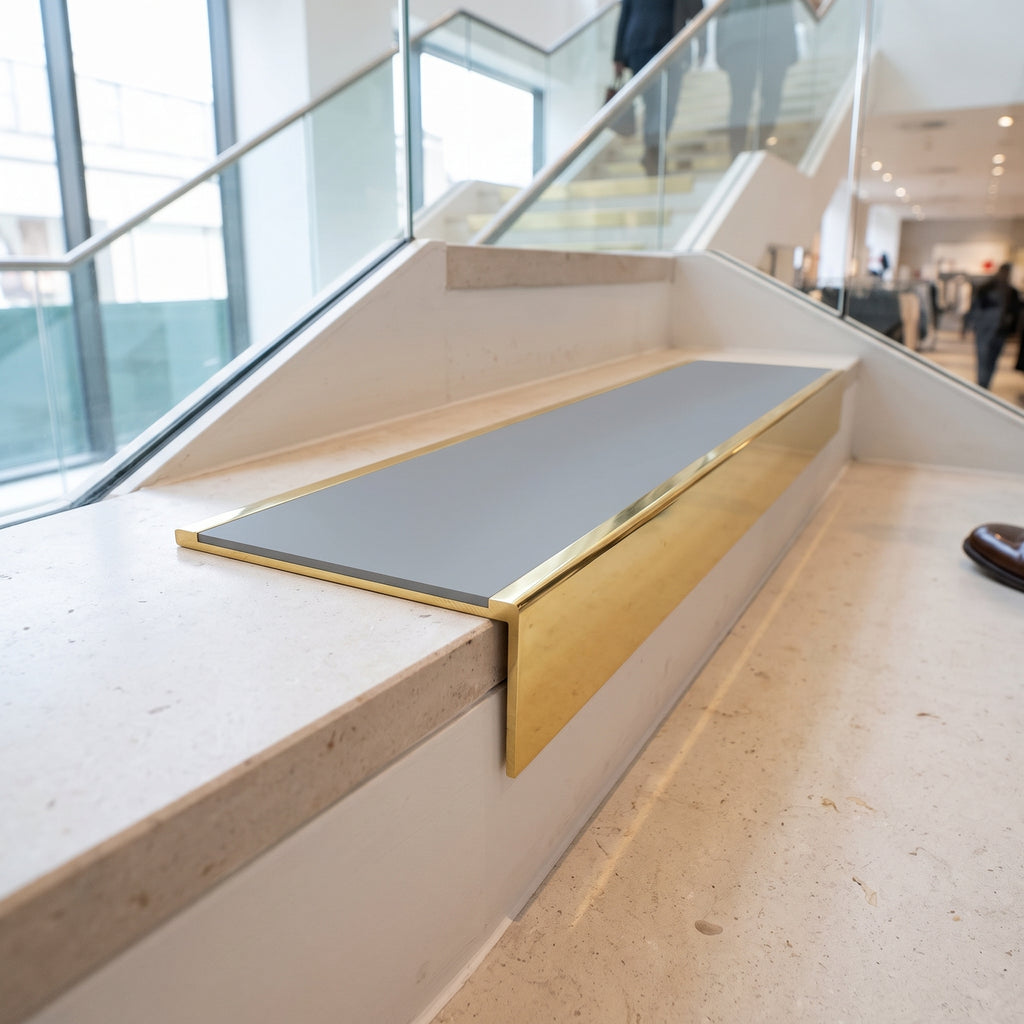

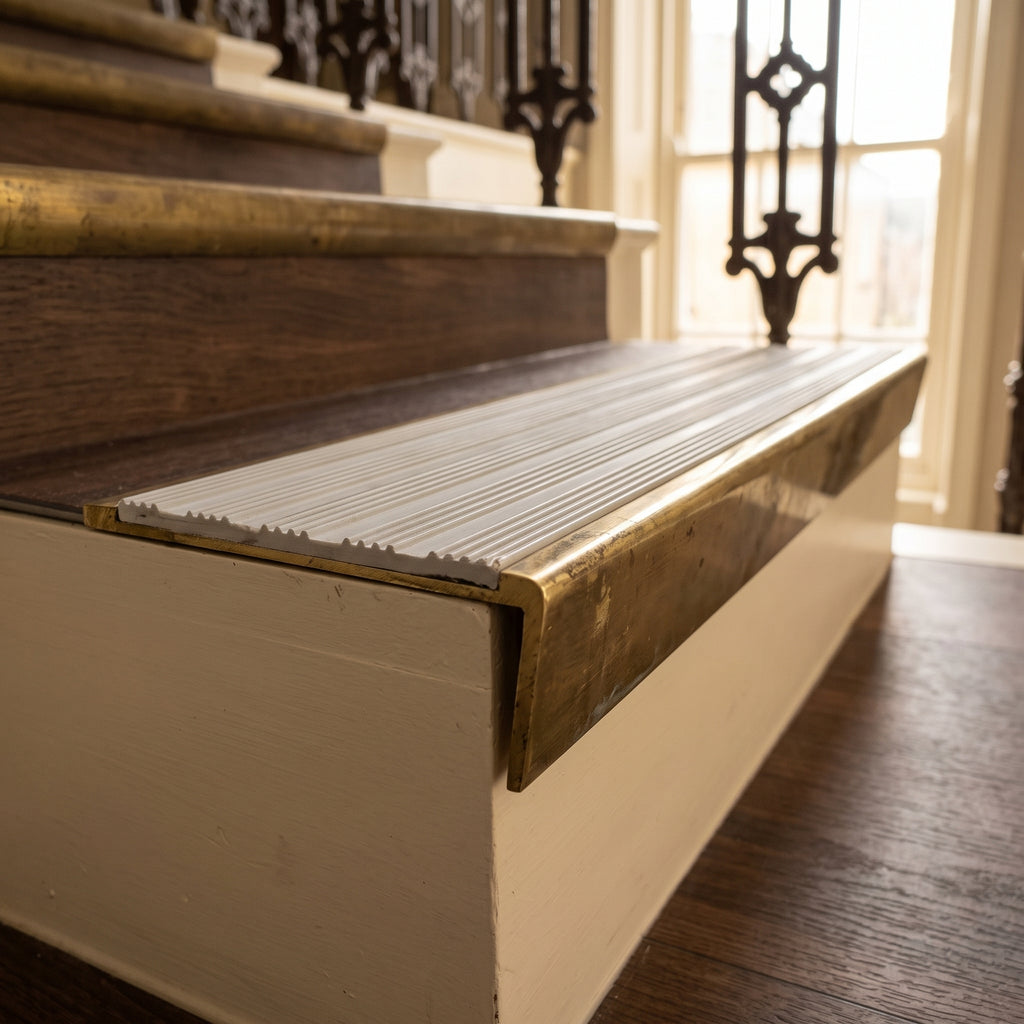

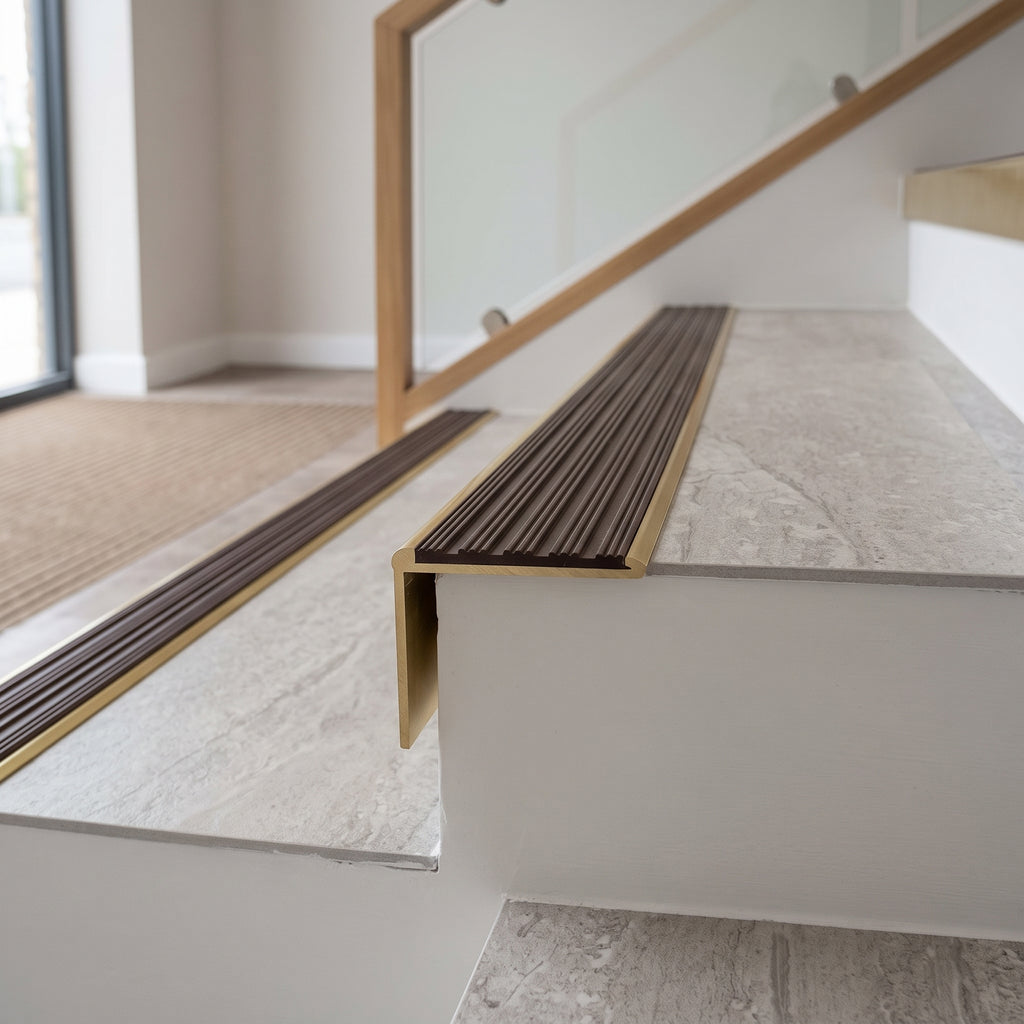

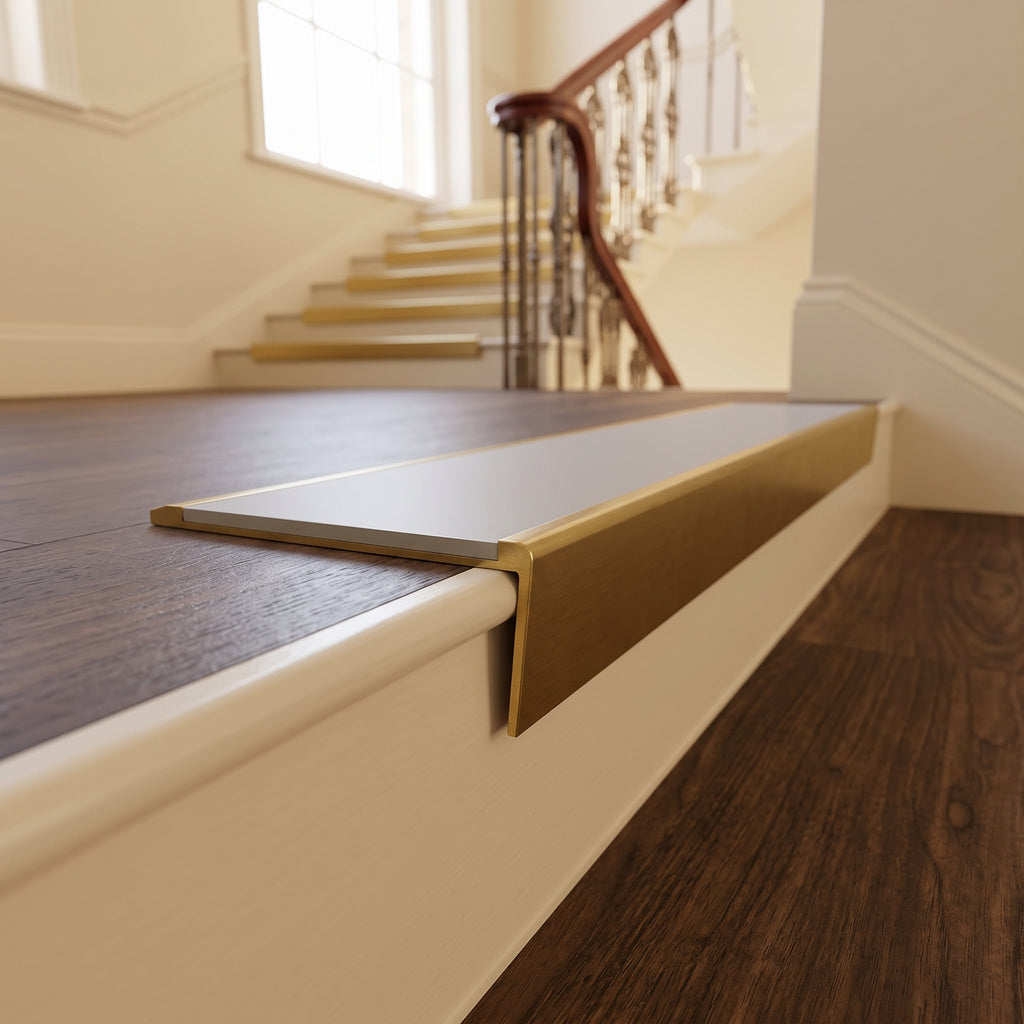

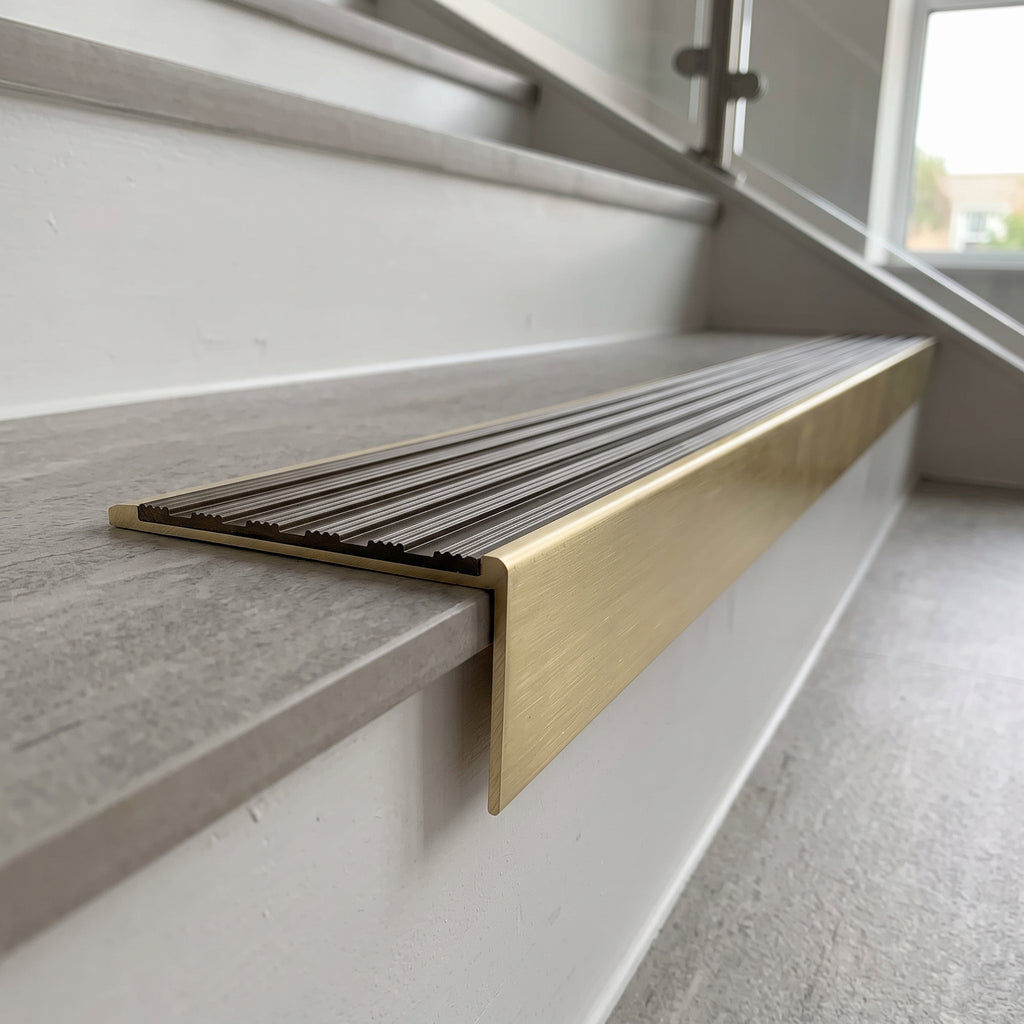

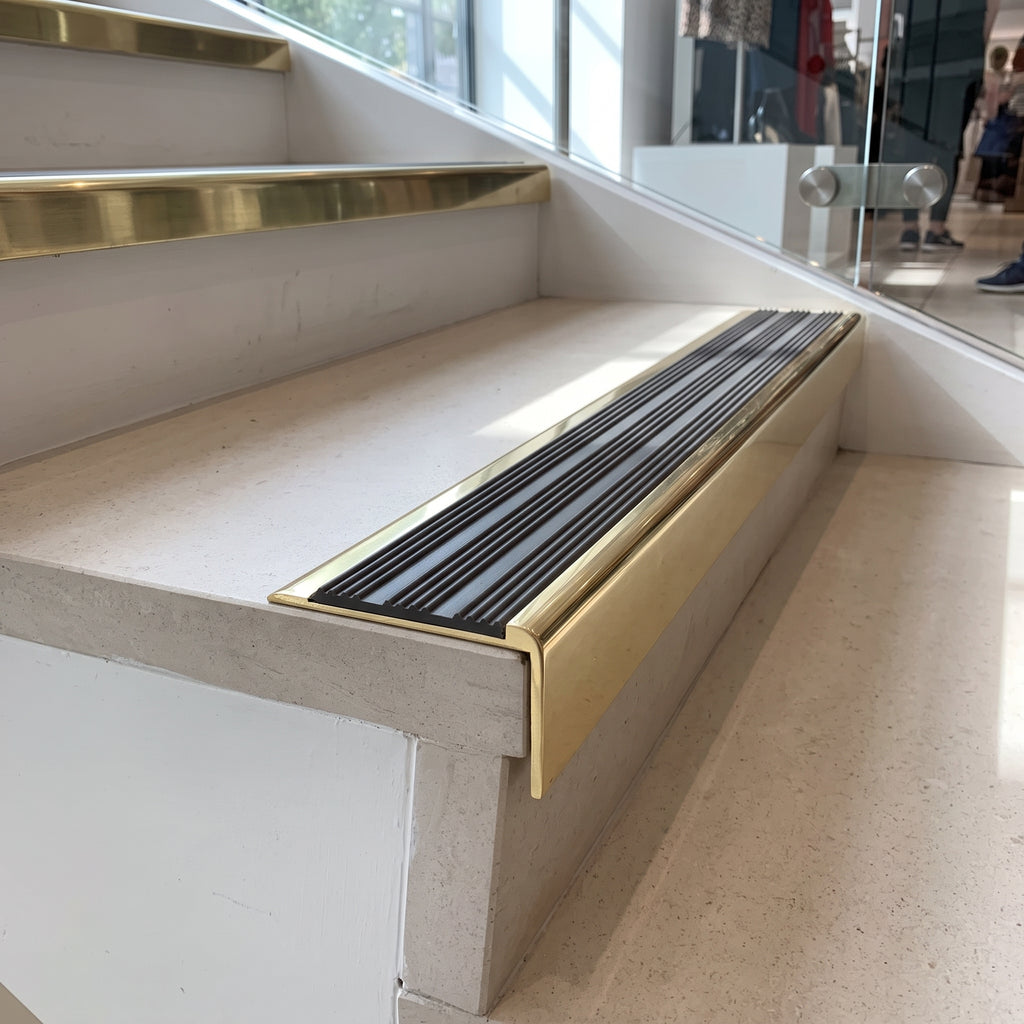

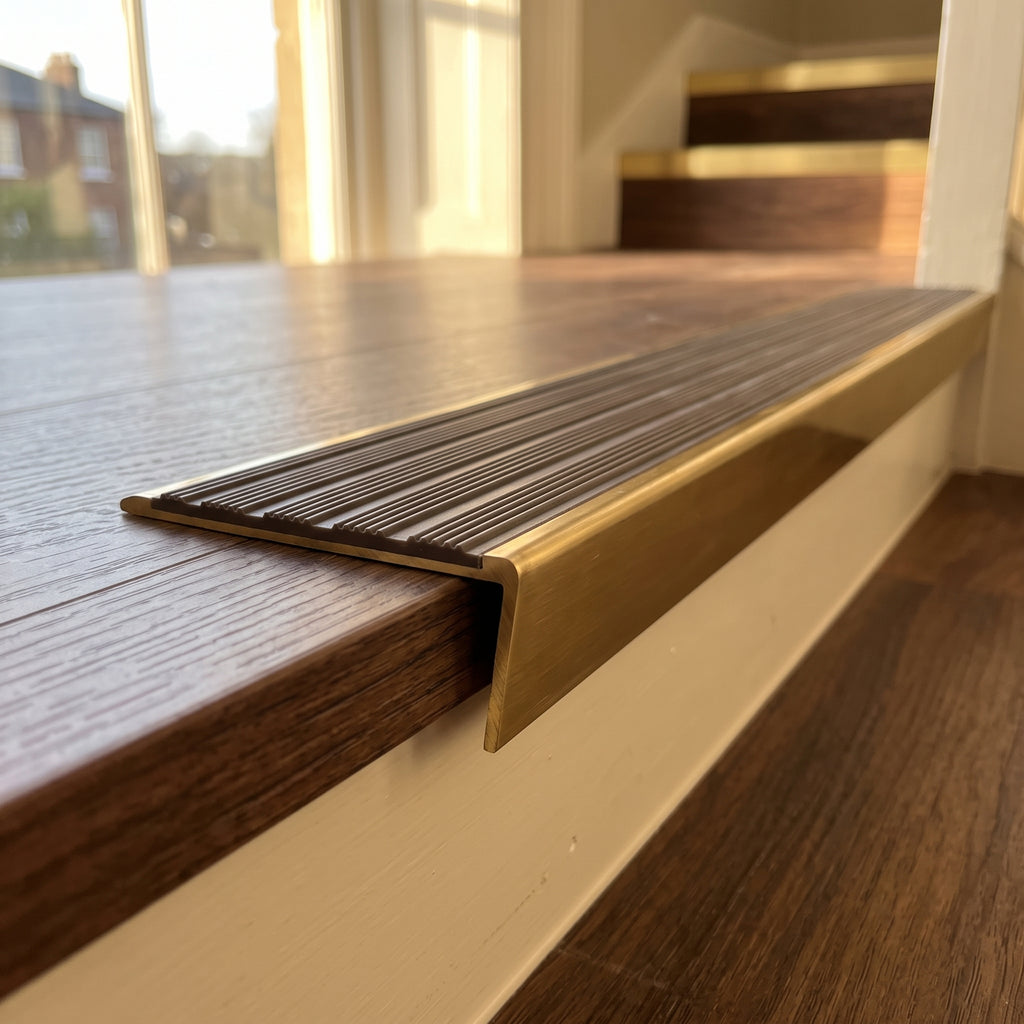

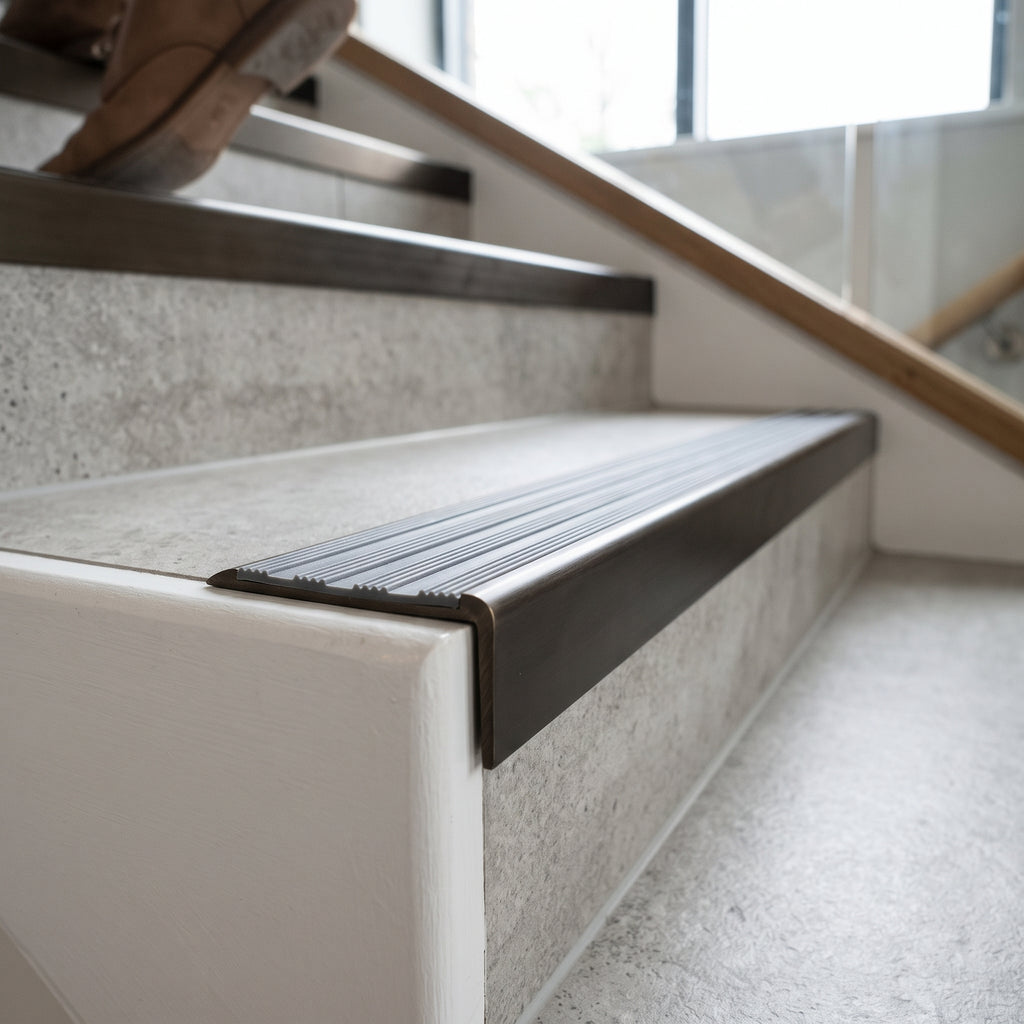

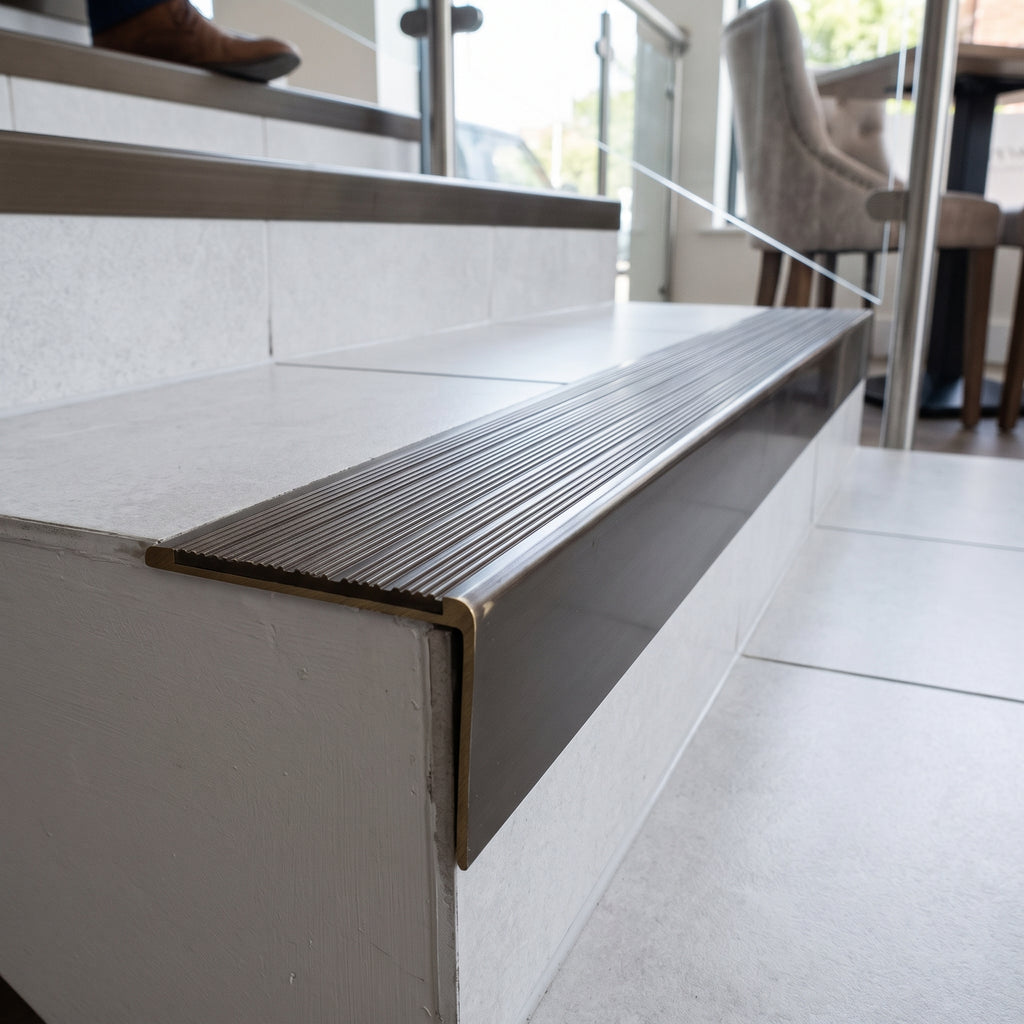

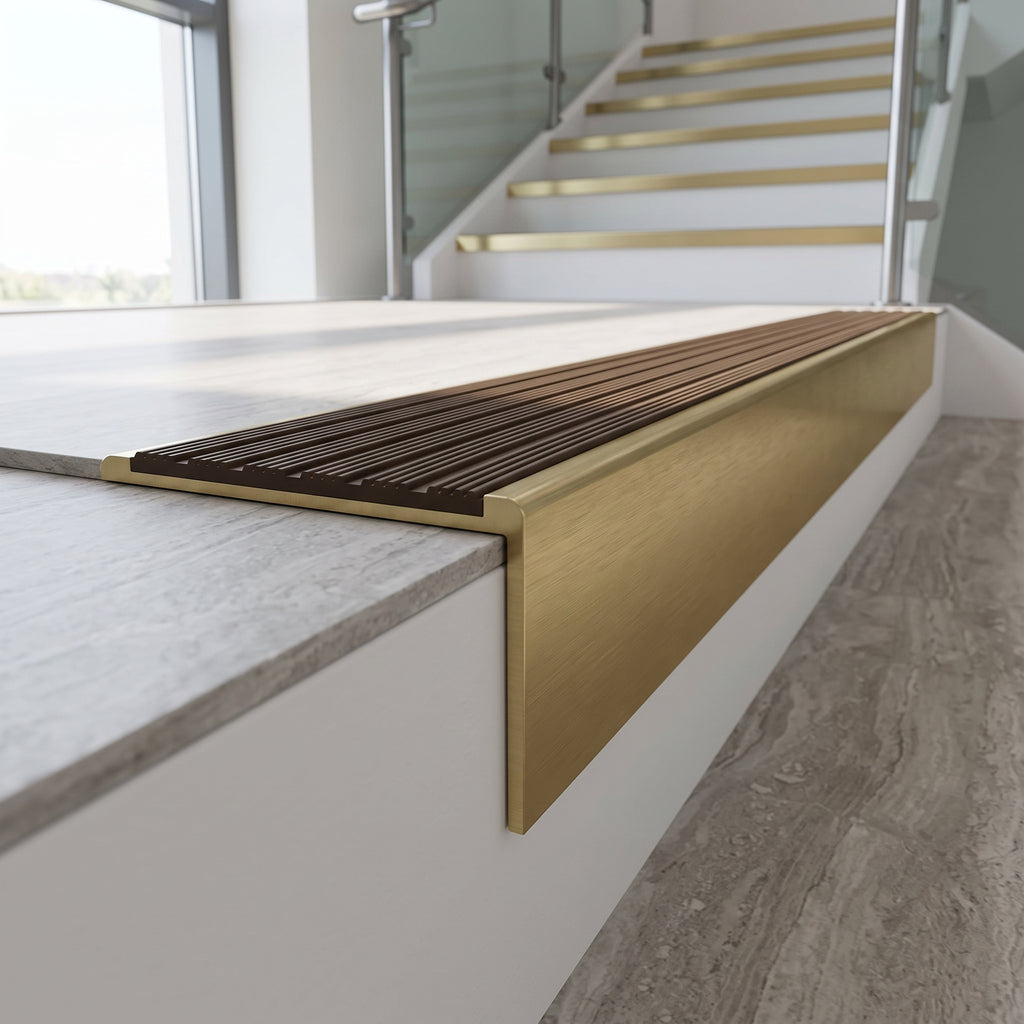

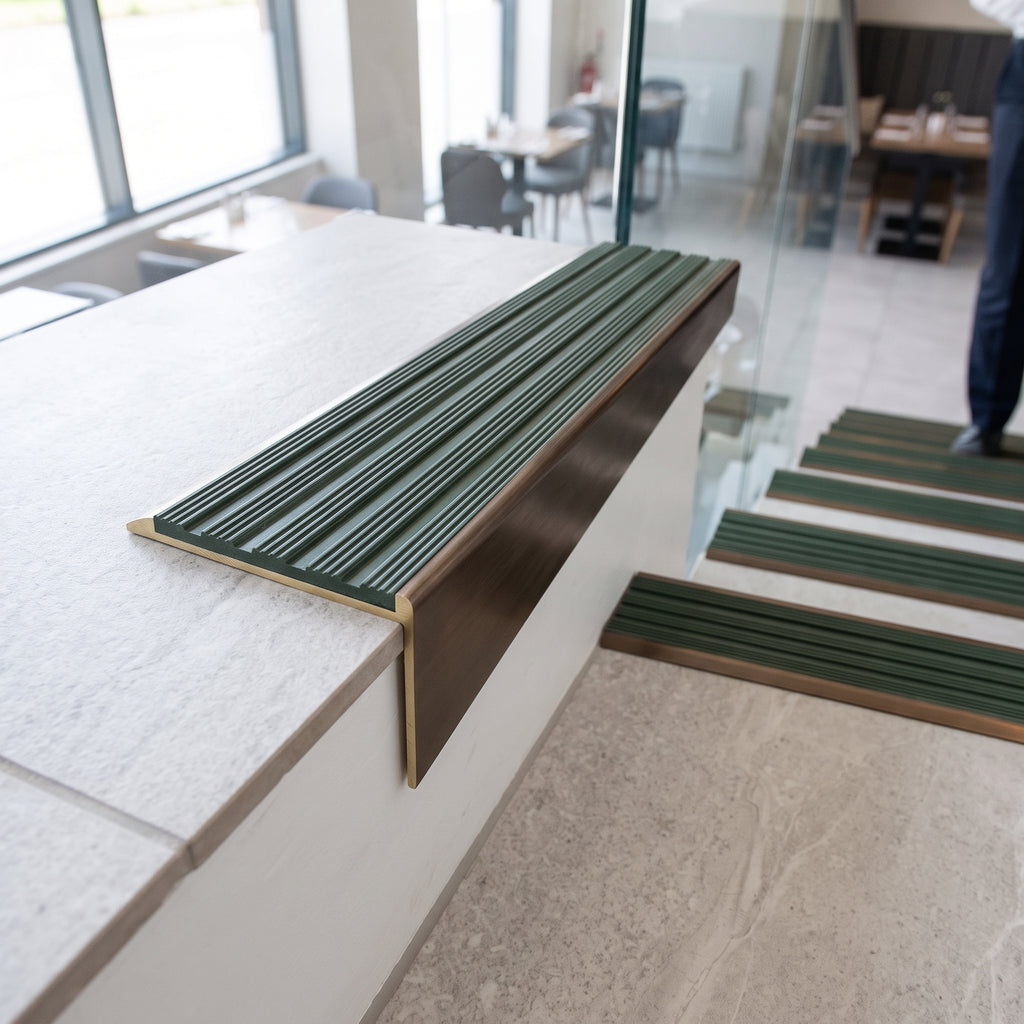

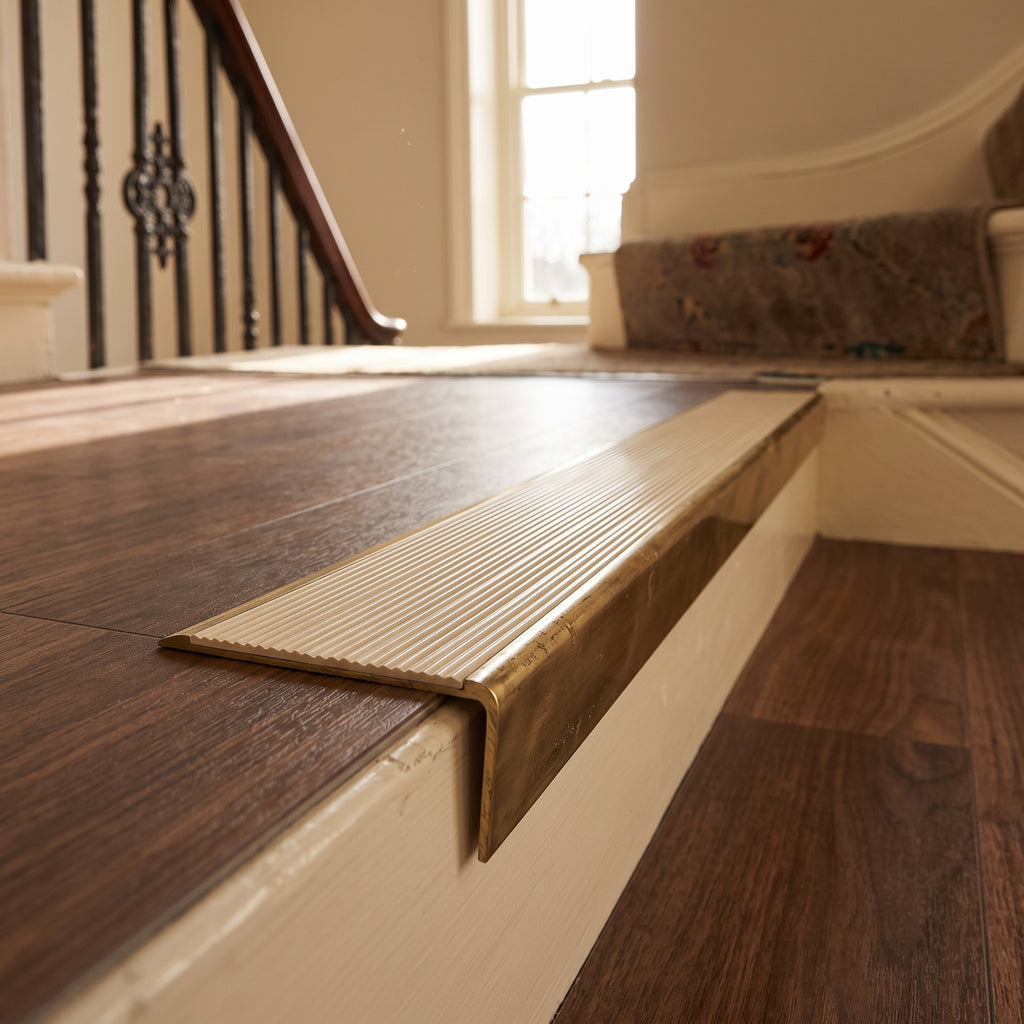

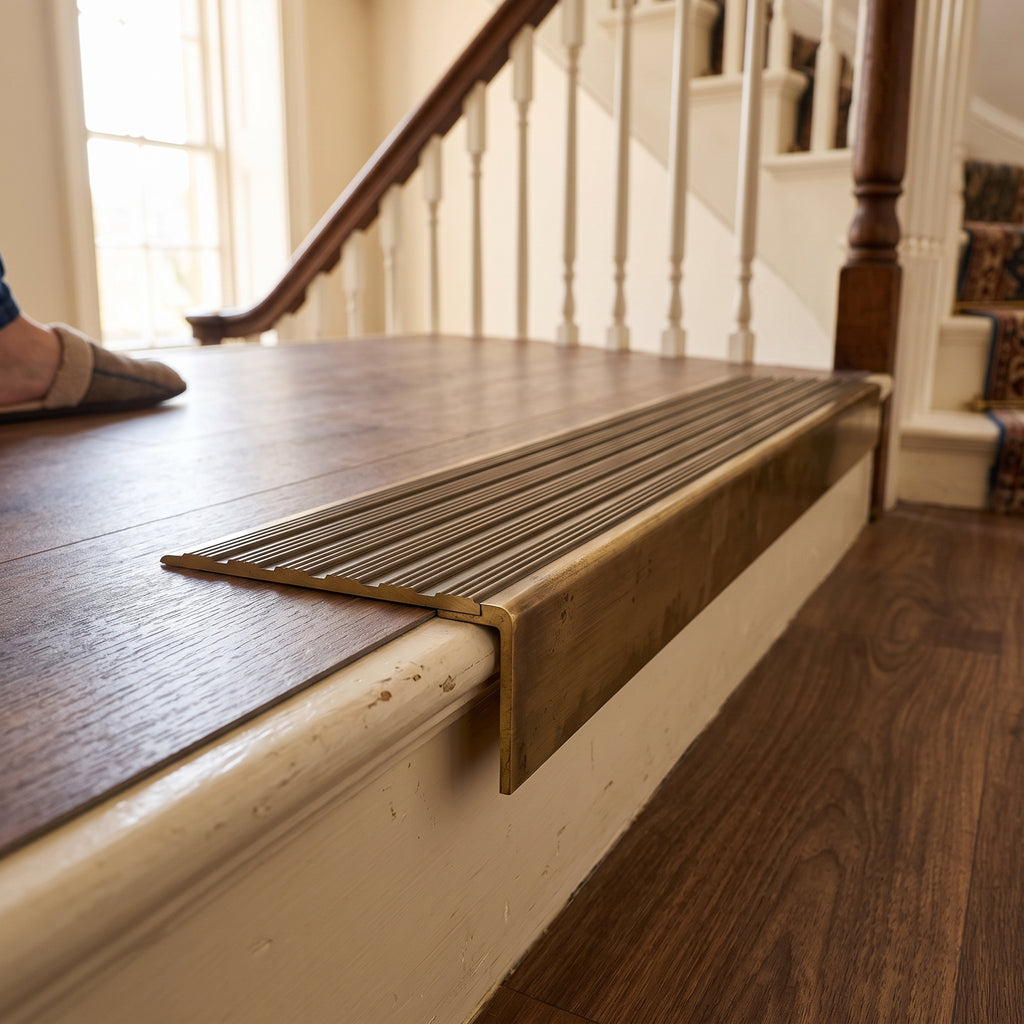

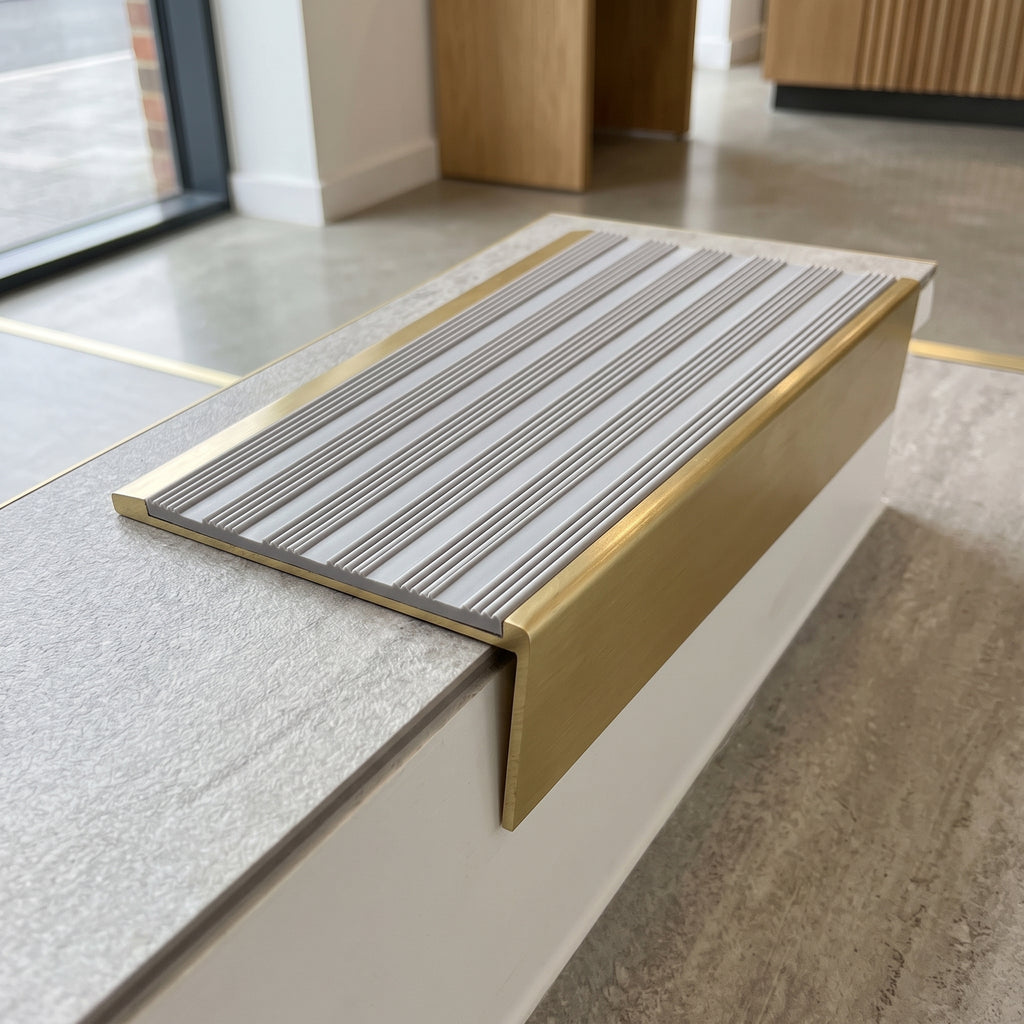

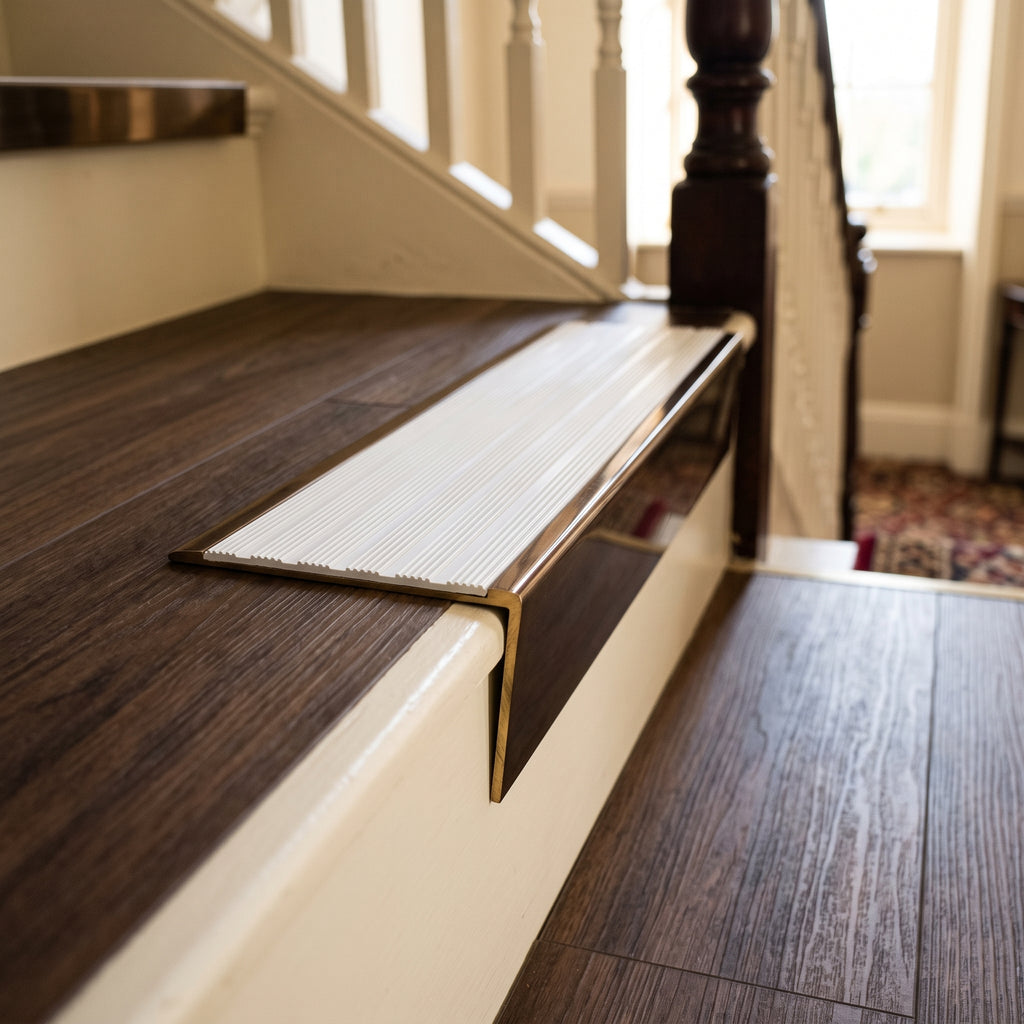

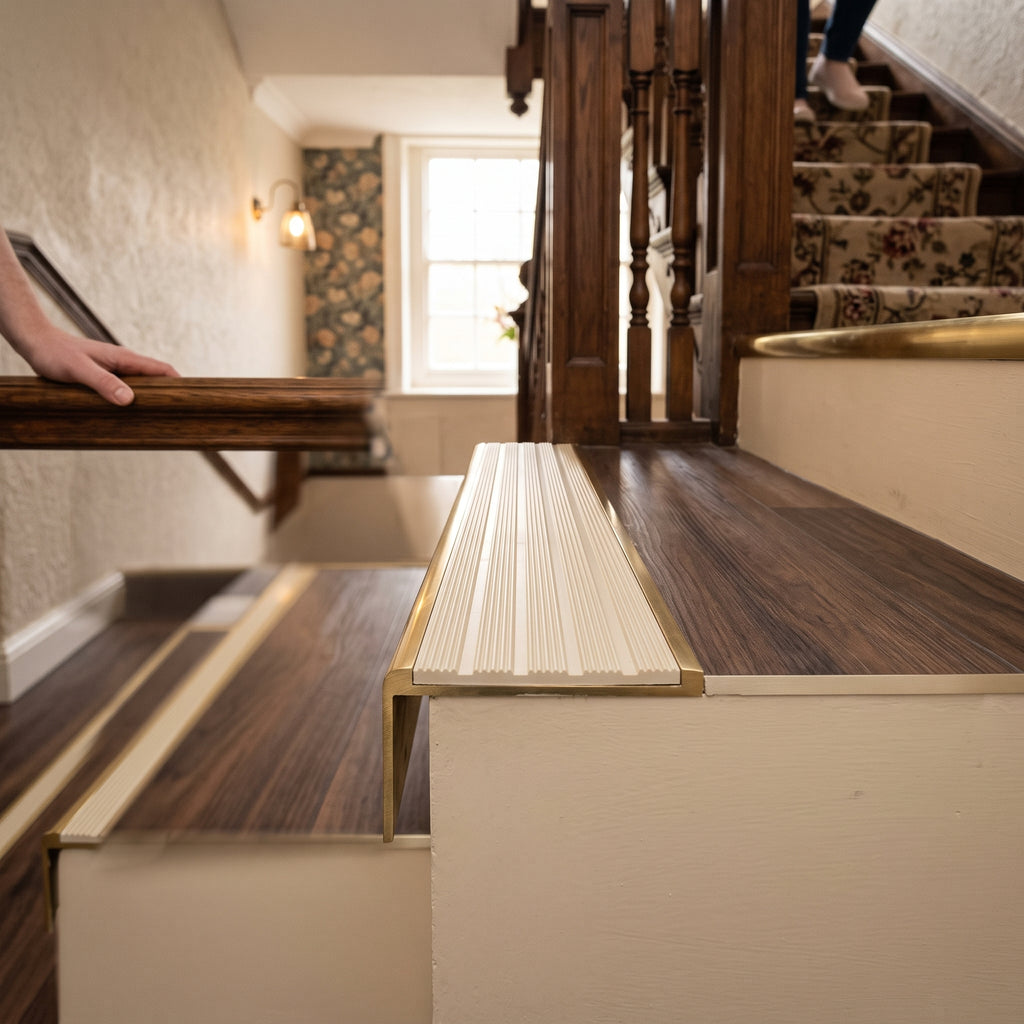

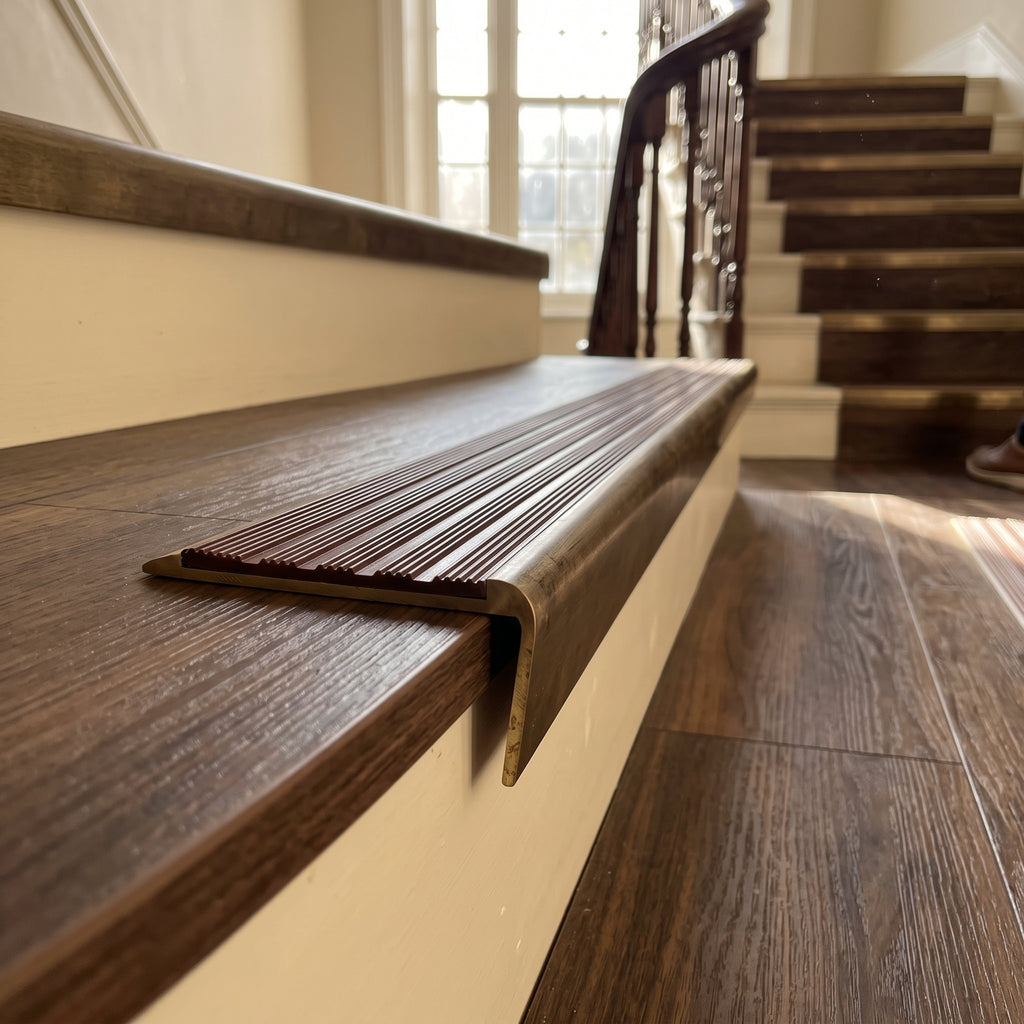

Finish sets the appearance of the brass body. Polished Brass is brightest; Satin Brass has the same tone with a brushed face that hides handling. Antique Brass and Antique Bronze are chemically darkened and hand finished, so tone varies slightly between batches, and they suit heritage work. Every insert is photographed in every finish, so check the image for your combination.

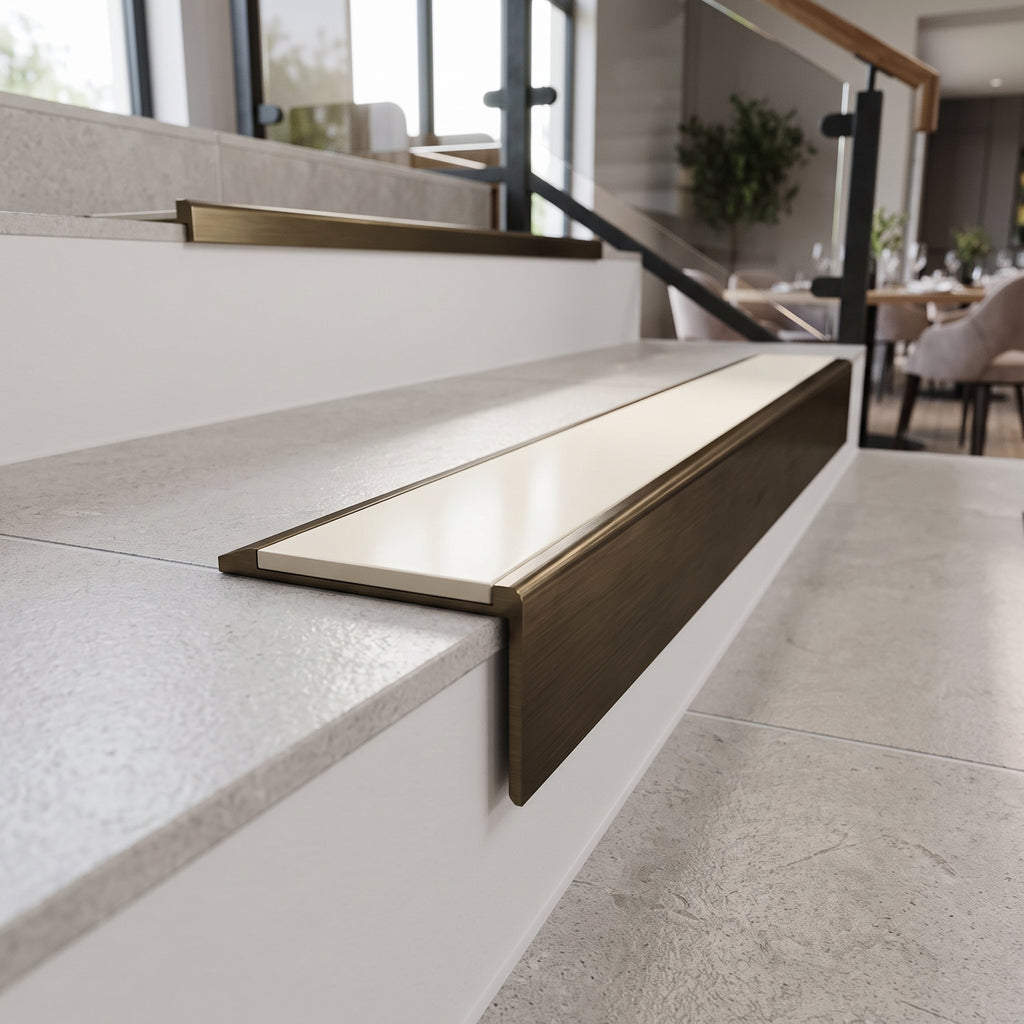

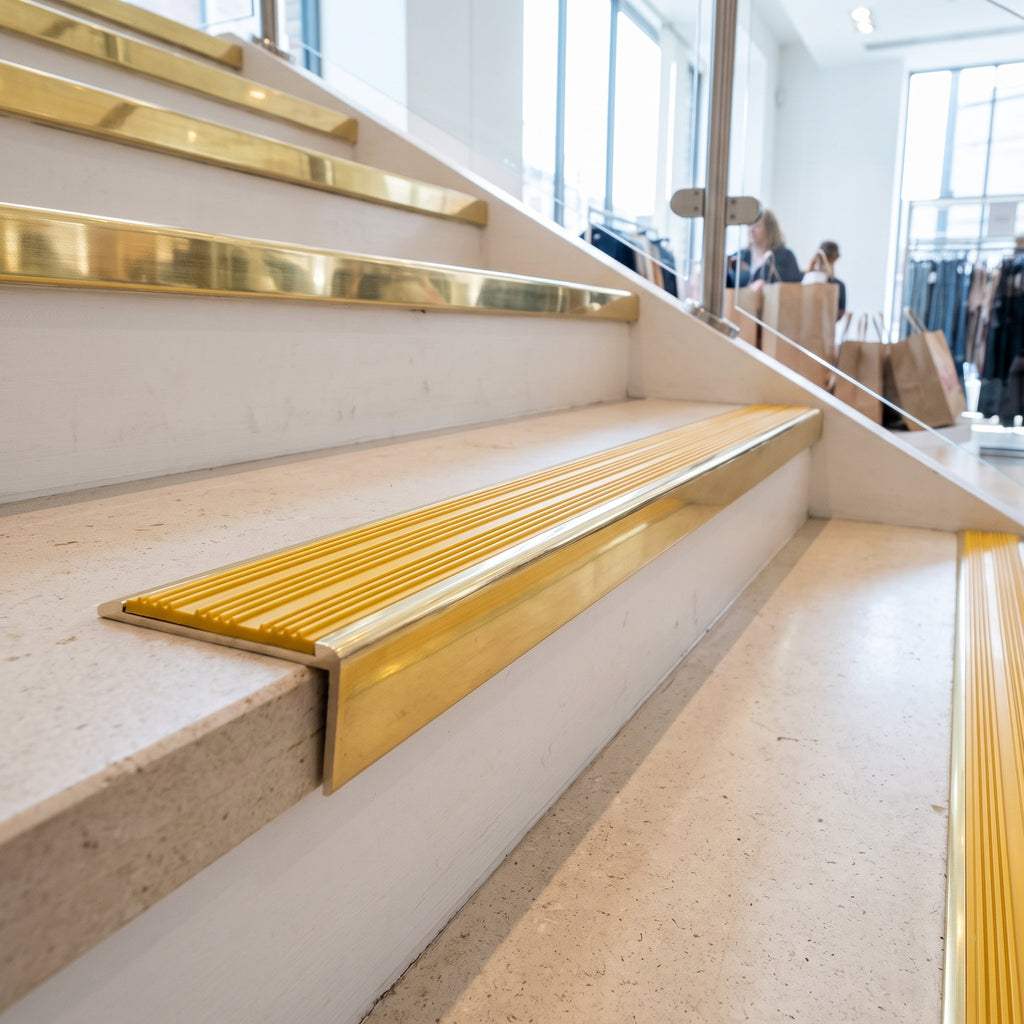

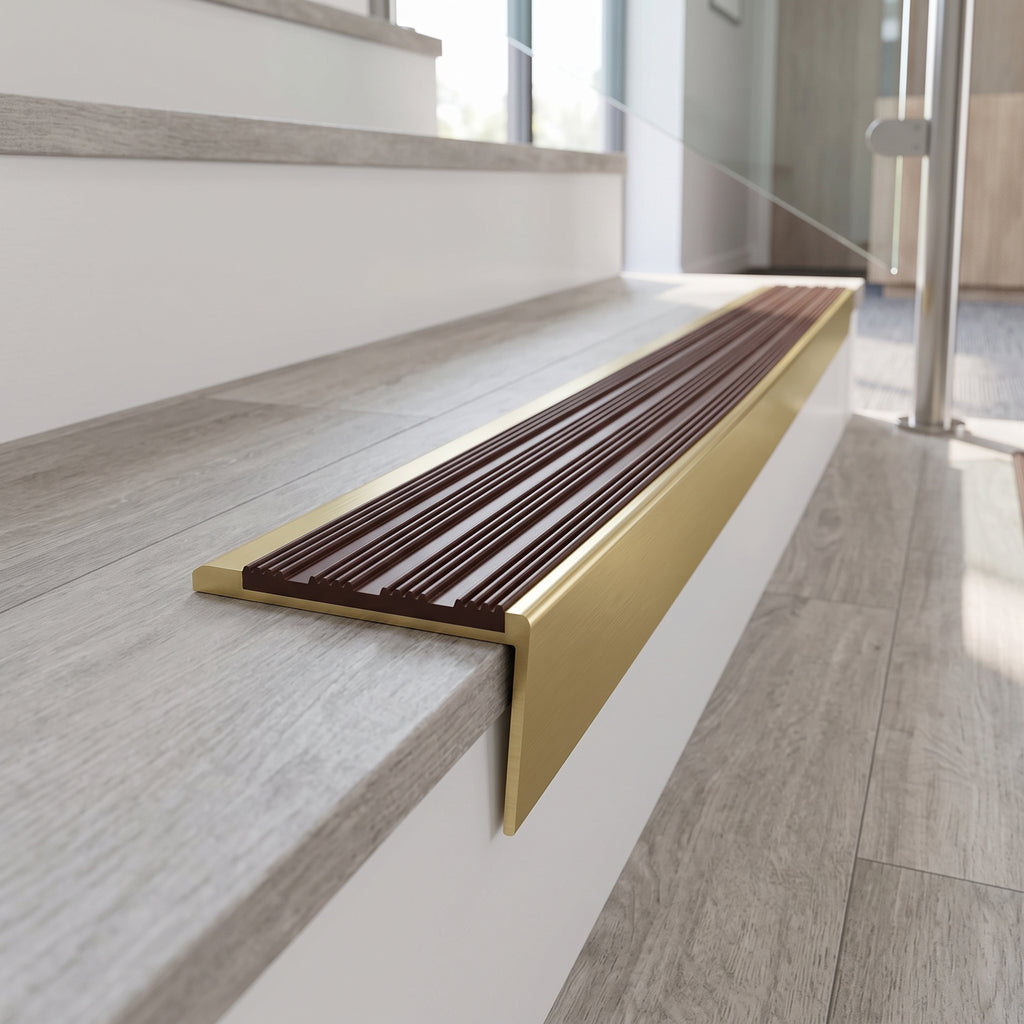

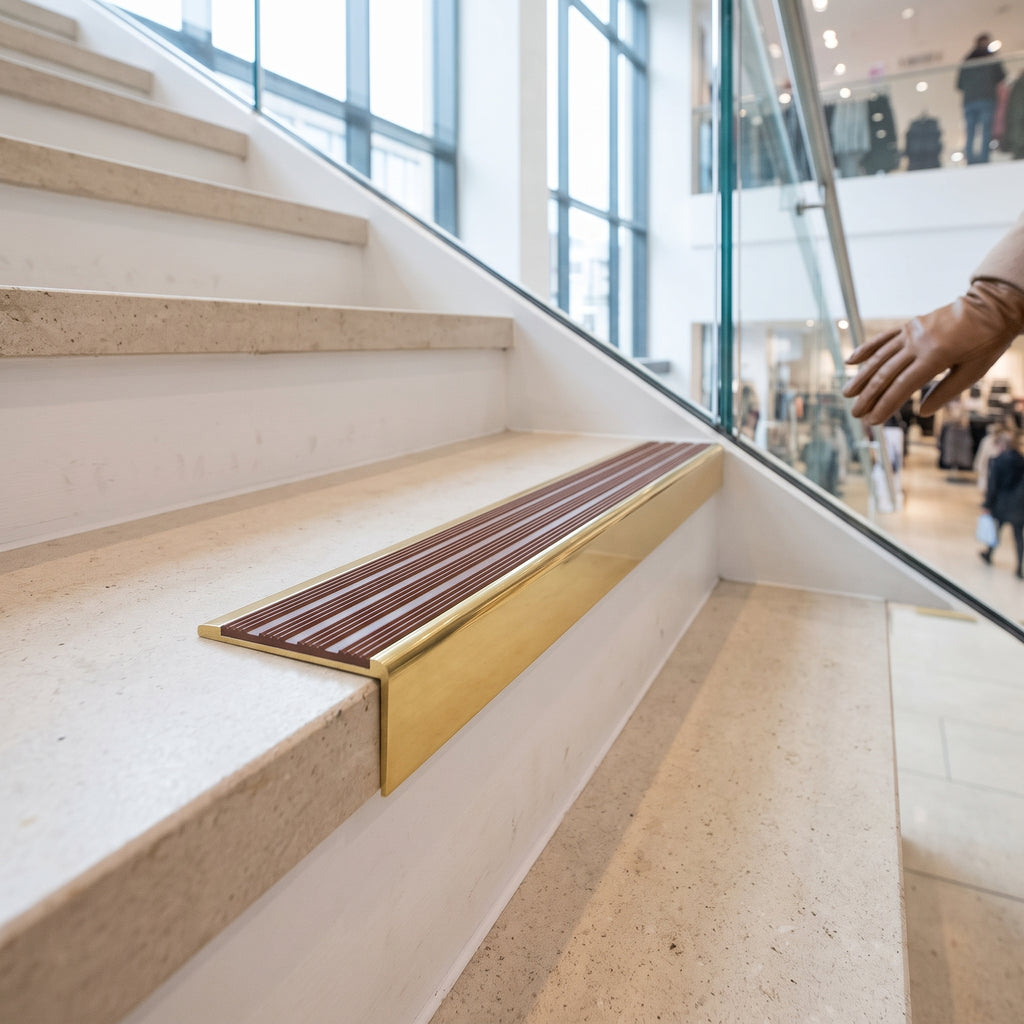

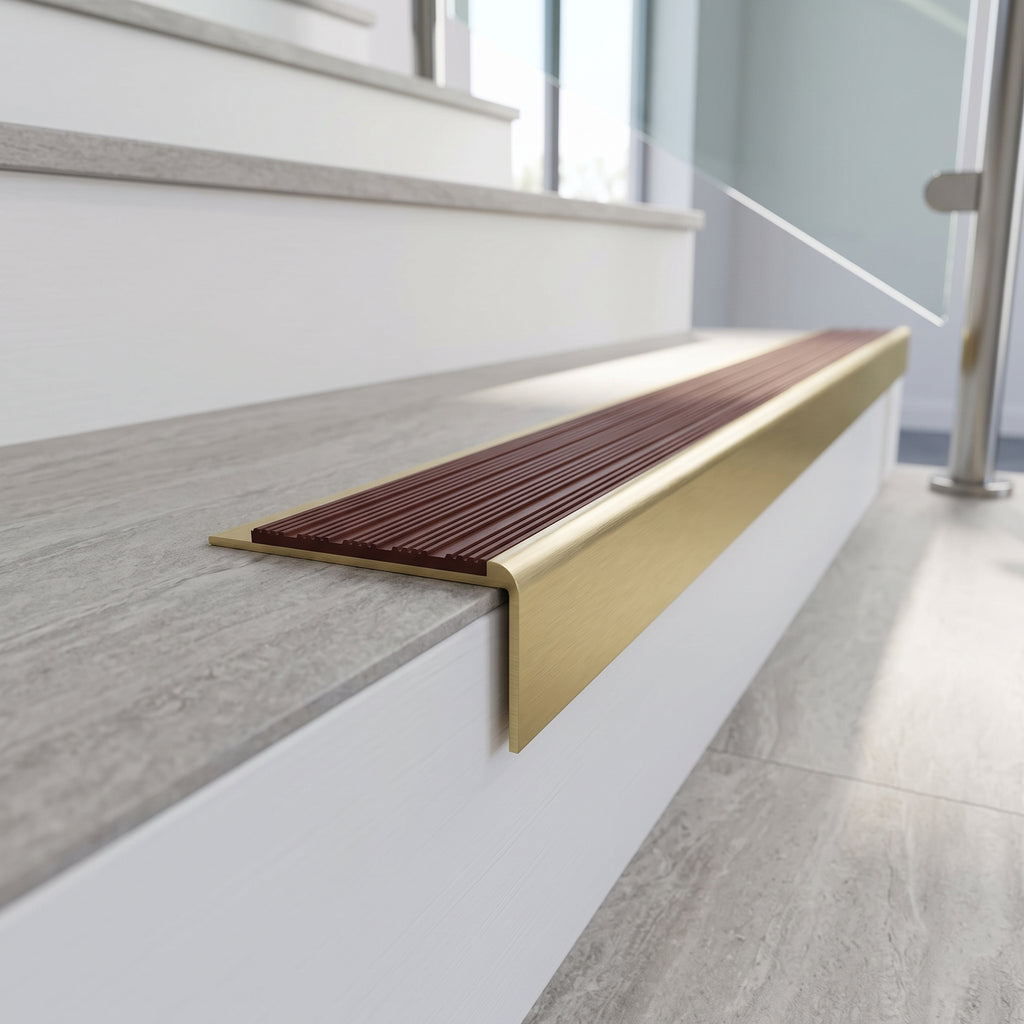

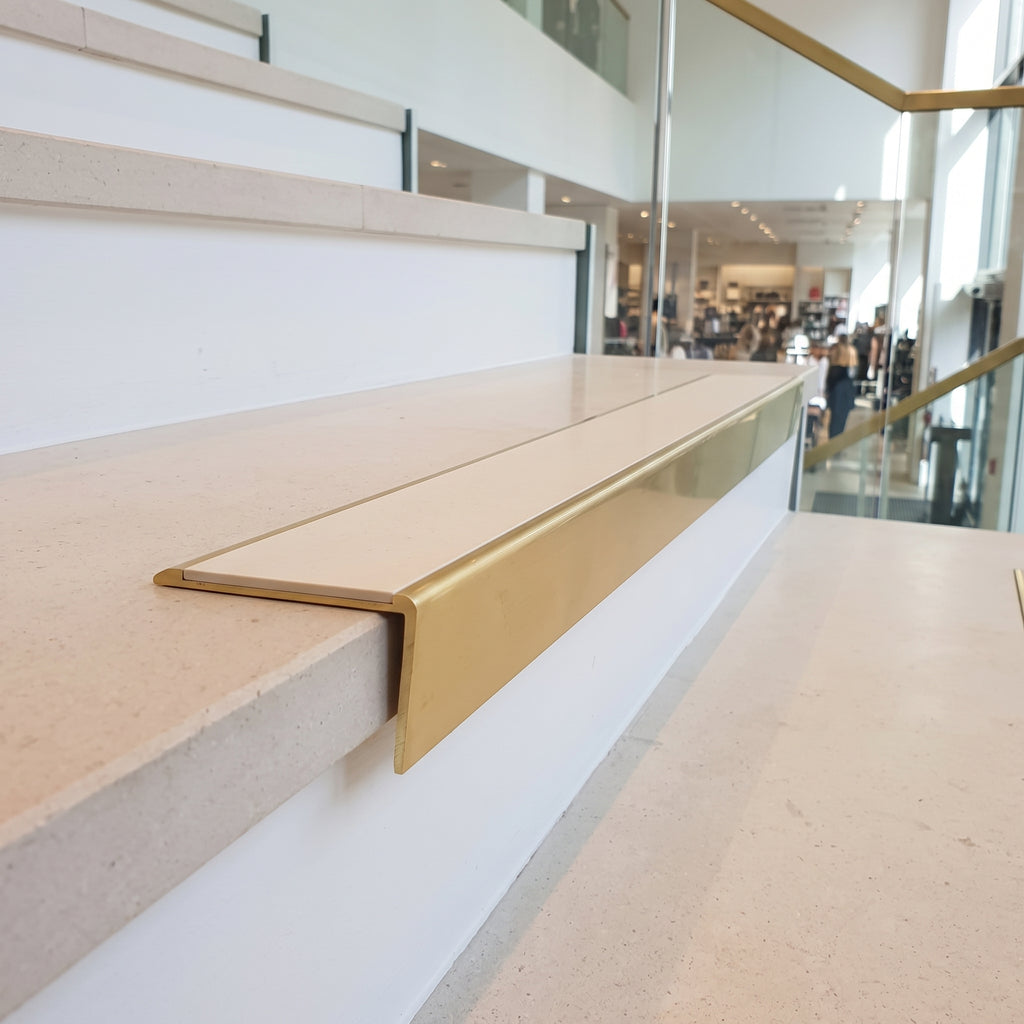

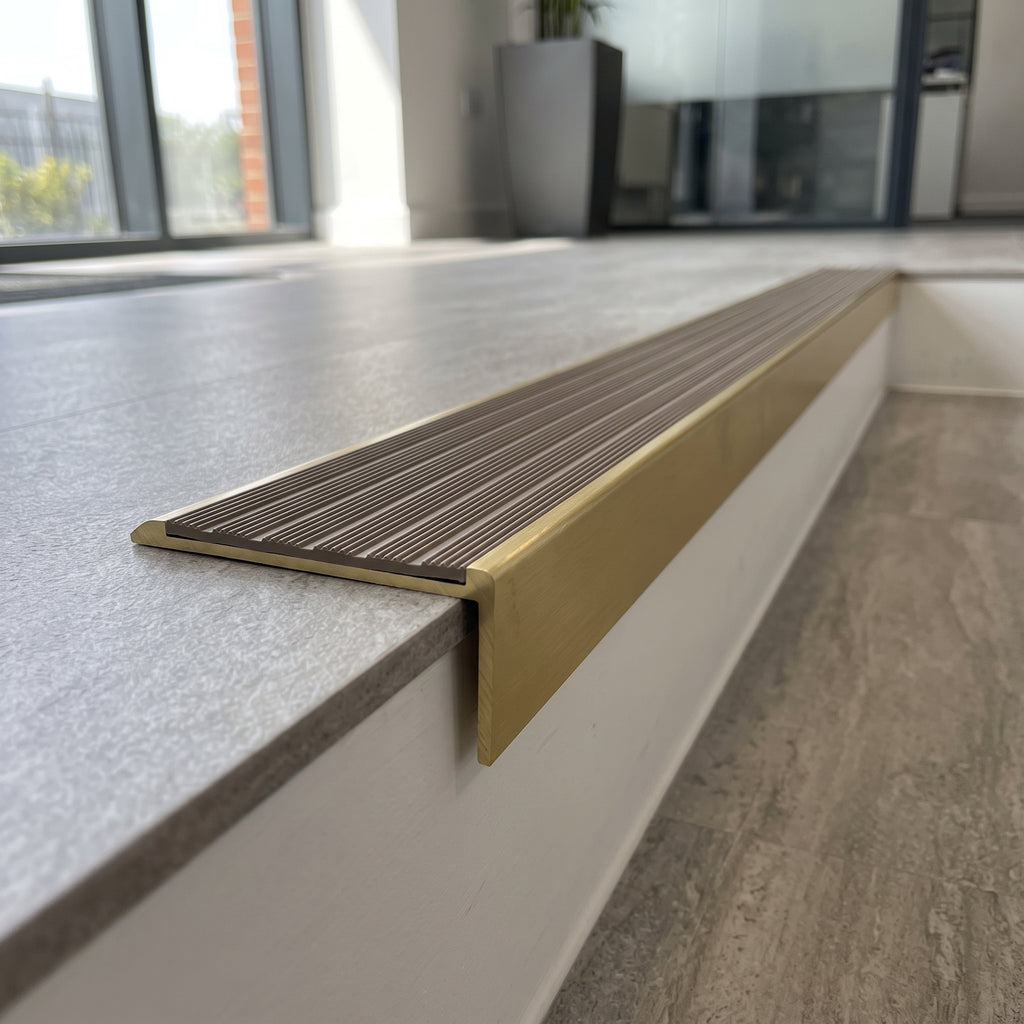

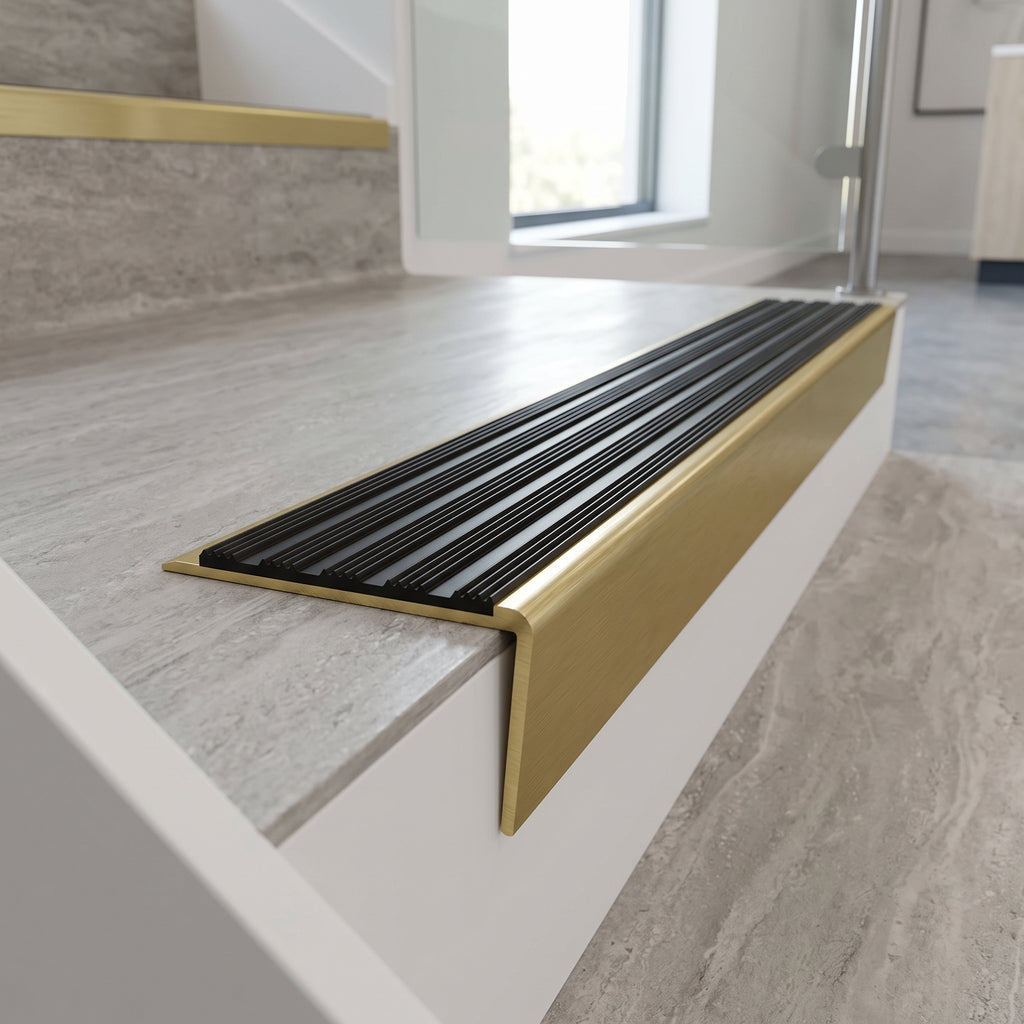

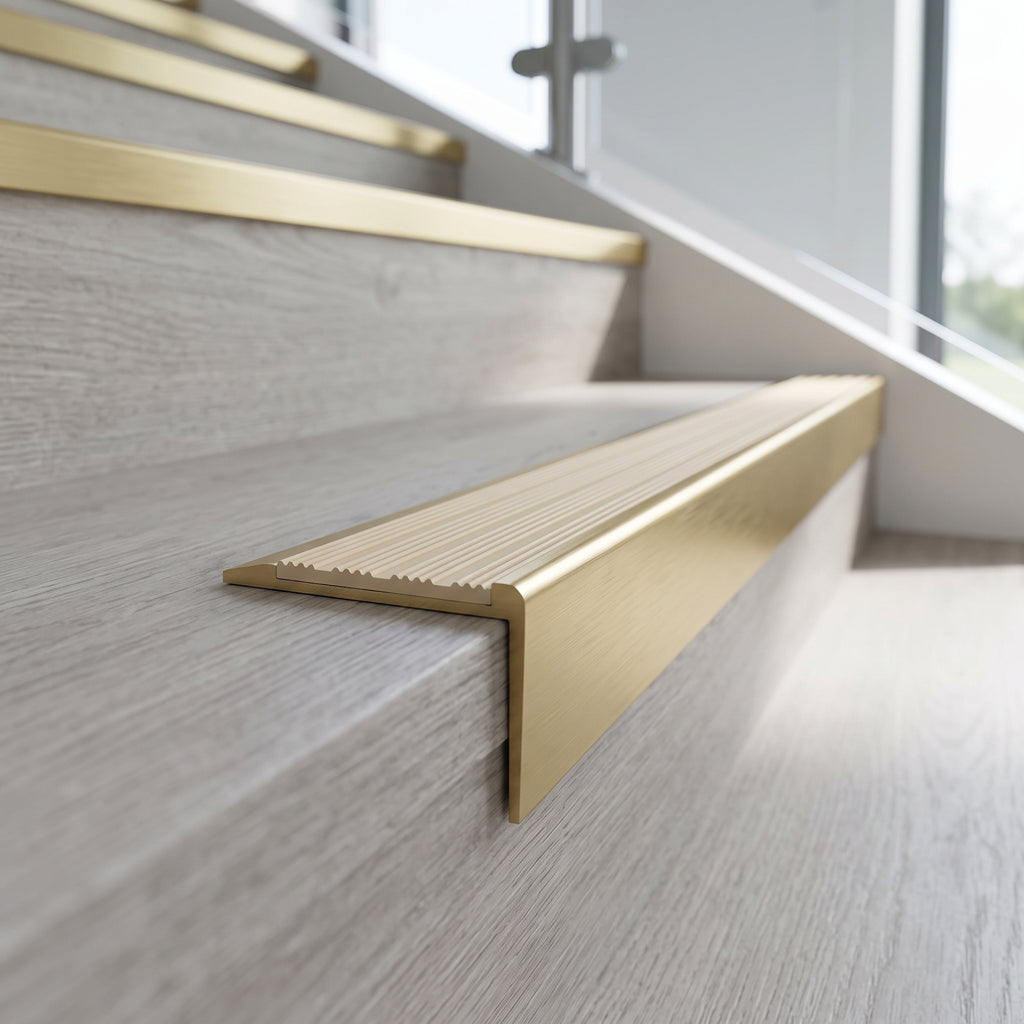

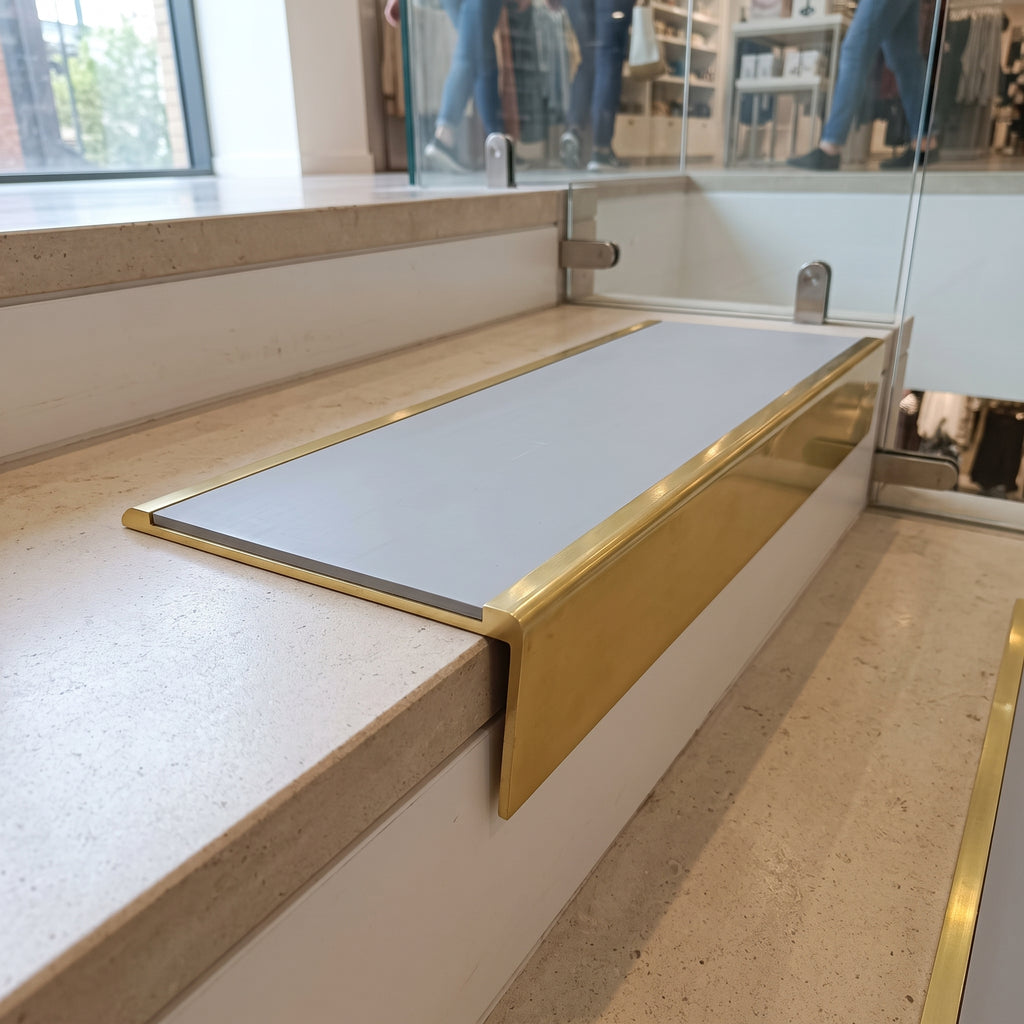

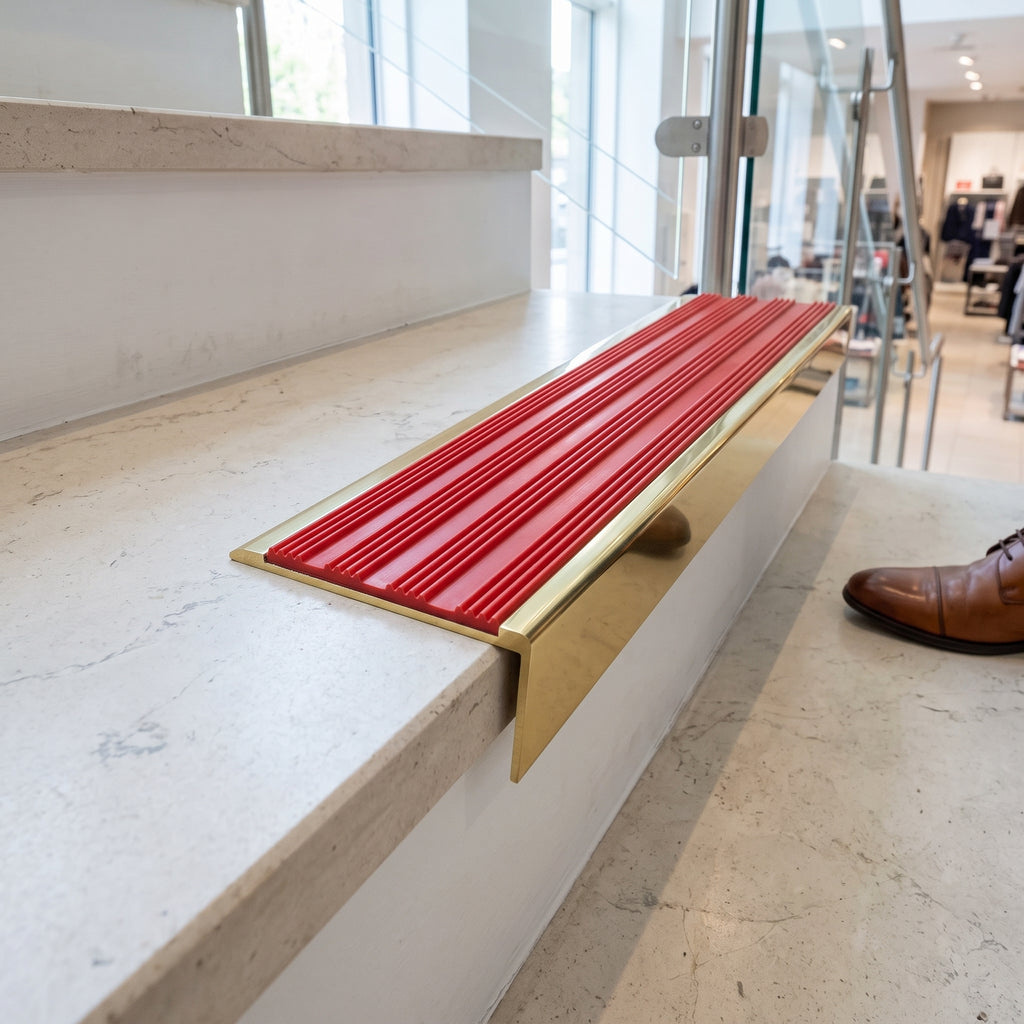

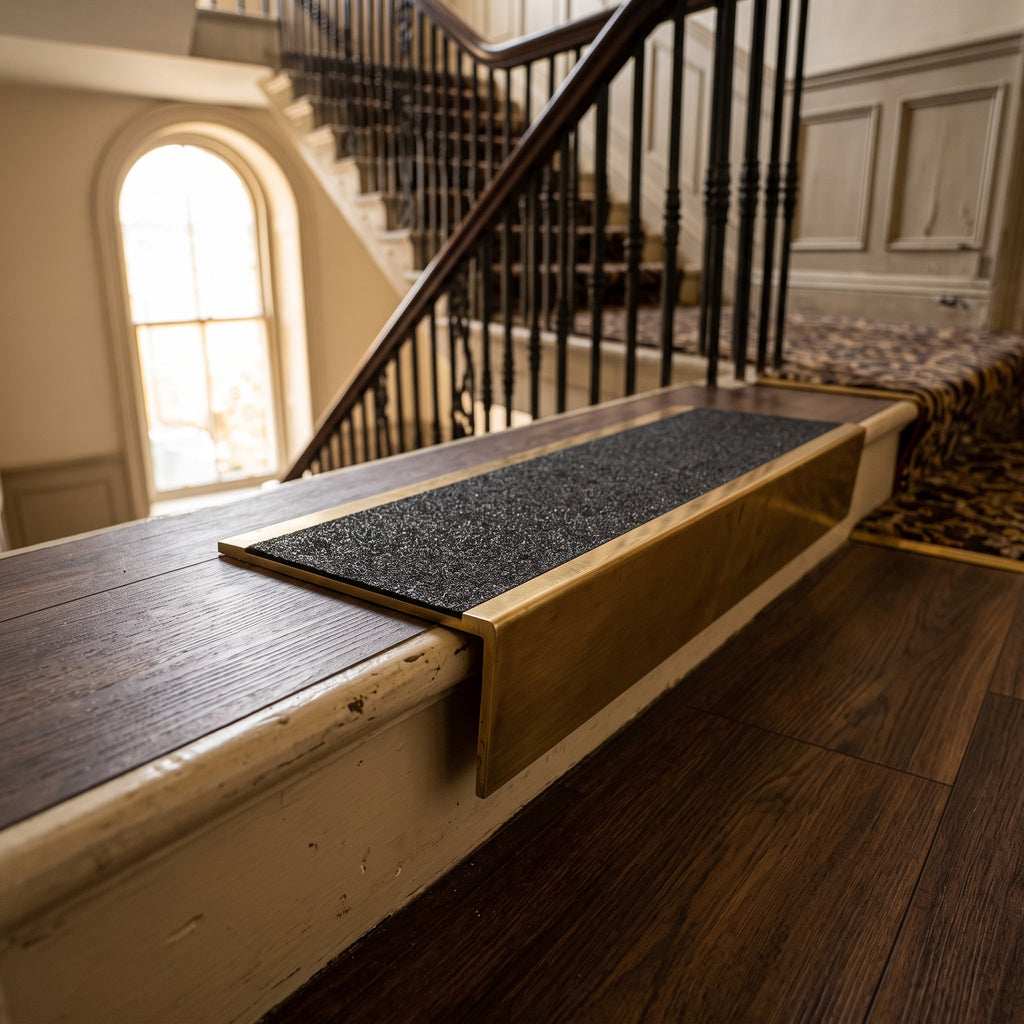

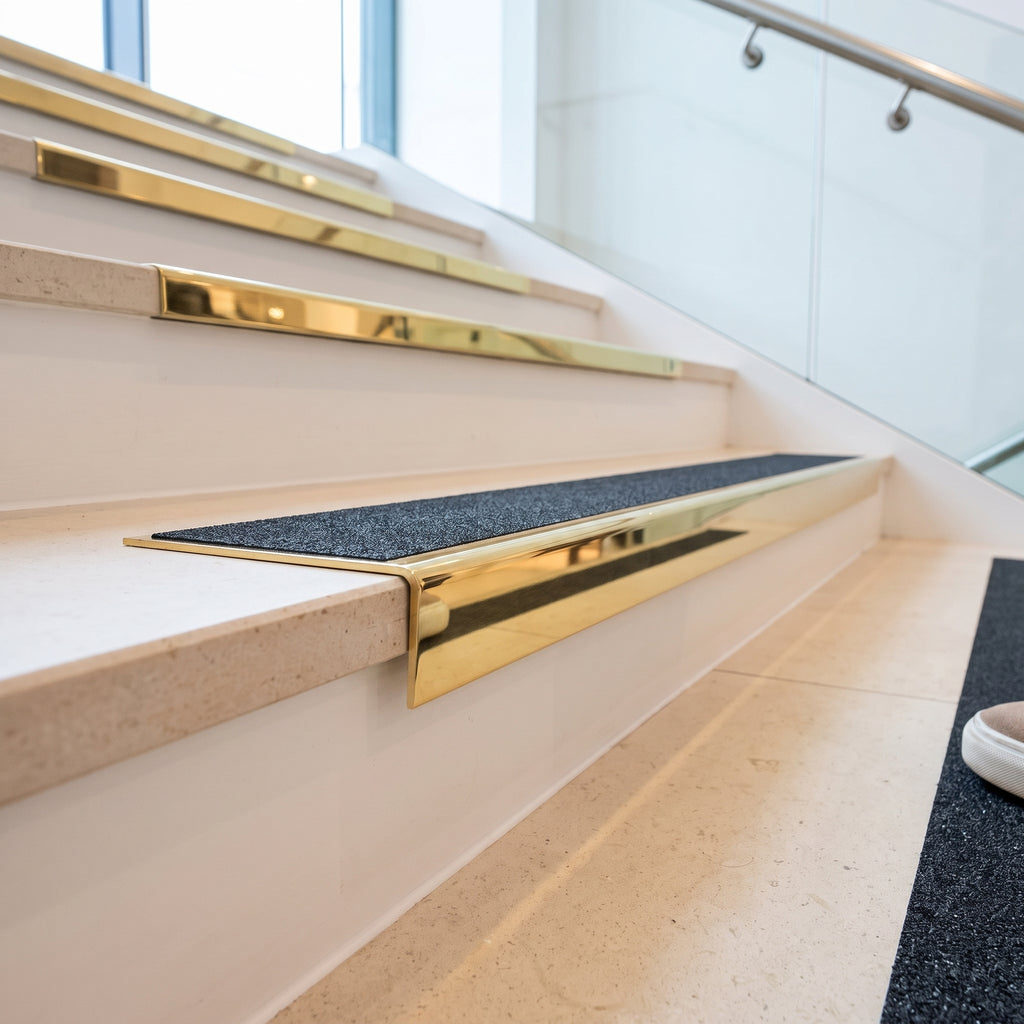

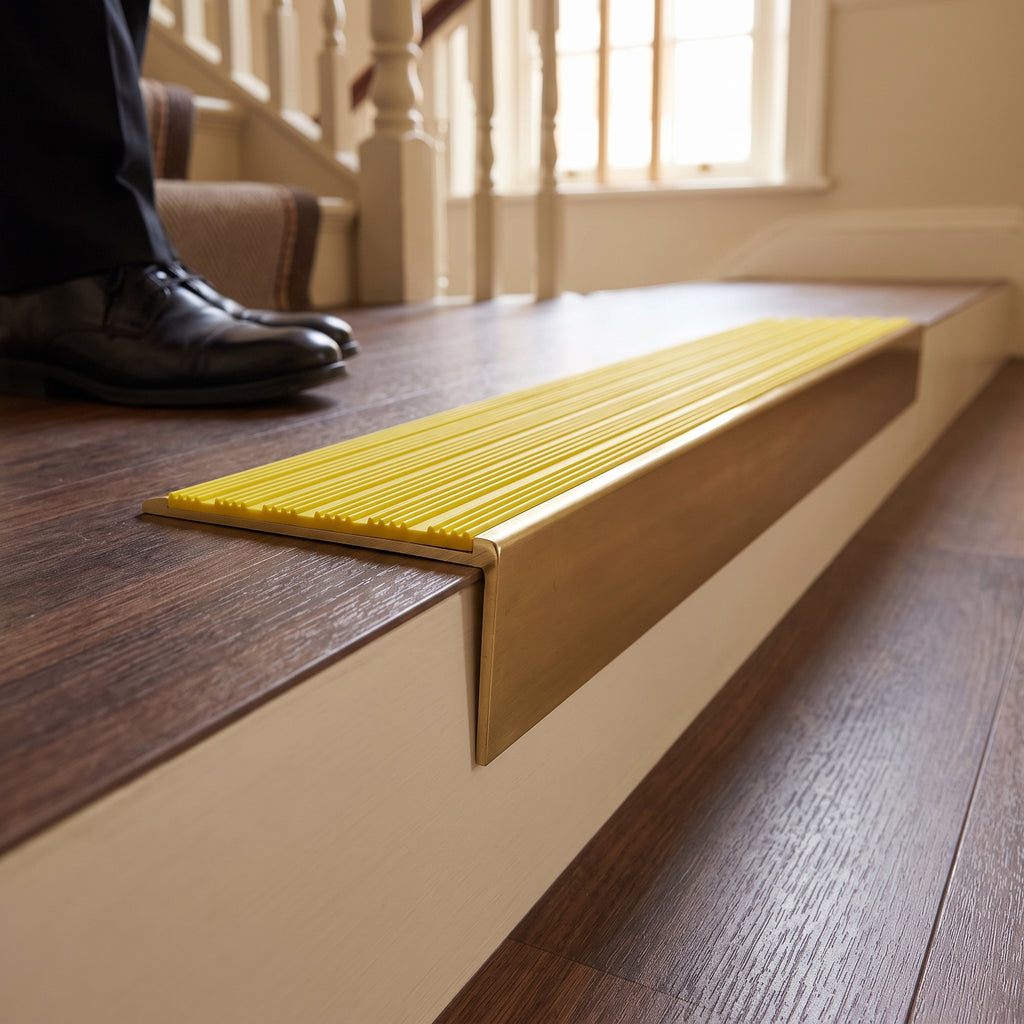

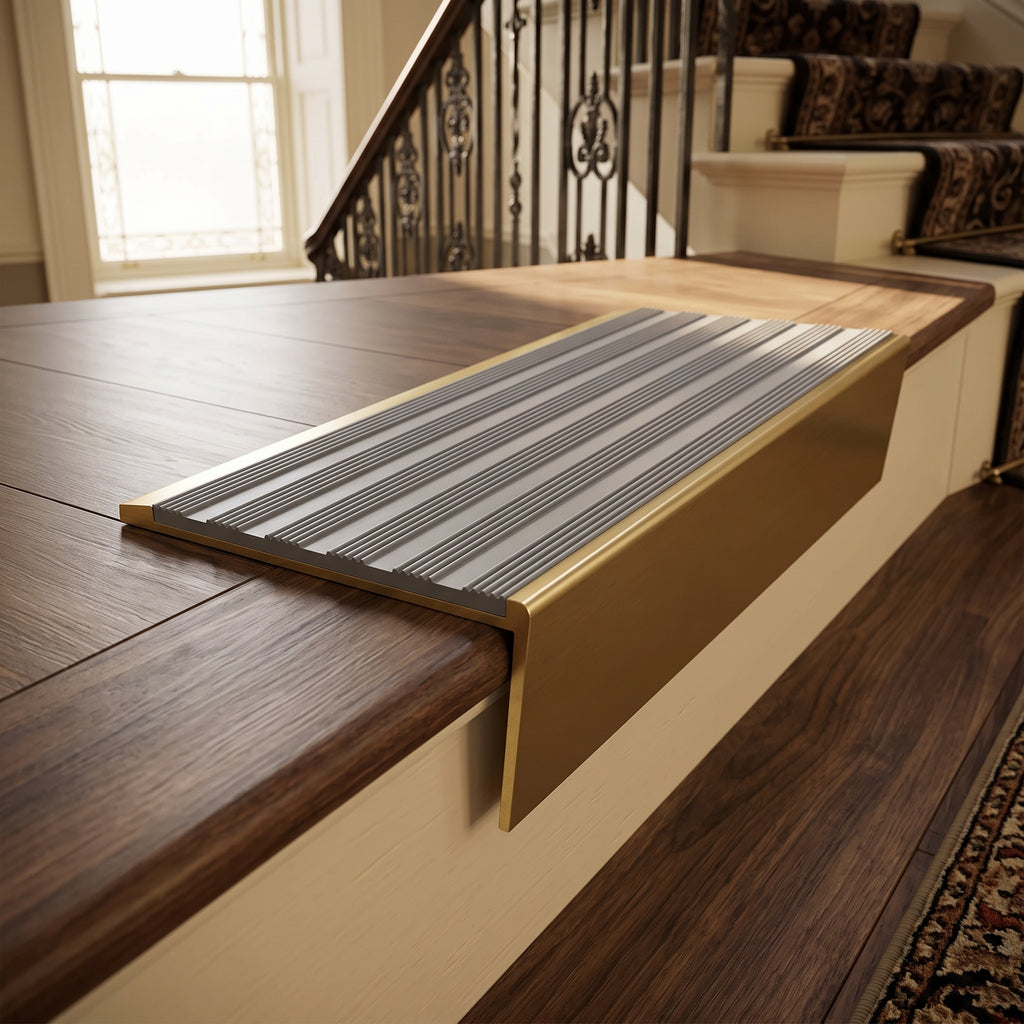

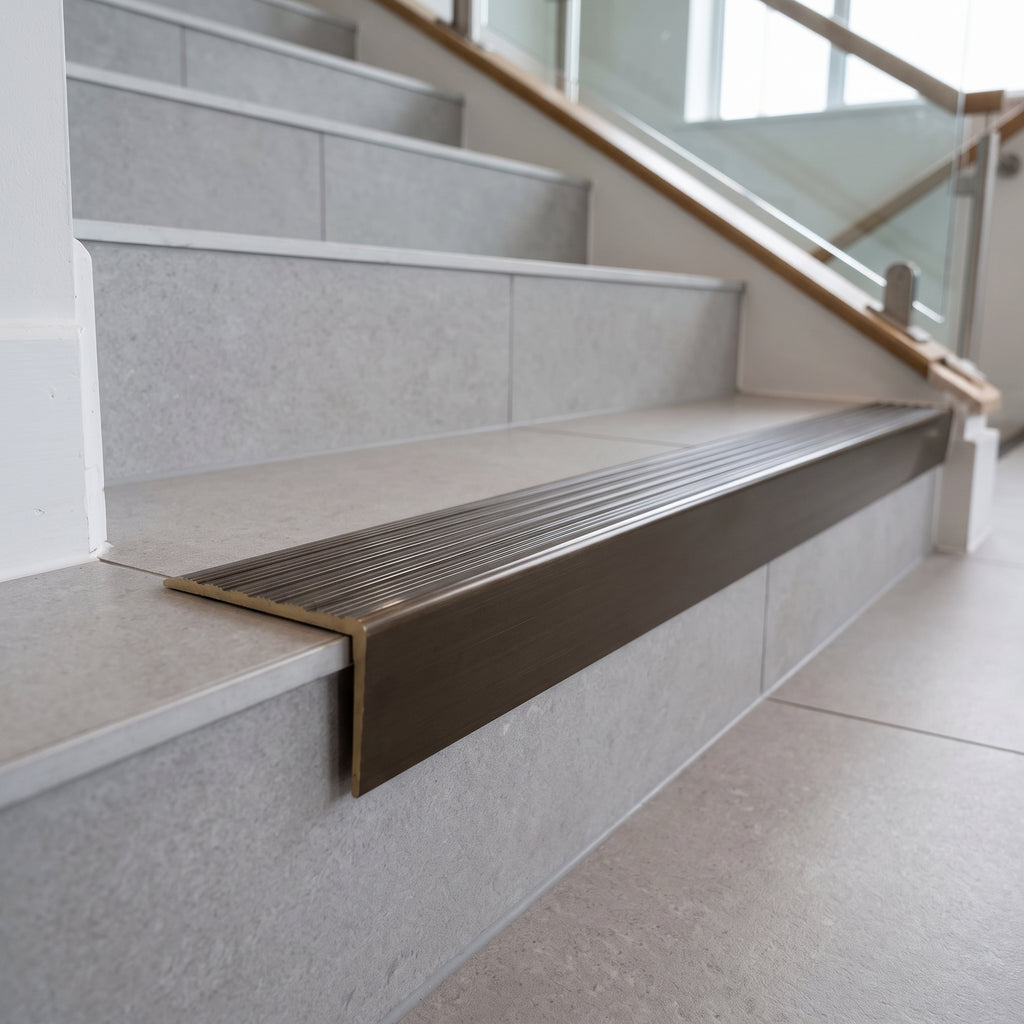

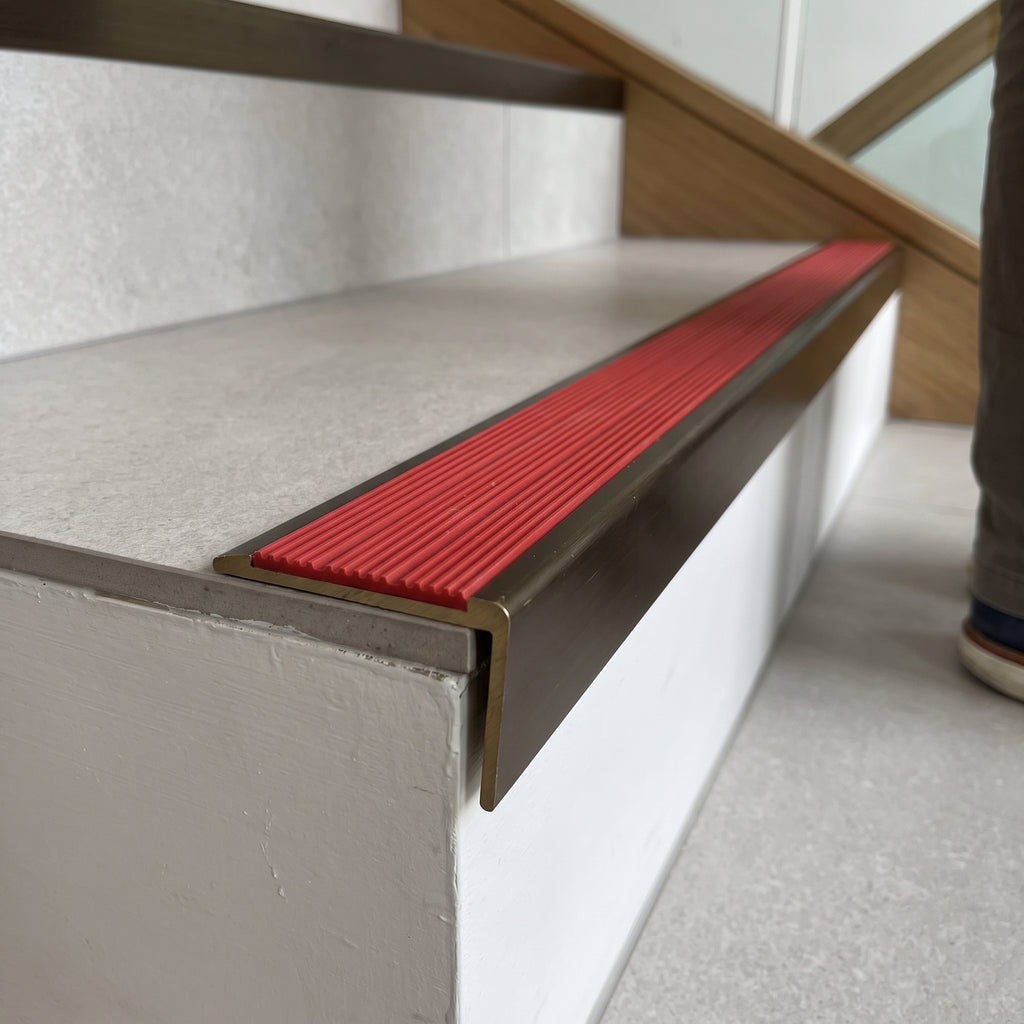

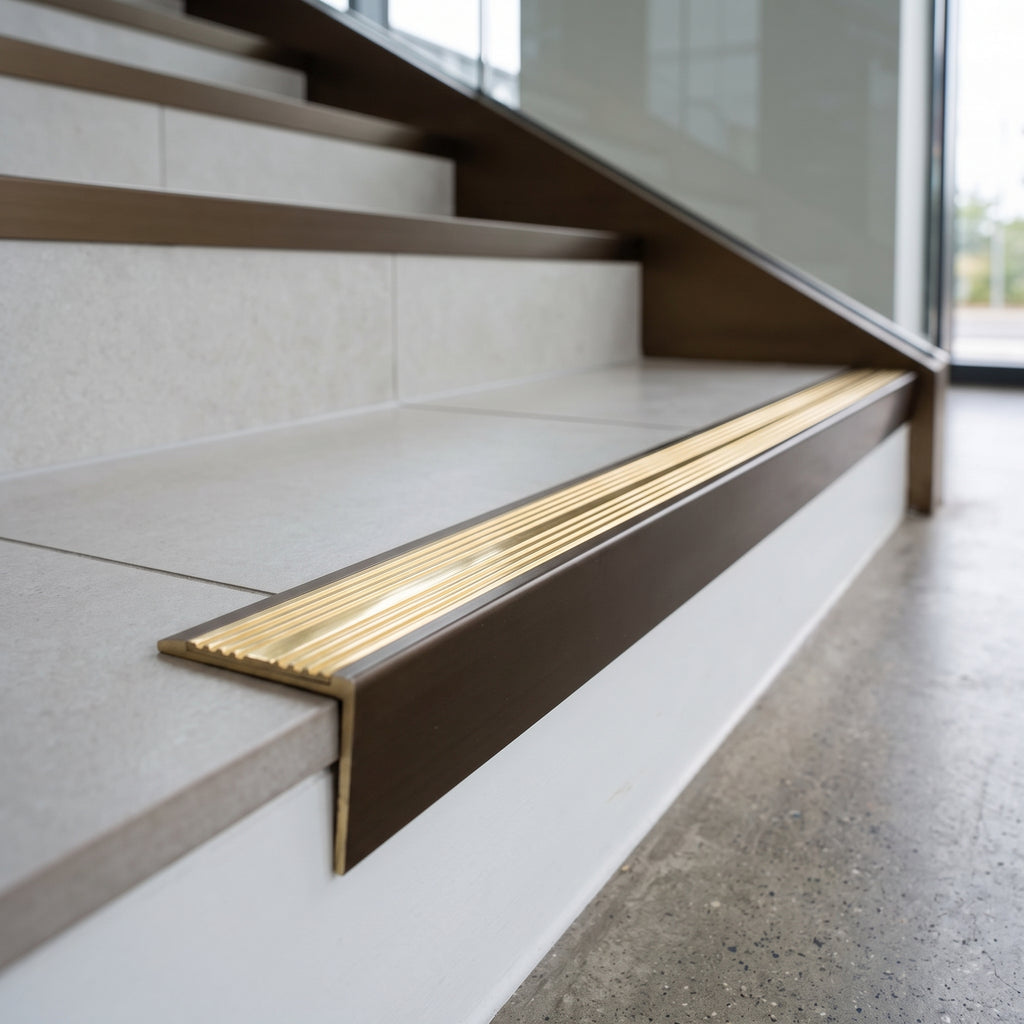

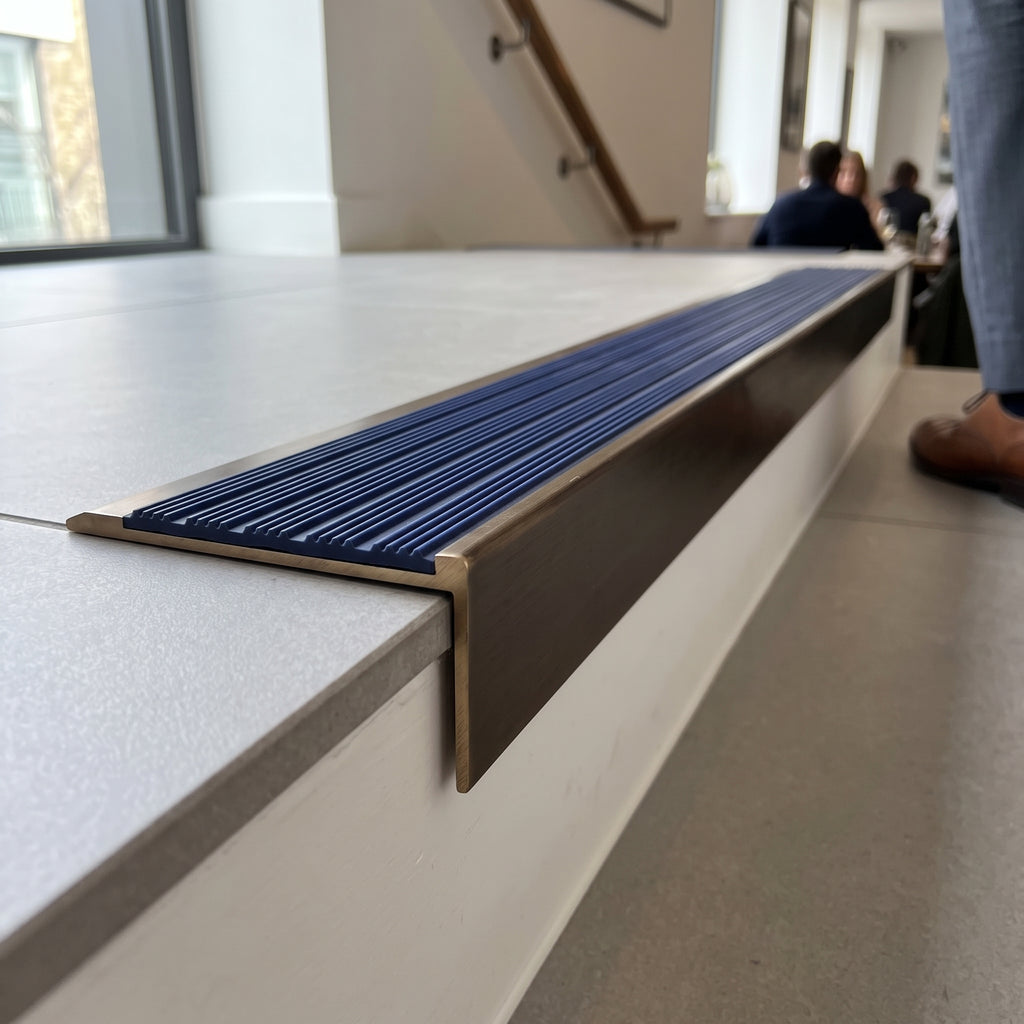

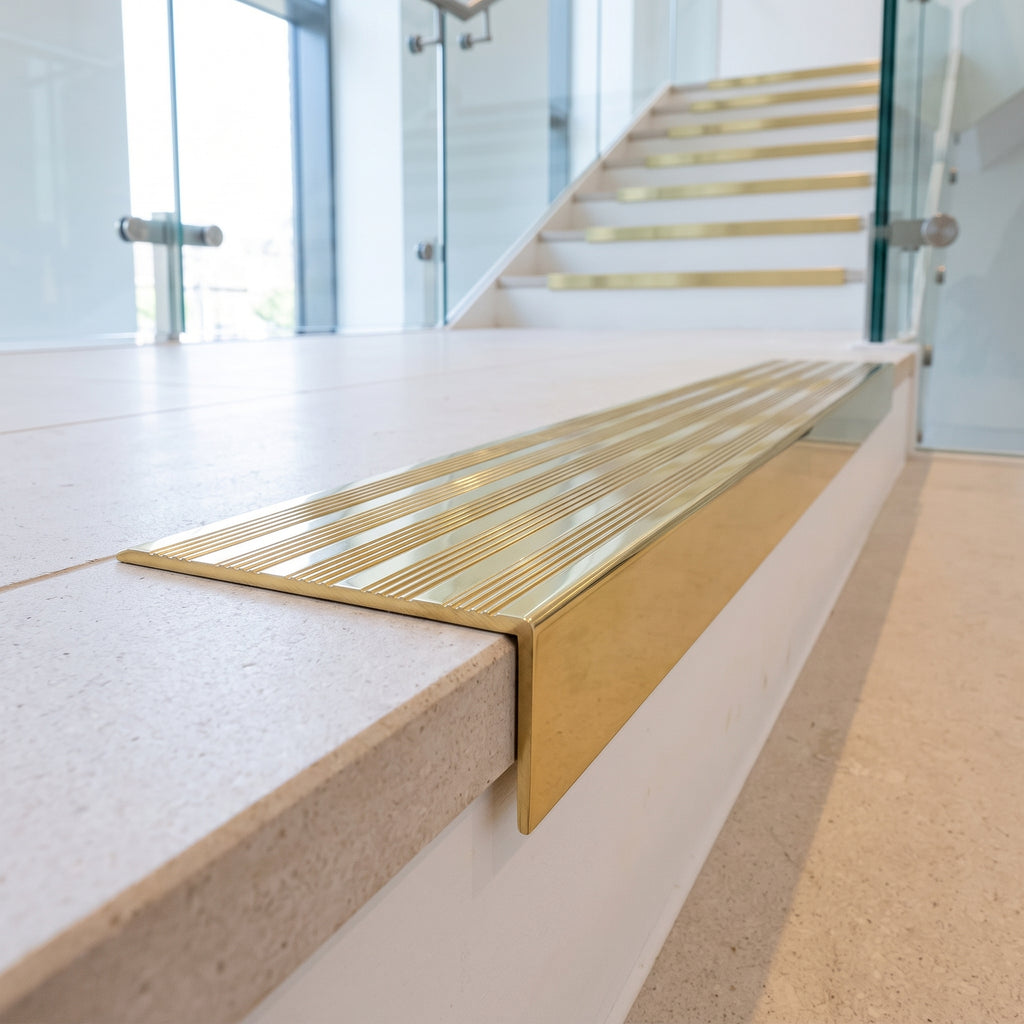

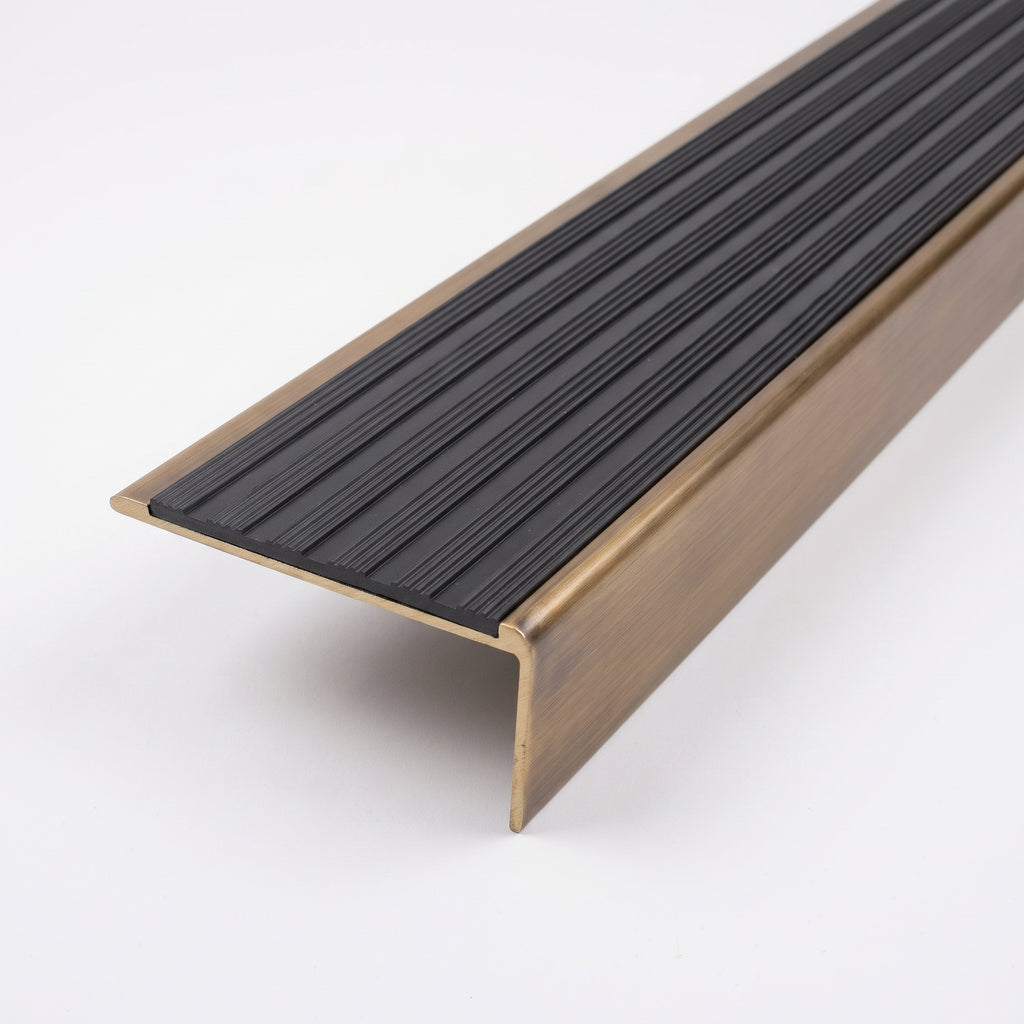

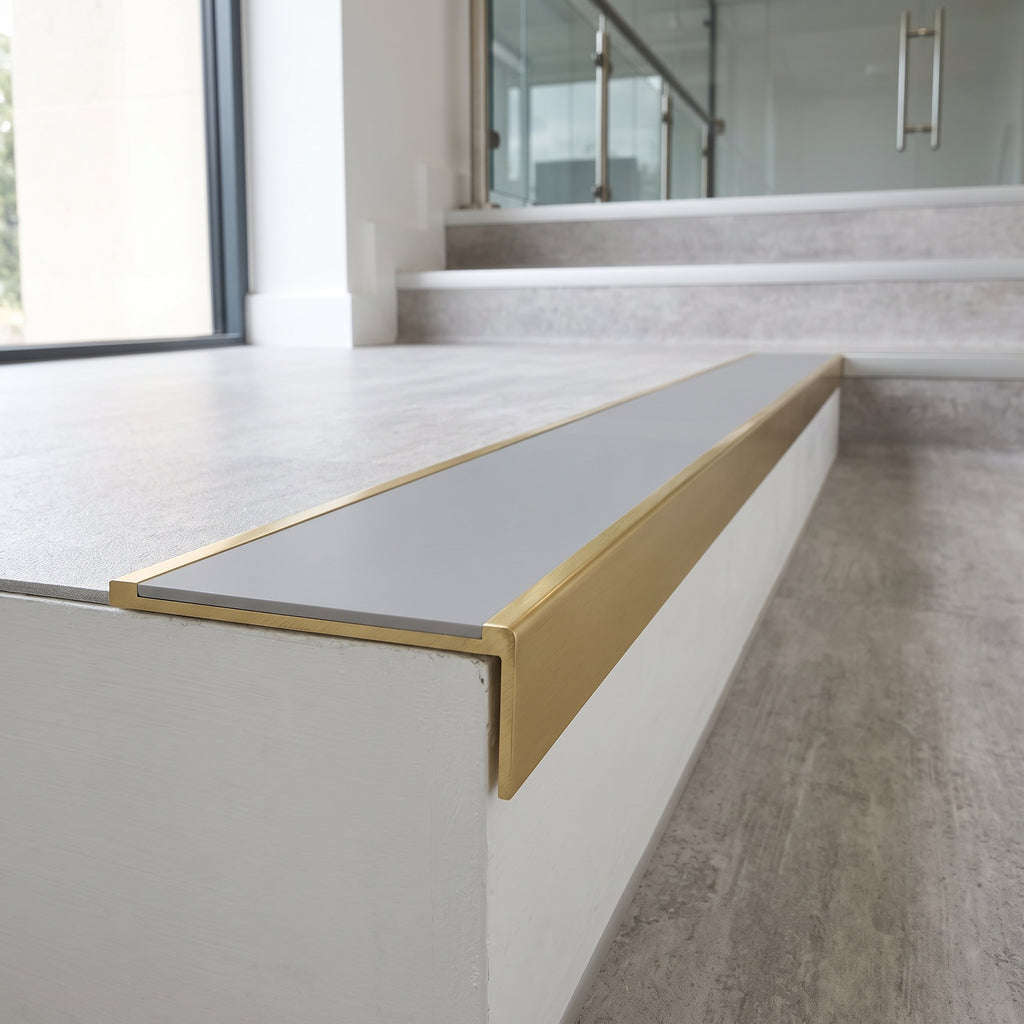

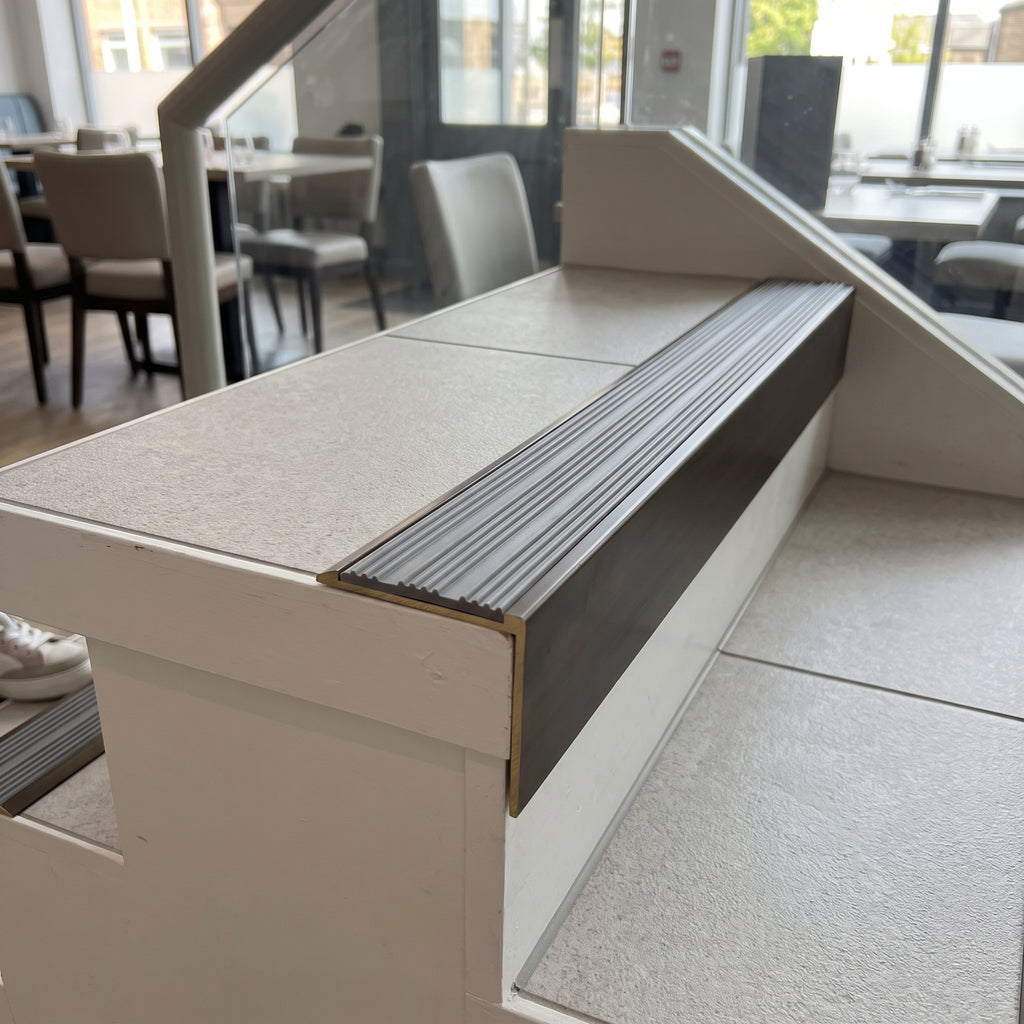

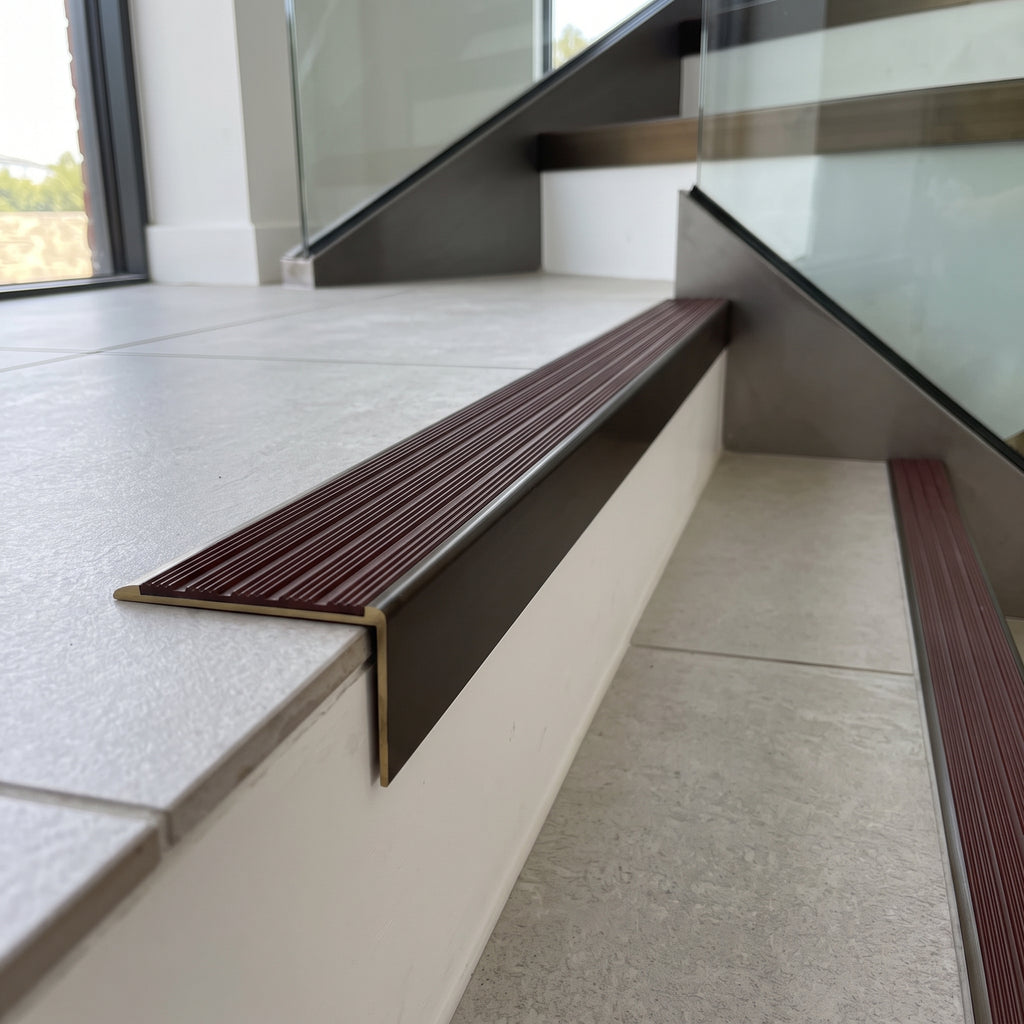

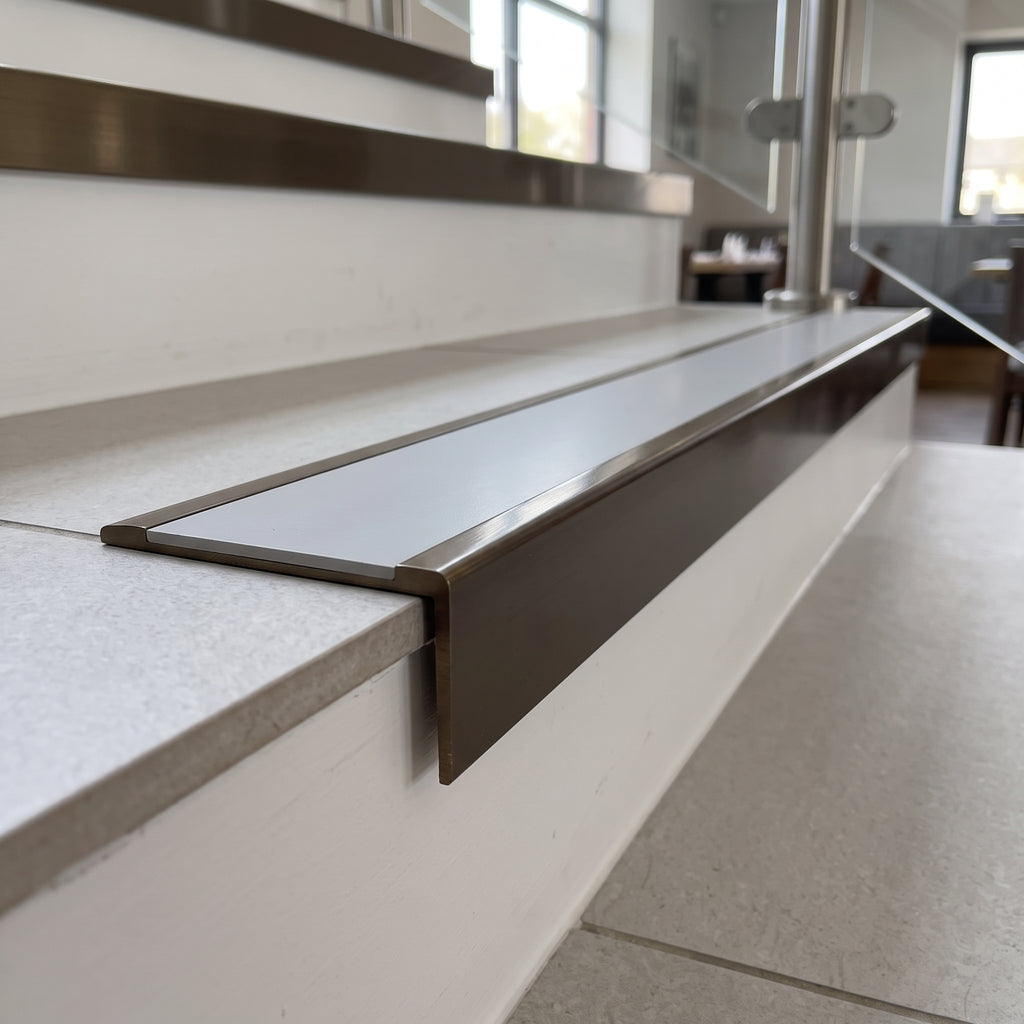

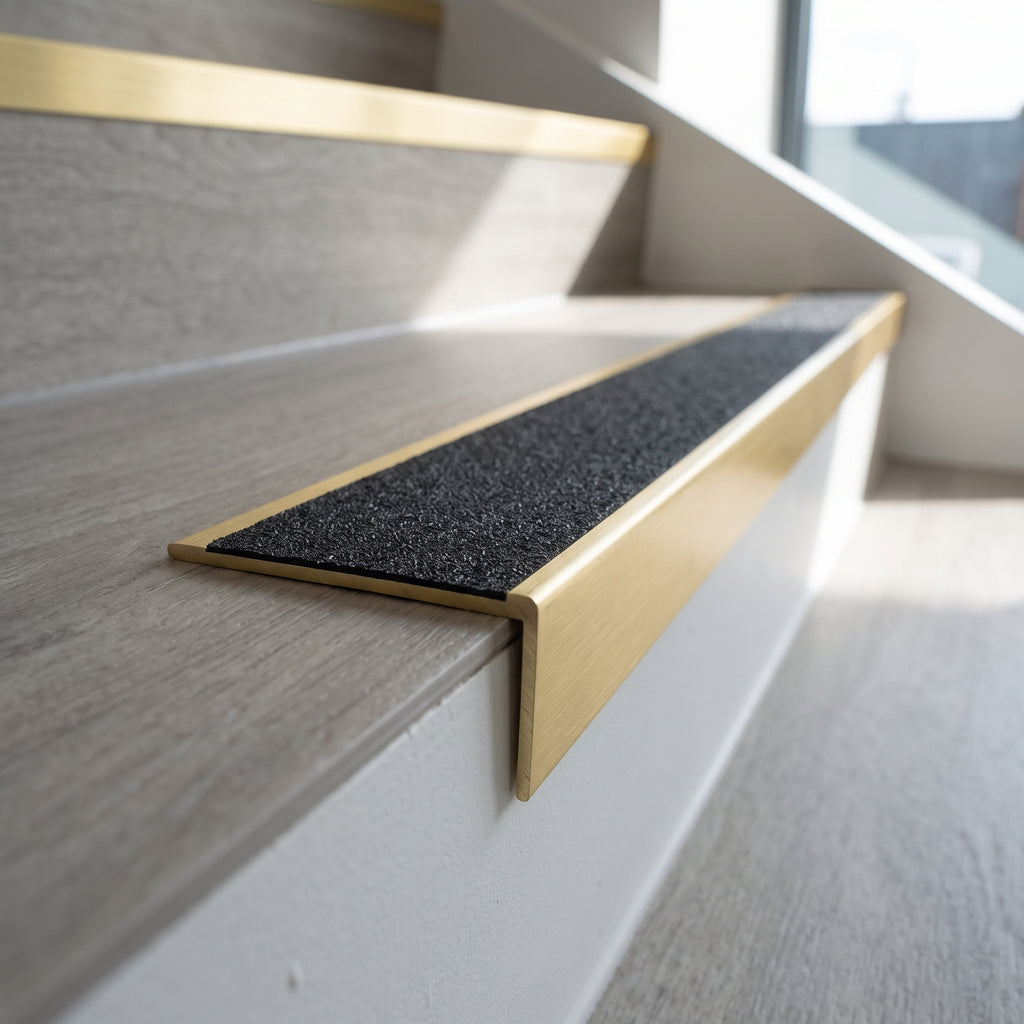

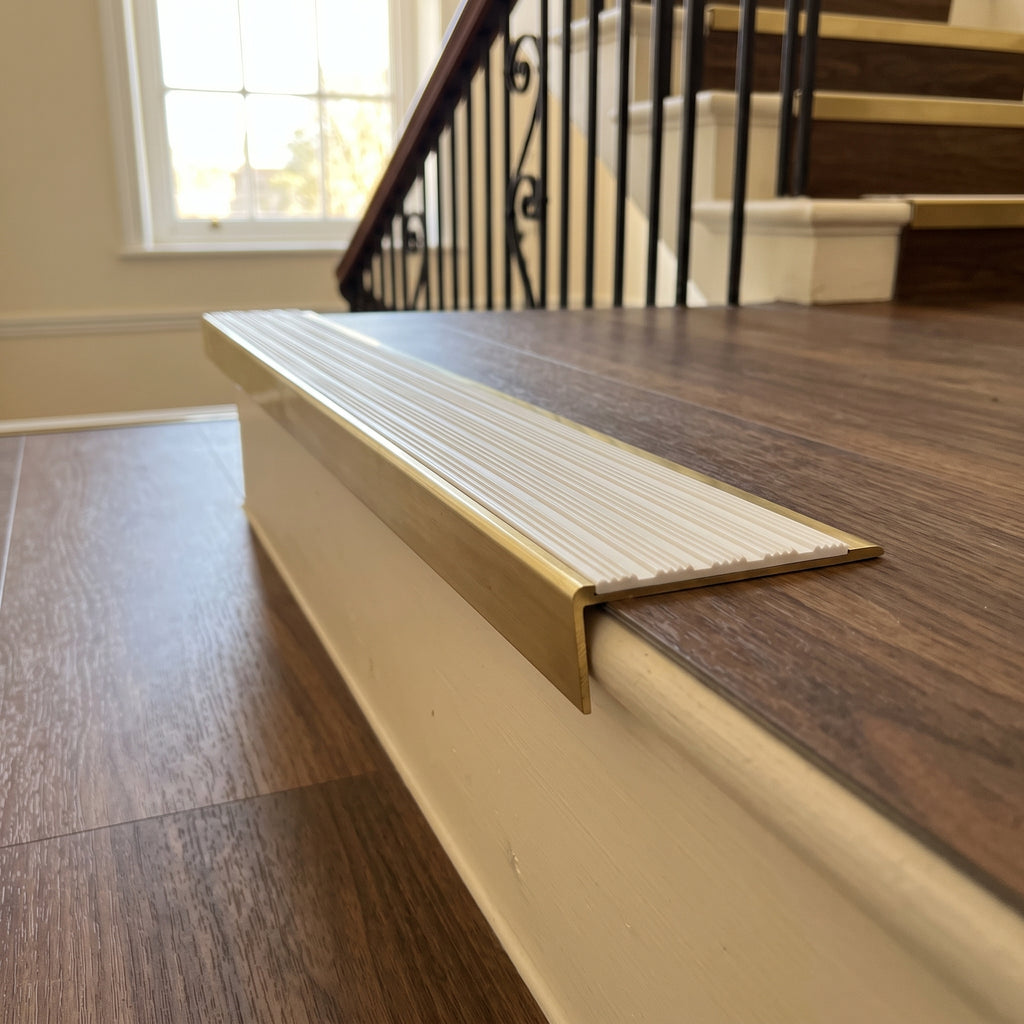

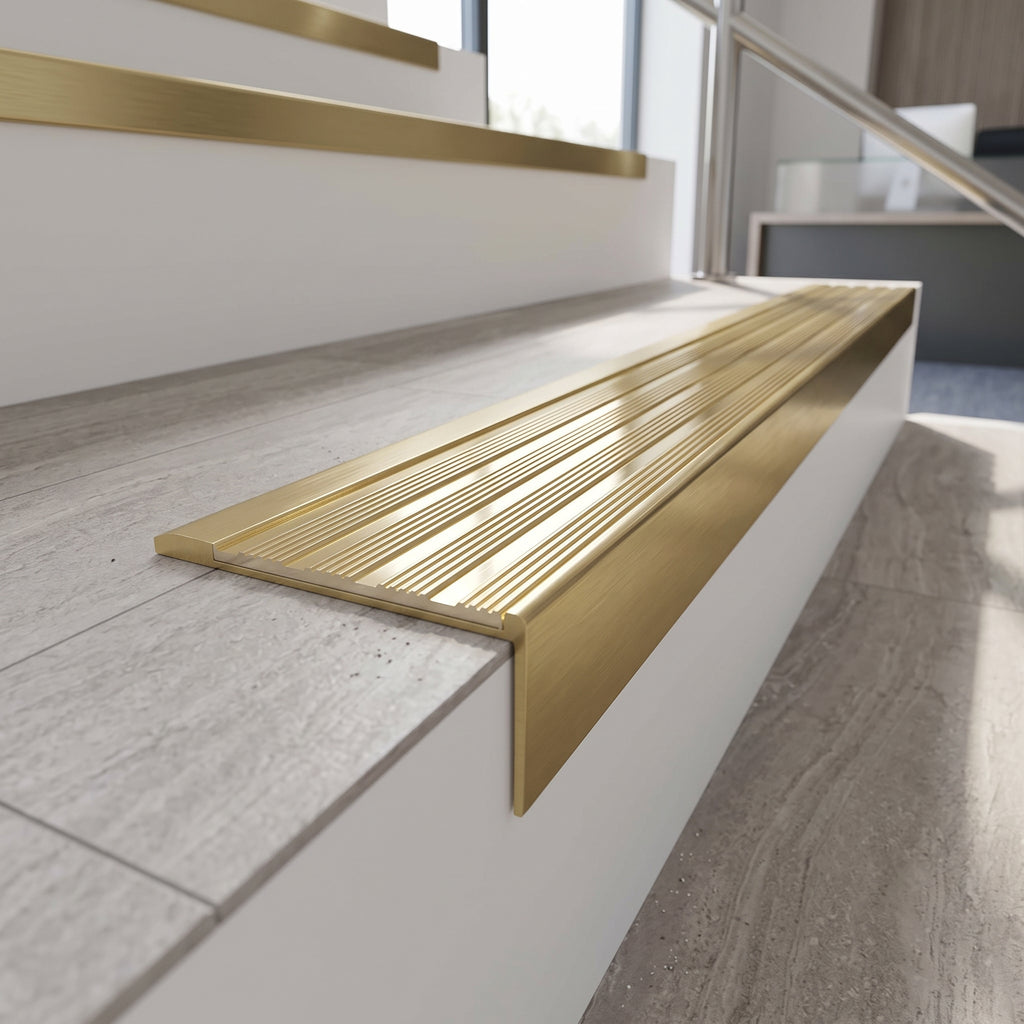

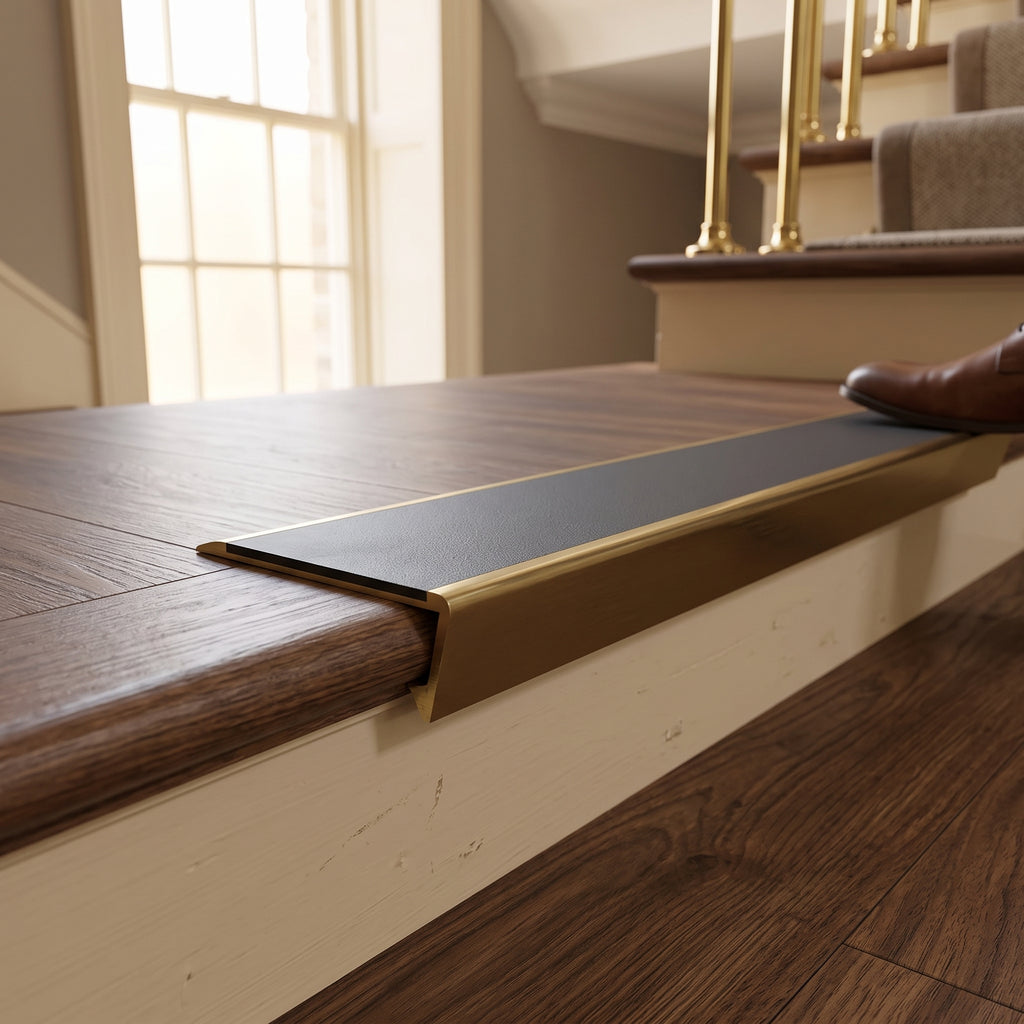

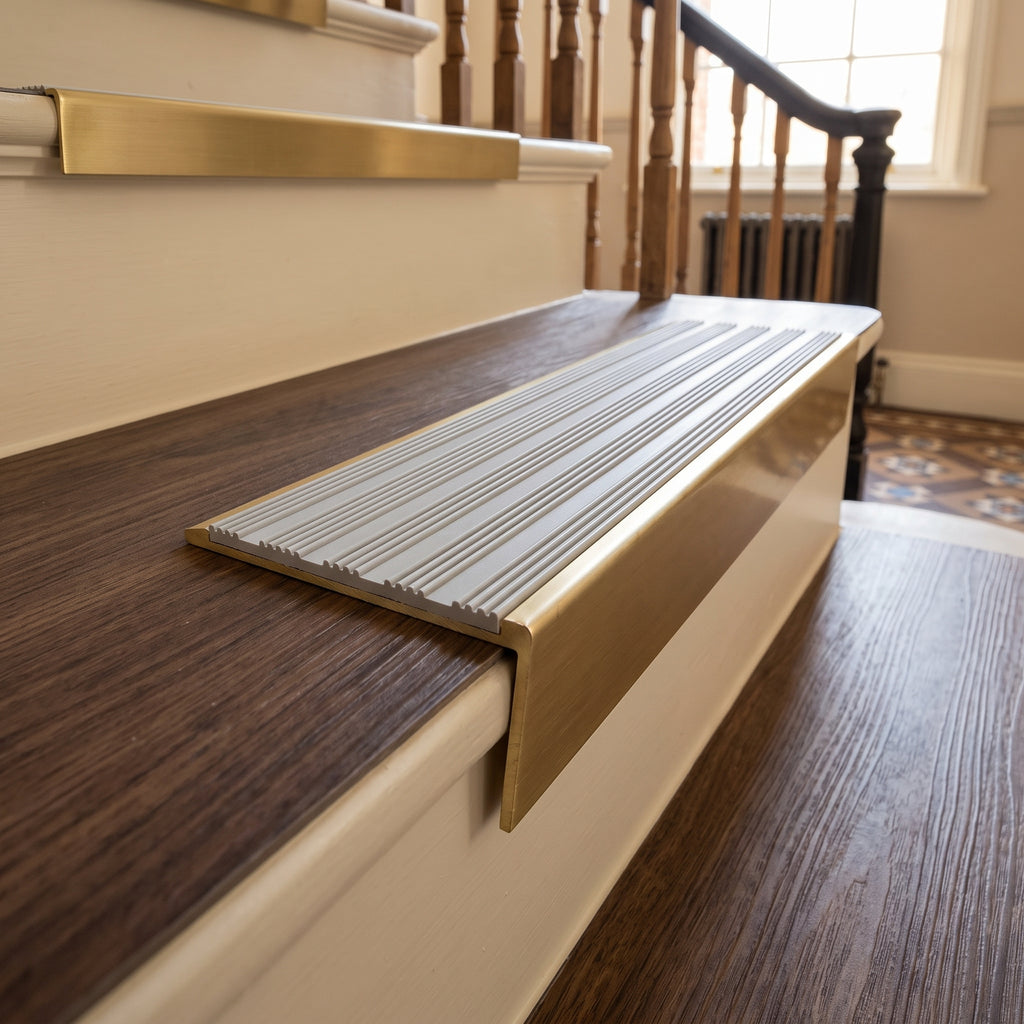

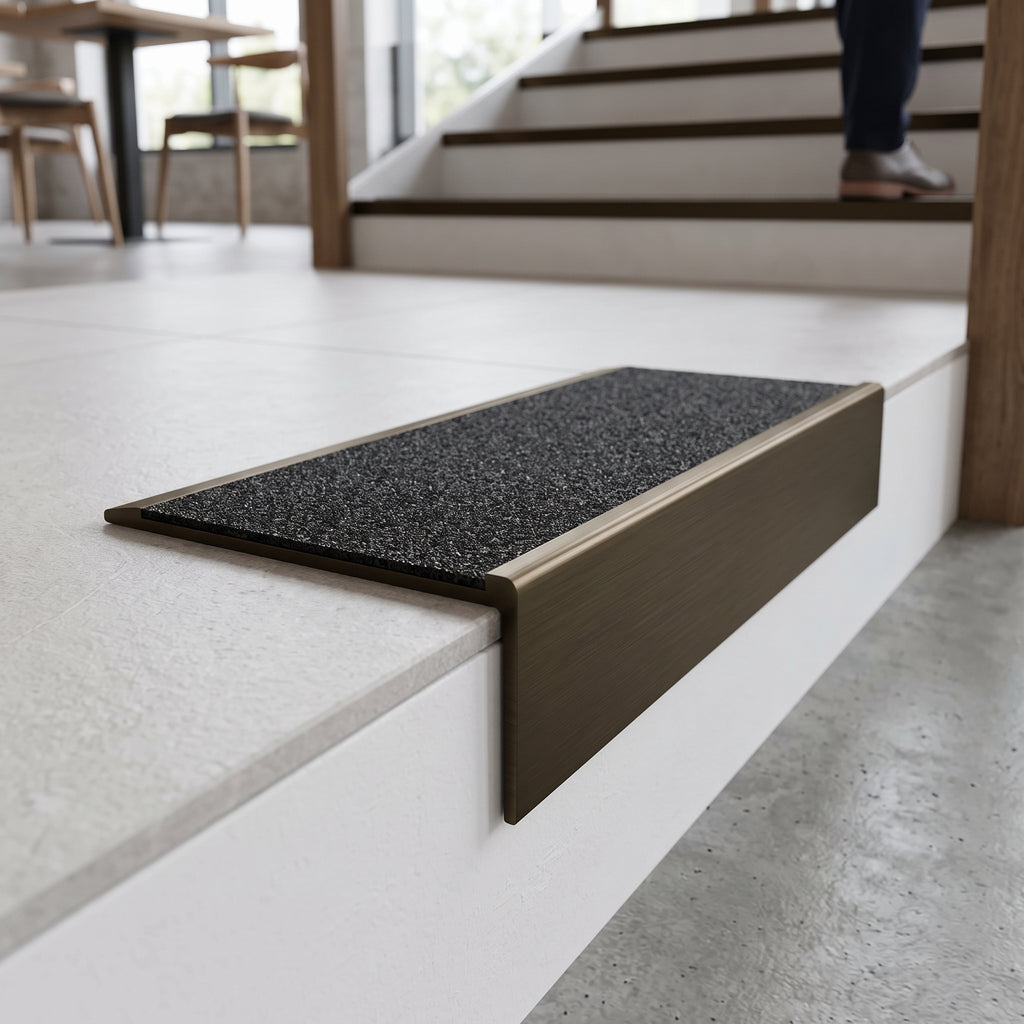

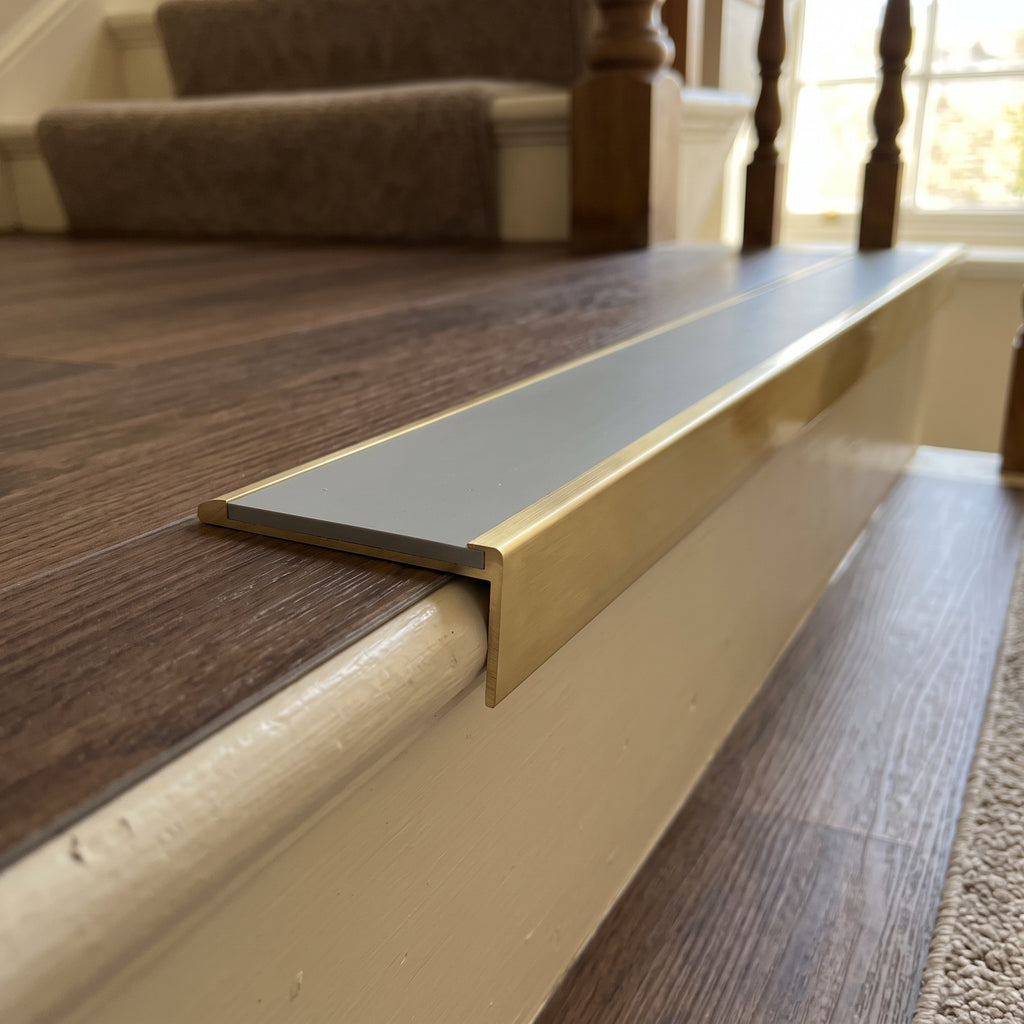

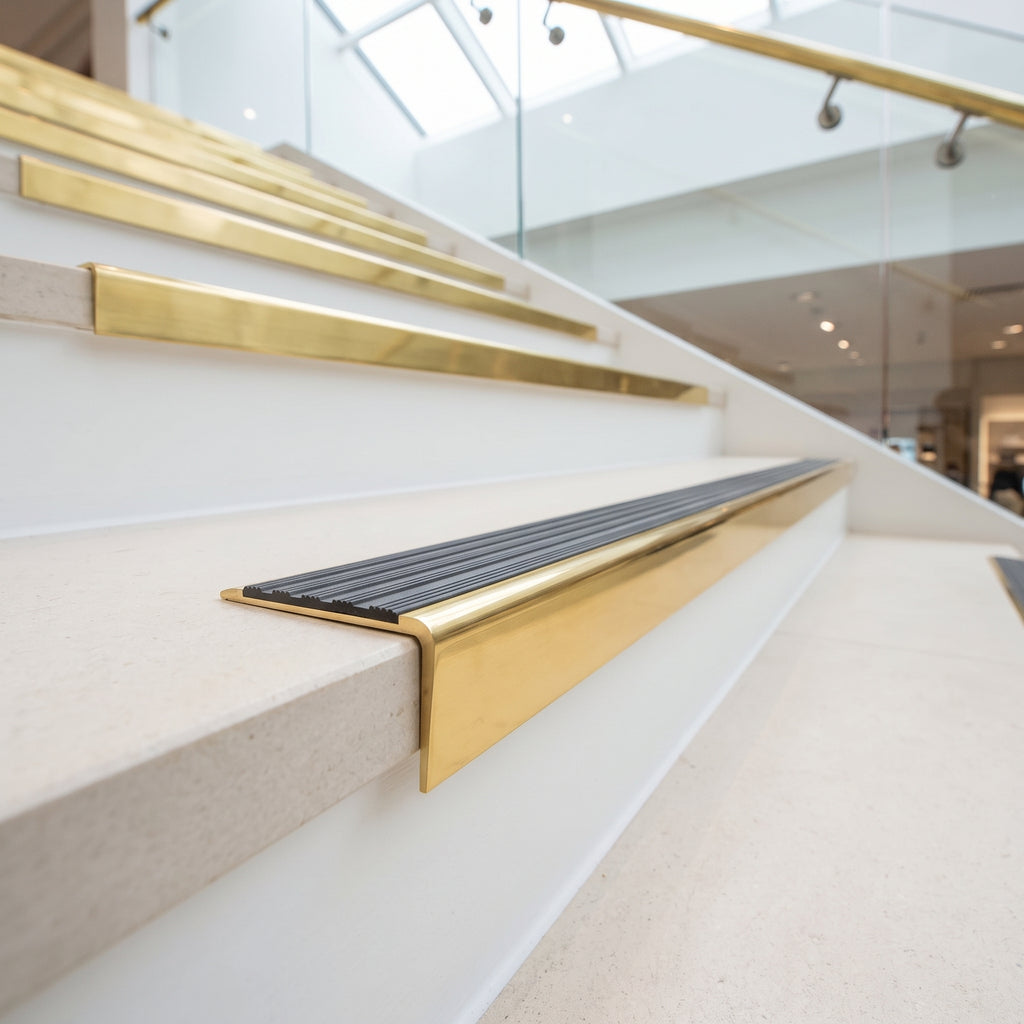

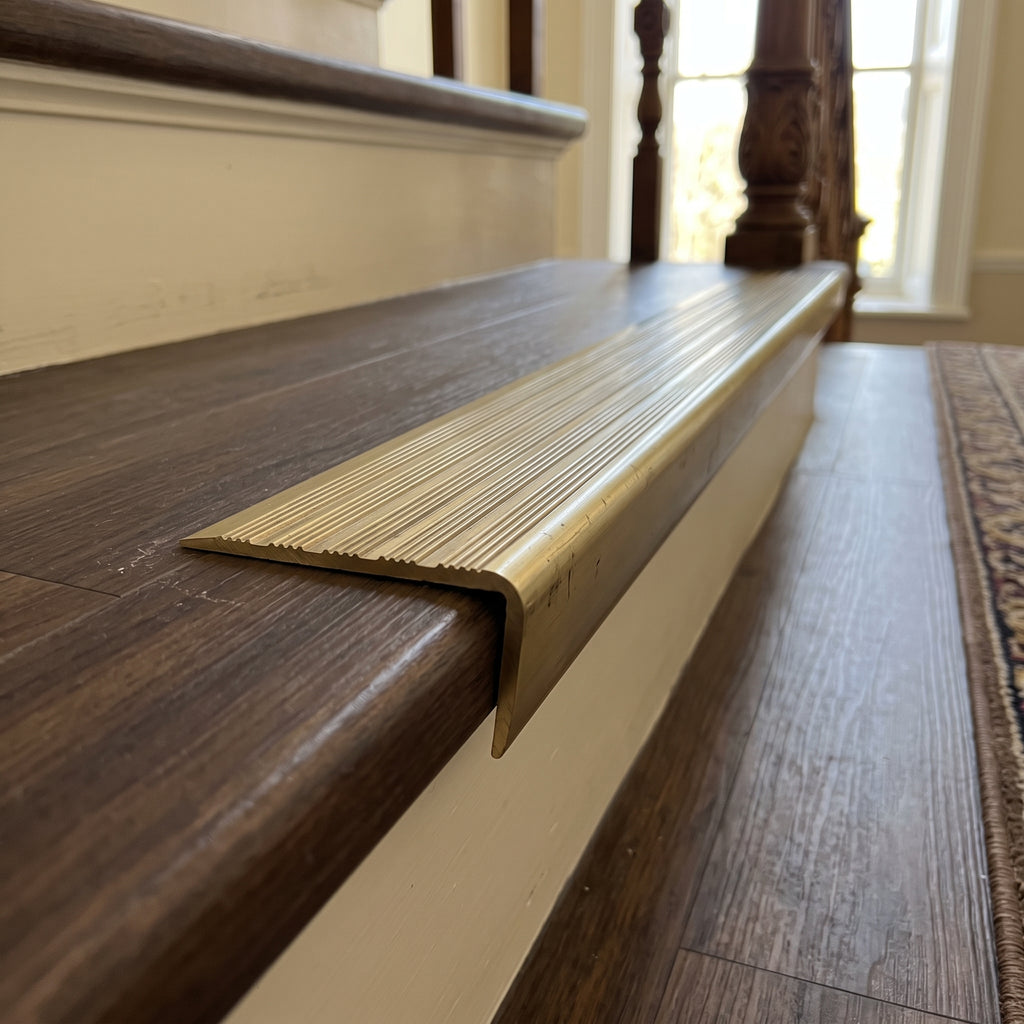

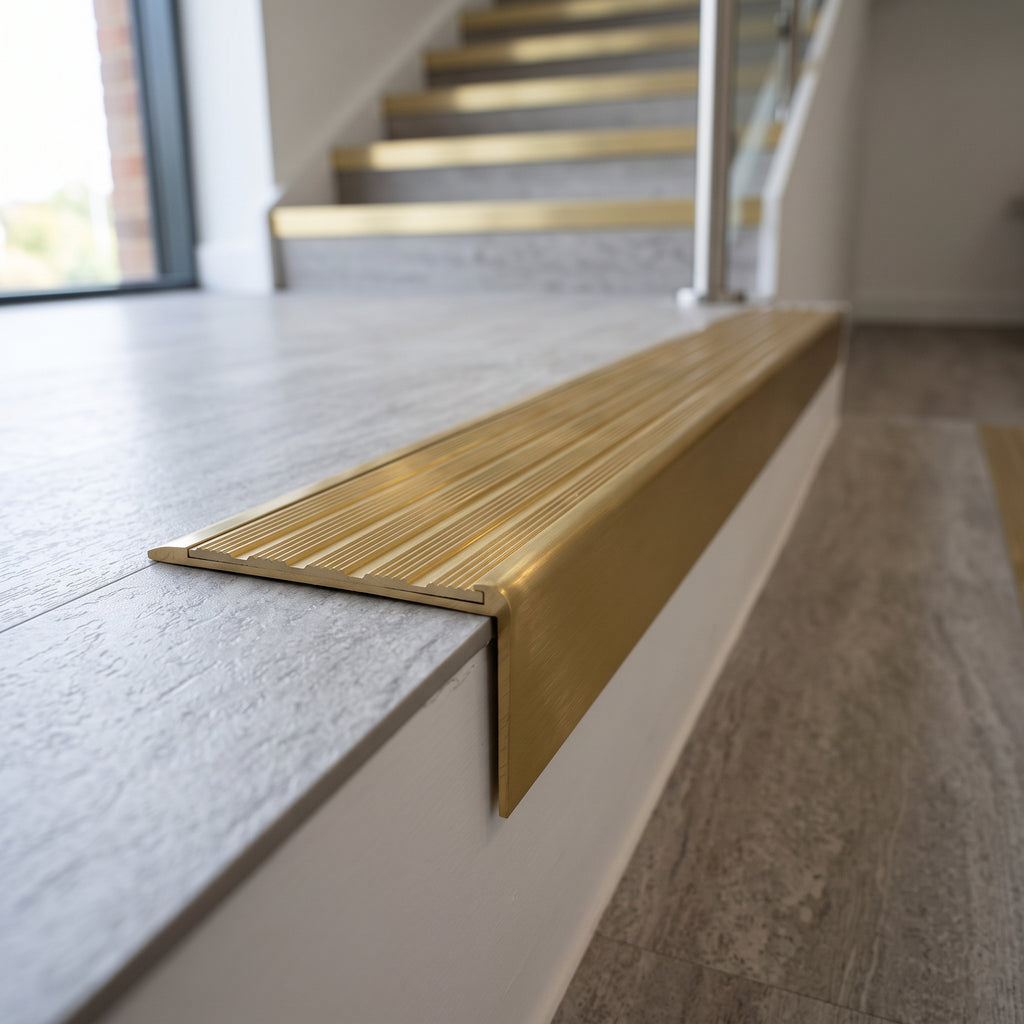

Insert is a separate choice from the body, and it does the anti-slip work. Castellated PVC is the ridged general-purpose option in 22 colours, with the best wet figure. Smooth Textured PVC is flatter and easier to mop. Black High Grip is aluminium oxide with the highest dry grip. The four brass inserts make the nosing read as one continuous piece of brass, with less visual contrast.

Drilling determines how it fixes. No Drilling suits bonding or your own fixing centres. Drilled Hidden Fix is drilled along the channel before dispatch, so the screw heads disappear under the insert. Drilled pieces are made to order and are not returnable unless faulty.

Visual contrast. The 59mm tread face and 30mm nose sit within the 50 to 65mm tread and 30 to 55mm riser bands that Approved Document K sets for common stairs in blocks of flats. Approved Document M treats an LRV difference of more than 30 points as adequate contrast: Polished Brass (71.45) with a Black Castellated insert (4.25) is a 67-point difference. Where a scheme calls for a full 55mm band on the riser too, ask us for our 55mm-nose brass profiles.

Installation, use and care

Set the nosing out dry and check it against the going. Fix to a clean, sound, level substrate: screw through the channel with No. 6 brass or stainless screws into suitable plugs, bed on a flooring-grade adhesive, or use both where traffic is heavy. Do not over-tighten. Press the insert in only once fixings are in and any adhesive has cured. Clean with warm water and a soft cloth, never abrasives or acidic descalers. Unlacquered brass darkens over time; leave the patina or restore it with brass polish.

Frequently asked questions

Can I order longer than 2500mm?
2500mm is the maximum in this profile, in every finish. For a wider stair, order two lengths and butt them.

Can I replace just the insert later?

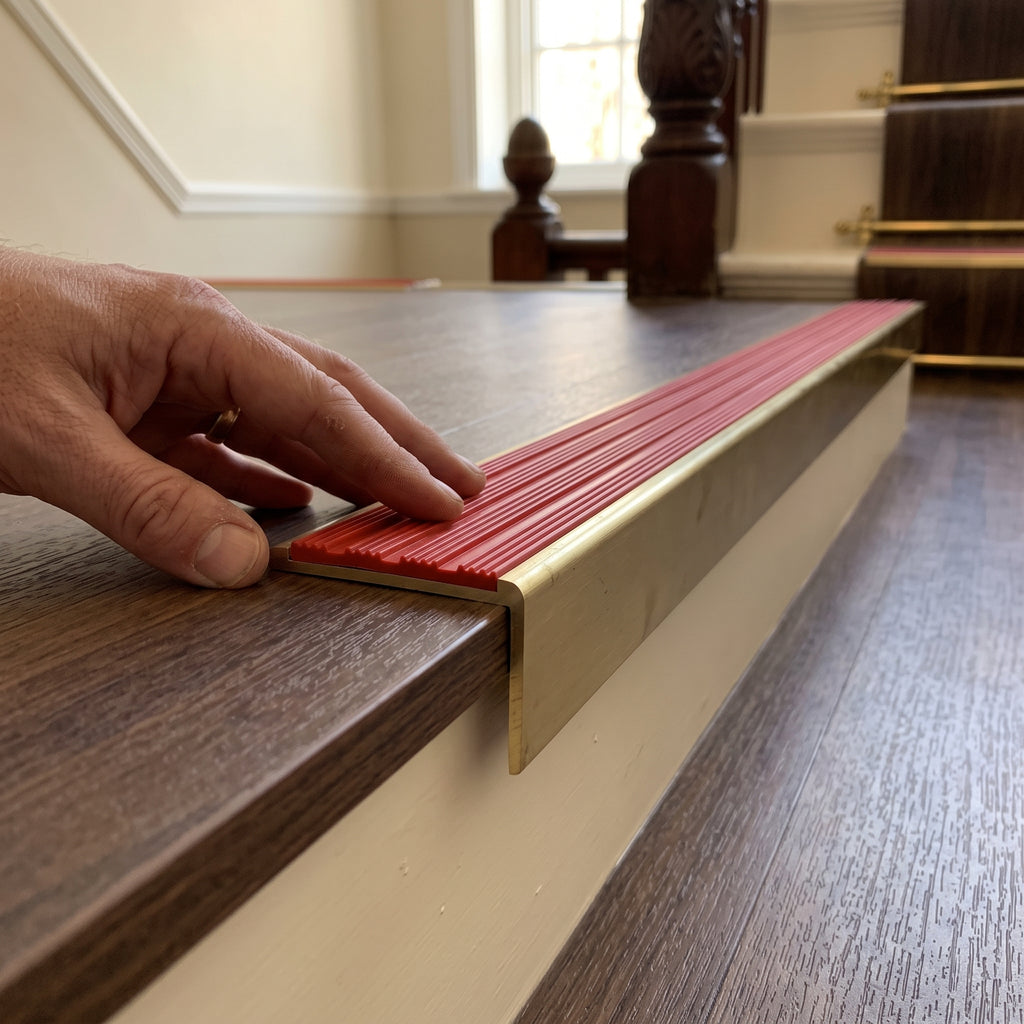

Yes, that is the point of the channel. Replacement 49.5mm inserts press into the fitted nosing without removing the brass.

Does it suit a square riser?
The leg is raked back at 83 degrees to follow a raked or undercut riser, as the technical drawing on this page shows. For a square riser, ask us for a square-back brass profile.

Is it suitable for external steps?
It is rated for interior stairs. For outdoor stairs, ask us about a GRP or external-rated nosing.

Ordering and delivery

Choose the finish, insert and drilling option, then enter your length in millimetres: the price is calculated for that exact length and updates as you type, and the nosing is cut to that measurement before dispatch. Cut lengths are non-returnable unless faulty. Ask us for a sample first if you are unsure of the insert colour or finish. Call 01282 270 010 or email sales@stairnosingsuk.co.uk to have the specification checked.
