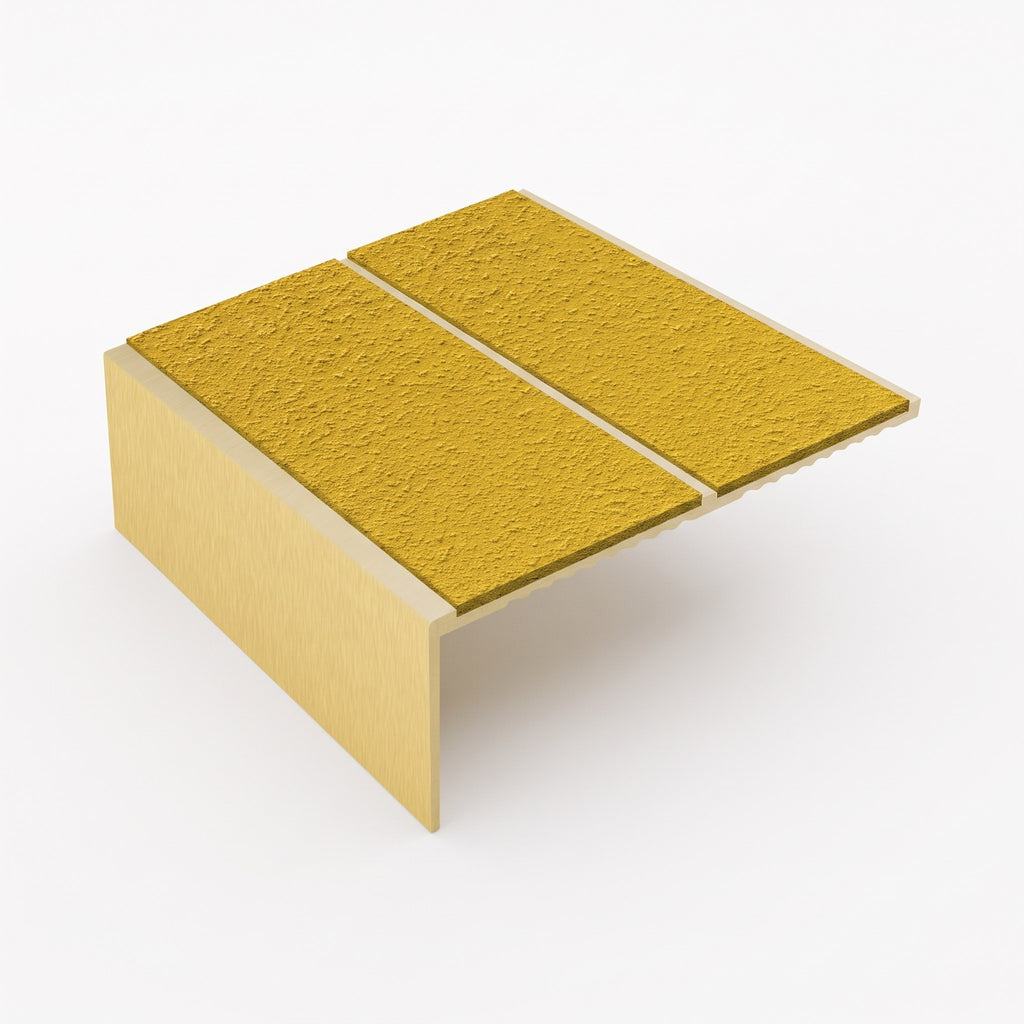

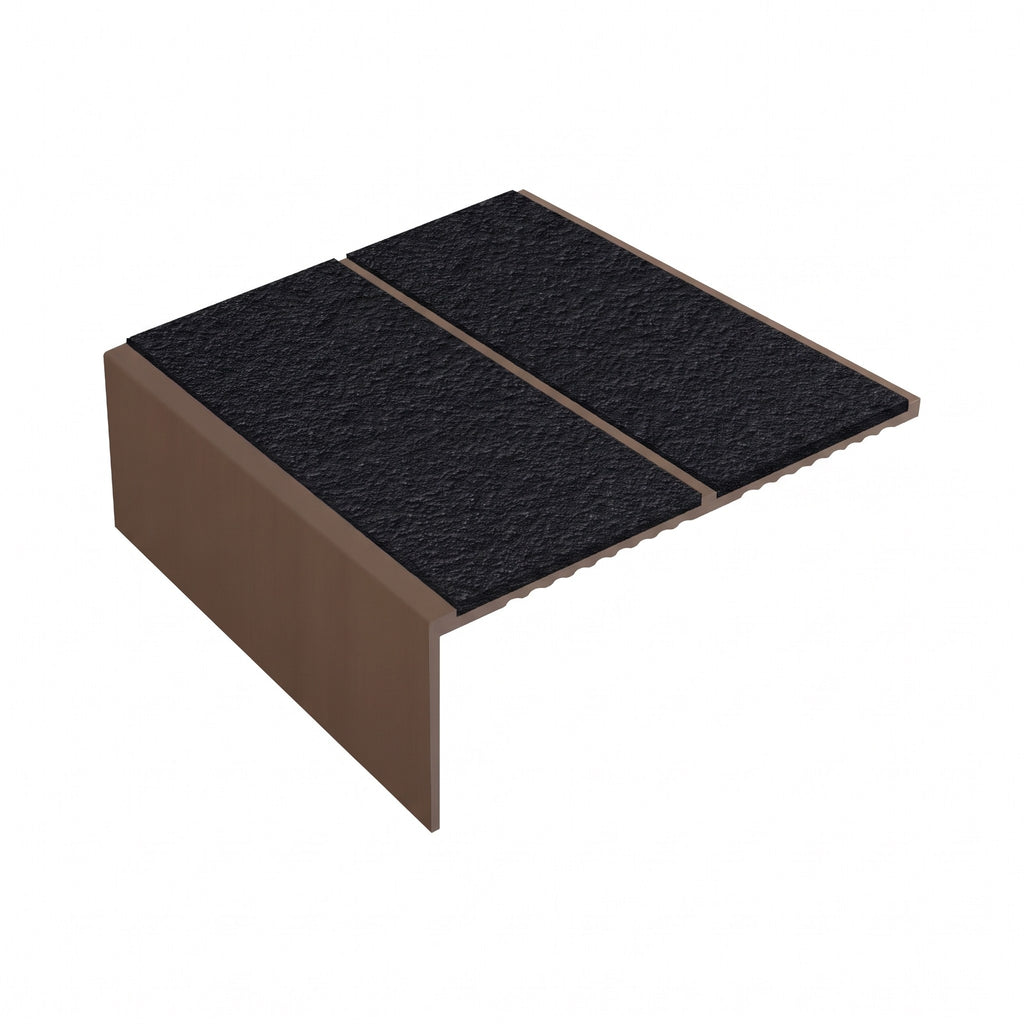

Square Aluminium Stair Nosing 85 x 32mm, Twin Exterior Grip Inserts

85mm tread × 32mm riserSquare EdgeAluminium


Price
Sale price £165.90
Inc. VAT

1 × Mill Finish, Brimstone - Exterior Grip, 2.44 Metres (2440mm) at £165.90 (Inc. VAT) each
Goods total £165.90 (Inc. VAT) inc. VAT, before delivery

UK delivery £9.99 per order · 2 working days from dispatch. Order by 2pm (UK time) on a working day for same-day dispatch. Delivery info

In stock, ready to ship

Trustpilot five-star badge

Need help choosing?

Talk to our team about sizes, finishes and fixing.

Description

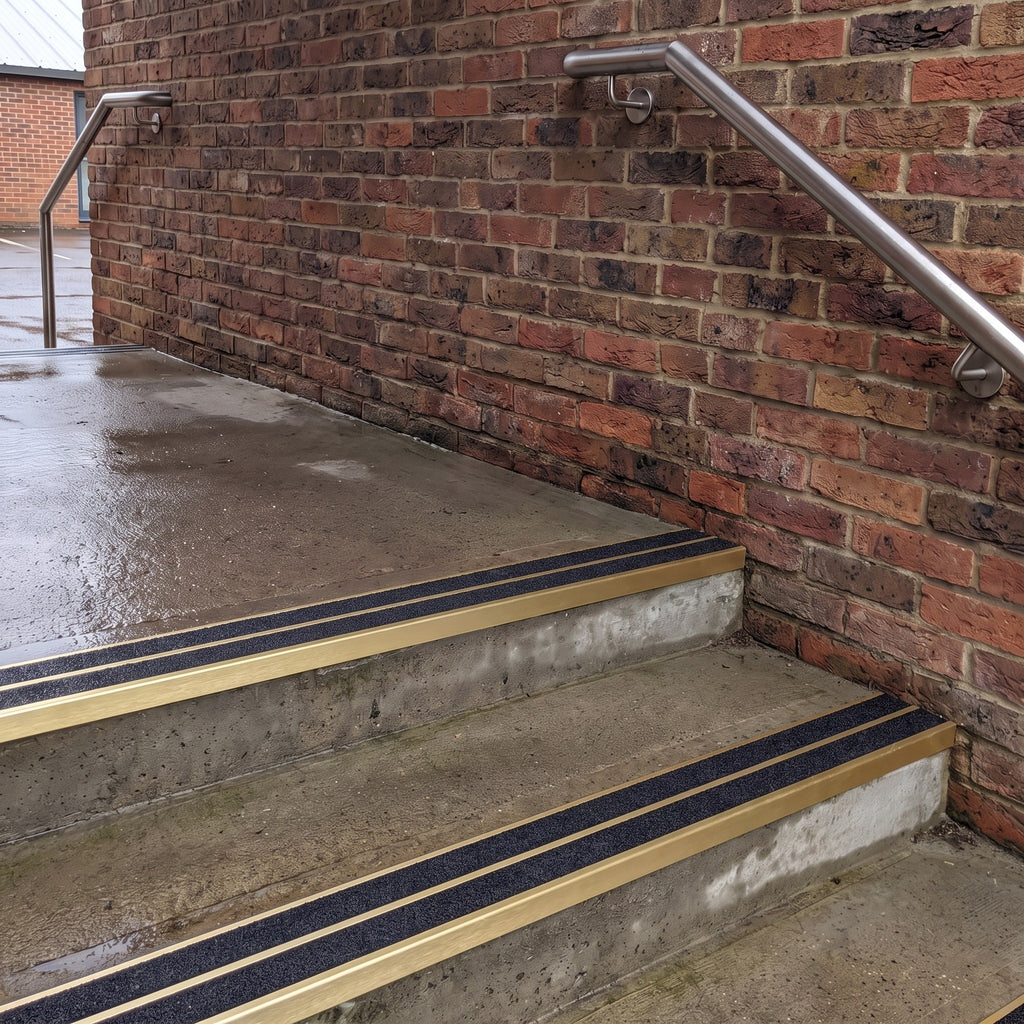

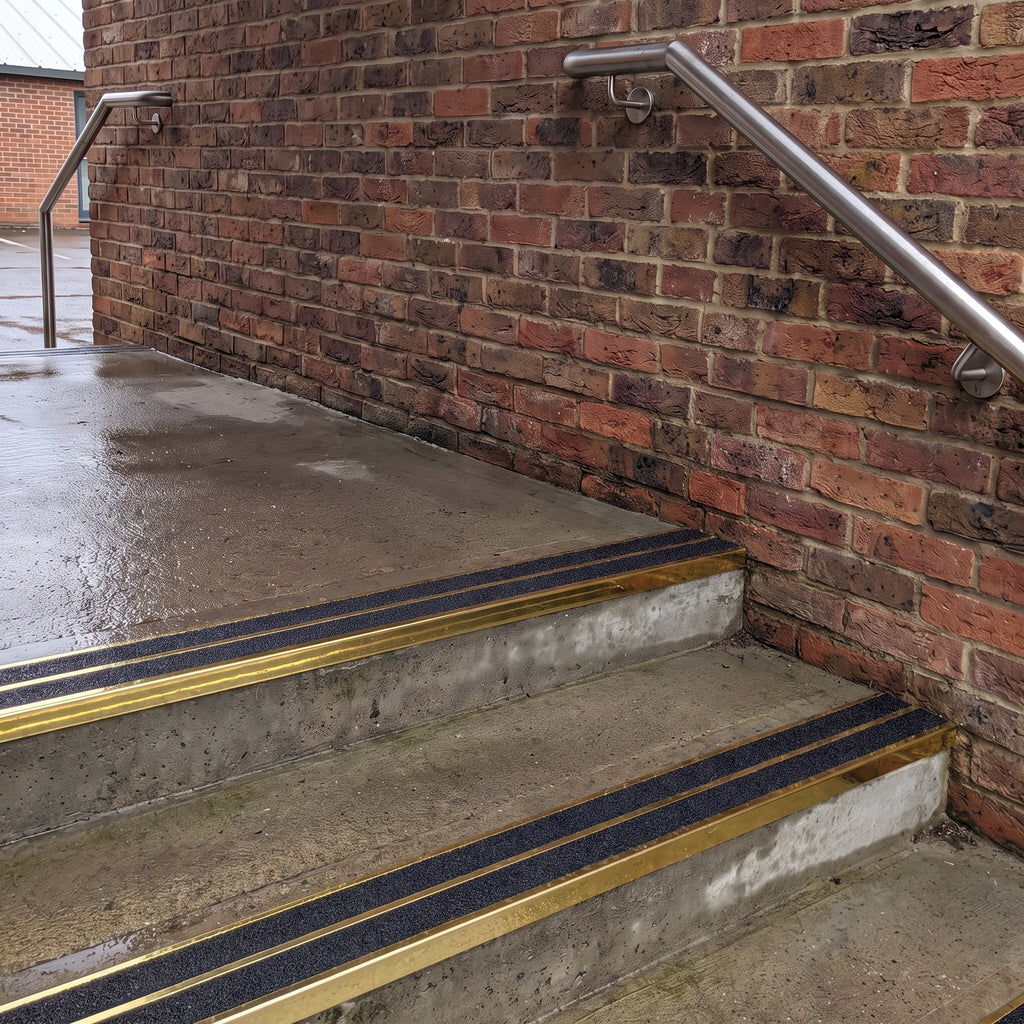

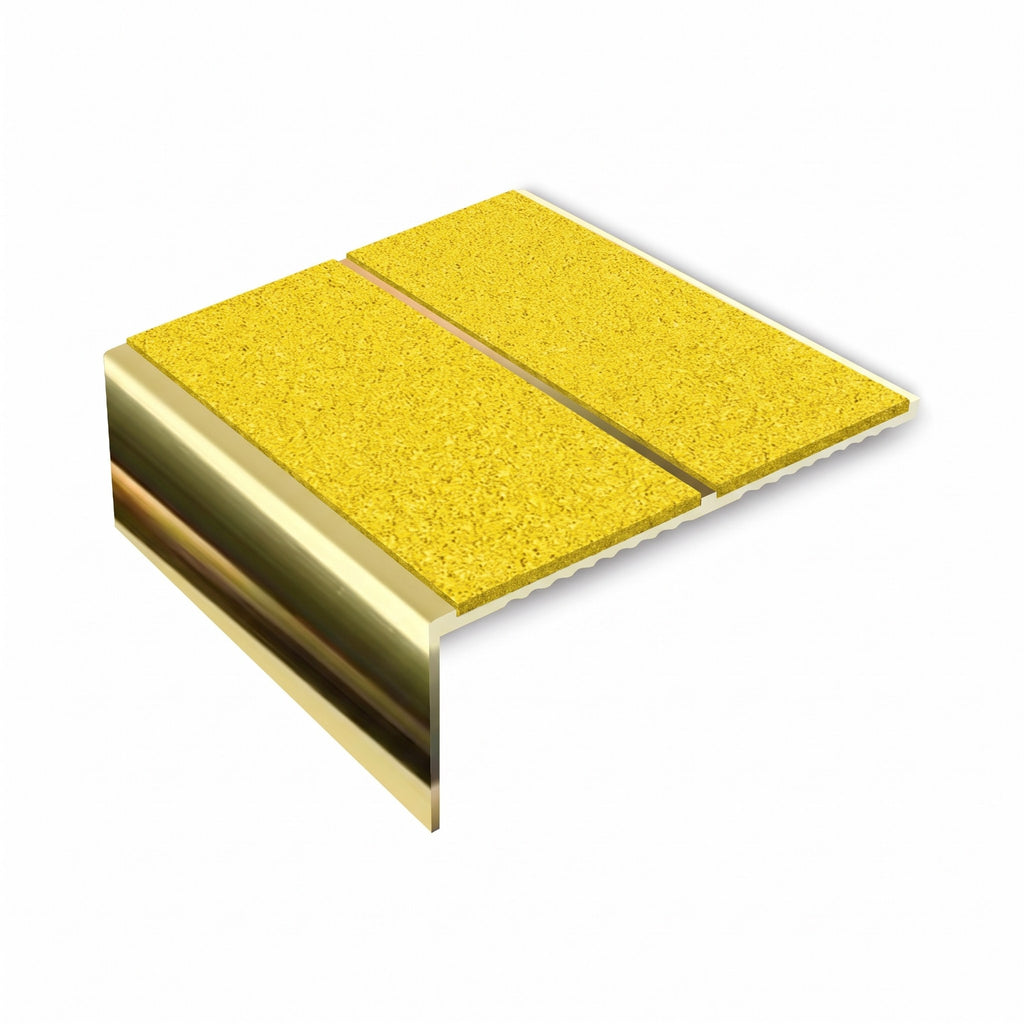

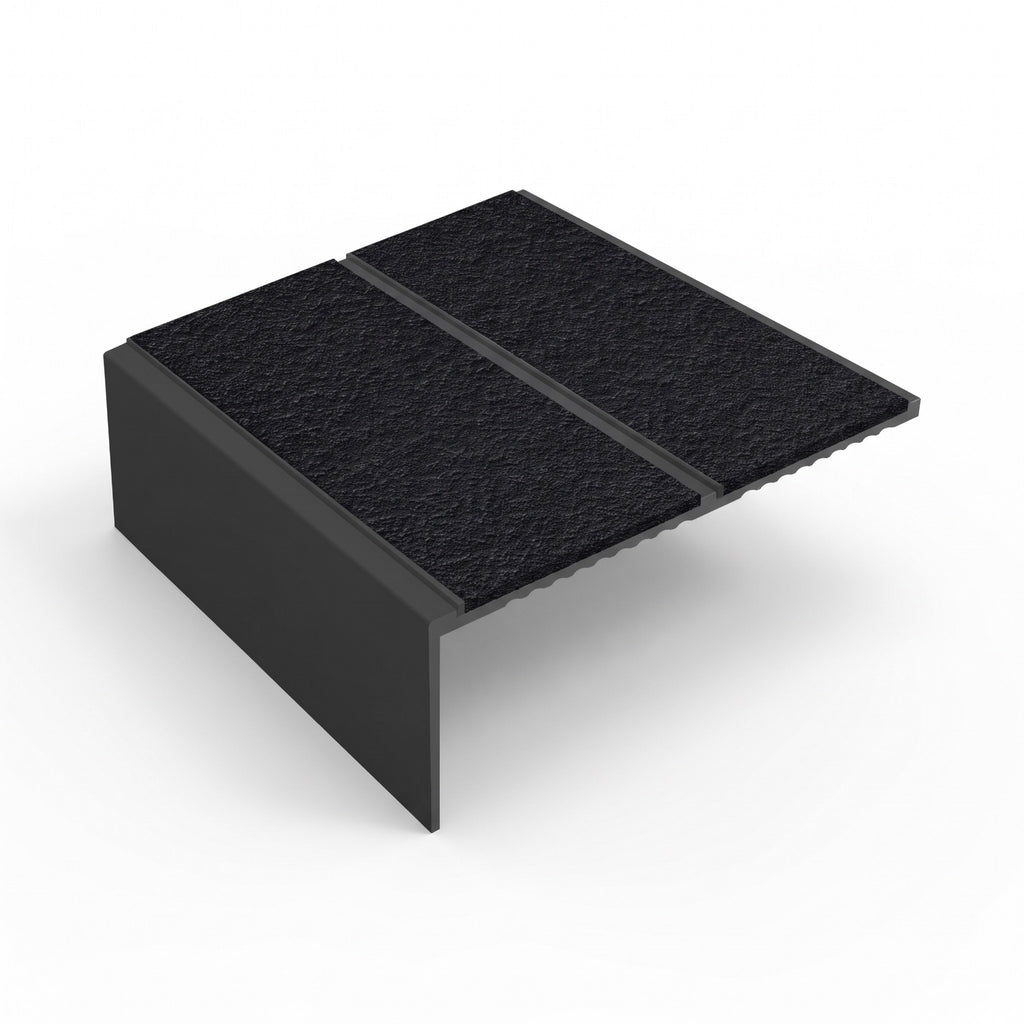

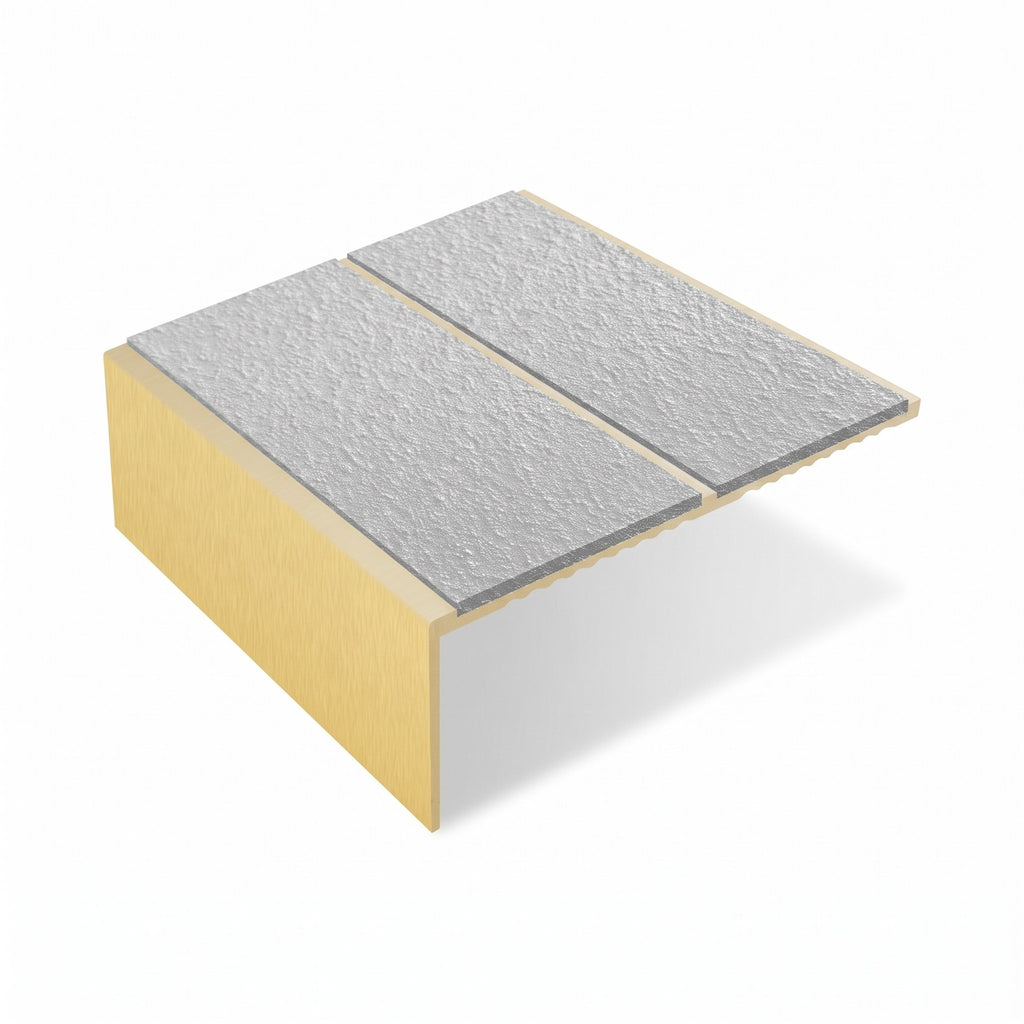

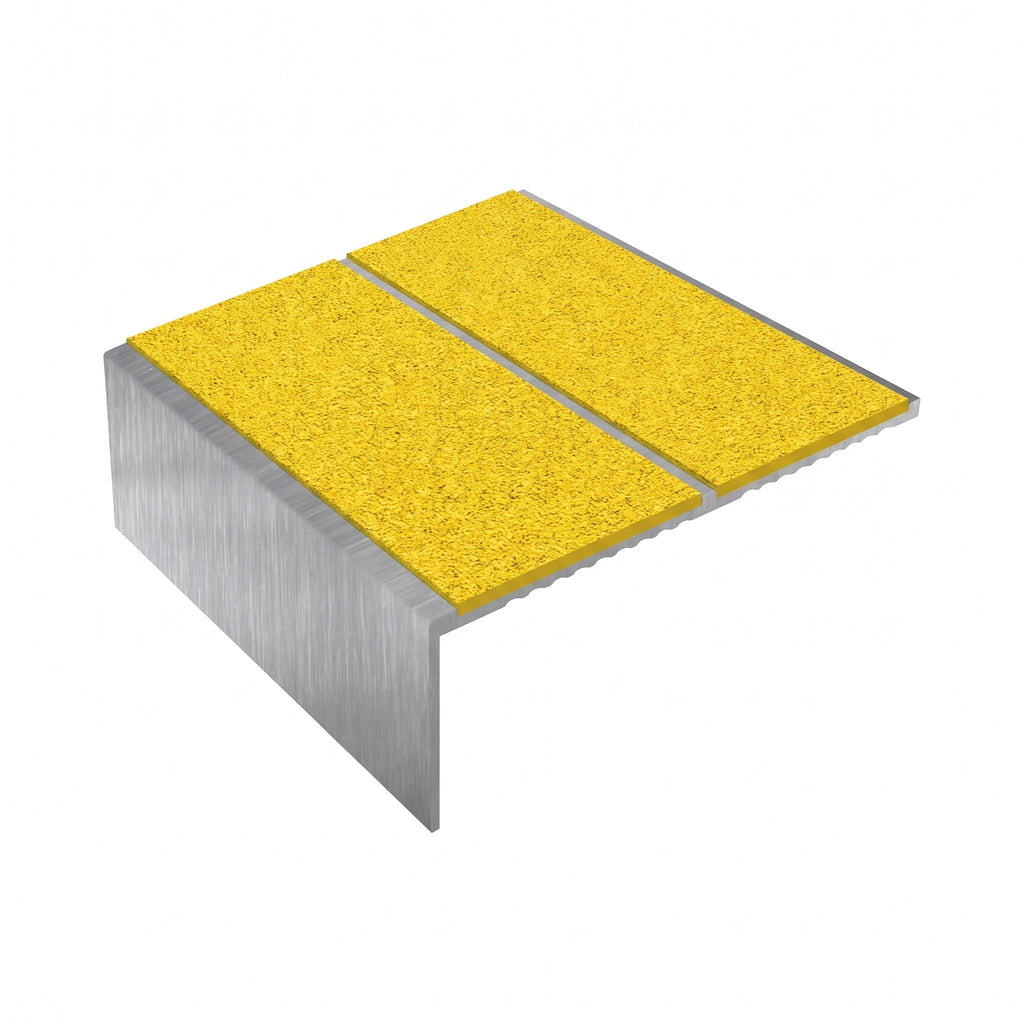

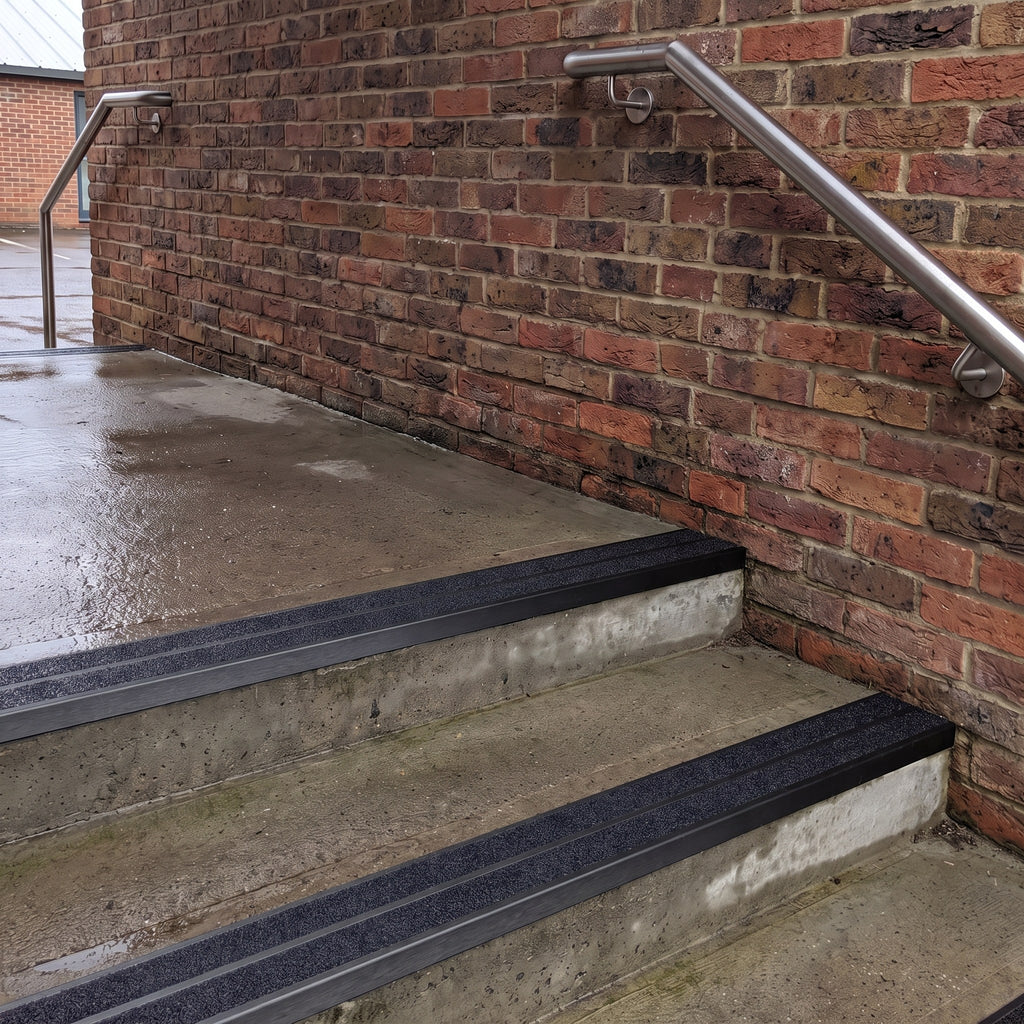

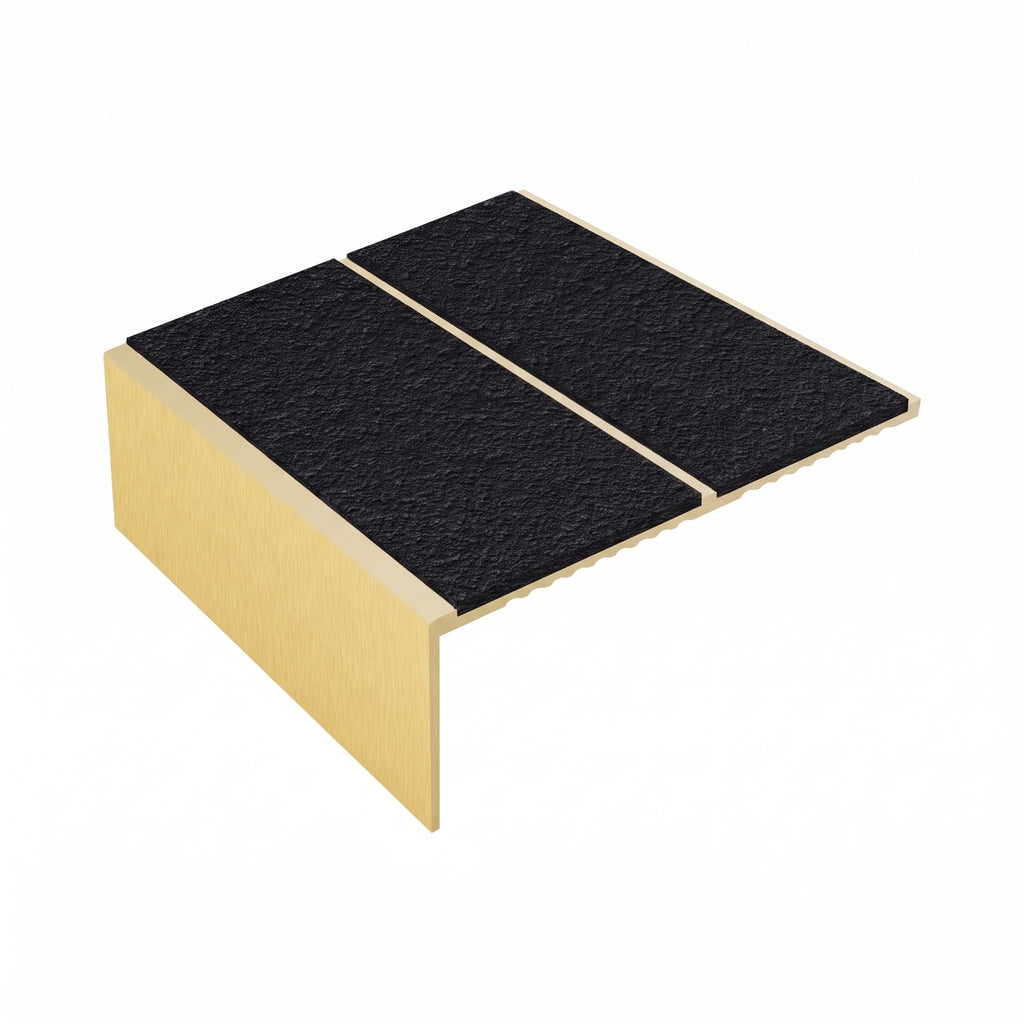

You are edging steps that get wet and get used hard: a school or surgery entrance, a fire-exit flight, or the steps up to a shop door. This square aluminium stair nosing is built for that job. An 85mm tread plate carries two coarse gritted GRP inserts side by side, so there is grip under the ball of the foot as well as at the very edge, and a straight 32mm leg caps the square front of the step. The 3.5mm gauge sits on bare concrete or stone, or over vinyl, lino and lightweight carpet. Seven finishes, three insert colours, three stock lengths.

Technical drawing of the 85 x 32mm square aluminium stair nosing with twin gritted exterior grip inserts: 85mm tread, 32mm riser, 29mm inside leg, 3.5mm gauge
85 x 32mm square profile: 3.5mm aluminium gauge, 29mm inside leg, twin gritted grip inserts. Dimensions in mm.

Why this nosing works

Two grit inserts across a wide tread

The two inserts are GRP with fused alumina or quartz grit set into the resin and sealed under a gel coat, so the grip runs through them rather than sitting on top. The manufacturer gives TRL pendulum values of above 95 dry and above 85 wet; anything over 36 is rated low slip potential. That wet margin is why you choose it over PVC on any step that sees rain.

Made for a square step edge

The straight leg, 32mm overall and 29mm inside, meets the tread at a right angle, so the profile sits tight over a square nosing with no hollow underneath to flex and loosen the fixings. It protects the arris from chipping, and the 85mm plate spreads heavy footfall over more of the step.

Contrast you can put in an access statement

Insert LRVs are published: Coal 5.09, Brimstone 54.24, Everest 58.00. Approved Document M treats a difference of more than 30 points as adequate visual contrast, so one of the three will clear it on almost any tread. The profile is classed as Building Regulations compliant.

Built to stay put outside

The GRP is General Purpose (GP) grade for fire, 193 MPa in flexure and 123 MPa in tension, and will not bow or warp in heat or frost. The aluminium does not rust.

Where it is used

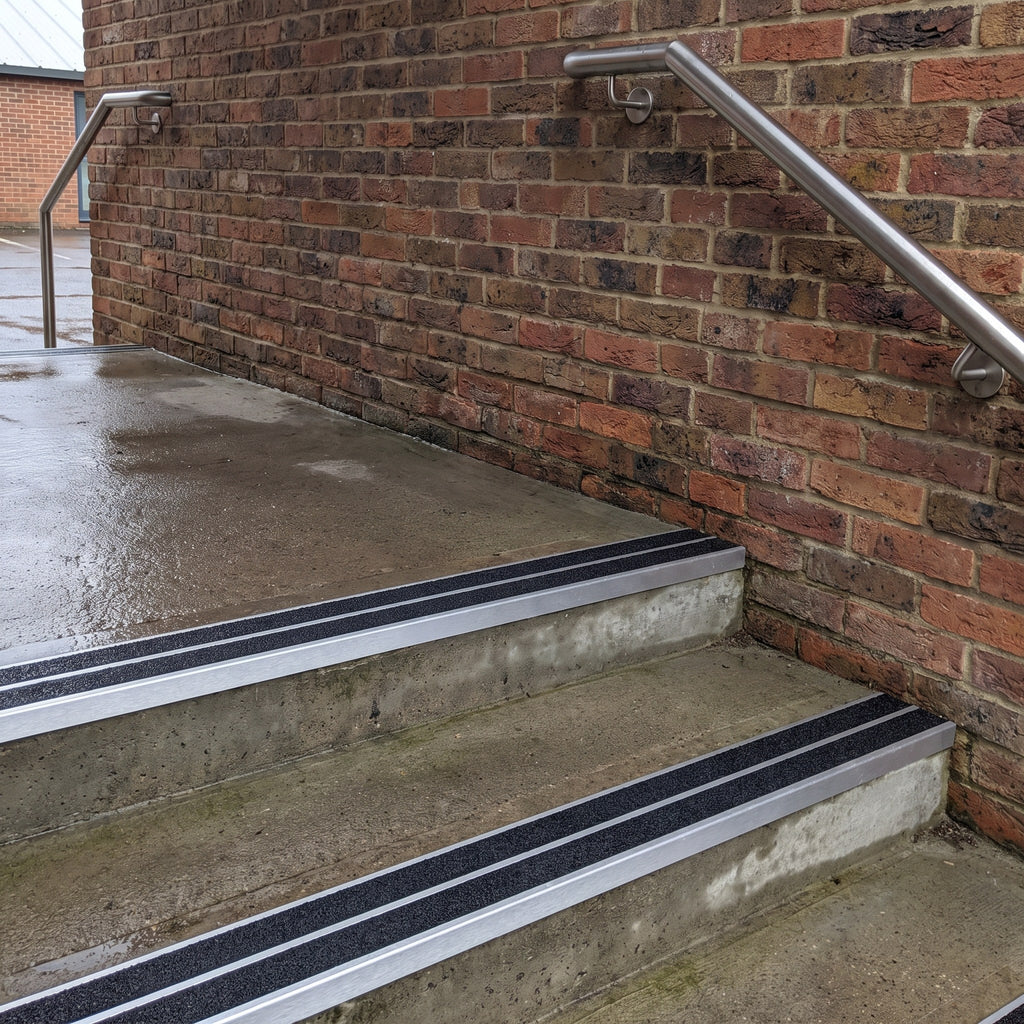

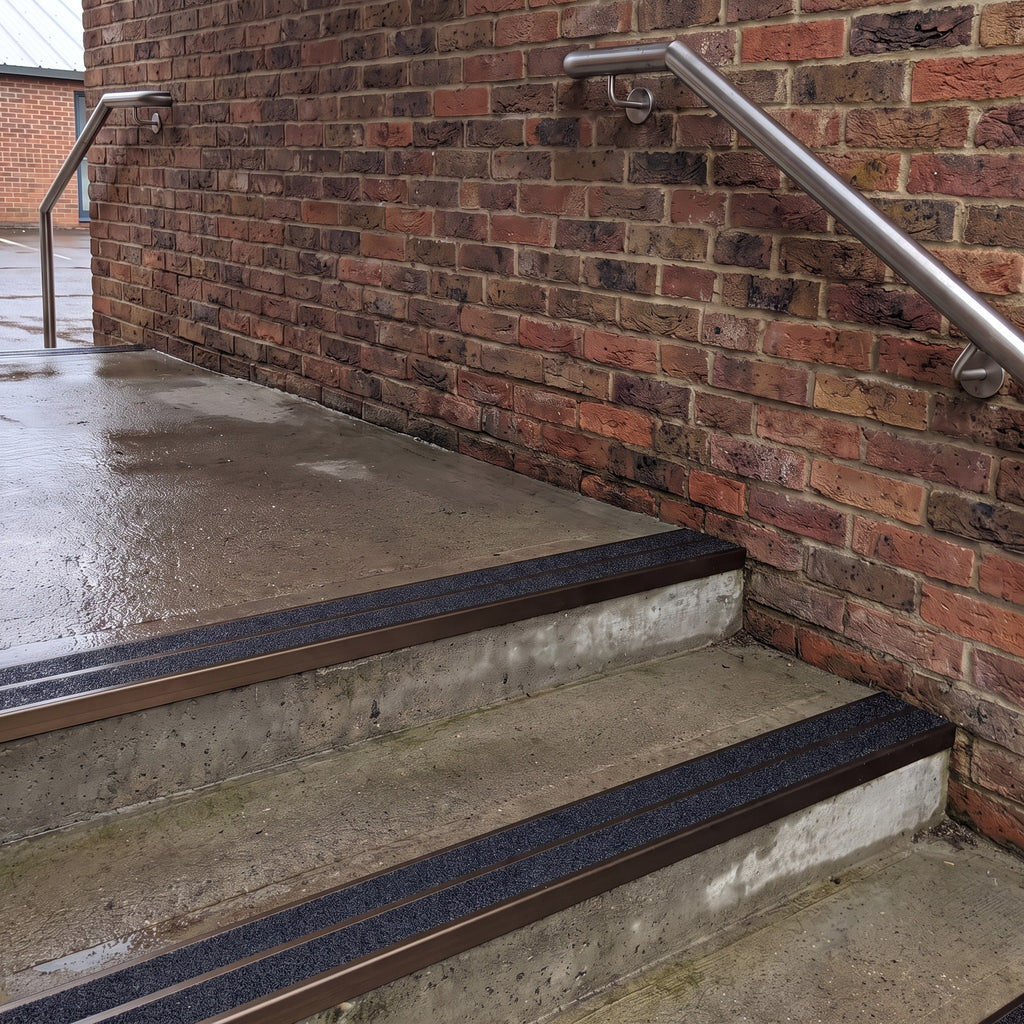

Entrance steps to offices, schools, health centres, hotels and shops; fire-escape and service stairs; loading-bay steps; communal entrances to flats. Concrete, stone or timber steps with a square front edge and a tread deep enough to take an 85mm plate. For dry internal stairs the same 85mm square profile comes with textured High Grip inserts or PVC inserts in 15 colours.

Specification

Profile material Extruded aluminium alloy
Insert material Gel-coated GRP with fused alumina or quartz grit (exterior grade); two inserts per length
Insert channels Double
Stair profile requirement Square edge
Tread 85mm
Riser 32mm overall; 29mm inside leg
Gauge 3.5mm
Stock lengths 2.44m (2440mm), 2.75m (2750mm), 3.22m (3220mm)

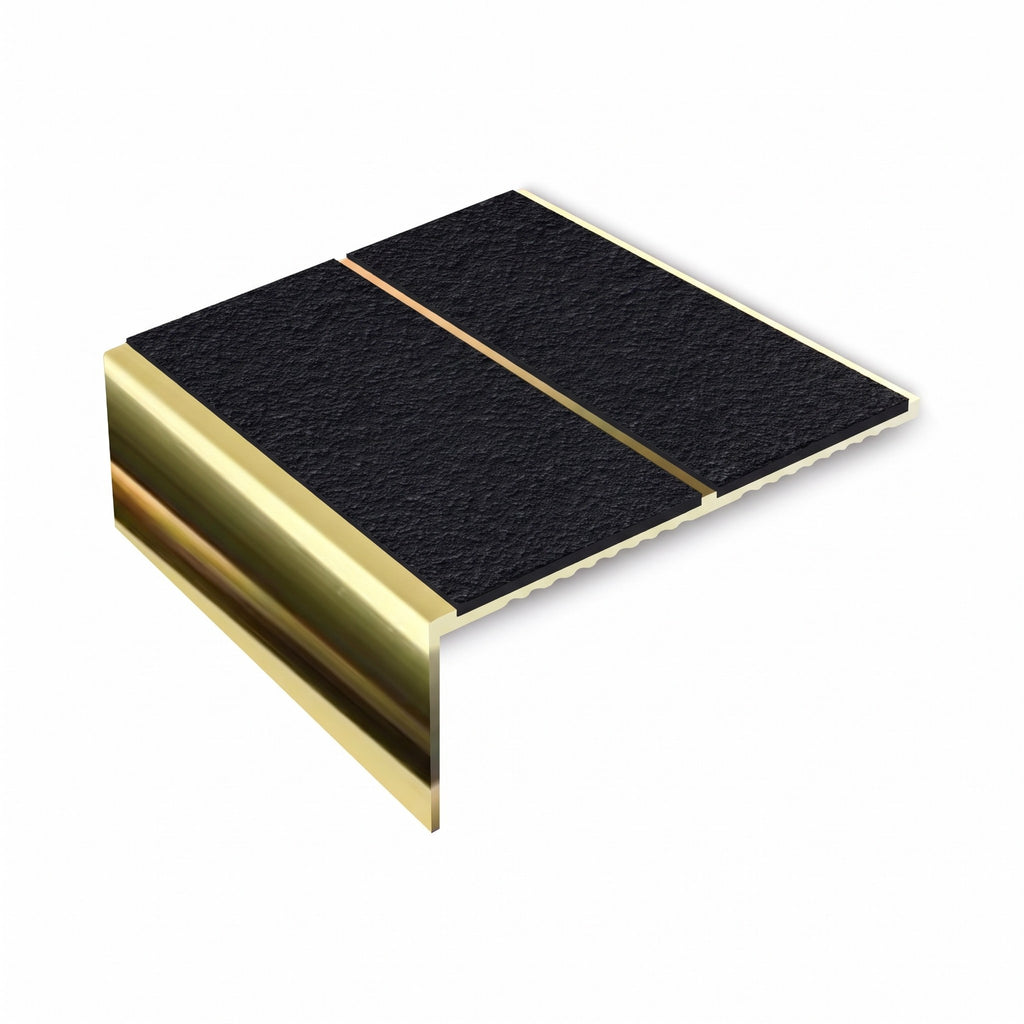

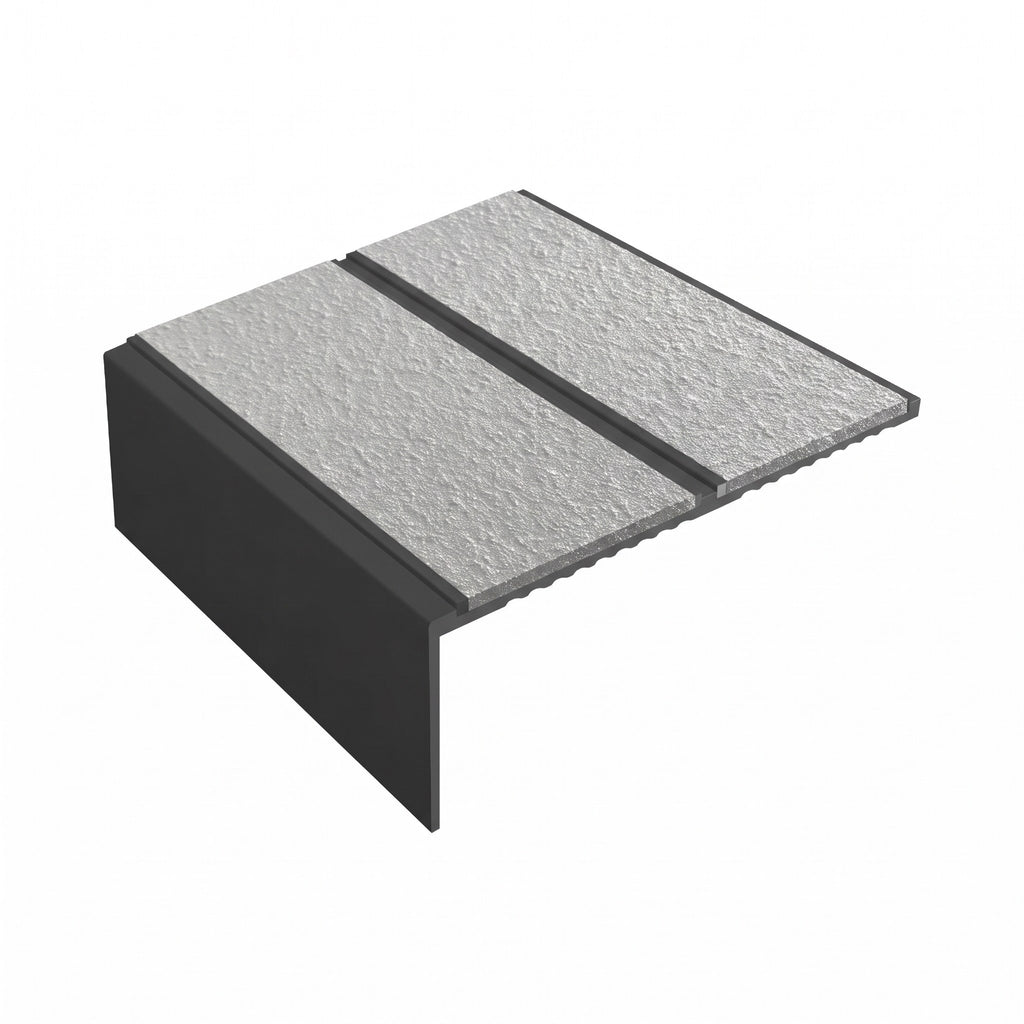

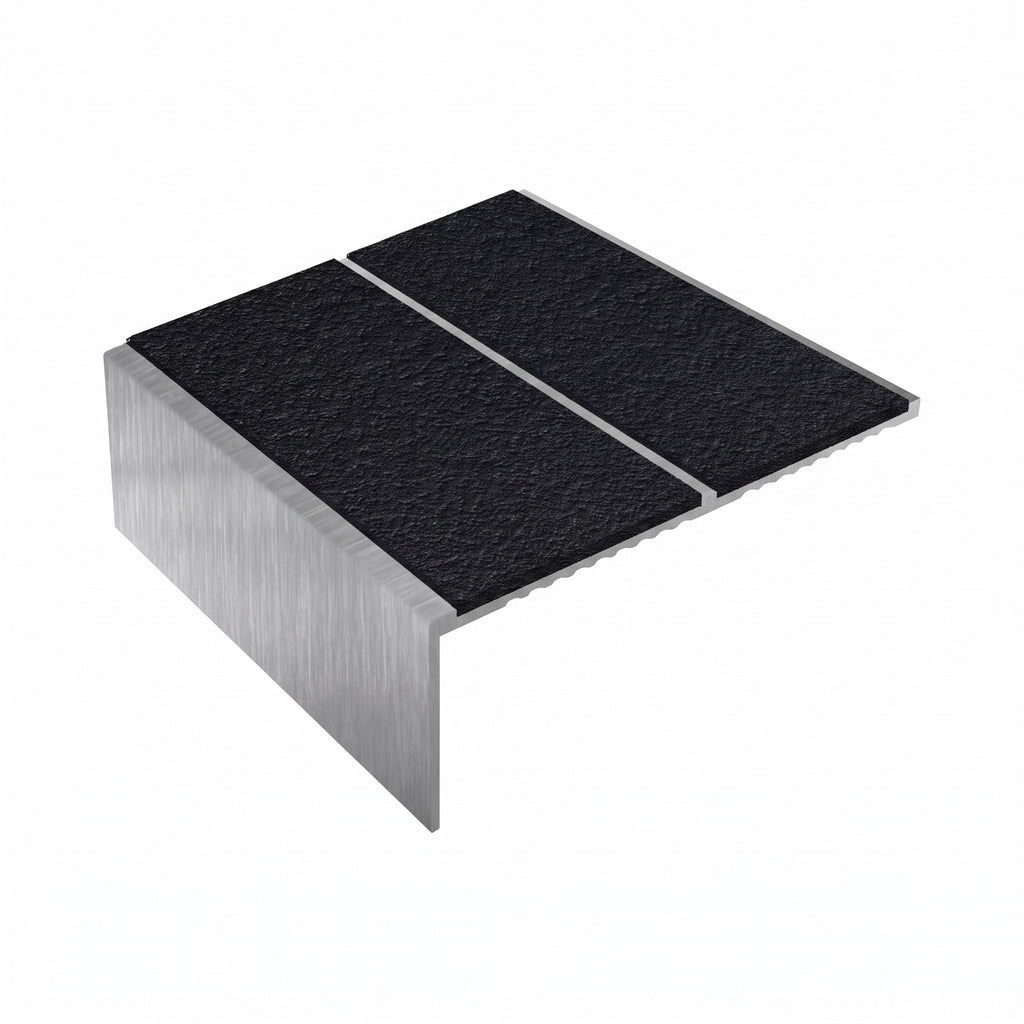

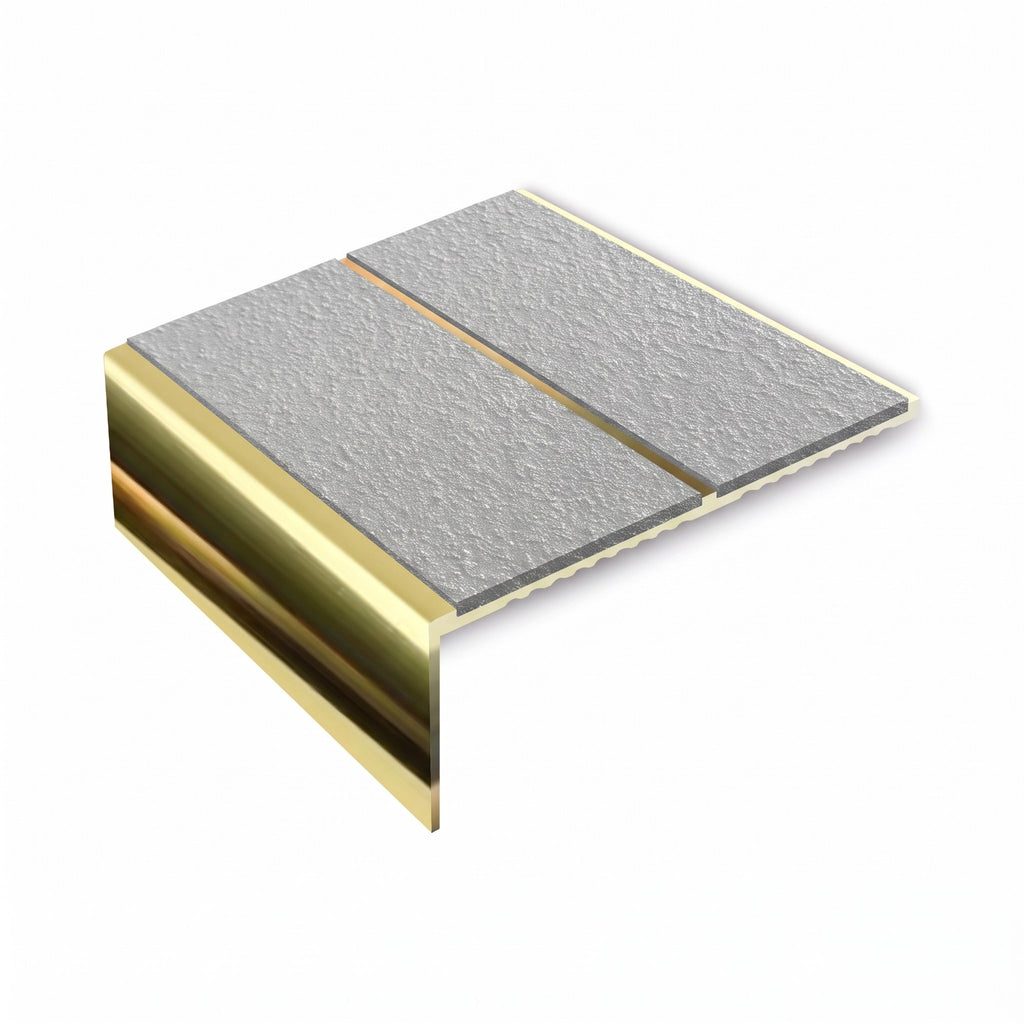

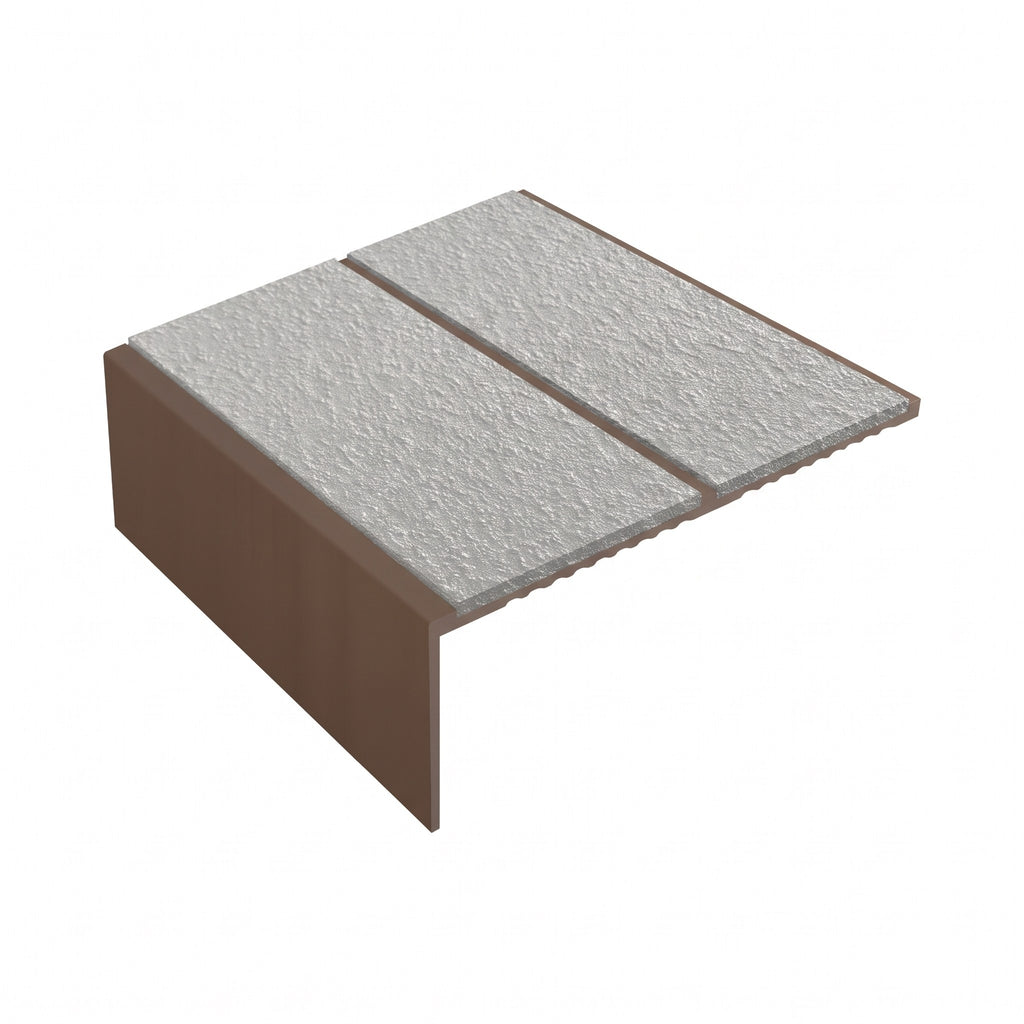

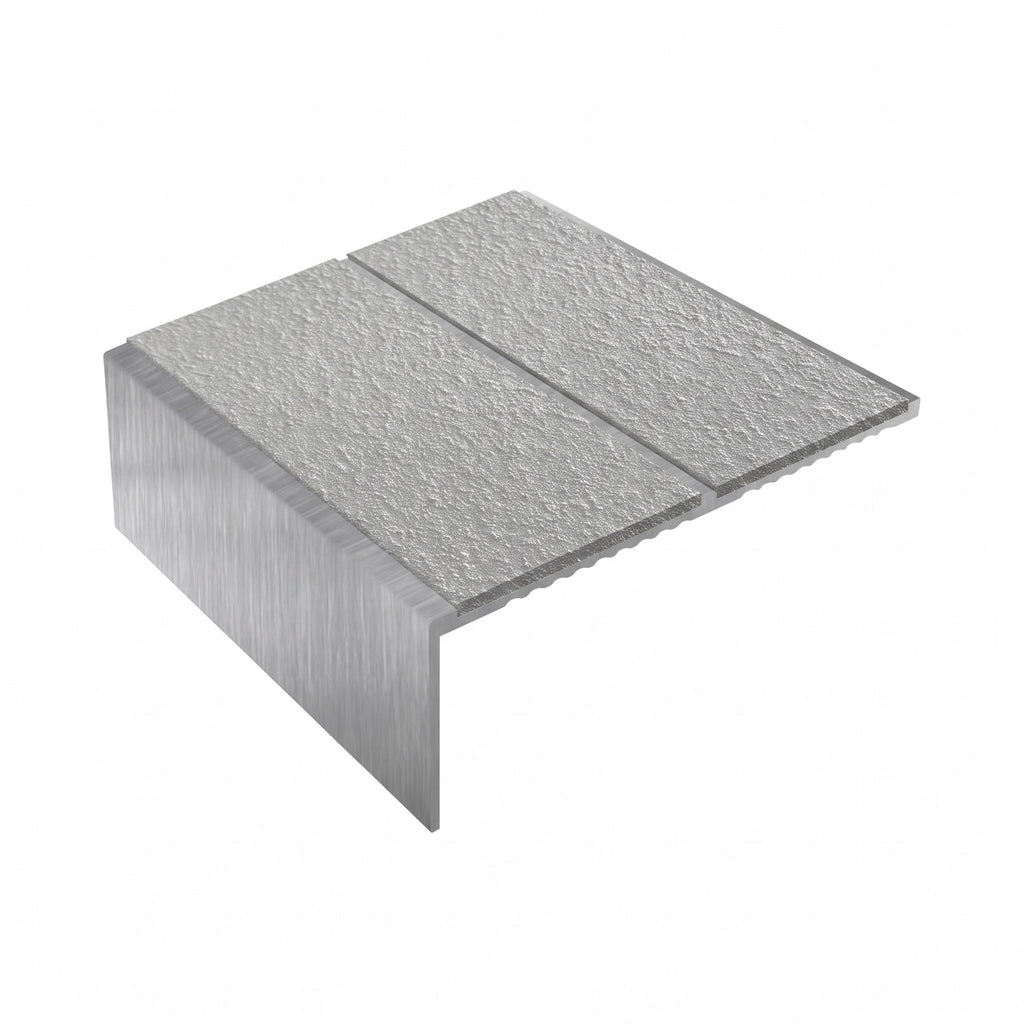

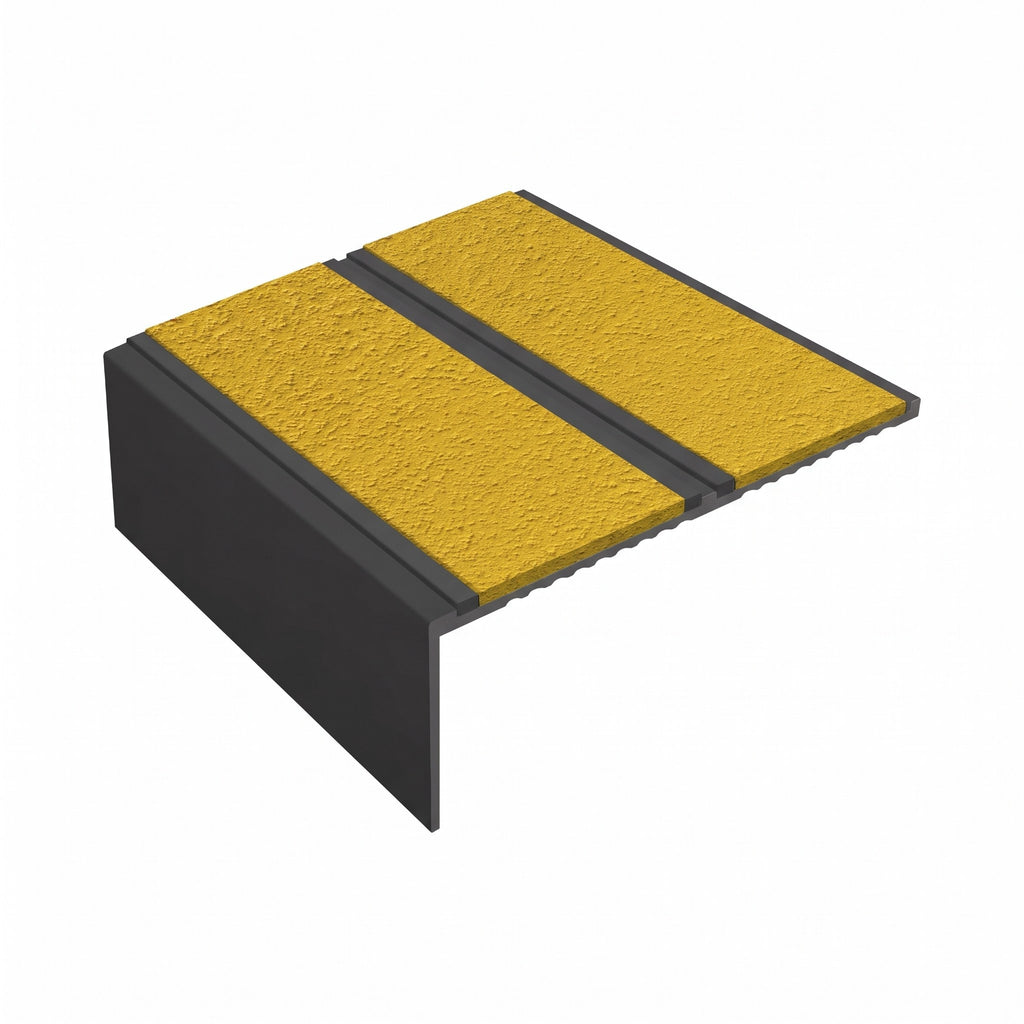

Finishes Mill Finish, Satin Gold, Satin Bronze, Dark Bronze, Satin Black, Mirrorflect Silver, Mirrorflect Gold
Insert colours Brimstone (safety yellow), Coal (black), Everest (light grey)
Suitable floors Bare concrete and stone, vinyl, lino and lightweight carpets
Use Internal and external
Slip resistance (TRL pendulum) Above 95 dry, above 85 wet - manufacturer stated (36+ = low slip potential)
Insert LRV Coal 5.09, Brimstone 54.24, Everest 58.00 - manufacturer stated
Fire resistance General Purpose (GP) grade - manufacturer stated
Flexural / tensile strength 193 MPa / 123 MPa - manufacturer stated
Building Regulations Building Regs compliant profile
Fixing Pre-drilled and countersunk; screw and adhesive fix, screws concealed by insert plugs (fixings not included)

Product data sheet (PDF)
Dimensions, slip, LRV and fire data, installation steps and care.

Download data sheet

Choosing the right option

Check the step first. This profile suits square-edged steps deep enough for an 85mm plate. On a shallower step use the 56 x 32mm single-insert version; for a ramped back edge, the 93 x 38mm twin-insert profile.

Insert colour is a safety decision. Pick the colour that contrasts with the tread: Coal on pale concrete and stone, Brimstone for high visibility on dark and mid-tone steps, Everest where yellow is too loud on a dark floor.

Then the length. Take the next stock length up from your widest step; bars cut on site with a non-ferrous blade.

Finish last. Mill Finish is the usual choice outside. Satin Black and the bronzes recede into dark schemes; Satin Gold and the Mirrorflect finishes are for entrances where the metal is meant to be seen.

Installation, use and care

Make good damaged edges, then clean and dry the step. Push each nosing hard against the step and mark through the drill holes; on concrete or stone, drill and plug, using corrosion-resistant fixings outside. Apply cartridge adhesive to the underside, screw down firmly and press the insert plugs over the screw heads. Sweep both grit bands regularly and wash with water and a neutral detergent.

Fixings and adhesive are not included. Tell us the substrate and we will quote suitable fixings.

Frequently asked questions

Can this stair nosing be used outside?

Yes. The grit inserts are the exterior grade and the aluminium does not rust. The manufacturer gives TRL pendulum values above 95 dry and above 85 wet, where 36 or more already counts as low slip potential.

Why choose 85mm with two inserts instead of a narrower nosing?

On busy steps the foot often lands well back from the edge. Two grit bands across 85mm put grip under the whole forefoot, where a narrow nosing covers only the lip.

Is this nosing Building Regs compliant?

The profile is classed as Building Regulations compliant, and the published insert LRVs let you show step-edge contrast in an access statement. Ask us if Building Control needs a copy of the certificate.

How many steps will one length cover?

Allow a few millimetres per saw cut. A 2.44m bar gives two 1.2m steps, a 2.75m bar two 1.35m steps, and a 3.22m bar three 1.05m steps or two 1.6m steps.

Ordering and delivery

All 63 combinations of finish, insert colour and length are priced individually above. Nosings ship as full stock-length bars for cutting on site, with flat-rate UK delivery at £9.99; order by 2pm on a working day for same-day dispatch. For project quantities, send us the step count and widths for a quote.
