Door Sill Threshold: Complete Installation & Selection Guide

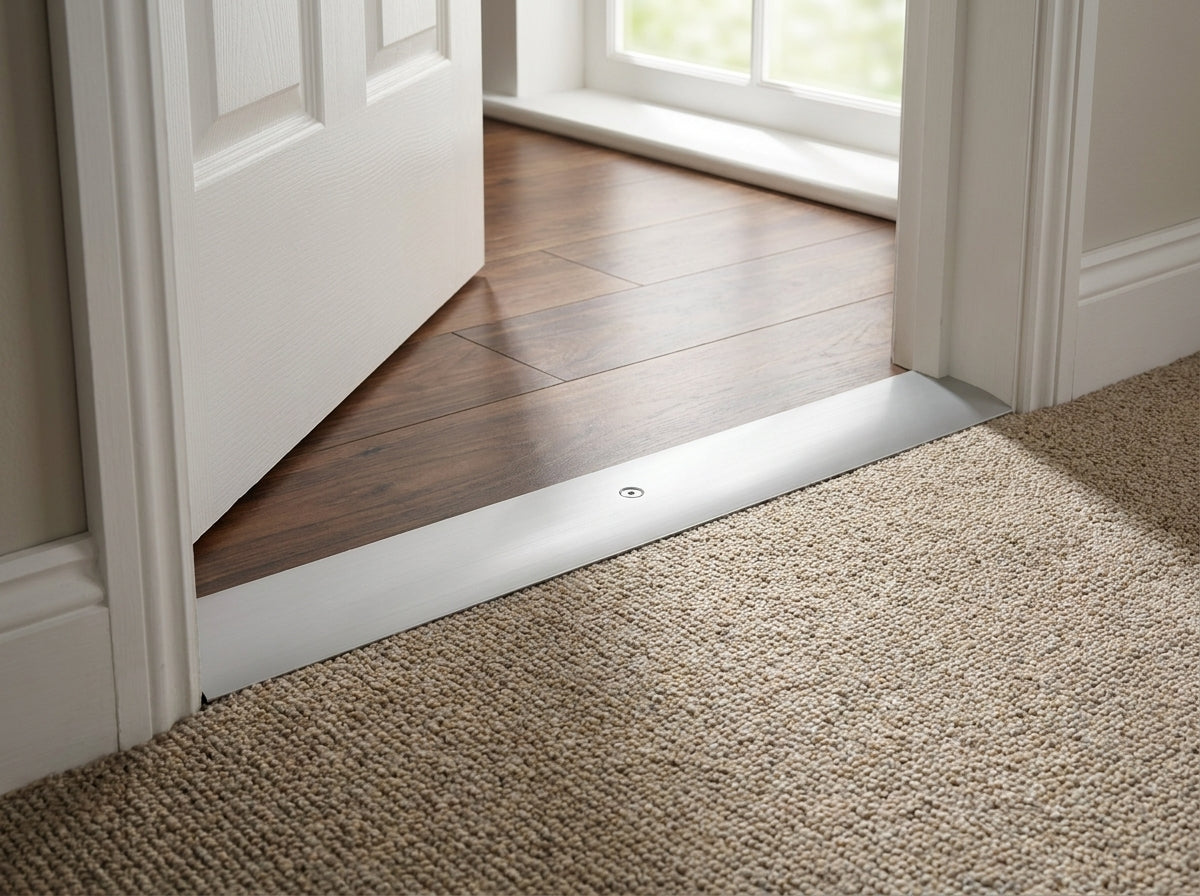

A door sill threshold is a transitional strip installed at doorways to bridge height differences between flooring materials, prevent water infiltration, and create a smooth, safe passage between rooms. These essential components protect floor edges and eliminate tripping hazards while providing a professional finish.
What Types of Door Sill Thresholds Are Available?
Door sill thresholds come in several materials and configurations to suit different applications. Aluminium remains the most popular choice due to its durability and versatility.
Standard threshold types include:
- Self-adhesive strips for quick installation
- Screw-fix profiles for heavy-duty applications
- Adjustable height models for varying floor levels
- Weatherproof exterior versions
Brass and stainless steel options provide premium aesthetics for high-end installations. Plastic thresholds cost less but lack the longevity of metal alternatives.
How Do You Choose the Right Door Threshold Width?
Threshold width depends on the height difference between adjoining floors and the door opening width. Most residential applications use strips between 25mm and 50mm wide.
Measuring guidelines:
- Measure the actual height difference with a ruler
- Add 5-10mm for gradual transition slope
- Consider door swing clearance
- Account for future floor settling
Standard lengths include 838mm, 900mm, and 920mm to fit common door widths. Most thresholds can be cut to size using a hacksaw for custom fits.
Installation Methods for Door Sill Thresholds
Proper installation ensures long-term performance and safety. The method depends on your threshold type and subfloor material.
Self-adhesive installation: 1. Clean the subfloor thoroughly 2. Ensure surfaces are dry and level 3. Peel backing and press firmly 4. Allow 24 hours before foot traffic
Screw-fix installation: 1. Mark screw positions every 300mm 2. Pre-drill pilot holes 3. Countersink screws below surface 4. Fill holes with matching filler if desired
The Aluminium Stair Nosing - Self Adhesive Door Threshold Ramp simplifies installation with strong adhesive backing that bonds to most clean, dry surfaces.
Always test-fit before final installation. Check that doors open and close without catching on the threshold.
Door Threshold Comparison Table
| Feature | Self-Adhesive | Screw-Fix | Adjustable | Best For | |---------|---------------|-----------|------------|-----------| | Installation Speed | 5 minutes | 15 minutes | 20 minutes | Quick fixes | | Holding Power | Good | Excellent | Excellent | Heavy traffic | | Removability | Difficult | Easy | Easy | Permanent installs | | Height Range | Fixed | Fixed | 5-25mm | Variable gaps | | Cost | Low | Medium | High | Budget projects |
Exterior vs Interior Door Thresholds
Exterior thresholds face weather exposure and require different specifications than indoor versions. They need drainage channels and weatherproof seals.
Exterior requirements:
- Anodised or powder-coated finish
- Integrated water barriers
- Non-slip surface textures
- Thermal break properties
Interior thresholds focus on smooth transitions and aesthetic appeal. They don't need weather sealing but should complement your interior design scheme.
Consider thermal expansion in exterior applications. Aluminium expands approximately 0.25mm per metre for every 10°C temperature change.
Common Installation Problems and Solutions
Even straightforward threshold installation can present challenges. Understanding common issues helps ensure success.
Gap problems: Uneven subfloors create gaps under thresholds. Use flexible sealant or adhesive to fill small gaps. For larger issues, level the subfloor first.
Door clearance: Thresholds that are too thick prevent doors from closing. Measure clearance before purchase. Consider planing door bottoms if necessary.
Adhesion failures: Poor surface preparation causes self-adhesive strips to lift. Remove all dust, grease, and old adhesive residue before installation.
Length mismatches: Standard lengths may not fit your opening exactly. Most aluminium thresholds cut easily with a fine-tooth saw. File cut edges smooth to prevent injury.
Always wear safety glasses when cutting metal thresholds. Sharp edges require careful handling during installation.
Frequently Asked Questions
What is the purpose of a door sill threshold? A door sill threshold bridges height differences between flooring materials, prevents water infiltration, protects floor edges from damage, and eliminates tripping hazards while providing a professional finished appearance at doorway transitions.
How do you measure for a door threshold replacement? Measure the door opening width from jamb to jamb, then measure the height difference between floor surfaces. Add 5-10mm to the width measurement for slight overhang and choose a thickness that accommodates your height difference.
Can you install door thresholds over existing flooring? Yes, most door thresholds can be installed over existing flooring provided the surface is clean, level, and structurally sound. Self-adhesive versions work well over vinyl, tile, and sealed wood floors.
What tools do you need to install a door sill threshold? Basic installation requires a measuring tape, hacksaw or angle grinder for cutting, drill with bits for screw-fix types, level for checking alignment, and safety equipment including glasses and gloves.
How long do aluminium door thresholds last? Quality aluminium door thresholds typically last 15-25 years in interior applications and 10-15 years in exterior locations. Anodised finishes resist corrosion and maintain appearance longer than untreated aluminium.
Bottom Line
Door sill threshold installation provides essential safety and aesthetic benefits for any flooring project. Choose aluminium options for durability, self-adhesive types for easy installation, and adjustable models for varying height differences. Quality thresholds like the Anodised Aluminium LVT Stair Nosing 5mm Flooring Edge Profile ensure professional results that last for decades. Proper measurement and surface preparation guarantee successful installation and long-term performance.
