What is a Z-Profile Carpet Threshold?

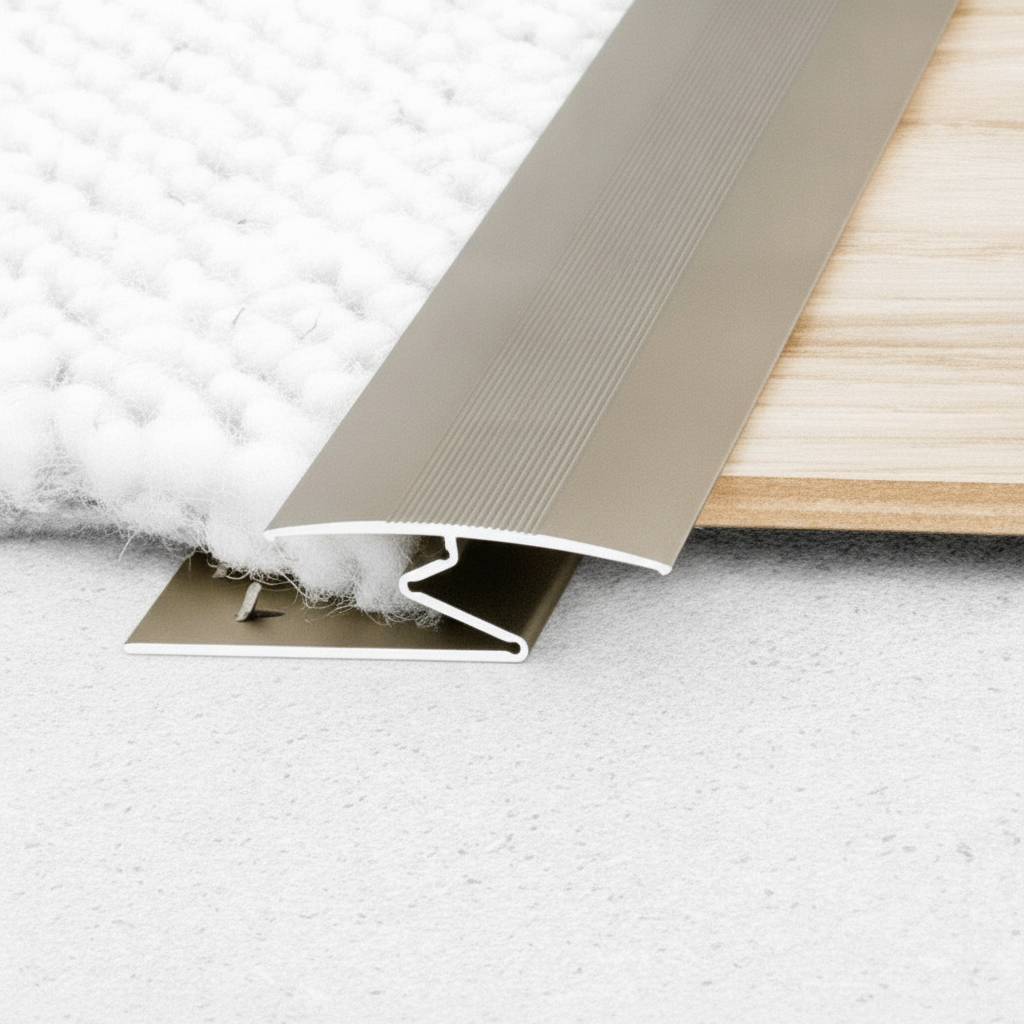

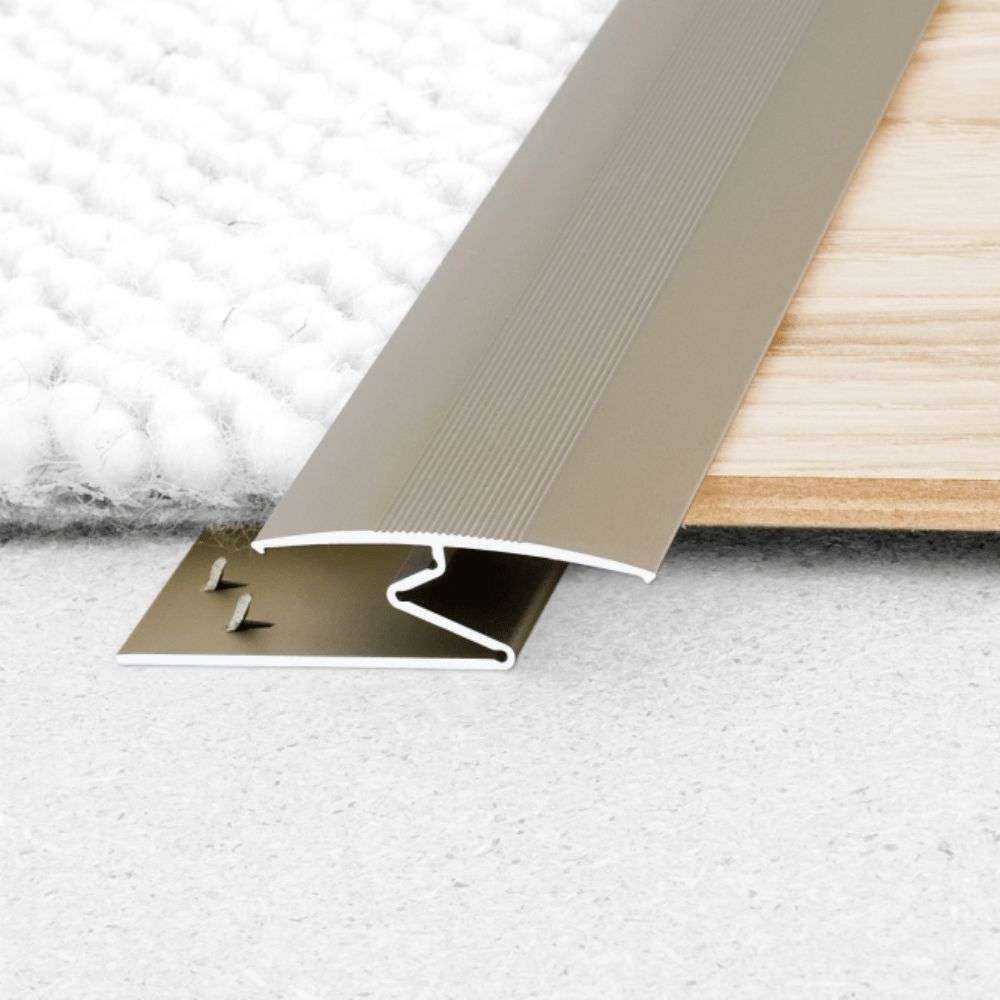

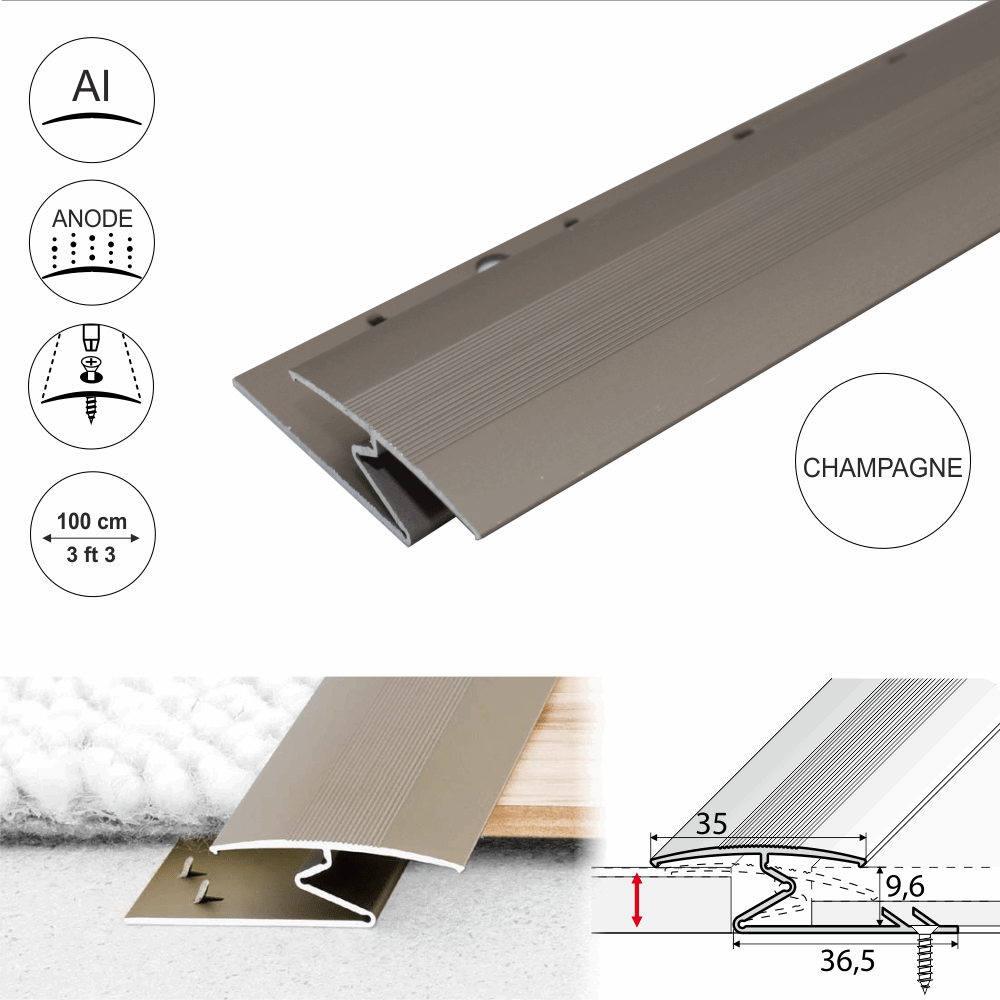

A Z-profile carpet threshold is an anodised aluminium trim strip designed to secure and finish the exposed edge of a carpet at a doorway or room boundary. The Z-shaped cross-section grips the carpet edge from above and below, holding it firmly in place while creating a clean, professional transition between carpet and an adjacent hard floor surface such as laminate, tile, vinyl, or LVT. The lower flange is screw-fixed to the subfloor, and the Z-channel locks the carpet pile securely without the need for adhesive tack strips at the edge.

Technical Specifications

Choosing Your Length

Colour Matching Guide

Key Features and Benefits

• Z-channel carpet grip — the Z-shaped profile physically holds the carpet edge in place, preventing fraying, unravelling, and lifting at doorways without additional tack strips.
• Anodised aluminium construction — corrosion-resistant, scratch-resistant, and maintenance-free. Retains its finish permanently under daily foot traffic.

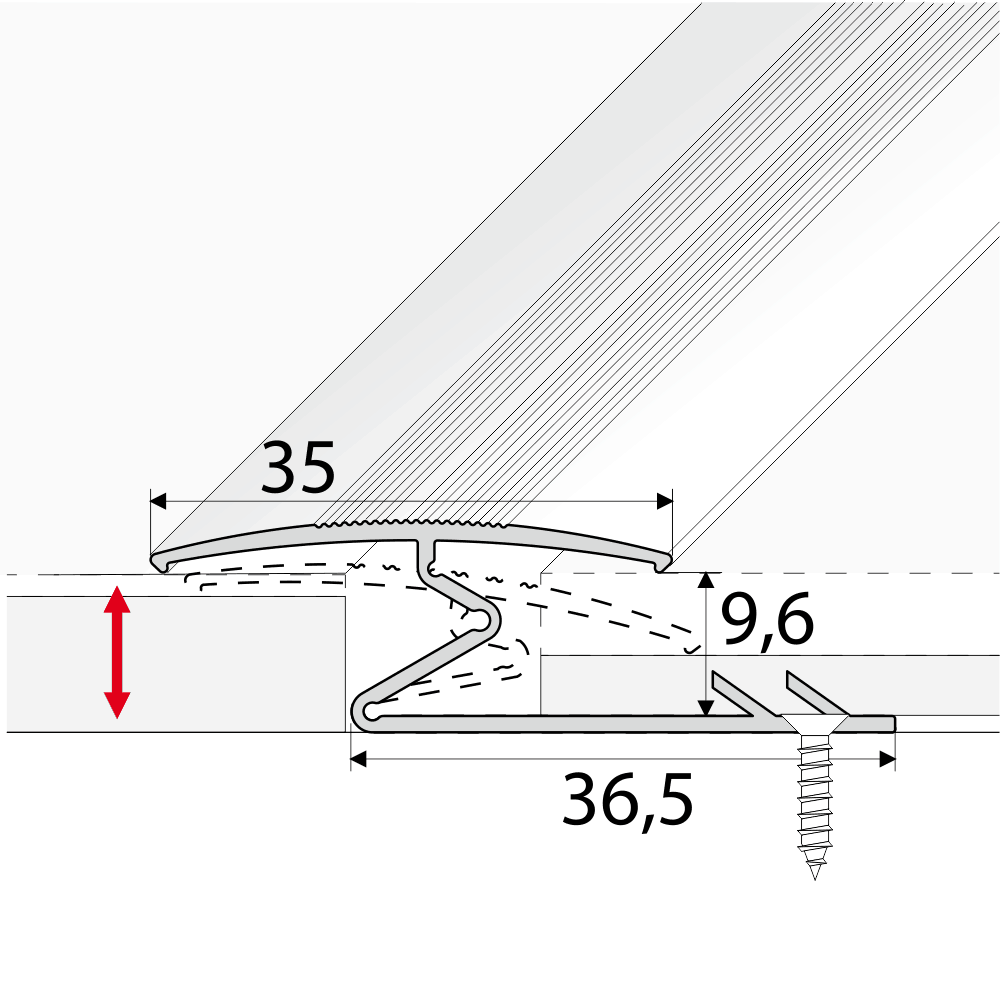

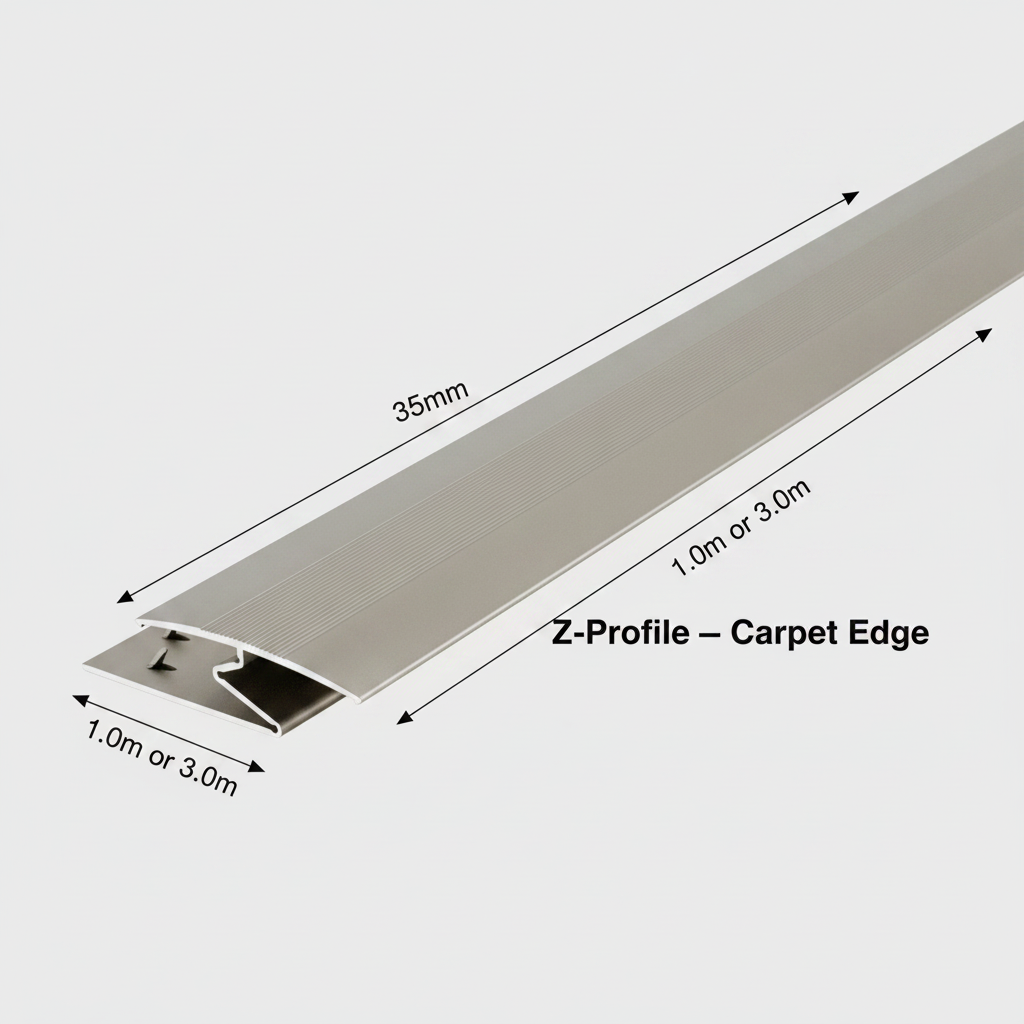

• 35mm wide profile — wide enough to cover the carpet edge cleanly and bridge the gap to the adjacent hard floor.
• Pre-drilled screw holes — fixing positions pre-marked. Screws and plugs included. No guesswork, no extra hardware to buy.
• 5 premium finishes — match your door ironmongery, skirting board trims, or stair nosings for a coordinated finish throughout the property.
• Cuttable — both lengths can be cut to any shorter size with a metal saw. File edges smooth after cutting.

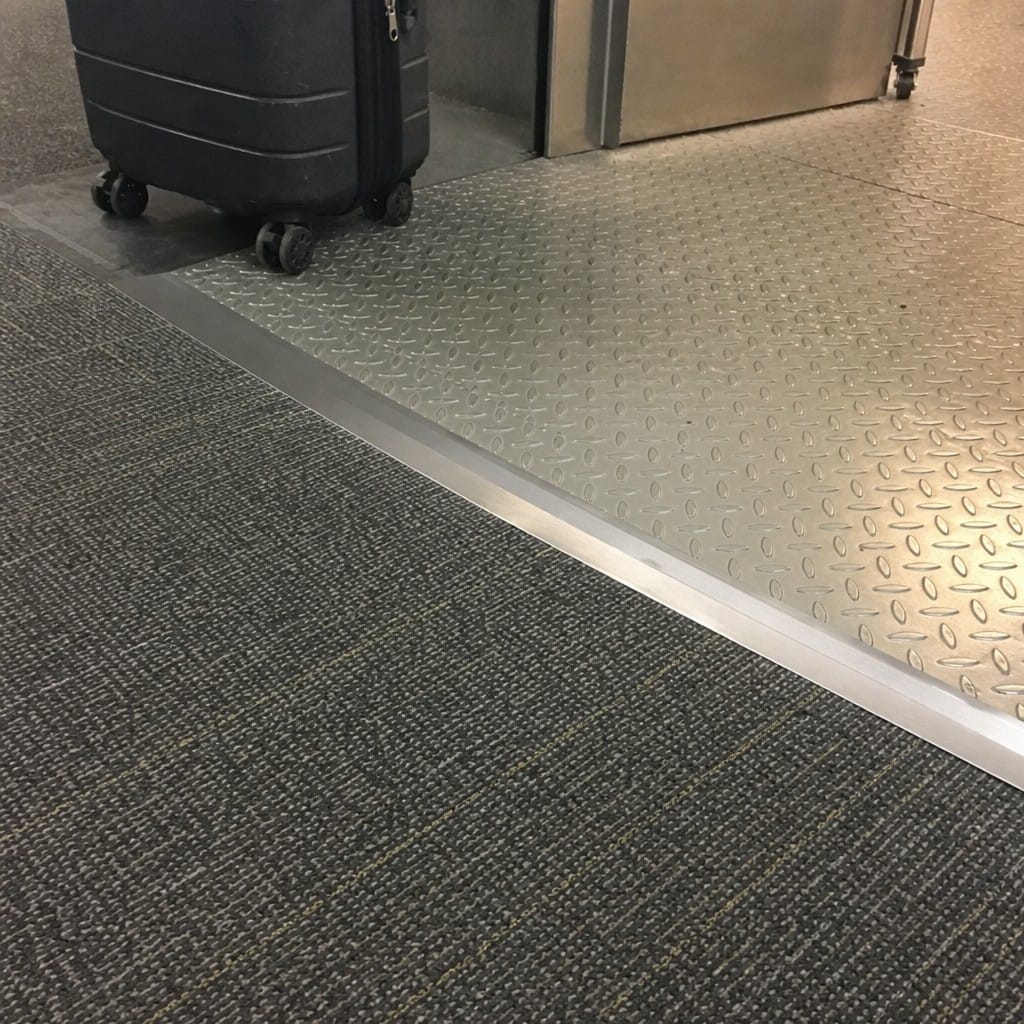

Where to Use a Z-Profile Carpet Threshold

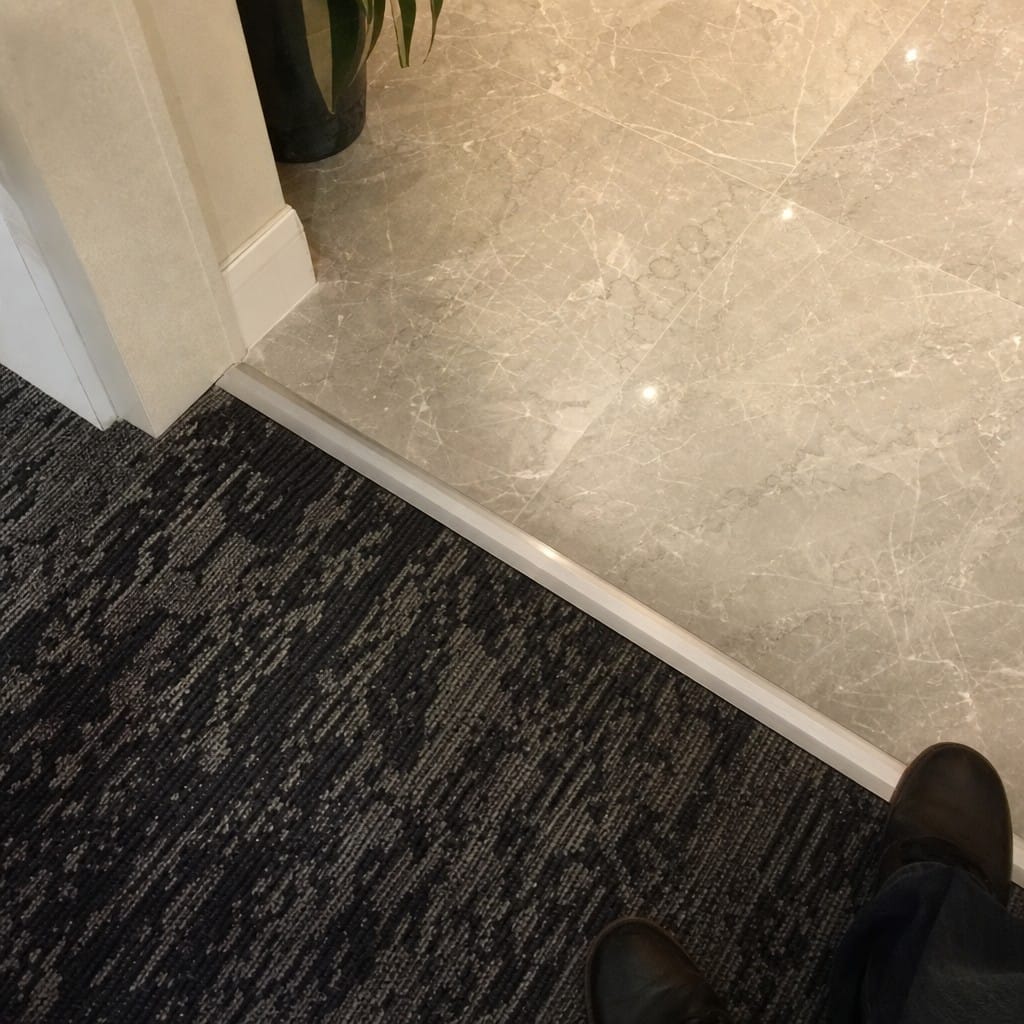

Z-profile carpet thresholds are the correct choice wherever a carpet edge needs securing at a boundary with a hard floor:

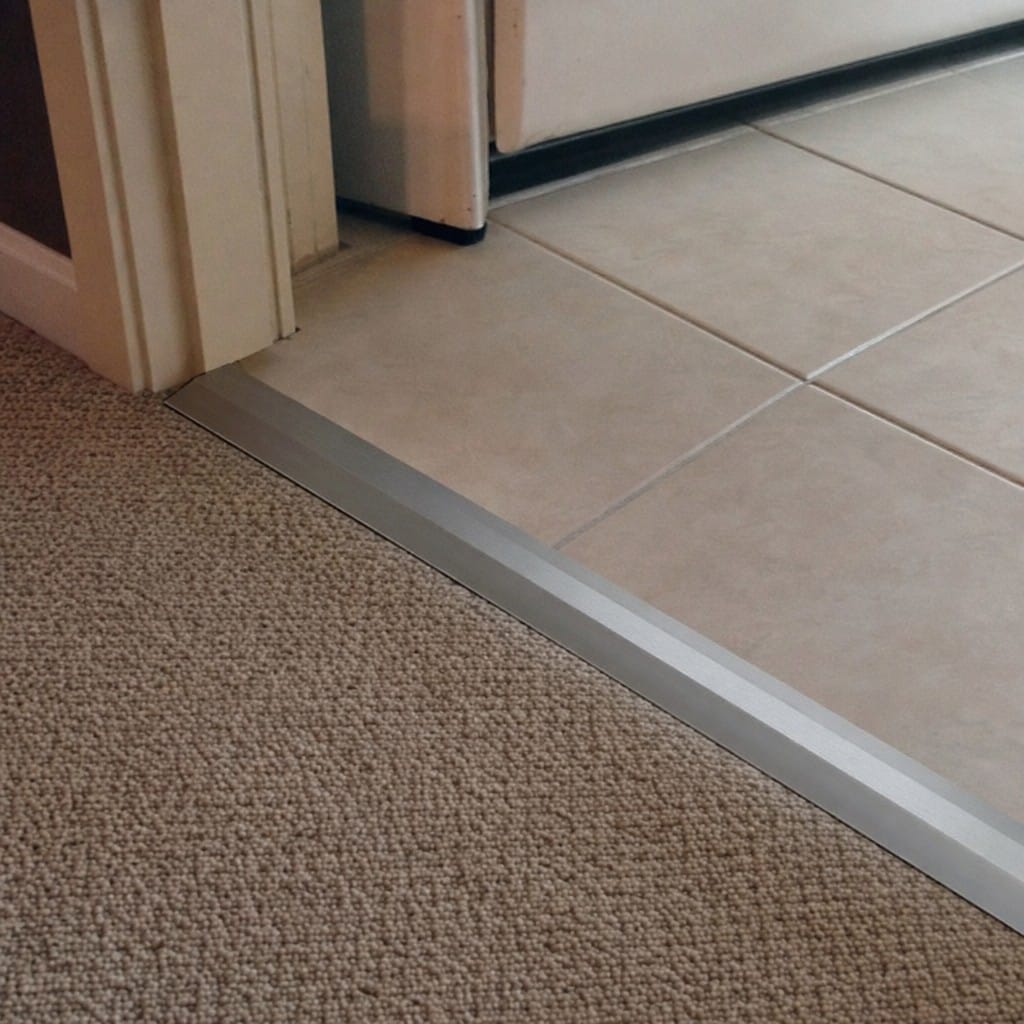

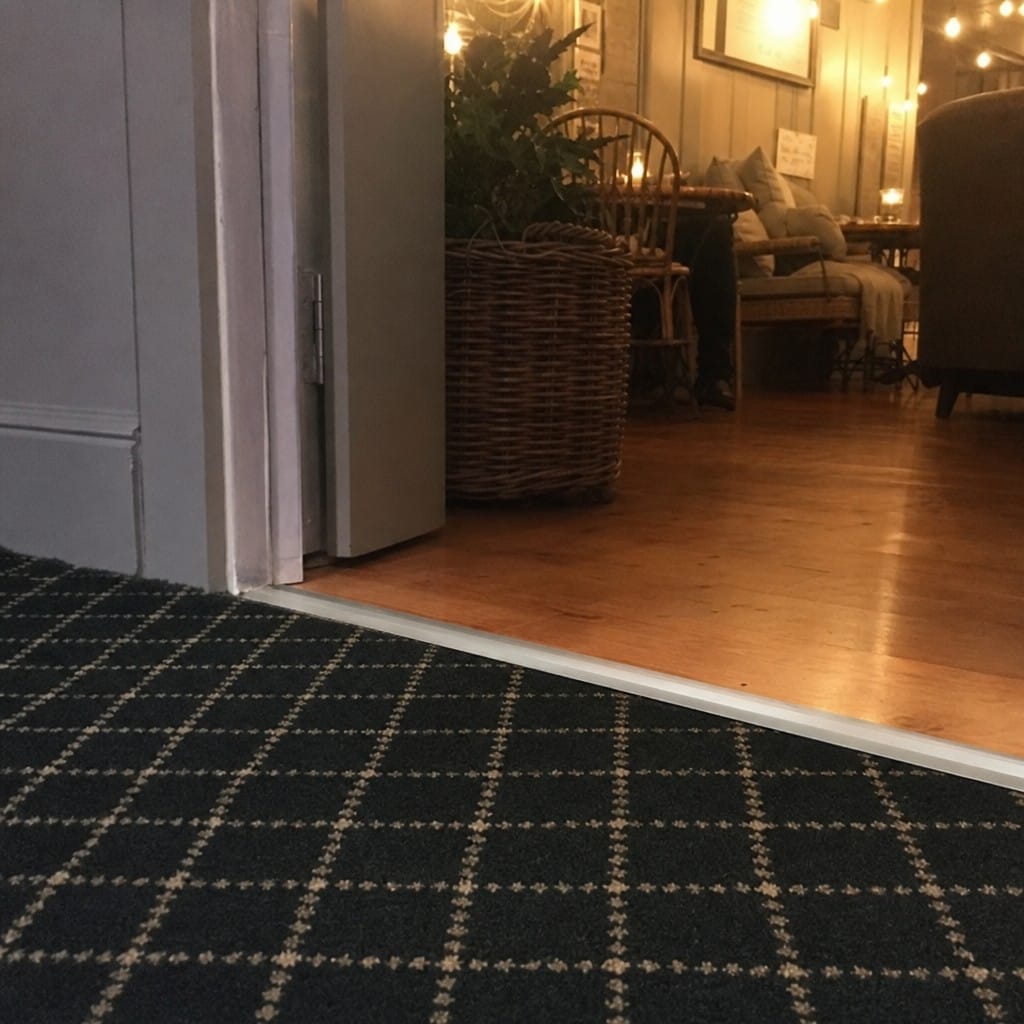

• Hallway carpet meeting a laminate or tiled living room floor

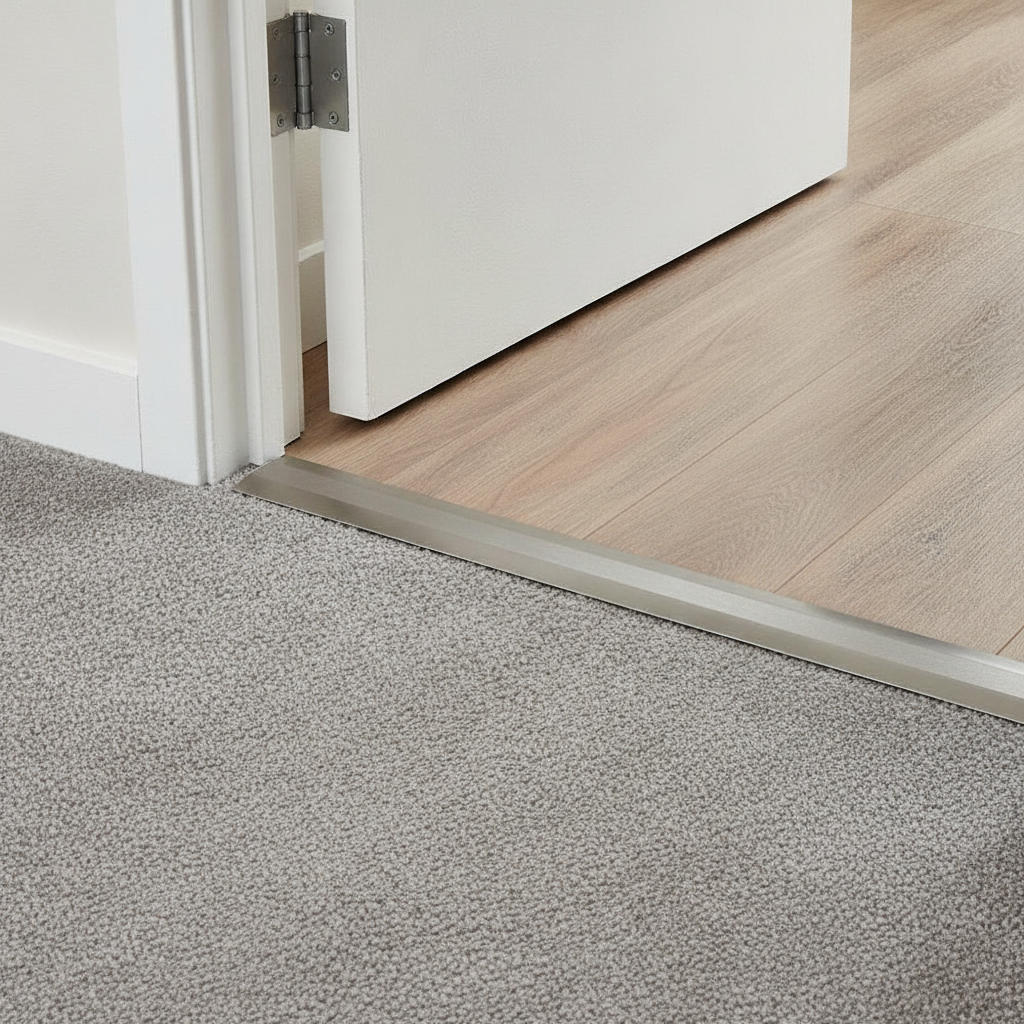

• Bedroom carpet at the doorway to a laminate landing

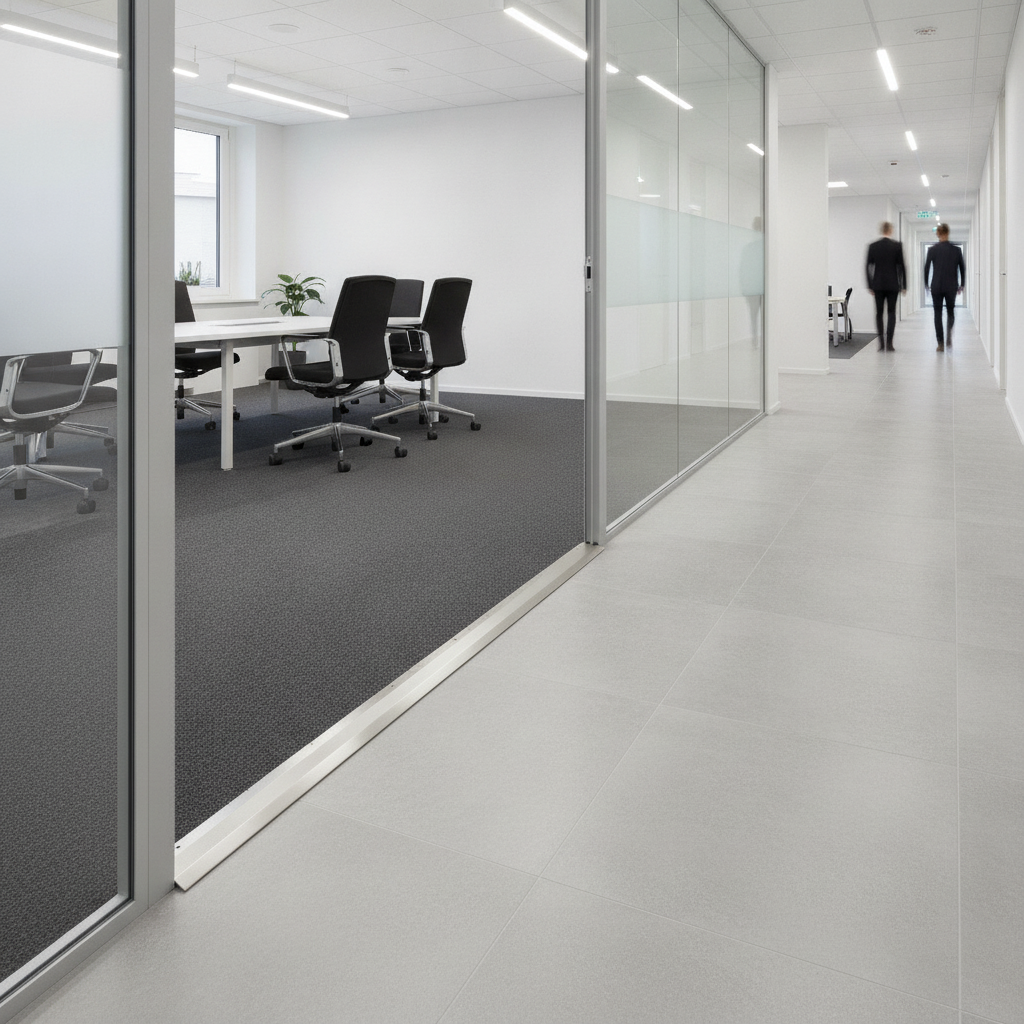

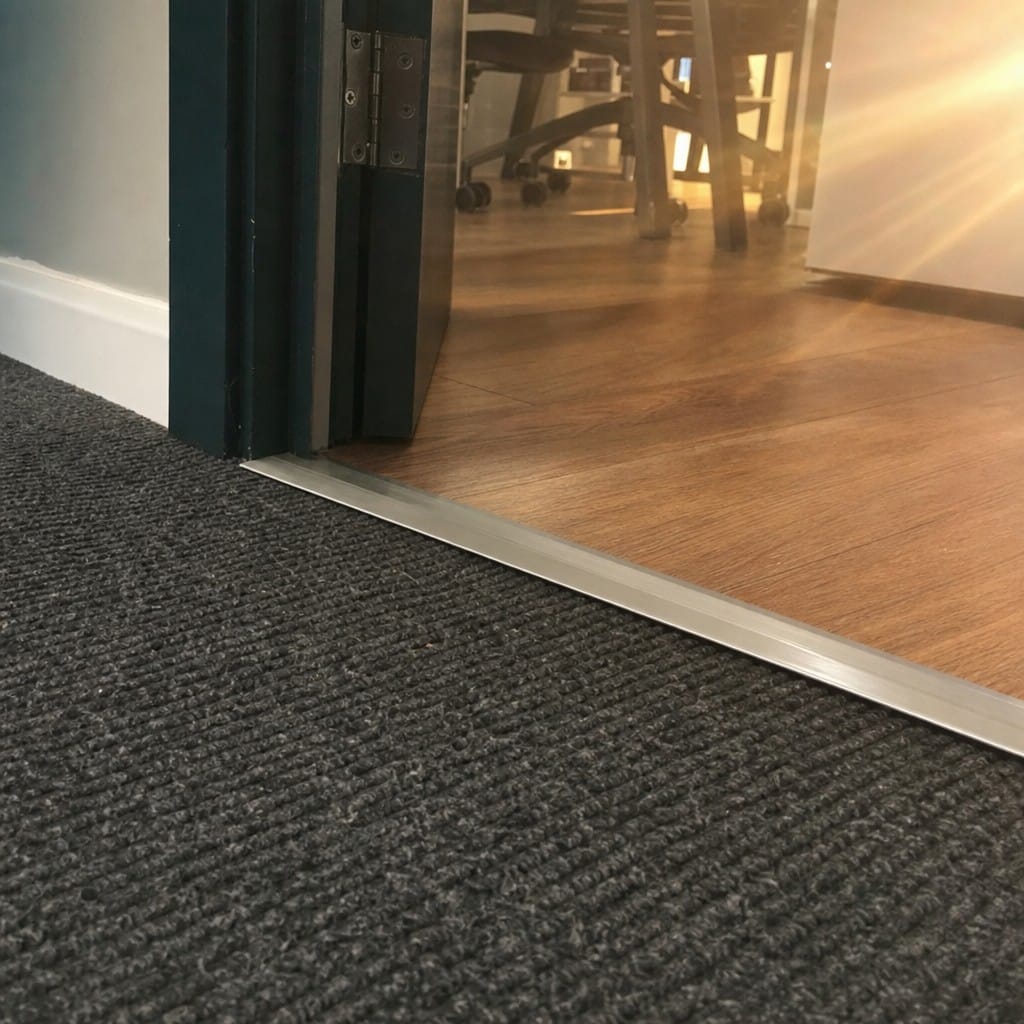

• Carpeted office meeting room at tiled or vinyl corridor
• Hotel rooms where carpet meets hard corridor flooring

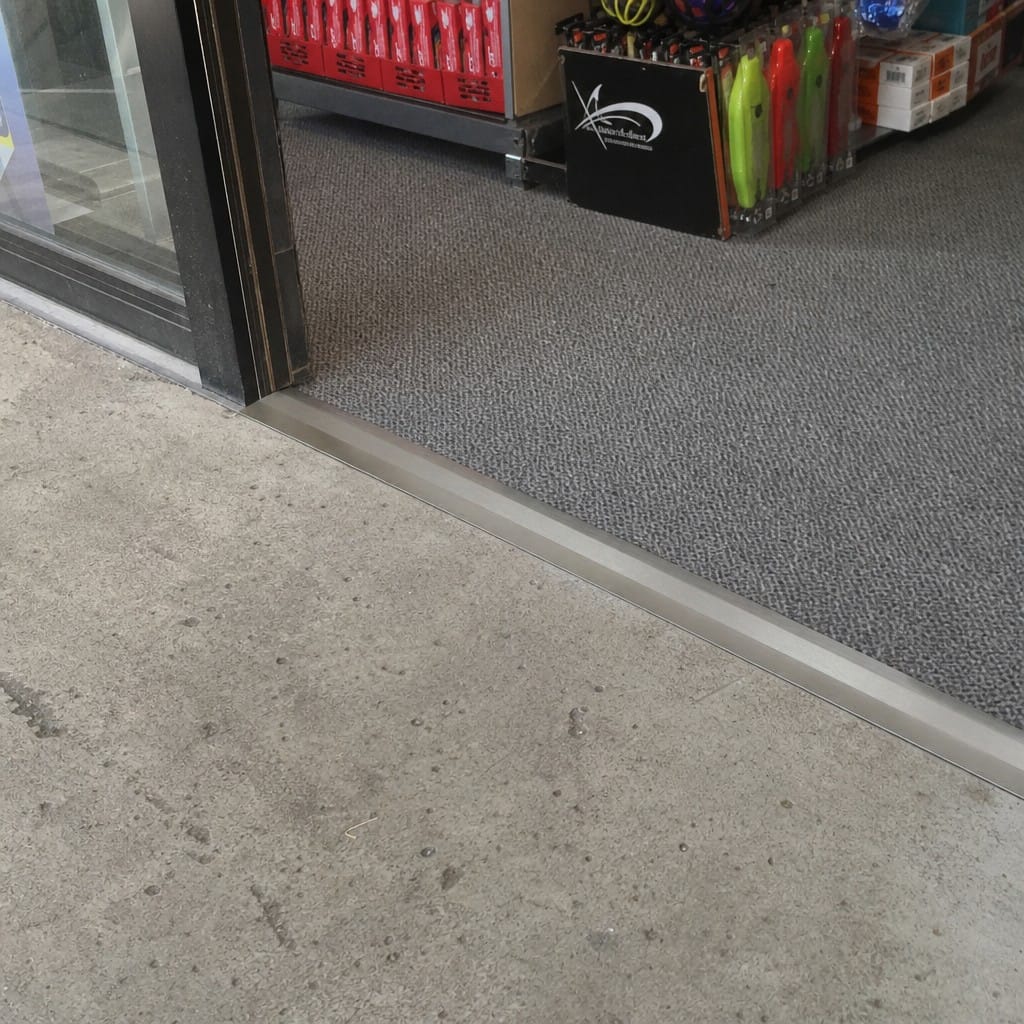

• Retail fitting rooms or hospitality areas
• Stair landings where carpet meets hard flooring at the top or bottom of stairs

⚠️ Important: This Z-profile is designed for carpet-to-hard-floor transitions where the carpet level is slightly higher than the hard floor (typical for underlay installations). If both floors are at exactly the same level, a flat threshold or T-bar may be more appropriate.

How to Install a Z-Profile Carpet Threshold

1. Lay the hard floor first — ensure the laminate, tile, or vinyl is fully installed up to the door opening.
2. Measure and cut the Z-profile to the doorway width using a metal saw or angle grinder. File cut edges smooth.
3. Position the profile — place the lower flange flat on the subfloor at the carpet edge, aligning the Z-channel above the carpet edge.
4. Mark fixing holes through the pre-drilled positions onto the subfloor.
5. Drill and plug — drill pilot holes and insert the supplied wall plugs.
6. Tuck the carpet edge into the Z-channel while screwing down the lower flange.
7. Screw down firmly with the supplied screws — the carpet edge should now be fully secured inside the Z-channel.

Frequently Asked Questions

What is the difference between a Z-profile and a flat carpet threshold?

A Z-profile (this product) grips the carpet edge inside its Z-shaped channel, holding it securely without tack strips. A flat threshold bar simply bridges two floor surfaces at the same level but does not grip or contain the carpet edge. Z-profiles are the correct choice when you need to terminate a carpet edge cleanly at a hard floor boundary.

Can this be used on thick or high-pile carpet?

This Z-profile is designed for standard residential carpet and commercial carpet tiles. For very thick or deep-pile carpet (over 12mm pile height), the Z-channel may not close fully over the carpet edge — in that case, a wider or taller carpet edge gripper profile may be required.

Do I need to remove the carpet gripper rod first?

The Z-profile replaces the carpet gripper rod at the doorway edge. Remove any existing gripper rod and nail down the Z-profile instead. The profile holds the carpet edge securely without the sharp tacks of a gripper rod.

Can this be cut to a shorter length?

Yes. Both the 1.0m and 3.0m lengths can be cut to any shorter dimension using a metal-cutting saw blade or angle grinder. Always file the cut end smooth before installation.

What is the best colour for a silver chrome door handle?

Silver or Inox. Silver is brighter and more polished, matching chrome handles closely. Inox has a brushed stainless appearance, which complements brushed nickel or satin chrome handles.

Is this profile suitable for commercial use?

Yes. Anodised aluminium handles the demands of commercial foot traffic in offices, hotels, retail, and hospitality environments. The screw-fix system ensures a permanent, secure installation.

How long does installation take?

A standard doorway installation typically takes 10–20 minutes. It requires basic DIY tools: a metal saw or angle grinder, a drill, and a screwdriver.

How much profile do I need?

Measure the width of each doorway or carpet boundary that needs finishing. Standard UK internal doorways (762–838mm) are covered by the 1.0m length with material to spare. Wide openings, double doors, or commercial runs may need the 3.0m length.

Why Buy From Stair Nosings UK?

• ✅ UK stock — fast dispatch, no overseas delays
• ✅ Flooring trims specialists — carpet profiles, stair nosings, and floor edging are our expertise

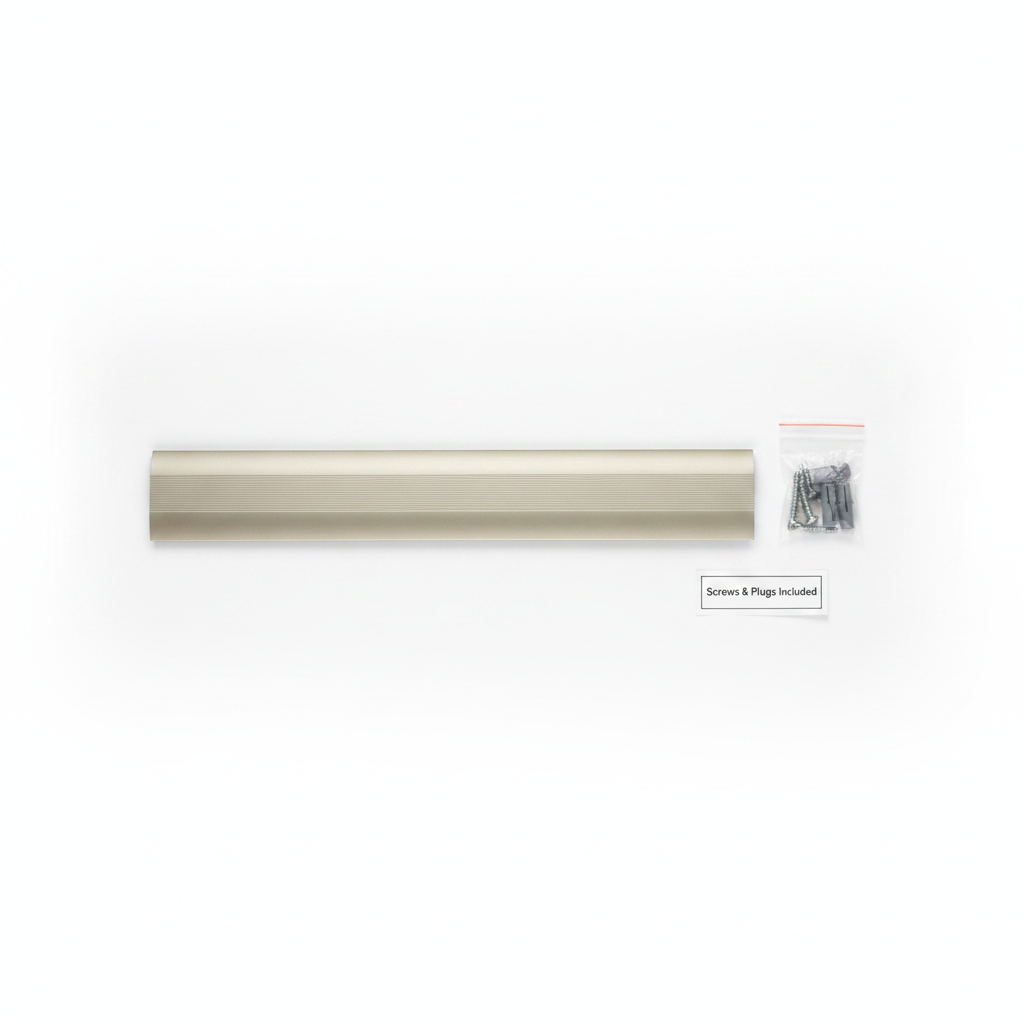

• ✅ Complete kit — screws and plugs included in every pack
• ✅ 5 finishes, 2 lengths — the right combination for any project
• ✅ Trade and DIY — used by flooring contractors and homeowners across the UK
• ✅ Secure checkout — major payment methods accepted

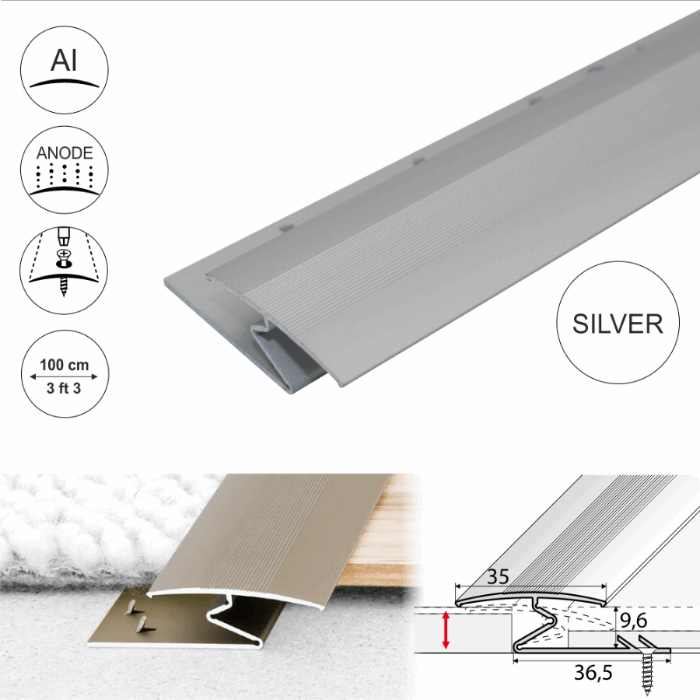

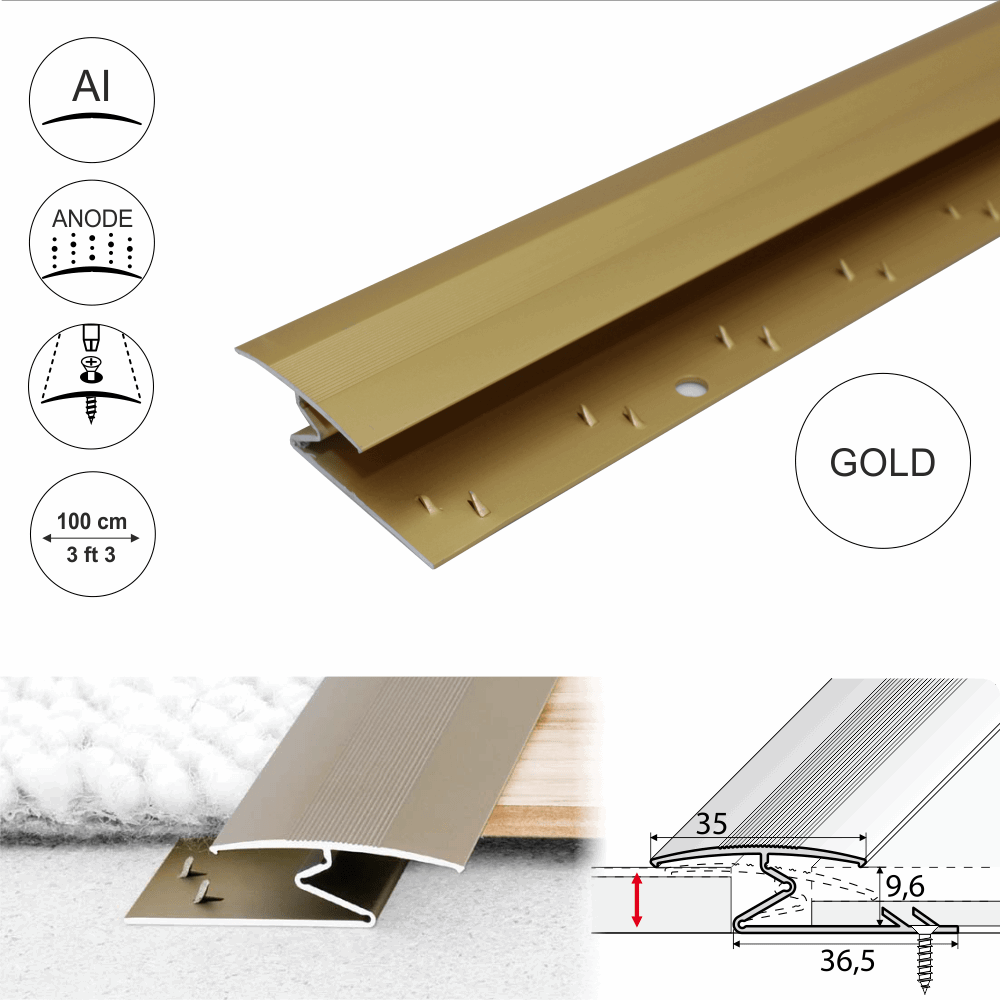

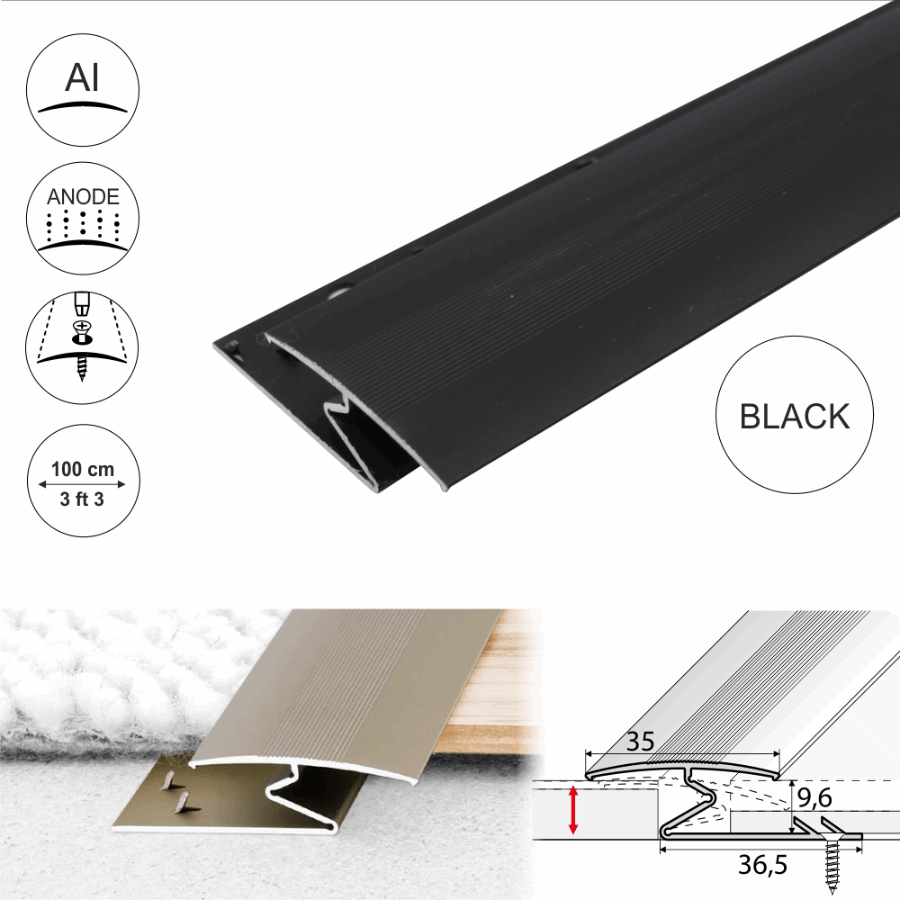

Available in Silver, Gold, Champagne, Inox, and Black. Lengths: 1.0m and 3.0m. Screws and plugs included. Select your colour and length above.
